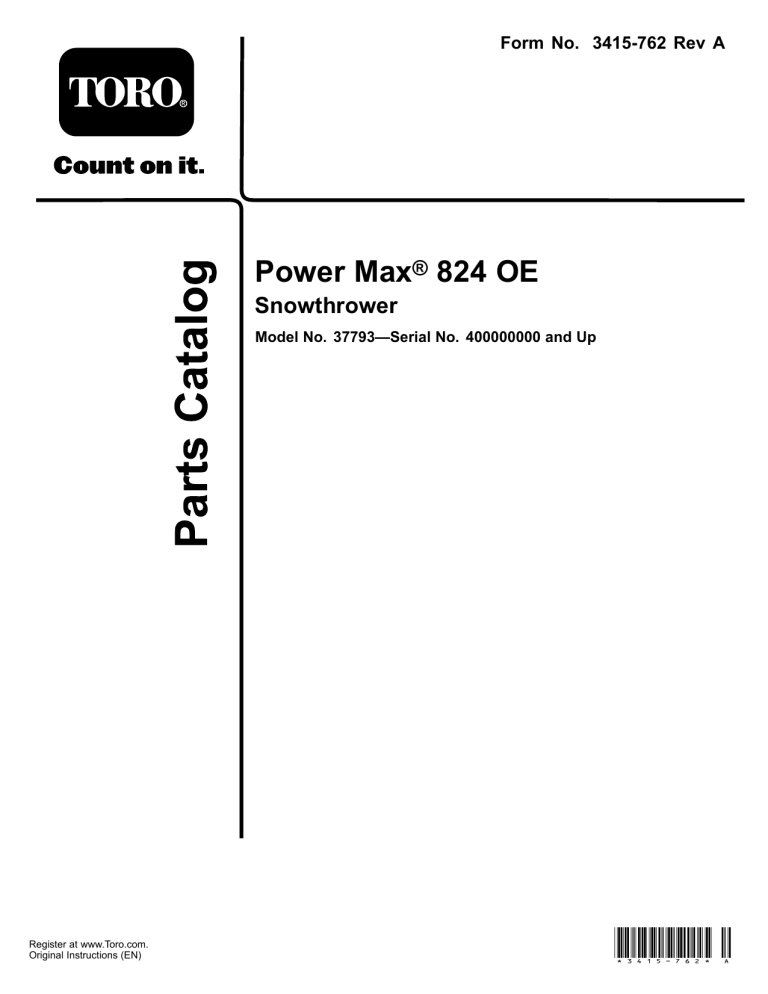

Form No. 3415-762 Rev A
Parts Catalog
Power Max® 824 OE
Register at www.Toro.com.
Original Instructions (EN)
Snowthrower
Model No. 37793—Serial No. 400000000 and Up
*3415-762* A
Ordering Replacement Parts
For example, a wheel assembly might be identified by
reference number 6, the tire by 6:1, the valve by 6:2, and
the wheel by 6:3. When you order the assembly identified
by reference number 6, you receive all parts identified by
reference numbers 6:1,6:2, and 6:3. However, you may
also order any part individually. Reference numbers of this
type appear in illustration and in parts lists.
To order replacement parts, please supply the part number,
the quantity, and the description of each part desired.
Understanding Reference Numbers
Each identified part in an illustration has a reference
number. The reference number for a part also appears in
the parts list, along with other information about the part.
This catalog uses two special reference number formats,
one to indicate parts in a service assembly and another to
indicate the quantity of a given part in an illustration.
Reference Numbers Indicating Quantity
In an illustration, if a reference number indicates more than
one part, the reference number has the form nX y. The n
represents the quantity of the part, the X is the multiplication
symbol, and the y represents the reference number.
Service Assembly Reference Numbers
Parts in service assemblies have reference numbers in the
form a:b. The a represents the reference number of the
entire service assembly and the b represents a sequential
number unique to each part within the service assembly.
For example, in an illustration, the reference number 2X 37
means that two of the parts identified by reference number
37 are indicated.
2
Contents
Main Frame and Auger Housing Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pulley and Bellcrank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Impeller Drive Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Drive Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Gearbox, Auger and Impeller Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
24 Inch Auger Gearcase Assembly No. 120-3859 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Impeller Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Engine Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fuel System and Carburetor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Intake and Exhaust Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Ignition and Electrical Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Crankcase Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Governor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Piston and Head Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Blower Housing and Shrouds Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Engine Decal Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Chute Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Lever Chute Control Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Handle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Control Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Attachments and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
© 2017—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
3
Contact us at www.Toro.com.
Printed in the USA.
All Rights Reserved
Main Frame and Auger Housing Assembly
3415-762A
4
A2
Main Frame and Auger Housing Assembly (continued)
Ref.
1
2
3
4
5
6
7
8
9
10
11
12
13
Part Number Qty. Description
46-8091
6 Screw-HWH
52-2861
4 Washer
94-2413
4 Nut-U
106-4588-01
2 Skid
114-3751
1 Screw-HWH, Plastite
121-6833
1 Stick-Cleanout
119-7626
1 Guide-Chute
119-7601-01
1 Scraper-24 Inch
120-7158-01
1 Cover-Liner
120-7159
1 Cover
120-7161-01
1 Brace-Frame
120-7170-03
1 Support-Chute
120-7177
1 Cover-Belt
Ref.
14
15
16
17
18
21
22
23
24
25
27
28
30
5
Part Number Qty. Description
120-7178
1 Cover-Lower
120-7179-03
1 Handle-Lower
120-7181
1 Seal-Housing, LH
131-6468
1 Frame
121-1218
1 Plate-Stud Engine
5 Screw-CARR
3230-18
3234-29
4 Screw-HHF
3296-29
4 Nut-Lock, NI
5 Nut-Lock, NI
3296-47
32144-85
17 Screw-HWH
121-6817
1 Decal-Danger, Auger
121-6841
1 Seal-Housing, RH
3230-23
4 Screw-CARR
3415-762A
Pulley and Bellcrank Assembly
3415-762A
6
B2
Pulley and Bellcrank Assembly (continued)
Ref.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Part Number Qty. Description
3-4244
1 Pulley-Idler
92-9698
1 Screw-Shoulder
38-7820
2 Bearing-Ball
25-5640
1 Washer
117-7711
1 Bushing-Idler
119-7645
1 Plate-Wheel, Friction
136-7152
1 Traction Pulley ASM
136-7124
1 Retainer-Bearing
119-7670-03
1 Bellcrank-Drive
136-7153
1 Spring-Extension
119-7679
1 Bracket-Plate, Traction
120-3883
1 Spring-Extension
137-3435
1 Spring - Extension
120-7156
2 Bushing-Plate, Traction
Ref.
15
16
17
18
19
20
21
22
23
24
25
26
27
28
7
Part Number Qty. Description
120-7165-03
1 Bracket-Bellcrank
136-7155
1 Link-Drive
120-9271
2 Bracket-Anchor, Spring
136-7159
1 Arm-Idler, Traction
120-9275
1 Spring-Extension
256-257
2 Bushing-Nyliner
323-29
1 Screw-HH
3230-10
1 Bolt-CARR
3296-29
1 Nut-Lock, NI
3296-59
1 Nut-Lock, NI
3296-73
1 Nut-Lock, NI
7 Screw-HWH
32144-85
104-8301
1 Nut-HF, NI
3256-24
1 Washer-Flat
3415-762A
Impeller Drive Assembly
3415-762A
8
B3
Impeller Drive Assembly (continued)
Ref.
1
2
3
4
5
6
Part Number Qty. Description
3-4244
1 Pulley-Idler
66-8060
1 Pad-Brake
136-8674
1 Bolt-Pivot, Eccentric
120-7167
1 Bushing-Rod, Clutch
120-9254-03
1 Impeller Clutch ASM
120-9256
1 Pivot-Brake, Impeller
Ref.
7
8
9
10
11
12
9
Part Number Qty. Description
120-9257-03
1 Arm-Brake, Impeller
120-9276
1 Eccentric-Brake, Impeller
323-29
1 Screw-HH
3296-42
1 Nut-Lock, NI
3296-59
1 Nut-Lock, NI
32144-85
3 Screw-HWH
3415-762A
Drive Assembly
3415-762A
10
B4
Drive Assembly (continued)
Ref.
1
2
3
4
5
6
7
8
9
10
11
12
Part Number Qty. Description
3-8664
3 Washer-Thrust
119-1567
1 Wheel-Friction
107-3039
2 Klik Pin ASM
120-7950
3 Screw-Shoulder
119-7613
1 Gear-Axle
119-7615
1 Shaft-Hex
119-7616
1 Gear-Pinion, 8 Tooth
121-6835
3 Bearing-Ball
119-7630
1 Trunnion
119-7684
1 Spacer-Plate, Shift
120-7162
2 Bushing-Axle
120-7180
1 Axle
Ref.
13
14
15
16
17
18
19
20
21
22
23
24
11
Part Number Qty. Description
120-7191
1 Retainer-Plate, Shift
120-7193-03
1 Shift Plate ASM
136-7158
2 Retainer-Bearing
137-3429
1 Wheel And Tire LH
137-3430
1 Wheel And Tire RH
3257-7
1 Key-Woodruff
3290-343
2 Pin-Hair
3296-56
4 Nut-Lock, NI
32121-9
1 Pin-Roll, Slotted
32144-85
6 Screw-HWH
32144-86
1 Screw-HWHTF
121-6840
2 Washer-Rubber
3415-762A
Gearbox, Auger and Impeller Assembly
3415-762A
12
C2
Gearbox, Auger and Impeller Assembly (continued)
Ref.
2
3
4
5
6
Part Number Qty. Description
119-7612-03
1 Impeller ASM
120-3859
1 Gearcase ASM
120-3860
2 Bearing-Auger
120-3862
2 Washer-Thrust
120-9287-03
1 LH Auger ASM
Ref.
7
9
10
11
12
13
Part Number Qty. Description
120-9290-03
1 RH Auger ASM
322-3
2 Screw-HH
3296-42
4 Nut-Lock, NI
321-10
4 Screw-HH
32144-70
4 Screw-HWHTF
3415-762A
24 Inch Auger Gearcase Assembly No. 120-3859
3415-762A
14
C2A1
24 Inch Auger Gearcase Assembly No. 120-3859 (continued)
Ref.
1
1:2
1:3
2
3
4
5
6
7
Part Number Qty. Description
121-1209
1 RH Auger Gearcase ASM
121-6634
1 Seal-Shaft
120-9269
1 Bushing-Sleeve
119-7640
4 Washer-Thrust
120-3858
1 Shaft-Output, Auger
3257-5
1 Key-Woodruff
119-1576
1 Gear-Helical, 20 Tooth
119-7635
1 Bushing-Input
119-7636
1 Collar-Thrust
Ref.
8
9
10
11
12
12:2
12:3
13
14
15
Part Number Qty. Description
121-1234
1 Shaft-Impeller, Rolled
62-1150
1 Bushing-Worm
107-8899
1 Pin-Dowel
121-6634
1 Seal-Shaft
121-1210
1 LH Auger Gearcase ASM
121-6634
1 Seal-Shaft
120-9269
1 Bushing-Sleeve
121-6832
1 Plug-Pipe, SQH
108-4862
6 Screw-HWHTF
3415-762A
Impeller Assembly
3415-762A
16
C3
Impeller Assembly (continued)
Ref.
1
2
3
4
5
Part Number Qty. Description
26-6110
1 Flange-Cup, Bearing
26-6120
1 Flange-Cup, Bearing
136-7157
1 Pulley-Impeller
120-9264
1 Hub-Impeller, Pulley
120-9272
1 Bearing
Ref.
6
7
8
9
10
17
Part Number Qty. Description
121-1230
1 Washer-Plain
115-5142
1 Screw-HHF
3230-23
3 Screw-CARR
3296-29
3 Nut-Lock, NI
119-7640
1 Washer-Thrust
3415-762A
Engine Assembly
3415-762A
18
D2
Engine Assembly (continued)
Ref.
1
2
3
4
5
6
7
Part Number Qty. Description
136-7752
1 Engine-G250Fds-1
120-3892
1 Belt-V
120-3893
1 Belt-V
136-7156
1 Guide-Belt
120-9283
1 Pulley-Auger, Rear
120-9284
1 Pulley-Auger, Front
121-6804
2 Pulley-Traction
Ref.
8
9
10
11
12
13
14
19
Part Number Qty. Description
33114-020
2 Screw-HH
120-2302
1 Screw - HH
3253-21
1 Washer-Lock
3253-4
2 Washer-Lock
3256-23
2 Washer-Plain
3256-4
1 Washer-Flat
32128-20
4 Nut-HF
3415-762A
Fuel System and Carburetor Assembly
3415-762A
20
02
Fuel System and Carburetor Assembly (continued)
Ref.
1
2
2:2
3
4
5
6
7
8
9
Part Number Qty. Description
133-9823
1 Cap-Fuel
133-1553
1 Fuel Tank And Filter ASM
127-9065
1 Filter-Fuel
121-0294
1 Screw-HHF
127-9120
1 Clamp-Hose
133-1556
1 Hose-Fuel
133-9997
1 Sleeve-Abrasion
121-0087
3 Clamp-Hose
120-4236
1 Nut-Flange
127-9117
1 Valve-Fuel
Ref.
10
11
12
13
14
15
16
17
99
Part Number Qty. Description
127-9489
1 Hose-Fuel
133-1531
1 Gasket-Carburetor
133-1532
1 Insulator-Carburetor
133-1533
1 Gasket-Carburetor
133-1534
1 Carburetor ASM
121-0080
1 Gasket-Carburetor
127-9079
1 Primer Kit
127-9395
1 Internal Carb Service Kit
133-9937
1 High Altitude Kit ●
● Not illustrated
21
3415-762A
Intake and Exhaust Assembly
3415-762A
22
03
Intake and Exhaust Assembly (continued)
Ref.
1
2
3
4
5
Part Number Qty. Description
121-0294
6 Screw-HHF
127-9491
1 Muffler Cover ASM
121-0199
2 Nut-HH
127-9490
1 Muffler ASM
133-1539
1 Gasket-Exhaust
Ref.
6
7
8
9
23
Part Number Qty. Description
121-0464
2 Stud-Exhaust
121-4112
2 Stud-Intake
127-9112
1 Box-Heater
121-0308
2 Nut-Flange
3415-762A
Ignition and Electrical Assembly
3415-762A
24
04
Ignition and Electrical Assembly (continued)
Ref.
1
2
3
4
5
6
7
8
9
Part Number Qty. Description
121-0306
2 Screw-Bhp
121-0312
2 Washer-Plain
133-9998
1 Motor-Starter
133-1546
2 Screw-Flange
121-0055
2 Pin-Dowel
121-0047
1 Nut-Flange
133-1527
1 Cup-Starter
133-1526
1 Fan-Cooling
133-1525
1 Flywheel And Ring Gear
ASM
Ref.
10
11
12
13
14
15
16
17
18
19
25
Part Number Qty. Description
121-0284
1 Switch-Kill, Engine
120-4461
1 Screw-PPH
127-9123
3 Screw-HHF
133-1554
1 Bracket-Switchbox, Starter
121-0017
1 Clip-Harness, Wire
121-0097
2 Screw-HHF
133-9996
1 Ignition Coil ASM
117-7728
1 Key
121-0283
1 Switch-Key
121-0326
1 Clip
3415-762A
Crankcase Assembly
3415-762A
26
05
Crankcase Assembly (continued)
Ref.
1
2
3
4
5
6
7
8
Part Number Qty. Description
133-9866
1 Oil Fill Assembly
127-9123
1 Screw-HHF
121-4114
6 Screw-HHF
133-9805
1 Plug-Drain
133-1516
1 Seal-Oil
133-9865
1 Cover-Crankcase
127-9493
1 Gasket-Cover, Crankcase
121-0054
2 Pin-Dowel
Ref.
9
10
11
13
14
15
16
17
27
Part Number Qty. Description
133-9991
1 Camshaft ASM
127-9495
1 Crankshaft
120-4320
1 Key-Woodruff
121-0030
2 Screw-HHF
121-0048
3 Washer-Plain
127-9104
1 Tube-Drain, Oil
133-9864
1 Seal-Oil
133-9863
1 Washer-Thrust
3415-762A
Governor Assembly
3415-762A
28
06
Governor Assembly (continued)
Ref.
1
2
3
4
5
6
7
Part Number Qty. Description
120-4236
1 Nut-Flange
120-4238
1 Bolt-Arm, Governor
127-9482
1 Arm-Governor
120-4256
1 Pin-Hair
133-9995
1 Shaft-Governor
121-0498
1 Washer-Plain
133-9994
1 Governor Gear ASM
Ref.
8
9
10
11
12
13
29
Part Number Qty. Description
127-9483
1 Spring-Governor
121-0116
2 Screw-HHF
133-1555
1 Throttle Control ASM
121-0269
1 Knob-Control, Throttle
133-1536
1 Spring-Return, Throttle
133-1535
1 Rod-Governor
3415-762A
Piston and Head Assembly
3415-762A
30
07
Piston and Head Assembly (continued)
Ref.
1
2
3
4
5
6
7
8
9
10
11
12
13
Part Number Qty. Description
120-4454
4 Screw-HHF
133-1500
1 Valve Cover ASM
133-1558
1 Clamp-Hose
133-9990
1 Tube-Breather
133-1507
1 Gasket-Cover, Valve
133-1508
4 Screw-Flange
81-3250
1 Spark Plug
133-1509
1 Head-Cylinder
133-1510
1 Gasket-Head
120-4200
2 Pin-Dowel
133-1511
4 E-Clip
133-1512
2 Pin-Arm, Rocker
133-1513
2 Rocker Arm ASM
Ref.
14
15
16
17
18
19
20
21
22
23
24
25
26
31
Part Number Qty. Description
121-4116
2 Rotator-Valve
121-4117
2 Retainer-Spring, Valve
127-9014
2 Spring-Valve
121-4202
1 Seal-Stem, Valve
133-1515
1 Set-Valve
133-1514
2 Rod-Push
127-9015
2 Tappet-Valve
133-1522
1 Piston
121-0313
2 Clip-Pin, Piston
121-4128
1 Pin-Piston
121-4123
1 Connecting Rod ASM
133-1521
1 Set-Ring, Piston
133-9867
1 Complete Head ASM
3415-762A
Blower Housing and Shrouds Assembly
3415-762A
32
08
Blower Housing and Shrouds Assembly (continued)
Ref.
1
2
3
4
5
6
7
8
Part Number Qty. Description
121-0116
3 Screw-HHF
133-1530
1 Shroud-Head
127-9383
2 Nut-Acorn
133-1557
1 Panel-Control, Front
121-0268
1 Knob-Valve, Fuel
121-0305
1 Screw-Bhp
127-9110
2 Stud-Mount
133-1543
1 Panel-Side, Engine
Ref.
9
10
11
12
12:1
13
14
15
33
Part Number Qty. Description
127-9123
1 Screw-HHF
133-1528
1 Shroud-Flywheel
121-0294
3 Screw-HHF
127-9487
1 Recoil ASM
121-0287
1 Handle-Recoil
127-9380
4 Washer-Plain
127-9031
4 Screw-HHF
133-1548
1 Grommet-Rubber
3415-762A
Engine Decal Assembly
3415-762A
34
D3
Engine Decal Assembly (continued)
Ref.
1
2
Part Number Qty. Description
120-9805
1 Decal-Control, Engine
131-5911
1 Decal-Engine Series, G250
Ref.
3
4
35
Part Number Qty. Description
131-5912
1 Decal-Recoil, G250
131-6487
1 Decal-Throttle
3415-762A
Chute Assembly
3415-762A
36
E2
Chute Assembly (continued)
Ref.
1
2
3
4
5
6
9
10
13
14
15
16
17
18
19
20
Part Number Qty. Description
46-8091
6 Screw-HWH
94-4496
1 Screw-PPH
98-1375
1 Screw-HWH
136-7199
1 Bolt-Shoulder
136-7191
2 Clamp-Cable
136-7145
1 Rod-Deflector
119-7627
1 Ring-Chute
133-5590
1 Chute-Discharge
120-3852
1 Mount-Chute, Discharge
120-3853
1 Gear-Chute
120-3854
1 Gear-Bevel
120-3855
1 Mount-Gear, Bevel
120-3856
1 Washer-Flat
120-3869
1 Latch-Chute
136-7154
1 Spring, Chute Latch
136-7143
1 Spring-Torsion
Ref.
21
22
23
24
25
26
27
28
29
30
31
32
33
35
36
38
37
Part Number Qty. Description
120-9299
1 Chute-Cover
121-1207-03
1 Bracket-Support, Chute
121-1215
1 Deflector-Chute
136-7195
1 Bolt, Shoulder
121-1237-03
1 Bracket-Mount, Chute
321-11
3 Screw-HH
321-5
4 Screw-HH
3230-5
2 Screw-CARR
3256-2
2 Washer-Flat
3256-22
2 Washer-Flat
3296-29
3 Nut-Lock, NI
5 Nut-Lock, NI
3296-42
32144-10
1 Screw-HWH
3296-42
2 Nut-Lock, NI
121-6843
1 Bracket-Support, Latch
125-1121
1 Decal-Guarantee
3415-762A
Lever Chute Control Assembly
3415-762A
38
F2
Lever Chute Control Assembly (continued)
Ref.
1
2
3
4
5
6
7
8
9
10
11
Part Number Qty. Description
5 Screw-PPH
94-4496
98-1375
1 Screw-HWH
105-9982
1 Spring-Torsion
105-9984
1 Trigger-Latch
136-7127
1 Link-Latch
105-9986
1 Cover-Lever, Chute (LH)
105-9988
1 Lever-Cable, Deflector
121-6815
1 Cable-Release, Chute
131-6471
1 Cable-Control, Deflector
136-7190
1 Screw-Shoulder
136-7128
1 Chute Control Rod
Ref.
12
13
14
15
16
17
18
19
20
21
39
Part Number Qty. Description
106-7280
1 Cap-Lever
106-7281
1 Lever-Control, Chute (RH)
106-7282
1 Lever-Control, Chute (LH)
106-7292
1 Cover-Lever, Chute (RH)
136-7129
1 Plate-Friction
106-7310
1 Pawl-Latch
107-3002
1 Washer-Nylon
3290-456
1 Washer-Belleville
3296-29
1 Nut-Lock, NI
32144-85
1 Screw-HWH
3415-762A
Handle Assembly
3415-762A
40
G2
Handle Assembly (continued)
Ref.
1
2
3
4
6
7
8
9
11
12
13
14
15
16
Part Number Qty. Description
46-8092
3 Screw-Plastite
63-2650
1 Screw-Shoulder
105-9999
1 Knob-Shift, LH
106-4423
1 Knob-Shift, RH
107-3844
4 Washer
92-2260
8 Screw-Handle
136-7121
1 Spring-Compression
136-7193
1 Trunion-Rod
120-3881
1 Rod-Chute, Front
120-7173-03
1 Handle-Upper, LH
120-7174-03
1 Handle-Upper, RH
120-7194
1 Panel-Control, Master
120-9251-03
1 Support-Panel, Control
120-9258-03
1 Mount-Selector, Speed
Ref.
17
18
19
20
21
22
23
24
25
26
27
28
30
41
Part Number Qty. Description
136-7163
1 Rod-Selector, Gear
121-1242-03
1 Selector-Speed
3229-30
2 Screw-CARR
3256-24
3 Washer-Flat
3290-307
2 Pin-Cotter
94-4496
1 Screw-PPH
3296-72
8 Nut-Lock, NI
3296-73
2 Nut-Lock, NI
32128-13
1 Nut-Hex Flg
46-8093
4 Screw-Plastite
105-9987
2 Support-Rod
136-8698
1 Decal
120-2301-03
1 Plate-Support, Shift
3415-762A
Control Assembly
3415-762A
42
G3
Control Assembly (continued)
Ref.
1
2
3
4
5
6
7
8
Part Number Qty. Description
98-3499
1 Washer-Flat
121-6812
1 Cable-Auger
121-6813
1 Cable-Traction
121-1200
1 Handle-Control, Traction
121-1201
1 Handle-Control, Auger
136-7125
1 Rod-Lockout
121-1203
1 Cam-Lockout
136-7160
1 Link-Lockout
Ref.
9
10
11
12
13
14
15
43
Part Number Qty. Description
121-1205
1 Latch-Lockout
136-7161
1 Spring-Lockout, Handle
136-7194
1 Screw-Shoulder
3296-72
1 Nut-Lock, NI
32121-125
3 Pin-Spring
136-7162
1 Spring-Lever, Traction
32121-2
1 Pin-Roll, Slotted
3415-762A
Attachments and Accessories
For 37793 Power Max 824 OE Snowthrower
Product Name
Model/Part
Non-Marking Skid Kit .............................................................................................................................38211
Heavy-Duty Skid Kit.............................................................................................................................. 38212
Drift Breaker Kit .................................................................................................................................... 38213
Toro Snow Oil 0W30 Synthetic 20-Ounce Bottle ................................................................................... 38913
Toro 2-Stage Cover.......................................................................................................................... 490-7466
Plain 2-Stage Cover......................................................................................................................... 490-7467
Snow Cab Kit ................................................................................................................................... 127-5960
Weight Kit ........................................................................................................................................ 107-3815
44
Notes:
Notes:
Notes:
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
