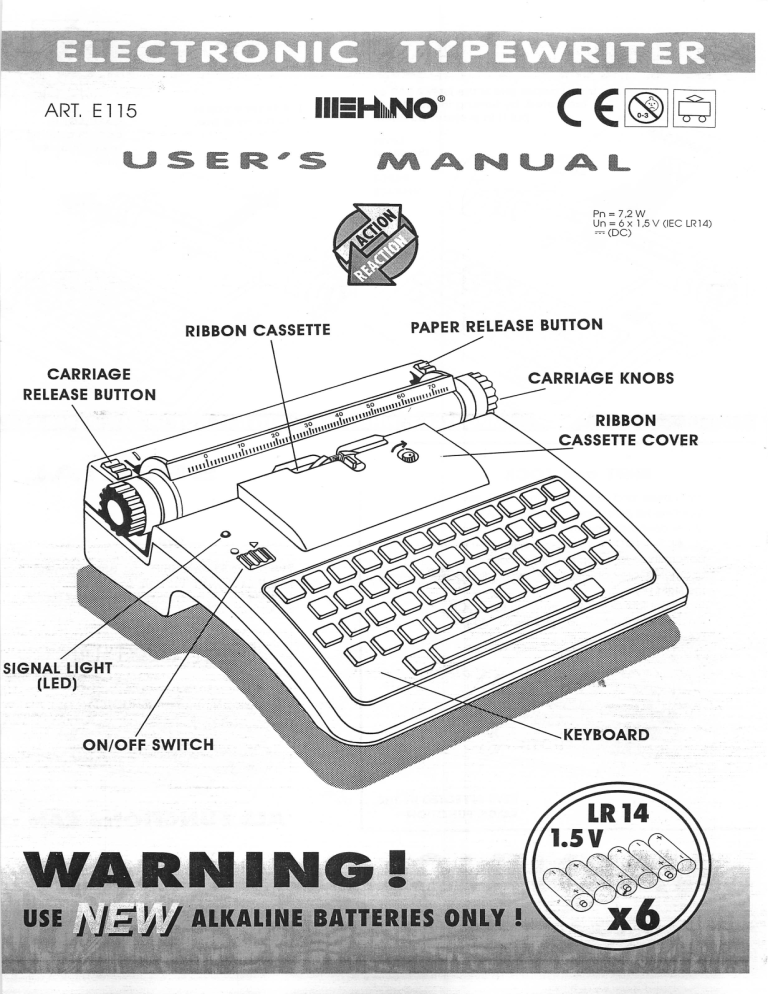

ELECTRONIC TYPEWRITER
C€ (§) o
IIISHiJMO
ART. El 15
U S ER#S AA A M UP J\
Pn = 7,2W
Un = 6x 1.5V(IECLR14)
-(DC)
RIBBON CASSETTE
PAPER RELEASE BUTTON
CARRIAGE
RELEASE BUTTON
CARRIAGE KNOBS
RIBBON
CASSETTE COVER
SIGNAL LIGHT
(LED)
KEYBOARD
ON/OFF SWITCH
WA R N I N G !
■■
■.■'
USE jxJP}J]/ alkaline BATTERIES ONLY !
USER'S MANUAL
Insert paper under the PAPER BAR as
indicated, by turning the KNOBS to
put it in propper position.
1. Advance paper
to the next line.
Return the
CARRIAGE to
correct position
to begin a new
line.
Level
the sheet
using
PAPER
RELEASE
SHIFT and LOCK
If you press and hold down the SHIFT key, the
machine will print upper case letters (A), or
upper carracters on number and symbol keys
(!,#,% ), LOCK key will lock this function for the
bottom three rows. Top row upper case
characters are activated only by holding down
the SHIR key.
The signal light burns stronger when the LOCK
function is activated . To deactivate, simply
press the LOCK key again.
S P E C I A L
Bold
Press and hold down SHIFT and LOCK keys , then
press D (in this order), to print each of the
characters twice. Repeating this operation will cancel
the function.
SHIFT
LOCK
E
JO
or
or
KEYS AFFECTED BY THE
LOCK FUNCTION
ALL FUNCTIONS CAN O
WARNING!
OLD, US
BATTER!
ID RE-CHi
i NOT SU
dmium)
ELECTRONIC TYPEWRITER
CARRIAGE RELEASE
will allow you to
move the CARRIAGE
to any desired
position.
FORCING THE
CARRIAGE MAY
CAUSE DAMAGE
TO THE
EQUIPMENT!
CHANGING THE RIBBON CASSETTE:
1. Remove cassette cover.
2. Press the area indicated by the circle and remove the
cassette. Insert the new cassette, left side first.
3. We recommend that you turn the cassette drive spindle
clockwise to facilitate the union
of the cassette mechanism
with that of the
typewriter.
SE SHOULD ALWAYS BE RELEASED!
F U N C T I O N S
Underline
Spacing
Press and hold down SHIFT and LOCK keys, then
Press and hold down SHIFT and LOCK keys, then
press S (in this order), to automaticly leave a
character space after each character typed.
press U (in this order), to underline each character.
Repeating this operation will cancel the function,
Repeating this operation will cancel the function.
| SHIFT | + | LOCK | +fsl
SHIFT | + | LOCK | +[u]
'ERATE AT THE SAME TIME.
WARNING
- Do not use re-chargeable batteries (i.e. nickel cadmium).
- Use only the correct recommended batteries in this toy.
- Alkaline batteries are recommended.
- Batteries are to be inserted with the correct polarity.
- Change all batteries. Do not use old and new ones together. Do not mix different types of battery (i.e.
alkaline and zinc carbon).
- Batteries must only be changed by an adult.
- You should not leave discharged batteries in the battery compartment.
- In case you do not intend to use this toy for a long time, please remove the battery.
- Batteries must not come into contact with metal parts as this may cause an explosion.
- Never try to charge batteries.
- Do not throw batteries into a fire.
- Please dispose the empty batteries into appropriate containers,
- Do not short-circuit the supply terminals.
USER'S MANUAL
PA RT S
1. ON/OFF SWITCH
2. SIGNAL LIGHT:
ON-LIGHTS
LOCK-BURNS STRONGER
3. CARRIAGE KNOBS
4. CARRIAGE RELEASE
5. PAPER BAR
6. RIBBON CASSETTE COVER
OF THE TYPEWRITER
7. RIBBON CASSETTE (COD. El 13)
8. DAISYWHEEL
9. CASSETTE DRIVE SPINDLE
10. PAPER RELEASE
11. KEYBOARD
12. SPACE BAR .
SAFETY TIPS
13. SHIFT KEY - ACTIVATES UPPER SYMBOLS ON KEYS
14. LOCK KEY - ACTIVATES UPPER CASE LETTERS
15. UNDERLINE KEY
16. 0 3.5 MONO PLUG
17. BATTERY COMPARTMENT
18. BATTERY COMPARTMENT COVER
MAINTENANCE
WATER
DO NOT use this typewriter near water or in places where
water is likely to come into contact with it.
OBJECT AND LIQUID ENTRY
Precautions should be taken so that objects do not fall on
and liquids are not spilled into typewriter's enclosures
through openings.
VENTILATION
Typewriter needs to recive proper ventilation.
-TEMPERATURE
Typewriter is sensitive to extreme temperatures. Avoid
situating near heat sources such as radiators, stoves or
j: other appliances emanating heat. Similary, do not
expose to extremely cold temperatures.
INACTIVITY PERIODS
Batteries should be removed when the typewriter is left
unused for a longer period of time.
STORAGE
Typewriter should be kept free of dust. It is recommended
to store the typewriter in its original packaging.
USING AN ADAPTOR
- Use only an adaptor which has on output 9 V d.c. rr= 800 mA whith a plug
of'(3.5 mm and which complies with European standard EN 60742.
-Adaptors not to this specification will cause permanent damage to the
typewriter and will result in non-existent or faint typing.
-The adaptor is not a toy.
-The adaptor must be regularly examined for damage to the cord, plug,
enclosure and other parts,and in the event of damage, the toy must not be
used with this adaptor until the damage has been repaired.
- Insert the plug of the adaptor in the outlet on the right side of trie typewriter.
This action automatically
disconnects the battery source
of power.
0 3,5 mm
H (+.
® Toys, stationery metal and plastic goods factory
MEHANO, 6310 Izola.Polje 9,Slovenia
Tel.: ++ 386 66 6080 • Fax: ++ 386 66 608101
http://www.mehano.si • E-mail: [email protected]
MsHiiJMO
1. BEFORE YOU DO ANY CLEANING,
SWITCH THE UNIT OFF OR DISCONNECT
THE ADAPTOR.
2. CLEAN WITH DUMP CLOTH ONLY. NEVER
USE SOLVENTS OR IMMERSE IN WATER.
3. AVOID CLEANING THE DAISYWHEEL
UNLESS ABSOLUTELY NECESSARY. IF IT
DOES BECOME NECESSARY, EXERT
GREAT CARE TO AVOID DAMAGE. WIPE
THE DAISYWHEEL FACE VERY GENTLY
WITH COTTON PAD DIPPED IN RUBBING
ALCOHOL. DO NOT USE SOLVENTS.
4. IT IS NOT NECESSARY TO OIL ANY PART
OF THE TYPEWRITER.
SPECIFICATIONS & DIMENSIONS
Character width: 2,54 mm
Page format: A4
Maximum number of characters per line: 68
Keyboard: 48 keys and space bar key
Daisywheel: 90 different characters
Power supply: 6 alkaline LR 14 batteries 1.5 V (NOT INCLUDED)
adaptor 9 V AC/DC rrrr^ 800 mA (NOT INCLUDED)
Dimensions: width 270 mm, height 105 mm,
length 270 mm, weight 1210 gr.
E 115 Z04AB / 22172 ANGLIJA - 4/98
. . . .'„...
