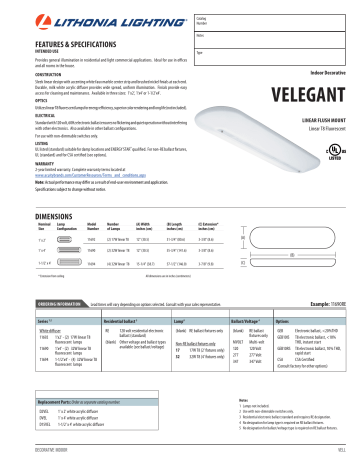

Catalog
Number
Notes
FEATURES & SPECIFICATIONS
INTENDED USE
Type
Provides general illumination in residential and light commercial applications. Ideal for use in offices
and all rooms in the house.
Indoor Decorative
CONSTRUCTION
Sleek linear design with accenting white faux marble center strip and brushed nickel finials at each end.
Durable, milk white acrylic diffuser provides wide spread, uniform illumination. Finials provide easy
access for cleaning and maintenance. Available in three sizes: 1'x2', 1'x4' or 1-1/2'x4'.
VELEGANT
OPTICS
Utilizes linear T8 fluorescent lamps for energy efficiency, superior color rendering and long life (not included).
ELECTRICAL
Standard with 120 volt, 60Hz electronic ballast ensures no flickering and quiet operation without interfering
with other electronics. Also available in other ballast configurations.
LINEAR FLUSH MOUNT
Linear T8 Fluorescent
For use with non-dimmable switches only.
LISTING
UL listed (standard) suitable for damp locations and ENERGY STAR® qualified. For non-RE ballast fixtures,
UL (standard) and for CSA certified (see options).
WARRANTY
2-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application.
Specifications subject to change without notice.
DIMENSIONS
Nominal
Size
Lamp
Configuration
1' x 2'
1' x 4'
1-1/2' x 4'
Model
Number
Number
of Lamps
(A) Width
inches (cm)
(B) Length
inches (cm)
(C) Extension*
inches (cm)
11692
(2) 17W linear T8
12" (30.5)
31-3/4" (80.6)
3-3/8" (8.6)
12" (30.5)
55-3/4" (141.6)
3-3/8" (8.6)
57-1/2" (146.0)
3-7/8" (9.8)
11690 (2) 32W linear T8
11694
(4) 32W linear T8
15-1/4" (38.7)
* Extension from ceiling
ORDERING INFORMATION
All dimensions are in inches (centimeters)
Residential ballast 3
White diffuser
11692 1'x2' - (2) 17W linear T8
fluorescent lamps
11690 1'x4' - (2) 32W linear T8
fluorescent lamps
11694 1-1/2'x4' - (4) 32W linear T8
fluorescent lamps
RE
120 volt residential electronic
ballast (standard)
(blank) Other voltage and ballast types
available (see ballast/voltage)
Replacement Parts: Order as separate catalog number.
1' x 2' white acrylic diffuser
1' x 4' white acrylic diffuser
1-1/2' x 4' white acrylic diffuser
DECORATIVE INDOOR
(B)
(C)
Example: 11690RE
Lead times will vary depending on options selected. Consult with your sales representative.
Series 1,2
D2VEL
DVEL
D15VEL
(A)
Lamp4
Ballast/Voltage 4
(blank) RE ballast fixtures only
(blank)
Non-RE ballast fixtures only
17
17W T8 (2' fixtures only)
32
32W T8 (4' fixtures only)
MVOLT
120
277
347
RE ballast
fixtures only
Multi-volt
120 Volt
277 Volt
347 Volt
Options
GEB
GEB10IS
Electronic ballast, <20%THD
T8 electronic ballast, <10%
THD, instant start
GEB10RS T8 electronic ballast, 10% THD,
rapid start
CSA
CSA Certified
(Consult factory for other options)
Notes
1 Lamps not included.
2 Use with non-dimmable switches only.
3 Residential electronic ballast standard and requires RE designation.
4 No designation for lamp type is required on RE ballast fixtures.
5 No designation for ballast/voltage type is required on RE ballast fixtures.
VELL
Velegant Linear Flush Mount
PHOTOMETRICS
Full photometric data report available within 2 weeks from request. Consult factory.
VELL
DECORATIVE INDOOR:
One Lithonia Way, Conyers, GA 30012
Phone: 800-748-5070
Fax: 770-860-3903
www.lithonia.com
© 2008-2016 Acuity Brands Lighting, Inc. All rights reserved. Rev. 01/19/16
