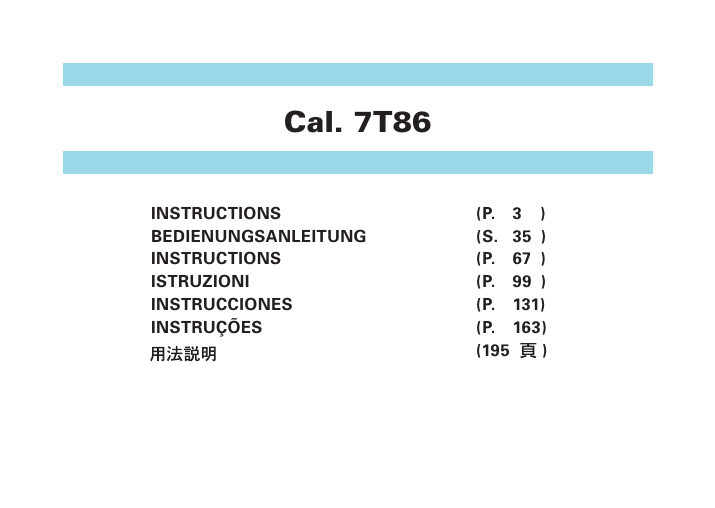

Cal. 7T86

Cal. 7T86
Cal. 7T86
INSTRUCTIONS
BEDIENUNGSANLEITUNG
INSTRUCTIONS
ISTRUZIONI
INSTRUCCIONES
INSTRUÇÕES
(P. 3 )
(S. 35 )
(P. 67 )
(P. 99 )
(P. 131)
(P. 163)
(195 )
English
n TIME
• Hour, minute and small second hands.
DISPLAY & BUTTONS
Hour hand
Day hand (mode indicator)
English
FEATURES
n STOPWATCH
•24-hour stopwatch in 1/5-second increments.
• Split time measurement on demand.
• When the measurement reaches 24 hours, the stopwatch automatically stops
and is reset.
Small second hand
Minute hand
A
CROWN
n SINGLE-TIME ALARM
• The alarm can be set to sound only once at a designated time within 24
hours.
• The sound demonstration function is available.
n PERPETUAL CALENDAR
• Date is indicated by the center hand in the CALENDAR/ALARM mode.
• Day of the week is indicated by the day hand at the 12 o’clock position.
• There is no need to adjust the date at the end of the month up to
February 28, 2100.
• Month and year can be checked on demand.
a
Alarm sub dial
(Stopwatch hour and
minute hands)
Calendar hand
(Stopwatch second hand)
b
c
B
a. Normal position
b.First click position:
calendar setting,
alarm setting
c. Second click position:
time setting, hand position adjustment
English
* Some models may have a screw lock type crown. If your watch has a screw lock type
crown, refer to “SCREW LOCK TYPE CROWN.”
* Simplified illustrations may be used in the following sections of this manual.
◆ The characters of mode indicator or date indicator and their orientation may differ
depending on the model.
CHR model
CHRONO model
SCREW LOCK TYPE CROWN
◆ Some models may have a screw-lock mechanism that can securely lock
the crown by screw when they are not being operated.
◆ Locking the crown will help to prevent any operational errors and enhance
the water resistant quality of the watch.
◆ It is necessary to unlock the screw lock type crown before operating it.
Once you have finished operating the crown, make sure to relock it.
English
◆ The center hand has dual functions:
- In the CALENDAR/ALARM mode, it indicates the date, month and leap year by its base
end ( )as a calendar hand.
- In the STOPWATCH mode, it indicates the second by its tip end ( )as a stop watch
second hand.
l How to use the screw lock type crown
Keep the crown securely locked unless you need to operate it.
[How to unlock the screw lock type crown]
Turn the crown counterclockwise.
The crown is unlocked and can be operated.
[How to lock the screw lock type crown]
Once you have finished operating the crown, turn it
clockwise while gently pressing it in toward the watch
body until it stops.
*The model at the left will be used as an example in the following section of this manual.
*When locking the crown, turn it slowly with care, ensuring that the screw is properly
engaged.
* Be careful not to forcibly push it in, as doing so may damage the screw hole in the case.
English
◆ With each pressing of the button B, the display mode changes between the CALENDAR/ALARM mode and the STOPWATCH mode alternately.
CALENDAR/ALARM MODE
Day hand
STOPWATCH MODE
Mode indicator
Calendar hand
Stopwatch
second hand
Minute hand
TIME SETTING AND
HAND POSITION ADJUSTMENT
◆ This watch is designed so that the following adjustments are made with the
crown at the second click position.
1) Time settings for main dial and alarm sub dial.
2) Hand position adjustment for alarm hour and minute hands, day hand and
calendar hand.
Main dial
English
HOW TO CHANGE THE DISPLAY MODE
Day hand
B
▲
▲
Small
second
hand
B
B
Alarm sub dial
B
Stopwatch
hour and
minute hands
* When the display mode is switched, the function of the hands will change accordingly.
Second click
* Before switching the display mode from the STOPWATCH mode to the CALENDAR/ALARM
mode, make sure that the stopwatch has been reset.
* While the stopwatch is counting, the button B is used for ”SPLIT,” “SPLIT RELEASE,” or
”RESET” functions.
Calendar hand
Alarm sub dial (Alarm hour
and minute hands)
* When all the hands are correctly
positioned, there is no need to
adjust their positions.
* When any hand requires its
position adjustment, complete
the hand position adjustment procedure first, and then move on
to the time setting procedure.
How to check the position of the hands
In the STOPWATCH mode, after resetting the stopwatch, check the position of each
hand, referring to the table below:
Name of hand
Stopwatch hour and minute hands
(Alarm hour and minute hands)
Stopwatch second hand
(Calendar hand)
Mode indicator hand
(Day hand)
CROWN
Correct position
0:00
CROWN
t
0 second position
CHR position
Mode indicator hand
*If the crown is pulled out while the
stopwatch is counting, the stopwatch will
be automatically reset.
Second click
Stopwatch
second hand
*If the crown is pulled out while the alarm
is set, the alarm will be automatically
canceled.
Small second hand
*This operation can be performed both
in the CALENDAR/ALARM mode and
STOPWATCH mode.
Second click
CROWN
*When using the watch in a location with
a different time zone, only the time needs
to be set.
*It is necessary to set both the main dial
time and the alarm sub-dial time.
10
Stopwatch
hour and
minute hands
Pull out to second click when the
small second hand is at the 12 o’clock
position.
The small second hand will stop
immediately.
English
English
● Time settings for main dial and alarm sub dial
●
Turn to set the main dial time.
*It is recommended that the hands be
set to a time a few minutes ahead of the
current time, taking into consideration
the time required to complete the time
setting for alarm sub dial, after which
the crown is to be pushed in.
11
English
Main dial
Second click
B
Press to set the alarm sub-dial time to
the current time in the 24-hour format.
t
*With each pressing of the button B, the alarm
sub-dial time is advanced by one minute.
*The hands move quickly if the button B is kept
pressed.
B
Alarm sub dial
*Make sure that the alarm sub-dial time is set
to exactly the same time as the main dial time,
which has been previously set, in the 24-hour
format.
CROWN
*A t the moment when the alarm
sub-dial time indicates 12 o’clock
midnight, the date changes.
12
Af ter time set tings for main dial
and alarm sub dial are completed,
push in to normal position.
● Hand position adjustment for alarm hour and minute hands,
day hand and calendar hand
◆ If any hand is not correctly positioned, adjust it by carrying out the following procedure.
◆ After completing the hand position adjustment procedure, it is necessary to set
both the main dial time and the alarm sub-dial time.
English
◆ The main dial time should be set in the 12-hour format, regardless of whether it is
AM or PM.
◆ When setting the minute hand, first advance it 4 to 5 minutes ahead of the desired
time, and then turn it back to the exact time.
CROWN
CROWN
Pull out to second click.
Second click
*If the crown is pulled out while the stopwatch is counting, the stopwatch will be automatically
reset.
*If the crown is pulled out while the alarm is set, the alarm will be automatically canceled.
*This operation can be performed both in the CALENDAR/ALARM mode and STOPWATCH
mode.
13
English
B
t
B
Second click
Stopwatch hour and
minute hands
Stopwatch
second hand
B
B
Press to set the stopwatch second hand to
the 0 position.
The hand moves quickly if the button B is kept
pressed.
Second click
14
Press to set the day hand pointing at the
Monday indicator.
l To adjust the position of the day hand, advance the
day hand until it points at the dot “ ●” beside the
Monday indicator passing through the blank area.
B
The position of each hand can be readjusted in the following order by pressing the
button A.
STOPWATCH
hour and minute hands
STOPWATCH
second hand
▲
t
B
Press once. The day hand completes one
revolution.
The hands move quickly if the button B is kept
pressed.
The hands move quickly if the button B is kept
pressed.
Press once. The stopwatch second hand
turns a full circle.
t
A
Press to set the stopwatch hour and minute
hands to the 0:00 position.
*When adjusting the position of the hand, the
hands can only be advanced in the clockwise
direction. A
A
Day hand
The hands of the alarm sub dial at the 6 o’clock
position move forward until they point at the 0
second position and stop. Now the hands of the
alarm sub dial show the 0 positions of the stopwatch hour and minute hands.
▲
A
Press for 5 seconds.
English
A
A
Day hand
▲
CROWN
After all the adjustments are completed, push in to normal position.
[ IMPORTANT ]
After the positions of the hands are adjusted, make sure that the main dial time and the
alarm sub-dial time are both reset.
15
In the CALENDAR/ALARM mode, with each pressing of the button A, the calendar hand turns to
indicate the date, month and year successively by its base end.
The date is indicated by the calendar hand.
The day of the week is indicated by the day hand.
There is no need to adjust the date at the end of the month up to February 28, 2100.
● How to read the calendar
In the CALENDAR/ALARM mode, the day hand indicates the day of the week and the calendar hand
indicates the date.
Calendar hand
Year (The number of
elapsed years since
the last leap year)
Month (from January
to December)
16
A
Day of the week
Date (from 1 to 31)
Date
▲
Month
A
▲
The calendar hand can also be used to check the year and month.
▲
◆
◆
◆
◆
Year
English
English
● How to check the year and month
PERPETUAL CALENDAR
A
After indicating the month and year, if the button is left untouched for approximately 10
seconds, the calendar hand automatically returns to indicate the date.
● How to adjust the calendar
CROWN
Pull out to first click.
First click
[ IMPORTANT ]
It is essential that all the hands are correctly
positioned, other wise the watch may not
show the calendar correctly.
* Do not press the button B at this point, as it will lead the watch to the alarm setting mode.
17
English
Day of the week
Day hand
* If the crown is pulled out while the alarm is set, the alarm will be automatically canceled.
A
*This operation can be performed both in the CALENDAR/ALARM mode and STOPWATCH
mode.
▲
▲
A
B
18
Press again.
The day hand swings between the day
t indicator and the “CHR” indicator.
B
Press to set the day of the week.
*The hand moves quickly if the button B
is kept pressed.
Calendar hand
Date (from 1 to 31)
A
English
*If the crown is pulled out while the stopwatch is counting, the stopwatch will be automatically reset.
A
Press for 5 seconds.
t
The calendar hand turns a full circle.
B
Press to set the date.
*The hand moves quickly if the button B is
kept pressed.
*The date can be set to any numeral
between 1 and 31.
*If the button B is pressed after the calendar
hand points to “31,” the calendar hand
is fast-forwarded and stops pointing to “1”.
Month (from
January to
December)
A
t
B
B
Calendar hand
*The day of the week can be set to any day
of the week from Monday to Sunday.
*If the button B is pressed after the day
hand points to Sunday, the day hand
swings back and stops pointing to
Monday.
Press again.
The calendar hand is fast-forwarded and stops pointing to the month.
Press to set the month.
*The hand moves quickly if the button B is kept pressed.
*The month can be set to any month from January to December.
*If the button B is pressed after the calendar hand points to December, the calendar hand is
fast-forwarded and stops pointing to January.
19
English
A
A
Press again.
The calendar hand is fast-forwarded
t
and stops pointing to the year.
t
Press again.
*If the button A is pressed again, the watch
returns to the date setting mode.
With each pressing of the button A, the calendar can be readjusted in the following order.
*The year can be set to any year among “L.Y.” “+1” “+2” and “+3.”
Year (The
number of
elapsed years
since the last
leap year)
20
B
*If the button B is pressed after the calendar
hand points to “+3,” the calendar hand
is fast-forwarded and stops pointing to “L.Y.”
YearIndication
L.Y.
+1
+2
+3
Thenumberofelapsedyears
sincethelastleapyear
LeapYear
Oneyear
TwoYears
ThreeYears
Year
2008
2012
..
..
.
2096
2009
2013
..
..
.
2097
2010
2014
..
..
.
2098
2011
2015
..
..
.
2099
Day of the week
Month
▲
Date
*The hand moves quickly if the button B is
kept pressed.
▲
Press to set the year.
▲
B
A
English
Calendar hand
Year
▲
CROWN
After all the adjustments
are completed, push in to
normal position.
* When the date is set to a nonexistent day
such as February 30 or November 31 etc.,
such date will be automatically advanced to
the existent first date of the following month.
21
English
◆ The measured time can be read up to 24 hours in 1/5- second increments.
◆ When the measurement reaches 24 hours, the stopwatch automatically stops and
is reset.
◆ Split time measurement is possible.
* If the stopwatch minute and hour hands do not return to the “0” position when the stopwatch is reset to “0,” it will be necessary to adjust the positions of the stopwatch hands.
* Refer to " SETTING THE TIME AND HAND POSITION ADJUSTMENT."
Mode indicator
Stopwatch
second hand
▲
Stopwatch
hour and
minute
hands
B
22
B
● How to reset the stopwatch
While the STOPWATCH hands are moving
1. Press Button A to stop the stopwatch.
2.Press Button B to reset the stopwatch.
Stopwatch
second hand
A
P r e s s t o e n t e r t h e S T O P WAT C H
mode.
*While the stopwatch is counting, pressing
the button B cannot change the display
mode.
*While the stopwatch is counting, if the
crown is pulled out to the first or second
click position, the stopwatch will be
automatically cancelled.
*Refer to HOW TO CHANGE THE DISPLAY MODE.
B
Stopwatch hour
and minute hands
English
HOW TO USE THE STOPWATCH
While the STOPWATCH hands are stopped
[When the stopwatch is stopped]
1. Press Button B to reset the stopwatch.
[When the split time measurement is displayed
while the stopwatch is measuring.]
1. Press Button B to release the split time
display and return to the normal display.
2. Press Button A to stop the stopwatch.
3. Press Button B to reset the stopwatch.
[When the split time measurement is displayed
and the stopwatch is stopped]
1. Press Button B to release the split time
display.
2. Press Button B to reset the stopwatch.
23
START
A
�
A
�
English
<STANDARD MEASUREMENT>
STOP
B
RESET
START
RESTART
STOP
A
�
A
�
A
�
A
�
<ACCUMULATED ELAPSED TIME MEASUREMENT>
STOP
B
RESET
* Restart and stop of the stopwatch can be repeated by pressing button A.
◆ The alarm sounds only once at the designated alarm time and it is
automatically disengaged.
◆ The alarm time can be set within 24 hours from the current time in
1-minute increments.
◆ The alarm sound can be previewed.
● How to set the alarm time
CROWN
SPLIT
RELEASE
SPLIT
A
�
B
�
B
�
A
�
<SPLIT TIME MEASUREMENT>
START
B
* Measurement and release of split time can be repeated by pressing button B.
* If the time measured reaches 24 hours while the split time is being displayed, the stopwatch
automatically stops counting and releases the split time display, showing “00" 00.”
B
24
FINISH TIME
OF 1ST
COMPETITOR
2ND
COMPETITOR
FINISHES
B
�
A
�
B
�
A
�
<MEASUREMENT OF TWO COMPETITORS>
START
FINISH TIME
OF 2ND
COMPETITOR
B
RESET
Pull out to f ir s t clic k in the
CALENDAR/ALARM mode.
*If the crown is pulled out while the alarm
is set, the alarm will be automatically
canceled.
*If the watch is in the STOPWATCH
mode, press the button B to change
to the CALENDAR/ALARM mode.
RESET
STOP
English
HOW TO USE THE ALARM
STOPWATCH OPERATION
Alarm sub dial
*Refer to HOW TO CHANGE THE
DISPLAY MODE.
First click
25
English
t
● How to change the alarm time, which has already been set
Press to set the alarm time.
*With each pressing of the button B, the alarm
sub-dial time advances by one minute.
CROWN
*The hands move quickly if the button B is kept
pressed.
First click
t
*Upon doing this, the set alarm time
is automatically canceled, and the
alarm sub-dial time changes to
indicate the current time.
*The alarm hands stop when they indicate the
current time.
* If the alarm time is set to the current time, the
alarm cannot be set.
CROWN
● How to stop the alarm manually while sounding
◆ The alarm sounds for 20 seconds at the designated time.
◆ To stop the alarm manually while sounding, press either button A or B.
* The alarm will be automatically canceled once it sounds
at the designated time.
26
B
After alarm time setting is completed,
push in to normal position.
Press to set a new alarm time.
t
B
A
Pull ou t to f ir s t c li c k in the
CALENDAR/ALARM mode.
English
B
*With each pressing of the button B,
the alarm sub-dial time advances
by one minute.
*The hands move quickly if the
button B is kept pressed.
Alarm sub dial
B
CROWN
Af ter alarm time set ting is
completed, push in to normal
position.
27
CROWN
BATTERY CHANGE
CROWN
t
First click
Pull out to first click in the
CALENDAR/ALARM mode.
*Upon doing this, the set alarm time
is automatically canceled, and
the alarmsub-dial time changes
to indicate the current time.
CROWN
Push back in to normal position.
● Sound demonstration function
A
Years
The miniature battery which powers your watch should last approximately
5 years. However, because the battery is inserted at the factory to
check the function and performance of the watch, its actual life once
in your possession may be less than the specified period. When the
battery expires, be sure to replace it as soon as possible to prevent any
malfunction. For battery replacement, we recommend that you contact an
AUTHORIZED SEIKO DEALER and request SEIKO SR927SW battery.
*If the display mode is changed more than once, the stopwatch is used
for longer than 1 hour, and the alarm sounds for 20 seconds per day, the
battery life may be less than the specified period.
● Battery life indicator
A
Press for 2 seconds in the CALENDAR
/ALARM mode.
*The alarm sound can be heard while the button A is kept pressed.
28
5
English
English
● How to cancel the alarm time
◆ When the battery nears its end, the small second hand moves at two-second intervals instead of normal one-second intervals. In that case, have the battery replaced with a newone as soon as possible.
*The watch remains accurate while the small second hand is moving at two-second intervals.
29
English
l Do not remove the battery from the watch.
l If it is necessary to take out the battery, keep it out of the reach of children. If a child swallows it, consult a doctor immediately.
CAUTION
l Never short-circuit, tamper with or heat the battery, and never expose it to fire. The battery may burst, become very hot or catch fire.
l The battery is not rechargeable. Never attempt to recharge it, as this may
cause battery leakage or damage to the battery.
Necessary procEdure after
battery change
After the battery is replaced with a new one, or when an abnormal display appears,
follow the procedures below to reset the built-in IC. The watch will resume its
normal operation.
CROWN
l How to reset the IC
1. Pull out the crown to the second
click.
2. Press button A and B at the same
time for 2 seconds or longer.
3. Push the crown back in to normal
position and check if the small
second hand moves as normal.
English
WARNING
A
B
Second click
30
*Resetting the IC will initialize the watch. Before starting to use the watch, it will be necessary to set
the time and adjust each hands to the 0 position. Refer to ”TIME SETTING AND HAND
POSITION ADJUSTMENT” section of this manual.
31
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
