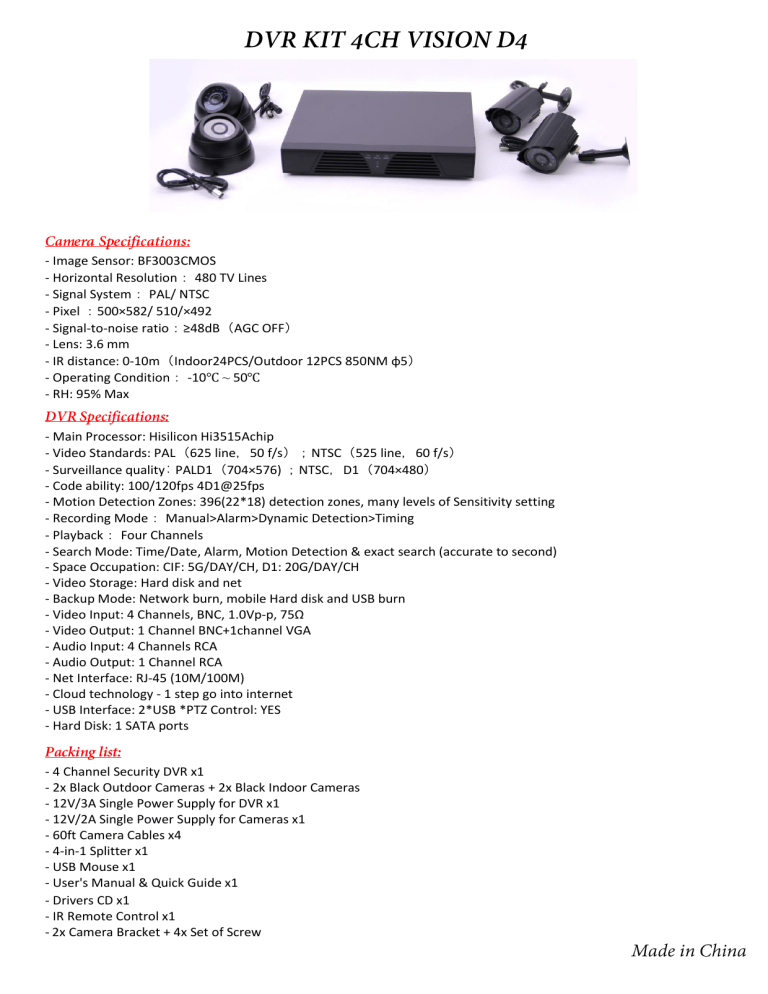

PAL/ NTSC
- Image Sensor: BF3003CMOS
- Horizontal Resolution: 480 TV Lines
- Signal System: PAL/ NTSC
- Pixel :500×582/ 510/×492
- Signal-to-noise ratio:≥48dB(AGC OFF)
- Lens: 3.6 mm
- IR distance: 0-10m(Indoor24PCS/Outdoor 12PCS 850NM φ5)
- Operating Condition: -10℃ ~ 50℃
- RH: 95% Max
- Main Processor: Hisilicon Hi3515Achip
- Video Standards: PAL(625 line,50 f/s);NTSC(525 line,60 f/s)
- Surveillance quality: PALD1(704×576) ;NTSC,D1(704×480)
- Code ability: 100/120fps [email protected]
- Motion Detection Zones: 396(22*18) detection zones, many levels of Sensitivity setting
- Recording Mode: Manual>Alarm>Dynamic Detection>Timing
- Playback: Four Channels
- Search Mode: Time/Date, Alarm, Motion Detection & exact search (accurate to second)
- Space Occupation: CIF: 5G/DAY/CH, D1: 20G/DAY/CH
- Video Storage: Hard disk and net
- Backup Mode: Network burn, mobile Hard disk and USB burn
- Video Input: 4 Channels, BNC, 1.0Vp-p, 75Ω
- Video Output: 1 Channel BNC+1channel VGA
- Audio Input: 4 Channels RCA
- Audio Output: 1 Channel RCA
- Net Interface: RJ-45 (10M/100M)
- Cloud technology - 1 step go into internet
- USB Interface: 2*USB *PTZ Control: YES
- Hard Disk: 1 SATA ports
- 4 Channel Security DVR x1
- 2x Black Outdoor Cameras + 2x Black Indoor Cameras
- 12V/3A Single Power Supply for DVR x1
- 12V/2A Single Power Supply for Cameras x1
- 60ft Camera Cables x4
- 4-in-1 Splitter x1
- USB Mouse x1
- User's Manual & Quick Guide x1
- Drivers CD x1
- IR Remote Control x1
- 2x Camera Bracket + 4x Set of Screw
