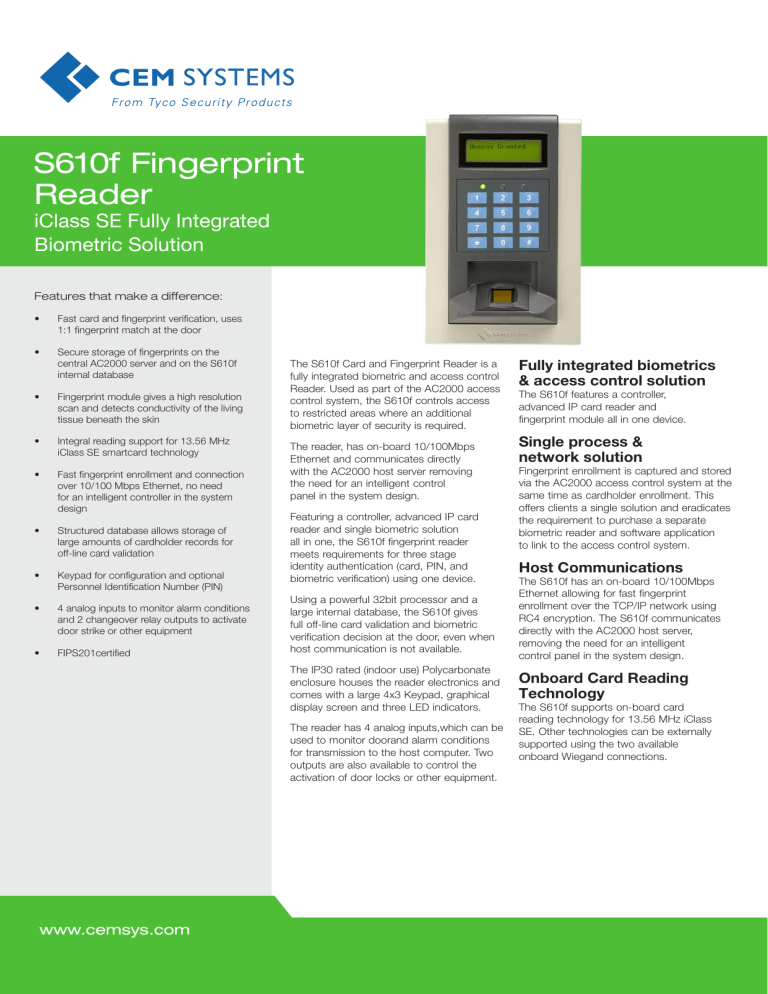

S610f Fingerprint Reader

S610f Fingerprint Reader
S610f Fingerprint
Reader
iClass SE Fully Integrated
Biometric Solution
Features that make a difference:
•
Fast card and fingerprint verification, uses
1:1 fingerprint match at the door
•
Secure storage of fingerprints on the
central AC2000 server and on the S610f
internal database
•
Fingerprint module gives a high resolution
scan and detects conductivity of the living
tissue beneath the skin
•
Integral reading support for 13.56 MHz
iClass SE smartcard technology
•
Fast fingerprint enrollment and connection
over 10/100 Mbps Ethernet, no need
for an intelligent controller in the system
design
•
Structured database allows storage of
large amounts of cardholder records for
off-line card validation
•
Keypad for configuration and optional
Personnel Identification Number (PIN)
•
4 analog inputs to monitor alarm conditions
and 2 changeover relay outputs to activate
door strike or other equipment
•
FIPS201certified
The S610f Card and Fingerprint Reader is a
fully integrated biometric and access control
Reader. Used as part of the AC2000 access
control system, the S610f controls access
to restricted areas where an additional
biometric layer of security is required.
The reader, has on-board 10/100Mbps
Ethernet and communicates directly
with the AC2000 host server removing
the need for an intelligent control
panel in the system design.
Featuring a controller, advanced IP card
reader and single biometric solution
all in one, the S610f fingerprint reader
meets requirements for three stage
identity authentication (card, PIN, and
biometric verification) using one device.
Using a powerful 32bit processor and a
large internal database, the S610f gives
full off-line card validation and biometric
verification decision at the door, even when
host communication is not available.
The IP30 rated (indoor use) Polycarbonate
enclosure houses the reader electronics and
comes with a large 4x3 Keypad, graphical
display screen and three LED indicators.
The reader has 4 analog inputs,which can be
used to monitor doorand alarm conditions
for transmission to the host computer. Two
outputs are also available to control the
activation of door locks or other equipment.
www.cemsys.com
Fully integrated biometrics
& access control solution
The S610f features a controller,
advanced IP card reader and
fingerprint module all in one device.
Single process &
network solution
Fingerprint enrollment is captured and stored
via the AC2000 access control system at the
same time as cardholder enrollment. This
offers clients a single solution and eradicates
the requirement to purchase a separate
biometric reader and software application
to link to the access control system.
Host Communications
The S610f has an on-board 10/100Mbps
Ethernet allowing for fast fingerprint
enrollment over the TCP/IP network using
RC4 encryption. The S610f communicates
directly with the AC2000 host server,
removing the need for an intelligent
control panel in the system design.
Onboard Card Reading
Technology
The S610f supports on-board card
reading technology for 13.56 MHz iClass
SE. Other technologies can be externally
supported using the two available
onboard Wiegand connections.
Off-line Card Validation
The card details and biometric templates are initially downloaded
to the reader’s memory from the host computer with subsequent
changes to card data automatically sent as updates. This
ensures that the reader has up-to-date card information when
operating in off-line mode. Operating in off-line mode the
reader can hold in excess of 123,000 fingerprint templates.
Reader Messages
The S610f has a large graphical LCD which is used to display
a number of predefined messages to cardholders to inform
them when using the reader e.g. Place Finger, Retry Finger,
Bad Biometric, Wrong Time Zone, Lost/Stolen Card, Card
About to Expire, Access Granted etc. Messages displayed
by the S610f can be modified via the AC2000 software.
Specification
Physical
Size . . . . . . . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . .
Housing . . . . . . . . . . . . . . . . .
Color options . . . . . . . . . . . . .
190 x 120 x 44mm
590g with connectors
Flame retardant polycarbonate containing fully encapsulated electronics
Dark and Light Gray
Power Requirements
Voltage . . . . . . . . . . . . . . . . . . 9 – 14Vdc
Current Consumption . . . . . . . 290mA (passive), 470mA (active)
Environmental
IP Rating . . . . . . . . . . . . . . . .
Temperature . . . . . . . . . . . . . .
LED Indicators . . . . . . . . . . . .
LCD Indicators . . . . . . . . . . . .
Keypad . . . . . . . . . . . . . . . . . .
IP30
0°C to 55°C (32°F to 131°F)
Three high intensity LED indicators, Red,
Amber and Green
32 x 122 dots Monochrome Graphics LCD
with backlight
12 character, standard layout,
tactile response keypad
Functionality
Inputs . . . . . . . . . . . . . . . . . . .
Outputs . . . . . . . . . . . . . . . . .
Rating . . . . . . . . . . . . . . . . . . .
Duration . . . . . . . . . . . . . . . . .
Memory . . . . . . . . . . . . . . . . .
Database battery backup . . . .
Four analog inputs – voltage supplied,
4 state (tamper detect)
Two relay fitted – changeover volt free contacts
30Vdc @ 5A
Programmable suppression device
(diode, MOV) required at load
2MB battery backed memory
3.0V rechargeable Lithium-Ion
Database
Database Cardholders . . . . . .
Transactions . . . . . . . . . . . . . .
Configuration . . . . . . . . . . . . .
Operating Modes . . . . . . . . . .
Storage of up to 123,000 cardholders (Card
number, Two fingerprint templates, Timezone, PIN, Card Status)
Up to 8,000 transactions in offline mode
Operational parameters are downloaded from
the host. Some configuration settings
completed locally using integrated keypad
Door, Passenger (extended opening), Turnstile, Control Post
Communication Interface
To Exit Reader . . . . . . . . . . . .
Interfaces . . . . . . . . . . . . . . . .
Connection . . . . . . . . . . . . . . .
To system Host . . . . . . . . . . .
Connection . . . . . . . . . . . . . . .
RS485
Two Wiegand interfaces with a maximum
cable length of 150M
2 part JST connector
10/100 base-T TCP/IP using CAT5
Unshielded twisted pair cable
RJ45
Regulatory
Agency Certifications . . . . . . . FCC Part 15
CE
Requirements
• AC2000
• AC2000 Lite v6 Upwards
• AC2000 Airport v6.6 Upwards
• RTC Ethernet Reader Controller
Ordering Information
Product Codes
Description
Grey Version
RDR/615/608
Related Products
AC2000
AC2000 Airport
AC2000 Lite
S610f 13.56MHz HID iClass SE
Approvals
www.cemsys.com
© 2014 Tyco Security Products. All Rights Reserved. CEM/B/164 Rev A
Tyco and the product names listed above are marks and/or registered marks. Unauthorized use is strictly prohibited.
Product offerings and specifications are subject to change without notice. Actual products may vary from photos. Not all products include all features. Availability varies by region; contact your sales representative.
