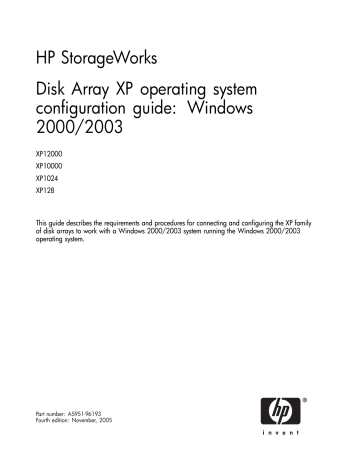

HP StorageWorks

Disk Array XP operating system configuration guide: Windows

2000/2003

XP12000

XP10000

XP1024

XP128

This guide describes the requirements and procedures for connecting and configuring the XP family of disk arrays to work with a Windows 2000/2003 system running the Windows 2000/2003 operating system.

Part number: A5951-96193

Fourth edition: November, 2005

Legal and notice information

© Copyright 2003-2005 Hewlett-Packard Development Company, L.P.

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with

FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical

Data for Commercial Items are licensed to the U.S. Government under vendor’s standard commercial license.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.

Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft, Windows, Windows XP, and Windows NT are U.S. registered trademarks of Microsoft Corporation.

Disk Array XP operating system configuration guide: Windows 2000/2003

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . .

5

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Intended audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Disk arrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Related documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Document conventions and symbols . . . . . . . . . . . . . . . . . . . . . . . 6

HP technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Subscription service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Other HP web sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1 Installation . . . . . . . . . . . . . . . . . . . . . . .

9

Features and requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Fibre Channel interface . . . . . . . . . . . . . . . . . . . . . . . . . .

10

Device emulation types . . . . . . . . . . . . . . . . . . . . . . . . . .

10

Failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

SNMP configuration . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

RAID Manager command devices . . . . . . . . . . . . . . . . . . . . .

11

Installation procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

Install and configure the disk array . . . . . . . . . . . . . . . . . . . . . . .

13

Setting the host mode for the disk array ports . . . . . . . . . . . . . . . .

13

Setting the System Option Mode . . . . . . . . . . . . . . . . . . . . . .

15

Configuring the Fibre Channel ports . . . . . . . . . . . . . . . . . . . .

16

Fibre address . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Fabric and connection parameter settings . . . . . . . . . . . . . . . .

17

Install and configure the host . . . . . . . . . . . . . . . . . . . . . . . . .

18

Loading the OS and software . . . . . . . . . . . . . . . . . . . . . . .

18

Installing and configuring the HBAs . . . . . . . . . . . . . . . . . . . . .

18

Cross-referencing HBAs . . . . . . . . . . . . . . . . . . . . . . . .

19

Fabric zoning and LUN security . . . . . . . . . . . . . . . . . . . . . .

20

Connect the disk array . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22

Defining the paths . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22

Verifying the host recognizes array devices . . . . . . . . . . . . . . .

23

Configure disk devices . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

Writing signatures . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

Creating and formatting disk partitions . . . . . . . . . . . . . . . . . . .

25

Verifying file system operations . . . . . . . . . . . . . . . . . . . . . .

25

Disk Array XP operating system configuration guide: Windows 2000/2003

3

2 Troubleshooting . . . . . . . . . . . . . . . . . . . .

27

Error conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27

Calling the HP support center . . . . . . . . . . . . . . . . . . . . . . . . .

29

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . .

29

Before you call . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29

A Path worksheet . . . . . . . . . . . . . . . . . . . .

31

B Disk array supported emulations . . . . . . . . . . . . .

33

Supported emulations . . . . . . . . . . . . . . . . . . . . . . . . . . . .

33

Emulation specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .

34

Glossary . . . . . . . . . . . . . . . . . . . . . . . .

37

Index . . . . . . . . . . . . . . . . . . . . . . . . .

41

4

Preface

About this guide

This guide provides information about:

• Requirements and procedures for connecting an XP disk array to a host system

• Configuring the disk array for use with the Windows 2000/2003 operating system

Intended audience

This guide is intended for system administrators with knowledge of:

• The host hardware

• Windows 2000/2003 operating system

• XP disk arrays

Disk arrays

Unless otherwise noted, the term “disk array” refers to these disk arrays:

• HP StorageWorks Disk Array XP128

• HP StorageWorks Disk Array XP1024

• HP StorageWorks XP10000 Disk Array

• HP StorageWorks XP12000 Disk Array

Related documentation

The following documents provide related information:

HP StorageWorks Disk Array XP128: Owner’s Guide

HP StorageWorks Disk Array XP1024: Owner’s Guide

HP StorageWorks XP10000 Disk Array: Owner’s Guide

HP StorageWorks XP12000 Disk Array: Owner’s Guide

You can find these documents on the storage web site: http://h18006.www1.hp.com/storage/xparrays.html

Disk Array XP operating system configuration guide: Windows 2000/2003

5

Document conventions and symbols

Convention

Blue text

Bold

Italics

Blue, underlined: www.hp.com

[http:// www.hp.com]

Monospace font

Element

Cross-reference links and email addresses

• Keys that are pressed

• Text typed into a GUI element, such as a box

• GUI elements that are clicked or selected, such as menu and list items, buttons, tabs, and check boxes

• Literal values typed exactly as shown

Text emphasis and book titles

Web site addresses

Monospace, italic font

Monospace, bold font

• File and directory names

• System output

• Code

• Commands, their arguments, and argument values

• Code variables

• Command variables

Emphasized monospace text

WARNING!

Indicates that failure to follow directions could result in bodily harm or death.

CAUTION:

Indicates that failure to follow directions could result in damage to equipment or data.

NOTE:

Provides additional information.

6

Preface

HP technical support

In North America, call technical support at 1-800-633-3600, available 24 hours a day, 7 days a week.

Outside North America, call technical support at the location nearest you. Telephone numbers for worldwide technical support are listed on the HP support web site: http://www.hp.com/support . From this web site, select your country.

Collect the following information before calling:

• Technical support registration number (if applicable)

• Product serial numbers

• Product model names and numbers

• Applicable error messages

• Operating system type and revision level

• Detailed questions

For continuous quality improvement, calls may be recorded or monitored.

Subscription service

HP strongly recommends that customers register online using the Subscriber’s Choice web site: http://www.hp.com/go/e-updates .

Subscribing to this service provides you with e-mail updates about the latest product enhancements, driver versions, and firmware documents, plus instant access to many other product resources.

After subscribing, locate your products by selecting Business support and then Storage under Product Category.

Other HP web sites

For additional information, see the following HP web sites:

• http://www.hp.com/go/storage

• http://www.hp.com/support/

• http://www.hp.com/service_locator

• http://www.docs.hp.com

Disk Array XP operating system configuration guide: Windows 2000/2003

7

8

Preface

1 Installation

You and your HP service representative each play a role in installation. Your HP service representative is responsible for installing the disk array and formatting the disk devices.

You are responsible for configuring the host server for the new devices with assistance from your HP service representative.

Features and requirements

Ask your HP service representative about the latest supported hardware and software.

The disk array has the following features:

Storage capacity. The storage capacity for each model is listed below:

XP128: From 8 to 128 drives for up to 36 TB, 48 FC ports

XP1024: From 8 to 1024 drives for up to 149 TB, 64 FC ports

XP10000: Up to 240 drives for up to 69.2 TB, 48 FC ports

XP12000: Up to 1152 drives for up to 332 TB, 128 FC ports

Server support. Windows 2000/2003 PC server with the latest HP supported patches

Operating system support. Windows 2000/2003

Before installing the disk array, ensure the environment conforms to these requirements:

Host Bus Adapters (HBAs) Install HBAs and all utilities and drivers. Refer to the adapter documentation for installation details.

(Recommended) HP StorageWorks Remote Web Console XP, Command View

XP Advanced Edition or Command View XP with LUN management feature for configuring disk array ports and paths

(Recommended) HP StorageWorks LUN Configuration and Security Manager XP

(Optional) Other available XP software (some may not apply to your system):

HP StorageWorks Business Copy XP

HP StorageWorks Continuous Access XP

HP StorageWorks Continuous Access Extension XP

HP StorageWorks Auto LUN XP

HP StorageWorks Data Exchange XP

HP StorageWorks Resource Manager XP

HP StorageWorks RAID Manager XP

HP StorageWorks Cache LUN XP

Disk Array XP operating system configuration guide: Windows 2000/2003

9

HP StorageWorks Auto Path XP

HP StorageWorks Cluster Extension XP

HP StorageWorks Performance Advisor XP software

Fibre Channel interface

The XP family of disk arrays supports these Fibre Channel elements:

• Connection speed of 1 Gbps and 2 Gbps

• Short-wave non-OFC (open fiber control) optical interface

• Multimode optical cables with SC or LC connectors

• Public or private arbitrated loop (FC-AL) or direct fabric attach

Even though the interface is Fibre Channel, this guide uses the term “SCSI disk” because disk array devices are defined to the host as SCSI disks.

Device emulation types

The XP family of disk arrays supports these device emulation types:

OPEN-3/8/9/E/L/V devices: OPEN-x logical units represent disk devices.

Except for OPEN-V, these devices are based on fixed sizes. OPEN-V is a user-defined size. Supported emulations include OPEN-3, OPEN-8, OPEN-9,

OPEN-E, OPEN-L, and OPEN-V devices.

x

* n

): Logical Unit Size Expansion (LUSE) devices combine •

LUSE devices (OPEN-

2 to 36 OPEN-x devices to create expanded LDEVs larger than standard

OPEN-3/8/9/E/L/V disk devices. For example, an OPEN-x LUSE volume created from ten OPEN-x volumes is designated as OPEN-x*10.

CVS devices (OPEN-x CVS): Volume Size Configuration (VSC) defines custom volumes (CVS) that are smaller than normal fixed-sized logical disk devices

(volumes). (OPEN-V is a CVS-based custom disk size that you determine. OPEN-L does not support CVS.)

LUSE (expanded) CVS devices (OPEN-x*n CVS): LUSE CVS combines CVS devices to create an expanded device. This is done by first creating CVS custom-sized devices and then using LUSE to combine from 2 to 36 CVS devices. For example, if three OPEN-9 CVS volumes are combined to create an expanded device, this device is designated as OPEN-9*3-CVS.

Failover

The XP family of disk arrays supports many standard software products that provide host, application, or I/O path failover and management.

10 Installation

SNMP configuration

The XP family of disk arrays supports standard Simple Network Management Protocol

(SNMP) for remotely managing the disk array. The SNMP agent on the service processor

(SVP) performs error-reporting operations requested by the SNMP manager. SNMP properties are usually set from the SVP but they can also be set remotely using Remote

Web Console XP, Command View XP, or Command View XP Advanced Edition. Refer to the applicable user’s guide for procedures.

RAID Manager command devices

RAID Manager manages Business Copy (BC) or Continuous Access (CA) operations from a host server. To use RAID Manager with BC or CA, you use Remote Web Console,

Command View, or Command View XP Advanced Edition to designate at least one LDEV as a command device. Refer to the applicable user’s guide for information about how to designate a command device.

Disk Array XP operating system configuration guide: Windows 2000/2003

11

Installation procedures

Perform these actions to install and configure the disk array:

1. Install and configure the disk array

Setting the host mode for the disk array ports

Setting the System Option Mode

Configuring the Fibre Channel ports

2. Install and configure the host

Loading the OS and software

Installing and configuring the HBAs

Fabric zoning and LUN security

3. Connect the disk array

Defining the paths

4. Configure disk devices

Writing signatures

Creating and formatting disk partitions

Verifying file system operations

12 Installation

Install and configure the disk array

The HP service representative performs these tasks:

• Assembling hardware and installing software

• Loading the microcode updates

• Installing and formatting devices

After these tasks are finished, use Remote Web Console, Command View, Command

View XP Advanced Edition, or LUN Configuration and Security Manager to complete the remaining tasks listed below. If you do not have these programs, your HP service representative can perform these tasks for you.

Setting the host mode for the disk array ports

After the disk array is installed, you must set the host mode for each disk array port to match the host OS. Set the host mode using LUN Manager in Remote Web Console XP

(shown), Command View XP, or Command View XP Advanced Edition. If these are not available, the HP service representative can set the host mode using the SVP.

Disk Array XP operating system configuration guide: Windows 2000/2003

13

The available host mode settings for Windows 2000/2003 are as follows:

Host Mode

Description

2C (available on some array models) HP recommended. (For use with LUSE volumes when online LUN expansion is required or may be required in the future.)

0C

HP recommended. (Use if future online LUN expansion is not required or planned.)

08

00

For Agilent D8602B HBA only, with or without MSCS (clustering).

For Fibre Channel HBAs without MSCS

(clustering) Not recommended by HP.

Volume on XP Array

(examples)

OPEN-E

OPEN-9

OPEN-9*2

OPEN-9*3-CVS

host mode = 00, 08,

0C

Volume name as seen on host host mode = 2C

OPEN-E

OPEN-9

OPEN-9*2

OPEN-9*3-CVS

OPEN-E

OPEN-9

OPEN-9

OPEN-9-CVS

14 Installation

For the XP1024/XP128 arrays, the host mode can also be set at the port information window in Command View XP AE.

Setting the System Option Mode

The HP service representative sets the System Option Mode(s) based on the operating system and software configuration of the host.

Disk Array XP operating system configuration guide: Windows 2000/2003

15

Configuring the Fibre Channel ports

Configure the disk array Fibre Channel ports by using Remote Web Console (shown),

Command View, or Command View XP AE. Select the settings for each port based on your storage area network topology. Use switch zoning if you connect different types of hosts to the array through the same switch.

Fibre address

In fabric environments, the port addresses are assigned automatically. In arbitrated loop environments, set the port addresses by selecting a unique arbitrated loop physical address (AL-PA) or loop ID for each port. For specific values, refer to the HP

StorageWorks LUN Configuration and Security Manager XP User Guide applicable to your array.

16 Installation

Fabric and connection parameter settings

Set each array port to FABRIC ON or OFF with connections of POINT-TO-POINT or

FC-AL as shown in the following table and figures. For detailed topology information, refer to the HP StorageWorks SAN Design Reference Guide on the www.hp.com

website.

Fabric Parameter

Connection Parameter

OFF FC-AL

ON FC-AL

ON

OFF

POINT-TO-POINT

POINT-TO-POINT

Provides

NL-port (private arbitrated loop)

NL-port (public loop) for loop connection to a switch

N-port (fabric port) for connection to a switch

Not supported

Disk Array XP operating system configuration guide: Windows 2000/2003

17

Install and configure the host

This section explains how to install and configure the host and host bus adapters (HBAs) that connect the host to the disk array.

Loading the OS and software

Follow the manufacturer’s instructions to load the operating system and software onto the host. Load all OS patches and configuration utilities supported by HP and the HBA manufacturer.

If you purchased multipath software, install it according to the manufacturer’s instructions.

Installing and configuring the HBAs

Install and configure the host bus adapters using the HBA manufacturer’s instructions.

HP supplies driver, firmware, and BIOS downloads for commonly available HBAs. These downloads contain HBA settings that are tested and approved by HP. To obtain a download, log onto the HP website at www.hp.com

and search for the model name or number of your HBA. Download the file, and follow the installation instructions in the

“readme” or documentation file supplied with each download.

18 Installation

Cross-referencing HBAs

The following table identifies both the HP part number and the HBA manufacturer’s number for common HBAs.

HP Part

KGPSA-CB

FCA2355

FCA2101

FCA2408 / A7298A

FCA2404 / AB232A

FCA2404DC

A7388A / AB467A

A7387A / AB466A

OEM Partner

Emulex

Emulex

Emulex

Emulex

Emulex

Emulex

Emulex

Emulex

OEM Adapter

LP8000

LP9002DC

LP952

LP982

LP9802

LP9802DC

LP1050

LP1050DC

Family (*1)

1

1

1

2

2

2

3

3

A7560A

None

Emulex

Emulex

LP1050EX

LP10000

3

3

FCA2142/A8002A

FCA2242/A8003A

FCA2214

FCA2214DC

BL20p G2 (FC

Mezzanine Card) BL20p

G3 (FC Adapter Card)

BL25p, BL45p (HPALCF

105)

BL30p, BL35p (FC

Balcony Card)

Emulex

Emulex

QLogic

QLogic

QLogic Chipset

QLogic Chipset

QLogic Chipset

LPe11002

LPe1150

QLA2340

QLA2342

None

None

None

6

6

4

4

4

4

4

394757–B2 (E-FC

Adapter Card): BL20p

G3

394588–B2 (E-FC

Adapter Card): BL25p,

BL30p, BL35p, BL45p

Emulex Chipset

Emulex Chipset

None

None

5

5

Note *1: Family number shows which HBAs can use similar driver/BIOS/firmware.

Disk Array XP operating system configuration guide: Windows 2000/2003

19

Fabric zoning and LUN security

By using appropriate zoning and LUN security, you can connect various servers with various operating systems to the same switch and fabric:

• Storage port zones may overlap if more than one operating system needs to share an array port.

• Heterogeneous operating systems may share an XP array port if you use Secure

Manager and set the appropriate host group and mode. All others must connect to a dedicated XP array port.

• Use Secure Manager for LUN isolation when multiple hosts connect through a shared array port. Secure Manager provides LUN security by allowing you to restrict which LUNs each host can access.

• QLogic and Emulex HBAs must be in separate zones (a QLogic zone and an

Emulex zone) whether the HBAs are in the same or separate servers.

• If booting over the SAN, within a server, the booting HBAs must be from the same vendor. Additional data storage HBAs can be from a different vendor.

• If you plan to use clustering, install and configure the clustering software on the servers. Clustering is the organization of multiple servers into groups. Within a cluster, each server is a node. Multiple clusters compose a multi-cluster environment. The following example shows a multi-cluster environment with three clusters, each containing two nodes. The nodes share access to the disk array.

20 Installation

Environment

Standalone SAN

(non-clustered)

Clustered SAN

Multi-Cluster SAN

OS Mix

homogeneous (a single OS type present in the SAN) heterogeneous (more than one OS type present in the SAN) homogeneous (a single OS type present in the SAN) heterogeneous (more than one OS type present in the SAN) homogeneous (a single OS type present in the SAN) heterogeneous (more than one OS type present in the SAN)

Fabric Zoning

Not required

Required

Not required

Required

Not required

Required

LUN Security

Must be used when multiple hosts connect through a shared port

Must be used when multiple cluster nodes connect through a shared port

Must be used when multiple cluster nodes connect through a shared port

Disk Array XP operating system configuration guide: Windows 2000/2003

21

Connect the disk array

The HP representative connects the cables between the array and the host or between the array and the SAN.

Defining the paths

Use Remote Web Console (shown), Command View, or Command View XP AE to define paths (LUNs) between hosts and volumes in the disk array.

This process is also called “LUN mapping.” In Remote Web Console and Command

View, LUN mapping includes:

• Configuring ports

• Enabling LUN security on the ports

• Creating host groups

• Assigning host bus adapter WWNs to host groups

• Mapping volumes to host groups (by assigning LUNs

22

In Command View XP AE, LUN mapping includes:

• Configuring ports

• Creating storage groups

• Mapping volumes and WWN/host access permissions to the storage groups

Installation

For details see the LUN Configuration and Security Manager User’s Guide or Command

View XP Advanced Edition Device Manager Web Client User’s Guide. Note the LUNS and their ports, WWNs, nicknames, and LDEVs for later use in verifying host and device configuration.

NOTE:

A LUN assigned a number greater than FF is outside the accepted range of numbers for a Windows server (00 to FE) and will not be recognized by the server or be visible for use.

Windows 2003:

To see LUNs, you must create a LUN 0 when using the ScsiPort

Miniport Driver. This is not necessary if using the StarPort Miniport Driver.

Windows 2000:

A LUN 0 must be created to discover more than LUNs 0 to 7.

Verifying the host recognizes array devices

1.

Log into the host as an administrator.

2.

Right-click on the My Computer desktop icon, and click Manage.

3.

Click Device Manager.

4.

Click SCSI and RAID Controllers.

5.

Click the host bus adapter to open it, and verify all devices are displayed.

6.

Click each device, click Properties, and then click Settings.

7.

Record the device information on the worksheet in Appendix A.

Disk Array XP operating system configuration guide: Windows 2000/2003

23

Configure disk devices

Disk arrays are configured using the same procedure for configuring any new disk on the host. This includes the following procedures:

• Writing signatures

• Creating and formatting disk partitions

• Verifying file system operations

Writing signatures

1.

Right-click on the My Computer desktop icon and click Manage.

2.

Click Disk Management. A message notifies you that disks have been added.

3.

Click OK to update the system configuration and start the Write Signature wizard, which allows you to write signatures to the disks.

4.

For each new disk, click OK to write a signature, or click No to prevent writing a signature.

5.

When you have performed this process for all new disks, the Disk Management main window opens and displays the added disks.

24 Installation

Creating and formatting disk partitions

Dynamic Disk is supported with no restrictions for a disk array connected to a Windows

2000/ 2003 system. Refer to Microsoft’s online help for details.

CAUTION:

Do not partition or create a file system on a device that will be used as a raw device

(for example, some database applications use raw devices.)

1.

In the Disk Management main window, select the unallocated area for the SCSI disk you want to partition.

2.

Click the Action menu, and click Create Partition to launch the New Partition

Wizard. Follow the Partition Wizard to create and format partitions and assign drive letters. Format partitions with the following settings and format options.

File System: NTFS (enables Windows to write to the disk).

Allocation unit size: “Default.” Do not change this entry.

Volume label: Enter a volume label, or leave this field blank for no label.

Format Options: Click Perform a Quick Format to decrease the time required to format the partition. Click Enable file and folder compression only if you want to enable compression.

3.

Verify the Disk Management main window displays the correct file system (NTFS) for the formatted partition. The word “Healthy” indicates that the partition has been created and formatted successfully.

4.

Repeat this procedure for each new disk device.

5.

Exit Disk Management, clicking Yes to save your changes.

Verifying file system operations

1.

Open My Computer and check that the new disks are present.

2.

Right-click on each disk to view Properties and verify the properties are correct

(label, type, capacity, and file system).

3.

Copy a file from an existing drive to each new drive to verify the new drives are working, and then delete the copies.

Disk Array XP operating system configuration guide: Windows 2000/2003

25

26 Installation

2 Troubleshooting

This section includes resolutions for various error conditions you may encounter.

If you are unable to resolve an error condition, ask your HP support representative for assistance. See

Calling the HP support center

.

Error conditions

Depending on your system configuration, you may be able to view error messages

(R-SIMS) as follows:

• In Remote Web Console (Status tab)

• In Command View Advanced Edition (“Alerts” panel).

• In Command View (Event History or Event Notification panels)

Error Condition

The logical devices are not recognized by the host.

Recommended Action

Verify that the READY indicator lights on the disk array are ON.

Verify that fiber cables are correctly installed and firmly connected.

Verify that the target IDs are properly configured. The LUNs for each TID must start at 0 and continue sequentially without skipping any numbers.

Verify that the TIDs/WWNs on each bus are unique. Do not install two devices with the same ID on the same bus.

Recheck the buses for new devices.

Verify that LUSE devices are not intermixed with normal LUNs on the same port.

Verify that the maximum number of LUSE devices per port has not been exceeded.

Verify that the disk array host mode is set correctly.

Disk Array XP operating system configuration guide: Windows 2000/2003

27

Error Condition

The host does not reboot properly after hard shutdown.

Physical volumes cannot be created.

Recommended Action

If you power off the host without executing the shutdown process, wait three minutes to allow the disk array’s internal timeout process to purge queued commands. If the host restarts while the disk array is processing queued commands, the host may not reboot successfully.

Verify that the disk array logical devices are correctly formatted.

Logical volumes cannot be created.

Verify that the volume capacity for

OPEN-x volumes is not greater than the maximum capacity allowed. See the Device

Emulations Appendix.

Verify that the capacity of the volume group is not less than the total capacity of the partitioned logical volume.

A file system is not mounted after rebooting. Verify that the host was restarted correctly.

Verify that the file system attributes are correct.

Reboot the host.

The disk array performs a self reboot because the disk array was busy or it logged a panic message.

The disk array responds “Not Ready” or the disk array has displayed “Not Ready” and timed out.

The host detects a parity error.

Contact HP.

The host hangs or devices are declared and the host hangs.

Check the HBA and make sure it was installed properly.Reboot the host.

Make sure there are no duplicate disk array

TIDs and that disk array TIDs do not conflict with any host TIDs.

28

Troubleshooting

Calling the HP support center

If you are unable to resolve an error condition, contact the HP support center for assistance.

Contact Information

In North America, call technical support at 1-800-633-3600, available 24 hours a day, 7 days a week.

Outside North America, call technical support at the location nearest you. Telephone numbers for worldwide technical support are listed on the HP support web site: http://www.hp.com/support/ . From this web site, select your country.

Before you call

Be sure to have the following information available:

• Technical support registration number (if applicable)

• Product serial numbers

• Product model names and numbers

• Applicable error messages

• Operating system type and revision level

• Detailed, specific questions

Disk Array XP operating system configuration guide: Windows 2000/2003

29

30

Troubleshooting

A Path worksheet

0:07

0:08

0:09

0:10

0:03

0:04

0:05

0:06

0:11

0:12

0:13

LDEV (CU:LDEV) (CU = control unit)

0:00

Device

Type

0:01

0:02

SCSI Bus

Number

Path 1 Alternate Paths

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

Disk Array XP operating system configuration guide: Windows 2000/2003

31

32

Path worksheet

B Disk array supported emulations

This appendix provides information about supported emulations and emulation specifications. Some parameters may not be relevant to your array. Consult your HP representative for information about supported configurations for your system.

Supported emulations

XP Model Emulation

OPEN-3

XP128

XP1024

XP10000

XP12000

OPEN-8

OPEN-9

OPEN-E

OPEN-K

OPEN-L

OPEN-M

OPEN-V

Emulation

Supported LUSE

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

CVS

Yes

Yes

Yes

Yes

LUSE & CVS

Yes

Yes

Yes

Yes

Disk Array XP operating system configuration guide: Windows 2000/2003

33

Emulation specifications

Emulation

(Note 1)

Category

(Note 2)

Blocks (512 bytes)

OPEN-3

OPEN-8

OPEN-9

OPEN-E

OPEN-L

OPEN-V

LUSE

OPEN-3*n

OPEN-8*n

OPEN-9*n

OPEN-E*n

OPEN-L*n

OPEN-V*n

SCSI disk

SCSI disk

SCSI disk

SCSI disk

SCSI disk

SCSI disk

4806720

14351040

14423040

28452960

71192160 max=125827200

SCSI disk

SCSI disk

SCSI disk

SCSI disk

SCSI disk

SCSI disk

4806720*n

14351040*n

14423040*n

28452960*n

71192160*n max=125827200

Note 4

CVS

OPEN-3 CVS

OPEN-8 CVS

OPEN-9 CVS

OPEN-E CVS

CVS LUSE

OPEN-3*n CVS

OPEN-8*n CVS

OPEN-9*n CVS

OPEN-E*n CVS

OPEN-V*n

SCSI disk

SCSI disk

SCSI disk

SCSI disk

Note 4

Note 4

Note 4

Note 4

512

512

512

512

SCSI disk

SCSI disk

SCSI disk

SCSI disk

SCSI disk

Note 4

Note 4

Note 4

Note 4

Note 4

*Capacity = (512 x number of blocks) ÷ 1024

2

512

512

512

512

512

512

512

512

512

512

512

Sector

Size

(bytes)

512

512

512

512

512

512

# of

Cylinders

3338*n

9966*n

10016*n

19759*n

49439*n

Note 5

3338

9966

10016

19759

49439

Note 5

Note 5

Note 5

Note 5

Note 5

Note 5

Note 5

Note 5

Note 5

Note 5

Heads

Sectors per

Track

15

96

15

96

15

15

15

15

96

96

96

128

Capacity

MB*

(Note

3)

2347

7007

7042

13893

34761

Note 6

15

15

15

15

15

15

15

15

15

15

15

15

15

15

15

96

96

96

96

128

96

96

96

96

96

128

96

96

96

96

2347*n

7007*n

7042*n

13893*n

34761*n

Note 6

Note 6

Note 6

Note 6

Note 6

Note 6

Note 6

Note 6

Note 6

Note 6

34

Disk array supported emulations

Note 1:

The availability of an emulation depends on the disk array.

Note 2:

The devices are defined to the host as SCSI disk devices, even though the interface is

Fibre Channel.

Note 3:

The device capacity can sometimes be changed by the BIOS or host adapter board.

This may make actual capacity different from that listed in the table.

Note 4:

The number of blocks for a CVS volume is calculated as follows:

# of blocks = (# of cylinders) × (# of heads) × (# of sectors per track)

Example

For an OPEN-3 CVS volume with capacity = 37 MB:

# of blocks = (53 cylinders–see Note 5) × (15 heads) ×

(96 sectors per track) = 76320

Example

For an OPEN-V CVS volume with capacity = 49 MB:

# of blocks = (53 cylinders–see Note 5) × (15 heads) ×

(128 sectors per track) = 101760

Note 5:

The number of cylinders for a CVS volume is calculated as follows (↑…↑ means that the value should be rounded up to the next integer):

OPEN-3/8/9/E: The number of cylinders for a CVS volume = # of cylinders = ↑

(capacity (MB) specified by user) × 1024/720 ↑

Example

For an OPEN-3 CVS volume with capacity = 37 MB:

# of cylinders = ↑37 × 1024/720↑ = ↑52.62↑

(rounded up to next integer) = 53 cylinders

OPEN-V: The number of cylinders for a CVS volume = # of cylinders = ↑ (capacity

(MB) specified by user) × 16/15 ↑

Disk Array XP operating system configuration guide: Windows 2000/2003

35

Example

For an OPEN-V CVS volume with capacity = 49 MB:

# of cylinders = ↑49 × 16/15↑ = ↑52.26↑

(rounded up to next integer) = 53 cylinders

OPEN-3/8/9/E: The number of cylinders for a CVS LUSE volume = # of cylinders = ↑

(capacity (MB) specified by user) × 1024/720 ↑ × n

Example

For a CVS LUSE volume with capacity = 37 MB and n = 4:

# of cylinders = ↑37 × 1024/720↑ × 4 = ↑52.62↑× 4 = 53 × 4 = 212

OPEN-V: The number of cylinders for a CVS LUSE volume = # of cylinders = ↑ (capacity

(MB) specified by user) × 16/15 ↑ × n

Example

For an OPEN-V CVS LUSE volume with capacity = 49 MB and n = 4:

# of cylinders = ↑49 × 16/15↑ × 4 = ↑52.26↑× 4 = 53 × 4 = 212

Note 6:

The capacity of an OPEN-3/8/9/E CVS volume is specified in MB, not number of cylinders. The capacity of an OPEN-V CVS volume can be specified in MB or number of cylinders. You set the volume size using Remote Web Console, Command View, or Command View XP Advanced Edition.

36

Disk array supported emulations

Glossary

AL

AL-PA array group

BC

CA

Command View

(CVXP)

Command View

XP Advanced Edition (CVXP AE)

Arbitrated loop.

Arbitrated loop physical address.

A group of 4 or 8 physical hard disk drives (HDDs) installed in an XP disk array and assigned a common RAID level. RAID1 array groups consist of 4 (2D+2D) or 8 HDDs (4D+4D). RAID5 array groups include a parity disk but also consist of 4 (3D+1P) or 8 HDDs (7D+1P). All RAID6 array groups are made up of

8 HDDs (6D+2P).

HP StorageWorks Business Copy XP. BC lets you maintain up to nine local copies of logical volumes on the disk array.

HP StorageWorks Continuous Access XP. CA lets you create and maintain duplicate copies of local logical volumes on a remote disk array.

HP StorageWorks Command View XP, a software product for managing XP arrays. Command View runs on a

Windows-based management workstation.

HP StorageWorks Command View XP Advanced Edition, installs on the user-provided Device Manager server and provides a browser-based platform from which you can manage the XP family of disk arrays—even globally distributed arrays.

command device

A volume on the disk array that accepts Continuous Access or Business Copy control operations which are then executed by the disk array.

CU

Control Unit. Contains LDEVs and is approximately equivalent to SCSI Target ID.

CVS

DKC

Custom volume size. CVS devices (OPEN-x CVS) are custom volumes configured using array management software to be smaller than normal fixed-size OPEN system volumes.

Synonymous with volume size customization (VSC).

The array cabinet that houses the channel adapters and service processor (SVP).

Disk Array XP operating system configuration guide: Windows 2000/2003

37

38

DKU (disk cabinet unit) failover

FC

The array cabinets that house the disk array physical disks.

emulation modes

The logical devices (LDEVs) associated with each RAID group are assigned an emulation mode that makes them operate like

OPEN system disk drives. The emulation mode determines the size of an LDEV:

OPEN-3: 2.46 GB

OPEN-8: 7.38 GB

OPEN-9: 7.42 GB

OPEN-E: 13.56 GB

OPEN-L: 36 GB

OPEN-V: User-defined custom size

Disconnecting a failed unit or path and replacing it with an alternative unit or path in order to continue functioning.

Fibre Channel.

FC-AL

FCP

GB

HBA host mode

Fibre Channel arbitrated loop.

Fibre Channel Protocol.

Gigabytes.

Host bus adapter.

LDEV

LUN

LUSE

Each port can be configured for a particular host type. These modes are represented as two-digit hexadecimal numbers. For example, host mode 08 represents an HP-UX host.

Logical device. An LDEV is created when a RAID group is carved into pieces according to the selected host emulation mode (that is, OPEN-3, OPEN-8, OPEN-L). The number of resulting LDEVs depends on the selected emulation mode. The term LDEV is often used synonymously with the term volume.

Logical unit number. A LUN results from mapping a SCSI logical unit number, port ID, and LDEV ID to a RAID group.

The size of the LUN is determined by the emulation mode of the LDEV and the number of LDEVs associated with the LUN.

For example, a LUN associated with two OPEN-3 LDEVs has a size of 4,693 MB.

A LUN is normally associated with only a single LDEV. The

LUSE feature allows a LUN to be associated with 1 to 36

LDEVs. Essentially, LUSE makes it possible for applications to access a single large pool of storage. The LUSE feature is available when the HP StorageWorks LUN Configuration

Manager product is installed.

Glossary

OFC

OPENx

OS

PA path port

Open Fibre Control.

A general term describing any one of the supported OPEN emulation modes (for example, OPEN-L).

Operating system.

Physical address.

“Path” and “LUN” are synonymous. Paths are created by associating a port, a target, and a LUN ID with one or more

LDEVs.

A physical connection that allows data to pass between a host and the disk array. The number of ports on an XP disk array depends on the number of supported I/O slots and the number of ports available per I/O adapter. The XP family of disk arrays supports Fibre Channel (FC) ports as well as other port types. Ports are named by port group and port letter, such as CL1-A. CL1 is the group, and A is the port letter.

R-SIM

SCSI

SIM

SNMP

SVP

RAID

Redundant array of independent disks.

remote console PC The PC running HP StorageWorks Remote Control XP.

Remote Control

(RC)

Remote Web Console (RWC)

HP StorageWorks Remote Control XP. A software product used for managing XP arrays.

HP StorageWorks XP Remote Web Console. A browser-based program installed on the SVP that allows you to configure and manage the disk array.

Remote service information message.

Small computer system interface.

Service information message.

Simple Network Management Protocol.

TB

TID

Volume

Service processor, which is the PC built into the disk controller.

The SVP provides a direct interface into the disk array. SVP use is reserved for HP support representatives only.

Terabyte.

Target ID.

On the XP array, a volume is a uniquely identified virtual storage device composed of a control unit (CU) component and a logical device (LDEV) component separated by a colon.

For example 00:00 and 01:00 are two uniquely identified

Disk Array XP operating system configuration guide: Windows 2000/2003

39

VSC

WWN

volumes; one is identified as CU = 00 and LDEV = 00, and the other as CU = 01 and LDEV = 00; they are two unique separate virtual storage devices within the XP array.

Volume size customization. Synonymous with CVS.

World Wide Name. A unique identifier assigned to a Fibre

Channel device.

40

Glossary

Index

A

AL-PA

, 16

arbitrated-loop physical address

, 16

audience

, 5

B

Business Copy XP

, 11

C command device(s)

RAID Manager

, 11

Command View

, 9, 11, 16, 22

Command View XP Advanced Edition ,

9, 11, 16, 22

configuration

Fibre Channel ports

, 16

host mode, setting

, 13

port

, 16

configure devices

, 24

Continuous Access XP

, 11

conventions, document

, 6

D device(s) configuring

, 24

logical, not recognized by host

, 27

type specifications

, 34

device(s) types supported

, 10

disk array connecting

, 22

installation

, 13

disk array(s)

Not Ready error message

, 28

self reboots

, 28

disk partitions create

, 25

format

, 25

document conventions

, 6

documentation

HP web sites

, 5

related

, 5

E emulation(s) supported

, 34

error conditions

, 27

F fabric topology settings

, 17

failover

, 10

Fibre Channel interface

, 10

Fibre Channel adapters, configuring

, 18

file system(s) not mounted after rebooting

, 28

verify operations

, 25

G glossary

, 37

H help, obtaining

, 7

host doesn’t reboot properly

, 28

hangs up

, 28

Host Bus adapter configuring

, 19

host mode, setting

, 13

HP storage web site

, 7

Disk Array XP operating system configuration guide: Windows 2000/2003

41

42

Subscriber’s Choice web site

, 7

technical support

, 7

I installation disk array

, 13

interface

Fibre Channel

, 10

L

LDEV(s) designate at least one as a command device

, 11

logical volumes, cannot be created

, 28

LUN Configuration and Security

Manager XP

, 9, 22

LUN(s) creating

, 22

mapping

, 22

O optional software

, 9

P parity error

, 28

path(s) defining

, 22

worksheet

, 31

physical volumes, cannot be created ,

28

port(s)

Fibre Channel

, 16

host mode, setting

, 13

R

RAID Manager command devices

, 11

related documentation

, 5

Remote Web Console

, 9, 11, 16, 22

S

SNMP configuration

, 11

software, optional

, 9

Subscriber’s Choice, HP

, 7

symbols in text

, 6

system option mode

, 15

T technical support

HP

, 7, 29

text symbols

, 6

troubleshooting error conditions

, 27

technical support

, 29

V volume(s) logical, cannot be created

, 28

physical, cannot be created

, 28

W web sites

, 5

HP documentation

, 7

HP storage

, 7

HP Subscriber’s Choice

, 7

worksheet, path

, 31

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
