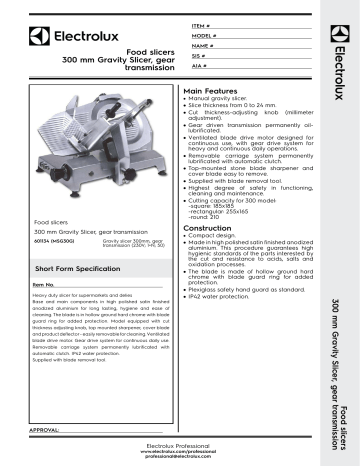

Food slicers 300 mm Gravity Slicer, gear transmission

Food slicers 300 mm Gravity Slicer, gear transmission
ITEM #
MODEL #
Food slicers
300 mm Gravity Slicer, gear
transmission
NAME #
SIS #
AIA #
Main Features
• Manual gravity slicer.
• Slice thickness from 0 to 24 mm.
• Cut thickness-adjusting knob (millimeter
adjustment).
• Gear driven transmission permanently oillubrificated.
• Ventilated blade drive motor designed for
continuous use, with gear drive system for
heavy and continuous daily operations.
• Removable carriage system permanently
lubrificated with automatic clutch.
• Top-mounted stone blade sharpener and
cover blade easy to remove.
• Supplied with blade removal tool.
• Highest degree of safety in functioning,
cleaning and maintenance.
• Cutting capacity for 300 model:
-square: 185x185
-rectangular: 255x165
-round: 210
Food slicers
300 mm Gravity Slicer, gear transmission
601134 (MSG30G)
Gravity slicer 300mm, gear
transmission (230V; 1+N; 50)
Short Form Specification
Item No.
• Compact design.
• Made in high polished satin finished anodized
aluminium. This procedure guarantees high
hygienic standards of the parts interested by
the cut and resistance to acids, salts and
oxidation processes.
• The blade is made of hollow ground hard
chrome with blade guard ring for added
protection.
• Plexiglass safety hand guard as standard.
• IP42 water protection.
APPROVAL:
Electrolux Professional
www.electrolux.com/professional
[email protected]
Food slicers
300 mm Gravity Slicer, gear transmission
Heavy duty slicer for supermarkets and delies
Base and main components in high polished satin finished
anodized aluminium for long lasting, hygiene and ease of
cleaning. The blade is in hollow ground hard chrome with blade
guard ring for added protection. Model equipped with cut
thickness adjusting knob, top mounted sharpener, cover blade
and product deflector - easily removable for cleaning. Ventilated
blade drive motor. Gear drive system for continuous daily use.
Removable carriage system permanently lubrificated with
automatic clutch. IP42 water protection.
Supplied with blade removal tool.
Construction
Food slicers
300 mm Gravity Slicer, gear
transmission
Front
Electric
Supply voltage:
601134 (MSG30G)
Total Watts:
230 V/1N ph/50 Hz
0.5 kW
Key Information:
External dimensions, Height:
External dimensions, Width:
External dimensions, Depth:
Net weight (kg):
520 mm
720 mm
520 mm
36
Side
EI
=
Electrical connection
Food slicers
300 mm Gravity Slicer, gear transmission
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2016.09.15
