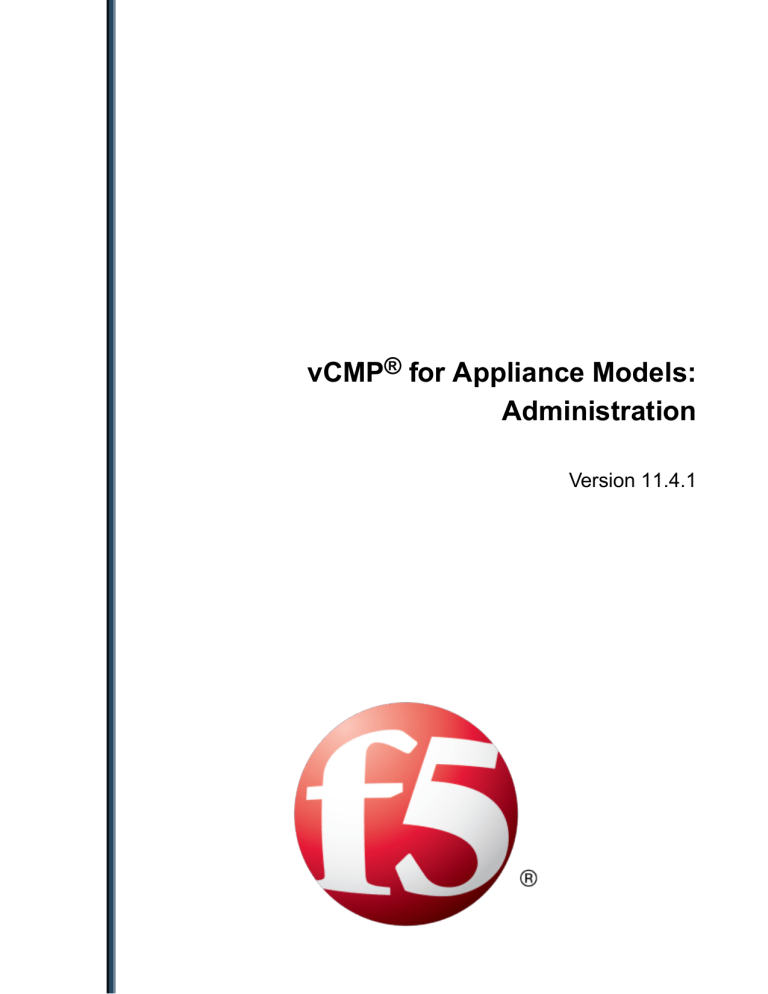

vCMP

® for Appliance Models:

Administration

Version 11.4.1

Table of Contents

Table of Contents

Legal Notices.....................................................................................................5

Acknowledgments.............................................................................................7

Chapter 1:  Introduction to the vCMP System........................................................................11

What is vCMP?................................................................................................................12

Other vCMP system components....................................................................................13

Network isolation..............................................................................................................13

About vCMP system administration.................................................................................13

BIG-IP license considerations for vCMP..........................................................................14

vCMP provisioning...........................................................................................................14

Chapter 2:  Flexible Resource Allocation...............................................................................15

What is flexible resource allocation?................................................................................16

Understanding guest resource requirements...................................................................16

Resource allocation planning...........................................................................................16

Prerequisite hardware considerations...................................................................16

About core allocation for a guest...........................................................................17

About single-core guests.......................................................................................17

About SSL and compression hardware.................................................................17

Guest states and resource allocation...............................................................................17

Chapter 3:  Network Considerations.......................................................................................19

About management network modes for a vCMP guest....................................................20

About Layer2/Layer3 network configuration.....................................................................20

About the VLAN publishing strategy................................................................................21

Overview of VLAN subscription.............................................................................21

About VLANs with identical tags and different names...........................................22

About VLANs with identical names and different tags...........................................23

Solution for tag discrepancy between host and guest VLANs...............................24

Interface assignment for vCMP guests............................................................................26

Chapter 4:  Device Service Clustering for vCMP Systems...................................................27

Overview: Device service clustering for vCMP systems..................................................28

Required IP addresses for DSC configuration.................................................................28

Failover methods for vCMP guests..................................................................................29

About HA groups for vCMP systems................................................................................29

About connection mirroring for vCMP systems................................................................29

Chapter 5:  Initial vCMP Configuration Tasks........................................................................31

3

Table of Contents

vCMP application volume management...........................................................................32

Viewing disk space allocation for a vCMP application volume..............................32

Modifying disk space allocation for a vCMP application volume...........................32

Host configuration............................................................................................................33

Accessing the vCMP host.....................................................................................33

Provisioning the vCMP feature..............................................................................33

Creating a vCMP guest.........................................................................................34

Setting a vCMP guest to the Deployed state.........................................................35

Overview: vCMP guest configuration...............................................................................35

Provisioning BIG-IP modules within a guest.........................................................36

Creating a self IP address within a vCMP guest...................................................36

Next steps.............................................................................................................37

Configuration results........................................................................................................37

Chapter 6:  Managing vCMP Virtual Disks.............................................................................39

Overview: Managing vCMP virtual disks..........................................................................40

About virtual disk allocation...................................................................................40

About virtual disk images......................................................................................40

About virtual disk detachment and re-attachment.................................................40

Detaching virtual disks from a vCMP guest.....................................................................41

Viewing virtual disks not attached to a vCMP guest........................................................41

Attaching a detached virtual disk to a vCMP guest..........................................................41

Deleting a virtual disk from the BIG-IP system................................................................42

Chapter 7:  Viewing vCMP Statistics.......................................................................................43

Overview: Viewing vCMP statistics..................................................................................44

Viewing virtual disk statistics............................................................................................44

Viewing vCMP guest statistics with the BIG-IP Configuration utility................................44

Viewing disk usage statistics............................................................................................45

4

Legal Notices

Publication Date

This document was published on June 25, 2015.

Publication Number

MAN-0491-01

Copyright

Copyright

©

2013-2015, F5 Networks, Inc. All rights reserved.

F5 Networks, Inc. (F5) believes the information it furnishes to be accurate and reliable. However, F5 assumes no responsibility for the use of this information, nor any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent, copyright, or other intellectual property right of F5 except as specifically described by applicable user licenses. F5 reserves the right to change specifications at any time without notice.

Trademarks

AAM, Access Policy Manager, Advanced Client Authentication, Advanced Firewall Manager, Advanced

Routing, AFM, APM, Application Acceleration Manager, Application Security Manager, ARX, AskF5,

ASM, BIG-IP, BIG-IQ, Cloud Extender, CloudFucious, Cloud Manager, Clustered Multiprocessing, CMP,

COHESION, Data Manager, DevCentral, DevCentral [DESIGN], DNS Express, DSC, DSI, Edge Client,

Edge Gateway, Edge Portal, ELEVATE, EM, Enterprise Manager, ENGAGE, F5, F5 [DESIGN], F5 Certified

[DESIGN], F5 Networks, Fast Application Proxy, Fast Cache, FirePass, Global Traffic Manager, GTM,

GUARDIAN, iApps, IBR, Intelligent Browser Referencing, Intelligent Compression, IPv6 Gateway, iControl, iHealth, iQuery, iRules, iRules OnDemand, iSession, L7 Rate Shaping, LC, Link Controller, Local

Traffic Manager, LTM, LineRate, LineRate Systems [DESIGN], LROS, Message Security Manager, MSM,

OneConnect, Packet Velocity, PEM, Policy Enforcement Manager, Protocol Security Manager, PSM, Real

Traffic Policy Builder, Scale

N

, Signalling Delivery Controller, SDC, SSL Acceleration, StrongBox, SuperVIP,

SYN Check, TCP Express, TDR, TMOS, Traffic Management Operating System, Traffix Systems, Traffix

Systems (DESIGN), Transparent Data Reduction, UNITY, VAULT, VIPRION, vCMP, VE F5 [DESIGN],

Virtual Clustered Multiprocessing, WA, WAN Optimization Manager, WebAccelerator, WOM, and

ZoneRunner, are trademarks or service marks of F5 Networks, Inc., in the U.S. and other countries, and may not be used without F5's express written consent.

All other product and company names herein may be trademarks of their respective owners.

Patents

This product may be protected by one or more patents indicated at:

http://www.f5.com/about/guidelines-policies/patents

Acknowledgments

This product includes software developed by Bill Paul.

This product includes software developed by Jonathan Stone.

This product includes software developed by Manuel Bouyer.

This product includes software developed by Paul Richards.

This product includes software developed by the NetBSD Foundation, Inc. and its contributors.

This product includes software developed by the Politecnico di Torino, and its contributors.

This product includes software developed by the Swedish Institute of Computer Science and its contributors.

This product includes software developed by the University of California, Berkeley and its contributors.

This product includes software developed by the Computer Systems Engineering Group at the Lawrence

Berkeley Laboratory.

This product includes software developed by Christopher G. Demetriou for the NetBSD Project.

This product includes software developed by Adam Glass.

This product includes software developed by Christian E. Hopps.

This product includes software developed by Dean Huxley.

This product includes software developed by John Kohl.

This product includes software developed by Paul Kranenburg.

This product includes software developed by Terrence R. Lambert.

This product includes software developed by Philip A. Nelson.

This product includes software developed by Herb Peyerl.

This product includes software developed by Jochen Pohl for the NetBSD Project.

This product includes software developed by Chris Provenzano.

This product includes software developed by Theo de Raadt.

This product includes software developed by David Muir Sharnoff.

This product includes software developed by SigmaSoft, Th. Lockert.

This product includes software developed for the NetBSD Project by Jason R. Thorpe.

This product includes software developed by Jason R. Thorpe for And Communications, http://www.and.com.

This product includes software developed for the NetBSD Project by Frank Van der Linden.

This product includes software developed for the NetBSD Project by John M. Vinopal.

This product includes software developed by Christos Zoulas.

This product includes software developed by the University of Vermont and State Agricultural College and

Garrett A. Wollman.

This product includes software developed by Balazs Scheidler ([email protected]), which is protected under the GNU Public License.

This product includes software developed by Niels Mueller ([email protected]), which is protected under the GNU Public License.

Acknowledgments

In the following statement, This software refers to the Mitsumi CD-ROM driver: This software was developed by Holger Veit and Brian Moore for use with 386BSD and similar operating systems. Similar operating

systems includes mainly non-profit oriented systems for research and education, including but not restricted to NetBSD, FreeBSD, Mach (by CMU).

This product includes software developed by the Apache Group for use in the Apache HTTP server project

(http://www.apache.org/).

This product includes software licensed from Richard H. Porter under the GNU Library General Public

License (

©

1998, Red Hat Software), www.gnu.org/copyleft/lgpl.html.

This product includes the standard version of Perl software licensed under the Perl Artistic License (

©

1997,

1998 Tom Christiansen and Nathan Torkington). All rights reserved. You may find the most current standard version of Perl at http://www.perl.com.

This product includes software developed by Jared Minch.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit

(http://www.openssl.org/).

This product includes cryptographic software written by Eric Young ([email protected]).

This product contains software based on oprofile, which is protected under the GNU Public License.

This product includes RRDtool software developed by Tobi Oetiker (http://www.rrdtool.com/index.html) and licensed under the GNU General Public License.

This product contains software licensed from Dr. Brian Gladman under the GNU General Public License

(GPL).

This product includes software developed by the Apache Software Foundation (http://www.apache.org/).

This product includes Hypersonic SQL.

This product contains software developed by the Regents of the University of California, Sun Microsystems,

Inc., Scriptics Corporation, and others.

This product includes software developed by the Internet Software Consortium.

This product includes software developed by Nominum, Inc. (http://www.nominum.com).

This product contains software developed by Broadcom Corporation, which is protected under the GNU

Public License.

This product contains software developed by MaxMind LLC, and is protected under the GNU Lesser General

Public License, as published by the Free Software Foundation.

This product includes Intel QuickAssist kernel module, library, and headers software licensed under the

GNU General Public License (GPL).

This product includes software licensed from Gerald Combs ([email protected]) under the GNU General

Public License as published by the Free Software Foundation; either version 2 of the License, or any later version. Copyright

©

1998 Gerald Combs.

This product includes software developed by Thomas Williams and Colin Kelley. Copyright

©

1986 - 1993,

1998, 2004, 2007

Permission to use, copy, and distribute this software and its documentation for any purpose with or without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation. Permission to modify the software is granted, but not the right to distribute the complete modified source code. Modifications are to be distributed as patches to the released version. Permission to distribute binaries produced by compiling modified sources is granted, provided you

1.

distribute the corresponding source modifications from the released version in the form of a patch file along with the binaries,

8

vCMP

®

for Appliance Models: Administration

2.

add special version identification to distinguish your version in addition to the base release version number,

3.

provide your name and address as the primary contact for the support of your modified version, and

4.

retain our contact information in regard to use of the base software.

Permission to distribute the released version of the source code along with corresponding source modifications in the form of a patch file is granted with same provisions 2 through 4 for binary distributions. This software is provided "as is" without express or implied warranty to the extent permitted by applicable law.

This product contains software developed by Google, Inc. Copyright

©

2011 Google, Inc.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR

IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE

AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER

LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,

OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN

THE SOFTWARE.

9

Chapter

1

Introduction to the vCMP System

What is vCMP?

Other vCMP system components

Network isolation

About vCMP system administration

BIG-IP license considerations for vCMP

vCMP provisioning

Introduction to the vCMP System

What is vCMP?

Virtual Clustered Multiprocessing

(vCMP

®

) is a feature of the BIG-IP

® system that allows you to provision and manage multiple, hosted instances of the BIG-IP software on a single hardware device. A vCMP hypervisor allocates a dedicated amount of CPU, memory, and storage to each BIG-IP instance. As a vCMP system administrator, you can create BIG-IP instances and then delegate the management of the BIG-IP software within each instance to individual administrators.

A key part of the vCMP system is its built-in flexible resource allocation feature. With flexible resource allocation, you can instruct the hypervisor to allocate a different amount of resource to each BIG-IP instance according to the particular needs of each instance. The hypervisor provides these resources to BIG-IP instances in the form of cores, which contain a portion of system CPU and memory.

At a high level, the vCMP system includes two main components:

vCMP host

The vCMP host is the system-wide hypervisor that makes it possible for you to create and view BIG-IP instances, known as guests. Through the vCMP host, you can also manage guest properties. For each guest, the vCMP host allocates system resources according to the particular resource needs of the guest.

vCMP guests

A vCMP guest is an instance of the BIG-IP software that you create on the vCMP system for the purpose of provisioning one or more BIG-IP

® modules to process application traffic. A guest consists of a TMOS

® instance, plus one or more BIG-IP modules. Each guest has its own share of hardware resources that the vCMP host allocates to the guest, as well as its own management IP addresses, self IP addresses, virtual servers, and so on. This effectively allows each guest to function as a separate BIG-IP device, configured to receive and process application traffic, with no knowledge of other guests on the system.

Furthermore, each guest can use TMOS

® features such as route domains and administrative partitions to create its own multi-tenant configuration. Each guest requires its own guest administrator to provision, configure, and manage BIG-IP modules within the guest. Depending on the hardware model, a vCMP system can support up to approximately six guests.

This illustration shows a basic vCMP system with a host and four guests. Note that each guest a different set of modules provisioned, depending on the guest's particular traffic requirements.

Figure 1: Example of a four-guest vCMP system

12

vCMP

®

for Appliance Models: Administration

Other vCMP system components

In addition to the host and guests, the vCMP

® system includes these components:

Virtual disk

A virtual disk is an amount of disk space that the system has allocated to a guest (typically 100 gigabytes).

Each virtual disk is implemented as an image file with an

.img

extension, such as guest_A.img

.

Core

A core is a portion of CPU and memory that the vCMP host allocates to a guest. The amount of CPU and memory that a core provides varies by hardware platform.

Network isolation

The vCMP

® system separates the data plane network from the management network. That is, the host operates with the hardware switch fabric to control the guest data plane traffic. This provides true multi-tenancy by ensuring that traffic for a guest remains separate from all other guest traffic on the system.

The following illustration shows the separation of the data plane network from the management network.

Figure 2: Isolation of the data plane network from the management network

About vCMP system administration

Administering a vCMP

® system requires two distinct types of administrators: a vCMP host administrator who manages the host to create trunks and VLANs, create guests, and allocate resources to those guests, and a vCMP guest administrator who provisions and configures BIG-IP modules within a specific guest.

On a vCMP system, the administrative user accounts, roles, and associated access control mechanisms of a vCMP host are separate from those of the guests. This prevents a user from accessing the host or other guests on the system, thereby ensuring the separation of administrative tasks across the vCMP deployment.

After you initially set up the vCMP host, you will have a standalone, multi-tenant vCMP system with some number of guests defined. A guest administrator will then be ready to provision and configure the BIG-IP modules within a guest to process application traffic.

13

Introduction to the vCMP System

Optionally, if the host administrator has set up a second system with equivalent guests, a guest administrator can configure high availability for any two equivalent guests.

BIG-IP license considerations for vCMP

The BIG-IP

® system license authorizes you to provision the vCMP

® feature and create guests with one or more BIG-IP system modules provisioned. Note the following considerations:

• Each guest inherits the license of the vCMP host.

• The host license must include all BIG-IP modules that are to be provisioned across all guest instances.

Examples of BIG-IP modules are BIG-IP Local Traffic Manager

™ and BIG-IP Global Traffic Manager

.

• The license allows you to deploy the maximum number of guests that the platform allows.

You activate the BIG-IP system license when you initially set up the vCMP host.

vCMP provisioning

To enable the vCMP

® feature, you perform two levels of provisioning. First, you provision the vCMP feature as a whole. When you do this, the BIG-IP

® system, by default, dedicates most of the disk space to running the vCMP feature, and in the process, creates the host portion of the vCMP system. Second, once you have configured the host to create the guests, each guest administrator logs in to the relevant guest and provisions the required BIG-IP modules. In this way, each guest can run a different combination of modules. For example, one guest can run BIG-IP

®

Local Traffic Manager

(LTM

®

) only, while a second guest can run

LTM

® and BIG-IP ASM

.

Important: Once you provision the vCMP feature, you cannot provision any BIG-IP modules, such as

BIG-IP LTM, on the vCMP host. Moreover, if any BIG-IP modules are already provisioned on the system before you provision the vCMP feature, those modules are de-provisioned when you provision the vCMP feature. This, in turn, interrupts any application traffic currently being processed.

Note: The reserved disk space protects against any possible resizing of the file system.

14

Chapter

2

Flexible Resource Allocation

What is flexible resource allocation?

Understanding guest resource requirements

Resource allocation planning

Guest states and resource allocation

Flexible Resource Allocation

What is flexible resource allocation?

Flexible resource allocation is a built-in vCMP

® feature that allows vCMP host administrators to optimize the use of available system resources. Flexible resource allocation gives you the ability to configure the vCMP host to allocate a different amount of CPU and memory to each guest, based on the needs of the specific BIG-IP

® modules provisioned within a guest. When you create each guest, you specify the number of cores that you want the host to allocate to the guest. Configuring these settings determines the total amount of CPU and memory that the host allocates to the guest. With flexible allocation, you can customize

CPU and memory allocation in granular ways that meet the specific resource needs of each individual guest.

Understanding guest resource requirements

Before you create vCMP

® guests and allocate system resources to them, you need to determine the specific

CPU and memory needs of each guest. You can then decide how many cores to allocate to a guest, factoring in the resource capacity of your hardware platform.

To determine the CPU and memory resource needs, you must know:

• The number of guests you need to create

• The specific BIG-IP

® modules you need to provision within each guest

• The combined memory requirement of all BIG-IP modules within each guest

Resource allocation planning

To determine the resource allocation that you need to configure for each guest, you must know the resource capacity of your hardware platform and the total memory requirement for each guest. You can then calculate the number of cores required for each guest based on the memory requirement that you want to configure for each guest.

Prerequisite hardware considerations

Appliance models vary in terms of how many cores the model provides and how much memory each core contains. Also variable is the maximum number of guests that each model supports.

Before you can determine the number of cores to allocate to a guest, you should understand:

• The total number of cores that the model provides

• The amount of memory that the model provides

• The maximum number of guests that the model supports

By understanding these metrics, you ensure that the total amount of resource you allocate to guests is aligned with the amount of resource that your appliance model supports.

For specific information on the resources that each appliance model provides, see the vCMP

® memory/CPU core allocation matrix on the AskF5

Knowledge Base at guest http://support.f5.com

.

16

vCMP

®

for Appliance Models: Administration

About core allocation for a guest

When you create a guest on the vCMP

® system, you must specify the total number of cores that you want the host to allocate to the guest based on the guest's total resource needs. Each core provides some amount of CPU and a fixed amount of memory. You should therefore specify enough cores to satisfy the combined memory requirements of all BIG-IP

® modules that you provision within the guest.

Important: For metrics on memory and CPU support per appliance model, refer to the vCMP guest memory/CPU allocation matrix at http://support.f5.com

.

About single-core guests

On platforms with hard drives, the vCMP

® host always allocates cores for a guest in increments of two cores. In the case of platforms with solid-state drives, however, the host can allocate a single core to a guest, but only for a guest that requires a maximum of one core; for guests that require more than one core, the host does not allocate an odd number of cores (such as three, five, or seven cores).

The illustration shows a possible guest configuration on an appliance with a solid-state drive, where one of the guests has a single core only allocated to it.

Figure 3: A vCMP configuration with a single-core guest

Because the amount of CPU and memory in a single-core guest is limited, F5 Networks

® that you provision only the BIG-IP

®

Local Traffic Manager

(LTM

® highly recommends

) module within a single-core guest, and no other modules.

About SSL and compression hardware

On systems that include SSL and compression hardware processors, the vCMP

® feature shares these hardware resources among all guests on the system, in a round robin fashion.

When sharing SSL hardware, if all guests are using similar-sized keys, then each guest receives an equal share of the SSL resource. Also, if any guests are not using SSL keys, then other guests can take advantage of the extra SSL resource.

Guest states and resource allocation

As a vCMP

® host administrator, you can control when the system allocates or de-allocates system resources to a guest. You can do this at any time, by setting a guest to one of three states: Configured, Provisioned, or Deployed. These states affect resource allocation in these ways:

Configured

This is the initial (and default) state for newly-created guests. In this state, the guest is not running, and no resources are allocated to the guest. If you change a guest from another state to the Configured state, the vCMP host does not delete any virtual disks that were previously attached to that guest; instead, the

17

Flexible Resource Allocation

guest's virtual disks persist on the system. The host does, however, automatically de-allocate other resources such as CPU and memory. When the guest is in the Configured state, you cannot configure the BIG-IP

® modules that are licensed to run within the guest; instead, you must set the guest to the

Deployed state to provision and configure the BIG-IP modules within the guest.

Provisioned

When you change a guest from Configured to Provisioned, the vCMP host allocates system resources to the guest (CPU, memory, and any unallocated virtual disks). If the guest is new, the host creates new virtual disks for the guest and installs the selected ISO image on them. A guest does not run while in the Provisioned state. When you change a guest from Deployed to Provisioned, the host shuts down the guest but retains its current resource allocation.

Deployed

When you change a guest to the Deployed state, the guest administrator can then provision and configure the BIG-IP modules within the guest. If you are a host administrator and you reconfigure the properties of a guest after its initial deployment, the host immediately propagates those changes to all of the guests and also propagates the list of allowed VLANs.

18

Chapter

3

Network Considerations

About management network modes for a vCMP guest

About Layer2/Layer3 network configuration

About the VLAN publishing strategy

Interface assignment for vCMP guests

Network Considerations

About management network modes for a vCMP guest

As a vCMP host administrator, you can configure each vCMP

® guest to operate in one of two modes:

Bridged or Isolated. The mode you choose specifies whether the guest is bridged to or isolated from the vCMP host's management network. F5 Networks recommends that you configure all vCMP guests to run in Bridged mode, unless you have a specific business or security requirement that requires Isolated mode.

About the Bridged network mode

Bridged mode is the default network mode for a vCMP guest. This mode bridges the guest's virtual management interface to the physical management port. Typically, you configure a guest's management port to be on the same IP network as the host's management port, with a gateway identical to the host's management gateway. This allows you to make TCP connections (for SSH, HTTP, and so on) easily from either the host or the external network to the guest, or from the guest to the host or external network. Although the guest and the host share the host's Ethernet interface, the guest appears as a separate device on the local network, with its own MAC address and IP address.

About the Isolated network mode

Isolated mode isolates the guest from the management network. A guest in Isolated mode cannot communicate with other guests on the system. Also, the only way that the vCMP host can access the console of a guest that is in Isolated mode is through the console port (using the vConsole utility) or through a self IP address on the guest that allows traffic.

Note: Although a guest in Isolated mode is inaccessible through its management interface, guest administrators can configure self IP addresses, routes, access control, and port lockdown settings appropriate to the environment to achieve their individual connectivity goals.

Other considerations

If the guest is in a Deployed state:

• Setting the network mode from Bridged to Isolated mode causes the vCMP host to disconnect the guest's management interface from its bridged management network, which in turn disconnects the guest from the physical management network.

• Setting the network mode from Isolated to Bridged mode causes the vCMP host to dynamically add the guest's management interface to the bridged management network. This immediately connects the guest to the physical management network.

Changing the network mode while the guest is in the Configured or Provisioned state has no immediate effect.

About Layer2/Layer3 network configuration

On a vCMP system, you must configure BIG-IP

®

Layer 2 objects, such as trunks and VLANs, on the vCMP host and then selectively decide which of these objects you want each guest to inherit. Typically, to ensure that each guest's data plane traffic is securely isolated from other guests, the host administrator creates a separate VLAN for each guest to use. Other objects such as self IP addresses, virtual servers, pools, and profiles are configured on the guest by each guest administrator. With this separation of Layer 2 and Layer

3 objects, application traffic is targeted directly to the relevant guest, further allowing each guest to function as a fully-independent BIG-IP

® device.

20

vCMP

®

for Appliance Models: Administration

The following illustration shows the separation of Layer 2 objects from higher-layer objects on the vCMP system:

Figure 4: Isolation of network objects on the vCMP system

About the VLAN publishing strategy

For both host and guest administrators, it is important to understand certain concepts about VLAN configuration on a vCMP

® system:

• VLAN subscription from host to guest

• System behavior when a host and a guest VLAN have duplicate names or tags

Overview of VLAN subscription

As a vCMP

® host administrator, when you create or modify a guest, you typically publish one or more host-based VLANs to the guest. When you publish a host-based VLAN to a guest, you are granting a subscription to the guest for use of that VLAN configuration, with the VLAN's underlying Layer 2 resources.

When you publish a VLAN to a guest, if there is no existing VLAN within the guest with the same name or tag as the host-based VLAN, the vCMP system automatically creates, on the guest, a configuration for the published VLAN.

If you modify a guest's properties to remove a VLAN publication from a guest, you are removing the guest's subscription to that host-based VLAN. However, the actual VLAN configuration that the host created within the guest during initial VLAN publication to the guest remains there for the guest to use. In this case, any changes that a host administrator might make to that VLAN are not propagated to the guest.

In general, VLANs that appear within a guest can be either host-based VLANs currently published to the guest, host-based VLANs that were once but are no longer published to the guest, or VLANs that the guest administrator manually created within the guest.

This example shows the effect of publishing a host-based VLAN to, and then deleting the VLAN from, a guest that initially had no VLANs.

# Within guest G1, show that the guest has no VLANs configured:

[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan

# From the host, publish VLAN v1024 to guest G1:

21

Network Considerations

[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh modify vcmp guest G1 vlans add {

v1024 }

# Within guest G1, list all VLANs:

[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan net vlan v1024 { if-index 96 tag 1024

}

# On the host, delete the host-based VLAN publication from guest G1:

[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh modify vcmp guest G1 vlans del { v1024 }

# Notice that the host-based VLAN still exists within the guest:

[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan vlan v1024 { if-index 96 tag 1024

}

About VLANs with identical tags and different names

Sometimes a host administrator might publish a VLAN to a guest, but the guest administrator has already created, or later creates, a VLAN with a different name but the same VLAN tag. In this case, the guest

VLAN always overrides the host VLAN. The VLAN can still exist on the host (for other guests to subscribe to), but it is the guest VLAN that is used.

Whenever host and guest VLANs have different names but the same tags, traffic flows successfully across the host from the guest because the VLAN tag alignment is correct. That is, when the tags match, the underlying Layer 2 infrastructure of the VLANs matches, thereby enabling the host to reach the guest.

The example here shows the tmsh command sequence for creating two separate VLANs with different names and the same tag, and the resulting successful traffic flow.

# On the host, create a VLAN with a unique name but with a tag matching that of a guest VLAN

VLAN_A:

[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh create net vlan VLAN_B tag 1000

# On the host, publish the host VLAN to the guest:

[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh modify vcmp guest guest1 vlans add { VLAN_B }

# Within the guest, show that the guest still has its own VLAN only, and not the VLAN published from the host:

[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan all net vlan VLAN_A { if-index 192 tag 1000

}

# On the guest, create a self IP address for VLAN_A:

[[email protected]:/S1-green-P:Active:Standalone] config # tmsh create net self 10.1.1.1/24 vlan VLAN_A

22

vCMP

®

for Appliance Models: Administration

# On the host, delete the self IP address on VLAN_A (this VLAN also exists on the guest) and re-create the self IP address on VLAN_B (this VLAN has the same tag as VLAN_A):

[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh delete net self 10.1.1.2/24

[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh create net self 10.1.1.2/24 vlan

VLAN_B

# From the host, open a connection to the guest, and notice that because the two VLANs have the same tags, the connection succeeds:

[[email protected]_210:/S1-green-P:Active:Standalone] config # ping -c2 10.1.1.1

PING 10.1.1.1 (10.1.1.1) 56(84) bytes of data.

64 bytes from 10.1.1.1: icmp_seq=1 ttl=255 time=3.35 ms

64 bytes from 10.1.1.1: icmp_seq=2 ttl=255 time=0.989 ms

--- 10.1.1.1 ping statistics ---

2 packets transmitted, 2 received, 0% packet loss, time 1001ms rtt min/avg/max/mdev = 0.989/2.170/3.352/1.182 ms

About VLANs with identical names and different tags

Sometimes a host administrator might publish a VLAN to a guest, but the guest administrator has already created, or later creates, a VLAN with the same name but with a different VLAN tag. In this case, the guest

VLAN always overrides the host VLAN. The VLAN can still exist on the host (for other guests to subscribe to), but it is the guest VLAN that is used.

Whenever host and guest VLANs have the same names but different tags, traffic cannot flow between the identically-named VLANs at Layer 2. That is, when the tags do not match, the underlying Layer 2 infrastructure of the VLANs does not match, thereby preventing the host from reaching the guest.

The example here shows the tmsh command sequence for creating two separate VLANs with the same names and different tags, and the resulting traffic flow issue.

# While logged into the guest, create a VLAN:

[[email protected]:/S1-green-P:Active:Standalone] config # tmsh create net vlan VLAN_A tag 1000

# Show that no VLANs exist on the host:

[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh list net vlan all

[[email protected]_210:/S1-green-P:Active:Standalone] config #

# On the host, create a VLAN with the same name as the guest VLAN but with a unique tag on the host:

[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh create net vlan VLAN_A tag 1001

# Publish the host VLAN to the guest:

[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh modify vcmp guest guest1 vlans add { VLAN_A }

# Within the guest, show that the guest still has its own VLAN only, and not the VLAN published from the host:

[[email protected]:/S1-green-P:Active:Standalone] config # tmsh list net vlan all net vlan VLAN_A { if-index 192 tag 1000

}

23

Network Considerations

# Within the guest, create a self IP address for the VLAN:

[[email protected]:/S1-green-P:Active:Standalone] config # tmsh create net self 10.1.1.1/24 vlan VLAN_A

# On the host, create a self IP address for the identically-named VLAN:

[[email protected]_210:/S1-green-P:Active:Standalone] config # tmsh create net self 10.1.1.2/24 vlan

VLAN_A

# From the host, open a connection to the guest, and notice that because the two VLANs have different tags, the connection fails:

[[email protected]_210:/S1-green-P:Active:Standalone] config # ping -c2 10.1.1.1

PING 10.1.1.1 (10.1.1.1) 56(84) bytes of data.

From 10.1.1.2 icmp_seq=1 Destination Host Unreachable

From 10.1.1.2 icmp_seq=2 Destination Host Unreachable

--- 10.1.1.1 ping statistics ---

2 packets transmitted, 0 received, +2 errors, 100% packet loss, time 3000ms pipe 2

Solution for tag discrepancy between host and guest VLANs

When a host-based VLAN and a guest-created VLAN have identical names but different VLAN tags, traffic flow at Layer 2 is impeded between host and guest. Fortunately, you can resolve this issue by performing these tasks, in the sequence shown:

• Within the guest, delete the relevant VLAN from within the guest.

• On the host, remove the VLAN publication from the guest.

• On the host, modify the tag of the host-based VLAN.

• On the host, publish the VLAN to the guest.

• Within the guest, view the VLAN from within the guest.

Deleting the VLAN within the guest

You use this task when you want to delete a VLAN from within a vCMP

® guest. One reason for deleting a

VLAN from within a guest is to help resolve a tag discrepancy between a guest VLAN and a host VLAN.

Important: To perform this task, you must be logged in to the relevant vCMP guest.

1.

On the Main tab, click Network > VLANs.

The VLAN List screen opens.

2.

In the Name column, locate the name of the VLAN for which you want to change the partition, and to the left of the name, select the check box and click Delete.

The system prompts you to confirm the delete action.

3.

Click Delete.

After performing this task, you no longer see the VLAN name in the list of VLANs on the guest.

Removing the VLAN publication on the guest

You perform this task when you want to remove a VLAN subscription on a particular guest. One reason for deleting a VLAN from within a guest is to help resolve a tag discrepancy between a guest VLAN and a host VLAN.

24

vCMP

®

for Appliance Models: Administration

Important: To perform this task, you must be logged in to the vCMP host.

1.

On the Main tab, click vCMP > Guest List.

2.

In the Name column, click the name of the guest that you want to modify.

This displays the configured properties of the guest.

3.

For the VLAN List setting, select the relevant VLAN name from the Selected list, and use the Move button to move the name to the Available list.

4.

Click Update.

Modifying the tag of the host-based VLAN

You perform this task to change a VLAN tag on a vCMP

®

VLAN on a guest.

host to ensure that the tag matches that of a

Important: To perform this task, you must be logged in to the vCMP host.

1.

On the Main tab, click Network > VLANs.

The VLAN List screen opens.

2.

In the Name column, click the relevant VLAN name.

This displays the properties of the VLAN.

3.

In the Tag field, type the same tag that was assigned to the VLAN you previously deleted.

4.

If the host and guest VLANs have an optional customer tag, type the same customer tag that was assigned to the VLAN you previously deleted.

5.

Click Update.

Publishing the VLAN to the guest

You perform this task when you want to publish a host-based VLAN to a particular guest.

Important: To perform this task, you must be logged in to the vCMP

® host.

1.

On the Main tab, click vCMP > Guest List.

2.

In the Name column, click the name of the guest that you want to modify.

This displays the configured properties of the guest.

3.

For the VLAN List setting, select the relevant VLAN name from the Available list, and use the Move button to move the name to the Selected list.

4.

Click Update.

After performing this task, the guest can use the selected host-based VLAN.

Viewing the new VLAN within the guest

You perform this task to verify that the VLAN that the host published to a guest appears on the guest, with the correct tag.

Important: To perform this task, you must be logged in to the relevant vCMP

® guest.

1.

On the Main tab, click Network > VLANs.

25

Network Considerations

The VLAN List screen opens.

2.

In the Name column, click the name of the VLAN that the host published to the guest.

3.

In the Tag field, verify that the correct tag is shown.

4.

Click Cancel.

After you perform this task, you can see that the VLAN which the host published to the guest has appeared on the guest, with the correct tag.

Interface assignment for vCMP guests

The virtualized nature of vCMP

® guests abstracts many underlying hardware dependencies, which means that there is no direct relationship between guest interfaces and the physical interfaces assigned to VLANs on the vCMP host.

Rather than configuring any interfaces on a guest, a guest administrator simply creates a self IP address within the guest, specifying one of the VLANs that the host administrator previously configured on the host and assigned to the guest during guest creation.

As host administrator, if you want to limit the guest to using specific physical interfaces, you simply change the physical interface assignments on the VLANs that you assign to that guest.

26

Chapter

4

Device Service Clustering for vCMP Systems

Overview: Device service clustering for vCMP systems

Required IP addresses for DSC configuration

Failover methods for vCMP guests

About HA groups for vCMP systems

About connection mirroring for vCMP systems

Device Service Clustering for vCMP Systems

Overview: Device service clustering for vCMP systems

One of the tasks of a vCMP

® guest administrator is to configure device service clustering (DSC

®

). Using

DSC, a guest administrator can implement config sync, failover, and mirroring across two or more hardware devices. Configuring DSC is the same on a vCMP system as on non-virtualized systems, except that the members of a device group are virtual devices (guests) rather than physical devices.

When configuring DSC, a guest administrator creates a device group that consists of vCMP guests as members, where each member is deployed on a separate BIG-IP device.

For example, for a pair of appliances with three guests each, you can create three separate Sync-Failover device groups in an active-standby configuration. Each device group has two members:

• guest_A on device_1 and guest_A on device_2

• guest_B on device_1 and guest_B on device_2

• guest_C on device_1 and guest_C on device_2

Creating a device group that consists of guests on separate devices ensures that if a device member goes out of service, any active traffic groups on a guest can fail over to another member of the device.

This illustration shows this DSC configuration. The illustration shows two appliances, with three guests on each. Each guest and its equivalent guest on the other appliance form a separate Sync-Failover device group.

Figure 5: vCMP guests forming three device groups across two appliances

Required IP addresses for DSC configuration

This table describes the types of IP addresses that a guest administrator specifies when configuring device service clustering (DSC

®

) on a vCMP system.

Table 1: Required IP addresses for DSC configuration on a vCMP system

Configuration feature

IP addresses required

Device trust

Config sync

Failover

The IP address that the vCMP host administrator assigned to the guest during guest creation.

Any non-floating self IP address on the guest that is associated with an internal VLAN on the host.

• A unicast non-floating self IP address on the guest that is associated with an internal

VLAN on the host (preferably VLAN

HA

)

• The management IP address of the device.

28

vCMP

®

for Appliance Models: Administration

Configuration feature

IP addresses required

Connection mirroring

For both the primary and the secondary IP addresses, a non-floating self IP address on the guest that is associated with an internal VLAN on the host. The secondary address is optional.

Failover methods for vCMP guests

Each traffic group in a device service clustering (DSC

®

) device group has a property known as a failover method. The failover method dictates the way that the system chooses a target device for failover. Available failover methods that the user can choose from are: load-aware failover, an ordered list, and an HA group.

The specific core allocation for a guest in a Sync-Failover device group determines the particular failover method that is appropriate for a DSC traffic group within the guest:

• Guests in a device group that are identical in terms of core allocation are considered to be homogeneous guests. In this case, an ordered list would be an appropriate failover method, since relative capacity is equal among all guests.

• Guests in a device group that differ from one another in terms of core allocation are considered to be

heterogeneous guests. In this case, load-aware failover is an appropriate failover method because the guest administrator can define a relative capacity and relative traffic load for each guest.

An additional type of failover method is an HA group, which applies to both homogeneous and heterogeneous guests.

About HA groups for vCMP systems

For failover configuration, an alternative to using load-aware failover or an ordered list is to use HA groups.

An HA group is a set of trunks, pools, or clusters (or any combination of these) that a guest administrator creates and associates with a traffic group. The most common reason to use HA groups is to ensure that failover is triggered when some number of trunk members become unavailable.

The BIG-IP

® system uses an HA group to calculate an overall health score for a guest. The guest that has the best overall score at any given time becomes or remains the active guest. With an HA group, the system triggers failover of a traffic group based on changes to trunk, pool, or cluster health instead of on system, gateway, or VLAN failure.

Because trunks are never synchronized between guests, the number of trunk members associated with an

HA group often differs between guests on separate devices whenever a trunk loses or gains members.

About connection mirroring for vCMP systems

Connection mirroring is a device service clustering (DSC

®

) feature that allows a device to mirror its connection and persistence information to another device. Connection mirroring prevents interruption in service during failover. On a vCMP system, the devices that mirror their connections to each other are virtual devices (vCMP guests).

29

Device Service Clustering for vCMP Systems

Important: Within a Sync-Failover device group, a guest can only mirror its connections to one other guest. The two guests, as mirrored peers, must match with respect to core allocation.

30

Chapter

5

Initial vCMP Configuration Tasks

vCMP application volume management

Host configuration

Overview: vCMP guest configuration

Configuration results

Initial vCMP Configuration Tasks

vCMP application volume management

The BIG-IP

® system allocates all but 30 gigabytes of the total disk space to the vCMP

® application volume.

Known as the reserve disk space, the remaining 30 gigabytes of disk space are left available for other uses, such as for installing additional versions of the BIG-IP system in the future. The vCMP disk space allocation, as well as the creation of the reserve disk space, occurs when you initially provision the vCMP feature as part of vCMP host configuration.

If you want the system to reserve more than the standard 30 gigabytes of disk space for non-vCMP uses, you must do this prior to provisioning the vCMP feature. Adjusting the reserved disk space after you have provisioned the vCMP feature can produce unwanted results.

Important: When increasing the reserve disk space for additional BIG-IP installations, the recommended amount of space to reserve is 8 gigabytes per installation.

Viewing disk space allocation for a vCMP application volume

Using this procedure, you can view the amount of disk space, in megabytes, that the system has allocated to a vCMP application volume.

1.

In the URL field, type the management IP address that you previously assigned to the system.

https://<ip_address>

The browser displays the login screen for the BIG-IP Configuration utility.

2.

On the Main tab, click System > Disk Management.

The display shows the logical disks and application volumes from the perspective of the vCMP host.

3.

Click the logical disk for which you want to reserve disk space.

An example of a logical disk is

HD1

.

4.

On the menu bar, click Image List if displayed.

The screen displays a list of the installed images on the system.

5.

If a list of images appears, locate the relevant image, and in the Disk column, click the logical disk name.

6.

In the Contained Application Volumes area of the screen, in the Volume column, locate the vCMP application volume.

7.

In the Size (MB) column, view the size of the application volume, in megabytes.

Modifying disk space allocation for a vCMP application volume

When you provision the BIG-IP system for vCMP, the BIG-IP system dedicates all but 30 gigabytes of disk space to running the vCMP feature. (The 30 gigabytes of reserved disk space protects against any possible resizing of the file system.) Before provisioning the vCMP feature, you can reserve additional space for a logical disk. Use this procedure if you decide that you need to change the amount of disk space (in megabytes) that the system allocates to a vCMP application volume.

1.

In the URL field, type the management IP address that you previously assigned to the system.

https://<ip_address>

The browser displays the login screen for the BIG-IP Configuration utility.

32

vCMP

®

for Appliance Models: Administration

2.

On the Main tab, click System > Disk Management.

The display shows the logical disks and application volumes from the perspective of the vCMP host.

3.

Click the logical disk for which you want to reserve disk space.

An example of a logical disk is

HD1

.

4.

On the menu bar, click Image List if displayed.

The screen displays a list of the installed images on the system.

5.

If a list of images appears, locate the relevant image, and in the Disk column, click the logical disk name.

6.

In the Reserved (MB) field, increase the amount of disk space that you want to reserve for the logical disk.

The more space your reserve, the less disk space is available for the vCMP application volume.

7.

Click Update.

Host configuration

As a vCMP

® host administrator, you have the important task of initially planning the amount of total system

CPU and memory that you want the vCMP host to allocate to each guest. This decision is based on the resource needs of the particular BIG-IP

® modules that guest administrators intend to provision within each guest, as well as the maximum system resource limits for the relevant hardware platform. Thoughtful resource allocation planning prior to creating the guests ensures optimal performance of each guest. Once you have determined the resource allocation requirements for the guests, you are ready to configure the host. For more information on determining the resource needs of each guest, see Flexible Resource Allocation.

Overall, your primary duties are to provision the vCMP feature and to create and manage guests, ensuring that the proper system resources are allocated to those guests.

Task list

Accessing the vCMP host

Performing this task allows you to access the vCMP host. Primary reasons to access the host are to create and manage vCMP

® guests, manage virtual disks, and view or manage host and guest properties. You can also view host and guest statistics.

1.

From a system on the external network, display a browser window.

2.

In the URL field, type the management IP address that you previously assigned to the system, as follows: https://<ip_address>

The browser displays the login screen for the BIG-IP

®

Configuration utility.

Provisioning the vCMP feature

Before performing this task, ensure that the amount of reserve disk space that the provisioning process creates is sufficient. Attempting to adjust the reserve disk space after you have provisioned the vCMP

® feature produces unwanted results.

Performing this task creates the vCMP host (the hypervisor) and dedicates most of the system resources to running vCMP.

33

Initial vCMP Configuration Tasks

Warning: If the system currently contains any BIG-IP

® module configuration data, this data will be deleted when you provision the vCMP feature.

1.

On the Main tab, click System > Resource Provisioning.

2.

Verify that all BIG-IP modules are set to None.

3.

From the vCMP list, select Dedicated.

4.

Click Update.

After provisioning the vCMP feature, the system reboots TMOS

® and prompts you to log in again. This action logs you in to the vCMP host, thereby allowing you to create guests and perform other host configuration tasks.

Creating a vCMP guest

Before creating a guest on the system, verify that you have configured the base network on the system to create any necessary trunks, as well as VLANs for guests to use when processing application traffic.

You create a vCMP guest when you want to create an instance of the BIG-IP software for the purpose of running one or more BIG-IP

® modules to process application traffic. For example, you can create a guest that runs BIG-IP

®

Local Traffic Manager

™ and BIG-IP

®

Global Traffic Manager

. When creating a guest, you specify the number of cores that you want the vCMP host to allocate to each guest.

Note: When creating a guest, if you see an error message such as Insufficient disk space on

/shared/vmdisks. Need 24354M additional space.

, you must delete existing unattached virtual disks until you have freed up that amount of disk space.

Important: If you are planning to add this guest to a Sync-Failover device group and enable connection mirroring with a guest on another system, you must ensure that the two guests are configured identically with respect to core allocation.

1.

Use a browser to log in to system, using the management IP address.

This logs you in to the vCMP

® host.

2.

On the Main tab, click vCMP > Guest List.

3.

Click Create.

4.

From the Properties list, select Advanced.

5.

In the Name field, type a name for the guest.

6.

In the Host Name field, type a fully-qualified domain name (FQDN) name for the guest.

If you leave this field blank, the system assigns the name localhost.localdomain

.

7.

From the Cores Per Guest list, select the number of cores that you want the host to allocate to the guest.

Important: For metrics on memory and CPU support per appliance model, refer to the vCMP guest memory/CPU allocation matrix at http://support.f5.com

.

8.

From the Management Network list, retain the value Bridged, or select Isolated.

The recommended value is Bridged.

9.

For the Management Port setting, fill in the required information: a) In the IP Address field, type a unique management IP address that you want to assign to the guest.

34

vCMP

®

for Appliance Models: Administration

You use this IP address to access the guest when you want to manage the BIG-IP modules running within the guest.

b) In the Network Mask field, type the network mask for the management IP address.

c) In the Management Route field, type a gateway address for the management IP address.

10.

From the Initial Image list, select an ISO image file for installing TMOS

® software onto the guest's virtual disk.

11.

In the Virtual Disk list, retain the default value of None.

Note that if an unattached virtual disk file with that default name already exists, the system displays a message, and you must manually attach the virtual disk. You can do this using the tmsh command line interface, or use the Configuration utility to view and select from a list of available unattached virtual disks.

The BIG-IP system creates a virtual disk with a default name (the guest name plus the string

.img

, such as guestA.img

).

12.

For the VLAN List setting, select both an internal and an external VLAN name from the Available list, and use the Move button to move the VLAN names to the Selected list.

The VLANs in the Available list are part of the vCMP host configuration.

After you create the guest, the guest can use the selected VLANs to process application traffic.

13.

From the Requested State list, select Provisioned.

After the guest is provisioned, the host allocates all necessary resources to the guest, such as cores and virtual disk.

14.

Click Finish.

The system installs the selected ISO image onto the guest's virtual disk and displays a status bar to show the progress of the resource allocation.

After clicking Finished, you must wait while the system installs the selected ISO image onto the guest's virtual disk. When this process is complete, you can deploy the guest.

Setting a vCMP guest to the Deployed state

Setting a guest to the Deployed state enables a guest administrator to then provision and configure the

BIG-IP

® modules within the guest.

1.

Ensure that you are logged in to the vCMP host.

2.

On the Main tab, click vCMP > Guest List.

3.

In the Name column, click the name of the vCMP guest that you want to deploy.

4.

From the Requested State list, select Deployed.

5.

Click Update.

After moving a vCMP

® guest to the Deployed state, a guest administrator can provision and configure the

BIG-IP modules within the guest so that the guest can begin processing application traffic.

Overview: vCMP guest configuration

The primary duties of a vCMP

® guest administrator are to provision BIG-IP

® modules within the guest and configure any self IP addresses that the guest needs for processing application traffic. The guest administrator

35

Initial vCMP Configuration Tasks

must also configure all BIG-IP modules, such as creating virtual servers and load balancing pools within

BIG-IP Local Traffic Manager

(LTM).

Optionally, a guest administrator who wants a redundant system configuration can create a device group with the peer guests as members.

Provisioning BIG-IP modules within a guest

Before a guest administrator can access a guest to provision licensed BIG-IP

® modules, the vCMP

® must be in the Deployed state.

guest

To run BIG-IP modules within a guest, the guest administrator must first provision them. For example, a guest administrator for guestA who wants to run LTM

® and GTM

™ must log into guestA and provision the LTM and GTM modules.

Note: This procedure applies to guests in Bridged mode only. Guests in Isolated mode can be accessed using vconsole and tmsh only.

1.

Open a browser, and in the URL field, specify the management IP address that the host administrator assigned to the guest.

2.

At the login prompt, type the default user name admin

, and password admin

, and click Log in.

The Setup utility screen opens.

3.

Click Next.

This displays the Resource Provisioning screen.

4.

For each licensed BIG-IP module in the list, select the check box and select Minimal, Nominal, or

Dedicated.

5.

Click Next.

This displays the Certificate Properties screen.

6.

Click Next.

This displays some general properties of the guest.

7.

Click Next.

8.

Click Finished.

Creating a self IP address within a vCMP guest

A guest administrator creates a self IP address within a vCMP

® guest as a way to provide a hop for application traffic. On a standalone system, the self IP address that a guest administrator creates is a static (non-floating)

IP address. Note that the administrator does not need to create VLANs within the guest; instead, the VLANs available for assigning to a self IP address are VLANs that a host administrator previously created on the vCMP host.

1.

On the Main tab of the BIG-IP Configuration utility, click Network > Self IPs.

The Self IPs screen opens.

2.

Click Create.

The New Self IP screen opens.

3.

In the Name field, type a unique name for the self IP.

4.

In the IP Address field, type an IPv4 or IPv6 address.

This IP address should represent the address space of the VLAN that you specify with the VLAN/Tunnel setting.

36

vCMP

®

for Appliance Models: Administration

5.

In the Netmask field, type the network mask for the specified IP address.

6.

From the VLAN/Tunnel list, select the VLAN to associate with this self IP address.

• On the internal network, select the VLAN that is associated with an internal interface or trunk.

• On the external network, select the VLAN that is associated with an external interface or trunk.

The VLANs in the list are VLANs that the host administrator previously created on the vCMP host.

7.

From the Port Lockdown list, select Allow Default.

8.

Click Finished.

The screen refreshes, and displays the new self IP address in the list.

After creating a self IP address, the BIG-IP system can send and receive traffic through the specified VLAN.

Next steps

After all guests are in the Deployed state, each individual guest administrator can configure the appropriate

BIG-IP modules for processing application traffic. For example, a guest administrator can use BIG-IP

®

Local Traffic Manager

(LTM

®

) to create a standard virtual server and a load-balancing pool. Optionally, if guest redundancy is required, a guest administrator can set up device service clustering (DSC

®

).

Configuration results

After you and all guest administrators have completed the initial configuration tasks, you should have a system provisioned for vCMP, with one or more guests ready to process application traffic.

When logged in to the vCMP host, you can see the VLANs and trunks configured on the system, as well as all of the guests that you created, along with their virtual disks. You can also see the number of cores that the host allocated to each guest.

When logged in to a guest, the guest administrator can see one or more BIG-IP

® modules provisioned and configured within the guest to process application traffic. If the guest administrator configured device service clustering (DSC

®

), the guest is a member of a device group.

37

Chapter

6

Managing vCMP Virtual Disks

Overview: Managing vCMP virtual disks

Detaching virtual disks from a vCMP guest

Viewing virtual disks not attached to a vCMP guest

Attaching a detached virtual disk to a vCMP guest

Deleting a virtual disk from the BIG-IP system

Managing vCMP Virtual Disks

Overview: Managing vCMP virtual disks

A virtual disk is the portion of disk space that the system has allocated to a guest. Each virtual disk is implemented as an image file with an

.img

extension, such as guest_A.img.

The vCMP

® system automatically creates a virtual disk when you create a vCMP guest. However, after you have created and deployed all guests, you can manage the virtual disks on the system as a way to optimize performance. You must be logged into the vCMP host to manage virtual disks on the system.

About virtual disk allocation

On the vCMP system, the host assigns a fixed amount of disk space (100 gigabytes) for each guest. This amount of available disk space per guest remains fixed regardless of the number of cores that you configure for that guest. For example, allocating two cores to guest_A provides the same amount of available disk space for the guest as allocating four cores to the guest.

You cannot explicitly create virtual disks; instead, the BIG-IP

® when you create a guest.

system automatically creates a virtual disk

About virtual disk images

A virtual disk is in the form of an image that resides in the

/shared/vmdisks directory. The default file name that the BIG-IP

® system initially assigns to a virtual disk is the guest name plus a

.img

extension (for example, guestA.img

). You identify and manage virtual disks on the system using these file names.

About virtual disk detachment and re-attachment

When a vCMP

® guest has no virtual disk and moves from the Configured state to the Provisioned state, the system creates a virtual disk and attaches the disk to the guest. This attachment ensures that only that guest can use the virtual disk. A guest can have only one virtual disk attached to it at any one time.

A virtual disk can become unattached from a guest when you perform one of these actions:

Action Result

Delete a guest

Change the state of the guest from

Provisioned or Deployed to

Configured.

The system retains the virtual disk on the system for future use.

Change the Virtual Disk property of the guest to None

The system retains the virtual disks on the system for future use.

The system retains the virtual disks on the system for future use.

Reboot the system

Re-activate the vCMP license on the system

The system deletes all guests, detaches and retains their virtual disks, re-creates the guests, and then re-attaches the virtual disks to their associated guests.

The system deletes all guests, detaches and retains their virtual disks, re-creates the guests, and then re-attaches the virtual disks to their associated guests.

40

vCMP

®

for Appliance Models: Administration

You can attach an existing, unattached virtual disk to a new guest that you create. Attaching an existing virtual disk to a newly-created guest saves the BIG-IP

® system from having to create a new virtual disk for the guest.

Note: A guest must be in the Configured state before you can explicitly detach a virtual disk from a guest.

Detaching virtual disks from a vCMP guest

Before you can detach a virtual disk from a guest, you must be logged into the vCMP host. Also, you must change the Requested State property on the guest to Configured.

You can detach a virtual disk from the guest, but retain the virtual disk on the BIG-IP

® system so that you can attach it to another guest later.

Important: Unattached virtual disks consume disk space on the system. To prevent unattached virtual disks from depleting available disk space, routinely monitor the number of unattached virtual disks that exist on the system.

1.

On the Main tab, click vCMP > Guest List.

2.

In the Name column, locate the relevant guest name, and to the left of the name, select the check box.

3.

Click the Configured button.

4.

In the Name column, click the guest name.

5.

From the Virtual Disk list, select the default value, None.

6.

Click Update.

The vCMP guest no longer has any virtual disk attached to it.

Viewing virtual disks not attached to a vCMP guest

Before you can view unattached virtual disks, you must be logged into the vCMP host.

You can view virtual disks that are not attached to a vCMP

® guest so that you can monitor virtual disks that might be unused but still consuming disk space.

1.

On the Main tab, click vCMP > Virtual Disk List.

2.

Locate the Virtual Disk List area of the screen.

3.

To the right of the list of virtual disk names, note any disks that do not have any guest names associated with them. These disks are unattached.

Attaching a detached virtual disk to a vCMP guest

Before you begin this task, ensure that:

• You are logged into the vCMP

® host.

• The guest to which you are attaching the virtual disk is in the Configured state.

41

Managing vCMP Virtual Disks

• The virtual disk is not currently be attached to another guest.

It is possible for a virtual disk to become detached from a vCMP guest. A disk that is no longer attached to a guest is known as an unattached virtual disk.

You can attach an unattached virtual disk to another guest either when you create the guest or when you modify the Virtual Disk property of a guest.

1.

On the Main tab, click vCMP > Guest List.

2.

In the Name column, click the name of the vCMP guest that you want to view.

3.

From the Properties list, select Advanced.

4.

From the Virtual Disk list, select a file name.

The guest uses the newly-selected virtual disk when being deployed.

5.

Click Update.

Deleting a virtual disk from the BIG-IP system

Before deleting a virtual disk, ensure that you are logged into the vCMP host.

Using the BIG-IP

®

Configuration utility, you can delete a virtual disk from the system.

Important: This is the only way to delete a virtual disk from the system. If you delete the associated guest instead, the system retains the virtual disk for re-use by another guest later.

1.

On the Main tab, click vCMP > Virtual Disk List.

2.

Locate the Virtual Disk List area of the screen.

3.

In the Name column, locate the name of the virtual disk that you want to delete.

4.

To the left of the virtual disk name, select the check box.

5.

Click Delete.

The system prompts you to confirm the delete action.

6.

Click Delete.

42

Chapter

7

Viewing vCMP Statistics

Overview: Viewing vCMP statistics

Viewing virtual disk statistics

Viewing vCMP guest statistics with the

BIG-IP Configuration utility

Viewing disk usage statistics

Viewing vCMP Statistics

Overview: Viewing vCMP statistics

With vCMP

® initial setup successfully completed to process application traffic, you will likely want to analyze your vCMP statistics to better manage performance.

Viewing virtual disk statistics

Before viewing virtual disk statistics, you must be logged in to the vCMP host.

Using the BIG-IP

® allocated to vCMP

®

Configuration utility, you can view information about the virtual disks that are currently guests:

• The virtual disk names

• The size in gigabytes of each virtual disk

• The name of the guest to which each virtual disk is currently allocated

1.

On the Main tab, click vCMP > Virtual Disk List.

2.

Locate the Virtual Disk List area of the screen.

The following table shows sample statistics for three separate virtual disks.

Virtual Disk Name

GuestA.img

GuestB.img

GuestC.img

Operating System

TMOS

Unknown

TMOS

Status

Ready

Unknown

Ready

Disk use

64.4G

64.4G

64.4G

Viewing vCMP guest statistics with the BIG-IP Configuration utility

Before viewing guest statistics, you must be logged in to the vCMP host.

Using the BIG-IP

®

Configuration utility, you can list the names of, and information about, the vCMP guests that are currently on the system.

®

1.

Log out of the guest.

2.

On an external system, open a browser window and access the vCMP host, using the vCMP host's management IP address.

3.

Using your user credentials, log in to the BIG-IP Configuration utility.

4.

On the Main tab, click vCMP.

The system displays a list of vCMP guest names, as well as this information:

• The state configured for the guest

• The guest's management IP address and netmask

44

vCMP

®

for Appliance Models: Administration

Viewing disk usage statistics

Before viewing disk usage statistics, you must be logged in to the vCMP host.

Using the BIG-IP

®

Configuration utility, you can view information about the vCMP

® disk usage:

• Disk name

• The number of virtual disks

• The total vCMP application volume size, in gigabytes

• The available vCMP application volume size, in gigabytes

1.

On the Main tab, click vCMP > Virtual Disk List.

2.

Locate the Disk Usage area of the screen.

45

Index

A

access control administrative

13

administrator tasks

13

,

33

allocation for vCMP application volume

32

audience

13

B

BIG-IP instances

12

BIG-IP modules and guest states

17

provisioning

13–14

provisioning within guests

36

Bridged mode described

20

C

components

13

config sync for vCMP systems

28

config sync IP addresses

28

configuration data and vCMP provisioning

33

Configured state and disk attachment

40

described

17

connection mirroring on vCMP systems

29

control plane

13

core allocation based on appliance model

16

explained

17

on solid-state platforms

17

cores as system resource

16

defined

13

for resource allocation

16

CPU allocation based on appliance model

16

explained

17

CPU cores and guest states

17

D

data plane

13

Deployed guest state purpose of

35

Deployed state described

17

next steps

37

device groups for vCMP systems

28

device trust IP addresses

28

disk space and vCMP application volume

32

and vCMP provisioning

33

modifying and viewing

32

reserving

12

,

14

disk space allocation about

40

disk space and viewing modifying

32

disk usage

45

E

Ethernet connection sharing

20

F

failover for vCMP systems

28–29

failover IP addresses

28

failover methods for vCMP systems

29

flexible resource allocation defined

16

floating IP addresses configuring

33

front-panel management port

20

G

guest administrators about

13

duties of

13

guest failover

29

guests about

12

and management network

20

and resource requirements

16

and virtual disks

40

configuring BIG-IP modules on

37

configuring for LTM

44

creating

34

provisioning BIG-IP modules for

36

setting to Deployed state

35

guest states described

17

guest tasks

35

guest-to-external-network communication

20

guest-to-guest communication

20

guest-to-host TCP communication

20

guest-to-vCMP host communication

20

guest VLANs removing subscription from host

24

Index

47

Index

H

HA groups for vCMP systems

29

hardware resources sharing for SSL and compression

17

high availability about

13

for vCMP systems

28

host about

12

host administrators about

13

host administrator tasks

33

host VLANs publishing to guests

25

hypervisors

12

I

instances

12

IP addresses for DSC

28

ISO images and guest states

17

Isolated mode described

20

L

Layer 2/Layer 3 configuration

20

licensing and guests

14

M

MAC addresses

20

management gateways

20

management interfaces bridging

20

on guests

13

management IP addresses configuring

33

management network and guests

20

vs. data plane network

13

management ports

20

memory allocation based on appliance model

16

explained

17

mirroring on vCMP systems

29

mirroring IP addresses

28

modes of guests

20

module configuration

37

N

network, See management network

48

network configuration host vs. guest

20

network isolation

13

network modes about

20

P

pool availability and vCMP guests

29

pools for BIG-IP modules

37

Provisioned state described

17

provisioning and reserve disk space

32

for vCMP feature

33

provisioning process

14

R

redundancy for vCMP systems

28

resource allocation and guest states

17

based on appliance model
