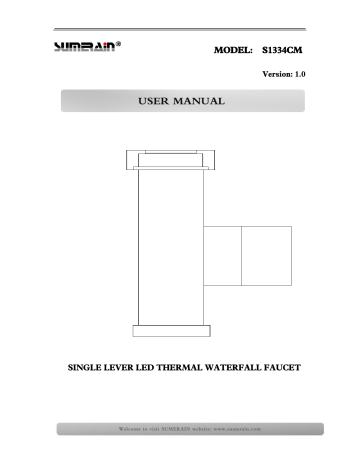

MODEL: S1334CM

MODEL: S1334CM
MODEL:
S1334CM
Version: 1.0
SINGLE LEVER LED THERMAL WATERFALL FAUCET
Dear Valued Customer,
SUMERAIN would like to take this opportunity to thank you for
purchasing SUMERAIN products. It is our sincere hope that you are
completely satisfied with your new purchase. We welcome any
questions or comments you may have and look forward to assisting you
in the future.
Sincerely,
SUMERAIN customer service department
1. Unpack your new product and ensure that all the parts are contained
in the packaging. Keep the product in its original box until you ready
to install it.
2. Shut off the water supply if replacing a previously-installed faucet.
3. Observe all plumbing and building codes in your area.
4. It is recommended that installation of the product be done by a
professional plumber.
Tools you may need when installing the faucet
Specification
Function
Feature
Style
Finish
Installation Holes
Number of Handles
Faucet Total Height
Spout Spread
Spout Width
Spout Height
Valve Type
Faucet Body Material
Faucet Spout Material
Net Weight
Gross Weight
Working water press
LED power supply
LED Color changing
Water temperature
Water temperature
Water temperature
Packing box size
Bathroom Sink Faucets
LED, Waterfall
Contemporary
Chrome
One Hole
Single Handle
130mm [5.1 Inch]
95mm
[3.7 Inch]
57mm
[2.2 Inch]
115mm [4.5 Inch]
Ceramic Valve
Brass
Brass
1.45 KG
1.95 KG
0.2 ~0.8 Mpa
Water flow generator
< 28 ℃
28 ℃~ 38 ℃
> 38 ℃
Blue color
Green color
Red color
235mm x 185mm x 140mm
Dimension
Packing list
CODE
A
B
C
D
E
F
ITEM NAME
Faucet Body
O-Ring
Thread pipe
Rubber Gasket
Nut
Hoses
QUANTITY
1
1
1
1
1
2
PCS
PCS
PCS
PCS
PCS
PCS
Step 1:
Screw the hoses “F” with the faucet body through the thread pipe “C”
and the O-Ring “B”
Step 2:
Screw the thread pipe “C” with the body “A”
Step 3:
Through the faucet body with O-ring “B” and thread pipe “C” into the
hole of basin
Step 4:
Through the rubber gasket “D” in the thread pipe and Screw the nut “E”
on the thread pipe
Step 5:
Connecting the end of the hoses to the connector of the cold and hot
water supply system.
■Clean the faucets and showers as and when required. Regular
cleaning can prevent calcification.
■Never use cleaning materials contain hydrochloric, formic,
phosphoric or acetic acid, which may cause considerable damage.
■Never use cleaning materials or appliances with an abrasive effect,
such as unsuitable cleaning powders, sponge pads, or micro fiber
cloths.
■After cleaning, rinse thoroughly the faucet with clean water to
remove any cleaner residue.
■Unscrew and clean the aerator regularly.
TROUBLESHOOTING
Symptom
Faucet leaks from
the handle
The
pressure
low
water
is too
Solution
A. Tighten the packing nut
B.
Replace the "O" ring or packing
A. Make sure the water supply valves under the sink are
turned on all the way
B. Clean or replace the aerator
C. Check plumbing system for water pressure problems
The spout sprays
water all over
A. Clean or replace the aerator
B. Replace the aerator washer
Water is leaking
from the faucet
under the sink
A. Check the water supply connections to the faucet
B. Inspect the water supply lines or hoses for leaks
Handle is loose
LED
does
illuminate
not
A. Remove the cap and tighten the screw
B. Locate and tighten the hex set screw
C. Remove the handle and check for stripped teeth on the
stem.
A. Increase the water press
B. Clean the strainer of hot and cold water inlet
HONGKONG SUMERAIN SANITARY INDUSTRY CO..LIMITED
Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL
Factory Address: Shuikou Industrial Park, Kaiping City, Guangdong Province,
China (Mainland)
Tel:
+86-750-2731579
Toll Free: 400-0999-075 (China mainland)
Fax: +86-750-2715258
E-mail:[email protected]
SUMERAIN INTERNATIONAL GROUP – AMERICA Branch
Address: 13455 Harper Dr.
Saratoga, CA 95070
USA
Tel: +1-408-867-8884
FAX: +1-408-867-4272
E-mail:[email protected]
