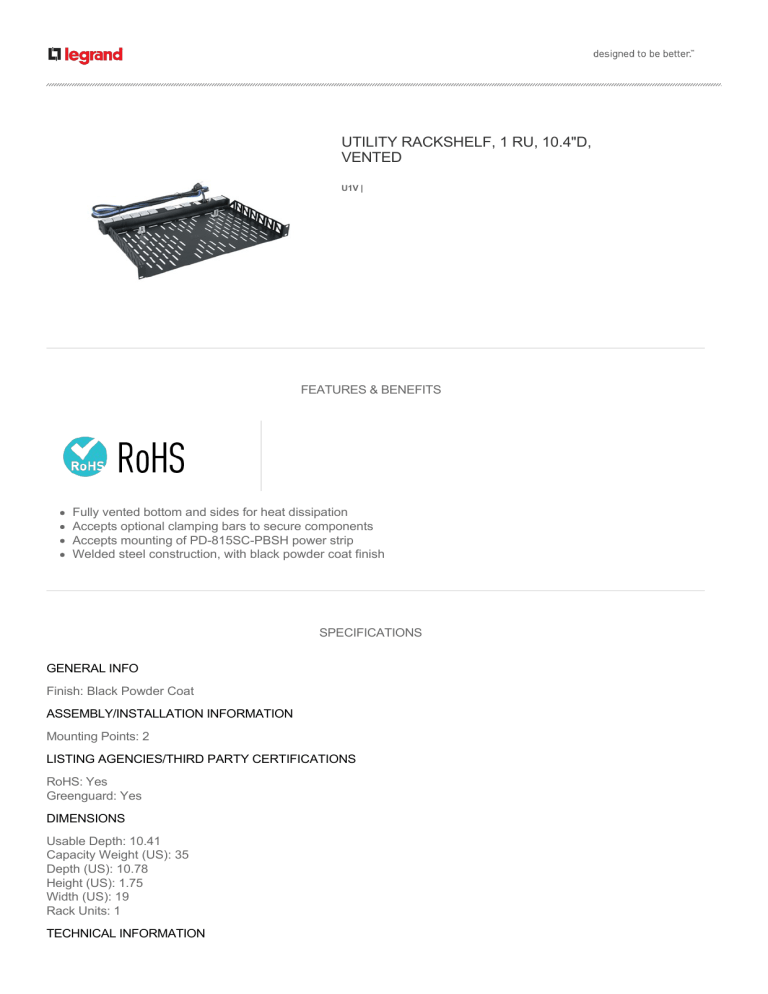

utility rackshelf, 1 ru, 10.4"d, vented
UTILITY RACKSHELF, 1 RU, 10.4"D,
VENTED
U1V |
FEATURES & BENEFITS
Fully vented bottom and sides for heat dissipation
Accepts optional clamping bars to secure components
Accepts mounting of PD­815SC­PBSH power strip
Welded steel construction, with black powder coat finish
SPECIFICATIONS
GENERAL INFO
Finish: Black Powder Coat
ASSEMBLY/INSTALLATION INFORMATION
Mounting Points: 2
LISTING AGENCIES/THIRD PARTY CERTIFICATIONS
RoHS: Yes
Greenguard: Yes
DIMENSIONS
Usable Depth: 10.41
Capacity Weight (US): 35
Depth (US): 10.78
Height (US): 1.75
Width (US): 19
Rack Units: 1
TECHNICAL INFORMATION
Static Load Capacity: 35
Material: Steel
Rack Units: 1
TECHNICAL INFORMATION
Static Load Capacity: 35
Material: Steel
