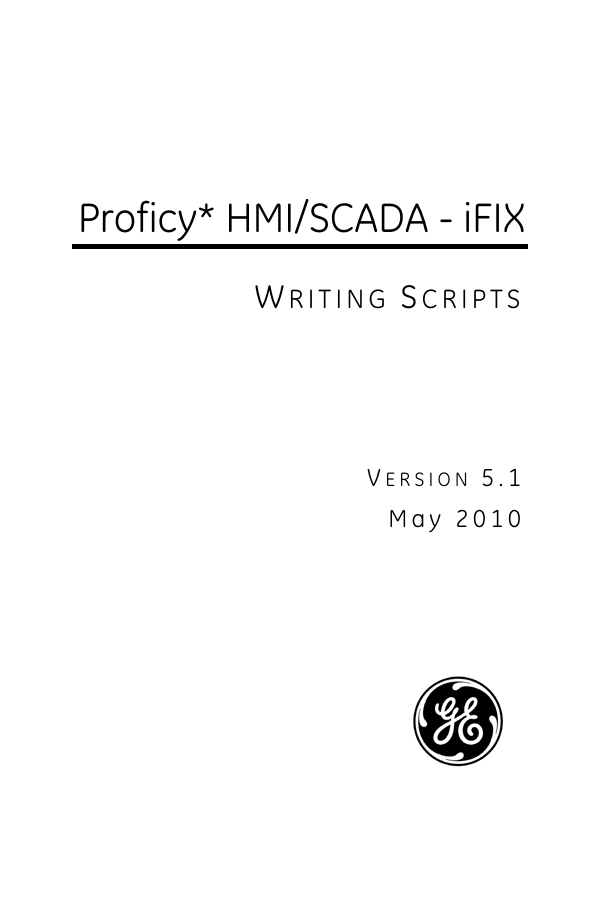

Proficy* HMI/SCADA - iFIX
WRITING SCRIPTS
VERSION 5.1
May 2010
All rights reserved. No part of this publication may be
reproduced in any form or by any electronic or mechanical
means, including photocopying and recording, without
permission in writing from GE Intelligent Platforms, Inc.
Disclaimer of Warranties and Liability
The information contained in this manual is believed to be
accurate and reliable. However, GE Intelligent Platforms,
Inc. assumes no responsibilities for any errors, omissions or
inaccuracies whatsoever. Without limiting the foregoing,
GE Intelligent Platforms, Inc. disclaims any and all
warranties, expressed or implied, including the warranty of
merchantability and fitness for a particular purpose, with
respect to the information contained in this manual and the
equipment or software described herein. The entire risk as
to the quality and performance of such information,
equipment and software, is upon the buyer or user. GE
Intelligent Platforms, Inc. shall not be liable for any
damages, including special or consequential damages,
arising out of the user of such information, equipment and
software, even if GE Intelligent Platforms, Inc. has been
advised in advance of the possibility of such damages. The
user of the information contained in the manual and the
software described herein is subject to the GE Intelligent
Platforms, Inc. standard license agreement, which must be
executed by the buyer or user before the use of such
information, equipment or software.
Notice
©2010 GE Intelligent Platforms, Inc. All rights reserved.
*Trademark of GE Intelligent Platforms, Inc.
Microsoft® is a registered trademark of Microsoft
Corporation, in the United States and/or other countries.
All other brands or names are property of their respective
holders.
We want to hear from you. If you have comments,
questions, or suggestions about our documentation, send
them to the following email address:
[email protected]
Table of Contents
About this Guide .......................................... 1
Introduction.................................................. 2
Common Scripting Solutions ...................... 3
Finding More Information............................ 4
Help Files ............................................. 5
Books ................................................... 7
World Wide Web .................................. 7
Newsgroups ......................................... 8
Reference Documents .......................... 8
Sample Code ............................................. 9
Using Samples in the VBA Help File
and Source Code ................................. 14
Development Tips ...................................... 16
Getting Started with iFIX and VBA ............... 16
What You Can Do With iFIX and VBA ........ 18
VBA Features Not Supported in iFIX .... 20
Components of a VBA Project .................... 20
Host Application ................................... 21
Visual Basic Editor ............................... 21
Modules ............................................... 22
Forms ................................................... 22
Components of the VBA Editor ................... 23
Project Explorer .................................... 25
Properties Window ............................... 27
Code Window ....................................... 31
Using VBA Forms ....................................... 34
Using VBA Forms within iFIX................ 35
VBA File Types........................................... 37
VBA Naming Conventions .................... 38
Testing Your Code ..................................... 45
Saving Your Work ...................................... 46
Configuring VBA Options............................ 47
Tips for Configuring VBA Options ......... 47
Configuring VBA Project Options ................ 50
Datatype Checking and the VBA Compiler . 51
Workarounds ........................................ 54
Optimizing Your VBA Project Development . 56
Using iFIX Subroutines and Experts ........... 57
Sending Operator Messages to Alarm
Areas.................................................... 58
Using the Multiple Command Script
Wizard ........................................................ 61
Keyboard Accelerators ............................... 65
General iFIX Scripting Tips ......................... 71
Creating an iFIX Shape with a VBA
Script .................................................... 72
Using iFIX Collections .......................... 73
Connecting Animation Objects to Data
Sources ................................................ 73
Reusing Scripts .................................... 74
Cutting and Pasting Code ..................... 75
VBA References ................................... 75
Tracking Errors in Subroutines ............. 79
Filtering out Global Pages .................... 83
VBA Coding Help Features ........................ 83
Auto List Members ............................... 85
Auto Quick Info ..................................... 86
Context Sensitive Help ......................... 86
Guidelines for Using Asynchronous
Methods and Subroutines in iFIX Scripts .... 87
Performing String Comparisons ............ 89
Working with iFIX Objects............................ 90
VBA Object Count Limit .............................. 91
Object Availability in the VB Editor.............. 92
Understanding the iFIX Object Hierarchy.... 94
VBA Object Browser ............................. 96
Connecting Objects to Data Sources to
Create Animations ...................................... 98
Making Connections ................................... 100
Directly Connecting to a Data Source ... 101
Making Connections through
Animations ........................................... 105
Connecting or Disconnecting an
Object's Property to a Data Source ...... 113
Retrieving Connection Information
from a Property's Data Source.............. 115
Determining if an Object's Property is
Being Used as a Data Source .............. 122
Retrieving General Connection
Information ........................................... 123
Animation Properties and Methods ............. 129
General Animation Object Properties
and Methods ........................................ 129
Linear Animation Object Properties ...... 134
Lookup Animation Object Properties
and Methods ........................................ 135
Connection Examples: Using the
Lookup Object ...................................... 142
Format Animation Object Properties ..... 149
Connection Example: Animating the
Rotation of a Rectangle .............................. 151
Example: Animating the Rotation of
an Object .............................................. 152
Rotating a Group ........................................ 157
Example: Rotating a Group Using a
Script .................................................... 158
Manipulating Pictures .................................. 161
Understanding Picture Events .................... 162
Automatically Starting a Picture .................. 165
Example: Creating a Toolbar ................ 167
Managing Multiple Displays ........................ 168
Setting a Pushbutton Property .............. 169
Setting the Active Document ................ 171
Creating a Global Variable ................... 171
Changing Displays Using Global
Subroutines ................................................ 175
Example: Using an Alias to Open and
Close Displays...................................... 177
Example: Using the ReplacePicture
Subroutine ............................................ 178
Closing Pictures with Active Scripts ............ 179
Using the Workspace Application Object .... 179
Creating Global Scripts ................................ 180
Creating a Global Variable Object .............. 181
How FIX32 Predefined Variables Map to
iFIX Object Properties ................................ 183
Creating a Global Threshold Table ............. 193
Creating A Global Procedure ...................... 197
Accessing Real-time Data ........................... 199
Using the Data System OCX for Group
Reads and Writes ....................................... 199
Example: Group Write .......................... 202
Example: Group Read .......................... 205
Example: Writes to Alternate Sources .. 206
Reading from and Writing to a Database
Tag ............................................................. 208
Writing a Value to a Defined
Database Tag ....................................... 209
Writing a Value Using the WriteValue
Subroutine ............................................ 210
Write a Value Using the Database
Tag's Value Property ............................ 211
Accessing Data from a Relational
Database ..................................................... 214
Database Access in VBA: MDAC ............... 215
Using ActiveX Data Objects........................ 216
Creating ADO Objects .......................... 216
Populating an MSFlexGrid or Similar
Spreadsheet OCX with ADO ................ 219
Adding a Record to the Database
through ADO ........................................ 221
Updating a Record in the Database
through ADO ........................................ 223
Deleting a Record from the Database
through ADO ........................................ 224
Advanced Topic: Using SQL....................... 226
Working in the Run-time Environment ......... 227
Changing Data Sources ............................. 227
Creating a Direct Connection to an
Object................................................... 229
Changing a Text Object's Caption ........ 234
Changing a Variable Object's Current
Value .................................................... 235
Changing the Data Source of a Data
Link ...................................................... 236
Change a FIX Event's Data Source ...... 237
Replacing String Properties .................. 240
Creating Global Forms for Data Entry......... 242
Example: Form Code............................ 244
Example: Module Code ........................ 246
Example: iFIX Object Code .................. 247
Working with the Scheduler and the
DoEvents Function ...................................... 248
Scheduler ................................................... 249
DoEvents Function ..................................... 251
Using Timers in place of DoEvents ............. 252
Using Scripts with Time-based Entries ....... 257
Example: Checking Disk Space and
Triggering an Alarm if Too Low............. 258
Using Scripts with Event-based Entries ...... 260
Example: Recording DownTime
Monitoring ............................................ 263
Manipulating Charts..................................... 269
Switching from Real-time to Historical
Data ........................................................... 271
Example: Scroll Back and Scroll
Forward Buttons ................................... 272
Scrolling Historical Data ............................. 275
Example: Creating Buttons that Scroll
Back and Scroll Forward through
Historical Data and Set Current Time ... 276
Automatically Updating a Chart .................. 277
Environment-specific Chart Properties
and Methods .............................................. 278
Chart Properties Limited to the
Configuration Environment ................... 279
Chart Properties Limited to the Runtime Environment ................................. 279
Chart Methods Limited to the Runtime Environment ................................. 280
Environment-specific Pen Properties and
Methods ..................................................... 281
Pen Properties Limited to the
Configuration Environment ................... 282
Pen Properties Limited to the Runtime Environment ................................. 283
Pen Methods Limited to the Run-time
Environment ......................................... 284
Setting the Properties of Multiple Pens
with One Call .............................................. 284
Adding a Pen .............................................. 287
Deleting a Pen ............................................ 287
Changing Data Sources in a Pen ............... 289
Passing in External Data to a Pen .............. 292
Example: Using GetPenDataArray to
Extract Data from Pen .......................... 294
Example: SetPenDataArray Method
with Hardcoded Values......................... 294
Changing the Chart Duration ...................... 299
Changing the Start and End Times ............. 300
Zooming ..................................................... 301
Pausing a Real-time Chart ......................... 302
Keyboard Accelerators ............................... 302
Using the Pens Collection .......................... 304
Using RefreshChartData ............................ 305
Scrolling an Enhanced Chart VBA
Example ..................................................... 305
Creating Custom Dynamos .......................... 310
Creating a New Custom Dynamo ............... 310
Working with iFIX Security ........................... 316
Using the Login Subroutine ........................ 316
Example: Excerpt from Script which
opens the Login Application.................. 317
Getting User Information ............................ 317
Example: Using the System Object's
FixGetUserInfo Method ........................ 318
Creating Tag Groups ................................... 319
Creating the Tag Group File Object ............ 320
Retrieving Tag Group Data ......................... 320
Modifying Tag Group Data ......................... 322
Example: Modifying Tag Group Data .... 322
Manipulating Tag Groups ........................... 324
Example: Manipulating Tag Group
Data ..................................................... 324
About this Guide
The Writing Scripts manual is intended for
system integrators, OEMs, and process control
engineers responsible for customizing their
iFIX® software automation solution using
Visual Basic for Applications. The manual
assumes that you are familiar with Microsoft
Windows and the Visual Basic programming
language.
The first few sections of the book provide
some background on Microsoft Visual Basic
for Applications (VBA), but the intent of this
manual is to describe the implementation of
VBA within iFIX, not to explain how to
program in Visual Basic.
If you are new to the Visual Basic language,
you may want to consult one of several sources
of information on the basics of VB
programming, which are beyond the scope of
this book. If you are a novice VB programmer,
check out the
Finding More Information section and the
Getting Started with iFIX and VBA chapter to
learn where to find information on general VB
programming topics.
Introduction
This introduction contains the following
sections:
•
Common Scripting Solutions
•
Finding More Information
•
Sample Code
•
Development Tips
The Getting Started with iFIX and VBA
chapter describes basic information on using
the VBA programming language, and
describes several key components of the VBA
environment.
Starting with the section Optimizing Your
VBA Project Development, this manual
teaches you how to write VBA code for iFIX
objects. The intention of these sections is to
teach you how to code by example, and many
times the best explanation of the sample code
lies within the commented lines (lines that
begin with an apostrophe — these lines are for
explanatory remarks and are ignored by the
VBA compiler), so look carefully. Because
each section is dedicated to a different object,
you can find the information you need quickly
and easily.
Common Scripting Solutions
Several of this manual's VBA scripting
examples were added based on feedback that
we received from iFIX users like yourself.
Check the section names in the Table of
Contents for the task that best describes what
you want to do through scripting.
If you find one that matches what you're
looking for, click it to jump to the related
section in this manual. If you don't find a
match, browse the section that most closely fits
your needs, as there are several examples or
related topics within each section.
Finding More Information
To find more information on VBA, look to the:
•
Help Files
•
Books
•
World Wide Web
•
Newsgroups
•
Reference Documents
If you are a novice Visual Basic programmer,
you may need more information than this book
can provide. However, since Visual Basic is
one of the most popular programming
languages in the world, there are many, many
sources of information available through
several different mediums.
Help Files
You already have two excellent sources of
VBA information installed on your computer
right now. The Visual Basic for Applications
Help file that ships with iFIX contains an
enormous amount of information. You can
launch this help file by selecting the Microsoft
Visual Basic Help command from the Visual
Basic Editor's Help menu. If you don't have
iFIX running, you can launch this Help file
directly by double-clicking VBUI6.CHM in
the VBA directory of the Microsoft Shared
path (by default, C:\Program Files\Common
Files\Microsoft Shared\VBA\VBA6\1033).
Throughout this manual, topics are listed in the
Visual Basic for Applications Help file that
you should explore if you want to learn more
about programming in Visual Basic.
Once you are ready to begin coding, you will
undoubtedly need more information on the
objects, properties, methods, and events that
are specific to iFIX. You can find this
information in the FIXVBA.CHM Electronic
Book, which is located in the Help and
Information folder of the Proficy iFIX
WorkSpace's system tree.
You can also select the iFIX Automation Help
command from the Visual Basic Editor's Help
menu. If you don't have iFIX running, you can
launch this Help file directly by doubleclicking FIXVBA.CHM in the iFIX NLS path
(C:\Program Files\Proficy\Proficy iFIX\NLS
by default).
The Visual Basic for Applications Help file
should not be confused with the iFIX
Automation Interfaces Help file. The VBA
Help file is a reference for the Visual Basic for
Applications user interface and programming
language only — it does not contain any
information about how VBA has been
integrated into iFIX. On the other hand, the
iFIX Automation Interfaces Help file is
dedicated to the objects, properties, methods,
and events that are specific to iFIX, but does
not teach fundamental VBA programming
concepts.
Books
One of the largest bookstores on the Internet,
Amazon.com, currently lists over 900 Visual
Basic titles, some of which are carried (or can
be ordered) by your favorite local bookstore.
Two books which provide useful information
are:
•
VB and VBA in a Nutshell: The
Language by Paul Lomax
•
VBA Developer Handbook by Ken
Getz
World Wide Web
Perhaps one of the best sources of information
is the Microsoft web site. This web site has it
all: code samples, full documentation on the
editor and the language, and even a knowledge
base that is dedicated to providing answers to
difficult questions.
Newsgroups
The Visual Basic newsgroups are popular
sources of information on the VB
programming language as well. These forums
are great for interacting with other Visual
Basic programmers, and offer an excellent way
to post a particular issue and get it answered by
a programming expert. To find them, filter the
newsgroup list by specifying any of the
following words: "vb", "visual", "basic", and
"visual basic".
Reference Documents
The chapter, Working with the Scheduler and
the DoEvents Function, contains example code
that illustrates how to run several scripts at the
same time in the single-threaded environment
of VBA using the iFIX Scheduler application.
After reading this section, you may want to
refer to the Mastering iFIX manual to learn
more about how to use the Scheduler.
Sample Code
One of the best ways to learn any
programming language is to examine code that
already exists and try to decipher how the code
works. This manual contains a great deal of
sample code that you can cut and paste directly
into the Visual Basic Editor. The following is a
list of the sample scripts included in this
manual. You can click on an example title to
view the sample code.
Working with iFIX Objects
•
Example: Building an Animation
Connection through a Script
•
Example: Script Using
ParseConnectionSource Method
•
Example: Script Using
GetConnectionInformation Method
with IsConnected Method
•
Example: Script Using the
GetPropertyAttributes Method
•
Example: Script Using CanConstruct
Method
•
Example: Script Using Construct
Method
•
Example: Script Using ValidateSource
Method
•
Example: Using Range Comparison
•
Example: Using Exact Match Lookup
•
Example: Animating the Rotation of
an Object
•
Example: Rotating a Group Using a
Script
Manipulating Pictures
•
Example: Creating a Toolbar
•
Example: Using an Alias to Open and
Close Displays
•
Example: Using the ReplacePicture
Subroutine
Accessing Real-time Data
•
Example: Group Write
•
Example: Group Read
•
Example: Writes to Alternate Sources
•
Example: Using the Database Tag's
Value Property
Accessing Data from a Relational
Database:
Using ADO
•
Example: Creating an ADO Record set
•
Example: Populating a Flexgrid with
Data from an ADO Record set
•
Example: Adding a Record to a
Database Using an ADO Recordset
•
Example: Updating a Database Using
an ADO Record set
•
Example: Deleting a Record from a
Database Using an ADO Record set
Working in the Run-time Environment
•
Example: Changing the Data Source of
an Animation Connected to an Object
•
Example: Form Code
•
Example: Module Code
•
Example: iFIX Object Code
Working with the Scheduler and the
DoEvents Function
•
Example: Checking Disk Space and
Triggering an Alarm if Too Low
•
Example: Recording DownTime
Monitoring
Manipulating Charts
•
Example: Scroll Back and Scroll
Forward Buttons
•
Example: Creating Buttons that Scroll
Back and Scroll Forward through
Historical Data and Set Current Time
•
Example: Using GetPenDataArray to
Extract Data from Pen
•
Example: SetPenDataArray Method
with Hardcoded Values
Working with iFIX Security
•
Example: Excerpt from Script which
opens the Login Application
•
Example: Using the System Object's
FixGetUserInfo Method
Creating Tag Groups
•
Example: Modifying Tag Group Data
•
Example: Manipulating Tag Group
Data
Using Samples in the VBA Help File
and Source Code
Also, the iFIX Automation Interfaces help file
has an example for each method in the system,
and the VBA Help file contains an entire
section devoted to nothing but sample code.
You can also look at the Visual Basic source
code for all iFIX toolbars, Experts, and
Wizards.
To view the Visual Basic source code:
1. In the Proficy iFIX WorkSpace, open a
new picture.
2. In Ribbon vView, on the Home tab, in
the WorkSpace group, click Settings,
and then click Toolbars.
- Or In Classic view, on the WorkSpace
menu, click Toolbars.
3. Select each toolbar in the Toolbars list
box. Click the Close button.
4. In Ribbon view, on the Home tab, in
the WorkSpace group, click Visual
Basic Editor.
- Or In Classic view, on the WorkSpace
menu, click Visual Basic Editor.
5. In the VBE, select the Project Explorer
command from the View menu.
6. In the Project Explorer, click the plus
sign (+) next to any of the available
projects to show the contents of the
project.
7. Double-click a form or module within
the project to display it in the VBE.
For example, if you expand the
Project_Experts project, expand its
Forms folder, and double-click the
frmFill form to view the Fill Expert
form.
WARNING: Although you can look at
the source code for the above
mentioned objects within iFIX, do not
modify any of the code or your
environment may not work as expected.
Development Tips
The open architecture of iFIX provides an
extremely flexible automation interface. In
fact, you may learn that, in some cases, you
can write two or more very different VBA
scripts that achieve the same end result. In the
code samples throughout this manual, you will
find tips, suggestions, and tricks in an effort to
help you discover the most efficient ways to
automate iFIX with VBA.
Getting Started with iFIX
and VBA
Visual Basic for Applications, or VBA, is the
standard scripting language built into iFIX®.
VBA was once only available in Microsoft
Office applications. However, Microsoft has
made VBA available through licensing, so
companies like GE Intelligent Platforms can
integrate the language directly into their
products.
Refer to the following sections for more
information on how to get started with iFIX
and VBA:
•
What You Can Do With iFIX and
VBA
•
Components of a VBA Project
•
Components of the VBA Editor
•
Using VBA Forms
•
VBA File Types
•
Testing Your Code
•
Saving Your Work
•
Configuring VBA Options
•
Configuring VBA Project Options
•
Datatype Checking and the VBA
Compiler
What You Can Do With iFIX and VBA
VBA can be used to customize and extend the
functionality of iFIX. For example, you can
create a custom wizard that automatically
builds an iFIX picture at the click of a button.
This functionality allows a user to develop
automatic picture creation templates that can
greatly reduce development time and effort
when developing applications with large
numbers of pictures. In addition, VBA enables
you to manipulate, retrieve, and modify data
from iFIX applications. For example, you can
write a script that reads data from a database
block and stores that information into a
Microsoft SQL Server database. You can
manipulate the objects in an iFIX picture based
on the information in a Microsoft Word
document. When you use VBA with iFIX, you
build the most powerful industrial automation
solution available.
Once you begin working with the iFIX object
model, you will start to understand how
powerful VBA really is. Through VBA, you
can:
•
Extend or customize the functionality
of iFIX applications.
•
Manipulate an iFIX application or its
data.
•
Create your own custom dialog boxes
to exchange data with operators.
•
Integrate data from several iFIX
applications.
•
Create wizards that can perform
several tasks at the click of a button.
For examples of using VBA within the
WorkSpace, iFIX has a Sample System which
includes examples of VBA scripting. Please
refer to the Using the iFIX Sample System
chapter of the Understanding iFIX manual for
information on using the Sample System.
VBA Features Not Supported in iFIX
•
Ability to choose ActiveX Designers
as project items.
•
Developer add-ins (COM add-ins).
•
Digital signatures for VBA projects.
•
Multi-threaded projects.
•
Strengthened project passwords.
Components of a VBA Project
First, let's take a look at the components of a
VBA project:
•
Host Application
•
Visual Basic Editor
•
Modules
•
Forms
Host Application
All VBA projects must be associated with an
application; you cannot create a stand-alone
VBA project. The application that the VBA
project is tied to is called the host application.
In the case of iFIX, the host application is the
Proficy iFIX WorkSpace, and each VBA
project is embedded in an iFIX picture file
(*.GRF), toolbar file (*.TBX), toolbar category
file (*.TBC), schedule file (*.EVS), Dynamo
set file (*.FDS), or User file (USER.FXG).
Visual Basic Editor
The Visual Basic Editor, or VBE, is the
development environment that allows you to
write and debug code, develop user forms, and
view the properties of your VBA project.
Modules
If you are developing large VBA projects, it
may make sense to separate the code into
several modules. Modules are self-contained
blocks of code that perform a particular
function. For example, if you wanted to write a
wizard that creates a real-time chart for a
specific data point, you may want to break the
project up into three modules: one module to
retrieve the value after prompting the operator
to specify a data source, one module to plot the
data after prompting the operator to specify a
chart type, and one module to create the chart
based on the operator's specifications.
NOTE: Do not include modules in Dynamo
objects, since they are not moved with the
Dynamo object.
Forms
Forms are custom dialog boxes that you create
in VBA in order to exchange information with
the operator. Examples of forms are message
boxes, input dialogs, and configuration
screens. Forms are essential in helping the
application and the operator interact.
Components of the VBA Editor
There are several ways to launch VBA from
iFIX. You can:
•
In the iFIX WorkSpace, in Ribbon
view, on the Tools tab, click Visual
Basic Editor.
•
In Classic view, select the Visual
Basic Editor command from the
WorkSpace menu.
•
In Classic view, click the Visual Basic
Editor toolbar button on the Standard
Toolbar.
•
Right-click the object that you want to
write a script for and select Edit Script
from the pop-up menu.
•
Click the Edit Script button when
adding a button to a custom toolbar
through the Customize Toolbar dialog
box. See the Understanding Toolbars
section of the Understanding iFIX
manual for more information on how
to customize toolbars.
•
Click the VB Editor button on the Add
Timer Entry and Add Event Entry
dialog boxes when creating an iFIX
schedule or when using the Event or
Timer Experts.
After you launch VBA, the Visual Basic Editor
appears. The VBE consists of several different
tools and windows to help you design, create,
and manage your VBA projects. The tools you
will use most often are shown in the following
figure.
Microsoft Visual Basic Editor
Project Explorer
The Project Explorer is a special window in
the VBE that shows each of the elements of
your VBA project. The elements are presented
in a tree format, with each branch displaying
related information, such as forms, code
modules, and elements from iFIX, such as
pictures, toolbars, and global pages.
The Project Explorer makes it easy to select
the project elements that you want to work
with. For example, if you want to add a button
to a particular form you've been working on,
you can select the form from the Project
Explorer. After you select a project element to
edit, the VBA editor opens the appropriate
tool. For example, if you select a form, the
form displays on screen with the Form
Toolbox available.
There are two ways to select and edit a project
element that displays in the Project Explorer:
•
Double-click the object.
•
Choose the object, right-click, and
then choose either View Object or
View Code. Only the appropriate
choice will be available. For example,
View Object would not be available if
you chose a code module.
To view the Project Explorer, select the Project
Explorer command from the View menu or
press Ctrl+R.
To learn more about the Project Explorer, refer
to the Help topics within the sections Visual
Basic User Interface Help and Visual Basic
How-To Topics of the Visual Basic for
Applications Help file, or search for the Index
keywords "Project Explorer".
Properties Window
The Properties window is used to review and
set properties for project objects. For example,
you can set the background color for an iFIX
picture in the Properties window, or you can
change the name of a rectangle within that
picture.
Properties Window
To view the Properties window:
In Ribbon view, on the View tab, in the
Window group, click Property Window.
- Or In Classic view, on the View Menu, select
the Property Window command.
- Or Press <F4>.
The Properties window displays the properties
for the current object. When you select
different objects in your VBA project, the
Properties window changes to show just the
properties of the object you selected. You can
select the current object to work with in the
Properties window by:
•
Selecting the object from the dropdown list at the top of the Properties
window.
•
Selecting the object from the Project
Explorer and then returning to the
Properties window.
•
Selecting the object (or control) within
a form and then returning to the
Properties window.
The Properties window consists of two panes:
the names of the current object's properties
appear in the left pane; the values for these
properties appear in the right pane. To change
a property, select the property in the left pane
and click and edit the value in the right pane.
Some properties have a predefined list of valid
values, which allows you to choose from a
drop-down list. Other properties require a
value of Yes or No. In this case, you can
simply double-click the Value column to
toggle the value between Yes and No.
To learn more about the Property Window,
refer to the Help topics within the sections
Visual Basic User Interface Help and Visual
Basic How-To Topics of the Visual Basic for
Applications Help file, or search for the Index
keyword "windows".
Code Window
The Code window is where you write any code
associated with your VBA project. You could
write code which is executed when the user
clicks a button in an iFIX picture, or it could
be a part of a procedure library you've written
to serve your entire project.
Code Window
Two drop-down lists are located just below the
title bar. One drop-down list shows all of the
objects referenced in the code module, while
the other drop-down list shows the procedures
associated with each object.
To display the code window, do any of the
following:
•
Right-click an object in the Proficy
iFIX WorkSpace and select Edit Script
from the pop-up menu.
•
Double-click any code element in your
application in the Project Explorer,
such as modules and class modules.
•
Double-click anywhere on any form in
your VBA project or any control on a
form.
•
Choose View Code from the VBE
window. If you want to view the code
for a specific project element, such as
a worksheet, be sure you select that
element first in the Project Explorer.
•
Choose the Module command from the
Insert menu, or right-click the Project
Explorer and then choose Insert
Module.
Once the Code window is displayed, you can
enter your code directly into the window.
To learn more about the Code window, refer to
the Help topics within the sections Visual
Basic User Interface Help and Visual Basic
How-To Topics of the Visual Basic for
Applications Help file, or search for the Index
keyword "code window".
TIP: Remember, a great way to learn how to use
VBA with iFIX is to view the scripts behind all of
the Application Toolbar buttons. To view the
code behind these buttons, run the Visual Basic
Editor and expand the Toolbar
(ApplicationToolbar) project in the Project
Window.
WARNING: Do not update these files. Doing so
may cause the toolbar buttons to stop working
properly.
Using VBA Forms
It is likely that your VBA project will need a
custom form. For example, you might provide
the operator with a choice of options before
your program executes some task, like
importing data. Or you might want to provide
the operator with a custom data entry dialog
box.
In VBA, you build these forms yourself. These
forms are just like the dialog boxes you've seen
or used in Microsoft Windows, such as the
logon dialog box shown when you start up.
The only difference is that you get to choose
how these dialogs appear, when they appear,
and what they do.
To learn more about Visual Basic forms, refer
to the Help topics within the sections
Microsoft Forms Design Reference, Microsoft
Forms Developer's Tips, and Microsoft Forms
Object Model Reference of the Visual Basic
for Applications Help file, or search for the
Index keyword "forms".
Using VBA Forms within iFIX
One concept that you should keep in mind
when launching forms from iFIX is the idea of
modal and modeless forms. A form is modal if
it does not allow you to work with its host
application while it is being displayed.
Conversely, if a form is modeless it allows you
to work with its host application even while it
is displayed.
If you launch a modal form from a VBA script
within iFIX, users must respond to the form
before they can continue working with the
iFIX environment (which includes selecting
menus, toolbars, objects in a picture, and so
forth). No subsequent code is executed until
the form is hidden or unloaded. When a form
is modeless, all subsequent code is executed as
it is encountered.
WARNING: Never try to unload a form from
within the same form, or from any control within
the form. Instead, call the Hide method from
within the form, and unload it from the main
routine once it is hidden.
Modeless forms do not appear in the task bar
and are not in the window tab order. To call a
modeless form, use the following code:
userForm1.Show vbModeless
NOTE: You may lose data associated with a
modeless UserForm if you make a change to the
UserForm project that causes it to recompile, for
example, removing a code module.
When using a modeless form, if you do not
want to allow the user to get to the
WorkSpace, use the DeActivateWorkspaceUI
which essentially disables the WorkSpace UI.
For more information, see the
DeActivateWorkspaceUI method topic in the
iFIX Automation Interfaces Electronic Book.
Inserting an Alarm Summary object into a
VBA form may cause unpredictable results
when opening the picture or switching
environments from run-time to configuration
or vice versa.
VBA File Types
The VBA Editor allows you to import and
export components of your VBA projects. This
makes it easy to share your work with other
applications and Visual Basic projects.
If there is a component of another VBA project
you would like included in the project you are
working on, that component must first be
exported from the source project and imported
into your project. Components of a VBA
application are always stored separately, so
you can load a component from a VB project
easily. The following table shows the typical
extensions used for VBA components, so you
will know what type of file to look for when
you import to VBA:
Extension
Component
FRM
Form
CLS
Class Module
BAS
Code Module
To learn more about importing and exporting
Visual Basic files, refer to the Help topics
within the section Visual Basic User Interface
Help of the Visual Basic for Applications Help
file, or search for the Index keywords "import"
and "export".
VBA Naming Conventions
You must adhere to the following standard
VBA naming conventions when naming iFIX
pictures, schedules, objects, variables,
modules, and procedures.
You can find this information in the Help
topics within the section Visual Basic Naming
Rules of the Visual Basic for Applications
Help file:
•
You must use a letter as the first
character.
•
Names cannot exceed 255 characters
in length.
NOTE: Visual Basic for Applications
isn't case-sensitive, but it preserves the
capitalization in the statement where
the name is declared.
•
You should not use any names that are
identical to the functions, statements,
and methods in Visual Basic because
you may shadow the same keywords
in the language.
•
To use an intrinsic language
function, statement, or
method that conflicts with an
assigned name, you must
explicitly identify it.
•
Precede the intrinsic function,
statement, or method name
with the name of the associated
type library. For example, if
you have a variable called
Right, you can only invoke the
Right function using
VBA.Right.
•
You cannot repeat names within the
same level of scope. For example, you
cannot declare two variables named
level within the same procedure.
However, you can declare a private
variable named level and a procedurelevel variable named level within the
same module.
•
You cannot use a space, hyphen (-),
period (.), exclamation mark (!), or the
characters @, &, $, # in the name.
NOTE: If you have database tags that
contain invalid VBA characters, such as
hyphens, and you want to manipulate
these tags through scripts, you can use
two iFIX subroutines (ReadValue and
WriteValue) to do so. You can learn
more about the ReadValue and
WriteValue subroutines in the section
Optimizing Your VBA Project
Development, or in the iFIX
Automation Interfaces Electronic Book.
•
You should not use an underscore (_)
in the name. It may cause problems
with scripting, because VBA uses
underscores in the naming of scripts
associated with objects.
•
Pictures, schedules, Dynamo sets,
toolbars, and toolbar categories require
unique names so that the Proficy iFIX
WorkSpace can load them
simultaneously. This is true even
though the file name extensions differ
for different document types. The
following scenarios illustrate this
point:
•
If you attempt to open a
picture whose name conflicts
with a document that is
already open, you will not be
able to open the picture.
Instead, the following text
appears:
Another Schedule, Picture,
Toolbar, or Dynamo Set with
same name is already open.
•
If you attempt to enable a
toolbar whose name conflicts
with a picture that is already
open, the Proficy iFIX
WorkSpace will not enable
the toolbar.
•
If you open a picture that has
the same name as a toolbar
category, and then either
click the Buttons tab on the
Customize Toolbars dialog
box or run the Task Wizard,
the Proficy iFIX WorkSpace
will not display the toolbar
category.
To correct naming conflicts for a picture:
1. Close the picture.
2. Rename the picture to a name that
does not conflict with the other
document.
3. Close the conflicting Dynamo set,
schedule, picture, or toolbar.
4. Restart the WorkSpace.
5. Open the renamed picture and save it.
Avoid naming an object, a picture, and a
global subroutine with the same name,
particularly if you refer to the object in a
Visual Basic script. This ensures that VBA can
distinguish between your objects and your
subroutines. Otherwise, you may receive the
following error when running a script:
Expected procedure, not variable.
Renaming VBA Objects Through
Scripting
Avoid renaming VBA objects in a VBA script.
Doing so will cause the code associated with
those objects not to function. For example, if a
rectangle named Rect1 has an associated event
called Sub Rect1_Click(), changing the name
of the rectangle to Rect2 will cause Sub
Rect1_Click() not to function since there is no
longer an object called Rect1.
The script below prompts the user to enter a
new name for a rectangle object when that
object (Rect1) is clicked. When you enter a
new name and click OK, the object Rect1 no
longer exists and the code becomes orphaned
and useless.
Private Sub Rect1_Click()
Dim strNewName as String
strNewName = InputBox("Enter
new name")
Rect1.Name = strNewName
End Sub
Testing Your Code
You will need to run your project a number of
times before it is finished. To run a procedure,
position the cursor anywhere in the procedure
and choose Run Sub/User Form from the Run
menu, or press F5.
You can also display the form you are working
on, execute any code that you have attached to
event procedures within the form, and test the
controls that you have placed on the form. To
run the form, position the cursor anywhere on
the form, and then choose Run Sub/User Form
from the Run menu, or press F5.
To learn more about running your VBA code,
refer to the Help topics within the section
Visual Basic How-To Topics of the Visual
Basic for Applications Help file, or search for
the Index keywords "running code" or
"executing code".
Saving Your Work
Code, forms, and modules you create with
VBA are associated with an iFIX picture,
toolbar, toolbar category, schedule, Dynamo
set, or User Global file within the WorkSpace
application. Therefore, saving the work you
completed in a VBA project only occurs when
you save these iFIX documents.
To save a picture from VBA, choose the Save
command from the File menu. This will save
any changes that you have made to the picture,
as well as to the VBA project.
NOTE: Toolbar and toolbar category files are
saved automatically when you exit the
WorkSpace. If you made changes to the User
Global file, iFIX displays a message box that
asks you if you want to save your changes.
Configuring VBA Options
You can configure the VBA Editor with a
number of different options. These options are
set in the Options dialog box. The Options
dialog box displays when you select Options
from the Tool menu. There are options on four
different tabbed pages: Editor, Editor Format,
General, and Docking. To choose a set of
options to work with, click the appropriate tab.
When you have made all of the required
changes, click OK.
Tips for Configuring VBA Options
This section describes two specific items or
settings that we recommend you take
advantage of when configuring your VBA
options.
Require Variable Declaration
Although it is not required, you should use the
Option Explicit statement in the Declarations
section of a module to require variable
declaration. The Option Explicit statement
forces you to use variables that have already
been declared as a certain type. Using the
Option Explicit statement will help you avoid a
common programming error and will shorten
your debugging time.
To configure VBA to automatically add the
Option Explicit statement to a new project:
1. On the Tools menu, click Options.
2. Select the Editor tab.
3. Select the Require Variable
Declaration check box.
4. Click OK to activate this new option
for all modules.
From this point on, when you create a new
module, the Option Explicit statement will be
added automatically. To learn more about
setting VBA Editor options, click the Help
button in the Options dialog box.
Clear the Compile On Demand Check
Box
The Compile On Demand option, located on
the General tab of the Options dialog box,
determines whether a project is fully compiled
before it starts, or whether code is compiled as
needed, allowing the application to start
sooner. We recommend that you clear this
check box so you can more easily debug errors
in your code.
WARNING: Do not enable the Notify Before
State Loss option, located on the General tab of
the Options dialog box. Doing so may cause an
error or interruption in the Proficy iFIX
WorkSpace.
Configuring VBA Project Options
In the previous section, you looked at the
options available for configuring VBA. In this
section, you will look at options specific to
your project. These options are set in the VBA
Project—Project Properties dialog box. You
can display this dialog by selecting VBA
Project Properties from the Tools menu, or
when you right-click the project in the Project
Explorer and select Project Properties. The
options appear on two different pages. To
choose a set of options, click the appropriate
tab. When you have made all of the
appropriate changes, click OK.
One option that you can enable for your
project is to specify a Help file that you may
have built for your project and the context ID
that enables it to run with your project. For
more information on how to create a picturespecific Help file, see the Creating PictureSpecific Help Files section of the Mastering
iFIX manual.
For more information on the other project
properties that are available, refer to the
sections Visual Basic User Interface Help and
Visual Basic How-To Topics in the Visual
Basic for Applications Help file, or search for
the Index keyword "properties" and select
"project".
Datatype Checking and the VBA
Compiler
The VBA 6.0 compiler uses stricter type
checking than the VBA 5.0 compiler. You
must use the exact datatypes that are defined in
the function or subroutine declaration. The
way variables are converted when being
passed has changed. If executing code that
meets the following conditions:
1. One subroutine or function has a
variable which is declared as type
Variant. If you do not explicitly assign
a type, it is Variant.
2. This variable is passed to a second
subroutine or function.
3. The second subroutine or function is
set up to accept a value from the first
subroutine or function, but of a type
other than Variant (Integer, long, or
object, for example).
You may get this error:
Compile Error; ByRef argument
type mismatch
Error Example
The following example shows two subroutines:
the first subroutine gets a rectangle's
downstream animation object, which is
connected to the rectangle's VerticalFill
Percentage. The second subroutine gets the
animation object's class type. Since the second
subroutine is defined as an object, and the first
is passed in as a Variant/ObjectArrayItem, the
VBA 6.0 compiler displays the ByRef
argument mismatch error.
Private
Dim
Dim
Dim
Dim
Dim
Dim
Sub CommandButton1_Click()
sSource As String
sFullQualSource As String
vSourceObjs As Variant
vTolerance As Variant
vDeadBand As Variant
vUpdateRate As Variant
Rect1.GetConnectionInformation 1,
"VerticalFillPercentage", _
sSource, sFullQualSource, vSourceObjs,
vTolerance, vDeadBand, _
vUpdateRate
CheckSourceObject vSourceObjs(0)
End Sub
'display the classname of the source object
Public Sub CheckSourceObject(objSrcObj As
Object)
MsgBox objSrcObj.ClassName
End Sub
This scenario is acceptable in a VBA 5.0
environment, but a ByRef Argument mismatch
error is generated when running or compiling
in VBA 6.0.
Workarounds
Either the calling routine or called routine has
to change. The following scripts are
workarounds that will satisfy the compiler and
provide the exact same functionality.
Workaround 1 – This script changes the called
routine and is the easier correction.
Referring to the previous example, if you
change the CheckSourceObject routine to
specify that the argument is passed in by
value, this will pass the compiler check.
Since the parameter passed is not being
modified, it is safe to pass by value.
'display the classname of the
source object
Public Sub
CheckSourceObject(ByVal
objSrcObj As Object)
MsgBox objSrcObj.ClassName
End Sub
Workaround 2 – This script changes the
calling routine so that the coercion is
performed before the call.
Private Sub CommandButton1_Click()
Dim sSource As String
Dim sFullQualSource As String
Dim vSourceObjs As Variant
Dim vTolerance As Variant
Dim vDeadBand As Variant
Dim vUpdateRate As Variant
Dim objSourceObject As Object
Rect1.GetConnectionInformation 1,
"VerticalFillPercentage", _
sSource, sFullQualSource, vSourceObjs,
vTolerance, vDeadBand, _
vUpdateRate
Set objSourceObject = vSourceObjs(0)
CheckSourceObject objSourceObject
Set objSourceObject = Nothing
End Sub
In this corrected call, there is an additional
declaration for objSourceObject. The
following line is also added:
Set objSourceObject = vSourceObjs(0)
Set objSourceObject = Nothing
This line assigns a declared Object to the first
element of the variant array. Next, we pass in
the objSourceObject, which is an Object
instead of the Variant/ObjectArrayItem. This
passes the compiler check.
Optimizing Your VBA
Project Development
VBA is a powerful scripting tool integral to
iFIX. Many features of iFIX allow you to use
VBA more effectively. This chapter presents
many options that help you build your projects
more easily:
•
Using iFIX Subroutines and Experts
•
Keyboard Accelerators
•
General iFIX Scripting Tips
•
VBA Coding Help Features
•
Guidelines for Using Asynchronous
Methods and Subroutines in iFIX
Scripts
Using iFIX Subroutines and Experts
iFIX includes several subroutines that can help
simplify scripts that are intended to perform
common tasks, such as acknowledging alarms
or replacing pictures. Since these subroutines
are stored in the FactoryGlobals project, they
can be accessed directly through the Visual
Basic Editor. For more information on
FactoryGlobals, see the Creating Global
Scripts chapter of this manual.
In addition to providing the code necessary to
perform the task at hand, subroutines offer
several extras that you would normally have to
code yourself, including:
•
Generic error handling.
•
Posting of operator messages to the
alarm system.
•
Conformance to VBA naming
conventions.
If you are using tag names that contain special
characters, this is a perfect case for using the
ReadValue and WriteValue global
subroutines to access your tags in VBA.
For example, suppose you have the following
tag:
Fix32.SCADA.SORTER|SIZER|BLOCK10|
PT.F_CV
In VBA, you can read this tag with the
following syntax:
Private Sub Text1_Click()
Dim x As Variant
x =
ReadValue("Fix32.SCADA.SORTER|SIZ
ER|BLOCK10|PT.F_CV")
Text1.Caption = x
End Sub
Once the value is stored as a variant (x), you
can use it in expressions.
Sending Operator Messages to Alarm
Areas
In some cases, you may need to handle the
sending of operator messages to alarm areas in
your own scripts. For example, a subroutine
may not exist for the exact task that you want
to perform.
The following is an example of a specific case
involving the WriteValue subroutine.
As stated in the previous section, subroutines
handle the posting of operator messages to
alarm areas for you. Therefore, the following
script:
Writevalue "1", "sample"
will send out this message:
Fix32.ThisNode.sample.f_cv was
set to 1.
However, this script will not generate an
operator message:
Fix32.ThisNode.sample.f_cv=1
A separate subroutine,
SendOperatorMessage, is provided for that
purpose. Simply add a call to the
SendOperatorMessage to generate the desired
message.
WriteValue, ReadValue,
SendOperatorMessage, and all other iFIX
subroutines are described in more detail in the
Subroutine Summary section of the iFIX
Automation Interfaces Electronic Book.
The code within the global subroutines offers a
wealth of information to the developer who is
learning how to automate iFIX with VBA.
The global subroutines can be found in the
FactoryGlobals VBA project. The
FactoryGlobals file is write-protected to
maintain the integrity of these scripts. For your
convenience, you can view the content of the
global subroutines module by clicking the
following link: globalsubroutines.txt. This file
contains all of the code exported from within
these subroutines in a text file.
iFIX also provides several Experts to help you
perform the most common functionality. Just
as subroutines offer help to the seasoned VBA
programmer, Experts can help developers who
want to achieve similar results without having
to write any VBA code at all.
These Experts, which look like standard dialog
boxes, actually generate VBA code for you,
based on how you configured the options
within the Expert. You can learn more about
Experts in the Creating Pictures manual.
Using the Multiple Command Script
Wizard
The Multiple Command Script Wizard is a
graphical interface that uses command Experts
to assemble one or more VBA script
commands into a sequence. The wizard can be
used to generate a scripted command sequence
that is triggered by a mouse click on an object,
a Scheduler entry, or a key macro.
You can use the wizard to rearrange or delete
discrete command script segments in the
sequence. You can also use the Visual Basic
Editor to manually edit a script sequence
created with the wizard, although you cannot
use the wizard to manipulate manually edited
sections of VBA script.
The following is an example of a VBA script
generated by the Multiple Command Script
Wizard:
Private Sub Rect2_Click()
'***** Scripts Authoring Tool
*****
'The Comments below have been
added automatically.
'Any changes could cause
adverse effects to the
functionality
'of the Script Authoring
Experts.
'WizardLast=Wizard2
'WizardEditing=Wizard0
'WizardName=MultipleCommands
'Wizard1=AcknowledgeAlarm
'Property1=Fix32.THISNODE.AI0
.F_CV
'Property2=False
'PropertyDescription=Acknowle
dgeAnAlarm: Property1=Database
Tag, Property2=Select Tag in Run
mode
AcknowledgeAnAlarm
"Fix32.THISNODE.AI0.F_CV"
'WizardEnd
'Wizard2=AlarmHorn
'Property1=optExpertTypeSilen
ce
'PropertyDescription=AlarmHor
nSilence: Property1=Type
AlarmHornSilence
'WizardEnd
End Sub
NOTES:
•
Although the Multiple Command Script
Wizard's purpose is to fully automate
the VBA command scripting process,
you can manually edit scripts generated
by the wizard with the VB Editor. You
may add or edit VBA scripts anywhere
before the Scripts Authoring Tool
header line (***** Scripts Authoring
Tool *****), or directly between a
"WizardEnd" and a “Wizard[x]=”
statement. Do not edit any of the
commented areas in the wizardgenerated script. If the Multiple
Command Script Wizard detects an
improperly customized VBA script, you
may encounter an error.
•
The Multiple Command Script Wizard
does not check the command sequence
to make sure commands occur in a
logical order.
For more information about the Multiple
Command Script Wizard, see the Creating
Pictures ebook.
Keyboard Accelerators
You can use keyboard accelerators, key
sequences that allow you to perform a
function, to fire scripts using the KeyUp or
KeyDown events. However, the built-in
WorkSpace keyboard accelerators take
precedence over any KeyUp or KeyDown
events in the picture or user area. Therefore,
you should avoid using keyboard accelerators
that conflict with those that are reserved for
internal use. The following table lists all of the
reserved accelerators in the run-time and
configuration environments.
Keyboard
Accelerator
Purpose
Works
in
Runtime
Mode
Works in
Configure
Mode
F1
Invokes
Help.
No
Yes
Keyboard
Accelerator
Purpose
Works
in
Runtime
Mode
Works in
Configure
Mode
F10, Ctrl +
F10, Alt
(alone)
Activates
the
WorkSpac
e menu
bar.
Yes
Yes
Ctrl + F4
Closes
document.
Yes
Yes
Ctrl + W
Toggles
between
configurati
on or runtime
environme
nt.
Yes
Yes
Ctrl + O
Activates
Open File
dialog.
Yes
Yes
Keyboard
Accelerator
Purpose
Works
in
Runtime
Mode
Works in
Configure
Mode
Ctrl + P
Activates
Print File
dialog.
Yes
Yes
Ctrl + Esc
Activates
Windows
Start menu
(unless
disabled
through
security).
Yes
Yes
Ctrl + Break,
Ctrl + Alt
+Break
Breaks
script
execution.
Yes
No
Keyboard
Accelerator
Purpose
Works
in
Runtime
Mode
Works in
Configure
Mode
Ctrl + Alt +
Esc, Ctrl +
Alt + Shift +
Esc
WorkSpac
e window
becomes
inactive
(unless
disable
through
security).
Yes
Yes
Ctrl + Alt +
Del
Brings up
Windows
Login (or
Security)
dialog box,
unless
disabled
through
security.
Yes
Yes
Keyboard
Accelerator
Purpose
Works
in
Runtime
Mode
Works in
Configure
Mode
All Alt key
combinations
Activates
the
WorkSpac
e menu.
Yes
Yes
Shift + letter
combinations
Alphanum
eric data
entry
(could
trigger
when
entering an
uppercase
letter).
Yes
Yes
Ctrl + A
Selects all
No
Yes
Ctrl + C
Copies
No
Yes
Keyboard
Accelerator
Purpose
Works
in
Runtime
Mode
Works in
Configure
Mode
Ctrl + D
Duplicates
No
Yes
Ctrl + F
Finds and
replaces
No
Yes
Ctrl + O
Opens
document
Yes
Yes
Ctrl + P
Prints
document
Yes
Yes
Ctrl + S
Saves
document
No
Yes
Ctrl + V
Pastes
from the
clipboard
No
Yes
Keyboard
Accelerator
Purpose
Works
in
Runtime
Mode
Works in
Configure
Mode
Ctrl + Z
Undoes the
last action
No
Yes
General iFIX Scripting Tips
This section lists some tips to keep in mind
when writing VBA scripts within iFIX when:
•
Creating an iFIX Shape with a VBA
Script
•
Using iFIX Collections
•
Connecting Animation Objects to Data
Sources
•
Reusing Scripts
•
Cutting and Pasting Code
•
VBA References
•
Tracking Errors in Subroutines
•
Filtering out Global Pages
Creating an iFIX Shape with a VBA
Script
Use the following script to create a shape
through a VBA script:
Dim Pic As Object
Dim Shape As Object
Set Pic =
Application.ActiveDocument.Page
Shape.HorizontalPosition = 10
Shape.VerticalPosition = 10
Shape.Width = 30
Shape.Height = 30
Shape.ForegroundColor = RGB( 255,
0, 0 )
The BuildObject method creates the object.
Once the object is created, you can perform
one of these options:
•
Set the object's properties through
VBA code.
•
Call the CreateWithMouse method (as
in the above example) to change your
mouse cursor into the draw cursor and
then configure the properties of the
object using the traditional iFIX user
interface.
Using iFIX Collections
Use a BaseCount of 1 when using iFIX
collections such as SelectedShapes,
Procedures, ContainedSelections,
ContainedObjects, and Documents. See the
VBA Help file for more information on
collections.
Connecting Animation Objects to
Data Sources
To connect an animation object and a data
source, use the SetSource method to set the
Animation object's source property:
AnimationObj.SetSource
"FIX32.NODE.TAG.FIELD", False, _
ExpressionEditor1.RefreshRate,
ExpressionEditor1.DeadBand, _
ExpressionEditor1.Tolerance
The SetSource method allows you to set the
data source's refresh rate, deadband, and
tolerance. The second parameter lets you set an
undefined object as the data source. (True
indicates a UseAnyway condition.)
Reusing Scripts
You can develop scripts directly in the main
VBA project; however, this approach makes
reusing the scripts more difficult. Instead, you
should store subroutines in a separate module
and then call these subroutines from the main
project when you want to reuse the scripts.
This allows you to export and then import the
scripts into a new project with minimal
modification, and also provides a more
modular, component-based design.
Cutting and Pasting Code
You can cut (or copy) and paste an object from
one project to another by dragging and
dropping that object. Although this operation
directly copies the VB code within the object
to the new project, it does not automatically
copy the event entries (a Click event, for
example). Make sure you copy the content of
the event entry into a subroutine (by selecting
Edit Script from the object's pop-up menu)
before pasting the code into the new project.
VBA References
VBA allows you to add an object library or
type library reference to your project, which
makes another application's objects available
in your code. These additions to your VBA
project are called references. You can view,
add, and delete references by selecting the
References command from the Tools menu in
the Visual Basic Editor (VBE).
Whenever you add a control into a picture, the
control's type library is referenced by the
picture within VBA. When you delete a
control from a picture, the reference to the
control is automatically removed to increase
performance. However, you should never
manually remove the references to
"Project_FactoryGlobals" or "Project_User".
Whenever you reference objects, controls, or
mechanisms in VBA, follow the guidelines in
the following sections. To learn more about
references in VBA, refer to the VBA Help file.
Deleting Objects Referenced by Name in
a Script
Any object that is referenced by name in a
script cannot be deleted. For example, in the
following sample script the code in
Rect2_Click will execute, but the pen will not
be deleted:
Rect1_Click()
Pen1.Source =
"Fix32.ThisNode.AI_30.F_CV"
End Sub
Rect2_Click()
Chart1.DeletePen 1
End Sub
If you wanted to access the object in this
example without referencing it by name, you
could use the following code in Rect1_Click
():
Rect1_Click()
Dim o as object
set o = Chart1.Pens.Item(1)
o.Source =
"Fix32.ThisNode.AI_30.F_CV"
End Sub
Using Deleted Object Types in Scripts
When an object (2Dshape, FixDynamics
object, ActiveX control) is deleted from a
picture and no object of that type are left in the
picture, the reference to that object's type
library in the VBA project is removed. To
continue to use this object's type in scripts, you
must manually add a reference to the type
library in the VBE by selecting References
from the Tools menu and selecting the type
library.
Dragging and Dropping Dynamo Objects
or Toolbar Buttons
You should be aware of the following behavior
when dragging and dropping a Dynamo object
into a picture, cutting and pasting a Dynamo
object, or dragging and dropping a toolbar
button from a category into a toolbar:
•
VBA copies all forms, scripts, events,
and sub-forms associated with the
toolbar button or Dynamo object.
•
VBA does not copy any VBA modules
or class modules associated with the
toolbar button or Dynamo object.
Code that you put in these modules
will not run if you drag the Dynamo
object or the toolbar button to another
picture or toolbar.
•
VBA does not copy references to other
objects such as controls or DLLs that
you create for toolbar buttons or
Dynamo objects. For example, if you
include a third-party OCX as a control
on a form for a toolbar button, VBA
does not copy the reference when you
drag the toolbar button to a toolbar.
The script will not run until you open
the Visual Basic Editor and create a
reference to the OCX for the toolbar
project.
Tracking Errors in Subroutines
Every global subroutine includes an optional
parameter called intErrorMode. The
intErrorMode parameter allows users to trap
errors and to send them to Alarm Services.
There are three options for the intErrorMode.
Enter
this
option...
To...
0
Use the default error
handling. Allows subroutines
to provide the error messages.
If no entry is made for the
intErrorMode parameter, the
default is used.
1
Allow the user to handle the
error messages. Errors in the
subroutines are passed back
to the calling routine for
handling.
2
Write errors to all Alarm
Services. No error messages
display. Instead, the errors are
written to all iFIX Alarm
Services, including the Alarm
History window.
For example, if you use the intErrorMode
parameter with the OpenDigitalPoint
subroutine, the command would look like:
OpenDigitalPoint [DigitalPoint],
[intErrorMode]
Examples
For the OpenPicture subroutine, you get the
standard error message if you enter 0 for the
intErrorMode, as shown in the following
example:
OpenPicture "BadPic", , , , 0
When you use 0 for the intErrorMode, if you
try to open a picture that does not exist, a
message box appears whose title is the name of
the picture that made the erroneous call and
whose contents are the error number and error
description.
If you enter a 1 for intErrorMode, the error is
raised for you to handle:
OpenPicture "BadPic", , , , 1
Your error handling code would have to look
something like this:
On Error Goto Errorhandler
OpenPicture "BadPic", , , , 1
End Sub
Errorhandler:
Msgbox "my error message" +
Chr(13) + Cstr(Err.Number) +
Chr(13) + Err.Description, ,
Err.Source
If you enter a 2 for intErrorMode, the error is
sent to all Alarm Services, including the Alarm
History window using the
SendOperatorMessage method:
OpenPicture "BadPic", , , , 2
When you use 2 for the intErrorMode, you
provide for silent error tracking.
Filtering out Global Pages
Plug and Solve® and expert globals can affect
existing scripts that loop through the
documents collection. If you have scripts that
loop through the documents collection, and
you want to filter out all global pages to look
at your documents only, look at the
Document.Type property using the following
sample code:
If docobj.Type =
"FixGlobalsServer.FixGlobalsServe
r.1" then
'this is a global page
VBA Coding Help Features
The VBA editor includes a number of
extremely useful features to help you write
code accurately and quickly. These features try
to anticipate what you are writing in the code,
and they prompt you with possible data types,
built-in procedure templates, member
functions, and more, as you type.
Visual Basic makes writing code easy, with
features that can automatically fill in
statements, properties, and arguments for you.
As you enter code, the editor displays lists of
appropriate choices, statement or function
prototypes, or values. Options for enabling or
disabling these and other code settings are
available on the Editor tab of the Options
dialog, which you can access by selecting
Options from the Tools menu.
Refer to the following sections for more
information on these VBA coding help
features:
•
Auto List Members
•
Auto Quick Info
•
Context Sensitive Help
Auto List Members
When you enter the name of a control in your
code, the Auto List Members feature presents a
drop-down list of properties available for that
control. Type in the first few letters of the
property name and the name will be selected
from the list; the <TAB> key will complete the
typing for you. This option is also helpful
when you aren't sure which properties are
available for a given control.
Auto List Members Feature
Auto Quick Info
The Auto Quick Info feature displays the
syntax for statements and functions. When you
enter the name of a valid Visual Basic
statement or function the syntax is shown
immediately below the current line, with the
first argument in bold. After you enter the first
argument value, the second argument appears
in bold.
Auto Quick Info Feature
Context Sensitive Help
Many parts of Visual Basic are context
sensitive, which means that you can get Help
on these parts directly without having to go
through the Help menu.
For example, to get Help on any iFIX object,
method, property, or event, or any VBA
keyword, click that word and press F1.
Guidelines for Using Asynchronous
Methods and Subroutines in iFIX
Scripts
Use the following guidelines when using
asynchronous methods or subroutines (Close
method, ClosePicture subroutine,
ReplaceDocument method, ReplacePicture
subroutine, or SwitchMode method) in your
iFIX scripts:
•
If possible, make the asynchronous
call the last line in your script.
•
If using the Close or Replace calls, and
the document that is being closed or
replaced is the document that contains
the script, the call must be the last line
in the script. Otherwise, you may
experience unexpected behavior when
executing the script.
•
If using the SwitchMode method from
anywhere other than a toolbar, the call
must be the last line in the script.
Otherwise, you may experience
unexpected behavior when executing
the script.
•
If the call is not in the picture being
closed or replaced, and it is not the last
line in your script, be certain that the
operation is complete before the rest of
the script continues to execute.
Immediately after making the call, you
must relinquish the CPU by calling
DoEvents. For example, the following
sample script closes a picture called
TANK1 and opens a picture called
TANK2:
Private Sub Rect1_Click()
ClosePicture "Tank1"
DoEvents
OpenPicture "Tank2"
End Sub
Performing String Comparisons
When performing a string comparison using
the A_SCAN or A_ENAB field, you must
include a trailing space in the comparison
string. For example, in the following sample
script, the trailing space is required in the
comparison strings for the test to work
correctly.
Private Sub
CommandButton4_Click()
If (Fix 32.THISNODE.A_SCAN =
"OFF ") Then
Fix
32.THISNODE.AI1.A_SCAN = "ON "
Else
Fix
32.THISNODE.AI1.A_SCAN = "OFF "
End If
End Sub
Working with iFIX Objects
The integration of VBA into iFIX provides you
with additional control and flexibility to
develop, manipulate, and animate objects and
graphics in the Proficy iFIX WorkSpace. This
is important since objects make up a large part
of your application.
This chapter gives you some specific examples
on how you can use VBA scripting to enhance
the performance of iFIX objects in your
application. It also gives you helpful tips for
working with objects and their characteristics.
Refer to the following sections for more
information on working with iFIX objects:
•
VBA Object Count Limit
•
Object Availability in the VB Editor
•
Understanding the iFIX Object
Hierarchy
•
Connecting Objects to Data Sources to
Create Animations
•
Making Connections
•
Animation Properties and Methods
•
Connection Example: Animating the
Rotation of a Rectangle
•
Rotating a Group
VBA Object Count Limit
Microsoft currently limits the amount of VBA
controls to 1207 per project. An iFIX picture is
considered a VBA project. The current version
of iFIX provides a VBA Object Count warning
that notifies you when you are approaching the
maximum level.
After creating your 1147th control, iFIX
provides a dialog box notifying you that you
are approaching the maximum allowed and
should begin to remove unnecessary controls.
If you continue to create scripts without
removing them, you will continue to receive
the warning. If you try to create your 1208th
control, iFIX notifies you that the script cannot
be created. To continue adding scripts, you
must remove some VBA controls.
Object Availability in the VB Editor
The following steps describe how to make a
single object available in the VB Editor.
To make a single object available in the VB
Editor:
1. Select the object in the picture.
2. Select Edit Script from the right-click
menu.
To make a group of objects available in
the VB Editor:
1. Select the group of objects in the
picture.
2. Select Enable Scripts from the rightclick menu.
NOTE: When you select Enable Scripts, iFIX
adds the objects to the VBA project, but does not
start the VB Editor. Objects that are visible, such
as rectangles and ovals, are not automatically
available in the Editor.
For optimization purposes, if you choose not to
tie a script to the object, it does not remain
available after you close the picture. You will
have to select it again in the picture and add
the objects to the VBE if you want to use them
in a script.
You can, however, forward-reference objects
that are not available in the VBE. For example,
you can write a script tied to Rect1 that
references Oval1, as shown in the following
example:
Oval1.Visible = False
The above code is acceptable even when Oval1
is not available to the VBE. The only
difference in the VBE between objects that are
available and objects that are not available is
that the list of properties and methods available
to the object appear when you type the period
(.) after available objects. When forwardreferencing objects, the objects will be added
to the project when the picture is closed or
saved.
The following objects are always available in
the VBE:
•
Timer objects
•
Event objects
•
Buttons
•
Dynamos
•
ActiveX controls
•
Variables
•
Any objects that have been added to
the Global page
Understanding the iFIX Object
Hierarchy
There is a general hierarchy of objects in iFIX.
The individual objects, as well as all of their
related properties, methods, and events, are
described in much greater detail in the Object
Summary Help Topic in the iFIX Automation
Interfaces Electronic Book.
The top layers in the object hierarchy are the
Application and the System objects. The
Application object represents the Proficy iFIX
WorkSpace application. The System object is
on the same level as the Application object and
includes system information, date, time, and
paths.
The next level below the Application object is
the documents object which is a collection of
active documents within the WorkSpace such
as pictures and schedules.
The third level in the object hierarchy is the
Page Object, which may be a picture, dynamo
set, or scheduler object. If the page object is a
picture, it can contain lines, rectangles, ovals,
or other graphic objects. If the page object is a
Scheduler object, it might contain timer or
event objects.
Animation objects are unique to iFIX pictures
and do not apply to other document objects.
VBA Object Browser
In addition to the iFIX Automation Interfaces
Electronic Book, another great tool for
visualizing the iFIX object hierarchy is the
VBA Object Browser. The Object Browser
displays the classes, properties, methods,
events, and constants available from object
libraries and the procedures in your project.
You can use it to find and use objects you
create, as well as all objects within iFIX. To
launch the Object Browser in the VBE, press
F2 or select the Object Browser command
from the View menu.
Object Browser
Press F1 to display the associated Help topic in
the iFIX Automation Interfaces Electronic
Book while positioned on any iFIX object,
property, method, or event.
Connecting Objects to Data Sources
to Create Animations
In order to animate the property of an object,
you must connect that property to the data
source that is providing the data. For example,
if you want a tank to fill based on the output of
a PLC connected to the tank, you would
connect the vertical fill property of the tank's
cylinder with the database point that contains
the real-time value of the correct PLC address.
The transformation of data between objects
occurs through animation objects. There are
three types of animation objects:
Linear – Converts data from one range of
values to another, thereby performing
signal conditioning. For example, if a data
source has EGU limits from 0 to 65535,
and a tank's fill percentage has a range of 0
to 100, the Linear object transforms the
data source range to the tank's fill
percentage range. Refer to the
Understanding Signal Conditioning
section of the Building a SCADA System
manual for more detail on how the Linear
object works.
Lookup – Uses a table structure to map either a
range of values or exact values from a data
source to a single value of the connected
object's property. For example, if a data
source has multiple alarm values, the
Lookup object maps each alarm value to a
rectangle's color. You can also set up a
Lookup object to divide a range of values
into levels or rows, and map those levels
to a rectangle's color. The Lookup object
also has a Toggle property that can be used
for blinking colors.
Format – Converts the source data into a string.
When you set up a data source for a data
link, for example, you actually create a
Format object that transforms the data
source into a string.
You will see examples of these objects in the
scripting examples throughout this section. For
more information on animation objects,
including object-to-object connections, refer to
the Creating Pictures manual. For a detailed
explanation of all the animation properties and
methods for each of the animation object
types, refer to the Animation Properties and
Methods section.
Visual Basic has many methods you can use to
make connections to data sources. These
various methods are detailed in the following
sections.
Making Connections
A very important element of connecting
objects to data sources is the way in which
they are connected. You can connect to the
data source:
•
From an object's property directly to
the data source.
•
From an object's property to an
animation object and then from the
animation object to the data source.
Refer to the following sections for more
information about making connections:
•
Directly Connecting to a Data Source
•
Making Connections through
Animations
•
Connecting or Disconnecting an
Object's Property to a Data Source
•
Retrieving Connection Information
from a Property's Data Source
•
Determining if an Object's Property is
Being Used as a Data Source
•
Retrieving General Connection
Information
Directly Connecting to a Data Source
There are times when you may want to
establish a direct connection to a data source,
such as when you want to connect iFIX objects
to some third-party controls. For more
information, see the Creating Pictures manual.
The following figure illustrates the concept of
a direct connection.
Direct Connection Example
You can form a direct connection either by
using the Animations dialog box or by writing
a script. Both methods are described below.
NOTE: You cannot perform a Find and Replace
on an object when that object has a direct
connection to another object. To perform a find
on an object in an object to object connection,
use the One Tag search type in the Cross
Reference Tool. For more information, refer to
the Searching for One Tag section of the
Mastering iFIX manual.
To make a direct connection using the
Animations dialog box:
1. Open the object's Animation dialog
box.
2. Click the Size tab, and then click the
height check box.
3. Enter a data source to animate the
object's property.
4. In the Data Conversion area, select
Object.
Making a Direct Connection by Writing a
Script
To make a direct connection using a script, you
need to call the Connect method. The
following procedure shows you how to make a
direct animation from an object to a data
source on the Click event of a toolbar button in
the configuration environment.
NOTE: For OPC data sources you need to
remove any character, such as single quotes,
that is not part of the valid server address
syntax. For example:
"ServerName.'Device:MyAddress'" should
change to "ServerName.Device:MyAddress"
after you remove the single quotes.
To make a direction connection using a
script:
1. Insert a rectangle into a picture and
name it MyRect. Right-click the
rectangle and select Edit Script to
make MyRect available to the Visual
Basic Editor.
2. Create a new toolbar and add a button
named DirectConnect. See the
Understanding Toolbars section of the
Understanding iFIX manual for more
information on creating toolbars and
adding toolbar buttons.
3. Add the following code to the toolbar
button's Click event:
Private Sub DirectConnect_Click(
)
Dim lStatus as Long
MyRect.Connect("Horizontal
Position", _
"FIX32.NODE.AI1.F_CV",
lStatus)
End Sub
4. Close the Visual Basic Editor.
5. Click the DirectConnect button and
switch to the run-time environment.
The horizontal position of MyRect is
now driven by the tag
FIX32.NODE.AI1.F_CV.
Making Connections through
Animations
Usually, you will make connections using
Animation objects. Animation objects perform
the data conversion between data source and
connected object. The figure below illustrates
the concept of Animation connections.
Animation Connections Example
To make a linear animation connection
using the Animations dialog box:
1. Double-click a rectangle. The
Animations dialog box appears.
2. Select the Size tab and click the Height
button. The Animations dialog box
expands.
3. Enter a data source to animate the
rectangle's height.
4. From the Data Conversion list box,
select Range. This will allow the
rectangle's height to change within a
specific range based on the value of
the data source.
5. Click OK. Note that the rectangle now
has a linear animation object
associated with it that transforms the
data source value to scale the
rectangle's height.
Making an Animation Connection
through a Script
The following script uses the Linear
Animation object to form the connection from
a rectangle's Vertical Position property to a
data source. This script is entered in the Click
event of a toolbar named btnDirectConn. In
this example, Animations is the picture name.
For more information on the methods and
properties used in the script, namely
SetSource, Connect,
DoesPropertyHaveTargets, and
GetPropertyTargets, see the iFIX
Automation Interfaces Electronic Book.
Example: Building an Animation
Connection through a Script
Private Sub btnDirectConn_Click()
Dim iRect As Object
Dim iOval As Object
Dim LinearObject As Object
Dim strFullname As String
Dim blnHasTargets As Boolean
Dim lngStatus As Long
Dim lngNumTargets As Long
Dim lngIndex As Long
Dim strPropertyName As
String
Dim strSource As String
Dim vtTargets()
'Create a rectangle and an
oval
Set iRect =
Animations.BuildObject("rect")
Set iOval =
Animations.BuildObject("oval")
'Set some positioning and
size attributes on
'the rectangle
iRect.HorizontalPosition =
80
iRect.VerticalPosition = 45
iRect.Height = 5
iRect.Width = 10
iOval.HorizontalPosition =
60
iOval.VerticalPosition = 35
iOval.Height = 5
iOval.Width = 10
iRect.Commit
iOval.Commit
'Create a Linear animation
object for the rectangle
Set LinearObject =
iRect.BuildObject("linear")
'Set the source of the
Linear animation object
LinearObject.SetSource
"AI1.F_CV", True
'Specify the Linear
animation object's minimum and
'maximum Input and Output
values
LinearObject.LoInValue = 0
LinearObject.LoOutValue = 0
LinearObject.HiInValue = 100
LinearObject.HiOutValue = 50
'Set UseDelta to True to
ensure that the base position
'of the object will be added
to the output value when
'the Linear object
evaluates. If UseDelta is set to
'False, the output value
would be absolute when the
'Linear object evaluates
LinearObject.UseDelta = True
'Connect the rectangle's
VerticalPosition property to
'the output value of the
Linear animation object
strFullname =
LinearObject.FullyQualifiedName &
_
".OutputValue"
iRect.Connect
"VerticalPosition", strFullname,
lngStatus
'Create a string containing
the fully qualified data
'source for the rectangle's
VerticalPosition property
strSource = "Animations." +
iRect.Name + _
".VerticalPosition"
'Connect the oval's
HorizontalFillPercentage property
'to the rectangle's
VerticalPosition property by
using
'the string created above as
a data source
iOval.Connect
"HorizontalFillPercentage",
strSource, _
lngStatus
'Once connected, you can
verify that the Rectangle's
'Vertical Position is being
used as a data source for the
'Oval's Horizontal Fill
Percentage using the Target
methods.
'Now that there is a direct
connection to the rectangle's
'VerticalPosition property,
retrieve information about
'the objects that are using
the VerticalPosition property
'as a data source. This call
will return if the property
'is being used as a data
source, how many objects are
'using it as a data source,
the status of the objects,
'and the index of the object
be passed to the
'GetPropertyTargets method.
'NOTE: If you only want to
determine the number of
'objects using the property
as a data source, you can use
'the NumberOfTargets
property instead.
iRect.DoesPropertyHaveTarget
s "VerticalPosition", _
blnHasTargets,
lngNumTargets, lngStatus,
lngIndex
'Use the lngIndex value from
the DoesPropertyHaveTargets
'call to determine which
property of the rectangle has
'targets and to obtain a
list of object names that have
'built connections to this
property.
iRect.GetPropertyTargets
lngIndex, strPropertyName, _
vtTargets
End Sub
Connecting or Disconnecting an
Object's Property to a Data Source
The methods in this section connect or
disconnect an object's property to a data
source.
NOTE: Entries within brackets ([ ]) are
optional.
The Connect method shown below connects
an object's property to a data source:
Object.Connect(PropertyName As
String, Source As String, _
(Returned) Status As Long,
[Tolerance], [Flags], _
[DeadBand], [UpdateRate])
This call connects the property (defined in the
PropertyName parameter), to a source (defined
in the source parameter.)
For example, if you want to connect a
rectangle's height property directly to tag AI,
you would enter the following:
Dim 1status as Long
Rect1.Connect("Height",
"FIX32.NODE.AI.F_CV", 1status)
The Disconnect method disconnects the
object's property from a data source:
Sub Disconnect(PropertyName As
String)
The SetSource method sets the connection
properties for an animation object. Use the
SetSource method instead of directly setting
the animation object's source property if
additional properties have to be specified for
the connection. You do not need to specify the
data source.
Object.SetSource bstrExpression,
[bUseAnyway], _
[vaUpdateRate], [vaDeadband],
[vaTolerance], _
[vaConnectionFlags]
NOTE: If you are performing run-time source
substitutions, and you want to preserve the
tolerance, deadband, and the update rate for the
tag, use the SetSource command instead of the
Source property. If you use the Source property,
the tolerance, deadband, and update rate
settings are reinitialized to 0. The SetSource
command provides the appropriate parameters
to effectively set these attributes. You can only
use the SetSource method for animation objects.
Retrieving Connection Information
from a Property's Data Source
The methods described in this section let you
retrieve and manipulate a data source that is
connected to a specified object's property. For
more information on these methods, refer to
the Visual Basic for Applications Help file.
Is the Object Connected to a Data
Source?
The IsConnected method determines whether
an object's property is connected to a data
source:
Object.IsConnected(PropertyName
As String, (Returned) _
HasConnection As Boolean
(Returned) Index As Long, _
(Returned) Status As Long)
This method is typically used in conjunction
with the GetConnectionInformation method,
which is described later in this section. For
more information on the parameters for the
IsConnected method, see the IsConnected
method topic of the iFIX Automation
Interfaces Electronic Book.
Is the Connection Valid?
The ParseConnectionSource method parses
the Data Source name to determine if a
connection to an object's property exists. If a
connection does exist, it returns the object that
is connected to the property, as well as its fully
qualified name. It accepts complex expressions
and returns individual data sources for a
complex expression:
Object.ParseConnectionSource(Prop
ertyName As String, _
Source As String, (Returned)
Status As Long, _
Returned Array) ValidObjects,
(Returned Array) _
UndefinedObjects, (Returned)
FullyQualifiedSource As String)
Example: Script Using
ParseConnectionSource Method
The following example parses the AI1.F_CV
source to the VerticalFillPercentage property
of Oval Oval1 to determine the validity of the
data source.
Dim
Dim
Dim
Dim
iStatus As Long
validObjs As Variant
UndObjs As Variant
FQSource As String
Oval1.ParseConnectionSource
"VerticalFillPercentage",
"AI1.F_CV", iStatus, validObjs,
UndObjs, FQSource
How Many Properties Are Connected to
the Data Source?
The ConnectedPropertyCount method
returns the number of the object's properties
that are connected to a data source.
Object.ConnectedPropertyCount
(1connectedPropertyCount _
As Long)
The following example lets you find out how
many properties in the object Rect1 are
connected to data sources, and then converts
that number into an integer.
Dim 1ConnectedCount as Long
Dim iNumProperties as Integer
Rect1.ConnectedPropertyCount
1ConnectedCount
iNumProperties = Cint
(1ConnectedCount)
In the above example, the number 4 might be
returned, which indicates that four of Rect1's
properties are connected to data sources. You
could use this number to retrieve the
connections with the
GetConnectionInformation method
described in the Retrieving Other Connection
Information section.
What Other Connection Information Is
Available?
The GetConnectionInformation method
retrieves information from an object, such as
the property that object is connected to, the full
name of the data source, and all the source
objects:
Object.GetConnectionInformation(I
ndex As Long, (Returned) _
PropertyName as Sting (Returned)
Source As String, _
(Returned) FullyQualifiedSource
As String, (Returned) _
SourceObjects, [Tolerance],
[Deadband], [UpdateRate])
This method is typically used in conjunction
with the IsConnected method described
earlier. In this example, notice the addition of
the index parameter. You can get the index
number with the IsConnected method or the
ConnectedPropertyCount method. See the
iFIX Automation Interfaces Electronic Book
for more information on these methods.
Example: Script Using
GetConnectionInformation Method with
IsConnected Method
Dim blnHasConnection As Boolean
Dim lngStatus As Long
Dim lngIndex As Long
Dim strExpression As String
Dim strFullyQualifiedExpression
As String
Dim vtSourceObjects
Dim Tolerance
Dim DeadBand
Dim UpdateRate
HorizontalObj.IsConnected
"InputValue", blnHasConnection,
lngIndex, lngStatus
If blnHasConnection Then
HorizontalObj.GetConnectionInform
ation lngIndex, "InputValue",
strExpression,
strFullyQualifiedExpression,
vtSourceObjects, Tolerance,
DeadBand, UpdateRate
End If
Determining if an Object's Property is
Being Used as a Data Source
The NumberOfTargets method returns the
number of the object's properties that contain
targets, that is, objects that use that object's
property as their data source:
Object.NumberOfTargets(NumberOfTa
rgets As Long)
The DoesPropertyHaveTargets method
determines if the object's property (as defined
by the PropertyName parameter) is being used
as a data source and what object is using it:
Object.DoesPropertyHaveTargets(Pr
opertyName As String, _
(Returned) HasTrargets As
Boolean, (Returned) _
NumberOfTargets As Long,
(Returned) Status As Long, _
Index As Long)
The GetPropertyTargets method retrieves the
target object(s) and the property that the
target(s) is connected to for the object's
specified index number:
Object.GetPropertyTargets(Index
As Long, (Returned) _
PropertyName As String,
(Returned) Targets)
Retrieving General Connection
Information
This section describes additional connection
methods for retrieving connection information
and making connections. These methods
include CanConstruct, Construct,
GetPropertyAttributes, and ValidateSource.
GetPropertyAttributes Method
The GetPropertyAttributes method retrieves
a list of property attributes for the specified
Data Item object. For a tag reference, these are
properties such as new alarm status and
property range information (EGU limits, list of
strings alarm strings (HIHI, LOLO, etc.)).
Each property queried may have a different set
of attributes. For more information on this
method, refer to the iFIX Automation
Interfaces Electronic Book.
Object.GetPropertyAttributes(Full
yQualifiedName As String, _
Attribute As Long, (Returned)
Results, (Returned) _
AttributeNames, (Returned) Status
As Long)
Example: Script Using the
GetPropertyAttributes Method
The following example fetches the attribute
information for the HighEGU attribute of the
AI1 block on node NODE1.
Dim
Dim
Dim
Dim
Dim
vtResults
vtAttributes
lStatus As Long
strLoEGU as String
LoEGUval
Oval1.GetPropertyAttributes
"FIX32.NODE1.AI1.F_CV", 3,
vtResults, vtAttributes, lStatus
strLoEGU = vtAttributes(0)
LoEGUval = vtResults(0)
In the above example, the variable strLoEGU
will now hold the string
"FIX32.NODE1.AI1.A_ELO" and the variable
LoEGUval will hold tag AI1's low EGU value.
CanConstruct Method
The CanConstruct method checks a data
source reference for valid syntax. The
CanConstruct method must have the default
data system defined as part of the object name.
For example, the object name AI would not
work correctly.
Object.CanConstruct(ObjectName As
String, (Returned)_
CanConstruct As Boolean)
Example: Script Using CanConstruct
Method
The following example determines whether the
datasource AI1 for NODE1 has valid syntax
for the Picture TestPicture.
Dim bCanConstruct As Boolean
TestPicture.CanConstruct
"FIX32.NODE1.AI1", bCanConstruct
Construct Method
The Construct method launches the Quick
Add user interface and prompts you for
information needed to create the tag. If Status
returns 0, then the tag has been created:
Object.Construct(ObjectName As
String, (Returned) Status _
As Long)
Example: Script Using Construct Method
The following example displays the QuickAdd
user interface that prompts the user for the
information needed to create the tag NewAI1
for the Oval object Oval1 on node NODE1.
Dim lStatus As Long
Oval1.Construct
"FIX32.NODE1.NEWAI", lStatus
ValidateSource Method
The ValidateSource method determines if a
data source exists:
Object.ValidateSource(Object As
String, (Returned) Status _
As Long, (Returned) Object As
Object, (Returned) _
PropertyName As String)
Example: Script Using ValidateSource
Method
The following example validates the AI1
source for the Oval Oval1.
Dim iStatus As Long
Dim iObj As Object
Dim sPropName As String
Oval2.ValidateSource "AI1",
iStatus, iObj, sPropName
Animation Properties and Methods
The following sections detail the animation
properties and methods you can use to connect
an object's properties to data sources and create
animations:
•
General Animation Object Properties
and Methods
•
Linear Animation Object Properties
•
Lookup Animation Object Properties
and Methods
•
Connection Examples: Using the
Lookup Object
•
Format Animation Object Properties
General Animation Object Properties
and Methods
The following table provides the syntax and
description for general animation object
properties and methods.
General Animation Object Properties and Methods
Syntax
Description
Object.ConnectionFailed
Determines if the
connection attempt
was successful.
Object.Failed Source
Returns the source of
the connection
attempt, if the
SetSource method
failed.
Object.InputValue
Contains raw data
from the data source
which will be
transformed by the
animation object.
Object.OutputValue
Contains the data
which resulted from
the transformation of
the InputValue data.
General Animation Object Properties and Methods
Syntax
Description
Object.Source
Contains the source
string for an
animation (the input
data source.) This
property internally
builds a connection
between the input
value property of the
animation and the
data source specified
by this property. If
you have used the
correct syntax for the
source, setting the
Source property will
work correctly. Using
the SetSource
method is the more
effective way to set
an animation object's
source.
General Animation Object Properties and Methods
Syntax
Description
Object.SourceValidated
Specifies whether the
animation object's
source property has a
valid data source
connection.
General Animation Object Properties and Methods
Syntax
Description
Object.SetSource
(bstrExpression As String,
[bUseAnyway As _
Boolean], [vaUpdateRate],
_ [vaDeadband], _
[vaTolerance], _
[vaConnectionFlags]
Sets the connection
properties for an
animation object.
This method is used
instead of directly
setting the animation
object's source
property if additional
properties have to be
specified for the
connection. You do
not need to specify
the data source.
NOTE: The
SetSource method
can only be used for
animation objects.
Linear Animation Object Properties
The following table provides the syntax and
description of linear animation object
properties.
Linear Animation Object Properties
Syntax
Description
Object.HiInValue
Specifies the upper limit on
the input value range.
Object.HiOutValue
Specifies the upper limit on
the output value range.
Object.LoInValue
Specifies the lower limit on
the input value range.
Object.LoOutValue
Specifies the lower limit on
the output value range.
Linear Animation Object Properties
Syntax
Description
Object.UseDelta
Specifies whether to use the
absolute or relative value to
set the output value range.
The object will always start
at the low output value.
Lookup Animation Object Properties
and Methods
The following table provides the syntax and
description of lookup animation object
properties and methods.
Lookup Animation Object Properties and Methods
Syntax
Description
Object.ColorTable
Specifies whether
the Lookup object's
output values are
colors.
Object.DefaultOutputValue
Specifies the value
written to the
object's property if
the input value is
not found within the
Lookup object table.
Lookup Animation Object Properties and Methods
Syntax
Description
Object.ExactMatch
Specifies if the Lookup
object is a range or an
exact match table. For
example, if you are
using a linear
animation to animate
the position of an
object on your screen:
• If you set use delta
to True, the object's
position will be set
to its base position
on the screen and
the transformed
output value.
• If you set use delta
to False, the object's
position will always
fail within the set
output range.
Lookup Animation Object Properties and Methods
Syntax
Description
Object.ToggleSource
Contains the toggle
source string name.
This applies to all
levels of a lookup
object table. When
the toggle source's
value is true, the
Lookup object
levels toggle
between the output
value and the global
toggle value. You
set the global toggle
value with the
Global Toggle
property (for
example, setting the
toggle source as
blink on new alarm).
Object.GlobalOutputToggle
Specifies if the table
has a global toggle
source.
Lookup Animation Object Properties and Methods
Syntax
Description
Object.GlobalToggle
Specifies the value
that will be toggled
to if the value of the
global toggle source
is true.
Object.SharedTableName
Specifies the name
of a shared lookup
table in a picture or
shared threshold
table in user globals.
If this value is set,
the object will use
the table that can be
shared by other
objects, rather than
its own unique table.
Lookup Animation Object Properties and Methods
Syntax
Description
Object.ToggleRate
Specifies the rate at
which the output of
the Lookup object
toggles between
output1 and output2.
For example, in a
color table, this
property is the
blinking rate.
Object.Tolerance
Specifies the
tolerance for exact
match lookup tables.
Object.AddLevel (pInput1,
pOutput1, [pInput2,
pOutput2])
Adds a new level to
the Lookup object
table.
Lookup Animation Object Properties and Methods
Syntax
Description
Object.GetLevel (iIndex,
pInput1, pOutput1,
[pInput2, pOutput2])
Gets the level
properties for the
specified level index
of the Lookup
object. Indexing
begins at 1.
Object.RemoveAllLevels
Removes all levels
from the Lookup
table.
Object.Removelevel
Removes a level of
a lookup table.
Indexing begins at
1.
Connection Examples: Using the
Lookup Object
This example shows you how to check to see if
an object is connected to a data source, then
lets you build a Lookup object that overwrites
an existing color table.
Example: Using Range Comparison
In this example, the picture contains a
rectangle named Rect1.
Private Sub BtnLookup_Click()
Dim blnIsConnected As
Boolean
Dim lngIndex As Long
Dim lngStatus As Long
Dim strPropName As String
Dim strSource As String
Dim strFQSource As String
Dim vtSourceObjects
Dim LookupObject As Object
Dim strFullname As String
Dim blnIsEmpty As Boolean
'Check to see if the
rectangle's ForegroundColor
'property is already
connected to a data source
Rect1.IsConnected
"ForegroundColor",
blnIsConnected, _
lngIndex, lngStatus
'If it is, use the
Disconnect method to remove the
'existing property
connection
If blnIsConnected Then
Rect1.Disconnect
"ForegroundColor"
End If
'If a ForegroundColor
animation does not exist, build
an
'empty lookup animation
object off of the rectangle
If (TypeName(LookupObject) =
"Nothing") Then
Set LookupObject =
Rect1.BuildObject("lookup")
End If
'Add levels to your lookup
animation object with a range
'comparison using the
AddLevel method. The following
'table will have inputs
between 10 and 20 displaying the
'color with the RGB value of
255 (red), 21 through 40
'would display RGB 65535 and
so on
LookupObject.AddLevel 10,
255, 20
LookupObject.AddLevel 20,
65535, 40
LookupObject.AddLevel 40,
65280, 60
LookupObject.AddLevel 60,
16711680, 80
LookupObject.AddLevel 80,
8388736, 100
'Use the SetSource method to
connect the lookup animation
'object to the data source
object. This connection
'overwrites any existing
color table set up
LookupObject.SetSource
"AI1.F_CV", True
'We have connected the
InputValue property of the lookup
'animation object to the
data source. Now, we will
'connect the animation
object's OutputValue property to
'the shape. Its output is
connected to the object it is
'animating.
strFullname =
LookupObject.FullyQualifiedName &
_
".OutputValue"
Rect1.Connect
"ForegroundColor", strFullname,
lngStatus
End Sub
Similarly, you can create an Exact Match color
table using the LookupExact method and the
ExactMatch property of an object. The
following example shows you how.
Notice that, again, the example first checks
that the object is connected in the first place,
then proceeds to manipulate the object's
property based on that connection.
Example: Using Exact Match Lookup
In this example, the picture contains a
rectangle named Rect2.
Private Sub
BtnLookupExact_Click()
Dim blnIsConnected As
Boolean
Dim lngIndex As Long
Dim lngStatus As Long
Dim strPropName As String
Dim strSource As String
Dim strFQSource As String
Dim vtSourceObjects
Dim LookupObject As Object
Dim strFullname As String
Dim blnIsEmpty As Boolean
'Check to see if the
rectangle's ForegroundColor
property
'is already connected to a
data source
Rect2.IsConnected
"ForegroundColor",
blnIsConnected, _
lngIndex, lngStatus
'If it is, use the
Disconnect method to remove the
'property connection
If blnIsConnected Then
Rect2.Disconnect
"ForegroundColor"
End If
'If a ForegroundColor
animation does not exist, build
an
'empty lookup animation
object off of the rectangle
If (TypeName(LookupObject) =
"Nothing") Then
Set LookupObject =
Rect2.BuildObject("lookup")
End If
'To create an exact match
color table, the user can do
'two things: (1) Call
AddLevel with the same parameters
'as a range comparison and
set the ExactMatch property to
'true OR (2) Call AddLevel
without the second input
'parameter. The following
table will have inputs 10
'displaying the color with
an RGB value of 255
'(red), 21 would display RGB
65535 and so on.
LookupObject.AddLevel 10,
255, 20
LookupObject.AddLevel 21,
65535, 40
LookupObject.AddLevel 41,
65280, 60
LookupObject.AddLevel 61,
16711680, 80
LookupObject.AddLevel 81,
8388736, 100
LookupObject.ExactMatch =
True
'Use the SetSource method to
connect the lookup animation
'object to the data source
object. This connection
'overwrites any existing
ColorTable set up.
LookupObject.SetSource
"AI1.F_CV", True
'We have connected the
InputValue property of the lookup
'animation object to the
data source. Now, we will
'connect the animation
object's OutputValue property to
'the shape. Its output is
connected to the object it is
'animating.
strFullname =
LookupObject.FullyQualifiedName &
_
".OutputValue"
Rect2.Connect
"ForegroundColor", strFullname,
lngStatus
End Sub
For more information on data sources, refer to
the Creating Pictures manual. For information
on changing data sources at run-time, refer to
the Changing Data Sources section.
Format Animation Object Properties
This table provides the syntax and description
of Format Animation Object properties.
Format Animation Object Properties
Syntax
Description
Object.Format
Specified the C
Sprintf Format
string into which
the input is
formatted for the
Format object.
Object.SetNumericFormat
([WholeDigits],
[DecimalDigits], _ [Justify])
Sets the format of a
numeric value.
Object.SetStringFormat
([Format])
Sets the raw
formatting for a
string value.
Connection Example: Animating the
Rotation of a Rectangle
The example in this section shows you how to
animate an object through a VBA script;
specifically, animating the rotation of a
rectangle named Rect1. The code is taken
directly from the iFIX Rotate Expert.
For this example, you need to provide
operators with an interface in the configuration
environment which allows them to animate the
rotation of the selected object. You also need
to allow them to select a data source with the
Expression Editor control. For this example,
assume that the operators will select a database
block as their data source. You also want to
allow them to select the minimum and
maximum input and output values. After
applying this form to a selected object, the
operator can switch to run and see the object
rotating as specified.
First, develop the basic form as shown in the
following figure:
Rotate the Selected Object Dialog Box
The following script is intended for the OK
button's Click event. The script creates an
animation object, connects the animation
object to the data point, and then connects the
animation object to the selected shape. See the
Creating Pictures manual for more information
on Animation objects.
Example: Animating the Rotation of
an Object
Private Sub cmdOK_Click()
Dim CurrentObject as Object
Dim RotateObject As Object
Dim i As Integer
Dim blnHasConnection As Boolean
Dim lngIndex As Long
Dim lngStatus As Long
Dim strFullName As String
Dim Result As Boolean
Dim FailedSourceString As String
Dim strPropertyName As String
Dim strFullQualifiedSource As
String
Dim strExpression As String
Dim strFullyQualifiedExpression
As String
Dim vtSourceObjects
Dim dblTolerance As Double
Dim dblDeadband As Double
Dim dblUpdateRate As Double
On Error GoTo ErrorHandler
'Set CurrentObject equal to the
first selected object in
'the picture.
Set CurrentObject = _
Application.ActiveDocument.Page.S
electedShapes.Item(1)
'Check if the selected object's
RotationAngle property is
'already connected to a datasoure
using the IsConnected
'method.
CurrentObject.IsConnected
"RotationAngle",
blnHasConnection, lngIndex, _
lngStatus
'If it is, use the
GetConnectionInformation method
to get
'the fully qualified name of the
data source as well as the
'data source object.
If blnHasConnection Then
CurrentObject.GetConnectionIn
formation lngIndex, _ 0
strPropertyName,
strExpression, _
strFullyQualifiedExpression,
vtSourceObjects
'vtSourceObjects is a
variant array of the data source
'objects connected to the
RotationAngle property of the
'selected object. Get the
first object in the array.
'Assume that the first
object connected to the
'RotationAngle is the one
you want.
Set RotateObject =
vtSourceObjects(0)
End If
'If a rotation connection does
not exist, build an empty
'linear animation object off of
the current object.
If (TypeName(RotateObject) =
"Nothing") Then
Set RotateObject =
CurrentObject.BuildObject("Linear
")
End If
'Use the SetSource method to
connect the Animation object to
'the data source object that the
user entered in the Expression
'Editor. This connection
overwrites any existing Rotation
set
'up.
RotateObject.SetSource
ExpressionEditor1.EditText, True,
_
ExpressionEditor1.RefreshRate,
ExpressionEditor1.DeadBand, _
ExpressionEditor1.Tolerance
'Check the Animation object's
ConnectionFailed property. If the
'connection failed, send a
message to the user.
If RotateObject.ConnectionFailed
= True Then
FailedSourceString = "Data
Source: " & _
RotateObject.FailedSource &
" doesn't exist."
Result =
MsgBox(FailedSourceString,
vbOKOnly)
Exit Sub
End If
'Now, we can set the LoInValue,
HiInValue, LoOutValue, and
'HiOutValue of the Animation
object with the values the user
'entered in the form.
RotateObject.LoInValue =
Val(txtLoIn.Value)
RotateObject.HiInValue =
Val(txtHiIn.Value)
RotateObject.LoOutValue =
Val(txtMinAngle.Value)
RotateObject.HiOutValue =
Val(txtMaxAngle.Value)
'We connected the InputValue
property of the Animation object
'to the data source. Animation
objects receive their input
'from sources. Now, we will
connect the Animation object's
'OutputValue property to the
shape. It's output is connected
'to the object it is animating.
strFullName =
RotateObject.FullyQualifiedName &
".OutputValue"
CurrentObject.Connect
"RotationAngle", strFullName,
lngStatus
Rotating a Group
To rotate a group using scripting, please use
the following preferred method listed in the
steps below.
To rotate a group using scripting:
1. Create a variable object that is used to
store the rotation angle of the group.
2. Animate the group's rotation angle
using that variable's current value as
the source of the animation.
3. Set the current value of the variable
using the script instead of changing the
rotation angle of the group directly.
Example: Rotating a Group Using a
Script
Dim bUp As Boolean
Private Sub
CFixPicture_Initialize()
bUp = True
CommandButton1.Caption = "Rotate
Up"
End Sub
Private Sub
CommandButton1_Click()
Dim o As Object
Dim dVal As Double
' get the variable object, using
FindObject
' to keep group out of VBA
Set o =
Me.FindObject("RotationAngle")
' get the current value of the
variable
dVal = o.CurrentValue
If bUp Then
' increment the value
dVal = dVal + 5
' if we hit 45 then rotate
down next time
If dVal = 45 Then
bUp = False
CommandButton1.Caption =
"Rotate Down"
End If
Else
' decrement the value
dVal = dVal - 5
' if we hit 0 then rotate up next
time
If dVal = 0 Then
bUp = True
CommandButton1.Caption =
"Rotate Up"
End If
End If
' set the current value of the
variable object
' which will result in rotating
the group
o.CurrentValue = dVal
End Sub
Manipulating Pictures
This chapter provides source code examples
that show how to manipulate iFIX pictures
using VBA. This section also describes some
important characteristics of using VBA
scripting in your pictures. It includes the
following sections:
•
Understanding Picture Events
•
Automatically Starting a Picture
•
Managing Multiple Displays
•
Changing Displays Using Global
Subroutines
•
Closing Pictures with Active Scripts
•
Using the Workspace Application
Object
After reading this section, you will be able to
do the following tasks entirely through VBA
scripts:
•
Manage multiple displays
•
Change displays using global
subroutines
Understanding Picture Events
Each picture you create executes events when
you open or close it. By writing a script for
each event's handler, you can automatically
complete specific task (such as initialization of
variables) when a picture opens or closes.
The events that a picture executes vary
depending on the WorkSpace environment.
The following tables summarize the picture
events that occur.
When you open a
picture in the...
The following events
occur...
Configuration
environment
InitializeConfigure
Run-time
environment
1. Initialize
2. Activated
When you close a
picture in the...
The following
events occur...
Configuration
environment
N/A
Run-time
Close
If you open a picture with an OpenPicture
subroutine, the open events (Initialize and
Activated) execute immediately. However, if
the OpenPicture call is inside looping or
branching structure (such as a FOR loop or an
IF statement) then the open events do not fire
until the OpenPicture script completes.
Conversely, if you close a picture with a
ClosePicture subroutine, the Close event of the
picture being closed never fires because the
picture is removed from memory before its
script has a chance to run.
Pictures also execute Activated and
Deactivated events as you switch from one
picture to another. The Activated event occurs
whenever of picture gains focus. The
Deactivated event executes when a picture
loses focus. For example, suppose you have
two pictures open and the first picture,
Picture1, has focus. When you select the
second picture, Picture2, Picture1 executes the
Deactivated event and Picture2 executes the
Activated event. When you switch back,
Picture2 executes the Deactivated event and
Picture1 executes the Activated event.
Automatically Starting a Picture
This section describes how to create a run-time
environment that contains a virtual toolbar and
several pictures of the same size.
The figure below shows a sample picture
design, consisting of three untitled pictures: a
main picture, a navigational banner, and an
alarm banner.
Typical Picture Design
Since the main picture has to be a certain size
and position in the run-time environment, you
may want to create a toolbar button to create
pictures of the same size to fill the main
process picture area. To do so, you must first
create a picture area, navigation (or toolbar)
area, and other run-time areas that are reserved
as "special pictures." After creating these
pictures, write down the following coordinates
of the pictures so it will be easier to enter them
into the script:
•
Window top
•
Window left
•
Document height
•
Document width
These coordinates can be found in the
Properties window for the picture. See the
Creating Pictures manual for more information
on picture coordinates.
When opening iFIX pictures through scripts,
you may want to remove any unwanted scroll
bars by executing the
FitWindowToDocument method, which is
also illustrated in this code sample.
Let's take a look at the toolbar script. Wherever
possible, comments are provided to help you
understand that particular part of the script.
These bold-faced comments will appear by
default as green text when pasted into the VBA
code window. Comment colors are configured
in the VBA Option dialog.
Example: Creating a Toolbar
Dim iNewDoc As Object
Dim iPage As Object
'Create a new picture.
Set iNewDoc =
Application.Documents.Add("FIX.PI
CTURE")
Set iPage = iNewDoc.Page
With iPage
'Set the height of the
document.
.DocumentHeight = 51.3
'Set the width of the
document.
.DocumentWidth = 100.44
'Call the
FitWindowToDocument method to
expand the
'window size so it matches
the size of the document.
'This action removes all
scrollbars.
.FitWindowToDocument
.windowtoppercentage = 7.03
.windowleftpercentage = 0#
.titlebar = False
End With
Set iNewDoc = Nothing
Set iPage = Nothing
Managing Multiple Displays
Notice that there is a virtual toolbar at the top
of the display in the illustration in the
Automatically Starting a Picture section. The
buttons on this toolbar are actually bitmaps
that have their ButtonStyle property set to
Pushbutton.
For more information on managing displays,
refer to the following sections:
•
Setting a Pushbutton Property
•
Setting the Active Document
•
Creating a Global Variable
Setting a Pushbutton Property
The steps below describe how to set a
Pushbutton property in your picture.
To set the Pushbutton property of a
bitmap:
1. From the Proficy iFIX WorkSpace, in
Ribbon view, on the Insert tab, in the
Objects/Links group, click
Objects/Links and then click Bitmap.
- Or In Classic view, on the Insert menu,
click Bitmap to insert a bitmap into
your iFIX picture.
2. Right-click the bitmap and select
Button Styles, PushButton from the
pop-up menu. A 3D effect will appear
around the bitmap to give it the
appearance of a button.
3. Optionally, you can configure a
second bitmap to be displayed when
the button is depressed. To do this,
right-click the bitmap and select Load
Image, Secondary. You can also
configure a ToolTip by entering the
desired text for the ToolTip into the
Description property of the bitmap and
setting the EnableTooltips property to
TRUE.
The top toolbar is actually a separate picture
with no titlebar. Clicking a button in this area
changes focus and changes what is known in
VBA as the ActiveDocument. To be sure that
the correct picture is operated on when you
click the toolbar button, you should first set the
active document.
Setting the Active Document
To set the active document, you need to create
a variable object to hold the main picture
name, or picture alias. In the code that follows,
a variable object is used because the script
requires multiple main pictures to be opened.
If you use an alias instead of a variable, an
error would occur if the alias was set to the
same name ("MainPicture"), when more than
one main picture is opened at the same time.
See the Creating Pictures manual for more
information on aliases.
Creating a Global Variable
To work with the script in this section, you
must first create a global variable object to
hold the string that represents the current
active picture.
To create a global variable object to hold
the string for the current active picture:
1. In the Proficy iFIX WorkSpace system
tree's Globals folder, right-click the
User icon, and select Create Variable
from the pop-up menu.
2. Set the Name property to
CurrentPicture and the VariableType
property to 8 - vtString. The system
tree should look like the following:
System Tree Example
Once you have created the variable, add the
following code to the Activate method of the
main picture to set a Global variable:
Private Sub
CFixPicture_Activated()
'Set the user global variable
when you activate to find
'out the name of current active
picture.
user.CurrentPicture.CurrentValue
= Me.FullyQualifiedName
'Me is a VB intrinsic variable
that tells you the name
'of the current project (picture
object).
End Sub
The Global variable lets you know which main
picture has focus so the toolbar can act on it.
Now you can add the following script to the
bitmap object by right-clicking it and selecting
the Edit Script command from the pop-up
menu:
Dim PicObj As Object
'Loop through the documents that
are open.
For Each PicObj In
Application.Documents
'If the document that is open has
the same name as the
'current active main picture, set
the active property,
'which will in turn set the
active document.
If PicObj.Name =
user.CurrentPicture.CurrentValue
Then
PicObj.active = True
'Acknowledge alarms of the
selected items in the
'active picture.
AcknowledgeAnAlarm
Exit Sub
End If
Next PicObj
Changing Displays Using Global
Subroutines
The FactoryGlobals global subroutines provide
you with commands that allow you to manage
your operator displays. Picture management
subroutines include:
•
OpenPicture
•
ClosePicture
•
ReplacePicture
•
PictureAlias
Refer to the subroutines topic of the iFIX
Automation Interfaces Electronic Book for
more information on calling these subroutines.
In the next example, an overview display
contains four push buttons that allow operators
to monitor plant lines. The first button opens
the first line picture, the second button opens
the second line picture, and so forth.
Push Button Example
The VBA scripts that make the command
buttons operational are provided in this
section. The use of aliases (in the following
script, Line is the name of an alias) gives the
script control over the opening and closing of
displays, regardless of the exact picture names.
Each time the operator selects the appropriate
button, the script closes any picture with an
alias of Line, and reassigns the alias to the
opened picture.
Example: Using an Alias to Open and
Close Displays
Private Sub
OpenLine1Command_Click()
ClosePicture "Line"
OpenPicture "Line1", "Line"
End Sub
Private Sub
OpenLine2Command_Click()
ClosePicture "Line"
OpenPicture "Line2", "Line"
End Sub
Private Sub
OpenLine3Command_Click()
ClosePicture "Line"
OpenPicture "Line3", "Line"
End Sub
Private Sub
OpenLine4Command_Click()
ClosePicture "Line"
OpenPicture "Line4", "Line"
End Sub
The following script performs the same
function using the ReplacePicture subroutine,
without using aliases. With ReplacePicture,
all pictures display in the same window:
Example: Using the ReplacePicture
Subroutine
Private Sub
OpenLine1Command_Click()
ReplacePicture ("Line1")
End Sub
Private Sub
OpenLine2Command_Click()
ReplacePicture ("Line2")
End Sub
Private Sub
OpenLine3Command_Click()
ReplacePicture ("Line3")
End Sub
Private Sub
OpenLine4Command_Click()
ReplacePicture ("Line4")
End Sub
Closing Pictures with Active Scripts
A script cannot be fully executed if the picture
containing it is closed or replaced. Therefore,
if you use the Close method on the picture
which contains the active script, the Close
method should appear as the last method in the
script. Otherwise, the picture closes before the
rest of the script can run.
Remember that some command subroutines,
such as ReplacePicture and ClosePicture,
contain the Close method, so they are also
affected.
Using the Workspace Application
Object
When using the WorkSpace Application object
from another task, you must tell the operating
system you are done with it by setting it to
Nothing (set Application = Nothing) before the
WorkSpace is shutdown.
Creating Global Scripts
iFIX includes two global pages that allow you
to store public objects, methods, forms, and
variable objects so they can be accessed from
anywhere within your system.
The FactoryGlobals page contains the iFIX
subroutines and all of their supporting
variables, forms, and functions. The
FactoryGlobals file is write-protected to
maintain the integrity of these scripts. See the
Global Subroutines section for more
information on the iFIX subroutines that are
stored in the FactoryGlobals page.
The User page is the location where you can
put your own objects, methods, forms, and
variables that you want to use globally.
Since you can access the items that you define
as public in the User page from anywhere in
the system, make sure that what you enter is
really what you want to expose. If you create a
global public variable, remember that it can be
changed from any script at any time.
This section provides examples of the items
that you might want to include in your User
page, including:
•
Variable objects
•
Threshold tables
•
Procedures (VBA subroutines and
functions)
•
Forms
Creating a Global Variable Object
Variable objects can be stored in the iFIX User
page so that they can be accessible throughout
your application, regardless of which pictures
are open. You can read more about variable
objects in the Creating Pictures manual.
To make a variable object global by adding
it to the User page:
1. In the WorkSpace system tree, doubleclick the Globals folder.
2. Right-click the User icon and select
Create Variable. An icon representing
the Variable object appears under the
User icon.
3. Right-click the Variable object icon
and select Animations. The
Animations dialog box appears.
4. Set values for the Variable object and
click OK.
To create a global variable using the
Variable Expert:
1. Select the Variable Expert from the
Toolbox.
2. Assign a name and type for the
variable.
3. Select the Global Variable option and
click OK.
How FIX32 Predefined Variables Map
to iFIX Object Properties
In FIX32, a predefined variable is a read-only
variable whose name is reserved for use by the
Command Language. Predefined variables
have the following scope:
•
Global variables – available to any
running script. In FIX32, global scope
variables begin with the prefix #GS_
(for global scope string variables) or
#GN_ (for global scope numeric
variables).
•
Picture variables – available to
scripts running in a given picture. In
FIX32, picture scope variables begin
with the prefix #PS_ (for picture scope
string variables) or #PN_ (for picture
scope numeric variables).
In iFIX, both global and picture variables can
be accessed as an object property through an
object link or a VBA command script. These
object properties include link, picture, screen,
security, system, and time properties.
Refer to the following table for a list of the
FIX32 predefined variables and the
corresponding iFIX object properties, with the
proper syntax.
FIX32
Variable
Syntax
iFIX
Object
Syntax
iFIX
VBA
Syntax
Description
#PS_CUR_
LINK
Untitled1.
SelectedDa
tasource
Me.Selec
tedDataso
urce or
Untitled1
.
Selected
Datasour
ce
Contains the
data source of
the currently
selected object.
FIX32
Variable
Syntax
iFIX
Object
Syntax
iFIX
VBA
Syntax
Description
#PS_CUR_S
HDW
Untitled1.
Highlighte
dDatasourc
e
Me.
Highlight
edDataso
urce
or
Untitled1
.
Highlight
edDataso
urce
Contains the
data source of
the currently
highlighted
object.
#PS_CUR_
NODE
Untitled1.
SelectedN
odeName
Me.Selec
tedNoden
ame or
Untitled1
.
Selected
NodeNa
me
Contains the
SCADA node
from the
currently
selected object.
FIX32
Variable
Syntax
iFIX
Object
Syntax
iFIX
VBA
Syntax
Description
#PS_CUR_
TAG
Untitled1.
SelectedTa
gName
Me.Selec
tedTagna
me or
Untitled1
.
SelectedT
agname
Contains the
tag name or
OPC element
(item) of the
currently
selected object.
#PS_CUR_F
IELD
Untitled1.
SelectedFi
eldName
Untitled1
.
SelectedF
ieldName
Contains the
field name of
the currently
selected object.
#PS_PICTU
RE
Untitled1.
PictureNa
me
Me.Pictur
eName or
Untitled1
.PictureN
ame
Contains the
picture name
or alias.
FIX32
Variable
Syntax
iFIX
Object
Syntax
iFIX
VBA
Syntax
Description
#PN_PICTU
RE_WIDTH
and
#PS_PICTU
RE_WIDTH
Untitled1.
PictureWid
th
Me.Pictur
eWidth
or
Untitled1
.Picture
Width
Contains the
picture width,
in pixels.
#PN_PICTU
RE_HEIGH
T and
#PS_PICTU
RE_HEIGH
T
Untitled1.
PictureHei
ght
Me.Pictur
eHeight
or
Untitled1
.PictureH
eight
Contains the
picture height,
in pixels.
#GN_SCRE
EN_WIDTH
and
#GS_SCRE
EN
_WIDTH
System.Scr
eenWidth
System.S
creenWid
th
Contains the
display screen
width, in
pixels.
FIX32
Variable
Syntax
iFIX
Object
Syntax
iFIX
VBA
Syntax
Description
#GN_SCRE
EN_HEIGH
T and
#GS_SCRE
EN _
HEIGHT
System.Scr
eenHeight
System.S
creenHei
ght
Contains the
display screen
height, in
pixels.
#GS_LOGI
N_NAME
System.
LoginUser
Name
System.L
oginUser
Name
Contains the
user ID of the
currently
logged in user.
If security is
disabled, this
string is empty.
#GS_FULL
_NAME
System.
LoginUser
FullName
System.
LoginUse
rFullNam
e
Contains the
full name of
the currently
logged in user.
If security is
disabled, this
string is empty.
FIX32
Variable
Syntax
iFIX
Object
Syntax
iFIX
VBA
Syntax
Description
#GS_GROU
P
System.Lo
ginGroup
System.L
oginGrou
p
Contains the
first group
name that the
currently
logged in user
belongs to. If
security is
disabled, this
string is empty.
#GS_NODE
System.
MyNodeN
ame
System.
MyNode
Name
Contains the
iFIX physical
node name.
#GS_CURR
ENT_PICT
URE
System.
CurrentPic
ture
System.C
urrentPict
ure
Contains the
currently
active picture
displayed in
the Proficy
iFIX
WorkSpace.
FIX32
Variable
Syntax
iFIX
Object
Syntax
iFIX
VBA
Syntax
Description
#GS_DATE
System.Cu
rrentDate
System.C
urrentDat
e
Contains the
current system
date. The date
string is
formatted
according to
the "short date"
format in the
Regional and
Language
Options in the
Control Panel.
FIX32
Variable
Syntax
iFIX
Object
Syntax
iFIX
VBA
Syntax
Description
#GS_TIME
System.Cu
rrentTime
System.C
urrentTi
me
Contains the
current system
time. The time
string is
formatted
according to
the "time"
format in the
Regional and
Language
Options in the
Control Panel.
#GS_HOUR
and
#GN_HOU
R
System.
CurrentTi
meHour
System.
CurrentTi
meHour
Contains the
hour
component of
the current
system time.
FIX32
Variable
Syntax
iFIX
Object
Syntax
iFIX
VBA
Syntax
Description
#GS_MIN
and
#GN_MIN
System.
CurrentTi
meMinute
System.
CurrentTi
meMinut
e
Contains the
minute
component of
the current
system time.
#GS_SEC
and
#GN_SEC
System.
CurrentTi
meSecond
System.
CurrentTi
meSecon
d
Contains the
second
component of
the current
system time.
#GS_DAY
and
#GN_DAY
System.
CurrentDat
eDay
System.
CurrentD
ateDay
Contains the
day component
of the current
system date.
#GS_
MONTH
and
#GN_MON
TH
System.
CurrentDat
eMonth
System.
CurrentD
ateMonth
Contains the
month
component of
the current
system date.
FIX32
Variable
Syntax
iFIX
Object
Syntax
iFIX
VBA
Syntax
Description
#GS_
YEAR and
#GN_YEAR
System.
CurrentDat
eYear
System.
CurrentD
ateYear
Contains the 4digit year
component of
the current
system date.
Creating a Global Threshold Table
You can also configure a system-wide
threshold table. Global threshold tables
provide you with more centralized control over
your system's data conversions. If you created
a global threshold table that defined colors for
value ranges, and you need to change a color
or a value because you are moving to a
different system, you only need to change it in
one place.
To create a global threshold table that is
used for all current alarms in the system:
1. In the Proficy iFIX WorkSpace system
tree, double-click the Globals folder.
2. Right-click the User icon and select
Create Threshold Table from the popup menu. The Custom Lookup Table
dialog box appears as shown in the
following figure.
Custom Lookup Table Dialog Box
3. Keep the default values of the dialog
box and click OK. A threshold table
icon appears under the User icon.
To name the table:
1. In the Proficy iFIX WorkSpace system
tree, right-click the new threshold
table's icon, and select Property
Window from the pop-up menu.
2. Enter a value for the Name property. If
you are creating a global threshold
table that is used for all current alarms
in the system, enter
CurrentAlarmThresholds.
Once you have named your threshold table,
you can make connections from iFIX objects
to this table. The following procedure provides
an example of how to connect an object, in this
case an oval, to a global threshold table named
CurrentAlarmThresholds.
To connect an oval to a global threshold
table:
1. Create an oval.
2. Click the Foreground Color Expert
button.
3. In the Data Source field, enter a
database tag.
4. Select the Current Alarm option.
5. Select the Use Shared Threshold Table
check box.
6. Enter CurrentAlarmThresholds, the
name of the global table that you
created, in the Shared Table field.
The oval will now use the
CurrentAlarmThresholds table instead of a
custom table. Likewise, you can configure all
objects that are assigned a Color By Current
Alarm animation to use the
CurrentAlarmThresholds table. If you ever
need to change a color, value, or type, you
only have to change it in one place.
Creating A Global Procedure
You may want global access to subroutines
and functions if you use them frequently. iFIX
provides global subroutines and functions,
such as OpenPicture, ToggleDigitalPoint,
and OnScan, that you can use in your pictures
and schedules. You can also include your own
global subroutines and functions in the User
page.
To add a global subroutine to the User
page:
1. Open the Visual Basic Editor.
2. If the Project Explorer is not already
displayed in the VBE, select Project
Explorer from the View menu.
3. In the Project Explorer, select the
Project_User project.
4. On the Insert menu, click Module.
You need to store your code in a
module and not in the Project_User
page itself.
5. Enter the following code in the Code
window:
Public Sub DisplayMyMessage()
MsgBox "This is my message
box."
End Sub
6. Close the Code window and create a
rectangle in your picture.
7. Right-click the rectangle and select
Edit Script from the pop-up menu.
VBE opens the Code window for the
rectangle's Click event. Enter the
following in the Code window:
DisplayMyMessage
8. When you click the rectangle in the
run-time environment, the message
box that was stored in the
Project_User page appears.
Accessing Real-time Data
iFIX gives you the flexibility to access all
kinds of data to perform your scripting
applications. This chapter details how to access
real-time data through various methods. The
examples show you how to use the Data
System OCX to perform group reads and
writes and how to write to a database tag.
Refer to the following sections for more
details:
•
Using the Data System OCX for
Group Reads and Writes
•
Reading from and Writing to a
Database Tag
Using the Data System OCX for
Group Reads and Writes
The Data System OCX (FixDataSystems.ocx)
is a logical control that gives you flexible read
and write capability, allowing you to perform
group reads and writes to a database.
Typically, performing a read and write through
scripting involves the following steps:
1. Create the data item (DI).
2. Validate and add the DI to the OPC
server.
3. Write the value to the DI.
This process can take time, as each data item
must be processed in the OPC server. If the
OPC server is running at slower speeds, the
process can take even longer. The Data System
OCX simplifies this process by not requiring
that you write to a single data item, changing
the read and write process to the following
steps:
1. Create the data item (DI).
2. Validate and add the DI to the OPC
server.
3. Hold the DI in memory, create and
validate other DIs, and read and write
the DIs in a group.
Because it allows group reads and writes, the
Data System OCX optimizes reading from and
writing to large numbers of data points. You
can create groups from VB scripts which can
be returned from memory and written to at any
time.
NOTE: To use the Datasystem OCX, you must
ensure the reference to the Intellution iFIX Data
System Access Control v1.0 Type Library is
included in the project. To add this reference in
VBA, on the Tools menu, click References. The
References dialog box appears. Select Intellution
iFIX Data System Access Control v1.0 Type
Library check box, and click OK.
The following example illustrates how to use
the Data System OCX to create a group of
database tags and perform a group read and
group write on them.
The following example writes a value of 50 to
a group of database tags:
Example: Group Write
Public Sub WriteValueToGroup()
'Create the Data Server Object.
Dim FDS As Object
Dim DIItem As Object
'Create an instance of the Data System
control.
Set FDS =
CreateObject("FixDataSystems.Intellution FD
Data _
System Control")
'You do not need to call CreateObject
if you include a
'reference to the FIX Data System. This
control can handle
'multiple groups. For this example, we
only need one group.
'We will add all the data sources with
new alarms to the
'group and do a group read and then a
group write.
FDS.Groups.Add "TankGroup"
'Add all the Tank tags to the Data
System OCX's Data Item
'collection. You can add or delete
groups without affecting
'the order of the group should the
position of an item
'change. This is achieved by specifying
a group name
'("TankGroup")rather than listing item
numbers.
FDS.Groups("TankGroup").DataItems.Add
"FIX32.MYNODE.TANK1.F_CV"
FDS.Groups("TankGroup").DataItems.Add
"FIX32.MYNODE.TANK2.F_CV"
FDS.Groups("TankGroup").DataItems.Add
"FIX32.MYNODE.TANK3.F_CV"
FDS.Groups("TankGroup").DataItems.Add
"FIX32.MYNODE.TANK4.F_CV"
FDS.Groups("TankGroup").DataItems.Add
"FIX32.MYNODE.TANK5.F_CV"
FDS.Groups("TankGroup").DataItems.Add
"FIX32.MYNODE.TANK6.F_CV"
FDS.Groups("TankGroup").DataItems.Add
"FIX32.MYNODE.TANK7.F_CV"
FDS.Groups("TankGroup").DataItems.Add
"FIX32.MYNODE.TANK8.F_CV"
FDS.Groups("TankGroup").DataItems.Add
"FIX32.MYNODE.TANK9.F_CV"
FDS.Groups("TankGroup").DataItems.Add _
"FIX32.MYNODE.TANK10.F_CV"
'Read all of the data items that you
added to the Data System
'control.
FDS.Groups("TankGroup").Read
'If the value of each tag is not 50,
then set it to 50.
For Each DIItem in
FDS.Groups("TankGroup").DataItems
If DIItem.Value <> 50 Then
DIItem.Value = 50
End If
Next
'Now write 50 to each tag in the
database.
FDS.Groups("TankGroup").Write
End Sub
The next example does the following:
1. Creates a Data System OCX FDS.
2. Adds the data group DataGroup1 to
the Groups collection.
3. Adds a Data Item to the DataItems
collection.
4. Reads the group DataGroup1.
5. Reads the DataItem.
Example: Group Read
Public Sub ReadValueFromGroup()
'Create the Data System OCX
Dim FDS As Object
Set FDS =
CreateObject("FixDataSystems.Intellution FD
Data _
System Control")
'Add a group to the Groups collection
FDS.Groups.Add ("DataGroup1")
FDS.Groups.Item("DataGroup1").DataItems
.Add("Fix32._
THISNODE.AI1.F_CV")
'Read DataGroup1
FDS.Groups.Item("DataGroup1").Read
'Read the DataItem
FDS.Groups.Item("DataGroup1").DataItems
.Item(1).Read
End Sub
The final example in this section shows you
how to perform writes to alternate data
sources:
1. Creates a Data System OCX FDS.
2. Adds the data group DataGroup1 to
the Groups collection.
3. Adds a Data Item to the DataItems
collection.
4. Writes the value of the Group
DataGroup1.
5. Writes a value to the DataItem.
Example: Writes to Alternate Sources
Public Sub WriteToAlternateSources()
'Create the Data System OCX
Dim FDS As New FixDataSystem
Dim g1 As FixDataSystems.Group
'Create the first group to read from
FDS.Groups.Add("DataGroup1")
Set g1=FDS.Groups.Item("DataGroup1")
'Add an item to the group to be read
g1.DataItems.Add("Fix32.MYNODE.AI1.F_CV
")
'Read the group
g1.Read
'Get the value of the item
Dim x As Long
x=g1.DataItems.Item(1).Value
'Create the second group to write
Dim g2 As FixDataSystems.Group
FDS.Groups.Add("Group2")
Set g2=FDS.Groups.Item("Group2")
'Add the item, set it's value and write
the group
g2.DataItems.Add("Fix32.MYNODE.AI2.F_CV
")
g2.DataItems.Item(1).Value = x+1
g2.Write
End Sub
For more information on using the Data
System OCX, including its related properties
and methods, refer to the DataSystem OCX
object topic of the iFIX Automation Interfaces
Electronic Book.
Reading from and Writing to a
Database Tag
There are several ways to write a value to a
database tag. The examples in this section
show you how to:
•
Write a value directly to a defined
database tag.
•
Write a value to a database tag using
the WriteValue global subroutine.
•
Write a value to a database tag using
its Value property.
NOTES:
•
An unsigned write occurs when a
database tag is configured for
electronic signature, but you write a
value directly to that tag without
capturing a signature. If you are
working in a secure environment with
the Electronic Signature option
enabled, you must be aware of the
impact of unsigned writes to the process
database.
•
Unsigned writes can originate from
scripts. Refer to the Implications of
Database Writes With Electronic
Signature section of the Using
Electronic Signatures manual for
detailed information.
Writing a Value to a Defined Database
Tag
The easiest way to write a value to a defined
database tag is to perform a direct write:
FIX32.NODE.AI1.F_CV = 50#
In this example, a value of 50 is written to the
database tag FIX32.NODE.AI1.F_CV.
Because of the restrictions enforced by VBA
naming conventions, this is not the
recommended method for writing values
through VBA scripting (see the VBA Naming
Conventions section). The easiest methods for
reading and writing values through VBA
scripting are by using the WriteValue and
ReadValue subroutines. These subroutines are
described in more detail in the next section.
Writing a Value Using the WriteValue
Subroutine
In order to overcome the limitations of VBA's
naming conventions, iFIX provides the global
subroutines WriteValue and ReadValue for
writing values to and reading values from
database tags. The following two examples
show how to use the WriteValue subroutine to
write a value to a tag.
This script writes a value of 50 to the
FIX32.MYNODE.AI-1.F_CV tag:
Private Sub
CommandButton1_Click()
WriteValue "50", "AI-1"
Exit Sub
If you omit the second parameter, the
WriteValue subroutine writes a value of 60 to
the first connection of the selected object in the
run-time environment. For example, let's say
that you have a rectangle selected in your
picture, and that rectangle has a
VerticalFillPercentage animation tied to the tag
FIX32.MYNODE.AO3.F_CV.
When you click a push button containing the
following script:
Private Sub
CommandButton1_Click()
WriteValue "60"
Exit Sub
iFIX writes a value of 60 to the
FIX32.MYNODE.AO3.F_CV tag.
Write a Value Using the Database
Tag's Value Property
This example assumes that there is a color
animation on a shape named Rect1. It receives
the database tag connected to Rect1's
ForegroundColor property and writes a value
of 70.
Example: Using the Database Tag's
Value Property
Private Sub
CommandButton1_Click()
Dim objDataTag as Object
Dim blnHasConnection as Boolean
Dim lStatus as Long
Dim lIndex as Long
Dim strPropertyName as String
Dim strExpression as String
Dim strFQE as String
Dim vtAnimationObjects
Dim objDataTag as Object
Dim strDataSourceName as String
Rect1.IsConnected
"ForegroundColor",
blnHasConnection, _
lIndex, lStatus
Rect.GetConnectionInformation
lIndex, strPropertyName, _
strExpression, strFQE,
vtAnimationObjects
'Assume that the first Animation
object is the color
'animation object you are looking
for. Set the string
'name for the data source equal
to the data source of
'the animation object.
strDataSourceName=
vtAnimationObjects(0).Source
'Use the FindObject method to get
the database tag
'object with the string name
FIX32.MYNODE.AI1.F_CV.
Set objDataTag = _
System.FindObject("FIX32.MYNODE.A
I1.F_CV")
'Set the Value property of the
Database Tag object
'equal to 70.
ObjDataTag.Value = 70
End Sub
Accessing Data from a
Relational Database
iFIX not only gives you the ability to access
real-time data, but also has the flexibility to
access data from a relational database. This
chapter shows you how to access data from a
relational database using ActiveX Data Objects
(ADO).
The chapter also discusses how to effectively
query an SQL database. You can also perform
this task using VisiconX, which is now
included as an integral part of iFIX.
For more information on VisiconX, see the
Using VisiconX manual. For examples of how
VisiconX is used in a sample system, refer to
the Using the iFIX Sample System section of
the Understanding iFIX manual.
Database Access in VBA: MDAC
While iFIX supports the Data Access Object
(DAO), the Remote Data Object (RDO), and
the ActiveX Data Object (ADO), it is
recommended in most cases that you use ADO
for all iFIX VBA scripts that deal with
database access. ADO is part of Microsoft
Data Access Components (MDAC).
For a summary of Microsoft's database
technologies, refer to article ID 190463 on the
Microsoft web site. This article describes
database technologies such as MDAC, DA
SDK, ODBC, OLE DB, ADO, RDS, and
ADO/MD, and the differences between them.
For information on MDAC and iFIX, refer to
the Third-Party Software Installed During the
iFIX Install section in the Getting Started with
iFIX electronic book.
Using ActiveX Data Objects
This example shows how to manipulate data in
a relational database using ActiveX Data
Objects (ADO). ADO is a free download from
Microsoft's web site. Currently, Microsoft is
encouraging VBA developers to use ADO over
the other types of data access. The key
elements covered in this section include:
•
Creating ADO objects.
•
Populating an MSFlexGrid from a
Select statement.
•
Adding a record to the database.
•
Updating a record in the database.
•
Deleting a record from the database.
Creating ADO Objects
In order to use ActiveX Data Objects to
manipulate data, you need to reference the
ActiveX Data Objects Library in your picture's
project. Select the References command from
the VBE Tools menu and then select the ADO
type library.
The object variables are declared at the
Module level, which means that they are
available in all of the other routines in this
example. If you don't need to manipulate the
records after reading them, then they can be
declared at the Procedure level.
Example: Creating an ADO Record set
'General Declarations
Dim conODBC As ADODB.Connection
'This stores the link to the
database.
Dim adoRS As ADODB.Recordset
'This stores the results of the
query.
Private Sub InitADO()
Dim strQuery As String
On Error GoTo ErrorHandler
'SQL query that ADO will
run.
strQuery = "SELECT
Recipe_ID, Recipe_Name,
Batch_Size, " _
& "Milk_Quan , Choc_Quan,
Mix_Time, Milk_Type _
FROM ACCEPT_TEST & "ORDER
_BY _Recipe_Name ASC"
Set conODBC = New
ADODB.Connection
'Create ADO Connection
Object.
'Connect to the database.
Connect string can be DSN-less.
'This varies by database
type.
conODBC.Open "driver= _
& " SQL
server};server=thunder;uid=sa;pwd
=;database=master"
Set adoRS = New
ADODB.Recordset
'Create ADO Recordset
Object.
'Run the query, and set
options to allow read/write
access.
adoRS.Open strQuery,
conODBC, adOpenDynamic, _
adLockPessimistic, adCmdText
Exit Sub
ErrorHandler:
HandleError
End Sub
Populating an MSFlexGrid or Similar
Spreadsheet OCX with ADO
To get the data out of the record set for
display, a spreadsheet or grid is handy. The
following code shows how to copy the data
into the grid.
NOTE: The example provided here uses the
MSFlexGrid. You can use this or any similar
spreadsheet, such as the VideoSoft VSFlexGrid,
in your applications. GE Intelligent Platforms
does not provide the MSFlexGrid; it is
referenced in the documentation for illustration
purposes only.
Example: Populating a Flexgrid with Data
from an ADO Record set
This example builds upon the previous
example for the population of ADORS. It
assumes a flexgrid already exists in a picture.
Private Sub LoadRecipes()
Dim iRow As Integer
Dim iCol As Integer
On Error GoTo ErrorHandler
'Set MSFlexGrid column sizes
and titles.
InitGrid
iRow = 0
'Read though the entire
record to populate the grid.
While adoRS.EOF <> True
iRow = iRow + 1
MSFlexGrid1.Row = iRow
For iCol = 0 To 5
MSFlexGrid1.Col =
iCol
MSFlexGrid1.Text =
adoRS(iCol)
'After setting the row
and column of the grid, insert
'data into the cell.
Next iCol
'Move to the next
record returned from the query.
adoRS.MoveNext
Wend
'The row number will show
the number of records returned.
RecipeCount.Value =
Str(iRow)
Exit Sub
ErrorHandler:
HandleError
End Sub
Adding a Record to the Database
through ADO
If the recordset is not opened as read-only, you
can add records to the database through ADO.
Example: Adding a Record to a Database
Using an ADO Recordset
Private Sub AddRecipe()
Dim lIndex As Long
On Error GoTo ErrorHandler
If RecipeName.Value = ""
Then
MsgBox "Please Enter
Recipe Parameters First",_
vbExclamation, "Recipe
Control"
Exit Sub
End If
adoRS.AddNew 'Adds a new
record to the recordset.
'Populate the record with
data.
adoRS!Batch_Size =
CLng(BatchSize.Value)
Milk_Quan =
CLng(MilkQuan.Value)
adoRS!Choc_Quan =
CLng(ChocQuan.Value)
adoRS!Mix_Time =
CLng(MixTime.Value)
adoRS!Milk_Type = CLng("1")
adoRS!Recipe_Name =
RecipeName.Value
adoRS.Update 'Commits the
new record to the database.
adoRS.Requery 'Refreshes the
recordset.
LoadRecipes 'Populates the
grid.
Exit Sub
ErrorHandler:
'Handle the error returned
if any columns need to be unique
'(such as recipe name) but
weren't.
If Err.Number = -2147217887
Then
MsgBox "Recipe Names
Must be Unique", vbExclamation, _
"Recipe" & "Control"
Exit Sub
End If
HandleError
End Sub
Updating a Record in the Database
through ADO
If the recordset is not read-only, you can
change values in a record and write them to the
database with ADO.
Example: Updating a Database Using an
ADO Record set
Private Sub UpdateRecipe()
On Error GoTo ErrorHandler
'Check for primary key
setting before update.
If RecipeID.Value = "" Then
MsgBox "Please Select a
Recipe First", vbExclamation, _
"Recipe" & "Control"
Exit Sub
End If
adoRS.Requery 'Refresh the
recordset.
While adoRS!Recipe_ID <>
CLng(RecipeID.Value)
adoRS.MoveNext
'Move to the selected
record to be updated.
Wend
'Set any changed values.
adoRS!Batch_Size =
CLng(BatchSize.Value)
adoRS!Milk_Quan =
CLng(MilkQuan.Value)
adoRS!Choc_Quan =
CLng(ChocQuan.Value)
adoRS!Mix_Time =
CLng(MixTime.Value)
adoRS.Update 'Commits the
updated record to the database.
adoRS.Requery 'Refreshes the
recordset.
LoadRecipes 'Populates the
grid.
Exit Sub
ErrorHandler:
HandleError
End Sub
Deleting a Record from the Database
through ADO
If the recordset is not read-only, you can delete
records from the database with ADO.
Example: Deleting a Record from a
Database Using an ADO Record set
Private Sub DeleteRecipe()
On Error GoTo ErrorHandler
'Check for primary key setting before
delete.
If RecipeID.Value = "" Then
MsgBox "Please Select a Recipe
First", vbExclamation, _
"Recipe Control"
Exit Sub
End If
adoRS.Requery 'Refresh the recordset.
While adoRS!Recipe_ID <>
CLng(RecipeID.Value)
adoRS.MoveNext
'Move to the selected record to be
updated.
Wend
adoRS.Delete 'Deletes the current
record in the recordset.
adoRS.Update 'Commits the deleted
record to the database.
adoRS.Requery 'Refreshes the recordset.
LoadRecipes 'Populates the grid.
Exit Sub
ErrorHandler:
HandleError
End Sub
For more information on ADO, refer to the
Advanced Topic: Using SQL section.
Advanced Topic: Using SQL
Structured Query Language (SQL) is a
standard language that is used by relational
databases to retrieve, update, and manage data.
Although it provides the common syntax for
applications to use, it does not provide a
common application program interface (API).
Open Database Connectivity (ODBC) is
Microsoft's standard API for accessing,
viewing, and modifying data from a variety of
relational databases.
Previously, accessing data meant writing a
Microsoft Visual Basic script, which can be
tedious and requires knowledge of Visual
Basic. However, VisiconX, a component of the
current version of iFIX, harnesses Microsoft
ADO technology. By using ADO, VisiconX
lets you access data easily and quickly without
writing scripts. For more information, refer to
the Using VisiconX manual.
Working in the Run-time
Environment
iFIX VBA allows you to dynamically control
your objects and pictures while you are
working in the run-time environment. This
chapter focuses on how you can script your
applications to perform a variety of functions
at run time, such as:
•
Changing data sources.
•
Changing properties in objects, or in
pens of a chart.
•
Entering data in global forms.
Changing Data Sources
This section illustrates how you can write
scripts that dynamically change the data source
of objects "on the fly" at run-time. As we
discussed in the Working with iFIX Objects
chapter, animating objects begins by making a
connection to a data source.
The first example shows you how to create a
direct connection while in the run-time
environment. It includes the following topics:
•
Creating a Direct Connection to an
Object
•
Changing a Text Object's Caption
•
Changing a Variable Object's Current
Value
•
Changing the Data Source of a Data
Link
•
Change a FIX Event's Data Source
•
Replacing String Properties
NOTE: When you change a data source at run
time, the change does not remain intact when
you switch back to the configuration
environment. The behavior of the picture
depends on the status of the picture cache. In
addition, if you add or delete scripts in run
mode, the picture will not be loaded into cache
when it is closed. Refer to the Using Picture
Caching section of the Creating Pictures
manual.
Creating a Direct Connection to an
Object
The following example connects an AI tag to
the Horizontal Fill Percentage of a rectangle
when you click it in the run-time environment.
To connect an AI tag to the Horizontal Fill
Percentage of a rectangle when you click it:
1. Draw a rectangle on your screen.
2. Create an AI database Tag with RA as
the I/O address (using the SIM driver).
3. Right-click the rectangle and select
Edit Script from the pop-up menu.
4. Enter the following code in the
rectangle's Click event:
Dim lstatus as Long
Rect1.Connect
"HorizontalFillPercentage",
_
"Fix32.Thisnode.AI.F_CV
", lstatus
5. Switch to Run and Click the rectangle.
Before you click the rectangle, it is solid. After
you click it, the rectangle starts to fill based on
the AI tag's value. You have dynamically
connected the rectangle's fill level to the
database tag.
Example: Changing the Data Source of
an Animation Connected to an Object
As we discussed in the Working with iFIX
Objects chapter, there are three different types
of animation objects — Lookup, Linear, and
Format. The example below shows you how to
set an object, and change the source of the
animation object that is connected to it while
you are in the run-time environment.
To set an object and change the source of
the animation object that is connected to it:
1. Create an AI block (AI1) with RA as
the I/O address, and another AI block
(AI2) with RG as the I/O address.
2. Create two Data links. Connect one
Data link to AI1, and connect the other
to AI2.
3. Add a rectangle, and animate its
Foreground Color (a Lookup object)
using AI1 as the data source.
4. Now animate the fill of the rectangle
(a Linear object), and use AI1as the
data source.
5. Edit the rectangle's Click event.
6. Enter the following code:
Dim
Dim
Dim
Dim
AllObj As Object
SingleObj As Object
Count As Integer
ObjCount as Integer
'Set AllObj equal to the
collection of contained
objects
'in the picture.
Set AllObj = _
Application.ActiveDocument.P
age.ContainedObjects
'Check how many objects are
in the picture.
For Each SingleObj In AllObj
Count = AllObj.Count
'Look through all of
the objects in the picture.
While Count > 0
'If the current
object (shape) has contained
objects,
'check the number
of objects (animations) it
contains.
If
SingleObj.ContainedObjects.C
ount > 0 Then
ObjCount =
SingleObj.ContainedObjects.C
ount
'For each
object contained in the
current object,
'check its
class name.
While
ObjCount > 0
Select
Case _
SingleOb
j.ContainedObjects._
Item(Obj
Count).ClassName
'If the
contained object is a Lookup
'(table)
, change the data source to
'FIX32.T
HISNODE.AI2.F_CV
Case
"Lookup"
SingleOb
j.ContainedObjects._
Item(Obj
Count).Source = _
"Fix32.T
hisnode.AI2.F_CV"
'If the
contained object is a Linear
object,
'change
the data source to
'FIX32.T
HISNODE.AI2.F_CV
Case
"Linear"
SingleOb
j.ContainedObjects._
Item(Obj
Count).Source = _
"Fix32.T
hisnode.AI2.F_CV"
End
Select
ObjCount = ObjCount - 1
Wend
End If
Count = Count - 1
Wend
Next SingleObj
7. Switch to the run-time environment
and click the rectangle.
Both the Fill and Color animations
change from the current value of AI1 to
the current value of AI2.
Changing a Text Object's Caption
The following example changes the caption of
text you have entered when you click on the
text at run-time.
To change a text object's caption:
1. Create a Text object and enter "Hello".
2. Edit the Text object's Click event.
3. Enter the following code:
Text1.Caption = "New Caption"
4. Switch to Run and click on the Text
object.
The caption of the Text object will
change from Hello to New Caption.
Changing a Variable Object's Current
Value
This example shows you how to write a script
that changes a Variable object's current value
when clicking text at run time.
To change a Variable object's caption:
1. Create a Variable object.
2. Change the object's type to Long.
3. Create a Text object.
4. Using the Animations dialog box,
animate the Text object's Caption
using the Variable object's
CurrentValue property as its data
source.
5. Right-click the Text object and select
Edit Script from the pop-up menu.
6. Enter the following code in the Text
object's Click event:
Variable1.CurrentValue =
Variable1.CurrentValue + 10
7. Switch to the run-time environment
and click the Text object.
The caption of the Text object
increments by 10 (as will the Variable's
current value).
Changing the Data Source of a Data
Link
This example details how to change the data
source of a Data link in the run-time
environment using the Format object.
To change the data source of a Data link
using the Format object:
1. Create an AI block with RA as the I/O
address, and a DO block in the
database.
2. Create a Data link and connect it to the
AI block.
3. Right-click the Data link and select
Edit Script from the pop-up menu.
4. Enter the following code in the Data
link's Click event:
DataLink1.ContainedObjects.Item(1
).Source = _
"Fix32.Thisnode.DO.F_CV"
5. Initialize the DO block, switch to the
run-time environment, and click the
Data link.
The caption of the Data link changes to
the current value of the DO block.
Change a FIX Event's Data Source
The steps that follow describe how to change
the data source of a FIX event in the run-time
environment.
To change the data source of a FIX event
in the run-time environment:
1. In Database Manager, create an AI
block and a DO block.
2. Create a new Picture.
3. Insert a FIX event.
4. Name the FIX event, and choose the
AI block as a data source.
5. Add a rectangle to your picture. Rightclick the rectangle and select Edit
Script from the pop-up menu.
6. Enter the following code in the
rectangle's Click event:
Dim obj As Object
Dim Count As Integer
'Set obj equal to the collection
of objects contained in 'the
active picture
Set obj =
Application.ActiveDocument.Page.C
ontainedObjects
Count = obj.Count
'Loop through all of the objects
in the picture to find 'any that
are Event objects.
While Count > 0
'If the object is an Event
object, change its source
If obj.Item(Count).ClassName
= "FixEvent" Then
obj.Item(Count).Source
= "Fix32.ThisNode.DO.F_CV"
'Display a message box
that describes the change.
MsgBox "The Fix Event "
& obj.Item(Count).Name & _
" is now connected to
the data source " & _
obj.Item(Count).Source
End If
Count = Count – 1
Wend
7. Switch to the run-time environment
and click the rectangle. The message
box appears stating that the source has
changed.
Replacing String Properties
You can use the FindReplace object to replace
string properties of an object at run time. The
following example uses the
FindReplaceInObject method to accomplish
this.
The code in this example searches through a
group of objects within a picture and changes
their data sources by replacing AO with AI.
To search for AO data sources in a picture
and replace with them AI data sources:
1. Insert a Data link and assign
Fix32.Thisnode.AO.F_CV as the data
source.
2. Insert a rectangle and animate its
HorizontalFillPercentage using AO as
the data source.
3. Now duplicate the rectangle three
times.
4. Select all the rectangles and group
them.
5. Name the group "MyGroup".
6. Create a Push button. Right-click the
Push button and select Edit Script
from the pop-up menu.
7. Enter the following code in the Push
button's Click event:
Dim Success As Boolean
FindReplace.FindReplaceInObject
MyGroup, 4, "AO", "AI",_
Success
'The 4 indicates to search
through data sources only.
8. Switch to the run-time environment
and click the Push button.
The FindReplace object searches
MyGroup and changes all instances of
AO to AI. Because the Data link's data
source falls outside of MyGroup, it
remains unchanged.
Creating Global Forms for Data Entry
This example shows how to create a UserForm
in the UserGlobals page and reference it from
a picture for the purpose of data entry.
Inserting run-time accessible forms in the User
Globals page allows only one copy of the form
on the system. This makes version control
easier and minimizes the size of iFIX picture
files.
This example uses a form that you create in
User Globals. The following figure shows how
it should appear in the run-time environment.
Data Entry Dialog Box
This example contains a UserForm
frmListEntry and a module UGSubs, both of
which are located in Project_User. The name
of the picture is LISTENTRY1.GRF.
Example: Form Code
Option Explicit
Dim strDataSource As String
'Custom subroutine to pass
DataSource and List items to form
Public Sub
SetupTheData(DataSource As
String, _
Optional Item1 As String,
Optional Item2 As String, _
Optional Item3 As String,
Optional Item4 As String, _
Optional Item5 As String,
Optional Item6 As String)
'Get the data source and any
passed-in items for the list.
'This example uses six items, but
there is no limit.
strDataSource = DataSource
If Item1 <> "" Then
EntryBox.AddItem Item1
If Item2 <> "" Then
EntryBox.AddItem Item2
If Item3 <> "" Then
EntryBox.AddItem Item3
If Item4 <> "" Then
EntryBox.AddItem Item4
If Item5 <> "" Then
EntryBox.AddItem Item5
If Item6 <> "" Then
EntryBox.AddItem Item6
End Sub
Private Sub CancelButton_Click()
Unload Me
End Sub
Private Sub OKButton_Click()
Dim DataObj As Object
On Error GoTo ErrorHandler
'Write the chosen value from
the list to the tag.
Set DataObj =
System.FindObject(strDataSource)
DataObj.Value =
EntryBox.Value
Unload Me
Exit Sub
ErrorHandler:
MsgBox "Error " +
Str(Err.Number) + " has occurred"
_
+ Chr(10) + Chr(13) +
Err.Description
End Sub
Example: Module Code
Option Explicit
'Declare the Form object.
'This must be in a Module to use
the user-defined data type.
'The user-defined data type
allows Quick Info and Auto
'Complete to work.
Public ListForm As frmListEntry
Public Sub GetListForm()
'Creates a new instance of
the form.
Set ListForm = New
frmListEntry
End Sub
Example: iFIX Object Code
Private Sub
CommandButton1_Click()
On Error GoTo ErrorHandler
'Create an instance of the
form.
UGSubs.GetListForm
'Pass in the tag to control
and load the form list with
'choices. Use text or
numbers as appropriate for the
'tag-field data type.
UGSubs.ListForm.SetupTheData
_
"Fix32.BATCH1.BATCHRECIPENAME.A_CV", _
"Off", "Low", "Medium",
"High"
'Show the form.
UGSubs.ListForm.Show
Exit Sub
ErrorHandler:
HandleError
End Sub
Working with the
Scheduler and the
DoEvents Function
This section briefly discusses the Scheduler
application and the VBA DoEvents function. It
includes the following topics:
•
Scheduler
•
DoEvents Function
•
Using Timers in place of DoEvents
•
Using Scripts with Time-based Entries
•
Using Scripts with Event-based
Entries
For more information on the Scheduler
application, refer to the Mastering iFIX
manual. For more information on the
DoEvents function, refer to the iFIX
Automation Reference. The examples that
appear later in this section illustrate how to
work with the two Scheduler objects: Timer
and Event.
Scheduler
There are certain tasks that you may want to
perform at a specified time or interval, or when
a change occurs in a database value or in any
OPC data server value. For example, you may
want to run a script that generates a report at
the end of every shift or replaces the currentlydisplayed picture when a database point
exceeds a certain value. The Scheduler allows
you to create, edit, monitor, and run both types
of actions as scheduled entries. In the
Scheduler, you define the time or event that
triggers a scheduled entry, and the action,
referred to as an operation, that you want to
occur.
The Scheduler is useful because it allows iFIX
to schedule time- or event-based scripts to run
as background tasks. This makes it ideal for
reducing overhead, since you do not have to
use VBA for monitoring purposes. Because
schedules can be run as background tasks, they
have their own VBA thread. This allows you to
have two scripts running at the same time; one
in the background and one in the active
application.
If you will be writing scripts from a
background task that will be manipulating
objects or pictures in the Proficy iFIX
WorkSpace, you must first get a pointer to the
WorkSpace application. The script below
shows how you can use the GetObject method
to do this:
Dim App As Object
Set App = GetObject("",
"WorkSpace.Application")
Once you have the pointer to the WorkSpace
application, you can use the App object in your
code to represent the Application object in the
Proficy iFIX WorkSpace.
See the Mastering iFIX manual for more
information on the FixBackgroundServer task
and the Scheduler application.
DoEvents Function
Within iFIX, VBA functions as a singlethreaded application. The system can initiate
more than one script; however, only one script
can be running at any one time. When an event
triggers a script, it is placed in a queue. Each
script in the queue is executed in the order in
which it is received once the previous script
has run to completion. For this reason, scripts
that loop and scripts that take a long time to
run can delay execution of the scripts behind
them in the queue. The DoEvents Function
allows the operating system to process events
and messages waiting in the queue and enables
an event to yield execution so that the
operating system can process other UI events.
Use the VBA DoEvents function in scripts that
take a long time to run.
WARNING: Any time you temporarily yield the
processor within an event procedure, make sure
the procedure is not executed again from a
different part of your code before the first call
returns; this could cause unpredictable results.
In addition, do not use DoEvents if other
applications could possibly interact with your
procedure in unforeseen ways during the time
you have yielded control.
See the Visual Basic for Applications Help file
for more information, including an example of
the DoEvents function.
The following knowledge base articles,
prepared by Microsoft and located on the
Microsoft web site, provide useful information
on DoEvents:
•
Q118468
•
DoEvents Function
•
Using DoEvents
Using Timers in place of DoEvents
The DoEvents call allows a program to process
events while in VBA script. However, the
DoEvents call cannot control what is executed
and does not control what is currently
executing.
The following script is an example of a
DoEvents call:
Dim I as Integer
For I = 0 to 10000
If I Mod 100 = 0 Then
DoEvents
'Execute events every
hundredth iteration through the
loop
End If
'Do Something
Next I
If your code is tied to an event, your code may
be executed again before DoEvents returns. If
the code is operating on global data or data that
exists outside the scope of the script, you could
corrupt your own data by reentering the
routine.
You can solve this problem by using timers in
place of DoEvents to execute portions of the
code.
The following script outlines the solution:
'Here is a global variable to
track the iterations through the
'loop.
'Note that it is initialized to
zero by VBA
Dim IndexCount As Integer
Sub StartRoutine() 'Execute this
routine to start
IndexCount = () 'We are starting
a new loop
FixTimer.StartTimer 'Get the
timer going
End Sub
Private Sub StopRoutine()
'The timer routine will execute
this when completed
FixTimer.StopTimer
End Sub
Private Sub
CfixPicture_Initialize()
'Make sure that the timer is
stopped on picture load
StopRoutine
End Sub
Private Sub
CommandButton1_Click().
'This will launch the routine
from a button
StartRoutine
End Sub
Private Sub
FixTimer_OnTimeOut(ByVal1TimerId
As Long)
'This is the timer routine
'This variable ensures that
another timer event doesn't
execute 'the routine
Static iAlreadyHere As Integer
If (iAlreadyHere = 1) Then
Exit Sub
End If
'Lock out other callers
iAlreadyHere = 1
Dim I As Integer
For i = IndexCount to 10000
'Note: We will exit this loop
before we hit 10,000
'Do Something
If i Mod 100 = 0 Then
IndexCount = i + 1
iAlreadyHere = 0 'Timers
can now execute this routine
Exit Sub 'Give up process
and allow other things to run
End If
Next i
StopRouting 'We are done
iAlreadyHere = 0
End Sub
Using timers to execute portions of code
allows VBA, the picture, and global variables
to be in a predictable state while executing
your VBA script.
Using Scripts with Time-based
Entries
There are certain tasks that you will want to
perform at a specified time or interval or when
a change occurs in the process. To schedule
these tasks you will need to define the time
that triggers the action that you want to occur.
You can use the Scheduler application within
iFIX or you can write your own VBA script.
For more information on the Scheduler, refer
to the Scheduler section of the Mastering iFIX
manual.
The following example periodically checks the
amount of available hard disk space. If the
amount of disk space gets too low, it triggers
an alarm in the iFIX database. The OnTimeOut
event occurs at an interval defined in the
properties of the CheckDiskSpace event.
Example: Checking Disk Space and
Triggering an Alarm if Too Low
'First, declare the Windows API
function call
'GetDiskFreeSpace so you can use
it to get the amount of
'free space available on the
disk.
Private Declare Function
GetDiskFreeSpace Lib "kernel32" _
Alias "GetDiskFreeSpaceA" (ByVal
lpRootPathName As String, _
lpSectorsPerCluster As Long,
lpBytesPerSector As Long, _
lpNumberOfFreeClusters As Long,
lpTotalNumberOfClusters _
As Long) As Long
'Check the disk space on the
Timer Event's OnTimeOut
'event. If it is less than 150MB,
set an alarm.
'CheckDiskSpace is the name of
the Timer object
'created in the Scheduler.
Private Sub
CheckDiskSpace_OnTimeOut(ByVal
lTimerId As Long)
Dim lAnswer As Long
Dim lpRootPathName As String
Dim lpSectorsPerCluster As
Long
Dim
Dim
As Long
Dim
As Long
Dim
Dim
Dim
lpBytesPerSector As Long
lpNumberOfFreeClusters
lpTotalNumberOfClusters
lBytesPerCluster As Long
lNumFreeBytes As Double
lDiskSpace As Double
'Warning: The parameter below
hard codes C: as the drive to
'check. If you do not nave a C:
drive, this code will return 0
'as the free space. You need to
change this parameter to match
'the drive you want checked.
lpRootPathName = "c:\"
lAnswer =
GetDiskFreeSpace(lpRootPathName,
_
lpSectorsPerCluster,
lpBytesPerSector, _
lpNumberOfFreeClusters,
lpTotalNumberOfClusters)
lBytesPerCluster =
lpSectorsPerCluster *
lpBytesPerSector
lNumFreeBytes =
lBytesPerCluster *
lpNumberOfFreeClusters
lDiskSpace =
Format(((lNumFreeBytes / 1024) /
1024), _
"0.00")
If lDiskSpace < 150# Then
Fix32.NODE1.lowdiskspac
ealarm.f_cv = 1
Else
Fix32.NODE1.lowdiskspac
ealarm.f_cv = 0
End If
End Sub
Using Scripts with Event-based
Entries
The following is an example of downtime
monitoring. The Scheduler application waits
for the value of
FIX32.NODE1.DOWNTIMESTART.F_CV to
be true. When it is true, the script launches a
form that allows the user to enter the reason for
the downtime occurrence.
When the user clicks OK, the script opens the
appropriate database and writes the time, date,
data source, and downtime description to the
database. Use the parameters in the following
table to create the event object and the form.
Be careful to place the Option Buttons inside
the Frame.
DownTime Start Event Properties
OBJECT
PROPERTY
SETTING
Event
Name
Event Type
Data Source
Line1Packer1DownTime
On True
Fix32.NodeName.DownTimeS
tart.F_CV
Form
Name
Caption
frmDownTime
Downtime Monitoring
Logging to Relational
Database
Command
Button
Name
Caption
cmdOK
OK
DownTime Start Event Properties
OBJECT
PROPERTY
SETTING
Frame
Name
Caption
fraLine1Packer1
Packaging Line 1 Packer 1
Option
Button
Name
Caption
optDownTimeReasonOne
Bad packaging material
Option
Button
Name
Caption
optDownTimeReasonTwo
Fallen bottle or bottle jam on
line to packer
Option
Button
Name
Caption
optDownTimeReasonThree
Low oil pressure in packer
drive
Option
Button
Name
Caption
optDownTimeReasonFour
<Leave this caption blank>
Textbox
Name
Enabled
TxtDownTimeReasonFour
False
Example: Recording DownTime
Monitoring
'Place the following code into
the subroutine created after
'clicking the VB Editor button in
the Modify Event Entry dialog.
'On the Event object's OnTrue
event, initialize the form
'with the Event's data source and
then show the form.
'Line1Packer1DownTime is the name
of the event created
'in Scheduler.
Private Sub
Line1Packer1DownTime_OnTrue()
frmDownTime.InitializeDataSo
urce _
(Line1Packer1DownTime.Source
)
frmDownTime.Show
End Sub
Downtime Monitoring Logging to the Relational
Database
'Place the following code
directly in the form you create
and 'set a reference to Microsoft
DAO 3.X Object Library. See
'Visual Basic Editor Help for
details on setting references.
Public sDataSource As String
'This is the initialize routine
that is called from the Event
'object's OnTrue event. It
creates a public instance of the
'string name of the data source
for the form to use.
Public Sub
InitializeDataSource(DataSource
As String)
sDataSource = DataSource
End Sub
'When the option button beside
the text box is selected,
'enable and set focus to the text
box.
Private Sub
optDownTimeReasonFour_Click()
txtDownTimeReasonFour.Enable
d = True
txtDownTimeReasonFour.SetFoc
us
End Sub
'When the form gets activated,
set the first option to true
Private Sub UserForm_Activate()
optDownTimeReasonOne.Value =
True
End Sub
'When the user selects OK, store
which reason they chose.
Private Sub cmdOK_Click()
Dim DownTimeReason As String
If
optDownTimeReasonOne.Value = True
Then
DownTimeReason =
optDownTimeReasonOne.Caption
ElseIf
optDownTimeReasonTwo.Value = True
Then
DownTimeReason =
optDownTimeReasonTwo.Caption
ElseIf
optDownTimeReasonThree.Value =
True Then
DownTimeReason =
optDownTimeReasonThree.Caption
ElseIf
optDownTimeReasonFour.Value =
True Then
If
txtDownTimeReasonFour.Text <> ""
Then
DownTimeReason =
txtDownTimeReasonFour.Text
Else
MsgBox "Please
enter a reason for the _
downtime event"
txtDownTimeReasonF
our.SetFocus
End If
End If
'Call the AddDownTimeEventData
subroutine to add the
'downtime information to the
database.
Call
AddDownTImeEventData(DownTimeReas
on)
Unload Me
End Sub
'This subroutine writes the data
to the database and
'updates it.
'This database has not been
provided and will need to be
created
'for this subroutine to execute
without error.
Public Sub
AddDownTImeEventData(DownTimeReas
on As String)
'Create an instance of the
Workspace.
Dim wrkSpace As Workspace
Set wrkSpace =
CreateWorkspace("", "admin", "",
dbUseJet)
'Open the downtime database.
Dim db As Database
Set db =
wrkSpace.OpenDatabase(System.Pict
urePath & _
"\downtime.mdb")
'Create a recordset.
Dim rs As Recordset
Set rs =
db.OpenRecordset("Packaging",
dbOpenDynaset)
'Set up the time of downtime
occurrence.
Dim TimeDate As Date
TimeDate = Now
rs.AddNew
rs.Fields(1) = TimeDate
rs.Fields(2) = TimeDate
rs.Fields(3) = sDataSource
rs.Fields(4) =
DownTimeReason
rs.Fields(5) =
Fix32.NODE1.downtimeperiod.f_cv
rs.Update
End Sub
Manipulating Charts
This chapter shows how to use VBA scripts to
manipulate charts so they display real-time and
historical data for a given process value at the
click of a button. For examples of using VBA
within the WorkSpace, iFIX has a Sample
System which includes examples of VBA
scripting. Please refer to the Using the iFIX
Sample System section of the Understanding
iFIX manual for information on using the
Sample System.
The examples in this chapter show how to
perform the following chart tasks through
scripting:
•
Switch from real-time data to
historical data at run time.
•
Scroll historical data in a chart.
•
Automatically update historical data in
a chart.
•
Set chart and pen properties at run
time.
•
Add a pen.
•
Delete a pen.
•
Change the pen data sources.
•
Passing in external data to a pen.
•
Change a chart's duration.
•
Change a chart's start and end times.
•
Zoom a pen.
•
Pause a real-time chart.
For this example to work properly, you must
have a previously-configured Extended Trend
tag and you must have already successfully
trended this tag's data in a chart. Also, you will
need to add three command buttons to your
iFIX picture. The figure below shows how the
picture might look.
Historical Trending Example
Switching from Real-time to
Historical Data
This method uses two chart pens for the same
value - one real-time pen and one historical
pen - and uses the Visibility property to switch
between the two.
Although you can do nearly the same thing by
simply changing the Source property on a
single pen, this script is more advantageous
because the historical data is fetched while the
historical pen is invisible. Therefore, operators
do not have to wait as long for the historical
data to display. The pens are switched when
the Back button is clicked, and the Forward
button switches back to real-time once the
scroll returns to the present time.
The code for these buttons is shown below:
Example: Scroll Back and Scroll
Forward Buttons
Private Sub
CommandButton2_Click() 'Scroll
back button.
'If the real-time pen is
scrolled back in time, switch
'to historical data.
If
Chart1.Pens.Item(1).ShowLine = 1
Then
'Make the real-time pen
invisible and historical
'pen visible.
Chart1.Pens.Item(1).Sho
wLine = False
Chart1.Pens.Item(2).Sho
wLine = True
'Set the historical pen
to active.
Chart1.CurrentPen = 2
'Make real-time pen
legend invisible and historic pen
'legend visible.
Chart1.Pens.Item(1).Leg
end.Visible = False
Chart1.Pens.Item(2).Leg
end.Visible = True
'Change the data type
indicator.
Text26.Caption =
"Historical Data"
End If
'If it's a historical pen,
scroll the chart backward.
Chart1.ScrollBack
End Sub
Private Sub
CommandButton1_Click() 'scroll
forward button
'If it's a real-time pen,
scrolling forward is
'not available.
If
Chart1.Pens.Item(1).ShowLine = 1
Then
MsgBox "Can't move into
the future!", _
vbExclamation, "This
isn't a Time Machine."
Exit Sub
End If
'If historical pen, scroll
the chart forward.
Chart1.ScrollForward
'If historical pen is
scrolled beyond current
'time, switch back to realtime.
If Chart1.EndTime >= Now
Then
'Make the historical
pen invisible and
'real-time pen visible.
Chart1.Pens.Item(2).Sho
wLine = False
Chart1.Pens.Item(1).Sho
wLine = True
'Set the real-time pen
to active.
Chart1.CurrentPen = 1
'Make historical pen
legend invisible
'and real-time pen
legend visible.
Chart1.Pens.Item(1).Leg
end.Visible = True
Chart1.Pens.Item(2).Leg
end.Visible = False
'Change the data type
indicator.
Text26.Caption = "RealTime Data"
End If
End Sub
Scrolling Historical Data
This example shows how to create buttons to
scroll through historical data and set the
current time in a chart.
Example: Creating Buttons that
Scroll Back and Scroll Forward
through Historical Data and Set
Current Time
Private Sub
CommandButton1_Click() 'Scroll
back button.
Chart1.ScrollBack
End Sub
Private Sub
CommandButton2_Click() 'Scroll
forward button.
Chart1.ScrollForward
End Sub
Private Sub
CommandButton3_Click()
'This button manually sets the
chart to the current time and
'refreshes the data.
Chart1.EndTime = Now
Chart1.RefreshChartData
End Sub
Automatically Updating a Chart
In a picture with a chart that contains historical
data, you can create an event object that fires a
script while a digital tag is closed at a
predefined interval. You can use this script to
update your chart automatically.
'This script sets the chart to
the current time and refreshes
'the data at the interval
specified in the event. For
'example, if you want a one
minute refresh, the interval will
'be 60,000 ms.
Private Sub
HistRefresh_WhileTrue()
Chart1.EndTime = Now
Chart1.RefreshChartData
End Sub
For more information on how charts scroll,
refer to the Trending Historical Data manual.
Environment-specific Chart
Properties and Methods
Most chart properties and methods function in
both the configuration and the run-time
environments. However, some properties and
methods are limited to a specific environment.
These properties and methods are listed in the
following sections:
•
Chart Properties Limited to the
Configuration Environment
•
Chart Properties Limited to the Runtime Environment
•
Chart Methods Limited to the Runtime Environment
Chart Properties Limited to the
Configuration Environment
The following Chart properties only function
in the Configuration environment:
•
DaysBeforeNow
•
FixedDate
•
FixedTime
•
StartDateMode
•
StartTimeMode
•
TimeBeforeNow
NOTE: Run-time changes that you make to the
configuration properties of a chart revert back to
the original settings once the display is closed.
Chart Properties Limited to the Runtime Environment
The following Chart properties only function
in the run-time environment:
•
EndTime
•
StartTime
Chart Methods Limited to the Runtime Environment
The following Chart properties only function
in the run-time environment:
•
AutoScaleDisplayLimits
•
GetTimeCursorInfo
•
Refresh
•
RefreshChartData
•
ResetChartData
•
ResetZoom
•
ScrollBack
•
ScrollForward
•
SetTimeCursorTime
•
XYHitTest
•
Zoom
Environment-specific Pen Properties
and Methods
Most Pen properties and methods function in
both the Configuration and the run-time
environments. However, some properties and
methods are limited to a specific environment.
These properties and methods are listed in the
following sections:
•
Pen Properties Limited to the
Configuration Environment
•
Pen Properties Limited to the Runtime Environment
•
Pen Methods Limited to the Run-time
Environment
Pen Properties Limited to the
Configuration Environment
The following Pen properties only function in
the Configuration environment:
•
FixedDate
•
FixedTime
•
DaysBeforeNow
•
TimeBeforeNow
•
StartTimeType
•
StartDateType
NOTE: Run-time changes that you make to the
configuration properties of a Pen revert back to
the original settings once the display is closed.
Pen Properties Limited to the Runtime Environment
The following Pen properties only function in
the run-time environment:
•
AverageDataValue
•
CurrentValue
•
HighestDataValue
•
LowestDataValue
•
Starttime
•
EndTime
Pen Methods Limited to the Run-time
Environment
The following Pen properties only function in
the run-time environment:
•
AutoScaleDisplayLimits
•
GetCurrentValue
•
GetPenDataArray
•
ResetChartData
•
Refresh
•
ScrollTimeForward
•
ScrollTimeBack
•
SetCurrentValue
•
SetPenDataArray
•
ValueTimeFromXY
•
XYFromValueTime
Setting the Properties of Multiple
Pens with One Call
Some Pen properties are also exposed at the
Chart level, which allows you to set the
properties of all Pens within a Chart with one
call. In some cases, the Chart property will
reflect the value of the CurrentPen. Keep in
mind that if you have customized the
properties of one of the Pens, setting one of
these properties through the Chart will
overwrite any previous changes.
The following Pen properties can be set
through the Chart:
•
AutoScaleDisplayLi
mits
•
DaysBeforeNow
•
Duration
•
EndTime
•
FixedDate
•
FixedTime
•
GetDuration
•
GetInterval
•
GetTimeBeforeNow
•
HorizontalGridColor
•
HorizontalGridStyle
•
Interval
•
NumberofHorizontal
GridLines
•
NumberofVerticalGr
idLines
•
ScrollBack
•
ScrollForward
•
SetDuration
•
SetInterval
•
SetTimeBeforwNow
•
ShowDate
•
ShowHorizontalGrid
•
ShowVerticalGrid
•
ShowLegend
•
ShowTimeAxis
•
ShowValueAxis
•
StartTimeMode
•
ShowTimeAxisTitle
•
ShowValueAxisTitle
•
StartDateMode
•
StartTime
•
TimeAxisNumLabel
s
•
ValueAxisNumLabe
ls
•
TimeAxisNumTicks
•
ValueAxisNumTick
s
•
TimeAxisTitle
•
ValueAxisTitle
•
VerticalGridColor
•
VerticalGridStyle
Adding a Pen
To add a new pen to a chart, use the following
syntax:
Chart.AddPen("Fix32.NODE.TAG.
F_CV")
In the configuration environment, adding a pen
will expand the chart by the height of the
legend line. At run-time, the chart does not
expand. Instead, the plot area shrinks.
Deleting a Pen
Deleting a pen is easy. For example, if you
have a chart with three pens and you want to
delete the second, use the following syntax:
Chart1.DeletePen(2)
The deletion will not work if there is a script
referencing the name of the pen you are trying
to delete.
For example:
Pen2.PenLineColor = 255
Chart1.DeletePen(2)
This deletion will fail because there is a script
explicitly using Pen2. Instead, use the
following script sequence:
Private Sub Rect2_Click()
Dim pPen As Object
Set pPen =
Chart1.Pens.Item(2)
pPen.PenLineColor = 255
Chart1.DeletePen (2)
End Sub
If you delete all your pens, you will create a
blank chart. To add the pen back into the chart,
open the Chart Configuration dialog box, or
use the AddPen method in VBA.
NOTE: If you are deleting a single pen, and you
want to add another, change the pen source via
Pen.Source = "Fix32.Node.Tag.f_cv". This will
give your chart better performance.
Changing Data Sources in a Pen
The following example shows you how to
change data sources in a pen.
Suppose you have a process variable,
PumpTemp1 (AI) which is also the input tag
for PumpTemp1-History (ETR storing an hour
of data), and you are collecting historical data
from PumpTemp1. To view the different data
associated with PumpTemp1, create three
buttons to view the different data, using the
script sequence that follows:
Private Sub Rect2_Click()
Pen1.Source =
"Fix32.Area1.PumpTemp1.F_CV"
End Sub
Private Sub Rect3_Click()
Pen1.Source =
"Fix32.Area1.PumpTemp1History.T_DATA"
End Sub
Private Sub Rect4_Click()
Pen1.Source =
"Hist.Area1.PumpTemp1.F_CV"
'Now set the start time and
fetch
Pen1.StartTime = #10/31/98
11:30:00 AM#
Chart1.RefreshChartData
End Sub
The previous example allows you to easily
switch between different types of data. This
next example changes the data source of a pen
by editing an object's Click event.
To change the data source of a pen by
editing an object's Click event:
1. Create an AI block and a DO block in
the database.
2. Create a chart and add a pen with DO
as the data source.
3. Add a rectangle. Right-click the
rectangle and select Edit Script from
the pop-up menu.
4. Enter the following code in the
rectangle's Click event:
Dim Obj As Object
Dim ChartObj As Object
Dim Count As Integer
Dim ChartCount As Integer
Set Obj =
Application.ActiveDocument.Page.C
ontainedObjects
Count = Obj.Count
While Count > 0
If Obj.Item(Count).ClassName
= "Chart" Then
ChartCount =
Obj.Item(Count).ContainedObjects.
Count
While ChartCount >
0
Set ChartObj
= _
Obj.Item(Coun
t).ContainedObjects._
Item(ChartCou
nt)
If
ChartObj.ClassName = "Pen" Then
ChartObj
.Source =
"Fix32.Thisnode.AI.F_CV"
End If
ChartCount =
ChartCount - 1
Wend
End If
Count = Count - 1
Wend
5. Switch to the run-time environment
and click the rectangle.
In the Chart, the Pen's Source will
change from DO to AI.
Passing in External Data to a Pen
If you have a real-time pen defined, and
attempt to pass external (SQL) data to the pen
using the SetPenDataArray method, the time
and legend values keep updating with the realtime value.
To avoid this problem, disconnect from the
real-time data source before calling the
SetPenDataArray method, as show in the
following sample code:
Pen1.SetSource "ChartData", True
res=Pen1.SetPenDataArray (count,
vtVal, vtDate, vtQual)
where ChartData can be any string.
The SetPenDataArray Method takes arrays of
parameters. One of these parameters is quality.
This parameter holds the OPC Quality of the
data as a numeric constant. When creating
your own data in a relational database, you
need to specify a value of 192 for this field in
order for your data to plot on the chart object.
Keep in mind that the data you pass to a pen
does not have to be from a SQL query - it can
consist of any external data. To bring this data
into a pen, use the call Pen.SetPenDataArray.
You can also use GetPenDataArray to extract
the data from the pen. Refer to the following
example:
Example: Using GetPenDataArray to
Extract Data from Pen
Dim lNumPts As Long
Dim vVal As Variant
Dim vPsa As Variant
Dim vQual As Variant
Pen1.GetPenDataArray lNumPts,
vVal, vPsa, vQual
Example: SetPenDataArray Method
with Hardcoded Values
The following is sample code for the
SetPenDataArray method with hardcoded
values. You can use this code to test or show
the functionality of this method. For this
example to complete, the Quality(x) must be
equal to 192.
Private Sub Rect2_Click()
Dim iWrkSpace As Workspace
Dim db_var_name As Database
Dim record_var As Recordset
Dim iCount As Integer
Dim dVal As Variant
Dim dtDate As Variant
Dim lQual As Variant
Dim iResult As Integer
Dim iRow As Integer
Dim iCol As Integer
Dim i As Integer
'Please note that this example
can handle a maximum of 500
points.
'If you need more points,
increase the size of the
'following declarations.
Dim Value(500) As Double
Dim Times(500) As Date
Dim Quality(500) As Long
'Create an object on the Proficy
iFIX WorkSpace and the
'Specified SQL database
Set iWrkSpace =
CreateWorkspace("", "admin", "",
dbUseJet)
Set db_var_name =
iWrkSpace.OpenDatabase("Chart.mdb
")
Set record_var =
db_var_name.OpenRecordSet("Data
Query", dbOpenDynaset)
record_var.MoveLast
iCount = record_var.RecordCount
record_var.MoveFirst
'Load the array with the
Recordset values
For i = 0 To iCount - 1
Value(i) =
record_var.Fields("Value").Value
Times(i) =
record_var.Fields("Time").Value
'If the Quality(x) is not
equal to 192 the Point
'will be ignored by the
chart
Quality(i) =
record_var.Fields("Quality").Valu
e
record_var.MoveNext
Next i
'Close the connection with the
SQL database
db_var_name.Close
'Set up the correct array types
dVal = Value
dtDate = Times
lQual = Quality
iResult =
Pen1.SetPenDataArray(iCount,
dVal, dtDate, lQual)
End Sub
Changing the Chart Duration
The following script specifies a ten-minute
chart:
Chart1.Duration = 600
You can also use the following:
Chart1.SetDuration 0, 0, 10, 0
The end time will be calculated as the start
time plus the duration. If you are using
historical pens, you can fetch the data again by
using:
Chart1.RefreshChartData
Changing the Start and End Times
To set the start time in your chart to Oct.31 at
12:30, enter the following script:
Chart1.StartTime = #10/31/98
12:30:00 PM#
The end time is calculated as the start time plus
the duration.
Or use:
Chart1.EndTime = #10/31/98
12:30:00 PM#
The start time is calculated as the end time
minus the duration.
If you are using historical pens, you can fetch
the data again by using:
Chart1.RefreshChartData
Zooming
If the chart is selectable, you may use the
mouse to enclose an area in the chart to zoom
to in a rectangle selector. Alternately, you can
use scripts to set the pen Hi and Lo limits to
zoom:
'Original limits are 0 to 100,
but data is fluctuating
'between 60 and 80.
Pen1.HiLimit = 85
Pen1.LoLimit = 55
'To zoom back out:
Pen1.HiLimit = 100
Pen1.LoLimit = 0
'The following method has the
same effect:
Chart.ResetToOriginal
'Or you can also call this
method, which would set the
'HI limit to 80 and the LO Limit
to 60:
Chart1.AutoScaleDisplayLimits
Pausing a Real-time Chart
If you are using real-time pens, you may want
to pause the display to examine data. To do
this, use the following script:
Chart1.Pause
'Now, to Resume:
Chart1.Resume
'There is a timeout associated
with the Pause/Resume such
'that if the chart is paused for
longer than the timeout,
'the chart will automatically
resume. For example, to
'restart the chart after a
minute:
Chart1.Timeout = 60
Chart1.Pause
Keyboard Accelerators
The following keyboard accelerators are
available to a selectable chart:
Keyboard
Accelerator
Default Purpose
Ctrl + Left Arrow
Moves the time cursor
one pixel to the left.
Ctrl + Right
Arrow
Moves the time cursor
one pixel to the right.
Shift + Ctrl +
Left Arrow
Moves the time cursor
ten pixels to the left.
Shift + Ctrl +
Right Arrow
Moves the time cursor
ten pixels to the right.
Ctrl + Up Arrow
Selects the next pen to
be the current pen.
Ctrl + Down
Arrow
Selects the previous
pen to be the current
pen.
Using the Pens Collection
The pens contained in a chart are exposed in a
collection called Pens. If you are constantly
adding and deleting pens, writing specific
scripts which operate on those pens may
become cumbersome. Another way to write
your scripts is to access Chart.Pens.Item(3)
rather than access Pen3, for example. The
order of the pens in this collection is the order
that they appear in the Pen list in the Chart
Configuration dialog box and in the legend.
Using the collection will also allow you to
avoid any problems deleting pens that have
scripts explicitly referencing them. Because of
these advantages, we recommend you use the
collection when you work with pens often.
Using RefreshChartData
When using historical pens, if any of the time
parameters change (StartTime, EndTime,
Duration), you must call the method
Chart.RefreshChartData in order to fetch the
new data. If you are using ScrollForward and
ScrollBack, calling RefreshChartData is not
necessary.
Scrolling an Enhanced Chart VBA
Example
The following code examples enable scrolling
in an Enhanced Chart via scripting. This
scrolling works similar to the scrolling
provided with the current Historical Dynamo.
The following code examples require a
reference to the historical data set “iFIX
HistoricalDataSet Object v 1.0 Type Library”
in order to work properly.
Scrolling Forward (50%)
Dim dtTime As Variant
Dim dtDate As Variant
Dim dInterval As Long
' set scroll percentage
dInterval =
LineChart1.Duration
dInterval = dInterval / 2 '
50%
'scroll time
dtTime =
HistoricalDataset1.FixedTime
dtTime = DateAdd("s",
dInterval, dtTime)
HistoricalDataset1.FixedTime
= dtTime
' scroll date
dtDate =
HistoricalDataset1.FixedDate
dtDate = DateAdd("s",
dInterval, dtDate)
HistoricalDataset1.FixedDate
= dtDate
'refresh chart
LineChart1.RefreshChartData
Scrolling Backward (25%)
Dim dtTime As Variant
Dim dtDate As Variant
Dim dInterval As Long
' set scroll percentage
dInterval =
LineChart1.Duration
dInterval = 0 - (dInterval /
4) ' 25%
'scroll time
dtTime =
HistoricalDataset1.FixedTime
dtTime = DateAdd("s",
dInterval, dtTime)
HistoricalDataset1.FixedTime
= dtTime
' scroll date
dtDate =
HistoricalDataset1.FixedDate
dtDate = DateAdd("s",
dInterval, dtDate)
HistoricalDataset1.FixedDate
= dtDate
'refresh chart
LineChart1.RefreshChartData
NOTE: Launching the Configuration dialog box
is accomplished via the ShowCustomPages
function call.
These quick examples are limited in that they
only operate on one data set within the
Enhanced Chart and they access this data set
by name. You can easily expand upon these
examples to cover all data sets or just certain
data sets within an Enhanced Chart by doing
the following:
1. Retrieve the total number of data sets
using the following method:
GetNumberOfDataSets().
2. Iterate from 0 to the Number of Data
Sets – 1.
3. Retrieve each data set via a call to the
GetDataSetByPosition() method.
4. Determine if the data set is a historical
data set by comparing its Class Name
(object.ClassName) to the
HistoricalDataSet.
5. Execute the code function calls
provided in the above code examples.
Creating Custom Dynamos
This chapter provides an example for creating
your own custom Dynamo object and Dynamo
set. Once you become more comfortable
building Dynamo objects, you can learn quite a
bit about writing VBA scripts that work with
iFIX by examining the scripts behind the
Dynamo objects.
The following section, Creating a New Custom
Dynamo, displays the actual example.
NOTE: In iFIX Dynamo sets, Dynamo objects
are assigned their own properties with Get and
Set functions and subroutines. This is the
methodology we suggest for building complex
Dynamo objects.
Creating a New Custom Dynamo
The following procedures demonstrate
examples of how to create and use custom
Dynamo objects in iFIX.
To build a Dynamo object:
1. Open a new picture.
2. Insert an Oval.
3. In the Properties window, change the
Name property of the Oval to dynOval.
4. For the dynOval object, animate the
VerticalFillPercentage property to
any tag in the process database.
5. Insert a second Oval.
6. In the Properties window, change the
Name property of the Oval to
dynOval2.
7. Select both ovals.
8. Right-click the selected ovals, and
select Dynamo. The Build Dynamo
Wizard appears.
NOTE: You can also click the Build
Dynamo button, the first button on the
Dynamo toolbar to open this dialog
box.
9. In the Dynamo Name field, enter a
name, if you do not want to use the
default name.
10. Optionally, in the Object Description
field, enter a description for the object.
11. In the User Prompt field, enter a
prompt such as FillColor.
NOTES:
•
Ensure you enter a value here. If
you do not enter a value, the user
will not be shown the value in a user
prompt, and as a result not have the
option of changing it later.
However, you can access this value
manually from the Property
window.
•
If you added multiple animations in
this Dynamo object and you wanted
them to all use the same value, enter
the same name in all User Prompt
fields. This results in one user
prompt that changes all animations.
12. Click OK.
To build a Dynamo form:
1. Right-click the Dynamo object and
select Edit Script from the pop-up
menu.
2. In the Microsoft Visual Basic Editor,
on the Insert menu, select UserForm.
3. If the Properties window is not already
displayed, on the View menu, select
Property Window.
4. In the Properties window, change the
Name property of the form to
frmDyn1.
5. On the Tools menu, click Additional
Controls.
6. Select the iFIX Expression Editor
Control and click OK.
7. Select the Expression Editor control on
the toolbox and add it to the form.
8. Add a Command button on the form.
9. Right-click the Command button and
select View Code from the pop-up
menu.
10. Enter the following script:
frmDyn1.hide
11. Select "General" from the Object Drop
Down List (in the upper left of the
Code Window).
12. Enter the following script:
'FormVersion: 1.0
13. Select the script window for dynOval.
14. Choose Edit from the Procedure dropdown list.
15. Enter the following script:
Private Sub
DynamoObjectName_Edit()
Dim FillObj As Object
frmDyn1.Show
'FindLocalObject (below) is
a subroutine in
'FactoryGlobals Global
Subroutines. In this case, it
'finds the animation object
that you created off of the
'oval in step 4 of Building
the Dynamo Object.
Set FillObj =
FindLocalObject(DynamoObjectName,
_
"AnimatedVerticalFillPercent
age")
FillObj.Source =
frmDyn1.ExpressionEditor1.EditTex
t
End Sub
16. Save your project and close the
Microsoft Visual Basic Editor.
To create a Master Dynamo and place it in
a Dynamo set:
1. In the Proficy iFIX WorkSpace, in
Ribbon view, on the Home tab, in the
New group, click Dynamo Set.
- Or In Classic view, on the File Menu,
select New Dynamo Set.
An empty Dynamo set appears.
2. Drag the Dynamo that you created
earlier in this section into the new
Dynamo set. The Add Objects to
Dynamo Set dialog box appears.
3. In the Add Objects to Dynamo Set
dialog box, select Create a new Master
Dynamo and then click OK. The
object becomes a new Master Dynamo
in the Dynamo set.
4. Select Save from the File menu and
name your Dynamo set.
For more information on Dynamos, refer to the
Creating Pictures manual.
Working with iFIX Security
The examples in this chapter illustrate how to
use VBA scripts that work in conjunction with
iFIX Security. Refer to the following sections:
•
Using the Login Subroutine
•
Getting User Information
You can read more about iFIX Security in the
Implementing Security manual.
Using the Login Subroutine
The following script is an excerpt from the
code for the Application Tabular's Login
button. This script opens the Login application
using the VBA Shell function.
Example: Excerpt from Script which
opens the Login Application
Public Sub SecurityLogin()
Dim strPath As String
On Error GoTo ErrorHandler
'Get the default iFIX
directory.
strPath = System.ProjectPath
Shell strPath & "\Login.exe
-m", 1
Exit Sub
ErrorHandler:
HandleError
End Sub
Getting User Information
This script uses the System object's
FixGetUserInfo method to get security
information about the user.
Example: Using the System Object's
FixGetUserInfo Method
Public Sub SecurityGetUser()
Dim Result As Integer
Dim UserID As String
Dim UserName As String
Dim GroupName As String
Dim UserInfo As String
System.FixGetUserInfo
UserID, UserName, GroupName
MsgBox "Login Name: " &
UserID & vbCr & "Full Name: " _
& UserName & vbCr &
"Clearance Level: " & GroupName
End Sub
Creating Tag Groups
The examples in this chapter illustrate how to
use VBA scripts to create and use tags. It
includes the following sections:
•
Creating the Tag Group File Object
•
Retrieving Tag Group Data
•
Modifying Tag Group Data
•
Manipulating Tag Groups
For more information on tag groups, refer to
the Creating Pictures manual.
Creating the Tag Group File Object
You can create or modify a tag group file using
the TagGroupDefinitionInterface. You can
access the interface by creating a tag group file
object. The following script creates a tag group
file object.
Dim TGD as Object
set TGD = _
CreateObject("TagGroupDefinitionI
nterfaceDll.TagGroupDefinitionInt
erface")
Retrieving Tag Group Data
Once you create the tag group file object, you
must retrieve the data in the file before you can
modify it. To retrieve the data, use the
following script.
'TokenList is an array of tag
group symbols
Dim sTokenList() as String,
TokenList as Variant
'ReplacementList is an array of
tag group substitutions
Dim sReplacementList() as String,
ReplacementList as Variant
'DescriptionList is an array of
tag group descriptions
Dim sDescriptionList() as String,
DescriptionList as Variant
'Create the tag group file object
Dim TGD As Object
Set TGD = _
CreateObject("TagGroupDefinitionI
nterfaceDll._
TagGroupDefinitionInterface")
'In order for the following
method to execute without error,
'you need to have a Tag Group
file named test or you replace
'the "test" parameter with the
name of your tag group file.
TGD.RetrieveDefinition "Test", 2,
TokenList, ReplacementList, _
DescriptionList
Modifying Tag Group Data
After the tag group data is retrieved, your
script can modify the data. For example, you
can change an element in the
sReplacementList array and then save to the
tag group file with the UpdateDefinition
method.
The following script shows how to change the
substitution for elements 2 and 3 and save
them to the tag group file.
Example: Modifying Tag Group Data
Dim sTokenList(4) as String, TokenList as
Variant
Dim sReplacementList(4) as String,
ReplacementList as Variant
Dim sDescriptionList(4) as String,
DescriptionList as Variant
Dim TGD As Object
'Retrieve Tag Group data from tag group file
Set TGD =
CreateObject("TagGroupDefinitionInterfaceDll
._
TagGroupDefinitionInterface")
'In order for the following method to
execute without error,
'you need to have a tag group file named
"test1" or you will
'replace the "Test1" parameter with the name
of your tag group 'file.
TGD.RetrieveDefinition "Test1", 4,
TokenList, ReplacementList, _
DescriptionList
'Modify tag group data
TokenList(2) = "Tag3"
TokenList(3) = "Tag4"
ReplacementList (2) = "FIX32.NODE2.AI1.F_CV"
ReplacementList (3) = "FIX32.NODE2.AI2.F_CV"
DescriptionList (2) = "Temperature for Node
2"
DescriptionList (3) = "Pressure for Node 2"
'Create the tag group file object and save
modified tag group file
Set TGD = _
CreateObject("TagGroupDefinitionInterfaceDll
._
TagGroupDefinitionInterface")
TGD.UpdateDefinition "Test", 4, TokenList,
ReplacementList, _
DescriptionList
Set TGD = Nothing
Manipulating Tag Groups
As a final example, we provide the following
Command button script. This script iterates
through all the tag group variables in a picture
and creates a substitution string based on the
name of the tag group variable.
This script assumes that the picture containing
the Command button has retrieved the tag
groups from the Tag Group object with the
RetrieveDefinition method first.
Example: Manipulating Tag Group
Data
Private Sub
CommandButton1_Click()
Dim vaSymbols As Variant
Dim vaSubstitutions As
Variant
Dim vaDescriptions As
Variant
Dim sSubstitutions() As
String
Dim sDescriptions() As
String
Dim PicPath as string
'This will contain the
number of symbols in a picture
Dim Size As Integer
Dim Counter As Integer
Dim FileName As String
'Set the filename
FileName = "Test"
'Delete tag group file if it
exists. Kill permanently
'deletes the specified file
form the hard drive. Use with
'caution.
PicPath = System.PicturePath
If DIR(PicPath + FileName +
".TGD" <> "" Then
Kill PicPath + FileName
+ ".TGD"
End If
'Get the symbols from the
Me.RetrieveTagGroupVariables
Size, vaSymbols
If Size = 0 Then
Exit Sub
End If
ReDim sSubstitutions(Size 1) As String
ReDim sDescriptions(Size -
1) As String
'Fill in the symbols and the
descriptions
For Counter = 0 To Size - 1
Temp$ = "Fix32.thisnode." +
vaSymbols(count2) + ".f_cv"
sSubstitutions(Counter) =
Temp$
sDescriptions(Counter) =
"Generated tag"
Next Counter
'Create the tag group file
object
Dim TGF As Object
vaSubstitutions =
sSubstitutions
vaDescriptions =
sDescriptions
Set TGF = _
CreateObject("TagGroupDefinit
ionInterfaceDll_
.TagGroupDefinitionInterface
")
TGF.UpdateDefinition
FileName, Size, vaSymbols, _
vaSubstitutions,
vaDescriptions
Index
A
Linear object ... 98
accessing
Lookup object . 98
databases....... 215
asynchronous
real-time data 199
methods ........... 87
ActiveX Data
Object model 215
subroutines ...... 87
adding a pen ..... 287
Auto-List
Members ......... 85
ADO ................. 215
Auto-Quick Info . 86
alarm areas ......... 58
B
animations
BaseCount .......... 73
connecting to
data sources. 73
browsing objects . 94
C
Format object.. 98
charts
changing
duration ..... 269
changing end
time ........... 269
compiling ........ 47
cutting and
pasting ......... 75
saving .............. 46
changing start
time ........... 269
testing.............. 45
duration......... 299
Code window...... 31
keyboard
accelerators302
collections........... 73
compiling............ 47
methods ........ 278
connections
pausing ......... 269
properties ...... 278
animation
objects to
data sources . 73
scrolling ........ 275
zooming ........ 301
ClosePicture ..... 175
closing pictures 175
code
connecting and
disconnecting
object's
property ..... 113
creating direct
connection to
an object .... 229
Data Access
Object model. 215
direct ............. 229
data entry .......... 242
example ........ 151
data link ............ 236
making .......... 100
data sources
objects to data
sources ........ 98
context-sensitive
help ................. 86
creating
Dynamos....... 310
changing at runtime ........... 227
changing data
source of a
link ............ 236
tag groups ..... 319
changing FIX
event's data
source ........ 237
DAO ................. 215
connecting
animation
objects to ..... 73
D
data
connecting
objects to ..... 98
reading .......... 199
Data System OCX199
writing .......... 199
database access. 215
event-based
entries............ 260
declaring
variables ......... 47
Experts................ 57
deleting pens .... 287
F
direct connections101
FactoryGlobals . 175
DoEvents
Function
FactoryGlobals
page ............... 180
warning about
using.......... 251
file types
in VBA ............ 37
DoEvents
Function........ 248
FindReplace
object ............ 240
Dynamos .......... 310
FIX event .......... 237
E
error handling ..... 57
FIX32 global
variables in
iFIX ............... 183
errors
format animations98
tracking in
subroutines .. 79
forms
variable objects181
creating global
forms ......... 242
global pages ........ 83
global ............ 180
global variables 183
using VBA
forms ........... 34
using VBA
forms within
iFIX ............. 35
H
historical data
switch from
real-time to
historical data271
G
global
FactoryGlobals
page ........... 180
host application .. 21
I
iFIX
forms............. 242
object model.... 94
procedures .... 197
iFIX .................... 94
scripts ........... 180
iFIX objects ........ 92
threshold tables193
User page ...... 180
intErrorMode
parameter ........ 79
K
pen ................ 281
keyboard
accelerators
modifying tag
group data ..... 322
charts ............ 302
modules .............. 22
WorkSpace ..... 65
N
L
naming
conventions
linear animations 98
VBA ................ 38
Login subroutine316
lookup animations98
naming
conventions ..... 57
M
O
manipulating tag
groups ........... 324
Object Browser ... 94
object hierarchy .. 94
methods
objects
asynchronous .. 87
chart .............. 278
availability in
the VB Editor92
global ............ 180
browsing ......... 94
connections ... 100
deleting ......... 287
direct
connections101
methods ......... 281
properties ...... 281
global ............ 180
hierarchy ......... 94
setting
properties... 284
iFIX ................ 92
zooming ........ 301
variable ......... 235
pens collection .. 304
opening pictures175
PictureAlias ...... 175
OpenPicture...... 175
pictures
operator messages58
aliasing .......... 175
Option Explicit ... 47
closing ........... 175
P
opening ......... 175
pens
replacing ....... 175
adding ........... 287
changing data
sources ...... 289
procedures
global ............ 197
real-time to
historical data271
Project Explorer . 25
project options .... 50
references ........... 75
projects
VBA ............... 20
properties
RefreshChartData
method .......... 305
Remote Data
Object model. 215
chart .............. 278
ReplacePicture .. 175
pen ................ 281
replacing pictures175
Properties window27
R
run-time
environment .. 227
RDO ................. 215
S
reading data ...... 199
saving code ......... 46
ReadValue .......... 57
Scheduler .......... 248
real-time data
scripts
accessing....... 199
adding a Pen.. 287
switch from
animating a
rectangle's
rotation ...... 151
cutting and
pasting ......... 75
automatically
updating a
chart .......... 277
deleting a pen 287
changing a
chart's
duration ..... 299
getting user
information 317
general tips ...... 71
global ............ 180
changing a FIX
event's data
source ........ 237
logging in ...... 316
changing data
sources ...... 289
making an
animations
connection . 105
changing
displays ..... 175
manipulating
charts ......... 269
connecting
animation
objects to
data sources. 73
passing external
data to a pen292
creating a shape72
reading data... 199
reading from
database tags208
reusing ............ 74
scrolling
historical data275
switching from
real-time to
historical data271
using ActiveX
Data Objects216
using SQL ..... 226
using
subroutines
and Experts . 57
using with
event-based
entries........ 260
database tags208
zooming a chart301
scripts that loop
through
documents
collection ........ 83
security ............. 316
SendOperatorMes
sage ................. 58
shortcuts ............. 57
single-threaded
processing ..... 251
SQL .................. 226
subroutines
using with timebased entries257
asynchronous .. 87
writing data ... 199
ClosePicture .. 175
writing to
Login ............. 316
OpenPicture .. 175
global ............ 193
PictureAlias .. 175
time-based entries257
ReadValue ...... 57
Timers
using instead of
DoEvents ... 252
ReplacePicture175
SendOperatorM
essage .......... 58
tracking
errors in
subroutines .. 79
using ............... 57
WriteValue ..... 57
U
T
User page .......... 180
tag groups
V
creating ......... 319
manipulating . 324
variable
declaration ...... 47
modifying ..... 322
variable object .. 235
testing code ........ 45
threshold tables
variable objects
global ............ 180
variables ............. 47
project options 50
VBA
Properties
window ........ 27
Code window.. 31
references ........ 75
contextsensitive help86
saving code ..... 46
Editor .............. 21
testing code ..... 45
file types ......... 37
useful features . 83
forms............... 34
Variables ......... 47
help ................. 83
Visual Basic
Editor........... 21
modules .......... 22
VBA 6.0
naming
conventions . 38
developer addins ................ 18
options ............ 47
project
components . 20
Project Explorer25
digital
signatures .... 18
multi-threaded
projects ........ 18
passwords ....... 18
W
unsupported
features........ 18
WriteValue ......... 57
writing data ....... 199
VBA sample
script list ........... 9
Visual Basic
Editor ........ 21, 23
Z
zooming ............ 301
