LED DAYTIME RUNNING LIGHTS | 12V & 24V systems
contents (may vary depending on model):
1. LED daytime running light unit (x2)
2. Wiring Harness (x1)
3. Bracket (x2)
4. Mounting screws (x4)
5. Washers (x4)

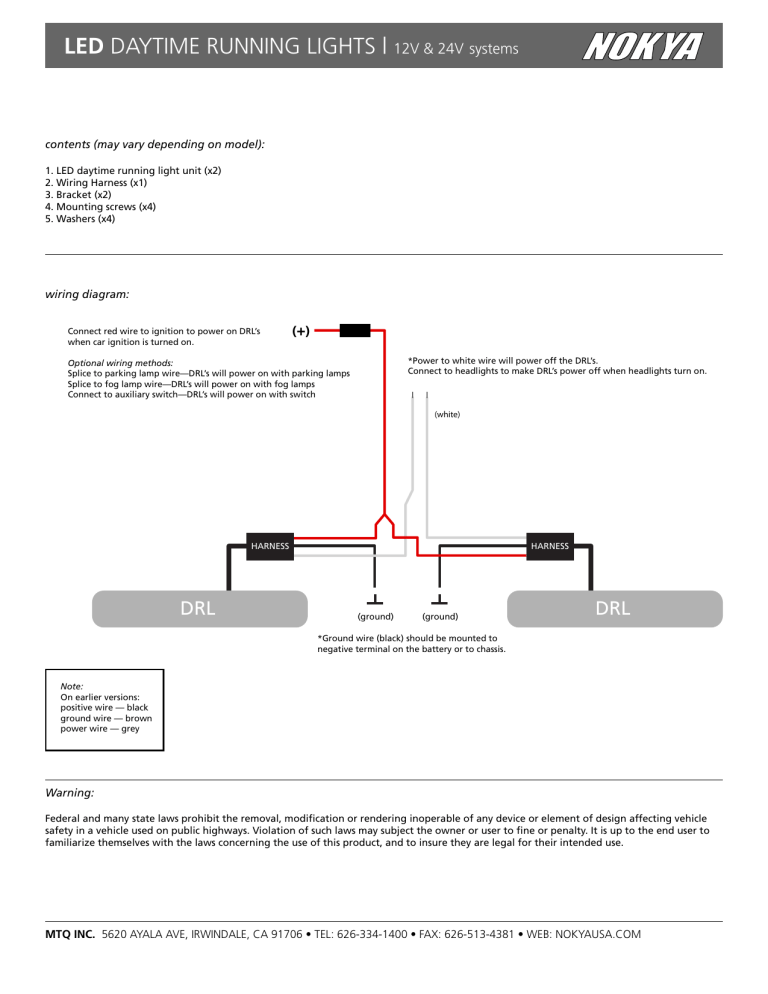

wiring diagram:
Connect red wire to ignition to power on DRL’s
when car ignition is turned on.
(+)
*Power to white wire will power off the DRL’s.
Connect to headlights to make DRL’s power off when headlights turn on.
Optional wiring methods:
Splice to parking lamp wire—DRL’s will power on with parking lamps
Splice to fog lamp wire—DRL’s will power on with fog lamps
Connect to auxiliary switch—DRL’s will power on with switch
(white)
HARNESS
DRL
HARNESS
(ground)
(ground)
DRL
*Ground wire (black) should be mounted to
negative terminal on the battery or to chassis.
Note:
On earlier versions:
positive wire — black
ground wire — brown
power wire — grey
Warning:
Federal and many state laws prohibit the removal, modification or rendering inoperable of any device or element of design affecting vehicle
safety in a vehicle used on public highways. Violation of such laws may subject the owner or user to fine or penalty. It is up to the end user to
familiarize themselves with the laws concerning the use of this product, and to insure they are legal for their intended use.
MTQ INC. 5620 AYALA AVE, IRWINDALE, CA 91706 • TEL: 626-334-1400 • FAX: 626-513-4381 • WEB: NOKYAUSA.COM
