BE08LU20
optical
drive
blu-ray disc rewriter
External eSATA 8x Super Multi Blue
LightScribe
Blu-ray™ Disc Rewriter
BURN DVD, READ BLUPLUG AND BURN BLU
td
.

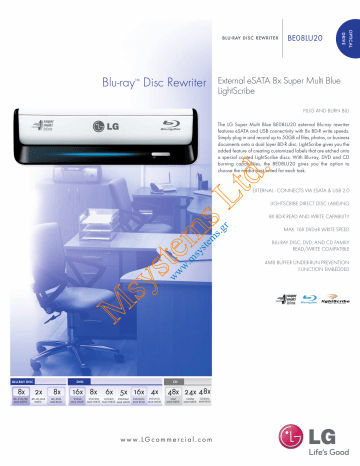

The LG Super Multi Blue BE08LU20 external Blu-ray rewriter
features eSATA and USB connectivity with 8x BD-R write speeds.
Simply plug in and record up to 50GB of files, photos, or business
documents onto a dual layer BD-R disc. LightScribe gives you the
added feature of creating customized labels that are etched onto
a special coated LightScribe discs. With Blu-ray, DVD and CD
burning capabilities, the BE08LU20 gives you the option to
choose the media best suited for each task.
r
s.g
m
ste
sy
w
M
sy
w
w
.m
ste
m
sL
EXTERNAL - CONNECTS VIA ESATA & USB 2.0
BLU-RAY DISC
CD
DVD
8x
2x
BD–R (SL/DL)
MAX WRITE
BD–RE MAX
WRITE
8x
BD–ROM
MAX READ
16x 8x
DVD±R
MAX WRITE
6x 5x 16x 4x
DVD+RW
DVD-RW DVD-RAM
MAX WRITE MAX WRITE MAX WRITE
DVD-ROM
MAX READ
DVD±R DL
MAX WRITE
48x 24x 48x
CD-R
MAX WRITE
CD-ROM
CD-RW
MAX WRITE MAX READ
w w w. LG c o m m e rc i a l . c o m
LIGHTSCRIBE DIRECT DISC LABELING
8X BD-R READ AND WRITE CAPABILITY
MAX. 16X DVD±R WRITE SPEED
BLU-RAY DISC, DVD, AND CD FAMILY
READ/WRITE COMPATIBLE
4MB BUFFER UNDER-RUN PREVENTION
FUNCTION EMBEDDED
r
w
sy
w
w
.m
ste
LightScribe Technology
LightScribe gives you the ability to create customized labels
that are etched directly onto a special coated LightScribe disc
(sold separately).
s.g
Serial ATA Techonology
Serial ATA is a 1.5Gbps evolutionary replacement for the
Parallel ATA physical storage interface used to connect
storage devices, such as hard disks, DVD and CD rewriters to
the PC motherboard. Serial ATA is scalable, enables design
of smaller PCs, and will allow future enhancements to the
computing platform.
m
Blu-Ray
Blu-ray Disc is the next generation in optical storage, offering
25GB and 50GB of storage capacity on a disc.
TECHNICAL SPECIFICATIONS
TYPE
External Blu-ray Disc Rewriter
TRANSFER RATES–WRITE BD-R (SL/DL)
2x, 4x CLV, 6x, 8x PCAV / 2x,4x
CLV, 6x PCAV, 8X CAV
BD-R (SL L to H)
2x CLV
BD-RE (SL/DL)
2x CLV/ 2x CLV
2x, 4x CLV, 8x, 12x PCAV, 16x
DVD-R
CAV
DVD-R DL
2x, 4x CLV
1x, 2x, 4x, 6x CLV
DVD-RW
DVD-RAM
2x, 3x CLV, 3-5x PCAV
2.4x, 4x CLV, 8x, 12x PCAV, 16x
DVD+R
CAV
2.4x, 4x CLV
DVD+R DL
DVD+RW
2.4x, 4x, 6x CLV, 8x ZCLV
CD-R
8x, 16x CLV, 24x, 32x, 40x PCAV,
48x CAV
CD-RW
4x, 10x, 16x CLV, 24x ZCLV
TRANSFER RATES - READ BD-ROM (SL/DL)
8x / 8x CAV
BD-R (SL L to H)
4x CAV
BD-R (SL/DL)
8x / 8x CAV
BD-RE (SL/DL)
4.8x / 4.8x CAV
BDMV (AACSCompliantDisc) 4.8x CAV
DVD-ROM (SL/DL)
16x / 12x CAV
DVD-R (SL/DL)
16x / 8x CAV
DVD-RW
10x CAV
DVD+R (SL/DL)
16x / 8x CAV
DVD+RW
10x CAV
DVD-RAM
2x, 3x CLV, 3x-5x PCAV
DVD-Video (CSS Compliant Disc) 4.8x CAV (SL/DL)
CD-R/RW/ROM
48x / 40x / 48x CAV
CD-DA (DAE)
40x CAV
80mm CD
16x CAV
LIGHTSCRIBE
Supported disc formats LightScribe MV1.2-N Single Layer
DVD +/- R Media
LightScribe MV1.2-N CD-R Media
Printing Time
745 TPI: Full Label - less than 28 min.
745 TPI: Title Label - less than 3:30 min.
Pixel Resolution
Best Mode: 745 TPI
Normal Mode: 535 TPI
Draft Mode: 400 TPI
Max Laser Write Power 35mW as Objective emission light of
780nm wavelength
Color
Mono, Color BG
ACCESS TIME
BD-ROM
180ms typ.
DVD-ROM
160ms typ.
DVD-RAM
180ms typ.
CD-ROM
150ms typ.
SUSTAINED RATE
BD-ROM
287.72 Mbits/s (8x) max.
DVD-ROM
22.16 Mbytes/s (16x) max.
CD-ROM
7,200 kB/s (48x) max.
BURST TRANSFER RATE 1.5Gbps bits/s (10b side)
1.2Gbps bits/s (8b side)
BUFFER SIZE
4MB Buffer Under-run prevention function embedded
HOST INTERFACE
External (Host)
eSATA & USB 2.0 (480Mbits/s)
Internal (Drive)
X3T13 ATA/ATAPI7 / 1532D
INF-8090i Ver.6.1
INCITS xxx T10/1675D Revision 4
OPERATING SYSTEMS Windows Vista™, Windows XP
SYSTEM REQUIREMENTS CPU: Pentium 4 D 3.2GHz or Higher (with USB 2.0)
Pentium 4 Core 2 Duo TE6300 or higher
IBM PC or Compatible for basic performance
Graphic: AACS Compliance
RAM: 1GB or Higher
HDD: 60GB or more of available space
DIMENSIONS (W x H x D) 6.4" x 2.0" x 10.2" (163 x 50 x 260 mm)
WEIGHT
3.3lbs (1500G)
ste
Multi Blue Compatibility
LG Super Multi Blue optical drives can read and write four
types of disc formats in one convenient package:
1. DVD+R
2. RW DVD-R
3. RW DVD-RAM
4. Blu-Ray Disc
This gives you the option to choose the media best suited for
each task.
sy
THE SUPER MULTI BLUE ADVANTAGE
m
specifications
sL
td
.
blu-ray disc rewriter
M
technology
optical
drive
BE08LU20
www.LGcommercial.com
LG Electronics U.S.A., Inc.
Business Solutions Division
2000 Millbrook Drive
Lincolnshire, IL 60069
Customer Service: 888.865.3026
Contact your LG Regional Sales Representative:
Channel: 800.897.8871
Enterprise: 800.897.8788
Hospitality: 800.228.1236
Healthcare: 877.793.6484
E-mail: [email protected]
SPEC_BE08LU20_110910_PR
Dimensions and weights are approximate. Design, specifications, and features subject to
change without notice.
© Copyright 2009 LG Electronics USA, Inc. All Rights Reserved. “LG Life’s Good” is a
registered trademark of LG Corp.
Blu-Ray Disc is a registered trademark of Sony Corporation. Windows and Windows
Vista are either a registered trademark or a trademark of Microsoft Corporation in the
United States and other countries. All other product and brand names are trademarks
or registered trademarks to their respective companies.
Printed in the USA. November 2009
