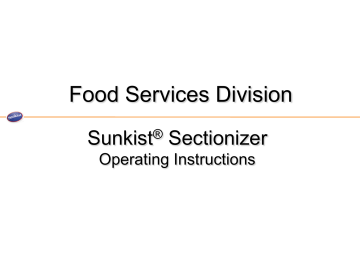

Food Services Division
Food Services Division
Sunkist® Sectionizer
Operating Instructions
Sunkist® Sectionizer
Contents
Topics
q  Versatility
q  Operation & Safety Considerations
§  Parts Identification
•  Sectionizer
•  Blade Cups/Plungers
•  Crossbar Installation/Alignment
§  Insertion of Blade Cup & Plunger
§  Removal of Blade Cup & Plunger
q  Cleaning & Safety Considerations
Sunkist® Sectionizer
Versatility
q  Will Make Quick Work of Cutting Fruits & Vegetables into Uniform Pieces
q  Always Use Firm (Not Hard) Fruits & Vegetables Without Pits That Will Fit
Through the Blade Cup
q  Will Core/Wedge Apples & Pears
q  Fruits and Vegetables that can be cut;
§ 
§ 
§ 
§ 
§ 
§ 
§ 
§ 
§ 
§ 
Cucumbers
Hardboiled Eggs
Kiwi
Lemons, Limes, Oranges
Mushrooms
Onions (Peeled, Small-to-Medium Size)
Potatoes
Radishes
Strawberries
Tomatoes
Sunkist® Sectionizer
Parts Identification
The “6-wedge” blade cuts citrus fruits (oranges).
The “apple” blade cuts and cores apples and pears.
6-Wedge
Plunger
Plunger
Blade Cup
Apple
Plunger
Blade Cup
Sunkist® Sectionizer
Parts Identification, cont.
Part
Number Parts Description
S-1 Foot Pad (set of 6)
S-2 Base Assembly
S-3B Blade Cup w/cover (6 wedge) (fits S-9)
S-4B Blade Cup w/cover (6 slice) (fits S-10)
S-5B Blade Cup w/cover (4 wedge) (fits S-9)
S-6 Wedger Cup cover (sold w/S-3, S-5, S-29, S-30, S-32, S-35)
S-7 Slicer Cup cover (sold w/S-4)
S-8 Outer Shell
S-8D Pin & Thread Assembly
S-9 Plunger Wedger (fits parts S-3, S-5, S-29, S-30, S-35)
S-10 Plunger Slicer (fits S-4)
S-11 Crossbar Assembly
S-11C Brass Knob
S-11D Brass Stud
S-12 Back Screw #8 x 1⁄2” (set of 8)
S-13 Back Cover
S-14 Spring Pin (set of 2)
S-15 7 Slice Blade Cup w/cover (fits S-16)
S-16 Plunger Tomato Slicer (fits part S-15)
S-17 Tomato Set (S-15 & S-16)
S-19 Wedger Cup Cover
(10 wedge) (sold w/S-20)
S-20B Blade Cup w/cover
(10 wedge) (fits S-21)
S-21 Plunger (fits S-20)
S-22 10 Wedge Set (S-20 & S-21)
S-23 Gears & Shaft Set
Plunger
S-24 Base Side Screw
6-32 x 11⁄2” (set of 10)
S-25 Plastic Shaft Cover
S-26 Handle
S-27 Knob
S-28 Bottom Screw #8 x 11⁄2” (set of 4)
S-29B Blade Cup w/cover (8 wedge) (fits S-9)
S-30B Blade Cup w/cover (3-in-1) (fits S-9)
S-31 Plastic Production Stand (see below)
S-32B Apple Corer Cup (fits S-33)
S-33 Apple Plunger (fits S-32)
S-34 Apple Corer Set (S-32 & S-33)
S-35B Blade Cup w/cover (single) (fits S-9)
Sunkist® Sectionizer
Operating & Safety – How To Secure the
Support Bar In Place
The support bar must be secured in place prior to removing and/or
replacing the plunger and blades.
Lift and hold the handle
to the highest position .
Take the plastic safety
pin connected to the
cord on the back of the
sectionizer.
Insert the plastic safety
pin into the hole,
located at the bottom of
the left support bar.
Sunkist® Sectionizer
Operating & Safety – How To Remove the
Plunger and Blade Cup
The plunger and blade cup must be removed for cleaning and replacement.
Loosen the two
knobs on the top
of plunger. Do
not remove the
knobs completely.
Lift the handle
and lock the
support bar in
place with the
safety pin.
Carefully release
and remove the
plunger from the
loosened screws.
Carefully lift the
blade cup by the
sides of the cup.
Caution!
Blades are sharp,
do not place
hand inside blade
cup.
Sunkist® Sectionizer
Operating & Safety – How To Replace the
Blade Cup and Plunger
The support bar must be secured in place prior to removing and/or
replacing the plunger and blades.
Lift the handle
and lock the
support bar in
place with the
safety pin.
Holding the
blade cup by the
sides, insert the
blade cup into
the bottom of the
sectionizer.
Insert the
plunger into the
blade cup.
Release the
plastic safety pin
and lower the
support bar.
Turn the knobs to
secure the
plunger in place.
Sunkist® Sectionizer
Cleaning & Sanitizing
Manual Dishwashing
q Caution - Never Let Your Fingers Contact the Top-Inside Surface of the
Blade Cup, as the Blades are Extremely Sharp
q  Carefully remove the Blade Cup & Plunger From the Sectionizer
q  Wash the dull side of the blades (bottom of the blade cup) with a bristle brush
in warm, soapy water. Never clean blades with a cloth, scouring pad or wire brush.
Rinse and sanitize.
q  Wash the sectionizer using a cleaning cloth and warm, soapy water.
Rinse and sanitize.
