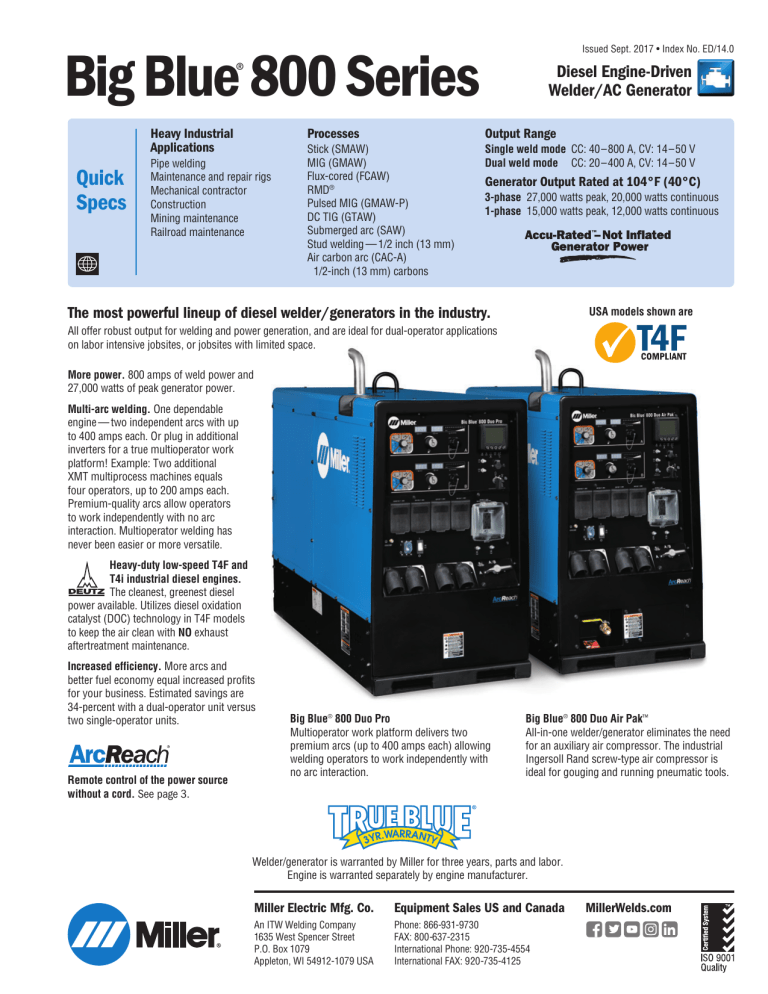

Issued Sept. 2017 • Index No. ED/14.0
Big Blue 800 Series
®
Heavy Industrial
Applications
Quick
Specs
Pipe welding
Maintenance and repair rigs
Mechanical contractor
Construction
Mining maintenance
Railroad maintenance
Diesel Engine-Driven
Welder/AC Generator
Processes
Output Range
Stick (SMAW)
MIG (GMAW)
Flux-cored (FCAW)
RMD®
Pulsed MIG (GMAW-P)
DC TIG (GTAW)
Submerged arc (SAW)
Stud welding — 1/2 inch (13 mm)
Air carbon arc (CAC-A)
1/2-inch (13 mm) carbons
Single weld mode CC: 40–800 A, CV: 14–50 V
Dual weld mode CC: 20–400 A, CV: 14–50 V
Generator Output Rated at 104°F (40°C)
3-phase 27,000 watts peak, 20,000 watts continuous
1-phase 15,000 watts peak, 12,000 watts continuous
USA models shown are
The most powerful lineup of diesel welder/generators in the industry.
All offer robust output for welding and power generation, and are ideal for dual-operator applications
on labor intensive jobsites, or jobsites with limited space.
More power. 800 amps of weld power and
27,000 watts of peak generator power.
Multi-arc welding. One dependable
engine — two independent arcs with up
to 400 amps each. Or plug in additional
inverters for a true multioperator work
platform! Example: Two additional
XMT multiprocess machines equals
four operators, up to 200 amps each.
Premium-quality arcs allow operators
to work independently with no arc
interaction. Multioperator welding has
never been easier or more versatile.
Heavy-duty low-speed T4F and
T4i industrial diesel engines.
The cleanest, greenest diesel
power available. Utilizes diesel oxidation
catalyst (DOC) technology in T4F models
to keep the air clean with NO exhaust
aftertreatment maintenance.
Increased efficiency. More arcs and
better fuel economy equal increased profits
for your business. Estimated savings are
34-percent with a dual-operator unit versus
two single-operator units.
Remote control of the power source
without a cord. See page 3.
Big Blue® 800 Duo Pro
Multioperator work platform delivers two
premium arcs (up to 400 amps each) allowing
welding operators to work independently with
no arc interaction.
Big Blue® 800 Duo Air Pak™
All-in-one welder/generator eliminates the need
for an auxiliary air compressor. The industrial
Ingersoll Rand screw-type air compressor is
ideal for gouging and running pneumatic tools.
Welder/generator is warranted by Miller for three years, parts and labor.
Engine is warranted separately by engine manufacturer.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
An ITW Welding Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
MillerWelds.com
Big Blue®800 Series Features
Digital meters with SunVision™ technology
enable welding parameters to be viewed with
greater clarity than analog meters — at
virtually any angle. Meters can be seen clearly
even in direct sunlight.
Arc control is beneficial when welding
with stick and solid wires for easier
fine-tuning of tough-to-weld materials
and out-of-position applications.
Electronic engine display simultaneously
displays fuel level, engine hours, coolant
temperature, oil pressure, battery volts,
engine rpm, and air pressure. It also tracks
oil change intervals, compressor hours, and
displays engine diagnostics for quick and
easy servicing.
Standard 14-pin receptacle with
Auto-Remote Sense™ for simple connection
of remote controls and wire feeders.
Industrial USB port.
Quickly upload the latest
software and download
machine log files to retrieve
in-depth information such
as diagnostics and machine statistics.
POWERFUL
GENERATOR
20,000 watts of pure generator power.
Plug in an extra Miller® inverter-based
power source for a second welding arc!
HD
Ingersoll Rand ultra-reliable industrial rotary
screw compressor (Air Pak models only).
30,000-hour life expectancy. Independent
on/off control for applications not requiring
compressed air — allows greater fuel savings
and longer compressor service intervals.
POWDER
COAT
HD powder coat with zinc-rich primer
protects sheet metal from rust and corrosion.
Standard features
include digital preset
weld meters, automatic
idle, 120 V block heater
and vandalism lockout
(protects control panel
and receptacles).
Big Blue 800 Duo Pro model shown
Simple paralleling switch makes switching
from a single operator to dual operators
a breeze. Weld up to 400 amps per side
when set up in dual-operator mode, or up
to 800 amps in single-operator mode.
Vandalism lockout
Welder Truck Specific Models
The Big Blue 800 Duo Air Pak (USA model only)
is available in welder truck specific models, which
have the critical controls and side A controls
located within easy reach of a ground-based
operator when the machine is mounted on the
bed of a large-body truck. This version also
includes standard hardware upgrades including
ArcReach® remote control technology, air cleaner
restriction indicators, FA-1D lockable flame
arrestor fuel cap 043947 and spark arrestor
195012. The rear-mounted desiccant air dryer
system 195117001 is available as a factory option.
2
The lower control panel
has the following controls:
air compressor on/off
switch and engine control
switch.
Pair any Miller® ArcReach
accessory for complete
remote control of welding
processes and parameters
right at the weld joint.
®
ArcReach Remote Control Technology
ArcReach
feeder or remote
Remote control of the power source
without a control cord.
An ArcReach system allows you to change
weld settings from your ArcReach feeder
or remote, saving a trip to the power
supply. ArcReach technology uses the
existing weld cable to communicate
welding control information between the
feeder or remote and the power source.
This technology eliminates the need for
control cords, and their associated
problems and costs.
ArcReach
engine drive
®
Big Blue ArcReach Additional Features
®
ArcReach provides remote amperage and voltage control at the weld joint without needing a control cord.
MORE
WELDS
IN LESS
TIME
Increased productivity
BETTER
WELDS
WITH LESS
REWORK
More arc-on time and reduced exposure to workplace
hazards for operators can be realized using ArcReach
because less time is spent going back to the welding power
supply to set process and arc amperage or voltage.
Auto-Process Select.™ Depending on connected accessory,
the system automatically changes to stick or MIG/FCAW
(with gas) if electrode positive polarity is detected or TIG or
FCAW (no gas) if electrode negative polarity is detected,
when ArcReach communication is established between the
accessory and the Big Blue — reducing the need to access
the power supply.
CABLES
TO MAINTAIN
Less operator fatigue by not needing to move or reposition
heavy secondary weld leads bundled with control cords on
the jobsite. Control cables are not used.
Operator can precisely set arc amperage or voltage at the
weld joint and monitor the actual arc voltage and current
delivered to the weld using the digital meters on the
accessory. This removes guesswork when it comes to
adhering to weld procedures.
Remote override of Big Blue. When an ArcReach
accessory is connected to a Big Blue the accessory has
full control and the Big Blue controls are disabled. While
under ArcReach control, process and voltage/amperage
adjustments are locked out, preventing accidental changes
by personnel other than the welding operator.
Save time by no longer needing to troubleshoot welding
system problems that result from damaged control cords.
Eliminate costly control cord repairs because control
cords are not used.
Cross platform compatible. The same ArcReach
accessories that work on engine-driven equipment can also
be used on select ArcReach-equipped XMT®, Dimension™
and PipeWorx 350 FieldPro™ power sources.
Reverse compatible. ArcReach-equipped power sources
work with non-ArcReach accessories; however, the
complete ArcReach benefit is only realized with the
ArcReach system.
Improved weld quality
FEWER
Automatic return to panel settings. System automatically
returns to Big Blue setting when ArcReach communication
is terminated. For example, if the Big Blue is set to gouging
at 500 amps and an ArcReach feeder is connected, the
Big Blue will go to a MIG/FCAW process. If the feeder is
disconnected, the Big Blue will go back to its previous
setting (gouging at 500 amps).
Reduced maintenance
FLEET COMPATIBILTY
Improved flexibilty
3
Specifications (Subject to change without notice.)
Weld
Output
Range
Weld Output at
100% Duty Cycle
Rated at 104°F (40°C)
Max. OpenCircuit
Voltage
Separate
(dual outputs)
20 – 400 A
400 A at 36 V*
(each side)
85 VDC
30 VDC**
Paralleled
(combined)
40 – 800 A
700 A at 44 V*
800 A at 38 V
Separate
(dual outputs)
14 – 50 V
400 A at 34 V*
(each side)
Paralleled
(combined)
14 – 50 V
750 A at 40 V*
800 A at 38 V
Weld Mode/
Process
Output
Mode
CC/DC
(Stick/TIG)
CV/DC
(MIG/FCAW)
Generator Power Output
Rated at 104° F (40° C)***
3-phase:
27,000 watts peak
20,000 watts continuous
1-phase:
15,000 watts peak
12,000 watts continuous
Dimensions
Net Weight
H: 46 in. (1,168 mm)
W: 28.5 in. (724 mm)
D: 69.5 in. (1,765 mm)
Add 7.5 in. (191 mm) to
height for exhaust pipe
Duo Pro
1,869 lb. (847.8 kg)
Duo Air Pak
2,095 lb. (968.4 kg)
Add 165 lb. (75 kg)
when fuel tank is full
*Meets NEMA and IEC ratings. **Sense voltage for stick and Lift-Arc™ TIG. ***Will operate either 60 Hz or 50/60 Hz power tools, lights, etc.
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
International
USA
Engine Specifications (Engines warranted separately by the engine manufacturer.)
Model
Engine
Brand
Features
HP
Type
Engine
Speeds
Sound Levels
at 23 ft. (7 m)
Big Blue 800
Duo Pro
Deutz
TD2.9 L4
EPA Tier 4 Final
compliant,
includes 120 V
block heater
65.7
Turbo-charged
four-cylinder,
liquid-cooled
industrial diesel
Idle:
1,350 rpm
Weld:
1,800 rpm
Deutz
TD2011L04w
EPA Tier 4i
compliant,
includes oil pan
and intake
manifold heater
63.4
Idle:
71.3 dB
(96.1 Lwa)
Weld
(800 A load):
78.9 dB
(103.7 Lwa)
Big Blue 800
Air Pak
Big Blue 800X
Duo Air Pak
Big Blue 800CA
Duo Air Pak
Automatic Engine
Shutdown
Capacities
Fuel: 25 gal. (95 L)
Oil: 8.5 qt. (8 L)
Coolant: 16 qt. (15.2 L)
Low oil pressure,
high coolant
temperature,
low fuel level
Fuel: (95 L) 25 gal.
Oil: (10.4 L) 11 qt.
Coolant: integrated oil
Low oil pressure,
high coolant
temperature,
low fuel level
Air Compressor (Air Pak models only.)
Compressor
Brand
Ingersoll Rand
CE55 G1
Features
Free Air Delivery
Working
Pressure
Constant
Rotary screw with electric clutch for on/off.
Oil change intervals of 500 hours. Life
expectancy of 30,000 hours.
Idle: 40 cfm (1.13 m3/min.)
Weld: 60 cfm (1.70 m3/min.)
100 psig
(7 bar)
Duty
Cycle
Oil Capacity
Automatic
Compressor
Shutdowns
100%
4 qt. (3.79 L)
Oil temperature
Performance Data
Fuel Consumption Curve
Paralleled arcs
with air output
(Air Pak only)
4.00
3.50
US Gal./Hr.
Simultaneous Welding And Power
Weld Amperes
3.00
Dual arcs
2.50
No Weld Output
16,000
20,000
200 A at 28 V
16,000
20,000
300 A at 32 V
16,000
20,000
2.00
400 A at 36 V
16,000
18,000
1.50
500 A at 40 V
14,000
12,500
1.00
600 A at 40 V
10,500
8,700
700 A at 44 V
6,500
0
800 A at 44 V
4,000
0
Paralleled arcs
Idle
0.50
0.00
Idle
0
100
200
300
400
500
600
DC Weld Amperes at 100% Duty Cycle
4
Total Aux. Power Available (Watts)
1-Phase* - or - 3-Phase
700
800
*Single-phase listings include 4,000 watts from the exciter stator.
Function Guide
1. Operator controls. Independent controls for multi-arc welding.
“A” controls are for single operator and “B” controls are for a
second operator.
2. Weatherproof Lexan® nameplate is super durable and resists
cracking and fading.
3. Self-calibrating digital weld meters with fault code indication
display preset or actual weld parameters.
4. Weld process selection switch
5. Pushbutton main control knob used for adjusting amperage/voltage,
adjusting arc control, and accessing the service menu.
6. Adjustable arc control adjusts DIG when process control is in stick
modes and adjusts inductance when process control is in FCAW or
MIG modes. The amount of DIG determines how much amperage
(heat) varies with stick arc length. Inductance determines the
“wetness” of the weld puddle.
7. Amperage/voltage adjust control
8. Electronic engine display can display fuel level, engine hours,
coolant temperature, oil pressure, battery volts, engine rpm, air
pressure, and compressor hours simultaneously or one at a time.
Also tracks oil change intervals and displays engine diagnostics for
service technicians.
9. USB port allows software updates from a USB drive. A summary file
of recoded data from the unit will be saved to a USB drive that is
inserted.
10. Air compressor on/off switch (Air Pak models only)
11. Engine control switch is used to start engine and then select
between auto idle and high speed lock. Glow plug operation is
controlled by the engine control module and automatically occurs
as needed by ambient conditions.
12. Standard 14-pin receptacle for simple connection of remote
controls and wire feeders. Includes Auto Remote Sense™ which
automatically switches from panel to remote amperage/voltage
(A/V) control with remote connected. Eliminates confusion of a
panel/remote switch.
13. Separate/parallel switch. Use switch to select single operator
mode (A) or dual operator mode (A/B).
14. Weld output terminals
3
6
2
8
A
1
9
10
4
B
11
12
5
Control panel – USA models
1
2
8
3
6
7
10
4
11
12
Control panel – International models
13
14
Terminal panel – all models
15
22
16
23
24
25
26
17
18
19
20
21
27
Receptacles and circuit breakers – USA models
15. 50 A, 240 V, three-phase receptacle
(For matching plug, order 254140.)
16. 50 A, 120/240 V receptacle (For matching plug, order 119172.)
17. 20 A, 240 V receptacles
18. 20 A, 120 V receptacles with ground fault
19. 50 A circuit breaker
20. 20 A, 240 V circuit breaker
21. 20 A, 120 V circuit breakers
Receptacles and circuit breakers – International models
22. 20 A, 120 V receptacles with ground fault
23. 240 V earth leakage circuit breaker
24. 32 A, 400 V three-phase receptacle
(For matching plug, order 255421.)
25. 30 A, three-phase circuit breaker
26. 120 and 240 V circuit breakers
27. 16 A, 120/240 V receptacles
(For matching plugs, order 255419 for 120 V and 255416 for 240 V.)
5
Genuine Miller Accessories
®
FA-1D Lockable Flame Arrestor
Fuel Cap 043947 Field
Fuel cap can be padlocked to
prevent vandalism. A built-in flame
arrestor prevents flames or sparks
from entering the fuel tank.
Desiccant Air Dryer System
195117 Side mount
195117001 Rear mount
For Air Pak ™ models only. A regenerating inline
air dryer system that eliminates moisture in the
air stream to prevent air tool freeze-ups in cold
climates. Internal thermostat and heating elements
ensure good air quality in all climates. The system
can be mounted on the side or on the rear of the
machine to meet your installation requirements.
Female
Receptacle
Full KVA Adapter Cord 300517 Field
NEMA 14-50P to NEMA 6-50R. Adapts engine
drive 120/240 V plug to common Millermatic®
and Spectrum® 240 V plug.
Full KVA Plug Kit Field
119172 1-phase,
120/240 V, 50 A plug
(NEMA 14-50P)
254140 3-phase,
240 V, 50 A plug
(NEMA 15-50P)
International Plugs Field
255419 1-phase,
120 V, 16 A plug
255416 1-phase,
240 V, 16 A plug
255421 3-phase,
400 V, 32 A plug
Engine Filter Kits
262459 Field. For USA models
246988 Field. For International models
Includes all filters required for proper engine
maintenance. Oil filter, primary and secondary
fuel filter, and primary air filter.
Compressor Kit 279121 Field
For Air Pak models only. Includes oil and all
filters required for proper compressor maintenance. Oil filter, air filter and coalescing filter.
Spark Arrestor Kit
195012 Field
Prevents particles
from leaving the
muffler that could
potentially start a fire. Mandatory when
operating on California grasslands, brush, or
forest-covered land, and in all national forests.
For other areas, check your state and local laws.
Meets U.S. Forest Service standard 5100-1B.
6
Cable Holder
043946 Field
Saddle-bag-style cable
holder. Convenient wraparound storage of coiled
cable for transportation.
Stores 100 feet of 2/0 cable
on each side.
Note: For best results do not weld when cable is coiled!
Protective cover cannot be used with cable holder.
Protective Cover
301113 Field
Blue water-resistant
canvas cover resists
stains and mildew, and
protects the finish of
your welder.
Note: Protective cover cannot be used with cable holder.
MIG (GMAW) or Flux-cored (FCAW)
ArcReach® SuitCase® 8
951726 With Bernard™ BTB Gun 300 A
951727 With Bernard™ S-Gun™
951728 With Bernard™ Dura-Flux™ gun
ArcReach® SuitCase® 12
951729 With Bernard™ BTB Gun 300 A
951730 With Bernard™ S-Gun™
951731 With Bernard™ Dura-Flux™ gun
Portable feeder designed to run off of arc voltage.
When paired with an ArcReach power source,
provides remote control of the power source
without a control cord — saving time and money.
See literature M/6.55.
ArcReach® Smart
Feeder 951733
For use with ArcReach
models only (see page 2
for more information).
Includes drive rolls and
Bernard™ PipeWorx
300-15 MIG gun.
For MIG, FCAW, and
advanced RMD® and
pulse processes. See literature M/6.55.
MIG (GMAW)/Flux-cored (FCAW) Guns
See Bernard™ literature SP-BTB for BTB
air-cooled MIG guns, and SP-DF for Dura-Flux™
self-shielded flux-cored guns.
SuitCase® X-TREME™ 8VS Wire Feeder
951582
SuitCase® X-TREME™ 12VS Wire Feeder
951543
Lightweight, voltage-sensing wire feeders include
secondary contactor, gas valve, drive roll kit and
MIG gun. See literature M/6.42.
SuitCase® 12RC
Wire Feeder 951580
Lightweight and flexible
enough to run a variety
of wires up to .062-inch
diameter. Includes
remote voltage control,
drive roll kit and MIG
gun. See literature M/6.5.
Spoolmatic® 30A
Spool Gun
130831
Air-cooled, 200amp, one-pound
spool gun for
aluminum and stainless MIG. See literature
M/1.73. Requires WC-24 Control (137549).
XR™ Wire Feeders and Guns
Push-pull system designed to handle difficultto-feed soft alloy wires such as aluminum.
See literature M/1.7 through M/1.75.
AC TIG (GTAW) Welding
Dynasty®
210 Series
For portable
AC/DC TIG.
See literature
AD/4.81.
Genuine Miller Accessories (Continued)
®
Plasma Cutting
Wireless Antenna Kit 300749
Optional when improved reception is desired.
Stick/TIG Remote Controls
Spectrum 375 X-TREME and 625 X-TREME shown.
Spectrum® 375 X-TREME™ 907529
See literature PC/9.2.
Spectrum® 625 X-TREME™ 907579
See literature PC/9.6.
Spectrum® 875 907583
See literature PC/9.8.
The Spectrum 375 X-TREME and 625 X-TREME
come complete with protective X-CASE™
(not shown).
ArcReach® Stick/TIG
Remote 301325
When paired with
an ArcReach power
source, provides
remote control of
the power source
without a cord —
saving time and money. See literature AY/14.5.
Wireless Remote Hand
Control 300430
For remote current, voltage
and contactor control.
Receiver plugs directly into
the 14-pin receptacle of Miller
machine. 300-foot (91.4 m) operating range.
Wireless antenna kit 300749 recommended.
Trailers and Hitches (Note: Trailers are shipped unassembled.)
RHC-14 Hand Control 242211020
Miniature hand control for remote current,
voltage and contactor control. Dimensions:
4 x 4 x 3.25 inches (102 x 102 x 82 mm).
Includes 20-foot (6 m) cord and 14-pin plug.
Extension Cables for 14-Pin Remote Controls
or 24 VAC Wire Feeders
242208025 25 ft. (7.6 m)
242208050 50 ft. (15.2 m)
242208080 80 ft. (24.4 m)
Mounting Specifications
Cable Tree 043826
For use with HWY-225. Provides an area
to conveniently wrap weld cables and
extension cords.
H
A
4 holes
Front Panel
B
C
4 West Four-Wheel Steerable
Off-Road Trailer 042801
A heavy-duty 2,550-pound (1,157 kg) capacity
trailer designed for use in mines, quarries, and
other rough terrain. Has narrow 22-foot (6.7 m)
turning radius. Includes 3-inch (76 mm) lunette
eye, universal hitch and safety chains.
D
A. 29.812 in. (757 mm)
B. 27.5 in. (699 mm)
C. 1 in. (25 mm)
D. 11.625 in. (295 mm)*
E. 46.375 in. (1,178 mm)*
F. 58 in. (1,473 mm)*
G. 69.5 in. (1,765 mm)
H. .562 in. (14 mm) dia.
Dual Hitch 301441
For use with HWY-225. 2-inch (50 mm) ball
hitch and 3-inch (76 mm) lunette eye in one
reversible assembly.
HWY-225 Trailer 301338
A 2,700-pound (1,225 kg) capacity highway
trailer with welded steel tubing frame, heavy-duty
axle with roller bearing hubs and leaf-spring
suspension. Includes jack stand, fenders, lights,
and dual hitch with 2-inch (50 mm) ball hitch
and 3-inch (76 mm) lunette eye.
E
F
G
2-In-1 Document/
Fire Extinguisher Holder
301236
For use with HWY-225.
Stores documents and holds
a 5-pound fire extinguisher.
Height:
46 in. (1,168 mm) to top of cover
Add 7.5 in. (191 mm) to heights for exhaust pipe
(Exhaust measurement subject to change.)
Note: Holder shown mounted
on trailer. Fire extinguisher
not included.
Width:
28.5 in. (724 mm) (mounting brackets turned in)
30.75 in. (781 mm) (mounting brackets turned out)
*With mounting brackets in center position.
Dimensions vary with location of mounting brackets.
Trailer Specifications (Subject to change without notice.)
Gross Axle
Weight Rating
Gross Vehicle
Weight Rating
Net
Payload
Height
of Bed
Road
Clearance
Track (Center
to center of
tires)
Standard Tires
(Standard rating
or P-size rating)
4 West
2,000 lb./axle
(907 kg/axle)
3,000 lb.
(1,361 kg)
2,550 lb.
(1,157 kg)
21.25 in.
(540 mm)
8 in.
(203 mm)
55.25 in.
(1,403 mm)
HWY-225
3,500 lb.
(1,588 kg)
2,999 lb.
(1,360 kg)
2,700 lb.
(1,225 kg)
19 in.
(483 mm)
7.5 in.
(191 mm)
50 in.
(1,270 mm)
Model
Dimensions
Net
Weight
B78-13
Length: 91 in. (2,311 mm)*
Width: 61.25 in. (1,556 mm)
430 lb.
(195 kg)
ST175/80R-13
Load Range D
Length: 105.5 in. (2,680 mm)
Width: 56.5 in. (1,435 mm)**
280 lb.
(127 kg)
*Does not include tongue. **Width at outside of fenders.
7
Ordering Information
Equipment and Options
Stock No.
Description
Big Blue® 800 Duo Pro
EPA Tier 4 Final compliant engine
907751
Base model with 240-volt 3-phase power, ArcReach® and vandalism lockout kit
Big Blue® 800 Duo Air Pak
EPA Tier 4 Final compliant engine
907752
907752001
907752002
Base model with 240-volt 3-phase power, ArcReach® and vandalism lockout kit
Welder truck specific model with ArcReach®. See page 2 for more information
Welder truck specific model with ArcReach® and rear-mounted desiccant
air dryer system. See page 2 for more information
Big Blue® 800X Duo Air Pak
(NOT available for sale in the USA)
907536
International model with EPA Tier 4i compliant engine, 400-volt 3-phase power
and vandalism lockout kit
Big Blue® 800CA Duo Air Pak
(NOT available for sale in the USA)
907634
International model with EPA Tier 4i compliant engine, USA-style receptacles,
240-volt 3-phase power and vandalism lockout kit
195117
195117001
300517
Side mount
Rear mount
Field Accessories
Desiccant Air Dryer System
(Air Pak models only)
Full KVA Adapter Cord
Full KVA Plug Kits
International Plugs
Engine Filter Kits
Compressor Kit (Air Pak models only)
Spark Arrestor Kit
FA-1D Lockable Flame Arrestor Fuel Cap
Cable Holder
Protective Cover
MIG/Flux-cored Welding
SuitCase® X-TREME™ 8VS
SuitCase® X-TREME™ 12VS
SuitCase® 12RC
ArcReach® SuitCase® 8
ArcReach® SuitCase® 12
ArcReach® Smart Feeder
MIG (GMAW) and Flux-cored (FCAW) Guns
Spoolmatic® 30A Spool Gun
WC-24 Control
XR™ Wire Feeder Control and Guns
279121
195012
043947
043946
301113
951582
951543
951580
951726
951727
951728
951729
951730
951731
951733
130831
137549
See page 6
See page 6
See page 6
Includes oil, plus air, oil and coalescing filters
Padlock NOT included
Stores up to 200 feet of 2/0 cable
Canvas cover — will not fit over machine with cable holder attached
With Bernard™ BTB Gun 300 A. See literature M/6.42
With Bernard™ BTB Gun 300 A. See literature M/6.42
With Bernard™ BTB Gun 300 A. See literature M/6.5
With Bernard™ BTB Gun 300 A. See literature M/6.55
With Bernard™ S-Gun™
With Bernard™ Dura-Flux™ gun
With Bernard™ BTB Gun 300 A. See literature M/6.55
With Bernard™ S-Gun™
With Bernard™ Dura-Flux™ gun
MIG/FCAW/RMD®/pulse feeder with Bernard™ PipeWorx 300-15 MIG gun.
Tweco®-style connectors. See literature M/6.55
See Bernard™ literature SP-BTB and SP-DF
Requires WC-24 Control. See literature M/1.73
See literature M/1.73
See literature M/1.7 through M/1.74
TIG Welding
See page 6
Plasma Cutting
See page 7
Remote Controls
ArcReach® Stick/TIG Remote
Wireless Remote Hand Control
RHC-14 Hand Control
Extension Cables
301325
300430
242211020
042801
301338
043826
301441
2-In-1 Document/Fire Extinguisher Holder
301236
Distributed by:
© 2017 Miller Electric Mfg. Co.
For use with ArcReach models only
Wireless antenna kit 300749 recommended
See page 7
Trailers and Hitches
4 West Four-Wheel Steerable Trailer
HWY-225 Trailer
Cable Tree
Dual Hitch
Date:
Qty.
Trailer with lunette eye, universal hitch and safety chains. For off-road use
Trailer with lights, fenders and dual hitch. For highway use
Trailer-mounted cable holder for HWY-225
Combination 2-inch (50 mm) ball hitch and 3-inch (76 mm) lunette eye in
one reversible assembly for HWY-225
Stores documents and holds a 5-pound fire extinguisher for HWY-225
Total Quoted Price:
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
