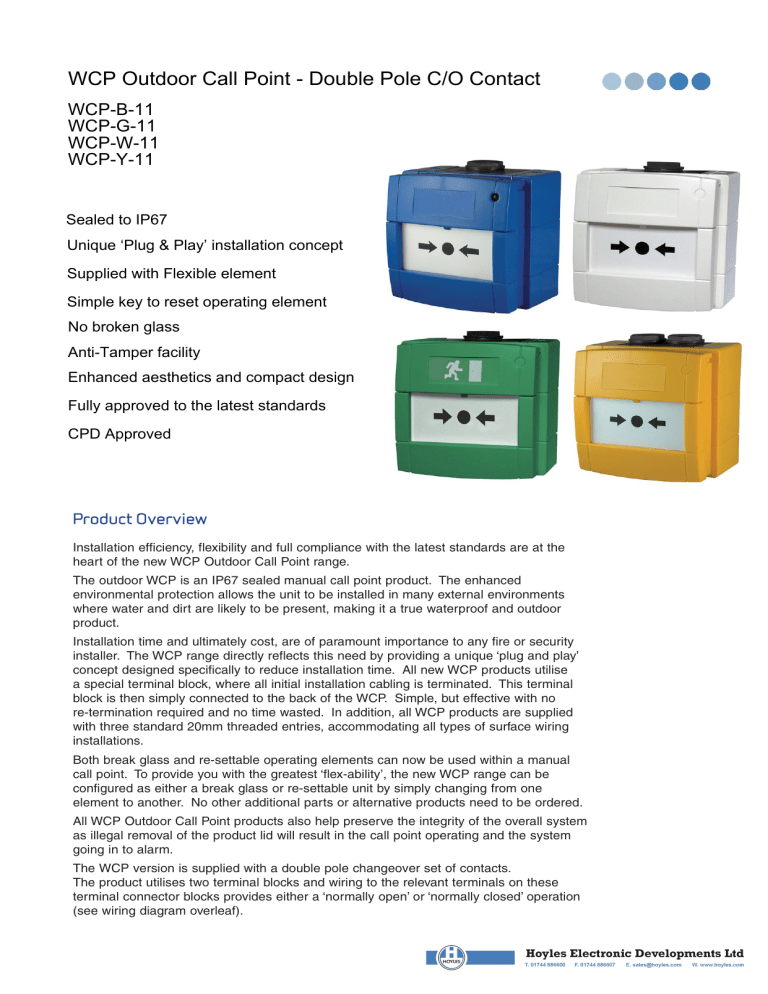

WCP Outdoor Call Point - Access Security Products
WCP Outdoor Call Point - Double Pole C/O Contact
WCP-B-11
WCP-G-11
WCP-W-11
WCP-Y-11
Sealed
to IP67
Unique ‘Plug & Play’ installation concept
Supplied with Flexible element
Simple key to reset operating element
No broken glass
Anti-Tamper facility
Enhanced aesthetics and compact design
Fully approved to the latest standards
CPD Approved
Product Overview
Installation efficiency, flexibility and full compliance with the latest standards are at the
heart of the new WCP Outdoor Call Point range.
The outdoor WCP is an IP67 sealed manual call point product. The enhanced
environmental protection allows the unit to be installed in many external environments
where water and dirt are likely to be present, making it a true waterproof and outdoor
product.
Installation time and ultimately cost, are of paramount importance to any fire or security
installer. The WCP range directly reflects this need by providing a unique ‘plug and play’
concept designed specifically to reduce installation time. All new WCP products utilise
a special terminal block, where all initial installation cabling is terminated. This terminal
block is then simply connected to the back of the WCP. Simple, but effective with no
re-termination required and no time wasted. In addition, all WCP products are supplied
with three standard 20mm threaded entries, accommodating all types of surface wiring
installations.
Both break glass and re-settable operating elements can now be used within a manual
call point. To provide you with the greatest ‘flex-ability’, the new WCP range can be
configured as either a break glass or re-settable unit by simply changing from one
element to another. No other additional parts or alternative products need to be ordered.
All WCP Outdoor Call Point products also help preserve the integrity of the overall system
as illegal removal of the product lid will result in the call point operating and the system
going in to alarm.
The WCP version is supplied with a double pole changeover set of contacts.
The product utilises two terminal blocks and wiring to the relevant terminals on these
terminal connector blocks provides either a ‘normally open’ or ‘normally closed’ operation
(see wiring diagram overleaf).
Electrical Specification
Figure .1
Connection Details:
See Figure .1
Cable Termination:
0.5-2.5mm2
Maximium Voltage:
30VDC
Switch Rating:
2 Amps
WCP4A-X
or
Environmental Specification
Humidity:0-93±3% non-condensing
Operating Temperature:
-250C to +700C
Storage Temperature:
-250C to +700C
Ingress Protection (IP) Rating: IP67
Mechanical Specification
93mm
Colours: Green,
White,
Yellow,
Blue,
97.5mm
71mm
84mm
77mm
Material:PC/ABS
Weight:
350g
