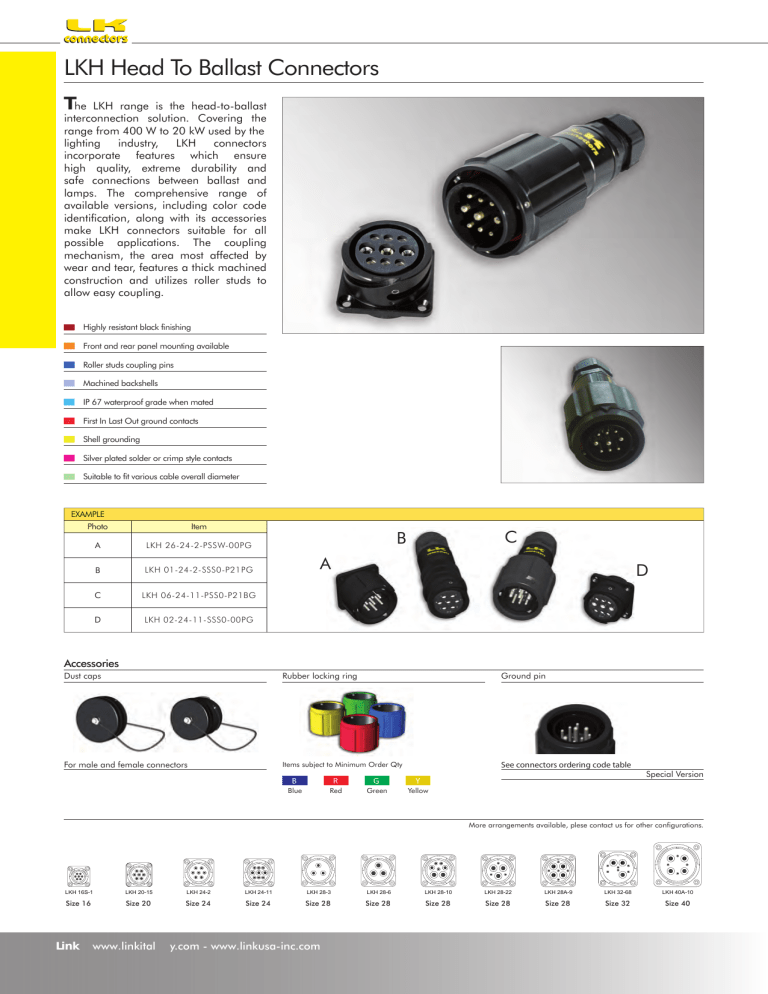

LKH Head To Ballast Connectors
LKH Head To Ballast Connectors
The
LKH range is the head-to-ballast
interconnection solution. Covering the
range from 400 W to 20 kW used by the
lighting
industry,
LKH
connectors
incorporate features which ensure
high quality, extreme durability and
safe connections between ballast and
lamps. The comprehensive range of
available versions, including color code
identification, along with its accessories
make LKH connectors suitable for all
possible applications. The coupling
mechanism, the area most affected by
wear and tear, features a thick machined
construction and utilizes roller studs to
allow easy coupling.
Highly resistant black finishing
Front and rear panel mounting available
Roller studs coupling pins
Machined backshells
IP 67 waterproof grade when mated
First In Last Out ground contacts
Shell grounding
Silver plated solder or crimp style contacts
Suitable to fit various cable overall diameter
EXAMPLE
Item
A
LKH 26-24-2-PSSW-00PG
B
LKH 01-24-2-SSS0-P21PG
C
LKH 06-24-11-PSS0-P21BG
D
LKH 02-24-11-SSS0-00PG
C
B
A
D
Accessories
Dust caps
Rubber locking ring
Ground pin
For male and female connectors
Items subject to Minimum Order Qty
See connectors ordering code table
Special Version
B
R
G
Y
Blue
Red
Green
Yellow
More arrangements available, plese contact us for other configurations.
LKH 16S-1
LKH 20-15
LKH 24-2
LKH 24-11
LKH 28-3
LKH 28-6
LKH 28-10
LKH 28-22
LKH 28A-9
LKH 32-68
LKH 40A-10
Size 16
Size 20
Size 24
Size 24
Size 28
Size 28
Size 28
Size 28
Size 28
Size 32
Size 40
Link
www.linkital
y.com - www.linkusa-inc.com
LKH Head To Ballast Connectors
LKH Connectors ordering code
LK H
Connector Type
-
-
-
Special version
Line without locking ring
01
Panel without locking ring
02
Line with locking ring
06
Insert/contact version
Panel with locking ring
26
Female/Female
S
Backshell
Male/Male
P
No
0
Female/Male
SP
Black aluminium
P
Male/Female
PS
Assigned by Link
Arrangement
16S-1
Body ground
No
0
0
PG 11
11
Gold
G
PG 13 5
13
Silver
S
PG 16
16
PG 21
21
PG 29
29
24-2
Pins version
24-11
No
28A-9
28-10
28-22
Pins Type
28-3
28-6
No
0
PG 36
36
32-68
Crimp
C
PG 11 with spring
11S
40A-10
Solder
S
PG 13 5 with spring
13S
PCB
P
PG 16 with spring
16S
Screw
V
PG 21 with spring
21S
* Anodized colored
locking ring version also available
Insert
rotation
0
Yes
G
Shell*/locking ring
Cable relief
20-15
No
Hard black locking ring
H
Black aluminium shell for
01 and 02 connector type
P
Black aluminium shell for
06 and 26 connector type
P
Black aluminium shell with
black rubber locking ring
B
Black aluminium shell with
blue rubber locking ring
BI
Black aluminium shell with
green rubber locking ring
G
Black aluminium shell with
red rubber locking ring
R
Black aluminiumshell with
yellowrubberlocking ring
Y
Arrangement
40A-10
16S-1
20-15
24-2
24-11
28-3
28-6
28A-9
28-10
28-22
32-68
W
80
80
80
35
70
70
110
80
70
65
65
X
-
-
-
110
145
145
250
110
145
135
125
Y
-
-
-
250
215
215
260
250
215
225
225
Z
280
280
280
325
290
290
280
280
290
275
310
LKH Cotacts ordering code
LK P
Size
Special version
00
Extended (ground)
E
Protected
P
04
Version
08
Female
S
Crimp
C
12
Male
P
Solder
S
Max wire size for crimp
PCB
P
mm2 .......
Screw
V
Type
16
18
Connector Type
20
Gold
G
Silver
S
01
Type and quantity of contacts by connector
Arrangement
Pins size
16S-1
24-2
20-15
24-11
28-3
4
8
3
12
7
16
7
Tatal
7
7
28-6
28A-9
28-10
28-22
32-68
40A-10
3
4
2
3
3
4
3
2
6
3
5
7
7
9
3
3
9
7
3
6
4
6
9
8
Arrangement by manufacturer
P (Watt)
Arri
575
24-2W
1.200
24-2W
De Sisti
Strand
CMC
Mole
Lee
LTM
24-2Z
24-2Z
24-2Z
24-2Z
16S-1
20-15
Sunray
24-2Z
24-2W
24-2W
24-2W
24-2W
20-15
20-15
24-2W
2.500
24-2
24-2
24-2
24-2
24-2
20-15
24-2
24-2
4.000
24-2
24-11
24-11
24-11
24-2
24-11X
24-11
24-11
32-68
6.000
28-22 (2)
32-68
32-68
28A-9 (1)
24-11
28A-9 (1)
28A-9 (1)
12.000
28A-9 (2)
32-68
40A-10
28-10
40A-10
24-11
28A-9 (2)
28-10
18.000
28A-9 (2)
32-68
40A-10
28-10
40A-10
28A-9 (2)
28-10
(1) Male pins on connector with locking ring - (2) Female pins on connector with locking ring
Link
www.linkitaly.com - www.linkusa-inc.com
