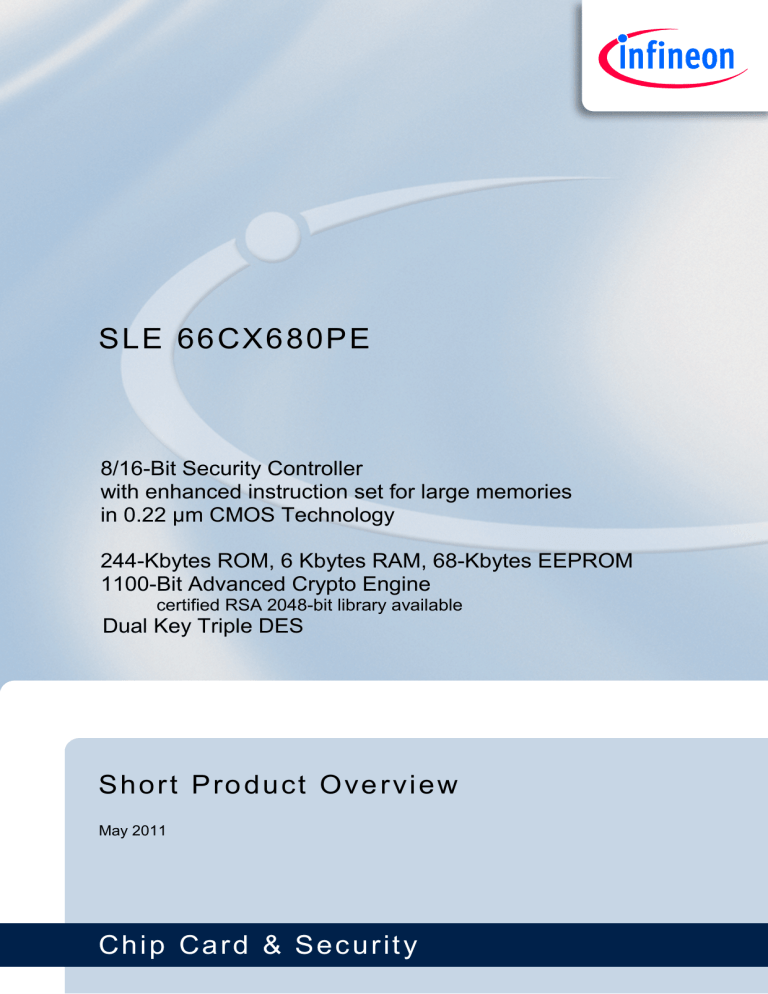

SLE 66CX680PE
SLE 66CX680PE
8/16-Bit Security Controller
with enhanced instruction set for large memories
in 0.22 µm CMOS Technology
244-Kbytes ROM, 6 Kbytes RAM, 68-Kbytes EEPROM
1100-Bit Advanced Crypto Engine
certified RSA 2048-bit library available
Dual Key Triple DES
Sho rt Pro duc t O ve r vi e w
May 2011
Chi p C ard & Sec u ri t y
SLE 66CX680PE
SLE 66CX680PE Short Product Overview
Ref.: Chip_Card_Product_Overview_11/09
Revision History: Current Version 05.11
Previous Releases: 05.10
Page
Important:
Further information is confidential and on request. Please contact:
Infineon Technologies AG in Munich, Germany,
Chip Card & Security
E-Mail: [email protected]
Edition 2010
Published by Infineon Technologies AG,
Chip Card & Security
81726 Munich, Germany
© Infineon Technologies AG 2011
All Rights Reserved.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or
characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any
information regarding the application of the device, Infineon Technologies hereby disclaims any and all
warranties and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual
property rights of any third party
Information
For further information on technology, delivery terms and conditions and prices please contact your nearest
Infineon Technologies Office (www.infineon.com).
Warnings
Due to technical requirements components may contain dangerous substances. For information on the types in
question please contact your nearest Infineon Technologies Office.
Infineon Technologies components may only be used in life-support devices or systems with the express written
approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the
failure of that life-support device or system, or to affect the safety or effectiveness of that device or system. Life
support devices or systems are intended to be implanted in the human body, or to support and/or maintain and
sustain and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other
persons may be endangered.
SLE 66CX680PE
Product name
SLE 66CX680PE
Secure μSlim
EEPROM
Product description
Security cryptocontroller
Interfaces
ISO 7816
User-ROM
244kByte
Flash
–
EEPROM
68kByte
RAM
6,144Byte + 700Byte crypto
CPU
8-bit/16-bit
Symmetrical
Cryptography
Asymmetrical
Cryptography
Ambient
temperature
Delivery forms
3DES
Typical applications
Payment, EMV DDA, ePurse, Loyalty, Access
Contol, Health/ Social Security, Digital
Signature, ID-Card, Pay-TV, GSM, UICC
Certifications
CC EAL5+ high, EMVCo
RSA up to 2048-bit, ECC up to 521-bit
-25 to +85°C
Module M5.1, MFC5.x, DSO-8, VQFN-8, die
For further information on technology, delivery forms and conditions please contact your nearest
Infineon Technologies sales representative (www.infineon.com).
w w w . i n f i n e o n . c o m
Published by Infineon Technologies AG
