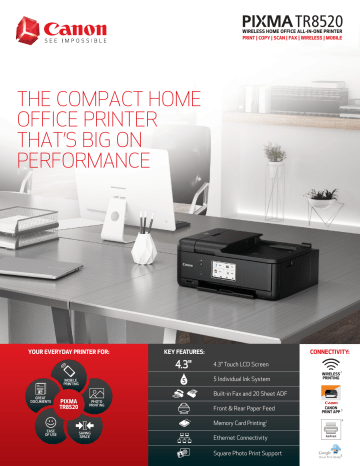

Specification
WIRELESS HOME OFFICE ALL-IN-ONE PRINTER
PRINT | COPY | SCAN | FAX | WIRELESS | MOBILE
THE COMPACT HOME
OFFICE PRINTER
THAT’S BIG ON
PERFORMANCE
YOUR EVERYDAY PRINTER FOR:
KEY FEATURES:
CONNECTIVITY:
4.3" Touch LCD Screen
5 Individual Ink System
WIRELESS
PRINTING
2
Built-in Fax and 20 Sheet ADF
PIXMA
TR8520
Front & Rear Paper Feed
Memory Card Printing1
CANON
PRINT APP 3
4
Ethernet Connectivity
Square Photo Print Support
5
PRODUCT INFO / INKS
WIRELESS HOME OFFICE ALL-IN-ONE PRINTER
TECHNICAL INFORMATION
PRINT
Print FeaturesAirPrint,4Auto 2-Sided (Duplex) Printing, Auto Photo Fix II, Bluetooth
Printing,6 Borderless Printing,7 Business Card Printing, Canon PRINT app,3
Document Printing, Document Removal Reminder, Easy PhotoPrint+,8
Google Cloud Print,5 Message In Print,9 Mobile Device Printing, Mopria
Device Printing,10 My Image Garden,11 Photo Direct Printing (Memory
Card),1 Photo Printing, PIXMA Cloud Link,12 Quiet Mode, Square Media
Printing Support, Wireless PictBridge,13 Wireless Printing2
Print Speed14
4" x 6" Photo: Approx. 37.0 seconds (Borderless)
ESAT (Black): Approx. 15.0 ipm
ESAT (Color): Approx. 10.0 ipm
Model No.
PIXMA TR8520 Black
Wireless Inkjet All-In-One Printer
2233C002
Compatible Inks
PGI-280 PGBK XXL
CLI-281 BK XXL
CLI-281 C XXL
CLI-281 M XXL
CLI-281 Y XXL
PGI-280 PGBK XL
CLI-281 BK XL
CLI-281 C XL
CLI-281 M XL
CLI-281 Y XL
PGI-280 PGBK
CLI-281 BK
CLI-281 C
CLI-281 M
CLI-281 Y
XXL Pigment Black Ink Tank
XXL Black Ink Tank
XXL Cyan Ink Tank
XXL Magenta Ink Tank
XXL Yellow Ink Tank
XL Pigment Black Ink Tank
XL Black Ink Tank
XL Cyan Ink Tank
XL Magenta Ink Tank
XL Yellow Ink Tank
Pigment Black Ink Tank
Black Ink Tank
Cyan Ink Tank
Magenta Ink Tank
Yellow Ink Tank
1967C001
1983C001
1980C001
1981C001
1982C001
2021C001
2037C001
2034C001
2035C001
2036C001
2075C001
2091C001
2088C001
2089C001
2090C001
Number of Nozzles
Color: 3,072 / Pigment Black: 1,024 / Total: 4,096
Print Resolution15
Up to 4800 x 1200 dpi
specifications are subject to change without notice.
Paper Sizes
4" x 6," 5" x 5" Square, 5" x 7," 8" x 10," Letter, Legal, U.S. #10 Envelope
Paper Tray Capacity
Rear Paper Tray: 100 Sheets of Plain Paper OR
20 Sheets of 4" x 6" / 10 Sheets of 5" x 7" Photo Paper
Front Paper Cassette: 100 Sheets of Plain Paper
all viewscreen and printer output images are simulated.
COPY
Copy Features
4-on-1 / 2-on-1 Copy, Auto Exposure Copy, Borderless Copy, Collated
Copy (ADF Only), Document Removal Reminder, Fit-to-Page, Frame
Erase Copy, ID Card Copy, Manual 2-Sided Copy With ADF, Photo Fade
Restoration, Preset Copy Ratios, Standard Copy, Two-Sided Copy
Copy Speed14
FCOT (Color): Approx. 19 seconds
Reduction/Enlargement
25% – 400%
SCAN
Scan Features
Auto Scan Mode,16 Attach to Email, Document Removal Reminder,
Multi-Page PDF, Save to PC, Save to Memory Card,1 Scan to Canon
PRINT app,3 Wireless Scanning2
Scanner Type
Flatbed & ADF (Auto Document Feeder)
Scanning Method
Contact Image Sensor (CIS)
Scanning Resolution17
1200 x 2400 dpi (Optical), 19,200 x 19,200 dpi (Interpolated)
Maximum Color
Scanning Bit Depth
48-bit Internal / 24-bit External
Maximum Document Size
Flatbed: 8.5” x 11.7,” ADF: 8.5" x 14.0"
Fax Features
Answering Machine Connectivity, Caller Rejection, Check RX Fax Info.,
Dial Search, Extra Fine Mode, Fax Reception Reject, Fax Number
Re-Entry, Memory Transmission, Redial, Remote Reception
Modem Speed18
Up to 33.6 Kbps (Super G3 Color Fax)
Transmission Speed19
Black: Approx. 3 seconds per page, Color: Approx. 60 seconds per page
Memory Capacity20
Approx. 250 pages
Group Dialing
99 Locations
FAX
GENERAL
General Features
Standard Interface
4.3" LCD Touchscreen, 5-Color Individual Ink System, Auto Power On/Off,
Canon PRINT app,3 CREATIVE PARK PREMIUM,21 Energy Star® Certified,
PIXMA Cloud Link12
Hi-Speed USB, Ethernet, PictBridge (LAN/Wireless LAN),13 Wi-Fi® (Wireless
LAN, 2.4 GHz, IEEE 802.11b/g/n),2 Memory Card Slot,1 Bluetooth 4.0 LE
(Low Energy)6
Size/Weight
17.3"(W) x 13.8"(D) x 7.5"(H) / 17.5 lbs. (without paper installed)
Software (Windows®22/Mac®23)
PIXMA TR8520 Wireless Office All-In-One Printer Driver, Scan Utility,
Master Setup, My Image Garden11 (Creative Filters, Full HD Movie Print,24
Image Correction / Enhance, Image Cropping, Red Eye Correction, and
scanning are accessed through My Image Garden), Quick Menu
OS Compatibility
Warranty 27
Computer Operating Systems:
Windows:22 Windows® 10, Windows 8.1, Windows 7 SP1
Mac:23 Mac OS®X v10.10.5–MacOS v10.12 (Sierra)
Mobile Operating Systems:25 iOS,® Android,™ Windows 10 Mobile and
Amazon Fire devices26
1-Year limited warranty with InstantExchange Program.
1-Year toll-free 100% U.S.-based technical phone support.
1Compatible memory cards include SD™ Card, SDHC™ Card. The following can be used with the addition of a special
adapter sold separately: miniSD™ Card, miniSDHC™ Card, microSD™ Card, microSDHC™ Card, microSDXC™ Card.
2Wireless printing and scanning requires a working network with wireless 802.11b/g/n/ac or ad capability. Wireless
performance may vary based on terrain and distance between the printer and wireless network clients.
3Requires an Internet connection and the Canon PRINT Inkjet/SELPHY app, available for free on the App Store and at
Google Play. Compatible with iPad, iPhone 3GS or later, and iPod touch 3rd generation or later devices running iOS
7.0 or later, and Android™ mobile devices running Android 2.3.3 or later. Your device must be connected to the same
working network with wireless 802.11 b/g/n/ac/ad capability as your printer. Requires an compatible social media
account and is subject to that social media account’s Terms of Service. Certain exceptions may apply.
4AirPrint functionality requires an iPad, iPhone 3GS or later, or iPod touch 3rd generation or later device running iOS 4.2
or later, and an AirPrint-enabled printer connected to the same network as your iOS device. A printer connected to the
USB port of your Mac, PC, AirPort Base station, or Time Capsule is not supported.
5Requires an Internet connection and Google account. Subject to Google Terms of Service. Certain exceptions may apply.
6Compatible with iPad, iPhone or iPod touch devices running iOS 9.0 or later, or Android mobile devices running Android
5.1 or later, with Bluetooth hardware enabled. For full print functionality Canon PRINT Inkjet/SELPHY app must be open
and paired to use Bluetooth functions, available for free on the App Store and at Google Play. Bluetooth communication
and functionality cannot be guaranteed on all Android devices.
7Paper types NOT supported for borderless printing are as follows: Envelope, High Resolution Paper, T-Shirt Transfer,
Photo Stickers.
8Works edited by using this application cannot be displayed, edited, or printed without this application. Compatible with
Android device of 7 inches or more using Chrome (latest version compatible with your current version of Android™ OS),
iOS Devices of 7 inches or more using Safari 5.1 or later, Windows PC (excluding RT) using Internet Explorer 10 or later
of Microsoft Modern UI version, Microsoft Internet Explorer 9 or later, Mozilla Firefox 31 or later, or Google Chrome
version 36 or later, and with Mac OS X 10.6.8 or later using Safari 5.1 or later.
9Requires an Internet connection and the Message In Print app, available for free on the App Store starting November
2017. Compatible with iPad, iPhone 6 or later devices running iOS 9.0 or later. Your device must be connected to a
working network with wireless 802.11 b/g/n/ac/ad capability. Requires original content to be created using the Message
In Print app/service, then printed on a compatible Canon Printer released between August 2009 or later and delivered
to recipient who views image and content through the compatible Message In Print app on their compatible device.
Compatible paper sizes include 4" x 6" and Square 5" x 5" only, and compatible media types include Genuine Canon
Photo Paper Glossy, Photo Paper Semi-Gloss, Photo Paper Luster and Photo Paper Matte only. Certain exceptions may apply.
10Requires Android™ mobile device with Android™ 4.4 operating system or later with the Mopria Print Service pre-loaded
with that device and the compatible PIXMA printer on the same wireless network. The Mopria experience is also
available on Android™ 4.4 mobile devices with a download of the Mopria Print Service from Google Play.
11To install using Windows® OS, .NET Framework 4 is required. Compatible still image formats are PDF (created using
Canon PDF Creator only), JPEG (Exif), TIFF, and PNG. Compatible video formats are MOV (from select Canon digital
cameras only) and MP4 (from select Canon digital camcorders only).
12Requires an Internet Connection.
13DPS over IP compatible device required.
14Document print speeds are the averages of ESAT in Office Category Test for the default simplex mode, ISO/IEC 24734.
Photo print speed is based on the default setting using ISO/JIS-SCID N2 on Photo Paper Plus Glossy II and does not take
into account data processing time on host computer. Print speed may vary depending on system configuration, interface,
software, document complexity, print mode, page coverage, type of paper used etc. Copy speeds are the average of
sFCOT and sESAT, ISO/IEC 29183. Copy speed may vary depending on document complexity, copy mode, page coverage,
type of paper used etc. and does not take into account warming up time. See www.usa.canon.com/ipm for
additional details.
15Resolution may vary based on printer driver setting. Color ink droplets can be placed with a horizontal pitch of 1/4800
inch at minimum.
16For network users, Auto Scan Mode is only available when scanning at a computer using My Image Garden software
and selecting the 1-click feature then “Save to PC.”
17Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
18The Public Switched Telephone Network currently supports fax modem speeds of 28.8 Kbps or lower, depending on
telephone line conditions. Sending and receiving fax machines need to conform to ITU-T v.34 guidelines.
19Black & white document fax transmission speed is based on default setting using ITU-T No.1 chart. Color document
fax transmission speed is based on default setting using Canon Color Fax Test Sheet. Actual transmission speed varies
depending on document complexity, fax setting at receiving end, and line conditions etc.
20Page count is based on ITU-T No.1 chart or Canon FAX Standard Chart No.1. The number of pages able to be kept in
memory will vary based on remaining memory capacity and document complexity.
21CREATIVE PARK PREMIUM is a premium content service available exclusively to users only when all of the colors of
genuine Canon inks and all of the software that came with the printer are properly installed.
22Operation can only be guaranteed on a PC with pre-installed Windows 10, Windows 8.1, Windows 7 SP1.
23Internet Connection required during software installation. For full compatibility macOS v10.12.1 or later is recommended.
24“Full HD Movie Print” is available from “MOV” and “MP4” movie files created by select Canon EOS Digital SLRs,
PowerShot, and VIXIA digital cameras and camcorders. Requires PC or Mac with Intel® processor and Canon
ZoomBrowser EX 6.5 or later or Canon ImageBrowser 6.5 or later for “MOV” files, or Canon ImageBrowser EX 1.0 or
later for “MOV” or “MP4” files. Print quality is determined by the video resolution. Function does not upscale video resolution.
25Some functions may not be available with these Operating Systems. Please refer to manual or our website for details.
26Requires “Canon Print Plug-in” available for free from the Amazon Appstore and an Amazon Fire Phone, Amazon Kindle
Fire HD6 or HDX7 device or later running Fire OS 4.0 or later.
27Warranty programs are subject to certain conditions and restrictions. See www.usa.canon.com/support for details.
FOR MORE INFORMATION VISIT WWW.USA.CANON.COM/CONSUMER
For the name of the nearest dealer, call: 1-800-OK-CANON
©2017 Canon U.S.A., Inc. Canon and PIXMA a registered trademarks of Canon Inc. in the U.S. and may be registered trademarks or trademarks in other countries. Microsoft, Windows, the Windows logo, Microsoft Edge browser and Internet Explorer are trademarks or registered trademarks
of the Microsoft group of companies in the U.S. and other countries. Apple, iPad, iPhone, iPod touch and Time Capsule are registered trademarks of Apple Inc. Android and Google Play are trademarks of Google Inc. The USB-IF logo is a trademark of Universal Serial Bus Implementers Forum,
Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance. The ‘Wi-Fi CERTIFIED’ logo is a certification mark of the Wi-Fi Alliance. The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance. All other product and brand names are trademarks of their respective owners. As an ENERGY
STAR® partner, Canon U.S.A., Inc. has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.
0206W127
