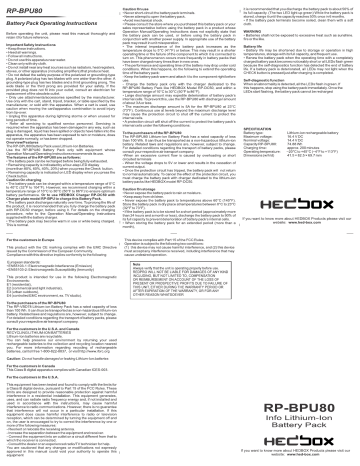

RP-BPU80
Battery Pack Operating Instructions
Before operating the unit, please read this manual thoroughly and
retain it for future reference.
Important Safety Instructions
* Keep these instructions.
* Heed all warnings.
* Follow all instructions.
* Do not use this apparatus near water.
* Clean only with dry cloth.
* Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
* Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding-type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
* Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
* Unplug this apparatus during lightning storms or when unused for
long periods oftime.
* Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does
notoperate normally, or has been dropped.
Overview/Features
The RP-BPU80 Battery Pack uses Lithium-lon Batteries.
Use the RP-BPU80 Battery Pack only with equipment whose
Operation Manual/Operating Instructions recommends its use.
The features of the RP-BPU80 are as follows:
* The battery pack can be recharged before being fully exhausted.
* Remaining capacity is indicated by a four-step LED display
(more than 80%, 60%, 40%, 20%) when you press the Check button.
* Remaining capacity is indicated on LED display when you press the
Check button.
Caution On charging
* The battery pack can be charged within a temperature range of 0°C
to 40°C (32°F to 104°F). However, we recommend charging within a
temperature range of 10°C to 30°C (50°F to 86°F) to ensure optimum
battery performance. Or to use HEDBOX Charger RP-DC50 with
Charger plate model RP-BPU to charge this Battery Pack.
+ The battery pack discharges naturally over time. To prolong the life of
the product, it is recommended that you fully charge the battery pack
with RP-DC50 charger, before using it. For details on the charging
procedure, refer to the Operation Manual/Operating Instructions
supplied with the battery charger.
* The battery pack may become warm in use or while being charged.
This is normal.
Forthe customers in Europe
This product with the CE marking complies with the EMC Directive
issued by the Commission of the European Community.
Compliance with this directive implies conformity to the following
European standards:
* EN55103-1: Electromagnetic Interference (Emission)
* EN55103-2: Electromagnetic Susceptibility (Immunity)
This product is intended for use in the following Electromagnetic
Environments:
E1 (residential),
E2 (commercial and lightindustrial),
E3 (urban outdoors),
E4 (controlled EMC environment, ex. TV studio).
To the purchasers of the RP-BPU80
The RP-VBD78 Lithium-ion Battery Pack has a rated capacity of less
than 100 Wh. It can thus be transported as a non-hazardous lithium-ion
battery. Related laws and regulations are, however, subject to change.
For detailed conditions regarding the transport of battery packs, please
consult your respective air transport company.
For the customers in the U.S.A. and Canada
RECYCLING LITHIUM-ION BATTERIES
Lithium-lon batteries are recyclable.
You can help preserve our environment by returning your used
rechargeable batteries to the collection and recycling location nearest
you. For more information regarding recycling of rechargeable
batteries, call toll free 1-800-822-8837, or visit http://www.rbrc.org
Caution: Do not handle damaged or leaking Lithium-Ion batteries
For the customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
For the customers in the U.S.A.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorientor relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consultthe dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment
Caution On use
* Never short-circuit the battery pack terminals.
* Never attempt to open the battery pack.
* Avoid mechanical shock.
* Please consult the store where you purchased this battery pack or your
sales representative before using the battery pack in a product whose
Operation Manual/Operating Instructions does not explicitly state that
the battery pack can be used, or before using the battery pack in
conjunction with another power supply. In appropriate use of the battery
pack may result in unit misoperation.
* The internal impedance of the battery pack increases as the
temperature drops to 5°C (41°F) or below. This may result in a shorter
operating time or the failure of the component to which it is connected to
turn on. This phenomenon occurs more frequently in battery packs that
have been charged many times than in new ones.
* The performance and operating time of the battery may drop under cold
conditions. When this happens, do the following to extend the operating
time of the battery pack:
- Keep the battery pack warm and attach it to the component right before
use.
- Charge the battery pack only with the charger dedicated to the
RP-BPU80 Battery Pack like HEDBOX Model RP-DC50, and within a
temperature range of 10°C to 30°C (50°F to 86°F).
* Large discharge amount may expedite deterioration of battery pack’s
internal cells. To prevent this, use the RP-BPU80 with discharger amount
of about 3Aorless.
* The maximum discharge amount is 5A for the RP-BPU80 at 23°C
(73°F). Continuous use at levels beyond the maximum discharge level
may cause the protection circuit to shut off the current to protect the
internal cells.
* A protection circuit will shut off the current to protect the battery pack's
internal cells under the following conditions:
To the purchasers of the RP-BPU80
The RP-BPU80 Lithium-lon Battery Pack has a rated capacity of less
than 100 Wh. It can thus be transported as a non-hazardous lithium-ion
battery. Related laws and regulations are, however, subject to change.
For detailed conditions regarding the transport of battery packs, please
consult your respective air transport company.
-When an excessive current flow is caused by overloading or short
circuited terminals
- When the voltage drops to 5V or lower and results in the cessation of
current output.
» Once the protection circuit has tripped, the battery pack will not return
to normal automatically. To cancel the effect of the protection circuit, you
must charge the battery pack with charger dedicated to the lithium-ion
battery packs like HEDBOX model RP-DC50.
Caution On storage
* Never expose the battery pack to rain or moisture.
* Keep away from children.
* Never expose the battery pack to temperatures above 60°C (140°F).
Store the battery pack in dry place at temperatures between 0°C to 23°C
(32°F to 73°F).
e If the battery pack is to be stored for a short period (approximately more
than 24 hours and a month or less), discharge the battery pack to 90% of
its full capacity to prevent deterioration of battery pack’s internal cells.
* When storing the battery pack for an extended period (more than a
month),
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
Note
Always verify that the unit is operating properly before use.
REDPRO WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND
INCLUDING, BUT NOT LIMITED TO, COMPENSATION
OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF
PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF
THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR
AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY
OTHER REASON WHATSOEVER
itis recommended that you discharge the battery pack to about 50% of
its full capacity. (The two LED light up green) While the battery pack is
stored, charge it until the capacity reaches 50% once in 6 months.
* If the battery pack terminals become soiled, clean them with a soft
cloth.
WARNING
* Batteries shall not be exposed to excessive heat such as sunshine.
fire or the like.
Battery life
+ Battery life may be shortened due to storage or operation in high
temperatures, storage with its full capacity, and frequent use.
* Renew the battery pack when the operating time with a completely
charged battery pack becomes noticeably short or all LEDs flash green
because the self-diagnostics function has detected the end of battery
life. If a battery pack is deteriorated, all LEDs may not light when the
CHECK button is pressed just after charging is completed.
Self-diagnostic function
When an abnormality is detected, all the LEDs flash in green. If
this happens, stop using the battery pack immediately. Once the
LEDs start flashing, the battery pack cannot be recharged
SPECIFICATION
Battery type: Lithium-ion rechargeable battery
Maximum voltage: 16.4VDC
Nominal voltage: 14.4V DC
Capacity RP-BPU80: 74.88 Wh
Charging time:
Operating temperature:
Dimensions (w/h/d)
approx. 200 minutes
—20°C to +45°C (-4°F to +113°F)
41.5 x 82.5 x 69.7 mm
HECIOX
If you want to know more about HEDBOX Products please visit our
website: www.hed-box.com
RP-BPU80
Info Lithium-lon
Battery Pack
HECIOX
If you want to know more about HEDBOX Products please visit our
website: www.hed-box.com
