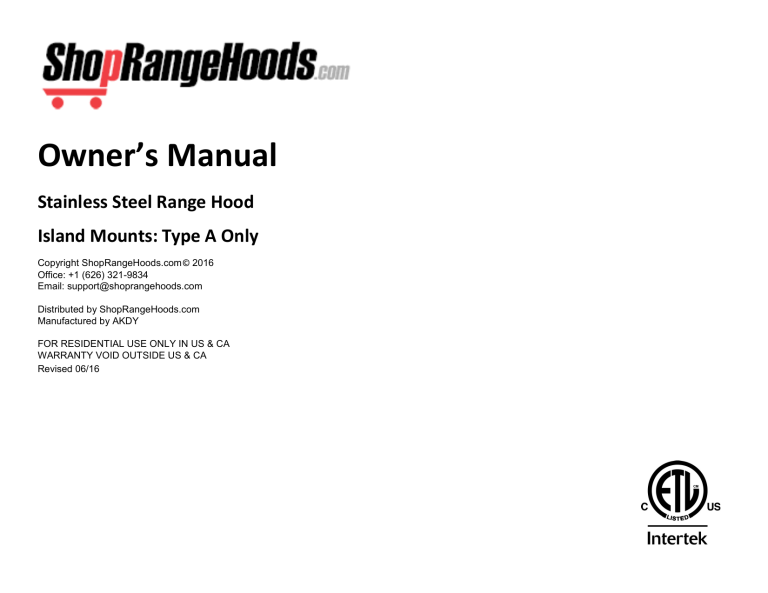

Owner’s Manual
Stainless Steel Range Hood
Island Mounts: Type A Only
Copyright ShopRangeHoods.com© 2016
Office: +1 (626) 321-9834
Email: [email protected]
Distributed by ShopRangeHoods.com
Manufactured by AKDY
FOR RESIDENTIAL USE ONLY IN US & CA
WARRANTY VOID OUTSIDE US & CA
Revised 06/16
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1.
Use this unit only in the manner intended by the manufacturer. If you have questions, contact
the manufacturer at the address or telephone number listed in the warranty.
2.
Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a
tag, to the service panel.
Installation work and electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction codes and standards.
Sufficient air is needed for proper combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
Ducted fans must always be vented to the outdoors.
Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit
Interrupter) - protected branch circuit (ceiling installation only).
This unit must be grounded.
3.
4.
5.
6.
7.
8.
CAUTION
1.
For general ventilating use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2.
3.
This product can be installed in a wall if mounted 8-ft. or more above the floor.
To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
Please read specification label on product for further information and requirements.
4.
TOOLS & PARTS REQUIREMENTS
LOCATION REQUIREMENTS
VENTILATION REQUIREMENTS
 Electrical drill or ratchet driver
 1/2” drill bit for drilling pilot holes
 1¼” drill bit for drilling electrical wiring access hole
 Screwdrivers: Philips & Straight blade
 Pliers
 Tape measure or ruler and pencil
 Electrical supplies for wiring
 Aluminum foil tape and/or HVAC tape
 Hammer
 Jigsaw or saber saw
 Stud finder
PARTS SUPPLIED
 Body & Main Unit: 1 pc.
 Chimney Mounting Bracket: 1 pc.
 Installation Manual: 1 set
 Chimney Cover: 1 set
 Metal Grease Filter: 1-4 pcs.
 Air Outlet & Air Damper: 1 set
 Exhaust Pipe & Ducting: 1 pc.
 Hardware: 1 set
Observe all governing codes and ordinances. Have a qualified
technician install the range hood. It is the installer’s responsibility
to comply with installation clearances specified on the model
serial rating plate.
Range hoods must be ventilated to the outdoors, except for nonvented (recirculating) installations.
Canopy hood's location should be away from strong draft areas,
such as windows, doors, and strong heating vents.


Cabinet opening dimensions that are shown must be used. Given
dimensions provide minimum clearance.

Do not ventilate the range hood into an attic or other enclosed areas.
Do not use 4" (10.2 cm) laundry-type wall caps.
The length of the range hood and the number of elbows
should be kept to a minimum to provide maximum performance.
A. Countertop Height
For the Most Efficient and Quiet Operation
B. Hood height from ceiling to bottom of the range hood filter
surface: D-A-C=B


C. 29” (73.66 cm) min. from cooking surface, suggested
31” (78.74 cm) max.



D. Ceiling Height


Use no more than three 90° elbows.
Make sure there is a minimum of 24" (61 cm) of straight duct
between the elbows if more than one elbow is used.
Do not install two elbows together.
Use clamps to seal all joints in the vent system.
The vent system must have a damper. If the roof or wall cap
has a damper, do not use the damper supplied with the
range hood.
Use caulking to seal exterior walls or roof openings around
the cap.
The size of the vents should be uniform.
Makeup Air
Local building codes may require the use of makeup air systems,
when using ventilation systems greater than specified CFM of air
movement. The specified CFM varies from state to state. Consult
your HVAC professional for specific requirements in your area.
Cold Weather Installations
An additional back draft damper should be installed to minimize
backward cold air flow. A thermal break should be installed to
minimize conduction of outside temper-atures as part of the vent
system. The damper should be on the cold air side of the thermal
break. The break should be as close as possible to where the
vent system enters the heated portion of the house.
Venting Method
This canopy hood is factory set for through the roof or wall. A
6" (15.2 cm) round vent system is needed for installation. The
hood exhaust opening is 6" (15.2 cm) round. To vent through a
wall, a 90° elbow is needed. If exhaust ducting with a diameter of
less than 5.91” (150 mm) or if flat ducting is used, the noise level
of the range hood will Increase and extraction will be less efficient.
Rear Discharge
A 90° elbow may be installed immediately above the hood.
Recirculating Installations & Carbon Filters
Non-Vented (Recirculating) Installations
Carbon Filter Care Guide
Ordering Carbon Filters
If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating version, fitting a carbon filter at the motor. Fumes and vapors are
then recycled through the top grille. Do not block the chimney
holes and vents on either side.
Carbon filters have to be replaced approximately every 6 months
depending on the frequency of use. They cannot be washed and
reused. Please replace carbon filters when your kitchen air is no
longer smelling fresh and dispose of the used ones.
Carbon filters can be ordered on: ShopRangeHoods.com or by
phone at: +1 (626) 321-9834. Please ask for Sales.
DO NOT WASH
DO NOT REUSE
DO NOT OPEN
Installation Steps for Recirculating
Prerequisites:

1 set of carbon filters (2 pcs.) ]”Recirculating Kit”]
Step 1: Remove the mesh or baffle filters
Step 2: Locate the motor and the carbon filter clips on each side
Step 3: Place the carbon filters into the corresponding ends of the
motor
Step 4: Twist each carbon filter until it clips into place

Navigate to Replacement Parts in the navigation bar

Click Recirculating Kit

Under Options, click and choose your model number/PID

Checkout to complete the ordering process
Cleaning & Maintenance
Cleaning Mesh or Baffle Filters
Types of Metal Filters
Interior Range Hood Cleaning
Mesh and baffle filters can be cleaned with regular household
dish washing soap and hot water. Please wear gloves while
cleaning filters to protect against scrapes or cuts. Exercise caution around sharp metal edges and corners.
Mesh
The unit must be turned off before being cleaned. Also avoid
spraying cleaner directly onto the light bulb or light bulb socket.
You can clean the interior of the vent hood with a standard household degreaser/cleaner and a sponge or rag; it will probably get
quite dirty, so make sure to use something that you don't mind
throwing away afterward.
Ingredients

Very hot or boiling water

Dishwashing soap or degreaser

Baking soda

Non-abrasive scrubbing brush or pad

Dish cloth or paper towels
Instructions

Remove the Filters from the Hood: Using the included
latch (on mesh filters only), remove them from underneath
the range hood.

Fill Your Sink Hot or Boiling Water: Hot water will help
dissolve hard grease and oil built up on the filters.

Add Dishwashing Soap or Degreaser: Pour in a generous amount of cleaning solution and make sure it is completely dissolved in the water.

Add Baking Soda: Pour in baking soda to the solution,

Soak Mesh Filters: Place your filters into the solution
and let it soak for up to 30 minutes.

Scrub the Filters: After soaking, take a scrubbing brush
or pad to further remove grease and oil.

Rinse and Let Dry: Thoroughly rinse with clean water
and let dry them with a cloth or paper towels.

Reinstall the Filters: Carefully reinstall the metal filters
once fully dry.
Exterior Oven Vent Cleaning
Baffle: Type A
Baffle: Type B
The exterior of a vent hood may also be cleaned with a standard
household degreaser/cleaner or a non-abrasive cleanser. Since
exterior range hood cleaning is a lot easier to do, you may want to
incorporate it into your daily or weekly cleaning routine. If your
vent hoods have never been cleaned, you may want to call in a
professional to do the job the first time, as it is very likely that it
will be pretty messy.
AKDY Island Mount Range Hood: Type A (L-Brackets)
Installation Steps: 1-8
For best results, please watch our accompanying installation video on YouTube: https://www.youtube.com/watch?v=0rD9pmHi7Rg
AKDY Island Mount Range Hood: Type A (L-Brackets)
Installation Steps: 9-16
For best results, please watch our accompanying installation video on YouTube: https://www.youtube.com/watch?v=0rD9pmHi7Rg
AKDY Island Mount Range Hood: Type A (L-Brackets)
Installation Steps: 17-24
For best results, please watch our accompanying installation video on YouTube: https://www.youtube.com/watch?v=0rD9pmHi7Rg
Adjusting the Clock
Control Panel: Type A
Control Panel: Type B1
Clock Setting: Type A
Step 1: Tap
and hold for 3 secs.
Step 2: Tap
repeated to set the hour.
Step 3: Tap
to switch to mins.
Step 4: Tap
again repeatedly to set the mins.
Step 5: Tap
again to finish.
Clock Setting: Type B
Step 1: Tap
and hold for 3 secs.
Step 2: Tap
OR
repeatedly to set the hour.
Step 3: Tap
OR
to switch to mins.
Step 4: Tap
OR
again repeatedly to set the mins.
Step 5: Tap
again to finish.
Control Panel: Type B2
Control Panel: Type C
Clock Setting: Type C
Step 1: Tap
and hold for 3 secs.
Step 2: Tap
repeatedly to set the hour.
Step 3: Tap
repeatedly to set the mins.
Step 4: Tap
again to finish.
Adjusting the Clock
Control Panel: Type D
Clock Setting: Type D
Step 1: Tap and hold
Control Panel: Type E
for 3 secs.
Step 2: Tap
OR
repeated to set the hour.
Step 3: Tap
to switch to mins.
Step 4: Tap
OR
Step 5: Tap
again to finish.
repeatedly to set the mins.
Clock Setting: Type E
Step 1: Tap and hold
for 5 secs.
Step 2: Tap
*If your control panel is not listed, please contact us:
[email protected] | +1-626-321-9834
Step 3: Tap
repeated to set the hour.
Step 4: Tap
repeatedly to set the mins.
Step 5: Tap
again to finish.
RETURNS & WARRANTY
RETURNS, DAMAGES, MISSING PARTS
We thank you for your purchase. If you are not satisfied with your
purchase or have an issue with our product, please kindly let us
know. Our full returns policy is outlined below. Carefully read over
our terms before contacting us. If you have questions, our customer service team can be reached at: +1 (626) 321-9834 or
[email protected]
Ground Shipments – Range Hoods, Shower
Heads/Wands, Sinks, Tub Fillers
For 1-3 years from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, ShopRangeHoods.com
will pay for Factory Specified Parts. This limited warranty is valid
only in the United States or Canada and applies only when the
major appliance is used in the country in which it was purchased.
Outside the United States and Canada, this limited warranty is
null and void Proof of original purchase date is required to obtain
service under this limited warranty.
DISCLAIMER OF IMPLIED WARRANTIES: LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS
LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE
SHORTEST PERIOD ALLOWED BY LAW. SHOPRANGEHOODS.COM SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLU-SION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS
OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO
STATE OR PROVINCE TO PROVINCE.
MANUFACTURER’S WARRANTY
ShopRangeHoods.com provides a 3-year limited parts warranty
for all range hoods, and a 1-year limited parts warranty for all
bathtubs, tub fillers, kitchen sinks, kitchen sinks, shower heads,
shower wands, and shower panels. Under this warranty, you (the
customer), is entitled to replacement parts at no cost to repair and
restore functionality if any part of the product were to fail. No labor
is provided. Certain consumables that are not covered under this
warranty include:
 Lights (halogen and LEDs)
 Carbon Filters
 Mesh or Baffle Filters
 Ducting
The above parts are guaranteed to last one year beginning from
the date of purchase. If they fail prematurely or are defective within 1 year of purchase, ShopRangeHoods.com will replace them at
no charge.
If a main unit or complete replacement has to be sent,
ShopRangeHoods.com will require that the customer pay for
shipping. Shipping for parts are free under the warranty period.
We accept all returns within 30 days with return shipping to be
paid by the customer if the item was:
replacement and take back the damaged item, or send parts to
repair the item depending on the severity of the damage. A full
replacement will be issued only under our discretion. Under certain authorized venders who carry our products, shipping damages that require a full replacement will require contacting the seller
and not ShopRangeHoods.com .
Resolution Process for Damages or Missing
Items (Ground Shipments)
All shipping damages must be reported within 30 days of delivery.
Missing or lost items must be reported within 7 days of delivery.
The customer must also notify the local authorities to obtain a
police report if the tracking information shows the item as being
delivered, but not received. A replacement part or unit will be
shipped out only if these rules are met. After the 30-day window
for damaged items or 7 days for lost and missing packages,
ShopRangeHoods.com reserves the right to not ship replacement
parts or complete units. No exceptions will be made and we will
not be held responsible.
1a. Customer provides images of damage (mandatory)
WARRANTY EXCLUSIONS
1b. Customer notifies us (ShopRangeHoods.com) for missing
parts or items
The included warranty is null/void and does not cover the following conditions:
2a. We send a replacement unit (discretionary)
1.





deemed unsuitable
the wrong size
purchased but not used
an accidental purchase
buyer’s remorse
2b. We send replacement parts
3. Customer is provided a new tracking number for the replacement or parts shipped via Ground shipping or Parcel
Freight Shipments – Bathtubs, Oversized Range
Hoods
All bathtubs will ship via freight. Due to the large size and weight,
please allow approximately 2 weeks for the item to arrive. If you
have received a freight shipment, please kindly:
 inspect for damages (ex: cracks, chips, etc.)
 inspect for missing parts or items part of a bundle
Resolution Process for Damages or Missing
Items (Freight Shipments)
1a. Customer provides images of damage (mandatory)
1b. Customer notifies us (ShopRangeHoods.com) for missing
parts or items
2a. We send a replacement unit (discretionary)
2b. We send replacement parts
3. Customer is provided a new tracking number via our 3rd party
LTL carrier for the replacement or parts
If the customer contacts us after the 30-day window for a return,
ShopRangeHoods.com will require a 15-40% restocking fee to be
applied to the return depending on the condition of the item and
the number of days passed the standard 30-day window.
If shipping damage is noticeable upon arrival, please immediately
reject the package, take pictures of the damages, and contact
customer support for assistance.
If the item is delivered and arrived damaged, we will either send a
Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to
replace or repair house fuses, or to correct house wiring or
plumbing.
2. Service calls to repair or replace appliance light bulbs, air
filters or water filters. Consumable parts are excluded from
warranty coverage.
3. Repairs when your major appliance is used for other than
normal, single-family household use or when it is used in a
manner that is contrary to published user or operator instructions and/or installation instructions.
4. Damage resulting from accident, alteration, misuse, abuse,
fire, flood, acts of God, improper installation, installation not
in accordance with electrical or plumbing codes, or use of
consumables or cleaning products not approved by us.
5. Cosmetic damage, including scratches, dents, chips or other
damage to the finish of your major appliance, unless such
damage results from defects in materials or workmanship
and is reported to us within 30 days from the date of purchase.
6. Any food loss due to refrigerator or freezer product failures.
7. Costs associated with the removal from your home of your
major appliance for repairs. This major appliance is designed
to be repaired in the home and only in-home service is covered by this warranty.
8. Repairs to parts or systems resulting from unauthorized
modifications made to the appliance.
9. The removal and reinstallation of your major appliance if it is
installed in an inaccessible location or is not installed in accordance with published installation instructions.
10. Major appliances with original model/serial numbers that
have been removed, altered or cannot be easily determined.
This warranty is void if the factory applied serial number has
been altered or removed from your major appliance. The
cost of repair or replacement under these excluded circumstances shall be borne by the customer.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
