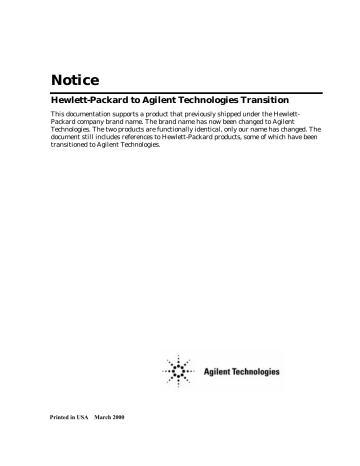

Notice

Hewlett-Packard to Agilent Technologies Transition

This documentation supports a product that previously shipped under the Hewlett-

Packard company brand name. The brand name has now been changed to Agilent

Technologies. The two products are functionally identical, only our name has changed. The document still includes references to Hewlett-Packard products, some of which have been transitioned to Agilent Technologies.

Printed in USA March 2000

Calibration Guide

HP 8590D Spectrum Analyzer

Pia

HEWLETT

PACKARD

HP Part No. 08590-90199

Printed in USA June 1992

@Copyright Hewlett-Packard Company 1992

All Rights Reserved. Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

1212 Valley House Drive, Rohnert Park, CA 94928-4999, USA

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

Certification

Hewlett-Packard Company certifies that this product met its published specifications at the time of shipment from the factory. Hewlett-Packard further certifies that its calibration measurements are traceable to the United States National Institute of Standards and

Technology, to the extent allowed by the Institute’s calibration facility, and to the calibration facilities of other International Standards Organization members.

Regulatory Information

The specifications and characteristics chapter contains regulatory information.

Warranty

This Hewlett-Packard instrument product is warranted against defects in material and workmanship for a period of one year from date of shipment. During the warranty period,

Hewlett-Packard Company will, at its option, either repair or replace products which prove to be defective.

For warranty service or repair, this product must be returned to a service facility designated by

Hewlett-Packard. Buyer shall prepay shipping charges to Hewlett-Packard and Hewlett-Packard shall pay shipping charges to return the product to Buyer. However, Buyer shall pay all shipping charges, duties, and taxes for products returned to Hewlett-Packard from another country.

Hewlett-Packard warrants that its software and firmware designated by Hewlett-Packard for use with an instrument will execute its programming instructions when properly installed on that instrument. Hewlett-Packard does not warrant that the operation of the instrument, or software, or firmware will be uninterrupted or error-free.

L

IMITATION OF

W

ARRANTY

The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance by Buyer, Buyer-supplied software or interfacing, unauthorized modification or misuse, operation outside of the environmental specifications for the product, or improper site preparation or maintenance.

NO OTHER WARRANTY IS EXPRESSED OR IMPLIED. HEWLETT-PACKARD SPECIFICALLY

DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE.

E

XCLUSIVE

R

EMEDIES

THE REMEDIES PROVIDED HEREIN ARE BUYER’S SOLE AND EXCLUSIVE REMEDIES.

HEWLETT-PACKARD SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT, TORT,

OR ANY OTHER LEGAL THEORY.

Assistance

Product rnaintename agreements and other customer assistance agreements are available for

Hewlett-Rxkard products.

Fbr any assistance, contact your nearest Hewlett-FWkard Sales and Seruice Ome.

iv

Safety Symbols

The following safety symbols are used throughout this manual. Familiarize yourself with each of the symbols and its meaning before operating this instrument.

Caution

The

caution

sign denotes a hazard. It calls attention to a procedure which, if not correctly performed or adhered to, could result in damage to or destruction of the instrument. Do not proceed beyond acaution sign until the indicated conditions are fully understood and met.

Warning

The warning sign denotes a hazard. It calls attention to a procedure

which, if not correctly performed or adhered to, could result in injury

or loss of life. Do not proceed beyond a warning sign until the indicated

conditions are fully understood and met.

General Safety Considerations

Warning

Before this instrument is switched on, make sure it has been properly

grounded through the protective conductor of the ac power cable to a socket outlet provided with protective earth contact.

Any interruption of the protective (grounding) conductor, inside or outside the instrument, or disconnection of the protective earth terminal can result in personal injury.

Warning

There are many points in the instrument which can, if contacted, cause personal injury. Be extremely careful.

Any adjustments or service procedures that require operation of the instrument with protective covers removed should be performed only by trained service personnel.

Caution

Before this instrument is switched on, make sure its primary power circuitry has been adapted to the voltage of the ac power source.

Failure to set the ac power input to the correct voltage could cause damage to the instrument when the ac power cable is plugged in.

V

HP 8590 Series Spectrum Analyzer Documentation Description

The following guides are shipped with your spectrum analyzer:

HP 8590 Series Spectrum Analyzer User’s hide

w Tells you how to make measurements with your spectrum analyzer.

w Describes the spectrum analyzer features.

w Tells you what to do in case of a failure.

HP 8590 Series Spectrum Analyzer Quick Reference Guide

n

Describes how to make a simple measurement with your spectrum analyzer.

n

Briefly describes the spectrum analyzer functions.

w Lists all the programming commands.

The Calibration Guide for your spectrum analyzer n

Tells you how to test your spectrum analyzer to determine if the spectrum analyzer meets its specifications.

w Lists specifications and characteristics for the spectrum analyzer.

Documentation Options

Option 910:

HP 8590 Series Spectrum Analyzer User’s Guide

HP 8590 Series Spectrum Analyzer Quick Reference Guide

Calibration Guide (Model Specific)

Provides an additional copy of the HP 8590 Series User’s, Programmer’s, and Quick

Reference Guides, and the Calibration Guide.

Option 915:

Service Guide (Model Specific)

HP 8590 Series Spectrum Analyzer Component-Level Information

The service guide describes assembly-level repair of the spectrum analyzer. Component-level information provides information for component-level repair of the spectrum analyzer.

Option 021 and Option 023:

HP 8590 Series Spectrum Analyzer Programmer’s Guide

The programmer’s guide describes spectrum analyzer operation via a remote controller

(computer) for spectrum analyzers equipped with Options 021 or 023. This guide is provided when ordering spectrum analyzers equipped with either Option 021 or Option 023.

How to Order Guides

Each of the guides listed above can be ordered individually. To order, contact your local

HP Sales and Service Office.

vi

How to Use This Guide

Where to Start

If you have just received your spectrum analyzer and want to get ready for use for the first time, do the following: n

Read Chapters 1 and

2

of the

HP 8590 Series Spectrum Analyzer User’s Guide.

n

Perform the initial self-calibration routines described in Chapter 2 of the

Spectrum Analyzer

HP 8590 Series

User’s Guide (these are automatic self-checks and require no test equipment).

n

If you need to verify the unit is operating within its specifications, perform the performance verification tests in Chapter 1 of this guide.

After completing the performance verification, use the

HP 8590 Series Spectrum Analyzer

User’s

Guide to learn how to use the spectrum analyzer and to find more detailed information about the spectrum analyzer, its applications, and key descriptions.

This guide uses the following conventions:

(Front-Panel Ke

r) A boxed, uppercase name in this typeface represents a key physically located on the instrument.

Softkey A boxed word written in this typeface indicates a “softkey,” a key whose label is determined by the instrument’s firmware.

Screen Text Text printed in this typeface indicates text displayed on the spectrum analyzer screen.

Caution

The CAUTION symbol denotes a hazard. It calls attention to a procedure which, if not correctly performed or adhered to, could result in damage to or destruction of the instrument. Do not proceed beyond a CAUTION symbol until the indicated conditions are fully understood and met.

vii

Contents

1. Calibrating

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operation Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test equipment you will need . . . . . . . . . . . . . . . . . . . . . . . .

Recording the test results . . . . . . . . . . . . . . . . . . . . . . . . .

If the spectrum analyzer doesn’t meet specifications . . . . . . . . . . . . .

Periodically verifying operation . . . . . . . . . . . . . . . . . . . . . . .

1. Frequency Readout Accuracy

. . . . . . . . . . . . . . . . . . . . .

2. Frequency Readout and Marker Count Accuracy for Option 013

. . . . .

3. Noise Sidebands . . . . . . . . . . . . . . . . . . . . . . . . . . .

4. System Related Sidebands . . . . . . . . . . . . . . . . . . . . . . .

5. Frequency Span Readout Accuracy . . . . . . . . . . . . . . . . . . .

6. Sweep Time Accuracy . . . . . . . . . . . . . . . . . . . . . . . . .

7. Scale Fidelity . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8. Reference Level Accuracy . . . . . . . . . . . . . . . . . . . . . . .

9. Absolute Amplitude Calibration and Resolution Bandwidth Switching

Uncertainties . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10. Calibrator Amplitude and Frequency Accuracy . . . . . . . . . . . .

11. Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . .

12. Other Input Related Spurious Responses . . . . . . . . . . . . . . . .

13. Spurious Response . . . . . . . . . . . . . . . . . . . . . . . . . .

14. Gain Compression

. . . . . . . . . . . . . . . . . . . . . . . . . .

15. Displayed Average Noise Level . . . . . . . . . . . . . . . . . . . .

16. Residual Responses . . . . . . . . . . . . . . . . . . . . . . . . .

17. Absolute Amplitude, Vernier, and Power Sweep Accuracy . . . . . . .

18. Tracking Generator Level Flatness . . . . . . . . . . . . . . . . . .

19. Harmonic Spurious Outputs . . . . . . . . . . . . . . . . . . . . . .

20. Non-Harmonic Spurious Outputs . . . . . . . . . . . . . . . . . . .

21. Tracking Generator Feedthrough

. . . . . . . . . . . . . . . . . . .

22. 10 MHz Reference Output Accuracy . . . . . . . . . . . . . . . . . .

Performance Verification Test Record . . . . . . . . . . . . . . . . . . . . .

2. Specifications and Characteristics

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Frequency Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .

Amplitude Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .

Option Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Frequency Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . .

Amplitude Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . .

Option Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . .

Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . .

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . .

Notice for Germany: Noise Declaration . . . . . . . . . . . . . . . . . . .

HP 959OD Spectrum Analyzer

Contents-l

2-2

2-3

2-5

2-8

2-10

2-11

2-13

2-14

2-18

2-19

2-20 l-l l-l l-3 l-9 l-11

1-14

1-17

1-19 l-22 l-3 l-3 l-3 l-3 l-4 l-24 l-30 l-69 l-72 l-75 l-79

1-82 l-87

1-91 l-93 l-34 l-37 l-42 l-50 l-54 l-60 l-63

3. If You Have a Problem

Calling HP Sales and Service Offices . . . . . . . . . . . . . . . . . . . . . .

Before calling Hewlett-Packard . . . . . . . . . . . . . . . . . . . . . . .

Check the basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Returning the Spectrum Analyzer for Service . . . . . . . . . . . . . . . . .

Package the spectrum analyzer for shipment . . . . . . . . . . . . . . . .

3-l

3-l

3-2

3-4

3-4

Contents-2

HP 85900 Spectrum Analyzer

Figures

l-l. Frequency Readout Accuracy Test Setup . . . . . . . . . . . . . . . . . . l-9 l-2. Frequency Readout Accuracy Test Setup for Option 013 . . . . . . . . . . . l-11 l-3. Noise Sidebands Test Setup . . . . . . . . . . . . . . . . . . . . . . . . . 1-14 l-4. System Related Sidebands Test Setup . . . . . . . . . . . . . . . . . . . .

1-17

1-5. Frequency Span Accuracy Test Setup . . . . . . . . . . . . . . . . . . . .

1-19 l-6. Sweep Time Accuracy Test Setup . . . . . . . . . . . . . . . . . . . . . .

l-22 l-7. Scale Fidelity Test Setup . . . . . . . . . . . . . . . . . . . . . . . . . . l-24 l-8. Reference Level Accuracy Test Setup . . . . . . . . . . . . . . . . . . . . l-30 l-9. Uncertainty Test Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . l-34 l-10. LPF Characterization . . . . . . . . . . . . . . . . . . . . . . . . . . . . l-38 l-11. Calibrator Amplitude Accuracy Test Setup . . . . . . . . . . . . . . . . . .

l-40

1-12. Calibrator Frequency Accuracy Test Setup . . . . . . . . . . . . . . . . . .

1-41

1-13. System Characterization Test Setup

(Option 001) . . . . . . . . . . . . . . .

l-43

1-14. Frequency Response Test Setup, 250 MHz . . . . . . . . . . . . . . . . . .

l-44

1-15. Frequency Response Test Setup, 250 MHz, for Option 001 . . . . . . . . . .

l-44

1-16. Frequency Response Test Setup (~50 MHz) . . . . . . . . . . . . . . . . .

l-46

1-17. Other Input Related Spurious Test Setup . . . . . . . . . . . . . . . . . .

1-51

1-18. Second Harmonic Distortion Test Setup, 30 MHz . . . . . . . . . . . . . . .

l-55

1-19. Third Order Intermodulation Distortion Test Setup . . . . . . . . . . . . . .

l-57 l-20. Gain Compression Test Setup . . . . . . . . . . . . . . . . . . . . . . . .

1-61

1-21. Displayed Average Noise Level Test Setup . . . . . . . . . . . . . . . . . . l-63 l-22. Residual Response Test Setup . . . . . . . . . . . . . . . . . . . . . . . . l-69 l-23. Absolute Amplitude, Vernier, and Power Sweep Accuracy Test Setup . . . . .

l-72 l-24. Tracking Generator Level Flatness Test Setup . . . . . . . . . . . . . . . .

l-75 l-25. Harmonic Spurious Outputs Test Setup . . . . . . . . . . . . . . . . . . .

l-79 l-26. Non-Harmonic Spurious Outputs Test Setup . . . . . . . . . . . . . . . . .

l-83 l-27. Tracking Generator Feedthrough Test Setup . . . . . . . . . . . . . . . . .

l-87 l-28. 10 MHz Reference Test Setup . . . . . . . . . . . . . . . . . . . . . . . .

3-l. Spectrum Analyzer Packaging Materials . . . . . . . . . . . . . . . . . . .

1-91

3-5

HP 9590D Spectrum Analyzer Contents9

Ylhbles

l-l. Performance Verification Tests

. . . . . . . . . . . . . . . . . . . . . . .

l-2. Recommended Test Equipment . . . . . . . . . . . . . . . . . . . . . . .

l-3. Recommended Accessories . . . . . . . . . . . . . . . . . . . . . . . . .

l-4. Recommended Cables . . . . . . . . . . . . . . . . . . . . . . . . . . .

l-5. Frequency Readout Accuracy . . . . . . . . . . . . . . . . . . . . . . . .

l-6. Frequency Readout Accuracy . . . . . . . . . . . . . . . . . . . . . . . .

l-7. Frequency Span Readout Accuracy . . . . . . . . . . . . . . . . . . . . .

1-8. Sweep Time Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . .

l-9. Cumulative and Incremental Error, Log Mode . . . . . . . . . . . . . . . .

l-10. Scale Fidelity, Linear Mode . . . . . . . . . . . . . . . . . . . . . . . . .

l-11. Reference Level Accuracy, Log Mode . . . . . . . . . . . . . . . . . . . .

1-12. Reference Level Accuracy, Linear Mode . . . . . . . . . . . . . . . . . . .

1-13. Resolution Bandwidth Switching Uncertainty . . . . . . . . . . . . . . . .

1-14. Frequency Response Errors Worksheet . . . . . . . . . . . . . . . . . . .

1-15. Frequency Response (~50 MHz) Worksheet . . . . . . . . . . . . . . . . .

1-16. Image Responses Worksheet . . . . . . . . . . . . . . . . . . . . . . . .

1-17. Displayed Average Noise Level, . . . . . . . . . . . . . . . . . . . . . . .

1-18. Residual Responses Above DispIay Line . . . . . . . . . . . . . . . . . . .

1-19. Vernier Accuracy Worksheet . . . . . . . . . . . . . . . . . . . . . . . .

l-20 Level Flatness Relative to 300 MHz Worksheet . . . . . . . . . . . . . . . .

1-21. Harmonic Spurious Responses Worksheet . . . . . . . . . . . . . . . . . .

l-22. Fundamental Response Amplitudes Worksheet . . . . . . . . . . . . . . . .

l-23. Non-Harmonic Responses Worksheet . . . . . . . . . . . . . . . . . . . .

l-24. TG Feedthrough Worksheet . . . . . . . . . . . . . . . . . . . . . . . . .

l-25. Performance Verification Test Record . . . . . . . . . . . . . . . . . . . .

3-l. Hewlett-Packard Sales and Service Offices . . . . . . . . . . . . . . . . . .

l-32 l-33 l-36 l-48 l-49 l-53 l-68

1-71 l-74 l-78 l-81 l-85 l-86 l-90 l-93

3 - 3

l-2 l-4 l-6 l-8 l-10

1-12

1-21 l-23 l-26 l-27

Contents-4 HP 8590D Spectrum Analyzer

Calibrating

This chapter contains performance test procedures which test the electrical performance of the spectrum analyzer.

Allow the spectrum analyzer to warm up in accordance with the Temperature Stability specification in Chapter 2 before performing the tests in this chapter.

None of the test procedures involve removing the cover of the spectrum analyzer.

1

Calibration

Calibration verifies that the spectrum analyzer performance is within all specifications listed in

Chapter 2. It is time consuming and requires extensive test equipment. Calibration consists of all the performance tests. See ‘Ihble l-l for a complete listing of the performance tests.

Operation Verification

Operation verification consists of a subset of the performance tests. See Table l-l. Operation verification tests only the most critical specifications of the spectrum analyzer. These tests are recommended for incoming inspection, troubleshooting, or after repair. Operation verification requires less time and equipment than the calibration.

HP 859013 Spectrum Analyzer Calibrating l-l

The following table lists the performance tests included in this chapter. Select the spectrum analyzer option being calibrated and perform the tests marked in the option column. Note that some of the tests are used for both calibration and operation verification (marked with 0).

‘Ihble l-l. Performance Verification Tests

Calibration for

Performance Test Name Instrument Option:

Stdl 001 010 011 013

1. Frequency Readout Accuracy

000n

2. Frequency Readout and Marker Count Accuracy for Option 013

0

3. Noise Sidebands

000nEl

4. System Related Sidebands

5. Frequency Span Readout Accuracy

. . . .

.

6. Sweep Time Accuracy

7. Scale Fidelity

8. Reference Level Accuracy

9. Absolute Amplitude Calibration and Resolution Bandwidth

Switching Uncertainties

10. Calibrator Amplitude and Frequency Accuracy

;;;;;

00000

000n0

Il. Frequency Response

~2. Other Input Related Spurious Responses

.3. Spurious Response2

00n00

00000 b&i;

.4. Gain Compression

.5. Displayed Average Noise Level ;A;;;

6. Residual Responses . . . . .

7. Absolute Amplitude, Vernier, and Power Sweep Accuracy . .

8. Tracking Generator Level Flatness . .

9. Harmonic Spurious Outputs . .

10. Non-Harmonic Spurious Outputs . .

Il. Tracking Generator Feedthrough . .

:2. 10 MHz Reference Output Accuracy

0

1 Use this column for all other options not listed in this table.

2 “Part 2: Third Order Intermodulation Distortion, 50 MHz” is not required for operation verification.

1-2 Calibrating HP 859lJD Spectrum Analyzer

Safety

Familiarize yourself with the safety symbols marked on the pulse generator, and read the general safety instructions and the symbol definitions given in the front of this manual before you begin verifying performance of the pulse generator.

Before You Start

There are four things you should do before starting a performance verification test: n

Switch the spectrum analyzer on and let it warm up in accordance with the Temperature

Stability specification in Chapter 2.

n

Read “Making a Measurement” in Chapter

2

of the

HP 8590 Series Spectrum Analyzer User’s

Guide.

n

After the spectrum analyzer has warmed up as specified, perform the Self-Calibration

Procedure documented in “Improving Accuracy With Self-Calibration Routines” in

Chapter

2

of the

HP 8590 Series Spectrum Anulyzer

User’s Guide. The performance of the spectrum analyzer is only specified after the spectrum analyzer calibration routines have been run and if the spectrum analyzer is autocoupled.

n

Read the rest of this section before you start any of the tests, and make a copy of the

Performance Test Record described in “Recording the Test Results.”

Test equipment you will need

Tables l-2 through l-4 lists the recommended test equipment for the performance tests. The tables also lists recommended equipment for the spectrum analyzer adjustment procedures which are located in the

HP 85900 Spectrum Anulyzer Service

Guide. Any equipment that meets the critical specifications given in the table can be substituted for the recommended model.

Recording the test results

A performance test record is provided at the end of this chapter.

Each test result is identified as a

TR Entry

in the performance tests and on the performance test record. We recommend that you make a copy of the performance test record, record the test results on the copy, and keep the copy for your calibration test record. This record could prove valuable in tracking gradual changes in test results over long periods of time.

If the spectrum analyzer doesn’t meet specifications

If the spectrum analyzer fails a test, rerun the frequency calibration and amplitude calibration routines by pressing CAL FREQ B AMPTD . Press CAL STORE , then repeat the verification test.

If the spectrum analyzer still fails one or more specifications, complete any remaining tests and record all test results on a copy of the test record. Then refer to Chapter 3, “If You Have a

Problem,” for instructions on how to solve the problem.

HP 8590D Spectrum Analyzer Calibrating 1-3

Periodically verifying operation

The spectrum analyzer requires periodic verification of operation. Under most conditions of use, you should test the spectrum analyzer at least once a year with either operation verification or the complete set of performance verification tests.

Equipment

‘able 1-2. Recommended Test Equipment

Critical Specifications for Recommended

Equipment Substitution Model

Use1

Digital Voltmeter Input Resistance: 2 10 megohms HP 3456A

Accuracy: f10 mV on 100 V range

DVM Test Leads

Frequency Standard

For use with HP 3456A

HP 34118

HP 5061B

Frequency: 10 MHz

Timebase Accy (Aging): < 1 x l0-g/day

Measuring Receiver Compatible with Power Sensors dB Relative Mode

Resolution: 0.01 dB

Reference Accuracy: f 1.2 %

HP 8902A

Microwave Frequency Frequency Range: 9 MHz to 7 GHz HP 5343A

Counter Timebase Accy (Aging): <5 x lo-lo/day

Oscilloscope Bandwidth: dc to 100 MHz HP 54501A

Vertical Scale Factor of 5 V/Div

HP 436A

Power Meter Power Range: Calibrated in dBm and dB relative to reference power -70 dBm to + 44 dBm, sensor dependent

HP 8482A

Power Sensor Frequency Range: 100 kHz to 1800 MHz

Maximum SWR: 1.60 (100 kHz to 300 kHz)

1.20 (300 kHz to 1 MHz)

1.1 (1 MHz to 2.0 GHz)

1.30 (2.0 to 2.9 GHz)

Power Sensor2 Frequency Range: 1 MHz to 2 GHz

Maximum SWR: 1.18 (600 kHz to 2.0 GHz) 75 9

HP 8483A

Power Sensor,

Low-Power

Frequency Range: 300 MHz

Amplitude Range: -20 dBm to -70 dBm

Maximum SWR: 1.1 (300 MHz)

HP 8484A

PAT

A,T

P,A

R&T

PAT

T

EAT

PAT

PAT

PAT

1 P = Performance Test, A = Adjustment, T = Troubleshooting

2 Option 001 and Option 011 Only

1-4 Calibrating HP 8590D Spectrum Analyzer

Equipment

Signal Generator

3pectrum Analyzer,

Microwave

‘able l-2. Recommended Test Equipment (continued)

Critical Specifications for

Equipment Substitution

Frequency Range: 1 MHz to 1000 MHz

Amplitude Range: -35 to + 16 dBm

SSB Noise: <-120 dBc/Hz at 20 kHz offset

Recommended

Model

HP 8640B,

Option 002

HP 8566AfB

Frequency Range: 100 kHz to 7 GHz

Relative Amplitude Accuracy:

100 kHz to 1.8 GHz: <f1.8 dB

Frequency Accuracy: <flO kHz @ 7 GHz

Synthesized Sweeper

HP 8340AIB

Synthesizer/Function

Generator

Frequency Range: 10 MHz to 1.8 GHz

Frequency Accuracy (CW): f 0.02%

Leveling Modes: Internal and External

Modulation Modes: AM

Power Level Range: -35 to + 16 dBm

Frequency Range:

0.1 Hz to 500 Hz

Frequency Accuracy: f0.02%

Waveform: Triangle

HP 3325B

$nthesizer/Level

Generator

Frequency Range: 1 kHz to 80 MHz

Amplitude Range: + 12 to -85 dBm

Flatness: f0.15 dB

Attenuator Accuracy: f0.09 dB

HP 3335A

1 P = Performance Test, A = Adjustment, T = Troubleshooting

Use’

HP 859OD Spectrum Analyzer

Calibrating l-5

Equipment

Active Probe

Adapter APC 3.5 (f) to APC 3.5 (f)

Adapter

Adapter

Adapter2

Adapter

Adapter

Adapter

Adapter

Adapter

BNC (f) to dual banana plug

BNC (m) to BNC (m)

BNC (m) to BNC (m), 75 G

BNC (f) to SMB (m)

BNC tee (m) (f) (f)

Type N (f) to APC 3.5 (f)

Type N (f) to APC 3.5 (m)

Type N (m) to APC 3.5 (m)

Type N (f) to BNC (f) Adapter

Adapter

Adapter*

Adapter

Adapter

Adapter

Adapter

Type N (f) to BNC (m)

Type N (f) to BNC (m), 75 Q

Type N (m) to BNC

(f> (4 required)

Type N (m) to BNC (m)

(2 required)

Type N (f) to N (f)

Adapter

Adapter2

Adapter

Adapter

Type N 04 to N (m)

Type N (f) to N (f), 75 Q

Type N (f), 75 Q, to Type N (m), 50 9

SMB (f) to SMB (f)

SMB (m) to SMB (m)

Adapter, 2

Minimum Loss

50 to 75 Q, matching

Frequency Range: dc to 2 GHz

Insertion Loss: 5.7 dB

1 P = Performance Test, A = Adjustment, T = Troubleshooting

2 Option 001 and Option 011 Only

‘Etble 1-3. Recommended Accessories

Critical Specifications for

Accessory Substitution

5 Hz to 500 MHz

300 kHz to 3 GHz

Recommended

Model

HP 41800A

HP 85024A

5061-5311

1251-1277

1250-0216

1250-1288

1250-1237

1250-0781

1250-1745

1250-1750

1250-1743

1250-1474

1250-1477

1250-1534

1250-1476

1250-1473

1250-1472

1250-1475

1250-1529

1250-0597

1250-0692

1250-0813

HP 11852B

Use1

T

PAT

PAT

P,A,T

RAT

P,A,T

PAT

PAT

RAT

PAT

P,A,T

EAT

C&T

AT

A,T

P,A,T

PAT

P,A,T

P,A,T

P,-%T

A,T

T

1-6 Calibrating HP 8590D Spectrum Analyzer

Equipment

Attenuator, 10 dB

Attenuator,

1 dB Step

Attenuator,

10 dB Step

Digital Current

Tracer

Directional Bridge

Logic Pulser

‘Ihble 1-3. Recommended Accessories (continued)

Critical Specifications for

Accessory Substitution

Recommended

Model

We N Cm to f)

Frequency: 300 MHz

Attenuation Range: 0 to 12 dB

Frequency Range: 50 MHz

Connectors: BNC female

Attenuation Range: 0 to 30 dB

Frequency Range: 50 MHz

Connectors: BNC female

Sensitivity: 1 mA to 500 mA

Frequency Response: Pulse trains to 10 MHz

Minimum Pulse Width: 50 ns

Pulse Rise Time: <200 ns

Frequency Range: 0.1 to 110 MHz

Directivity: >40 dB

Maximum VSWR: l.l:l

Transmission Arm Loss: 6 dB (nominal)

Coupling Arm Loss: 6 dB (nominal)

TTL voltage and current drive levels

HP 8491A

Option 010

HP 355C

HP 355D

HP 547A

HP 8721A

HP 546A

Use1

P,A,T

P,A

P,A

T

P,T

T

Logic Clip TTL voltage and current drive levels

Low Pass Filter,

50 MHz

Low Pass Filter,

300 MHz

Power Splitter

Cutoff Frequency: 50 MHz

Rejection at 80 MHz: >50 dB

Cutoff Frequency: 300 MHz

Bandpass Insertion Loss: <0.9 dB at 300 MHz jtopband Insertion Loss: >40 dB at 435 MHz

Frequency Range: 50 kHz to 1.8 GHz

[nsertion Loss: 6 dB (nominal)

3utput Tracking: co.25 dB

Equivalent Output SWR: < 1.22: 1 fermination, 50 Q Impedance: 50 G (nominal)

(2 required for Option 010)

fermination. 75 Q2 rmpedance: 75 0 (nominal)

(2 required for option 011)

1 P = Performance Test, A = Adjustment, T = Troubleshooting

1 Option 001 and Option 011 Only

HP 548A

0955-0306

0955-0455

HP 11667A

HP 908A

HP 909E

Option 201

T

P,T

P,A,T

P,A

P,T

P,T

HP 8590D Spectrum Analyzer Calibrating 1-7

Equipment

Table l-4. Recommended Cables

Critical Specifications for

Cable Substitution

Type N, 183 cm (72 in) Cable

Cable

Cable

Cable2

Frequency Range: dc to 1 GHz

Length: 291 cm (36 in)

Connectors: BNC (m) both ends

(4 required)

Frequency Range: dc to 310 MHz

Length: 20 cm (9 in)

Connectors: BNC (m) both ends

BNC, 75 R, 30 cm (12 in)

BNC, 75 Q, 120 cm (48 in)

Cable2

Cable, Test

Length: 291 cm (36 in)

Connectors: SMB (f) to BNC (m)

(2 reauired 1

1 P = Performance Test, A = Adjustment, T = Troubleshooting

2 Option 001 and Option 011 Only

Recommended

Model

HP 11500A

HP 10503A

Use’

PAT

HP 10502A

5062-6452

15525-80010

85680-60093

P,A,T

P,A,T

A,T l-8 Calibrating

HP 8590D Spectrum Analyzer

1. Frequency Readout Accuracy

1. Frequency Readout Accuracy

The frequency readout accuracy of the spectrum analyzer is tested with an input signal of known frequency.

, There are no related adjustment procedures for this performance test.

If the spectrum analyzer is equipped with Option 013, Counterlock, perform the performance test “Frequency Readout and Marker Count Accuracy for Option 013” instead.

Equipment Required

Synthesized sweeper

Adapter, Type N (f) to APC 3.5 (f)

Cable, Type N, 183 cm (72 in)

Additional Equipment for Option 001

Adapter, minimum loss

Adapter, Type N (f) to BNC (m), 75 D

Caution

Use only 75 0 cables, connectors, or adapters on the 75 D input of an Option

001 or damage to the input connector will occur.

SPECTRUM ANALYZER SYNTHESIZED SWEEPER

NPUT 50R

R F O U T P U T

1

ADAPTER

T Y P E N C A B L E A S S E M B L Y

/

---------

Figure l-l. Frequency Readout Accuracy Test Setup

XY12

HP 95900 Spectrum Analyzer

Calibrating l-9

1. Frequency Readout Accuracy

Procedure

1. Connect the equipment as shown in Figure l-l.

2. Perform the following steps to set up the equipment: n

Press INSTRUMENT PRESET on the synthesized sweeper, then set the controls as follows:

CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 MHz

POWER LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -10 dBm n

Press (j-1 on the spectrum analyzer, then wait for the preset routine to finish. Set the spectrum analyzer by pressing the following keys:

F R E Q U E N C Y ] 10 m

h12m

3. Set the spectrum analyzer to measure the frequency readout accuracy by pressing the following spectrum analyzer keys:

[PEAK S E A R C H )

(MKR’ MK TRACK ON OFF (ON)

IsPAN)

4. Record the MKR frequency reading in the performance test record. The reading should be within the limits shown in Table 1-5.

5. Press (SPAN) 12 IrVIHz) on the spectrum analyzer.

6. Change to the next synthesized sweeper CW and spectrum analyzer center frequencies listed in Table 1-5.

7. Repeat steps 4 through 6 for each frequency setting listed in ‘lhble 1-5.

‘able 1-5. Frequency Readout Accuracy iynthesized Sweeper Spectrum Analyzer c w Center

Frequency Frequency

(MHz) (MHz)

MKR Reading

(MHz)

Min TR Entry Max

(Actual)

10 10 4.9980 l - l 15.0020

50 50 44.9980 l-2 55.0020

100 100 94.9980 l-3 105.0020

500 500 494.9980 l-4 505.0020

1000 1000 994.9980 l-5 1005.0020

1800 1800 1794.9980 1-6 1805.0020

l-l 0 Calibrating HP 8580D Spectrum Analyzer

2. Frequency Readout and Marker Count Accuracy for Option 013

2. Frequency Readout and Marker Count Accuracy for

Option 013

This procedure is only for spectrum analyzers equipped with Option 013.

The frequency readout accuracy of the spectrum analyzer is tested with an input signal of known frequency. By using the same frequency standard for the spectrum analyzer and the synthesized sweeper, the frequency reference error is eliminated.

The related adjustment for this performance test is the “Sampler Match Adjustment.”

If the spectrum analyzer is not equipped with Option 013, Counterlock, perform the performance test “Frequency Readout Accuracy” instead.

Equipment Required

Synthesized sweeper

Adapter, Type N (f) to APC 3.5 (m)

Adapter, APC 3.5 (f) to APC 3.5 (f)

Cable, Type N, 183 cm (72 in)

Cable, BNC, 122 cm (48 in)

Additional Equipment for Option 001

Adapter, minimum loss

Adapter, Type N (f) to BNC (m), 75 fl

Caution

Use only 75 D cables, connectors, or adapters on the 75 62 input of an Option

001 or damage to the input connector will occur.

O”TP”l

L -

- - - - - - - - -

- - - - - - - - - I

Figure 1-2. Frequency Readout Accuracy Test Setup for Option 013

X C 6 2

HP 8580D Spectrum Analyzer Calibrating l-l 1

2. Frequency Readout and Marker Count Accuracy for Option 013

Procedure

This performance test consists of two parts:

Part 1: Frequency Readout Accuracy

Part 2: Marker Count Accuracy

Perform “Part 1: Frequency Readout Accuracy” before “Part 2: Marker Count Accuracy.”

Part 1: Frequency Readout Accuracy

1. Connect the equipment as shown in Figure l-2. Remember to connect the 10 MHz REF OUT of the synthesized sweeper to the EXT REF IN of the spectrum analyzer.

2. Perform the following steps to set up the equipment: n

Press INSTRUMENT PRESET on the synthesized sweeper, then set the controls as follows:

CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 GHz

POWER LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -10 dBm n

Press c-1 on the spectrum analyzer, then wait for the preset routine to finish. Set the spectrum analyzer by pressing the following keys:

FREQUENCY_)

1..5 IGHz) h2om

.

n

Press

(

PEAK SEARCH

)

on the spectrum analyzer to measure the frequency readout accuracy.

n

Record the MKR frequency reading in the performance test record. The reading should be within the limits shown in Table l-6.

n

Change to the next spectrum analyzer span setting listed in Table l-5.

n

Repeat steps 3 through 5 for each spectrum analyzer span setting listed in Table l-5.

‘Ihble l-6. Frequency Readout Accuracy

I

I cz...-.-

(MHz)

I

I

Min.

(MHz) k’R Entr!

(Actual)

Max.

(MHz)

20 1.49918

10 1.49958

1 1.499968

2-l

2-2

2-3

1.50082

1.50042

1.500032

l-l2 Calibrating HP 859OD Spectrum Analyzer

2. Frequency Readout and Marker Count Accuracy for Option 013

Part 2: Marker Count Accuracy

Perform “Part 1: Frequency Readout Accuracy” before performing this procedure.

1. Press (PRESET) on the spectrum analyzer, then wait for the preset routine to finish. Set the spectrum analyzer to measure the marker count accuracy by pressing the following keys:

~pzT-)&~

SPAN M H z

(EiJ RES 3W AUTO MAN 300 m

(jNlKRj MK COUNT ON OFF (ON)

More

1 of 2

CNT RES AUTO MAN [email protected]

2. Press

[

PEAK SEARCH

),

then wait for a count be taken (it may take several seconds).

3. Record the CNTR frequency reading as TR Entry 2-5 of the performance test record. The reading should be within the limits of 1.4999989 GHz and 1.5000011 GHz.

4. Change the spectrum analyzer settings by pressing the following keys:

Wl(MHz)

(jMKRFCTN_) MK COUNT ON OFF (ON)

More 1 of 2

CPJT RES AUTO MAN 1OIHz)

5. Press

(

PEAK SEARCH

),

then wait for a count be taken (it may take several seconds).

6. Record the CNTR frequency reading as TR Entry 2-6 of the performance test record. The reading should be within the limits of 1.49999989 GHz and 1.50000011 GHz.

HP 8590D Spectrum Analyzer Calibrating 1-13

3. Noise Sidebands

A 500 MHz CW signal is applied to the input of the spectrum analyzer. The marker functions are used to measure the amplitude of the carrier and the noise level 30 kHz above and below the carrier. The difference between these two measurements is compared to specification.

There are no related adjustment procedures for this performance test.

Equipment Required

Signal generator

Cable, Type N, 183 cm (72 in)

Additional Equipment for Option 001

Adapter, minimum loss

Adapter, Type N (f) to BNC (m), 75 D

Caution

Use only 75 f? cables, connectors, or adapters on the 75 D input of an Option

001 or damage to the input connector will occur.

SPECTRUM ANALYZER

SIGNAL GENERATOR

F O U T P U T

- - m - - - e - l

Figure l-3. Noise Sidebands Test Setup

XY13

1-14 Calibrating HP 8590D Spectrum Analyzer

3. Noise Sidebands

Procedure

1. Perform the following steps to set up the equipment: n

Set the signal generator controls as follows:

FREQUENCY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..-5OOMHz

OUTPUT LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 dBm

AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..OFF

FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OFF

COUNTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . INT

RF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..ON

n

Connect the equipment as shown in Figure 1-3.

n

Press (‘j-1 on the spectrum analyzer, then wait for the preset routine to finish. Set the spectrum analyzer by pressing the following keys:

FREQUENCY]

500 (MHz) b10m

2. Calculate the Noise Sideband Suppression by performing the following steps: n

Press the following spectrum analyzer keys:

[

P E A K

S E A R C H )

C-1

MK

TRACK OM OFF (ON) m 200 IkHz)

Isw)l(kHz)

VID BW AUTO MAN 300

(MKRFCTN) MK TRACK ON OFF (OFF)

(SEEiF)

[PEAK S E A R C H ]

Record the MKR amplitude reading in the Noise Sideband Worksheet as the Carrier

Amplitude.

HP 8590D Spectrum Analyzer Calibrating 1-15

3. Noise Sidebands

n

Press the following spectrum analyzer keys:

MARKER A 30 m

[MKR) MARKER NORMAL

Record the MKR amplitude reading in the Noise Sideband Worksheet as the Noise

Sideband Level at +30 kHz.

# Press the following spectrum analyzer keys:

(

P E A K

S E A R C H )

MARKER A -30 (kHz)

(MKR) MARKER NORMAL

Record the MKR amplitude reading in the Noise Sideband Worksheet as the Noise

Sideband Level at -30 kHz.

Noise Sideband Worksheet

Description

Measurement

Carrier Amplitude

Noise Sideband Level at + 30 kHz

Noise Sideband Level at -30 kHz

Maximum Sideband Level dBm OT dBmv dBm OT dBmv dBm or dBmv dBm OT dBmv n

Record the more positive value, either Noise Sideband Level at +30 kHz or Noise Sideband

Level at -30 kHz from above in the Noise Sideband Worksheet as the Maximum Noise

Sideband Level.

n

Subtract the Carrier Amplitude from the Maximum Noise Sideband Level using the equation below.

Noise Sideband Suppression = Maximum Noise Sideband Level - Carrier Amplitude

n

Record the Noise Sideband Suppression in the performance test record as TR Entry 3-l.

The suppression should be L-65 dBc.

The resolution bandwidth is normalized to 1 Hz as follows:

1 Hz noise-power = (noise-power in dBc) - (10 x log(RBW))

For example, -65 dBc in a 1 kHz resolution bandwidth is normalized to -95 dBc/Hz.

l-l 6 Calibrating HP 85908 Spectrum Analyzer

4. System Related Sidebands

4. System Related Sidebands

A 500 MHz CW signal is applied to the input of the spectrum analyzer. The marker functions are used to measure the amplitude of the carrier and the amplitude of any system related sidebands 30 kHz above and below the carrier, System related sidebands are any internally generated line related, power supply related or local oscillator related sidebands.

There are no related adjustment procedures for this performance test.

Equipment Required

Signal generator

Cable, Type N, 183 cm (72 in)

Additional Equipment for Option 001

Adapter, minimum loss

Adapter, Type N (f) to BNC (m), 75 fI

Caution

Use only 75 D cables, connectors, or adapters on the 75 fI input of an Option

001 or damage to the input connector will occur.

SPECTRUM ANALYZER

I N P U T 5on

,’

SIGNAL GENERATOR

\

[email protected]@oo Q0

-

;I

R F O U T P U T

T Y P E N C A B L E A S S E M B L Y

I

------e-e

Figure 1-4. System Related Sidebands Test Setup

XY13

HP 8590D Spectrum Analyzer

Calibrating l-17

4. System Related Sidebands

Procedure

1. Perform the following steps to set up the equipment: n

Set the signal generator controls as follows:

FREQUENCY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..500MHz

OUTPUTLEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..0 dBm

AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..OFF

FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..OFF

COUNTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . INT

RF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..ON

n

Connect the equipment as shown in Figure l-4.

n

Press (m) on the spectrum analyzer, then wait for the preset routine to finish. Set the spectrum analyzer by pressing the following keys:

2. Set the spectrum analyzer to measure the system related sideband above the signal by performing the following steps:

(

P E A K

S E A R C H )

(MKRFCTN) MK TRACK OM OFF (ON) pG-$2oo&m

B W kHz

VID BW AUTO MAN 300

Allow the spectrum analyzer to stabilize for approximately 1 minute. Then press the following keys:

CjFCTN) MK TRACK OM OFF (OFF)

[

FREQUENCY

)

CF STEP AUTO NAM 130 m

3.

Press CsGL) and wait for the completion of the sweep. Press

(

PEAK SEARCH

],

then

MARKER A .

4. Press the following spectrum analyzer keys:

5.

CFREQUENCY) m (step-w key)

Measure the system related sideband above the signal by pressing (SGL] on the spectrum analyzer. Wait for the completion of a new sweep, then press

(SPEAK

SEARCH

].

6.

Record the Marker A Amplitude in TR Entry 3-l of the performance test record.

The Marker A Amplitude above the signal should be c-65 dB.

7.

Set the spectrum analyzer to measure the system related sideband below the signal by pressing the following spectrum analyzer keys: m (step-down key)

(lJJ (step-down key)

8. Measure the system related sideband below the signal by pressing C-J. Wait for the completion of a new sweep, then press

[

PEAK SEARCH

].

Record the Marker A Amplitude in TR Entry 3-2 of the performance test record.

The Marker A Amplitude below the signal should be c-65 dB.

l-1 8 Calibrating HP 859OD Spectrum Analyzer

5. Frequency Span Readout Accuracy

5. Frequency Span Readout Accuracy

For testing each frequency span, two sources are used to provide two precisely-spaced signals.

The spectrum analyzer marker functions are used to measure this frequency difference and the marker reading is compared to the specification.

There are no related adjustment procedures for this performance test.

Equipment Required

Synthesized sweeper

Signal generator

Power splitter

Adapter, Type N (m) to Type N (m)

Adapter, Type N (f) to APC 3.5 (m)

Cable, Type N, 183 cm (72 in)

Cable, Type N, 152 cm (60 in)

Additional Equipment for Option 001

Adapter, minimum loss

Adapter, Type N (f) to BNC (m), 75 D

Caution

Use only 75 D cables, connectors, or adapters on the 75 Q input of an Option

001 or damage to the input connector will occur.

SYNTHESIZED SWEEPER SPECTRUM ANALYZER

SIGNAL GENERATOR

POWER SPL I TTER

T Y P E N C A B L E A S S E M B L Y T Y P E N C A B L E A S S E M B L Y

- - - - - - - 1

-,-------I

Figure 1-5. Frequency Span Accuracy Test Setup

HP 8590D Spectrum Analyzer

Calibrating l-1 9

5. Frequency Span Readout Accuracy

Procedure

This performance test consists of two parts:

Part 1: Span 1800 MHz

Part 2: Spans ~500 MHz

Perform “Part 1: Span 1800 MHz” before “Part# 2: Spans ~500 MHz.”

Part 1: Span 1800 MHz

1.

Connect the equipment as shown in Figure l-5. Note that the power splitter is used as a combiner.

2.

Press [PRESET) on the spectrum analyzer and wait for the preset to finish. Set the spectrum analyzer by pressing the following keys:

F R E Q U E N C Y ] 900 INIHz)

h 1800 (MHz)

3.

Press INSTRUMENT PRESET on the synthesized sweeper and set the controls as follows:

CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..llOOMHz

POWERLEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -5 dBm

4.

On the signal generator, set the controls as follows:

FREQUENCY (LOCKED MODE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ;. . . . . . . .200 MHz

CWOUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..OdBm

5.

Adjust the spectrum analyzer center frequency, if necessary, to place the lower frequency on the second vertical graticule line (one division from the left-most graticule line).

6.

Press (sGL] then

[

PEAK SEARCH

].

If necessary, continue pressing NEXT PEAK until the marker is on the left-most signal This is the “marked” signal.

7.

Press MARKER A and continue pressing NEXT PK RIGllT . The marker delta should be on the right-most signal.

8.

Record the MKR A frequency reading in the performance test record for the corresponding

TR Entry listed in l%ble l-7. The MKR reading should be within the limits shown.

l-20 Calibrating HP 85900 Spectrum Analyzer

5. Frequency Span Readout Accuracy

Part 2: Spans <500 MHz

9. Press (j-1 on the spectrum analyzer and wait for the PRESET to finish. Set the spectrum analyzer by pressing the following keys:

FREQUENCY]

70 (MHz) h loom

10. Press INSTRUMENT PRESET on the synthesized sweeper and set the controls as follows:

CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..llOMHz

POWER LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -5 dBm

11. Set the signal generator controls as follows:

FREQUENCY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..30MHz

CW OUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 dBm

12. If necessary, adjust the spectrum analyzer center frequency to center the two signals on the display.

13. On the spectrum analyzer, press the following keys:

The two markers should be on the signals near the second and tenth vertical graticule lines

(the first graticule line is the left-most).

14. Record the MKR A frequency reading in the performance test record for the corresponding

TR Entry listed in Table l-7. The MKR reading should be within the limits shown.

15. On the spectrum analyzer, press Il\nKRl, More 1 of 2 , then MARKER ALL OFF.

16. Repeat steps 11 through 15 for the remaining span settings listed in Table l-7, setting the synthesized sweeper CW and signal generator Frequency as shown in the table.

‘Ihble 1-7. Frequency Span Readout Accuracy

Spectrum Analyze] Signal Generator Sythesized Sweeper

Span Setting Frequency (MHz) Frequency (MHz)

Min.

MKR-A Reading

TR Entry Max.

1800 MHz 200 1700 1446MHz 5-l 1554 MHz

100 MHz 30.0 110.0 77.0 MHz 5-2 83.0 MHz

20 MHz 62.0 78.0 15.40 MHz 5-3 16.60 MHz

10 MHz 66.0 74.0 7.70 MHz 5-4 8.30 MHz

100kHz 69.96 70.04 77.0 kHz 5-5 83.0 kHz

HP 859OD Spectrum Analyzer Calibrating 1-21

6. Sweep Time Accuracy

This test uses a synthesizer function generator to amplitude modulate a 500 MHz CW signal from another signal generator. The spectrum analyzer demodulates this signal in zero span to display the response in the time domain. The marker delta frequency function on the spectrum analyzer is used to read out the sweep time accuracy.

There are no related adjustment procedures for this performance test.

Equipment Required

Synthesizer/function generator

Signal generator

Cable, Type N, 152 cm (60 in)

Cable, BNC, 120 cm (48 in)

Additional Equipment for Option 001

Adapter, minimum loss

Adapter, Type N (f) to BNC (m), 75 62

Caution

Use only 75 Q cables, connectors, or adapters on the 75 62 input of an Option

001 or damage to the input connector will occur.

SPECTRUM ANALYZER SYNTHESIZER

,’

SIGNAL GENERATOR

\

I N P U T 5017 M A I N S I G N A L (A

M ‘“I R F OUTPUl

T Y P E N C A B L E A S S E M B L Y

-

L - - - - - - - - l

X Y 1 6

Figure 1-6. Sweep Time Accuracy Test Setup

Procedure

1. Set the signal generator to output a 500 MHz, -10 dBm, CW signal. Set the AM and FM controls to OFF.

Option 001 only:

Set the output to -4 dBm.

2. Set the synthesizer function generator to output a 500 Hz, +5 dBm triangle waveform signal.

3. Connect the equipment as shown in Figure l-6.

1-22 Calibrating HP 95900 Spectrum Analyzer

6. Sweep Time Accuracy

4. Press @EEY) on the spectrum analyzer and wait for the preset to finish. Set the controls as follows:

ISPAN) 50 IkHz)

Wait for the AUTO ZOOM routine to finish then press the following spectrum analyzer keys:

(SPAN) ZERO SPAN iBW)3(MHz)

[AMPLITUDE_) SCALE LOG LIN (LIN)

(

SWE

E

P

TIMES

20 m

Adjust signal amplitude for a mid-screen display.

5. Set the signal generator AM switch to the AC position.

6. On the spectrum analyzer, press the following keys:

ITRIG) VIDEO

Adjust the video trigger so that the spectrum analyzer is sweeping.

7. Press @EFF). After the completion of the sweep, press

(

PEAK SEARCH

).

If necessary, press

NEXT PEAK until the marker is on the left most signal. This is the “marked signal.”

8- Press MARKER A, MARKER A , then NEXT PK RIGHT until the marker A is on the eighth signal peak. Record the marker A reading in the performance test record as indicated in l%ble 1-8.

9. Repeat steps 6 through 8 for the remaining sweep time settings listed in ‘Ihble l-8.

‘lhble 1-8. Sweep Time Accuracy

Spectrum Analyzer Synthesizer/Level Minimum TR Entry Maximum

Sweep Time Setting Generator Frequency Reading (MKR

A)

Reading

20 ms

100 ms

1s

10 s

500 Hz

100 Hz

10 Hz

1 Hz

15.4 ms

77.0 ms

770.0 ms

7.7 s

6-l

6-2

6-3

6-4

16.6 ms

83.0 ms

830.0 ms

8.3 s

HP 95900 Spectrum Analyzer

Calibrating 1-23

7. Scale Fidelity

A 50 MHz CW signal is applied to the INPUT 50 61 of the analyzer through two step attenuators.

The attenuators increase the effective amplitude range of the source. The amplitude of the source is decreased in 10 dB steps and the analyzer marker functions are used to measure the amplitude difference between steps. The source’s internal attenuator is used as the reference standard. The test is performed in both log and linear amplitude scales.

The related adjustment for this performance test is “Log and Linear Amplitude Adjustment.”

Equipment Required

Synthesizer/level generator

Attenuator, 1 dB step

Attenuator, 10 dB step

Cable, BNC, 122 cm (48 in)

Cable, BNC, 20 cm (9 in)

Adapter, Type N (m) to BNC (f)

Adapter, Type BNC (m) to BNC (m)

Additional Equipment for Option 001

Adapter, minimum loss

Adapter, Type N (f) to BNC (m), 75 62

Caution

Use only 75 62 cables, connectors, or adapters on the 75 61 input of an Option

001 or damage to the input connector will occur.

SPECTRUM ANALYZER

\ f’

- 5orl

“A;: 888 8 ; ODD 8x& c3-

00 E: 888 8

0

0 0

-

I

I*

-----

I

, ADAPTER

; MINIMUM

, LOSS

, ADAPTER

I - - - - -

ADAPTER

I N P U T 5OfI

ATTENUATOR ATTENUATOR

-^-------

I

Figure 1-7. Scale Fidelity Test Setup

1-24 Calibrating HP 85901) Spectrum Analyzer

7. Scale Fidelity

Procedure

Log Scale

1.

Set the synthesizer/level generator controls as follows:

FREQUENCY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..50MHz

AMPLITUDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +lOdBm

AMPTDINCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..O.O5dB

OUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 D

2.

Connect the equipment as shown in Figure l-7. Set the 10 dB step attenuator to 10 dB attenuation and the 1 dB step attenuator to 0 dB attenuation.

Option 001 only:

Set the attenuation of the 10 dB step attenuator to 0 dB. Connect the minimum loss pad to the INPUT 75 9 using adapters.

3.

Press [PRESET] on the spectrum analyzer, then wait for the preset routine to finish. Set the spectrum analyzer by pressing the following keys:

FREQUENCY]

50 (MHz_)

b1om

Option 001 only:

Press

[

AMPLITUDE

),

Mare 1 of 2 , Amptd Units , then dl3m.

[PEAK S E A R C H )

[-FCTN) MK TRACK ON OFF (ON)

m 50 m

Wait for the auto zoom routine to finish, then set the resolution bandwidth and the video bandwidth by pressing the following keys: lewJ

RES BW AUTO MAN 3 IkHz)

VID BW AUTO MAN 30IHz)

4.

If necessary, adjust the 1 dB step attenuator attenuation until the MKR amplitude reads between 0 dBm and -1 dBm.

5.

On the synthesizer/level generator, press AMPLITUDE and use the increment keys to adjust the amplitude until the spectrum analyzer MKR amplitude reads 0 dBm f0.05 dB.

It may be necessary to decrease the resolution of the amplitude increment of the synthesizer/level generator to 0.01 dB to obtain a MKR reading of 0 dBm f0.05 dB.

6.

On the spectrum analyzer, press

[

PEAK SEARCH

]

then MARKER A .

7.

8.

Set the synthesizer/level generator AMPTD INCR to 4 dB.

On the synthesizer/level generator, press AMPLITUDE, then increment down to step the synthesizer/level generator to the next lowest nominal amplitude listed in ‘Iable l-9.

9.

Record the Actual MKR A amplitude reading in the performance test record as indicated in

‘Ihble l-9. The MKR amplitude should be within the limits shown.

10.

Repeat steps 8 through 9 for the remaining synthesizer/level generator Nominal Amplitudes listed in ‘Iable l-9.

HP 9590D Spectrum Analyzer Calibrating 1-25

7. Scale Fidelity

11. For each Actual MKR A reading recorded in Table 1-9, subtract the previous Actual MKR

A reading. Add 4 dB to the number and record the result as the incremental error in the performance test record as indicated in ‘lkble l-9. The incremental error should not exceed

0.4 dB/4 dB.

‘Ihble 1-9. Cumulative and Incremental Error, Log Mode

Synthesizer/Level dB from TR Entry TR Entry

Generator Ref Level Cumulative Error (Incrementi

Nominal Amplitude (nominal) (MKR A Reading) Error)

WW

Min. (dB) Actual (dB) Max. (dB) TR Entry

+ 10 0 0 (Ref) 0 (Ref)

0 VW 0 (Ref)

+6 - 4 -4.44 7-l -3.56 7-18

+2 - 8 -8.48 7-2 -7.52 7-19

- 2 - 1 2 - 12.52 7-3 -11.48 7-20

- 6 - 1 6 -16.56 7-4 -15.44 7-21

- 1 0 - 2 0 -20.60 7-5 -19.40 7-22

- 1 4 - 2 4 -24.64 7-6 -23.36 7-23

- 1 8 - 2 8 -28.68 7-7 -27.32 7-24

- 2 2 - 3 2 -32.72 7-8 -31.28 7-25

- 2 6 - 3 6 -36.76 7-9 -35.24 7-26

- 3 0 - 4 0 -40.80 7-10 -39.20 7-27

- 3 4 - 4 4 -44.84 7-11 -43.16 7-28

- 3 8 - 4 8 -48.88 7-12 -47.12 7-29

- 4 2 - 5 2 -52.92 7-13 -51.08 7-30

- 4 6 - 5 6 -56.96 7-14 -55.04 7-31

- 5 0 - 6 0 -61 .OO 7-15 -59.00 7-32

- 5 4 - 6 4 -65.04

7-16 -62.96

N/A

- 6 8 - 6 8 -69.08 7-17 -66.92

N/A

Linear Scale

12. Set the synthesizer/level generator controls as follows:

AMPLITUDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . + 10 dBm

AMPTDINCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...0.05 dB

13. Set the 1 dB step attenuator to 0 dB attenuation.

1-26 Calibrating HP 9590D Spectrum Analyzer

7. Scale Fidelity

14. Press (j-j on the spectrum analyzer, then wait for the preset routine to finish. Set the spectrum analyzer by pressing the following keys:

[m) SCALE LOG LIN (LIN)

Option 001 only:

Press

Mare

I of 2, INPUT Z 50 R 75 R (50 0).

[ [

P E A K

S E A R C H )

VID BW AUTO MAN 300

15. If necessary, adjust the 1 dB step attenuator attenuation until the MKR reads approximately 223.6 mV. It may be necessary to decrease the resolution of the amplitude increment of the synthesizer/level generator to 0.01 dB to obtain a MKR reading of

223.6

mV f 0.4 mV.

16. On the synthesizer/level generator, press AMPLITUDE, then use the increment keys to adjust the amplitude until the spectrum analyzer MKR amplitude reads 223.6 mV

+/-

0.4 mV.

1’7. On the spectrum analyzer, press

(

PEAK SEARCH

],

[MKRJ, then MK TRACK ON OFF (OFF).

18. Set the synthesizer/level generator amplitude increment to 3 dB.

19. On the synthesizer/level generator, press AMPLITUDE, then increment down to step the synthesizer/level generator to the next lowest Nominal Amplitude listed in Table l-10.

20. Record the MKR amplitude reading in the performance test record as indicated in

‘Ihble l-10. The MKR amplitude should be within the limits shown.

21. Repeat steps 21 and 22 for the remaining synthesizer/level generator Nominal Amplitudes listed in ‘Iable l-10.

‘able l-10. Scale Fidelity, Linear Mode

Synthesizer/Level

Generator

Nominal Amplitude

T

R

Max. (mV)

+ 10 dBm

+7 dBm

+4dBm

+l dBm

- 2 dBm

100 0 (Ref)

70.7 151.59

50 105.36

35.48 72.63

25 49.46

0 VW

7-33

7-34

7-35

7-36

0 (Ref)

165.01

118.78

86.05

82.88

HP 9590D Spectrum Analyzer Calibrating 1-27

7. Scale Fidelity

Log to Linear Switching

22. Set the 10 dB step attenuator to 10 dB attenuation and the 1 dB step attenuator to 0 dB attenuation.

23. Set the synthesizer controls as follows:

FREQUENCY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..50MHz

AMPLITUDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6dBm

24. On the spectrum analyzer, press (PRESET), then wait for the preset routine to finish. Set the spectrum analyzer by pressing the following keys:

(EJ 300 (kHz)

25. On the spectrum analyzer, press the following keys:

( P E A K

S E A R C H )

(MKRJ MARKER +REF LVL

( P E A K

S E A R C H )

26. Record the peak marker reading in Log mode below.

L o g M o d e A m p l i t u d e R e a d i n g - dBm

27. Press C-1 SCALE LOG LIM (LIN) to change the scale to linear, then press

More 1 of 2, Amptd Units , and dBm to set the amplitude units to dBm.

28. Press

(PEAK

SEARCH

),

then record the peak marker amplitude reading in linear mode.

Linear Mode Amplitude Reading- dBm

29.

Subtract the Linear Mode Amplitude Reading from the Log Mode Amplitude Reading, then record this value ad the Log/Linear Error.

Log/Linear Error dB

30.

If the Log/Linear Error is less than 0 dB, record this value as TR Entry 7-37 in the performance test record. The absolute value of the reading should be less than 0.25 dB. If the Log/Linear Error is greater than 0 dB, continue with the next step.

31.

On the spectrum analyzer, press the following keys:

(-- MARKER +REF LVL

(

P E A K

S E A R C H ]

32. Record the peak marker amplitude reading in linear mode.

Linear Mode Amplitude Reading- dBm

33. On the spectrum analyzer, press the following keys:

(AMPLITUDE)SCALE LOG LIN

(LOG)

[PEAK S E A R C H )

1-29 Calibrating HP 859OD Spectrum Analyzer

7. Scale Fidelity

34. Record the peak marker reading in Log mode below.

Log Mode Amplitude Reading dBm

35. Subtract the Log Mode Amplitude Reading from the Linear Mode Amplitude Reading, then record this value ad the Linear/Log Error.

Linear/Log Error dB

36. Record the Linear/Log Error as TR Entry 7-37 in the performance test record. The absolute value of the reading should be less than 0.25 dB.

HP 95900 Spectrum Analyzer

Calibrating 1-29

8. Reference Level Accuracy

A 50 MHz CW signal is applied to the INPUT 50 62 of the spectrum analyzer through two step attenuators. The attenuators increase the effective amplitude range of the source.

The amplitude of the source is decreased in 10 dB steps and the spectrum analyzer marker functions are used to measure the amplitude difference between steps. The source’s internal attenuator is used as the reference standard. The test is performed in both log and linear amplitude scales.

It is only necessary to test reference levels as low as -90 dBm (with 10 dB attenuation) since lower reference levels are a function of the spectrum analyzer microprocessor manipulating the trace data. There is no error associated with the trace data manipulation.

The related adjustment for this procedure is “A12 Cal Attenuator Error Correction.”

Equipment Required

Synthesizer/level generator

Attenuator, 1 dB steps

Attenuator, 10 dB steps

Cable, BNC 122 cm (48 in) (two

required)

Adapter, Type N (m) to BNC (f)

Adapter, BNC (m) to BNC (m)

Additional Equipment for Option 001

Adapter, minimum loss

Adapter, Type N (f) to BNC (m) 75 61

Caution

Use only 75 9 cables, connectors, or adapters on the 75 51 input of an Option

001 or damage to the input connector will occur.

SPECTRUM ANALYZER

I(’

SYNTHESIZER/LEVEL

GENERATOR

.

,

I *

- - - - -

I

; ADAPTER

; MINIMUM

, LOSS

, ADAPTER

I-----.

ADAPTER

I N P U T 50*

ATTENUATOR ATTENUATOR

-

I

Figure 1-8. Reference Level Accuracy Test Setup l-30 Calibrating HP 9590D Spectrum Analyzer

8. Reference Level Accuracy

Procedure

Log Scale

1.

Set the synthesizer/level generator controls as follows:

2.

Connect the equipment as shown in Figure 1-8. Set the 10 dB step attenuator to 10 dB attenuation and the 1 dB step attenuator to 0 dB attenuation.

Option 001 only:

Connect the minimum loss adapter to the RF input 75 hl, using adapters, and set the 10 dB step attenuator to 0 dB attenuation.

3.

FREQUENCY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..50MHz

AMPLITUDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -10 dBm

AMPTDINCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10dB

OUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 fl

Press [PRESET] on the spectrum analyzer, then wait for the preset routine to finish. Set the spectrum analyzer by pressing the following keys:

FREQUENCY]

50 IhnHz)

&lOW

[

P E A K

S E A R C H )

(m- MK TRACK ON OFF (ON)

(SPAN) 50 [kHz)

Option001 only:

PressCAMPLITUDEj,

More

1 of 2, Amptd Units, then dBm.

CAMPLITUDE)

-2Om SCALE LOG LIN (LOG)[email protected]

iBW)3IkHz_)

VID BW AUTO MAN 300

4.

Set the 1 dB step attenuator to place

the

signal peak one to two dB (one to two divisions) below the reference level.

5.

On the spectrum analyzer, press the following keys:

(SGL-

[

PEAK SEARCH

]

MARKER h

6.

Set the synthesizer/level generator amplitude and spectrum analyzer reference level according to Table l-11. At each setting, press (sGLSWPI) on the spectrum analyzer.

7.

Record the MKR A amplitude reading in the performance test record as indicated in

‘Ihble l-l 1. The MKR A reading should be within the limits shown.

HP 9590D Spectrum Analyzer Calibrating 1-31

8. Reference Level Accuracy

‘l’hble l-l 1. Reference Level Accuracy, Log Mode

Synthesizer/Level Spectrum Analyzer MKR A Reading (dB) knerator Amplitude Reference Level

Wm) Pm)

Min. TR Entry Max.

- 1 0 - 2 0 0 (Ref) O(Ref) 0 (Ref)

0 - 1 0 - 0 . 4 8-1 +0.4

+ 10 0 - 0 . 5 8-2 + 0.5

- 2 0 - 3 0 - 0 . 4 8-3 + 0.4

- 3 0 - 4 0 - 0 . 5 8-4

+0.5

- 4 0 - 5 0 - 0 . 8 8-5

+0.8

- 5 0 - 6 0 - 1 . 0 8-6 + 1.0

- 6 0 - 7 0 -1.1 8-7 + 1.1

- 7 0 - 8 0 -1.2 8-8

- 8 0 - 9 0 - 1 . 3 8-9

+1.2

+1.3

Linear Scale

8. Set the synthesizer/level generator amplitude to -10 dBm.

9. Set the 1 dB step attenuator to 0 dB attenuation,

10. Set the spectrum analyzer controls as follows:

(

A M P L I T U D E

]

- 2 0 m

SCALE LOG LIN (LIN)

CAMPLITUDE)

More 1 of 2 Amptd Units dBm

@EEF-- SWEEP CONT SGL (CONT)

INIKR)

More I of 2 MARKER ALL OFF

11. Set the 1 dB step attenuator to place the signal peak one to two divisions below the reference level.

12. On the spectrum analyzer, press the following keys:

[PEAK S E A R C H ]

MARKER n

(mFCTNI) MK TRACK ON OFF (OFF)

13. Set the synthesizer/level generator amplitude and spectrum analyzer reference level according to Table 1-12. At each setting, press CsGLSWPI) on the spectrum analyzer.

14. Record the MKR A amplitude reading in ‘lhble 1-12. The MKR A reading should be within the limits shown.

1-32 Calibrating HP 95900 Spectrum Analyzer

8. Reference Level Accuracy

‘able 1-12. Reference Level Accuracy, Linear Mode

Synthesizer/Level Spectrum Analyzer knerator Amplitude Reference Level

WW (dBm)

MKR A Reading (dR)

Min.

TR Entry Max.

- 1 0

0

+ 10

- 2 0

- 3 0

- 4 0

- 5 0

- 6 0

- 7 0

- 8 0

- 2 0

- 1 0

0

- 3 0

- 4 0

- 5 0

- 6 0

- 7 0

- 8 0

- 9 0

0 Wfl

- 0 . 4

- 0 . 5

- 0 . 4

- 0 . 5

- 0 . 8

- 1 . 0

-1.1

-1.2

- 1 . 3

0 (Ref)

S-10

8-11

8-12

8-13

8-14

8-15

8-16

8-17

8-18

0 (Ref)

+0.4

+0.5

+0.4

+ 0.5

+ 0.8

+l.O

+ l . l

+1.2

+1.3

HP 859OD Spectrum Analyzer

Calibrating 1-33

9. Absolute Amplitude Calibration and Resolution Bandwidth

Switching Uncertainties

To measure the absolute amplitude calibration uncertainty the input signal is measured after the self-Cal routine is finished.

To measure the resolution bandwidth switching uncertainty an amplitude reference is taken with the resolution bandwidth set to 3 kHz using the marker-delta function. The resolution bandwidth is changed to settings between 3 MHz and 1 kHz and the amplitude variation is measured at each setting and compared to the specification. The span is changed as necessary to maintain approximately the same aspect ratio.

The related adjustment procedure for this performance test is “Crystal and LC Bandwidth

Adjustment. ”

Equipment Required

Cable, BNC, 23 cm (9 in)

Adapter, Type N (m) to BNC (f)

Additional Equipment for Option 001

Cable, BNC, 75 0, 30 cm (12 in)

Caution

Use only 75 61 cables, connectors, or adapters on the 75 Q input of an Option

001 or damage to the input connector will occur.

SPECTRUM ANALYZER

ADAPTER

F

Figure 1-9. Uncertainty Test Setup

XYliO

1-34 Calibrating HP 8590D Spectrum Analyzer

9. Absolute Amplitude Calibration and Resolution Bandwidth Switching Uncertainties

Procedure

1.

Connect the CAL OUT to the spectrum analyzer input using the BNC cable and adapter, as shown in Figure l-9.

Option 001

only: Use the 75 62 cable and omit the adapter.

2.

Press [PRESET] on the spectrum analyzer, then wait for the preset routine to finish. Set the spectrum analyzer controls by pressing the following keys:

(SPAN)10-

@EAK S E A R C H ]

[MKR) MK TRACK ON OFF (ON)

VID BW AUTO MAN 300(%J

Option 001 only:

Press [AMPLITUDE], More I of 2 , Amptd Units , then clBm .

3.

Press

(

PEAK SEARCH

],

then record the marker reading in TR Entry 9-l of the performance test record.

The marker reading should be within -20.15 and -19.85 dB.

4.

Press c-1 on the spectrum analyzer, then wait for the preset routine to finish. Set the spectrum analyzer controls by pressing the following keys:

(j”I’KRFCTNI) MK TRACK ON OFF (ON)

Option 001

only:

Press

[

AMPLITUDE

],

More 1 of 2 , Amptd Units , then dBm .

m 50 m

~AMPLITUDE) -20 m

SCALE LOG LIN (LOG) 1 (dB)

(BW)3(kHz)

VID BW AUTO MAN 1 (kHz)

5.

Press Cm) and use the knob to adjust the reference level until the signal appears one division below the reference level, then press the following keys:

( P E A K S E A R C H ) MARKER A

(NlKR] MK TRACK ON OFF (OFF)

6.

7.

Set the spectrum analyzer resolution bandwidth and span according to Table 1-13.

Press

[

PEAK SEARCH

),

then record the MKR A TRK amplitude reading in the performance test record as indicated in ‘lhble 1-13.

The amplitude reading should be within the limits shown.

8.

Repeat steps 6 through 7 for each of the remaining resolution bandwidth and span settings listed in Table 1-13.

HP 8590D Spectrum Analyzer Calibrating 1-35

9. Absolute Amplitude Calibration and Resolution Bandwidth Switching Uncertainties

‘Ihble 1-13. Resolution Bandwidth Switching Uncertainty

I

Spectrum Analvzer

RES BW Setting; !JPAN Setting

-L

MKR A TRK Amplitude Reading

Min. (dB) l’R Entry Max. (dB)

3 kHz

1 kHz

9 kHz

10 kHz

30 kHz

100 kHz

120 kHz

300 kHz

1 MHz

3 MHz

50 kHz

50 kHz

50 kHz

50 kHz

500 kHz

500 kHz

500 kHz

5 MHz

10 MHz

10 MHz

0 (Ref)

-0.5

-0.4

-0.4

-0.4

-0.4

-0.4

-0.4

-0.4

-0.4

0 (Ref)

9-2

9-3

9-4

9-5

9-6

9-7

9-8

9-9

B-10

0 (Ref)

+0.5

+0.4

+0.4

+0.4

+0.4

+0.4

+0.4

+0.4

+0.4

l-36 Calibrating HP 8590D Spectrum Analyzer

10. Calibrator Amplitude and Frequency Accuracy

10. Calibrator Amplitude and Frequency Accuracy

This test measures the accuracy of the spectrum analyzer CAL OUT signal. The first part of the test characterizes the insertion loss of a Low Pass Filter (LPF) and 10 dB attenuator. The harmonics of the CAL OUT signal are suppressed with the LPF before the amplitude accuracy is measured using a power meter. A frequency counter is used to measure the frequency accuracy of the CAL OUT signal and the measured frequency is compared to the specification.

The related adjustments for this procedure are:

Calibrator Amplitude Adjustment

Third Converter, 600 MHz Frequency Adjustment

Equipment Required

Microwave frequency counter

Low pass filter, 300 MHz

Synthesized sweeper

Measuring receiver (used as a power meter)

Power meter

Low power sensor with a 50 MHz reference attenuator

Power sensor

Power splitter

10 dB attenuator, Type N (m to f), dc-12.4 GHz Option 010

Cable, BNC, 121 cm (48 in)

Cable, Type N, 152 cm (60 in)

Adapter, APC 3.5 (f) to Type N (f)

Adapter, Type N (f) to BNC (m) (2 required)

Adapter, Type N (m) to BNC (f)

Additional Equipment for Option 001

Cable, BNC, 75 Q

Adapter, Type N (f) to Type N (f), 75 61

Adapter, minimum loss

Adapter, mechanical, 75 Q to 50 D

Adapter, Type N (f) 75 62 to BNC (m) 75 t?

HP 859lJD Spectrum Analyzer

Calibrating 1-37

10. Calibrator Amplitude and Frequency Accuracy

Caution

Use only 75 0 cables, connectors, or adapters on the 75 D input of an Option

001 or damage to the input connector will occur.

SYNTHESIZED SWEEPER

MEASURING RECEIVER m&OR

POWER METFD

R F O U T P U T

XYlll

T Y P E N

C A B L E

O P T I O N 001 O N L Y

10dB

ATTENUATOR

LOW PASS

F I L T E R

POWER

SENSOR

___------ e------m-

MINIMUM LOSS

ADAPTER i

I

:

ADAPTER

LOW PASS

F I LTER

I

MECHANICAL

ADAPTER

ADAPTER

/ . . . . . . . . . . . . . . . . .

Figure l-10. LPF Characterization

1-38 Calibrating

HP 8590D Spectrum Analyzer

10. Calibrator Amplitude and Frequency Accuracy

Procedure

Part 1: LPF, Attenuator, and Adapter Insertion Loss Characterization

1. Zero and calibrate the measuring receiver and power sensor in LOG mode as described in the measuring receiver operation manual.

Caution

Do not attempt to calibrate the low power sensor without the reference attenuator or damage to the low power sensor will occur.

2. Zero and calibrate the power meter and the low power sensor, as described in the power meter operation manual.

3. Press INSTRUMENT PRESET on the synthesized sweeper. Set the controls as follows:

CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..300MHz

POWER LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -15 dBm

4. Connect the equipment as shown in Figure l-10. Connect the low power sensor directly to the power splitter (bypass the LPF, attenuator, and adapters). Allow the power sensors to settle before proceeding.

5. On the measuring receiver, press RATIO mode. Power indication should be 0 dB.

6. On the power meter, press the dB REF mode key. Power indication should be 0 dB.

7. Connect the LPF, attenuator and adapters as shown in Figure l-10.

8. Record the measuring receiver reading in dB. This is the relative error due to mismatch.

Mismatch Error dB

9. Record the power meter reading in dB. This is the relative uncorrected insertion loss of the

LPF, attenuator, and adapters.

Uncorrected Insertion Loss dB

10. Subtract the Mismatch Error (step 8) from the Uncorrected Insertion Loss (step 9). This is the Corrected Insertion Loss.

Corrected Insertion Loss dB

Example: If the Mismatch Error is +0.3 dB and the Uncorrected Insertion Loss is -10.2 dB, subtract the mismatch error from the insertion loss to yield a corrected reading of

-10.5 dB.

HP 85900 Spectrum Analyzer Calibrating 1-39

10. Calibrator Amplitude and Frequency Accuracy

Part 2: Calibrator Amplitude Accuracy

Caution

Use only 75 62 cables, connectors, or adapters on the 75 62 input of an Option

001 or damage to the input connector will occur.

SPECTRUM ANALYZER

POWER METER

O U T P U T

I

,_ . . . . . . . .

~OPTION 001

O N L Y

;

A -

ADAPTER

ATTENUATOR

LOW PASS

XYli2

Figure l-11. Calibrator Amplitude Accuracy Test Setup

11. Connect the equipment as shown in Figure l-l 1. The spectrum analyzer should be positioned so that the setup of the adapters, LPF, and attenuator do not bind. It may be necessary to support the center of gravity of the devices.

12. On the power meter, press the dBm mode key. Record the power meter Reading in dBm.

Power Meter Reading dBm

l-40 Calibrating

HP 859OD Spectrum Analyzer

10. Calibrator Amplitude and Frequency Accuracy

13. Subtract the Corrected Insertion Loss (step 10) from the power meter Reading (step 12) and record this value as TR Entry 10-l in the performance test record. The CAL OUT should be

-20 dBm f0.4 dB.

CAL OUT Power = Power Meter Reading - Corrected Insertion Loss

Example: If the Corrected Insertion Loss is -10.0 dB, and the measuring receiver reading is -30 dB, then -30 dB - (-10.0 dB) = -20 dB

Option 001 only:

The CAL OUT power measured on 75 62 instruments will be the same as

50 D instruments. To convert from dBm to dBmV use the following equation. Record this value as TR Entry 10-l in the performance test record.

Example: -20 + 48.75 = 28.75.

dBmV = dBm + 48.75 dB

CAL OUT Power dBmV

Skip Part 3 if your spectrum analyzer is equipped with Option 013 and do performance test number 22 “10 MHz Reference Output Accuracy” instead.

Part 3: Calibrator Frequency Accuracy

SPECTRUM ANALYZER

FREQUENCY COUNTER

C A L O U T lOti-500MHz 1

I N P U T

XY113

Figure 1-12. Calibrator Frequency Accuracy Test Setup

14. Connect the equipment as shown in Figure 1-12.

Option 001 only:

Use a 75 Q cable instead of a 50 62 cable.

15. Set the frequency counter controls as follows:

SAMPLERATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Midrange

50f?/lM DSWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...5061

10 Hz-500 MHz/500 MHz-26.5 GHz SWITCH . . . . . . . . . . . . . . . . . . . . . 10 Hz-500 MHz

16. Wait for the frequency counter to settle. This may take two or three gate times.

17. Read the frequency counter display. Record this value as TR Entry 10-2 in the performance test record.

HP 859OD Spectrum Analyzer Calibrating 1-41

11. Frequency Response

The output of the synthesized sweeper is fed through a power splitter to a power sensor and the spectrum analyzer. The synthesized sweeper’s power level is adjusted at 300 MHz to place the displayed signal at the spectrum analyzer center horizontal graticule line. The measuring receiver, used as a power meter, is placed in RATIO mode. At each new sweeper frequency and spectrum analyzer center frequency setting, the sweeper’s power level is adjusted to place the signal at the center horizontal graticule line. The measuring receiver displays the inverse of the frequency response relative to 300 MHz (CAL OUT frequency).

Testing the flatness of Option 001, INPUT 75 61, is accomplished by first characterizing the system flatness.

The related adjustment for this procedure is the “Frequency Response Error Correction.”

Equipment Required

Synthesized sweeper

Measuring receiver (used as a power meter)

Synthesizer/level generator

Power sensor

Power splitter

Adapter, Type N (f) to APC 3.5 (f)

Adapter, Type N (m) to Type N (m)

Cable, BNC, 122 cm (48 in)

Cable, Type N, 183 cm (72 in)

Additional Equipment for Option 001

Power meter

Power sensor

Adapter, Type N (f) 75 0 to Type N (m) 50 62

Adapter, Type N (m) to BNC (m), 75 D

Cable, BNC, 120 cm (48 in) 75 Q

1-42 Calibrating HP 859OD Spectrum Analyzer

11. Frequency Response

System Characterization Procedure for Option 001

SYNTHESIZED SWEEPER

POWER METER

T Y P E N

CABLE

A S S Y

0

AD‘APTER

MECHANICAL

XY114

Figure 1-13. System Characterization Test Setup (Option 001)

1. Zero and calibrate the measuring receiver and the power sensor as described in the measuring receiver operation manual.

2. Zero and calibrate the power meter and the power sensor as described in the power meter operation manual.

3. Press INSTRUMENT PRESET on the synthesized sweeper then set the controls as follows:

CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 MHz

FREQSTEP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..50MHz

POWERLEVEL.........................................................5dBm

4. Connect the equipment as shown in Figure 1-13.

5. Adjust the synthesized sweeper power level for a 0 dBm reading on the measuring receiver.

6. Record the power meter reading in Column 4 of ‘Iable 1-14, taking into account the Cal

Factors of both the power sensors.

7. On the synthesized sweeper, press Icw), and m (step-up key), to step through the remaining frequencies listed in Table 1-14. At each new frequency repeat steps 5 and 6, entering each power sensor’s Cal Factor into the respective power meter.

HP 85900 Spectrum Analyzer Calibrating 1-43

11. Frequency Response

Caution

Use only 75 61 cables, connectors, or adapters on the 75 61 input of an Option

001 or damage to the input connector will occur.

SYNTHESIZED SWEEPER

MEASURING RECEIVER

SPECTRUM ANALYZER

R F O U T P U T

T Y P E N

CABLE

A S S Y

ADAPTER

POWER SENSOR

I

ADAPTER 1

Figure 1-14. Frequency Response Test Setup, 250 MHz

SYNTHESIZED SWEEPER

SPECTRUM ANALYZER

-

R F O U T P U T

r

ADAPTER

T Y P E

CABLE

A S S Y

N

POWER SENSOR

ADAPTER

MECHANICAL

ADAPTER

Figure 1-15. Frequency Response Test Setup, 250 MHz, for Option 001

Procedure

1. Zero and calibrate the measuring receiver and the power sensor in log mode as described in the measuring receiver operation manual.

2. Connect the equipment as shown in Figure 1-14.

Option 001 only:

Refer to Figure l-15.

1-44 Calibrating HP 8590D Spectrum Analyzer

11. Frequency Response

3. Press INSTRUMENT PRESET on the synthesized sweeper and set the controls as follows:

CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .300 MHz

FREQSTEP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..50MHz

POWERLEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -8 dBm

4. On the spectrum analyzer, press [PRESETI) and wait for the preset to finish. Set the spectrum analyzer controls as follows:

(

FREQUENCY

)

300 LhnHz)

CF STEP AUTO MAN 50LNIHz)

ISPAN) 1oIhnHz)

(Option 001 on&:

Press cm’, More i of 2, Amptd Units , then dBm .

0 (-dem)

SCALE LOG LIN (LOG) 1 (XJ

(BW)l[MHz)

VI5 3W AUTO #AN 3 IkHz)

5. On the spectrum analyzer, press

(

PEAK SEARCH

],

(MKR), then

MK

TRACK ON OFF (ON).

6. Adjust the synthesized sweeper power level for a MKR-TRK amplitude reading of -14 dBm f0.05 dB.

7. Set the sensor Cal Factor on the measuring receiver and then press m.

8. Set the synthesized sweeper CW to 50 MHz.

9. Set the spectrum analyzer

Center frequency to 50

MHz by

pressing’(FREQUENCY) 50 (MHz).

10. Adjust the synthesized sweeper power level for a spectrum analyzer MKR-TRK amplitude reading of -14 dBm f0.05 dB.

11. Set the sensor Cal Factor on the measuring receiver and record the negative of the power ratio here and in ‘lhble 1-14.

Negative of Measuring Receiver Reading at 50 MHz dB

12. Set the synthesized sweeper CW to 100 MHz.

13. Set the spectrum analyzer center frequency to 100 MHz by pressing

[

FREQUENCY

)

100 (MHz).

14. Adjust the synthesized sweeper power level for a spectrum analyzer MKR-TRK amplitude reading of -14 dBm f0.05 dB.

15. Set the sensor Cal Factor on the measuring receiver and record the negative of the power ratio displayed on the measuring receiver in ‘lhble 1-14 as the Error Relative to 300 MHz.

16. On the synthesized sweeper, press Icw), and m (step-up key), and on the spectrum analyzer, press I-], and a (step-up key), to step through the remaining frequencies listed in Table 1-14. At each new frequency repeat steps 14 through 16, entering the power sensor’s Cal Factor into the measuring receiver as indicated in

Table 1-14.

HP 8590D Spectrum Analyzer Calibrating 1-45

11. Frequency Response

SPECTRUM ANALYZER

Figure 1-16. Frequency Response Test Setup

(~50

MHz)

17.

Using a cable, connect the synthesizer/level generator directly to the INPUT 50 9. Refer to

Figure 1-16.

Option 001 only:

Using a 75 9 cable, connect the synthesizer/level generator from the 75 61

OUTPUT to the INPUT 75 Q and set the 50-75 n switch to the 75 61 position.

Set the synthesizer/level generator controls as follows:

FREQUENCY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..50MHz

AMPLITUDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -15dBm

AMPTD INCR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.05 dB

18.

On the spectrum analyzer press the following keys:

(SPAN) 10INIHz)

(FREQUENCY)

50 [MHz)

(

PEAK

SEARCH)

(jjFCTN) MK TRACK ON OFF (ON)

(SPAN) 100 (kHz)

Wait for AUTO ZOOM to finish, then press the following spectrum analyzer keys: lsw)3(kHz)

VIII BW AUTO MAN 1 (kHz)

19.

Adjust the synthesizer/level generator Amplitude until the MKR-TRK reads -14 dBm. This corresponds to the amplitude at 50 MHz recorded in step 11. Record the synthesizer/level generator amplitude below.

Amplitude Setting (50 MHz) dBm

20.

On the spectrum analyzer, press MARKER A , t-1, then MK TRACK ON OFF (ON).

21.

Set the synthesizer/level generator frequency to 20 MHz.

22.

On the spectrum analyzer, press the following keys:

(FREQUENCY)

CF STEP AUTO MAN 3OIrvlHz)

(FREQUENCY)

(-J-J (step-down key)

l-46 Calibrating HP 9590D Spectrum Analyzer

11. Frequency Response

23. Adjust the synthesizer/level generator amplitude for a MKR A-TRK amplitude reading of

0.00 ±0.05 dB. Record this amplitude setting in ‘Ihble 1-15 in Column 2 at 20 MHz.

24. Repeat steps 21 through 23 for each of the frequencies listed in Table 1-15. Change the spectrum analyzers’s center frequency step size to the relative frequency change for each new frequency (for example, use 10 MHz CF STEP size when changing from 20 MHz to

10 MHz).

Option 001 only:

Do not test below 1 MHz.

When measuring the 50 kHz center-frequency flatness and below, there will be two signals on screen, the LO feedthrough and the signal from the synthesizer/level generator. Ensure that the marker is on the signal from the synthesizer/level generator (to the right of the LO feed through).

25. For each of the frequencies in ‘Ihble 1-15, subtract the synthesizer/level generator

Amplitude Reading (column 2) from the synthesizer/level generator Amplitude setting

(50 MHz) recorded in step 19. Record the result as the Response Relative to 50 MHz

(column 3) in ‘lhble 1-15.

26. Add to each of the Response Relative to 50 MHz entries in Table 1-15 the measuring receiver Reading at 50 MHz recorded in step 11. Record the results as the Response

Relative to 300 MHz (column 4) in Table 1-15.

27. Option 001 only:

Starting with the error at 50 MHz, subtract Column 4 (System Error) to

Column 2 (Error Relative to 300 MHz) and record the result in Column 5 (Corrected Error

Relative to 300 MHz).

Test Results

Perform the following steps to verify the frequency response of the spectrum analyzer.

1. Enter the most positive number from ‘fable 1-15, column 4:

2. Enter the most positive number from Table 1-14, column 2:

(Option 001 only:

Use column 5.)

3. Record the more positive of numbers from steps 1 and 2 in TR Entry 11-l of the performance test record.

dB dB

4. Enter the most negative number from Table 1-15, column 4:

5. Enter the most negative number from Table 1-14, column 2:

(Option

001

only:

Use column 5.)

6. Record the more negative of numbers from steps 4 and 5 in TR Entry 1 l-2 of the performance test record.

7. Subtract the results of step 6 from the results of step 3. Record this value in TR Entry 11-3 of the performance test record.

The result should be less than 2.0 dB.

dB dB

The absolute values in steps 3 and 6 should be less than 1.5 dB.

HP 8590D Spectrum Analyzer Calibrating 1-47

50

100

150

1100

1150

1200

1250

1300

1350

700

750

800

850

900

950

1000

1050

200

250

300 (Ref)

350

400

450

500

550

600

650

11. Frequency ‘Response

‘Ihble 1-14. Frequency Response Errors Worksheet

Column 1

Frequency

(MHz)

Column 2

Error

Relative to 300 MHz

W) c01llmn 3

Sensor

CAL FACTOR

Frequency (GHz) c01unln 4

System

Error

WI

C&mln 5

(option 001)

Corrected Error

Relative to

300 MHz (dR)

0.03

0.1

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.3

0.3

0.3

0.3

1.0

0.1

0.3

0.3

0.3

1.0

1.0

1.0

1.0

1-48 Calibrating

HP 8590D Spectrum Analyzer

11. Frequency Response

‘I&ble 1-14. Frequency Response Errors Worksheet (continued) column 1

Frequent y

(MHz) column 2

Error

Relative to 300 MHz

WV c01llmn 3

Sensor

CAL FACTOR

Frequent y (GHz)

Column 4

System

Error

Colllmn 6

(Option 001)

Corrected Errol

Relative to

300

MHz (dB)

1400

1650

1700

1750

1800

1450

1500

1550

1600

2.0

2.0

2.0

2.0

2.0

2.0

1.0

1.0

1.0

‘Ihble 1-15. Frequency Response (~50 MHz) Worksheet

Column 1

Frequency column 2

Synthesizer/Level

Generator Amplitude

@ml

Column 3

Response

Column 4

Response

Relative Relative to 50 MHz to 300 MHz

50

MHz

20

MHz

10 MHz

5

MHz

1 MHz

200

kHz

50

kHz

9 kHz

0 (Reference)

I

HP 859OD Spectrum Analyzer

Calibrating 1-49

12. Other Input Related Spurious Responses

A synthesized source and the spectrum analyzer are set to the same frequency and the amplitude of the source is set to -10 dBm. A marker-amplitude reference is set on the analyzer. The source is then tuned to several different frequencies which should generate image responses. At each source frequency, the source amplitude is set to -10 dBm and the amplitude of the response, if any, is measured using the spectrum analyzer marker function.

The marker-amplitude difference is then compared to the specification.

There are no related adjustment procedures for this performance test.

Equipment Required

Synthesized sweeper

Measuring receiver (used as a power meter)

Power sensor

Adapter, Type N (f) to APC 3.5 (f)

Adapter, Type N (f) to Type N (f)

Cable, Type N, 183 cm (72 in)

Additional Equipment for Option 001

Power sensor

Adapter, minimum loss

Adapter, Type N (f) to BNC (m), 75 0

Adapter, Type N (f) to Type N (f)

l-50 Calibrating HP 859OD Spectrum Analyzer

12. Other Input Related Spurious Responses

Caution

Use only 75 cables, connectors, or adapters on the 75 62 input of an Option

001 or damage to the input connector will occur.

SYNTHESIZED SWEEPER

MEASURING RECEIVER

SPECTRUM ANALYZER

\

I

I

I

I

’ * l ADAPTER

T Y P E N C A B L E

I

I

I

I

I

MINIMUM ;

LOSS

POWER SENSOR

ADAPTER

’ MINIMUM ADAPTER I

; ADAPTER I

I LOSS

- - - - - - - - - - - -

I

I

-----------

I

;:

OPT ION 001 ONLY ;

------------d

Figure 1-17. Other Input Related Spurious Test Setup

XY118

Procedure

1. Zero and calibrate the measuring receiver and the power sensor in log mode so that power is read out in dBm. Enter the power sensor’s 542.8 MHz Cal Factor into the measuring receiver.

Option 001 only:

Use 75 61 power sensor.

2. Press INSTRUMENT PRESET on the synthesized sweeper and set the controls as follows:

CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 542.8 MHz

POWER LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -10 dBm

Option 001 only:

POWER LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -14.3 dBm

3. Connect the equipment as shown in Figure l-17. Connect the output of the synthesizer to the power sensor using adapters.

Option 001 only:

Use the minimum loss adapter and 75 D adapter to connect to the 75 Q power sensor.

4. Adjust the synthesized sweeper power level for a -10 dBm *O. 1 dB reading on the measuring receiver.

5. On the synthesized sweeper, press SAVE 1.

6. Enter the power sensor’s Cal Factor for 1142.8 MHz into the measuring receiver.

7. Set the CW frequency on the synthesized sweeper to 1142.8 MHz.

HP 859OD Spectrum Analyzer Calibrating l-51

12.

Other Input Related Spurious Responses

8.

Adjust the synthesized sweeper power level for a - 10 dBm fO.1 dB reading on the measuring receiver.

9.

On the synthesized sweeper, press SAVE 2.

10.

Enter the power sensor’s Cal Factor for 500 MHz into the measuring receiver.

11.

Set the CW frequency on the synthesized sweeper to 500 MHz.

12.

Adjust the synthesized sweeper power level for a - 10 dBm fO.1 dB reading on the measuring receiver.

13.

Connect the synthesized sweeper to the RF INPUT of the spectrum analyzer using the appropriate cable and adapters.

Option

001

only:

Use the minimum loss adapter and 75 Q adapter as shown in Figure 1-17.

14.

On the spectrum analyzer, press (j-1 and wait for the preset to finish then set the controls as follows:

FREQUENCY)

500 @ [email protected]

(

AMPLITUDE

)

0

(-dBm)

0ption 001 only:

Press

(

AMPLITUDE

],

More 1 of 2, Amptd Units, then dBm .

15.

On the spectrum analyzer, press the following keys:

(

PEAK

SEARCH)

(jMKR- MK TRACK ON OFF (ON)

=200(kHz)

Wait for the AUTO ZOOM message to disappear. Press the following spectrum analyzer keys:

[

PEAK

SEARCH)

(jj] MARKER -> REF LVL

(MKR] MK TRACK OM OFF (OFF)

(PEAK SEARCH)

MARKER A

AMPLITUDE

]

(iJJ (step-down key).

&Em-)

16.

For each of the frequencies listed in ‘Ruble 1-16, do the following: a. Set the synthesized sweeper to the listed CW frequency by pressing RECALL 1 for a CW frequency of 542.8 MHz or RECALL 2 for a CW frequency of 1148.8 MHz.

b.

Press [SGL) and wait for the completion of a new sweep.

c. On the spectrum analyzer, press

(

PEAK SEARCH

)

and record the marker-delta amplitude reading in ‘Iable 1-16 as the Actual MKR AAmplitude.

The Actual MKR A Amplitude should be less than the Maximum MKR A Amplitude listed in the table below.

The Maximum MKR A Amplitude is 10 dB more positive than the specification. This is due to the 10 dB change in reference level made in step 15.

l-52 Calibrating

HP 8590D Spectrum Analyzer

12. Other Input Related Spurious Responses

‘I&ble 1-16. Image Responses Worksheet

,

Synthesized Sweeper

CW Frequency

Actual MKR A

Maximum MKR A

L

Amplitude (d&z) Amplitude (dBc)

542.8 MHz

1142.8 MHz

- 5 5

- 5 5

17. Record the Maximum MKR A Amplitude from lhble 1-16 as TR Entry 12-1 in the performance test record.

HP 859OD Spectrum Analyzer

Calibrating 1-53

13. Spurious Response

This test is performed in two parts. The first part measures second-harmonic distortion; the second part measures third-order intermodulation distortion.

To test second harmonic distortion, a 50 MHz low-pass filter is used to filter the source output, ensuring that harmonics read by the spectrum analyzer are internally generated and not coming from the source. To measure the distortion products, the power at the mixer is set 25 dB higher than specified. New test limits have been developed based on this higher power.

With -45 dBm at the input mixer and the distortion products suppressed by 70 dBc, the equivalent Second Order Intercept (SOI) is +25 dBm (-45 dBm + 70 dBc). Therefore, with -20 dBm at the mixer, and the distortion products suppressed by 45 dBc, the equivalent SO1 is also

+25 dBm (-20 dBm + 45 dBc).

For third order intermodulation distortion, two signals are combined in a directional bridge (for isolation) and are applied to the spectrum analyzer input. The power level of the two signals is

8 dB higher than specified, so the distortion products should be suppressed by 16 dB less than specified. In this manner, the equivalent Third Order Intercept (TOI) is measured.

With two -30 dBm signals at the input mixer and the distortion products suppressed by 70 dBc, the equivalent TO1 is +5 dBm (-30 dBm + 70 dBc/B). However, if two -22 dBm signals are present at the input mixer and the distortion products are suppressed by 54 dBc, the equivalent

TO1 is also +5 dBm (-22 dBm + 54 dBc/Z).

Performing the test with a higher power level maintains the measurement integrity while reducing both test time and the dependency upon the source’s noise sideband performance.

There are no related adjustment procedures for this performance test.

It is only necessary to perform “Part 1: Second Harmonic Distortion, 30 MHz” for operation verification.

Equipment Required

Synthesizer/level generator

Synthesized sweeper

Measuring receiver (used as a power meter)

Power sensor, 100 kHz to 1800 MHz

Low pass filter, 50 MHz

Directional bridge

Adapter, Type N (f) to APC 3.5 (f)

Adapter, Type N (f) to BNC (m)

Adapter, Type N (m) to BNC (f)

Adapter, Type N (m) to BNC (m)

Cable, BNC, 120 cm (48 in) (2 required)

Additional Equipment for Option 001

Power sensor

Adapter, mechanical, 75 62 to 50 61

Adapter, minimum loss

Adapter, Type N (f) to BNC (m), 75 0

Adapter, BNC (m) to BNC (m)

l-54 Calibrating HP 8590D Spectrum Analyzer

Caution

13. Spurious Response

Use only 75 62 cables, connectors, or adapters on the 75 fi input of an Option

001 or damage to the input connector will occur.

SYNTHESIZED SWEEPER

MEASURING RECEIVER r-3

SPECTRUM ANALYZER

/ \

ADAPTER

T Y P E N C A B L E

I

I

POWER SENSOR

ADAPTER

’ MINIMUM ADAPTER I

’ ADAPTER I

\

I

I

I

1 ADAPTER

MINIMUM ’

LOSS

ADAPTER ’

I

- - - c - - - - w - -

;

, OPT ION 001 ONLY ;

---_-B-_-_--d

Figure 1-18. Second Harmonic Distortion Test Setup, 30 MHz

XYli8

Procedure

Part 1: Second Harmonic Distortion, 30 MHz

1. Set the synthesizer/level generator controls as follows:

FREQUENCY ~........................................................30MHz

AMPLITUDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -1OdBm

AMPLITUDE

(Option

001). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -4.3 dBm

2. Connect the equipment as shown in Figure l-18.

Option 001 only:

Connect the minimum loss adapter between the LPF and INPUT 75 0.

HP 85900 Spectrum Analyzer

Calibrating l-55

13. Spurious Response

3. Press CPRESET) on the spectrum analyzer and wait for the preset to finish then set the controls as follows:

FREQUENCY)

30 INIHz) h10m

Option 001 only:

Press (j-1, Mare I of 2, Amptd Units , then dBm .

(AMPLITUDE) 10 (-dem]

[PEAK SEARCH]

(jj) MK TRACK ON OFF (ON)

ISPAN)l(MHz)

(j-j MK TRACK ON OFF (OFF)

Isw] 300

4. Adjust the synthesizer/level generator Amplitude to place the peak of the signal at the reference level (-10 dBm).

5. Set the spectrum analyzer controls as follows:

(B\iv) 100

VID BW AUTO MAN 3001Hz)

6. Wait for two sweeps to finish, then press the spectrum analyzer keys as follows:

(PEAK SEARCH) MARKER h

(

F R E Q U E N C Y

)

CF STEP AUTO MAN 30 [MHz)

LFREQUENCY)

7. Press m (step-up key) on the spectrum analyzer to step to the second harmonic at

60

MHz. Press

@EAK

SEARCH

).

Record the MKR A Amplitude reading as TR Entry 13-l in the performance test record.

1-56 Calibrating

HP 859OD Spectrum Analyzer

13. Spurious Response

Part 2: Third Order Intermodulation Distortion, 50 MHz

Perform this procedure for calibrating the spectrum analyzer. It is not necessary to perform this procedure for operation verification.

Caution

Use only 75 Q cables, connectors, or adapters on the 75 D input of an Option

001 or damage to the input connector will occur.

SYNTHESIZED SWEEPER

SPECTRUM ANALYZER

R F O U T P U T

ADAPTER

Q

ADAPTER

IRECTIONAL

ADAPTER

50 MHz LDW

P A S S F I L T E R

Figure 1-19. Third Order Intermodulation Distortion Test Setup

XY120

1. Zero and calibrate the measuring receiver and the power sensor in log mode so the power reads out in dBm. Enter the power sensor’s 50 MHz Cal Factor into the measuring receiver.

Option 001 only:

Calibrate the 75 D power sensor.

2. Connect the equipment as shown in Figure l-19 with the output of the directional bridge connected to the power sensor.

Option 001 only:

The power measured at the output of the 50 a2 directional bridge by the

75 62 power sensor, is the equivalent power “seen” by the 75 0 spectrum analyzer. Use the

75 61 power sensor with the Type N (f) to BNC (m) 75 D adapter and use a BNC (m) to BNC

(m) 75 D adapter in place of the 50 D adapter.

3. Press INSTRUMENT PRESET on the synthesized sweeper then set the controls as follows:

POWERLEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -6dBm

CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..50MHz

RF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..OFF

4. Set the synthesizer/level generator controls as follows:

FREQUENCY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..50.050MHz

AMPLITUDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -6dBm

50 B/75 D switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 0 (no RF output)

HP 959OD Spectrum Analyzer Calibrating 1-57

13.

Spurious Response

5.

On the spectrum analyzer, press L-1 and wait until the preset is finished then set the controls as follows:

FREQUENCY]

50 [MHz)

&lOW

Option 001 only:

Press (AMPLITUDE), More 1 of 2, Amptd Units, then dE!m .

0 (ZZ)

(

P E A K S E A R C H

]

M o r e I o f 2

PEAK EXCURSN 3m

(DISPLAY) More 1 of 2

THRESHLD ON OFF (ON) 90 (-dBm)

6. On the synthesized sweeper, set the RF to ON. Adjust the power level until the measuring receiver reads -12 dBm f0.05 dB.

7. Disconnect the power sensor from the directional bridge. Connect the directional bridge directly to the spectrum analyzer RF INPUT using an adapter and not a cable.

Option 001 only:

Use a 75 0 adapter, BNC (m) to BNC (m).

8. On the spectrum analyzer, press the following keys:

[PEAK S E A R C H ]

(MKRFCTN) MK TRACK ON OFF (ON)

(SPAN)2000

Wait for the AUTO

ZOOM

message to disappear, then press the following spectrum analyzer keys:

(MKRFCTN) MK TRACK ON OFF (OFF)

[

P E A K

S E A R C H )

C-1 MARKER ->REF LVL

9. On the synthesizer/level generator, set the 50 O/75 D switch to the 50 Q position (RF ON).

Adjust the Amplitude until the two signals are displayed at the same amplitude.

10. If necessary, adjust the spectrum analyzer center frequency until the two signals are centered on the display. Set the controls as follows:

[BW)l(kHz)

VID BW AUTO MAN [email protected]

11-

Press

CPEAK

SEARCH

],

[DISPLAY), then DSP LINE ON OFF (ON). Set the display line to a value

54 dB below the current reference level setting.

12. The third order intermodulation distortion products should appear 50 kHz below the lower frequency signal and 50 kHz above the higher frequency signal. Their amplitude should be less than the display line.

l-58 Calibrating

HP 859OD Spectrum Analyzer

13. Spurious Response

13. If the distortion products can be seen, proceed as follows: a. On the spectrum analyzer, press @CGF), wait for completion of the sweep, then press

[

PEAK SEARCH

]

and MARKER A.

b. Repeatedly press NEXT PEAK until the active marker is on the highest distortion product.

c. Record the MKR A amplitude reading as TR Entry 13-2 in the performance test record.

The MKR A reading should be less than -54 dBc.

14. If the distortion products cannot be seen, proceed as follows: a. On both the synthesized sweeper and the synthesizer/level generator, increase the power level by 5 dB. Distortion products should now be visible at this higher power level.

b. On the spectrum analyzer, press

(sGL), CPEAK

SEARCH

),

then MARKER A .

c. Repeatedly press NEXT PEAK until the active marker is on the highest distortion products.

d. On both the synthesized sweeper and the synthesizer/level generator, reduce the power level by 5 dB and wait for the completion of a new sweep.

e. Record the MKR A amplitude reading as TR Entry 13-2 in the performance test record.

The MKR A reading should be less than -54 dBc.

HP 8590D Spectrum Analyzer

Calibrating l-59

14. Gain Compression

Gain Compression is measured by applying two signals, separated by 3 MHz. First, the test places a -30 dBm signal at the input of the spectrum analyzer (the spectrum analyzer reference level is also set to -30 dBm). Then, a 0 dBm signal is applied to the spectrum analyzer, overdriving its input. The decrease in the first signal’s amplitude (gain compression) caused by the second signal is the measured gain compression.

There are no related adjustment procedures for this performance test.

Equipment Required

Synthesized sweeper

Synthesizer/level generator

Measuring receiver (used as a power meter)

Power sensor

Directional bridge

Adapter, Type N (f) to BNC (m)

Adapter, Type N (m) to BNC (m)

Adapter, Type N (f) to APC 3.5 (f)

Adapter, Type N (m) to BNC (f)

Cable, BNC, 120 cm (48 in) (2 required)

Additional Equipment for Option 001

Power sensor, 75 D

Adapter, Type N (f) to BNC (m), 75 62

Adapter, BNC (m) to BNC (m), 75 D

l-60 Calibrating HP 8590D Spectrum Analyzer

14. Gain Compression

Caution

Use only 75 Q cables, connectors, or adapters on the 75 61 input of an Option

001 or damage to the input connector will occur.

SYNTHESIZED SWEEPER

LW

R F O U T P U

MEASURING RECEIVER r-1

ADAPTER

SPECTRUM ANALYZER

POWER SENSOR

B

ADAPTER

I

SYNTHESIZER/LEVEL

GENERATOR

ADAPTER

SOURCE

I

XY121

Figure l-20. Gain Compression Test Setup

Procedure

1. Zero and calibrate the measuring receiver and the power sensor in log mode so the power reads out in dBm. Enter the power sensor’s 50 MHz Cal Factor into the measuring receiver.

Option 001 only:

Calibrate the 75 62 power sensor.

2. Connect the equipment as shown in Figure l-20, with the load (reflected) of the directional coupler connected to the power sensor.

Option 001 only:

The power measured at the output of the 50 D directional bridge by the

75 6) power sensor, is the equivalent power “seen” by the 75 61 spectrum analyzer. Use the

75 D power sensor with a Type N (f) to BNC (m) 75 62 adapter and use a BNC (m) to BNC

(m) 75 62 adapter in place of the 50 Q adapter.

3. Press INSTRUMENT PRESET on the synthesized sweeper then set the controls as follows:

CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 MHz

POWERLEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..6dBm

4. Set the synthesizer/level generator controls as follows:

CW.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

..50MH z

AMPLITUDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -14 dBm

50 O/75 Q SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

75 Q (no RF output)

HP 859OD Spectrum Analyzer Calibrating l-61

14. Gain Compression

5. On the spectrum analyzer, press (j-1 and wait for the preset to finish then set the controls as follows:

FREQUENCY]

50 IhnHz) h2om

Option 001:

Press

(

AMPLITUDE

],

More 1 of 2 , Amptd Units , then dEm

.

6. On the synthesized sweeper, adjust the power level for a 0 dBm reading on the measuring receiver. Set RF to OFF On the synthesizer/level generator, set the 50 O/75 62 switch to

50 0.

Note that the power level applied to the spectrum analyzer input is 10 dB greater than the specification to account for the 10 dB attenuation setting. A power level of 0 dBm at the spectrum analyzer input yields -10 dBm at the input mixer.

7. Disconnect the power sensor from the directional coupler and connect the directional coupler to the INPUT 50 Q connector of the spectrum analyzer using an adapter and not a cable.

Option 001 only:

Use a 75 D adapter, BNC (m) to BNC (m).

8. On the spectrum analyzer, press the following keys:

SPEAK S E A R C H )

(MKRFCTN) MK

TRACK OM OFF (ON)

[SPAN) 100

Wait for the AUTO ZOOM message to disappear.

9. On the synthesizer/level generator, adjust the Amplitude to place the signal 1 dB below the spectrum analyzer reference level.

19. On the spectrum analyzer, press

[SGLSWP), [PEAK

SEARCH

),

then MARKER A .

11. On the synthesized sweeper, set RF to ON.

12. On the spectrum analyzer, press

f,jsGL], (

PEAK SEARCH

),

NEXT PEAK. The active marker should be on the lower amplitude signal and not on the signal that is off the top of the screen. If it is not on the lower amplitude signal, reposition the marker to this peak using the spectrum analyzer knob.

13. Read the MKR A amplitude and record as TR Entry 14-1 in the performance test record.

The absolute value of this amplitude should be less than or equal to 0.5 dB.

1-62 Calibrating

HP 859OD Spectrum Analyzer

15. Displayed Average Noise Level

15. Displayed Average Noise Level

This test measures the displayed average noise level within the frequency range specified. The spectrum analyzer input is terminated in 50 0.

The LO feedthrough is used as a frequency reference for these measurements. The test tunes the spectrum analyzer frequency across the band, uses the marker to locate the frequency with the highest response, and then reads the average noise in zero span.

To reduce measurement uncertainty due to input attenuator switching and resolution bandwidth switching, a reference level offset is added. The CAL OUT signal is used as the amplitude reference for determining the amount of offset required. The offset is removed at the end of the test by pressing [PRESETJ

The related adjustment for this procedure is the “Frequency Response Adjustment.”

Equipment Required

Termination, 50 0

Adapter, Type N (m) to BNC (f)

Cable, BNC, 23 cm (9 in)

Additional Equipment for Option 001

Termination, 75 D Type N (m)

Adapter, 75 f?, Type N (f) to BNC (m)

Cable, BNC, 75 0, 30 cm (12 in)

Caution

Use only 75 D cables, connectors, or adapters on the 75 61 input of an Option

001 or damage to the input connector will occur.

SPECTRUM ANALYZER

Figure 1-21. Displayed Average Noise Level Test Setup

XYllO

HP 85900 Spectrum Analyzer Calibrating 1-63

15. Displayed Average Noise Level

Procedure

1. Connect a cable from the CAL OUT to the INPUT 50 D of the spectrum analyzer as

shown

in Figure 1-21.

Option 001 only:

Use a 75 61 cable and omit the adapter.

Press CM) and wait for the preset to finish. Set the controls as follows:

Option 001 only: (j%KKiFj

REF LWL 28.75 (+dBm)

ATTEN AUTO MAN 0 [dB)

2. Press

the

following spectrum analyzer keys:

CPEAK S E A R C H ]

[“KRFCTN) MK TRACK ON OFF (ON)

Wait for the AUTO ZOOM message to disappear. Set the controls as follows:

VID BW AUTO MAN 30 1Hz)

[“KRFCIN) MK TRACK ON OFF (OFF)

3. Press [SGLSWP_) and wait for completion of a new sweep, then press the following spectrum analyzer keys:

[

P E A K

S E A R C H )

(AMPLITUDE) More 1 af 3

REF LVL OFFSET

Subtract the MKR amplitude reading from -20 dBm and enter the result as the REF LVL

OFFSET. For example, if the marker reads -20.21 dBm, enter +0.21 dB (-20 dBm -

(-20.21 dBm)

=

+0.21 dB).

Example for Option 001:

If the marker reads 26.4 dBmV, enter

+2.35 dBmV (28.75 dBmV - 26.4 dBmV = 2.35 dBmV).

REF LVL OFFSET dB

Option 001:

REF LVL OFFSET dBmV

4. Disconnect

the

cable from the INPUT 50 !l connector of the spectrum analyzer. Connect the 50 D termination to the spectrum analyzer INPUT 50 D connector.

Option 001 only:

Use the 75 62 termination.

1-64 Calibrating HP 8590D Spectrum Analyzer

15. Displayed Average Noise Level

400 kHz

If testing a spectrum analyzer equipped with Option 001, omit steps 5 through 9 and proceed to step 10.

5. Press the following spectrum analyzer keys:

CAUT~ coupLEj

VID 3W AUTO #AM (AUTO)

(mj 10 cq-

@@ SWEEP CONT SGL

6. Press the following spectrum analyzer keys:

(

PEAK

SEARCH)

l’j’j- MK TRACK ON OFF (ON)

(SPAN) 800 (kHz)

Wait for the AUTO ZOOM message to disappear, then press the following spectrum analyzer keys: iBW)3(kHz)

(

F R E Q U E N C Y

)

7. Adjust the center frequency until the LO feedthrough peak is on the left-most graticule line. Set the controls as follows:

VID BW AUTO MAN 300

CSWEEP] SWP TIME AUTO MAN 5 [secl

Press (-1, More I of 3, DETECTOR

Wait for completion of a new sweep.

8. Press the following spectrum analyzer keys:

(SMP), then

@ziSiF].

DSP LINE ON OFF (ON)

Adjust the display line so that it is centered on the average trace noise, ignoring any residual responses. Refer to the Residual Responses verification test for any suspect residuals.

9. Record the display line amplitude setting as TR Entry 15-1 as the noise level at 400 kHz.

The average noise level should be less than the specified limit.

HP 95900 Spectrum Analyzer Calibrating l-65

15. Displayed Average’Noise Level

1MHz

10. Press the following spectrum analyzer keys:

(

A U T O C O U P L E

)

RES BW AUTO MAN (AUTO)

VID BW AUTO RAN (AUTO)

Option 001 only:

(jA”pL’TuDE] REF LVL 35 C-dBm]

LTRIG) SUEEP CONT SGL (CONT)

11.

Press the following spectrum analyzer keys:

[

PEAK

SEARCH]

(jXXG-- MK TRACK ON OFF (ON)

[FV1KR->) MARKER ->REF LVL

=2-

Wait for the AUTO

ZOOM message to disappear. Press (MKRFCIN] then MK TRACK ON OFF

(OFF).

12.

Press

(

FREQUENCY

_)

and adjust the center frequency until the LO feedthrough peak is on the left-most graticule line. Set the controls as follows:

ISPAN) 50m

(

AMPLITUDE

)

50 (TiiK]

Option 001

only: cm’ REF LVL 1.2 (--dBm)

0

VID BW AUTO MAN 3Oa

13.

Press [sGL]. Wait for the completion of a new sweep.

14.

Press the following spectrum analyzer keys:

(FiGiF]

DSP LINE ON OFF (ON)

Adjust the display line so that it is centered on the average trace noise, ignoring any residual responses. Refer to the Residual Responses verification test for any suspect residuals.

15.

Record the display line amplitude setting as TR Entry 15-2 in the performance test record as the noise level at 1 MHz. The average noise level should be less than the specified limit.

l-66 Calibrating

HP 85900 Spectrum Analyzer

15. Displayed Average Noise Level

1 MHz to 1.5 GHz

16.

Press the following spectrum analyzer keys:

CFREQUENCY)

START FREQ [email protected]

STOP FRECJ 1.5 (GHz)

(BW)l(MHz)

VID BW AUTO MAN 10 (kHz) m SWEEP CONT SGL (CONT)

17.

Adjust the spectrum analyzer start frequency setting, if necessary, to place the LO feedthrough just off-screen to the left.

18.

Press the following spectrum analyzer keys:

(TEEiF-)

C-1 CLEAR WRITE A More 1 of 3

VID AVG ON OFF (ON) 10 (Hz)

Wait until AVG 10 is displayed to the left of the graticule (the spectrum analyzer will take ten sweeps, then stop).

19.

Press

[

PEAK SEARCH

)

and record the MKR frequency as the Measurement Frequency in

Table 1-17 for 1 MHz to 1.5 GHz.

20.

Press the following spectrum analyzer keys:

~~~ More 1 of 3 VID AVG ON OFF (OFF)

[

AUTO COUPLE

)

RES BW AUTO MAN (AUTO)

VID BW AUTO MAN (AUTO)

ISPAN)50m

[

FREQUENCY

]

CENTER FREG

Set the center frequency to the measurement frequency recorded in Table 1-17 for 1 MHz to 1.5 GHz. Set the controls as follows:

Isw)l(kHz)

VID BW AUTO MAN 300

21.

Press CsGLSWP).

Wait for the sweep to finish. Press the following spectrum analyzer keys:

(jDIspLAy_)

DSP LINE ON OFF (ON)

Adjust the display line so that it is centered on the average trace noise, ignoring any residual responses. Refer to the Residual Responses verification test for any suspect residuals.

22.

Record the display line amplitude setting as TR Entry 15-3 in the performance test record.

The average noise level should be less than the specified limit.

HP 95900 Spectrum Analyzer Calibrating l-67

15. Displayed Average Noise Level

1.5 GHz to 1.8 GHz

23. Press the following spectrum analyzer keys:

(

A U T O C O U P L E

)

RES BW AUTO MAN (AUTO)

VID BW AUTO MAN (AUTO)

ISPAN_) 100

(jizFmE) 50 [-dE3m_l

Option 001 only:

(-1 REF LVL 1.2 (-dBmj

ITRIG) SWEEP CONT SGL (CONT) .

(FREQUENCY)

START FREQ 1.5 LGHz)

STOP FREQ 1.8 IGHz)

24. Repeat steps 18 through 21 above for frequencies from 1.5 GHz to 1.8 GHz.

If the Displayed Average Noise at 1.8 GHz is at or out of specification, it is recommended that a known frequency source be used as a frequency marker. This ensures that testing is done at or below 1.8 GHz.

Frequent y

Range

‘able 1-17. Displayed Average Noise Level

Specification

Measurement Displayed Average

Frequent y Noise Level

(dBm or dBmV)

TR Entry

400

kHz

400

kHz 15-1 -115 dBm

1 MHz 1 MHz 15-2 -115 dBm

1 MHz to 1.5 GHz 15-3

1.5 GHz to 1.8 GHz 15-4

-115 dBm

(Option

001:

<-63 dBmV)

-113 dBm

(Option

001:

961 dBmV)

25.

Record the display line amplitude setting as TR Entry 15-4 in the performance test record.

The average noise level should be less than the specified limit.

1-69 Calibrating HP 85900 Spectrum Analyzer

16. Residual Responses

16. Residual Responses

The spectrum analyzer input is terminated and the spectrum analyzer is swept from 150 kHz above the LO to 1 MHz. Then the spectrum analyzer is swept in 50 MHz spans throughout the

1 MHz to 1.8 GHz range. Any responses above the specification are noted.

There are no related adjustment procedures for this performance test.

Equipment Required

Termination, 50 Q

Additional Equipment for Option 001

Termination, 75 61 Type N (m)

Adapter, 75 0 Type N (f) to BNC (m)

Caution

Use only 75 n cables, connectors, or adapters on the 75 62 input of an Option

001 or damage to the input connector will occur.

SPECTRUM ANALYZER

XY123

TER

Figure l-22. Residual Response Test Setup

Procedure

150kHzto 1MHz

2

1. Connect the termination to the spectrum analyzer input as shown in Figure l-22.

Option

001

only:

Use the 75 61 termination with the adapter, skip steps 2 through 4, and proceed with step 5.

Press fjj] on the spectrum analyzer and wait for the preset to finish. Press the following spectrum analyzer keys:

[

PEAK

SEARCH)

(jj) MK TRACK ON OFF (ON)

ISPAN)l(MHzl

Wait for the AUTO ZOOM message to disappear, then press (NlKRFCTN) and MK TRACK ON OFF

(OFF).

HP 959013 Spectrum Analyzer Calibrating 1-69

16. Residual Responses

3. Adjust the center frequency until the LO feedthrough peak is on the left-most vertical graticule line. Press the following spectrum analyzer keys as follows:

MARKER A 150 m

MARKER NORMAL

0

ATTEN AUTO MAN 0 @ iBW)3(kHz)

VID BW AUTO MAN 1 m

(-Xl

(EisFiq

DSP LINE ON OFF 9OcXJ

4. Press C-1 and wait for a new sweep to finish. Look for any residual responses at or above the display line. If a residual is suspected, press (SGLSWP) again. A residual response will persist on successive sweeps, but a noise peak will not. Note the frequency and amplitude of any residual responses above the display line and to the right of the marker in

‘lhble 1 - 1 8 .

1 MHz to 1.8 GHz

5. Press c-1 on the spectrum analyzer and wait for the preset to finish. Set the controls as follows:

~p$fiJ-fiJ-~

SPAN MHz

@KKiKE)60(X)

Option 001

only: CAMPLITUDE] REF LVL 11.25 w

ATTEN AUTO MAN 0 Ide_l

6.

Press

(

FREQUENCY

)

and adjust the center frequency until the LO feedthrough (the “signal” near the left of the screen) is just off the left-most vertical graticule line. Set the controls as follows:

CF STEP AUTO MAN 450

(ZiJ 100

VID BW AUTO MAN 3 m

(DISPLAY)

DSP LINE ON OFF 90 m

Option 001 only:

Press c-1, DSP LINE ON OFF , then 38 (--dBm)

7. Press [sGL) and wait for a new sweep to finish. Look for any residual responses at or above the display line. If a residual is suspected, press (SGL’ again. A residual response will persist on successive sweeps, but a noise peak will not. Note the frequency and amplitude of any residual responses above the display line in ‘lhble 1-18.

l-70 Calibrating HP 95901) Spectrum Analyzer

16. Residual Responses

8. Press [FREQUENCY_), m (step-up key), to step to the next frequency and repeat step 7.

9. Repeat steps 7 and 8 until the range from 1 MHz to 1.8 GHz has been checked. This requires 40 additional frequency steps. The test for this band requires about 6 minute to complete if no residuals are found.

If there are any residuals at or near the frequency specification limits (1 MHz or 1.8 GHz), it is recommended that a known frequency source be used as a frequency marker. This will ensure that testing is done within the specification limits.

10. Record the highest residual from ‘Ihble 1-18 as TR Entry 16-1 in the performance test record. If no residuals are found, then record N/A in the performance test record.

‘Ihble 1-18. Residual Responses Above Display Line

Frequent y

(MHz)

Amplitude

Wm)

HP 95900 Spectrum Analyzer

Calibrating l-71

17. Absolute Amplitude, Vernier, and Power Sweep Accuracy

This procedure is only for spectrum analyzers equipped with Option 010 or 011.

The tracking generator output is connected to the spectrum analyzer input and the tracking is adjusted at 300 MHz for a maximum signal level. A calibrated power sensor is then connected to the tracking generator output to measure the power level at 300 MHz.

The measuring receiver is then set for RATIO mode so that future power level readings are in dB relative to the power level at -10 dBm (Option 011: + 38.8 dBmV). The output power level setting is decreased in 1 dB steps and the power level is measured at each step. The difference between ideal and actual power levels is calculated at each step.

Since a power sweep is accomplished by stepping through the vernier settings, the peak-to-peak variation of the vernier accuracy is equal to the power sweep accuracy.

The related adjustment for this procedure is the “Modulator Offset and Gain Adjustment.”

Equipment Required

Measuring receiver

Power sensor

Cable, Type N, 62 cm (24 in)

Additional Equipment for Option 011

Power sensor

Cable, BNC, 75 D

Adapter, Type N (f) to BNC (m), 75 0

Adapter, mechanical, Type N, 50 fl (m) to 75 62 (f)

Caution

Use only 75 hl cables, connectors, or adapters on the 75 62 input of an Option

011 or damage to the input connector will occur.

MEASURING RECEIVER

SPECTRUM ANALYZER

OPl-ION 01

1)

T Y P E N C A B L E

(

O P T I O N

011: L1SE 75R

ENC

CABLE i

------em-

X Y 1 2 4

Figure 1-23. Absolute Amplitude, Vernier, and Power Sweep Accuracy Test Setup

1-72 Calibrating HP 959013 Spectrum Analyzer

17. Absolute Amplitude, Vernier, and Power Sweep Accuracy

Procedure

1. Connect the Type N cable between the RF OUT 50 9 and INPUT 50 0 connectors on the spectrum analyzer. See Figure l-23.

@@ion 011

only:

Connect the BNC cable between the RF OUT 75 62 and INPUT 75 62 connectors on the spectrum analyzer.

2. Press C-1

on

the spectrum analyzer and set the controls as follows:

FREQUENCYI)

300 (MHz)

&OO

3. On the spectrum analyzer, press the following keys:

IIV1KR)

[AUXCTRL) Track Gen

SRC PWR ON OFF (ON) 5 (-dBm]

Option 011 only:

SRC PWR ON OFF (ON) 38 I+dBm)

4. On the spectrum analyzer, press TRACKING PEAK . Wait for the PEAKING message to disappear.

5. Zero and calibrate the measuring receiver/power sensor combination in log mode (power levels readout in dBm). Enter the power sensor’s 300 MHz Cal Factor into the measuring receiver.

6. Disconnect the Type N cable from the RF OUT 50 61 and connect the power sensor to the

RF OUT 50 D as shown in Figure l-23.

Option

011

only:

Disconnect the BNC cable from the RF OUT 75 Q and connect the power sensor to the RF OUT 75 0 using an adapter.

7.

On the spectrum analyzer, press 10 C-1, [SWP].

Option

011

only:

38.8 I+dBm) (+38.8 dBmV).

8.

Subtract -10 dBm from the power level displayed on the measuring receiver and record the result in the performance test record as TR Entry 17-1.

9.

Press RATIO on the measuring receiver. Power levels now readout in dB relative to the power level just measured at the -10 dBm output power level setting.

Option

011

only:

+38.8 dBmV output power level setting.

10.

Set the SRC POWER to the settings indicated in ‘Ihble 1-19. At each setting, record the power level displayed on the measuring receiver.

11.

Calculate the Vernier Accuracy by subtracting the SRC POWER setting and 10 dB from the

Measured Power Level for each SRC POWER setting in ‘lhble 1-19.

Vernier Accuracy = Measured Power Level - SRC POWER + 10 dB

Option

011

only:

Calculate the Vernier Accuracy by subtracting the SRC POWER setting from the Measured Power Level, adding 38.8 dB to each SRC POWER setting in Table l-19.

Vernier Accuracy = Measured Power Level - SRC POWER - 38.8 dB.

12.

Locate the most positive and most negative Absolute Vernier Accuracy values in Table 1-19 and record as TR Entries 17-2 and 17-3 in the performance test record.

HP 85900 Spectrum Analyzer Calibrating 1-73

17. Absolute Amplitude, Vernier, and Power Sweep Accuracy

13. Calculate the power sweep accuracy by subtracting the Negative Vernier Accuracy recorded in step 12 from the Positive Vernier Accuracy recorded in step 12. Record the result in the performance test record as TR Entry 17-4.

Power Sweep Accuracy = Positive Vernier Accuracy - Negative Vernier Accuracy

+ 34.8

+ 33.8

+32.8

+31.8

+ 30.8

+29.8

+28.8

+27.8

+40.8

+41.8

+42.8

+ 37.8

+ 36.8

+ 35.8

‘Ihble 1-19. Vernier Accuracy Worksheet

SRC POWER Setting

T

Measured

Power Level

Vernier

Accuracy

Ipt 011, dBmV Ipt 010, dBm

WV

VW

+ 38.8

- 1 0 0 (Ref)

0 UW

+ 39.8

- 9

- 2

- 1

0

-1.5

- 8

- 7

- 6

- 5

- 4

- 3

- 1 4

- 1 3

- 1 2

- 1 1

Ueasurement

Uncertainty

WY

0

f0.033

f0.033

f0.033

f0.033

f0.033

f0.033

60.033

f0.033

f0.033

f0.033

f0.033

f0.033

f0.033

f0.033

f0.033

1-74 Calibrating

HP 95900 Spectrum Analyzer

18. Tracking Generator Level Flatness

18. Tracking Generator Level Flatness

This procedure is only for spectrum analyzers equipped with Option 010 or 011.

The tracking generator output is connected to the spectrum analyzer input and the tracking is adjusted at 300 MHz for a maximum signal level. A calibrated power sensor is then connected to the tracking generator output to measure the power level at 300 MHz. The measuring receiver is set for RATIO mode so that future power level readings are in dB relative to the power level at 300 MHz.

The tracking generator is stepped to several frequencies throughout its range. The output power difference relative to the power level at 300 MHz is measured at each frequency and recorded.

The related adjustment for this procedure is the “Modulator Offset and Gain Adjustment.”

Equipment Required

Measuring receiver

Power sensor

Cable, Type N, 62 cm (24 in)

Additional Equipment for Option 011

Power sensor

Adapter, Type N (f) to BNC (m), 75 61

Adapter, mechanical, Type N, 50 61 (m) to 75 D (f)

Cable, BNC, 75 D

Caution

Use only 75 0 cables, connectors, or adapters on the 75 0 input of an Option

011 or damage to the input connector will occur.

SPECTRUM ANALYZER

OUT

I I 50I2(or 75n 01

‘TION 0 1

1)

T Y P E N C A B L E

(OPTION 011: U S E 75R B N C C A B L E )

------e-e

Figure l-24. Tracking Generator Level Flatness Test Setup

X Y 1 2 4

HP 95900 Spectrum Analyzer Calibrating l-75

18. Tracking Generator Level Flatness

Procedure

1. Connect the Type N cable between the RF OUT 50 61 and INPUT 50 D connectors on the spectrum analyzer. See Figure l-24.

Option

011

only:

Connect the BNC cable between the RF OUT 75 Q and INPUT 75 61 connectors on the spectrum analyzer.

2.

Press (jj) on the spectrum analyzer. Set the controls as follows:

FREQUENCY) 0 (Hz)

&[email protected]

3.

Press the following spectrum analyzer keys:

(

PEAK

SEARCH)

(MKRFCTN) MK TRACK ON OFF (ON)

(SPAN) 100 m

Wait for the AUTO ZOOM message to disappear. Press

[

FREQUENCY

),

FREQ OFFSET. Enter the negative of the MKR-TRK frequency displayed in the upper right-hand corner of the display. For example, if the MKR-TRK frequency is 132 kHz, enter -132 kHz.

Set the spectrum analyzer controls as follows:

[MKRFCTN) MK TRACK OK OFF (OFF) m ZERO SPA??

Wl(MHz)

4.

Set the spectrum analyzer controls as follows:

CF STEP AUTO MAN lOO=

(SPAN)OIHz)

5.

On the spectrum analyzer, press the following keys:

INIKR)

[CTRL) Track Gen

SRC PWR ON OFF 5 (--dBm]

Option

011

only:

SRC PWR ON OFF 38 (+dBm) (+ 38 dBmV).

6. On the spectrum analyzer, press TRACKIWG PEAK . Wait for the PEAKING message to disappear.

7.

Zero and calibrate the measuring-receiver/power-sensor combination in log mode (power levels readout in dBm). Enter the power sensor’s 300 MHz Cal Factor into the measuring receiver.

8.

Disconnect the Type N cable from the RF OUT 50 D and connect the power sensor to the

RF OUT 50 0.

Option

011

only:

Disconnect the BNC cable from the RF OUT 75 D and connect the power sensor to the RF OUT 75 D using an adapter.

9.

On the spectrum analyzer, press (AUXCTRL), Track Gen , SIX PWR OK OFF , 10 [-dBm), then CsGL).

Option

011 only:

SRC PWR ON OFF 38.8 C+dBm).

1-76 Calibrating HP 8580D Spectrum Analyzer

18. Tracking Generator Level Flatness

10. Press RATIO on the measuring receiver. The measuring receiver readout is now for power levels relative to the power level at 300 MHz.

11. Set the spectrum analyzer center frequency to 100 kHz then press CsGL].

Option

011

only:

Set the spectrum analyzer center frequency to 1 MHz then press

@EmiF-).

12. Enter the appropriate power sensor Cal Factor into the measuring receiver as indicated in

Table l-20.

13. Record the power level displayed on the measuring receiver as the Level Flatness in

Table l-20.

14. Repeat steps 11 through 13 above to measure the flatness at each center frequency setting listed in ‘Ihble l-20. The (h) (step-up) key may be used to tune to center frequencies above

100 MHz.

Spectrum analyzers equipped with Option 011 should be tested only at frequencies of

1 MHz to 1.8 GHz.

15. Locate the most positive Level Flatness reading in Iable l-20 for the indicated frequency ranges and record as the Maximum Flatness.

Maximum Flatness, 100 kHz

Maximum Flatness, 300 kHz to 5 MHz

Maximum Flatness, 10 MHz to 1800 MHz

Option 010: dB (TR Entry 18-l) dB (TR Entry 18-2) dB (TR Entry 18-3)

Option 011:

Maximum Flatness, 1 MHz to 1800 MHAdB (TR Entry 18-1)

16. Locate the most negative Level Flatness reading in ‘Ihble l-20 for the indicated frequency ranges as the Minimum Flatness.

Option 010:

Minimum Flatness, 100 kHddB (TR Entry 18-4)

Minimum Flatness, 300 kHz to 5 MH- dB (TR Entry 18-5)

Minimum Flatness, 10 MHz to 1800 MHz dB (TR Entry 18-6)

Option 011: dB (TR Entry 18-2) Minimum Flatness, 1 MHz to 1800 MHz

17. Press (jj) on the spectrum analyzer.

HP 8580D Spectrum Analyzer

Calibrating l-77

18. Tracking Generator Level Flatness lhble l-20. Level Flatness Relative to 300 MHz Worksheet

Center

Freq

Level

Flatness

WI

Cal Factor fieq

(MHz)

Measurement

Uncertainty (dB)

Option 010 Option 011

100 kHz*

300 kHz*

500 kHz’

1 MHz

2 MHz

5 MHz

10 MHz

20 MHz

50 MHz

100 MHz

200 MHz

300 MHz

400 MHz

500 MHz

600 MHz

700 MHz

800 MHz

900 MHz

000 MHz

100 MHz

200 MHz

300 MHz

400 MHz

500 MHz

600 MHz

700 MHz

800 MHz

0 (Ref)

0.1

0.3

0.3

1

3

3

10

30

50

100

300

300

300

300

300

1000

1000

1000

1000

1000

1000

1000

1000

2000

2000

2000

2000

+ 0.421-0.45

+ 0.28/-0.28

+ 0.281-0.28

+0.28/-0.28

+ 0.28/-0.28

+ 0.28/-0.28

+ 0.241-0.24

+ 0.24/-0.24

+ 0.241-0.24

+ 0.241-0.24

+ 0.241-0.24

0 (Ref)

+ 0.241-0.24

+ 0.241-0.24

+ 0.241-0.24

+ 0.241-0.24

+ 0.24/-0.24

+ 0.24/-0.24

+ 0.24/-0.24

+ 0.24/-0.24

+ 0.24/-0.24

+ 0.241-0.24

+ 0.241-0.24

+ 0.241-0.24

+ 0.241-0.24

+ 0.24/-0.24

+ 0.24/-0.24

N/A

N/A

N/A

+ 0.18/-0.39

+ 0.18/-0.39

+ O.lS/-0.39

+ 0.18/-0.39

+ 0.18/-0.39

+ 0.18/-0.39

+ O.lS/-0.39

+ O.lS/-0.39

0 (Ref)

+ 0.18/-0.39

+ O.lS/-0.39

+ O.lS/-0.39

+ O.lS/-0.39

+ 0.18/-0.39

+ 0.18/-0.39

+ 0.18/-0.39

+0.18/-0.39

+0.18/-0.39

+ 0.18/-0.39

+ O.lS/-0.39

+0.18/-0.39

+ O.lS/-0.39

+ O.lS/-0.39

+ 0.18/-0.39

These frequencies are tested on Option 010 spectrum analyzers only.

l-78 Calibrating

HP 8590D Spectrum Analyzer

19. Harmonic Spurious Outputs

19. Harmonic Spurious Outputs

This procedure is only for spectrum analyzers equipped with Option 010 or 011.

The tracking generator output is connected to the spectrum analyzer input and the tracking is adjusted at 300 MHz for a maximum signal level. The tracking generator output is then connected to the input of an microwave spectrum analyzer. The tracking generator is tuned to several frequencies and the amplitude of the second and third harmonics relative to the fundamental are measured at each frequency.

There are no related adjustment procedures for this performance test.

Equipment Required

Microwave spectrum analyzer

Adapter, Type N (m) to BNC (f)

Cable, Type N, 62 cm (24 in)

Cable, BNC, 23 cm (9 in)

Additional Equipment for Option 011

Adapter, minimum loss

Adapter, Type N (f) to BNC (m), 75 61

Cable, BNC, 75 61

Caution

Use only 75 D cables, connectors, or adapters on the 75 D input of an Option

011 or damage to the input connector will occur.

SPECTRUM ANALYZER

SPECTRUM ANALYZER

-

IPTION 0 1

1)

T Y P E N C A B L E

(

O P T I O N

011: USE 7 5 n BNC C A B L E )

BNC

C A B L E

T Y P E N C A B L E

_--------

Figure l-25. Harmonic Spurious Outputs Test Setup

X Y 1 2 6

HP 8590D Spectrum Analyzer Calibrating 1-79

19. Harmonic Spurious Outputs

Procedure

1. Connect the Type N cable between the RF OUT 50 a2 and INPUT 50 D connectors on the spectrum analyzer. See Figure l-25.

Option

011 only: Connect the 75 61 BNC cable between the RF OUT 75 D and INPUT 75 62 connectors on the spectrum analyzer.

2 .

Press PRESET on the spectrum analyzer and set the controls as follows:

3 .

On the spectrum analyzer, press the following keys: m

(AUXj Track Gen

SRC PWR ON

OFF 5 [-dBm)

Option

011

only:

SRG PWR ON OFF 42 (+dBm) ( + 42 dBmV).

4 .

On the spectrum analyzer, press TRACKING PEAK . Wait for the PEAKING message to disappear.

5 .

On the spectrum analyzer, press 0 (+dBm), (FREQUENCY], 10 IhnHz), then I-).

Option 011 only: 42.8 (+dBm).

It is only necessary to perform step 6 if more than 2 hours have elapsed since a front-panel calibration of the microwave spectrum analyzer has been performed. The microwave spectrum analyzer should be allowed to warm up for at least 30 minutes before proceeding.

6 .

Perform a front-panel calibration of the microwave spectrum analyzer as follows: a. Connect a BNC cable between CAL OUTPUT and RF INPUT.

b. Press lj-1 (INSTR PRESET), (RECALL), 8. Adjust AMPTD CAL for a marker amplitude reading of -10 dBm.

c. Press (jj), 9. Adjust C-1 for a maximum amplitude response.

7 .

Connect the Type N cable from the tracking generator output to the microwave spectrum analyzer RF INPUT. See Figure l-25.

Option

011

only:

Use the minimum loss adapter and Type N (f) to BNC (m) adapter.

8 .

Set the microwave spectrum analyzer controls as follows:

CENTER FREQUENCY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 MHz

SPAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..lOMHz

REFERENCE LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +5 dBm

RESBW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30kHz

LOGdB/DIV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10dB

l-90 Calibrating HP 859OD Spectrum Analyzer

19. Harmonic Spurious Outputs

9. On the microwave spectrum analyzer, do the following: a. Press (

PEAK SEARCH

] and (

SIGNAL

TRACK_) (ON). Wait for the signal to be displayed at center screen.

b. Press [

PEAK SEARCH

], &KR ->

CF

STEPI Inl. and CSIGNAL TRACK) (OFF).

*\ I c.

Press

(

CENTER

Ffwwmc YJ, m (step-t&key) to tune to the second harmonic. Press

IPEAK

SEAR

CH).

Record the marker amplitude reading in ‘fable 1-21 as the 2nd Harmonic

Level for the 10 MHz Tracking Generator Output Frequency.

d. Perform this step only if the tracking generator output frequency is less than 600 MHz.

Press [

CENTER FREQUENCY

], m (step-up) key to tune to the third harmonic. Press

[

PEAK SEARCH

)

Record the marker amplitude reading in Table 1-21 as the 3rd Harmonic

Level for the 10 MHz Tracking Generator Output Frequency.

e. Press MARKER IOFF).

10. Repeat steps 8 and 9 above for the remaining Tracking Generator Output Frequencies listed in Table 1-21. Note that the spectrum analyzer CENTER FREQ is the same as the Tracking

Generator Output Frequency,

11. Locate the most positive 2nd Harmonic Level in Table 1-21 and record as TR Entry 19-1 in the performance test record.

12. Locate the most positive 3rd Harmonic Level in Table 1-21 and record as TR Entry 19-2 in the performance test record.

‘Ihble 1-21. Harmonic Spurious Responses Worksheet

2nd Harmonic

Level

WW

3rd Harmonic

Level

(dBc)

Measuremenl

Uncertainty

(dB)

N/A

+ 1.55/-1.80

+ 1.55/-1.80

+ 1.55/-1.80

+ 1.55/-1.80

HP 8580D Spectrum Analyzer

Calibrating 1-81

20. Non-Harmonic Spurious Outputs

This procedure is only for spectrum analyzers equipped with Option 010 or 011.

The tracking generator output is connected to the spectrum analyzer input and the tracking is adjusted at 300 MHz for a maximum signal level. The tracking generator output is then connected to the input of a microwave spectrum analyzer. The tracking generator is set to several different output frequencies.

For each output frequency, several sweeps are taken on the microwave spectrum analyzer over different frequency spans and the highest displayed spurious response is measured in each span. Responses at the fundamental frequency of the tracking generator output or their harmonics are ignored. The amplitude of the highest spurious response is recorded.

There are no related adjustment procedures for this performance test.

Equipment Required

Microwave spectrum analyzer

Adapter, Type N (m) to BNC (f)

Cable, Type N, 62 cm (24 in)

Cable, BNC, 23 cm (9 in)

Additional Equipment for Option 011

Adapter, minimum loss

Adapter, Type N (f) to BNC (m), 75 62

Cable, BNC, 75 62

Caution Use only 75 D cables, connectors, or adapters on the 75 62 input of an Option

011 or damage to the input connector will occur.

SPECTRUM ANALYZER

0

\

SPECTRUM ANALYZER

INPUT

50n(or 750 OP TION 011)

TYPE N CABLE

(OPTION oil: USE 75~ BNC CABLE)

BNC

CABLE

TYPE N CABLE

---B--e

Figure l-26. Non-Harmonic Spurious Outputs Test Setup

1-82 Calibrating HP 8580D Spectrum Analyzer

XY126

20. Non-Harmonic Spurious Outputs

Procedure

1. Connect the Type N cable between the RF OUT 50 62 and INPUT 50 D connectors on the spectrum analyzer. See Figure l-26.

Q&ion 011 only: Connect the 75 D BNC cable between the RF OUT 75 n and INPUT 75 62 on the spectrum analyzer.

2. Press L-1 on the spectrum analyzer and set the controls as follows:

FREQUENCY)

300 IhnHz)

3. On the spectrum analyzer, press the following keys:

(AUXCTRL) Track Gen

SRC PWR ON OFF 5 @J

Option 011 [email protected]: SRC PWR ON OFF 38 I+dBm) (+38 dBmV).

4. On the spectrum analyzer, press TRACKING PEAK . Wait for the PEAKING message to disappear.

5. On the spectrum analyzer, press 0 (+dBmj’ then C-1.

Option 011 only: 42.8 (+dBmj.

It is only necessary to perform step 6 if more than two hours have elapsed since a front-panel calibration of the microwave spectrum analyzer has been performed. The microwave spectrum analyzer should be allowed to warm up for at least 30 minutes before proceeding.

6. Perform a front-panel calibration on the microwave spectrum analyzer as follows:

ba:

C.

Connect a BNC cable between CAL OUTPUT and RF INPUT.

Press c-1 (INSTR PRESET), (RECALL_), 8. Adjust AMPTD CAL for a marker amplitude reading of -10 dBm.

Press t-1, 9. Adjust FREQ

ZERO

for a maximum amplitude response.

d.

Press

(SHIFT), [

FREQUENCY SPAN

]

to start the 30 second internal error correction routine.

Press

@XTJ [

START

FREQ)

to use the error correction factors just calculated.

7.

Connect the Type N cable from the tracking generator output to the microwave spectrum analyzer RF INPUT as shown in Figure l-26.

O-ption 011 only: Use the minimum loss adapter and Type N (f) to BNC (m) adapter.

8.

Set the spectrum analyzer CENTER FREQ to the Fundamental Frequency listed in

‘lhble l-22.

9.

Set the microwave spectrum analyzer controls as follows:

SPAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100kHz

REFERENCE LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +5 dBm

ATTEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20dB

LOGdB/DIV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10dB

10.

Set the microwave spectrum analyzer CENTER FREQUENCY to the Fundamental

Frequency listed in Table l-22.

HP 959OD Spectrum Analyzer Calibrating 1-83

20. Non-Harmonic Spurious Outputs

11. On the microwave spectrum analyzer, press

[

PEAK SEARCH

).

Press cm->,

(MKR ->

REF

LVL).

Wait for another sweep to finish.

12. Record the microwave spectrum analyzer marker-amplitude reading in Table l-22 as the

Fundamental Amplitude.

13. Set the microwave spectrum analyzer

[START FREQ),

CsTopFREQI), and (j-1 as indicated in the first row of Table l-23.

14. Press (SINGLE) on the microwave spectrum analyzer and wait for the sweep to finish. Press

CPEAK SEARCH).

15. Verify that the marked signal is not the fundamental or a harmonic of the fundamental as follows: a. Divide the marker frequency by the fundamental frequency (the spectrum analyzer

CENTER FREQ setting). For example, if the marker frequency is 30.3 MHz and the fundamental frequency is 10 MHz, dividing 30.3 MHz by 10 MHz yields 3.03.

b. Round the number calculated in step a the nearest whole number. In the example above, 3.03 should be rounded to 3.

c. Multiply the fundamental frequency by the number calculated in step b. Following the example, multiplying 10 MHz by 3 yields 30 MHz.

d. Calculate the difference between the marker frequency and the frequency calculated in step c above. Continuing the example, the difference would be 300 kHz.

e. Due to span accuracy uncertainties in the microwave spectrum analyzer and center frequency uncertainties in the spectrum analyzer, the marker frequency might not equal the actual frequency. Given the marker frequency, check if the difference calculated in step d is within the appropriate tolerance:

For marker frequencies ~55 MHz, tolerance = ±750 kHz

For marker frequencies >55 MHz, tolerance = f10 MHz f. If the difference in step d is within the indicated tolerance, the signal in question is the fundamental signal (if the number in step b = 1) or a harmonic of the fundamental (if the number in step b >l). This response should be ignored.

16. Verify that the marked signal is a true response and not a random noise peak by pressing c-1 to trigger a new sweep and press

(

PEAK SEARCH

].

A true response will remain at the same frequency and amplitude on successive sweeps but a noise peak will not.

17. If the marked signal is either the fundamental or a harmonic of the fundamental (see step 15) or a noise peak (see step 16), move the marker to the next highest signal by pressing

ml, [

PEAK SEARCH

).

Continue with step 19.

18. If the marked signal is not the fundamental or a harmonic of the fundamental (see step

15) and is a true response (see step 16), calculate the difference between the amplitude of marked signal and the Fundamental Amplitude as listed in ‘Iable l-22.

For example, if the Fundamental Amplitude for a fundamental frequency of 10 MHz is

+ 1.2 dBm and the marker amplitude is -40.8 dBm, the difference is -42 dBc.

Record this difference as the Non-Harmonic Response Amplitude for the appropriate spectrum analyzer CENTER FREQ and microwave spectrum analyzer START and STOP

FREQ settings in YIhble l-23.

Non-Harmonic Amplitude = Marker Amplitude - Fundamental Amplitude

19. If a true non-harmonic spurious response is not found, record “NOISE” as the

Non-Harmonic Response Amplitude in Table l-23 for the appropriate spectrum analyzer

CENTER FREQ and microwave spectrum analyzer START and STOP FREQ settings.

1-84 Calibrating HP 959OD Spectrum Analyzer

20. Non-Harmonic Spurious Outputs

20. Repeat steps 14 through 19 for the remaining microwave spectrum analyzer settings for

[

START

FREQ),

@ZKKjJ and @ZZK] for the spectrum analyzer CENTER FREQ setting of

10 MHz.

21. Repeat steps 8 through 20 with the spectrum analyzer CENTER FREQ set to 900 MHz.

22. Repeat steps 8 through 20 with the spectrum analyzer CENTER FREQ set to 1.8 GHz.

23. Locate in Table l-23 the most-positive Non-Harmonic Response Amplitude. Record this amplitude as TR Entry 20-l in the performance test record.

‘l’hble l-22. Fundamental Response Amplitudes Worksheet

I

Fundamental Frequency Fundamental Amplitude (dBm)

10 MHz

900 MHz

1.8 GHz

‘Ihble l-23. Non-Harmonic Responses Worksheet

Microwave Spectrum 1

Settings

start

Freq stop

Freq

Res

BW

(MHz) (MHz)

@lo MHz

Center fieq

Non-Harmonic Response

Amplitude (dBc) a900 MHz

Center

Frea al.8 GHz

Center

Frea

0.11 5.0 10 kHz

5.0 55 100 kHz

55 1240 1 MHz

1240 1800

lMHI

’ Option 011: Set START FREQ to 1 MHz.

n

T deasuremenl

Uncertaintv

PI

+ 1.55/-1.80

+ 1.55/-1.80

+ 1.55/-1.80

+ 1.55/-1.80

HP 8590D Spectrum Analyzer Calibrating l-85

21. Tracking Generator Feedthrough

This procedure is only for spectrum analyzers equipped with Option 010 or 011.

The tracking generator output is connected to the spectrum analyzer input and the tracking is adjusted at 300 MHz for a maximum signal level. The tracking generator output is terminated and set for 0 dBm output power (maximum output power). The spectrum analyzer input is also terminated. The noise level of the spectrum analyzer is then measured at several frequencies.

There is no related adjustment procedure for this performance test.

Equipment Required

Termination, 50 62 (2 required)

Adapter, Type N (m) to BNC (f)

Cable, Type N, 62 cm (24 in)

Cable, 23 cm (9 in)

Additional Equipment for Option 011

Termination, 75 61 Type N (m) (2 required)

Adapter, Type N (f) to BNC (m), 75 62 (2 required)

Cable, BNC, 75 0

Caution Use only 75 62 cables, connectors, or adapters on the 75 62 input of an Option

011 or damage to the input connector will occur.

SPECTRUM ANALYZER

50Q TERMINATION

(OPTION 011: USE 75~ TERMINATION)

CABLE

(OPTION oil-

USE 75fl BNC

CABLE)

50Q TERMINATION

(OPTION 011: USE 75n TERMINATION)

Figure l-27. Tracking Generator Feedthrough Test Setup

XYlZt?

1-86 Calibrating HP 859OD Spectrum Analyzer

2 1. Tracking Generator Feedthrough

Procedure

1. Connect the Type N cable between the RF OUT 50 52 and INPUT 50 62 connectors on the spectrum analyzer. See Figure l-27.

Option 011 only: Connect the 75 61 BNC cable between the RF OUT 75 0 connectors on the spectrum analyzer.

and INPUT 75 B

2.

Press [PRESET] on the spectrum analyzer and set the controls as follows:

FREQUENCY)

300 m

&l(g

3.

On the spectrum analyzer, press the following keys: m

(AUX] Track Gen

SRC PWR ON OFF 5 [-dBm-

Option 011 only: 42 + dBm (+ 42 dBmV).

4. On the spectrum analyzer, press TRACKING PEAK . Wait for the PEAKING message to disappear.

5. Connect the CAL OUTPUT to the INPUT 50 62.

Option 011 only: Connect the CAL OUTPUT to the INPUT 75 B.

Set the spectrum analyzer controls as follows:

CAMPLITUDE)

20 (-dBm)

0ption 011 only: (amplitude] FIEF LWL 28.75 m

ATTEN AUTO MAN OIdB)

6. On the spectrum analyzer, press the following keys:

[

PEAK

SEARCH)

(MKR- MK TRACK ON OFF (ON)

(SPAN) 100 m

Wait for the AUTO ZOOM message to disappear then set the controls as follows: lew) VID BW AUTO MAN 30 IHz)

(MKRFCTN) MK TRACK ON OFF (OFF)

HP 959013 Spectrum Analyzer Calibrating l-97

2 1. Tracking Generator Feedthrough

7. Press CsGLSWPI) and wait for completion of a new sweep. Press the following spectrum analyzer keys:

(

PEAK

SEARCH_)

@iGiFE) More 1 of 3

REF LVL OFFSET

Subtract the m amplitude reading from -20 dBm and enter the result as the

REF LVL OFFSET.

For example, if the marker reads -20.21 dBm, enter +0.21 dB

[-20 dBm - (-20.21 dBm) = +0.21 dB].

Example for Option 011: If the marker reads 26.4 dBmV, enter +2.35 dB

(28.75 dBmV - 26.4 dBmV = 2.35 dB).

REF LVL OFFSET dB

8. Connect one 50 0 termination to the spectrum analyzer INPUT 50 D and another to the tracking generator’s RF OUT 50 0.

Option 011 only: Connect one 75 62 termination to the spectrum analyzer INPUT 75 62 and another to the tracking generator’s RF OUT 75 61.

8. Press c-1, Track Gen , then SRC PWR ON OFF (OFF) on the spectrum analyzer.

10. Set the spectrum analyzer controls as follows:

(FREQUENCY)Oa

ISPAN) 100

(AMPLITUDE) 10 m

O-ption 011 only: C-1 REF LVL 38.75 [+dBm)

0

VID BW AUTO MAN (AUTO)

(MKR) More 1 of 2

MARKER ALL OFF

ITRIG)

SWEEP CONT SGL (CONT)

11. Press the following spectrum analyzer keys:

(

PEAK

SEARCH)

(jjFCTNI) MK TRACK ON OFF (ON)

[mj MARKER ->REF LVL

LSPAN)2(MHz)

Wait for the AUTO ZOOM message to disappear, then press (jj), MK TRACK ON OFF

(OFF).

l-88 Calibrating HP 859OD Spectrum Analyzer

2 1. Tracking Generator Feedthrough

12. Press [FREQUENCY] and adjust the center frequency until the LO feedthrough peak is on the left-most graticule line. Set the spectrum analyzer controls as follows:

(SPAN) 50 IkHz)

(-j 5 0 l-dBm)

Option 011 only: (j-1 NEF LVL 1.25 (--dBm)

(Es3

VID BW AUTO MAN 300

13. On the spectrum analyzer, press ljAUXCTRL_), Track Gen , SRC PWR ON OFF 0 I+dBm).

Option 011 only: 42.8 (+dBm) (+42.8 dBmV).

14. Press [sGLSWP) and wait for completion of a new sweep. Press (-1 then

DSP LINE ON OFF (ON).

15. Adjust the display line so that it is centered on the average trace noise, ignoring any residual responses. Record the display line amplitude setting in Table l-24 as the noise level at 1 MHz.

16. Repeat steps 14 and 15 for the remaining Tracking Generator Output Frequencies

(spectrum analyzer CENTER FREQ) listed in Table l-24.

17. In ‘lhble l-24, locate the most positive Noise Level Amplitude. Record this amplitude as

TR Entry 21-1 in the performance test record.

Table l-24. TG Feedthrough Worksheet

r

lhcking Generator

Output Frequency

Noise Level

Amplitude

(dBm or dBmV)

Measuremenl

Uncertainty

WV

700 MHz

850 MHz

1000 MHz

1150 MHz

1300 MHz

1450 MHz

1600 MHz

1750 MHz

1 MHz

20 MHz

50 MHz

100 MHz

250 MHz

400 MHz

550 MHz

+ 1.15/-1.24

+ 1.15/-1.24

+ 1.15/-1.24

+ 1.15/-1.24

+ 1.15/-1.24

+ 1.15/-1.24

+ 1.15/-1.24

+ 1.151-1.24

+ 1.15/-1.24

+ 1.15/-1.24

+ 1.15/-1.24

+ 1.15/-1.24

+ 1.15/-1.24

+ 1.15/-1.24

+ 1.15/-1.24

HP 859OD Spectrum Analyzer

Calibrating 1-89

22. 10 MHz Reference Output Accuracy

This procedure is only for spectrum analyzers equipped with Option 013.

The settability is measured by changing the setting of the digital-to-analog converter (DAC) which controls the frequency of the timebase. The frequency difference per DAC step is calculated and compared to the specification.

The related adjustment for this performance test is the “10 MHz Frequency Reference

Adjustment. ”

Equipment Required

Frequency counter

Frequency standard

Cable, BNC, 122 cm (48 in) (2 required)

FREQUENCY

STANDARD

SPECTRUM ANALYZER

M I CROWAVE

FREQUENCY COUNTER

L.

INPUT 1

J

\

BNC CABLE ASSEMBLY BNC CABLE ASSEMBLY

Figure l-28. 10 MHz Reference Test Setup

XC6 1

Procedure

The test results will be invalid if REF UNLK is displayed at any time during this test. REF UNLK will be displayed if the internal reference oscillator is unlocked to the 10 MHz reference. a REF

UNLK might occur if there is a hardware failure or if the jumper between 10 MHz REF OUTPUT and EXT REF IN on the rear panel is removed.

1. Connect the equipment as shown in Figure l-28.

2. Set the frequency counter controls as follows:

SAMPLERATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Midrange

50 0/162SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...50 !J

1OHz-500MHz/500MHz-26.5GHz SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . lOHz-500MHz

FREQUENCY STANDARD (Rear panel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . EXTERNAL

3. Wait for the frequency counter reading to stabilize. Record the frequency counter reading in the 10 MHz Reference Accuracy Worksheet as Counter Reading 1.

4. Set the spectrum analyzer by pressing the following keys:

(

F R E Q U E N C Y

)

- 3 7 ( H z )

ICAL) More 1 of 4 More 2 of 4

VERIFY TIMEBASE

5. Record the number in the active function block of the spectrum analyzer in the 10 MHz

Reference Accuracy Worksheet as the Timebase DAC Setting.

l-90 Calibrating HP 95900 Spectrum Analyzer

22. 10 MHz Reference Output Accuracy

6. Add one to the Timebase DAC Setting recorded in step 5, then enter this number using the

DATA keys on the spectrum analyzer. For example, if the timebase DAC setting is 105, press

1,0,6 (Hz).

7. Wait for the frequency counter reading to stabilize. Record the frequency counter reading in the 10 MHz Reference Accuracy Worksheet as Counter Reading 2.

8. Subtract one from the Timebase DAC Setting recorded in step 5, then enter this number using the DATA keys on the spectrum analyzer. For example, if the timebase DAC setting is

105, press 1, 0, 4, IHz).

9. Wait for the frequency counter reading to stabilize. Record the frequency counter reading in the 10 MHz Reference Accuracy Worksheet as Counter Reading 3.

10 MHz Reference Accuracy Worksheet

Description Measurement .

Counter Reading 1 __________________Hz

DAC Setting ___________________Hz

Counter Reading 2 __________________Hz

Counter Reading 3 __________________Hz

10. Calculate the frequency settability by performing the following steps: n

Calculate the frequency difference between Counter Reading 2 and Counter Reading 1.

n

Calculate the frequency difference between Counter Reading 3 and Counter Reading 1.

n

Divide the difference with the greatest absolute value by two and record the value as TR Entry 22-l of the performance test record. The settability should be less than f150 Hz.

n

Press cw) on the spectrum analyzer. The timebase DAC will be reset automatically to the value recorded in step 5.

HP 859OD Spectrum Analyzer Calibrating 1-91

‘Ihble l-25. Performance Verification Test Record

Hewlett-Packard Company

Address: Report No.

Date

(e.g. 10 SEP 1989)

Model HP 8590D

Serial No.

Options

Firmware Revision

Customer

Ambient temperature

Power mains line frequency

Test Equipment Used:

Description

Synthesized Sweeper

Synthesizer/Function Generator

Synthesizer/Level Generator

AM/FM Signal Generator

Measuring Receiver

Power Meter

RF Power Sensor

High-Sensitivity Power Sensor

Microwave Frequency Counter

Universal Frequency Counter

Frequency Standard

Power Splitter

Minimum Loss Adapter

(Options 001 and 011 only)

50 MHz Low Pass Filter

5OG Termination

75Q Termination (Options 001 and 011 only)

Microwave Spectrum Analyzer

(Options 010 and 011 only)

Tested by

OC Relative humidity %

Hz (nominal)

Model No. Trace No. Cal Due Date

Notes/Comments:

1-92 Calibrating HP 9590D Spectrum Analyzer

Ihble l-25. Performance Verification Test Record (page 2 of 7)

Hewlett-Packard Company

Model HP 8590D Report No.

Serial No.

Date

Test Description

Min

1. Frequency Readout Accuracy

Frequency Readout Accuracy

FREQUENCY

10 MHz

50 MHz

100 MHz

500 MHz

1000 MHz

1800 MHz

5. Frequency Readout Accuracy and Marker Count Accuracy

Frequency Readout Accuracy

SPAN

20 MHz

10 MHz

1 MHz

Marker Count Accuracy

SPAN

(CNT RES = 10 Hz) 1 MHz

(CNT RES = 100 Hz) 20 MHz

1. Noise Sidebands

Suppression

1. System Related Sidebands

Sideband Below Signal

Sideband Above Signal

i. Frequency Span Readout

Accuracy

SPAN

1800 MHz

100.00 MHz

20.00 MHz

10.00 MHz

100.00 kHz

4.9980

44.9980

94.9980

494.9980

994.9980

1794.9980

1.49918

1.49958

1.4999680

1.49999989

1.4999989

1446.00 MHz

77.00 MHz

15.40 MHz

7.40 MHz

77.00 kHz

Results Measured

(TR Entry)

Frequency (MHz)

(1-l) 15.0020

62.5 Hz

V-2)

55.0020 ±12.5 Hz

(l-3) 1.50000076

f25.0 Hz

(l-4) 505.0020 ±125.0 Hz

(l-5) 1005.0020

(l-6) 1805.0020

6250.0 Hz

6450.0 Hz

Frequency (MHz)-,.---

(2-l)

(2-2)

(2-3)

(2-4)

(2-5)

Max

1.50082 ±2.5 Hz

1.50042 ±12.5 Hz

1.500032

525.0 Hz

1.50000011

1.5000011

-65 dBc

-65 dBc

-65 dBc

L

Measurement

Uncertainty

f 1 Hz f 1 Hz f 1.0 dB f 1.0 dB f 1.0 dB

±6.37 MHz f 637 kHz f 70.8 kHz f 35.4 kHz

±354 Hz

HP 85900 Spectrum Analyzer Calibrating 1-93

lhble l-25. Performance Verification Test Record (page 3 of 7)

Hewlett-Packard Company

Model HP 8590D Report No.

Serial No.

Date

Test Description

Min

Results Measured Measurement

(TR Entry) Max Uncertainty

6. Sweep Time Accuracy

SWEEP TIME

20 ms

100 ms

1s

10 s

7. Scale Fidelity

Log Mode

dB from Ref Level

15.4 ms

77.0 ms

770.0 ms

7.7 s

M K R A R e a d i n g

(6-l) 16.6 ms ±0.057 ms

V-2)

83.0 ms ho.283 ms

V-3)

830.0 ms ±2.83 ms

(6-4) 8.3 s ±23.8 ms

Cumulative Error

0 0 (Ref)

- 4 -4.44 dB

- 8 -8.48 dB

-22 - 12.52 dB

-16 -16.56 dB

-20 -20.60 dB

-24 -24.64 dB

-28 -28.68 dB

-32 -32.72 dB

(7-l) -3.56 dB ±0.06 dB

(7-2) -7.52 dB ±0.06 dB

(7-3) -11.48 dB

(7-4)

0 (Ref) 0 UW

f0.06 dB

- 15.44 dB ±0.06 dB

(7-5) - 19.40 dB ±0.06 dB

(7-6) -23.36 dB ±0.06 dB

(7-7) -27.32 dB

(7-8) -31.28 dB ho.06 dB

50.06 dB

-36 -36.76 dB V-9) -35.24 dB

-40 -40.80 dB (7-10) -39.20 dB

-44 -44.84 dB (7-11) -43.16 dB ho.06 dB f0.06 dB

60.06 dB

-48 -48.88 dB (7-12) -47.12 dB

-52 -52.92 dB (7-13) -51.08 dB ho.06 dB f0.06 dB

-56 -56.96 dB (7-14) -55.04 dB ±0.06 dB

-60 -61 .OO dB (7-15) -59.00 dB ± O . l l dB

-64 -65.04 dB (7-16) -62.96 dB 60.11 dB

-68 -69.08 dB (7-17) -66.92 dB ± O . l l dB

l-94 Calibrating HP 8590D Spectrum Analyzer

‘Etble l-25. Performance Verification Test Record (page 4 of 7)

Hewlett-Packard Company

Model HP 8590D Report No.

Serial No.

Date

Test Description Results Measured Measurement

Min (TR Entry) Max Uncertainty

7. Scale Fidelity (continued)

Log Mode - I n c r e m e n t a l E r r o r

dB from Ref Level

0 0 (Ref) 0 VW 0 Wf)

- 4 -0.4 dB (7-18) + 0.4 dB ±0.06 dB

- 8 -0.4 dB (7-19)

-22 -0.4 dB (7-20)

+ 0.4 dB f0.06 dB

+ 0.4 dB ±0.06 dB

-16 -0.4 dB (7-21)

-20 -0.4 dB (7-22)

+0.4 dB

+ 0.4 dB f0.06 dB

60.06 dB

+ 0.4 dB ±0.06 dB -24 -0.4 dB (7-23)

-28 -0.4 dB (7-24) i 0.4 dB f0.06 dB

-32 -0.4 dB (7-25) + 0.4 dB ±0.06 dB

-36 -0.4 dB (7-26) + 0.4 dB ±0.06 dB

-40 -0.4 dB (7-27) + 0.4 dB ±0.06 dB

-44 -0.4 dB (7-28) + 0.4 dB ±0.06 dB

-48 -0.4 dB (7-29) + 0.4 dB ±0.06 dB

-52 -0.4 dB (7-30) + 0.4 dB ±0.06 dB

-56 -0.4 dB (7-31) + 0.4 dB ±0.06 dB

-60 -0.4 dB (7-32) + 0.4 dB ± O . l l

Linear Mode

% of Ref Level

100.00

0 VW 0 (Ref) 0 (Ref)

70.70 151.59 mV (7-33) 165.01 mV f1.84 mV

50.00 105.36 mV (7-34) 118.78 mV ±1.84 mV

35.48 72.63 mV (7-36) 86.05 mV f1.84 mV

25.00 49.46 mV (7-36) 82.88 mV

51.84 mV

Log-to-Linear Switching

-0.25 dB (7-37) + 0.25 dB f0.05 dB

HP 85900 Spectrum Analyzer Calibrating l-95

‘Jhble l-25. Performance Verification Test Record (page 5 of 7)

Hewlett-Packard Company

Model HP 8590D Report No.

Serial No. Date

Test Description Results Measured

Min (TR Entry)

J. Reference Level Accuracy

Reference Level (dBm)

I,og Mode

-20

-10

0

-30

-40

-50

-60

-70

-80

-90

Reference Level (dBm)

-20

-10

0

-30

-40

-50

-60

-70

-80

-90

0 (Ref)

-0.40 dB

(8-l)

-0.50 dB

(8-2)

-0.40 dB (8-3)

0 VW

-0.50 dB

-0.80 dB

-1.00 dB

(8-4)

(8-5)

(8-6)

-1.10 dB (8-7)

-1.20 dB (8-8)

-1.30 dB (8-9)

Linear Mode

0 (Ref) 0 W-f)

-0.40 dB (S-10)

-0.50 dB (8-11)

-0.40 dB (8-12)

-0.50 dB (8-13)

-0.80 dB (8-14)

-1.00 dB (8-15)

-1.10 dB (S-16)

-1.20 dB (8-17)

-1.30 dB (8-18)

1. Absolute Amplitude

Calibration and Resolution

Bandwidth Switching

Uncertainties

Absolute Amplitude Uncertainty

Resolution Bandwidth Switching

Uncertainty

-20.15 dB

(9-l)

Resolution Bandwidth

3 kHz 0 (Ref) 0 (Ref)

1 kHz -0.5 dB P-2)

9 kHz -0.4 dB

10 kHz -0.4 dB

30 kHz -0.4 dB

100 kHz -0.4 dB

120 kHz -0.4 dB

300 kHz -0.4 dB

1 MHz -0.4 dB

3 MHz -0.4 dB

P-3)

P-4)

P-5)

(g-6)

P-7)

(9-s)

P-9)

(9-10)

Measurement

Max Uncertainty

0 UW

+ 0.40 dB f0.06 dE

+ 0.50 dB ±0.06 dE

+ 0.40 dB 60.06 dE

+ 0.50 dB ±0.08 dE

+ 0.80 dB ±0.08 dE

+ 1.00 dB 60.12 dE

+l.lOdB ±0.12 dE

+ 1.20 dB

+ 1.30 dB

60.12 dE

60.12 dE

0 (Ref)

+ 0.40 dB f0.06 dE

+ 0.50 dB f0.06 dE

+ 0.40 dB f0.06 dE

+ 0.50 dB f0.08 dE

+ 0.80 dB f0.08 dE

+ 1.00 dB f0.12 dE

+l.lOdB

f0.12 dE

+ 1.20 dB ±0.12 dE

+ 1.30 dB f0.12 dE

-19.85 dB n/e

0 Wf)

+ 0.5 dB + 0.07/-0.08 dB

+ 0.4 dB + 0.07/-0.08 dB

+ 0.4 dB + 0.07/-0.08 dB

+ 0.4 dB + 0.07/-0.08 dB

+ 0.4 dB +0.07/-0.08 dB

+ 0.4 dB + 0.07/-0.08 dB

+ 0.4 dB + 0.07/-0.08 dB

+ 0.4 dB + 0.07/-0.08 dB

+ 0.4 dB + 0.07/-0.08 dB

l-96 Calibrating HP 65900 Spectrum Analyzer

‘hble l-25. Performance Verification Test Record (page 6 of 7)

Hewlett-Packard Company

Model HP 8590D Report No.

Serial No. Date

Test Description

10. Calibrator Amplitude and

Frequency Accuracy

Output Power

T

Min

-20.4 dBm

+ 28.35 dBmv Output Power for

Option 001

Frequency Output

11. Frequency Response

Max Positive Response

Max Negative Response

Peak-to-Peak Response

12. Other Input Related

Spurious Responses

542.8 MHz

1142.8 MHz

-1.5 dE

13. Spurious Responses

Second Harmonic Distortion

Third Order Intermodulation

Distortion

14. Gain Compression

15. Displayed Average Noise

Frequency

400 kHz

1 MHz

1 MHz to 1.5 GHz

1.5 GHz to 1.8 GHz

Option 001

only:

Frequency

1 MHz

1 MHz to 1.5 GHz

1.5 GHz to 1.8 GHz

16. Residual Responses

150 kHz to 1.8 GHz

Option 001 only:

1 MHz to 1.8 GHz

Results Measured

(TR Entrv)

(10-l)

w-2)

(10-3)

(11-l)

(11-2)

(11-3)

(12-l)

(12-2)

(13-l)

(13-2)

(14-l)

(15-l)

(15-2)

(15-3)

(15-4)

(15-2)

(15-3)

(15-4)

(16-l)

(16-l)

Max

T

Measurement

Uncertaintv

- 19.6 dBm

+29.15 dBmv

f0.2

dB

±0.2

dB f75 HzA

+ 1.5 dB

2.0 dB

+ 0.321-0.33 dB t 0.321-0.33 dB t

0.321-0.33 dB

-55 dBc ±l.O dB

-55 dBc ±l.O dB

-45

dBc

-54

dBc t

1.861-2.27 dB

+2.07/-2.42 dB

0.5 dB t

0.21/-0.22 dB

-115 dBm

-115 dBm

-115 dBm

-113 dBm t

1.151-1.25 dB t

1.15/-1.25 dB

+ 1.15/-1.25 dB t

1.15/-1.25 dB

-63 dBmV

-63 dBmV

-61 dBmV t

1.15/-1.25 dB

+ 1.15/-1.25 dB

+ 1.15/-1.25 dB

-90 dBm t

1.09/-1.15 dB

-38 dBmV t

1.09/-1.15 dB

HP 9590D Spectrum Analyzer

Calibrating 1-97

lhble l-25. Performance Verification Test Record (page 7 of 7)

Hewlett-Packard Company

Model HP 8590D Report No.

Serial No. Date

Test ‘Description

Min

Results Measured

(TR Entry)

17. Absolute Amplitude, Vernier, and Power Sweep Accuracy

Option 010 0~ 011 only:

Absolute Amplitude Accuracy

Positive Vernier Accuracy

Negative Vernier Accuracy

Power Sweep Accuracy

18. Tracking Generator Level

Flatness

Option 010 only:

Maximum Flatness

100 kHz

300

kHz to 5 MHz

10 MHz to 1800 MHz

Minimum Flatness

100 kHz

300

kHz to 5 MHz

10 MHz to 1800 MHz

Option 011 only:

Maximum Flatness

1 MHz to 1800 MHz

Minimum Flatness

1 MHz to 1800 MHz

19. Harmonic Spurious Outputs

Option 010 or 011 only:

2nd Harmonic Level

3rd Harmonic Level

!O. Non-Harmonic Spurious outputs

Option

010 or 011 only:

Highest Non-Harmonic

Response Amplitude

!l . Tracking Generator

Feedthrough

Option

010 only:

Option 011 only:

!2.10 MHz Reference Accuracy

Option 013 only:

Settability

-1.0 dB

-0.75

dB

-1.75 dB

-1.75 dB

-1.75 dB

-1.75 dB

(17-l)

(17-2)

(17-3)

(17-4)

(18-l)

(18-2)

(18-3)

(18-4)

(18-5)

(18-6)

(18-l)

(18-2)

(19-l)

(19-2)

(20-l)

(21-l)

(21-l)

F r e q u e n c y E r r o r

-150 Hz

(22- 1)

Ma2t

Measurement

Uncertainty

t

1.0 dB t

0.75

dB

1.5 dB

+ 0.251-0.26

dB

ho.033

dB

±0.033 dB

±0.033

dB

+ 1.75 dB t

1.75 dB t

1.75 dB t

0.42/-0.45

dB t

0.28/-0.28

dB

+ 0.24/-0.24

dB t

0.421-0.45

dB t

0.28/-0.28

dB

+ 0.241-0.24

dB t

1.75 dB + O.lB/-0.39 dB t

O.lB/-0.39 dB

-25

dBc

-25

dBc t

1.55/-1.80 dB t

1.55/-1.80 dB

-30

dBc

+ 1.55/- 1.80 dB

- 106 dBm

-57.24 dBmV t

1.15/-1.24 dB t

1.15/- 1.24 dB t

150 Hz

f4.2

x lo-’

1-98 Calibrating

HP 95900 Spectrum Analyzer

Specifications and Characteristics

This chapter contains specifications and characteristics for the HP 8590D spectrum analyzer.

The specifications and characteristics in this chapter are listed separately. The specifications are described first, then followed by the characteristics.

General

Frequency

Amplitude

Option

Physical

General specifications and characteristics.

Frequency-related specifications and characteristics.

Amplitude-related specifications and characteristics.

Option-related specifications and characteristics.

Input, output and physical characteristics.

The distinction between specifications and characteristics is described as follows.

n

Specifications describe warranted performance over the temperature range 0 “C to +55 “C

(unless otherwise noted). The spectrum analyzer will meet its specifications after 2 hours of storage at a constant temperature, within the operating temperature range, 30 minutes after the spectrum analyzer is turned on and after the CAL frequency, and CAL amplitude routines have been run.

n

Characteristics provide useful, but nonwarranted information about the functions and performance of the spectrum analyzer. Characteristics are specifically identified.

n

Typical Performance, where listed, is not warranted, but indicates performance that most units will exhibit.

n

Nominal Value indicates the expected, but not warranted, value of the parameter.

2

HP 9590D Spectrum Analyzer

Specifications and Characteristics 2-1

General Specifkation%

All specifications apply over 0 ‘C to + 55 ‘C. The analyzer will meet its specifications after 2 hours of storage at a constant temperature, within the operating temperature range, 30 minutes after the analyzer is turned on and after CAL FREQ and CAL AMPTD have been run.

Temperature Range

Operating

Storage

OOCto +55oc

-40 oc

to

•t 75 oc

EMI Compatibility

Conducted and radiated emission is in compliance with

CISPR Pub. 11/1990 Group 1 Class A.

Audible Noise

~37.5 dBA pressure and <5.0 BeIs power (ISODP7779)

Power Requirements

ON (LINE 1) 90 to 132 V rms, 47 to 440 Hz

195 to 250 V rms, 47 to 66 Hz

Power consumption <500 VA; <180 W

Standby (LINE 0) Power consumption <7 W

2-2 Specifications and Characteristics HP 9590D Spectrum Analyzer

Frequency Specifications

Frequency Specifications

Frequency Range

50 n

75 Q (Option

001)

Frequency Accuracy

Readout Accuracy

Resolution

9 kHz to 1.8 GHz

1 MHz to 1.8 GHz f(5 MHz + 1% of frequency span)

Four digits

Frequency Reference

(Option 013) k&u.?

Settability

Temperature Stability f2 x lO+/year

f0.5

x 1o-6

f5

x 10-s

Frequency Readout Accuracy

(Option 013)

(Start, Stop, Center, Marker) f(frequency readout x frequency reference error* + span accuracy + 1% of span + 20% of RBW + 100 Hz)t

* frequency reference error = (aging rate x period of time since adjustment + initial achievable accuracy + temperature stability). See “Frequency Characteristics.”

1 See “Drift” under “Stability” in Frequency Characteristics.

Marker Count Accuracyt

(Option 013)

Frequency Span 5 10 MHz

Frequency Span > 10 MHz f(marker frequency x frequency reference error* + counter resolution + 100 Hz) f(marker frequency x frequency reference error* + counter resolution + 1 kHz)

Counter Resolution

Frequency Span 5 10 MHz

Frequency Span > 10 MHz

Selectable from 10 Hz to 100 kHz

Selectable from 100 Hz to 100 kHz

* frequency reference error = (aging rate x period of time since adjustment + initial achievable accuracy and temperature stability). See “Frequency Characteristics.” t Marker level to displayed noise level > 25 dB, RBW/Span > 0.01. Span 5 300 MHz. Reduce SPAN annotation is displayed when RBWlSpan < 0.01.

Frequency Span

Range

Resolution

0 Hz (zero span), 50 kHz to 1.8 GHz

Frequency Sweep Time

Range

Accuracy

Sweep Trigger

20

ms to 100 s

f3%

Free Run, Single, Line, Video, External

HP 859OD Spectrum Analyzer Specifications and Characteristics 2-3

. Frequency Specifications

Stability

Noise Sidebands

>30 kHz offset from CW signal

System-Related Sidebands

>30 kHz offset from CW signal

Calibrator Output Frequency

Accuracv

(1 kHz RBW, 30 Hz VBW and sample detector)

5 -95 dBc/Hz

300 MHz fundamental frequency f30 kHz

2-4 Specifications and Characteristics

HP 8590D Spectrum Analyzer

Amplitude Specifications

Amplitude Specifications

Amplitude Range

50 0

75 0 (Option 001)

Maximum Safe Input Level

Average Continuous Power

Peak Pulse Power dc

-115 dBm to +30 dBm

-63 dBmV to + 75 dBmV

(Input attenuator > 10 dB)

50 0

75 D (Option 001)

+ 30 dBm (1 W) + 75 dBmV (0.4 W)

+30 dBm (1 W) + 75 dBmV (0.4 W)

25 Vdc 100 Vdc

Gain Compression

>lO MHz

SO.5 dB (total

* Mixer Power Level (dBm) = Input Power (dBm) - Input Attenuation (dB).

power

at input mixer* = -10 dBm)

Displayed Average Noise Level

400 kHz to 1 MHz

1 MHz to 1.5 GHz

1.5 GHz to 1.8 GHz

(Input terminated, 0 dB attenuation, 1 kHz RBW, 30 Hz

VBW, sample detector)

50 0

75 0 (Option 001)

S-115 dBm

L-115 dBm

N/A s-63 dBmV

S-61 dBmV

Spurious

Responses

Second Harmonic Distortion

5 MHz to 1.8 GHz

Third Order Intermodulation Distortion

5 MHz to 1.8 GHz

<-70 dBc for -45 dBm tone at input mixer.*

Other Input Related Spurious c-70 dBc for two -30 dBm tones at input mixer* and

>50 kHz separation.

<-65 dBc at 230 kHz offset, for -20 dBm tone at input mixer 21.8 GHz.

* Mixer Power Level (dBm) = Input Power (dBm) - Input Attenuation (dB).

Residual

Responses

150 kHz to 1 MHz

1 MHz to 1.8 GHz

(Input terminated and 0 dB attenuation)

50 n 75

0 (Option 001)

c-90 dBm c-90 dBm

N/A c-38 dBmV

HP 85900 Spectrum Analyzer Specifications and Characteristics 2-5

Amplitude Specifications

Display Range

Log Scale

Linear Scale

Scale Units

0 to -70 dB from reference level is calibrated; 0.1, 0.2, 0.5 dB/divlsion and 1 to 20 dB/division in 1 dB steps; eight divisions displayed.

eight divisions

1 dBm, dBmV, dBpV, V, and W

Marker Readout Resolution 0.05 dB for log scale

0.05% of reference level for linear scale

Leference Level

Range

Log Scale

Linear Scale

Resolution

Log Scale

Linear Scale

Accuracy

0 dBm to -59.9 dBm

-60 dBm and below

‘* See “Amplitude Range.”

Minimum amplitude to maximum amplitude * *

-99 dBm to maximum amplitude * *

±O.O1 dB f0.12% of reference level

(referenced to -20 dBm reference level, 10 dB input attenuation, at a single frequency, in a Exed RBW)

+~(0.3 dB + .Ol x dB from -20 dBm)

±(0.6 dB + .Ol x dB from -20 dBm)

.

Frequency Response (10 dB input attenuation)

Absolutes Relative Flatnesst

±1.5 dB ±l.O dB t Referenced to midpoint between highest and lowest frequency response deviations.

5 Referenced to 300 MHz CAL OUT.

Calibrator Output Amplitude

50 n

75 Q (Option 001)

-20 dBm f0.4 dB

+ 28.75 dB mV f0.4 dB

Absolute Amplitude Calibration Uncertaintytt ±0.15 dB

$$ Uncertainty in the measured absolute amplitude of the CAL OUT signal at the reference settings after CAL FREQ and CAL AMPTD self-calibration. Absolute amplitude reference settings are: Reference Level -20 dBm; Input

Attenuation 10 dB; Center Frequency 300 MHz; Res BW 3 kHz; Video BW 300 Hz; Scale Linear; Span 50 kHz; Sweep

Time Coupled, Top Graticule (reference level), Corrections ON.

Input Attenuator

Range 0 to 60 dB, in 10 dB steps

Resolution Bandwidth Switching Uncertainty

3 kHz to 3 MHz RBW

1 kHz RBW

(At reference level, referenced to 3 kHz RBW)

±0.4 dB

±0.5 dB

2-6 Specifications and Characteristics HP 8590D Spectrum Analyzer

Linear to Log Switching

Display Scale Fidelity

Log Maximum Cumulative

0 to -70 dB from Reference Level

Log Incremental Accuracy

0 to -60 dB from Reference Level

Linear Accuracy

Amplitude Specifications

ho.25 dB at reference level f (0.4 dB + 0.01 x dB from reference level)

50.4

dBf4 dB

63% of reference level

HP 8590D Spectrum Analyzer

Specifications and Characteristics

2-7

Option Specifications

Tracking Generator Specifications (Option 010 or 011)

All specifications apply over 0 ‘C to + 55 “C. The spectrum-analyzer/tracking-generator combination will meet its specifications after 2 hours of storage at a constant temperature within the operating temperature range, 30 minutes after the spectrum-analyzer/trackinggenerator is turned on and after CAL FREQ, CAL AMPTD, CAL TRK GEN, and

TRACKING PEAK have been run.

Warm-Up

30 minutes

Output Power Level

Range

50 0 (Option 010)

75 Q (Option 011)

Resolution

Absolute Accuracy

Vernier

Range

Accuracy

Oto-15dBm

+ 42.8 to + 27.8 dBmV

0.1 dB f 1.5 dB (at 300 MHz and - 10 dBm source power)

(Option 011: use i38.8 dBmV instead

of

-10 dBm)

15 dB f 1 .O dB (referenced to - 10 dBm source power)

(Option 011: referenced to

t38.8

dBmV instead of -10 dBm)

Output Power Sweep

Range

50 Q (0ption 010)

75 Q (Option

Resolution

011)

Accuracy (zero span)

- 15 dBm to 0 dBm

+27.8 to t 42.8 dBmV

0.1 dB

~2 dB peak-to-peak

Output Flatness

(referenced to 300 MHz) ±1.75 dB

Spurious Outputs

50 Q (Option 010)

75 Q (Option 011)

Harmonic Spurs

Nonharmonic Spurs

(0 dBm output, 100 kHz to 1.8 GHz)

(t

42.8 dBmV output, 1 MHz to 1.8 GHz)

<-25 dBc

<-30 dBc

2-8 Specifications and Characteristics HP 8590D Spectrum Analyzer

Dynamic Range

Tracking Generator Feedthrough

50 n (Option

010)

75

Q (Option

011)

<- 106 dBm

<-57.24 dBmV

Option Specifications

HP 8580D Spectrum Analyzer

Specifications and Characteristics 2-8

Frequency Characteristics

These are not specifications. Characteristics provide useful but nonwarranted information about instrument performance.

Stability

Drift

Drift* (Option 013)

175 kHz/5 minutes after 2 hour warmup and 5 minutes after setting center frequency

Frequency Span 5 10 MHz, Free Run ~2 kHz/minute of sweep time

’ (Option 013)

Because the analyzer is locked at the center frequency before each sweep, drift occurs only during the

:ime of one sweep. For Line, Video or External trigger, additional drift occurs while waiting for the appropriate rigger signal.

Resolution Handwidth (-3 dB)

Range

Shape

1 kHz to 3 MHz, selectable in 1, 3 and 10 increments, accuracy f20% and 5 MHz. Resolution bandwidths may be selected manually, or coupled to frequency span.

Synchronously tuned four poles. Approximately Gaussian shape.

60 dBl3 dB Bandwidth Ratio

Resolution Bandwidth

100 kHz to 3 MHz

30 kHz

3 kHz to 10 kHz

1 kHz

15:l

16:l

15:l

16:l

Video Bandwidth (-3 dB)

Range 30 Hz to 1 MHz, selectable in 1, 3, 10 increments, accuracy f30% and 3 MHz. Video bandwidths may be selected manually, or coupled to resolution bandwidth and frequency span.

Shape Post detection, single pole low-pass filter used to average displayed noise.

FFT Bandwidth Factors

Noise Equivalent Bandwidtht

3 dB Bandwidtht

Sidelobe Height

Amplitude Uncertainty

Shape Factor (60 dB BW/3 dB BW) t Multiply entry by one-divided-by-sweep time.

FLATTOP HANNING

3.63x 1.5x

3.60x 1.48x

<-90 dB -32 dB

0.10 dB 1.42 dB

2.6 9.1

UNIFORM

l x l x

-13 dB

3.92 dB

>300

2-10 Specifications end Characteristics HP 8590D Spectrum Analyzer

Amplitude Characteristics

Amplitude Characteristics

These are not specifications. Characteristics provide useful but nonwarranted information about instrument performance.

Log Scale Switching Uncertainty Negligible error

Input Attenuation Uncertainty*

Attenuator Setting

OdB

10 dB

20 dB

30 dB

40 dB

50 dB

60 dB f0.5

± 0 . 6

60.8 dB

Reference

± 0 . 5 dB dB dB

4~1.0 dB

161.2 dB

* Referenced to 10 dB input attenuator setting from 9 kHz to 1.8 GHz. See the “Specifications” table under

“Freauencv Resoonse.”

Input Attenuator Repeatability

300 MHz

1.8 GHz

RF Input SWR

± 0 . 0 3 dB

4~1.0 dB

(Attenuator setting 10 to 60 dB)

1.35:1

DYNAMIC RANGE

N O M I N A L D Y N A M I C R A N G E dB

4 0

5 0

6 0

7 0 a0

9 0

1 0 0

- 7 0 - 6 0 - 5 0 - 4 0 - 3 0 - 2 0 - 1 0 0

M I X E R L E V E L

Dynamic Range .

dBm

XY129

HP 85900 Spectrum Analyzer Specifications end Characteristics

2-11

Amplitude Characteristics

Immunity Testing

Radiated Immunity

Electrostatic Discharge

When tested at 3 V/m according to IEC Sol-3/1984 the displayed average noise level will be within specifications over the full immunity test frequency range of 27 to 500

MHz except that at immunity test frequencies of 278.6 MHz f selected resolution bandwidth and 321.4 MHz f selected resolution bandwidth the displayed average noise level may be up to -45 dBm. When the analyzer tuned frequency is identical to the immunity test signal frequency there may be signals of up to -70 dBm displayed on the screen.

When an air discharge of up to 8 kV according to IEC SOI-2/1991 occurs to the shells of the BNC connectors on the rear panel of the instrument spikes may be seen on the

CRT display. Discharges to center pins of any of the connectors may cause damage to the associated circuitry.

I

2-12 Specifications and Characteristics HP 85900 Spectrum Analyzer

Option Characteristics

output Tracking

Drift (usable in 10 kHz bandwidth after

30-minute warmup)

Spurious Outputs

(>1.8 GHz to 4.0 GHz)

50 D (Option

010)

0 dBm output

75 Q(Option 011)

+ 42.8 dBmV, output

Harmonic

Nonharmonic

2121.4 MHz Feedthrough

(Option 010)

1 kHz/5 minutes

< - 2 0

dBc

<-40 dBc

: -45 dBm

: + 42.8 dBmV

RF Power-Off Residuals

100 kHzto

1.8

GHz

(Option 010)

1 MHz to 1.8 GHz

(Option 011)

Dynamic Range

(difference between maximum power out and tracking generator feedthrough)

100 kHz to 1.8 GHz

(Option 010)

1 MHz to 1.8 GHz (Option

011)

c-65 dBm

<-16.2 dBmV

Option Characteristics

HP 8590D Spectrum Analyzer Specifications and Characteristics 2-13

Physical Characteristics

Front-Panel Inputs and Outputs

INPUT 500

Connector

Impedance

INPUT 758

(Option

001)

Connector

Impedance

Type N female

50 0 nominal

BNC female

75 Q nominal

RF OUT

(Option 010, 011)

Connector

(Option 010)

(Option 011)

Impedance

(Option 010)

(Option 011)

Maximum Safe Reverse Level

(Option 010) ffheinn. 0111

Type N female

BNC female

50 0 nominal

75 D nominal

+ 20 dBm (0.1 W), 25 Vdc

+ 69 dBmV (0.1 W), 100 Vdc

PROBEPOWERS

Voltage/Current

+ 15 Vdc, f7% at 150 mA max.

- 12.6 Vdc 610% at 150 mA max.

$ Total current drawn from the + 15 Vdc on the PROBE POWER and the AUX INTERFACE cannot exceed 150 mA.

Total current drawn from the - 12.5 Vdc on the PROBE POWER and the - 15 Vdc on the AUX INTERFACE cannot

~~r~c-4 1.M m A

Rear-Panel Inputs

AUXIFOUTPUT

Frequency

Amplitude Range

Impedance

AUXVIDEOOUTPUT

Connector

Amplitude Range

EXT ALC INPUT

(Option OlOor 011)

Impedance

Polarity

Range

21.4 MHz

-10 to -60 dBm

50 D nominal

BNC female

0 to 1 V (uncorrected)

1 MO

Positive or negative

-66 dBV to + 6 dBV

2-14 Specifications and Characteristics HP 85900 Spectrum Analyzer

I

EXT KEYBOARD

(Option 021

or 023)

EXT TRIG INPUT

Connector

Trieaer Level

HI-SWEEP IN/OUT

Connector output

Input

MONITOR OUTPUT

Connector

Format

SYNC NRM

SYNC NTSC

SYNC PAL

REMOTE INTERFACE

HP-IB (Option 021)

HP-IB Codes

RS-232 (Option 023)

SWEEP OUTPUT

Connector

Physical Characteristics

Interface compatible with HP part number Cl405 Option

ABA and most IBM/AT non-auto switching kevboards.

BNC female

Positive edge initiates sweep in EXT TRIG mode (TTL).

BNC female

High = sweep, Low = retrace (TTL)

Open collector, low stops sweep.

BNC female

Internal Monitor

NTSC Compatible

15.75 kHz horizontal rate

60 Hz vertical rate

PAL Compatible

15.625 kHz horizontal rate

50 Hz vertical rate

SHl, AHl, T6, SRl, RLl, PPO, DCl, Cl, C2, C3 and C28

BNC female

0 to + 10 V ramp

HP 9590D Spectrum Analyzer Specifications and Characteristics 2-15

Physical Characteristics

AUX INTERFACE

Connector Type: 9 Pin Subminiature “D”

Zonnector Pinout

Pin #

Function

1 Control A

Current

-

“Logic” Mode

TTL Output Hi/Lo

“Serial Bit” Mode l”I’L Output Hi/Lo

2

Control B

-

TTL Output Hi/Lo TTL Output Hi/Lo

3 Control C

-

TTL Output Hi/Lo Strobe

4

Control D

-

TTL Output Hi/Lo Serial Data

5 Control I

-

TTL Input Hi/Lo TTL Input Hi/Lo

6 Gnd

-

Gnd Gnd

7t - 15 Vdc f7% 150 mA

-

8’ + 5 Vdc f5% 150 mA

-

9t + 15 Vdc f5% 150 mA

-

’ Exceeding the + 5 V current limits may result in loss of factory correction constants.

1 Total current drawn from the + 15 Vdc on the PROBE POWER and the AUX INTERFACE cannot exceed 150 nA. Total current drawn from the - 12.6 Vdc on the PROBE POWER and the - 15 Vdc on the AUX INTERFACE

:annot exceed 150 mA.

Net

HP 8590D

Shipping

HP 8590D

WEIGHT

14.1 kg (31 lb)

16.8 kg (37 lb)

2-16 Specifications and Characteristics

HP 6590D Spectrum Analyzer

4 = 8 in (200 mm)

B = 7.25 in (184 mm)

2 = 14.69 in (373 mm)

D = 13.25 in (337 mm)

3 = 18.12 in (460.5 mm)

DIMENSIONS

Physical Characteristics

HP 859OD Spectrum Analyzer Specifications and Characteristics 2-17

Regulatory Information

The information on the following pages apply to the HP 8590 Series spectrum analyzer products.

2-18 Specifications and Characteristics HP 85900 Spectrum Analyzer

Regulatory Information

Declaration of Conformity

DECLARATION OF CONFORMITY according to ISO/IEC Guide 22 aud EN 45014 hnufacturer’s Name:

Hewlett-Packard Co.

bnufacturer’s Address:

1212 Valley House Drive

Rohnert Park, California 94928-4999

U.S.A.

danuftw.turer’s Name:

Hewlett-Packard Ltd.

Aanufacturer’s Address:

South Queensferry

West Lothian, EH30 9TG

Scotland, United Kingdom

declares that the product:

Product Name: Spectrum Analyzer

Model Numbers: HP 8590D, HP 85913, HP 8592D, HP 8593E,

HP 8594E, HP 8595E, and HP

8596E

Product Options: This declaration covers all options of the above products.

:onforms to

the

foIlowing product specifications:

Safety: IEC 348( 1978) / HD 401 Sl

EMC: EN 55011 / CISPR I1 (1990) Group 1, Class A

EN 50082-l( 1992)

IEC 801-2(1991), 8 kV AD

IEC 801-3(1984), 3 V/m

IEC 801-4(1988), 500 V signal, 1 kV ac power

iupplementary Inforxyation:

Rohnert Park, California

--------------..

Location

Date Dixon Browder /

QA

Manager

South Queensferry, Scotland

Location

Date

HP 85900 Spectrum Analyzer

Specifications and Characteristics 2-19

Regulatory Information

Notice for Germany: Noise Declaration

LpA < 70 dB am Arbeitsplatz (operator position) normaler Betrieb (normal position) nach DIN 45635 T. 19 (per IS0 7779)

2-20 Specifications and Characteristics

HP 858OD Spectrum Analyzer

If You Have a Problem

Your spectrum analyzer is built to provide dependable service. It is unlikely that you will experience a problem. However, Hewlett-Packard’s worldwide sales and service organization is ready to provide the support you need.

3

Calling HP Sales and Service Offices

Sales and

service offices are located around the world to provide complete support for your spectrum analyzer. To obtain servicing information or to order replacement parts, contact the nearest Hewlett-Packard Sales and Service Office listed in Table 3-l. In any correspondence or telephone conversations, refer to the spectrum analyzer by its model number and full serial number. With this information, the HP representative can quickly determine whether your unit is still within its warranty period.

Before calling Hewlett-Packard

Before calling Hewlett-Packard or returning the spectrum analyzer for service, please make the checks listed in “Check the basics.” If you still have a problem please read the warranty printed at the front of this guide. If your spectrum analyzer is covered by

a

separate maintenance agreement, please be familiar with its terms.

Hewlett-Packard offers several maintenance plans to service your spectrum analyzer after warranty expiration. Call your HP Sales and Service Office for full details.

If you want to service’the spectrum analyzer yourself after warranty expiration, contact your

HP Sales and Service Office to obtain the most current test and maintenance information.

HP 858OD Spectrum Analyzer If You Have a Problem 3-1

Check the basics

In general, a problem can be caused by a hardware failure, a software error, or a user error.

Often problems may be solved by repeating what was being done when the problem occurred.

A few minutes spent in performing these simple checks may eliminate time spent waiting for instrument repair.

q

Check that the spectrum analyzer is plugged into the proper ac power source.

q

Check that the line socket has power.

q

Check that the rear-panel voltage selector switch is set correctly.

q

Check that the line fuse is good.

q

Check that the spectrum analyzer is turned on.

q

Check that the light above ILINE) is on, indicating that the power supply is on.

q

Check that the other equipment, cables, and connectors are connected properly and operating correctly.

q

Check the equipment settings in the procedure that was being used when the problem occurred.

q

Check that the test being performed and the expected results are within the specifications and capabilities of the spectrum analyzer. Refer to Chapter 2 of this guide.

q

Check the spectrum analyzer display for error messages. Refer to the HP 8590 Series

Spectrum Analyzer User’s Chide.

q

Check operation by performing the verification procedures in Chapter 1 of this guide. Record all results in the performance test record.

q

Check for problems similar to those described in the HP 8590 Series Spectrum Anu2yz.e~

User’s tiide.

3-2 If You Have a Problem HP 8590D Spectrum Analyzer

Customer Information

Hewlett-Packard Company

19320 Pruneridge Avenue

Cupertino, CA 95014, USA

(800) 752-0900

Colorado

Hewlett-Packard Co.

24 Inverness Place, East

Englewood, CO 80112

(303) 649-5000

New Jersey

120 W. Century Road

Paramus, NJ 07653

(201)599-5000

‘Ihble 3-l. Hewlett-Packard Sales and Service Offices

US FIELD OPERATIONS

California, Northern

Hewlett-Packard Co.

301 E. Evelyn

Mountain View, CA 94041

(415) 694-2000

Georgia

Hewlett-Packard Co.

2000 South Park Place

Atlanta, GA 30339

(404) 955-1500

Tf2XaS

930 E. Campbell Rd.

Richardson, TX 75081

(214) 231-6101

California, Southern

Hewlett-Packard Co.

1421 South Manhattan Ave.

Fullerton, CA 92631

(714) 999-6700

Illinois

Hewlett-Packard Co.

5201 ‘lbllview Drive

Rolling Meadows, IL 60008

(708) 255-9800

EUROPEAN FIELD OPERATIONS

Headquarters

Hewlett-Packard S.A.

150, Route du Nant-d’Avri1

1217 Meyrin 2lGeneva

Switzerland

(41 22) 780.8111

Great Britain

Hewlett-Packard Ltd

Eskdale Road, Winnersh Triangle

Wokingham, Berkshire RF1 1 5DZ

England

(44 734) 696622

France

Hewlett-Packard France

Germany

Hewlett-Packard GmbH

1 Avenue Du Canada Berner Strasse 117

Zone D’Activite De Courtaboeuf 6000 Frankfurt 56

F-91947 Les Ulis Cedex West Germany

France

(33 1) 69 82 60 60

(49 69) 500006-O

INTERCON FIELD OPERATIONS

Headquarters

Hewlett-Packard Company

3495 Deer Creek Rd.

Palo Alto, California 94304-1316

(415) 857-5027

Australia Canada

Hewlett-Packard Australia Ltd. Hewlett- Packard (Canada) Ltd.

31-41 Joseph Street

Blackbum, Victoria 3130

(61 3) 895-2895

17500 South Service Road

Tram+ Canada Highway

Kirkland, Quebec H9J 2X8

Canada

(514) 697-4232

China

China Hewlett-Packard Co.

38 Bei San Huan Xl Road

Shuang Yu Shu

Hai Dian District

Beijing, China

(86 1) 256-6888

Japan Singapore

Yokogawa-Hewlett-Packard Ltd. Hewlett-Packard Singapore (Pte.) Ltd

1-27-15 Yabe, Sagamihara 1150 Depot Road

Kanagawa 229, Japan

(81 427) 59-1311

Singapore 0410

(65) 273-7388

lhiwan

Hewlett-Packard Taiwan

8th Floor, H-P Building

337 Fu Hsing North Road

Taipei, Taiwan

(886 2) 712-0404

HP 85900 Spectrum Analyzer

If You Have a Problem

3-3

Returning the Spectrum Analyzer for Service

Use the information in this section if it is necessary to return the spectrum analyzer to

Hewlett-Packard.

Package the spectrum analyzer for shipment

Use the following steps to package the spectrum analyzer for shipment to Hewlett-Packard for service:

1. Fill in a service tag (available in the HP 8590 Series Spectrum Anulyzer User’s Gwicle) and attach it to the instrument. Please be as specific as possible about the nature of the problem. Send a copy of any or all of the following information: n

Any error messages that appeared on the spectrum analyzer display.

n

A completed Performance Test record. (Located in Chapter 1 of this guide.) n

Any other specific data on the performance of the spectrum analyzer.

Caution Spectrum analyzer damage can result from using packaging materials other than those specified. Never use styrene pellets in any shape as packaging materials. They do not adequately cushion the instrument or prevent it from shifting in the carton. Styrene pellets cause equipment damage by generating static electricity and by lodging in the spectrum analyzer fan.

2. Use the original packaging materials (see Figure 3-1) or a strong shipping container that is made of double-walled, corrugated cardboard with 159 kg (350 lb) bursting strength. The carton must be both large enough and strong enough to accommodate the spectrum analyzer and allow at least 3 to 4 inches on all sides of the spectrum analyzer for packing material.

3. If you have a front-panel cover, install it on the instrument; if not, protect the front panel with cardboard.

4. Surround the instrument with at least 3 to 4 inches of packing material, or enough to prevent the instrument from moving in the carton. If packing foam is not available, the best alternative is SD-240 Air CapTM from Sealed Air Corporation (Commerce, CA 90001).

Air Cap looks like a plastic sheet covered with l-1/4 inch air-filled bubbles. Use the pink Air

Cap to reduce static electricity. Wrap the instrument several times in the material to both protect the instrument and prevent it from moving in the carton.

5. Seal the shipping container securely with strong nylon adhesive tape.

6. Mark the shipping container “FRAGILE, HANDLE WITH CARE” to ensure careful handling.

7. Retain copies of all shipping papers.

Use the following illustration and table to help you package a tracking source for shipment.

3-4 If You Have a Problem HP 8590D Spectrum Analyzer

Figure 3-l. Spectrum Analyzer Packaging Materials

HP 85900 Spectrum Analyzer If You Have a Problem 3-5

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
