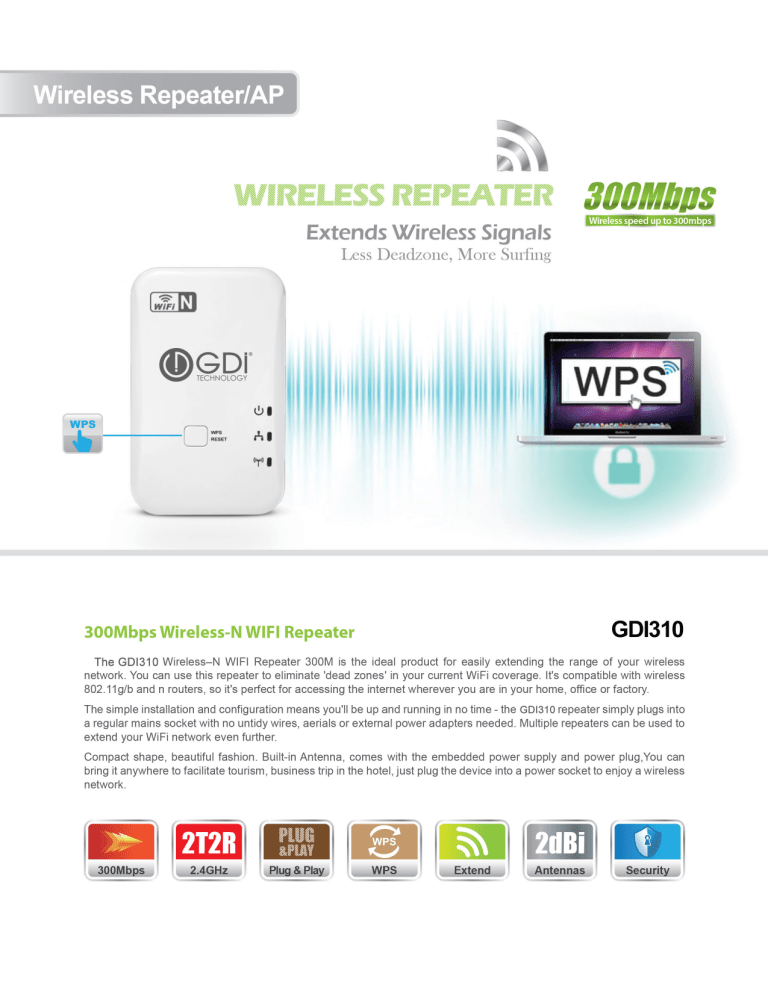

 Wireless Repeater/AP
“o
1717771 Jn 17 17 Л) AA
INN A
Extends Wireless is Signals
Less Deadzone, More Surfing
@ ср
WPS
a [= m
T8 |
300Mbps Wireless-N WIFI Repeater GDI310
The GDI310 Wireless-N WIFI Repeater 300M is the ideal product for easily extending the range of your wireless
network. You can use this repeater to eliminate "dead zones’ in your current WiFi coverage. It's compatible with wireless
802.11g/b and n routers, so it's perfect for accessing the internet wherever you are in your home, office or factory.
The simple installation and configuration means you'll be up and running in no time - the GDI310 repeater simply plugs into
a regular mains socket with no untidy wires, aerials or external power adapters needed. Multiple repeaters can be used to
extend your WiFi network even further.
Compact shape, beautiful fashion. Built-in Antenna, comes with the embedded power supply and power plug,You can
bring it anywhere to facilitate tourism, business trip in the hotel, just plug the device into a power socket to enjoy a wireless
network.
Le ANY
e Supports both Wireless Access Point and Wireless Repeater modes.
e Enables wired network wireless ready through the LAN port
e Extends the range of your WLAN network easily,cover wlan signal in more places.
e Access to the Internet for computers located on the edge or outside of the range of your access point.
e Shares large files, printing and storage quickly and reliably in wider range in your home or office.
e Complies with IEEE 802.11n, IEEE 802.119, IEEE 802.11b standards.
e Supports Wifi Protection Setup function (WPS)
e WEP, WPA, and WPA2 to ensure network security from unauthorized access.
e Support 2.4GHz WLAN networks, Provides up to 300Mbps transmission rates.
e Wireless Auto-channel selection.
e User-friendly web-based wizard and easy hardware setup. Portable, no need of external power adaptor.
==>
WiFi N = N
= WiFi
—"
—
®
À |
TECHNOLOGY TÉCANOLOGY
=
e |
Us + wi
f y Ten Al
E 8 =
- al
ve
O Connected
Network Applications
WareHouse Server Room School
Connectivity:
Repeat and Extend the range of your WLAN network
GDI310 supports 802.11n technology with up to 300Mbps data transfer rate. The device can take an existing 802.11n
wireless signal,and then repeat and extend it.It eliminates the cable wires while providing the same reliable network
connection. It can repeat and extend the wireless signal from virtually any 802.11n wireless router or access point
that is launched on the market. It is backwards
compatible with the 802.11b/g router or access point.
Supports Wireless Repeater Mode and
Standard AP mode
GDI310 repeater/AP is more than just a
wireless repeater, but also a Wireless AP. You
can connect to the network as the use of a
wireless router, wired router.
Make Wired Network WiFi Ready
GDI310is equipped with 1 x 10/100M LAN port
that can be used to connect to an existing wired
network to serve as a wireless interface. It can
also be used to configure the extender via its
web-based wizard, or upgrade the firmware.
Internet
Physical Information
Casing Color: White
Physical Dimensions:
L:78 x W:48 x D:70 mm
Unit weight: 80 grams
Antenna:
2 x Internal antennas WPS/
Reset
External Connectors: X
1 x Power Plug
1 x Ethernet LAN Port
1 x WPS/Reset Button
Accessories:
1 x 7W310 Wireless Repeater
1 x Ethernet Cable
1 x User Manual
Protocol/Standards:
Wireless IEEE802.11n, IEEE802.11b/g,
Ethernet IEEE 802.3 10/100, IEEE802.3u,
Transmission Rate: Up to 300Mbps
Frequency Range: 2.4 - 2.4835 GHz
Modulation Technology:
11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
11b: DQPSK, DBPSK, DSSS, CCK
Wireless Signal Rates:
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
RF Frequency: 2.4GHz - 2.4835 GHz
Security: Wireless: 64/128-bit WEP, WPA, WPA2
WPS Function: Yes
x ee >
\ Г
WiFi À
OcDI
a
Vo Power LED —
> |) 04H Ethernet LED
“PO | Data LED
N J
Ethernet
Technical Specifications
Receiver Sensitivity:
270M: [email protected]% PER 130M: [email protected]% PER
108M: [email protected]% PER 54M: [email protected]% PER
11M: [email protected]% PER 6M: [email protected]% PER
1M: [email protected]% PER
Max Current: 0.12A
Flash: 4Mbytes
SD-RAM: 32Mbytes
Antenna: 2dBi Antennas
Power Supply Unit: 100v-240v AC
Power Consumption: Less than 4W
Environmental:
Operating Temperature: 0° to 40° (32° F~104° F)
Storage Temperature : -40° to 70° (-40° F~158° F)
Operating Humidity :30% to 90% Relative Humidity (Non-Condensing)
Storage Humidity: 3% to 95% Relative Humidity (Non-Condensing)
NOTE: Specifications subject to change without prior notice.
