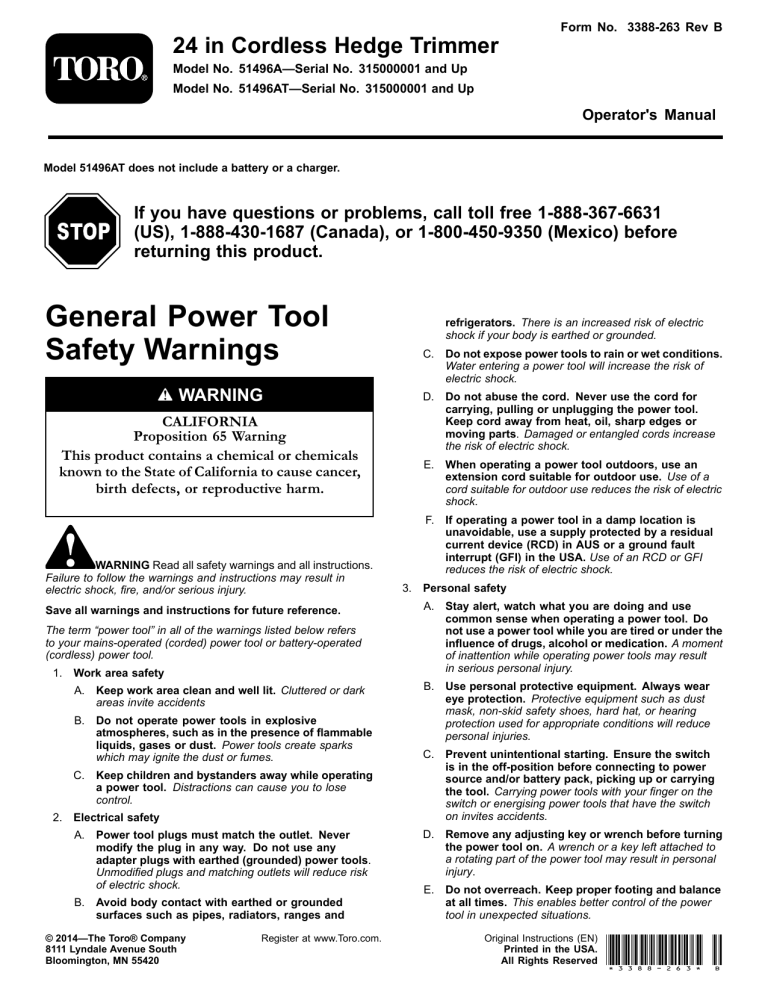

Form No. 3388-263 Rev B
24 in Cordless Hedge Trimmer
Model No. 51496A—Serial No. 315000001 and Up
Model No. 51496AT—Serial No. 315000001 and Up
Operator's Manual
Model 51496AT does not include a battery or a charger.
If you have questions or problems, call toll free 1-888-367-6631
(US), 1-888-430-1687 (Canada), or 1-800-450-9350 (Mexico) before
returning this product.
General Power Tool
Safety Warnings
WARNING
CALIFORNIA
Proposition 65 Warning
This product contains a chemical or chemicals
known to the State of California to cause cancer,
birth defects, or reproductive harm.
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
C. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
D. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
E. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
F.
WARNING Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire, and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in all of the warnings listed below refers
to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1. Work area safety
A. Keep work area clean and well lit. Cluttered or dark
areas invite accidents
B. Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
C. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
2. Electrical safety
A. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
B. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
© 2014—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
If operating a power tool in a damp location is
unavoidable, use a supply protected by a residual
current device (RCD) in AUS or a ground fault
interrupt (GFI) in the USA. Use of an RCD or GFI
reduces the risk of electric shock.
3. Personal safety
A. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
B. Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
C. Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
D. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
E. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
Original Instructions (EN)
Printed in the USA.
All Rights Reserved *3388-263* B
F.
6. Service
Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
G. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices
can reduce dust-related hazards.
Hedge Trimmer Safety Warnings
• Use both hands when operating the hedge trimmer.
Using one hand could cause loss of control and result
in serious personal injury.
4. Power tool use and care
•
Keep all parts of the body away from the cutter blade. Do
not remove cut material or hold material to be cut when
blades are moving. Make sure the switch is off when
clearing jammed material. Blades coast after turn off. A
moment of inattention while operating the hedge trimmer may
result in serious personal injury.
•
C. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
Carry the hedge trimmer by the handle with the cutter
blade stopped. Proper handling of the hedge trimmer will
reduce possible personal injury from the cutter blades.
•
D. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
Hold the power tool by insulated gripping surfaces only,
because the cutter blade may contact hidden wiring or its
own cord. Cutter blades contacting a “live” wire may make
exposed metal parts of the power tool “live” and could give
the operator an electric shock.
•
DANGER – Keep hands away from blade. Contact with
blade will result in serious personal injury.
A. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
B. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
The device should not be used by persons ( including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they receive supervision or
training.
E. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power tools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
F.
Children should be supervised to not use the appliance as a toy.
If the power cord is damaged, it must be replaced by the
manufacturer, its authorized service agent, or a similarly qualified
person in order to avoid hazard.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
G. Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed.. Use of the power tool for operations
different from those intended could result in a hazardous
situation.
5. Battery tool use and care
A. Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
B. Use power tools only with specifically designated
battery packs. Use any other battery packs may create
a risk of injury and fire.
C. When battery pack is not in use, keep it away from
the other metal objects, like paper clips, coins,
keys, nails, screws, or other small metal objects
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or a fire.
D. Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
E. Charging time will be increased if the battery is charged
when the temperature is not between 41 to 104 degrees
F (5 to 40 degrees C).
2
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of potential danger.
Replace any decal that is damaged or lost.
131–0362
131–0370
131–0364
131–0363
131–0372
3
131–0386
131–0369
131–0371
125–8329
1. The battery does not
come out of the box fully
charged.
4. Stop—follow these
instructions before first
use.
2. Place the battery in the
battery charger.
5. Read the Operator’s
Manual.
3. Wait until the battery is
fully charged before first
use.
4
Symbol
Name
Designation/Explanation
DC
Direct current
Type of current
A
Amperes
Current
Hz
Hertz
Frequency (cycles per second)
SPM
Strokes per minute
Speed of blade
V
Volts
Voltage
Setup
Cut the zip-tie away from your body and remove it from the trigger
handle (Figure 1).
G016138
Figure 2
1. Protective cover
2. Align the tongue of the battery pack with the cavity in the
handle housing (Figure 3).
Figure 1
1. Zip-tie
Operation
Important: The battery pack is not fully charged when
it is purchased. Before using the hedge trimmer for the
first time, refer to Charging the Battery Pack (page 6).
Make sure to read all safety precautions. If storing for
a prolonged period of time, remove the battery. When
ready to use again, charge the battery pack; refer to
Charging the Battery Pack (page 6).
Figure 3
Starting the Hedge Trimmer
1. Auxiliary handle
4. Tongue
2. Lock switch
3. Trigger
5. Latch
3. Grasp the trigger handle (Figure 3).
1. Remove the protective cover from the cutter blades (Figure
2).
4. Push the battery pack into the handle until the latch locks
into place.
WARNING
5. Place one hand on the trigger handle. Place the other hand
on the auxiliary handle (Figure 3).
The hedge trimmer blades can cause cuts or
amputation.
6. Slide the lock switch backwards, towards you, then squeeze
the trigger switch to turn on the hedge trimmer (Figure 3).
The trimmer will stay on as long as the trigger switch is
squeezed. Lock-off switch may be released once hedge
trimmer is running (Figure 3).
Be careful when handling the hedge trimmer with
the protective cover removed.
Rotating the Hedge Trimmer
Handle
1. Press and hold the rotational lock button.
5
Stopping the Hedge Trimmer
1. Release the trigger switch (Figure 3).
2. Allow at least 5 seconds for the cutting blade to stop moving.
Charging the Battery Pack
WARNING
CALIFORNIA
Proposition 65 Warning
WARNING: The power cord on this product
contains lead, a chemical known to the State
of California to cause birth defects or other
reproductive harm. Wash hands after handling.
G016188
Figure 4
1. Auxiliary handle
3. Handle
2. Rotational lock button
Important: For best results, your battery pack should
be charged in a location where the temperature is more
than 5° C (41° F) but less than 40° C (104° F). To reduce
the risk of serious personal injury, do not store outside
or in vehicles. Charging time will be increased if not
charged within this range.
2. Rotate the handle to the right or left depending on desired
cutting direction, then release the rotational lock button to
lock the handle in the desired position.
1. Turn the battery upside down and line up the battery terminal
with the slot in the charger (Figure 5 and Figure 6).
Figure 5
1. LED indicators
6
2. Insert battery here
Operating Tips
3
2
•
The unit is used for cutting in either direction in a slow,
sweeping action from side to side.
•
Stand so that you are stable and balanced on both feet. Do
not overreach.
•
•
Inspect and clear the area of any hidden objects.
1
G016223
Figure 6
1. LED indicators (level of
charge)
•
Never use a blade after hitting a hard object without first
inspecting it for damage. Do not use if any damage is
detected.
•
•
Never touch blades or service unit with the battery connected.
Do not attempt to cut stems or twigs that are larger than .71
inches (18 mm), or those obviously too large to feed into the
cutting blade. Use a hand saw or pruning saw to trim large
stems.
•
If blades do become jammed, stop the motor, allow the blades
to stop, and remove the battery before attempting to remove
the obstruction.
•
If desired, you can use a string to help cut your hedge level.
Decide how high you want the hedge. Stretch a piece of
string along the hedge at the desired height. Trim the hedge
just above the guide line of string.
•
Trim the side of a hedge so that it will be slightly narrower at
the top. More of the hedge will be exposed when shaped this
way, and it will be more uniform.
•
Wear gloves when trimming thorny or prickly growth. When
trimming new growth, use a wide sweeping action, so that the
stems are fed directly into the cutting blade.
2. Slide the battery into the charger until it clicks into place.
3. To remove the battery, press down on the release button
and slide the battery backwards out of the charger.
4. Refer to the table below to interpret the LED indicators on
the battery charger.
LED COLOR
Left
Right
Indicates:
Red
Red
Battery is charging
Red
Green
Fully charged
Red
Orange
Battery is too
warm: Remove
for approximately
30 minutes
7
Do not force the hedge trimmer through heavy shrubbery.
This can cause the blades to bind and slow down. If the
blades slow down, reduce the pace.
•
3. Battery terminal
2. Release button
Never use the hedge trimmer near power lines, fencing,
posts, buildings, or other immovable objects.
Maintenance
Oiling the Trimmer Blade
Note: The trimmer blade should be oiled before and after
each use.
1. Stop the motor and remove the battery.
2. Clean dirt and debris from the body of the hedge trimmer,
using a damp cloth with a mild detergent.
Note: Do not use any strong detergents on the plastic
housing or the handle. They can be damaged by certain
aromatic oils such as pine and lemon, and by solvents
such as kerosene.
3. Lay the hedge trimmer on a flat surface. Apply light weight
machine oil along the edge of the top blade. If you will be
using the hedge trimmer for an extended period of time, it is
advisable to oil the blade during use.
Note: Do not oil while the hedge trimmer is running.
Preparing the Battery Pack for
Recycling
WARNING
Before recycling, cover the battery pack's terminals
with heavy-duty adhesive tape. Do not attempt to
destroy or disassemble the battery pack or remove
any of its components. Lithium-ion batteries must be
recycled or disposed of properly at the nearest battery
recycling facility.
Service
Should this item need service, take the product to your Authorized
Toro Service Dealer. Your Toro Dealer is specially trained to repair
Toro products and will ensure that your Toro stays “All” Toro.
Storage
•
•
Clean all foreign material from the product.
•
Keep away from corrosive agents such as garden chemicals
and de-icing salts.
Store it in a well-ventilated place that is inaccessible to
children.
Troubleshooting
Using the battery when it is hot can reduce the operating time.
The battery will automatically stop working when it is overheated
to prevent damage to it. Remove the battery from the charger and
allow it to cool before placing it back into the trimmer.
Using the battery when there is moisture on the leads can cause
the trimmer to malfunction. Allow the battery to dry or wipe it dry
before placing it back into the trimmer.
8
Notes:
9
Notes:
10
Notes:
11
The Toro Promise - Electric Products
A Two-Year Full Warranty for Residential Use for the United States and Canada
The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly warrant this product for two years against
defects in material or workmanship when used for normal residential purposes.*
If you think your Toro Product contains a defect in materials or workmanship, if you have questions or problems, and before returning this product call
toll free:
Trimmers:
Blowers:
Snowthrowers:
1-800-237-2654 (US)
1-800-248-3258 (Canada)
1-888-367-6631 (US)
1-888-430-1687 (Canada)
1-800-808-2963 (US)
1-800-808-3072 (Canada)
To receive a replacement or repair, at our option, return the complete unit to the seller. United States and Canada customers may return their product,
with proof of purchase, to any Authorized Service Dealer. United States customers may also return their product, with proof of purchase, postage
prepaid, to the Toro Service Center, 5500 SE Delaware, Ankeny, IA 50021.
This warranty covers product defects only. Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental, or
consequential damages in connection with the use of the Toro Products covered by this warranty, including any cost or expense of
providing substitute equipment or service during reasonable periods of malfunction or non-use pending completion of repairs under this
warranty. Some states do not allow exclusions of incidental or consequential damages, so the above exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Countries Other than the United States and Canada
This warranty is not valid in Mexico. Customers in Mexico, see the following page. Customers who have purchased Toro products exported from
the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for
any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining guarantee information, contact the Toro importer. If all
other remedies fail, you may contact us at Toro Warranty Company.
Australian Consumer Law
Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
* Residential use means use of the product on the same lot as your home.
Part Number 374-0298 Rev. A
374-0298 Rev A
BRISAGOODS DE MONTERREY S. A. DE C. V.
DISTRIBUIDOR MASTER EN MEXICO DE MARCA TORO LÍNEA RESIDENCIAL
WARRANTY POLICY
Product:
Brand:
Model:
Conditions
BRISAGOODS DE MONTERREY S.A. DE C.V. guarantees for a period of 2 years, that this product, including all its parts and manpower, is free from
defects in material and operation, starting on the date of purchase or installation of the product, under the following conditions:
Conditions
1.
For this warranty to be effective, the consumer must present this policy, duly stamped by the store where the product was purchased, along with the
product, to the said store where the product was sold.
2.
BRISAGOODS DE MONTERREY S.A. DE C.V. agrees to replace the product free of charge to the consumer and to cover any costs resulting from
the application of this warranty.
WHERE TO MAKE THE WARRANTY VALID:
In the service centers (see list of Service Centers Annexed to this Warranty Policy) or, if you want, you can call phone at no charge 01-800-450-9350, to
locate the nearest Authorized Service Center, where you can also acquire parts, components, supplies and accessories that you need.
The warranty is not valid in the following cases:
1.
When the product has been used under conditions other than those considered as normal.
2.
When the product has not been operated according to the provided instruction manual.
3.
When the product has been modified or repaired by personnel not authorized by the national manufacturer, importer or respective responsible
marketer.
Imported by: BRISAGOODS DE MONTERREY, S. A DE C. V
VERSALLES #27
COL. JUÁREZ
DELEGACIÓN CUAUHTEMOC
C.P. 06600
MÉXICO D.F.
MÉXICO D.F. PHONE. (55) 14-50-93-50, 55-92-23-10
Stamp of establishment
And date of purchase
374-0296 Rev A
BRISAGOODS DE MONTERREY S. A. DE C. V.
DISTRIBUIDOR MASTER EN MEXICO DE MARCA TORO LÍNEA RESIDENCIAL
AUTHORIZED SERVICE CENTERS
VERACRUZ:
SERVICIO TECNICO INDUSTRIAL
PULSERVER
PIPILA #180
AVENIDA 7 #316 ENTRE LA CALLE 3 Y LA CALLE 5
COLONIA JOSE CARDEL
COLONIA CENTRO
XALAPA, VERACRUZ
C.P. 94500
(228) 8 14 19 68
CORDOBA, VERACRUZ
[email protected]
TEL. 271 714 1241
ATENCION: DAVID BANDALA SANTIAGO
[email protected]
ATENCION ING. JAVIER BAEZA.
INTERNACIONAL DEL GOLFO
MORELOS 507B
MOTOSIERRAS PLAN DE AYALA
COLONIA CENTRO
INDEPENDENCIA #45
C.P. 96400
PLANDE AYALA
COATZACOALCO, VERACRUZ
C.P. 92900
TEL 921 212 4386
POZA RICA, VERACRUZ
921 212 9257
TEL. 782 823 9661
[email protected]
[email protected]
ATENCION: FEDERICO SANTOS
ATENCION SR. ROBERTO MARTINEZ.
PULSERVER
AVENIDA 20 DE NOVIEMBRE #94
COLONIA CENTRO
C.P. 91170
VERACRUZ, VERACRUZ
TEL. 229 931 3334
[email protected]
ATENCION SR. FABIAN PETRILI
Imported by: BRISAGOODS DE MONTERREY, S. A DE C. V
VERSALLES #27
COL. JUÁREZ
DELEGACIÓN CUAUHTEMOC
C.P. 06600
MÉXICO D.F.
MÉXICO D.F. PHONE. (55) 14-50-93-50, 55-92-23-10
374-0297 Rev A
JALISCO
TABASCO
EQUIPO AGROFORESTAL S.A. DE C.V.
HOSPITAL TECNICO Y SERVICIO INDUSTRIAL
DR. R. MICHEL #51
AV 16 DE SEPTIEMBRE #604
COLONIA LAS CONCHAS
ESQ. CON PROLONGACION P. DE LA SIERRA
GUADALAJARA, JALISCO
COLONIA PRIMERO DE MAYO
C.P. 44560
VILLAHERMOSA, TABASCO
(33) 36 19 24 47
993 5 91 75 14
[email protected]
[email protected]
ATENCION: JUAN CARLOS MARTINEZ
ATENCION: MIGUEL BRISEÑO
MORELOS
MEXICO D.F.
AGRO Y JARDIN DE MORELOS
CASA Y JARDIN
PASEO CHETUMAL # 169
MONTE ATHOS #105
COLONIA QUINTANA ROO
COLONIA LOMAS DE CHAPULTEPEC
C.P. 62060
DELEG. MIGUEL HIDALGO
CUERNAVACA, MORELOS
C.P. 11000
TEL 777 3101 094
MEXICO D.F.
[email protected]
(55) 5520 1322
ATENCION JOSE LUIS ALONSO
[email protected]
FRANCISCO JAVIER ALONSO VALLE
YUCATAN
MOTO HERRAMIENTAS
CALLE #71ª
LOTE 7 POR LA 124 Y LA 126
COLONIA MEXICO PONIENTE
MERIDA, YUCATAN
999 91 58 98 32
999 3 29 56 55
[email protected]
ATENCION: LUCERO ARCILA KED
Imported by: BRISAGOODS DE MONTERREY, S. A DE C. V
VERSALLES #27
COL. JUÁREZ
DELEGACIÓN CUAUHTEMOC
C.P. 06600
MÉXICO D.F.
MÉXICO D.F. PHONE. (55) 14-50-93-50, 55-92-23-10
374-0297 Rev A
ESTADO DE MEXICO:
GUANAJUATO:
CASA Y JARDIN
MOTOSIERRAS Y BOMBAS DEL BAJIO
AV. DR. JIMENEZ CANTU S/N
HILARIO MEDINA #1101
ZONA COMERCIAL RANCHO SAN JUAN
COL. COECILLOS
ZONA ESMERALDA
C.P. 37260
ATIZAPAN DE ZARAGOZA
LEON, GUANAJUATO
ESTADO DE MEXICO
TEL (477) 763 4198
(55) 5308 3664
[email protected]
[email protected]
ATENCION: ERIKA RAMOS
CASA Y JARDIN
PUEBLA, TLAXCALA:
AV HIDALGO #100
COL. JUAREZ
DAVI-CONET
OCOYOACAC, ESTADO DE MEXICO
CALLE METEPEC MANZANA 8 LOTE 6
(728) 284 1575
COLONIA EL REFUGIO
[email protected]
C.P. 72495
PUEBLA, PUEBLA
QUERETARO:
[email protected]
TEL 222 889 4025
REPARE INC.
ATENCION ING. JUAN MANUEL CERVANTES LOPEZ.
JOSE MA. SOTELO 18A
COL. VALLE ALAMEDA
QUINTANA ROO:
C.P. 76040
QUERETARO, QUERETARO
TECNOLOGIA EN RIEGO DE MEXICO S.A DE C.V.
(442) 421 6258
CALLE 76 LOTE 001 LOCAL 1
[email protected]
C.P. 77710
ATENCION: ZELPH ELI MIONI MORA
SOLIDARIDAD, QUINTANA ROO
TEL. 984 803 1098
[email protected]
Imported by: BRISAGOODS DE MONTERREY, S. A DE C. V
VERSALLES #27
COL. JUÁREZ
DELEGACIÓN CUAUHTEMOC
C.P. 06600
MÉXICO D.F.
MÉXICO D.F. PHONE. (55) 14-50-93-50, 55-92-23-10
374-0297 Rev A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
