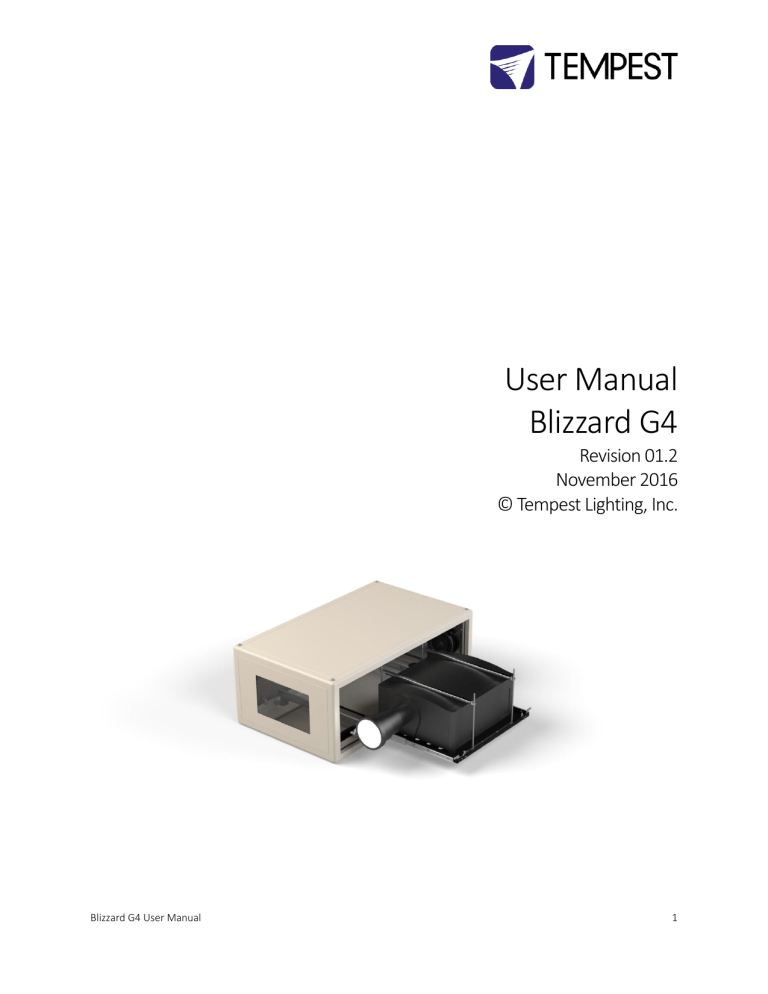

User Manual Blizzard G4

User Manual Blizzard G4

User Manual

Blizzard G4

Revision 01.2

November 2016

© Tempest Lighting, Inc.

Blizzard G4 User Manual 1

Table of Contents

Approvals – North America .................................................................................................................................................................... 4

Approvals – Europe ................................................................................................................................................................................ 5

Approvals – China ................................................................................................................................................................................... 6

Introduction ................................................................................................................................................................................................ 7

IMPORTANT: Safety Advisories .............................................................................................................................................................. 7

Installation ................................................................................................................................................................................................... 8

Dimensions, Rigging Points, and Maximum Projector Dimensions/Power ......................................................................................... 8

Air Clearance ....................................................................................................................................................................................... 9

Snow Clearance .................................................................................................................................................................................. 9

Mounting Bolts ................................................................................................................................................................................. 10

Mounting Options – Unistrut Kit ..................................................................................................................................................... 10

Mounting Options – Stacking Kit ..................................................................................................................................................... 11

Mounting Options – Truss Kit .......................................................................................................................................................... 11

Wiring the Enclosure ................................................................................................................................................................................ 12

Power Wiring ........................................................................................................................................................................................ 12

SAFETY NOTICE: ................................................................................................................................................................................ 12

Electrical Standards .......................................................................................................................................................................... 12

Wiring Access .................................................................................................................................................................................... 12

One or Two Power Circuits? ............................................................................................................................................................ 13

Conduit Entries ................................................................................................................................................................................. 14

Single Feed Power Termination ....................................................................................................................................................... 15

Split Feed Power Termination ......................................................................................................................................................... 15

Remote Monitoring Connections ........................................................................................................................................................ 16

Mounting the Projector ............................................................................................................................................................................ 17

Landscape Enclosures – tabletop or ceiling? ...................................................................................................................................... 17

Ceiling/Tabletop/Left/Right? ........................................................................................................................................................... 17

Configure the Projector Slide Mechanism ...................................................................................................................................... 17

Mount the Projector ........................................................................................................................................................................ 18

Aligning and Securing the Projector ................................................................................................................................................ 19

Digital Enclosure Control .......................................................................................................................................................................... 20

Schematic .............................................................................................................................................................................................. 20

DEC4 Main Functions ........................................................................................................................................................................... 21

Factory Settings – Basic Mode ............................................................................................................................................................. 21

Other Operating Modes ....................................................................................................................................................................... 22

Monitor Mode .................................................................................................................................................................................. 22

Control Mode.................................................................................................................................................................................... 22

Service Mode .................................................................................................................................................................................... 22

Blizzard G4 User Manual 2

DEC4 Control Parameters .................................................................................................................................................................... 23

Control Interface .............................................................................................................................................................................. 24

User Interface LCD Display ............................................................................................................................................................... 25

Control Interface Operation ............................................................................................................................................................ 25

Control Menu ........................................................................................................................................................................................ 26

Set DMX Options .............................................................................................................................................................................. 26

Set Temp Units ................................................................................................................................................................................. 27

Set Temp Ranges .............................................................................................................................................................................. 27

Set Max Humidity ............................................................................................................................................................................. 27

Set Lamp On Point ............................................................................................................................................................................ 27

Reset Lamp Hours............................................................................................................................................................................. 28

Status Display .................................................................................................................................................................................... 28

Routine Maintenance ............................................................................................................................................................................... 29

Clean Port Glass ................................................................................................................................................................................ 29

Check Filter ....................................................................................................................................................................................... 29

Check Temperature/Humidity Sensor ............................................................................................................................................. 30

For After Sales Support .................................................................................................................................................................... 30

Troubleshooting ........................................................................................................................................................................................ 31

Warranty ................................................................................................................................................................................................... 32

Appendix – TEMP Protocol ....................................................................................................................................................................... 33

Physical Layer ........................................................................................................................................................................................ 33

Protocol Implementation ..................................................................................................................................................................... 33

Blizzard G4 User Manual 3

Approvals – North America

This is to certify that the following products:

52.xxx.US Series Blizzard G4 Projector Enclosures

Have been tested and approved to standards UL 508 (electrical) and UL 50 (environmental), as NEMA 3R enclosures, for use in the United States and Canada.

This declaration is made by the manufacturer

Tempest Lighting, Inc.

11845 Wicks Street, Sun Valley, CA 91352, USA

This declaration is based on tests that were conducted on the submitted samples of the above mentioned products.

Listing Report No. 3198609LAX-001a refers.

Dated: July 1 st

, 2016

Signature . . . . . . . . . . . . . .

Tempest Lighting Inc

Blizzard G4 User Manual 4

Approvals – Europe

CERTIFICATE AND DECLARATION OF CONFORMITY

FOR CE MARKING

Tempest Lighting, Inc.

11845 Wicks Street, Sun Valley, CA 91352, USA t: +1 818 787 8984 f: +1 818 252 7101 e: [email protected] www.tempest.biz

Tempest Lighting, Inc. declares that t heir

Projector Enclosure Series 52.xxx.xx complies with the Essential Requirements of the following EU Directives:

Low Voltage Directive 2006/95/EC Test Report G4.51.LVD

Electromagnetic Compatibility Directive 2004/108/EC Test Report G4.51.EMC and further conforms with the following EU Harmonized Standards:

EN 60065 : 2002 Test Report 60065.G4.51.01

EN 60529:2001-2002

EN 61000-6-3:2007+A1:2011

Test Report 60529.G4.51.02

Test Report 61000.G4.51.03

Test Report 61000.G4.51.03

Test Report 61000.G4.51.03

EN61000-6-1:2007

EN55015:2006+A2:2009

Dated: 1 s t

July 2016

Position of signatory: President

Name of Signatory: Tim Burnham

Signed below: on behalf of Tempest Lighting, Inc.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Blizzard G4 User Manual 5

Approvals – China

Blizzard G4 User Manual 6

Introduction

Thank you for purchasing a Tempest enclosure! We have worked hard to provide you with the very best product available for its purpose, and we shall continue to do everything possible to ensure that it works well for you for many years to come.

Please read this manual before starting work!

In the event of difficulty, please contact your Tempest reseller or Tempest direct: [email protected]

+1 818 787 8984

We will do everything we can to help you get the very best results from your Tempest enclosure.

IMPORTANT: Safety Advisories

All installation and rigging work done must where applicable be designed and built in accordance with norms and standards of the local authority having jurisdiction of the installation site. It is the responsibility of the installer to obtain such approvals as may be required to achieve full compliance.

All electrical work must be carried out by a suitably licensed electrical contractor in full compliance with local electrical standards.

Lifting: some enclosures and the equipment inside them may be heavy. Use properly rated lifting equipment where appropriate and never attempt to carry out work with fewer than the number of workers needed to lift safely.

It is the responsibility of the installer to ensure that all local building, safety and electrical codes are strictly adhered to in the installation of this enclosure. Tempest

Lighting, Inc., its employees and agents are in no way responsible for damage arising from failure to follow either the instructions in this manual or building, safety and electrical codes prevailing at the installation location.

Do not attempt to install or operate the enclosure before fully reading and understanding this manual

Never allow anyone who has not read this manual to open the enclosure or perform maintenance on the projector within.

Never leave the enclosure unattended when open.

Always make sure all bolts and latches are tight and safety locks are in place after performing any form of maintenance on the unit.

Do not open any electrical boxes until power has been shut off to all supply lines to the enclosure (including the one powering the projector).

Do not open the enclosure in wet weather.

Blizzard G4 User Manual 7

Installation

Dimensions, Rigging Points, and Maximum Projector Dimensions/Power

Model

52.050

52.050P

52.050U

52.100

52.100P

52.100U

52.150

52.150P

52.150U

Format

Landscape

Portrait

Short Throw

Landscape

Portrait

Short Throw

Landscape

Portrait

Short Throw

DIM A

33.4in

1000

39.4in

1203

47.4in

1203

47.4in tbd*

746

29.4in

746

29.4in tbd*

848

33.4in

848

Blizzard G4 User Manual

DIM B

15.4in

1000

39.4in

722

28.4in

468

18.4in tbd*

646

25.4in

341

13.4in tbd*

722

28.4in

392

DIM C

28.4in

392

15.4in

468

18.4in

722

28.4in tbd*

341

13.4in

646

25.4in tbd*

392

15.4in

722

Rigging Points:

M12-1.75 x 40mm threaded holes at each corner, top and bottom.

Note: 4 x M12x40 stainless steel bolts supplied

DIM D DIM E Weight Projector Max:

Size (LWH) *

595x520x225

23.5x20.5x9in

595x520x225

23.5x20.5x9in tbd*

695x595x275

27.5x23.5x11in

695x595x275

27.5x23.5x11in

850x595x275

33.5x23.5x11in

1095x595x355

41.5x23.5x14in

1095x595x355

41.5x23.5x14in tbd*

Projector

Max Power

750W 686

27in

686

27in tbd*

787

31in

787

584

23in

279

11in tbd*

660

26in

330

31in

940

37in

1143

45in

13in

940

37in

660

26in

70lb

36kg

79lb

42kg

92lb

1143

45in

406

16in

42kg

92lb tbd* tbd* tbd*

*tbd – please consult factory

32kg

70lb

32kg

70lb tbd*

32kg

70lb

32kg

750W

750W

1,000W

1,000W

1,000W

1,800W

1,800W

1,800W

Note: Be sure to allow for the length of the lens and for connectors, cables and cable bend radii when calculating dimensions

8

Air Clearance

Observe the minimum clearances shown around your enclosure

Snow Clearance

In areas where snow is likely, make sure the base of the enclosure is at least 24” [60cm] above highest potential snow drift level.

75mm/3in

60cm/24in

Allow 1m/3ft for access on at least one side

50cm/20in

Blizzard G4 User Manual 9

Mounting Bolts

Each Enclosure must be mounted with FOUR points.

All mountings must be made using the four M12 threaded holes on the top or bottom of the enclosure.

Use an 8mm hex key to secure the M12 socket cap screws provided.

Tempest Lighting recommends the use of stainless

 steel mounting hardware.

Make sure the inlet filter has at least 75mm/3in clearance below.

 IMPORTANT SAFETY NOTICE

Installer must ensure that all mounting points are secure and conform to local safety regulations. Tempest

Lighting Inc. accepts no responsibility for damage or injury arising from inappropriate or unsafe installation.

Mounting Options – Unistrut Kit

If mounting positions for the corner bolts are not convenient, use the Unistrut Kit (52.UR.015/100/150) to add two Unistrut rails and Unistrut spring nuts.

Using the spring nuts, the enclosure may now be attached at any point along the Unistrut rails.

Mounted from Below:

Plastic plugs

M12-1.75 bolts

Use 8mm hex key

8mm

Mounted from Above:

M12-1.75 bolts

Use 8mm hex key

Plastic plugs

Unistrut Rails may be mounted above or below

Blizzard G4 User Manual 10

Mounting Options – Stacking Kit

Blizzard G4 may be stacked up to four units high, using the 51.SK stacking Kit. You will need the total number of

Blizzards to be stacked, minus one stacking kit(s).

Note: Blizzards must be of the same model to stack in this way.

51.SK Stacking Kit (set of four, for one enclosure)

Mounting Options – Truss Kit

Use the Truss Hanger kit to hang any Blizzard enclosure from a truss or horizontal pipe up to 50mm (2in) diameter.

52.TR.050

52.TR.050P

52.TR.100

52.TR.100P

Truss Kit, Blizzard 050

Truss Kit, Blizzard 050 Portrait

Truss Kit, Blizzard 100

Truss Kit, Blizzard 100 Portrait

52.TR.150

52.TR.150P

Truss Kit, Blizzard 150

Truss Kit, Blizzard 150 Portrait

Bolt Hanger

Kit to top mounting holes with

M12 bolts provided

Bolt bottom leg to M12 socket each corner

Pan adjustment

Bolt top leg to M12 socket each corner

Join top and bottom sections together with

Clevis pins

Clamp and tilt adjust to any 50mm/2” pipe or truss beam

Roll adjustment

Bolts both sides

Blizzard G4 User Manual 11

Wiring the Enclosure

Power Wiring

SAFETY NOTICE:

All electrical wiring and termination MUST be carried out by a suitably qualified and/or licensed professional, in accordance with electrical and safety norms applicable in the jurisdiction of the installation. Tempest, its employees and representatives will not be liable for any damage arising from failure to observe this requirement.

Electrical Standards

Important:

Enclosure model numbers ending .US are for use in countries using US and Japanese style electrical systems:

100-120VAC 50/60Hz

Enclosure model numbers ending .IN are for use in countries using European style electrical systems:

200-230VAC 50/60Hz

Note:

(1) All exhaust fans are 120VAC, regardless of electrical standard. The control electronics provide a variable ac supply to the exhaust fans up to

120V.

(2) Heaters are rated 115V or 230V, dependent on electrical standard.

(3) Electronics are autosensing for any voltage 90-

265VAC, 50/60Hz

Wiring Access

Open the back door, and remove the DEC4 Controller cover

Blizzard G4 User Manual

DEC4 Controller

Cover

12

Earth/Ground Terminal

AC Terminal Block

DEC4 Motherboard

Fan Control Board

Exhaust Fan

One or Two Power Circuits?

Tempest enclosures may be wired on single or double circuit supplies. On a single feed, both enclosure and projector are permanently on. With a split (double) feed supply, you can switch off the projector when not in use, while the enclosure continues to protect it 24/7.

Tip: most people use single feed.

Single Feed

Enclosure and projector are permanently on.

Enclosure and Projector must be rated for the same voltage.

Supply must be rated for projector current plus 150 watts.

Supply must be permanently ON.

1

Single Feed

1

2

Split Feed

Split feed

Enclosure power must be permanently ON.

Projector power may be switched off.

Enclosure power must be rated for 650 watts.

Projector power must be rated for the projector

(see projector manual).

Projector and enclosure power must be same voltage.

Blizzard G4 User Manual 13

For single feed wiring, no modification to the DEC4 Controller motherboard is needed.

IMPORTANT:

For split feed wiring, use a side cutter to cut both AC links at both ends:

Conduit Entries

Two conduit entry holes are provided, sized for PG21 (US ¾”) conduit or cable glands. Use one for power and the other for signal cables.

DO NOT run power and signal cables through the same conduit.

Conduit Entry

Signal

Conduit Entry

AC Power

Blizzard G4 User Manual 14

Single Feed Power Termination

Connect Earth/Ground wire to Ground Terminal

Connect Live and Neutral to the terminals marked FEED

Split Feed Power Termination

STOP! Did you cut the power links? See above.

Connect Earth/Ground wire to Ground Terminal

Connect Enclosure feed to the terminals marked FEED

Connect Projector feed to the terminals marked SPLIT

Single Feed AC Supply for

Enclosure and Projector

Blizzard G4 User Manual

Enclosure

AC Supply

Projector

AC Supply

15

Remote Monitoring Connections

Tempest G4 enclosures optionally support three types of remote monitoring:

1. Direct via Ethernet, using Tempest TEMP protocol.

Requires 51.EN Ethernet board

2. Grouped via RS485, using RDM

Requires one 51.485 RS485 board per enclosure

3. Grouped via RS485, using an Ethernet bridge and

Tempest TEMP protocol

Requires one 51.485 RS485 board per enclosure

51.EN Ethernet

Board

51.485 RS485

Board

Ethernet LAN

51.485 RS485

Board

51.485 RS485

Board

RS485 Daisy Chain

(use CAT5 Cable)

Tempest System

Manager

Local PC Remote PC Smartphone

Note: Tempest System Manager and web-based monitoring will be available early 2017

51.485 RS485

51.EN Ethernet Board

Ethernet LAN

Local PC

Blizzard G4 User Manual 16

Mounting the Projector

Landscape Enclosures – tabletop or ceiling?

Ceiling/Tabletop/Left/Right?

Blizzard’s projector mounting tray is uniquely flexible, and allows any suitable projector to be mounted tabletop (feet down) or ceiling (feet up) style, and to slide out of the enclosure to either left or right.

Configure the Projector Slide Mechanism

First, you may need to re-install the projector slide to your preferred orientation.

1. Loosen all eight socket cap screws, using a 4mm hex key

2. Slide the projector tray clamps towards the center or the enclosure

3. Lift out the tray assembly

4. Replace the tray assembly in the desired position

5. Slide the four projector tray clamps towards the outside of the enclosure to grip on the enclosure frame

6. Tighten the eight socket cap screws

4mm

(2) 4 places

Blizzard G4 User Manual

Slide Right

7.

Ceiling style

Tabletop style

(3) Remove Tray

Assembly

Slide Left

(1) Both sides

17

(4) Replace Tray

Assembly in desired orientation

Mount the Projector

(1) Slide out the projector tray and set the projector in place

(2) Adjust the projector bails for a loose fit (you will adjust and lock down later)

(3) Slide the projector back into the enclosure

(4) Secure the projector tray latches and tighten the latch knobs

(5) (6) Replace clamps and tighten clamp screws

Projector Bails

Projector Tray Latch

Latch Knob

Blizzard G4 User Manual 18

(5) Plug the projector power cable into one of the

IEC C13 outlets on the side of the DEC4 housing.

THE PROJECTOR MUST BE POWERED THROUGH

THE DEC.

(6) The second outlet is available for any auxiliary equipment that may be housed inside the enclosure.

Note that two IEC C14 plugs are provided with the Blizzard

enclosure for your convenience.

Aligning and Securing the Projector

(1) Use the projector’s feet to adjust projector alignment.

(2) Tighten Projector bails to secure projector in place.

(2)

(1)

Blizzard G4 User Manual 19

Digital Enclosure Control

DEC4 TM – that’s Digital Enclosure Control, fourth

Generation – is the brain of your Tempest enclosure. It will maintain the internal environment in a comfortable temperature and humidity range, and prevent condensation – the real killer of outdoor equipment. DEC4 monitors internal and external temperature, humidity and lamp current at all times, and uses this information to control the enclosure’s lamp relay, fan(s) and heater(s). It can report back over an RS485 network, using the RDM protocol (Remote Device Management), or connect to your TCP/IP network for remote monitoring amd management using Tempest’s TEMP protocol.

Schematic

Blizzard G4 User Manual

DEC4 Motherboard and fan board

(simplified)

20

DEC4 Main Functions

1. Sense current to projector (lamp on/off)

2. Record lamp hours

3. Monitor temperature and humidity inside

Enclosure

4. Monitor temperature outside enclosure

5. Maintain internal temperature at safe operating level

6. Maintain relative humidity within safe limits to prevent condensation

7. Isolate projector in case of unsafe temperature

8. Report status over RS485, RDM, TCP/IP

9. Maintain positive pressure (optional) 24/7 to prevent ingress of salt air and other contaminants

10. Circulates air internally to prevent hot and cold spots when projector is idle

DEC3.3 constantly monitors the following parameters:

Projector/Luminaire current

Line Voltage

Temperature

Humidity

Factory Settings – Basic Mode

DEC 3.3’s patented Goldilocks TM algorithm uses a combination of sensors, heaters and fans to maintain a safe operating temperature and a safe relative humidity level that will not allow condensation to take place.

As air is heated it is able to support more moisture without condensing, so Goldilocks uses heat to raise the air temperature inside the enclosure in the event that relative humidity approaches dewpoint.

In most applications, DEC3.3 will operate correctly with its factory default settings, in Basic operating mode.

You do not need to do anything. Please skip to the Power

Connections section below.

Standard default temperature and humidity settings

DMX, RDM and Remote Monitoring disabled

Best for standalone operation

Supports TEMP remote monitoring protocol – see

Appendix

If your needs are more complex, read on.

Blizzard G4 User Manual 21

Other Operating Modes

Monitor Mode

Control Mode

Service Mode

As Basic mode, plus:

• RDM status reporting over RS485

• RDM configuration – settings may be changed remotely or at the enclosure control panel

As Basic mode, plus:

Enclosure functions as a 1-channel DMX device, with remote control of the lamp relay o

DMX level > 75% enables normal relay operation

(normally ON) o

DMX level < 25% disables normal relay operation

(relay turns OFF) o

This allows you to force a hard reset of the lamp relay in the event of a projector malfunction

Control mode is recommended for show control applications, but can be risky in live show operation, since the DMX slot used for the enclosure MUST be kept high to prevent the lamp relay from opening.

For trained service personnel only

Normal operation is suspended and the enclosure functions as a 3-channel DMX device: o

Lamp Relay (Slot 1) o

Fans (Slot 2) o

Heater (Slot 3)

Service mode is ONLY for troubleshooting – DO NOT use

Service mode for normal operation.

Blizzard G4 User Manual 22

DEC4 Control Parameters

Temperature and Humidity Ranges

Low

Relative Humidity

(50-90%,

Default 80%)

High

Cooling Fan(s)

Heater(s)

Trip Temp

(55-70˚C, Default 60 ˚C)

Upper Temp

(35-50˚C, Default 40 ˚C)

Trend Temp

(Dynamic)

IdealTemp (Dynamic, based on Relative Humidity)

LowerTemp

(0-10˚C, Default 0 ˚C)

Notes:

1 In moving light enclosures the temperature sensor is located in the exhaust airflow. Temperatures shown may be higher than those around the projector.

2 We recommend using the factory default settings for several weeks or months before making any changes. In most cases they will not be necessary.

Blizzard G4 User Manual 23

Control Interface

LED Indicators

Heater

Fan

Lamp On

Lamp Relay

Temp

Data

Blizzard G4 User Manual

Heater is ON, to maintain lower temperature level or to prevent condensation

ON (Green)

ON (Green)

ON (Green)

OFF

ON (Green)

ON (Red)

FLASHING

(Green)

ON (Green)

ON (Amber)

ON (Red)

FLASHING (Red)

OFF

ON (GREEN)

ON (RED)

Lamp is ON, or Temperature is HIGH and

Fan is cooling enclosure. Short burst when lamp off indicates fan moving air to stabilize temp/humidity

Current sensing shows lamp is ON

Lamp hour counter is running

Current sensing shows lamp is OFF

Lamp hour counter is not running

Lamp relay is closed (normal)

Projector power receptacle is energized

Lamp relay is open due to over-temperature event. Projector power receptacle is isolated.

Temperature is below lower temp setting

Temperature is in normal range

Humidity is above target limit

Temperature is above top setting

Temperature is above Trip level

Projector power is isolated

DEC4 is in BASIC Mode – Data not used. OR DEC4 is in TEMP, Monitor or

Control Mode and no valid data packet has been detected.

Good data packet received.

Control Mode: Data Fail. A previously good data signal has failed.

Monitor Mode: No RDM information being received (this is normal)

24

User Interface LCD Display

The display on the Control display provides additional status information, depending on the operating mode:

Basic Mode & Monitor Mode

DMX Mode & Service Mode

Control Interface Operation

The Control Interface is normally LOCKED.

To UNLOCK, hold ESC and OK together for 5 seconds.

You are now in the CONTROL MENU

Use  to scroll up and down the menu.

Press OK to enter a menu item

Use  to set the item parameter, or to scroll to the next menu level.

Use ESC to go BACK, or OK to confirm settings ( ).

To LOCK, hold ESC for 5 seconds.

Menu will time out after ten minutes.

Blizzard G4 User Manual 25

Control Menu

Set DMX Options

SET DMX MODE

From the Front Panel, this menu item allows the user to check (and if necessary change) the RDM mode.

BASIC

MONITOR

Standalone operation, no DMX/RDM (factory default), supports TEMP protocol

Standalone, plus support for RDM remote configuration and monitoring

CONTROL Monitor, plus use of a single DMX slot to control Lamp relay

SERVICE Monitor, plus use of three DMX slots to control Lamp, Heater and Fan

Important: Please ensure that the DEC3.3 is NOT left in Service Mode.

SET DMX ADDRESS (in Monitor, Control or Service modes)

Select a DMX starting address in the range 001 to 510

1 – Lamp Relay

In Service Mode an addition two slots are available

2 – Fan Duty Control

3 – Heater Duty Control

Note that the DMX control is designed using a SAFETY pile-on Logic. So the DMX input can only override automatic settings within safe limits.

SET DMX CURVE

DMX Curves affect the way the fixture relay is controlled in Control Mode.

DMX levels are shown as %.

Response Curve 1 (default)

DMX level 0-25 Relay disabled (open)

DMX level 26-75 No change to relay status

DMX level 76-100 Relay enabled (normally closed)

Response Curve 2

DMX level 0-19 No change to relay status

DMX level 20-40 Relay disabled (open)

DMX level 41-59 No change to relay status

Blizzard G4 User Manual 26

DMX level 60-80 Relay enabled (normally closed)

DMX level 81-100 No change to relay status

SET DMX RESPONSE

DMX Response sets a delay time before DMX Control Mode settings are acted on. Setting a response delay of a few seconds would prevent unintended fixture relay state changes in the event of a short accidental change in DMX level.

NOTE: from firmware revision 0.00.100, DEC holds last valid DMX level if DMX is interrupted.

Response Delay Values are:

No Delay (default), 1, 2, 5, 10, 15, 20, 30, 60 seconds.

Set Temp Units

Choose to display temperature values in Celsius or Fahrenheit (default Celsius)

Note that temperature settings must be entered in Celsius.

Set Temp Ranges

Set three temperature trigger points for Bottom, Top and Trip temperatures, in °C.

SET TEMP LOWER (minimum temperature to be maintained)

(default 0°C, permissible range 0-10°C).

SET TEMP UPPER (maximum desired temperature)

(default 40°C, permissible range 35-50°C).

SET TEMP TRIP (temperature at which load will be isolated – see note)

(default 60°C, permissible range 55-70°C).

Note: A thermal emergency is when enclosure ventilation fails with the lamp on, in which case the temperature will rise very quickly. To avoid nuisance tripping we recommend setting a higher Trip temperature, 60°C or above.

Set Max Humidity

(default 80%, permissible range 50-90%).

Set target maximum relative humidity level. This should be set at or a few % higher than the normal high humidity levels expected on site.

Set Lamp On Point

The lamp current at which DEC detects the projector/luminaire lamp is running. Default is 1 Amp, which allows for equipment fans and power supplies to run without changing the air in the enclosure. Lamp on point may be set in

0.2 Amp increments between 0.2 Amps and 2.0 Amps.

Blizzard G4 User Manual 27

Reset Lamp Hours

Reset each time you change the lamp in the projector.

Make this a part of your maintenance instructions.

Status Display

View current status information, using the arrow keys to scroll through: e) f) g) a) b) c) d)

Humidity – relative humidity in %

Air temperature, in degrees C or F

PCB temperature (this will usually be significantly higher than air temperature)

Voltage – line Voltage reaching the DEC

Current being drawn by projector/light, in Amps

Lamp Hours elapsed since last reset

Firmware version

Blizzard G4 User Manual 28

Routine Maintenance

Check the following every six months:

Clean Port Glass

Clean port glass using a window cleaning fluid or detergent. Use a soft, lint free cloth.

Check Filter

In most cases the filter will be good for 1-2 years. If the filter becomes clogged the temperature inside the enclosure will start to rise. This is an indication that the filter must be changed.

Part Numbers:

51.HF.11 Blizzard 050, 100 Replacement Filter

51.HF.15 Blizzard 150 Replacement Filter

To replace filter from below

1. Remove the 8 filter clamp screws.

2. The filter will drop out.

3. Replace filter and filter clamp.

To replace the filter from inside the enclosure

1. Remove both side panels

2. Slide the projector tray out

3. Remove the eight M4 nuts holding the filter assembly

Blizzard G4 User Manual 29

4. Remove the filter clamp screws

5. Replace the filter and filter clamp

6. Replace the filter assembly

Filter Assembly

Filter Frame

Filter Gasket

Filter

Filter Clamp

Filter Nuts

Check Temperature/Humidity Sensor

If the sensor above the port glass is defective, the controller may not operate correctly. A defective sensor will result in one of three messages appearing on the DEC user interface.

If you see any of these messages, contact Tempest for a replacement sensor.

For After Sales Support

Contact your Tempest dealer or email [email protected]

RH: 5%

RH: 100%

RH: ####

Filter Clamp Screws

Blizzard G4 User Manual 30

Troubleshooting

Projector does not have power:

Enclosure overheats:

Dirt/Debris inside enclosure

Water in enclosure

Fan LED is on but fans do not operate

Heater LED is on but heater does not operate

None of the above?

Blizzard G4 User Manual

1. Check Projector power switch

2. Check projector is plugged into DEC4 projector outlet

3. Check that enclosure feed circuit is on

4. Check DEC4 User Interface leds are on. If feed circuit is on and UI leds are off, check feed wiring to DEC terminals and meter DEC4 projector outlet for power

5. If UI lamp led is on and DEC4 projector outlet is live, there is a projector fault.

1. Is the projector connected to the DEC4 projector receptacle? If the projector is powered independently the controller has no way to know when to turn on the exhaust fans!

2. Is the filter clogged or obstructed?

3. Check that the Fan led on the UI is on when the projector is running. If not, then the projector is probably not connected to the DEC (see 1).

4. If the fan led is on, check that the fan is running. If not, check fan wiring. If wiring is ok, fan may be faulty.

5. Check the UI display for RH (relative humidity) message. If display reads RH 5%, RH 100%, or RH###, there is a sensor fault. Contact Tempest for a replacement sensor.

1. Filter is either missing or damaged?

2. Filter is not properly seated

3. Side panels or back door is not firmly latched

1. Check the drain holes in the bottom of the enclosure. If they become blocked, and water that gets in cannot escape.

2. Check seals around side panels and back door

The exhaust fan is protected by a 20mm 4A slow-blow fuse on the DEC4 motherboard, and a secondary fuse on the fan board.

In very exceptional cases it is possible that either fuse could fail. Check visually.

The fuse is protected with a clear resin sealant and soldered to the circuit board. With care, you can de-solder the fuse and replace it, but we recommend replacing the DEC4 motherboard to maintain the integrity of the board’s conformal coating.

The heater is protected by a 20mm 10A slow-blow fuse on the

DEC4 motherboard. In very exceptional cases it is possible that it could fail. Check visually.

The fuse is protected with a clear resin sealant and soldered to the circuit board. With care, you can de-solder the fuse and replace it, but we recommend replacing the DEC4 motherboard to maintain the integrity of the board’s conformal coating.

Contact [email protected]

31

Warranty

INSPECTION/WARRANTY/RETURNS.

A. Customer, at its sole expense, shall inspect all Goods promptly upon receipt and accept all Goods that conform to the specifications or catalog. All claims for any alleged defect in or failure of the Goods or Seller's performance to conform to the

Contract, capable of discovery upon reasonable inspection, must be set forth in a written rejection notice detailing the alleged non-conformity, and be received by Seller within thirty (30) calendar days of Customer's receipt of the Goods. Failure by

Customer to notify Seller of the alleged non-conformity within thirty (30) days will be conclusive proof that the Goods have been received by Customer without defects or damage, and in the quantities specified on the bill of lading and shall constitute an irrevocable acceptance of the Goods and a waiver of any such claim in connection with the Goods.

B. Seller warrants to Customer only that the Goods will be free from defects in material and workmanship at the time of delivery and, subject to the exceptions and conditions set forth below, for the following period (the "Warranty Period"): twelve (12) months from the date of shipment by Seller. Seller may provide additional years of warranty coverage beyond 12 months, at the rate of 2.5% of the net sale price per year, up to a total of four additional years’ coverage beyond the standard

12 month warranty period. Seller will remedy a defect as set forth in paragraph 7 D, below, (the "Warranty"). The Warranty is subject to each of the following exceptions and conditions:

1. Customer must promptly (and in all events within the Warranty Period) notify Seller of any alleged defect in a written notice

(the "Notice") which shall set forth the quantity, catalog number, finish, original purchase order number, Seller's invoice number on which Goods were originally billed and a statement of the alleged defect, along with digital photographs showing such defects where feasible.

2. The Warranty shall not apply: (i) to any claimed defect that was capable of discovery upon reasonable inspection and deemed to be waived under paragraph A, above; (ii) to any Goods that have been subject to misuse, abnormal service or handling, or altered or modified in design or construction; (iii) to any Goods repaired or serviced by any person other than

Seller's authorized service personnel or to Goods installed other than according to installation instructions, or (iv) with respect to normal wear and tear.

3. Seller makes no Warranty with respect to parts or components that are not the product of Seller, and specifically makes no warranty whatsoever for equipment housed inside enclosure products manufactured by Seller.

4. The Warranty is Seller's exclusive warranty with respect to the Goods. Seller makes no warranties, guarantees or representations, express or implied, to Customer except as set forth in this section. ALL OTHER WARRANTIES, EXPRESS OR

IMPLIED, INCLUDING, WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR USE OR FOR

A PARTICULAR PURPOSE, ARE HEREBY EXCLUDED AND DISCLAIMED.

C. Seller will accept the return of Goods properly rejected under paragraph A, above, or as to which Notice of an alleged breach of Warranty has been timely given and such Goods may be returned to Seller, freight prepaid, but only upon

Customer's receipt of Seller's written return material authorization ("RMA") and shipping instructions. The RMA shall be void if the Goods are not received within 45 days after issuance of the RMA. No deduction or credit in respect of any rejected or returned Goods shall be taken until Customer has received Seller's further written deduction or credit/authorization following

Seller's inspection to confirm nonconformity or defect. Seller will charge to Customer any and all costs incurred by Seller in connection with the handling, shipping, inspection and disposition of any returned Goods that are determined by Seller not to have been nonconforming upon Delivery or as to which the warranty hereunder is not applicable.

D. UPON ANY PROPER RETURN PURSUANT TO PARAGRAPH C, ABOVE, WHETHER IN CONNECTION WITH A REJECTION OF

GOODS OR AN ALLEGED BREACH OF WARRANTY AND BASED UPON THE CONDITIONS SET FORTH IN THIS PARAGRAPH 7,

SELLER AGREES THAT IT WILL, AS THE SOLE AND EXCLUSIVE REMEDY UNDER THE CONTRACT OR OTHERWISE, FOR ANY

NONCONFORMITY OR BREACH OF WARRANTY, AND AT SELLER'S SOLE ELECTION: (i) REPAIR SUCH GOODS; OR (ii) REPLACE

SUCH GOODS.

Blizzard G4 User Manual 32

Appendix – TEMP Protocol

AVAILABLE TO SPECIAL ORDER

Tempest can optionally provide a firmware load that facilitates TEMP over RS485, suitable for interfacing to an Ethernet adapter. TEMP is a lightweight proprietary ASCII based protocol, intended for rapid integration into management systems.

With TEMP and a suitable RS485 to Ethernet adaptor connected to the DEC DMX connectors, your DEC may be configured and monitored over an IP network.

Please contact factory for ordering information.

Physical Layer

1. EITHER: Use a 51.EN Ethernet daughter board plugged directly to the DEC4 motherboard, connected to your TCP/IP network.

2. OR: Use a 51.485 RS485 daughter board on each of a number of DEC4 motherboards, and use one of the convertors listed below to bridge to your TCP/IP network.

Suitable Converters include: http://gridconnect.com/rs485-ethernet.html

http://www.audon.co.uk/lan232/ENET485-POE.html

http://uk.rs-online.com/web/generalDisplay.html?id=brainboxes

Protocol Implementation

The protocol is a half-duplex ASCII syntax, based on a client-server model.

1. Terms and Conventions

All commands are initiated by a TEMP Controller and are responded to by a TEMP Responder.

Commands and Responses are collectively referred to as packets.

A single Command and associated Response is referred to as an exchange.

2.1 TEMP Controller

A TEMP controller is not to be confused with a DEC or ‘DEC Controller’. The TEMP Controller, referred to here on in as a Controller will be the system of software that is a client of the Tempest DECs.

All serial packets sent by the Controller will be referred to as a command.

2.2 TEMP Responder

Blizzard G4 User Manual 33

A TEMP Responder, for the purpose of this document, referrers to a Tempest DEC and from here on, is referred to as a Responder.

All serial packets sent by a Responder will be referred to as a response.

3. Connectivity

3.1 Physical Connection

The connection to the Tempest Equipment is via an RS485 Buss with Controller Idle Sate bias, compliant with ANSI E1.20 section 2.4.1. at 250K Baud, 8 data bits, two stop bits.

3.2 DEC Configuration

For a DEC to be operable with TEMP, the DEC must be configured to be in ‘BASIC’ mode. For further details on configuring a DEC, refer to the accompanying user manual.

4. Responder Addressing

The responder address will be the electronic UID of the responder. A responder UID is comprised of a PLASA manufacturer ID and a unique manufacturer serial number. For Tempest equipment, the vendor ID or VID is $544C.

The remaining 8 characters are a hexadecimal extrapolation of the responder serial number, so for example, a serial number of 64035 would be represented by a hexadecimal value of $0000FA23. These two strings combined together form the responder address $544C0000FA23.

The responder serial number can be found on the Tempest electronics or by accessing the user display and scrolling the status information.

A Get command to address $FFFFFFFFFFFF will solicit a response from all responders, which having more than one responder on a single buss will cause a data conflict.

A Set command to address $FFFFFFFFFFFF will be acted on by a responder but not responded to.

1 Command Structure

Each packet is transmitted as an ASCII string, enclosed in the reserved characters ‘<’ and ‘>’.

Any traffic between the < and > characters shall be disregarded.

On receipt of a < character before the final > character, all preceding data shall be disregarded.

Each packet is addressed to an associated Responder.

Each packet contains a reserved Command or Response Identifier character, being ‘?’ or ‘!’ respectively.

The responder address shall be sent immediately after the command or response Identifier.

There are two classes of exchange, Set to configure and Get to retrieve status data.

5.1 Get Command Example.

<?:$544C0000FA23;GET:STS=ALL>

Blizzard G4 User Manual 34

5.2 Get Response Example

<!:$544C000FA23;STS:ACV=#223,ACC=#5.3,ATM=#32,RHM=#62,RLY=AUT>

5.3 Set Command Example

<?:$544C000FA23;SET:RLY=OFF>

5.4 Set Response Example

<!:$544C000FA23;RLY=OFF>

6 Packet Parsing

6.1 Order of Precedence

Packets are syntactically arranged for parsing in order of precedence, the precedence being a semicolon, colon and comma.

6.2 Type Identifiers

· Decimal values are preceded by a hash character

· Hexadecimal values are preceded by a dollar character

· Text strings are preceded by a literal character ‘ (Not enclosed)

· All other data implicitly represents and enumerated constant

6.3 Reserved Characters

The following character are reserved for syntactic control:

< > ! ? # $ ‘ = ; : , \

Reserved characters used in strings will be preceded by the reserved escape character \ .

Character Use Description

\ \\ Backslash

< \< Start of packet

> \< Packet terminator

? \? Command Packet Identifier

! \! Response Packet Identifier

# \# Decimal Value Descriptor

$ \$ Hexadecimal Value Descriptor

‘ \’ String Literal

; \; Packet section separator

: \: Packet Section Label Identifier

Blizzard G4 User Manual 35

, \, Parameter separator

= \= Parameter value Identifier

Packet Parameters

Each packet will contain one or more parameters, each parameter being in the format NNN=D, NNN being the three letter Mnemonic or PID to identify the parameter and D being the value or data of the parameter. In a frame payload, all parameters are cardinal with no pre-determination of the order.

Set command packets may only contain one parameter.

6.4 Set PIDs

6.4.1 RLY

This is used to change the operational mode of the relay in a DEC. Arguments for this PID are:

· AUT Automatic, in control of the DEC and closed (on) by default.

· OFF Takes control from the DEC and holds the relay open (off)

Response to this parameter will be one of the following enumerated constants:

· OFF When set to off by a controller

· AUT When in control of DEC and closed (on)

· TRP When in control of the DEC and tripped (off)

6.4.2 LBL

This writes a label to the responder, for use by the controller. The label may be up to 32 ASCII characters, with any reserved characters escaped as detailed on section 6.3

Response to this will echo the label back.

6.5.1 STS

This is used to return the current status of the DEC, arguments for this PID are:

· ALL Requests all information in one packet.

· SEN Requests only dynamic sensor information.

· CFG Requests configuration settings.

Responses parameter to this parameter include:

· ACV AC RMS Line Voltage

· ACC AC RMS Lamp current

· ATM Air temperature (Main) °C

· RHM Relative Humidity (Main) %

Blizzard G4 User Manual 36

· PCT PCB temperature °C

· HRL Lamp hours

· RLY Relay Status (OFF | AUT | TRP)

6.5.2 LBL

This is used to retrieve the responder’s label.

Blizzard G4 User Manual 37

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
