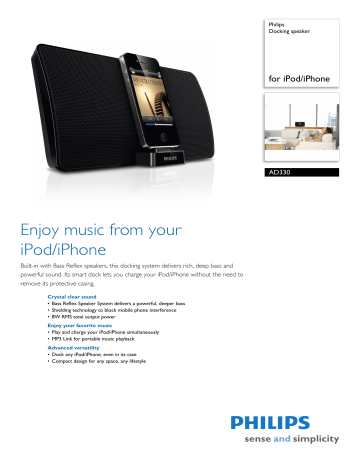

AD330/12 Philips Docking speaker
Docking speaker
for iPod/iPhone
Enjoy music from your
Built-in with Bass Reflex speakers, this docking system delivers rich, deep bass and
powerful sound. Its smart dock lets you charge your iPod/iPhone without the need to
remove its protective casing.
Crystal clear sound
• Bass Reflex Speaker System delivers a powerful, deeper bass
• Shielding technology to block mobile phone interference
• 8W RMS total output power
Enjoy your favorite music
• Play and charge your iPod/iPhone simultaneously
• MP3 Link for portable music playback
Advanced versatility
• Dock any iPod/iPhone, even in its case
• Compact design for any space, any lifestyle
Docking speaker
for iPod/iPhone
iPod compatibility
• Compatible with: iPod classic, iPod mini, iPod nano
1st generation, iPod nano 2nd generation, iPod
nano 3rd generation, iPod nano 4th generation,
iPod nano 5th generation, iPod nano 6th
generation, iPod touch, iPod touch 2nd generation,
iPod touch 3rd generation, iPod touch 4th
iPhone compatibility
• Compatible with: iPhone, iPhone 3G, iPhone 3GS,
iPhone 4, iPhone 4S
• MP3 Link: 3.5mm stereo line in
• Power supply: 100 - 240V AC, 50/60Hz
• AC/DC Adaptor
• Charging device: iPod, iPhone
• Product dimensions (WxDxH): 260 x 103 x
131 mm
• Packaging dimensions (WxDxH): 354 x 136 x 167
• Product weight: 1.8 kg
• Weight incl. Packaging: 1.3 kg
• Sound system: stereo
• Volume control: up/down
• Output power: 8 W RMS
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box system.
It differs from a conventional loudspeaker box
system in the addition of a bass pipe that is
acoustically aligned to the woofer to optimize the
low frequency roll-off of the system. The result is
deeper controlled bass and lower distortion. The
system works by resonating the air mass in the bass
pipe to vibrate like a conventional woofer.
Combined with the response of the woofer, the
system extends the overall low frequency sounds to
create a whole new dimension of deep bass.
MP3 Link
The MP3 link connectivity allows direct playback of
MP3 content from portable media players. Besides
the benefit of enjoying your favorite music in the
superior sound quality delivered by the audio
system, the MP3 link is also extremely convenient as
all you have to do is to plug your portable MP3 player
to the audio system.
Dock iPod/iPhone in its case
Smartly designed spring-loaded docking port
effortlessly accommodates any iPod or iPhone,
without special adaptors. What’s more, it works
even when most protective cases are on – just dock
your iPod or iPhone as it is. Now you can truly have
fuss-free enjoyment of your music.
Issue date 2012-05-25
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 3.1.5
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 89503
EAN: 87 12581 64261 7
