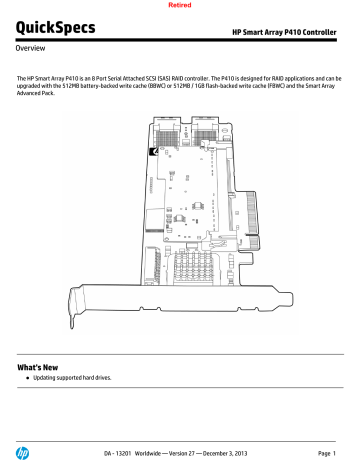

QuickSpecs

Retired

QuickSpecs

Overview

HP Smart Array P410 Controller

The HP Smart Array P410 is an 8 Port Serial Attached SCSI (SAS) RAID controller. The P410 is designed for RAID applications and can be upgraded with the 512MB battery-backed write cache (BBWC) or 512MB / 1GB flash-backed write cache (FBWC) and the Smart Array

Advanced Pack.

What's New

Updating supported hard drives.

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 1

Retired

QuickSpecs

Overview

Models

HP Smart Array P410

Controller

HP Smart Array P410 Controller

HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller

HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller

HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller

HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller

462862-B21

462864-B21

578230-B21

572532-B21

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 2

Retired

QuickSpecs

Standard Features

The Smart Array

Advantage

HP Smart Array P410 Controller

HP's innovative design and integration work of the Smart Array family of products creates customer value that is unmatched in the industry. Use of Smart Array products across multiple applications results in a much lower Total Cost of Ownership (TCO) than any other server storage RAID product. The HP Smart Array family brings an unparalleled return on investment through:

Data Compatibility among all models of Smart Array controllers allows simple and easy upgrades any time needs for higher performance, capacity, and availability increase. Even successive generations of

Smart Array controllers understand the data format of other Smart Array Controllers.

Consistent Configuration and Management Tools. All Smart Array products utilize a standard set of management and utility software. These tools minimize Total Cost of Ownership (TCO) by reducing training requirements and technical expertise necessary to install and maintain the HP server storage.

Universal Hard Drive form factor is for use across multiple HP servers, disk enclosures and storage systems. With compatibility across many enterprise platforms, you are free to deploy and re-deploy these drives to quickly deliver increased storage capacity, migrate data between systems, and easily manage spare drives.

Pre-Failure Warranty means HP Insight Manager not only reports when a drive is going to fail but allows replacement of failing drives prior to actual failure. For complete details, consult the HP Support Center or refer to your HP Server documentation.

Key Features

The SA-P410 Controller supports up to 24 drives depending on the server implementation.

Additional drives can be supported with cache and connection to the HP SAS Expander Card.

Seamless upgrades from past generations and upgrades to next generation HP high performance and high capacity Serial Attached SCSI Smart Array controllers.

6Gb/s SAS technology delivers high performance and data bandwidth and contains full compatibility with 3Gb/s SATA technology.

x8 PCI Express gen 2 host interface technology delivers high performance and data bandwidth up to

2 GB/s maximum bandwidth.

Modular, easy-to-upgrade design lets you optimize performance by upgrading from 40-bit 256MB cache to 72-bit 512MB battery-backed write cache (BBWC) or 72-bit 512MB/1G Flash Backed Write

Cache (FBWC).

Addition of the battery or flash backed cache upgrade enables array expansion, logical drive extension, RAID migration, and stripe size migration.

Additionally, Smart Array Advanced Pack License key enables RAID 6 (ADG), 6+0, Advanced Capacity

Expansion, Mirror Splitting and Recombining in Offline Mode, Drive Erase, Performance

Optimization-Degraded Reads and Read Coalescing (VOD).

Mix-and-match SAS and SATA hard drives, lets you deploy drive technology as needed to fit your computing environment.

Software consistency among all Smart Array family products: Array Configuration Utility (ACU),

Option ROM Configuration for Arrays (ORCA), Systems Insight Manager, Array Diagnostic Utility

(ADU) and SmartStart.

Low-profile PCI Express form factor - ships with a full size bracket for deployment in either a lowprofile or full sized slot.

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 3

Retired

QuickSpecs

Standard Features

Management Features

HP Smart Array P410 Controller

Online array expansion (with BBWC/FBWC upgrade)

Online Advanced Capacity Expansion (with BBWC/FBWC and Smart Array Advanced Pack upgrade)

Online logical drive extension (with BBWC/FBWC upgrade)

Online RAID level migration (with BBWC/FBWC upgrade)

Online strip size migration (with BBWC/FBWC upgrade)

Offline Mirror splitting and recombining (with BBWC/FBWC and Smart Array Advanced Pack upgrade)

Unlimited global online spare assignment

User selectable expand and rebuild priority

User selectable RAID level and stripe size

User selectable read and write cache sizes

Ports

Performance

Eight (8) SAS physical links distributed across 2 internal x4 wide port connectors.

HP's High Performance Architecture sets new boundaries of industry performance expectations!

6Gb/s SAS [(600MB/s bandwidth per physical link)] x8 6Gb/s SAS physical links (compatible with 3Gb/s SATA )

256 MB 40-bit wide DDR2-800MHz cache upgradeable to 512 MB 72-bit wide DDR2-800MHz battery-backed write cache or 512 MB / 1 G 72-bitwide DDR2 flash backed write cache provides up to

4.2 GB/s maximum bandwidth x8 PCI Express gen 2 host interface provides maximum bandwidth

Gen 2.0

Read ahead caching

Write-back caching (with BBWC/FBWC)

Native Command Queuing Native Command Queuing (NCQ) is a technology designed to increase performance of SATA hard disk drives by allowing the individual hard disk to internally optimize the order in which received read and write commands are executed. This can reduce the amount of unnecessary going back-and-forth on the drive's heads, resulting in increased performance for workloads where multiple simultaneous read/write requests are outstanding, most often occurring in server or storage-type applications. Without NCQ the drive has to process and complete one command at a time. For NCQ to be enabled, it must be supported and turned on in the controller and in the hard drive itself.

NOTE: Please see the SATA Hard Drive QuickSpecs for specific SATA hard drive capacities that support NCQ: http://h18000.www1.hp.com/products/quickspecs/11940_div/11940_div.html

Capacity

Given the increasing need for rapid capacity expansion, the SA-P410 Controller can support up to 25 HDDs.

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 4

Retired

QuickSpecs

Standard Features

Availability

HP Smart Array P410 Controller

Provides increased server uptime by providing advanced storage functionality:

Online RAID level migration (between any RAID level/with BBWC/FBWC )

Online stripe size migration

Online array expansion

Online logical drive extension

Online drive firmware upgrade

Unlimited global online spare

Pre-Failure Warranty

Fault Prevention

Fault Tolerance

The following features offer detection of possible failures before they occur, allowing preventive action to be taken:

S.M.A.R.T.: Self Monitoring Analysis and Reporting Technology first developed at HP detects possible hard disk failure before it occurs, allowing replacement of the hard drive before a real failure occurs.

Drive Parameter Tracking monitors drive operational parameters, predicting failure and notifying the administrator.

Dynamic Sector Repairing continually performs background surface scans on the hard disk drives during inactive periods and automatically remaps bad sectors, ensuring data integrity.

Smart Array Cache Tracking monitors integrity of controller cache, allowing pre-failure preventative maintenance.

Keeps data available and server running while a failed drive is being replaced; several fault tolerance configurations are supported including:

RAID 6 with ADG (Advanced Data Guarding): This is the highest level of fault tolerance. It allocates two sets of parity data across drives and allows simultaneous write operations. This level of fault tolerance can withstand two simultaneous drive failures without downtime or data loss.

RAID 6+0: Supported with min of 8 drives, but would have 4 available. Target benefit is to split RAID across the external boxes

NOTE: RAID 6, 6+0 can be enabled with either

Minimum of 256 MB cache with Battery and Smart Array Advanced Pack License key option upgrades

Minimum of 512 MB BBWC/FBWC and Smart Array Advanced Pack License key option upgrades

RAID 5 (Distributed Data Guarding): This allocates one set of parity data across drives and allows simultaneous write operations. This level of fault tolerance can withstand a single drive failure without downtime or data loss.

RAID5 is available on the SA P410/P410i with a minimum of 256MB cache and battery

RAID 5+0: This is a RAID 0 array striped across 5 elements. Combines the straight block-level striping of RAID 0 with the distributed parity of RAID 5.

RAID 1, 1+0 (Drive Mirroring): This allocates half of the drive array to data and the other half to mirrored data, providing two copies of every file. It is a high-performance RAID.

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 5

Retired

QuickSpecs

Standard Features

Fault Recovery

HP Smart Array P410 Controller

Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure

Recovery ROM: This feature protects the user from a firmware image corruption by storing a redundant copy of the firmware image. If the active firmware image becomes corrupt, the controller will use the redundant firmware image and continue operating.

On-Line Spares: There is no limit to the number of spare drives that can be installed prior to drive failure. If a failure occurs, recovery begins with an On-Line Spare and data is reconstructed automatically.

DRAM ECC detects and corrects data bit errors.

Battery-backed write cache upgrade provides for up to two days of battery power for data cache retention. The data backup duration could be extended anytime the server's auxiliary power is available during system power down.

Flash Backed Write Cache upgrade provides indefinite data retention.

Ease of Use

Consistency and Upgradeability make the Smart Array family unique in the industry:

GUI based configuration, management and diagnostic software tools

Common data format between generations of products

Data migration between servers and external Modular Smart Array enclosures

Warranty

The warranty for this device is 3-years parts only.

Pre-Failure Warranty: Drives attached to the Smart Array Controller and monitored under Insight

Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HP

Support Center or refer to your HP Server Documentation.

Warranty Upgrade Options

Response - Upgrade on-site response from next business day to same day 4 hours

Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days

Duration - Select duration of coverage for a period of 1, 3, or 5 years

Warranty upgrade options can come in the form of Care Packs, which are sold at the HP System level this product attaches too

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 6

Retired

QuickSpecs

Compatibility

Server Compatibility

HP Smart Array P410 Controller

For up to date compatibility, please see the following URL for complete Smart Array 1Controller compatibility and support information: http://h18006.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html

Operating Systems

Microsoft Windows 2003 x64 Edition

Microsoft Windows 2003 x84 Edition

Microsoft Windows 2008 Server x64

Microsoft Windows 2008 Server x84

Novell Open Enterprise Server, NetWare 6.5

Red Hat Enterprise Linux 4 & 5 (x64 & x84)

SUSE Linux Enterprise Server 9 (x64 & x84)

SUSE Linux Enterprise Server 10 (x64 & x84)

SUSE Linux Enterprise Server 11 (x64 & x84)

VMWare

NOTE: For more Linux OS support & certification information, please visit our the ProLiant & BladeSystem

Server Linux matrix: http://h18004.www1.hp.com/products/servers/linux/hplinuxcert.html

Software Suite

All Smart Array products share a common set of configuration, management and diagnostic tools, including Array Configuration Utility, Array Diagnostic Utility (ADU), and Systems Insight Manager. This software consistency of tools reduces the cost of training for each successive generation of product and takes much of the guesswork out of troubleshooting field problems. These tools lower the total cost of ownership by reducing training and technical expertise necessary to install and maintain HP server storage.

Systems Insight Manager

Powerful server and server options/storage manager tool

Monitors over 1200 system wide parameters

Configuration/Diagnostic Utilities

HP Array Configuration Utility (ACU)

Powerful Web based configuration utility for all Smart Array controllers

Provides a graphical view of HP drive array configurations

Allows for management of multiple arrays over a secure internet connection from anywhere in the world

Easy to use Wizards for configuration

Runs offline for all supported Operating Systems and runs online for Windows and Linux. For online configuration of NetWare, use CPQONLIN

HP Option ROM Configuration for Arrays (ORCA)

A simple method for managing logical drives during system power up by pressing F8 during POST

Allows the ability to create arrays, logical drives, and assign an online spare drive

Allows the ability to view and delete logical drives

Allows the ability to select the boot controller

For advanced array configurations use ACU

HP Array Diagnostic Utility (ADU)

In depth diagnostic and reporting utility for all Smart Array controllers

Runs offline for all supported Operating Systems, and runs online for Windows and Linux

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 7

Retired

QuickSpecs

Service and Support

Service and Support

HP Smart Array P410 Controller

HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and

ROI

When you buy HP server and storage products and solutions, it's also a good time to think about what levels of support you may need. Our portfolio of service options reduce deployment and management worries while helping you get the most out of your server and storage investments. We take a holistic approach to your environment, bridging servers, blades, storage, software and network infrastructures with our packaged HP Care Pack Services for servers and storage.

Protect your business beyond warranty

When it comes to robustness and reliability, standard computing equipment warranties have matured along with technology. Good news that can also create problems stemming from depending on standard warranties designed to only protect against product defects and some downtime causes. Using a standard approach to warranty uplifts, such as HP Care Pack Services, helps reduce downtime risks and provides operational consistency for mission-critical and standard business computing.

HP Care Pack Services: Upgrading or extending standard server and storage warranties cost effectively

HP Care Pack Services offer a standard reactive hardware and software support services suite sold separately, or combined with our Support Plus and Support Plus 24 services. The portfolio also provides a combination of integrated proactive and reactive services, such as Proactive 24 Service and Critical Service.

In addition with HP Proactive Select, you can acquire the specific proactive constancy and technical services. HP Proactive Select menu offers a broad set of service options that you can mix and match depending on your specific requirements. Proactive service options include offers for server, storage, network, SAN device, software, environment and education services.

HP server and storage lifecycle support services offers a full spectrum of customer care-from technology support to complex migrations to complete managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP Education Services offer flexible, comprehensive training on to help your IT staff get the most out of your server and storage investments. HP Financial solutions extend innovative financing and cost-effective asset management programs-from purchase to equipment retirement.

Learn more: www.hp.com/services/servers and www.hp.com/services/storage

NOTE: Care Pack Services availability may vary by product and country.

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.

Customers purchasing from a commercial reseller can find HP Care Pack Services at http://www.hp.com/go/lookuptool

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 8

Retired

QuickSpecs

HP Smart Array P410 Controller

Service and Support

Recommended HP Care Pack Services for optimal satisfaction with your HP product

Recommended Services Hardware Options Support

HP Care Packs provide support for all HP-branded hardware options qualified for inclusion in your server or storage solution. Any additional HP-qualified options installed within the server are covered at the same service level and for the same period as the server and no additional cost.

Help improve or maintain system uptime

Convenient onsite support

Committed response time http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE

3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7

Provides you with rapid remote support and if required an HP authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

This service provides a trained HP service specialist to perform an installation that meets HP quality standards, for:

Help improve or maintain system uptime

Convenient onsite support

Committed response time http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE

HP Installation and Startup of HP ProLiant Servers

Provides for the installation of your new HP ProLiant server and operating system to assist you in bringing your new HP ProLiant server and operating system into operation in a timely and professional manner.

This service provides a trained HP service specialist to perform an installation that meets HP quality standards, for:

Delivery of the service at a mutually scheduled time convenient to your organization

Availability of an HP service specialist to answer basic questions during the onsite delivery of this service

Custom installation as detailed in "Delivery specifications" or in a Statement of Work (SOW)

Verification prior to installation that all service prerequisites are met http://h20195.www2.hp.com/V2/GetPDF.aspx/5982?7572ENN

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 9

Retired

QuickSpecs

HP Smart Array P410 Controller

Service and Support

Optional HP Care Pack Services that will enhance your HP product experience

Optional Services 3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour

As an alternative to our recommended support level, for customers who need committed call-to-repair for server hardware.

Provides your IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 or 24 hours of the initial service request to the HP Global Solution Center.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EN.pdf

3-Year HP Support Plus 24

As an alternative to our recommended support level, for customers who need access to responsive 24x7 hardware and software support plus software updates on HP and selected third party products:

For a higher return on your server and storage technology, our 3-year combined reactive support service delivers integrated onsite hardware/software support services available 24x7x365, including access to HP technical resources, 4-hour response onsite hardware support and software updates.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EEE

HP Proactive Select Service

Customer needs on demand access to consulting, technical proactive services and education courses

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy

Proactive Select Service Credits when you purchase your hardware and then use the credits over the next

12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN

eSupport

HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal

The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

Access to self-solve tools (including search technical knowledge base)

Efficient logging and tracking of support cases

Collaboration with other business and IT professionals

Download of patches and drivers

Access to diagnostic tools

Proactive notification of relevant information

Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit: http://www.hp.com/support

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 10

Retired

QuickSpecs

Service and Support

HP Smart Array P410 Controller

HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24 X

7, so you can spend less time solving problems and more time focused on your business. You can have your systems remotely monitored for hardware failure using secure technology that's been proven at thousands of companies around the world. In many cases, you can avoid problems before they occur.

Customer Technical

Training

HP Services Awards

Additional Services

Information

In today's cost-conscious business environment, IT professionals, developers, consultants and users face an interesting challenge: how to keep up with the latest technologies and expand important skills while delivering profitable results on current projects. To help address this challenge, HP offers innovative training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix,

Microsoft® and open source/Linux-related topics-while spending less time away from business-critical activities.

HP Technology Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction.

To learn more on HP ProLiant servers, HP BladeSystem servers and HP storage products, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: www.hp.com/services/proliant or www.hp.com/services/bladesystem or http://www.hp.com/services/storage

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 11

Retired

QuickSpecs

Related Options

HP Smart Array P410 Controller

Upgrade Options

HP Optional Upgrades

HP 512MB P-Series Battery Backed Write Cache Upgrade

HP 650 mAh P-Series Battery

NOTE: To enable BBWC on the 256MB cache.

HP 512MB Flash Backed Write Cache

HP 1GB Flash Backed Cache

HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates

Single Server License

NOTE: This part number can be used to purchase a single license or to order multiple licenses with a single activation key. Customers will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HP

Software Technical Support Services.

NOTE: A license key and a minimum of 256MB cache with battery kit or FBWC are required to enable features. For more information go to: http://www.hp.com/go/saap

462967-B21

462969-B21

534916-B21

534562-B21

516471-B21

NOTE: This is a list of supported options. Some may be discontinued.

HP Hard Drives HP SAS Hot Plug Drives

NOTE: These drives are not supported by Gen8 servers.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HP 1.2TB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3 yr Warranty Hard Drive

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

HP SAS Non-Hot Plug Drives

NOTE: These drives are not supported by Gen8 servers.

516828-B21

516816-B21

516814-B21

605835-B21

507610-B21

625031-B21

507616-B21

507614-B21

693648-B21

619291-B21

581286-B21

581284-B21

507127-B21

627117-B21

512547-B21

512545-B21

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 12

Retired

QuickSpecs

Related Options

HP Smart Array P410 Controller

SAS Non-Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty

Hard Drive

SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr

Warranty Hard Drive

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

HP SATA Hot Plug Hard Drives

NOTE: These drives are not supported by Gen8 servers.

SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive

HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 4TB 3G SATA 7.2k rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 3TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP SATA Non-Hot Plug Hard Drives

NOTE: These drives are not supported by Gen8 servers.

SATA Non-Hot Plug SFF (2.5-inch) Entry (ETY) Drives

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot plug Entry 1yr Warranty Hard Drive

SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive

SATA Non-Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot Plug Midline 1yr Warranty Hard

Drive

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives

590698-B21

537809-B21

537805-B21

516830-B21

516826-B21

516824-B21

571230-B21

458945-B21

625609-B21

507750-B21

694374-B21

628059-B21

507632-B21

454146-B21

458928-B21

628033-B21

571232-B21

507753-B21

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 13

Retired

QuickSpecs

Related Options

HP Smart Array P410 Controller

HP 3TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard

Drive

NOTE: SATA hard drives have a 1-year warranty. Please see the QuickSpecs for

Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

(Worldwide)

HP Solid State Drive

NOTE: These drives are not supported by Gen8 servers.

6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr

Warranty Solid State Drive

HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream 3yr Warranty Solid

State Drive

HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr

Warranty Solid State Drive

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty

Solid State Drive

3G SATA MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 400GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 200GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 100GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

3G SATA MLC Non-hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 400GB 3G SATA MLC SFF (2.5-inch) Non-hot plug Enterprise Mainstream 3yr Wty

Solid State Drive

HP 200GB 3G SATA MLC SFF (2.5-inch) Non-hot plug Enterprise Mainstream 3yr Wty

Solid State Drive

HP 100GB 3G SATA MLC SFF (2.5-inch) Non-hot plug Enterprise Mainstream 3yr Wty

Solid State Drive

3G SATA MLC Hot Plug LFF (3.-5inch) Enterprise Mainstream Solid State Drives

HP 400GB 3G SATA MLC LFF (3.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 200GB 3G SATA MLC LFF (3.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 100GB 3G SATA MLC LFF (3.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

6G SAS SLC Hot Plug Enterprise Performance Solid State Drives

628063-B21

507774-B21

507772-B21

458941-B21

690823-B21

690821-B21

690819-B21

730063-B21

636597-B21

636595-B21

636593-B21

636605-B21

636601-B21

636599-B21

636611-B21

636609-B21

636607-B21

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 14

Retired

QuickSpecs

Related Options

HP Smart Array P410 Controller

HP 400GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State

Drive

HP 200GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State

Drive

6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr

Warranty Solid State Drive

HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream 3yr Warranty Solid

State Drive

HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr

Warranty Solid State Drive

6G SAS MLC Hot Plug Enterprise Mainstream Solid State Drives

HP 800GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 400GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

HP 200GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/14038_div/14038_div.html

(Worldwide)

NOTE: Go to the HP Hard Drive Compatibility table for complete drive compatibility information ( http://www.hp.com/products/harddiskdrives ). Using hard drives in unsupported configurations will result in voiding the warranty and could result in damage to the drive and/or loss of data.

NOTE: There is a known compatibility issue with some early 3.5" SATA HDD that will make them unable to be used with the SA-P400 controller. Customers should verify that they are not using hard drive part number 332649-002/003 (spare 353042-001),

332650-002/003 (spare 353043-001), or 356536-002/003 (spare 353044-001).

NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

632494-B21

632492-B21

690823-B21

690821-B21

690819-B21

632506-B21

632504-B21

632502-B21

HP Tape Backup

NOTE: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape .

NOTE: For tape drives mounted in an internal peripheral bay an internal SAS cable is used to connect the tape drive to the P410 controller. For external (desktop) tape drives, tape drives in Rack-Mount Kits, tape autoloaders and tape libraries a split SAS cable is used with the external cable routed from the P410 controller through an unoccupied server PCI expansion slot to the tape drive.

SAS Tape Drives

HP DAT 160 SAS Internal Tape Drive Q1587A

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 15

Retired

QuickSpecs

Related Options

HP Smart Array P410 Controller

HP DAT 160 SAS External Tape Drive

HP DAT 320 SAS Internal Tape Drive

HP DAT 320 SAS External Tape Drive

HP Ultrium 448 SAS Internal Drive

HP Ultrium 448 SAS External Drive

HP Ultrium 920 SAS Internal Tape Drive

HP Ultrium 920 SAS External Tape Drive

HP LTO-4 Ultrium 1760 SAS Internal WW Tape Drive

HP LTO-4 Ultrium 1760 SAS External Tape Drive

HP LTO-4 Ultrium 1760 SAS (1) in 1U Rack-mount Kit

HP LTO-4 Ultrium 1840 SAS Internal Tape Drive

HP LTO-4 Ultrium 1840 SAS External WW Drive

SAS Rack-mount Tape Drive Enclosures

HP 1U SAS Rack-mount Kit

NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 160 SAS, LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920 SAS and

LTO-4 Ultrium 1760 SAS tape drives.

HP 3U SAS Rack-mount Kit

NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple SAS tape drives including DAT 160 SAS, LTO-2

Ultrium 448 SAS, LTO-3 Ultrium 920 SAS, LTO-4 Ultrium 1760 SAS and LTO-4 Ultrium

1840 SAS tape drives.

SAS Tape Autoloaders

HP 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader

HP 1/8 G2 Ultrium 920 SAS Autoloader

SAS Tape Libraries

HP MSL2024 1 LTO-4 Ultrium 1760 SAS Tape Library

HP MSL2024 Ultrium 920 SAS Tape Library

HP MSL4048 2 LTO-4 Ultrium 1760 SAS Tape Library

HP StorageWorks MSL4048 Ultrium 920 SAS Tape Library

HP MSL8096 2 LTO-4 Ultrium 1760 SAS Tape Library

HP StorageWorks MSL8096 2 Ultrium 920 SAS Tape Library

SAS Cables for Tape Drives

HP Mini-SAS Cable for LTO Internal Tape Drive

NOTE: Use this cable to connect HP Ultrium 448, 920, 960, 1760 and1840 SAS internal tape drives to Mini-SAS (SFF8087) ports. This replaces the existing cable connecting the

HBA/controller to the disk backplane. This replacement cable has three channels for disks and 1 channel for the tape drive (SFF8482 port).

HP SAS MIN-MIN 3X1X-5M Cable Assembly Kit

NOTE: This split cable connects internally to SAS Hard Drive Cage (3 channels) and externally to the tape drive (1channel) with other connector attaching to the controller.

The external cable, for the drive, requires a PCI slot to exit the server.

AG576A

AG452A

Q1588A

AJ830A

AJ828A

DW085A

DW086A

EH847A

EH848A

EH919A

EH920A

EH946A

EH860A

EH861A

AE459A

AK377A

AH558A

AK378A

AH559A

AK380A

AH560A

AK382A

AH561A

AP746A

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 16

Retired

QuickSpecs

Related Options

HP Cable Options Mini SAS Cables

HP Mini SAS to Mini SAS 28in Cable Assembly

HP Mini SAS to Mini SAS 33in Cable Assembly

HP Mini SAS to 8484 18in/24in Cable Assembly

HP Mini SAS to 8484 32in/35in Cable Assembly

Additional Cables

HP 15 Position 24in SFP Battery Cable Assembly

HP Smart Array P410 Controller

496013-B21

496014-B21

496015-B21

496016-B21

496029-B21

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 17

Retired

QuickSpecs

Technical Specifications

HP Smart Array P410 Controller

Dimensions

(not including bracket)

Disk Drive and Enclosure

Interface - Transfer rate

SAS Connectors

Cache Memory Speed

Server Interface

Low Profile PCIe Form Factor

7.5 in x 9.5 in x 2.25 in (19.05 cm x 24.13 cm x 5.72 cm)

6Gb/s SAS (Serial Attached SCSI)

3Gb/s SATA (Serial ATA)

2 internal (Mini-SAS) x8 wide port connectors

DDR2-800MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.

x8 5G PCIe 2.0 provides 4GB/s maximum bandwidth

SAS Speed

Cache Memory

x8 6Gb/s SAS provides 4.8GB/s maximum bandwidth

40-bit 256MB ECC protected cache (72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC module upgrades available); transportable with battery-backed or flash upgrade

Logical Drives Supported Zero Memory, Up to 2 logical volumes

256MB cache and greater, Up to 64 logical volumes

Host Memory Addressing 64-bit, supporting greater than 4GB server memory space

RAID Support

RAID 6, 6+0 (Advanced Data Guarding)

NOTE: RAID 6, 6+0 can be enabled with either

Minimum of 256 MB cache, Battery kit and Smart Array Advanced Pack License key option upgrades

Minimum of 512 MB BBWC/FBWC and Smart Array Advanced Pack License key option upgrades

RAID 5, 5+0 (Distributed Data Guarding)

NOTE: A minimum or 256 MB cache and battery are required to enable RAID 5, 5+0 support of the Smart

Array P410i

RAID 1+0 (Striping & Mirroring)

RAID 0 (Striping)

Upgradeable Firmware

Upgradeable Firmware with recovery ROM feature

Environment-friendly

Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green . To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office.

Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.

This information (product disassembly instructions) is posted on the Hewlett

Packard web site at: http://www.hp.com/go/green . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 18

Retired

QuickSpecs

Technical Specifications

© Copyright 2013 Hewlett-Packard Development Company, L.P.

HP Smart Array P410 Controller

The information contained herein is subject to change without notice. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

DA - 13201 Worldwide — Version 27 — December 3, 2013 Page 19

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
