Product datasheet LINEARlight FLEX Protect | Colored flexible LED

Product datasheet LINEARlight FLEX Protect | Colored flexible LED

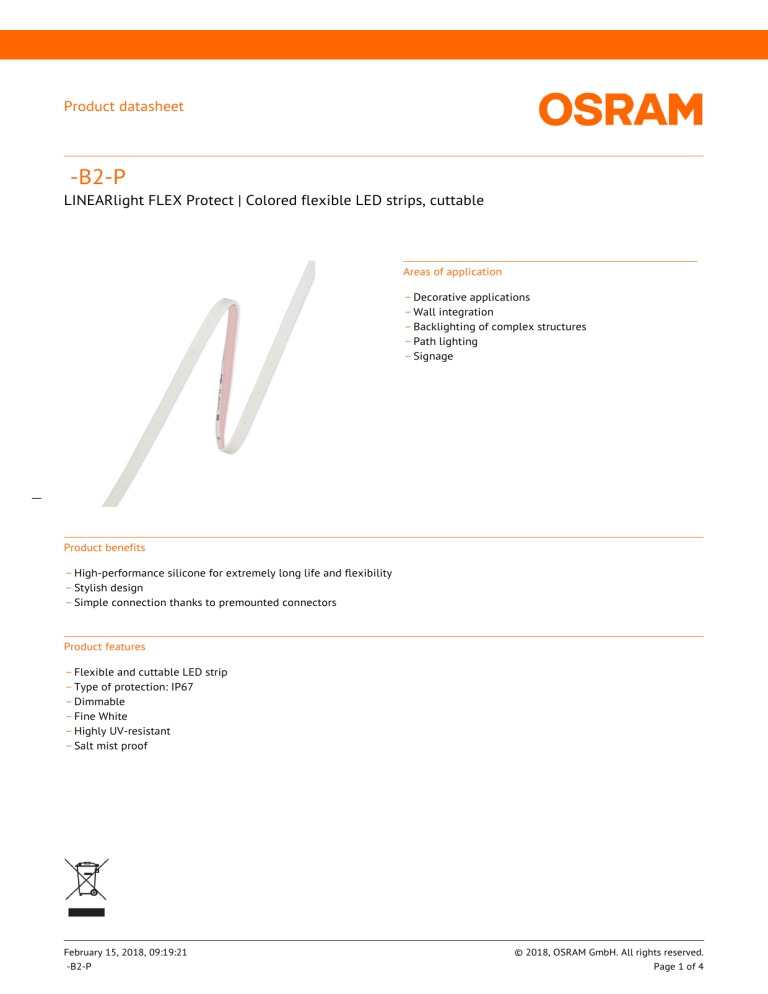

Product datasheet
-B2-P
LINEARlight FLEX Protect | Colored flexible LED strips, cuttable
Areas of application
_ Decorative applications
_ Wall integration
_ Backlighting of complex structures
_ Path lighting
_ Signage
__
Product benefits
_ High-performance silicone for extremely long life and flexibility
_ Stylish design
_ Simple connection thanks to premounted connectors
Product features
_ Flexible and cuttable LED strip
_ Type of protection: IP67
_ Dimmable
_ Fine White
_ Highly UV-resistant
_ Salt mist proof
February 15, 2018, 09:19:21
-B2-P
© 2018, OSRAM GmbH. All rights reserved.
Page 1 of 4
Product datasheet
Technical data
Electrical data
Nominal voltage
24.0 V
Nominal current
1A
Nominal wattage
24.5 W
Reverse Voltage
25 V
Type of current
DC
Input voltage range
23…25 V
Photometrical data
Luminous flux
290 lm
Light color (designation)
Blue
Light color LED
Blue
Nominal dominant wavelength
467 nm
Light technical data
Beam angle
120 °
LED module information
__
Number of LEDs per module
200
Dimensions & weight
Length
6000 mm 1)
Length – smallest unit
150.0 mm
Width
11.0 mm
Height
4.5 mm
Cable length
500.0 mm
1) LED pitch 30 mm
February 15, 2018, 09:19:21
-B2-P
© 2018, OSRAM GmbH. All rights reserved.
Page 2 of 4
Product datasheet
Colors & materials
Cover material
Silicone
Body material
Silicone
Temperatures & operating conditions
Temperature range in operation
-30…75 °C 1)
1) At the T point
c
Lifespan
Lifespan
50000 h 1)
1) L70/B50 at T 40 °C
c
Additional product data
__
Luminous intensity distribution
Product remark
February 15, 2018, 09:19:21
-B2-P
Modules perfectly matched to OSRAM OPTOTRONIC
LED drivers (see relevant table)/For current
photometric data and important safety, installation
and application information, see www.osram.com/ledsystems/All technical parameters apply to the entire
module/In view of the complex manufacturing
process for light emitting diodes, the typical values
given above for the technical LED parameters are
merely statistical values that do not necessarily
correspond to the actual technical parameters of an
individual product; individual products may vary from
© 2018, OSRAM GmbH. All rights reserved.
Page 3 of 4
Product datasheet
the typical values
Capabilities
Dimmable
Yes
1)
1) PWM
Certificates & standards
Type of protection
IP67
Standards
Acc. to EN 60598-1
Logistical data
Temperature range at storage
-40…85 °C
Equipment / Accessories
_ CONNECTsystem LF-PROTECT
_ LINEARlight Track LT
Download Data
File
__
Product Datasheet
335840_LINEARlight Flex Protect LF05E-P (EN)
Brochures
Light is freedom of design (EN)
Declarations of conformity
466011_EC-DoC LF05A-E-P
Eulumdat
327790_LINEARlight FLEX PROTECT LF05E-B2-P
Logistical Data
Product code
Product description
Packaging unit (Pieces/Unit)
Dimensions (length x width x
height)
Volume
Gross weight
4008321616913
-B2-P
Shipping carton box
8
366 mm x - x -
38.31 dm³
8150.00 g
The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or
more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit.
Disclaimer
Subject to change without notice. Errors and omission excepted. Always make sure to use the most recent release.
February 15, 2018, 09:19:21
-B2-P
© 2018, OSRAM GmbH. All rights reserved.
Page 4 of 4
