Set a new standard in large format in-house
production printing
This professional A0+/B0+ printer adds impact
and productivity to larger scale retail, design or
presentation materials. It combines speed and
reliability with superb, consistent colour from
Epson UltraChrome™ ink.
Create exceptional prints up to 44",
from rich colour posters to precise
line drawings and even screen masks*.
This true in-house production printer
combines quality, speed and consistency.
Epson UltraChrome ink ensures
superb, long-lasting colour, while
simple controls mean you don’t need a
dedicated operator to get great results.
And productivity is further improved by
high speed throughput and the reliability
for overnight printing.
Speed, reliability and consistent
quality – bring superb large format
printing in-house
Superb, repeatable colour – Epson
UltraChrome ink produces vivid,
long lasting results time after time
Key benefits:
• Fast, reliable, true in-house A0+/44"
production printer
• Consistent quality from 4-colour
Epson UltraChrome ink
• Add impact to large scale colour
and technical prints up to 44"
• Combine high productivity and
throughput with ease and value
4-colour inks, 8 nozzles – high speed,
cost-effective ink system with two
nozzles per colour
Skilled operator not needed – enjoy
the user-friendliness of our consumer
range in our professional printers
Get precise line drawings – perfect for
computer design, high-quality
visualisations and presentations
Improve your productivity – high print
speeds and excellent reliability for
overnight printing
Take control centrally – optional
software enables remote printing from
one location to several printers
Compatibility across with the Epson
range – achieve consistent results with
different printers
*Optional UltraChrome Photo Black ink available
for screen print application

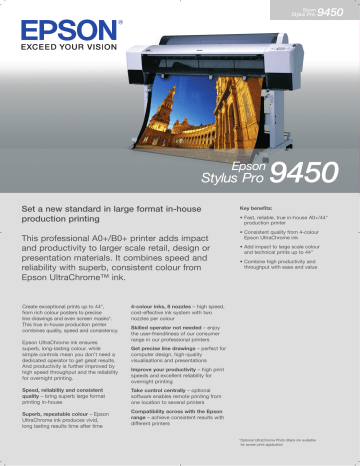

Epson Stylus Pro 9450
Size
Print technology
Ink system
Resolution
Memory
Speed (max. 360 x 360 dpi)
Driver
Interfaces
Roll dimensions
44" (A0+ / B0+)
Epson Micro Piezo™ drop-on-demand inkjet technology
Epson Variable-sized Droplet Technology and 3.5 pl Epson Ultra Micro Dot™
Print head configuration: 180 nozzles x 8 colours
Dual 4 colours pigmented ink (C, M, Y, Matte K) with CSIC with 8 slots
1440 x 720 dpi Bi-Directional, Epson Variable-sized Droplet Technology
128MB
Up to 34.3 m² / Hr (B0+ / Plain paper / Draft mode)
®
Microsoft Windows 2000 / XP, Windows Vista, MAC OS X 10.x.x
Standard: USB 2.0 (Compatible with 1.1), Ethernet 10 / 100Mb
Core diameter 2'' or 3"
Max. outside diameter ĭ150 mm
Paper handling
Roll media
Cut sheet
Single roll (1 roll < 150 mm / outside diameter)
Media width 203.2 mm – 1118 mm (8" - 44")
Minimum media length 279 mm
Media thickness 0.08 mm – 0.50 mm
Manual insertion feeder for media up to 1.5 mm
Media width size A4 / LTR – A0+ / 44", (210 mm – 1118 mm)
Media thickness 0.08 mm – 1.50 mm
Print margins
Roll media
Sheet media
Ink cartridges
Photo black for screenprint
application
Lightfastness
General
Dimensions (WxDxH)
Weight
Noise level
Voltage / Current / Frequency
Power consumption
Warranty
Options
3 modes available; mode 1: 3 mm on all edges (top, sides, bottom);
mode 2: 15 mm (top and bottom), 3 mm (sides);
mode 3: 15 mm (top, sides, bottom)
2 modes available; mode 1: 3 mm (top, sides, bottom);
mode 2: 3 mm (top and sides) 14 mm (bottom)
110 and 220 ml ink capacity, single size packaging
Pressurised, Intellidge cartridge system for ink level control
even on re-inserted cartridges
110 ml
220 ml
Matte black
C13T611800
C13T612800
Cyan
C13T611200
C13T612200
Magenta
C13T611300
C13T612300
Yellow
C13T611400
C13T612400
4C Photo Black
Up to 75 years for colour prints
1702 x 678 x 1196 mm
Approx. 90 kg (without ink and media)
Approx. 50dB
100 – 120 V version, 220 – 240 V version
Printing: 50 W or less
Standby: 6 W or less
PowerOff: 1 W or less
1 year on-site repair
Optional extension to 3 years
2 / 3 inch Dual roll feed spindle (High tension)
Maintenance tank (x2)
C13T612100 (only applicable to special version)
C12C811152
C12C890191
SP9450-1EN_INT-08/07
For further information please contact your local Epson office or visit www.epson-europe.com
Austria 0810/20 01 13 (0,07 €/Min.) Belgium 070/350120 (0.1735 €/min.) Czech 800/142 052 Denmark 44 50 85 85
Finland 0201 552 091 France 0892 899 999 (0,34 €/min) Germany 01805/23 41 10 (0,14 €/Min.) Greece 210-8099499
Hungary 06800 147 83 Ireland 1 800 409132 Italy 02-660321 10 (0,12 €/min.) Luxemburg 900/43010 (0,24 €/min.)
Middle East +9714 8818934 Netherlands 0900-5050808 (0.05 €/oproep + 0.15 €/min.) Norway 22 06 42 80
Poland 0-0-800 4911299 (0,16 z /min.) Portugal 707 222 111 Russia (095) 777-03-55 Slovakia 0850 111 429
South Africa (+2711) 465-9621 Spain 93 582 15 00 Sweden 0771-400135 (Mobilsamtal – 0,99 kr/min, Lokala
samtal – 0,30 kr/min, Utlandssamtal – 0,89 kr/min) Switzerland 0848 448820 (4-8 cent./min.) Turkey (0212) 3360303
United Kingdom 08702 416900
Entity carrying out management and coordination pursuant to article 2497 bis of Civil Code: Epson Europe BV
EPSON® is a registered trademark of Seiko EPSON® Corporation. All other product names and other company
names used herein are for identification purposes only and may be trademarks or registered trademarks of their
respective owners. Errors and omissions excepted, all specifications are subject to change without notice.
