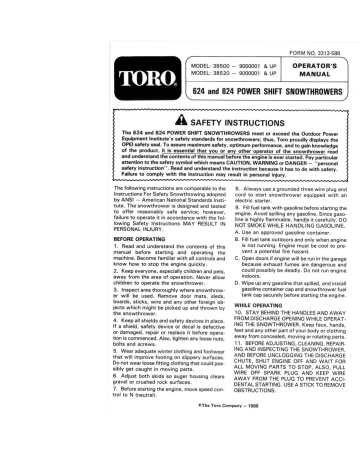

FORM NO. 3313-586
MODEL: 38500 — 9000001 & UP
MODEL: 38520 — 9000001 & UP
OPERATOR'S
MANUAL
624 and 824 POWER SHIFT SNOWTHROWERS J
The following instructions are comparable to the
Instructions For Safety Snowthrowing adopted
by ANSI — American National Standards Insti-
tute. The snowthrower is designed and tested
to offer reasonably safe service; however,
failure to operate it in accordance with the fol-
lowing Safety Instructions MAY RESULT IN
PERSONAL INJURY.
BEFORE OPERATING
1. Read and understand the contents of this
manual before starting and operating the
machine. Become familiar with all controls and
know how to stop the engine quickly.
2. Keep everyone, especially children and pets,
away from the area of operation. Never allow
children to operate the snowthrower.
3. Inspect area thoroughly where snowthrow-
er will be used. Remove door mats, sleds,
boards, sticks, wire and any other foreign ob-
jects which might be picked up and thrown by
the snowthrower.
4. Keep all shields and safety devices in place.
If a shield, safety device or decal is defective
or damaged, repair or replace it before opera-
tion is commenced. Also, tighten any loose nuts,
bolts and screws.
5. Wear adequate winter clothing and footwear
that will improve footing on slippery surfaces.
Do not wear loose fitting clothing that could pos-
sibly get caught in moving parts.
6. Adjust both skids so auger housing clears
gravel or crushed rock surfaces.
7. Before starting the engine, move speed con-
trol to N (neutral).
A SAFETY INSTRUCTIONS
The 624 and 824 POWER SHIFT SNOWTHROWERS meet or exceed the Outdoor Power
Equipment Institute's safety standards for snowthrowers; thus, Toro proudly displays the
OPEI safety seal. To assure maximum safety, optimum performance, and to gain knowledge
of the product, it is essential that you or any other operator of the snowthrower read
and understand the contents of this manual before the engine is ever started. Pay particular
attention to the safety symbol which means CAUTION, WARNING or DANGER — “personal
safety instruction’’. Read and understand the instruction because it has to do with safety.
Failure to comply with the instruction may result in personal injury.
8. Always use a grounded three wire plug and
cord to start snowthrower equipped with an
electric starter.
9. Fill fuel tank with gasoline before starting the
engine. Avoid spilling any gasoline. Since gaso-
line is highly flammable, handle it carefully. DO
NOT SMOKE WHILE HANDLING GASOLINE.
A. Use an approved gasoline container.
B. Fill fuel tank outdoors and only when engine
is not running. Engine must be cool to pre-
vent a potential fire hazard.
C. Open doors if engine will be run in the garage
because exhaust fumes are dangerous and
could possibly be deadly. Do not run engine
indoors.
D. Wipe up any gasoline that spilled, and install
gasoline container cap and snowthrower fuel
tank cap securely before starting the engine.
WHILE OPERATING
10. STAY BEHIND THE HANDLES AND AWAY
FROM DISCHARGE OPENING WHILE OPERAT-
ING THE SNOWTHROWER. Keep face, hands,
feet and any other part of your body or clothing
away from concealed, moving or rotating parts.
11. BEFORE ADJUSTING, CLEANING, REPAIR-
ING AND INSPECTING THE SNOWTHROWER,
AND BEFORE UNCLOGGING THE DISCHARGE
CHUTE, SHUT ENGINE OFF AND WAIT FOR
ALL MOVING PARTS TO STOP. ALSO, PULL
WIRE OFF SPARK PLUG AND KEEP WIRE
AWAY FROM THE PLUG TO PREVENT ACCI-
DENTAL STARTING. USE A STICK TO REMOVE
OBSTRUCTIONS.
©The Toro Company — 1988
SAFETY INSTRUCTIONS
12. Keep people and pets a safe distance away
from the snowthrower and area of operation.
13. Allow engine to warm up for about 2
minutes and machine to adjust to outdoor tem-
perature before clearing snow.
14. Do not run engine indoors, except when
starting engine. When starting engine indoors,
open outside doors because exhaust gasses are
dangerous.
15. Operate the snowthrower only when there
is good visibility or light. Always maintain se-
cure footing and keep a firm grip on the handles,
especially when operating in reverse.
16. Be attentive when using the snowthrower,
and stay alert for holes in the terrain and other
hidden hazards. Be careful when clearing snow
from a gravel drive because stones could be
picked up and thrown if the skids are not adjust-
ed so auger housing clears all rocks.
17. Do not make any adjustments while the en-
gine is running.
18. Never direct discharge of snow or operate
snowthrower near bystanders, glass enclosures,
automobiles and trucks, window wells or a drop-
off without proper adjustment of the snow dis-
charge angle.
19. Clear snow from slopes by going up and
down: never across the face, and use caution
when changing directions, Use lower gear and
rear wheel position when operating on slopes.
Never clear snow from steep slopes.
20. Do not overload the snowthrower by clear-
ing snow at too fast a rate.
21. If a solid object is hit or snowthrower
vibrates abnormally, shut engine off and wait for
all movement to stop. Pull high tension wire off
spark plug and check snowthrower immediate-
ly for possible damage, an obstruction or loose
parts. Vibration is generally a warning of trou-
ble. Repair any damage before restarting engine
and operating snowthrower again.
22. Do not touch engine while it is running or
soon after it is stopped because the engine will
be hot enough to cause a burn. Do not add oil
or check oil level in crankcase when engine is
running because this could be a potential hazard.
23. Before leaving the operator's position — be-
hind handles — rotate ignition key to OFF. Re-
move key from switch if snowthrower will be left
unattended.
24. Never operate snowthrower at high trans-
port speeds on slippery surfaces. Use care when
backing.
25. Let engine run for a few minutes after clear-
ing snow so moving parts do not freeze.
MAINTAINING SNOWTHROWER
26. Perform only those maintenance instruc-
tions described in this manual. Shut engine off
before performing any maintenance service or
adjustment. Additionally, pull high tension wire
off spark plug and keep wire away from plug to
prevent possibility of accidental starting. If major
repairs are ever needed, contact the local Autho-
rized TORO Service Dealer for assistance.
27. Keep snowthrower in safe operating con-
dition by keeping nuts, bolts and screws tight.
Check engine mounting bolts frequently to as-
sure they are tight.
28. Do not overspeed the engine by changing
governor settings. Recommended maximum en-
gine speed is 4000 rpm. To assure safety and
accuracy, check maximum engine speed (4000
rpm) with a tachometer.
29. Allow engine to cool before storing snow-
thrower in an enclosure such as a garage or
storage shed, and make sure the snowthrower
fuel tank is empty. Do not store snowthrower
near any open flame or where gasoline fumes
may be ignited by a spark.
30. When storing the snowthrower for an ex-
tended time — off season storage or 30 days
— drain gasoline from fuel tank to prevent a
potential hazard. Store gasoline in a safety-
approved red metal container. Remove key from
ignition switch and keep it in a memorable place.
31. At the time of manufacture, the snowthrow-
er conformed with and exceeded safety stan-
dards in effect for snowthrowers. Therefore, to
assure optimum performance and safety, pur-
chase genuine TORO replacement parts and ac-
cessories to keep the TORO all TORO. NEVER
USE “WILL-FIT” REPLACEMENT PARTS AND
ACCESSORIES. The TORO logo assures
genuineness.
32. For safety reasons, use only those acces-
sories and attachments recommended by The
TORO Company to assure continued safety cer-
tification of the product. Using unapproved ac-
cessories and attachments could contribute to
a potential hazard.
SAFETY DECALS
Safety and instruction decals are located on the snowthrower chassis and engine.
Replace any decal that is damaged.
IDO:
М
ON AUGER HOUSING NEXT TO PRIMER
(Part No. 53-7670) (Part No. 68-8540)
De
HOT
SURFACES
ON ENGINE
(Part No. 62-7290)
-
ALONGSIDE
DEAL Do THROTTLE
Shut off engine and be sure :
all parts have stopped before (Part No. 63-3190)
unclogging discharge chute.
68-8540
/
ON CHUTE
(Part No. 63-3740)
PULL TO CHOKE
A WARNING ON ENGINE
EFORE ADJUSTING CABLES OR REPLACING BELTS (Part No. 68-9030)
EE OPERATORS MANUAL FOR PROPER PROCEDURES,
A R ADJUSTMENT WIEN DISENGACED
USE ONLY GENUINE TORO REPLACEMENT PARTS.
ON ENGINE BASE & HANDLE
(Part No. 63-3460)
63-2460
TO CHANGE WHEEL Pan SHIFT Ma |
AT A DE
Z MOVES SHIET HL ET 1 POWER SHIFT POS HU Lo si
+ 1 ENGAGE TRACTION DAIÉ LEVER 10 CHANGE WHEEL mon
E
| > |
rr USE LOWER GEAR AND REAR WHEEL
STOP EMEWE TD ADULT GNELOE МКТ ОЙ REMOVE DERRIL v R
00 NOT DIRECT DESCHARGE AT OTHERS: + 00 NOT ra oi STEEP SLOPES
READ Tod OPERATORS MANUAL FDI DPERATINE AND SAFETY INJURY MAY RESULT FAM LOSS
INEFRUCT IDM] OF FOOTING ok COM TED
ALGER IMPELLER
lal ry LH MANUAL AVALABLE EU SENDOME OEL AND SERWL Ham #
a THE ОНО CO. 8111 LYNDALE AY 3. FLY. WH 55470 5 ES
| DISENGAGE ENGAGE 43.1840 Taza” Maio a
EMGAGE DISENGAGE — )
ON CONTROL PANEL 3
(Part No. 63-2540)
LOOSE PARTS
Part Qty Use
Flange head capscrew- 6 Mount Auger Housing, page 5
5/16-18 x 5/8” Ig.
Lower belt cover 1
Flange head capscrew- 5 Mount Belt Covers, page 5.
1/4-20x 1/2” Ig.
Cable cover 1
Shift rod 1
Locknut-3/8-16 2 Install Shift Rod, page 5
Discharge chute 1 Install Discharge Chute, page 6
Worm gear 1
Gear Bracket 1
Carriage bolt-5/16-18x1” la. 1 Install Chute Control Gear, page 6
Flat washer 1
Locknut-5/16 1
Key 1 Use in Ignition Switch
Registration card 2 Use to Register Product with Factory
Specifications and design subject to change without notice.
TABLE OF CONTENTS
Page
Safety Instructions «i oss an i av asin 1-2
Safety Decals - + 101 cows ws a5 0 isin 3
Loose Parts . ........... iii 4
Setting Up Instructions ............. 5-7
Preparation Before Starting ............ 8
Fill Crankcase With Oil ............. 8
Fill Fuel Tank With Gasoline. . ........ 8
Controls... .. ieee 9
Starting and Stopping Instructions ...... 10
Operating Instructions ............. 11-12
Power Shift Operation ......... ..—..r. 11
Free Wheeling or Self Propelled Drive ..1]
Snowthrowing Tips . . . ............. 11
Adjusting Skids. ... .. =:175 44 54 57 WE 11
Maintenance 5 «=> wn wes eis vy we 12-16
Page
Draining Gasoline . ......... 0000000 12
Lubricating Snowthrower . . .......... 12
Changing Crankcase Oil ............ 12
Auger Gear BOX. oo. vais qu qu au sai 13
Adjusting Auger Drive Belt .......... 13
Adjusting Traction Drive Belt ......... 14
Replacing Drive Belts .............. 14
Adjusting Drive Chain .............. 15
Replacing Spark Plug .............. 16
Preparing Snowthrower For Storage . . . . 16
Identification and Ordering . ........... 17
Maintenance Chart... ............. 17-19
Toro Promise ..................00... 20
SETTING UP INSTRUCTIONS
Note: Determine left and right sides of snow- 5. Reinstall idler pulley assembly. Make sure
thrower by standing in the normal operating idler pulleys are aligned with belts when reinstall-
position. ing idler pulley assembly.
MOUNT AUGER HOUSING (Fig. 1-3) 6. Tip snowthrower up on auger housing.
1. Remove (2) flange head capscrews securing 1 Mount er bel cover to underside of auger
idler pulley assembly to engine frame. Remove lg. flange head capscrews (Fig. 2). Make sure
idler pulley assembly. belt cover mounting tabs are positioned to rear
2. Align auger housing and engine frame of engine frame member.
mounting holes (Fig. 1}. 8. Mount upper belt cover to engine frame
with (3) 1/4-20x 1/2” Ig. flange head capscrews
(Fig. 3).
9. Slide cable cover onto cables and into hole
in belt cover.
©
+ A
1
J] [7
=
Figure 1 | ne
1. Auger housing 4 Idler pulley assembly A
2. Engine frame 5. Mounting screws (2) ~~
3. Impeller pulley
3. Route impeller belt around impeller pulley. Rg
4. Secure auger housing to engine frame with
(6) 5/16-18 x 5/8” Ig. flange head capscrews.
Ра
©” O
Figure 3
1. Upper belt cover
—— — _—] | | 2, Cable cover
| INSTALL SHIFT ROD (Fig. 4)
=== 1. Insert upper shift rod ball joint stud thru front
= of shift bracket and secure with 3/8-24 locknut.
2. Insert bottom ball joint stud thru right side
=
2) E of transmission lever and secure with 3/8-24
io locknut.
3. Shift into 2nd gear and check shift rod align-
ment with Power Shift slot.
( mm и A / Note: If gear shift lever is not aligned with Pow-
er Shift slot in control panel (Fig. 4, Inset), shift
Figure 2 rod length must be adjusted as follows:
i TL Das CN ra A. Disconnect ball joint from transmission lever
2. Mounting tabs and loosen jam nut. 5
SETTING UP INSTRUCTIONS
B. Rotate ball joint up or down, until gear shift
lever is aligned with power shift slot.
C. Reinstall ball joint to transmission lever and
tighten jam nut.
Figure 5
1. Discharge chute 3. Chute retainer plate
2. Plastic chute retainer 4. Chute ring
INSTALL CHUTE CONTROL GEAR (Fig. 6)
1. Insert the 5/16-18 x1” Ig. carriage bolt into
gear bracket mounting hole.
| Figure 4 2. Position worm gear into bracket, align holes
1. Shift rod 5. Locknut and insert chute gear rod through bracket and
2. Ball joint 6. Jam nut ear
3. Shift bracket 7. Gear shift lever gear.
4. Transmission lever 8. Power shift slot
INSTALL DISCHARGE CHUTE (Fig. 5)
Note: Before installing discharge chute, apply
a light coat of low temperature grease to
chute ring.
1. Set discharge chute — open side forward —
onto auger discharge opening, so plastic chute
retainers are positioned on chute ring. Make sure
chute retainer guide pins are inserted into holes
in chute gear.
2. Tighten machine screw and locknut, on left
side, until chute retainer plate is positioned
against plastic chute retainer and discharge chute
is secured to chute ring.
3. Push chute retainers, on right side, to-
ward discharge chute (slotted) and tighten ma-
chine screw.
Figure 6
. Gear bracket
. Carriage bolt, flat-washer & locknut
Worm gear
. Chute gear rod
45 ©) № —
4. Make sure chute rotates freely оп ring. Move
right hand retainer (slotted) outward to ease
operation.
SETTING UP INSTRUCTIONS
3. Loosely mount worm gear and bracket to
mounting flange with flat washer and locknut.
4. Slide worm gear into teeth of chute gear and
tighten locknut.
5. Check operation, move gear slightly outward
if binding is evident.
CHECK TIRE PRESSURE
IMPORTANT: Check pressure of tires because
they are over inflated at the factory for shipping.
Therefore, before the snowthrower is operated,
reduce pressure in both tires to 7-15 psi equally.
TIRE CHAINS
If snowthrower is to be equipped with optional
tire chains, wheels must be pinned to outer axle
holes,
CHECK AUGER GEAR BOX OIL (Fig. 7)
1. Move snowthrower to a level surface.
2. Remove pipe plug from gear box.
3. Check level of oil in gear box. Oil must be at
point of overflowing in filler opening.
Figure 7
1. Pipe plug
4. If level of oil is low, add GL-5 or GL-6 SAE
85-95 EP transmission oil to the gear box until
point of overflow.
5. Install pipe plug in gear box.
PREPARATION BEFORE STARTING
FILL CRANKCASE WITH OIL (Fig. 8)
The engine is shipped from the factory without
oil in the crankcase. Therefore, before trying to
start engine, oil must be added to the crankcase.
IMPORTANT: Check level of oil every 5 operat-
ing hours or each time unit is used. Initially,
change oil after the first 2 hours of operation;
thereafter, under normal conditions, change oil
after every 25 hours of operation or annually.
1. Move unit to a level surface to assure an ac-
curate oil level reading.
2. Clean area around dipstick to prevent foreign
matter from entering filler hole when dipstick is
removed.
3. Remove dipstick from crankcase.
Figure 8
1. Dipstick
4. Slowly, pour SAE 5W-30 or SAE 10 oil into
the filler hole, using oil filler chart below, The en-
gine uses any high-quality detergent oil having
the American Petroleum Institute — API —
“Service classification” SE or SF.
Oil Fill Chart
624 Snowthrower 19 ounces of oil
824 Snowthrower 27 ounces of oil
Note: Dipstick must be fully installed to assure
accurate gauging of oil level. DO NOT OVERFILL.
FILL FUEL TANK WITH GASOLINE.
THE TORO COMPANY STRONGLY RECOM-
MENDS THE USE OF CLEAN, FRESH UNLEAD-
A CAUTION
Because gasoline is flammable, caution
must be used when storing or handling it.
Do not fill fuel tank while engine is running,
hot or when unit is in an enclosed area. Keep
away from open flame and electrical spark,
and DO NOT SMOKE while filling the fuel
tank to prevent the possibility of an explo-
sion. Always fill fuel tank outside and wipe
up any spilled gasoline before starting en-
gine. Use a funnel or spout to prevent spill-
ing gasoline, and fill fuel tank to about 1/2
inch {13 mm) from the top of the tank, not
the filler neck.
|
4
i
i
|
4
i
|
Store gasoline in a clean, approved contain- |
|
i
i
4
i
Y
“E WE OWE OWE OWE EP OWE WE me CEE CES EP EP EPS CEE CEE EP E
er and keep the cap in place on the contain-
er. Keep gasoline in a cool, well-ventilated
place; never in the house. To assure volatil-
ity, do not buy more than a 30 day supply
of gasoline. Gasoline is a fuel for internal
combustion engines; therefore, do not use
it for any other purpose. Since many chil-
dren like the smell of gasoline, keep it out
of their reach because the fumes are explo-
sive and dangerous to inhale.
EN a a a Ma Ma Aa Aa a" a ag“ a" "a ni” a Aa” an
абы a i ie A A A AA
Al ico
ED REGULAR GASOLINE IN TORO GASOLINE
POWERED PRODUCTS. UNLEADED GASOLINE
BURNS CLEANER, EXTENDS ENGINE LIFE, AND
PROMOTES GOOD STARTING BY REDUCING
THE BUILDUP OF COMBUSTION CHAMBER
DEPOSITS. LEADED GASOLINE CAN BE USED
IF UNLEADED IS NOT AVAILABLE.
NOTE: NEVER USE METHANOL, GASOLINE
CONTAINING METHANOL, GASOHOL CON-
TAINING MORE THAN 10% ETHANOL, GASO-
LINE ADDITIVES, PREMIUM GASOLINE, OR
WHITE GAS BECAUSE ENGINE FUEL SYSTEM
DAMAGE COULD RESULT.
1. Clean area around the fuel tank cap. Remove
cap from fuel tank and fill tank to within 1/2”
(13 mm) from the top with unleaded regular
gasoline. Reinstall fuel tank cap.
Fuel tank capacity is 4 quarts on 624 and 5
quarts on 824.
CONTROLS
Auger/Impeller Control (Fig. 9) — Control has
two positions: ENGAGE and DISENGAGE. To en-
gage auger and impeller, compress lever against
right handle grip. To disengage, release lever.
Traction Drive Control (Fig. 9) — To engage trac-
tion or activate power shift system, lever must
be compressed against left handle grip. To stop
traction, release lever.
Speed Shift Control (Fig. 9) — The control has
four speeds forward and two reverse and also
controls power shifting of wheels. To select
speeds, move shift control to desired position.
Note: When shifting gears to change direction
or shifting to the Power Shift position, trac-
tion drive control must be released. On-the-go
shifting may be accomplished between any of
the forward speeds without releasing traction
drive control.
Auger Lock-Up: (Fig. 9) — When auger/impeller
control and traction drive control are both com-
pressed, the traction control locks the au-
ger/impeller control down. Releasing the traction
control releases the auger/impeller.
Figure 9.
. Auger/impeller control
Traction drive control
Speed shift control
Ignition switch
Discharge chute control
NANA
Discharge Chute Control (Fig. 9) — Rotate dis-
charge chute control clockwise to move dis-
charge chute to the right and counterclockwise
to move chute to the left.
Ignition Switch (Fig. 9) — Switch has two posi-
tions: ON and OFF. Rotate key to ON position
before starting engine. To stop engine, rotate key
to OFF,
Throttle (Fig. 10) — Moving the throttle upward
increases the engine speed.
Choke (Fig. 10) — Choke is located on back of
engine cover. Pull choke out to HALF or
Full choke position to start a cold engine. As
engine warms up, push choke in gradually to
OFF.
Figure 10
1. Throttle 4. Fuel shut off valve
2. Choke 5. Recoil starter
3. Primer
Primer (Fig. 10) — Push primer in to pump small
amount of gasoline into engine for improved
cold weather starting.
Fuel Shut-Off Valve (Fig. 10) — Valve is located
under fuel tank. Close valve to stop fuel flow
from fuel tank and open valve to allow fuel to
flow to the carburetor. Close valve when snow-
thrower is not used. Valve is open when in the
vertical position as shown.
Deflector Handle — Deflector handle on top of
discharge chute is used to control the height of
the snow stream.
Recoil Starter (Fig. 10) — Recoil starter is on
back side of engine. Pull recoil starter to start
engine,
STARTING AND STOPPING INSTRUCTIONS
TO START ENGINE
IMPORTANT: Check auger and impeller to assure
that both parts are not frozen solid, but free to
rotate. Also, make sure discharge chute is not
obstructed.
1. Move speed selector to N — neutral — and
throttle midway between SLOW and FAST
(Fig. 10).
2. Open fuel shut-off valve below fuel tank.
3. Pull choke out to half choke position when
temperature is above °F. and to full choke pos-
ition when temperature is below OF. (Fig. 10).
4. Rotate ignition key to ON (Fig. 9).
5. Push primer (Fig. 10) twice if temperature is
below 10°F. (Priming more than twice may cause
fuel to spill from carburetor).
6. Grasp recoil starter handle (Fig. 10) and pull
it out slowly until positive engagement results;
then pull vigorously to start the engine. Keep
firm grip on starter handle and return the rope
slowly.
7. After engine starts gradually push choke in
(Fig. 10).
10
BEFORE STOPPING ENGINE
1. Run engine for a few minutes to help dry off
any moisture which may have accumulated on
engine.
2. With engine running, pull recoil starter with
a rapid continuous full arm stroke (3) three or
(4) four times. This will help prevent possible
freeze-up of recoil starter due to extreme snow
blowing conditions.
Note: Pulling of recoil starter rope will produce
a loud clattering sound. This is not harmful to
the engine or the starter.
TO STOP ENGINE:
1. Release traction and auger/impeller drive con-
trols (Fig. 9).
2. Move speed selector to N — neutral.
3. Move throttle to slow and rotate ignition key
to OFF.
OPERATING INSTRUCTIONS
POWER SHIFT OPERATION
Move wheels rearward to the Power Shift posi-
tion in heavy and/or drifted snow.
Leave wheels in the front position for light snow
or for transporting snowthrower.
1. Release traction drive lever.
2. To move wheels to front or rear position,
move shift control fully forward to Power Shift
position and hold (Fig. 11).
Figure 11
3. Fully engage traction drive lever to move
wheels into Power Shift position (Figs. 11 & 12).
Note: When power shifting it may be necessary
to slightly raise handles to assist wheel move-
ment.
Figure 12
Note: |f wheels do not move in desired direction
when power shifting, repeat procedure. Wheels
must rotate in forward direction to move wheels
ahead and rotate rearward to move wheels back.
FREE WHEELING OR SELF PROPELLED DRIVE
The snowthrower can be free wheeled or en-
gaged for self propelled operation. When axle
pins are through outer axle holes (Fig. 13), snow-
thrower will free wheel. By contrast, when both
pins are installed through holes in wheel hub and
inner hole of axle (Fig. 13), snowthrower will
propel itself.
7 E 7 a
LIGA
Figure 13
1. Axle pin
SNOWTHROWING TIPS
1. When snowthrower is not being used, close
fuel shut-off valve, have speed control in N —
neutral position, and key removed from the
switch.
2. Remove snow as soon as possible after it
falls. This will produce best snow removal
results.
3. When in the Power Shift position, push down
on handles to increase traction.
4. If snow will be removed from crushed rock
or gravel areas, adjust skids so bottom of auger
housing clears the rocks: refer to Adjusting
Skids, page 11.
5. For concrete or asphalt surfaces, adjust skids
so there is 1/8 inch (3 mm) between bottom of
auger and concrete or asphalt surface.
6. Discharge snow downwind whenever possi-
ble, and overlap each swath to assure complete
snow removal. If wheels slip, shift into a lower
gear which reduces forward speed.
7. In some snow and cold weather conditions,
some controls and moving parts may freeze
solid. Therefore, when any control becomes hard
to operate, stop the engine; then check all parts
for freeze up. DO NOT USE EXCESSIVE FORCE
AND TRY TO OPERATE THE CONTROLS WHEN
FROZEN. Free all controls and moving parts be-
fore operating.
ADJUSTING SKIDS (Fig. 14)
When snowthrower will be used on concrete or
asphalt surfaces, adjust skids using steps 1 - 2.
However, use only step 3 when snowthrower
will be used on gravel or crushed rock surfaces.
11
OPERATING INSTRUCTIONS
1. Move snowthrower to a level surface. Next,
loosen four flange screws securing both skids
to auger side plates. Skids must slide up and
down.
2. Adjust both skids so there is 1/8 of an inch
between bottom of auger and level surface.
When skids are adjusted correctly, tighten flange
nuts. Next, check scraper blade that is mounted
at bottom of auger housing. Scraper must be
parallel with level surface. If scraper is not
parallel, adjust skids again. Do not use step 3
after adjusting skids for hard surfaces,
3. Loosen four flange screws securing both
skids to auger side plates. Next, slide skids down
as far as possible so auger is as far from the level
surface as skid adjustment allows; then tighten
flange screws.
te
Figure 14
1. Flange screws
MAINTENANCE
a a Ee ie ae ee oe a oe oe J i i i i ie ie i PO JO Se
a a a gl Nght Ng aa a and ЧЫЙ
ia ie a
©
>
<
=
=
2
To prevent accidental starting of the engine
while performing maintenance, rotate igni-
tion key to off and remove it from the
switch. Next, pull wire off spark plug and
make sure wire does not accidentally touch
the plug.
¿Mi a EE Ge GE Ee GN сло GE Ne EL Ee
WE NEE WEE NEE a a Nae aa we
a" a ONE WEE NEE A WE ae EF EF we ae me ae TE Tae WE TEE WE NE TENE ENE
DRAINING GASOLINE
1. Stop engine and pull wire off spark plug.
2. Remove cap from fuel tank and use pump-
type syphon to drain fuel into clean gas can.
Note: This is the only procedure recommended
for draining fuel.
A caution
Since gasoline is highly flammable, drain it
outdoors and make sure engine is cool to
prevent a potential fire hazard. Wipe up any
gasoline that may have spilled. Do not drain
gasoline near any open flame or where
gasoline fumes may be ignited by a spark.
Do not smoke a cigar, cigarette, or a pipe
when handling gasoline.
AM. 6, 0 во бы ER Se Ge e A ale ih an
2 WE WE age E E CEE age Cap CP a age ae ae ae we ae
LUBRICATING SNOWTHROWER
1. Annually, lubricate drive chain with chain
lubricant (Fig. 15). Wipe up any excess oil.
12
Figure 15
1. Drive chain
CHANGING CRANKCASE OIL (Fig. 16)
Initially, change oil after the first 2 hours of en-
gine operation; thereafter, change oil after ev-
ery 25 hours of engine operation or annually. If
possible, run engine just before changing oil be-
cause warm oil flows better and carries more
contaminants than cold oil.
1. Pull wire off spark plug and make sure wire
does not contact plug accidentally.
2. Clean area around oil drain cap. Next, slide
oil drain pan below drain extension; then remove
oil drain cap.
3. After all oil is drained, install oil drain cap.
4. Position snowthrower on a level surface.
Next, fill crankcase with oil: see Fill Crankcase
MAINTENANCE
With Oil, page 8. Wipe up any oil that may have
spilled.
Figure 16
1. Drain cap
AUGER GEAR BOX OIL (Fig. 17)
The auger gear box is filled with oil at the facto-
ry so regular maintenance is not required.
However, if oil must be replaced in gear box:
1. Drain gasoline from fuel tank. Wipe up any
spilled gas.
2. Position snowthrower on a level surface.
3. Clean area around pipe plug so dirt is
removed.
4. Put a drain pan below front of auger gear box
and remove pipe plug: refer to Check Auger Gear
Box Oil, page 7.
5. Tip snowthrower forward and hold it up un-
til all oil drains from the gear box.
Figure 17
1. Pipe plug
6. Carefully let snowthrower down to its nor-
mal position. Make sure it is on a level surface.
Next, fill auger gear box with GL-5 or GL-6 SAE
85-95 EP transmission oil to the point of
overflow.
7. Install pipe plug in gear box.
ADJUSTING AUGER/IMPELLER DRIVE BELT
(Figs. 18-19)
If auger/impeller belt slips, resulting in decreased
snowthrowing performance, an adjustment is re-
quired. WHENEVER A NEW BELT IS INSTALLED,
AN ADJUSTMENT IS REQUIRED.
1. Remove (3) flange head capscrews securing
belt cover to engine frame and slide belt cover
up cables.
2. Check idler and brake adjustment. There
should be a minimum clearance of 1/8” between
tab on impeller idler arm and brake arm (Fig. 19).
If there is less than 1/8” clearance, belt must be
replaced.
3. Loosen upper jam nut securing auger/impeller
cable to mounting bracket (Fig. 18).
Figure 18
1. Auger/impeller cable
2. Traction cable
3. Mounting bracket
4. Rotate bottom jam nut upward to increase
belt tension.
Note: When adjusting cable, always rotate nut
one turn at a time,
IMPORTANT: Do not adjust the belt too tight
because it may cause the auger/impeller to turn
when the auger/impeller is in the disengaged
13
MAINTENANCE
position, If this occurs, readjust, loosening belt
tension.
5. Tighten upper jam nut against bracket.
Pr MP e e WER СЧ TEER Cp CM CAES RETR CRU me AO POMO EP CEP aa ma
§
AN warning
Improper adjustment may cause injury if
auger/impeller turns when disengaged. Use
only genuine Toro replacement parts.
A EE EE Ee a бы ain ai aie
dicas
ts A AAA i Ee
PU MEME age ge war ae
|
у
Figure 19
1. Idler arm
2. Brake arm
6. Recheck idler and brake adjustment, refer to
step #2,
7. Reinstall belt cover.
8. Check tension of belt by operating the au-
ger. If belt still slips, repeat procedure.
ADJUSTING TRACTION DRIVE BELT (Fig. 18)
If traction belt slips during operation, an adjust-
ment is required. Whenever the belt is replaced,
an adjustment is required.
1. Loosen upper jam nut securing traction cable
to mounting bracket.
2. Rotate bottom jam nut upward to increase
belt tension.
Note: When adjusting cable, always rotate nut
one turn at a time.
3. Tighten upper jam nut against bracket.
4. Check tension of belt by operating machine.
If belt still slips, repeat procedure.
IMPORTANT: Do not adjust the belt too tight be-
cause it may cause snowthrower to creep when
14
traction lever is in disengaged position. If this
occurs, readjust, loosening belt tension.
REPLACING DRIVE BELTS (Fig. 20)
if auger/impeller belt or traction belt become
worn, glazed, stretched, oil-soaked, or otherwise
defective, belt replacement is required.
1. Pull wire off spark plug and make sure it does
not contact the plug accidentally.
2. Remove (3) thread forming screws holding
belt cover in place, and slide belt cover up cables.
3. Move speed shift control to N, neutral.
4. Remove (2) flange head capscrews securing
idler pulley assembly to engine frame. Remove
idler pulley assembly.
Figure 20
Idler pulley assembly 4. Half sheave
Mounting screws (2) 5. Muger/impeller belt
Capscrew & lockwasher 6. Traction belt
. Remove capscrew and lockwasher securing
half sheave to front of pulley assembly.
6. Slide auger/impeller pulley and belt off crank-
shaft and remove belt from impeller pulley.
7. If replacing traction belt, slide traction pul-
ley and belt off crankshaft and remove belt from
transmission pulley.
8. On control cable which corresponds to belt
being replaced, loosen jam nuts securing cable
to bracket (Fig. 18). Cable must be free to slide
in bracket when changing belt(s).
9. Reinstall belts by reversing procedure. Make
sure tabs in half sheave are inserted into mount-
ing grooves in auger/impeller pulley when re-
installing.
Note: Make sure idler pulleys are aligned with
belts when reinstalling idler pulley assembly.
10. Readjust belts, refer to Adjusting Auger/
Impeller Drive Belt or Adjusting Traction Drive
Belt.
Ly hay —
сл
MAINTENANCE
i i i a i in ie i ee i il a ile aie aie нь me om om
A A A A A A A AA AAP PPP PAPAS
A WARNING
Improper adjustment may cause injury if
auger/impeller turns when disengaged. Use
only genuine Toro replacement parts.
Se ie ie ie a
ii CAF CAF CF CF CP CF CFF AR
ADJUSTING DRIVE CHAIN (Figs. 21-24)
The drive chain must be adjusted to maintain
1/8-3/8 of an inch deflection at mid span be-
tween transmission and axle sprocket. Check
chain deflection after every 25 hours of
operation.
1. Check deflection of chain by lifting up on
chain with moderate pressure at mid span. There
should be 1/8-3/8” deflection. If deflection is not
as specified an adjustment is required.
|
|
)
р
,
|
y
y
J
o 0 lin
ici AAA
a TE a a we ae
1/8” = 3/8"
DEFLECTION
2. Make sure wheels are positioned in rear po-
sition, move shift control into 2nd gear and tip
snowthrower up onto auger housing.
3. Loosen (4) flange head capscrews (2 each
Side) securing transmission frame to engine
frame (Fig. 23).
4. Pivot rear of transmission frame until
1/8-3/8" chain deflection is attained, then,
retighten flangehead capscrews.
Figure 21
IMPORTANT: To adjust drive chain, the snow-
thrower must be tipped up on auger housing.
However, before the snowthrower is tipped,
drain all gasoline from fuel tank.
SN
Figure 22
1. Transmission
2. Transmission frame
Figure 23
1. Flange head cap screws
IMPORTANT: Excessive chain tension may
cause transmission damage.
Note: If gear shift lever is not aligned with Pow-
er Shift slot in control panel (Fig. 28 inset),
shift rod length must be adjusted as follows:
A. Disconnect ball joint from transmission lever
and loosen jam nut.
B. Rotate ball joint up or down, until gear shift
lever is aligned with Power Shift slot.
C. Reinstall ball joint to transmission lever and
tighten jam nut.
5. Recheck chain deflection and lower snow-
thrower to normal position.
15
MAINTENANCE
Figure 24
Shift rod
Ball joint
Shift bracket
Transmission lever
REPLACING SPARK PLUG (Fig. 25)
Correct spark plug to use is a NGK BP-4HS or
equivalent, and correct air gap is .025-.030 of
an inch. Since air gap between center and side
electrodes of the spark plug increases gradual-
ly during normal engine operation, install a new
plug after every 25 hours of engine operation.
1. Clean area around spark plug so foreign mat-
ter cannot fall into cylinder when plug is
removed.
2. Pull wire off spark plug and remove plug from
cylinder head.
IMPORTANT: A cracked, fouled, or dirty spark
plug must be replaced. Do not sand blast,
scrape, or clean electrodes because grit may
eventually release from the plug and fall into the
cylinder. The result will likely be engine damage.
5. Locknut
6. Jam nut
7, Gear shift lever
№ 0 Bee
16
3. Set air gap between electrodes of new spark
plug at .025-.030 of an inch (Fig. 25). Next, in-
stall spark plug in cylinder head. Tighten plug to
15 ft-lb. If torque wrench is not used, tighten
plug firmly.
4. Push the wire onto spark plug.
— 025"-.030"
Figure 25
PREPARING SNOWTHROWER FOR STORAGE
1. Drain gasoline from fuel tank: refer to Drain-
ing Gasoline. Wipe up any gasoline that may
have spilled.
2. Start the engine and let it run until it stops
because there is no gasoline in the fuel system.
3. Remove spark plug from cylinder head. Next,
pour two teaspoons of engine oil into spark plug
hole in cylinder head. Install spark plug in
cylinder head, but do not install wire on the plug.
Then pull recoil starter slowly to distribute oil on
inside of cylinder.
4. Lubricate the snowthrower: refer to Lubricat-
ing Snowthrower. Change crankcase oil: see
Changing Crankcase Oil.
5. Clean the snowthrower. Touch up chipper
surfaces with paint. Sand affected areas before
painting, and use a rust preventative io prevent
metal parts from rusting.
6. Tighten all screws and nuts. If any part is
damaged, repair or replace it.
7. Store snowthrower in a clean, dry place, and
cover it to give protection.
8. The snowthrower may be stored in upright
position. Make sure to drain gas before tipping
snowthrower upright on auger housing.
IDENTIFICATION AND ORDERING
MODEL AND SERIAL NUMBERS
The snowthrower has two identification num-
bers: a model number and a serial number. The
two numbers are stamped on a decal which is
located on back of engine mounting plate. In any
correspondence concerning the snowthrower,
supply model and serial numbers to assure that
correct information and replacement parts are
obtained.
To order replacement parts from an Authorized
TORO Service Dealer, supply the following in-
formation:
1. Model and serial numbers of the snow-
thrower.
2. Part number, description, and quantity of
part(s) desired.
Note: Do not order by reference number if a parts
catalog is being used; use the PART NUMBER.
MAINTENANCE RECORD
; Spark
Date Hours Oil Lubrication | Summer Fall Plug
Used Change Storage Service Gap
17
MAINTENANCE RECORD
Date
Hours
Used
Oil
Change
Lubrication
Summer
Storage
Fall
Service
Spark
Piug
Gap
18
MAINTENANCE RECORD
; Spark
Date Hours Oil Lubrication | Summer Fall Plug
Used Change Storage Service Gap
UPL-46620
19
LYRA AY
=
The Toro Promise
A Two Year Limited Warranty
On All
Gasoline Powered Consumer Products
The Toro Company promises to repair these TORO Products if defective in materials
or workmanship. The following time periods from the date of purchase apply
Residential Product
Residential Products Used C
ommercially
2 Years
45 Days
The costs of parts and labor are included, but the customer pays the transportation
costs. Just return any residential product to an Authorized TORO Service Dealer
or TORO Distributor.
Should you feel your TORO is defective and wish to
rely on The Toro Promise, the following procedure
is recommended:
1. Contact any Authorized TORO Service Dealer,
TORO Master Service Dealer, or TORO Distributor
(the Yellow Pages of your telephone directory is
a good reference source).
2. He will either instruct you to return the product
to him or recommend another Authorized TORO
Service outlet which might be more convenient,
3. Bring the product along with your original sales
slip, or other evidence of purchase date, to the
service dealer,
4. The servicing dealer will inspect the unit, advise
you whether the product is defective and, if so,
make all repairs necessary to correct the defect
without extra charge to you.
If for any reason you are dissatisfied with the dealers
analysis of the defect or the service performed, you
may contact us.
Write:
TORO Customer Service Department
8111 Lyndale Avenue South
Minneapolis, Minnesota 55420
The above remedy of product defects through
repair by an Authorized TORO Service Dealer 15
the purchaser's sole remedy for any defect.
THERE 15 NO OTHER EXPRESS WARRANTY.
ALL IMPLIED WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR USE ARE LIMITED
TO THE DURATION OF THE EXPRESS
WARRANTY.
Some states do not allow limitations on how long
implied warranty lasts, so the above limitation may
not apply to you.
This Warranty applies only to parts or components
which are defective and does not cover repairs
necessary due to normal wear, misuse, accidents, or
lack of proper maintenance, Regular, routine
maintenance of the unit to keep it in proper
operating condition is the responsibility of the owner.
Ali warranty repairs reimbursable under The Toro
Promise must be performed by an Authorized TORO
Service Dealer using Toro approved replacement
parts.
Repairs or attempted repairs by anyone other than
an Authorized TORO Service Account are not
reimbursable under The Toro Promise. In addition,
these unauthorized repair attempts may result in
additional malfunctions, the correction of which is
not covered by warranty.
THE TORO COMPANY IS NOT LIABLE FOR IN-
DIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES IN CONNECTION WITH THE USE OF
THE PRODUCT INCLUDING ANY COST OR
EXPENSE OF PROVIDING SUBSTITUTE EQUIP-
MENT OR SERVICE DURING PERIODS OF MAL.
FUNCTION OR NON-USE.
Some states do not allow the exclusion of incidental
or consequential damages, so the above exclusion
may not apply to you.
This warranty gives you specific legal rights, and you
may also have other rights which vary from state to
state.
AVIV COOCCNNODCCON NINO VIVE INVA
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO products exported
from the United States or Canada should contact thew
TORO Distributor (Dealer) to obtain guarantee policies
for your country, province or state. If for any reason
vou are dissatished with your Distributor’s service or
have difficulty obtaining guarantee information, contact
the TORO importer. If all other remedies fall, you may
contact us at The Toro Company
Compliance with Rado Interference Regulations Certified.
Certifie Conforme au Regiement sur le Brousllage Aadioëlectrique,
Litho in US A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
