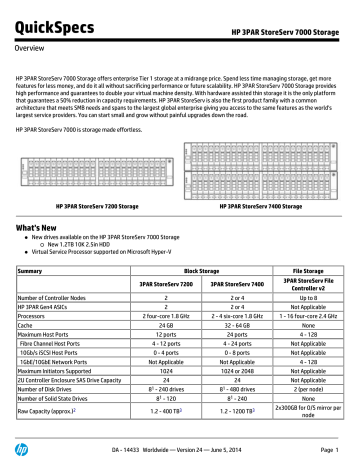

HP 3PAR StoreServ 7000 Storage

QuickSpecs
HP 3PAR StoreServ 7000 Storage
Overview
HP 3PAR StoreServ 7000 Storage offers enterprise Tier 1 storage at a midrange price. Spend less time managing storage, get more
features for less money, and do it all without sacrificing performance or future scalability. HP 3PAR StoreServ 7000 Storage provides
high performance and guarantees to double your virtual machine density. With hardware assisted thin storage it is the only platform
that guarantees a 50% reduction in capacity requirements. HP 3PAR StoreServ is also the first product family with a common
architecture that meets SMB needs and spans to the largest global enterprise giving you access to the same features as the world's
largest service providers. You can start small and grow without painful upgrades down the road.
HP 3PAR StoreServ 7000 is storage made effortless.
HP 3PAR StoreServ 7200 Storage
HP 3PAR StoreServ 7400 Storage
What's New
New drives available on the HP 3PAR StoreServ 7000 Storage
New 1.2TB 10K 2.5in HDD
Virtual Service Processor supported on Microsoft Hyper-V
Summary
Block Storage
Number of Controller Nodes
HP 3PAR Gen4 ASICs
Processors
Cache
Maximum Host Ports
Fibre Channel Host Ports
10Gb/s iSCSI Host Ports
1GbE/10GbE Network Ports
Maximum Initiators Supported
2U Controller Enclosure SAS Drive Capacity
Number of Disk Drives
Number of Solid State Drives
Raw Capacity (approx.)2
File Storage
3PAR StoreServ 7200
3PAR StoreServ 7400
2
2
2 four-core 1.8 GHz
24 GB
12 ports
4 - 12 ports
0 - 4 ports
Not Applicable
1024
24
1
8 - 240 drives
81 - 120
2 or 4
2 or 4
2 - 4 six-core 1.8 GHz
32 - 64 GB
24 ports
4 - 24 ports
0 - 8 ports
Not Applicable
1024 or 2048
24
1
8 - 480 drives
81 - 240
1.2 - 400 TB3
1.2 - 1200 TB3
DA - 14433 Worldwide — Version 24 — June 5, 2014
3PAR StoreServ File
Controller v2
Up to 8
Not Applicable
1 - 16 four-core 2.4 GHz
None
4 - 128
Not Applicable
Not Applicable
4 - 128
Not Applicable
Not Applicable
2 (per node)
None
2x300GB for O/S mirror per
node
Page 1
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Overview
Capacity Details
3PAR StoreServ 7200
3PAR StoreServ 7400
RAID Levels
RAID 0, 1, 5, 6
RAID 0, 1, 5, 6
RAID 5 Data to Parity Ratios
2:1 - 8:1
2:1 - 8:1
RAID 6 Data to Parity Ratios
4:2, 6:2, 8:2, 10:2, 14:2
4:2, 6:2, 8:2, 10:2, 14:2
3
4
4
Drive Capacities (approximate GB )
100 SSD , 200 SSD , 400
100 SSD4, 200 SSD4, 400
4
4
4
(RAID levels, parity ratios, and drive capacities SSD , 480 SSD , 920 SSD
SSD4, 480 SSD4, 920 SSD4
all mixable within the same Storage System) 300 15K SAS, 450 10K SAS, 300 15K SAS, 450 10K SAS,
600 10K SAS, 900 10K SAS, 600 10K SAS, 900 10K SAS,
1200 10K SAS, 1000 7.2K
1200 10K SAS, 1000 7.2K
NL, 2000 7.2K NL5, 3000
NL, 2000 7.2K NL5, 3000
5
5
7.2K NL , 4000 7.2K NL
7.2K NL5, 4000 7.2K NL5
Number of Add-on Drive Enclosures
(Each Drive Enclosure holds up to 24 drives in
2U for small form factor drives and 4U for
large form factor drives)
0 - 9 enclosures
0 - 18 enclosures
3PAR StoreServ File
Controller v2
RAID 0, 1, 5, 67
2:1 - 8:17
4:2, 6:2, 8:2, 10:2, 14:27
Not Applicable
Not Applicable
1 The minimum drive quantity is permitted as long as the total raw capacity is at least 1.2 TB.
2 Maximum raw capacity currently supported with any and all drive types.
3 For storage capacity, 1 GB = 1,000,000,000 bytes and 1 TB = 1,000 GB.
4 SSDs are Solid State Drives.
5 NL drives are 7200 RPM Enterprise SAS drives.
7 Applies to the array storage assigned to 3PAR StoreServ File Controller for file services
8 For details, please refer to the 3PAR StoreServ File Controller v2 section in this document.
NOTE: Specifications are subject to change without notice.
Host OS Support
Citrix® XenServer® | HP-UX® | IBM® AIX®
Microsoft® Windows® Server, including Microsoft® Hyper-V™
Open VMS | Oracle® Linux® (UEK and RHEL compatible kernels) | Oracle® Solaris
Red Hat® Enterprise Linux® | Red Hat® Enterprise Virtualization
SUSE® Linux Enterprise | VMware vSphere™, Ubuntu
For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge for HP Storage Products
(SPOCK): http://www.hp.com/storage/spock
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 2
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Standard Features
Efficient
Get thin and stay thin - Thin technologies unique to the HP 3PAR StoreServ family can reduce capacity
requirements by 50%. Purchase only what you need, as you need it so you can focus resources on growing
your business, not maintaining your storage. Additionally, the HP 3PAR ASIC with Thin Built In features an
efficient, silicon-based zero-detection mechanism. This unique hardware capability gives HP 3PAR
StoreServ Storage the power to remove allocated but unused space without impacting performance.
Data center virtualization - Increase virtualization return on investment. Double virtual machine density on
your physical servers, spend up to 90 percent less time managing your storage, and support your
virtualization deployment with 50 percent less storage capacity. HP 3PAR StoreServ is built from the
ground up to deliver performance that exceeds the demands of virtualized data centers along with
transformative levels of simplicity, agility, and efficiency.
Service levels - With policy-based autonomic sub-LUN tiering, you can balance the cost of capacity and the
cost of performance and put the right data on the right storage tier at the right time.
Do more with less - With HP 3PAR StoreServ Storage you can purchase up to 75 percent less capacitymeaning less equipment to house, fewer disks to power and cool, less hardware to retire after it has
reached its end of life, and a reduced carbon footprint.
Autonomic
It's like breathing-you don't even have to think about it. Simplify, automate, and expedite storage
management by handling storage provisioning, tiering, and change management autonomicallyintelligently, at a sub-system level, and without administrator intervention.
SmartStart Software - software designed to get you off to a quick start with your new HP 3PAR StoreServ
7000 system.
Common architecture - Access the same features as the world's largest service providers with a common
architecture that meets SMB needs and spans to the largest global enterprise.
Resilient
Secure multi-tenancy - Consolidate with confidence. Achieve higher service levels for more users and
applications with less infrastructure. HP 3PAR StoreServ Storage is designed to support massive
consolidation by supporting mixed workloads and secure administrative segregation of users, hosts, and
application data. Deliver higher performance levels, greater availability, and next-generation functionality
to multiple user groups and applications from a single storage system.
Scalable - HP 3PAR StoreServ 7000 provides affordable entry pricing and unique, non-disruptive scalability
to four nodes.
High Availability - Featuring the same mesh-active architecture as all HP 3PAR StoreServ products, HP
3PAR StoreServ 7000 offers the highest levels of data availability and protection for the midrange.
Intelligent data striping across all available enclosures provides HA Cage, the ability to maintain
availability even when a whole drive enclosure fails. HP 3PAR Persistent Cache in four node configurations
eliminates performance impacts that result from unplanned component failures, making it a must-have
for maintaining service levels in the virtual data center-a feature that you can't get from any other
midrange storage platform.
Storage federation - Meet the needs of today's data center with the ability to move data and workloads
between arrays without impact to applications, users, or services. Simply and non-disruptively shift data
between any model HP 3PAR StoreServ system without additional management layers or appliances.
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 3
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Standard Features
Storage federation on HP 3PAR StoreServ Storage can also help you improve availability in clustered
VMware environments.
Mixed workload - Mixed workload support serves transactional and throughput-intensive workloads from
a single device. The purpose-built HP 3PAR ASIC delivers mixed workload support to alleviate performance
concerns and cut traditional array costs. Transaction- and throughput-intensive workloads run on the
same storage resources without contention, thereby cutting array purchases in half.
Data at Rest Encryption - enables the encryption for all the data that is stored on the internal drives of the
3PAR StoreServ Storage. The 3PAR StoreServ Data Encryption solution encrypts and decrypts all data
written to and read from the media automatically. The 3PAR StoreServ Data Encryption solution encrypts
the data so that data cannot be read off a drive that is removed from the 3PAR Storage. In the event of a
failure of the drive or the theft of a drive, the proper authentication key is required to be entered to gain
access to the data stored within the drive. This method of encryption allows the user the comfort knowing
all data contained on the drive is protected against internal and external risks.
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 4
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
Warranty
3 Year, On-site Warranty Service for hardware components. 7x24 4-hour remote response with next
business day on-site response
The warranty on the following HP 3PAR StoreServ 7000 SSD product numbers is 5 years, parts only:
HP 3PAR StoreServ M6710 480GB 6G SAS SFF(2.5in) MLC Solid State Drive E7W54B
HP 3PAR StoreServ M6720 480GB 6G SAS LFF(3.5in) MLC Solid State Drive E7W55B
HP 3PAR StoreServ M6710 920GB 6G SAS SFF(2.5in) MLC Solid State Drive E7W24B
HP 3PAR StoreServ M6720 920GB 6G SAS LFF(3.5in) MLC Solid State Drive E7W25B
HP 3PAR StoreServ 7000 drive ( SAS performance and Nearline and SSDs excluding the ones listed above)
warranty is 3 years, parts only.HP warrants only that the Software media will be free of physical defects
for a period of ninety (90) days from delivery.
Service and Support
For more information about HP's Global Limited Warranty and Technical Support, visit:
http://www.hp.com/products/storageworks/warranty
Technology Services for increased uptime, productivity and ROI
Trust HP storage technology experts for every level of service and support. Our integrated portfolio of
services for storage help customers reduce costs, optimize data, streamline storage management, and
improve backup and recovery. Capitalizing on HP Storage Systems' capabilities requires a service partner
who understands your increasingly complex environment. Team with the people who know HP
infrastructure hardware and software best-the experienced professionals at HP Services.
Protect your business beyond warranty
Warranty protects against manufacturer defects, however warranty uplifts, such as HP Care Pack Services
protect the business-by reducing downtime risks and providing operational consistency for missioncritical and standard business computing.
NOTE: SSDs have a limited number of writes that can occur before reaching the SSD's write endurance
limit. This limit is generally high enough so wear out will not occur during the expected service life of an HP
3PAR StoreServ under the great majority of configurations, IO patterns, and workloads. HP 3PAR
StoreServ tracks all writes to SSDs and can report the percent of the total write endurance limit that has
been used. This allows any SSD approaching the write endurance limit to be proactively replaced before
they are automatically spared out. An SSD has reached the maximum usage limit once it exceeds its write
endurance limit. Following the product warranty period, SSDs that have exceeded the maximum usage
limit will not be repaired or replaced under HP support contracts.
What HP Storage Technology Services can do for you
HP Storage Technology Services can help you design, deploy, test, integrate, support, and manage IT and
infrastructure solutions. HP storage lifecycle support services offers a full spectrum of customer carefrom technology support to complex migrations to complete managed services.
Choose the right level of support, deployment and integration services
HP support recommendations are designed to help you enhance technology operations and lower risk-and
make it easier for you to seek the right balance between affordability and service-level commitments.
Depending on your individual support needs, choose from three levels of care that cover the entire
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 5
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
lifecycle to better address your needs-Optimized Care, Standard Care, and Basic Care. If none of our
support recommendations meet your needs, we can tailor a service solution for your unique support
requirements. Only HP brings together deep expertise, proactive and business critical support and a strong
partner network-together with, a full set of infrastructure services designed to power a Converged
Infrastructure
Optimized Care - delivers HP Critical Service - This service delivers 24x7 monitoring of your environment, making it the right choice
best performance and
when uninterrupted uptime is essential. We implement improvement projects to mitigate risks and reduce
stability through
incidents to maximize uptime. If outages do occur, they will be addressed immediately through access to
deployment and proactive our dedicated critical support escalation resources, with a six-hour call-to-repair commitment from our
management practices
mission-critical call center.
Additional Option:
10 Proactive Select credits per year per array - HP Proactive Select is a flexible way to purchase services
to fit your particular environment or situation. Working with an HP Account Support Manager, you select a
package of services in the form of services credits that include proactive services spanning many
technologies and processes, such as on-site firmware upgrades, health checks, assessments, and
education. You tailor the service delivery to improve time to production, optimize performance, or build in
continuous improvements.
Standard Care - maintains HP Proactive Care 24x7 - for a higher return on your storage investment, Proactive Care delivers hardware
high level of uptime, along and software support services designed specifically for your technology; rapid access to Advanced
with expert help to cut the Solution Center Specialists plus, Firmware/Software management and best practice advice. Customers can
cost and complexity of
optimize the return on their IT investment and realize the advantage of running their business critical
implementation and
applications on virtualized infrastructure. Plus, HP Proactive Select 20 credits per year, select from an
support
extensive menu of consultancy and technical services, such as onsite firmware upgrades, health checks,
assessments, and education.
Additional Option:
HP Proactive Care Personalized Support - The HP Proactive Care Personalized Support option allows for
an increased personalization of the Proactive Care support experience through the assignment of an
Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects.
The ASM will develop an annual support plan, provide four days of operational and technical advice, and
conduct semi-annual support reviews to ensure the Proactive Care service deliverables address the
customer's priorities. This option is only available for Proactive Care customers and may be purchased
once per environment.
Basic Care - Minimum
recommended support
HP Personalized Support Additional Day - Customers who require more time than is provided by the
Personalized Support option can elect to purchase additional days through the Personalized Support
Additional Day option. The time may be used to provide extra support reviews and/or more operational &
technical advice.
HP Proactive Care 24x7 - for a higher return on your storage investment, Proactive Care delivers hardware
and software support services designed specifically for your technology; rapid access to Advanced
Solution Center Specialists plus, Firmware/Software management and best practice advice. Customers can
optimize the return on their IT investment and realize the advantage of running their business critical
applications on virtualized infrastructure. Plus, 10 credits per year, select from an extensive menu of
consultancy and technical services, such as onsite firmware upgrades, health checks, assessments, and
education.
Additional Option:
HP Proactive Care Personalized Support - The HP Proactive Care Personalized Support option allows for
an increased personalization of the Proactive Care support experience through the assignment of an
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 6
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects.
The ASM will develop an annual support plan, provide four days of operational and technical advice, and
conduct semi-annual support reviews to ensure the Proactive Care service deliverables address the
customer's IT priorities. This option is only available for Proactive Care customers and may be purchased
once per environment.
Implementation
Related Services
HP Personalized Support Additional Day - Customers who require more time than is provided by the
Personalized Support option can elect to purchase additional days through the Personalized Support
Additional Day option. The time may be used to provide extra support reviews and/or more operational &
technical advice.
Installation:
Whichever level of care you select, consider our Installation and Startup Services for a smooth
implementation.
HP 3PAR StoreServ 7000 Storage Installation and Startup Service - For smooth startup, this service
provides you with deployment of your HP 3PAR StoreServ 7000 Storage, ensuring proper installation into
your storage environment and helping you realize the maximum benefit from your storage investment.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2568ENW.pdf
HP Storage Data Migration Service - HP expertise and tools help you migrate data across your data
center or around the globe. Take the burden of migration off your shoulders and put it in the capable
hands of expert HP storage migration consultants. Our proven approach helps orchestrate the complete
data migration and consolidation process while maintaining consistent data availability during the transfer
process.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-0774ENW.pdf
HP Enhanced Implementation Service for SANs - HP delivers complete design and implementation
services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI storage area network (SAN) connectivity
components. This service includes three levels of support based on the type of environment, ranging from
simple to more complex. A trained service specialist guides the implementation of the storage switches in
the SAN environment according to HP quality standards.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-8527EN.pdf
HP Data Replication Solution Service for 3PAR Virtual Copy - HP Data Replication Solution Service for HP
3PAR Virtual Copy Software helps create, manage and configure local replication data mirroring and
snapshot capabilities of 3PAR storage systems. This service enables snapshots and mirroring to facilitate
data restores, minimize downtime for backups, perform application testing, support data mining use with
decision-support tools.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-0217ENW.pdf
HP Data Replication Solution Service for 3PAR Remote Copy - HP Data Replication Solution Service for
3PAR Remote Copy Software configures real-time data mirroring between local and remote 3PAR storage
systems to safeguard critical business information. Provides scalable deployment of HP Remote Copy
Software real-time data mirroring between a local and a remote 3PAR storage system.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-8627ENW.pdf
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-9431ENW.pdf
HP 3PAR 7000 Replication Software Suite Installation and Startup Service - Provides implementation
of the HP 3PAR 7000 Replication Software Suite product. Replication Suite includes 3PAR Remote Copy,
3PAR Virtual Copy, and 3PAR Peer Persistence. The service is designed to help get HP 3PAR 7000
Replication Software Suite up and running quickly and to provide a demonstration of the product's key
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 7
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
features using sample or test data only.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2570ENW.pdf
HP 3PAR Peer Persistence Software Installation and Startup Service - Provides implementation of the
HP 3PAR Peer Persistence Software product. The service is designed to help get HP 3PAR Peer Persistence
up and running quickly and to provide a demonstration of the product's key features using sample or test
data only.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2772ENW.pdf
HP 3PAR Adaptive Optimization Policy Implementation Service - HP 3PAR Adaptive Optimization Policy
Implementation Service provides analysis, recommendations, and implementation of HP 3PAR Adaptive
Optimization policies to enable storage tiering using data collected from the HP 3PAR Storage system over
time. With the assistance of a designated IT storage administrator, a service specialist works with the
customer to implement Adaptive Optimization policies on the HP 3PAR Storage system to help deliver
service level optimization for virtual and cloud data centers while reducing cost, increasing agility and
minimizing risk.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf
HP Storage Virtual Volume Design and Implementation Service - When redeploying an HP StorageWorks
Disk Array, the HP Virtual Volume Design and Implementation Service provides the necessary activities
required to design and implement a new virtual volume configuration.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3764ENN.pdf
HP Thin Volume Conversion Service - Provides evaluation and execution of conversion from standard to
thin provisioned virtual volumes for HP 3PAR Storage. A service specialist advises the customer on HP thin
provisioning best practices, provides evaluation of potential disk capacity savings if target virtual volumes
are converted, and plans and implements thin conversion processing. The service leverages 3PAR thin
provisioning capabilities to help optimize storage capacity, reduce cost, increase agility and maintain
performance.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf
HP Performance Analysis Service for HP Disk Arrays - The service provides data collection, detailed I/O
analysis and enhancement recommendations for HP 3PAR StoreServ Storage disk arrays, HP EVA P6000
Storage disk arrays and HP XP P9000 Storage disk arrays. HP Performance Analysis Service for HP Storage
Disk Arrays provides a single engagement concerning the performance of a single HP 3PAR StoreServ
Storage disk array, HP EVA P6000 Storage disk array and HP XP P9000 Storage disk array
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6668EN.pdf
HP 3PAR Health Check Service - The HP 3PAR Health Check service is delivered as a single engagement,
providing data collection, analysis, report creation, and a briefing session concerning the performance of a
single HP 3PAR StoreServ Storage System. This health check service is best for HP 3PAR StoreServ Storage
Systems that have been installed and are in normal production mode. It can also be used to establish a
baseline for future reference to improve the effective use of your storage system.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-3225ENW.pdf
HP 3PAR Storage Assessment Service - The HP 3PAR Assessment Service is delivered remotely for a
single HP 3PAR StoreServ Storage System and does not include performance analysis, testing, or
modeling. The service requires that remote monitoring be enabled on the HP 3PAR StoreServ Storage
System being assessed. The assessment findings are compared to HP best practices and a summary
report is provided that includes recommendations intended to improve availability and ongoing
management of your HP 3PAR StoreServ Storage System.
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 8
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-2346ENW.pdf
HP 3PAR Storage Rebalance Service - The HP 3PAR Rebalance Service helps balance data across your HP
3PAR StoreServ Storage to take advantage of the capabilities of the array architecture. The service
provides analysis, planning, and implementation of data movement and/or physical movement of drive
magazines within the array.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-0280ENW.pdf
HP EVA to 3PAR Acceleration Service - The HP EVA to 3PAR Acceleration Service can help guide you or
even execute data migration activities on your behalf that can not only optimize, but provide OPEX and
CAPEX savings as a result of your journey from EVA to 3PAR. This service provides customers with an
alternative DIY ("do-it-yourself") data migration option with guidance from TS Storage migration
specialists. With the help of migration experts, this service allows customers to execute an EVA to 3PAR
data migration at their own pace and lowered cost.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-4234ENW.pdf
HP 3PAR Adaptive Optimization I&S - For Adaptive Optimization, design, creation, and implementation of
Adaptive Optimization policies; policy design, creation, and implementation can be accommodated using
the HP 3PAR Adaptive Optimization Policy Implementation Service, which is available via HP Proactive
Select.
The Service has further been described in the HP 3PAR 7000 Software Installation and Startup Service
Datasheet: http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2569ENW.pdf
For more information
HP 3PAR Dynamic Optimization I&S - For Dynamic Optimization, implementation by HP of tasks required
to balance the HP 3PAR storage system; the service provides the Customer with a product overview,
advice, and suggested strategies for use of Dynamic Optimization, and extended/ongoing analysis and/or
implementation of Dynamic Optimization strategies can be accommodated at additional cost
The Service has further been described in the HP 3PAR 7000 Software Installation and Startup Service
Datasheet: http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2569ENW.pdf
www.hp.com/services/storage
To learn more on HP Storage Services, please contact your HP sales representative or HP Authorized
Channel Partner
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order
configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at:
www.hp.com/go/lookuptool
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 9
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
Step 1 - Choose a Base configuration
HP 3PAR StoreServ 7000 configurations start with the selection of the Base. The Base includes controller nodes, bays for small form
factor drives, and PCIe slots for host adapter cards. SAN Kits are also considered base configurations. The SAN Kits simplify ordering
for SAN configurations with the array and extend the switch warranty to 3-years by including switches with an HP 3PAR StoreServ
7000 Storage Base.
HP 3PAR StoreServ 7000 Base Configurations
HP 3PAR StoreServ 7200 2-node Storage Base
HP 3PAR StoreServ 7400 2-node Storage Base
HP 3PAR StoreServ 7400 4-node Storage Base
QR482A
QR483A
QR485A
HP 3PAR StoreServ 7200 2-node Storage Base for Storage Centric Rack*
HP 3PAR StoreServ 7400 2-node Storage Base for Storage Centric Rack*
HP 3PAR StoreServ 7400 4-node Storage Base for Storage Centric Rack*
HP 3PAR StoreServ 7200 8Gb H-series Base System SAN Kit
HP 3PAR StoreServ 7200 16Gb Virtualization Base System SAN Kit
HP 3PAR StoreServ 7400 16Gb Virtualization Base System SAN Kit
A minimum of one (1) configuration base must be ordered.
The HP 3PAR StoreServ 7200 base configuration includes (2) controller nodes, 24
GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4)
8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot
per node, (4) 2m SAS cables, (1) mounting rail kit, and power cords.
The HP 3PAR StoreServ 7400 2-node base configuration includes (2) controller
nodes, 32 GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC
ports, (4) 8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards one slot per node, (4) 2m SAS cables, (2) 1U rack filler panels to reserve 2U of
rack space above the 2-node Storage Base for a future upgrade to a 4-node
configuration, (1) mounting rail kit, and power cords.
The HP 3PAR StoreServ 7400 4-node base configuration includes (4) controller
nodes, 64 GB of cache, (48) small form factor drive bays, (8) built-in 8 Gb/sec FC
ports, (8) 8Gb shortwave FC SFP, (4) PCIe adapter slots for host adapter cards one slot per node, (8) 2m SAS cables, (4) node link cables, (2) mounting rail kits,
and power cords.
The HP 3PAR StoreServ 7200 8Gb H-Series Base System SAN Kit includes the
QR482A HP 3PAR StoreServ 7200 2-node Storage Base, (2) BK780B HP SN6000
Stackable 8 Gb/s 8 Active Port Single Power Supply FC Switches and (4) TA821A
4-port FC Switch Upgrade LTUs. Each switch comes with serial cable, mounting
rail kits, power cords, and SAN Connection Manager software entitlement. Also
included is a 3 year warranty for the switches.
NOTE: Requires optical transceivers and switch cabling which must be supplied
separately.
The HP 3PAR StoreServ 7200 16Gb Virtualization Base System SAN Kit includes
the HP 3PAR StoreServ 7200 2-node Storage Base and (2) QK753B HP SN6000B
16 Gb/s 48-port/24-port Active FC Switches - dual power. Each switch comes
with rack mount kit (including rails, mounting hardware, and plenum), RJ-45
serial cable with adaptor for RJ-45 to DB9, power cords, and SAN Network
Advisor DVD. Also included is a 3 year warranty for the switches.
E7W49A
E7W50A
E7W51A
QR488A
QR489A
QR510A
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 10
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
NOTE: Requires optical transceivers and switch cabling which must be supplied
separately.
The HP 3PAR StoreServ 7400 16Gb Virtualization Base System SAN Kit includes
the HP 3PAR StoreServ 7400 2-node Storage Base and (2) QK753B HP SN6000B
16 Gb/s 48-port/24-port Active FC Switches -dual power. Each switch comes with
rack mount kit (including rails, mounting hardware, and plenum), RJ-45 serial
cable with adaptor for RJ-45 to DB9, power cords, and SAN Network Advisor DVD.
Also included is a 3 year warranty for the switches.
NOTE: Requires optical transceivers and switch cabling which must be supplied
separately.
All base configurations include built-in Gigabit Ethernet ports for management
and Remote Copy over IP.
*Storage Centric Configuration
The Storage Centric rack versions of HP 3PAR StoreServ 7200 and 7400 are for
CTO (factory Configure-To-Order) only. With a Storage Centric configuration, the
storage system gets placed in the center of the rack so that future expansion of
that storage system becomes easier.
In Storage Centric configurations, non-3PAR components, with the exception of
certain StoreFabric Storage Networking switches, if added to the same order, get
placed in a separate rack.
The following diagrams show a HP 3PAR StoreServ 7400 4-node Storage System in Storage Centric and non-Storage Centric
configurations
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 11
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
StoreServ 7400 4node Storage system in a storage centric
configuration in a HP Intelligent Series Rack
StoreServ 7400 4node Storage system in a non-storage centric
configuration in a HP Intelligent Series Rack
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 12
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
HP 3PAR StoreServ 7400 Upgrade Controller Node Pair
Use the HP 3PAR StoreServ 7400 Upgrade Node Pair to convert an existing previously installed HP 3PAR StoreServ 7400 2-node
Storage Base into a 4-node configuration.
HP 3PAR StoreServ 7400 Upgrade Node Pair
QR484A
Used to upgrade the QR483A HP 3PAR StoreServ 7400 2-node Storage Base to a
4-node configuration.
One (1) pair of controller nodes beyond the base configuration is supported on
the 3PAR StoreServ 7400.
The 3PAR StoreServ 7400 Upgrade Node Pair includes (2) controller nodes, 32 GB
of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4) 8Gb
shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot per
node, (4) 2m SAS cables, (4) node link cables, (1) mounting rail kit, and power
cords
The upgrade node pair includes built-in Gigabit Ethernet ports for management
and Remote Copy over IP.
Step 2 - Choose Host Adapter
Host adapters can be ordered separately to be installed in the field or they can be factory configured into controller nodes. Host adapter
cards provide the array with additional FC ports or with 10Gb/sec iSCSI/FCoE ports. The additional FC ports can be used for connection to
hosts or used to connect to other HP 3PAR StoreServ Storage systems in a Remote Copy relationship. The iSCSI/FCoE ports permit host
connection in iSCSI and FCoE environments.
HP 3PAR StoreServ 7000 Host Adapters
HP 3PAR StoreServ 7000 4-port 8Gb/sec Fibre Channel Adapter
HP 3PAR StoreServ 7000 2-port 10Gb/sec iSCSI/FCoE Adapter
Used in the Storage Base products (QR482A, QR483A, and QR485A) and the
Upgrade Node Pair (QR484A).
Because the Storage Base products and the Upgrade Node Pair include built-in FC
ports, the host adapter cards are optional.
QR486A and QR487A include one adapter card each. Adapters must be purchased
in pairs.
The QR486A includes (4) 8 Gb/s shortwave FC SFPs and the QR487A includes (2) 10
Gb/s SFPs.
Each node in a node pair (a node pair is composed of the two controller nodes in a
single 2U enclosure) must have the same number and type of adapters. FC and
iSCSI/FCoE adapters may not be intermixed in a node pair.
The 4 ports of the FC adapter can be individually configured to connect to a host or
to a remote array in an RC configuration.
The two ports of the iSCSI/FCoE adapter can be individually configured by the user
as iSCSI or FCoE.
DA - 14433 Worldwide — Version 24 — June 5, 2014
QR486A
QR487A
Page 13
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
Permitted Adapter Configurations
Product
QR482A
Nodes
A*
B*
C*
D
E
F*
G
H*
I*
Node 0
Empty
FC
iSCSI/FCoE
Node 1
Empty
FC
iSCSI/FCoE
Node 0
Empty
FC
iSCSI/FCoE
QR483A
Node 1
Empty
FC
iSCSI/FCoE
Node 2
Empty
FC
iSCSI/FCoE
QR484A
Node 3
Empty
FC
iSCSI/FCoE
Node 0
Empty
FC
iSCSI/FCoE Empty
Empty
FC
iSCSI/FCoE FC
iSCSI/FCoE
Node 1
Empty
FC
iSCSI/FCoE Empty
Empty
FC
iSCSI/FCoE FC
iSCSI/FCoE
QR485A
Node 2
Empty
Empty
Empty
FC
iSCSI/FCoE iSCSI/FCoE FC
FC
iSCSI/FCoE
Node 3
Empty
Empty
Empty
FC
iSCSI/FCoE iSCSI/FCoE FC
FC
iSCSI/FCoE
* Factory default configurations for given quantities of adapters.
NOTE: If the configuration includes Remote Copy over Fibre Channel it is recommended that optional Fiber Channel HBAs are
purchased as the built in ports will not offer sufficient connectivity.
Step 3 - Choose Drive Enclosures
Add drive enclosures to expand the configuration and to add large form factor drives to the configuration. Drive enclosures can be
ordered separately for installation in the field, or they can be factory configured in a rack. Drive enclosures are optional. Because the
Storage Base products and the Upgrade Node Pair include small form factor drive bays, the minimum configuration does not require
any additional drive enclosures. For larger configurations, attach drive enclosures. Each drive enclosure includes 24 drive bays. The HP
3PAR StoreServ 7200 supports up to five (5) added drive enclosures. The HP 3PAR StoreServ 7400 supports up to nine (9) added drive
enclosures per node pair. The two drive enclosure types can be intermixed in a single array.
HP M6710 2.5 inch 2U SAS Drive Enclosure
HP M6720 3.5 inch 4U SAS Drive Enclosure
Drive Enclosures
HP M6710 2.5 inch 2U SAS Drive Enclosure
HP M6720 3.5 inch 4U SAS Drive Enclosure
Each drive enclosure includes 24 drive bays, (2) IO modules, (2) 1m SAS cables,
(1) mounting rail kit, and power cables.
The M6710 2U drive enclosure provides 24 SFF drive bays arranged in a single
row.
The M6720 4U drive enclosure provides 24 LFF drive bays, arranged in four (4)
columns of six (6) slots each.
Minimum of zero (0) drive enclosures, maximum of five (5) attached to QR482A.
Minimum of zero (0) drive enclosures, maximum of nine (9) attached to QR483A.
Minimum of zero (0) drive enclosures, maximum of (18) attached to QR485A.
Drive enclosures are connected in daisy chains from the SAS ports of the
controller nodes.
The best practice is to balance the drive enclosures across the SAS ports,
DA - 14433 Worldwide — Version 24 — June 5, 2014
QR490A
QR491A
Page 14
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
remembering that the controller node enclosures include (24) drives attached to
the SAS port labeled DP-1.
The best practice when including LFF and SFF drive enclosures in the same array
is to arrange them in the rack so that all of the 2U enclosures that belong to one
node pair are together and all of the 4U enclosures for that node pair are
together. When connecting the backend SAS cables, intermix the M6710 and
M6720 enclosures on each SAS port.
With a four node configuration, the best practice is to attach the same number of
drive enclosures to each node pair.
To achieve highest availability in multi-enclosure configurations, configure a
minimum of two (2) enclosures per node pair for RAID 1, a minimum of four (4)
enclosures per node pair if RAID 5 is included, and a minimum of three (3)
enclosures per node pair if RAID 6 is included. Include enclosures containing node
pairs in the count with the M6710 enclosures.
Drive bays that are not filled with a drive must be covered with a drive blank to
preserve proper air flow.
If future capacity upgrades are expected, include enough Drive Enclosures so
that there are some empty bays in each enclosure after all drives are added.
Step 4 - Choose Drives
Drives are orderable at the time the array is purchased, or can be added in the future when additional capacity is required. Unlike other
HP 3PAR StoreServ Storage systems where drives are sold in magazines of four, HP 3PAR StoreServ 7000 drives are sold as single
drives. Note that these drives are only compatible with the M6710 and M6720 drive enclosures.
HP 3PAR StoreServ 7000 SAS Drives
HP 3PAR SSDs
HP M6710 100GB 6G SAS SFF (2.5-inch) SLC Solid State Drive
HP M6710 200GB 6G SAS SFF (2.5-inch) SLC Solid State Drive
HP M6720 100GB 6G SAS LFF (3.5-inch) SLC Solid State Drive
HP M6720 200GB 6G SAS LFF (3.5-inch) SLC Solid State Drive
HP 3PAR StoreServ M6710 400GB 6Gb SAS SFF(2.5-inch) MLC Solid State Drive
HP 3PAR StoreServ M6720 400GB 6Gb SAS LFF(3.5-inch) MLC Solid State Drive
HP 3PAR StoreServ M6710 480GB 6G SAS SFF(2.5in) MLC Solid State Drive
HP 3PAR StoreServ M6720 480GB 6G SAS LFF(3.5in) MLC Solid State Drive
HP 3PAR StoreServ M6710 920GB 6G SAS SFF(2.5in) MLC Solid State Drive
HP 3PAR StoreServ M6720 920GB 6G SAS LFF(3.5in) MLC Solid State Drive
QR502A
QR503A
QR506A
QR507A
QR504A
QR508A
E7W54B
E7W55B
E7W24B
E7W25B
HP 3PAR SAS HDDs
(Performance HDDs)
HP M6710 300GB 6G SAS 15K rpm SFF (2.5-inch) Hard Drive
HP M6710 450GB 6G SAS 10K rpm SFF (2.5-inch) Hard Drive
HP M6710 900GB 6G SAS 10K rpm SFF (2.5-inch) Hard Drive
HP 3PAR StoreServ M6710 600GB 6Gb SAS 10K SFF(2.5-inch) HDD
HP 3PAR StoreServ M6710 1.2TB 6G SAS 10K SFF(2.5in) Hard Drive
QR492A
QR494A
QR496A
C8R72A
E7X49A
HP 3PAR NL SAS HDDs
HP M6720 2TB 6G SAS 7.2K LFF (3.5-inch) Nearline Hard Drive
HP M6720 3TB 6G SAS 7.2K LFF (3.5-inch) Nearline Hard Drive
QR499A
QR500A
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 15
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
HP 3PAR Encryption
SSD/HDD/LTU
HP 3PAR StoreServ M6720 4TB 6G 7.2K LFF(3.5-in) SAS Nearline Hard Drive
HP 3PAR StoreServ M6710 1TB 6Gb SAS 7.2K SFF(2.5-inch) Nearline HDD
For each drive type installed in the array, the minimum recommended initial
quantity is
SSD and SAS performance HDDs - eight (8) drives* per node pair
Nearline HDDs - twelve (12) drives per node pair
Minimum upgrade quantity is 4 drives per node pair or 2 drives per enclosure,
whichever is larger. Best practice is to run Autonomic Rebalance (also known as
tunesys) after adding the drives.
RAID 6 is strongly recommended for Nearline drives.
All node enclosures must contain either zero (0) or an even number of drives. All
drive enclosures must contain an even number of drives, with a minimum of two.
Minimum raw capacity is 1.2TB per node pair.
A best practice is to add equal numbers of drives to all enclosures compatible
with the drive type being added.
With a four node configuration, the best practice is to attach the same number
and type of drives to each node pair.
Small Form Factor (SFF)-specific configuration practices
SFF drives may be loaded into the Storage Base enclosures, the Upgrade
Node Pair enclosure and the M6710 drive enclosure.
SFF drives must be loaded in pairs of identical drives, beginning with the
leftmost slot, slot 0, and filling to the right, leaving no empty slots
between drives.
Large Form Factor (LFF)-specific configuration practices
LFF drives may be loaded into the M6720 drive enclosure.
LFF drives must be loaded in pairs of identical drives starting at the
bottom of a column, leaving no empty slots between drives in the column.
Columns of drives in the M6720 enclosure must be of the same type (SSD
or NL) and, for HDDs, the same rotational speed. Drives of different types
may not be mixed in a single column. It is permitted to have empty
columns between columns containing drives. Different columns do not
have to contain the same number of drives.
An all LFF drive configuration is permitted, leaving the Storage Base
Enclosure empty.
SSD specific configuration practices
SSD-only configurations are permitted.
Maximum of 120 SSDs per node pair.
The SFF and LFF SSDs allow the user to create SSD volumes that stripe
across SFF and LFF enclosures.
* 8 drives support RAID 1 and RAID 5. For RAID 6 choose 12 drives.
H6Z87A
QR498A
HP 3PAR StoreServ M6710 400GB 6Gb SAS SFF(2.5-in) MLC Encrypt Solid State Drive
HP 3PAR StoreServ M6710 450GB 6Gb SAS 10K SFF(2.5-inch) Encryption HDD
HP 3PAR StoreServ M6710 450GB 6G SAS 10K SFF(2.5in) FIPS Encryption Hard Drive
HP 3PAR StoreServ M6710 900GB 6Gb SAS 10K SFF(2.5-inch) Encryption HDD
HP 3PAR StoreServ M6710 900GB 6G SAS 10K SFF(2.5in) FIPS Encryption Hard Drive
HP 3PAR StoreServ M6710 1TB 6Gb SAS 7.2K SFF(2.5-inch) Nearline Encryption HDD
HP 3PAR StoreServ M6720 2TB 6G SAS 7.2K LFF(3.5in) Nearline FIPS Encryption HDD
C8R57A
C8R59A
C8R59B
C8R60A
C8R60B
C8R58A
H6Z84A
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 16
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
HP 3PAR StoreServ M6720 4TB 6G SAS 7.2K LFF(3.5in) Nearline FIPS Encryption HDD
HP 3PAR StoreServ 7200 Data at Rest Encryption LTU
HP 3PAR StoreServ 7200 Data at Rest Encryption E-LTU
HP 3PAR StoreServ 7400 Data at Rest Encryption LTU
HP 3PAR StoreServ 7400 Data at Rest Encryption E-LTU
Notes:
H6Z86A
BC983A
BC983AAE
BC984A
BC984AAE
All drives within a 3PAR StoreServ encrypted array must be self-encrypted
devices. There cannot be a mixture of encrypted drives and non-encrypted drives
within the same array.
Self-encrypted drives are only supported on new 3PAR StoreServ 7000 Storage
systems. Encryption is not supported on existing 3PAR systems that are already
deployed in customer use.
* FIPS 140-2 Validated Self-Encrypting Drives (SEDs) have been certified by the
U.S. National Institute of Standards and Technology (NIST) and Canadian
Communications Security Establishment (CSE) as meeting the Level 2 security
requirements for cryptographic modules as defined in the Federal Information
Processing Standards (FIPS) 140-2 Publication *
Strengthen the DAR solution in the future with software upgrade to FIPS
validated local key manager, or optional FIPS validated external key manager.
A data encryption license (LTU) is required to enable encryption on the array. One
encryption license is required for each encrypted array.
Once encryption is enabled on the HP 3PAR StoreServ Storage, it cannot be
disabled.
The local key manager is included in the HP 3PAR OS. There is not a separately
orderable part number for the local key manager.
Step 5 - Choose Service Processor Implementation
The HP 3PAR Service Processor remotely monitors the HP 3PAR StoreServ 7000 and enables remote servicing of the array. The key
capabilities of the Service Processor are to:
Enable rapid, proactive responses to issues
Provide a secure communication channel between the customer's data center and HP 3PAR Central for:
Remote Online Software Upgrade --Upgrade software with no application disruption
o Remote Diagnostics --Maintain key diagnostic information centrally on a historical basis
Remote Serviceability--Provide fast predictive response and remediation
Each HP 3PAR StoreServ 7000 requires its own Service Processor. The Service Processor functions as the communication interface
between a customer's IP network and HP 3PAR Central by managing all service-related communications. The Service Processor
leverages the industry-standard HTTP over Secure Sockets Layer (HTTPS) protocol to secure and encrypt data communication.
The Service Processor can be deployed either as a virtual Service Processor (VSP) or a physical Service Processor. A virtual Service
Processor is included free with the base HP 3PAR Operating System. The virtual Service Processor can be installed on a customerprovided VMware or Microsoft Hyper-V system that meets the following specifications:
Virtualization operating system
VMware vSphere ESXi 4.1, 5.0, 5.1, 5.5
Microsoft Hyper-V Server 2008 R2, 2012
Server features
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 17
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
2 GB RAM (minimum for the VSP Virtual Machine)
256 GB free disk space (minimum for the VSP Virtual Machine)
NOTE: VSP storage must not reside on the array it is managing.
DVD ROM or DVD RW
1 Gb Ethernet port
For VSP on VMware, the server must be listed in the VMware Compatibility Guide
For VSP on Hyper-V, the server must be listed on the Windows Server Catalog
If a physical Service Processor is desired, order the following product.
Physical Service Processor
HP 3PAR 7000 Service Processor
QR516B
The physical Service Processor is a dedicated storage appliance located within the storage rack providing close proximity to the HP
3PAR StoreServ 7000 Storage. The physical Service Processor is fully supported and maintained by HP Services. The physical Service
Processor has serial port connectivity that provides maintenance access for trouble shooting capabilities. If a VMware server is not
available to run the virtual Service Processor, the physical Service Processor is the alternative choice for remote monitoring and
remote service.
HP 3PAR Policy Server
HP 3PAR Policy Server works to implement customer-configurable remote service access policies. Installed on a customer-provided
host, Policy Server provides the customer with ultimate flexibility and control to allow or deny outbound communication or remote
service connections to and from an HP 3PAR StoreServ Storage system. Policy Server also serves as the centralized point for collecting
and storing audit logs of all diagnostic data transfers and authorized remote service connections to and from all configured HP 3PAR
Storage systems. HP 3PAR Policy Server provides the
The customer has complete control over policy administration.
A centralized policy administration for all HP 3PAR Storage systems is provided.
A centralized audit log to facilitate security audits is provided.
Up to 100 3PAR systems can be managed with a single 3PAR Policy Server license
Policy Server 6.1.5 can be run on a Virtual Machine. For the latest information on supported hypervisors, refer to Single Point of
Connectivity Knowledge for HP Storage Products (SPOCK): http://www.hp.com/storage/spock
HP 3PAR Policy Manager Software LTU
TE400B
Step 6 - Choose Cables for host connection and remote copy connection
The optical cables listed below support 8 Gb/s FC and 10 Gb/s iSCSI/FCoE for host connect (FC and iSCSI/FCoE) and for Remote Copy
connections (FC only). The copper1GbE cables are used for Remote Copy over IP and for connection to the Management Port.
Cables
FC and 10GbE
HP 3PAR 4m 50/125 (LC-LC) Fiber Cable
HP 3PAR 6m 50/125 (LC-LC) Fiber Cable
HP 3PAR 10m 50/125 (LC-LC) Fiber Cable
HP 3PAR 25m 50/125 (LC-LC) Fiber Cable
HP 3PAR 50m 50/125 (LC-LC) Fiber Cable
HP 3PAR 100m 50/125 (LC-LC) Fiber Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable
DA - 14433 Worldwide — Version 24 — June 5, 2014
QL281B
QR631A
QL266B
QR593A
QL267B
QL268B
QK732A
QK733A
Page 18
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
1GbE
Direct Attach Copper
Cables*
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable
HP 4.3m/14ft CAT5 RJ45 M/M Ethernet Cable
HP 7.6m/25ft CAT5 RJ45 M/M Ethernet Cable
HP 15.2m/50ft CAT5 RJ45 M/M Ethernet Cable
HP X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
HP X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
*HP 3PAR StoreServ 7000 Storage supports Direct Attach Copper Cables only with HP
ProCurve, HP 3COM and HP Virtual Connect FlexFabric Module switches. The Direct
Attach Support is available only for iSCSI protocol.
QK734A
QK735A
QK736A
QK737A
C7536A
C7537A
C7542A
JD097C
J9283B
Step 7 - Choose Racking Options
The HP 3PAR StoreServ 7000 is compatible with most industry standard 4-post EIA 19 inch racks with square mounting holes, including
the HP Intelligent Series Rack and the HP 10000 G2 Series Rack. The HP 3PAR StoreServ 7000 can be factory configured and shipped in
a rack or shipped without a rack for field integration into an existing rack. The rack used for factory integration is the HP Intelligent
Series Rack.
HP Rack and Rack Options
Factory Integration
Primary Configuration
Rules
HP Intelligent Series
Racks
Select a rack to house your HP 3PAR StoreServ 7000.
NOTE: The HP Intelligent Series Rack is the only series supported for factory
configuration.
The HP 3PAR StoreServ 7000 will be configured into an HP Intelligent Series Rack with
the appropriate power distribution units (PDUs). If other products such as servers or
back-up products are included in the cab, a different PDU will be added (if required) or
can be chosen from a list of appropriate offerings shown in the configuration tool. The
HP Intelligent Series Rack must be purchased for factory configuration. Additional 3PAR
StoreServ 7000 controller node enclosures and drive enclosures may be ordered for
multiple subsystem integration at the factory.
The 3PAR StoreServ 7000 is also supported in HP 10000 G2 Series racks for field
installation.
When calculating available U-space, assume that no space will be placed between the
mounted components. For redundancy, order PDUs in quantities of two. Refer to the
Configuration and User Guide in the Information Library at the Rack Solutions webpage.
NOTE: The number of components that will fit in a rack varies and is determined by the
interior U-space of the rack.
HP 647 1075mm Shock Intelligent Series Rack
HP 47U 1075mm Side Panel Kit
HP 642 1075mm Shock Intelligent Series Rack
HP 42U 1075mm Side Panel Kit
HP 636 1075mm Shock Intelligent Series Rack
HP 36U 1075mm Side Panel Kit
DA - 14433 Worldwide — Version 24 — June 5, 2014
BW912A
BW915A
BW904A
BW906A
BW896A
BW898A
Page 19
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
HP PDU Pivot Kit
Performance Optimized
Data Centers
Non-HP rack and power
requirements
For more information on the HP rack offerings, please see the following URL:
http://h18004.www1.hp.com/products/servers/platforms/rackandpower.html.
For more information on rack options, see: http://www.hp.com/products/rackoptions.
For more information on PDUs, see:
http://h18004.www1.hp.com/products/servers/proliantstorage/powerprotection/pdu.html.
HP EVA PDU Pivot Kit
Used to reclaim 2U of space in an HP Intelligent Series Rack with HP 3PAR StoreServ
7000 configurations. This kit allows the PDUs to be placed in the back of the rack
without requiring any rack U space.
NOTE: The use of the PDU Pivot Kit is strongly recommended and is the default option
when orders are configured, as it will save 2U of valuable rack space.
NOTE: 0D1 will appear after this part number to indicate factory integration where
appropriate.
HP 3PAR StoreServ 7000 Storage is qualified for use in HP Performance Optimized Data
Centers. Go to www.hp.com/go/POD for more information.
AG730A
The Storage Bases, the Upgrade Node Pair, and the Drive Enclosures include mounting
rails that are compatible with industry standard 4-post EIA 19 inch racks with square
mounting holes. For detailed information on determining compatibility of a non-HP
rack, please review the information included in the HP 3PAR StoreServ 7000 StoreServ
7000 Site Planning Guide
Expansion Options
HP provides a variety of SAS cable kits to allow expansion of the HP3PAR StoreServ 7000. Note that the Storage Base products, the
Upgrade Node Pair and the Drive Enclosures all include SAS cables. Most configurations will not require a SAS expansion cable kit.
SAS expansion cable kit HP 6 Meter Expansion Cable Kit
AP879A
If an HP 3PAR StoreServ 7000 needs to be expanded into an adjacent rack, one 6 meter
SAS expansion cable kit is required for every node pair that must access drive
enclosures in the expansion rack. Each 6 meter SAS expansion cable kit contains four 6
meter SAS cables.
HP 2 Meter Expansion Cable Kit
AW566A
If an HP 3PAR StoreServ 7000 needs to be expanded within the same rack, but the new
drive enclosure must be located some distance from the nearest existing drive
enclosure within the same rack, one or two 2 meter SAS expansion cable kits is needed,
depending on configuration. Each 2 meter SAS expansion cable kit contains two 2 meter
SAS cables.
HP 1 Meter SAS Expansion Cable Kit
QR514A
The 1 meter SAS expansion cable kit is provided for cases where a shorter SAS cable is
required. Each 1 meter SAS expansion cable kit contains two 1 meter SAS cables.
NOTE: The 2-node Storage Bases and Upgrade Node Pair come with four 2 meter SAS
cables each and the 4-node Storage Base comes with eight 2 meter SAS cables. The
Drive Enclosures come with two 1 meter SAS cables each.
Step 8 - Choose Software
HP provides an extensive selection of features for HP 3PAR StoreServ Storage. All of the features available on the HP 3PAR StoreServ
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 20
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
10000 Storage system are also available on the HP 3PAR StoreServ 7000 Storage system, the result of a common architecture that
spans from small and medium businesses to the largest global enterprise. For convenient ordering, the 3PAR StoreServ 7000 provides
the features in Suites.
Two types of software licensing methods are employed with the HP 3PAR StoreServ 7000. Some software titles are licensed per
system; other titles are licensed by drive. With system-based licensing one license covers the whole array, independent of
configuration or capacity. Drive-based licensing, in contrast, is licensed per installed drive. A software title with drive-based licensing
includes two Licenses to Use (LTU), a Base LTU that enables the software feature for the system and a Drive LTU that licenses the use
of one drive. For each software title, purchase one Base LTU per title per array, and one Drive LTU, up to a cap, for every drive, that is
installed in the array, independent of drive type. For the HP 3PAR StoreServ 7200 the Drive LTUs cap at 48. For the HP 3PAR StoreServ
7400 the Drive LTUs cap at 168. After reaching the cap, you do not need to purchase any more Drive LTUs for that title.
For more information regarding HP 3PAR software see http://h18006.www1.hp.com/storage/solutions/3par/software.html.
HP 3PAR 7000 Operating System Software Suite (Required)
HP 3PAR OS SW Suite 3PAR Operating System,
System Setup, and
Management Software
HP 3PAR 7000 Operating System Software Suite is the foundation software of HP 3PAR
StoreServ 7000 Storage, combining advanced virtualization capabilities with simple
storage management, high efficiency, and world class performance. The included
comprehensive thin provisioning capabilities allow your storage to start thin, get thin
and stay thin. System Tuner and Autonomic Rebalance help maintain high performance
over time. Migrating your existing data from HP EVA and 3PAR systems to HP 3PAR
StoreServ 7000 is easy with the included 180 day Online Import license. HP 3PAR
SmartStart Software, included in the suite, guides you through the configuration of the
service processor, HP 3PAR StoreServ Storage and the application hosts - making
storage setup quick and easy. HP 3PAR 7000 Operating System Software Suite is a
required purchase. It uses drive-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/oss/index.html.
HP 3PAR 7200 Operating System Software Suite Base LTU
HP 3PAR 7200 Operating System Software Suite Base E-LTU
HP 3PAR 7200 Operating System Software Suite Drive LTU
HP 3PAR 7200 Operating System Software Suite Drive E-LTU
HP 3PAR 7400 Operating System Software Suite Base LTU
HP 3PAR 7400 Operating System Software Suite Base E-LTU
HP 3PAR 7400 Operating System Software Suite Drive LTU
HP 3PAR 7400 Operating System Software Suite Drive E-LTU
BC745A
BC745AAE
BC746A
BC746AAE
BC773A
BC773AAE
BC774A
BC774AAE
HP 3PAR 7000 Replication Software Suite
HP 3PAR 7000 Replication
Software Suite - Local
Replication, Remote
Replication and
Transparent Failover
The HP 3PAR Replication Software Suite offers automatic replication, transparent
failover and Point-in-Time (PIT) copies enabling seamless disaster recovery for critical
data. These features provide an agile, efficient and simple solution to protect against
the unpredictable. This suite is ideal for virtualized data centers demanding data
availability and business continuity 24x7. HP 3PAR 7000 Replication Software Suite
consists of HP 3PAR Remote Copy Software, HP 3PAR Peer Persistence Software and
HP 3PAR Virtual Copy Software, which are also available separately. Replication
Software Suite uses drive-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/drs/index.html.
NOTE: The Peer Persistence feature provides transparent failover in VMware cluster
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 21
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
environments and requires the Remote Copy feature as a prerequisite.
HP 3PAR 7200 Replication Software Suite Base LTU
BC747A
HP 3PAR 7200 Replication Software Suite Base E-LTU
BC747AAE
HP 3PAR 7200 Replication Software Suite Drive LTU
BC748A
HP 3PAR 7200 Replication Software Suite Drive E-LTU
BC748AAE
HP 3PAR 7400 Replication Software Suite Base LTU
BC775A
HP 3PAR 7400 Replication Software Suite Base E-LTU
BC775AAE
HP 3PAR 7400 Replication Software Suite Drive LTU
BC776A
HP 3PAR 7400 Replication Software Suite Drive E-LTU
BC776AAE
NOTE: If the configuration includes Remote Copy over Fibre Channel it is recommended that optional Fiber Channel HBAs are
purchased as the built in ports will not offer sufficient connectivity
HP 3PAR 7000 Security Software Suite
HP 3PAR 7000 Security
Software Suite
HP 3PAR 7000 Security Software Suite provides secure administrative segregation of
users and hosts, allowing individual user groups and applications to confidently share a
3PAR StoreServ 7000 system. It also allows you to secure volumes and copies so they
cannot be deleted, even by a 3PAR StoreServ 7000 user with the highest level
privileges. When coupled with reservationless, non-duplicative, read-only virtual copies
(snapshots), the Virtual Lock feature enables you to retain frozen, point-in-time copies
of your data to assist internal data retention and simplify compliance with internal
governance procedures. HP 3PAR 7000 Security Software Suite consists of HP 3PAR
Virtual Domains Software and HP 3PAR Virtual Lock Software, which are also available
separately. Security Software Suite uses drive-based licensing. For more information
see http://h18006.www1.hp.com/storage/software/3par7000/ss/index.html.
HP 3PAR 7200 Security Software Suite Base LTU
HP 3PAR 7200 Security Software Suite Base E-LTU
HP 3PAR 7200 Security Software Suite Drive LTU
HP 3PAR 7200 Security Software Suite Drive E-LTU
HP 3PAR 7400 Security Software Suite Base LTU
HP 3PAR 7400 Security Software Suite Base E-LTU
HP 3PAR 7400 Security Software Suite Drive LTU
HP 3PAR 7400 Security Software Suite Drive E-LTU
BC751A
BC751AAE
BC752A
BC752AAE
BC779A
BC779AAE
BC780A
BC780AAE
HP 3PAR 7000 Data Optimization Software Suite
HP 3PAR 7000 Data
Optimization Software
Suite - Rebalance,
Redistribute, and Refresh
The HP 3PAR 7000 Data Optimization Software Suite makes sure that data is on the
right storage asset at the right time. This suite rebalances, redistributes and refreshes
storage non-disruptively with features that provide autonomic storage tiering and
dynamic data mobility, reducing cost and increasing agility. HP 3PAR 7000 Data
Optimization Software Suite consists of HP 3PAR Dynamic Optimization Software, HP
3PAR Adaptive Optimization Software and HP 3PAR Peer Motion Software (providing
federation capability for data mobility), which are also available separately. Data
Optimization Software Suite uses drive-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/dos/index.html.
NOTE: The Adaptive Optimization feature requires HP 3PAR Reporting Software Suite as
a prerequisite.
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 22
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
HP 3PAR 7200 Data Optimization Software Suite Base LTU
HP 3PAR 7200 Data Optimization Software Suite Base E-LTU
HP 3PAR 7200 Data Optimization Software Suite Drive LTU
HP 3PAR 7200 Data Optimization Software Suite Drive E-LTU
HP 3PAR 7400 Data Optimization Software Suite Base LTU
HP 3PAR 7400 Data Optimization Software Suite Base E-LTU
HP 3PAR 7400 Data Optimization Software Suite Drive LTU
HP 3PAR 7400 Data Optimization Software Suite Drive E-LTU
BC749A
BC749AAE
BC750A
BC750AAE
BC777A
BC777AAE
BC778A
BC778AAE
HP 3PAR 7000 Data Optimization Software Suite v2
Ensure Quality of Service The HP 3PAR Data Optimization Software Suite v2 combines capabilities that provide
autonomic storage tiering and dynamic data mobility with assured quality of service .
with dynamic data
Adaptive Optimization provides highly reliable, non-disruptive, cost-optimized storage
mobility
tiering at the sub-volume level to deliver the right QoS to the right data at the right time
on a large scale and Dynamic Optimization delivers it at the volume level. Peer Motion
software enables seamless technology refresh and cost-optimized asset lifecycle
management, and lowers technology refresh capital expenditure. Priority Optimization
software allows customers to ensure quality of service on HP 3PAR StoreServ Storage
Systems. With Priority Optimization, customers can guarantee service levels in multitenant environments
The Data Optimization Suite v2 bundles the following products:
HP 3PAR Adaptive Optimization
HP 3PAR Dynamic Optimization
HP 3PAR Peer Motion
HP 3PAR Priority Optimization
Models
For more information see
http://h18006.www1.hp.com/storage/software/3par7000/dos/index.html
HP 3PAR 7200 Data Optimization Software Suite V2 Base LTU
HP 3PAR 7200 Data Optimization Software Suite V2 Base E-LTU
HP 3PAR 7200 Data Optimization Software Suite V2 Drive LTU
HP 3PAR 7200 Data Optimization Software Suite V2 Drive E-LTU
HP 3PAR 7400 Data Optimization Software Suite V2 Base LTU
HP 3PAR 7400 Data Optimization Software Suite V2 Base E-LTU
HP 3PAR 7400 Data Optimization Software Suite V2 Drive LTU
HP 3PAR 7400 Data Optimization Software Suite V2 Drive E-LTU
HP 3PAR 7450 Data Optimization Software Suite V2 Base LTU
HP 3PAR 7450 Data Optimization Software Suite V2 Base E-LTU
HP 3PAR 7450 Data Optimization Software Suite V2 Drive LTU
HP 3PAR 7450 Data Optimization Software Suite V2 Drive E-LTU
BD268A
BD268AAE
BD269A
BD269AAE
BD270A
BD270AAE
BD271A
BD271AAE
BD272A
BD272AAE
BD273A
BD273AAE
HP 3PAR Reporting Software Suite
HP 3PAR Reporting
Software Suite -
The HP 3PAR Reporting Software Suite includes System Reporter, a historical
performance and capacity management tool for storage reporting, monitoring, and
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 23
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
Historical Performance
and Capacity
Management Tool
troubleshooting. Also included is 3PARInfo, a command line tool that allows you to view
HP 3PAR StoreServ Storage configuration information. Reporting Software Suite uses
system-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/rs/index.html.
HP 3PAR 7200 Reporting Software Suite LTU
HP 3PAR 7200 Reporting Software Suite E-LTU
HP 3PAR 7400 Reporting Software Suite LTU
HP 3PAR 7400 Reporting Software Suite E-LTU
BC767A
BC767AAE
BC795A
BC795AAE
HP 3PAR Application Software Suite for Oracle
HP 3PAR Application
The HP 3PAR Application Software Suite for Oracle provides everything you need for
Software Suite for Oracle protecting Oracle databases, including Recovery Manager for Oracle and Oracle Space
- Application Protection Reclamation capabilities. Recovery Manager for Oracle is an extension to 3PAR Virtual
Copy that intelligently creates, manages, and presents time-consistent snapshot
images of Oracle® databases for rapid application recovery, near-continuous data
protection, data sharing, and non-disruptive backup. Application Software Suite for
Oracle uses system-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/as-oracle/index.html.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in
the HP 3PAR Replication Software Suite.
HP 3PAR 7200 Application Software Suite for Oracle LTU
HP 3PAR 7200 Application Software Suite for Oracle E-LTU
HP 3PAR 7400 Application Software Suite for Oracle LTU
HP 3PAR 7400 Application Software Suite for Oracle E-LTU
BC771A
BC771AAE
BC799A
BC799AAE
HP 3PAR Application Software Suite for SQL
HP 3PAR Application
Software Suite for SQL Application Protection
The HP 3PAR Application Software Suite for SQL protects Microsoft® SQL databases
with Recovery Manager for Microsoft® SQL and the 3PAR VSS Provider software. 3PAR
Recovery Manager for Microsoft® SQL Server is an extension to 3PAR Virtual Copy that
eases costs and administration by providing rapid, affordable online recovery of
Microsoft® SQL Server databases from multiple, highly granular point-in-time
snapshots. Quickly recover a database to a known point in time, speeding up a variety
of operations including rapid recovery of the production SQL server. Application
Software Suite for SQL uses system-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/as-sql/index.html.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in
the HP 3PAR Replication Software Suite.
HP 3PAR 7200 Application Software Suite for Microsoft SQL LTU
HP 3PAR 7200 Application Software Suite for Microsoft SQL E-LTU
HP 3PAR 7400 Application Software Suite for Microsoft SQL LTU
HP 3PAR 7400 Application Software Suite for Microsoft SQL E-LTU
BC770A
BC770AAE
BC798A
BC798AAE
HP 3PAR Application Software Suite for Exchange
HP 3PAR Application
Software Suite for
Exchange - Application
The HP 3PAR Application Software Suite for Exchange provides you the essentials for
protecting your Microsoft Exchange data, including Recovery Manager for Exchange and
the VSS Provider software. Recovery Manager for Exchange is an extension to 3PAR
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 24
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
Protection
Virtual Copy that intelligently creates and manages snapshots that can be used to
quickly restore Exchange instances or databases (or non-disruptively back them up to
tape) for near-continuous data protection. Application Software Suite for Exchange
uses system-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/as-exchange/index.html.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in
the HP 3PAR Replication Software Suite.
HP 3PAR 7200 Application Software Suite for Microsoft Exchange LTU
HP 3PAR 7200 Application Software Suite for Microsoft Exchange E-LTU
HP 3PAR 7400 Application Software Suite for Microsoft Exchange LTU
HP 3PAR 7400 Application Software Suite for Microsoft Exchange E-LTU
BC769A
BC769AAE
BC797A
BC797AAE
HP 3PAR Application Software Suite for Microsoft Hyper-V
HP 3PAR Application
The HP 3PAR Application Software Suite for Hyper-V provides you the essentials for
Software Suite for Hyper- protecting your Microsoft Hyper-V environment, including Recovery Manager for HyperV - Application Protection V and the VSS Provider software. Recovery Manager for Hyper-V is an extension to
3PAR Virtual Copy that intelligently creates and manages snapshots that can be used to
quickly restore Hyper-V VMs for near-continuous data protection. Application Software
Suite for Hyper-V uses system-based licensing.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in
the HP 3PAR Replication Software Suite.
HP 3PAR 7200 Application Software Suite for Hyper-V Media LTU
HP 3PAR 7400 Application Software Suite for Hyper-V Media LTU
HP 3PAR 7200 Application Software Suite for Hyper-V E-LTU
HP 3PAR 7400 Application Software Suite for Hyper-V E-LTU
BD178A
BD179A
BD178AAE
BD179AAE
HP 3PAR Application Software Suite for VMware
HP 3PAR Application
Software Suite for
VMware - Application
Protection
The HP 3PAR Application Software Suite for VMware provides everything you need to
make your VMware environment more agile and efficient-including Recovery Manager
for VMware, Host Explorer for VMware, VASA support, and three essential plug-ins: the
VMware Site Replication Manager (SRM) Adapter, the 3PAR VAAI plug-in, and the 3PAR
management plug-in for VMware View. Application Software Suite for VMware uses
system-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/as-vmware/index.html.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in
the HP 3PAR Replication Software Suite.
HP 3PAR 7200 Application Software Suite for VMware LTU
HP 3PAR 7200 Application Software Suite for VMware E-LTU
HP 3PAR 7400 Application Software Suite for VMware LTU
HP 3PAR 7400 Application Software Suite for VMware E-LTU
BC768A
BC768AAE
BC796A
BC796AAE
HP Cluster Extension Software
HP Cluster Extension
Software- High
Availability
HP Cluster Extension Software (CLX) offers protection against application downtime
from fault, failure, or site disaster by extending a local cluster between data centers
over metropolitan distance. CLX reinstates critical applications at a remote site within
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 25
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
minutes or seconds after an adverse event. CLX integrates with the OS clustering
software (such as MS Cluster Service in Windows) and the remote mirroring software on
storage (such as HP Continuous Access software on P6000 EVA/P9000 and HP 3PAR
Remote Copy Software on HP 3PAR systems) to automate failover and failback
between sites. This dual integration enables the cluster service to verify the status of
the storage as well as the server cluster; thus allowing the correct failover and failback
decisions to be made which minimize downtime, and accelerates recovery without
human intervention. Thus the Cluster Extension Software can help customers achieve
'zero' RPO and RTO in minutes or seconds. For more information, including how Cluster
Extension Software is licensed, see
http://h18006.www1.hp.com/storage/software/ces/index.html.
Step 9 - Choose Options for Storage Networking
HP's comprehensive portfolio of Storage Area Network infrastructure products and solutions are designed to meet a range of storage
networking needs from small and midsized businesses to the largest corporate enterprises. HP StoreFabric storage networking SAN
Solutions deliver scalability, performance, and broad interoperability required for critical data and applications.
For additional details on SAN infrastructure components and options and storage compatibility information, please visit:
http://hp.com/go/san or select from the part numbers below.
Fibre Channel
Brocade Fibre Channel HBAs
Host Bus Adapters
HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AP769B
Fibre Channel Switches
HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
Emulex Fibre Channel HBAs
AP770B
HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
QLogic Fibre Channel HBAs
AJ762B
AJ763B
HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
HP B-series
AK344A
AJ764A
8 Gb Fibre Channel Switches
HP 8/8 Base (0) e-port SAN Switch
HP 8/8 (8) Full Fabric Ports Enabled SAN Switch
HP 8/24 Base (16) Full Fabric Ports Enabled SAN Switch
HP 8/80 Base (48) Full Fabric Ports Enabled SAN Switch
HP 8/80 Power Pack+ (48) Full Fabric Ports Enabled SAN Switch
16 Gb Fibre Channel Switches
AM866B
AM867B
AM868B
AM871B
AM872B
HP SN3000B 16Gb 24-port/12-port Active Fibre Channel Switch
HP SN3000B 16Gb 24-port/24-port Active Fibre Channel Switch
HP SN6000B 16Gb 48-port/24-port Active Fibre Channel Switch
HP SN6000B 16Gb 48-port/48-port Active Fibre Channel Switch
HP SN6000B 16Gb 48-port/24-port Active Power Pack+ Fibre Channel Switch
HP SN6000B 16Gb 48-port/48-port Active Power Pack+ Fibre Channel Switch
HP StoreFabric SN6500B 16Gb 96/96 Power Pack+ FC Switch
HP StoreFabric SN6500B 16Gb 96/96 FC Switch
QW937A
QW938A
QK753B
QR480B
QK754B
QR481B
C8R42A
C8R43A
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 26
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
HP StoreFabric SN6500B 16Gb 96/48 Power Pack+ FC Switch
HP StoreFabric SN6500B 16Gb 96/48 FC Switch
8 Gb and 16 Gb Director Switches
C8R44A
C8R45A
HP SN8000B 8-Slot Power Pack+ SAN Backbone Director Switch
HP SN8000B 4-Slot Power Pack+ SAN Director Switch
HP SN8000B 4-Slot SAN Director Switch
HP DC SAN Backbone Director Switch
HP DC04 SAN Director Switch
HP DC04 Power Pack+ SAN Director Switch
FCoE, Extension and Embedded Switches
QK710B
QK711B
QK712B
AK857C
AR478B
AR479B
HP 1606 FCIP 16-pt Enabled 8Gb FC 6-pt Enabled 1GbE Full Switch
HP 1606 FCIP 4-pt Enabled 8Gb FC 2-pt Enabled 1GbE Base Switch
HP 1606 FCIP 16-pt Enabled 8Gb FC 6-pt Enabled 1GbE Power Pack+ Switch
Brocade 16Gb/16 SAN Switch for BladeSystem c-Class
Brocade 16Gb/28 SAN Switch for BladeSystem c-Class
Brocade 16Gb/28 SAN Switch Power Pack+ for BladeSystem c-Class
Brocade 8/12c SAN Switch for BladeSystem c-Class
Brocade 8/24c SAN Switch for BladeSystem c-Class
Brocade 8/24c Power Pack+ SAN Switch for BladeSystem c-Class
HP H-series
AP863B
AP862B
AP864B
C8S45A
C8S46A
C8S47A
AJ820B
AJ821B
AJ822B
HP 8/20q Fibre Channel 8-ports Active Switch
NOTE: 8 device ports active, upgradeable to 20 device ports active
AQ233B
HP 8Gb Simple SAN Connection Kit
NOTE: 8 device ports active, upgradeable to 20 device ports active
AK241B
HP 8/20q Fibre Channel Switch
NOTE: 16 switch ports active, upgradeable to 20 device ports active
AK242B
HP SN6000 Stackable 8Gb 24-port Single Power Fibre Channel Switch
NOTE: 20 device ports active/4 stacking (ISL) ports active
AW575B
HP SN6000 Stackable 8Gb 24-port Dual Power Fibre Channel Switch
NOTE: 20 device ports active/4 stacking (ISL) ports active
AW576B
HP SN6000 Stackable 12-port Single Power FC Switch
NOTE: 8 device ports/4 stacking (ISL) ports active, upgradeable to 20 device ports
active
HP C-series
BK780B
HP SN8000C 13-Slot Supervisor 2A Fabric 3 Director Switch
HP SN8000C 6-Slot Supervisor 2A Director Switch
HP SN8000C 9-Slot Supervisor 2A Director Switch
HP SN6000C 8Gb 16-port Fibre Channel Switch
HP SN6000C 8Gb 32-port Fibre Channel Switch
Cisco MDS 8/12c Fabric Switch for HP BladeSystem c-Class
Cisco MDS 8/24c Fabric Switch for HP BladeSystem c-Class
Cisco MDS 9124 8-ports Active Fabric Switch
QW927A
AE388C
AE389C
AW585A
AW586A
AW563A
AW564A
AG646A
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 27
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
Cisco MDS 9124 16-ports Active Fabric Switch
Cisco MDS 9222i Multiservice with 0 SFP Transceiver Modular Fabric Switch
HP Intelligent
HP Intelligent Infrastructure Analyzer Software v2 LTU
Infrastructure
HP Intelligent Infrastructure Analyzer Software v2 E-LTU
Analyzer Software (IIAS) An online monitoring and diagnostic solution intended to manage the physical layer of a
Storage Area Network (SAN) consisting of HP B-series and/or H-series Fibre Channel
switches and directors. It uses industry-standard protocols (such as SNMP, SMI-S,
Telnet) to monitor the physical layer across the SAN and to diagnose changes/events in
Small Form-factor Pluggable (SFP) transceiver states/characteristics. It also presents
the SAN topology, inventory and diagnostic information to the user in real-time.
HP Virtual Connect
HP 3PAR StoreServ 7000 Storage supports direct attach with HP Virtual Connect
FlexFabric. Please refer to SPOCK for HP Virtual Connect information.
http://h20272.www2.hp.com/index.aspx
PremierFlexOM4 cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable
options
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable
OM3 FC LC-LC cables
HP LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable
options
HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable
HP LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable
HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable
HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable
HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable
HP LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable
AG647A
AG851B
TC472A
TC472AAE
QK732A
QK733A
QK734A
QK735A
QK736A
QK737A
AJ833A
AJ834A
AJ835A
AJ836A
AJ837A
AJ838A
AJ839A
Step 10 - Data Migration
HP provides several ways to migrate your data from older arrays. Peer Motion provides federation with other 3PAR arrays, which
includes the ability to migrate data to HP 3PAR StoreServ 7000 Storage (Peer Motion is part of the HP 3PAR 7000 Data Optimization
Software Suite). Peer Motion Software is also available as a standalone license.
HP 3PAR Peer Motion
HP 3PAR 7200 Peer Motion Software Base LTU
BC761A*
Software
HP 3PAR 7200 Peer Motion Software Drive LTU
BC762A*
HP 3PAR 7400 Peer Motion Software Base LTU
BC789A*
HP 3PAR 7400 Peer Motion Software Drive LTU
BC790A*
* Insert AE at the end of a part number for an electronic LTU (eg. XXXXBAE). E-Delivery should be ordered with any Standalone or
Upgrade software order.
Online Import allows you to easily migrate data from EVA arrays to the HP 3PAR StoreServ 7000, a 180-day Online Import license is
built into the HP 3PAR 7000 Operating System Software Suite. Additional licenses are available to order.
HP 3PAR Online Import
HP 3PAR 7200 Online Import Software 180 day LTU
BD191A*
Software
HP 3PAR 7400 Online Import 180 day Software LTU
BD192A*
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 28
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
* Insert AE at the end of a part number for an electronic LTU (eg. XXXXBAE). E-Delivery should be ordered with any Standalone or
Upgrade software order.
In addition HP supports the MPX200.
HP MPX200 Multi-protocol and Heterogeneous Data Migration
The HP MPX200 Multiprotocol Router provides support for HP 3PAR StoreServ 7000 and 10000 as well as 3PAR F/T, including 1GbE
iSCSI and 10GbE iSCSI and FCoE target support. MPX200 iSCSI provides an alternative option for HP 3PAR storage systems if you don't
want to dedicate native iSCSI ports on your array. The MPX200 also facilitates the sharing of iSCSI/FCoE connectivity simultaneously
for HP 3PAR storage systems from the same MPX200. For Data Migration the MPX200 provides high performance migration from
P6000/EVA to HP 3PAR storage systems and simplifies Data Migration from third party storage such as IBM and EMC to HP 3PAR.The
MPX200 is an ideal solution enabler for HP 3PAR customers. http://www.hp.com/go/mpx200
MPX200 Multifunction
HP MPX200 1GbE Base Multifunction Router
AP771B
Router
HP MPX200 Multifunction Router 1GbE Upgrade Blade
AP772B
HP MPX200 10-1GbE Base Multifunction Router
AP773B
HP MPX200 Multifunction Router 10-1GbE Upgrade Blade
AP774B
FCIP Software
HP MPX200 Half Chassis FCIP License
TA766A
HP MPX200 Full Chassis FCIP License
TA767A
Data Migration Software HP MPX200 1TB Full Chassis Data Migration License
TA762A
HP MPX200 5TB Full Chassis Data Migration License
TA763A
HP MPX200 Full Chassis 1 Array Data Migration License
TA764A
Step 11- File Controller (For detailed specifications, please refer to File Controller v1 or v2
section)
These models come with factory-installed drives and the Microsoft Windows Storage Server 2012 Standard Edition or Windows
Storage Server 2012 R2 Standard Edition operating system pre-installed
Choose a Pre-configured Model
Part Number
HP 3PAR StoreServ File Controller
Specifications
E7X02A
Operating System
Processor
Memory
Storage Controller
Internal Storage
Expansion Slots
Network Ports
Form Factor
Microsoft Windows Storage Server 2012 R2,
Standard
Intel® Xeon® E5-2609v2 (2.50GHz/4core/10MB/80W) Processor
16 GB (4 x 4GB)
Smart Array P420i with 1 GB FBWC Controller with
internal SAS port for O/S drives)
2 x 300GB 6G SAS 10K 2.5" ENT hot-plug SFF HDDs
(O/S mirror)
3 x PCIe (6 with option PCIe Riser)
4 x 1GbE
2U Rack
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 29
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
Part Number
HP 3PAR StoreServ File Controller
Specifications
C8S69A
Operating System
Processor
Memory
Storage Controller
Internal Storage
Expansion Slots
Network Ports
Form Factor
Microsoft Windows Storage Server 2012, Standard
Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W)
Processor
16 GB (4 x 4GB)
Smart Array P420i with 1 GB FBWC Controller with
internal SAS port for O/S drives)
2 x 450GB 6G SAS 10K 2.5" ENT hot-plug SFF HDDs
(O/S mirror)
3 x PCIe (6 with option PCIe Riser)
4 x 1GbE
2U Rack
Add a second processor
Intel® Xeon® E5-2609v2 (2.5GHz/4-core/10MB/80W) Processor Kit
NOTE: For E7X02A only
715222-B21
Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor Kit
NOTE: For C8S69A only
662252-B21
Add More Memory
NOTE: HP recommends that you add the same type memory to the product that is shipped standard with the product.
NOTE: HP memory from previous generation servers are not fully compatible with Smart Memory features in Gen8 Servers.
Registered DIMMs (RDIMMs)
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage
Memory Kit
NOTE: For E7X02A only
713981-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage
Memory Kit
NOTE: For C8S69A only
647893-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator.
NOTE: PC3L is a low voltage memory.
See the HP ProLiant Gen 8 QuickSpecs for information on memory configurations.
http://h18004.www1.hp.com/products/quickspecs/14212_div/14212_div.html
Add 3PAR StoreServ File Controller v2 Performance Kit
HP 3PAR StoreServ File Controller 1Gb Performance Kit
NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x
4GB) of Memory, and a 1GbE 4 port NC365T Adapter to the 3PAR File Controller v2
DA - 14433 Worldwide — Version 24 — June 5, 2014
E7X04A
Page 30
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
HP 3PAR StoreServ File Controller 10Gb Performance Kit
NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x
4GB) of Memory, and a 10GbE 2 port 560SFP+ Adapter to the 3PAR File Controller v2
E7X05A
Add additional options
NOTE: Multifunction Server Adapters support the installed Microsoft Windows Server Scalable Networking Pack, which enables TCP
Chimney offload, Receive-side Scaling (RSS), and Network Direct Memory Access (NetDMA) features.
HP Networking
Gigabit Ethernet adapters
HP Infiniband
HP Optical Drives
HP I/O Expansion
Options
HP Security
HP NC112T PCI Express Gigabit Server Adapter
HP NC365T 4-port Ethernet Server Adapter
HP Ethernet 1Gb 4-port 331T Adapter
HP Ethernet 1Gb 2-port 361T Adapter
HP Ethernet 1Gb 2-port 332T Adapter
10 Gigabit Ethernet Adapters
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for
fiber-optic environments must be purchased separately.
HP NC523SFP 10Gb 2-port Server Adapter
HP Ethernet 10Gb 2-port 530SFP Adapter
HP Ethernet 10Gb 2-port 530T Adapter
HP Ethernet 10Gb 2-port 560SFP+ Adapter
HP NC552SFP 10Gb 2-port Ethernet Server Adapter
QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA
HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA
NOTE: For the following two InfiniBand Adapters, only 1 FlexibleLOM can be added to the
server, which is selected in Step 2 for the "Configuration Information - Factory Integrated
Models" section. These two options are for upgrade or change from original configuration.
NOTE: FLR Indicates new HP FlexibleLOM Adapter series.
503746-B21
593722-B21
647594-B21
652497-B21
615732-B21
HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544FLR-QSFP Adapter
HP Infiniband QDR/Ethernet 10Gb 2-port 544FLR-QSFP Adapter
HP InfiniBand FDR 2-port 545QSFP Adapter
NOTE: 10Gb Ethernet requires the use of the QSFP to SFP+ adapter P/N 655874-B21.
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html
HP 12.7mm Slim SATA DVD-ROM JackBlack Optical Drive
HP 12.7mm Slim SATA DVD-RW JackBlack Optical Drive
HP DL380p/385p/560 Gen8 3 Slot PCI-E Riser Kit
NOTE: When populating the second optional riser slot, the second processor must be
installed.
HP Trusted Platform Module Option
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store
artifacts used to authenticate the server platform. These artifacts can include passwords,
certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data
649282-B21
649283-B21
702211-B21
DA - 14433 Worldwide — Version 24 — June 5, 2014
593717-B21
652503-B21
656596-B21
665249-B21
614203-B21
583211-B21
592520-B21
652232-B21
652235-B21
653206-B21
488069-B21
Page 31
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
protection feature available in Windows Server® 2008. BitLocker leverages the enhanced
security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with
BitLocker to help protect user data and to ensure that a server running Windows Server 2008
has not been tampered with while the system was offline. For more information about TPM,
including a white paper, go to: www.hp.com/go/TPM.
NOTE: The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or losing the key could result in data loss.
HP 3PAR StoreServ File Controller is designed and optimized for connection to 3PAR StoreServ Storage and uses HBAs, rather than
additional Storage Controllers.
NOTE: HBAs are not included standard. HBA selection is left as your choice based on existing SAN infrastructure.
HP Fibre Channel
Storage Fibre Channel HBA
NOTE: For the complete listing of Fibre Channel Host Bus Adapters for Windows 2000,
Windows Server 2003 and Linux, please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
Brocade Fibre Channel HBAs
HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
Emulex Fibre Channel HBAs
AP770B
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter
HP StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter
QLogic Fibre Channel HBAs
AJ763B
QR559A
C8R39A
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter
Converged Network Adapter
AJ764A
QW972A
HP CN1100E Dual Port Converged Network Adapter
HP CN1000Q Dual Port Converged Network Adapter
HP StoreFabric CN1100R Dual Port Converged Network Adapter
BK835A
BS668A
QW990A
Add a Power Cord
The HP 3Par StoreServ File Controller comes standard with at least one rack (IEC-IEC) PDU power cord. If you wish to use wall
outlet power instead, you can choose a country- or region-specific power cord.
3Par StoreServ File
Controller
HP C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord
HP C13 - GB-1002 CN 250V 10Amp 1.83m Power Cord
HP C13 - IRAM -2073 AR 250V 10A 2.5m Power Cord
HP C13 - Nema 5-15P TH/PH 250V 10Amp 1.83m Power Cord
HP C13 - KSC- 8305 KR 250V 10Amp 1.83m Power Cord
HP C13 - CNS-690 TW 110V 13Amp 1.83m Power Cord
HP C13 - IS-1293 IN 240V 6Amp LV 2.0m Power Cord
HP C13 - AS3112-3 AU 250V 10Amp 2.5m Power Cord
HP C13 - SEV 1011 CH 250V 10Amp 1.83m Power Cord
HP C13 - DK-2.5A DK 250V 10Amp 1.83m Power Cord
HP C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord
DA - 14433 Worldwide — Version 24 — June 5, 2014
AF556A
AF557A
AF558A
AF559A
AF560A
AF561A
AF562A
AF569A
AF565A
AF566A
AF568A
Page 32
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration Information
HP C13 - SI-32 IL 250V 10Amp 1.83m Power Cord
HP C13 - CEI-23-50 IT/CL 250V 10Amp 1.83m Power Cord
HP C13 - JIS C8303 JP 100V 12Amp 2.0m Power Cord
HP C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord
HP C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord
HP C13 - NBR-14136 BR 250V 10Amp 1.83m Power Cord
DA - 14433 Worldwide — Version 24 — June 5, 2014
AF564A
AF571A
AF572A
AF570A
AF567A
AF591A
Page 33
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Technical Specifications
HP 3PAR StoreServ 7000 Product Dimensions, and Weight
Physical Dimensions
42U Intelligent Series
Rack
HP 3PAR StoreServ 7200
2-node Storage Base (no
host adapters, no drives)
HP 3PAR StoreServ 7200
2-node Storage Base
(with two host adapters,
no drives)
HP 3PAR StoreServ 7400
2-node Storage Base (no
host adapters, no drives)
HP 3PAR StoreServ 7400
2-node Storage Base
(with two host adapters,
no drives)
HP 3PAR StoreServ 7400
4-node Storage Base (no
host adapters, no drives)
HP 3PAR StoreServ 7400
4-node Storage Base
(with four host adapters,
no drives)
HP M6710 2.5 inch 2U SAS
Drive Enclosures (without
drives)
HP M6720 3.5 inch 4U SAS
Drive Enclosures (without
drives)
SFF SAS drive with carrier
LFF SAS drive with carrier
Height in/mm/U
Width in/mm
Depth in/mm
Max Weight lb/kg
79.0/2006.6
23.5/597.8
42.7/1125.2
243/110 (empty)
3.46/87.95/2
19/483
26.6/676.1*
47.7/21.6
3.46/87.95/2
19/483
26.6/676.1*
48.7/22.1
3.46/87.95/2
19/483
26.6/676.1*
47.7/21.6
3.46/87.95/2
19/483
26.6/676.1*
48.7/22.1
6.925/175.9/4
19/483
26.6/676.1*
97.8/44.4
6.925/175.9/4
19/483
26.6/676.1*
99.8/45.3
3.46/87.95/2
19/483
24.8/630.7
33.5/15.2
6.89/175/4
19/483
24.9/631.4
42.9/19.5
3.42/86.85**
0.78/19.9**
896/227.7
1.18/30.0**
4.36/110.84**
8.67/220.26
0.7/0.32
(varies by type)
1.9/0.86
(varies by type)
* includes length of ejector handles
** includes RFI clips
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 34
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Technical Specifications
Power Requirements
Input Voltage (VAC)
Frequency (Hz)
100 - 240 VAC
50 - 60
Component
Idle
(watts / BTU/hr)
Transactional
(watts / BTU/hr)
Node Pair (7200 or 7400), no drives, no
add-on host adapters
236 / 803
398 / 1357
4-port 8Gb/sec Fibre Channel Adapter
24 / 81.7
32.6 / 111
2-port 10Gb/sec iSCSI/FCoE Adapter
34 / 115.8
40 / 136.4
HP M6710 2.5 inch 2U SAS Drive Enclosure, 150 / 512 (average)
no drives
150 / 512 (average)
HP M6720 3.5 inch 4U SAS Drive Enclosure, 164 / 559 (average)
no drives
164 / 559 (average)
300GB 15K Small Form Factor HDD
6.2 / 21.1
8.0 / 27.3
450GB 10K Small Form Factor HDD
3.7 / 12.6
6.3 / 21.5
600 GB 10K Small Form Factor HDD
4.1/14
6.3/21.5
900GB 10K Small Form Factor HDD
4.8 / 16.4
6.2 / 21.1
1.2TB 10K Small Form Factor HDD
3.6/12.3
7.8/26.6
1 TB 7.2k Small Form Factor HDD
2.95/10.1
3.84/13.1
2TB 7.2K Large Form Factor NL HDD
7.5 / 25.6
10.6 / 36.1
3TB 7.2K Large Form Factor NL NDD
8.5 / 28.9
11.8 / 40.2
100GB SLC SSD
1.4 / 4.8
3.9 / 13.3
200GB SLC SSD
1.4 / 4.8
3.9 / 13.3
400GB MLC SSD
2.2 / 7.5
3.7 / 12.6
480GB MLC SSD
2.2/ 7.5
5.5/18.7
920GB MLC SSD
2.2/7.5
5.5/18.7
Environmental Specifications
Operating Temperature
Shipping Temperature
Altitude (ft/m) max.
Shipping Altitude (ft/m) max.
Humidity
Shipping Humidity
Operating Vibration
Non-operating Vibration
Operating Shock
Non-operating Shock
41° to 104° F (5° to 40° C) - Reduce rating by 1° F for each 1000 ft altitude
(1.8° C/1,000 m)
32° to 140° F (0° to 60° C)
10,000 ft / 3,048 m
40,000ft/ 12,192 m
10% to 90% non condensing
10% to 90% non condensing
0.25 G, Sine, 5-500 Hz, 0.1 Grms, Random 10-100Hz
0.5 G, 5 - 500 Hz, Sine
2 G, 11ms, half-sine
10 G, 11ms, half-sine
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 35
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Technical Specifications
Maximum Air Flow
Electromagnetic Compatibility
Acoustics
Sound pressure level measured per ISO 7779
specifications during normal operating fan conditions,
from a minimum of 3,000 RPM to a maximum of 10,000
RPM
Safety
Certifications / Markings
Storage Base and Upgrade Node Pair - 109 CFM per enclosure
M6710 Drive Enclosure - 105 CFM
M6720 Drive Enclosure - 109 CFM
CISPR 22:2008/ EN55022:2010 Class A
CISPR 24:2010/ EN 55024:2010
IEC 61000-3-2:2005/ EN 61000-3-2:2006 +A1:2009 +A2:2009
IEC/ EN 61000-3-3:2008
AS/NZS CIPSR 22: 2009 Class A
CNS 13438:2006 Class A
47 CFR Part 15 Subpart b Class A
ICES-003 Issue 4 Class A
V-3/2012.04 Class A
RRA Notice No. 2011-24 (2011.12.23) Class A
RRA Notice No. 2011-25 (2011.12.23)
Fan Speed
7200/7400 2 7400
M6710 2.5" M6720 3.5"
(RPM)
node Storage 4 node
2U SAS Drive 4U SAS Drive
Base
Storage Base Enclosure
Enclosure
Minimum
63.8
67.2
62.6
61.3
Maximum
93.4
96.5
85.4
88
IEC 60950-1:2005 (2nd Edition)
EN 60950-1:2006 +A11:2009
EN 62479:2010
CNS 14336-1 2nd Edition
UL 60950-1 2nd Ed.
CAN/CSA C22.2 No. 60950-1
cTUVus Mark
TUV T-mark (EN 60950)
CE Mark
FCC Class A
IC Class A
VCCI Class A
BSMI Class A
KCC
GOST-R
C-Tick
WEEE
China RoHS
EU RoHS
NOTE: Specifications are subject to change without notice.
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 36
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Overview
HP 3PAR StoreServ File Controller v2
HP 3PAR StoreServ File Controller v2 is a new converged storage capability on the HP 3PAR StoreServ Storage platform. It adds support
for file services to the 3PAR StoreServ. The HP 3PAR StoreServ File Controllerv2 is designed to deliver efficient, secure, and highly
available file capability that supports hundreds to thousands of concurrent users.
What's New
New 3PAR StoreServe File Controller v2
HP 3Par StoreServ File Controller v2
The HP 3PAR StoreServ File Controller v2 sets the standard for performance and expandability for file services for the 3PAR StoreServ
platform. It leverages the 3PAR StoreServ Storage data services and extends the benefits to file workloads. Please refer to the
respective sections for details on the data services.
Models
HP 3PAR StoreServ File Controller v2 (WSS2012 R2)
HP 3PAR StoreServ File Controller 1Gb Performance Kit
NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x 4GB) of Memory, and a
1GbE 4 port NC365T Adapter to the 3PAR File Controller v2
HP 3PAR StoreServ File Controller 10Gb Performance Kit
NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x 4GB) of Memory, and a
10GbE 2 port 560SFP+ Adapter to the 3PAR File Controller v2
HP 3PAR StoreServ File Controller (WSS2012)
Front View:
1.
Quick removal access panel
2.
Second Intel Processor
3.
First Intel Processor
4.
24 DIMM slots: DDR3 Registered (RDIMM), Load Reduced
(LRDIMM), or Unbuffered (UDIMM) memory
E7X02A
E7X04A
E7X05A
C8S69A
Rear View:
PCIe 3.0 Slots 1, 2, 3-PCIe 2.0 top to bottom
2.
N/A
3.
Power supply 1
4.
Power supply 1 Power LED
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 37
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Overview
5.
Air Baffle
5.
6.
Hot-plug fans, full N+1 redundancy
6.
7.
8.
9.
10.
11.
12.
13.
14.
Health LED
Power On /Standby button and system power LED button
USB connector
Unit ID LED
Systems Insight Display
Asset Tag
USB connector
Drive Bays
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
Video connector
Power supply 1 Power connection (with Intelligent PDU
communication)
Power supply 2 Power connection (with Intelligent PDU
communication)
Power supply 2 Power LED
Power supply 2
Unit ID LED/Button
USB connectors (4)
Video connector
iLO connector
Serial connector
FlexibleLOM ports (Shown: 4 ports 1Gb each /Optional: 2
ports 10Gb each)
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 38
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Features and Benefits
Efficient: Save money and The HP 3PAR StoreServ File Controller v2 supports thousands users concurrently accessing their files.
Non-intrusive variable chunk de-duplication delivers an average 50-60% space savings, and included
time
evaluation tool facilitates capacity planning.
Consolidate multiple diverse file protocols (NFS: v2, v3, v4.1 | SMB: 2.0, 2.1, 3.0 | WebDAV | FTP/FTPS |
HTTP/HTTPS) as well as IT services (e.g. print, DNS, DHCP) in a single platform.
Hosted BranchCache reduces your branch office WAN usage by automatically caching frequently accessed
headquarter datacenter files.
Straightforward and consistent management experience that provides storage management for both file
and block based workloads.
Bulletproof: Protect your Built in file system encryption and optional BitLocker Drive Encryption secures data at rest while SMB
Encryption protects data in flight.
data and organization
File Classification Infrastructure facilitates sophisticated access controls and support for Active Directory
always
Rights Management Services protects files no matter where they go.
Online snapshots enable users to directly recover files and prior file versions.
Broad support for onboard endpoint protection (antivirus) software eliminates the need to purchase
additional external infrastructure.
Broad support for agent-based data protection enhances the ability to meet backup and recovery SLAs.
Effortless: Simple to
Manage and Monitor
Turnkey clustered controller configurations with transparent failover for SMB and NFS provide continuous
availability.
Cluster aware updates enable online maintenance.
File system online self-healing, online verification, and precise and rapid repair massively reduce
downtime from file corruption.
HP Active Health System, mirrored OS disks, RAID for data disks, redundant fans and power, and advanced
memory protection maximize uptime.
Three year onsite parts and labor warranty for the system, and one year of software telephone support.
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 39
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Standard Features
Operating System
Microsoft Windows Storage Server 2012 R2, Standard Edition
Windows Storage Server 2012 R2 (WSS2012 R2) includes a robust range of file serving and storage
capabilities. It addresses heterogeneous file workload environments and enables more efficient
storage utilization. It allows for a flexible mix of configurations and includes advanced data
management tools. WSS2012 leverages your Windows Server management skill sets and tools
including Active Directory, PowerShell and System Center.
SMB 3.0: Leverage high performance continually available file shares to deliver feature-rich storage
for continuously available file services, business-critical applications and virtual servers using
advanced new functionality.
New VHDX Standard: Deploy larger capacity virtual storage that can grow to 16 terabytes, is more
resilient against corruption, and provides more efficient usage of new 4 KB sector hard disks with
the new VHDX virtual storage standard.
Live Storage Migration: Maintain maximized service-level availability even while moving virtual
machine storage between host servers independent of the actual virtual machine.
SMB Multi-channel: Enable aggregation of network bandwidth and network fault tolerance when
multiple paths are available between SMB clients and file servers.
NFS v4.1: For Windows Storage Server 2012 R2, Server for NFS has been updated to support
continuous availability. These improvements make it possible to reliably store and run VMware ESX
on a virtual machine that is running Windows Server 2012 by using the NFS protocol to share files.
Additional improvements in failover clustering take advantage of better resilience to hardware and
software outages that may afflict individual cluster nodes. At the same time, failover clustering
isolates VMware ESX hypervisor hosts from intermittent glitches during failovers.
Data Deduplication: Data deduplication enables Windows Storage Server 2012 R2 to store more
data in less physical space and achieve storage efficiency that is significantly higher than was
possible in previous releases of Windows Storage Server that used Single Instance Storage (SIS) or
NTFS file system compression. Data deduplication uses variable size chunking and compression,
which deliver optimization ratios of 2:1 for general file servers and up to 20:1 for virtualization data.
Evaluate your savings with the Deduplication Evaluation Tool.
Volume Shadow Copy Service: Creates point-in-time copies (snapshots) of files and folders at
predetermined time intervals that can then be accessed from client computers.
VSS for Remote SMB File Shares: Leverage proven Volume Shadow Copy Service (VSS) to offload
snapshot and backup operations to remote storage from VSS hardware providers within Hyper-V
virtual machines.
Hosted Branch Cache: Using client/server architecture, Windows 7 and above client computers can
cache content on the local network via the Hosted Cache running on the 3PAR StoreServ File
Controller. Other clients who need the same content retrieve it directly from the Hosted Cache.
DFS Namespaces: Enables you to group shared folders that are located on different servers into one
or more logically structured namespaces. Each namespace appears to users as a single shared
folder with a series of subfolders. However, the underlying structure of the namespace can consist
of numerous file shares that are located on different servers and in multiple sites.
Distributed File System Replication (DFS-R): Enables you to efficiently replicate folders (including
those referred to by a DFS namespace path) across multiple servers and sites. DFS Replication uses
a compression algorithm known as remote differential compression (RDC). RDC detects changes to
the data in a file, and it enables DFS Replication to replicate only the changed file blocks instead of
the entire file.
Work Folders: With Work Folders users can store and access work files on personal computers and
devices, often referred to as bring-your-own device (BYOD), in addition to corporate PCs. Users gain
a convenient location to store work files, and they can access them from anywhere. Organizations
maintain control over corporate data by storing the files on centrally managed file servers, and
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 40
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Standard Features
optionally specifying user device policies such as encryption and lock-screen passwords. Work
Folders can be deployed with existing deployments of Folder Redirection, Offline Files, and home
folders. Work Folders stores user files in a folder on the server called a sync share. You can specify a
folder that already contains user data, which enables you to adopt Work Folders without migrating
servers and data or immediately phasing out your existing solution.
File Server Resource Manager (FSRM): File Server Resource Manager is a set of features that allow
you to manage and classify data that is stored on file servers. File Server Resource Manager
includes the following features:
Storage reports: Storage reports are used to help you identify trends in disk usage and how
your data is classified. You can also monitor a selected group of users for attempts to save
unauthorized files.
File Classification Infrastructure: File Classification Infrastructure provides insight into your
data by automating classification processes so that you can manage your data more
effectively. You can classify files and apply policies based on this classification. Example
policies include dynamic access control for restricting access to files, file encryption, and file
expiration. Files can be classified automatically by using file classification rules or manually
by modifying the properties of a selected file or folder.
File Management Tasks: File Management Tasks enables you to apply a conditional policy or
action to files based on their classification. The conditions of a file management task include
the file location, the classification properties, the date the file was created, the last modified
date of the file, or the last time the file was accessed. The actions that a file management
task can take include the ability to expire files, encrypt files, or run a custom command.
Quota management: Quotas allow you to limit the space that is allowed for a volume or
folder, and they can be automatically applied to new folders that are created on a volume.
You can also define quota templates that can be applied to new volumes or folders.
File screening management: File screens help you control the types of files that user can
store on a file server. You can limit the extension that can be stored on your shared files. For
example, you can create a file screen that does not allow files with an MP3 extension to be
stored in personal shared folders on a file server.
Initial Configuration Tasks Wizard: Simplifies and accelerates new device deployment by presenting
basic system settings on your first boot.
Server Manager
" Print Management Console: Manage multiple printers (license for unlimited printer support) from a
single console, whether locally or over the WAN
Unlimited Client Access Licenses (CALs) included
NOTE: Windows Storage Server 2012 R2 and Windows Server 2012 R2 are built on the same code base.
Applications certified for Windows Server are expected to have the same application compatibility profile
on Windows Storage Server. Windows Storage Server 2012 R2 and Windows Server 2012 R2 have the
same application frameworks, services and plumbing to support running the full breadth of Windowcompatible applications. Applications that rely upon certain roles that are removed from Windows Storage
Server 2012 R2, such as fax server, active directory domain controller or terminal services will not be able
to leverage those roles. Independent Software Vendors (ISVs) ultimately decide what versions and
editions of Windows are supported by their products and users should review ISV compatibility and
support information before purchasing. HP StoreEasy customers should review the End User License
Agreement (EULA) to see the types of applications that are permitted for installation. All versions of
Windows Storage Server can join Active Directory domains, but cannot be a domain controller.
More information on Windows Storage Server 2012 R2, Standard Edition can be found here:
http://www.microsoft.com/en-us/server-cloud/windows-storage-server/default.aspx
http://technet.microsoft.com/en-us/library/jj643303
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 41
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Standard Features
Processor / Cache Memory Intel® Xeon® E5-2609v2 (2.50GHz/4-core/10MB/80W) Processor (3PAR StoreServ File Controller v2)
Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor (3PAR StoreServ File Controller)
Memory
Type
Standard
DIMM Sockets
DDR3 Registered (RDIMM) standard
16GB (4 x 4GB)
24
Network Controller
NIC Ports
Controller
4
HP Ethernet 1Gb 4-port 331FLR Adapter
HP 3PAR StoreServ File Controller v2
Expansion Slots
Primary Riser
(Standard)
Expansion
Slots #
Technology
Bus
Width**
Connector
Width
Bus Number*
1
PCIe 3.0
X16
X16
7
Expansion
Slots #
Technology
Bus
Width**
Connector
Width
Bus Number*
4
PCIe 3.0
X16
X16
16
Form Factor
Notes
Full Length, Full
Proc 1
Height Slot
2
PCIe 3.0
X8
X8
10
Half Length,
Proc 1
Full Height Slot
3
PCIe 2.0
X4
X8
13
Half Length,
Chipset
Full Height Slot
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.
NOTE: When populating the second optional riser slot, the second processor must be installed.
NOTE: All slots support up to 150w PCIe cards, but an additional Power Cord Option is required (PN 669777-B21). See Option Section
below for offering.
PCIe Riser
(Optional 3slot)
Form Factor
Notes
Full Length, Full
Proc 2
Height Slot
5
PCIe 3.0
X8
X8
20
Half Length,
Proc 2
Full Height Slot
6
PCIe 3.0
X4
X8
23
Half Length,
Proc 2
Full Height Slot
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.
NOTE: When populating the second optional riser slot, the second processor must be installed.
NOTE: All slots support up to 150w PCIe cards, but an additional Power Cord Option is required (669777-B21). See Option Section
below for offering
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 42
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Standard Features
Storage Controller
NOTE: HP 3PAR StoreServ File Controller includes a storage controller designed for internal drives housing
the O/S mirror only; an HBA is required to address connectivity to the 3PAR StoreServ Storage array.
Controller(s)
HP Smart Array P420i/1GB with FBWC
RAID
Needed for internal drive mirror only
Storage
Hard Drives
Internal
Eight 2.5" (Small Form Factor) hot-plug bays
External
2 x 300GB 6G SAS 10K SFF HDDs for OS mirror
(3PAR File Controller v2)
2 x 450GB 6G SAS 10K SFF HDDs for OS mirror
(3PAR File Controller)
3PAR StoreServ Storage using Fibre Channel
Power Supply
2 x 460 Watts Platinum
Power Cords
NOTE: The HP 3PAR StoreServ File Controller is primarily connected to PDU's in data center racks so they
now ship standard with only a PDU 6-foot C-14 to C13 power cord (142258-001). If a user wishes to power
a system using a110V receptacle see Power Cord option section for more options.
System Fans
(4) (N+1 redundancy standard)
Form Factor
2U Rack form factor
Host Bus Adapter (HBA)
Support
HP 3PAR StoreServ File Controller is designed to be connected to a HP 3PAR StoreServ Storage array by
adding a recommended Fibre Channel HBA.
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 43
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
Warranty
3 Year, On-site Warranty Service. 7x24 4-hour remote response with next business day on-site response.
HP warrants only that the Software media will be free of physical defects for a period of ninety (90) days from delivery.
Services Included with the One year of HP Software Support, standard 9x5 business hours (software advisory and remedial software
telephone support, new version license rights, and media and documentation distribution service).
Product
For increased uptime, productivity and ROI-HP Care Pack packaged services for Storage
These days, you need to get the most out of your storage investment-you can't afford not to. When you buy HP storage products and
solutions, it's also a good time to think about what levels of service and support you may need. To help take the worry out of
deploying, designing, maintaining, and managing your environment, we've designed a portfolio of service options that are as: flexible,
reliable and scalable as your storage. Unlike storage-only vendors, we take a holistic approach to your entire environment, bridging
storage, servers, blades, software and network infrastructures with our HP Care Pack packaged services for Storage.
Protect your business beyond the warranty
When it comes to robustness and reliability, standard warranties on today's computing equipment have matured just as the
technologies have matured. Good news on some fronts-but also a source of potential problems and subsequent consequences that
come from depending on standard warranties alone. Standard warranty protects against product defects and some causes of
downtime- but not the business. By using a standard approach to warranty uplifts, such as HP Care Pack Services, you can reduce
downtime risks and be more certain of operational consistency for both mission-critical and standard business computing. Simply put,
HP Care Pack Services normalize the warranty of combined products - helping you proactively guard against unplanned downtime.
Extending warranties with HP Care Pack Services
For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a suite of standard reactive hardware
and software support services that are sold separately, or combined as with our Support Plus and Support Plus 24 services. The
portfolio also provides a combination of proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition,
with HP Proactive Select we offer an innovative approach to service delivery that gives you the flexibility to acquire the specific
proactive services you need today, then add services as your needs evolve. HP Proactive Select offers a broad set of technical or perevent type service options - including server, storage, and network, SAN device, and software, environment, installation and education
services. Services that you can mix and match depending on your specific requirements, from preliminary planning and equipment
delivery to installation, configuration, integration, and testing, through every level of ongoing support. Our HP Care Pack packaged
services for Storage assures help when you need it most. And for many products, post-warranty HP Care Pack Services are available
when your original warranty has expired.
HP Storage Services: Offering reliability, flexibility and value-just like your storage
HP Storage Services offers a full spectrum of customer care, from technology support to complex migrations to complete completely
managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP
Education offers flexible, comprehensive training on storage networking, disk storage systems, and storage software to help your IT
staff get the most out of your investments. And HP Financial solutions extend innovative financing and asset management programs
to cost-effective buy, manage and eventually retire your older equipment.
HP Storage Services, the trusted business technology experts who manage your technology in action, because when technology
works, business works. http://www.hp.com/hps/storage
NOTE: Care Pack Services availability may vary by product and country.
HP Care Pack Services are sold by HP and HP Authorized Service Partners
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 44
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
Customers purchasing from a commercial reseller can find HP Care Pack Services at
http://www.hp.com/go/lookuptool
Recommended HP Care Pack Services for optimal satisfaction with your HP product.
Recommended Services
3-Year HP Support Plus 24
For a higher return on your storage investment, HP Support Plus 24 provides integrated hardware and
software support services designed specifically for your technology. Available 24x7, this 3-year combined
reactive support option delivers onsite hardware support and over-the-phone software support aroundthe-clock. Leverage the full strength of HP Technology Services - customers can trust the services
professionals at HP to work collaboratively with them, putting our strategic and technical know-how to
work across their entire infrastructure.
Improve uptime with responsive hardware and software services
Enjoy consistent service coverage across geographically dispersed sites
Update HP software at a predictable cost
Increase customer satisfaction-with no interoperability gaps
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EN.pdf
HP Installation and Startup Service for 3PAR StoreServ File Controller
For smooth startup, HP Installation and Startup Service provides for deployment of your HP 3PAR
StoreServ File Controller while helping you establish readily available access to and management of your
critical data and applications. Leverage the full strength of HP Technology Services - customers can trust
the services professionals at HP to work collaboratively with them, putting our strategic and technical
know-how to work across their entire infrastructure.
System installation and setup by a HP technical specialist
Reduced implementation time and cost
Verification prior to installation that all service prerequisites are met
Availability of an HP service specialist to answer basic questions related to this service during the
orientation session
Potential expansion of the number of shares and hosts
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-6112ENL.pdf
HP Proactive Select Service
HP Proactive Select Service improves your IT performance and manageability through the use of cost
effective flexible services. HP provides technical expertise and best practices to accelerate ROI of your
technology investment. Selectable proactive services span a wide range of technology and process
services - a flexible way to purchase proactive services that fit your particular environment and situation.
HP Proactive Select Service is technology agnostic and purchased in addition to your choice of underlying
reactive support.
Access to a list of flexible and customizable proactive service activities
Enhance customers' in-house IT team with complementary assistance from HP
Improved time to solution
Reduce business risk and project costs by accessing HP specialists
Simplify IT operational procedures by leveraging HP best practices
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 45
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
Optional HP Care Pack Services that will enhance your HP product experience.
Optional Services
HP Data Migration Service for Windows
For customers who need to safely migrate Windows data within their TCP/IP networks with minimal
impact to their operations:
You have a need to migrate data between Windows servers within your TCP/IP network. Or you have a
need to migrate storage for your Windows servers. Or both. And you need to accomplish these migrations
efficiently while minimizing risk at the same time.
HP Data Migration Service for Windows offers you a cost competitive and convenient way to accommodate
data migration triggered by a need to refresh or consolidate storage, or to create different storage tiers.
This service offers a migration cost in line with the costs of storage products in small and medium-sized
storage environments. The service is delivered via a skilled HP service specialist with special consideration
for data availability, integrity, and ongoing operational performance during the transfer process.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-4734ENW.pdf
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit: http://www.hp.com/support
Customer Technical
Training
Consider education as an integral part of your strategy to get the best return on investment for your HP
storage solution. HP offers a variety of training courses on storage software, networking, archiving and
disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led
courses at one of our 80 training centers worldwide to on-site training customized to your needs or online.
www.hp.com/learn/storage
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our services
team's dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction. For a list of all our awards, please visit:
http://h20219.www2.hp.com/services/cache/433028-0-0-225-121.html
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 46
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
Additional Services
Information
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/hps/storageIf you have specific questions, contact your local HP representative.
Contact information for a representative in your area can be found at "Contact HP" http://www.hp.com
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 47
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Storage
1-8
Eight 3.5" (LFF) hot plug hard drive bays (File
Controller ships with only two SAS drives for
OS)
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 48
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Technical Specifications
3PAR StoreServ File Controller
System Unit
Dimensions (H x W x D)
(with bezel)
Weight (approximate)
Input Requirements
(per power supply)
BTU Rating
Power Supply Output
(per power supply)
SFF Drives: 3.44 x 17.54 x 27.50 in (8.73 x 44.55 x 69.85 cm)
Maximum
(all hard drives, power
supply, and processor
installed)
Minimum
(one hard drive, power
supply, and processor
installed)
61.00 lb (27.66 kg)
41.0 lb (18.59 kg)
Rated Line Voltage
100 to 120 VAC
200 to 240 VAC
Rated Input Current
For 1200 W Power Supply:
10 A (at 100 VAC),
4.9 A (at 200 VAC)
For 750 W Power Supply:
8.9 A (at 100 VAC),
4.3 A (at 200 VAC)
For 460 W Power Supply:
5.5 A (at 100 VAC),
2.6 A (at 200 VAC)
Rated Input Frequency
50 to 60 Hz
Rated Input Power
For 1200 W Power Supply:
930 W (at 100 VAC),
1348 W (at 200 VAC)
For 750 W Power Supply:
857 W (at 100 VAC),
824 W (at 200 VAC)
For 460 W Power Supply:
526 W (at 100 VAC),
505 W (at 200 VAC)
Maximum
For 1200 W Power Supply:
3530 BTU/hr (at 100 VAC),
4600 BTU/hr (at 200 VAC)
For 750 W Power Supply:
2925 BTU/hr (at 100 VAC),
2812 BTU/hr (at 200 VAC)
For 460 W Power Supply:
1794 BTU/hr (at 100 VAC),
1725 BTU/hr (at 200 VAC)
Rated Steady-State Power For 1200 W Power Supply:
800 W (at 100 VAC),
900 W (at 120 VAC),
1200 W (at 200 to 240 VAC)
For 750 W Power Supply:
750 W (at 100 to 120 VAC),
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 49
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Technical Specifications
750 W (at 200 to 240 VAC)
For 460 W Power Supply:
460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)
Maximum Peak Power
For 1200 W Power Supply:
800 W (at 100 VAC),
900 W (at 120 VAC),
1200 W (at 200 to 240 VAC)
For 750 W Power Supply:
750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
For 460 W Power Supply:
460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)
System Inlet Temperature Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 304.8 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3048 m (10,000 ft), no direct
sustained sunlight. Maximum rate of change is
10°C/hr (18°F/hr). The upper limit may be limited
by the type and number of options installed.
System performance may be reduced if operating
with a fan fault or above 30°C (86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Relative Humidity
Operating
10% to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, non(non-condensing)
condensing.
Non-operating
5% to 95% relative humidity (Rh), 38.7°C
(101.7°F) maximum wet bulb temperature, noncondensing.
Altitude
Operating
3048 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable altitude
change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions were
measured in accordance with ISO 7779 (ECMA 74) and declared in accordance
with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping
configurations. Additional options may result in increased sound levels.
NOTE: The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
Idle
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 50
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Technical Specifications
LWAd
4.1 B
LpAm
25 dBA
LWAd
4.3 B
Operating
LpAm
Emissions Classification
(EMC)
HP iLO 4 On System
Management
27 dBA
FCC Rating
Class A
Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15;
ICES-003; CNS13438; GB9254; K22;K24; EN
61000-3-2; EN 61000-3-3; EN 60950-1; IEC
60950-1
NOTE: Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and statements.
NOTE: The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
Architecture
PCI Express based health and remote management ASIC
Processor
Embedded ARM processor core operating at 400MHz
Upgradeability
Firmware upgradeable via Flash ROM
Video Support
1920 x 1200 (16 bpp) DVR max resolution
Interfaces
P iLO Dedicated* Network connection (10/100/1000 Mb/s) on rack, tower and
SL systems
*Optional Module on some servers
HP iLO Shared Network connection (10/100/1000 Mb/s) on rack, tower and SL
systems
HP iLO network connection to blades (100 Mb/s) to Onboard Administrator
(with 10/100/1000 Mb/s uplink) on blade systems
16 MB Flash
256 MB DDR 3 with ECC (112 MB after ECC and video)
For information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available for your
server including how to purchase from HP, please visit our OS Support Site at:
http://www.hp.com/go/ossupport
For information on Client System Support, please visit the HP iLO Feature
Comparison Site at: www.hp.com/go/compareilo
Microsoft Internet Explorer 9
NOTE: For customers using Protected Mode, please use the Java based version
of Integrated Remote Console.
Microsoft Internet Explorer 8
NOTE: For customers using Protected Mode, please use the Java based version
of Integrated Remote Console.
Microsoft Internet Explorer 7
Memory
Operating System
Support
Client System Support
Client Browser Support
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 51
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Technical Specifications
Command Line Support
Security
Directory Support
Services
HP Smart Array P420i
Controller
Firefox Extended Support Release (ESR) 10 (on supported Windows and Linux
systems
Firefox 3.6 (on supported Windows and Linux systems)
Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2
Advanced Encryption Standard (AES) and Triple Data Encryption Standard
(3DES) on browser, CLP and XML scripting interface
AES encryption of video
RC4 encryption of video
Active Directory v1.0 (Windows 2003)
Driver Support
HP ProLiant iLO 4 Management Controller Driver Package
Management protocols
supported
SNMP, IPMI 2.0 (system and LAN interface), DMTF Systems Management
Architecture for Server Hardware Command Line Protocol (SMASH CLP), HP
RIBCL XML
Dimensions
Embedded
Disk Drive and Enclosure 6Gb/s SAS (Serial Attached SCSI)
Interface - Transfer rate 3Gb/s SATA (Serial ATA)
SAS Connectors
2 internal 4X connectors
Cache Memory Speed
Server Interface
512MB FBWC - DDR3-1333MHz with 40-bit wide bus, 1GB or 2GB FBWC DDR31333MHz with 72-bit wide bus
x8 PCIe 3.0 provides 8GB/s maximum bandwidth
SAS Speed
(8) 6Gb/s SAS links provide 4.8GB/s maximum bandwidth
Cache Memory
Zero Memory RAID has no cache memory
40-bit 256MB ECC protected cache (battery upgrade available)
72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC
Logical Drives Supported Zero Memory, Up to 2 logical volumes (8SFF or 4LFF physical drives)
Up to 64 logical drives with cache
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 52
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Technical Specifications
HP Ethernet 1Gb 4-port
331FLR Adapter
HP Flexible Network
Technology
HP Flexible Network Technology consists of replaceable network solutions to
meet the customers require now or in the future.
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
Data Transfer Method
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3ad 1000Base-TX
IEEE 802.1p 100Base-TX
IEEE 802.1q 100Base-TX
PCI Express, four lanes (x4)
Controller
BCM5719
Network Transfer Rate
10 Mb/s
20 Mb/s
100 Mb/s
200 Mb/s
2000 Mb/s
Connector
10Base-T (Half-Duplex)
10Base-T (Full-Duplex)
100Base-TX (Half-Duplex)
100Base-TX (Full-Duplex)
1000Base-TX (Half and
Full-Duplex)
Two RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP;
up to 328 ft (100 m)
Category 5 or higher UTP;
up to 328 ft (100 m)
10/100/1000Base-TX
Environment-friendly
Products and Approach
End-of-life Management Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
and Recycling
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2014 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For drives, 1 TB = 1 trillion bytes. Actual formatted capacity is less.
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 53
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Technical Specifications
DA - 14433 Worldwide — Version 24 — June 5, 2014
Page 54
