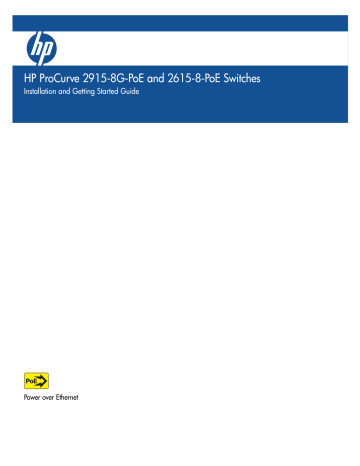

HP ProCurve 2915-8G-PoE and 2615-8-PoE Switches

Installation and Getting Started Guide

Power over Ethernet

HP ProCurve 2915-8G-PoE and

2615-8-PoE Switches

Installation and Getting Started Guide

© Copyright 2010 Hewlett-Packard Development

Company, L.P.

Publication Number

5998-0412

April 2010

Applicable Products

HP ProCurve 2915-8G-PoE Switch

HP ProCurve 2615-8-PoE Switch

(J9562A)

(J9565A)

Disclaimer

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY

OF ANY KIND WITH REGARD TO THIS MATERIAL,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.

HP shall not be liable for technical or editorial errors or omissions contained herein.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

Warranty

See the Software End User License Agreement and

Hardware Limiited Warranty booklet included with the product.

A copy of the specific warranty terms applicable to your

Hewlett-Packard products and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer.

Safety

Before installing and operating these products, please read

the “Installation Precautions”

in chapter 2,

“Installing the

Switch”

, and the safety statements in appendix B, “Safety and EMC Regulatory Statements”

.

Hewlett-Packard Company

8000 Foothills Boulevard, m/s 5551

Roseville, California 95747-5551 www.hp.com/go/procurve

Contents

1 Introducing the Switch

Front of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Network Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

LED Mode Select Button and Indicator LEDs . . . . . . . . . . . . . . . . 1-6

Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Back of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Save Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

2 Installing the Switch

Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2. Verify the Switch Passes Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

LED Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

3. Mount the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Rack or Cabinet Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Rack Mounting the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Wall or Under-Table Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Horizontal Surface Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Using a Kensington Security Cable . . . . . . . . . . . . . . . . . . . . . . . . 2-12

(Optional) Installing the Power Supply Clip . . . . . . . . . . . . . . . . . 2-13

4. Connect the Switch to a Power Source . . . . . . . . . . . . . . . . . . . . . . 2-15

5. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Using the RJ-45 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

iii

iv

6. Installing or Removing mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Installing the mini-GBICs: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Removing the mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Connecting Cables to mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

7. (Optional) Connect a Console to the Switch . . . . . . . . . . . . . . . . . . 2-20

Terminal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Direct Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21

Sample Network Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

As a Desktop Switch Implementing PoE . . . . . . . . . . . . . . . . . . . . . . . 2-22

As a Segment Switch Implementing PoE . . . . . . . . . . . . . . . . . . . . . . . 2-23

Stacking the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25

3 Configuring the Switch

Recommended Minimal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Using the Console Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Using the IP Address for Remote Switch Management . . . . . . . . . . . . . . . . 3-5

Starting a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Starting a Web Browser Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

4 Troubleshooting

Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Diagnosing with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

LED patterns for General Switch Troubleshooting . . . . . . . . . . . . . . . 4-4

LED Patterns for PoE Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Proactive Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Hardware Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Checking the Switch LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Checking Console Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Testing Twisted-Pair Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Testing Switch-to-Device Network Communications . . . . . . . . . . . . 4-11

Testing End-to-End Network Communications . . . . . . . . . . . . . . . . . 4-11

Restoring the Factory Default Configuration . . . . . . . . . . . . . . . . . . . . . . . 4-12

Downloading New Switch Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

A Specifications

Switch Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

BTU Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Cabling and Technology Information Specifications . . . . . . . . . . . . . . . . A-4

Technology Distance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Mode Conditioning Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Installing the Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Twisted-Pair Cable/Connector Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8

Straight-through Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connections . . . . . . . . . . . . . . . . . . . A-10

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-10

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-10

Crossover Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connection . . . . . . . . . . . . . . . . . . . . A-11

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-11

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-11

Straight-Through Twisted-Pair Cable for

1000 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12

B Safety and EMC Regulatory Statements

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

Australia/New Zealand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

v

vi

Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9

Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9

European Community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-10

D Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements . . . . . . D-1

Index

1

Introducing the Switch

The HP ProCurve 2915-8G-PoE and 2615-8-PoE Switches are multiport switches that can be used to build high-performance switched workgroup networks. These switches are store-and-forward devices that offer low latency for high-speed networking. The switches also support Power over Ethernet

(PoE) technologies.

HP ProCurve 2915-8G-PoE Switch (J9562A)

HP ProCurve 2615-8-PoE Switch (J9565A)

Throughout this manual, these switches will be referred to as the Switch 2915-

8G-PoE and the Switch 2615-8-PoE.

■ The Switch 2915-8G-PoE has 8 auto-sensing 10/100/1000Base-T RJ-45 ports with two Gigabit Uplink dual-personality ports (ports 9 and 10).

The Switch 2615-8-PoE has 8 auto-sensing 10/100Base-TX RJ-45 ports with two Gigabit Uplink dual-personality ports (ports 9 and 10).

Power-over-Ethernet or PoE power (ports 1 through 8 only)

- Both switches support PoE technology, which allows IP telephones, wireless

LAN Access Points and other appliances to receive power as well as data over existing LAN cabling, without needing to modify the existing

Ethernet infrastructure. The switches are designed with an internal PoE power supply capable of providing 67 watts of PoE power. Each Switch port can provide up to 15.4 watts (or 7.5 watts if all ports are used) of PoE power to connected devices. For further information regarding PoE power, see the PoE Planning and Implementation Guide, which is on the ProCurve Web site at

www.hp.com/go/procurve/manuals.

1-1

Introducing the Switch

Dual-personality ports use either the 10/100/1000Base-T RJ-45 connector, or a supported ProCurve mini-GBIC (Small Form Factor Pluggable (SFP)) for fiber-optic connection. By default, the RJ-45 connectors are enabled.

These switches can be directly connected to computers, printers, and servers to provide dedicated bandwidth to those devices, and you can build a switched network infrastructure by connecting the switch to hubs, other switches, or routers. In addition, the switches offer full network management capabilities.

Using ProCurve mini-GBICs, these products support optional network connectivity with the following speeds and technologies:

Table 1-1.

Optional Network Connectivity, Speeds and Technologies

Speed Technology Cabling

Fiber (multimode)

Fiber (single mode)

Transceiver Form-

Factor and

Connector

1

SFP ("mini-GBIC")

Connector

LC

100 Mbps

1 Gbps

100-FX

100-BX

1000-SX

1000-LX

1000-LH

Fiber (multimode)

Fiber (multimode or single mode)

Fiber (single mode)

LC

LC

LC

LC

1000-BX Fiber (single mode) LC

1

For supported transceivers, see

www.hp.com/go/procurve/faqs

. Select “ProCurve

Mini-GBICs and SFPs”. Click on the first question in the “General product information” category.

For technical details of cabling and technologies see

“Cabling and Technology Information Specifications”

in the appendix A.

1-2

Introducing the Switch

Front of the Switch

Power,

Fault, and

Locator

LEDs

Front of the Switch

PoE and Test

Status LEDs

Switch port LEDs

HP ProCurve 2915-8G-PoE Switch (J9562A)

Console

Port

Reset and Clear buttons

LED Mode select button and indicator LEDs

10/100/1000Base-T RJ-45 ports

1

Dual-personality ports

(1000Base-T

2

and mini-GBIC)

Switch port LEDs

HP ProCurve 2615-8-PoE Switch (J9565A)

Power,

Fault, and

Locator

LEDs

PoE and Test

Status LEDs

Console

Port

Reset and Clear buttons

LED Mode select button and indicator LEDs

10/100Base-TX RJ-45 ports

1

Dual-personality ports

(1000Base-T

2

and mini-GBIC)

1

All RJ-45 ports have the Auto-MDIX feature.

2

Dual-personality ports, either RJ-45 10/100/1000Base-T ports or Mini-GBIC (SFP) slots.

Network Ports

8 auto-sensing 10/100/1000Base-T PoE or 10/100Base-TX PoE ports.

All these ports have the “Auto-MDIX” feature, which means that you can use either straight-through or crossover twisted-pair cables to connect any network devices to the switch.

Two dual-personality ports for either 10/100/1000Base-T RJ-45 uplinks, or mini-GBIC (SFP) slots for fiber uplinks.

1-3

Introducing the Switch

Front of the Switch

LEDs

There are three groupings of LEDs on the switches:

switch status LEDs (

port LEDs (

Table 1-3

Table 1-2

)

)

Port LED Mode indicator LEDs (near the selector button) ( Table 1-4 )

Table 1-2.

Switch Status LEDs

Switch LEDs

Power

(green)

Fault

(orange)

Locator

(blue)

State

On

Off

Off

Flashing

2

On

On

Flashing

Off

On green

Meaning

The internal power supply is working properly.

No power connection. The switch is NOT receiving power.

The normal state; indicates there are no fault conditions on the switch.

A fault has occurred with a component on the switch. The Status LED for the component with the fault will flash simultaneously.

On briefly after the switch is powered on or reset, at the beginning of switch self test.

If this LED is on for a prolonged time, the switch has encountered a fatal hardware

failure, or has failed its self test. See chapter 4, “Troubleshooting” for more

information.

The Locator LED is used to locate a specific switch in an area full of switches. The

LED can be set to be on solid or flash for a specified number of minutes (1-1440). The default is 30 minutes. Use the command “chassislocate”.

Normal operation. The switch is ready to supply PoE power PoE

(green/orange)

Flashing orange

2

One or more ports has experienced a fault condition for PoE delivery. The Fault LED will be flashing simultaneously. If it is a self test failure, the Test LED will be flashing simultaneously. When the switch is put in PoE LED Mode, the Mode LED for the port with the problem will also be flashing simultaneously.

Test

(green/orange)

Flashing orange

1

One or more ports has an alert condition for PoE delivery, for example, an oversubscription condition (not enough PoE power available). Only this LED will be flashing, the Fault LED is off. When the switch is put in PoE LED Mode, the Mode LEDs for the ports with the alert condition will also be flashing.

The normal operational state; the switch is not undergoing self test.

Off

On green The switch self test and initialization are in progress after the switch has been power cycled or reset. The switch is not operational until this LED goes off. The Test LED also comes on briefly when you “hot swap” a mini-GBIC into the switch; the mini-GBIC is tested when it is hot swapped.

Flashing orange

2

A component of the switch has failed its self test. The switch Fault LED, Test LED, and the failed component LED will flash simultaneously.

1

The flashing behavior is an on/off cycle once every 0.8 seconds approximately, a fast flash.

2

The flashing behavior is an on/off cycle once every 1.6 seconds approximately, a slow flash.

1-4

Introducing the Switch

Front of the Switch

Port LEDs

The port LEDs provide information about the individual switch ports.

Table 1-3.

Port LEDs

Switch LEDs

Port LEDs

Link

2

(green)

State

On

Meaning

The port is enabled and receiving a link indication from the connected device. In PoE mode, indicates that the port is configured to enable PoE power delivery to the connected device.

Off One of these condition exists:

• no active network cable is connected to the port

• the port is not receiving link beat or sufficient light

• the port has been disabled through the switch console, the Web browser interface, ProCurve Manager, or other network management tool.

• In PoE mode, indicates that the port is configured such that PoE power delivery is disabled.

• Save power mode is enabled.

Flashing

1

The port has failed self test. The switch Fault, and Self Test LEDs will flash simultaneously.

Mode (green)

2

Depending on the mode selected, displays the following:

• network activity information

• connection duplex mode

• connection speed information

• PoE power delivery status

See “LED Mode Select Button and Indicator LEDs:” below for more information.

Mini-GBIC LEDs

Link

2 green

• the mini-GBIC is not supported by the current software

• the mini-GBIC is not a genuine ProCurve Mini-GBIC and is not supported

• the mini-GBIC is an “A” version in a switch that requires a “B” version or later.

Link and Mode

(green)

2

On for 2 seconds

Both the Link and Mode LED turn on solid for 2 seconds and then go to normal operation. This indicates the mini-GBIC has been recognized by the switch.

1

The flashing behavior is an on/off cycle once every 1.6 seconds, approximately.

2

These LEDs are turned off when Save Power mode is enabled. If Save Power mode is enabled and the

LEDs are turned off, they can be turned on temporarily through the LED Mode button.

1-5

Introducing the Switch

Front of the Switch

LED Mode Select Button and Indicator LEDs

To optimize the amount of information that can be displayed for each of the switch ports in the limited space available, the switches use multiple-display

LEDs for each port.

The switches, have two LEDs per port. The Link status is always shown by the Link LED. The operation of the Mode LED is controlled by the LED Mode select button, and the current setting is indicated by the

LED Mode indicator LEDs near the button. Press the button to step from one view mode to the next. The default view is Activity (Act).

Link LED Mode LED

LED Mode select button and indicator LEDs

Table 1-4.

Multiple-Display Port LEDs

Switch LEDs

Port Mode indicator LEDs

(4 green LEDs)

Mode

Act

FDx

Spd

PoE

Meaning

Indicates the Port LEDs are displaying network activity information.

Indicates the Port LEDs are lit for ports that are in full-duplex mode.

Indicates the Port LEDs are displaying the connection speed at which each port is operating:

• if the Port LED is off, the port is operating at 10 Mbps.

• if the Port LED is flashing, the port is operating at 100 Mbps.

• if the Port LED is on continuously, the port is operating at 1000 Mbps.

Indicates the Port LEDs are lit for ports that are providing PoE power to the connected device.

When Save Power mode is enabled and all port LEDs are off, press the LED

Mode select button to turn the port LEDs on. Press the LED Mode select button again to step through each view mode. Press the LED Mode select button after the PoE view mode to turn LEDs off.

If the port LEDs are left on when Save Power mode is enabled, they turn off automatically after 10 minutes.

1-6

Introducing the Switch

Front of the Switch

Reset Button

This button is for:

Resetting the switch

- When the switch is powered on. This action clears any temporary error conditions that may have occurred and executes the switch self test.

Restoring Factory Default Configuration

- When pressed with the

Clear button in a specific pattern, any configuration changes you may have made through the switch console, the Web browser interface, and SNMP management are removed, and the factory default configuration is restored to the switch. For the specific method to restore the factory

default configuration, see “Restoring the Factory Default Configuration” on page 4-12 of this manual.

Clear Button

This button is used for:

Deleting Passwords

- When pressed by itself for at least one second, the button deletes any switch console access passwords that you may have configured. Use this feature if you have misplaced the password and need console access. This button is provided as a convenience, however if you are concerned with the security of the switch configuration and operation, you should make sure the switch is installed in a secure location. This button can be disabled by a CLI command.

Restoring Factory Default Configuration

- See Reset Button above.

Console Port

This port is used to connect a console to the switch by using the RJ-45 to DB9

cable, supplied with the switch. This connection is described under “7.

(Optional) Connect a Console to the Switch” on page 2-20 in chapter 2,

“Installing the Switch.” The console can be a PC or workstation running a VT-

100 terminal emulator, or a VT-100 terminal.

1-7

Introducing the Switch

Back of the Switch

Back of the Switch

Power cord retention ring

DC power connector

Power Connector

The switches do not have a power switch. They are powered on when the external AC/DC power adapter is connected to the switch and to a power source. The external AC/DC power adapter supplies 48 volts DC to the switch and automatically adjusts to any AC voltage between 100-240 volts and either

50 or 60 Hz. No voltage range settings are required.

1-8

Introducing the Switch

Switch Features

Switch Features

The features of the switches include:

■ 8 auto-sensing 10/100/1000Base-T PoE or 10/100Base-TX PoE RJ-45 ports with Auto-MDIX.

Two dual-personality uplink ports (1000Base-T RJ-45 or mini-GBIC).

Power over Ethernet (PoE) operation—the switches are IEEE 802.3af compliant and provide up to 15.4W per port to power IP phones, wireless access points, Web cameras, and more. For more information, see the PoE

Planning and Implementation Guide

, which is on the ProCurve Web site at

www.hp.com/go/procurve/manuals

.

The switches support some pre-standard PoE devices. However, the use of a cross-over cable may be required.

Plug-and-play networking—all ports are enabled—just connect the network cables to active network devices and your switched network is operational.

Auto-MDIX on all twisted-pair ports, meaning that all twisted-pair connections can be made using straight-through cables. Cross-over cables are not required, although they will also work.

Automatic learning of the hardware addresses in each switch’s 8000address forwarding table, (with configurable address aging value).

Automatically negotiated full-duplex operation for the 10/100/1000 RJ-45 ports when connected to other auto-negotiating devices. a “Save Power” mode option that keeps port LEDs turned off except for when the LED Mode select button is pressed.

■ an automatic low-power mode for ports when a link is not present.

Easy management of the switches through several available interfaces:

console interface

—a full featured, easy to use, VT-100 terminal interface that is especially good for out-of-band switch management or for Telnet access to the switch.

Web browser interface

—an easy to use built-in graphical interface that can be accessed from common Web browsers.

ProCurve Manager

—an SNMP-based, graphical network management tool that you can use to manage your entire network.

Support for the Spanning Tree Protocol to eliminate network loops

Support for up to 256 IEEE 802.1Q-compliant VLANs so you can divide the attached end nodes into logical groupings that fit your business needs.

Download of new switch software for product enhancements or bug fixes.

1-9

Introducing the Switch

Switch Features

■ Support for many advanced features to enhance network performance— for a description, see the Management and Configuration Guide, which is on the ProCurve Web site at

www.hp.com/go/procurve/manuals

. (You may want to bookmark this Web page for easy access in the future.)

Save Power Mode

A Save Power mode feature can be configured through the console. Save

Power mode can be used to turn off port LEDs unless the LED Mode button is pressed. In addition, it can configure the LAN ports to operate at low power if a link is not detected.

1-10

2

Installing the Switch

This chapter provides installation information for the 2915-8G-PoE and 2615-

8-PoE switches.

Included Parts

The switches have the following components:

■ Documentation kit

• Read Me First

• Switch Quick Setup Guide

• Safety and Regulatory information

• Software End User License and Hardware Warranty information

• Power Supply Clip installation/removal information

Power Supply Clip (5184-5887)

Console port serial cable (DB-9 to RJ-45)

Two rack mounting brackets (5189-6934)

Accessory kit (5066-0674):

• two mounting brackets for wall mounting the switch

• eight 8-mm M4 screws to attach the mounting brackets to the switch

• four 5/8-inch number 12-24 screws to attach the switch to a rack

• four rubber feet

• cable tie for power cord

2-1

Installing the Switch

Included Parts

External AC/DC power adapters and power cords, one of the following:

External AC/DC Power Adapter

All countries/regions

Power Cords for AC/DC Power Adapter

Australia

China

Continental Europe

Denmark

India

Israel

Japan

South Africa

Switzerland

Thailand

United Kingdom/Hong Kong/Singapore

United States/Canada/Mexico

5070-6082

8121-0838

8121-0910

8120-8861

8120-8930

8121-0564

8121-1035

8121-0911

8120-8929

8121-0908

8121-0673

8121-0909

8121-0921

J a p a n P o w e r

C o r d W a r n i n g

2-2

W A R N I N G

C a u t i o n s

Installing the Switch

Included Parts

Installation Precautions

The rack or cabinet should be adequately secured to prevent it from becoming unstable and/or falling over.

Devices installed in a rack or cabinet should be mounted as low as possible, with the heaviest devices at the bottom and progressively lighter devices installed above.

Wall-mount the switch with network ports facing up (away from the floor). Do not wall-mount the switch with the network ports facing down (toward the floor) or ventilation ducts facing up or down.

Use only the AC/DC power adapter supplied with the switch for connection to an AC power source.

Ensure the power source circuits are properly grounded, then use the power cord supplied with the switch to connect it to the power source.

If your installation requires a different power cord than the one supplied with the switch, ensure the cord is adequately sized for the switch’s current requirements. In addition, be sure to use a power cord displaying the mark of the safety agency that defines the regulations for power cords in your country. The mark is your assurance that the power cord can be used safely with the switch. If the supplied power cord does not fit, contact ProCurve Networking support.

When installing the switch, the AC outlet should be near the switch and should be easily accessible in case the switch must be powered off.

Ensure the switch does not overload the power circuits, wiring, and overcurrent protection. To determine the possibility of overloading the supply circuits, add together the ampere ratings of all devices installed on the same circuit as the switch and compare the total with the rating limit for the circuit. Maximum ampere ratings are usually printed on the devices near the AC power connectors.

Do not install the switch in an environment where the operating ambient temperature might exceed 45

°C (113°F). This includes a fully-enclosed rack. Ensure the air flow around the sides and back of the switch is not restricted. Leave at least 7.6 cm (3 inches) for cooling.

Ensure all port covers are installed when the port is not in use.

2-3

Installing the Switch

Installation Procedures

Installation Procedures

These steps summarize your switch installation. The rest of this chapter provides details on these steps.

1.

Prepare the installation site (

page 2-5

).

Make sure the physical environment into which you will be installing the switch is properly prepared, including having the correct network cabling ready to connect

to the switch and having an appropriate location for the switch. See page

2-3

for some installation precautions.

2.

Verify the switch passes self test (

page 2-6

).

Plug the switch into a power source and observe that the LEDs on the switch’s front panel indicate correct switch operation.

3.

Mount the switch (

page 2-8

).

The switches can be mounted in a 19-inch telco rack, in an equipment cabinet, on a wall, or on a horizontal surface.

4.

Connect power to the switch (

page 2-15

).

Once the switch is mounted, plug it into the main power source.

5.

Connect the network devices (

page 2-17

).

Using the appropriate network cables, connect the network devices to the switch ports.

6.

(Optional) Install mini-GBICs (

page 2-18

).

The switch has two or four slots for installing mini-GBICs. Depending on where you install the switch, it may be easier to install the mini-GBICs first. Mini-GBICs can be hot swapped—they can be installed or removed while the switch is powered on.

7.

(Optional) Connect a console to the switch (

page 2-20

).

You may wish to modify the switch’s configuration, for example, to configure an IP address so it can be managed using a Web browser, from an SNMP network management station, or through a Telnet session. Configuration changes can be made by using the included console cable to connect a PC to the switch’s console port.

At this point, your switch is fully installed. See the rest of this chapter if you need more detailed information on any of these installation steps.

2-4

Installing the Switch

Installation Procedures

1. Prepare the Installation Site

Cabling Infrastructure

- Ensure the cabling infrastructure meets the

necessary network specifications. See appendix A, “Cabling and

Technology Information Specifications” for more information:

Installation Location

- Before installing the switch, plan its location and orientation relative to other devices and equipment:

• In the front of the switch, leave at least 7.6 cm (3 inches) of space for the twisted-pair and fiber-optic cabling.

• In the back of the switch, leave at least 3.8 cm (1 1/2 inches) of space for the power cord.

• On the sides of the switch, leave at least 7.6 cm (3 inches) for cooling.

2-5

Installing the Switch

Installation Procedures

2. Verify the Switch Passes Self Test

Before mounting the switch in its network location, you should first verify it is working properly by plugging it into a power source and verifying it passes its self test.

1.

Connect the AC/DC adapter’s power cord to the power connector on the back of the switch, and then plug the AC/DC power adapter into a nearby properly grounded electrical outlet.

N o t e

Connect AC/DC power adapter to the switch and an AC power outlet

Figure 2-1. Connecting the power cord

The switch does not have a power switch. It is powered on when the external

AC/DC power adapter is connected to the switch and the adapter power cord to a power source. The external AC/DC power adapter automatically adjusts to any voltage between 100-240 volts and either 50 or 60 Hz.

If your installation requires a different power cord than the one supplied with the switch, be sure the cord is adequately sized for the switch’s current requirements. In addition, be sure to use a power cord displaying the mark of the safety agency that defines the regulations for power cords in your country.

The mark is your assurance that the power cord can be used safely with the switch. If the supplied power cord does not fit, contact ProCurve Networking support.

2-6

C a u t i o n

Installing the Switch

Installation Procedures

Use only the AC/DC power adapter and power cord (if applicable), supplied with the switch. Use of other adapters or power cords, including those that came with other ProCurve Networking products, may result in damage to the equipment.

2.

Check the LEDs on the switch as described below.

Power, Fault, and

Locator LEDs

Switch port LEDs

Self Test LED

Figure 2-2. Checking the LEDs

When the switch is powered on, it performs its diagnostic self test. Self test takes approximately 50 seconds to complete.

LED Behavior

During the self test:

• Initially, all the switch and port LEDs are on. Most of the LEDs go off and then may come on again during phases of the self test.

• For the duration of the self test, the Test LED stays on.

When the self test completes successfully:

• The Power and PoE LEDs remain on.

• The

Fault, Locator and Test LEDs stay off.

• The Act LED remains on indicating the default port LED mode.

2-7

Installing the Switch

Installation Procedures

W A R N I N G

E q u i p m e n t

C a b i n e t

N o t e

• The port LEDs on the front of the switch go into their normal operational mode:

– If the ports are connected to active network devices, the Link

LEDs stay on and the Mode LEDs behave according to the mode selected. In the default mode ( Act), the Mode LEDs should be blinking indicating port activity.

– If the ports are not connected to active network devices, the Link and Mode LEDs will stay off.

If the LED display is different than what is described above, especially if the

Fault and Test LEDs stay on for more than 60 seconds or they start flashing, the self test has not completed correctly. Refer to chapter 4,

“Troubleshooting”

for diagnostic help.

3. Mount the Switch

After the switch passes self test, it is ready to be mounted in a stable location.

The switch can be mounted in these ways: in a rack or cabinet on a horizontal surface on a wall

Rack or Cabinet Mounting

The switch can be rack mounted using the rack-mounting brackets supplied.

Note that the mounting brackets have multiple mounting holes and can be rotated allowing for a wide variety of mounting options. Secure the rack in accordance with the manufacture’s safety guidelines.

For safe operation, please read the mounting precautions on

page 2-3

, before mounting a switch.

The 12-24 screws supplied with the switch are the correct threading for standard EIA/TIA open 19-inch racks. If installing the switch in an equipment cabinet such as a server cabinet, use the clips and screws that came with the cabinet in place of the 12-24 screws that are supplied with the switch.

2-8

Installing the Switch

Installation Procedures

Rack Mounting the Switch

1.

Use a #1 Phillips (cross-head) screwdriver and attach the mounting brackets to the switch with the included 8-mm M4 screws.

N o t e

8 mm

M4 screws

W A R N I N G

Figure 2-3. Attaching mounting brackets

The mounting brackets have multiple mounting holes and can be rotated allowing for a wide variety of mounting options. These include mounting the switch so that its front face is flush with the face of the rack, or mounting it in a more balanced position.

For safe reliable installation, only use the screws provided in the accessory kit to attach the mounting brackets to the switch.

2-9

Installing the Switch

Installation Procedures

2.

Hold the switch with attached brackets up to the rack and move it vertically until rack holes line up with the bracket holes, then insert and tighten the four number 12-24 screws holding the brackets to the rack.

Install 12-24 screws

Figure 2-4. Mounting in a rack

2-10

W A R N I N G

C a u t i o n

Installing the Switch

Installation Procedures

Wall or Under-Table Mounting

You can mount the switch on a wall with either the front or rear panel facing up.

For safe operation, do not install the switch with side ventilation or fan ducts facing up or down.

The network ports must be facing up. Do not mount the switch with ports facing down.

The switch should be mounted only to a wall or wood surface that is at least

1/2-inch (12.7 mm) plywood or its equivalent.

1.

Use a #1 Phillips (cross-head) screwdriver and attach the mounting brackets to the switch with the included 8-mm M4 screws.

2.

Attach the switch to the wall or wood surface with two 5/8-inch number

12 wood screws (not included).

RJ-45 Ports

Wall

Figure 2-5. Wall Mounting the Switch

5/8-inch wood screws

2-11

Installing the Switch

Installation Procedures

C a u t i o n

Horizontal Surface Mounting

Place the switch on a table or other horizontal surface. The switch comes with rubber feet in the accessory kit that can be used to help keep the switch from sliding on the surface.

Attach the rubber feet to the four corners on the bottom of the switch within the embossed angled lines. Use a sturdy surface in an uncluttered area. You may want to secure the networking cables and switch power cord to the table leg or other part of the surface structure to help prevent tripping over the cords.

Ensure the air flow is not restricted around the sides and back of the switch.

2-12

Figure 2-6. Horizontal Surface Mounting

Using a Kensington Security Cable

To prevent unauthorized removal of the switch, you can use a Kensington Slim

MicroSaver security cable (not included) to attach the switch to an immovable object.

Installing the Switch

Installation Procedures

N o t e

Figure 2-7. Using a Security Cable

(Optional) Installing the Power Supply Clip

The HP ProCurve 8-Port Power Supply Clip (5184-5887) is supported for use on the switches.

The Power Supply Clip comes pre-installed on the switch. This section is provided as additional information only.

1.

Align the clip with the switch in the orientation shown.

A

B

C

Figure 2-8. Installing the Power Supply Clip

2.

First, insert two alignment pins on one side of the clip into the appropriate holes on the switch (A).

3.

Then, align the two thumbscrews on the other side of the clip (B), and secure the clip onto the switch (C) .

2-13

Installing the Switch

Installation Procedures

4.

Slide the power adapter into the retention clip from the side as illustrated.

C a u t i o n

Figure 2-9. Installing the Adapter in the Power Supply Clip

Do not install or remove the adapter by lifting the clip and forcing the adapter directly into, or out of, the housing area.

2-14

Installing the Switch

Installation Procedures

4. Connect the Switch to a Power Source

1.

Plug the AC/DC adapter’s power cord into the switch, and then plug the

AC/DC power adapter into a nearby AC power source.

Figure 2-10. Connecting the power cord on the Switch

2.

Re-check the LEDs during self test. See

“LED Behavior” on page 2-7

.

2-15

Installing the Switch

Installation Procedures

3.

Use the included cable tie to secure the power cord to the switch.

cable tie

Figure 2-11. Securing the power cord on the Switch

2-16

Installing the Switch

Installation Procedures

5. Connect the Network Cables

Connect the network cables, described under “Cabling Infrastructure” (

page

2-5

), from the network devices or your patch panels to the fixed RJ-45 ports on the switch or to any mini-GBICs you have installed in the switch.

Using the RJ-45 Connectors

To connect:

Push the RJ-45 plug into the RJ-45 port until the tab on the plug clicks into place. When power is on for the switch and for the connected device, the Link LED for the port should light to confirm a powered-on device

(for example, an end node) is at the other end of the cable.

RJ-45 connector

If the Link LED does not go on when the network cable is connected to the port, see

LEDs”

“Diagnosing with the

in chapter 4,

“Troubleshooting”.

Unshielded twisted-pair cable:

• Category 3, 4, or 5 for 10 Mbps ports

• Category 5 or better for 100 Mbps ports

• Category 5e or better for 1000 Mbps ports

Maximum distance: 100 meters

To disconnect:

Press the small tab on the plug and pull the plug out of the port

.

Figure 2-12. Connecting network cables

2-17

Installing the Switch

Installation Procedures

C a u t i o n

N o t e s

C a u t i o n

W A R N I N G

6. Installing or Removing mini-GBICs

You can install or remove a mini-GBIC from a mini-GBIC slot without having to power off the switch. Use only HP ProCurve mini-GBICs.

Hot swapping transceivers is supported. You can install or remove a transceiver with the switch powered on, a reset will not occur. However, rapid hotswaps are not recommended. Wait a few seconds for the Mode LED to turn on (during initialization), and then turn off.

The mini-GBIC slots are shared with 10/100/1000Base-T RJ-45 ports. When a mini-GBIC is installed in a slot, the associated RJ-45 port is disabled and cannot be used.

Ensure the network cable is NOT connected when you install or remove a mini-GBIC.

Use only supported genuine HP ProCurve mini-GBICs with your switch. Non-

ProCurve mini-GBICs are not supported, and their use may result in product malfunction. Should you require additional HP ProCurve mini-GBICs, contact your ProCurve Networking Sales and Service Office or authorized dealer.

Installing the mini-GBICs:

Remove the protective plastic cover and retain it for later use. Hold the mini-

GBIC by its sides and gently insert it into either of the slots on the switch until the mini-GBIC clicks into place.

The HP ProCurve mini-GBICs are Class 1 laser devices. Avoid direct eye exposure to the beam coming from the transmit port.

2-18

Installing the Switch

Installation Procedures

N o t e

Figure 2-13. Installing a mini-GBIC (SFP)

Removing the mini-GBICs

You should disconnect the network cable from the mini-GBIC before removing it from the switch.

Depending on when you purchased your ProCurve mini-GBIC, it may have either of three different release mechanisms: a plastic tab on the bottom of the mini-GBIC, a plastic collar around the mini-GBIC, or a wire bail.

To remove the mini-GBICs that have the plastic tab or plastic collar, push the tab or collar toward the switch until you see the mini-GBIC release from the switch (you can see it move outward slightly), and then pull it from the slot.

To remove the mini-GBICs that have the wire bail, lower the bail until it is approximately horizontal, and then using the bail, pull the mini-GBIC from the slot.

Replace the protective plastic cover on the mini-GBIC.

Connecting Cables to mini-GBICs

If you have any mini-GBICs installed in the switch, the type of network connections you will need to use depends on the type of mini-GBICs you have installed. See the table on

page 1-2

, and appendix A, “Specifications”

, for the mini-GBIC cabling information.

2-19

Installing the Switch

Installation Procedures

For mini-GBIC ports, and in general for all the switch ports, when a network cable from an active network device is connected to the port, the port LED for that port should go on. If the port LED does not go on when the network cable is connected to the port, see

“Diagnosing with the LEDs”

in chapter 4,

“Troubleshooting”.

7. (Optional) Connect a Console to the Switch

The switches have a full-featured, easy to use console interface for performing switch management tasks including the following: monitor switch and port status and observe network activity statistics modify the switch’s configuration to optimize switch performance, enhance network traffic control, and improve network security read the event log and access diagnostic tools to help in troubleshooting download new software to the switch add passwords to control access to the switch from the console, Web browser interface, and network management stations

The console can be accessed through these methods:

Out-of-band:

The switches come with a serial cable for connecting a PC or VT-100 terminal, to be used as a console, directly to the switch.

In-Band:

Access the console using Telnet from a PC or UNIX station on the network, and a VT-100 terminal emulator. This method requires that you first configure the switch with an IP address and subnet mask by using either out-of-band console access or through DHCP/Bootp. For more information on IP addressing and on starting a Telnet session, see

chapter 3, “Configuring the Switch” , in the Management and

Configuration Guide

, which is on the ProCurve Web site at

www.hp.com/ go/procurve/manuals

.

The switches can simultaneously support one out-of-band console session through the Console Port and in-band Telnet console sessions.

Terminal Configuration

To connect a console to the switch, configure the PC terminal emulator as a

DEC VT-100 (ANSI) terminal or use a VT-100 terminal, and configure either one to operate with these settings: any baud rate from 1200 to 115200 (the switch senses the speed)

8 data bits, 1 stop bit, no parity, and flow control set to Xon/Xoff for the Windows Terminal program, also disable (uncheck) the “Use

Function, Arrow, and Ctrl Keys for Windows” option

2-20

Installing the Switch

Installation Procedures

■ for the Hilgraeve HyperTerminal program, select the “Terminal keys” option for the “Function, arrow, and ctrl keys act as” parameter

If you want to operate the console using a different configuration, make sure you change the settings on both the terminal and on the switch so they are compatible. Change the switch settings first, then change the terminal settings, then reboot the switch and reestablish the console session.

Direct Console Access

To connect a console to the switch, follow these steps:

1.

Connect the PC or terminal to the switch’s Console Port using the console cable included with the switch.

(If your PC or terminal has a 25-pin serial connector, first attach a 9-pin to 25-pin straight-through adapter at one end of the console cable.)

2.

Turn on the terminal or PC’s power and, if using a PC, start the PC terminal program.

Console port

Console cable supplied with the switch

Connect to a PC running a terminal emulator program, or a VT-100 terminal

Figure 2-14. Connecting the console cable

3.

Press

[Enter]

two or three times and you will see the copyright page and the message “Press any key to continue”. Press a key, and you will then see the switch console command (CLI) prompt, for example:

ProCurve_2915-8G-PoE#

If you want to continue with console management of the switch at this time, see chapter 3, “Getting Started With Switch Configuration” for some basic configuration steps. For more detailed information, refer to the Management

and Configuration Guide,

which is on the ProCurve Web site at

www.hp.com/ go/procurve/manuals

.

2-21

Installing the Switch

Sample Network Topologies

Sample Network Topologies

This section shows a few sample network topologies for implementing the switches. For more topology information, see the ProCurve networking products Web site,

www.hp.com/go/procurve

.

As a Desktop Switch Implementing PoE

Server with

Gigabit

Ethernet NIC

Switch 2915-8G-PoE

Category 5e twisted-pair straight-through or crossover cable for 1000

Mbps connection to server

Twisted-pair straight-through or crossover cables

Figure 2-15. Basic desktop configuration

The switches are designed to be used as desktop switches to which end nodes, printers and other peripherals, and servers are directly connected, as shown in the above illustration. The switches can also supply PoE power to end devices such as IP telephones.

2-22

Installing the Switch

Sample Network Topologies

As shown in the above illustration, the IP telephones can be connected in line, that is, between the switch and the end device, in this case a PC. The IP telephones have two ports, one in and one out. Therefore the phone receives voice and power from the switch and the PC can send and receive data through the phone to the switch.

The end node devices are connected to the switch by straight-through or crossover twisted-pair cables. Either cable type can be used because of the

Auto-MDIX feature on the switches.

As a Segment Switch Implementing PoE

Server

Switch 2510G-24

Gigabit fiber-optic cable uplink

Gigabit fiber-optic cable uplink

Switch 2615-8-PoE

Switch 2915-8G-PoE

Twisted-pair straightthrough or crossover cables

Figure 2-16. Segment network configuration with PoE switches

2-23

Installing the Switch

Sample Network Topologies

The switches also work well as segment switches. That is, with their high performance, they can be used for interconnecting network segments— simply connect the network devices that form those segments to the switches.

In the illustration above, 2915-8G-PoE and 2615-8-PoE switches with PCs, printers, and local servers attached, are both connected to a non-PoE switch.

The devices attached to the two switches can now communicate with each other through the non-PoE switch. They can also all communicate with the server that is connected to a 1000Base-T port on the Switch 2915-8G-PoE.

As shown in the illustration above, the IP telephones have been inserted in between the Switch 2915-8G-PoE and the PCs, and wireless access points

(WAPs) have been connected to the Switch 2915-8G-PoE and a Switch 2615-

8-PoE. Both the telephones and WAPs will receive PoE power from each of the switches. Only devices directly connected to PoE switches can receive

PoE power. Devices connected to the non-PoE switch cannot receive PoE power.

Because the switches have the Auto-MDIX feature, the connections between the switches and end nodes or servers can be through category 5 straightthrough or crossover twisted-pair cable. Category 3 or 4 cable can also be used if the connection is 10 Mbps only. In all cases, the device ports must be configured to auto negotiate the link characteristics for this feature to work.

The connections between the switches are through fiber-optic cabling connected to Gigabit transceivers. All the devices on these network segments can access other network resources that are connected elsewhere on the network. Always remember when connecting fiber-optics that all components match in specification.

2-24

Installing the Switch

Sample Network Topologies

Stacking the Switch

The switches can be connected together, through standard network connections, and managed through a single IP address. Up to 16 switches can be connected together in such a “virtual stack”.

You identify a switch as the “Commander” and give that switch an IP address.

Up to 15 other switches in the network can then easily be configured as

Members of the stack and managed through the Commander’s IP address. The management includes Telnet access and Web browser interface access to the

Commander and to each Member switch through the Commander.

For more information on stacking your switch, see the Management and

Configuration Guide,

which is on the ProCurve Web site at

www.hp.com/go/ procurve/manuals

.

2-25

3

Configuring the Switch

N o t e

This chapter is a guide for using the console Switch Setup screen to quickly assign an IP (Internet Protocol) address and subnet mask to the switch, set a

Manager password, and, optionally, configure other basic features.

For more information on using the switch console and the Web browser interface, please see the Management and Configuration Guide, which is on the ProCurve Web site at

www.hp.com/go/procurve/manuals

.

Recommended Minimal Configuration

In the factory default configuration, the switch has no IP (Internet Protocol) address and subnet mask, and no passwords. In this state, it can be managed only through a direct console connection. To manage the switch through inband (networked) access, you should configure the switch with an IP address and subnet mask compatible with your network. Also, you should configure a Manager password to control access privileges from the console and Web browser interface. Other parameters in the Switch Setup screen can be left at their default settings or you can configure them with values you enter.

Many other features can be configured through the switch’s console interface, to optimize the switch’s performance, to enhance your control of the network traffic, and to improve network security. Once an IP address has been configured on the switch, these features can be accessed more conveniently through a remote Telnet session, through the switch’s Web browser interface, and from an SNMP network management station running a network management program. For a listing of switch features available with and without an IP address, refer to “How IP Addressing Affects Switch Operation” in the Management and Configuration Guide.

For more information on IP addressing, refer to “IP Configuration” in the

Management and Configuration Guide

.

By default, the switch is configured to acquire an IP address configuration from a DHCP or Bootp server. To use DHCP/Bootp instead of the manual method described in this chapter, see “DHCP/Bootp Operation” in the

Management and Configuration Guide

.

3-1

Configuring the Switch

Recommended Minimal Configuration

Using the Console Setup Screen

The quickest and easiest way to minimally configure the switch for management and password protection in your network is to use a direct console connection to the switch, start a console session, and access the

Switch Setup screen.

1.

Using the method described in the preceding section, connect a terminal device to the switch and display the switch console command line interface (CLI) prompt (the default display).

The CLI prompt appears, for example:

ProCurve_2915-8G-PoE#

2.

At the prompt, enter the

setup command to display the Switch Setup screen. The following illustration shows the Setup screen with the default settings.

3-2

Figure 3-1. Example console setup screen

3.

Use the

[Tab]

key to select the

Manager Password field and enter a manager password of up to 16 printable ASCII characters.

4.

[Tab]

to the

IP Config (DHCP/Bootp) field and use the Space bar to select the

Manual option.

5.

[Tab]

to the

IP Address field and enter the IP address that is compatible with your network.

6.

[Tab]

to the

Subnet Mask field and enter the subnet mask used for your network.

7.

Press [

Enter]

, then

[S]

(for

Save).

Configuring the Switch

Recommended Minimal Configuration

Here is some information on the fields in the Setup screen. For more information on these fields, see the Management and Configuration Guide:

Parameter

System Name

System Contact

Manager Password

Logon Default

Time Zone

Community Name

Spanning Tree Enabled

Default Gateway

Default

blank blank blank

CLI

0 (none) public

No blank

Optional; up to 25 characters, including spaces

Optional; up to 48 characters, including spaces

Recommended; up to 16 characters (no blank spaces)

The default setting selects the command line interface for console access.

The alternative is the menu interface.

Optional; 1440 to -1440. The number of minutes your location is to the West (-) or East (+) of GMT.

Default setting recommended.

Default setting recommended unless STP is already running on your network or the switch will be used in complex network topologies.

Optional; Enter the IP address of the next-hop gateway node if network traffic needs to be able to reach off-subnet destinations.

Time Sync Method None Optional; The protocol the switch uses to acquire a time signal. The options are SNTP and TimeP.

Optional; The method the switch uses to acquire the TimeP server address.

TimeP Mode

IP Config (DHCP/Bootp)

IP Address

Disabled

DHCP/Bootp Set to Manual unless a DHCP/Bootp server is used on your network to configure IP addressing.

xxx.xxx.xxx.xxx Recommended; If you set IP Config to Manual, then enter an IP address compatible with your network.

Note: The IP address and subnet mask assigned for the switch must be compatible with the IP addressing used in your network. For more information on IP addressing, see the

Management and Configuration Guide

.

Subnet Mask xxx.xxx.xxx.xxx Recommended; If you entered an IP address, then enter a subnet mask compatible with your network.

Where to Go From Here

The above procedure configures your switch with a Manager password, IP address, and subnet mask. As a result, with the proper network connections, you can now manage the switch from a PC equipped with Telnet, and/or a Web browser interface.

Some basic information on managing your switch is included in the next section. For more information on the console, Web browser, and SNMP management interfaces and all the features that can be configured on the switches, see the Management and Configuration Guide.

3-3

Configuring the Switch

Recommended Minimal Configuration

To Recover from a Lost Manager Password:

If you cannot start a console session at the manager level because of a lost Manager password, you can clear all passwords and user names by getting physical access to the switch and pressing and holding the Clear button for a full second.

3-4

Configuring the Switch

Using the IP Address for Remote Switch Management

Using the IP Address for Remote Switch

Management

With your switch, you can use the switch’s IP address to manage the switch from any PC that is on the same subnet as the switch. You can use either a

Telnet session or a standard Web browser to manage the switch.

Starting a Telnet Session

To access the switch through a Telnet session, follow these steps:

1.

Make sure the switch is configured with an IP address and that the switch is reachable from the PC that is running the Telnet session (for example, by using a Ping command to the switch’s IP address).

2.

Start the Telnet program on a PC that is on the same subnet as the switch and connect to the switch’s IP address.

3.

You will see the copyright page and the message “Press any key to continue”. Press a key, and you will then see the switch console command

(CLI) prompt, for example:

ProCurve_2915-8G-PoE#

Enter help or ? to see a list of commands that can be executed at the prompt. Entering any command followed by help provides more detailed context help information about the command. Entering any command followed by ? displays a list of options that are available at that point in the command entry.

Starting a Web Browser Session

The switches can be managed through a graphical interface that you can access from any PC or workstation on the network by running your Web browser and typing in the switch’s IP address as the URL. No additional software installation is required to make this interface available; it is included in the switch’s onboard software.

For more information on using the Web browser interface, please see the

Management and Configuration Guide

.

An extensive help system is also available for the Web browser interface. To access the Help system, access to the Internet is required. Otherwise, the Help files must be downloaded to a local management server.

3-5

4

Troubleshooting

This chapter describes how to troubleshoot your ProCurve 2915-8G-PoE and

2615-8-PoE switches. This document describes troubleshooting mostly from a hardware perspective. You can perform more in-depth troubleshooting on these devices using the software tools available with the switches, including the full-featured console interface, the built-in Web browser interface, and

ProCurve Manager, the SNMP-based network management tool. For more information, see the chapter “Troubleshooting” in the Management and

Configuration Guide,

which is on the ProCurve Web site at

www.hp.com/go/ procurve/manuals

.

This chapter describes the following:

basic troubleshooting tips (

diagnosing with the LEDs (

hardware diagnostic tests (

page 4-1

page 4-4

proactive networking tools (

HP Customer Support Services (

)

)

page 4-9

page 4-10

)

)

restoring the factory default configuration (

page 4-13 )

page 4-12

downloading new software to the switches (

)

page 4-13

)

Basic Troubleshooting Tips

Most problems are caused by the following situations. Check for these items first when starting your troubleshooting:

Connecting to devices that have a fixed full-duplex configuration.

The RJ-45 ports are configured as “Auto”. That is, when connecting to attached devices, the switch operates in one of two ways to determine the link speed and the communication mode (half duplex or full duplex):

• If the connected device is also configured to Auto, the switch will automatically negotiate both link speed and communication mode.

• If the connected device has a fixed configuration, for example 100

Mbps, at half or full duplex, the switch will automatically sense the link speed, but will default to a communication mode of half duplex.

4-1

Troubleshooting

Basic Troubleshooting Tips

C a u t i o n

Because the switches behave in this way (in compliance with the IEEE

802.3 standard)

, if a device connected to the switch has a fixed configuration at full duplex, the device will not connect correctly to the switch.

The result will be high error rates and very inefficient communications between the switch and the device.

Ensure all devices connected to the switches are configured to auto negotiate, or are configured to connect at half duplex (all hubs are configured this way, for example).

Faulty or loose cables.

Look for loose or obviously faulty connections.

If the cables appear to be OK, make sure the connections are snug. If that does not correct the problem, try a different cable.

Non-standard cables.

Non-standard and miswired cables may cause network collisions and other network problems, and can seriously impair network performance. Use a new correctly-wired cable or compare your

cable to the cable in appendix A, “Cabling and Technology Information

Specifications”

for pinouts and correct cable wiring. A category 5 cable tester is a recommended tool for every 100Base-TX and 1000Base-T network installation.

Improper Network Topologies.

It is important to make sure you have a valid network topology. Common topology faults include excessive cable length and excessive repeater delays between end nodes. If you have network problems after recent changes to the network, change back to the previous topology. If you no longer experience the problems, the new topology is probably at fault. Sample topologies are shown at the end of chapter 2 in this book, and some topology configuration guidelines can be found online at the ProCurve Web site,

www.hp.com/go/procurve

.

In addition, you should make sure that your network topology contains

no data path loops

. Between any two end nodes, there should be only one active cabling path at any time. Data path loops will cause broadcast storms that will severely impact your network performance.

For your Switch, if you wish to build redundant paths between important nodes in your network to provide some fault tolerance, you should enable

Spanning Tree Protocol

support on the switch. This ensures that only one of the redundant paths is active at any time, thus avoiding data path loops. Spanning Tree can be enabled through the switch console or the

Web browser interface.

The switches also support Trunking, which allows multiple network cables to be used for a single network connection without causing a data path loop. For more information on Spanning Tree and Trunking, see the

Management and Configuration Guide,

which is on the ProCurve Web site at

www.hp.com/go/procurve/manuals

.

4-2

Troubleshooting

Basic Troubleshooting Tips

Check the port configuration.

A port on your switch may not be operating as you expect because it has been put into a “blocking” state by

Spanning Tree, GVRP (automatic VLANs), or LACP (automatic trunking).

(Note that the normal operation of the Spanning Tree, GVRP, and LACP features may put the port in a blocking state.) Or, the port just may have been configured as disabled through software.

Use the switch console to determine the port’s configuration and verify that there is not an improper or undesired configuration of any of the switch features that may be affecting the port. For more information, see the Management and Configuration Guide.

For more information on possible network problems and their solutions, refer to the technical note “Troubleshooting LAN Performance and Intermittent

Connectivity Problems”, which can be found on the ProCurve Web site,

www.hp.com/go/procurve

, in the Reference Library section, A-Z Index.

4-3

Troubleshooting

Diagnosing with the LEDs

Diagnosing with the LEDs

Table 4-1 shows LED patterns on the switch that indicate problem conditions for general switch operation troubleshooting.

Table 4-2 shows LED patterns that indicate problem conditions for PoE troubleshooting.

LED patterns for General Switch Troubleshooting

1.

Check in the table for the LED pattern you see on your switch.

2.

Refer to the corresponding diagnostic tip on the next few pages.

Table 4-1.

LED Error Indicators

LED Pattern Indicating Problems

Power Fault

1

Test

1

Port Link LED

1

Diagnostic

Tips

Off with power cord plugged in

On

On

On

Prolonged On Prolonged On

Flashing

2

Flashing

2

Flashing

2

Flashing

2

1

1

Flashing

2

On Off Off Off with cable connected

On Off Off On, but the port is not communicating

1

2

This LED is not important for the diagnosis.

The flashing behavior is an on/off cycle once every 1.6 seconds, approximately.

4-4

Troubleshooting

Diagnosing with the LEDs

Tip Problem

The switch is not plugged into an active AC power source, or the switch’s power supply may have failed.

A switch hardware failure has occurred. All the LEDs will stay on indefinitely.

The switch has experienced a software failure during self test.

Diagnostic Tips:

Solution

1. Verify the power cord is plugged into an active power source and to the switch. Make sure these connections are snug.

2. Try power cycling the switch by unplugging and plugging the power cord back in.

3. If the Power LED is still not on, verify the AC power source works by plugging another device into the outlet. Or try plugging the switch into a different outlet or try a different power cord.

If the power source and power cord are OK and this condition persists, the switch power supply may have failed. Call your ProCurve Networking authorized network reseller, or use the electronic support services from HP to get assistance. For Warranty service, see the “Software End User License Agreement and Hardware Limiited Warranty” booklet.

Try power cycling the switch. If the fault indication reoccurs, the switch may have failed.

Call your ProCurve Networking authorized network reseller, or use the electronic support services from HP to get assistance. For Warranty service, see the “Software End User

License Agreement and Hardware Limiited Warranty” booklet.

The network port for which the LED is flashing has experienced a self test or initialization failure.

1. Try resetting the switch by pressing the Reset button on the front of the switch, or by power cycling the switch.

2. If the fault indication reoccurs, attach a console to the switch (as indicated in chapter 2) and configure it to operate at 9600 baud. Then, reset the switch. Messages should appear on the console screen and in the console log identifying the error condition. You can view the console log at that point by selecting it from the console

Main Menu or by typing “Show log” at the Manager command prompt (#).

If necessary to resolve the problem, contact your ProCurve Networking authorized network reseller, or use the electronic support services from HP to get assistance. For

Warranty service, see the “Software End User License Agreement and Hardware Limiited

Warranty” booklet.

Try power cycling the switch. If the fault indication reoccurs, the switch port may have failed. Call your ProCurve Networking authorized network reseller, or use the electronic support services from HP to get assistance. For Warranty service, see the “Software End

User License Agreement and Hardware Limiited Warranty” booklet.

If the port is a mini-GBIC, verify that it is one of the mini-GBICs supported by the switch.

Unsupported mini-GBICs will be identified with this fault condition. The supported

mini-GBICs are listed in Chapter 2, “Installing the Switch”

on

page 2-18 . The

mini-GBICs are also tested when they are “hot-swapped”—installed or changed while the switch is powered on.

To verify the port has failed, remove and reinstall the mini-GBIC without powering off the switch. If the port fault indication reoccurs, you will have to replace the mini-GBIC. Check the event log to see why the mini-GBIC failed.

continued on the next page

4-5

Troubleshooting

Diagnosing with the LEDs

Tip Problem

The network connection is not working properly.

Solution

Try the following procedures:

• For the indicated port, verify that both ends of the cabling, at the switch and the connected device, are connected properly.

• Verify the connected device and switch are both powered on and operating correctly.

• Verify you have used the correct cable type for the connection:

– For twisted-pair connections to the fixed 10/100 or 10/100/1000 ports, if the port is configured to “Auto” (auto negotiate), either straight-through or crossover cables can be used because of the switch’s “Auto-MDIX” feature and the Auto MDI/MDI-

X feature of the 10/100/1000-T port.

Note:

If the switch port configuration is changed to one of the

fixed configuration

options (for example, 100 Mbps/Full Duplex), then the port operates as

MDI-X only

and you must use the correct type of cable for the connection. In general, for connecting an end node (MDI port) to the switch, use straight-through cable; for connecting to MDI-X ports on hubs, other switches, and routers, use crossover cable.

– For fiber-optic connections, verify the transmit port on the switch is connected to the receive port on the connected device, and the switch receive port is connected to the transmit port on the connected device.

• For the dual-personality 10/100/1000-T ports, be sure a mini-GBIC is not installed in the associated slot.

• For 1000Base-T connections, verify the network cabling complies with the IEEE 802.3ab standard. The cable should be installed according to the ANSI/TIA/EIA-568-A-5 specifications. Cable testing should comply with the stated limitations for Attenuation,

Near-End Crosstalk, Far-End Crosstalk, Equal-Level Far-End Crosstalk (ELFEXT),

Multiple Disturber ELFEXT, and Return Loss.

The cable verification process must include all patch cables from any end devices, including the switch, to any patch panels in the cabling path.

• Verify the port has not been disabled through a switch configuration change. You can use the console interface, or, if you have configured an IP address on the switch, use the Web browser interface to determine the state of the port and re-enable the port if necessary.

• Verify the switch port configuration matches the configuration of the attached device.

For example, if the switch port is configured as “Auto”, the port on the attached device also MUST be configured as “Auto”. Depending on the port type, twisted-pair or fiberoptic, if the configurations don’t match, the results could be a very unreliable connection, or no link at all.

• If the other procedures don’t resolve the problem, try using a different port or a different cable.

4-6

Troubleshooting

Diagnosing with the LEDs

Tip Problem

The port may be improperly configured, or the port may be in a “blocking” state by the normal operation of the Spanning

Tree, LACP, or

IGMP features.

Solution

Use the switch console to see if the port is part of a dynamic trunk (through the LACP feature) or to see if Spanning Tree is enabled on the switch, and to see if the port may have been put into a “blocking” state by those features. The show lacp command displays the port status for the LACP feature; the show spanning-tree command displays the port status for Spanning Tree.

Also check the Port Status screen using the show interfaces command to see if the port has been configured as “disabled”.

Other switch features that may affect the port operation include VLANs and IGMP. Use the switch console to see how the port is configured for these features.

For software troubleshooting tips, see the chapter “Troubleshooting” in the

Management and Configuration Guide

, which is on the ProCurve Web site at

www.hp.com/go/ procurve/manuals

.

Ensure also, that the device at the other end of the connection is indicating a good link to the switch. If it is not, the problem may be with the cabling between the devices or the connectors on the cable.

4-7

Troubleshooting

Diagnosing with the LEDs

LED Patterns for PoE Troubleshooting

If the PoE Status LED is flashing, that indicates a problem with the delivery of PoE power out one or more switch ports. Press the LED Mode button to put the switch into PoE mode and the port LEDs will show which ports are experiencing the problem. The following tables identify the specific problems that are shown by the LEDs.

1.

Check in the table for the LED pattern you see on your switch.

2.

Refer to the corresponding diagnostic tip.

Table 4-2.

LED Error Indicators

Fault

LED Pattern Indicating Problems

PoE Status Port Link Port Mode

Diagnostic

Tips

Orange Green

Off

Slow Flash Slow Flash

Orange

Slow Flash

Green

Off

Diagnostic Tips:

Tip Problem

PoE oversubscription condition. All available

PoE power is already taken by higher-priority ports.

PoE hardware fault. A switch hardware component that is involved with PoE power delivery has failed.

Solution

If possible add additional PoE power, or redefine port priorities.

The switch must be replaced.

4-8

Troubleshooting

Proactive Networking

Proactive Networking

The ProCurve Switches have built-in management capabilities that proactively help you manage your network including:

■ finding and helping you fix the most common network error conditions

(for example, faulty network cabling, and non-standard network topologies) informing you of the problem with clear, easy-to-understand messages recommending network configuration changes to enhance the performance of your network

The following interfaces provide tests, indicators, and an event log that can be used to monitor the switch and its network connections and to help you take advantage of these proactive networking features:

A graphical Web browser interface you can use to manage your switch from a PC running a supported Web browser, for example Microsoft

Internet Explorer, and Netscape Communicator.

■ A full-featured easy-to-use console interface you can access by connecting a standard terminal or PC running a terminal emulator to the switch’s console port. The cable to make that connection is provided with your switch. The console interface is also accessible through a Telnet connection.

For more information on using these software tools to diagnose and manage your switch, see the “Troubleshooting” chapter in the Management and

Configuration Guide

, which is on the ProCurve Web site at

www.hp.com/go/ procurve/manuals

.

4-9

Troubleshooting

Hardware Diagnostic Tests

Hardware Diagnostic Tests

Testing the Switch by Resetting It

If you believe the switch is not operating correctly, you can reset the switch to test its circuitry and operating code. To reset a switch, either: unplug and plug in the power cord (power cycling) press the Reset button on the front of the switch

Power cycling the switch and pressing the Reset button both cause the switch to perform its power-on self test. These reset processes also cause any network traffic counters to be reset to zero, and cause the System Up Time timer to reset to zero.

Checking the Switch LEDs

The self test passes if the Fault and Self Test LEDs on the front of the switch go off after approximately 50 seconds. If these LEDs stay on longer than 60 seconds or begin flashing, there may be a problem with the switch.

See

“Diagnosing with the LEDs” on page 4-4 for information on interpreting

the LED patterns.

Checking Console Messages

Useful diagnostic messages may be displayed on the console screen when the switch is reset. As described in chapter 2 under step 7, Connect a Console to the Switch connect a PC running a VT-100 terminal emulator program or a standard VT-100 terminal to the switch’s Console Port and configure it to run at 9600 baud, and with the other terminal communication settings shown on

“Configuring the Switch”

. Then, when you reset the switch, note the messages that

are displayed. Additionally, you can check the switch event log, which can be accessed from the console using the

show log command, or from the console

Main Menu after entering the

Menu command.

4-10

Troubleshooting

Hardware Diagnostic Tests

Testing Twisted-Pair Cabling

Network cables that fail to provide a link or provide an unreliable link between the switch and the connected network device may not be compatible with the

IEEE 802.3 Type 10Base-T, 100Base-TX, or 1000Base-T standards. The twistedpair cables attached to the switch must be compatible with the appropriate standards. To verify your cable is compatible with these standards, use a qualified cable test device.

Testing Switch-to-Device Network Communications

You can perform the following communication tests to verify the network is operating correctly between the switch and any connected device that can respond correctly to the communication test.

Link Test

—a physical layer test that sends IEEE 802.2 test packets to any device identified by its MAC address

Ping Test

—a network layer test used on IP networks that sends test packets to any device identified by its IP address

These tests can be performed through the switch console interface from a terminal connected to the switch or through a Telnet connection, or from the switch’s Web browser interface. For more information, see the Management

and Configuration Guide,

which is on the ProCurve Web site at

www.hp.com/ go/procurve/manuals

.

Testing End-to-End Network Communications

Both the switch and the cabling can be tested by running an end-to-end communications test—a test that sends known data from one network device to another through the switch. For example, if you have two PCs on the network that have LAN adapters between which you can run a link-level test or Ping test through the switch, you can use this test to verify that the entire communication path between the two PCs is functioning correctly. See your

LAN adapter documentation for more information on running a link test or

Ping test.

4-11

Troubleshooting

Restoring the Factory Default Configuration

N o t e

Restoring the Factory Default

Configuration

As part of your troubleshooting process on the Switch, it may become necessary to return the switch configuration to the factory default settings.

This clears any passwords, clears the console event log, resets the network counters to zero, performs a complete self test, and reboots the switch into its factory default configuration including deleting the IP address, if one is configured.

This process removes all switch configuration changes that you have made from the factory default settings. This includes, for example, configuration of

VLANs, Spanning Tree, trunks, and stacking. Returning the configuration of these features to their factory default settings (usually disabling them) may result in network connectivity issues.

If the switch has a valid configuration, and you are restoring the factory default settings for a reason other than configuration problems, you should save the switch configuration prior to performing the factory default reset. Then, after the reset and resolution of the original problem, you can restore the saved configuration to the switch. For both the save and restore processes, you can use the console

copy command. For more information on this command, see the Management and Configuration Guide, which is on the ProCurve Web site at

www.hp.com/go/procurve/manuals

.

You can restore the factory default configuration either on the switch itself, or through the switch console.

To execute the factory default reset on the switch, perform these steps:

1.

Using pointed objects, simultaneously press both the Reset and Clear buttons on the front of the switch. The power and fault lights come on.

2.

Continue to press the Clear button while releasing the Reset button.

3.

When the Self Test LED begins to flash, release the Clear button.

The switch will then complete its self test and begin operating with its configuration restored to the factory default settings.

To restore the factory default configuration using the console, execute the

erase startup-config command from the console command prompt.

4-12

Troubleshooting

Downloading New Switch Software

Downloading New Switch Software

When product enhancements occur for the switches, new software can be downloaded to the switch through several methods, for product enhancements and new features. For more information, see the Management

and Configuration Guide

.

The new switch software would be available on the ProCurve Web site,

www.hp.com/go/procurve/software

.

HP Customer Support Services

If you are still having trouble with your switch, Hewlett-Packard offers support

24 hours a day, seven days a week through the use of a number of automated electronic services. For Warranty service, see the “Software End User License

Agreement and Hardware Limiited Warranty” booklet. The ProCurve Web site,

www.hp.com/go/procurve

also provides up-to-date support information.

Additionally, your HP-authorized network reseller can provide you with assistance, both with services that they offer and with services offered by HP.

Before Calling Support

Before calling your networking dealer or HP Support, to make the support process most efficient, you first should retrieve the following information:

Information Item

• product identification, including mini-GBICs

Information Location

the front of the switch and on labels on the mini-GBICs switch console: show tech command

• details about the switch’s status including the software (OS) version, a copy of the switch configuration, a copy of the switch Event Log, and a copy of the switch status and counters information

• copy of your network topology map, including network addresses assigned to the relevant devices your network records

4-13

A

Specifications

Switch Specifications

HP ProCurve 2915-8G-PoE

HP ProCurve 2615-8-PoE

Physical

Width

25.4 cm (10 in)

Depth

16.5 cm (6.5 in)

Height

4.4 cm (1.73 in)

Weight

0.91 kg (2.01 lbs)

Electrical

AC voltage

100-240 volts

Maximum current Frequency range

1.5A

50/60 Hz

Requires a connection to an external power adapter (5070-6082, PA1 AC

Adapter)

Environmental

Temperature

Relative humidity

(non-condensing)

Maximum altitude

Operating

0

°C to 45°C (32°F to 113°F)

15% to 95% at 40

°C (104°F)

3.0 Km (10,000 ft)*

Non-Operating

-40

°C to 70°C (-40°F to 158°F)

15% to 95% at 65

°C (149°F)

4.57 Km (15,000 ft)

* The operating maximum altitude should not exceed that of any accessory being connected

to any switch.

A-1

Specifications

Switch Specifications

BTU Ratings

Switch Model

2915-8G-PoE

Maximum Heat Dissipation

89 BTU/hr (93.9 kJ/hr)

1

2615-8-PoE 87 BTU/hr (91.79 kJ/hr)

1

Maximum heat dissipation is the theoretical maximum values when all ports are connected at 100% traffic, and using the maximum PoE power budget available to all PoE ports (67 W total).

Acoustics

No fans.

Safety

Complies with:

EN 60950-1:2001 + A11:2004

IEC 60950-1:2001

EN 60825-1:1994 +A1+A2 / IEC 60825-1:1993 +A2 Class 1

A-2

Specifications

Standards

Standards

Table A-1.

Technology Standards and Safety Compliance

Technology Compatible with these IEEE standards

Laser safety information

EN/IEC standard compliance

SFP

("mini-GBIC") Lasers

10-T

100-TX

1000-T

100-FX

IEEE 802.3 10BASE-T,

IEEE 802.3u 100BASE-TX,

IEEE 802.3ab 1000BASE-T

IEEE 802.3u 100BASE-FX EN/IEC 60825 Class 1 Laser Product

Laser Klasse 1

100-BX

IEEE 802.3ah 100BASE-BX10 EN/IEC 60825

1000-SX

1000-LX

1000-LH

1000-BX

IEEE 802.3z 1000BASE-SX

IEEE 802.3z 1000BASE-LX

(not an IEEE standard)

EN/IEC 60825

EN/IEC 60825

EN/IEC 60825

IEEE 802.3ah 1000BASE-BX10 EN/IEC 60825

Class 1 Laser Product

Laser Klasse 1

Class 1 Laser Product

Laser Klasse 1

Class 1 Laser Product

Laser Klasse 1

Class 1 Laser Product

Laser Klasse 1

Class 1 Laser Product

Laser Klasse 1

A-3

Specifications

Cabling and Technology Information Specifications

Cabling and Technology Information

Specifications

Table A-2.

Cabling Specifications

10 Mbps Operation Category 3, 4 or 5, 100-ohm unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable, complying with IEEE 802.3

10BASE-T specifications.

Twisted-pair copper

100 Mbps Operation Category 5, 100-ohm UTP or STP cable, complying with IEEE

802.3u 100BASE-TX specifications.

Multimode fiber

Single mode fiber

1000 Mbps Operation Category 5, 100-ohm 4-pair UTP or STP cable, complying with IEEE

802.3ab 1000BASE-T specifications—Category 5e or better is recommended. See Note on 1000BASE-T Cable Requirements below.

62.5/125

μm or 50/125 μm (core/cladding) diameter, low metal content, graded index fiber-optic cables, complying with the

ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a standards respectively.

1

9/125

μm (core/cladding) diameter, low metal content fiber-optic cables, complying with the ITU-T G.652 and

ISO/IEC 793-2 Type B1 standards.

1

A mode conditioning patch cord may be needed for some Gigabit-LX installations.

See “Mode Conditioning Patch Cord” on page A-6

for more information.

Note on 1000BASE-T Cable Requirements.

The Category 5 networking cables that work for 100BASE-TX connections should also work for

1000BASE-T, as long as all four-pairs are connected. But, for the most robust connections, you should use cabling that complies with the Category 5e specifications, as described in Addendum 5 to the TIA-568-A standard (ANSI/

TIA/EIA-568-A-5).

Because of the increased speed provided by 1000BASE-T (Gigabit-T), network cable quality is more important than for either 10BASE-T or 100BASE-TX.

Cabling plants being used to carry 1000BASE-T networking must comply with the IEEE 802.3ab standards. In particular, the cabling must pass tests for

Attenuation, Near-End Crosstalk (NEXT), and Far-End Crosstalk (FEXT).

Additionally, unlike the cables for 100BASE-TX, the 1000BASE-T cables must pass tests for Equal-Level Far-End Crosstalk (ELFEXT) and Return Loss.

When testing your cabling, be sure to include the patch cables that connect the switch and other end devices to the patch panels on your site. The patch cables are frequently overlooked when testing cable and they must also comply with the cabling standards.

A-4

Specifications

Cabling and Technology Information Specifications

Technology Distance Specifications

Table A-3.

Technology Distance Specifications

Technology

100-FX

100-BX

1000-T

1000-SX

Supported cable type

multimode fiber single mode fiber twisted-pair copper multimode fiber

Multimode fiber modal bandwidth

any

N/A

Supported distances

up to 2,000 meters

0.5 - 10,000 meters up to 100 meters N/A

160 MHz*km

200 MHz*km

400 MHz*km

500 MHz*km

2 - 220 meters

2 - 275 meters

2 - 500 meters

2 - 550 meters

1000-LX multimode fiber single mode fiber single mode fiber

400 MHz*km

500 MHz*km

N/A

2 - 550 meters

2 - 550 meters

2 - 10,000 meters

10 - 70,000 meters

1

1000-LH N/A

1000-BX single mode fiber N/A 0.5 - 10,000 meters

1

For distances less than 20km, a 10dB attenuator must be used. For distances between 20km and 40km, a 5dB attenuator must be used. Attenuators can be purchased from most cable vendors.

A-5

Specifications

Mode Conditioning Patch Cord

Mode Conditioning Patch Cord

The following information applies to installations in which multimode fiberoptic cables are connected to a Gigabit-LX port. Multimode cable has a design characteristic called “Differential Mode Delay”, which requires the transmission signals be “conditioned” to compensate for the cable design and thus prevent resulting transmission errors.

Under certain circumstances, depending on the cable used and the lengths of the cable runs, an external Mode Conditioning Patch Cord may need to be installed between the Gigabit-LX and the multimode network cable to provide the transmission conditioning. If you experience a high number of transmission errors on those ports, usually CRC or FCS errors, you may need to install one of these patch cords between the fiber-optic port in your switch and your multimode fiber-optic network cabling, at both ends of the network link.

The patch cord consists of a short length of single mode fiber cable coupled to graded-index multimode fiber cable on the transmit side, and only multimode cable on the receive side. The section of single mode fiber is connected in such a way that it minimizes the effects of the differential mode delay in the multimode cable.

N o t e

Most of the time, if you are using good quality graded-index multimode fiber cable that adheres to the standards listed in Appendix B, there should not be a need to use mode conditioning patch cords in your network. This is especially true if the fiber runs in your network are relatively short.

Installing the Patch Cord

As shown in the illustration below, connect the patch cord to the ProCurve transceiver with the section of single mode fiber plugged in to the Tx

(transmit) port. Then, connect the other end of the patch cord to your network cabling patch panel, or directly to the network multimode fiber.

If you connect the patch cord directly to the network cabling, you may need to install a female-to-female adapter to allow the cables to be connected together.

A-6

Specifications

Mode Conditioning Patch Cord

Gigabit-LX port

To network multimode cabling

Mode Conditioning

Patch Cord

The multimode cable in the patch cord must match the characteristics of your network cable

Single mode section plugs into Tx port on Gigabit-LX Transceiver or

Gigabit-LX mini-GBIC

Figure A-1. Example: Connecting a Mode Conditioning Patch Cord for Gigabit-LX

Make sure you purchase a patch cord that has appropriate connectors on each end, and has multimode fibers that match the characteristics of the multimode fiber in your network. Most important, the core diameter of the multimode patch cord must match the core diameter of the multimode cable infrastructure (either 50 or 62.5 microns).

A-7

Specifications

Twisted-Pair Cable/Connector Pin-Outs

N o t e

Twisted-Pair Cable/Connector Pin-Outs

The Auto-MDIX Feature:

In the default configuration, “Auto”, the fixed 10/

100/1000Base-T ports on the switches all automatically detect the type of port on the connected device and operate as either an MDI or MDI-X port, whichever is appropriate. So for any connection, a straight-through twistedpair cable can be used—you no longer have to use crossover cables, although crossover cables can also be used for any of the connections. (The 10/100/

1000-T ports support the IEEE 802.3ab standard, which includes the “Auto-

MDIX” feature.)

If you connect a switch twisted-pair port to another switch or hub, which typically have MDI-X ports, the switch port automatically operates as an MDI port. If you connect it to an end node, such as a server or PC, which typically have MDI ports, the switch port operates as an MDI-X port. In all cases, you can use standard straight-through cables or crossover cables.

If you happen to use a correctly wired crossover cable, though, the switch will still be able to automatically detect the MDI/MDI-X operation and link correctly to the connected device.

Using Fixed Configurations.

If the port configuration is changed to any of the fixed configurations though, for example 100 Mbps/full duplex, the port operates as MDI-X only and the correct cable type must be used: for connections to MDI ports, such as end nodes, use a straight-through cable; for connections to MDI-X ports, such as on hubs and other switches, use a crossover cable.

Other Wiring Rules:

All twisted-pair wires used for 10 Mbps, and 100 Mbps operation must be twisted through the entire length of the cable. The wiring sequence must conform to EIA/TIA 568-B (not USOC). See “Twisted-Pair Cable Pin

Assignments” later in this appendix for a listing of the signals used on each pin.

For 1000Base-T connections, all four pairs of wires in the cable must be available for data transmission.

■ For 10 Mbps connections to the ports, you can use Category 3, 4, or 5 unshielded twisted-pair cable, as supported by the IEEE 802.3 Type

10Base-T standard.

A-8

Specifications

Twisted-Pair Cable/Connector Pin-Outs

For 100 Mbps connections to the ports, use 100-ohm Category 5 UTP or

STP cable only, as supported by the IEEE 802.3u Type 100Base-TX standard.

For 1000 Mbps connections, 100-ohm Category 5e or better cabling is recommended.

To provide Power over Ethernet to the access point, all 4 pairs must be connected for any network cable attached to this port; the cable must meet ISO/DIS 11801 Class D requirements and IEEE 802.3af requirements.

A-9

Specifications

Twisted-Pair Cable/Connector Pin-Outs

Straight-through Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connections

Because of the Auto-MDIX operation of the 10/100 ports on the switch, for all network connections, to PCs, servers or other end nodes, or to hubs or other switches, you can use straight-through cables.

If any of these ports are given a fixed configuration, for example 100 Mbps/

Full Duplex, the ports operate as MDI-X ports, and straight-through cables must be then used for connections to PC NICs and other MDI ports.

Cable Diagram

.

N o t e

Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2 on connector “B”.

Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6 on connector “B”.

Pins 4, 5, 7, and 8 are not used in this application, although they may be wired in the cable.

Pin Assignments

Switch End (MDI-X)

Signal

receive + receive transmit + transmit -

Pins

3

6

1

2

3

6

1

2

Computer, Transceiver, or

Other End

Pins Signal

transmit + transmit receive + receive -

A-10

Specifications

Twisted-Pair Cable/Connector Pin-Outs

Crossover Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connection

The Auto-MDIX operation of the 10/100 ports on the switch also allows you to use crossover cables for all network connections, to PCs, servers or other end nodes, or to hubs or other switches.

If any of these ports are given a fixed configuration, for example 100 Mbps/

Full Duplex, the ports operate as MDI-X ports, and crossover cables must be then used for connections to hubs or switches or other MDI-X network devices.

Cable Diagram

N o t e

Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 3 and 6 on connector “B”.

Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 1 and 2 on connector “B”.

Pins 4, 5, 7, and 8 are not used in this application, although they may be wired in the cable.

Pin Assignments

Switch End (MDI-X)

Signal

receive + receive transmit + transmit -

Pins

3

6

1

2

2

1

6

3

Hub or Switch Port, or Other

MDI-X Port End

Pins Signal

transmit transmit + receive receive +

A-11

Specifications

Twisted-Pair Cable/Connector Pin-Outs

Straight-Through Twisted-Pair Cable for

1000 Mbps Network Connections

1000Base-T connections require that all four pairs of wires be connected.

Cable Diagram

.

N o t e

Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2 on connector “B”.

Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6 on connector “B”.

Pins 4 and 5 on connector “A” must be wired as a twisted pair to pins 4 and 5 on connector “B”.

Pins 7 and 8 on connector “A” must be wired as a twisted pair to pins 7 and 8 on connector “B”.

Pin Assignments

For 1000Base-T operation, all four pairs of wires are used for both transmit and receive.

A-12

B

Safety and EMC Regulatory Statements

Safety Information

!

WARNING

Caution

Documentation reference symbol. If the product is marked with this symbol, refer to the product documentation to get more information about the product.

A WARNING in the manual denotes a hazard that can cause injury or death.

A Caution in the manual denotes a hazard that can damage equipment.

Do not proceed beyond a WARNING or Caution notice until you have understood the hazardous conditions and have taken appropriate steps.

Grounding

These are safety class I products and have protective earthing terminals. There must be an uninterruptible safety earth ground from the main power source to the product's input wiring terminals, power cord, or supplied power cord set. Whenever it is likely that the protection has been impaired, disconnect the power cord until the ground has been restored.

For LAN cable grounding:

■ If your LAN covers an area served by more than one power distribution system, be sure their safety grounds are securely interconnected.

■ LAN cables may occasionally be subject to hazardous transient voltages (such as lightning or disturbances in the electrical utilities power grid). Handle exposed metal components of the network with caution.

Servicing

There are no user-serviceable parts inside these products. Any servicing, adjustment, maintenance, or repair must be performed only by service-trained personnel.

These products do not have a power switch; they are powered on when the power cord is plugged in.

B-1

Safety and EMC Regulatory Statements

Informations concernant la sécurité

Informations concernant la sécurité

!

WARNING

Caution

Symbole de référence à la documentation. Si le produit est marqué de ce symbole, reportez-vous à la documentation du produit afin d'obtenir des informations plus détaillées.

Dans la documentation, un WARNING indique un danger susceptible d'entraîner des dommages corporels ou la mort.

Un texte de mise en garde intitulé Caution indique un danger susceptible de causer des dommages à l'équipement.

Ne continuez pas au-delà d'une rubrique WARNING ou Caution avant d'avoir bien compris les conditions présentant un danger et pris les mesures appropriées.

Cet appareil est un produit de classe I et possède une borne de mise à la terre. La source d'alimentation principale doit être munie d'une prise de terre de sécurité installée aux bornes du câblage d'entrée, sur le cordon d'alimentation ou le cordon de raccordement fourni avec le produit. Lorsque cette protection semble avoir été endommagée, débrancher le cordon d'alimentation jusqu'à ce que la mise à la terre ait été réparée.

Mise à la terre du câble de réseau local:

■ si votre réseau local s'étend sur une zone desservie par plus d'un système de distribution de puissance, assurez-vous que les prises de terre de sécurité soient convenablement interconnectées.

Les câbles de réseaux locaux peuvent occasionnellement être soumis à des surtensions transitoires dangereuses (telles que la foudre ou des perturbations dans le réseau d'alimentation public). Manipulez les composants métalliques du réseau avec précautions.

Aucune pièce contenue à l'intérieur de ce produit ne peut être réparée par l'utilisateur.

Tout dépannage, réglage, entretien ou réparation devra être confié exclusivement à un personnel qualifié.

Cet appareil ne comporte pas de commutateur principal; la mise sous tension est effectuée par branchement du cordon d'alimentation.

B-2

Safety and EMC Regulatory Statements

Hinweise zur Sicherheit

Hinweise zur Sicherheit

!

WARNING

Caution

Symbol für Dokumentationsverweis. Wenn das Produkt mit diesem

Symbol markiert ist, schlagen Sie bitte in der Produktdokumentation nach, um mehr Informationen über das Produkt zu erhalten.

Eine WARNING in der Dokumentation symbolisiert eine Gefahr, die

Verletzungen oder sogar Todesfälle verursachen kann.

Caution in der Dokumentation symbolisiert eine Gefahr, die dis Gerät beschädigen kann.

Fahren Sie nach dem Hinweis WARNING oder Caution erst fort, nachdem Sie den Gefahrenzustand verstanden und die entsprechenden Maßnahmen ergriffen haben.

Dies ist ein Gerät der Sicherheitsklasse I und verfügt über einen schützenden Erdungsterminal. Der Betrieb des Geräts erfordert eine ununterbrochene Sicherheitserdung von der Hauptstromquelle zu den Geräteingabeterminals, den Netzkabeln oder dem mit Strom belieferten Netzkabelsatz voraus. Sobald Grund zur Annahme besteht, daß der Schutz beeinträchtigt worden ist, das Netzkabel aus der Wandsteckdose herausziehen, bis die Erdung wiederhergestellt ist.

Für LAN-Kabelerdung:

Wenn Ihr LAN ein Gebiet umfaßt, das von mehr als einem Stromverteilungssystem beliefert wird, müssen Sie sich vergewissern, daß die

Sicherheitserdungen fest untereinander verbunden sind.

LAN-Kabel können gelegentlich gefährlichen Übergangsspannungen ausgesetzt werden (beispielsweise durch Blitz oder Störungen in dem

Starkstromnetz des Elektrizitätswerks). Bei der Handhabung exponierter

Metallbestandteile des Netzwerkes Vorsicht walten lassen.

Dieses Gerät enthält innen keine durch den Benutzer zu wartenden Teile. Wartungs-,

Anpassungs-, Instandhaltungs- oder Reparaturarbeiten dürfen nur von geschultem

Bedienungspersonal durchgeführt werden.

Dieses Gerät hat keinen Netzschalter; es wird beim Anschließen des Netzkabels eingeschaltet.

B-3

Safety and EMC Regulatory Statements

Considerazioni sulla sicurezza

Considerazioni sulla sicurezza

!

WARNING

Caution

Simbolo di riferimento alla documentazione. Se il prodotto è contrassegnato da questo simbolo, fare riferimento alla documentazione sul prodotto per ulteriori informazioni su di esso.

La dicitura WARNINGdenota un pericolo che può causare lesioni o morte.

La dicituraCaution denota un pericolo che può danneggiare le attrezzature.

Non procedere oltre un avviso di WARNING o di Cautionprima di aver compreso le condizioni di rischio e aver provveduto alle misure del caso.

Questo prodotto è omologato nella classe di sicurezza I ed ha un terminale protettivo di collegamento a terra. Dev'essere installato un collegamento a terra di sicurezza, non interrompibile che vada dalla fonte d'alimentazione principale ai terminali d'entrata, al cavo d'alimentazione oppure al set cavo d'alimentazione fornito con il prodotto.

Ogniqualvolta vi sia probabilità di danneggiamento della protezione, disinserite il cavo d'alimentazione fino a quando il collegaento a terra non sia stato ripristinato.

Per la messa a terra dei cavi LAN:

■ se la vostra LAN copre un'area servita da più di un sistema di distribuzione elettrica, accertatevi che i collegamenti a terra di sicurezza siano ben collegati fra loro; i cavi LAN possono occasionalmente andare soggetti a pericolose tensioni transitorie (ad esempio, provocate da lampi o disturbi nella griglia d'alimentazione della società elettrica); siate cauti nel toccare parti esposte in metallo della rete.

Nessun componente di questo prodotto può essere riparato dall'utente. Qualsiasi lavoro di riparazione, messa a punto, manutenzione o assistenza va effettuato esclusivamente da personale specializzato.

Questo apparato non possiede un commutatore principale; si mette scotto tensione all'inserirsi il cavo d'alimentazione.

B-4

Safety and EMC Regulatory Statements

Consideraciones sobre seguridad

Consideraciones sobre seguridad

!

WARNING

Caution

Símbolo de referencia a la documentación. Si el producto va marcado con este símbolo, consultar la documentación del producto a fin de obtener mayor información sobre el producto.

Una WARNING en la documentación señala un riesgo que podría resultar en lesiones o la muerte.

Una Caution en la documentación señala un riesgo que podría resultar en averías al equipo.

No proseguir después de un símbolo de WARNING o Caution hasta no haber entendido las condiciones peligrosas y haber tomado las medidas apropiadas.

Este aparato se enmarca dentro de la clase I de seguridad y se encuentra protegido por una borna de puesta a tierra. Es preciso que exista una puesta a tierra continua desde la toma de alimentación eléctrica hasta las bornas de los cables de entrada del aparato, el cable de alimentación o el juego de cable de alimentación suministrado. Si existe la probabilidad de que la protección a tierra haya sufrido desperfectos, desenchufar el cable de alimentación hasta haberse subsanado el problema.

Puesta a tierra del cable de la red local (LAN):

Si la LAN abarca un área cuyo suministro eléctrico proviene de más de una red de distribución de electricidad, cerciorarse de que las puestas a tierra estén conectadas entre sí de modo seguro.

Es posible que los cables de la LAN se vean sometidos de vez en cuando a voltajes momentáneos que entrañen peligro (rayos o alteraciones en la red de energía eléctrica). Manejar con precaución los componentes de metal de la LAN que estén al descubierto.

Este aparato no contiene pieza alguna susceptible de reparación por parte del usuario.

Todas las reparaciones, ajustes o servicio de mantenimiento debe realizarlos solamente el técnico.

Este producto no tiene interruptor de potencia; se activa cuando se enchufa el cable de alimentación.

B-5

Safety and EMC Regulatory Statements

Safety Information (Japan)

Safety Information (Japan)

J a p a n P o w e r

C o r d W a r n i n g

B-6

Safety and EMC Regulatory Statements

Safety Information (China)

Safety Information (China)

B-7

Safety and EMC Regulatory Statements

EMC Regulatory Statements

EMC Regulatory Statements

U.S.A.

FCC Class A

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. Operation of this equipment in a residential area may cause interference in which case the user will be required to correct the interference at his own expense.

Canada

This product complies with Class A Canadian EMC requirements.

Australia/New Zealand

This product complies with Australia/New Zealand EMC Class A requirements.

Japan

VCCI Class A

B-8

Korea

Taiwan

Safety and EMC Regulatory Statements

EMC Regulatory Statements

B-9

Safety and EMC Regulatory Statements

EMC Regulatory Statements

European Community

DECLARATION OF CONFORMITY

according to ISO/IEC 17050-1 and EN17050-1

______________________________________________________________________

Supplier's Name: Hewlett-Packard Company

Supplier's Address:

8000 Foothills Blvd.

Roseville, CA 95747-5502

U.S.A.

DOC#: RSVLC-0805_14012010

declares, that the product

Product Name

2

:

ProCurve 2520-8-POE Switch, ProCurve 2520G-8-POE Switch,

ProCurve 2615-8-PoE Switch, and ProCurve 2915-8G-PoE Switch

Product Model(s): J9137A, J9298A, J9565A, and J9562A

Regulatory Model Number

1

: RSVLC-0805

Product Options

: 5070-6082 Power Adapter

.

conforms to the following Product Specifications and Regulations:

EMC: Class A

EN 55022:2006 +A1 :2007

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2006

EN 61000-3-3:1995 +A1:2001 +A2 :2005

FCC CFR47 Part 15 2008

Safety:

EN 60950-1:2006

IEC 60950-1:2005

EN 60825-1:1994 +A1+A2 / IEC 60825-1:1993 +A2 Class 1

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and, (2) this device must accept any interference received, including interference that may cause undesired operation.

The product herewith complies with the requirements of the Low Voltage Directive 2006/95/EC, the EMC

Directive 2004/108/EC, and carries the CE-marking accordingly.

Additional Information:

1) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The

Regulatory Model Number is the main product identifier in the regulatory documentation and test reports. This number should not be confused with the marketing name or the product numbers.

2) This product was tested with HP branded products only.

Roseville, 14-January-2010

European Contact: Your local Hewlett-Packard Sales and Service Office or Hewlett-Packard GmbH, Department HQ-

TRE, Herrenberger Straße 140, D-71034 Böblingen (FAX: + 49-7031-14-3143)

B-10

D

Recycle Statements

Waste Electrical and Electronic

Equipment (WEEE) Statements

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Likvidace zařízení soukromými domácími uživateli v Evropské unii

Tento symbol na produktu nebo balení označuje výrobek, který nesmí být vyhozen spolu s ostatním domácím odpadem. Povinností uživatele je předat takto označený odpad na předem určené sběrné místo pro recyklaci elektrických a elektronických zařízení. Okamžité třídění a recyklace odpadu pomůže uchovat přírodní prostředí a zajistí takový způsob recyklace, který ochrání zdraví a životní prostředí člověka. Další informace o možnostech odevzdání odpadu k recyklaci získáte na příslušném obecním nebo městském úřadě, od firmy zabývající se sběrem a svozem odpadu nebo v obchodě, kde jste produkt zakoupili.

Bortskaffelse af affald fra husstande i den Europæiske Union

Hvis produktet eller dets emballage er forsynet med dette symbol, angiver det, at produktet ikke må bortskaffes med andet almindeligt husholdningsaffald. I stedet er det dit ansvar at bortskaffe kasseret udstyr ved at aflevere det på den kommunale genbrugsstation, der forestår genvinding af kasseret elektrisk og elektronisk udstyr. Den centrale modtagelse og genvinding af kasseret udstyr i forbindelse med bortskaffelsen bidrager til bevarelse af naturlige ressourcer og sikrer, at udstyret genvindes på en måde, der beskytter både mennesker og miljø. Yderligere oplysninger om, hvor du kan aflevere kasseret udstyr til genvinding, kan du få hos kommunen, den lokale genbrugsstation eller i den butik, hvor du købte produktet.

Seadmete jäätmete kõrvaldamine eramajapidamistes Euroopa Liidus

See tootel või selle pakendil olev sümbol näitab, et kõnealust toodet ei tohi koos teiste majapidamisjäätmetega kõrvaldada. Teie kohus on oma seadmete jäätmed kõrvaldada, viies need elektri- ja elektroonikaseadmete jäätmete ringlussevõtmiseks selleks ettenähtud kogumispunkti. Seadmete jäätmete eraldi kogumine ja ringlussevõtmine kõrvaldamise ajal aitab kaitsta loodusvarasid ning tagada, et ringlussev-

õtmine toimub viisil, mis kaitseb inimeste tervist ning keskkonda. Lisateabe saamiseks selle kohta, kuhu oma seadmete jäätmed ringlussevõtmiseks viia, võtke palun ühendust oma kohaliku linnakantselei, majapidamisjäätmete kõrvaldamise teenistuse või kauplusega, kust Te toote ostsite.

D-1

Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements

Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella

Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei saa hävittää kotitalousjätteiden mukana.

Tällöin hävitettävä laite on toimitettava sähkölaitteiden ja elektronisten laitteiden kierrätyspisteeseen.

Hävitettävien laitteiden erillinen käsittely ja kierrätys auttavat säästämään luonnonvaroja ja varmistamaan, että laite kierrätetään tavalla, joka estää terveyshaitat ja suojelee luontoa. Lisätietoja paikoista, joihin hävitettävät laitteet voi toimittaa kierrätettäväksi, saa ottamalla yhteyttä jätehuoltoon tai liikkeeseen, josta tuote on ostettu.

Élimination des appareils mis au rebut par les ménages dans l'Union européenne

Le symbole apposé sur ce produit ou sur son emballage indique que ce produit ne doit pas être jeté avec les déchets ménagers ordinaires. Il est de votre responsabilité de mettre au rebut vos appareils en les déposant dans les centres de collecte publique désignés pour le recyclage des équipements électriques et électroniques. La collecte et le recyclage de vos appareils mis au rebut indépendamment du reste des déchets contribue à la préservation des ressources naturelles et garantit que ces appareils seront recyclés dans le respect de la santé humaine et de l'environnement. Pour obtenir plus d'informations sur les centres de collecte et de recyclage des appareils mis au rebut, veuillez contacter les autorités locales de votre région, les services de collecte des ordures ménagères ou le magasin dans lequel vous avez acheté ce produit.

Entsorgung von Altgeräten aus privaten Haushalten in der EU

Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das Produkt nicht über den normalen Hausmüll entsorgt werden darf. Benutzer sind verpflichtet, die Altgeräte an einer Rücknahmestelle für Elektro- und Elektronik-Altgeräte abzugeben. Die getrennte Sammlung und ordnungsgemäße Entsorgung Ihrer Altgeräte trägt zur Erhaltung der natürlichen Ressourcen bei und garantiert eine Wiederverwertung, die die Gesundheit des Menschen und die Umwelt schützt. Informationen dazu, wo Sie Rücknahmestellen für Ihre Altgeräte finden, erhalten Sie bei Ihrer Stadtverwaltung, den örtlichen

Müllentsorgungsbetrieben oder im Geschäft, in dem Sie das Gerät erworben haben

Απόρριψη άχρηστου εξοπλισμού από χρήστες σε ιδιωτικά νοικοκυριά στην Ευρωπαϊκή

Ένωση

Το σύμβολο αυτό στο προϊόν ή τη συσκευασία του υποδεικνύει ότι το συγκεκριμένο προϊόν δεν

πρέπει να διατίθεται μαζί με τα άλλα οικιακά σας απορρίμματα. Αντίθετα, είναι δική σας ευθύνη να

απορρίψετε τον άχρηστο εξοπλισμό σας παραδίδοντάς τον σε καθορισμένο σημείο συλλογής για την

ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισμού. Η ξεχωριστή συλλογή και

ανακύκλωση του άχρηστου εξοπλισμού σας κατά την απόρριψη θα συμβάλει στη διατήρηση των

φυσικών πόρων και θα διασφαλίσει ότι η ανακύκλωση γίνεται με τρόπο που προστατεύει την

ανθρώπινη υγεία και το περιβάλλον. Για περισσότερες πληροφορίες σχετικά με το πού μπορείτε να

παραδώσετε τον άχρηστο εξοπλισμό σας για ανακύκλωση, επικοινωνήστε με το αρμόδιο τοπικό

γραφείο, την τοπική υπηρεσία διάθεσης οικιακών απορριμμάτων ή το κατάστημα όπου αγοράσατε το

προϊόν.

Készülékek magánháztartásban történő selejtezése az Európai Unió területén

A készüléken, illetve a készülék csomagolásán látható azonos szimbólum annak jelzésére szolgál, hogy a készülék a selejtezés során az egyéb háztartási hulladéktól eltérő módon kezelendő. A vásárló a hulladékká vált készüléket köteles a kijelölt gyűjtőhelyre szállítani az elektromos és elektronikai készülékek újrahasznosítása céljából. A hulladékká vált készülékek selejtezéskori begyűjtése és újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, valamint biztosítja a selejtezett termékek környezetre és emberi egészségre nézve biztonságos feldolgozását.

A begyűjtés pontos helyéről bővebb tájékoztatást a lakhelye szerint illetékes önkormányzattól, az illetékes szemételtakarító vállalattól, illetve a terméket elárusító helyen kaphat.

D-2

Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements

Smaltimento delle apparecchiature da parte di privati nel territorio dell'Unione Europea

Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto non può essere smaltito insieme ai rifiuti domestici. È responsabilità dell'utente smaltire le apparecchiature consegnandole presso un punto di raccolta designato al riciclo e allo smaltimento di apparecchiature elettriche ed elettroniche. La raccolta differenziata e il corretto riciclo delle apparecchiature da smaltire permette di proteggere la salute degli individui e l'ecosistema. Per ulteriori informazioni relative ai punti di raccolta delle apparecchiature, contattare l'ente locale per lo smaltimento dei rifiuti, oppure il negozio presso il quale è stato acquistato il prodotto.

Nolietotu iekārtu iznīcināšanas noteikumi lietotājiem Eiropas Savienības privātajās mājsaimniecībās

Šāds simbols uz izstrādājuma vai uz tā iesaiņojuma norāda, ka šo izstrādājumu nedrīkst izmest kopā ar citiem sadzīves atkritumiem. Jūs atbildat par to, lai nolietotās iekārtas tiktu nodotas speciāli iekārtotos punktos, kas paredzēti izmantoto elektrisko un elektronisko iekārtu savākšanai otrreizējai pārstrādei.

Atsevišķa nolietoto iekārtu savākšana un otrreizējā pārstrāde palīdzēs saglabāt dabas resursus un garantēs, ka šīs iekārtas tiks otrreizēji pārstrādātas tādā veidā, lai pasargātu vidi un cilvēku veselību.

Lai uzzinātu, kur nolietotās iekārtas var izmest otrreizējai pārstrādei, jāvēršas savas dzīves vietas pašvaldībā, sadzīves atkritumu savākšanas dienestā vai veikalā, kurā izstrādājums tika nopirkts.

Vartotojų iš privačių namų ūkių įrangos atliekų šalinimas Europos Sąjungoje

Šis simbolis ant gaminio arba jo pakuotės rodo, kad šio gaminio šalinti kartu su kitomis namų ūkio atliekomis negalima. Šalintinas įrangos atliekas privalote pristatyti į specialią surinkimo vietą elektros ir elektroninės įrangos atliekoms perdirbti. Atskirai surenkamos ir perdirbamos šalintinos įrangos atliekos padės saugoti gamtinius išteklius ir užtikrinti, kad jos bus perdirbtos tokiu būdu, kuris nekenkia žmonių sveikatai ir aplinkai. Jeigu norite sužinoti daugiau apie tai, kur galima pristatyti perdirbtinas įrangos atliekas, kreipkitės į savo seniūniją, namų ūkio atliekų šalinimo tarnybą arba parduotuvę, kurioje įsigijote gaminį.

Verwijdering van afgedankte apparatuur door privé-gebruikers in de Europese Unie

Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden gedeponeerd bij het normale huishoudelijke afval. U bent zelf verantwoordelijk voor het inleveren van uw afgedankte apparatuur bij een inzamelingspunt voor het recyclen van oude elektrische en elektronische apparatuur.

Door uw oude apparatuur apart aan te bieden en te recyclen, kunnen natuurlijke bronnen worden behouden en kan het materiaal worden hergebruikt op een manier waarmee de volksgezondheid en het milieu worden beschermd. Neem contact op met uw gemeente, het afvalinzamelingsbedrijf of de winkel waar u het product hebt gekocht voor meer informatie over inzamelingspunten waar u oude apparatuur kunt aanbieden voor recycling.

Pozbywanie się zużytego sprzętu przez użytkowników w prywatnych gospodarstwach domowych w Unii Europejskiej

Ten symbol na produkcie lub jego opakowaniu oznacza, że produktu nie wolno wyrzucać do zwykłych pojemników na śmieci. Obowiązkiem użytkownika jest przekazanie zużytego sprzętu do wyznaczonego punktu zbiórki w celu recyklingu odpadów powstałych ze sprzętu elektrycznego i elektronicznego. Osobna zbiórka oraz recykling zużytego sprzętu pomogą w ochronie zasobów naturalnych i zapewnią ponowne wprowadzenie go do obiegu w sposób chroniący zdrowie człowieka i środowisko. Aby uzyskać więcej informacji o tym, gdzie można przekazać zużyty sprzęt do recyklingu, należy się skontaktować z urzędem miasta, zakładem gospodarki odpadami lub sklepem, w którym zakupiono produkt.

D-3

Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements

Descarte de Lixo Elétrico na Comunidade Européia

Este símbolo encontrado no produto ou na embalagem indica que o produto não deve ser descartado no lixo doméstico comum. É responsabilidade do cliente descartar o material usado (lixo elétrico), encaminhando-o para um ponto de coleta para reciclagem. A coleta e a reciclagem seletivas desse tipo de lixo ajudarão a conservar as reservas naturais; sendo assim, a reciclagem será feita de uma forma segura, protegendo o ambiente e a saúde das pessoas. Para obter mais informações sobre locais que reciclam esse tipo de material, entre em contato com o escritório da HP em sua cidade, com o serviço de coleta de lixo ou com a loja em que o produto foi adquirido.

Likvidácia vyradených zariadení v domácnostiach v Európskej únii

Symbol na výrobku alebo jeho balení označuje, že daný výrobok sa nesmie likvidovať s domovým odpadom. Povinnosťou spotrebiteľa je odovzdať vyradené zariadenie v zbernom mieste, ktoré je určené na recykláciu vyradených elektrických a elektronických zariadení. Separovaný zber a recyklácia vyradených zariadení prispieva k ochrane prírodných zdrojov a zabezpečuje, že recyklácia sa vykonáva spôsobom chrániacim ľudské zdravie a životné prostredie. Informácie o zberných miestach na recykláciu vyradených zariadení vám poskytne miestne zastupiteľstvo, spoločnosť zabezpečujúca odvoz domového odpadu alebo obchod, v ktorom ste si výrobok zakúpili.

Odstranjevanje odslužene opreme uporabnikov v zasebnih gospodinjstvih v Evropski uniji

Ta znak na izdelku ali njegovi embalaži pomeni, da izdelka ne smete odvreči med gospodinjske odpadke. Nasprotno, odsluženo opremo morate predati na zbirališče, pooblaščeno za recikliranje odslužene električne in elektronske opreme. Ločeno zbiranje in recikliranje odslužene opreme prispeva k ohranjanju naravnih virov in zagotavlja recikliranje te opreme na zdravju in okolju neškodljiv način. Za podrobnejše informacije o tem, kam lahko odpeljete odsluženo opremo na recikliranje, se obrnite na pristojni organ, komunalno službo ali trgovino, kjer ste izdelek kupili.

Eliminación de residuos de equipos eléctricos y electrónicos por parte de usuarios particulares en la

Unión Europea

Este símbolo en el producto o en su envase indica que no debe eliminarse junto con los desperdicios generales de la casa. Es responsabilidad del usuario eliminar los residuos de este tipo depositándolos en un "punto limpio" para el reciclado de residuos eléctricos y electrónicos. La recogida y el reciclado selectivos de los residuos de aparatos eléctricos en el momento de su eliminación contribuirá a conservar los recursos naturales y a garantizar el reciclado de estos residuos de forma que se proteja el medio ambiente y la salud. Para obtener más información sobre los puntos de recogida de residuos eléctricos y electrónicos para reciclado, póngase en contacto con su ayuntamiento, con el servicio de eliminación de residuos domésticos o con el establecimiento en el que adquirió el producto.

Bortskaffande av avfallsprodukter från användare i privathushåll inom Europeiska Unionen

Om den här symbolen visas på produkten eller förpackningen betyder det att produkten inte får slängas på samma ställe som hushållssopor. I stället är det ditt ansvar att bortskaffa avfallet genom att

överlämna det till ett uppsamlingsställe avsett för återvinning av avfall från elektriska och elektroniska produkter. Separat insamling och återvinning av avfallet hjälper till att spara på våra naturresurser och gör att avfallet återvinns på ett sätt som skyddar människors hälsa och miljön. Kontakta ditt lokala kommunkontor, din närmsta återvinningsstation för hushållsavfall eller affären där du köpte produkten för att få mer information om var du kan lämna ditt avfall för återvinning.

D-4

Index

Numerics

10/100Base-TX ports

location on switch … 1-3

1000Base-BX … A-5 fiber-optic cable specifications … A-5

1000Base-LH … A-5 fiber-optic cable specifications … A-5

1000Base-T

1000Base-T

fiber-optic cable specifications … A-5

A

AC power connector

location on back of switch … 1-8

acoustic specifications … A-2

auto MDI/MDI-X operation … A-10, A-12

HP Auto-MDIX feature … A-8

B

back of switch

description … 1-8 power connector … 1-8

backbone switch

topology with … 2-25

basic switch configuration

IP address … 3-2 manager password … 3-2 subnet mask … 3-2

Switch Setup screen … 3-2

basic troubleshooting tips … 4-1

Bootp

automatic switch configuration … 3-1

for in-band access … 2-20

BTU ratings … A-2

buttons

Clear button … 1-7

Reset button … 1-7

C

cabinet

mounting the switch in … 2-8

cables

connecting cables to switch ports … 2-17

effects of non-standard cables … 4-2

infrastructure requirements … 2-5

serial, for direct console connection … 2-21

cables, twisted pair

category 3, 4, 5 … A-8

cross-over cable pin-out … A-11

MDI-X to MDI connections … A-10, A-12

MDI-X to MDI-X connections … A-11

pin-outs … A-10, A-12 straight-through cable pin-out … A-10, A-12 switch-to-computer connection … A-10, A-12

switch-to-switch or hub connection … A-11

cables, twisted-pair

HP Auto-MDIX feature … A-8 wiring rules … A-8 cables, twisted-pair connector pin-outs … A-8

cabling infrastructure … 2-5

Clear button

deleting passwords … 1-7 description … 1-7 location on switch … 1-3, 1-7 restoring factory default configuration … 1-7,

4-12

to delete password protection … 3-4

CLI prompt, console

displaying … 2-21

configuration

checking when troubleshooting … 4-3

DHCP/Bootp … 3-1

IP address … 3-2

IP address, manually … 3-2 manager password … 3-2

restoring factory defaults … 1-7, 4-12

subnet mask … 3-2

Switch Setup screen … 3-2

connecting the switch to a power source … 2-15

Index – 1

console

checking messages during troubleshooting … 4-10

displaying the CLI prompt … 2-21

features … 2-20 how to connect in-band … 2-20 how to connect out-of-band … 2-20

serial cable connection … 2-21

Switch Setup screen … 3-2

Telnet access … 3-5

terminal configuration … 2-20

console port

definition … 1-7

location on switch … 1-3

cross-over cable

pin-out … A-11

D

deleting passwords … 1-7

description

back of switch … 1-8

front of switch … 1-3

LEDs … 1-4

switch … 1-1

desktop switch

sample topology … 2-22

DHCP

automatic switch configuration … 3-1

for in-band access … 2-20

diagnostic tests … 4-10 checking the console messages … 4-10 checking the LEDs … 4-10

end-to-end connectivity … 4-11

testing the switch only … 4-10

testing twisted-pair cabling … 4-11

downloading new switch software … 4-13

E

electrical specifications, switch … A-1

EMC regulatory statements … B-8

environmental specifications

BTU ratings … A-2

environmental specifications, switch … A-1

F

factory default configuration, restoring … 1-7, 4-12

Fault LED … 1-4

behavior during self test … 2-7

behaviors … 1-4

flashing definition … 1-4–1-5

location on switch … 1-3

showing error conditions … 4-4

features

console … 2-20

switch … 1-9

fiber-optic cables

1000Base-BX … A-5

1000Base-LH … A-5

1000Base-T … A-5

flashing LEDs

error indications … 4-4

front of switch … 1-3

10/100Base-TX ports … 1-3

Clear button … 1-7

description … 1-3

LEDs … 1-4

network ports … 1-3

Reset button … 1-7

full-duplex fixed configuration

effects on network connections … 4-1

H

horizontal surface

mounting switch on … 2-12

HP Auto-MDIX

feature description … A-8

I

in-band … 3-1

in-band console access

types of … 2-20

included parts … 2-1

2 – Index

installation

connecting the switch to a power source … 2-15

horizontal surface mounting … 2-12

location considerations … 2-5 network cable requirements … 2-5

precautions … 2-3

rack or cabinet mounting … 2-8

site preparation … 2-5

wall mounting … 2-11

IP address

configuring … 3-2

IP telephones … 2-23

L

LEDs

behavior during self test … 2-7

checking during troubleshooting … 4-10

descriptions of … 1-4

error indications … 4-4

Fault … 1-4

behavior during self test … 2-7

showing error conditions … 4-4

flashing definition … 1-4–1-5

location on switch … 1-3

on switch … 1-4

port

description … 1-5

Power … 1-4

behavior during self test … 2-7

Self Test … 1-4

behavior during self test … 2-7

link test … 4-11

location for the switch, considerations … 2-5

M

MDI-X to MDI network cable … A-10, A-12

MDI-X to MDI-X network cable … A-11

mini-GBICs

slot, location on switch … 1-3

mounting the switch

in a rack or cabinet … 2-8

precautions … 2-3

on a horizontal surface … 2-12

on a wall … 2-11

precautions … 2-11, 2-14

Multiple-Display Port LEDs … 1-6

N

network cables

HP Auto-MDIX feature … A-8

required types … 2-5

twisted-pair connector pin-outs … A-8 twisted-pair, wiring rules … A-8

network devices

connecting to the switch … 2-17

network ports

connecting to … 2-17

location on switch … 1-3 types of … 1-3

non-standard network cables, effects … 4-2

O

out-of-band console access … 3-5

P

parts, included with the switch … 2-1

password

configuring … 3-2

passwords

deleting with the Clear button … 3-4 if you lose the password … 3-4

passwords, deleting … 1-7

physical specifications, switch … A-1

Ping test … 4-11

pin-outs

twisted-pair cables … A-8

PoE LED patterns … 4-8

PoE troubleshooting … 4-8

port configuration

checking when troubleshooting … 4-3

port LEDs

description … 1-5

normal operation … 2-8

ports

10/100Base-TX, location on switch … 1-3

connecting to … 2-17

console … 2-20

HP Auto-MDIX feature … A-8

network connections … 2-17

power connector … 1-8

Index – 3

Power LED … 1-4

behavior during self test … 2-7

behaviors … 1-4

location on switch … 1-3

power source

connecting the switch to … 2-15

Power-over-Ethernet

PoE power … 1-1

precautions

mounting the switch … 2-3 power requirements … 2-3

preparing the installation site … 2-5

Proactive Network tools

diagnostics with … 4-9

R

rack

mounting precautions … 2-3

mounting the switch in … 2-8

recycle statements … D-1

regulatory statements … B-8

Reset button

description … 1-7 location on switch … 1-3, 1-7

restoring factory default configuration … 4-12

resetting the switch

factory default reset … 4-12

location of Reset button … 1-7

troubleshooting procedure … 4-10

S

safety and regulatory statements … B-1

safety specifications … A-2

segment switch

sample topology … 2-23

self test

Fault LED behavior … 2-7

LED behavior during … 2-7

Power LED behavior … 2-7

Self Test LED … 1-4

behavior during factory default reset … 4-12

behavior during self test … 2-7

serial cable

for direct console connection … 2-21

SFP ports … 1-2

slots for mini-GBICs

location on switch … 1-3

specifications

acoustic … A-2

electrical … A-1 environmental … A-1 physical … A-1

safety … A-2

straight-through cable

pin-out … A-10, A-12

subnet mask

configuring … 3-2

switch

connecting to a power source … 2-15

description … 1-1

downloading new software … 4-13

electrical specifications … A-1 environmental specifications … A-1

features … 1-9

front panel description … 1-3

included parts … 2-1

LED descriptions … 1-4

mounting in a rack or cabinet … 2-8

mounting on a wall … 2-11

mounting on horizontal surface … 2-12

physical specifications … A-1

switch operation

verifying after installation … 2-6

Switch Setup screen … 3-2 configuring a subnet mask … 3-2 configuring an IP address … 3-2

field descriptions … 3-3

T

Telnet access to the console … 3-5

terminal configuration … 2-20

testing

checking the console messages … 4-10 checking the LEDs … 4-10 diagnostic tests … 4-10

end-to-end communications … 4-11 link test … 4-11

Ping test … 4-11

switch operation … 4-10

switch-to-device communications … 4-11 twisted-pair cabling … 4-11

4 – Index

tips for troubleshooting … 4-1

topologies

effects of improper topology … 4-2

samples of … 2-22

troubleshooting … 4-1 basic tips … 4-1

checking port configuration … 4-3

checking the console messages … 4-10 checking the LEDs … 4-10

common network problems … 4-1 connecting to fixed full-duplex devices … 4-1

diagnostic tests … 4-10

effects of improper topology … 4-2 effects of non-standard cables … 4-2

link test … 4-11

Ping test … 4-11

Proactive Network tools … 4-9

restoring factory default configuration … 4-12

testing connections to other devices … 4-11 testing end-to-end communications … 4-11

testing the switch … 4-10

testing the twisted-pair cables … 4-11

twisted-pair cable

cross-over cable pin-out … A-11

pin-outs … A-8, A-10, A-12 straight-through cable pin-out … A-10, A-12 switch-to-computer connection … A-10, A-12

switch-to-switch or hub connection … A-11

testing … 4-11

twisted-pair ports

HP Auto-MDIX feature … A-8

V

VT-100 terminal

serial cable connection for … 2-21

W

wall

mounting switch on … 2-11

wiring rules for twisted-pair cables … A-8

Index – 5

ProCurve 5400zl Switches

Installation and Getting Startd Guide

Technology for better business outcomes

To learn more, visit www.hp.com/go/procurve/

© Copyright 2010 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.

HP will not be liable for technical or editorial errors or omissions contained herein.

April 2010

Manual Part Number

5998-0412

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
