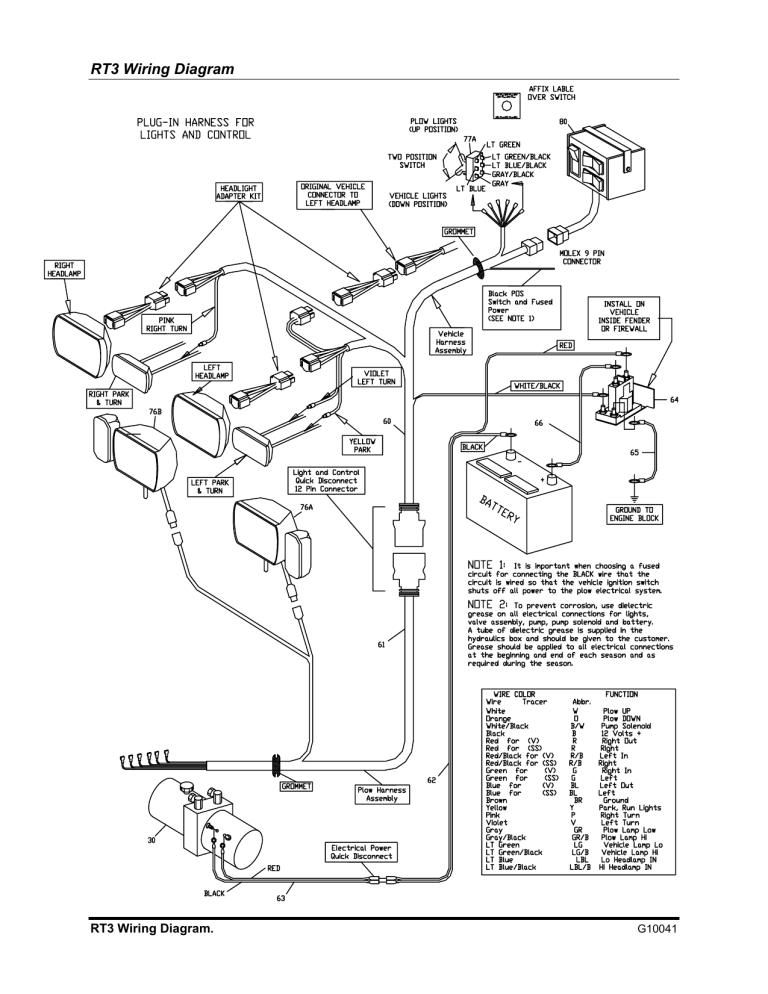

RT3 Wiring Diagram
RT3 Wiring Diagram
PLUG-IN HARNESS FOR PLOW LIGHTS
LIGHTS AND CONTROL
TWO POSITION
SWITCH
ORIGINAL VEHICLE
CONNECTOR TO
LEFT HEADLAMP
HEADLIGHT
ADAPTER KIT
VEHICLE LIGHTS
(DOWN POSITION)
(UP POSITION)
Ш LT GREEN
LT GREEN/BLACK
LT BLUE/BLACK
GRAY/BLACK
T BLUE GRAY
GROMMET
AFFIX LABLE
OVER SWITCH
MOLEX 9 PIN
CONNECTOR
Black POS
Switch and Fused INSTALL ON
Power VEHICLE
(SEE NOTE D INSIDE FENDER
OR FIREWALL
| WHITE/BLACK
Vehicle
р Harness
Assembly
>
VIOLET
LEFT TURN
7
N 60 N
YELLOW
PARK
Light and Control
Quick Disconnect
12 Pin Connector
GROMMET
62
Plow Harness
Assembly
) 7 Electrical Power
Quick Disconnect
X RED
= -
BLACK 63
64
BLACK
& =
97, IS GROUND TO
Ry ENGINE BLOCK
NOTE 1: в important when choosing a fused
circuit for connecting the BLACK wire that the
clrcult Is wired so that the vehicle Ignition switch
shuts off all power to the plow electrical system.
NOTE 2: To prevent corrosion, use dielectric
grease on all electrical connections for lights,
valve assembly, pump, pump solenold and battery.
A tube of dielectric grease Is supplied In the
hydraulics box and should be glven to the customer.
Grease should be applied to all electrical connections
at the beginning and end of each season and as
required during the season.
WIRE COLOR FUNCTION
Vire Tracer Abbr,
White W Plow UP
Orange 0 Plow DOWN
White/Black B/W Pump Solenold
Black B 12 Volts +
Red for (V) R Right Out
Red for (SS) R Right
Red/Black for (V) R/B Left In
Red/Black for (SS) R/B Right
Green for CV) G ht In
Green for SS) a Left
Blue for CV) BL Left Out
Blue for (SS) BL Left
Brown BR Ground
Yellow Park, Run Lights
Pink P Right Turn
Violet Left Turn
Gray GR Plow Lamp Low
Gray/Black GR/B Plow Lamp Hi
LT Green LG Vehicle Lamp Lo
LT Green/Black LG/B Vehicle Lamp HI
LT Blue LBL Lo Headlamp IN
LT Blue/Black LBL/B HI Headlamp IN
RT3 Wiring Diagram.
G10041
