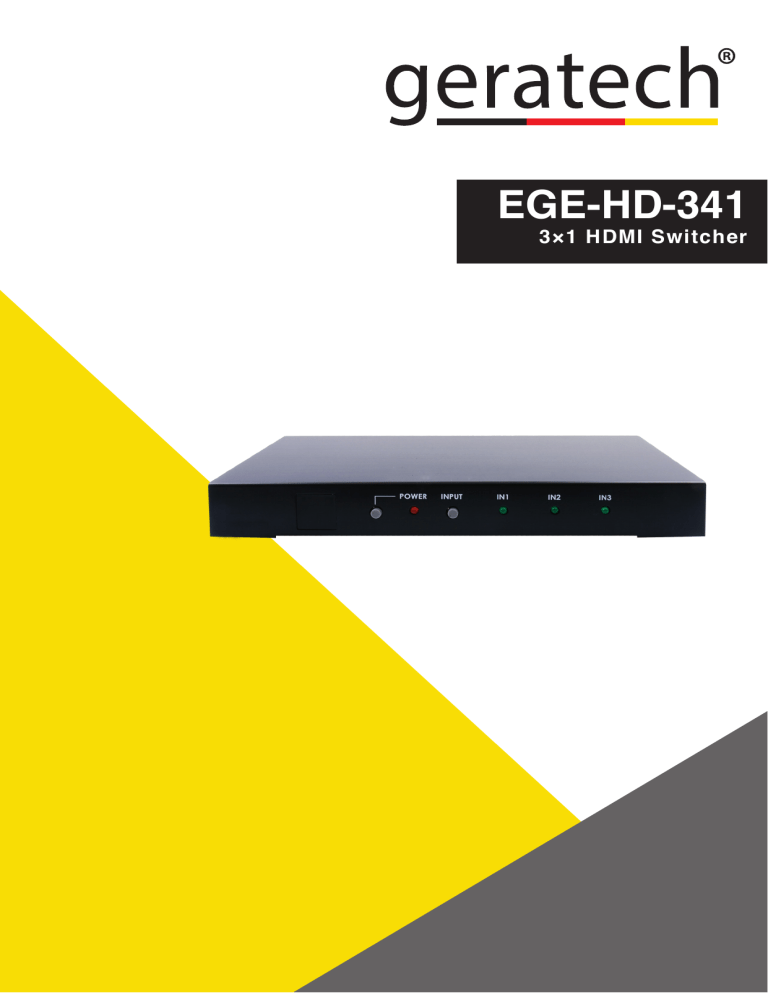

EGE-HD-341

EGE-HD-341

3×1 HDMI Switcher

EGE-HD-341

3×1 HDMI Switcher

EGE-HD-341

3×1 HDMI Switcher

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate.

Geratech assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.

Geratech assumes no responsibility for any inaccuracies that may be contained in this document. Geratech also makes no commitment to update or to keep current the information contained in this document.

Geratech reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means—electronic, mechanical, magnetic, optical, chemical, manual, or otherwise— without express written permission and consent from Geratech.

© Copyright 2011 by Geratech.

All Rights Reserved.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be trademarks of the companies with which they are associated.

EGE-HD-341

3×1 HDMI Switcher

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO.

DATE DD/MM/YY SUMMARY OF CHANGE

VS1 15/04/13 First Release

VR2 13/05/13 Auto Detection Behavior

EGE-HD-341

3×1 HDMI Switcher

CONTENTS

1. Introduction ......................................................................................1

2. Applications .....................................................................................1

3. Package Contents ...........................................................................1

4. System Requirements .....................................................................1

5. Features............................................................................................2

6. Operation Controls and Functions ................................................3

6.1 Front Panel ...................................................................................3

6.2 Rear Panel....................................................................................4

6.3 Remote Control ............................................................................4

7. Connection Diagram .......................................................................5

8. Specifications ..................................................................................6

EGE-HD-341

3×1 HDMI Switcher

1. INTRODUCTION

The HDMI 3 to 1 Switcher allows 3 HDMI sources to be connected to the same HDMI TV/

Monitor input. It has IR, automatic and manual input selection and a 'last memory' function that remembers the last input selection used. The EDID bypass function ensures the best resolution. The switcher is also DVI compatible with the use of DVI to HDMI adaptor.

2. APPLICATIONS

• Share a single TV/Monitor input between three source devices

• Add HDMI inputs to an AV Receiver

• Lecture room presentation

• Public display

• Showroom presentation

3. PACKAGE CONTENTS

• HDMI 3 to 1 Switcher

• 5 V/1 A Power Adaptor

• Remote Control (CR-22)

• Operation Manual

4. SYSTEM REQUIREMENTS

Source equipment such as a Games Consoles, Blu-ray Player (or a PC/Laptop with DVI cables or DVI to HDMI cables) and a monitor or TV with HDMI cables.

1

EGE-HD-341

3×1 HDMI Switcher

5. FEATURES

• HDMI, HDCP 1.1 and DVI 1.0 compliant

• Supports 24/30/36-bit color depth display

• Supports High Definition audio – Dolby Digital TrueHD and DTS-HD Master Audio

• Auto Signal Enhancement that improves signal quality for long distance transmission

• Auto input detection with LED indicators

(When a new incoming source signal is connected, input selection will automatically

switch to that input port)

• Ideal for home theater integration

• EDID bypass

• Supports HDMI 3D signals

• Supports high resolution input:

- PC: VGA, SVGA, XGA, SXGA, UXGA (1600×1200) and 1920×1200

- HDTV: 480i, 480p, 576i, 576p, [email protected]/60, [email protected]/60 and [email protected]/50/60

• Easy to install and simple to operate

• Control via front panel buttons and IR Remote control

• Last memory on power and input selection

2

EGE-HD-341

3×1 HDMI Switcher

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

1

IR Window

IR Receiver window (accepts the remote control signal of this device only).

2

POWER Button and LED

Press this button to turn on the device, the LED will illuminate. Press it again to switch

3

the device into standby mode and the LED will turn off.

INPUT Buttons and LEDs

Press these buttons to switch the source inputs from IN1 to IN3. The LED will illuminate to indicate which input is active.

3

EGE-HD-341

3×1 HDMI Switcher

6.2 Rear Panel

OUTPUT IN3 IN2 IN1

DC 5V

1 2 3

1

OUTPUT

Connect to an HDMI equipped TV/monitor or AV Receiver for display of the selected

2

HDMI source signal.

IN 1/2/3

Connect to the HDMI source equipment such as a Blu-ray player or a Set-top Box with

HDMI cables or DVI to HDMI cables.

3

DC 5V

Connect the 5V DC power supply to the unit and plug the adaptor into an AC outlet.

6.3 Remote Control

1

POWER

Press this button to turn on the device; press it again to switch the

device into standby mode.

2

1~3 Buttons

Direct input selection.

3

4~0 Buttons

These buttons have no function with this device.

CR-22

1

2

3

4

EGE-HD-341

3×1 HDMI Switcher

7. CONNECTION DIAGRAM

Games Console

Set-top Box Blu-ray Player

HDMI

Input

HDMI

Input

OUTPUT IN3 IN2 IN1

DC 5V

HDMI

Output

Power

Supply

HDMI

Input

TV/Monitor

5

EGE-HD-341

3×1 HDMI Switcher

8. SPECIFICATIONS

Video Bandwidth

Input Ports

Output Port

Power Supply

225 MHz/6.75 Gbps

3×HDMI Female Ports (Type A Connector)

1×HDMI Female Port (Type A Connector)

5 V/1 A DC (US/EU standards, CE/FCC/UL certified)

ESD Protection

Dimension

Weight

Chassis material

Silkscreen Color

Human body model:

±8 kV (air-gap discharge)

±4 kV (contact discharge)

200 mm (W)×106 mm (D)×30 mm (H)

266 g

Aluminum

Black

Operating Temperature

0 ˚C~40 ˚C/32 ˚F~104 ˚F

Storage Temperature

−20 ˚C~60 ˚C/−4 ˚F ~ 140 ˚F

Relative Humidity

20~60 % RH (no condensation)

Power Consumption

3.2 W

6
