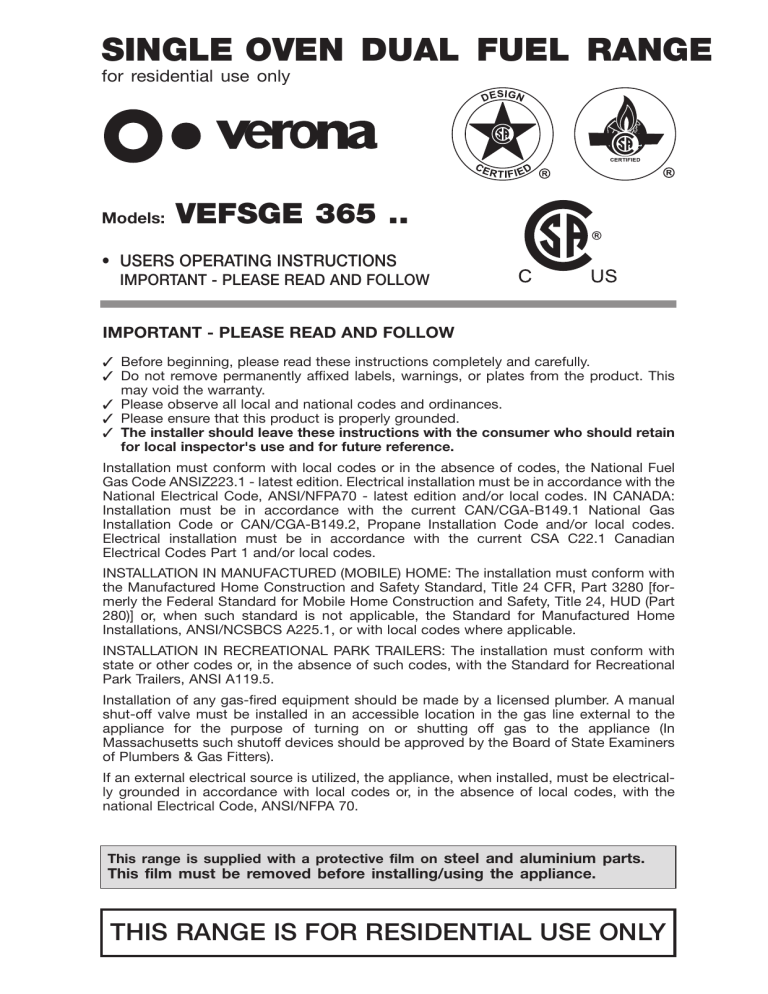

SINGLE OVEN DUAL FUEL RANGE
for residential use only
Models:
VEFSGE 365 ..
• USERS OPERATING INSTRUCTIONS
IMPORTANT - PLEASE READ AND FOLLOW
IMPORTANT - PLEASE READ AND FOLLOW
✓ Before beginning, please read these instructions completely and carefully.
✓ Do not remove permanently affixed labels, warnings, or plates from the product. This
may void the warranty.
✓ Please observe all local and national codes and ordinances.
✓ Please ensure that this product is properly grounded.
✓ The installer should leave these instructions with the consumer who should retain
for local inspector's use and for future reference.
Installation must conform with local codes or in the absence of codes, the National Fuel
Gas Code ANSIZ223.1 - Iatest edition. Electrical installation must be in accordance with the
National Electrical Code, ANSI/NFPA70 - latest edition and/or local codes. IN CANADA:
Installation must be in accordance with the current CAN/CGA-B149.1 National Gas
Installation Code or CAN/CGA-B149.2, Propane Installation Code and/or local codes.
Electrical installation must be in accordance with the current CSA C22.1 Canadian
Electrical Codes Part 1 and/or local codes.
INSTALLATION IN MANUFACTURED (MOBILE) HOME: The installation must conform with
the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 [formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD (Part
280)] or, when such standard is not applicable, the Standard for Manufactured Home
Installations, ANSI/NCSBCS A225.1, or with local codes where applicable.
INSTALLATION IN RECREATIONAL PARK TRAILERS: The installation must conform with
state or other codes or, in the absence of such codes, with the Standard for Recreational
Park Trailers, ANSI A119.5.
Installation of any gas-fired equipment should be made by a Iicensed plumber. A manual
shut-off valve must be installed in an accessible location in the gas line external to the
appliance for the purpose of turning on or shutting off gas to the appliance (In
Massachusetts such shutoff devices should be approved by the Board of State Examiners
of Plumbers & Gas Fitters).
If an external electrical source is utilized, the appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the
national Electrical Code, ANSI/NFPA 70.
This range is supplied with a protective film on steel and aluminium parts.
This film must be removed before installing/using the appliance.
THIS RANGE IS FOR RESIDENTIAL USE ONLY
WARNING
• ALL RANGES CAN TIP
• INJURY TO PERSON COULD RESULT
• INSTALL ANTI-TIP DEVICE PACKED
WITH RANGE
• SEE INSTALLATION INSTRUCTIONS
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT
FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
✓ Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
✓ WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• lmmediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• lf you cannot reach your gas supplier, call the fire department.
✓ Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
2
Dear Customer,
Thank you for having purchased and given your preference to our
product.
The safety precautions and recommendations reported below are for
your own safety and that of others. They will also provide a means by
which to make full use of the features offered by your appliance.
Please preserve this booklet carefully. It may be useful in future, either
to yourself or to others in the event that doubts should arise relating to
its operation.
This appliance must be used only for the task it has explicitly been
designed for, that is for cooking foodstuffs. Any other form of usage is
to be considered as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the event of damage
caused by improper, incorrect or illogical use of the appliance.
WARNING!
The Governor of California is required to publish a list of substances known to the state of California to cause cancer or reproductive harm and requires businesses to warn customers of potential exposures to such substances.
WARNING!: Gas appliances contain or produce substances which can cause death or serious illness and which are known to the
State of California to cause cancer, birth defects or other reproductive harm.
To reduce the risk from substances in fuel or from fuel combustion, make sure this appliance is installed, operated, and maintained
according to the manufacturer's instructions.
This appliance is designed and manufactured solely for the cooking of domestic (household)
food and in not suitable for any none domestic application and therefore should not be used
in a commercial environmement.
The appliance guarantee will be void if the appliance is used within a none domestic
environnement i.e. a semi commercial, commercial or communal environment.
3
USER INSTRUCTIONS
GENERAL INFORMATION
WARNING!!
1. This appliance shall not be used for space heating. This information is based on safety considerations.
ELECTRICAL GROUNDING INSTRUCTIONS
2. AlI openings in the wall behind the appliance and in the floor
under the appliance shall be sealed.
The range must be electrically grounded in accordance
with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA No. 70-latest edition.
Installation should be made by a Iicensed electrician.
3. Keep appliance area clear and free from combustible materials, gasoline, and other flammable vapors.
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
4. Do not obstruct the flow of combustion and ventilation air.
If an external electrical source is utilized, the installation must
be electrically grounded in accordance with local codes or, in
the absence of local codes, with the national Electrical Code,
ANSI/NFPA 70.
5. Disconnect the electrical supply to the appliance before servicing.
6. When removing appliance for cleaning and/or service;
A. Shut off gas at main supply.
B. Disconnect AC power supply.
C. Disconnect gas line to the inlet pipe.
D. Carefully remove the range by pulling outward.
CAUTION: Range is heavy; use care in handling.
7. Electrical Requirement
Electrical installation should comply with national and local
codes.
8. Air Supply and Ventilation
The installer must refers to local/national codes.
9. Gas Manifold Pressure
Natural gas - 4.0” W.C.P.
LP/Propane - 11.0” W.C.P.
10. The misuse of oven door (e.g. stepping, sitting, or leaning
on them) can result in potential hazards and/or injuries.
11. When installing or removing the range for service, a rolling
lift jack should be used. Do not push against any of the
edges of the range in an attempt to slide it into or out of the
installation. Pushing or pulling a range (rather than using a
lift jack) also increases the possibility of bending the leg
spindles or the internal coupling connectors.
4
WARNING!!
REPLACEMENT PARTS
Only authorized replacement parts may be used in performing
service on the range. Replacement parts are available from
factory authorized parts distributors. Contact the nearest parts
distributor in your area.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified technician.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should
not be left around within easy reach of children, as these may cause serious injuries.
.
The packaging material is recyclable and is marked with the recycling symbol
✓ Do not attempt to modify the technical characteristics of the appliance as this may
become dangerous to use.
✓ Do not carry out cleaning or maintenance operations on the appliance without having
previously disconnected it from the electric power supply.
✓ After use, ensure that the knobs are in OFF position.
✓ Do not allow children or other incapable people to use the appliance without supervision.
✓ During and after use of the range, certain parts will become very hot. Do not touch hot
parts.
✓ Keep children away from the range when it is in use.
✓ This range is supplied with a protective film on steel and aluminium parts. This film must
be removed before installing/using the appliance.
✓ Fire risk! Do not store flammable material in the oven, and in the storage compartment.
✓ Make sure that electrical cables connecting other appliances in the proximity of the
range cannot come into contact with the hob or become entrapped in the oven door.
✓ Do not line the oven walls with aluminium foil. Do not place shelves, broiler pan, pans or
other cooking utensils on the base of the oven chamber.
✓ The manufacturer declines all liability for injury to persons or damage to property caused
by incorrect or improper use of the appliance.
✓ To avoid any possible hazard, the appliance must be installed by qualified personnel
only. Any repairs by unqualified persons may result in electric shock or short circuit. In
order to avoid possible injuries to your body or to the appliance, do not attempt any
repairs by yourself. Such work should be carried out by qualified service personnel only.
✓ Danger of burns! The oven and cooking accessories may become very hot during operation. Make sure children are kept out of reach and warn them accordingly. To avoid
burns use kitchen clothes and gloves when handling hot parts or utensils.
✓ Stand away from the range when opening oven door. Hot air or steam which escapes
can cause burns to hands, face, and/or eyes.
✓ Never clean the range, oven and storage compartment with a high-pressure steam
cleaning device, as it may provoke a short circuit.
✓ This appliance is intended for use in your household. Never use the appliance for any
other purpose!
✓ If you should decide not to use this appliance any longer (or decide to substitute an
older model), before disposing of it, it is recommended that it be made inoperative in an
appropriate manner in accordance to health and environmental protection regulations,
ensuring in particular that all potentially hazardous parts be made harmless, especially in
relation to children who could play with old appliances.
Remove the door and the storage compartment pivoting panel before disposal to prevent entrapment.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR
USE OF ELECTRICAL APPLIANCES
Use of any electrical appliance implies the necessity to follow a series of fundamental rules.
In particular:
✓ Never touch the appliance with wet hands or feet;
✓ Do not operate the appliance barefooted;
✓ Do not allow children or disabled people to use the appliance without your supervision.
The manufacturer cannot be held responsible for any damages caused by improper,
incorrect or unreasonable use of the appliance.
5
�
features
Island trim fitted
Backguard fitted
WARNING - VERY IMPORTANT NOTICE
Never obstruct the slots on the backguard / island trim.
1
1
3
2
Fig. 1.1
COOKING HOB
1. Semi-rapid burner (SR) - 6000 BTU/hr
2. Triple-ring burner (TR) - 12000 BTU/hr
3. Dual burner (D) - 16000 BTU/hr (Natural gas),
15000 BTU/hr (LP/Propane)
Note:
- The electric gas-lighting device is incorporated into the
knobs.
- The appliance has a safety valve system fitted, the flow of
gas will be stopped if and when the flame should accidentally go out.
CAUTION:
If the burner is accidentally extinguished, turn the gas off
at the control knob and wait at least 1 minute before
attempting to relight.
CAUTION:
Gas appliances produce heat and humidity in the environment in which they are installed.
Ensure that the cooking area is well ventilated following
national/local codes.
6
2
햲
Fig. 1.2
A
U
T
O
1
2
3
4
5
6
7
8
9
CONTROLS DESCRIPTION
1. Oven thermostat indicator light
2. Multifunction oven switch knob
3. Multifunction oven thermostat knob
4. Front left burner (2) control knob
5. Rear left burner (1) control knob
6. Central dual burner (3) control knob
7. Rear right burner (1) control knob
8. Front right burner (2) control knob
9. Electronic programmer
Please note: This appliance incorporates a safety cooling fan which you will hear
operating whenever the oven or grill are in use.
This fan may continue to run for several minutes after the appliance has been
switched off.
This fan is to reduce the external temperature of the appliance and cool the internal
components.
7
�
how to use the top burners
GAS BURNERS (Semi-rapid and triple ring)
Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 2.1) which
control the valves.
Turning the knob so that the symbols printed on itself point to the symbol printed on
the control panel achieves the following functions:
Knob
position
Function
SEMI-RAPID burner
TRIPLE RING burner
closed
valve
maximum
rate
Fig. 2.1
minimum
rate
The maximum aperture position permits rapid boiling of liquids, whereas the minimum
aperture position allows simmer warming of food or maintaining boiling conditions of
liquids.
To reduce the gas flow to minimum, rotate the knob further anti-clockwise to point the
indicator towards the
position.
Other intermediate operating adjustments can be achieved by positioning the
indicator between the maximum and minimum aperture positions, and never between
the maximum aperture and
Fig. 2.2
8
positions.
N.B. When the range is not being used, set the gas knobs to their OFF positions
and also close the gas shut-off valve placed on the main gas supply line.
햳
LIGHTING GAS BURNERS FITTED WITH FLAME FAILURE
SAFETY DEVICE (Semi-rapid and triple ring)
In order to light the burner, you must:
1 – Push and turn the knob in an anti-clockwise direction up to the
position
(maximum rate), push in and hold the knob until the flame has been lit (fig. 2.2).
The sparks produced by the lighter situated inside the relative burner will light the
flame.
In the event that the local gas supply conditions makes it difficult to light the burner in
position, try again with the knob in
position.
If there is no mains electrical supply, bring a lighted match close to the burner.
2 – Wait for about ten seconds after the gas burner has been lit before letting go the
knob (safety device activation delay).
3 – Adjust the gas valve to the desired position.
If the burner flame should go out for some reason, the safety valve will automatically
stop the gas flow.
To re-light the burner, return the knob to the closed
minute and then repeat the lighting procedure.
position, wait for at least 1
If your local gas supply makes it difficult to light the burner with the knob set to maximum, set the knob to minimum and repeat the operation.
Caution!
The range becomes very hot during operation.
Keep children well out of reach.
9
햳
GAS BURNERS (Dual)
The Dual Burner is a very flexible burner which allows different regulations and optimal
cooking.
It is composed by one inner and two outer crowns; the flame of the inner crown can be
regulated separately from the flames of the outer crowns.
The Dual Burner can be used:
- as a small burner (flame produced only by the inner crown) which can be adjusted
from the maximum (
) to the minimum (
) position. Intermediate operating adjustments can be achieved by positioning the indicator between the maximum and minimum opening positions, and never between the maximum opening
and
position.
- as a high-power burner (all flames produced simultaneously by inner and outer
crowns) which can be adjusted from the maximum (
) to the minimum (
)
position.
Gas flow to the burner is adjusted by turning the knob (illustrated in fig. 2.3) which controls the valve.
Turning the knob so that the symbols printed on itself point to the symbol printed on
the control panel achieves the following functions:
Knob
position
Function
closed
valve
Fig. 2.3
maximum rate
of inner crown
(only inner flame
at the maximum)
minimum rate
of inner crown
(only inner flame
at the minimum)
Fig. 2.4
maximum rate of
inner + outer crowns
(inside and outside
flames in
simultaneously
at the maximum)
minimum rate of
inner + outer crowns
(inside and outside
flames in
simultaneously
at the minimum)
10
DUAL burner
햳
LIGHTING GAS BURNERS FITTED WITH FLAME FAILURE
SAFETY DEVICE (Dual Burner)
In order to light the burner, you must:
1 – Push and turn the knob in an anti-clockwise (fig. 2.4) direction up to the
position (maximum rate of inner crown); push in and hold the knob until the flame
has been lit.
The sparks produced by the lighter situated inside the relative burner will light the
flame.
In the event that the local gas supply conditions makes it difficult to light the burner in
position, try again with the knob in
position.
If there is no mains electrical supply connection, bring a lighted match close to the
burner.
2 – Wait for about ten seconds after the gas burner has been lit before letting go the
knob (safety device activation delay).
3 – Adjust the gas valve to the desired position.
If the burner flame should go out for some reason, the safety valve will automatically
stop the gas flow.
To re-light the burner, return the knob to the closed position (
minute and then repeat the lighting procedure.
), wait for at least 1
N.B. When the range is not being used, set the gas knobs to their OFF positions
and also close the gas shut-off valve placed on the main gas supply line.
CAUTION!
The range becomes very hot during operation. Keep children well out of reach.
11
햳
CHOICE OF BURNER
(fig. 2.5)
The symbols printed on the panel above the gas knobs indicate the correspondence
between the knob and the burner.
The most suitable burner is to be chosen according to the diameter and volume capacity of the container to be warmed.
It is important that the diameter of the pots or pans suitably match the heating potential of the burners in order not to jeopardise the efficiency of the burners, bringing about
a waste of gas fuel.
A small diameter pot or pan placed on a large burner does not necessarily mean that
boiling conditions are reached quicker.
Fig. 2.5
DIAMETERS OF PANS WHICH MAY BE USED ON THE HOB BURNERS
BURNER
MINIMUM
MAXIMUM
Semi-rapid
16 cm (6" 19/64)
24 cm (9" 7/16)
Triple-ring
26 cm (10" 3/16)
28 cm (11" 1/16)
Dual
26 cm (10" 3/16)
28 cm (11" 1/16)
Wok pans max 36 cm (14" 3/16)
Do not use pans with concave or convex bases
WRONG
CORRECT USE OF DUAL BURNER
(Figs. 2.6a - 2.6b)
The flat-bottomed pans are to be placed directly onto the pan-support.
When using a WOK you need to place the supplied stand in the burner to avoid any
faulty operation of the dual burner (Figs. 2.6a - 2.6b).
Fig. 2.6a
IMPORTANT:
The special grille for wok pans (fig. 2.6b) MUST BE PLACED ONLY over the pan-rest
for the dual burner.
CORRECT
Fig. 2.6b
Make sure that the handles of
cookware do not stick out over the
edge of the range, to avoid them
being knocked over by accident.
This also makes it more difficult
for children to reach the cooking
vessels.
12
how to use the multifunction electric oven
GENERAL FEATURES
As its name indicates, this is an oven that presents particular features from an operational point of view.
In fact, it is possible to insert 7 different programs to satisfy every cooking need.
The 7 positions, thermostatically controlled, are obtained by 4 heating elements which
are:
- Lower heating element
2050 W
- Upper heating element
1250 W
- Broil heating element
2200 W
- Circular heating element
2450 W
쐋
ATTENTION: the range becomes
very hot during operation.
ATTENTION: the oven door
becomes very hot during operation.
KEEP CHILDREN AWAY.
WARNING:
The door is hot, use the handle.
VERY IMPORTANT
The oven shall be used always
with the door closed.
USING THE OVEN FOR THE FIRST TIME
- Put in the shelf and the tray.
- Switch the oven on empty (on a cooking function) at maximum power for about 2
hours to remove traces of grease and smells from the components.
- When the oven has cooled down and unplugging the range, clean the inside of the
oven with a cloth soaked in water and neutral detergent and dry it perfectly.
OPERATING PRINCIPLES
Heating and cooking in the multifunction oven takes place as follows:
• by normal convection - BAKE
The heat is produced by the upper and lower heating elements.
• by forced convection - FAN OVEN
The heat produced by the circular element is distributed throughout the oven by the
fan.
• by semi-forced convection - CONV.BAKE
The heat produced by the upper and lower heating elements is distributed throughout the oven by the fan.
• by radiation - BROIL
The heat is radiated by the infra red broil element.
• by radiation and fan - CONV.BROIL
The radiated heat from the infra red broil element is distributed throughout the oven
by the fan.
• by double radiation - DUAL BROIL
The heat is radiated by the infra red broil element and the upper heating element.
• by ventilation - DEFROST
The food is defrosted by using the fan only function without heat.
Fig. 3.1
Do not use
1st STEP
Broiling level
2nd STEP
Oven cooking level
3rd STEP
Oven cooking level
4th STEP
13
햴
THERMOSTAT KNOB (fig. 3.2)
To turn on the heating elements of the oven, set the switch knob on the desired program and the thermostat knob onto the desired temperature.
To set the temperature, it is necessary to make the chosen number, printed on the
knob, to match with the control panel indicator.
The elements will turn ON or OFF automatically according to the energy need which is
determined by the thermostat.
The indicator light will cycle on and off during cooking.
Fig. 3.2
FUNCTION SELECTOR KNOB
(fig. 3.3)
VERY IMPORTANT: ALWAYS LIGHTLY PRESS THE
CONTROL KNOB WHEN TURNING THE FUNCTION KNOB
FROM THE OFF POSITION (fig. 3.4).
2
1
Rotate the knob clockwise to set the oven to one of the
following functions:
Fig. 3.4
Fig. 3.3
OVEN LIGHT (this is not a cooking function)
Turning the knob to this position, only the oven lamp lights up.
The lamp is always on in all the cooking functions.
DEFROSTING FROZEN FOODS (this is not a cooking function)
Only the fan and the oven lamp switch on. To be used with the thermostat knob on
because the other positions have no effect.
Defrosting takes place by fan, without heating.
Recommended for:
To rapidly defrost frozen foods; 2.2 lbs (1 kg) requires about one hour.
The defrosting times vary according to the quantity and type of foods to be defrosted.
TRADITIONAL CONVECTION COOKING
The upper and lower heating elements switch on.
The heat is diffused by natural convection and the temperature must be set between
120 °F (50 °C) and 480 °F (250 °C) via the thermostat knob.
Recommended for:
For foods which require the same cooking temperature both internally and externally, i.
e. roasts, spare ribs, etc.
14
햴
VENTILATED COOKING
The circular element and fan come on.
The heat is dispersed by forced convection and the temperature can be regulated
to between 120 °F (50 °C) and 480 °F (250 °C) via the thermostat knob. The oven
does not require preheating.
Recommended for:
Food which has to be well-cooked outside and soft or rosy inside, for example
lasagne, lamb, roast beef, whole fish etc.
BROILING
The infrared heating element switches on.
The heat is diffused by radiation. The temperature can be set between 120 °F (50 °C)
and 480 °F (250 °C) via the thermostat knob.
For correct use see the “BROILING & DOUBLE BROIL” section.
Recommended for:
Intense broiling action for cooking with the broiler; browning, crisping, toasting, etc.
COOKING WITH DOUBLE BROIL
The infrared and the top heating elements switch on.
The heat is diffused by radiation. The temperature can be set between 120 °F (50 °C)
and 480 °F (250 °C) via the thermostat knob.
For correct use see the “BROILING & DOUBLE BROIL” section.
Recommended for:
Intense broiling action for cooking with the broiler; browning, crisping, toasting, etc.
VENTILATED BROILING
The infrared heating element and the fan switch on. The heat is mainly diffused by radiation and the fan distributes it in the whole oven.
The temperature can be set between 120 °F (50 °C) and 480 °F (250 °C) via the thermostat knob.
For correct use see the “VENTILATED BROILING” section.
Recommended for:
For grill cooking when a fast outside browning is necessary to keep the juices in, i. e. veal
steak, steak, hamburger, etc.
CONVECTION COOKING WITH VENTILATION
The upper and lower heating elements and the fan turn on.
The heat is dispersed by forced convection and the temperature can be regulated to
between 120 °F (50 °C) and 480 °F (250 °C) via the thermostat knob.
Recommended for:
For foods of large volume and quantity which require the same internal and external
degree of cooking; for ie: rolled roasts, turkey, legs, cakes, etc.
15
햴
COOKING ADVICE
WARNING!!
WARNING
VERY IMPORTANT
It is advisable to handle
the oven accessories
using oven gloves.
STERILIZATION
Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the
following way:
a. Turn the switch to position
or
.
b. Set the thermostat knob to position 350 °F (175 °C) and preheat the oven.
c. Fill the grill pan with hot water.
d. Set the jars into the grill pan making sure they do not touch each other and the door
and set the thermostat knob to position 260 °F (130 °C).
When sterilization has begun, that is, when the contents of the jars start to bubble, turn
off the oven and let cool.
REGENERATION
Turn the switch to position
or
and set the temperature to 300 °F
(150 °C).
Bread becomes fragrant again if wet with a few drops of water and put into the oven for
about 10 minutes.
ROASTING
To obtain classical roasting, it is necessary to remember:
– the pre-set temperature should be maintained
– that the cooking time depends on the quantity and the type of foods.
COOKING DIFFERENT DISHES AT THE SAME TIME
The MULTIFUNCTION oven at positions
or
of the function selector
can cook various different foods at the same time. Fish, cakes and meat can be cooked
together without the smells and flavours mixing.
The only precautions required are the following:
– The cooking temperatures must be as close as possible with a maximum difference
of 70-80 °F (20-25 °C) between the different foods.
– Different dishes must be placed in the oven at different times according to the cooking time required for each one. This type of cooking obviously provides a considerable saving on time and energy.
VENTILATED BROILING
Ventilated broiling may be done by selecting
with the function selector
knob; the hot air completely envelops the food that is to be cooked.
Introduce the food to be cooked, positioning the grill pan as close to the infra-red element as possible.
Close the door and let the oven operate until broiling is done.
Adding a few dabs of butter before the end of the cooking time gives the golden “au
gratin” effect.
Broiling with the oven door closed.
Important: Use always suitable protective gloves when inserting/removing the
broiling pan from the oven (see next page).
16
햴
Do not use
1st STEP
Broiling level
2nd STEP
Oven cooking level
3rd STEP
Oven cooking level
4th STEP
Fig. 3.5
BROILING & DOUBLE BROIL
Very important: the broil or double broil must always be used
with the oven door closed.
- Position the shelf on the second level from the top (fig. 3.5).
- Turn on the broil or double broil, as explained in the preceding
paragraphs and let the oven preheat for about 5 minutes with
the door closed.
- Place the food to be cooked above the broiling pan.
- Introduce the broiling pan (fig. 3.6) in the oven. The broiling
pan should be placed above the shelf and it should be centered with the broil element (fig. 3.5).
Fig. 3.6
Do not broil without using the broiling pan.
WRONG
Important: Use always suitable protective gloves when
inserting/removing the broiling pan, shelves, pans or other
cooking utensils from the oven.
Fig. 3.7
CORRECT
Fig. 3.8
17
쐏
how to use the electronic programmer
A
U
T
O
The electronic programmer is a device which groups together the following functions:
• 12 hours clock with illuminated display
• Timer (up to 23 hours and 59 minutes)
• Program for automatic oven cooking
• Program for semi-automatic oven cooking
Description of the buttons:
Timer
Fig. 4.1
Cooking time
End of cooking time
Manual position and cancellation of the inserted cooking programme
Advancement of the numbers of all programs
Turning back of the numbers of all programs and changing the frequency of
the audible signal.
Description of the illuminated symbols:
AUTO flashing - Programmer in automatic position but not programmed
AUTO always lighted - Programmer in automatic position with programme inserted.
Automatic cooking taking place or oven in manual mode.
Timer in operation
Fig. 4.2
and AUTO - flashing - Programme error.
(The time of day lies between the calculated cooking start and end time).
Note: Select a function by the respective button and, in 5 seconds, set the required
time with the
/
buttons (“one-hand” operation).
A power cut zeroes the clock and cancels the set programmes.
ELECTRONIC CLOCK (fig. 4.2)
The programmer is equipped with an electronic clock with lighted numbers which indicate hours and minutes.
Upon immediate connection of the oven or after a blackout, “12:00” will flash on the
programmer panel.
To set the hour it is necessary to push the
button and then the
or
button until you have set the exact hour (fig. 4.2).
Alternatively, simultaneously push the
or
button.
Note: Setting the clock deletes any programme.
Fig. 4.3
two buttons and then the
NORMAL COOKING WITHOUT THE USE OF THE
PROGRAMMER
To manually use the oven, that is, without the aid of the programmer, it is necessary to
cancel the flashing AUTO by pushing the button
(AUTO will be switched off
and the symbol
will go on - Fig. 4.3).
Attention: If the AUTO is not flashing (which means a cooking programme has already
been inserted), by pushing the button
you have cancelled the programme and
switched to manual.
The oven shall be switched off manually.
18
햵
ELECTRONIC TIMER
The timer programme consists only of a buzzer which may be set for a maximum
period of 23 hours and 59 minutes.
If the AUTO is flashing push the
button.
To set the time, push the
button and the
or
until you obtain the
desired time (fig. 4.4).
Having finished the setting, the normal time will appear on the panel and the
symbol will appear.
The countdown will start immediately and may be seen at any moment on the panel
by simply pressing the button
.
At the end of the time, the
symbol will be switched off and an intermittent buzzer
will go off; this can be stopped by pressing any one of the buttons (not
or
).
If the oven is switched on, you must switch off manually.
Fig. 4.4
SETTING THE FREQUENCY OF THE AUDIBLE SIGNAL
By pressing the
button you can choose from three variations.
AUTOMATIC OVEN COOKING
To cook food automatically in the oven, it is necessary to:
1. Set the length of the cooking time
2. Set the end of the cooking time
3. Set the temperature and the oven cooking programme.
These operations are done in the following way:
1. Set the length of the cooking time by pushing the
button and the
button
to advance, or
to go back if you have passed the desired time (fig. 4.5).
The AUTO and the
symbol will be on.
2. Set the end of the cooking time by pressing the
button (the cooking time
already added to the clock time will appear), and the
button (fig. 4.6); if you
pass the desired time you may get back by pushing the
button.
After this setting, the
symbol will go off. If after this setting, the AUTO flashes
on the panel and a buzzer goes off, it means there was an error in the programming.
In this case, modify the end of cooking time or the cooking time itself by following
the above instructions again.
Fig. 4.5
3. Set the temperature and the cooking programme by using the switch and
thermostat knobs of the oven (see specific chapters).
Now the oven is programmed and everything will work automatically, that is the oven
will turn on at the right moment to end the cooking at the established time.
During cooking, the
symbol remains on.
By pushing the
button you can see the time that remains until the end of
cooking.
At the end of the cooking time the oven will turn off automatically, the
symbol will
turn off, AUTO will flash and a buzzer will sound, which can be turned off by pushing
any of the buttons (not
or
).
Turn the switch and thermostat knobs to zero and put the programmer onto “manual”
by pressing the
button.
Attention: A power cut makes the clock go to zero and cancels the set programmes.
After a powercut, “12:00” will flash on the panel.
The cooking program may be cancelled at any time by pushing
Fig. 4.6
.
In this case the oven shall be switched off manually.
19
햵
SEMI-AUTOMATIC COOKING
This is used to automatically switch off the oven after the desired cooking time has
elapsed.
There are two ways to set your oven:
1. Set the length of the cooking time by pushing the
button and the
button to advance, or
to go backwards if you have passed the desired time
(Fig. 4.7).
or
Fig. 4.7
2. Set the end of the cooking time by pushing the
button and the
button to
advance, or
to go backwards if you have passed the desired time (Fig. 4.8).
AUTO and the
symbol will be on.
Then set the temperature and the cooking programme using the oven switch and
thermostat knobs (see specific chapters).
The oven is switched on and it will be switched off automatically at the end of the
desired time.
During cooking, the
symbol remains on and by pressing the button
you
can see the time that remains till the end of the cooking.
Fig. 4.8
At the end of cooking, the oven and the
symbol will turn off, the AUTO will flash
and a buzzer will sound; that can be stopped by pushing any of the buttons (not
or
).
Turn the switch and thermostat knobs to zero and put the programmer onto “manual”
by pressing the
button.
Attention: A power cut makes the clock go to zero and cancels the set programmes.
After a powercut, “12:00” will flash on the panel.
The cooking program may be cancelled at any time by pushing
In this case the oven shall be switched off manually.
20
.
�
cleaning and maintenance
GENERAL RECOMANDATION
✓ Important: Before any operation of cleaning and maintenance disconnect the
appliance from the electrical supply.
✓ It is advisable to clean when the appliance is cold and especially for cleaning the
enamelled parts.
✓ Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.
✓ Avoid using cleaning products with a chlorine or acidic base.
WARNING
When correctly installed, your product meets all safety requirements laid down for
this type of product category. However special care should be taken around the
rear or the underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges, that may cause
injury.
WARNING
VERY IMPORTANT
Before any operation of maintenance
disconnect the appliance from the
electrical mains supply.
Do not use steam jet cleaners
because the humidity could infiltrate
into the appliance making it dangerous.
ENAMELLED PARTS
✓ All the enamelled parts must be cleaned with a sponge and soapy water or other
non-abrasive products.
✓ Dry preferably with a microfibre or soft cloth.
✓ Acidic substances like lemon juice, tomato sauce, vinegar etc. can damage the
enamel if left too long.
PAINTED PARTS AND SILK-SCREEN PRINTED SURFACES
✓ Clean using an appropriate product. Always dry thoroughly.
IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion. You are advised to use a soft cloth and neutral soap.
STAINLESS STEEL ELEMENTS
✓ Stainless steel parts must be rinsed with water and dried with a soft and clean
cloth.
✓ For difficult dirt, use a specific non-abrasive product available commercially or a
little hot vinegar.
✓ Note: regular use could cause discolouring around the burners, because of
the high flame temperature.
INSIDE OF OVEN
The oven should always be cleaned after use when it has cooled down.
The cavity should be cleaned using a mild detergent solution and warm water.
Suitable proprietary chemical cleaners may be used after first consulting with the manufacturers recommendations and testing a small sample of the oven cavity.
Abrasive cleaning agents or scouring pads/cloths should not be used on the cavity surface.
NOTE: The manufacturers of this appliance will accept no responsibility for damage
caused by chemical or abrasive cleaning.
Let the oven cool down and pay special attention no to touch the hot heating elements inside the oven cavity.
21
햶
BURNERS AND GRIDS
✓ These parts can be removed and
cleaned with appropriate products.
✓ After cleaning, the burners and their
flame distributors must be well dried
and correctly replaced.
✓ It is very important to check that the
burner flame distributor and the cap
has been correctly positioned - failure
to do so can cause serious problems.
✓ Check that the probe “T” (figs. 5.1-5.35.6) next to each burner is always
clean to ensure correct operation of
the safety valves.
✓ Check that the electrode “S” (figs. 5.15.3-5.6) is always clean to ensure trouble-free sparking.
✓ Note: To avoid damage to the electric ignition do not use it when the
burners are not in place.
C
F
T
S
Both the probe and ignition plug must
be very carefully cleaned.
Fig. 5.1
Fig. 5.2
CORRECT REPLACEMENT
OF THE SEMI-RAPID
BURNERS
It is very important to check that the
burner flame spreader “F” and the cap
“C” have been correctly positioned (see
figs. 5.1 and 5.2 ).
Failure to do so can cause serious
problems.
T
S
Fig. 5.3
A
CORRECT POSITION OF
TRIPLE RING BURNERS
B
The triple ring burner must be correctly
positioned (see fig. 5.3); the burner rib
must be fitted in their housing as shown
by the arrow.
The burner correctly positioned must not
rotate (fig. 5.4).
Fig. 5.4
22
Fig. 5.5
Then position the cap A and the ring B
(figs. 5.4 - 5.5).
햶
CORRECT POSITION OF DUAL BURNER
The DUAL burner must be correctly positioned (see fig. 5.6); the burner rib must be fitted as shown by the arrows.
Position the central small cap in its housing as shown by the arrows (fig. 5.7).
Position the big cap in its housing as shown by the arrows (fig. 5.8).
IMPORTANT: NEVER unscrew the burner screws (fig. 5.9).
GAS VALVES
S
T
Fig. 5.6
In the event of operating faults in the gas valves, call the Service Department.
Fig. 5.7
Fig. 5.8
Fig. 5.9
23
햶
OVEN ACCESSORIES INSTALLATION AND REMOVAL
– Hang up the wire racks “G” on the oven walls (fig. 5.10).
G
– Slide in, on the guides, the shelves (fig. 5.11). Do not use the first step from the top.
The rack must be fitted so that the safety catch, which stops it sliding out, faces the
inside of the oven.
– Position the broiling pan above the oven shelf (see page 17).
– To dismantle, operate in reverse order.
Fig. 5.10
Safety catch
Fig. 5.11
OVEN DOOR
The internal glass panel can be easily
removed for cleaning by unscrewing the
retaining screws (Fig. 5.12).
Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the
oven door glass since they can
scratch the surface, which may result
in shattering of the glass.
Fig. 5.12
STORAGE COMPARTMENT
The storage compartment is accessible
through the pivoting panel (fig. 5.13).
WARNING!!
24
Fig. 5.13
Do not store flammable material in
the oven or in the storage compartment.
햶
REMOVING THE OVEN DOOR
Fig. 5.14A
The oven door can easily be removed as follows:
– Open the door to the full extent (fig. 5.14A).
– Attach the retaining rings to the hooks on the left and right hinges (fig. 5.14B).
– Hold the door as shown in fig. 5.14.
– Gently close the door and withdraw the lower hinge pins from their location (fig.
5.14C).
– Withdraw the upper hinge pins from their location (fig. 5.14D).
Fig. 5.14B
– Rest the door on a soft surface.
– To replace the door, repeat the above steps in reverse order.
Fig. 5.14C
Fig. 5.14D
REPLACING THE OVEN LIGHT
Before any maintenance is started involving electrical parts of the appliance, it must be
disconnected from the power supply.
✓ Let the oven cavity and the broil burner cool down;
✓ Switch off the electrical supply;
✓ Remove the protective cover;
✓ Unscrew and replace the bulb with a new one suitable for high temperatures (300°C570°F) having the following specifications: 120V 60 Hz, 15W, E14;
✓ Refit the protective cover.
NOTE: Oven bulb replacement is not covered by your guarantee.
Fig. 5.14
25
햶
DO’S AND DO NOT’S
• Do always use the oven with the door closed.
• Do always broil with the door closed.
• Do read the user instructions carefully before using the range for first time.
• Do allow the oven to heat for about two hours, before using for the first time, in order
to expel any smell from the new oven insulation, without the introduction of food.
• Do clean your oven regularly.
• Do remove spills as soon as they occur.
• Do always use oven gloves when removing food shelves and trays from the oven.
• Do not allow children near the range when in use.
• Do not allow fat or oils to build up in the oven base, or oven accessories.
• Do not place cooking utensils or plates directly onto the oven base.
• Do not place hot enamel parts in water. Leave them to cool first.
• Do not allow vinegar, coffee, milk, saltwater, lemon or tomato juice to remain in
contact with enamel parts (i.e. inside the oven).
• Do not use abrasive cleaners or powders that will scratch the surface of the stainless
steel and the enamel.
• Do not attempt to repair the internal workings of your range.
• Do remove the protective film before the first use.
• Fire risk! Do not store flammable material in the oven and in the storage
compartment.
• Do not use the oven with the oven door open.
• Do not use the oven to warm or heat a room.
FOR YOUR SAFETY
Under no circumstances should any external covers be removed for servicing or
maintenance except by suitably qualified personnel
26
27
The manufacturer cannot be held responsible for possible inaccuracies due to printing or transcription errors in
the present booklet.
The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacture
or commercial reasons at any moment and without prior notice, without jeopardising the essential functional and
safety characteristics of the appliances.
Cod. 1103674 - ß3
Download PDF
