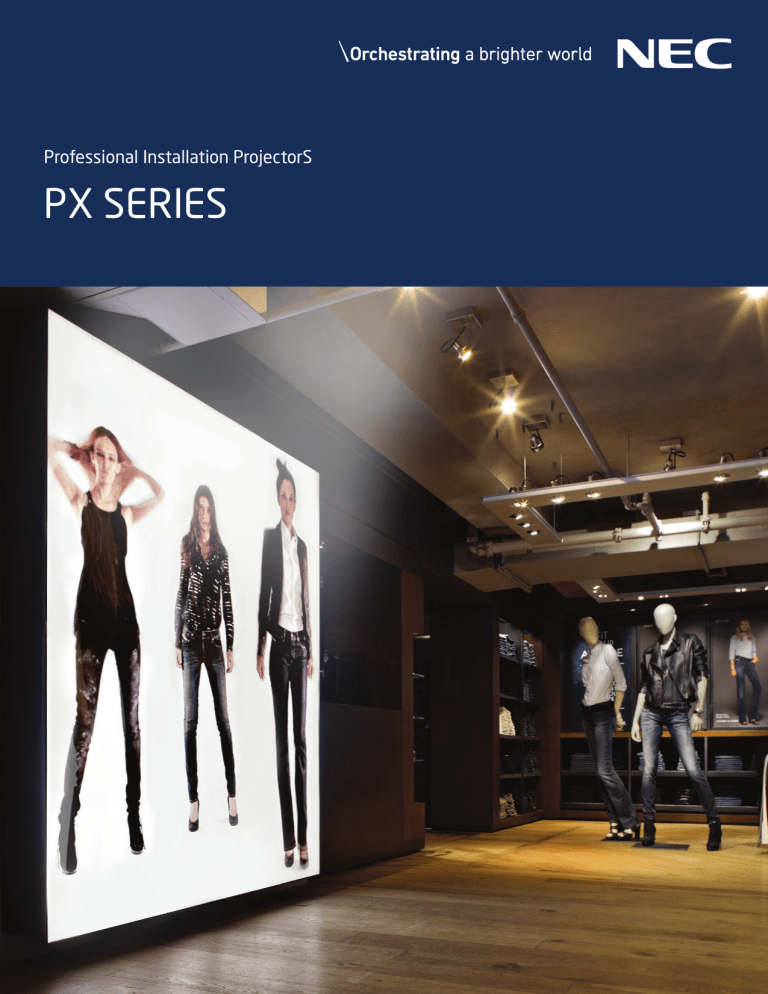

PX SERIES
Professional Installation ProjectorS
PX SERIES
Powerful installation projectors with
laser-phosphor light source supports new,
demanding projection applications.
Laser Light Module
•• 20,000-plus hours of virtually maintenance-free
operation
•• High-brightness, lower power consumption
enhances applications such as retail, digital
signage and theme parks
•• Ability to control brightness creating a stable
Integrated and Powerful
•• Project uncompressed FHD video with integrated HDBaseT
•• High performance video processing/scaling creates life-like images
•• Integrated software applications such as DisplayNote®, Crestron Roomview,
AMX Beacon and PJ Link allow for complete interactivity and control
•• Tile Matrix enables 4Kx2K resolution
image over longer time periods
Flexible
•• Enjoy greater installation flexibility with a complete line of optional bayonet style lenses (8) for quick and easy exchange. Lens throw distances
range from 2.1 to 179.8 ft
•• Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
•• +/- 50% vertical lens shift and +/- 15% horizontal lens shift capabilities make alignment easy
Screen Splitter
NEC is committed to bringing the latest and
greatest innovation to projectors. Multi-display
capabilities and TileMatrix technologies are
integrated into the new PX series projectors.
This processing is all done internally and
therefore eliminates the additional hardware
typically required to produce a beautiful 4K
resolution image.
Stacking correction
Edge blending
The industry’s first built-in stacking correction
capabilities (up to four projectors) allows the
projectors to boost an image’s brightness up to
32,000 lumens, which is ideal for larger-sized
screens and environments with heavy ambient
light. This feature also prevents the complete
loss of an image, which can happen when using
only one projector.
This function seamlessly blends multiple projected images to display a single
high-resolution image.
NEC PX Series Projectors
Built-In HDBaseT Support
Simplify your installations with HDBaseT. Optimized for video applications and
supporting uncompressed full HD digital video, audio, ethernet, power and various
control signals. With only a single cable (up to 100m) to run, infrastructure and labor
costs are reduced, installations are significantly easier, and there is no cable clutter
to manage. With uncompressed HD video support, images have never been more
stunning. What’s more, control signals are contained in the same cable.
GET CONNECTED WITH A WIDE SELECTION OF INPUTS
• Dual computer inputs ensure quick switching between presentations
• Four audio inputs (two mini stereo [Comp1 & Comp2] and HDMI™) make it easy to add sound to enhance your presentations
Remote control
DisplayPort
Wall color correction presets
Input panel cover
Wired and wireless backlit
remote allows you to adjust
for complete control of the
projectors menu structure in
a well lit or dark environment.
Direct controls such as lamp
mode, aspect ratio, volume
and input selection eliminates
multiple button pushes.
This input provides PX
Series models with
expanded connectivity
with advanced
technology.
These provide for adaptive color tone
correction to display properly on non-white
surfaces.
This optional accessory
creates a clean look for
your installation, while
hiding signal cables and the
power cord.
On a
green wall...
BEFORE
auto wall correction
AFTER
auto wall correction
Cornerstone
3D
Geometric Correction
Enhanced keystone correction allows for
horizontal, vertical and diagonal image
correction for aligned images even when the
projector is set up at an angle to the screen.
When combined with active shutter
glasses and 3D emitter, the
PX Series Projectors create 3D
images from a computer or Blu-ray
player. The PX803UL utilize the 3D
sync line output from the projector
to connect to the 3D emitter.
Optional 3D glasses and emitters
from XPAND are available from
NEC.
Projecting an image isn’t
confined to a standard
flat screen or wall with the
NEC PX Series. Geometric
correction allows these
models to project an image
on spheres, cylinders,
corner angles and many
more non-standard
surfaces.
Tilt-free
Portrait mode
The projector can be rotated freely
(360°) to orient the image depending
on the installation requirements
Allows the projector to be rotated (and screen if
necessary) to a vertical alignment so that portrait
content can be viewed without black bars on the
side when landscape mode is used.
Specifications
UNIQUE FEATURES
3D Reform™ allows you to square the image by adjusting
horizontally, vertically or diagonally when the projector cannot
be placed parallel or perpendicular to the screen
Advanced AccuBlend™ ensures detailed images when nonnative resolution sources are connected to the projector
PX602WL
Display Technology
Light Output (lumens)
Resolution
64-step image magnification with location control
Registered owners receive a 3-year parts (excluding
consumables) and labor warranty including the first year of
InstaCare. InstaCare provides the original owner one year of
either limited 3 business day repair/return or next business
day exchange.
20,000 hours
Screen Size (diagonal)
Remote control, batteries, power cord, user’s manual on CDROM, quick start guide, product registration card.
50 to 300 in. / 1.27 to 7.62m
0.79 - 1.0:1
0.75 - 0.95:1
NP34ZL
1.0 - 1.28:1
0.95 - 1.2:1
NP35ZL
1.28 - 1.61:1
1.23 - 1.52:1
NP36ZL
1.28 - 1.6:1
N/A
NP37ZL
1.6 - 3.07:1
1.52 - 2.92:1
NP38ZL
3.04 - 5.78:1
2.9 - 5.5:1
Projection Distance
2.75 to 120.8 ft. / 0.84 to 36.8m
2.6 to 114.9 ft. / 0.79 to 35.0m
Projection Angle
3.1 to 17.5° tele / 3.7 to 22.0° wide
3.2 to 16.3° tele / 5.0 to 23.0° wide
Throw Ratio
Lens
Zoom
Powered
Zoom Ratio
Variable
Focus
Powered
NP33ZL
F=2.3 to 2.53, f=11.11 to 14.06mm
NP34ZL
F=2.3 to 2.57, f=14.03 to 17.95mm
NP35ZL
F=2.0 - 2.32, f=18.07 to 22.59mm
NP36ZL
F=2.0 - 2.32, f=18.07 to 22.59mm
NP37ZL
F=2.3 to 3.39, f=22.56 to 42.87mm
NP38ZL
F=2.3 to 2.74, f=42.63 to 80.91mm
Shift
Powered +/-0.5 vertical, +/-0.15 horizontal
Keystone Correction
+/- 40° horizontal, +/- 40° vertical
Horizontal
Analog: 15-100kHz, Digital: 15-153kHz
Vertical
Analog: 48-120Hz, Digital: 24-120Hz
Supported Video Standards
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility
1080p, 1080i, 720p, 576p, 576i, 480p, 480i
PC Signal Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility
ACCESSORIES
SCP200
Suspended ceiling plate
PX750CM
Ceiling mount
NP33ZL
0.75 - 0.95:1 zoom lens
NP34ZL
0.95 - 1.22 zoom lens
NP35ZL
PX602UL 1.23 - 1.52 zoom lens
NP36ZL
PX602WL 1.28 - 1.6:1 zoom lens
NP37ZL
1.52 - 2.9:1 zoom lens
NP38ZL
2.9 - 5.5:1 zoom lens
NP02LM1
Wireless LAN module
RMT-PJ35
Replacement remote control
NP01PW1
Power cable
RGBCBL-PJPX
RGB cable
NP07CV
Safety Cover for Portrait Installation
SB-01HC
SD-SDI-Input Card
SB-04HC
3G/HD/SD-SDI input Card
N8000-8830
NEC OPS PC with Intel Core i5,
320GB Hard Drive, Windows Embedded Standard 7
N8000-8822
NEC OPS PC with Intel Celeron,
320GB Hard Drive, Windows Embedded Standard 7
NECEW2-I
Extends term of parts and labor
warranty to 4 years
ADVEXON1-I
Extends term of InstaCare service
program to 2 years
ADVEXON2-I
Extends term of InstaCare service
program to 3
WUXGA 1920 x 1200
NP33ZL
Synchronization
Range
IN THE BOX
4K 4096 x 2160
10,000:1 with dynamic contrast
Built-in HTTP page for control and monitoring over a LAN
network. Email notification of error messages or lamp end-oflife can be sent to remote locations.
WARRANTY
WXGA 1280 x 800
Maximum
Lamp Life (up to)
Discreet source keys for source selection
Remote diagnostics enable the user to monitor and make
adjustments to the projector remotely
6000 normal / Eco = variable
Native
Contrast Ratio (up to)
AutoSense™ automatically syncs with any computer signal
and features one-touch image optimization
PX602UL
0.67" DMD
Input/Output Terminals
Yes
RGB1 (analog)
VGA 15 pin D-sub, Component video using ADP-CV1E adapter
RGB2 (analog)
5-BNC
RGB3 (digital)
HDMI (V1.4) w/HDCP
RGB4 (digital)
DisplayPort w/HDCP
RGB5 (digital)
HDBaseT
Option Slot
OPS Option Slot
Monitor Out
HDMI (V1.4) w/HDCP
3D Sync Line
3Pin D
Audio
RS-232, IR, HDBaseT, Stereo Mini , RJ-45
External Control
Separate Sync / Composite Sync / Sync on G
Sync Compatibility
100 – 240V AC, 50/60Hz
Power Requirements
6.8 - 2.5A
Input Current
590W/460W/4.15W/0.28W
Power Consumption
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
(ECO off/ECO Mode/Standby/Standyby-Power
Saving)
19.1 x 22.6 x 8.5 in. / 484 x 575 x 217mm
Installation Orientation
40.8 lbs. / 18.5 kg
Dimensions (WxDxH)
39 dB normal / 34 dB eco
Net Weight
"USA: UL(UL60950-1/IEC60825-1/IEC62471)FCC Part15 Class A , Canada:
C-UL(CSA60950-1/IEC60825-1/IEC62471) ICES-003 Class A"
Fan Noise
41° – 104°F / 5° – 40°C
Regulations
20-80% non-condensing
Operating Temperature
-14° – 122°F / -10° – 50°C
Humidity
20-80% non-condensing
Storage
-14° – 122°F / -10° – 50°C
* Lens does not ship with the projector.
Additional accessories are available, including screens, carts, mount accessories and
replacement cables. Visit www.necdisplay.com for details.
ORDERING MODEL NUMBERS
NP-PX602UL-WH
NP-PX602UL-BK
NP-PX602WL-WH
NP-PX602WL-BK
3D Reform, Advanced AccuBlend, AutoSense and ECO Mode are trademarks of NEC Display Solutions. HDMI, the HDMI Logo and
High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. All other brand or product names
are trademarks or registered trademarks of their respective holders. Product specifications subject to change.
©2016 NEC Display Solutions of America, Inc. and the NEC logo are registered trademarks of NEC.
Cat.No. 25.NEC.80.GL.UN.175 | Rev. 08.19.2016
www.necdisplay.com
