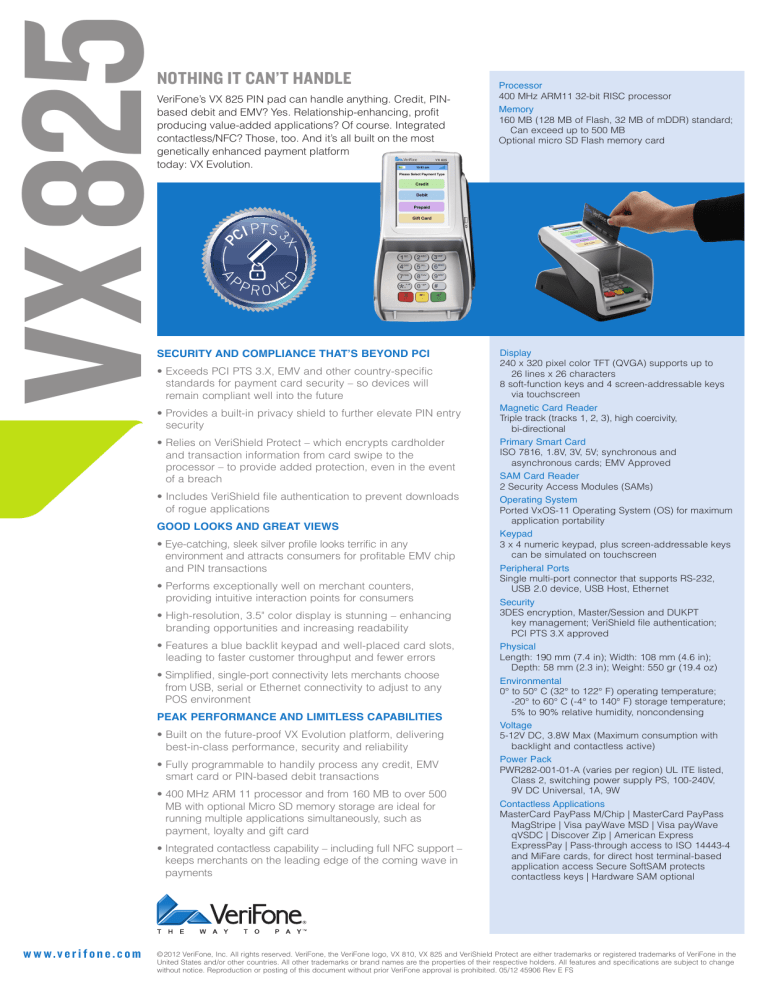

VX 825
VeriFone’s VX 825 PIN pad can handle anything. Credit, PINbased debit and EMV? Yes. Relationship-enhancing, profit
producing value-added applications? Of course. Integrated
contactless/NFC? Those, too. And it’s all built on the most
genetically enhanced payment platform
today: VX Evolution.
xceeds PCI PTS 3.X, EMV and other country-specific
standards for payment card security – so devices will
remain compliant well into the future
rovides a built-in privacy shield to further elevate PIN entry
elies on VeriShield Protect – which encrypts cardholder
and transaction information from card swipe to the
processor – to provide added protection, even in the event
of a breach
• Includes VeriShield file authentication to prevent downloads
of rogue applications
• Eye-catching, sleek silver profile looks terrific in any
environment and attracts consumers for profitable EMV chip
and PIN transactions
erforms exceptionally well on merchant counters,
providing intuitive interaction points for consumers
igh-resolution, 3.5" color display is stunning – enhancing
branding opportunities and increasing readability
eatures a blue backlit keypad and well-placed card slots,
leading to faster customer throughput and fewer errors
• Simplified, single-port connectivity lets merchants choose
from USB, serial or Ethernet connectivity to adjust to any
POS environment
uilt on the future-proof VX Evolution platform, delivering
best-in-class performance, security and reliability
ully programmable to handily process any credit, EMV
smart card or PIN-based debit transactions
• 400 MHz ARM 11 processor and from 160 MB to over 500
MB with optional Micro SD memory storage are ideal for
running multiple applications simultaneously, such as
payment, loyalty and gift card
• Integrated contactless capability – including full NFC support –
keeps merchants on the leading edge of the coming wave in
w w w.v e r i f o n e . c o m
400 MHz ARM11 32-bit RISC processor
160 MB (128 MB of Flash, 32 MB of mDDR) standard;
Can exceed up to 500 MB
Optional micro SD Flash memory card
240 x 320 pixel color TFT (QVGA) supports up to
26 lines x 26 characters
8 soft-function keys and 4 screen-addressable keys
via touchscreen
Magnetic Card Reader
Triple track (tracks 1, 2, 3), high coercivity,
Primary Smart Card
ISO 7816, 1.8V, 3V, 5V; synchronous and
asynchronous cards; EMV Approved
SAM Card Reader
2 Security Access Modules (SAMs)
Operating System
Ported VxOS-11 Operating System (OS) for maximum
application portability
3 x 4 numeric keypad, plus screen-addressable keys
can be simulated on touchscreen
Peripheral Ports
Single multi-port connector that supports RS-232,
USB 2.0 device, USB Host, Ethernet
3DES encryption, Master/Session and DUKPT
key management; VeriShield file authentication;
PCI PTS 3.X approved
Length: 190 mm (7.4 in); Width: 108 mm (4.6 in);
Depth: 58 mm (2.3 in); Weight: 550 gr (19.4 oz)
0° to 50° C (32° to 122° F) operating temperature;
-20° to 60° C (-4° to 140° F) storage temperature;
5% to 90% relative humidity, noncondensing
5-12V DC, 3.8W Max (Maximum consumption with
backlight and contactless active)
Power Pack
PWR282-001-01-A (varies per region) UL ITE listed,
Class 2, switching power supply PS, 100-240V,
9V DC Universal, 1A, 9W
Contactless Applications
MasterCard PayPass M/Chip | MasterCard PayPass
MagStripe | Visa payWave MSD | Visa payWave
qVSDC | Discover Zip | American Express
ExpressPay | Pass-through access to ISO 14443-4
and MiFare cards, for direct host terminal-based
application access Secure SoftSAM protects
contactless keys | Hardware SAM optional
© 2012 VeriFone, Inc. All rights reserved. VeriFone, the VeriFone logo, VX 810, VX 825 and VeriShield Protect are either trademarks or registered trademarks of VeriFone in the
United States and/or other countries. All other trademarks or brand names are the properties of their respective holders. All features and specifications are subject to change
without notice. Reproduction or posting of this document without prior VeriFone approval is prohibited. 05/12 45906 Rev E FS
