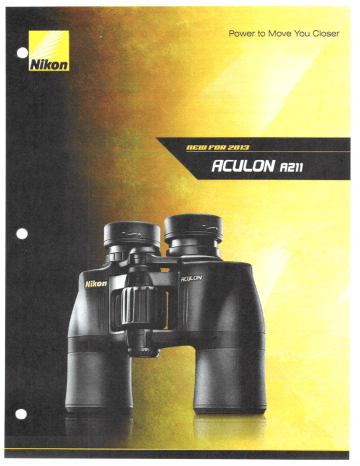

Power to Move You Closer
17 1d
ACULON nan
ACULON nen
PLE EA
Turn-and-Slide Rubber Eyecups
Facilitates easy positioning of eyes
at the correct eye-point and allows
for comfortable viewing during
extended periods of use.
(Except Zoom models)
Aspherical Multicoated Eco-Glass Lenses
A triad of optical technology is integrated into the ACULON A211
binoculars. Aspherical eyepiece lenses* aid in delivering a flat field
of view. while lens multicoating enhances image brightness. The
environmentally-friendly Nikon Eco-Glass lenses deliver astonishing
clarity and precision in a lead and arsenic-free glass composition.
*(Except Zoom models) Fully Rubber Armored
Durable and protective rubber
armored coating for sure grip.
ADDITIONAL FEATURES: Bringing All The Action Into View
ACULON A211 Binoculars combine Nikon's
« Quick, easy central focusing multicoated lenses with a host of user-friendly
« Ergonomic lightweight design | a |
sie features for an enjoyable viewing experience.
« Tripod adaptable |
(tripod adapter included with 16x50 and 10-22x50 Zoom models) Seven fixed power and 2 zoom models offer a
* On Zoom models, smooth fingertip zoom control great range of magnification and objective lens
options from which to choose.
EXT.
Finish: Black Finish: Black
Part #8244 Part #8245
: rr Fa >
axyz oe | .
REALIREE a LD. EP
Finish: Realtree XTRA® GREEN Finish: Black
Part #8256 Part #8246
i”
A ET,
Finish: Black
Part #8247
Finish; Black
Part #8248
IX
Finish: Black
Part #8249
Finish: Black
|
Part #8250
Finish: Black Finish: Black
Part #8251 Part #8252
_/ FEET 10-22X50 ZOON
new FOR 20143
ACULON A211 BINOCULARS
ACULON nen
Model 8-18x42 10-22x50
Product # | 8244 8245, 8256 8246 8247 8248 8249 8250 8251 8252
Finish Black Black, XTRA Green* Black Black Black Black Black Black Black
Focusing System CF | CF CF CF CF CF CF CF CF
Magnification (x) 7 8 10 7 10 12 16 8-18 10-22
Objective Diameter (mm) 35 42 42 50 50 50 50 42 50
Real Field of View (*) 9.3 8.0 6.0 6.4 65 5.2 4.2 4.6 3,8
Apparent Field of View"* (*) 59.3 58.4 55.3 | 42.7 59.2 57.2 60.8 35.6 36.7"
FOV @ 1000m (m/f) 163/488 140/420 105/314 112/335 114/341 91/272 73/220 80/241*** 66/199***
Exit Pupil (mm) 5 | 5.3 4.2 7.1 5 4.2 3.1 5.3. 5
Brightness 25 28.1 17.6 50.4 25 17.6 9.6 28.1 25
Eye Relief (mm) 11.8 12 11.6 17.6 11.8 11.5 12.6 10.3" 8.6”
Close Focus Distance (m/f) 5.0/16.4 5.0/16.4 5.0/16.4 8.0/26.2 7.0/23.0 8.0/26.2 9.0/29.5 13.0/42.7 15.0/49.2
Interpupillary Distance Adjustment 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72
| Length (mm/in) | 118/46 145/5.7 145/5.7 180/7.1 179/7.0 179/7.0 179/7.0 163/6.4 197/7.8
| Width (mm/in) 18573 | 185/73 185/7.3 197/7.8 197/7.8 197/7.8 197/7.8 185/7.3 197/7.8
| Weight (g/oz) | 685/242 | _755/26.6 760/26.8 905/31.9 900/31.7 910/32.1 925/32.6 825/29.1 960/33.9
* Finished in Realtree XTRA® Green
*= Apparent Field of View is calculated based on the 1S014132-1:2002 standard.
* At minimum magnification.
Technical Information, Service & Repair
1-800-NIKON US
Nikon Service & Repair Center
6420 Wilshire Blvd., Suite 100
Los Angeles, CA 80048-5501
All Nikon Trademarks are the property of Nikon Corporation.
Realtree XTRA GREEN and all respective logos are registered trademarks of Jordan Outdoor Enterprises, LTD.
Features and specifications are subject to change without notice.
