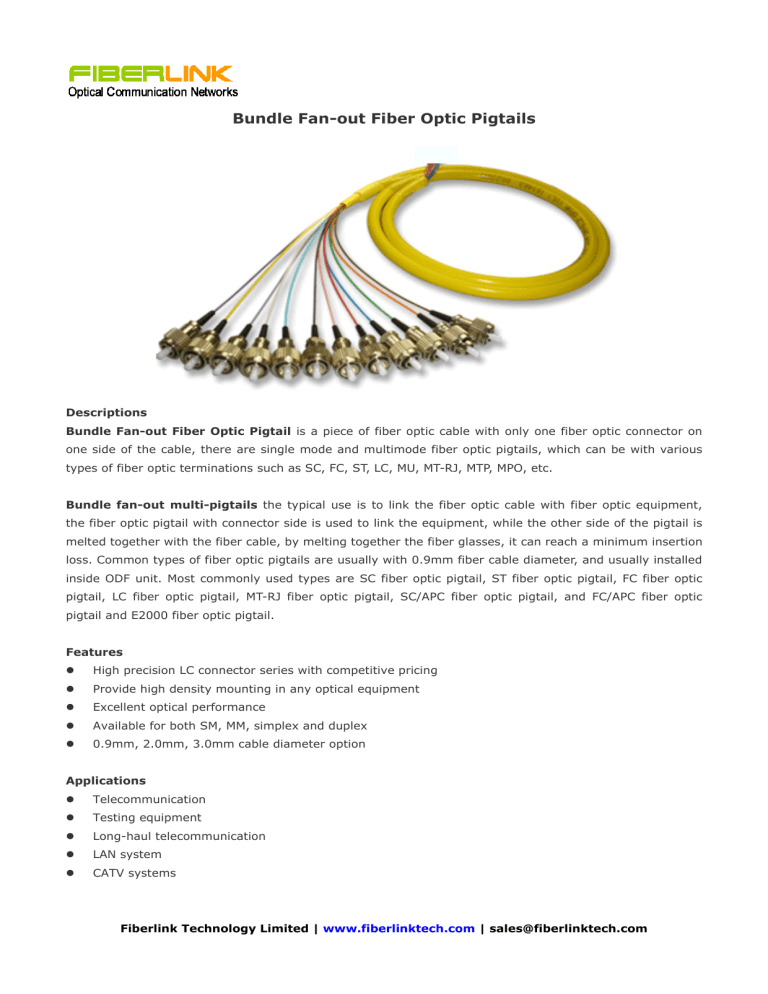

Bundle Fan-out Fiber Optic Pigtails

Bundle Fan-out Fiber Optic Pigtails
Bundle Fan-out Fiber Optic Pigtails
Descriptions
Bundle Fan-out Fiber Optic Pigtail is a piece of fiber optic cable with only one fiber optic connector on
one side of the cable, there are single mode and multimode fiber optic pigtails, which can be with various
types of fiber optic terminations such as SC, FC, ST, LC, MU, MT-RJ, MTP, MPO, etc.
Bundle fan-out multi-pigtails the typical use is to link the fiber optic cable with fiber optic equipment,
the fiber optic pigtail with connector side is used to link the equipment, while the other side of the pigtail is
melted together with the fiber cable, by melting together the fiber glasses, it can reach a minimum insertion
loss. Common types of fiber optic pigtails are usually with 0.9mm fiber cable diameter, and usually installed
inside ODF unit. Most commonly used types are SC fiber optic pigtail, ST fiber optic pigtail, FC fiber optic
pigtail, LC fiber optic pigtail, MT-RJ fiber optic pigtail, SC/APC fiber optic pigtail, and FC/APC fiber optic
pigtail and E2000 fiber optic pigtail.
Features
z
High precision LC connector series with competitive pricing
z
Provide high density mounting in any optical equipment
z
Excellent optical performance
z
Available for both SM, MM, simplex and duplex
z
0.9mm, 2.0mm, 3.0mm cable diameter option
Applications
z
Telecommunication
z
Testing equipment
z
Long-haul telecommunication
z
LAN system
z
CATV systems
Fiberlink Technology Limited | www.fiberlinktech.com | [email protected]
Specifications
Types
Single mode
Multi mode
Diameter (mm)
Ф0.9, Ф2.0, Ф3.0
Fiber cable
Simplex or Duplex available
Operating Wavelength
1310, 1550nm
≤ 0.3 (PC)
Insertion Loss (dB)
≤ 0.5 (PC)
≤ 0.3 (UPC)
≤ 0.5 (UPC)
≤ 0.3 (APC)
≧ 45 (PC)
Return Loss (dB)
≧ 35 (PC)
≧ 50 (UPC)
≧ 40 (UPC)
≧ 60 (APC)
Exchangeability
≤ 0.2 dB
Repeatability
≤ 0.2 dB
Operating Temperature
-40 to +75 ℃
Storage Temperature
-40 to +85 ℃
Fiberlink Technology Limited | www.fiberlinktech.com | [email protected]
