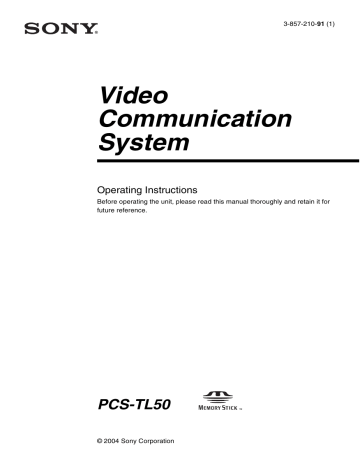

Sony Operation Manual PCS-TL50, Videokonferenz

3-857-210-91 (1)
Video
Communication
System
Operating Instructions
Before operating the unit, please read this manual thoroughly and retain it for
future reference.
PCS-TL50
© 2004 Sony Corporation
Owner’s Record
The model and the serial numbers are
located at the rear. Record the serial number
in the space provided below. Refer to these
numbers whenever you call upon your Sony
dealer regarding this product.
Model No. PCS-TL50
Serial No. ______________
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
To avoid electrical shock, do not
open the cabinet. Refer servicing to
qualified personnel only.
WARNING
When installing the unit, incorporate a
readily accessible disconnect device in the
fixed wiring, or connect the power cord to
socket-outlet which must be provided near
the unit and easily accessible.
If a fault should occur during operation of
the unit, operate the disconnect device to
switch the power supply off, or disconnect
the power cord.
CAUTION for LAN port
For safety reason, do not connect the LAN
port to any network devices that might have
excessive voltage.
Installing batteries
Two R6 (size AA) batteries are supplied for
Remote Commander.
To avoid risk of explosion, use R6 (size AA)
manganese or alkaline batteries.
CAUTION
RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
2
WARNING
For the customers in the USA
WARNING
Using this unit at a voltage other than 120 V
may require the use of a different line cord or
attachment plug, or both. To reduce the risk
of fire or electric shock, refer servicing to
qualified service personnel.
This device complies with Part 15 of the
FCC Rules.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received,
including interference that may cause
undesired operation.
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area is likely to
cause harmful interference in which case the
user will be required to correct the
interference at his own expense.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
The shielded interface cable recommended
in this manual must be used with this
equipment in order to comply with the limits
for a computing device pursuant to Subpart
B of Part 15 of FCC Rules.
This manual focuses on using ISDN lines
to conduct a videoconference, but it also
covers non-ISDN lines. If you use ISDN
lines, consult your Sony dealer for more
information.
• The ISDN service may not be available
in some areas.
For Customers in Taiwan only
For the customers in Europe
Warning
This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.
In the case that interference should occur,
consult your nearest authorized Sony service
facility.
Voor de klanten in Nederland
Dit apparaat bevat een vast ingebouwde
batterij die niet vervangen hoeft te worden
tijdens de levensduur van het apparaat.
Raadpleeg uw leverancier indien de batterij
toch vervangen moet worden.
De batterij mag alleen vervangen worden
door vakbekwaam servicepersoneel.
Gooi de batterij niet weg maar lever deze in
als klein chemisch afval (KCA).
Lever het apparaat aan het einde van de
levensduur in voor recycling, de batterij zal
dan op correcte wijze verwerkt worden.
If you dispose the unit, consult your nearest
Sony Service Center. The built-in battery
must be treated as a chemical waste.
For the customers in Canada
This Class A digital apparatus complies with
Canadian ICES-003.
WARNING
3
Table of Contents
Chapter 1: Installation and
Preparation
Using This Manual ............................. 9
Features ............................................ 10
System Components ........................ 12
Basic System Components ......... 12
Optional Equipment ................... 13
System Configuration ...................... 15
System Configuration via a
LAN ................................ 15
System Configuration via an
ISDN ............................... 16
System Configuration via a LAN for
Multipoint Conference .... 17
System Configuration via an ISDN
for Multipoint
Conference ...................... 18
System Configuration via a LAN
and ISDN for Multipoint
Conference ...................... 19
System Configuration via a LAN for
Multipoint Data
Conference ...................... 20
System Configuration via an ISDN
for Multipoint Data
Conference ...................... 21
System Connections ......................... 22
Using the Connectors ................. 22
Notes on Connections ................ 23
System Connection via a LAN ... 23
System Connection via an ISDN 24
Preparing the System ....................... 25
Inserting Batteries into the Remote
Commander ..................... 25
Placing the Remote Commander on
the Stand ......................... 26
Turning the System On/Off ............. 27
4
Table of Contents
Turning On ..................................27
Turning Off .................................28
Setting the Video Communication
System to Standby Mode .28
Opening the Shutter ....................28
Adjusting the Volume .................29
Adjusting the Picture Quality .....30
Displaying the Help ....................30
Displaying the Versions and
Options ............................30
Setting Up the System for the First Time
— Initial Setup Wizard .....................31
Using the Menu ................................34
Menu Configurations ..................34
Introduction of Menus ................35
Entering Characters ....................38
Chapter 2: Registration and
Setup for System
Administrators
Registering Local Information .........39
Opening the Setup Menu ............39
Dial Setup Menu .........................40
Answer Setup Menu ...................43
General Setup Menu ...................45
Audio Setup Menu ......................46
LAN Setup Menu ........................47
Administrator Setup Menu .........51
ISDN Setup Menu .......................52
SPID Setting for Customers in the
USA and Canada .............53
Multipoint Setup Menu ...............55
Machine Information Menu ........56
Status Menu ................................57
Encryption via LAN Menu .........59
Registering a Remote Party in the
Phone Book ......................................59
Registering a New Remote Party 59
Changing the Contents of the Phone
Book ................................62
Deleting the Registered Remote
Party ................................62
Copying the Setting of the Phone
Book Menu ......................63
Creating a Private Phone Book ..63
Registering a Remote Party for One
Touch Dial ........................................65
Registering a One Touch Dial from
the Launcher Menu .........65
Registering a One Touch Dial from
the Phone Book ...............66
Registering the Private One Touch
Dial ..................................68
Chapter 3: Daily
Videoconference
Starting a Conference by Calling a
Remote Party ....................................69
Turning on the Power .................69
Using the Launcher Menu ..........70
Calling a Remote Party Using One
Touch Dial ......................72
Calling a Remote Party by Entering
an ISDN Telephone Number
or IP Address in the
Launcher Menu ...............74
Calling a Remote Party Registered
in the Phone Book ...........75
Calling a Remote Party not
Registered in the Phone
Book Using the Detailed
Dial Menu .......................78
Receiving a Call from a Remote
Party ...............................................83
Answering a Call from a Remote
Party ................................83
Ending the Conference ............... 85
Adjusting the Picture and Sound ..... 87
Adjusting the Picture Quality .... 87
Adjusting the Volume ................ 87
Cutting Off the Sound Momentarily
– Muting Function .......... 87
Cutting Off the Sound On
Answering – Mic on Answer
Function .......................... 88
Synchronizing Audio and Video –
Lip Sync Function .......... 88
Reducing Echo – Echo Canceler 88
Adjusting the Camera ...................... 89
Selecting the Camera to be
Controlled ....................... 89
Adjusting the Zoom and Camera
Angle .............................. 90
Adjusting the Brightness ............ 92
Presetting the Zoom and Angle
Settings ........................... 93
Recalling the Preset Zoom and
Angle Setting .................. 95
Selecting the Input Picture and
Sound ............................................... 97
Switching the Displayed Picture
Between the Local and
Remote Pictures during
Communication .............. 97
Selecting the Input Picture on the
Remote Site during
Communication .............. 97
Switching the Picture Displayed on
the TV Monitor ............... 99
Monitoring the Local Picture as a
Window Picture – PinP Feature .... 100
Monitoring the Local and Remote
Pictures Simultaneously – PandP
Feature ........................................... 102
Selecting the Wide Mode .............. 104
Table of Contents
5
Chapter 4: Videoconference
With Optional Equipment
Using Still Images Stored in a “Memory
Stick” for a Videoconference ......... 106
Displaying a Still Image Stored in a
“Memory Stick” ............ 106
Sending a Still Image Stored in a
“Memory Stick” ............ 109
About a “Memory Stick” ............... 111
Formatting a “Memory Stick” .. 112
Sending Motion Pictures as Still
Images ............................................ 113
Sending Still Images Using the Still
Image Menu .................. 113
Sending a Still Image Using the
Communication
Submenu ....................... 114
Receiving Still Images from a Remote
Party ............................................. 115
Saving Still Images ........................ 116
Saving Remote Pictures
Automatically – Automatic
Image Capture Feature .. 116
Saving Remote Pictures Using the
CAPTURE IMAGE Button
on the Remote Commander –
Image Capture Feature .. 116
Saving Still Images Using the Still
Image Menu .................. 116
Saving Still Images Using the
Memory Stick Menu ..... 118
Saving Still Images Using the
Communication
Submenu ....................... 118
Using a Convenient Menu Available
during Communication —
Communication Submenu .............. 120
Using External Microphone and
Headphones .................................... 121
Conducting a Conference Without the
Picture – Voice Meeting ................ 122
6
Table of Contents
Controlling the Remote System With
the Tone Signal – DTMF
Transmission ..................................123
Conducting a Data Conference Using
NetMeeting – T.120 Data
Conference ......................................124
Accessing the Video Communication
System ............................................127
Using a Web Browser ...............127
Using Telnet ..............................127
Chapter 5: Data Conference
Connection Example Using the Data
Solution Box ...................................129
To connect the CTE-600
Communication
Transducer .....................131
Using Audio/Video Signal from the
Connected Equipment for a
Conference ......................................132
Setting Before Conferencing ....132
Operating the System During a
Conference .....................132
Chapter 6: Encrypted
Videoconference via LAN
Preparing for an Encrypted
Videoconference via LAN ..............139
Starting an Encrypted Videoconference
via LAN ..........................................140
Chapter 7: Multipoint
Videoconference
Connection Examples for a Multipoint
Videoconference .............................142
Using the LAN Connection (Up to 6
Points) ............................142
Using the Cascade Connection via
LAN (Up to 10 Points) ..143
Using the ISDN Connection ..... 144
Using the LAN & ISDN
connections ................... 146
Using the LAN & ISDN Cascade
Connection ....................147
Preparing for a multipoint
videoconference .............................148
Installing the MCU software .... 148
Setting for a Multipoint
Videoconference ........... 150
Registering the Remote Parties in
the Multipoint Connection
List ................................151
Starting a Multipoint
Videoconference ............................155
Calling Remote Parties ............. 155
Receiving a Call from a Remote
Party .............................. 159
Using the Display Control ..............160
What is “Broadcast Mode”? ..... 160
Broadcast Modes and Displayed
Windows ....................... 162
Switching the Broadcast Mode . 163
Receiving the Broadcast Requested
From Any Other
Terminal ........................ 164
Ending the Multipoint
Videoconference ............................165
Notes on Secondary Terminals ...... 166
Connecting the External MCU .......167
Activating the Chair Control .... 167
Multipoint Attribute .......................170
Chapter 8:
Use as Computer Display or
Video Monitor
Using as Computer Display ...........172
Connecting to a Computer ........ 172
Displaying the Picture from the
Computer ....................... 173
Displaying the Picture from the
Computer during
Videoconference ........... 173
Displaying the Picture from the
Computer via the Data
Solution Box ................. 174
Using as Video Monitor ................ 175
Connecting to Video
Equipment ..................... 175
Displaying the Picture from the
Video Equipment .......... 175
Displaying the Picture from the
Video Equipment during
Videoconference ........... 176
Adjusting the Picture Quality on the
Display ........................................... 177
Appendix
Location and Function of Parts and
Controls ......................................... 181
PCS-TL50 Video Communication
System .......................... 181
PCS-RTL50 Remote
Commander .................. 183
PCSA-B384S/PCS-B384 ISDN
Unit (Optional) ............. 185
PCSA-B768S/PCS-B768 ISDN
Unit (Optional) ............. 186
PCSA-DSB1S/PCS-DSB1 Data
Solution Box (Optional) 187
Precautions .................................... 188
On Screen Messages ...................... 189
Troubleshooting ............................. 196
Specifications ................................ 199
PCS-TL50 Video Communication
System .......................... 199
PCS-RTL50 Remote
Commander .................. 201
PCS-AC19V8 AC Adaptor ...... 201
PCS-A1 Microphone
(Optional) ..................... 201
Table of Contents
7
PCS-A300 Microphone
(Optional) ...................... 201
PCSA-B384S/PCS-B384 ISDN
Unit (Optional) .............. 201
PCSA-B768S/PCS-B768 ISDN
Unit (Optional) .............. 201
PCSA-DSB1S/PCS-DSB1 Data
Solution Box (Optional) 202
PCS-320M1 H.320 MCU Software
(Optional) ...................... 202
PCS-323M1 H.323 MCU Software
(Optional) ...................... 202
Acceptable RGB Input/Output
Signals ........................... 203
Pin Assignment ........................ 205
Pin Assignment on Optional Board
Connectors .................... 206
List of Port Numbers Used on the
PCS-TL50 ..................... 207
Videoconferencing Room Layout .. 209
Camera Range .......................... 209
Glossary ......................................... 211
Menu Configuration ....................... 214
8
Table of Contents
Using This Manual
The chapters cover the following contents;
please read the chapters that may be required
for your type of videoconference.
Chapter 1: Installation and
Preparation
This chapter guides you through the system
configuration and information required to
use your Video Communication System for
the first time. It shows you how to install and
connect your Video Communication
System, to turn the system on/off and how to
access basic on-screen menus.
Chapter 2: Registration and Setup for
System Administrator
This chapter describes how to register and
set up all the necessary items for system
administrators, using the on-screen menus.
Chapter 7: Multipoint
Videoconference
This chapter shows you how to use the
Video Communication System to hold a
multipoint videoconference.
You need to install MCU software in this
System for a multipoint videoconference.
Chapter 8: Use as Computer Display/
Video Monitor
This chapter shows you how to use the
Video Communication System as a
computer display or video monitor while not
in communication.
Appendix
This chapter contains description of the
controls and connectors on the components
of the Video Communication System,
message and troubleshooting lists,
specifications and glossaries.
Chapter 3: Daily Videoconference
This chapter guides you through the basic
operations and settings to conduct a
videoconference. You will learn how to
conduct a conference from start to finish. It
is recommended that this chapter be read by
participants in the videoconference.
Chapter 4: Videoconference With
Optional Equipment
This chapter shows advanced
videoconferencing using the optional
equipment.
Chapter 5: Data Conference
This chapter shows you how to use the data
from a computer for the conference by using
the optional Data Solution Box.
Using This Manual
9
Chapter 1: Installation and Preparation
Chapter 1:
Installation and
Preparation
Chapter 6: Encrypted
videoconference via LAN
This chapter shows how to conduct a
videoconference using an encrypted video
and audio data, and encrypted data from a
computer connected to the Data Solution
Box.
Features
The PCS-TL50 Video Communication
System is a videoconferencing system that
provides natural, face-to-face
communications with a remote party by
transmitting and receiving images and sound
via LAN (Local Area Network) or ISDN
(Integrated Services Digital Network)
connections.
Integrated movable Video
Communication System
The camera, monitor, codec, microphones
and speakers are integrated in a compact
cabinet of the Video Communication
System. This movable terminal allows you
to participate in a videoconference in
various places.
The built-in display supports a 20-inch wide
screen, and the built-in camera is equipped
with digital pan/tilt and zoom.
Up to 30 One Touch Dial
registration possible
Remote parties to which you frequently
connect can be registered in the One Touch
Dial list in the launcher menu. Once they are
registered, you can dial them by simply
pressing the One Touch Dial button on the
Remote Commander.
Supports ITU-T international
videoconferencing standard
The Video Communication System
complies with ITU-T Recommendations
defined by WTSC for easy connection with
remote parties overseas.
ITU: International Telecommunication
Union
WTSC: World Telecommunications
Standardization Committee
Supports data conferences
Use of the optional PCSA-DSB1S Data
Solution Box allows the data from a personal
computer to be incorporated in the
presentation or to be shown on the projector.
10
Features
High transmission speeds and
high-quality picture capability
The Video Communication System accepts
a LAN bandwidth of up to 1920 Kbps. It also
allows connection to as many as three ISDN
lines; 6B channels usable by using the
optional PCSA-B384S ISDN Unit and as
many as six ISDN lines; 12B channels
usable by using the optional PCSA-B768S
ISDN Unit.
Wide range of video/audio
compression format selectable
The Video Communication System supports
Interlaced SIF, H.264, MPEG4, H.263+,
H.263 and H.261 for video compression
format, and MPEG4 Audio, G.722.1,
G.722, G.729, G.728, G.723.1, G.711 for
audio compression format.
QoS (Quality of Service) function
for optimization of bandwidth and
traffic packet through network
“Packet Resend Request” and “Adaptive
Rate Control” functions incorporated,
allowing solution for busy network traffic or
packet loss, which provides consistent highquality communication.
Easy setup and operation
The Help menu appears on the display for
guidance of operation. The menus used for
the system administrator or those for
conference participants are separately
displayed.
Supports multipoint conference
Installing the optional PCS-323M1 H.323
MCU software (for LAN) or the PCS320M1 H.320 MCU software (for ISDN)
allows conduct of a multipoint conference.
The multipoint conference via LAN and
ISDN connections mixed is also available if
both the PCS-323M1 H.323 and PCS320M1 H.320 MCU software are installed in
a main Terminal.
Memory Stick slot equipped
Chapter 1: Installation and Preparation
The Video Communication System is
equipped with a Memory Stick slot,
allowing the use of still images recorded
with a digital still camera and stored in the
“Memory Stick”.
You can create your own phone book and
One Touch Dial icons in a “Memory Stick”
as your private phone book.
Supports an encrypted
videoconference (only for LAN
connection)
When you connect to other terminals via
LAN, you can start a videoconference only
with the terminals that enter the preset
password. This feature allows you to hold a
strictly confidential videoconference.
An encrypted conference among multiple
points or with cascade connection is enabled
if all the terminals are connected via LAN.
Use as computer display or video
monitor
While not in conference, the display of the
Video Communication System can be used
as a computer display or video monitor.
If you receive a call from a remote party, the
picture of the remote party is automatically
displayed even when you are using the
system as a computer display or video
monitor.
Automatic and manual image
capturing
During point-to-point communication,
several still images of the remote party are
automatically captured and saved in the
memory of the Video Communication
System. You can use these images for your
Phone Book.
If a “Memory Stick” is inserted, you can
manually capture a still image of the remote
party during communication by pressing the
IMAGE CAPTURE button on the Remote
Commander. The manually captured image
can also be used for the Phone Book.
Features
11
System Components
The PCS-TL50 Video Communication System is composed of basic system
components for a basic videoconference, and optional equipment for an
enhanced videoconference.
Basic System Components
The PCS-TL50 Video Communication System is the basic system of the
Videoconferencing System. It contains the following components:
Unit
Description
PCS-TL50 Video
Communication System
Contains the camera, display, video codec, audio
codec, echo canceler, network interfaces and system
controller.
PCS-RTL50 Remote
Commander
Used to operate the Video Communication System.
T
+
W
PCS-AC19V8 AC adaptor
12
System Components
Supplies power to the Video Communication
System.
Optional Equipment
The following optional devices are used to enhance your videoconference.
Description
ISDN Unit
PCSA-B384S
Used to connect to an ISDN line. Up to three ISDN
lines; 6B channels usable.
(The PCSA-B384S and PCS-B384 have the same
functions. This manual uses the PCSA-B384S as a
representative model.)
PCS-B384
ISDN Unit
PCSA-B768S
Used to connect to an ISDN line. Up to six ISDN
lines; 12B channels usable.
(The PCSA-B768S and PCS-B768 have the same
functions. This manual uses the PCSA- B768S as a
representative model.)
PCS-B768
Data Solution Box
PCSA-DSB1S
Use of this device allows easy connection with a
computer or projector for a data conference.
(The PCSA-DSB1S and PCS-DSB1 have the same
functions. This manual uses the PCSA- DSB1S as a
representative model.)
PCS-DSB1
PCS-A1 Microphone
Omni-directional microphone that picks up sound
relatively from all directions, allowing participants to
speak from any location. It is recommended to use in
a quiet situation.
System Components
13
Chapter 1: Installation and Preparation
Unit
14
Unit
Description
PCS-A300 Microphone
Unidirectional microphone. It is recommended when
you want to pick up the voice of a speaker directed
toward the microphone.
CTE-600 Communication
Transducer
Integrated microphone/speaker system suitable for
remote communication. It is used by connecting to
the Data Solution Box.
The uni-directional microphones pick up clear voice
with minimum background noise.
Moreover, the omni-directional speaker outputs
sound equally in all directions.
PCS-323M1 H.323 MCU
Software
Allows use for a multipoint videoconference over
LAN connection.
PCS-320M1 H.320 MCU
Software
Allows use for a multipoint videoconference over
ISDN connection.
System Components
System Configuration
System Configuration via a LAN
This allows you:
• To hold a point-to-point videoconference over LAN.
• To show still images stored in a “Memory Stick”.
System configuration
1 PCS-TL50 Video Communication
System
2 PCS-RTL50 Remote Commander
+
+
System Configuration
15
Chapter 1: Installation and Preparation
The PCS-TL50 Video Communication System has various system
configuration capabilities using the basic components and optional equipment.
This section describes seven typical examples.
System Configuration via an ISDN
Connection to ISDN is required to use the PCSA-B384S or PCSA-B768S
ISDN Unit especially designed for use with this system.
This allows you:
• To hold a point-to-point videoconference over ISDN.
• To show still images stored in a “Memory Stick”.
• To hold a videoconference with high speeds and highest quality image
transmission by connecting up to three ISDN lines (when using the PCSAB384S) or by connecting up to six ISDN lines (when using the PCSAB768S).
System configuration
*
1 PCS-TL50 Video Communication
System
2 PCS-RTL50 Remote Commander
3 PCSA-B384S or PCSA-B768S ISDN
Unit (not supplied)
*
+
+
*
The illustration shows an example using
the PCSA-B768S ISDN Unit.
About the number of ISDN lines and B (bearer) channel
Up to three ISDN lines with the PCSA-B384S ISDN Unit or up to six ISDN lines
with the PCSA-B768S ISDN Unit can be connected to one PCS-TL50.
Each ISDN line is composed of two B channels that carry data signals on the
ISDN interface, enabling both channels to be used for one ISDN line
connection (2B connection), or each for a separate ISDN line connection (1B
connection). The more channels you use for a single communication, the faster
speeds and higher-quality picture you can obtain for your network
communication.
When using the PCSA-B384S, you can connect up to three ISDN lines and
select the number of channels used for a single communication from among 1B
(64K), 2B (128K), 3B (192K), 4B (256K), 5B (320K) and 6B (384K)
connections.
When using the PCSA-B768S, you can connect up to six ISDN lines and select
the number of channels from among 1B (64K), 2B (128K), 3B (192K), 4B
(256K), 5B (320K) and 6B (384K), 8B (512K) and 12B (768K) connections.
16
System Configuration
System Configuration via a LAN for Multipoint Conference
You need to install the optional PCS-323M1 H.323 MCU software.
Chapter 1: Installation and Preparation
This allows you:
• To hold a multipoint videoconference among up to ten sites over LAN.
• To show still images stored in a “Memory Stick”.
System configuration
+
+
1 PCS-TL50 Video Communication System
2 PCS-RTL50 Remote Commander
3 PCS-323M1 H.323 MCU software (not supplied)
System Configuration
17
System Configuration via an ISDN for Multipoint Conference
You need to connect the optional PCSA-B384S or PCSA-B768S ISDN Unit
especially designed for use with this system and to install the optional PCS320M1 H.320 MCU software.
This allows you:
• To hold a multipoint videoconference among up to six sites over ISDN.
• To show still images stored in a “Memory Stick”.
System configuration
+
1
2
3
4
18
+
PCS-TL50 Video Communication System
PCS-RTL50 Remote Commander
PCS-320M1 H.320 MCU software (not supplied)
PCSA-B384S or PCSA-B768S ISDN Unit (not
supplied)
System Configuration
The illustration shows an example
using the PCSA-B768S ISDN Unit.
System Configuration via a LAN and ISDN for Multipoint
Conference
This allows you:
• To hold a multipoint videoconference among up to ten sites over LAN and
ISDN.
• To show still images stored in a “Memory Stick”.
System configuration
LAN*
+
1
2
3
4
5
+
PCS-TL50 Video Communication System
PCS-RTL50 Remote Commander
PCS-323M1 H.323 MCU software (not supplied)
PCS-320M1 H.320 MCU software (not supplied)
PCSA-B384S or PCSA-B768S ISDN Unit (not
supplied)
* Be sure to make a connection
via LAN.
The illustration shows an
example using the PCSA-B768S
ISDN Unit.
System Configuration
19
Chapter 1: Installation and Preparation
Installing the optional PCS-323M1 H.323 MCU software (for LAN) and PCS320M1 H.320 MCU software (for ISDN) enables conduct of a multipoint
conference via a LAN and ISDN mixed.
Two Video Communication Systems in which MCU software is installed must
be connected via a LAN.
System Configuration via a LAN for Multipoint Data Conference
You need to connect the optional PCSA-DSB1S Data Solution Box especially
designed to use with this system and to install the optional PCS-323M1 H.323
MCU software.
This allows you:
• To hold a multipoint videoconference among up to ten sites over LAN.
• To show still images stored in a “Memory Stick”.
• To use the data from a computer or external equipment.
• To show data from a computer or still images together with the picture of
videoconference on the display using the PinP or PandP feature.
• To pick up a large number of participants’ voices using up to five external
microphones connected to the Data Solution Box.
System configuration
+
1
2
3
4
5
20
+
PCS-TL50 Video Communication System
PCS-RTL50 Remote Commander
PCS-323M1 H.323 MCU software (not supplied)
PCSA-DSB1S Data Solution Box (not supplied)
PCS-A1 Microphone (not supplied)
System Configuration
System Configuration via an ISDN for Multipoint Data Conference
You need to connect the optional PCSA-384S or PCSA-B768S ISDN Unit and
the PCSA-DSB1S Data Solution Box especially designed for use with this
System and to install the optional PCS-320M1 H.320 MCU software.
System configuration
+
+
PCS-TL50 Video Communication System
PCS-RTL50 Remote Commander
PCS-320M1 H.320 MCU software (not supplied)
PCSA-B384S or PCSA-B768S ISDN Unit (not
supplied)
5 PCSA-DSB1S Data Solution Box (not supplied)
6 PCS-A1 Microphone (not supplied)
1
2
3
4
The illustration shows an example
using the PCSA-B768S ISDN
Unit.
System Configuration
21
Chapter 1: Installation and Preparation
This allows you:
• To hold a multipoint videoconference among up to six sites over ISDN.
• To show still images stored in a “Memory Stick”.
• To use the data from a computer or an external equipment.
• To show data from a computer or still images together with the picture of
videoconference on the display using the PinP or PandP feature.
• To pick up a large number of participants’ voices using up to five external
microphones connected to the Data Solution Box.
System Connections
This section describes the typical system connections.
Using the Connectors
The connectors are in the inside of the rear cover.
When using the connectors, remove the rear cover, connect cables to the
connectors, and replace the rear cover.
To remove the rear cover
Pull the rear cover toward you.
Connectors
To replace the rear cover
Align the four projections on the rear cover with the holes on the rear of the
system, and press the cover.
22
System Connections
Notes on Connections
System Connection via a LAN
Connect 1 to 4 in order.
3
PCS-TL50 Video
Communication System
2
Power cord*
4
to DC19.5V
1
to a wall outlet
PCS-AC19V8
AC adaptor*
to 100BASE-TX/10BASE-T
UTP cable (category 5, straight)**
to LAN
* supplied
** not supplied
System Connections
23
Chapter 1: Installation and Preparation
• Be sure to turn off all the equipment before making any connections.
• Use the AC adaptor and the power cord supplied with this system only.
Never use the other AC adaptor or power cord.
• Insert the AC plug and DC plug of the AC adaptor securely as far as they will
go.
• Do not connect/disconnect a cable with the power on. Doing so may damage
the Video Communication System.
• For safety, do not connect the 100BASE-TX/10BASE-T connector to a
network that applies an excess voltage via the 100BASE-TX/10BASE-T
connector.
System Connection via an ISDN
Notes
• Do not connect/disconnect the interface cable with the power on. Doing so may
damage the Video Communication System or ISDN Unit.
• Used with the ISDN Unit for the first time, the Video Communication System may
automatically upgrade the software of the ISDN Unit. While the upgrading message
appears on the display, be sure not to turn off the Video Communication System.
Doing so may cause malfunction of the system.
Connect 1 to 4 in order.
PCS-AC19V8
AC adaptor*
2
3
to DC19.5V
Power cord*
PCS-TL50 Video
Communication System
4 to a wall outlet
1 to ISDN UNIT
Interface cable
(supplied with the ISDN unit)
to
TERMINAL
ISDN Unit**
PCSA-B384S
PCSA-B768S
to ISDN
1-3
* supplied
** not supplied
24
System Connections
to ISDN 1-6
ISDN modular
cable**
Preparing the System
Inserting Batteries into the Remote Commander
Chapter 1: Installation and Preparation
Most of the operations with the Video Communication System can be
controlled with the supplied Remote Commander.
1
Remove the battery compartment cover.
2
Insert two size AA (R6) batteries (supplied) with correct polarities into the
battery compartment.
Note
Be sure to insert the batteries E side first. Inserting them forcibly e side first may
damage the insulated film covering the batteries and cause a short circuit.
3
Replace the cover.
Battery life
When the Remote Commander does not function properly, replace both the
batteries with new ones.
Notes on batteries
To avoid damage from possible battery leakage or corrosion, observe the
following:
• Make sure to insert the batteries with the polarities in the correct direction.
Preparing the System
25
• Do not mix old and new batteries, or different types of batteries.
• Do not attempt to charge the batteries.
• If you do not intend to use the Remote Commander for a long period of time,
remove the batteries.
• If battery leakage occurs, clean the battery compartment and replace all the
batteries with new ones.
Placing the Remote Commander on the Stand
You can operate the supplied Remote Commander by placing it on the stand
of the Video Communication System.
Remote Commander
Note
There are built-in magnets under the Remote Commander area of the stand. To prevent
the data from being damaged, keep magnetic recording media such as floppy disks and
magnetic cards away from this area.
26
Preparing the System
Turning the System On/Off
This section describes how to turn on or off the Video Communication System.
Before turning on the system, make sure that the system connections have been
completed correctly.
For connecting the system, see “System Connections” on page 22.
1
Turn on the power of any equipment to be used for the videoconference.
2
Press the 1 (power) switch on the right side of the system.
1 (power) switch
The indicator of the switch lights in green and the Video Communication
System turns on after a while. The launcher menu will appear on the display
and the picture shot by the local camera will also appear in the launcher menu.
Launcher menu
Detailed Dial
Phone Book
IP:012.345.678.912
ISDN:012345678912
1
2
Bob
ISDN
3
4
5
6
John
Dial
Press the PUSH ENTER button on the Remote Commander to adjust the camera angle.
Turning the System On/Off
27
Chapter 1: Installation and Preparation
Turning On
Notes
• When you turn on the power of the Video Communication System for the first time
after installation, the setup wizard will appear after the self-diagnosis is completed.
Set up your system following the wizard.
For setups using the wizard, see “Setting Up the System for the First Time
— Initial Setup Wizard” on page 31.
• Used with an optional device especially designed for use with this system, such as the
Data Solution Box or ISDN Unit, for the first time, the Video Communication System
may automatically upgrade the software of the connected device. While the upgrading
message is displayed, be sure not to turn off the Video Communication System. Doing
so may cause malfunction of the system. System malfunction may also occur when a
system power-off has been caused by an accidental problem such as a power
interruption during upgrading. If connection of the Data Solution Box or ISDN Unit
to the Video Communication System is not re-established even after the system power
is recovered, consult a Sony dealer.
Turning Off
1
Press the 1 (power) switch on the right side of the system for more than
one second to turn the system off.
The message “The power will turn off. Please wait.” appears on the display.
Then the system will be turned off.
2
Turn off the power of other equipment used for the videoconference.
Note
Turn the power of the system off when the system will not be used for an extended
period. While the power is off, you cannot receive a call from a remote party.
Setting the Video Communication System to Standby Mode
1
Press the ?/1 button on the Remote Commander.
The message “Turn the display off, and set to standby mode?” appears on the
display.
2
Press the B or b button on the Remote Commander to select OK, and press
the ENTER button.
The Video Communication System enters standby mode.
You can receive a call from a remote party in the standby mode.
Opening the Shutter
The system is equipped with a shutter to hide the camera. Before starting a
videoconference, open the shutter by sliding the shutter switch on the top of
the system to the right. If the shutter is closed, the picture on the local side will
not be seen on the remote site.
28
Turning the System On/Off
Shutter switch
Chapter 1: Installation and Preparation
Camera
When the shutter is closed, the launcher menu appears as follows.
Detailed Dial
Closed
Phone Book
IP:012.345.678.912
ISDN:012345678912
1
2
Bob
3
4
5
6
John
ISDN
Dial
Press the PUSH ENTER button on the Remote Commander to adjust the camera angle.
Adjusting the Volume
Press the VOLUME +/– buttons on the Remote Commander to set the volume
level appropriately.
Volume
050
Notes
• The volume can be adjusted for the picture of a videoconference, the image
from a computer and the image from video equipment.
• The volume can be adjusted for the full screen image for the PinP feature, or
the left image for the PandP feature. In the PinP mode or PandP mode, the
mixed sound of the two images on the display is heard.
Turning the System On/Off
29
Adjusting the Picture Quality
Use the MENU, V/v and OK buttons on the right side of the unit to adjust the
picture quality.
For details, see “Adjusting the Picture Quality on the Display” on page 177.
Displaying the Help
Pressing the HELP button on the Remote Commander displays a balloon help
or a help screen to guide most operations on thedisplay.
Note
You can hide the balloon help used for entering characters.
Press the MENU button on the Remote Commander to show the menu, select
“Character Input Help” from the General Setup menu, and select “Off”. (See page 46.)
Displaying the Versions and Options
You can check the version of the Video Communication System, versions of
the connected optional equipment for exclusive use of this system, and the
options installed in the Video Communication System by displaying the
Machine Information menu on the display.
For details on the Machine Information menu, see “Machine Information
Menu” on page 56.
30
Turning the System On/Off
3
ISDN Setup Wizard
When you turn on the Video
Communication System for the first time
after installation and the self-diagnosis is
completed, the setup wizard appears on the
display. Register your local system data with
the setup wizard using the Remote
Commander.
1
Select the language used for the onscreen menus and messages in the
Language Setup Wizard.
Language: Select one of 8 languages;
English, French, German, Japanese,
Spanish, Italian, Simplified Chinese,
Portuguese.
Country/Region
USA
Country/Region Code
1
Protocol
National ISDN
Previous
Next
Cancel
Country/Region: Select your country
or region.
Country/Region Code: Enter your
country code or region code with the
number buttons on the Remote
Commander.
Protocol: Select the protocol of the
ISDN line you are using.
Notes
• You can change the settings made with the
setup wizard later using the Setup menus.
• The setup wizard will also be displayed when
you install the PCSA-B384S or PCSAB768S ISDN Unit to your system later.
Perform the setup again.
Set the following items on the ISDN
line.
4
Use the V, v, B or b button to select
“Next”, then press the ENTER button.
5
Enter the telephone number of the
ISDN used by the system.
When you use one ISDN line, enter the
same number both in the A1 and A2 text
boxes (except for the USA and Canada).
Language Setup Wizard
Area Code
Local Number
A1
Language
English
A2
B1
B2
C1
C2
Next
2
Cancel
Use the V, v, B or b button on the
Remote Commander to select “Next”,
then press the ENTER button.
The ISDN Setup Wizard appears when
the PCSA-B384S or PCSA-B768S
ISDN Unit is connected.
When the ISDN Unit is not connected,
the LAN Setup Wizard is displayed.
Proceed to step 9.
Previous
Next
Cancel
Area Code: Enter the area code. Do not
enter the first “0” number.
Local Number: Enter the telephone
number.
When you select Auto SPID (only
for customers in the USA and
Canada)
You can automatically set up the Area
Code and Local Number on this page,
and SPID items in the SPID menu.
Setting Up the System for the First Time — Initial Setup Wizard
31
Chapter 1: Installation and Preparation
Setting Up the
System for the First
Time — Initial Setup
Wizard
8
Notes
• When you select a blank text box and
press the ENTER button on the Remote
Commander, the content in the text box
immediately above will be copied to the
selected text box.
Use the V, v, B or b button to select
“Next”, then press the ENTER button.
For customers in other countries than
the USA and Canada
The LAN Setup Wizard appears.
• When you use the PCSA-B384S ISDN
unit and connect 2 or 3 ISDN lines,
enter the telephone numbers in the B1
to C2 text boxes in addition to the A1
and A2 boxes.
When you use the PCSA-B768S and
connect 2 to 6 ISDN lines, enter the
telephone numbers in the B1 to F2 text
boxes in addition to the A1 and A2
boxes. To open the menu with D1 to
F2 text boxes, select “Next”, then
press the ENTER button.
For customers in the USA and
Canada
The ISDN Setup Wizard (SPID menu)
appears.
Set the SPID items, then select “Next”
and press the ENTER button.
The LAN Setup Wizard appears.
For details on the SPID settings, see
“SPID Setting for Customers in the USA
and Canada” on page 53.
Note
6
Use the V, v, B or b button to select
“Next”, then press the ENTER button.
7
Enter the sub-addresses.
Only numerals are available for a subaddress.
When you use one ISDN line, enter the
same number both in the A1 and A2 text
boxes (except for the USA and Canada).
When you do not use the LAN, select
“Next” to display the message window for
confirmation, then proceed to step 11.
9
Set the following items on the LAN.
LAN Setup Wizard
DHCP Mode
Off
Host Name
IP Address
.
.
.
Network Mask
.
.
.
A1
Gateway Address
.
.
.
A2
DNS Address
.
.
.
Sub Address
B1
Previous
B2
Next
Cancel
C1
C2
Previous
Next
Cancel
Note
When you use the PCSA-B384S ISDN
unit and connect 2 or 3 ISDN lines, enter
the sub-addresses in the B1 to C2 text
boxes in addition to the A1 and A2 boxes.
When you use the PCSA-B768S and
connect 2 to 6 ISDN lines, enter the subaddresses in the B1 to F2 text boxes in
addition to the A1 and A2 boxes. To open
the menu with these text boxes, select
“Next”, then press the ENTER button.
32
DHCP Mode: Sets the DHCP
(Dynamic Host Configuration
Protocol).
Auto: Automatically assigns your IP
address, network mask, gateway
address and DNS address.
Off: Deactivates DHCP. In this case
set your IP address, network mask,
gateway address and DNS address
manually.
Host Name: Enter your host name.
IP Address: Enter your IP address.
Network Mask: Enter your network
mask.
Gateway Address: Enter your default
gateway address.
Setting Up the System for the First Time — Initial Setup Wizard
DNS Address: Enter your DNS
(Domain Name System) server
address.
Note
Chapter 1: Installation and Preparation
When you set “DHCP Mode” to “Auto”,
the assigned IP address is shown in the
launcher menu (page 70) or Machine
Information menu (page 56).
When you do not know how to set up the
LAN configuration, contact your
network administrator.
10Use the V, v, B or b button to select
“Next”, then press the ENTER button.
The message window for confirmation
appears.
11Use the V, v, B or b button to select
“Save”, then press the ENTER button.
Save
Previous
Cancel
The settings are saved.
To cancel the setting
Press the V, v, B or b button to select
“Cancel”, then press the ENTER button.
To go back to the previous wizard
Press the V, v, B or b button to select
“Previous”, then press the ENTER button.
Setting Up the System for the First Time — Initial Setup Wizard
33
Using the Menu
The Video Communication System uses the on-screen menus to make various
adjustments and settings. This section gives a brief introduction of the menus.
Menu Configurations
The menus of this system configure as described below.
For more detailed menu configurations, refer to “Menu Configuration” on
page 214.
Launcher menu
One Touch Dial Operation menu
One Touch Dial Operation
Detailed Dial
Phone Book
IP:012.345.678.912
ISDN:012345678912
1
2
Dial
3
4
5
Edit
Delete
6
Cancel
Bob
ISDN
John
Dial
Press the PUSH ENTER button on the Remote Commander to adjust the camera angle.
Phone Book menu/Private Phone Book menu
Phone Book
RECENT
Recent
LAN
0-9
TOKYO
Bob
John
LAN
ISDN
ISDN
OSAKA
NEW YORK
PARIS
A-I
J-S
T-Z
New Entry
Detailed Dial menu
Detailed Dial
Line I/F
IP
LAN
LAN Bandwidth
1024 Kbps
Dial
Save
Still Image menu
Still Image
Send
MENU Button
Continuous Send
Clear
Save
Camera menu
Camera
Preset Save
Preset Load
Adjustments
Memory Stick menu
Memory Stick
Setup menu
Setup
Dial
General
Administrator
Multipoint
Status
Encryption via LAN
34
Using the Menu
Audio
LAN
ISDN
Information
One Touch Dial Operation menu
Menu Icons
Selecting the icons on the menu tabs shown
on the left side of the menu displays each
menu.
Dial
Displayed menu
Edit
Delete
Returns to the previous menu.
Phone Book menu
Cancel
The One Touch Dial Operation menu is used
to register or edit a One Touch Dial list or
call a remote party registered in the One
Touch Dial list.
The menu appears when you select one of
the One Touch Dial buttons on the launcher
menu.
Private Phone Book menu
Detailed Dial menu
Still Image menu
Camera menu
For details on One Touch Dial, see pages 65
to 68.
Memory Stick menu
Phone Book menu
Setup menu
Phone Book
RECENT
Recent
LAN
Introduction of Menus
TOKYO
Bob
John
0-9
A-I
J-S
T-Z
Launcher menu
LAN
ISDN
ISDN
OSAKA
NEW YORK
PARIS
New Entry
Detailed Dial
Phone Book
IP:012.345.678.912
ISDN:012345678912
1
2
Bob
ISDN
3
4
5
6
John
Dial
Press the PUSH ENTER button on the Remote Commander to adjust the camera angle.
The launcher menu appears when the Video
Communication System is turned on or is
displayed while it is not connected to a
remote party.
The Phone Book menu is used to register a
remote party, or to call a registered remote
party.
The menu appears when you select “Phone
Book” in the Launcher menu or
from
the menu tabs.
For details on the Phone Book menu, see
pages 59 to 63 and 75 to 78.
For details on the launcher menu, see pages
70 to 71.
Using the Menu
35
Chapter 1: Installation and Preparation
Icon
One Touch Dial Operation
Detailed Dial menu
Still Image menu
Still Image
Detailed Dial
Send
Line I/F
IP
LAN
Continuous Send
LAN Bandwidth
1024 Kbps
Clear
Save
Dial
Save
The Detailed Dial menu is used to call a
remote party who is not registered in the
Phone Book.
The menu appears when you select
“Detailed Dial” in the launcher menu or
from the menu tabs, or press the
CONNECT/DISCONNECT ( / )
button on the Remote Commander.
For details on the Detailed Dial menu, see
pages 78 to 82.
The Still Image menu is used to control still
images.
The menu appears when you press the
MENU button on the Remote Commander
to display the Setup menu and select
from the menu tabs displayed.
For details on the Still Image menu, see
pages 113 to 119.
Camera Menu
Camera
Setup menu
Preset Save
Setup
Preset Load
Dial
Answer
General
Audio
LAN
Administrator
ISDN
Multipoint
Information
Status
Encryption via LAN
SMS
Adjustments
The Setup menu for the administrator is used
to set various detailed items on the system.
The menu appears when you press the
MENU button on the Remote Commander.
The Camera menu is used to adjust camera
angle or zooming of the displayed image.
The menu appears when you press the
MENU button on the Remote Commander
to display the Setup menu and select
from the menu tabs displayed.
For details on the Setup menu, see pages 39
to 59.
For details on the Camera menu, see pages
89 to 96.
36
Using the Menu
Memory Stick menu
Memory Stick
Chapter 1: Installation and Preparation
The Memory Stick menu is used when you
are using a “Memory Stick”. The menu is
not displayed unless a “Memory Stick” is
installed in the Video Communication
System.
The menu appears when you press the
MENU button on the Remote Commander
to display the Setup menu and select
from the menu tabs displayed.
For details on the Memory Stick menu, see
pages 106 to 110 and page 118.
Using the Menu
37
Entering Characters
This section explains how to enter the letters, numerals or symbols on the text
box in the menu using the Remote Commander.
PinP (BACK PandP
(CLEAR)
SPACE)
button
button
Number buttons
CONNECT/
DISCONNECT
1
ABC
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
2
3
4
5
MENU
PinP
6
HELP
VIDEO CONF
PC/VIDEO
WIDE MODE
DISPLAY
SELECT
BACK
SPACE
PandP
ZOOM
VOLUME
T
+
BACK LIGHT
CLEAR
ENTER
CAPTURE IMAGE
INPUT SELECT
SYMBOL
RETURN
W
FAR/NEAR
0
–
MIC ON/OFF
ALPHA/NUM
INPUT SELECT (SYMBOL) button
(dot) button
FAR/NEAR (ALPHA/NUM) button
To enter letters or numerals
1
2
Press the FAR/NEAR (ALPHA/
NUM) button repeatedly to enable the
alphabet or numerals to be input.
Press the number buttons repeatedly to
enter the letters or numerals you want.
You can enter the letter shown on each
button by pressing it repeatedly.
You can enter the numeral shown on
each button by pressing it.
To enter a symbol
Press the INPUT SELECT (SYMBOL)
button repeatedly to select the desired
symbol. Pressing the 0 button also enables
you to enter the symbol.
To enter a dot (.) for an IP address
Press the
button.
38
Using the Menu
To delete a character
Press the PinP (BACK SPACE) button. The
last entered character is deleted.
To delete all characters in a line
Move the cursor to the line to be deleted,
then press the PandP (CLEAR) button.
Note
When you press the HELP button on the
Remote Commander to show balloon helps or
help screens, you can hide only the balloon
help used for entering characters.
Select “Character Input Help” from the
General Setup menu, then select “Off”. (See
page 46.)
Audio: Audio Setup menu (see page 46)
LAN: LAN Setup menu (see page 47)
Administrator: Administrator Setup
menu (see page 51)
ISDN: ISDN Setup menu (see page 52)
Multipoint: Multipoint Setup menu (see
page 55)
Information: Machine Information
menu (see page 56)
Status: Status menu (see page 57)
Encryption via LAN: Encryption via
LAN menu (see page 59)
Chapter 2:
Registration and
Setup for System
Administrators
2
Use the V, v, B or b button on the
Remote Commander to select the
menu you want to set, then press the
ENTER button.
The selected setup menu appears.
Registering Local
Information
Dial Setup
Page: 1/4
Before starting a conference, register the
required information on the local terminals
of the system using the Setup menu. This
section describes how to display the Setup
menus and gives a introduction to the
menus.
Opening the Setup Menu
1
Press the MENU button on the
Remote Commander.
The Setup menu appears on the display.
Setup
Dial
Answer
General
Audio
LAN
Administrator
ISDN
Multipoint
Information
Status
Encryption via LAN
SMS
Choosing the following items from the
Setup menu opens the respective menus.
Dial: Dial Setup menu (see page 40)
Answer: Answer Setup menu (see page
43)
General: General Setup menu (see page
45)
Line I/F
LAN
Bonding
Auto
Number of Lines
12B (768K)
LAN Bandwidth
1024 Kbps
Prefix
Prefix-None
Restrict
Auto
Save
3
Cancel
Set the respective items.
For details on individual items, see the
relevant menu pages.
4
After the setting is completed, use the
V, v, B or b button to select “Save”,
then press the ENTER button.
The setting is saved, and the Setup menu
is restored.
To cancel the setup
Use the V, v, B or b button on the Remote
Commander to select “Cancel”, then press
the ENTER button. Or press the RETURN
button on the Remote Commander.
To page up or down the selected
menu
Use the V, v, B or b button on the Remote
Commander to select the Page box, then
press the b button to advance the page and
the B button to go back to the previous page.
Registering Local Information
39
Chapter 2: Registration and Setup for System Administrators
This chapter describes the registration and
settings to be carried out by the system
administrator.The chapter is intended to be
read by the system administrator.
Dial Setup Menu
The Dial Setup menu is used to set the
attributes for dialing.
Page 1/4
Dial Setup
Page: 1/4
Line I/F
LAN
Bonding
Auto
Number of Lines
12B (768K)
LAN Bandwidth
1024 Kbps
Prefix
Prefix-None
Restrict
Auto
Save
Cancel
Line I/F
Select the line interface you use normally.
LAN: Connects a videoconferencing system
via a LAN.
ISDN: Connects a videoconferencing
system via ISDN.
ISDN (Telephone): Connects an audio-only
telephone via ISDN (Voice Meeting).
Bonding*
Select whether you use a process called
BONDING to connect multiple ISDN lines.
Through BONDING, connection of one line
enables you to automatically connect all
other lines.
Auto: Automatically activates connection
through BONDING if this feature is
available on the remote party.
On: Always connects a remote party
through BONDING.
*
Bonding (Bandwidth on Demand
Interoperability Group) is a registered
trademark of THE BONDING
CONSORTIUM.
Number of Lines
Selects the number of ISDN channels to be
used for BONDING call.
You can select from among 1B(64K),
2B(128K), 3B(192K), 4B(256K),
5B(320K), 6B(384K), 8B(512K) and
12B(768K) channels.
40
Registering Local Information
LAN Bandwidth
Selects the bandwidth to be used when
connected to a LAN.
You can select from among 64 Kbps, 128
Kbps, 256 Kbps, 384 Kbps, 512 Kbps, 768
Kbps, 1024 Kbps, 1920 Kbps and “Other”.
When “Other” is selected, a bandwidth value
between 1 and 1920 Kbps can be entered.
Prefix
Selects the prefix number (call number
prefixed to a line number) setting.
Prefix-None: Sets when using no prefix
number.
Prefix-A: Selects to use the prefix set in
“Prefix-A” on Page 3 of the Dial Setup
menu.
Prefix-B: Selects to use the prefix set in
“Prefix-B” on Page 3 of the Dial Setup
menu.
Prefix-C: Selects to use the prefix set in
“Prefix-C” on Page 3 of the Dial Setup
menu.
For details on setting the prefix number, see
Page 3 of the Dial Setup Menu on page 42.
Restrict
Selects the ISDN transmission rate at
dialing.
Auto: Selects when connecting a remote
party via a normal ISDN line.
56K: Selects when connecting a remote
party in a region or country where the
ISDN transmission rate is 56 Kbps.
Note
The system is set to connect an ISDN line at the
transmission rate of 64 Kbps at the factory.
However, some countries such as the USA or
some regions may use the ISDN transmission
rate of 64 Kbps and 56 Kbps. You may not
communicate with such country or region with
the transmission rate of 64 Kbps. In this case,
set “Restrict” to “56K” before dialing.
Page 2/4
Dial Setup
Page: 2/4
Video Mode
ALL
Video Frame
15fps
Audio Mode
ALL
Far End Camera Control
On
T.120 Data
Off
H.239
On
Save
Cancel
Note
The Interlaced SIF format is not available if the
videoconferencing system of the connected
terminal has a different color system.
Video Frame
Selects the number of video frame for
transmission.
15fps: Sends CIF format pictures at a
maximum rate of 15 frames per second.
30fps: Sends CIF format pictures at a
maximum rate of 30 frames per second.
Audio Mode
Selects the compression format of audio to
be sent to a remote party.
ALL: Sends any audio compression format
depending on the format used on the
remote site.
MPEG4 Audio: Sends audio based on the
MPEG4 format.
Note
When the remote videoconferencing system
does not support the Audio Mode selected by
the local site, the mode automatically switches
to “G.711”.
Far End Camera Control
When the conference starts by calling a
remote party from the local site, selects
whether to enable control of each other’s
cameras from each other sites.
On: Enables control of each other’s
cameras. Normally, set to ON.
Off: Disables control of each other’s
cameras.
T.120 Data
Selects whether you conduct a data
conference via the T.120 standard using
NetMeeting (only for the ISDN connection).
On: Enables conduct of the T.120 data
conference.
Off: Disables conduct of the T.120 data
conference.
For details on the T.120 data conference,
see “Conducting a Data Conference Using
NetMeeting – T.120 Data Conference” on
page 124.
H.239
Selects whether you use the dual video
presentation mode based on the H.239
standard.
On: Enables the dual video presentation
mode based on the H.239 standard.
Off: Disables the dual video presentation
mode based on the H.239 standard.
Registering Local Information
41
Chapter 2: Registration and Setup for System Administrators
Video Mode
Selects the compression format of the
pictures to be sent to a remote party.
ALL: Sends pictures of any compression
format depending on the format used on
the remote site.
Interlaced SIF: Sends pictures based on the
SIF 50/60fps format.
H.264: Sends pictures based on
Recommendation H.264.
MPEG4: Sends pictures based on the
MPEG4 format.
H.263+: Sends pictures based on
Recommendation H.263+.
H.261: Sends pictures based on
Recommendation H.261 (when sending
still images using Annex D).
G.722.1: Sends audio based on the G.722.1
standard.
G.722: Sends audio based on the G.722
standard.
G.729: Sends audio based on the G.729
standard.
G.728: Sends audio based on the G.728
standard.
G.723.1: Sends audio based on the G.723.1
standard.
G.711: Sends audio based on the G.711
standard.
“Protocol” setting in the ISDN Setup
menu.
G.711 µ-law: Selects the format based on
the G.711 µ-law standard.
G.711 A-law: Selects the format based on
the G.711 A-law standard.
Page 3/4
Dial Setup
Page: 3/4
Prefix-A
Prefix-B
Prefix-C
Save
Cancel
Prefix-A
When “Prefix” on Page 1 of the Dial Setup
menu is set to “Prefix-A”, the line number
prefixed by the prefix (dial number)
registered in this box is dialed.
Prefix-B
When “Prefix” on Page 1 of the Dial Setup
menu is set to “Prefix-B”, the line number
prefixed by the prefix (dial number)
registered in this box is dialed.
Prefix-C
When “Prefix” on Page 1 of the Dial Setup
menu is set to “Prefix-C”, the line number
prefixed by the prefix (dial number)
registered in this box is dialed.
Note
Enter “9” when this is required to reach an
outgoing call.
Page 4/4
Dial Setup
Page: 4/4
Telephone Mode
Auto
More Options Enable
Off
User Name Input
Off
Save
Cancel
Telephone Mode
Selects the audio compression format when
conducting a voice meeting.
Auto: Selects an appropriate format
automatically according to the
42
Registering Local Information
More Options Enable
Selects whether you set the items in the Dial
Setup menu for each dial list.
On: Enables setting for each dial list. When
you select “More Options Enable” in the
List Edit menu of the Phone Book, the
Dial Setup menu appears.
Off: Enables application of the settings in
the Dial Setup menu to all the dial lists.
User Name Input
Before starting communication, selects
whether you record the user names in the
communication log.
On: Records the user names. Each time a
dialing is made, the menu where the
name is input appears.
Off: Disables recording of the user names.
the transmission rate of 64 Kbps. In this case,
set “Restrict” to “56K” before dialing.
Answer Setup Menu
The Answer Setup menu is used to set up for
receiving a call.
Page 1/2
Answer Setup
Page: 1/2
Auto Answer
ISDN
Auto Answer
12B (768K)
Restrict
Auto
LAN Bandwidth
1024 Kbps
ISDN MSN
Off
Mic on Answer
On
Save
Cancel
Auto Answer
Selects whether the auto answer mode is
activated.
Auto Answer: Answers a call in auto
answer mode. When a call comes in, the
line is automatically connected.
Off: Answers a call in manual answer mode.
When you are called up, the phone rings.
If you select “OK” for the message
“Respond?”, the line is connected.
Number of Lines
Selects the number of ISDN channels used
to receive a call.
You can select from among 1B(64K),
2B(128K), 3B(192K), 4B(256K),
5B(320K), 6B(384K), 8B(512K),
12B(768K) channels.
Restrict
Selects the transmission rate of the ISDN
lines when a call comes in.
Auto: Selects when connecting a remote
party via a normal ISDN line.
56 K: Selects when connecting a remote
party in a region or country where 56
Kbps is used for the ISDN transmission
rate.
Note
The system is set to connect an ISDN line at the
transmission rate of 64 Kbps at the factory.
However, some countries such as the USA or
some regions may use the ISDN transmission
rate of 64 Kbps and 56 Kbps. You may not
communicate with such country or region with
ISDN MSN
Selects whether you are using the Multiple
Subscriber Number.
On: Selects when you use the Multiple
Subscriber Number.
Off: Selects when you do not use the
Multiple Subscriber Number.
Mic on Answer
Selects whether to transmit the sound on
your site when answering a call from the
remote party.
On: Transmits the sound when answering a
call.
Off: Disables transmission of the sound
when answering a call.
Page 2/2
Answer Setup
Page: 2/2
Video Mode
ISDN
ALL
Video Frame
15fps
Audio Mode
ALL
Far End Camera Control
On
T.120 Data
Off
H.239
On
Save
Cancel
Video Mode
Selects the compression format of the
pictures to be received from a remote party.
ALL: Receives pictures of any compression
format depending on the format used on
the remote site.
Interlaced SIF: Receives pictures based on
the SIF 50/60fps format.
H.264: Receives pictures based on
Recommendation H.264.
MPEG4: Receives pictures based on the
MPEG4 format.
Registering Local Information
43
Chapter 2: Registration and Setup for System Administrators
Number of Lines
LAN Bandwidth
Select the bandwidth to be used when
connected to a LAN.
You can select from among 64 Kbps, 128
Kbps, 256 Kbps, 384 Kbps, 512 Kbps, 768
Kbps, 1024 Kbps, 1920 Kbps and “Other”.
When “Other” is selected, a bandwidth value
between 1 and 1920 Kbps can be entered.
H.263+: Receives pictures based on
Recommendation H.263+.
H.261: Receives pictures based on
Recommendation H.261.
Note
The Interlaced SIF format is not available if the
videoconferencing system of the connected
terminal has a different color system.
Video Frame
Selects the number of video frame to be
received.
15 fps: Receives CIF format pictures at a
maximum rate of 15 frames per second.
30 fps: Receives CIF format pictures at a
maximum rate of 30 frames per second.
Audio Mode
Selects the compression format of audio to
be received from a remote party.
ALL: Receives any audio compression
format depending on the format used on
the remote site.
MPEG4 Audio: Receives audio based on
the MPEG4 format.
G.722.1: Receives audio based on the
G.722.1 standard.
G.722: Receives audio based on the G.722
standard.
G.729: Receives audio based on the G.729
standard.
G.728: Receives audio based on the G.728
standard.
G.723.1: Receives audio based on the
G.723.1 standard.
G.711: Receives audio based on the G.711
standard.
Note
When the remote videoconferencing system
does not support the Audio Mode selected by
the local site, the mode automatically switches
to “G.711”.
Far End Camera Control
When the conference starts with a call from
a remote party, selects whether to enable
control of each other’s cameras from each
other’s sites.
On: Enables control of each other’s
cameras.
Off: Disables control of the remote party’s
camera.
44
Registering Local Information
T.120 Data
Selects whether you conduct a data
conference via the T.120 standard using
NetMeeting (only for the ISDN connection).
On: Enables conduct of the T.120 data
conference.
Off: Disables conduct of the T.120 data
conference.
For details on the T.120 data conference,
see “Conducting a Data Conference Using
NetMeeting – T.120 Data Conference” on
page 124.
H.239
Selects whether you use the dual video
presentation mode based on the H.239
standard.
On: Enables the dual video presentation
mode based on the H.239 standard.
Off: Disables the dual video presentation
mode based on the H.239 standard.
Time Display
Selects whether you display the elapsed time
on the display during the conference.
On: Displays the elapsed time.
Off: Does not display the elapsed time.
General Setup Menu
Page 1/3
General Setup
Note
Page: 1/3
Terminal Name
During communication, some items are not
displayed.
PCS-TL50
Menu Mode
Detail Menu
Number of One Touch Buttons to Display
6
DSB Output
RGB
Time Display
On
Page 2/3
Cancel
Page: 2/3
Terminal Name
Input the terminal name to report when the
system is connected to the external
multipoint videoconferencing system.
Menu Mode
Selects whether you display the system
indicators in the launcher menu.
Simple Menu: Does not display the system
indicators.
Detail Menu: Displays the system
indicators.
Number of One Touch Buttons to
Display
Selects how many one touch dial buttons are
displayed on the launcher menu.
6: Displays one touch dial numbers 1 to 6
only in the launcher menu.
30: Displays one touch dial numbers 1 to 30
in the launcher menu.
DSB Output
Selects the video output from the Data
Solution Box when it is connected to the
system and is not used for sending or
receiving the data.
Video: Displays the picture of the local
camera and menus when the Data
Solution Box is not used for sending or
receiving the data.
RGB: Displays the image from the
computer connected to the Data Solution
Box on the local site when the Data
Solution Box is not used for sending or
receiving the data.
Clock Set
MM/DD/YYYY
HH:MM:SS
11/30/2003
19:25:53
Last Number Registration
T.120 PC Address
On
.
.
.
Save
Cancel
Clock Set
Enter the current date and time.
Last Number Registration
Selects whether or not to register the remote
party in the Phone Book after the conference
has finished.
On: If the remote party has not yet been
registered in the Phone Book, the
message “Register this participant in the
list?” appears on the display after the
conference has finished. When you
select “OK”, the List Edit menu opens.
Off: The above message does not appear.
T.120 PC Address
When conducting a data conference based
on the T.120 standard using NetMeeting,
input the IP address of the computer (for the
ISDN connection).
For details on a data conference based on
the T.120 standard, see “Conducting a Data
Conference Using NetMeeting – T.120 Data
Conference” on page 124.
Registering Local Information
45
Chapter 2: Registration and Setup for System Administrators
General Setup
Save
Page 3/3
Audio Setup Menu
The Audio Setup menu is used to set various
audio items.
General Setup
Page: 3/3
Language
English
Control by Far End
On
Character Input Help
On
Page 1/2
The level meter indicating the audio input
level is displayed.
Memory Stick Format
Audio Setup
Save
Cancel
Language
Selects the language used for messages or
menus.
You can select among from 8 languages;
English, French, German, Japanese,
Spanish, Italian, Simplified Chinese,
Portuguese.
Control by Far End
When “Far End Camera Control” is set to
“On” in the Dial Setup menu on the local
party and in the Answer Setup menu on the
remote party, you can temporarily reject the
camera control command transmitted by the
remote party.
On: Accepts the camera control command.
Off: Rejects the camera control command.
Character Input Help
Selects whether or not to hide a help balloon
used for entering characters or numerics.
On: Displays the balloon help items for
entering characters.
Off: Hide the balloon help items for entering
characters.
Memory Stick Format
Formats the “Memory Stick”.
Note
If you format the “Memory Stick”, all the data
including the still images and Phone Book
stored will be lost.
Page: 1/2
Mic Select
Internal
CTE
Off
Echo Canceler
Internal
Lip Sync
Off
Save
Cancel
Mic Select
Selects the microphone to be used.
Internal: Uses the built-in microphone or
the microphone connected to this
system.
DSB MIC: Uses the microphone connected
to the Data Solution Box.
CTE
Selects whether you receive the sound from
the microphone of the CTE-600
Communication Transducer.
Off: Does not receive the sound from the
microphone of the Communication
Transducer.
DSB AUX IN: Receives the sound from the
microphone of the Communication
Transducer via the AUX IN jack of the
Data Solution box.
Echo Canceler
Selects whether you use the echo canceler.
Internal: Enables the built-in echo canceler.
External: Uses the echo canceler of the
external equipment connected.
The input from the AUDIO IN jack on
the Video Communication System is
always available.
Off: Disables the built-in echo canceler.
Lip Sync
Selects whether to enable the Lip Sync
function.
46
Registering Local Information
On: Enables the Lip Sync function. The
movement of the speaker’s lips is
synchronized with his voice.
Off: Disables the Lip Sync function.
Page 2/2
LAN Setup Menu
When you conduct a conference via a LAN,
set the items in the LAN Setup menu.
For details on the settings, consult with the
network administrator.
Audio Setup
Page: 2/2
Beep Sound
Page 1/8
On
Sound Effect
On
Dial Tone
On
2
DHCP Mode
Host Name
Save
Off
Auto
IP Address
Auto .
.
.
Network Mask
Auto .
.
.
Gateway Address
Auto .
.
.
DNS Address
Auto .
.
Cancel
Beep Sound
Selects whether the beep sounds when you
press the button on the Remote Commander.
On: Enables beep.
Off: Disables beep.
Sound Effect
Selects whether or not to output the sound
when the system starts up, a
videoconference starts, or the
videoconference ends.
On: Outputs the sound.
Off: Does not output the sound.
Dial Tone
Selects whether or not to output a ring-back
tone and busy tone when you are dialing.
On: Outputs the dial tone.
Off: Does not output the dial tone.
Ringer Level
Selects a ringer tone when you receive a call.
Select “Off” not to output the ringer tone.
When you output the ringer tone, select the
volume, “1” (low), “2” (middle) or “3”
(high).
Save
.
Cancel
DHCP Mode
Selects whether DHCP (Dynamic Host
Configuration Protocol) server is enabled or
not.
Auto: The IP address and network mask are
automatically assigned.
In this case, confirm the assigned IP
address, network mask, gateway
address, and DNS address in the
launcher menu or the Machine
Information menu after the LAN
connection is completed.
Off: Sets “DHCP Mode” to “Off”. In this
case, enter the IP address, network
mask, gateway address and DNS
address.
Host Name
Enter the host name.
IP address
Enter the IP address.
Network Mask
Enter the network mask.
Gateway Address
Enter the default gateway address.
DNS Address
Enter the DNS (Domain Name System)
address.
Registering Local Information
47
Chapter 2: Registration and Setup for System Administrators
Ringer Level
LAN Setup
Page: 1/8
Trap Destination
Enter the address of the trap destination
SNMP manager.
Page 2/8
LAN Setup
Page: 2/8
Gatekeeper Mode
Off
Gatekeeper Address
.
.
.
User Alias
User Number
Save
Cancel
Gatekeeper Mode
Sets whether you use the gatekeeper that
controls access to a LAN.
Using the gatekeeper allows you to dial
using the user name or user number.
Auto: Detects the gatekeeper automatically
and uses it.
On: Enables use of the gatekeeper.
Off: Disables use of the gatekeeper.
Gatekeeper Address
Enter the gatekeeper address used when
“Gatekeeper Mode” is set to “On”.
User Alias
Enter the user name (H.323 alias) to be
registered in the gatekeeper.
User Number
Enter the user number (E.164 number) to be
registered in the gatekeeper.
Page 3/8
LAN Setup
Page: 3/8
SNMP Mode
Trap Destination
Off
.
.
.
Community
public
Description
Videoconference Device
Location
Community
Enter the community name managed by the
SNMP manager. The default setting is
“public”. Normally, there is no need to
change.
Description
Enter the description of this system. The
default setting is “Videoconference Device”
and cannot be changed.
Location
Enter the location where this system is
installed.
Contact
Enter information on the administrator of
this system.
Page 4/8
LAN Setup
Page: 4/8
NAT Mode
Off
NAT Address
.
.
Packet Resend Request
On
Adaptive Rate Control
On
LAN Mode
Auto Negotiation
Save
.
Cancel
NAT Mode
Selects whether you connect the system to a
local network using NAT (Network Address
Translation) that enables sharing of one IP
address for multiple computers on the same
LAN.
On: Enables NAT mode.
Off: Disables NAT mode.
Contact
Save
Cancel
SNMP Mode
Selects whether the SNMP (Simple Network
Management Protocol) agent service is
enabled or not.
On: Enables the SNMP agent service.
Off: Disables the SNMP agent service.
48
Registering Local Information
NAT Address
Enter the IP address of a global network to
be used for NAT mode.
Packet Resend Request
Selects whether or not to request to resend
the packet when a packet loss occurs during
communication.
On: Requests resending a packet.
Off: Does not request resending a packet.
Adaptive Rate Control
Sets whether or not to always optimize the
LAN bandwidth.
On: Always optimizes.
Off: Disables optimization of the LAN
bandwidth.
Note
LAN Mode
Selects the interface type and the
communication mode of the LAN
connection.
Auto Negotiation: The interface type and
the communication mode are recognized
automatically.
100Mbps Full Duplex: Connects via
100BASE-TX in full duplex mode.
100Mbps Half Duplex: Connects via
100BASE-TX in half duplex mode.
10Mbps Full Duplex: Connects via
10BASE-T in full duplex mode.
10Mbps Half Duplex: Connects via
10BASE-T in half duplex mode.
Page 5/8
LAN Setup
UDP Port Number
When “Port Number Used” is set to
“Custom”, enter the UDP port number.
For details on the port numbers used, see
“List of Port Numbers Used on the PCSTL50” on page 207.
Page 6/8
LAN Setup
Page: 6/8
TOS
IP Precedence
IP Precedence
0
Low Delay
Off
High Throughput
Off
High Reliability
Off
Minimum Cost
Off
Save
Cancel
TOS
Selects how to define the TOS (Type of
Service) field.
Off: Does not define the TOS field.
IP Precedence: Defines the TOS field as IP
Precedence.
Diffserve: Defines the TOS field as
Diffserve.
IP Precedence*
Enter the IP Precedence value (0 – 7).
Page: 5/8
Port Number Used
Default
TCP Port Number
2253
UDP Port Number
49152
Save
Cancel
Port Number Used
Selects whether or not to fix the TCP port
number and UDP port number.
Custom: Uses the port numbers set by the
user.
Default: Uses the default port numbers,
2253 for the TCP port number and
49152 for the UDP port number.
Low Delay*
Selects whether or not to specify the bit rate
of Low Delay for the TOS field.
On: Specifies the bit rate of Low Delay for
the TOS field.
Off: Does not specify the bit rate of Low
Delay for the TOS field.
High Throughput*
Selects whether or not to specify the bit rate
of High Throughput for the TOS field.
On: Specifies the bit rate of High
Throughput for the TOS field.
Off: Does not specify the bit rate of High
Throughput for the TOS field.
Registering Local Information
49
Chapter 2: Registration and Setup for System Administrators
This item is enabled only when “Packet Resend
Request” is set to “Off”. When “Packet Resend
Request” is set to “On”, this item is always set
to “On”.
TCP Port Number
When “Port Number Used” is set to
“Custom”, enter the TCP port number.
High Reliability*
Selects whether or not to specify the bit rate
of High Reliability for the TOS field.
On: Specifies the bit rate of High Reliability
for the TOS field.
Off: Does not specify the bit rate of High
Reliability for the TOS field.
PPPoE User Name
Enter a user name when you use PPPoE for
LAN connection.
Minimum Cost*
Selects whether or not to specify the bit rate
of Minimum Cost for the TOS field.
On: Specifies the bit rate of Minimum Cost
for the TOS field.
Off: Does not specify the bit rate of
Minimum Cost for the TOS field.
Page 8/8
PPPoE Password
Enter a password when you use PPPoE for
LAN connection.
LAN Setup
Page: 8/8
Fixed IP for PPPoE
Off
Fixed IP address for PPPoE
PPPoE DNS
Obtain automatically
Primary DNS
* These items are displayed only when “TOS”
is set to “IP Precedence”.
Diffserve**
Enter the Diffserve value (0 – 64).
**This item is displayed only when “TOS” is
set to “Diffserve”.
Page 7/8
LAN Setup
Page: 7/8
PPPoE
Save
Cancel
Fixed IP for PPPoE
Selects whether or not to make a PPPoE
connection using the fixed IP.
On: Uses the fixed IP for a PPPoE
connection.
Off: Does not use the fixed IP for a PPPoE
connection.
Fixed IP Address for PPPoE
Enter the fixed IP address when “Fixed IP
for PPPoE” is set to “On”.
Off
PPPoE User Name
PPPoE Password
Save
Cancel
PPPoE
Selects whether or not to use PPPoE for
LAN connection.
You can use the B FLET’S or FLET’S
ADSL services without connecting a router
when using PPPoE.
On: Uses PPPoE for LAN connection.
Off: Does not use PPPoE.
Notes
• Operations of PPPoE for LAN connection
are presently verified only for Japanese NTT
B FLET’S and FLET’S ADSL services.
• FLET’S” is a trademark of NTT East and
NTT West Corporations in Japan.
50
Secondary DNS
Registering Local Information
PPPoE DNS
Selects whether to obtain the DNS server
addresses automatically or to specify them
manually when connecting to LAN using
PPPoE.
Specify: Specifies the DNS server
addresses.
Obtain automatically: Allows you to
obtain the DNS server addresses
automatically.
Primary DNS
Enter a primary DNS address.
Secondary DNS
Enter a secondary DNS address.
Administrator Setup Menu
The Administrator Setup menu is used for
the system administrators. If you have set
the password with this menu, you need to
enter it when accessing the setup menus or
Phone Book menus to change the items.
Entering the password is also required to
access the Administrator Setup menu.
Page 2/2
Administrator Setup
Page: 2/2
Save Phone Book
Load Phone Book
Auto Dialing
On
Create Private Phone Book
Delete Private Phone Book
Copy to Private Phone Book
Save
Cancel
Page 1/2
Page: 1/2
Administrator Passward
Superuser Passward
Remote Access Passward
Web Monitor
On
Save
Cancel
Administrator Password
Sets the password for the system
administrator.
The items in the Setup menu for the
administrator and in the Phone Book menu
can be changed by the administrator.
Superuser Password
Sets the password for the super-user. The
superuser password is valid to modify the
items in the Phone Book menu.
Remote Access Password
Sets the password required to access this
System from a Web browser. Accessing
from a Web browser is also enabled by
entering the administrator or superuser
password.
Web Monitor
Selects whether or not to permit monitoring
of the JPEG images of this System via a Web
browser.
On: Permits monitoring via a Web browser.
Off: Disables monitoring.
Load Phone Book
Loads the data in the Phone Book from a
“Memory Stick”. The data in the Phone
Book will be overwritten.
Auto Dialing
You can create a Private Phone Book in a
“Memory Stick”.
This item is used to select whether or not to
automatically dial the address of a specified
list in the Private Phone Book simply by
inserting the “Memory Stick”.
On: Enables automatic dialing.
Off: Disables automatic dialing.
Create Private Phone Book
Selects to create an empty folder and file for
a Private Phone Book in an inserted
“Memory Stick”.
Delete Private Phone Book
Selects to delete the Private Phone Book
folder in the inserted “Memory Stick”.
Copy to Private Phone book
Selects to copy all the contents of the Phone
Book to a Private Phone Book in the inserted
“Memory Stick”.
Registering Local Information
51
Chapter 2: Registration and Setup for System Administrators
Save Phone Book
Saves the data in the Phone Book in a
“Memory Stick”. The data in the “Memory
Stick” will be overwritten.
Administrator Setup
Page 2/7
ISDN Setup Menu
The ISDN Setup menu is used to set up the
ISDN lines.
Shows the A1 to C2 text boxes for inputting
the telephone numbers.
ISDN Setup
Note
Page: 2/7
The ISDN Setup menu is displayed only
when the optional PCSA-B384S orPCSAB768S ISDN Unit is installed to your
system.
Area Code
Local Number
A1
A2
B1
B2
C1
C2
Page 1/7
Save
Auto SPID
Cancel
ISDN Setup
Country/Region Code
1
Protocol
National ISDN
Area Code
Enter the area code to be used for the ISDN
interface. Do not enter the first “0” number
of your area code.
Save
Local Number
Enter the telephone number (local number)
to be used for the ISDN interface.
Page: 1/7
Country/Region
ISDN
USA
Cancel
Country/Region
Selects the country or region where you use
the Video Communication System.
You can select from among Europe
(excluding France), France, Japan, USA,
China and Other.
Country/Region Code
Enter the country code or region code.
For customers in the USA and Canada, see
“SPID Setting for Customers in the USA and
Canada” on page 53.
Protocol
Selects the protocol of the ISDN lines to be
used.
You can select Japan (NTT), Euro ISDN,
Euro ISDN (France), National ISDN,
5ESS(P-MP), 5ESS(P-P) or DMS-100
depending on the interface you are using.
Notes
• When you select a blank text box and press
the ENTER button on the Remote
Commander, the content in the text box
immediately above will be copied to the
selected text box.
• The D1-F2 text boxes are shown on the next
page (Page 3). Fill in the boxes depending on
the lines you connect. (Only when the PCSAB768S ISDN unit is used).
Page 4/7
Shows the A1 to C2 text boxes for inputting
the telephone numbers.
ISDN Setup
Page: 4/7
Sub Address:
A1
A2
B1
B2
C1
For customers in the USA and Canada, see
“SPID Setting for Customers in the USA and
Canada” on page 53.
52
Registering Local Information
C2
Save
Cancel
Sub Address
Enter the sub-addresses when registering
them. Only numerals are available for a subaddress.
Notes
Page 6/7
Shows the A1 to C2 text boxes for inputting
the telephone numbers and the Auto SPID
tab.
If you connect to an ISDN switch type,
configuration of SPID (Service Profile
Identifier) is required. When you select
“Auto SPID” in the ISDN Setup Wizard (see
page 31), the “Area Code”, “Local Number”
and “SPID” setup items are automatically
set.
If “Auto SPID” is not available in your area,
set up SPID manually using the ISDN Setup
menu.
1
Open the ISDN Setup menu.
2
Enter the country code in the Country/
Region Code text box depending on
the network switch type you are using.
AT&T 5ESS (National ISDN), NTI
DMS-100 (National ISDN): Enter
“1”.
AT&T 5ESS (Multipoint Custom
ISDN): Enter “1*10”.
AT&T 5ESS (Point-to-Point Custom
ISDN): Enter “1*12”.
NTI DMS-100 (Custom ISDN): Enter
“1*11”.
ISDN Setup
Page: 6/7
SPID
A1
A2
B1
B2
C1
C2
Auto SPID
Save
Cancel
SPID
This item is used only for customers in the
USA and Canada.
ISDN Setup
Page: 1/7
Country/Region
For details, see “SPID Setting for
Customers in the USA and Canada”.
Auto SPID
This item is used only for customers in the
USA and Canada.
For details, see “SPID Setting for
Customers in the USA and Canada”.
Notes
• The D1-F2 text boxes are shown on the next
page (Page 7). Fill in the boxes depending on
the lines you connect.
• The SPID menu does not appear depending
on the protocol you selected on Page 1.
ISDN
USA
Country/Region Code
1
Protocol
National ISDN
Save
3
Cancel
Open Page 2 of the ISDN Setup menu
to enter the LDN (Local Directory
Number) in the Local Number text
boxes.
When you use the AT&T 5ESS
(Multipoint Custom ISDN) or AT&T
5ESS (Point-to-Point Custom ISDN)
switch type
Registering Local Information
53
Chapter 2: Registration and Setup for System Administrators
• When you select a blank text box and press
the ENTER button on the Remote
Commander, the content in the text box
immediately above will be copied to the
selected text box.
• The D1-F2 text boxes are shown on the next
page (Page 5). Fill in the boxes depending on
the lines you connect. (Only when the PCSAB768S ISDN unit is used).
SPID Setting for Customers in
the USA and Canada
Enter the same LDNs in the A1 and A2
(B1 and B2, C1 and C2, depending on
the number of lines you use) text boxes.
For the AT&T 5ESS (National ISDN)
and AT&T 5ESS (Multipoint Custom
ISDN) switch type
Enter the SPID in the A1 text box only.
ISDN Setup
ISDN Setup
Page: 2/7
Area Code
Local Number
A1
408
9876532
A2
408
9876532
Page: 6/7
SPID
A1 019876532001
B1
A2
B2
B1
C1
B2
C2
C1
C2
Auto SPID
Save
Cancel
Save
When you use the NTI DMS-100
(National ISDN) or NTI DMS-100
(Custom ISDN) switch type
Enter the different LDNs in the A1 and
A2 (B1 and B2, C1 and C2, depending
on the number of lines you use) text
boxes. These switch types are given a
separate number for each channel.
Cancel
For the NTI DMS-100 (National
ISDN), NTI DMS-100 (Custom
ISDN), AT&T 5ESS (National ISDN)
switch type
Enter the different SPID numbers in the
A1 and A2 text boxes.
ISDN Setup
Page: 6/7
ISDN Setup
SPID
A1 019876543001
Page: 2/7
Area Code
A2 019876544001
Local Number
A1
408
9876543
B1
A2
408
9876544
B2
B1
C1
B2
C2
C1
Save
C2
Auto SPID
Save
Cancel
For the AT&T 5ESS (Point-to-Point
Custom ISDN) switch type
You do not need to set up the SPID, then
no entry in the A1 and A2 (B1 and B2,
C1 and C2, depending on the number of
lines you use) is required.
When you use the AT&T 5ESS
(National ISDN) switch type
You may enter the same or different
numbers in two channels.
4
Note
Open Page 6 (SPID setup menu) to
enter the SPID.
If you use the PCSA-B768S ISDN unit and
connect 4-6 ISDN lines, the D1-F2 text
boxes are shown in Page 3 and Page 7 of
the ISDN Setup menu. Fill in the boxes
following steps 3 and 4.
The SPID generally comprises 12 digits,
including a 7 digit LDN (Local
Directory Number).
Be sure to enter the different SPID
number in each of the A1 and A2 (B1
and B2, C1 and C2, depending on the
number of lines you use) text boxes if
you have entered the separate LDNs in
the Local Number text boxes for each
channel in step 3.
54
Registering Local Information
Cancel
5
After the settings are completed,
select “Save”, then press the ENTER
button.
Multipoint Setup Menu
The Multipoint Setup menu is used when
you conduct a multipoint videoconference.
Note
The Multipoint Setup menu is available when
the System has the optional PCS-320M1 H.320
MCU or PCS-323M1 H.323 MCU software
installed.
Multipoint Setup
Page: 1/2
ISDN
Off
Broadcast Mode
Split
Number of Lines
2B (128K)
Total LAN Bandwidth
1024 Kbps
Restrict
Auto
Save
Cancel
Multipoint Mode
Selects whether you conduct a multipoint
videoconference.
On: Conducts a multipoint
videoconference.
Off: Does not conduct a multipoint
videoconference.
Broadcast Mode
Selects the broadcast mode.
Split: Displays the pictures of the terminals
connected in split windows.
Voice Activate: Detects the terminal with
the speaker with the loudest voice, and
sends the picture of that terminal to all
other terminals.
Number of Lines
Selects the ISDN channels to be used for
connecting the first remote point.
1B (64K): Connects via a 1B channel.
2B (128K): Connects via 2B channels.
4B (256K): Connects via 4B channels.
6B (384K): Connects via 6B channels.
Restrict
Selects the ISDN transmission rate when
dialing or answering.
Auto: Selects when connecting a remote
party via a normal ISDN line.
56K: Selects when connecting a remote
party in a region or country where the
ISDN transmission rate is 56 Kbps.
Note
The system is set to connect an ISDN line at the
transmission rate of 64 Kbps at the factory.
However, some countries such as the USA or
some regions may use the ISDN transmission
rate of 64 Kbps and 56 Kbps. You may not
communicate with such country or region with
the transmission rate of 64 Kbps. In this case,
set “Restrict” to “56K” before dialing.
Page 2/2
Multipoint Setup
Page: 2/2
Video Mode
ALL
Audio Mode
ALL
Display Terminal Name
On
Far End Camera Control
On
Reject Answer
Off
Save
Cancel
Video Mode
Selects the compression format of the
pictures for a multipoint conference.
Registering Local Information
55
Chapter 2: Registration and Setup for System Administrators
Total LAN Bandwidth
Selects the total bandwidth to be used for a
multipoint videoconference via LAN.
You can select from among 384 Kbps, 512
Kbps, 768 Kbps, 1024 Kbps, 1920 Kbps and
“Other”. When “Other” is selected, a
bandwidth value between 1 and 1920 Kbps
can be entered.
Page 1/2
Multipoint Mode
Notes
• The number of ISDN channels to be used for
connecting a second remote point or more is
defined by the number of ISDN lines you are
using.
• When you are called from a remote party and
the remote party has set a lower number of
ISDN channels than that set on this terminal,
the setting on the remote party’s terminal has
priority.
ALL: Uses any video compression format
depending on the format used on the
remote sites.
H.263: Uses pictures based on
Recommendation H.263.
H.261: Uses pictures based on
Recommendation H.261.
Audio Mode
Selects the audio compression format for a
multipoint conference.
ALL: Uses any audio compression format
depending on the format used on the
remote site.
G.722: Uses audio based on the G.722
standard.
G.728: Uses audio based on the G.728
standard.
G.711: Uses audio based on the G.711
standard.
Note
When the remote videoconferencing system
does not support the Audio Mode selected by
the local site, the mode automatically switches
to “G.711”.
Display Terminal Name
Selects whether you display the connected
terminal names on the display at the time of
disconnection.
On: Displays the terminal names.
Off: Does not display terminal names.
Far End Camera Control
Selects whether to enable control of each
other’s cameras from each other sites.
On: Enables control of each other’s
cameras. Normally, set to ON.
Off: Disables control of each other’s
cameras.
Reject Answer
Selects whether to disable connection to a
remote party who is calling during a
multipoint videoconference.
On: Disables connection to a remote party.
Off: Enables connection to a remote party.
56
Registering Local Information
Machine Information Menu
The Machine Information menu shows the
versions of the Video Communication
System and the connected equipment for
exclusive use, installed software versions,
etc.
Machine Information
Host Version
VerX.XX
ISDN UNIT Version
VerX.XX
DSB Version
VerX.XX
DSP Version
VerX.XX
LCD Controller Version
LCDXX.XX
Software Option
Multipoint(H.323)
Option I/F
DSB, ISDN UNIT
Host Name
PCS-TL50
IP Address
MAC Address
Serial Number
XX.XX.XX.XX
08-00-46-DF-5B-57
12345
End
Host Version
Displays the software version of the Video
Communication System.
ISDN UNIT Version
Displays the version of the connected ISDN
Unit.
DSB Version
Displays the version of the connected
PCSA-DSB1S Data Solution Box.
DSP Version
Displays the version of the built-in DSP
(Digital Signal Processor) for audio/video
codec.
LCD Controller Version
Displays the version of the LCD display of
the Video Communication system.
Software Option
Displays the optional MCU software
installed.
None: No MCU software is installed.
Multipoint (H.323): The PCS-323M1
H.323 MCU software (for LAN) is
installed.
Multipoint (H.320): The PCS-320M1
H.320 MCU software (for ISDN) is
installed.
Multipoint (H.320 + H.323): Both the PCS323M1 and PCS-320M1 MCU software
are installed.
Option I/F
Displays the optional connected equipment.
None: No optional equipment is connected.
ISDN UNIT: The PCSA-B384S or PCSAB768S ISDN Unit is connected.
DSB: The PCSA-DSB1S Data Solution Box
is connected.
Host Name
Displays the host name.
MAC Address
Displays the MAC address.
Serial Number
Displays the serial number.
The Status menu shows the current status of
communication.
The ISDN Line Status, LAN Line Status or
LAN Connection Status will also be
displayed depending on the line interface
used.
Communication Status
One page for each point connected to the
system will be displayed. The connected
point is shown at the upper right corner of
the page as “Connection A (or B, C….)”.
The terminal’s name of the point is also
displayed at its side.
The items below are shown both in the
columns for “Encode” and “Decode”. The
descriptions under “Encode” show the
setting status on the local system and those
under “Decode” show the status on
receiving.
Status
Page: 1/4
Communication Status
Connection A
(Encode) (Decode)
Audio Mode G.728
G.728
Line I/F
Video Mode H.261CIF H.261CIF Camera Control
BRI
ON
Frame Rate 15fps
15fps
Data Control
ON
Rate
2 x 64k
2 x 64k
DSB
ON
MLP Rate
OFF
OFF
HMLP Rate OFF
OFF
LSD Rate
6400
6400
Cancel
Audio Mode
Shows the current audio compression
format.
Video Mode
Shows the current video compression
format.
Note
The audio compression and video compression
formats used for communication with a remote
party may differ from the settings in this menu,
depending on the status of videoconferencing
system on the remote site.
Frame Rate
Shows the maximum frame rate of motion
pictures.
Registering Local Information
57
Chapter 2: Registration and Setup for System Administrators
IP Address
Displays the IP address.
Status Menu
Rate
Displays the number of lines connected and
a transmission rate during communication.
MLP Rate
Shows the MLP (Multi Layer Protocol) rate.
LAN Line Status
Status
Page:
LAN Line Status
3/4
LAN1
LAN2
LAN3
LAN4
LAN5
Status:
Cause Code:
: Connected
: Call failed
: No call in progress
: No network
: Call in progress
HMLP Rate
Shows the HMLP (High Speed Multi Layer
Protocol) rate.
End
LSD Rate
Shows the LSD (Low Speed Data) rate.
Line I/F
Displays the line interface you are using.
Camera Control
Shows whether control of each other’s
camera is enabled or not.
Data Control
Shows whether the T.120 data conference is
enabled or not.
DSB
Shows whether the PCSA-DSB1S Data
Solution Box is connected or not.
ISDN Line Status
Status
Page:
2/4
ISDN Line Status
A1 A2 B1 B2 C1 C2 D1 D2 E1 E2 F1 F2
Status:
Cause Code:
: No call in progress
: No network
: Call in progress
: Connected
: Call failed
End
58
Registering Local Information
LAN Connection Status
Status
Page:
4/4
LAN Connection Status
Send
Receive
Audio Bit Rate
97448 bps
96016 bps
Video Bit Rate
1622620 bps
1627056 bps
Receive Packet Loss
Audio Data
0
/
Video Data
0
/ 58085
0 %
Camera Control Data
0
/
0 %
Packet Recovery Ratio
7579
/
LAN Mode Speed : 100Mbps Duplex : Full
2
0 %
%
End
Encryption via LAN Menu
The Encryption via LAN menu is used to
conduct a videoconference using the
encryption feature. The encryption feature
enables connection to those terminals only
that have entered the preset password,
allowing you to conduct a highly
confidential conference.
Encryption via LAN
Page: 1/1
Encryption via LAN
Off
Encryption Password
Save
You can register the telephone number or IP
address of a remote party in the Phone Book,
allowing you to dial the party very easily.
Up to 500 remote parties can be registered in
the Phone Book. You can also store a still
image such as a participant’s portrait in the
index list.
You can also create a Private Phone Book in
a “Memory Stick” separately from the
Phone Book in the Video Communication
System.
Registering a New Remote
Party
Cancel
Encryption via LAN
Selects whether or not to use the encryption
feature for a videoconference.
On: Uses the encryption feature for a
videoconference.
Off: Does not use the encryption feature for
a videoconference.
1
Use the V, v, B or b button on the
Remote Commander to select “Phone
Book” in the launcher menu, then
press the ENTER button.
The Phone Book menu opens.
Phone Book
Recent
Encryption Password
Enter the password required for starting a
conference with the encryption feature.
0-9
A-I
J-S
T-Z
Notes
• When “Encryption via LAN” is set to “On”,
you cannot start a conference with a terminal
not equipped with the encryption feature, a
terminal with “Encryption via LAN” set to
“Off”, or a terminal with a different
encryption password. You can start a
conference without using the encryption
feature with a terminal connected via an
ISDN.
• The Encryption via LAN menu is not
available when you connect to other
terminals by LAN&ISDN cascade
connections.
New Entry
2
Use the V, v, B or b button on the
Remote Commander to select “New
Entry”, then press the ENTER button.
Registering a Remote Party in the Phone Book
59
Chapter 2: Registration and Setup for System Administrators
For details on a videoconference with the
encryption feature, see Chapter 6.
Registering a
Remote Party in the
Phone Book
The List Edit menu appears.
When “LAN” is selected in step 4
List Edit
List Edit
Index
Index
OSAKA
LAN
LAN
IP
IP
Save
3
Line I/F:
LAN
Line I/F:
LAN
LAN Bandwidth:
1024 Kbps
LAN Bandwidth:
1024 Kbps
Enter the name of a remote party in the
Index text box.
For character input, see “Entering
Characters” on page 38.
4
Select the line interface you are using
to connect to a remote party with
“Line I/F”.
LAN: Connects to a videoconferencing
system on the remote site via a LAN.
ISDN: Connects to a videoconferencing
system on the remote site via an ISDN
line.
ISDN (Telephone): Connects to a
phone on the remote site via an ISDN
line for a voice meeting.
LAN: Connects to multipoints for a
multipoint videoconference via LAN.
ISDN: Connects to multipoints for a
multipoint videoconference via ISDN
lines.
LAN & ISDN: Connects to
multipoints for a multipoint
videoconference via LAN and ISDN.
The List Edit menu switches according
to the selected line interface.
5
60
Save
Cancel
Set up various items for the line on a
remote site.
Registering a Remote Party in the Phone Book
Cancel
1 Enter the IP address of the remote
party.
Enter the host name and domain
name when using the DNS server
(ex. host.domain). When using the
gatekeeper, enter the user name and
user number registered in the LAN
Setup menu (page 48).
2 Select the LAN bandwidth to be
used.
When “ISDN” or “ISDN
(Telephone)” is selected in step 4
List Edit
Index: Bob
ISDN
A
Line I/F:
ISDN
Number of Lines:
6B (384K)
Save
Cancel
1 Enter the telephone number of the
remote party in the telephone
number text box beside “A”.
When entering a sub-address,
enter an asterisk (*) between the
telephone number and subaddress. Only numerals are usable
for a sub-address.
When “More Options Enable” is
set to “On” in the Dial Setup menu
(page 42), the A1, A2, B1, B2, C1
and C2 text boxes appear. Enter
the number of the remote party in
the A1 text box.
for the ISDN lines selected by “Number of
Lines”. Up to 6B-channel connection is
available when using this method.
2 Select the number of the ISDN
channels to be used for dialing.
6
Select the line interface icon, a still
image stored in a “Memory Stick” or a
still image automatically captured
during communication, to be
registered in the Phone Book.
Note
When you set “Number of Lines” to “2B”, you
can connect to the remote party by selecting
“ISDN (2B)” from “Line I/F” in the Detailed
Dial menu.
To set up more detailed options
Note
When no “Memory Stick” is inserted into
the system, you can select only the still
images captured automatically during the
previous communication.
Note
The contents set with the More Options button
have priority over those set in the Dial Setup
menu.
For details on the automatic capturing
of still images, see page 116.
7
Use the V, v, B or b button to select
“Save”, then press the ENTER button.
The settings are registered in the Phone
Book.
To connect to the remote party
without using BONDING
If the videoconferencing system of the
remote party is not equipped with the
BONDING function, entering one telephone
number does not allow you to connect all the
line numbers used to connect to the remote
party. To connect to the remote party by
entering all the ISDN line numbers used,
you can set the connection without using the
BONDING function of this system.
Set “More Options Enable” to “On” in the
Dial Setup menu (page 42), select the More
Options button at the lower part of the List
Edit menu to open the Dial Setup menu, then
set “Bonding” to “Auto”. The A1, A2, B1,
B2, C1 and C2 text boxes appear in the List
Edit menu. Enter all the telephone numbers
Registering a Remote Party in the Phone Book
61
Chapter 2: Registration and Setup for System Administrators
Press the B or b button to select the icon
or a still image, then press the ENTER
button.
When “More Options Enable” is set to “On”
in the Dial Setup menu, the More Options
button is shown at the lower part of the List
Edit menu.
Select the More Options button with the V,
v, B or b button on the Remote Commander
and press the ENTER button to open the
Dial Setup menu. You can change the
settings of the desired items.
Changing the Contents of the
Phone Book
You can change the telephone number, IP
address, name or setting registered in the
Phone Book.
1
Open the Phone Book menu.
2
Use the V, v, B or b button on the
Remote Commander to select the
remote party to be changed in the
Phone Book menu, then press the
ENTER button.
The submenu appears.
Open the Phone Book menu.
2
Use the V, v, B or b button on the
Remote Commander to select the
remote party to be deleted in the
Phone Book menu, then press the
ENTER button.
The submenu appears.
3
Copy
The message “Delete Entry?” appears.
One Touch
Press the V or v button on the Remote
Commander to select “Edit”, then
press the ENTER button.
The List Edit menu appears.
5
1
Edit
Delete
4
Follow the procedure below to delete the
remote party from the Phone Book.
Press the V or v button on the Remote
Commander to select “Delete”, then
press the ENTER button.
D i al
3
Deleting the Registered
Remote Party
Change the telephone number, IP
address, name or setting.
Use the V, v, B or b button on the
Remote Comander to select “Save”,
then press the ENTER button.
4
The selected party is deleted.
To cancel deleting
Select “Cancel” in step 4, then press the
ENTER button.
Note
If the deleted party has been registered for a
one touch dial, the one touch dial registration is
also deleted.
The correction is completed.
62
Use the V, v, B or b button on the
Remote Commander to select “OK”,
then press the ENTER button.
Registering a Remote Party in the Phone Book
Copying the Setting of the
Phone Book Menu
1
Open the Phone Book menu.
2
Use the V, v, B or b button on the
Remote Commander to select the
remote party to be copied in the Phone
Book menu, then press the ENTER
button.
2
3
Open Page 2 of the Administrator
Setup menu.
Administrator Setup
Press the V or v button on the Remote
Commander to select “Copy”, then
press the ENTER button.
Page: 2/2
Save Phone Book
Load Phone Book
The items for the selected party are
copied, and the file name is followed by
“–2”. You can use the setting after
modifying the necessary items.
Auto Dialing
On
Create Private Phone Book
Delete Private Phone Book
Copy to Private Phone Book
Save
Cancel
Note
The information of one touch dial cannot be
copied.
For how to open the menu, see “Registering
Local Information” on page 39.
3
The message “Create a Private Phone
Book?” appears.
Creating a Private Phone
Book
You can create your own Phone Book
(Private Phone Book) in a “Memory Stick”.
Once the Private Phone Book is registered,
inserting the “Memory Stick” into the
system changes the Phone Book menu to the
Private Phone Book menu. You can also
activate the Auto Dial feature, allowing you
to start dialing automatically to one of the
lists simply by inserting the “Memory
Stick”.
To register a new remote party in a
Private Phone Book
1
Select “Create Private Phone Book”.
Insert a “Memory Stick” in which you
want to register a remote party into the
Memory Stick slot of the system.
Insert the “Memory Stick” with the rear
facing you and in the direction of the
arrow on it.
4
Use the V, v, B or b button on the
Remote Commander to select “OK”,
then press the ENTER button.
An empty Private Phone Book is created
in the “Memory Stick”.
5
Register a new remote party.
The procedure is the same as that for
registering in the Phone Book. Proceed
with steps 2 to 7 in “Registering a New
Remote Party” on page 59.
The procedures for how to change the
contents of the Private Phone Book, how to
delete the registered remote party, or how to
copy the setting of the Private Phone Book
are the same as those for the Phone Book.
Open the Private Phone Book menu and
proceed with the steps described on pages 62
and 63.
Registering a Remote Party in the Phone Book
63
Chapter 2: Registration and Setup for System Administrators
The submenu appears.
To copy all the contents of the
Phone Book to the Private Phone
Book
3
Press the V or v button on the Remote
Commander to select “Edit”, then
press the ENTER button.
The List Edit menu appears.
Insert the “Memory Stick” in which you
want to store the Private Phone Book into
the Memory Stick slot on the system, then
select “Copy to Private Phone Book” from
Page 2 of the Administrator Setup menu. All
the data registered in the Phone Book are
copied to the inserted “Memory Stick”.
List Edit
ALPHA
Index OSAKA
LAN
IP 1 2 3 . 1 2 3 . 1 2 3 . 1 2 3
Line I/F
LAN
LAN Bandwidth
1024 Kbps
Auto Dial
Off
To delete the Private Phone Book
from the “Memory Stick”
Save
Insert the “Memory Stick” from which you
want to delete the registered Private Phone
Book into the Memory Stick slot on the
system, then select “Delete Private Phone
Book” from Page 2 of the Administrator
Setup menu. All the data are deleted from
the inserted “Memory Stick”.
Cancel
4
Use the V, v, B or b button on the
Remote Commander to select “Auto
Dial”, press the ENTER button, then
select “On” from the drop-down list.
5
Use the V, v, B or b button on the
Remote Commander to select “Save”,
then press the ENTER button.
To dial a specified list of the Private
Phone Book automatically
The setting is registered and “AUTO”
appears on the registered list.
If you set “Auto Dial” in the Administrator
Setup menu to “On”, you can automatically
dial one of the lists registered in the Private
Phone Book simply by inserting the
“Memory Stick” in which the Private Phone
Book is registered.
Private Phone Book
RECENT
AUTO
Recent
LAN
Anna
Jane
Mary
0-9
A-I
1
Open the Private Phone Book.
2
Use the V, v, B or b button on the
Remote Commander to select the
remote party to dial automatically,
then press the ENTER button.
J-S
T-Z
New Entry
To exit from the Private Phone
Book menu
Remove the “Memory Stick” in which the
Private Phone Book is registered from the
Communication Terminal. The screen
returns to the Phone Book menu.
64
Registering a Remote Party in the Phone Book
Set the name of a remote party, the line
interface, the line information and the
still image.
The procedures of the settings in the List
Edit menu are the same as those for the
Phone Book.
See Steps 3 to 6 of “Registering a New
Remote Party” on page 59.
Registering a
Remote Party for
One Touch Dial
Registering a One Touch Dial
from the Launcher Menu
1
Use the V, v, B or b button on the
Remote Commander to select the One
Touch Dial list to register a remote
party, then press the ENTER button.
3
Use the V, v, B or b button on the
Remote Commander to select ”Save”,
then press the ENTER button.
The Phone Book menu appears.
The set items are registered in the Phone
Book at the same time as in the One
Touch Dial list of the launcher menu.
To change the contents of the One
Touch Dial registration
1
The One Touch Dial Operation menu
opens.
Use the V, v, B or b button on the
Remote Commander to select the One
Touch Dial list to change, then press
the ENTER button.
The One Touch Dial Operation menu
opens.
One Touch Dial Operation
One Touch Dial Operation
Edit
Dial
Edit
Delete
Cancel
Cancel
2
Use the V, v, B or b button on the
Remote Commander to select ”Edit”,
then press the ENTER button.
2
The List Edit menu appears.
Use the V, v, B or b button on the
Remote Commander to select ”Edit”,
then press the ENTER button.
The List Edit menu appears.
List Edit
ALPHA
Index
LAN
IP
Line I/F
LAN
LAN Bandwidth
1024 Kbps
Save
3
Change the items in the List Edit
menu, then select “Save”.
The launcher menu reappears.
Now the contents in the One Touch Dial
list of the launcher menu and the Phone
Book are changed simultaneously
Cancel
Registering a Remote Party for One Touch Dial
65
Chapter 2: Registration and Setup for System Administrators
You can register remote parties in the One
Touch Dial list in the launcher menu,
allowing you to dial them easily using the
One Touch Dial buttons on the Remote
Commander.
One Touch Dial registration can be made
from the launcher menu or the Phone Book.
To delete the One Touch Dial
registration from the launcher
menu
1
Registering a One Touch Dial
from the Phone Book
Use the V, v, B or b button on the
Remote Commander to select the One
Touch Dial list to delete the
registration, then press the ENTER
button.
You can register up to 30 remote parties that
have been registered in the Phone Book for
One Touch Dial.
To register seven or more remote parties, set
“Number of One Touch Buttons to Display”
to “30” in the General Setup menu (page 45).
The One Touch Dial Operation menu
opens.
1
One Touch Dial Operation
Use the V, v, B or b button on the
Remote Commander to select “Phone
Book” in the launcher menu, then
press the ENTER button.
The Phone Book menu opens.
Dial
Edit
Delete
Phone Book
RECENT
Recent
LAN
Cancel
TOKYO
Bob
0-9
John
A-I
2
J-S
Use the V, v, B or b button on the
Remote Commander to select
“Delete”, then press the ENTER
button.
The launcher menu reappears and the
One Touch Dial list whose registration is
deleted becomes gray.
T-Z
LAN
ISDN
ISDN
OSAKA
NEW YORK
PARIS
New Entry
2
Note
The contents in the Phone Book remain even if
you delete the One Touch Dial registration.
Use the V, v, B or b button on the
Remote Commander to select the
remote party you register in the One
Touch Dial list, then press the ENTER
button.
The submenu appears.
Phone Book
RECENT
Recent
LAN
TOKYO
Bob
0-9
John
A-I
J-S
T-Z
LAN
ISDN
ISDN
OSAKA
NEW YORK
PARIS
Dial
Edit
New Entry
Copy
Delete
One Touch
3
Use the V or v button on the Remote
Commander to select “One Touch”,
then press the ENTER button.
The One Touch Button Select menu
appears.
66
Registering a Remote Party for One Touch Dial
One Touch Button Select
1
2
3
4
5
One Touch Button Select
6
2-1
2-2
2-3
2-4
Cancel
The selected remote party is registered
in the One Touch Dial list of the
launcher menu.
The One Touch Dial number is shown in
the Phone Book when the One Touch
Dial registration is completed.
ISDN
One
Touch
Dial
number
PARIS
To change the contents of the One
Touch Dial registration from the
Phone Book
If you change the contents of the Phone
Book, the contents of the One Touch Dial
registration also change automatically.
For changing the Phone Book, see
“Changing the Contents of the Phone Book”
on page 62.
To delete a One Touch Dial
registration from the Phone Book
1
Use the V, v, B or b button on the
Remote Commander to select “Phone
Book” in the launcher menu, then
press the ENTER button.
The Phone Book menu opens.
2
Use the V, v, B or b button on the
Remote Commander to select the
remote party to delete from the One
Touch Dial registration, then press the
ENTER button.
The submenu appears.
Repeat steps 1 to 4 for registration of up
to 30 remote parties.
To register seven or more remote
parties
When “Number of One Touch Buttons to
Display” is set to “30”, the following One
Touch Button Select menu appears. The
number “2-1” indicates, for example, button
1 of Group 2.
To display the numbers of the previous or
next group, use the B or b button to move
the cursor to the leftmost or rightmost
number, then press the B or b button.
Phone Book
RECENT
Recent
LAN
TOKYO
Bob
0-9
John
A-I
J-S
T-Z
2
LAN
ISDN
ISDN
OSAKA
NEW YORK
PARIS
Dial
Edit
Copy
Delete
One Touch
Registering a Remote Party for One Touch Dial
67
Chapter 2: Registration and Setup for System Administrators
Use the B or b button on the Remote
Commander to select the One Touch
Dial number to be registered (in
yellow), then press the ENTER
button.
2
2-6
Cancel
A gray number indicates that a remote
party has been registered. A white
number indicates that no remote party
has been registered.
4
2-5
3
Use the V or v button on the Remote
Commander to select “One Touch”,
then press the ENTER button.
The registered number is selected in the
One Touch Button Select menu.
One Touch Button Select
1
2
3
4
5
6
Cancel
4
Press the ENTER button.
2
ISDN
The
number
is
deleted.
Registering the Private One
Touch Dial
You can register the remote parties stored in
the Private Phone Book in a “Memory Stick”
for your own One Touch Dial list.
Once the Private One Touch Dial list is
registered, inserting the “Memory Stick”
into the system changes the One Touch Dial
list in the launcher menu to the Private One
Touch Dial list.
The procedures of the registration, deleting
and editing of One Touch Dial are the same
as those for the Phone Book of the system.
See pages 65 to 68.
Up to 30 remote parties can be registered for
your Private One Touch Dial list.
PARIS
The One Touch Dial registration of the
selected remote party is deleted and the
One Touch Dial number disappears
from the Phone Book.
68
Registering a Remote Party for One Touch Dial
Chapter 3: Daily
Videoconference
This chapter describes how to conduct a videoconference from start to finish
after the administrator has completed various registrations and settings for the
system.
The videoconference explained here is a point-to-point conference via a LAN
connection or ISDN connection using the optional PCSA-B384S or PCSAB768S ISDN Unit.
Starting a Conference by Calling a
Remote Party
You can start a videoconference with a remote party by dialing. Once you have
made a connection to the remote party, you can begin talking just as with a
normal phone call and start a videoconference.
Turning on the Power
1
Turn on equipment you are using for the videoconference.
2
Press 1 (power) switch on the right side of the system.
The indicator of the switch lights in green and the system turns on.
1 (power) switch
Starting a Conference by Calling a Remote Party
69
Chapter 3: Daily Videoconference
For use of a “Memory Stick” or optional equipment, see Chapter 4. To
conduct a data conference using the optional PCSA-DSB1S Data Solution
Box, see Chapter 5. To conduct an encrypted conference via LAN, see Chapter
6. To conduct a multipoint conference, see Chapter 7.
3
Make sure that the shutter of the camera is open.
If it is closed, slide the shutter switch on the top of the system to the right to
open the shutter.
4
Press the VIDEO CONF button on the Remote Commander to the right to
display the launcher menu.
Using the Launcher Menu
The launcher menu appears on the display when the system is turned on or
while it is not connected to a remote party. The launcher menu displays the
image shot by the local camera, local system status, One Touch Dial list and
buttons to open the menus.
1
2
IP:012.345.678.912
ISDN:012345678912
1
2
3
4
5
Detailed Dial
5
Phone Book
6
6
3
Bob
4
John
Dial
ISDN
Press the PUSH ENTER button on the Remote Commander to adjust the camera angle.
7
8
9
1 Screen
The image shot by the local camera is displayed.
2 System indicators
The indicators show the current status of the local system by the icons or letters
listed below.
Indicator Identificati Description
(icon)
on
Memory
Stick
“Memory Stick” is inserted.
IP:
IP address
Shows the IP address of the local system.
ISDN:
ISDN
telephone
number
Shows the ISDN telephone number of the local system.
Note
The system indicators are not displayed when “Menu Mode” is set to “Simple
Menu” in the General Setup menu. (The system indicators do not appear with the
default setting.)
70
Starting a Conference by Calling a Remote Party
3 One Touch Dial list
When you press one of the One Touch Dial buttons on the Remote
Commander, you can call the remote party registered in this list.
4 Line Interface
When you enter an ISDN telephone number or IP address in the text box and
dial, select the line interface (LAN, Telephone or ISDN).
5 Detailed Dial button
The Detailed Dial menu is displayed when you select this button by pressing
the V, v, B or b button and then the ENTER button on the Remote
Commander.
6 Phone Book button
The Phone Book menu is displayed when you select this button by pressing the
V, v, B or b button and then the ENTER button on the Remote Commander.
A message to guide the operation appears here.
8 Text box
Enter an ISDN telephone number or IP address of a remote party you want to
call.
9 Dial button
Select this button when you dial the telephone number or IP address entered in
the text box.
To display detailed system information
Display the launcher menu and press the HELP button on the Remote
Commander. The Information menu appears to show detailed information on
the current status of the local system.
Information
IP:012.345.678.912
ISDN:0123456789012
Audio:MIC (INT)
OK
Indicator Identificati
(icon)
on
Description
LAN status The indicator is shown in dark when the LAN is enabled to
use, and in light when it is disabled.
Multipoint
mode
The indicator is shown in light when the MCU software is
installed, and in dark when “Multipoint Mode” is set to
“On”.
ISDN
status
When the optional ISDN Unit is connected, usable ISDN
port is shown.
Starting a Conference by Calling a Remote Party
71
Chapter 3: Daily Videoconference
7 Message
Indicator Identificati
(icon)
on
Description
Audio:
The selected audio input on the local system is shown.
MIC (INT): Sound from the built-in microphone.
MIC (DSB): Sound from an external microphone connected
to the optional PCSA-DSB1S Data Solution Box.
CTE (DSB): Sound from the CTE-600 Communication
Transducer connected to the AUX IN jack on the
optional PCSA-DSB1S Data Solution Box.
Audio
input
Calling a Remote Party Using One Touch Dial
When the remote party has been registered in the One Touch Dial list, you can
call him or her using the One Touch Dial function.
For the One Touch Dial registration, see page 65.
1
Press One Touch Dial button 1 to 6 to which the remote party has been
registered.
Detailed Dial
Phone Book
IP:012.345.678.912
ISDN:012345678912
1
2
3
4
5
6
One Touch Dial list
Bob
John
Dial
ISDN
CONNECT/
DISCONNECT
1
ABC
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
2
3
4
5
MENU
PinP
6
VIDEO CONF
PC/VIDEO
WIDE MODE
DISPLAY
SELECT
BACK
SPACE
PandP
ZOOM
VOLUME
T
+
W
–
BACK LIGHT
CLEAR
ENTER
CAPTURE IMAGE
INPUT SELECT
SYMBOL
RETURN
FAR/NEAR
0
One Touch Dial
buttons
HELP
MIC ON/OFF
ALPHA/NUM
The system begins dialing the selected remote party. “Dialing (LAN)” or
“Dialing (ISDN)” appears on the display.
When the system connects to the remote system, the message “Meeting starts!”
appears on the display.
Now you can start a videoconference.
72
Starting a Conference by Calling a Remote Party
Picture on the local site
Picture on the remote site
Meeting starts!
To cancel dialing before connecting
Press the CONNECT/DISCONNECT (
/ ) button on the Remote
Commander. Or press the V, v, B or b button to select “Cancel”, then press the
ENTER button.
You can register up to 30 remote parties in the One Touch Dial list. The
number of One Touch Dial buttons to be displayed in the launcher menu is 6
or 30 according to the setting of “Number of One Touch Buttons to Display”
in the General Setup menu.
If you set it to “30”, the launcher menu changes as follows:
Each of Group 1 to Group 5 contains six One Touch Dial buttons. Press the V,
v, B or b button on the Remote Commander to select the group tab. The remote
parties registered in the selected group are displayed.
Detailed Dial
Phone Book
IP:012.345.678.912
ISDN:012345678912
Group1
1
Group2
2
Jane
Group3
3
Mary
Group4
4
A
5
B
Group5
6
C
D
Note
When “Number of One Touch Buttons to Display” is set to “30”, the line interface, text
box and Dial button are not displayed at the bottom of the launcher menu.
One Touch Dial from the Private Phone Book
Insert the “Memory Stick” in which the Private Phone Book is registered into
the Memory Stick slot of the system. The Private One Touch Dial list appears
in the launcher menu.
The operations for the Private One Touch Dial list are the same as those for the
One Touch Dial list of the system. See“Calling a Remote Party Using One
Touch Dial” on page 72.
Starting a Conference by Calling a Remote Party
73
Chapter 3: Daily Videoconference
To display seven or more One Touch Dial buttons in the launcher menu
Calling a Remote Party by Entering an ISDN Telephone Number or
IP Address in the Launcher Menu
1
Select the line interface from the drop-down list at the bottom of the
launcher menu.
Press the V, v, B or b button to select the line interface button at the bottom of
the launcher menu, then press the ENTER button to display the drop-down list.
Select the line interface by pressing the V or v button, then press the ENTER
button.
Detailed Dial
Phone Book
IP:012.345.678.912
ISDN:012345678912
1
2
Bob
3
4
5
John
ISDN
Line interface
6
Dial
Text box
Dial
LAN: Connects to the videoconferencing system of a remote party via a LAN.
Telephone: Connects to the ISDN telephone of a remote party to conduct a
voice meeting via the ISDN connection.
ISDN: Connects to the videoconferencing system of a remote party via an
ISDN.
2
Enter the IP address (for LAN) or the ISDN telephone number (for ISDN
or Telephone) of the remote party in the text box.
Press the V, v, B or b button on the Remote Commander to select the text box,
then press the ENTER button. Enter numerals using the number buttons on the
Remote Commander.
Notes
• You can enter a dot (.) with the b or
button on the Remote
Commander.
• To correct the entered number, press the PinP (BACK SPACE) button on
the Remote Commander. The last entered number is deleted.
• To delete the entered IP address, press the PandP (CLEAR) button on the
Remote Commander.
• Do not enter the prefix number in the telephone number text box.
3
74
Press the V, v, B or b button on the Remote Commander to select “Dial”,
then press the ENTER button. Or press the CONNECT/DISCONNECT
(
/ ) button on the Remote Commander.
Starting a Conference by Calling a Remote Party
The system begins dialing the IP address or ISDN telephone number entered in
step 2. “Dialing (LAN)” or “Dialing (ISDN)” appears on the display.
When the system connects to the remote system, the message “Meeting starts!”
appears on the display.
Now you can start a videoconference.
Picture on the local site
Picture on the remote site
Meeting starts!
Press the CONNECT/DISCONNECT (
/ ) button on the Remote
Commander. Or press the V, v, B or b button to select “Cancel”, then press the
ENTER button.
Calling a Remote Party Registered in the Phone Book
To call a remote party registered in the Phone Book, operate as follows:
For registration in the Phone Book, see page 59.
1
Use the V, v, B or b button on the Remote Commander to select “Phone
Book” in the launcher menu, then press the ENTER button.
The Phone Book menu appears on the display.
Phone Book
RECENT
Recent
LAN
TOKYO
Bob
John
0-9
A-I
J-S
T-Z
LAN
ISDN
ISDN
OSAKA
NEW YORK
PARIS
New Entry
Starting a Conference by Calling a Remote Party
75
Chapter 3: Daily Videoconference
To cancel dialing before connecting
2
Use the V, v, B or b button on the Remote Commander to select a remote
party from the Phone Book, then press the ENTER button.
The submenu appears.
Phone Book
RECENT
Recent
LAN
TOKYO
Bob
0-9
John
A-I
J-S
T-Z
LAN
ISDN
ISDN
OSAKA
NEW YORK
PARIS
Dial
Edit
New Entry
Copy
Delete
One Touch
If the desired remote party does not appear, see “To search for a remote
party in the Phone Book” on page 77.
3
Use the V or v button on the Remote Commander to select “Dial”, then
press the ENTER button, or press the CONNECT/DISCONNECT (
/
) button on the Remote Commander.
The system begins dialing the party selected in step 2. “Dialing (LAN)” or
“Dialing (ISDN)” appears on the display.
When the System connects to the system on the remote site, the message
“Meeting starts!” appears on the display.
Picture on the local site
Picture on the remote site
Meeting starts!
To cancel dialing before connecting
Press the V, v, B or b button to select “Cancel”, then press the ENTER button,
or press the CONNECT/DISCONNECT (
/ ) button on the Remote
Commander.
76
Starting a Conference by Calling a Remote Party
To call a remote party registered in the Private Phone Book
1
Insert a “Memory Stick” in which the Private Phone Book is registered into
the Memory Stick slot on the system.
The Phone Book menu changes to the Private Phone Book menu.
Private Phone Book
RECENT
AUTO
Recent
LAN
Anna
Jane
0-9
Mary
A-I
J-S
T-Z
New Entry
Use the V, v, B or b button on the Remote Commander to select a remote
party you want to call from the Private Phone Book, then press the ENTER
button.
3
Select “Dial” from the submenu and press the ENTER button, or press the
CONNECT/DISCONNECT (
/ ) button on the Remote Commander.
The system dials the selected remote party.
Note
If the auto dialing feature of the Private Phone Book is activated, the system begins
dialing when the “Memory Stick” is inserted.
To search for a remote party in the Phone Book
The Phone Book displays the list of the six parties at a time.
When you select “Recent”, the Phone Book lists the six names you have most
recently dialed.
Selecting the “0-9”, “A-I”, “J-S” or “T-Z” tab opens the submenu. When you
select the desired number or letter from the corresponding submenu, the Phone
Book lists the six party names which start with the selected number or letter.
Phone Book
RECENT
Recent
LAN
0
TOKYO
Bob
John
0-9
1
A-I
2
J-S
3
T-Z
4
5
LAN
ISDN
ISDN
OSAKA
NEW YORK
PARIS
6
7
New Entry 8
9
Starting a Conference by Calling a Remote Party
77
Chapter 3: Daily Videoconference
2
Note
You can also search for remote parties by pressing the number buttons on the Remote
Commander instead of the “0-9” tab on the Phone Book. Pressing the number button
lists the six party names which start with the alphabetical letter on the number button of
the Remote Commander.
Calling a Remote Party not Registered in the Phone Book Using
the Detailed Dial Menu
Using the Detailed Dial menu, you can specify the LAN bandwidth or the
number of ISDN channels to be used when you call a remote party not
registered in the Phone Book.
1
Use the V, v, B or b button on the Remote Commander to select “Detailed
Dial”, then press the ENTER button, or press the CONNECT/
DISCONNECT (
/ ) button on the Remote Commander.
The Detailed Dial menu appears on the screen.
Detailed Dial
Line I/F
IP
LAN
LAN Bandwidth
1024 Kbps
Dial
2
Save
Use the V, v, B or b button to select “Line I/F”, then press the ENTER
button. The submenu appears. Press the V or v button to select the line
interface used to connect to the remote party, then press the ENTER
button.
Detailed Dial
Line I/F
IP
LAN
ISDN
ISDN (2B)
ISDN(Telephone)
Dial
Save
LAN: Connects to the videoconferencing system of a remote party via a LAN.
ISDN: Connects to the videoconferencing system of a remote party via an
ISDN.
78
Starting a Conference by Calling a Remote Party
ISDN (2B): Connects to the H.221-format videoconferencing system via 2B
channels of the ISDN connection.
ISDN (Telephone): Connects to the phone of a remote party to conduct a voice
meeting via the ISDN connection.
3
Configure the LAN, or ISDN line.
When using the LAN
Detailed Dial
Line I/F
IP
LAN
LAN Bandwidth
1024 Kbps
Save
1 Enter the IP address of a remote party to connect in the IP text box.
Use the V, v, B or b button on the Remote Commander to select the IP text
box, then press the ENTER button. Then enter the IP address with the
number buttons on the Remote Commander.
Enter the host name and domain name when using the DNS server in the
IP text box (ex. host.domain). When using the gatekeeper, enter the user
name and user number registered in the LAN Setup menu (page 48).
Notes
• You can enter a dot ( . ) with the b or
button on the Remote
Commander.
• To correct the entered number, press the PinP (BACK SPACE) button on the
Remote Commander. The last entered number is deleted.
• To delete the entered IP address, press the PandP (CLEAR) button on the
Remote Commander.
2 Select the LAN bandwidth.
Use the V, v, B or b button to select “LAN Bandwidth”, then press the
ENTER button. Press the V or v button to select the bandwidth from the
displayed submenu, then press the ENTER button.
You can choose from among 64 Kbps, 128 Kbps, 256 Kbps, 384 Kbps, 512
Kbps, 768 Kbps, 1024 Kbps, 1920 Kbps and Other.
Starting a Conference by Calling a Remote Party
79
Chapter 3: Daily Videoconference
Dial
When using the ISDN
Detailed Dial
Line I/F
A
ISDN
Number of Lines
6B(384K)
Dial
Save
1 Enter the telephone number of a remote party to connect to in the text
box.
Use the V, v, B or b button on the Remote Commander to select the text
box, then press the ENTER button. Then enter the telephone number with
the number buttons on the Remote Commander.
Notes
• Do not enter the prefix number in the telephone number text box.
• Even when you connect multiple ISDN lines (2B (128K) or more number of
lines), entering one telephone number of the remote party enables you to connect
all the lines used automatically.
• When you select ISDN (2B (128K)), the A1 and A2 text boxes appear. You can
enter a separate ISDN line number in each text box. When you enter the number
in the A2 text box, pressing the ENTER button on the Remote Commander
enables copy of the content of the A1 text box to A2.
• To correct the entered number, press the PinP (BACK SPACE) button on the
Remote Commander. The last entered number is deleted.
• To delete the entered ISDN telephone number, press the PandP (CLEAR) button
on the Remote Commander.
2 Select the number of channels connected when setting up a call.
Use the V, v, B or b button on the Remote Commander to select “Number
of Lines”, then press the ENTER button. Press the V or v button to select
the number of channels to be used when calling a remote party from the
displayed submenu, then press the ENTER button. You can select from
among 1B(64K), 2B(128K), 3B(192K), 4B(256K), 5B(320K), 6B(384K),
8B(512K) and 12B(768K) channels.
80
Starting a Conference by Calling a Remote Party
Note
To connect to the remote party by entering all the telephone numbers for the
ISDN lines used
If the videoconferencing system of the remote party is not equipped with the
BONDING function, entering one remote party’s telephone number does not allow
automatic connection of multiple ISDN lines used to connect to the remote party.
To connect to the remote party by entering all the telephone numbers, register the
remote party’s telephone numbers for the ISDN lines to be used referring to
“Registering a Remote Party in the Phone Book” in Chapter 2 (page 59), then
connect to the remote party according to the procedure described in “Calling a
Remote Party Registered in the Phone Book” on page 75.
4
Use the V, v, B or b button to select “Dial” in the lower part of the menu,
then press the ENTER button, or press the CONNECT/DISCONNECT
(
/ ) button on the Remote Commander.
Picture on the local site
Picture on the remote site
Meeting starts!
To cancel dialing before connecting
Press the V, v, B or b button to select “Cancel”, then press the ENTER button,
or press the CONNECT/DISCONNECT (
/ ) button.
To save the entered IP address or ISDN line number in the Phone
Book
Select “Save” with the V, v, B or b button, then press the ENTER button on
the Remote Commander. The address or number you entered is saved in the
Phone Book and the List Edit menu is displayed.
For details on the List Edit menu, see “Registering a Remote Party in the
Phone Book” on page 59.
Starting a Conference by Calling a Remote Party
81
Chapter 3: Daily Videoconference
The system begins dialing the IP address or ISDN telephone number entered
in step 3. “Dialing (LAN)” or “Dialing (ISDN)” appears on the display.
When the system connects to the remote system, the message “Meeting starts!”
appears on the display.
Now you can start a videoconference.
Redial function
Once you have input the IP address or ISDN line number using the Detailed
Dial menu, it will be entered in the text box of the Detailed Dial menu the next
time you open the menu.
Notes
The redial function is not available:
– Once you have turned off the power of the system.
– When you cancel dialing the entered IP address or ISDN telephone number.
To set up more detailed options
When “More Options Enable” is set to “On” in the Dial Setup menu, the More
Options button is shown at the lower part of the Detailed Dial menu.
Select the More Options button with the V, v, B or b button on the Remote
Commander and press the ENTER button to open the Dial Setup menu. You can
change the settings of the desired items.
82
Starting a Conference by Calling a Remote Party
Receiving a Call from a Remote Party
Operations for answering a call differ depending on the setting of the answer
mode.
Auto answer mode
The system automatically receives a call from a remote party and you can start
conferencing. Although no operation is necessary to start, the picture on the
local site will be displayed on the remote site screen even if you are not ready
to begin.
Note
You cannot answer the call unless the system is turned on.
For setting of the answer mode, see “Auto Answer” in the Answer Setup menu
on page 43.
Answering a Call from a Remote Party
To answer a call in auto answer mode
When you receive a call, a ringer tone sounds and the message “Incoming
Call” appears on the display. The system is automatically connected and the
picture of the remote party is displayed on the local system and the sound is
heard. The picture and sound on the local site will be enabled on the remote
site at the same time.
The message “Meeting starts!” appears on the display.
You are now ready to start a conference.
Picture on the local site
Picture on the remote site
Meeting starts!
Receiving a Call from a Remote Party
83
Chapter 3: Daily Videoconference
Manual answer mode
When there is an incoming call, a ringer tone sounds. You need to connect the
call manually before starting the conference.
You can start it whenever you are ready.
Note
If you receive a call when you are using the Video Communication System as
a computer display or video monitor, the picture of the remote party will
appear automatically as a window picture.
Picture on the remote site
Picture from a computer
or video equipment
Note
See pages 87 to 98 to adjust the sound and picture during the conference.
To receive a call in manual answer mode
When you receive a call, a ringer tone sounds and the message “Incoming call.
Answer?” appears on the display.
Press B or b to select “OK”, then press the ENTER button. The system is then
connected. Once the connection is made, the picture of the remote party is
displayed on the local system and the sound is heard. The picture and sound on
the local site will be enabled on the remote site at the same time.
The message “Meeting starts!” appears on the display.
You are now ready to start a conference.
Note
See pages 87 to 98 to adjust the sound and picture during the conference.
When you do not want to answer the call
Press B or b to select “Cancel”, then press the ENTER button. Ringing stops.
When the system fails to make an ISDN connection
If the system fails to connect to the remote party, the message “Cannot
complete connection (an ISDN cause code and a message are displayed here)”
appears on the display.
For details on ISDN cause codes and messages, see “On Screen Messages”
on page 189.
84
Receiving a Call from a Remote Party
When there is an incoming call during communication over a different line
interface
If you receive a call via an ISDN when you are in communication via a LAN
(or vice versa), the system becomes busy.
To display an elapsed communication time
You can show an elapsed communication time on the display if “Time
Display” in the General Setup menu is set to “On”.
To turn the indicator off, set “Time Display” in the General Setup menu to
“Off”. You can also turn off the indicator by selecting “Icon display OFF” in
the communication submenu during communication with a remote party.
For “Time Display” setting, see “General Setup Menu” on page 45.
1
Press the CONNECT/DISCONNECT (
Commander.
/
) button on the Remote
The message “Disconnect?” appears on the display.
2
Press the B or b button on the Remote Commander to select “OK”, then
press the ENTER button, or press the CONNECT/DISCONNECT (
/
) button on the Remote Commander again.
The line is disconnected.
Note
The power of the system remains on even if the line is disconnected.
To cancel disconnection of the system
Select “Cancel” with the B or b button, then press the ENTER button.
To register the connected remote party in the Phone Book
You can easily register the remote party who has just disconnected.
If you set “Last Number Registration” in the General Setup menu to “On”, the
message “Register this participant in the list?” appears after a conference with
an unregistered remote party is finished. When you select “OK”, the Edit List
menu appears.
Receiving a Call from a Remote Party
85
Chapter 3: Daily Videoconference
Ending the Conference
List Edit
Index
LAN
IP
Line I/F
LAN
LAN Bandwidth
1024 Kbps
Save
Cancel
When you press the B or b button on the Remote Commander, still images are
displayed one by one in the following order: the still images captured during
the communication using the image capture feature and stored in the “Memory
Stick”, the still images previously stored in the “Memory Stick”, and the still
images captured by the automatic image capture feature and stored in the
memory of the system. Select the still image you want to register in the Phone
Book and press the ENTER button.
Note
If the “Last Number Registration” is set to “Off”, the message “Register this participant
in the list?” does not appear.
For “Last Number Registration” setting, see “Last Number Registration” on
page 45.
86
Receiving a Call from a Remote Party
Adjusting the Picture and Sound
Adjusting the Picture Quality
During a conference, you can adjust the picture quality (picture mode, picture,
brightness and back light) using the MENU, V/v and OK buttons on the right
side of the Video Communication System.
For details on the adjustments, see “Adjusting the Picture Quality on the
Display” in Chapter 8 (page 177).
Adjusting the Volume
Note
If feedback caused by increasing the volume occurs, decrease the volume.
Cutting Off the Sound Momentarily – Muting Function
You can momentarily cut off the sound to be sent to the remote party.
Press the MIC ON/OFF button on the Remote Commander.
The sound of the local party is not heard by the remote party. The “MIC OFF”
indicator appears on the display.
MIC
OFF
To restore the sound
Press the MIC ON/OFF button again.
The “MIC OFF” indicator disappears.
Adjusting the Picture and Sound
87
Chapter 3: Daily Videoconference
You can adjust the volume of the sound to be heard during a conference.
Press the VOLUME + button on the Remote Commander to increase the
volume, VOLUME – button to decrease it. You can adjust the volume for the
picture currently on the display, and store the adjusted level for three types of
pictures (video conference, picture from video equipment and picture from a
computer), respectively.
Cutting Off the Sound On Answering – Mic on Answer Function
You can cut off the sound to be sent to a remote party when you have answered
a call from the remote party.
If you set “Mic on Answer” to “Off” in the Answer Setup menu, only the
picture on the local party will be sent to the remote party when answering a
call. The “MIC OFF” indicator appears on the display.
For the “Mic on Answer” setting, see “Answer Setup Menu” on page 43.
To send the sound to the remote party
Press the MIC ON/OFF button on the Remote Commander.
Synchronizing Audio and Video – Lip Sync Function
During the conference a time lag may occur between the sound and picture to
be sent to the remote party.
When you set “Lip Sync” to “On” in the Audio Setup menu, the system adjusts
to synchronize audio and video. However, this may delay transmission of
audio synchronized with video.
For the “Lip Sync” setting, see “Audio Setup Menu” on page 46.
Note
To enable the Lip Sync function of the remote party, you have to ask them to do so.
Reducing Echo – Echo Canceler
The system is equipped with the Echo Canceler, allowing the echo that occurs
during audio transmission to be reduced.
Setting “Echo Canceler” to “Internal” in the Audio Setup menu activates the
built-in echo canceler. If you set it to “External”, you can activate the eco
canceler of the equipment connected to the system.
For the “Echo Canceler” setting, see “Audio Setup Menu” on page 46.
88
Adjusting the Picture and Sound
Adjusting the Camera
You can adjust the image shot by the local camera that is sent to the remote
party to obtain the desired angle and size.
During communication you can also control the camera on the remote site to
adjust the image shot by the remote camera.
Selecting the Camera to be Controlled
Before adjustment, choose whether you control the local or remote camera.
1
Press the FAR/NEAR button on the Remote Commander.
The Display Control menu appears.
Press the B or b button on the Remote Commander to select “Control”,
then switch between “Far” and “Near” with the V or v button.
Display Control
3
Display
Control
Far
Near
Camera
Press the ENTER button on the Remote Commander.
When “Far” is selected (the remote camera is selected), the FAR indicator is
displayed.
When “Near” is selected (the local camera is selected), the FAR indicator does
not appear.
Notes
• You cannot control the remote camera unless “Far End Camera Control” is set to
“On” in the Dial Setup menu at a dialing party and the same item in the Answer
Setup menu is set to “On” at an answering party.
• You cannot control the remote camera during a session if the remote control
format of the remote camera is not H.281. If you cannot control the remote
camera, ask the remote party about the remote control format of his camera.
• If the local and remote parties try to control the same camera at the same time, the
camera may not operate correctly.
Adjusting the Camera
89
Chapter 3: Daily Videoconference
2
Adjusting the Zoom and Camera Angle
Determine the size and the angle of view of the picture to be displayed by
adjusting the zoom and angle.
You can make adjustments in the display screen during communication and in
the launcher menu when not in communication. You can also make
adjustments using the Camera menu.
Note
The camera of the Video Communication System is a digital-zoom, pan&tilt camera.
Therefore, you can adjust the camera angle (pan&tilt) only for a zoomed picture.
Panning and tilting of a full-screen picture is not possible with this system.
To make adjustment during communication
1
Select the camera you want to adjust.
Press the FAR/NEAR button on the Remote Commander to open the Display
Control menu, then select “Far” or “Near” under “Control”.
2
Use the ZOOM button to zoom in or out.
Press the ZOOM T (Telephoto) button to zoom in (to enlarge image), and the
ZOOM W (Wide angle) button to zoom out (to obtain wider range of image).
3
Press the V, v, B or b button to adjust the camera angle.
The picture whose camera angle is adjusted is displayed in the small window
or in full screen.
Adjusted picture
To make adjustment using the launcher menu while not in communication
You can adjust the zoom and camera angle of the picture on the local site only.
1
90
Use the V, v, B or b button to select the screen (screen frame becomes
yellow), then press the ENTER button.
Adjusting the Camera
The color of the screen frame changes, then you can adjust the camera angle
and zoom.
Detailed Dial
Phone Book
IP:012.345.678.912
ISDN:012345678912
1
2
Bob
3
4
5
6
John
Dial
ISDN
Press the PUSH ENTER button on the Remote Commander to adjust the camera angle.
2
Use the ZOOM button to zoom in or out.
3
Press the V, v, B or b button to adjust the camera angle so that the desired
angle of view is obtained.
4
Press the ENTER button.
To make adjustment using the Camera menu
1
Press the MENU button on the Remote Commander to display the Setup
menu, then press the V or v button to select
(camera) icon.
The Camera menu appears.
2
Use the V, v, B or b button to select “Adjustments”, then press the ENTER
button.
The color of the screen frame changes, then you can adjust the camera angle
and zoom.
Camera
Preset Save
Preset Load
Adjustments
Use the following Remote Commander
buttons to adjust the camera.
: Auto adjustment On.
: Backlight On/Off.
: Brightness.
: Flicker free On/Off.
3
While in communication, press the FAR/NEAR button on the Remote
Commander to select the camera to be adjusted.
When the remote camera is selected, the FAR indicator is displayed.
Adjusting the Camera
91
Chapter 3: Daily Videoconference
Press the ZOOM T button to zoom in (to enlarge image), and the ZOOM W
button to zoom out (to obtain wider range of image).
4
Use the ZOOM button to zoom in or out.
Press the ZOOM T button to zoom in (to enlarge image), and the ZOOM W
button to zoom out (to obtain wider range of image).
5
Press the V, v, B or b button to adjust the camera angle so that the desired
angle of view is obtained.
6
Press the ENTER button.
Adjusting the Brightness
Normally, the brightness is automatically adjusted to obtain a optimum level.
You can also adjust it manually.
It is recommended that the brightness be adjusted automatically.
To set the system to camera adjustment mode
1
Press the MENU button on the Remote Commander to display the Setup
menu, then press the V or v button to select the
(camera) icon.
The Camera menu appears.
2
Use the V, v, B or b button to select “Adjustments”, then press the ENTER
button.
The color of the screen frame changes, then you can adjust the zoom and
camera angle.
The guidance for operations will be displayed under the screen.
Camera
Preset Save
Preset Load
Adjustments
Use the following Remote Commander
buttons to adjust the camera.
: Auto adjustment On.
: Backlight On/Off.
: Brightness.
: Flicker free On/Off.
3
While in communication, press the FAR/NEAR button on the Remote
Commander to select the camera to be adjusted.
When the remote camera is selected, the FAR indicator is displayed.
Note
When the remote camera is selected, only manual focus adjustment is available.
To display the picture to fill the display
To display the picture in full screen while the Camera menu is displayed, select
“Adjustments”, then press the PinP button on the Remote Commander. To
92
Adjusting the Camera
cancel the full screen mode, press the RETURN button or PinP button on the
Remote Commander.
To adjust the brightness
Press the number button “9” on the Remote Commander repeatedly to make
the picture brighter. The “Brightness +” indicator is displayed.
Press the “7” button on the Remote Commander repeatedly to make the picture
darker. The “Brightness –” indicator is displayed.
To shoot the picture with backlight compensation
To eliminate flicker
If a fluorescent lamp is connected to the same power line as that of this system,
flicker may occur in the camera picture. To eliminate the flicker, press the #
button on the Remote Commander. When flicker elimination is activated, the
“Flickerfree On” indicator is displayed. When it is deactivated, the
“Flickerfree Off” indicator is displayed.
Presetting the Zoom and Angle Settings
Up to six settings for zoom and camera angle can be registered in the preset
memory. Once you have stored the settings, you can easily recall them to move
the camera.
You can preset the settings in the display screen while in communication, and
in the launcher menu while not in communication. You can also do so using
the Camera menu.
To preset the setting in the display screen while in communication
1
Select the camera whose camera angle and zoom setting you want to
preset.
Press the FAR/NEAR button on the Remote Commander to open the Display
Control menu, then select “Far” or “Near” under “Control”.
2
Adjust the zoom and camera angle.
Use the ZOOM button to adjust the zoom, and the V, v, B or b button to adjust
the camera angle.
3
Keep one of the number buttons 1–6 pressed.
The zoom and angle setting is stored in the selected number button, and the
message “Registered to Preset number 1 (–6).” appears.
Adjusting the Camera
93
Chapter 3: Daily Videoconference
Use backlight compensation when shooting a subject with bright background.
Each time you press the BLACK LIGHT button or the “8” button on the
Remote Commander, the backlight compensation is activated or deactivated.
When it is activated, the “Backlight On” indicator is displayed. When it is
deactivated, the “Backlight Off” indicator is displayed.
To preset the setting in the launcher menu while not in communication
1
Adjust the zoom and camera angle in the launcher menu.
Use the V, v, B or b button to select the screen and press the ENTER button,
then press the ZOOM buttons to adjust the zoom and the V, v, B or b button
to adjust the angle.
2
Keep one of the number buttons 1–6 pressed or press the
of the 1-6 buttons continuously.
button and one
The zoom and angle setting is stored in the selected number button, and the
message “Registered to Preset number 1 (–6).” appears.
To preset the setting using the Camera menu
1
Press the MENU button on the Remote Commander to display the Setup
menu, then press the V or v button to select
(camera) icon.
The Camera menu appears.
2
Use the V, v, B or b button on the Remote Commander to select “Preset
Save”, then press the ENTER button.
3
Select the preset number (1–6) with the V or v button, then press the
ENTER button.
The color of the screen frame changes, then you can adjust the zoom and
camera angle.
Camera
Preset Save
1
Preset Load
2
Adjustments
3
4
5
6
4
While in communication, select the camera to be adjusted with the FAR/
NEAR button on the Remote Commander.
The FAR indicator is displayed when the remote camera is selected.
5
Adjust the zoom and angle.
Use the ZOOM button to adjust the zoom, and the V, v, B or b button to adjust
the camera angle.
6
Press the ENTER button.
The setting is registered in the selected preset number.
94
Adjusting the Camera
Recalling the Preset Zoom and Angle Setting
You can move the camera to the preset position by recalling the preset zoom
and camera angle with the display screen while in communication. You can do
the same with the launcher menu displayed while not in communication. Using
the Camera menu also enables movement of the camera to the preset position.
To recall the preset setting in the display screen while in communication
1
Select the camera which you want to move to the preset position.
Press the FAR/NEAR button on the Remote Commander to open the Display
Control menu, then select “Far” or “Near” under “Control”.
2
Press one of the number buttons 1–6 on the Remote Commander.
To recall the preset setting in the launcher menu while not in
communication
You can move the local camera to the preset position.
1
Select the screen in the launcher menu, then press the ENTER button.
2
Press one of the number buttons 1–6 on the Remote Commander.
The setting of the selected preset number is recalled, and the camera moves to
the preset position. The message “Preset 1 (-6) selected” appears.
To recall the preset setting in the Camera menu
1
Display the Camera menu.
2
Use the V, v, B or b button on the Remote Commander to select “Preset
Load”, then press the ENTER button.
Adjusting the Camera
95
Chapter 3: Daily Videoconference
The setting of the selected preset number is recalled, and the camera moves to
the preset position. The message “Preset 1 (-6) selected” appears.
3
Press the V or v button to select the preset number (1-6) you want to recall,
then press the ENTER button.
Camera
Preset Save
1
Preset Load
2
Adjustments
3
4
5
6
The setting of the preset number is recalled and the camera moves to the
position of that setting.
96
Adjusting the Camera
Selecting the Input Picture and Sound
This section describes how to switch the picture on the display, and how to
switch the input picture and sound.
Switching the Displayed Picture Between the Local and Remote
Pictures during Communication
1
Press the FAR/NEAR button on the Remote Commander.
The Display Control menu appears.
2
Use the V, v, B or b button on the Remote Commander to select “Near” or
“Far” under “Display”.
Chapter 3: Daily Videoconference
Display Control
3
Display
Control
Far
Near
Camera
Press the ENTER button on the Remote Commander.
Selecting the Input Picture on the Remote Site during
Communication
1
Press the INPUT SELECT button on the Remote Commander.
The Video Input Select menu appears.
2
Use the V, v, B or b button on the Remote Commander to select the video
input on the remote site.
Video Input Select
Far
DSB Input
Main
RGB A
Selecting the Input Picture and Sound
97
Main: Select the picture shot by the remote camera.
Object: Select the picture from the optional PCS-DS150/DS150P Document
Stand connected to the system on the remote site.
AUX 1: Selects the picture from the equipment connected to the VIDEO IN
AUX 1 connector of the system on the remote site.
AUX 2: Select the picture from the equipment connected to the VIDEO IN
AUX 2 connector of the system on the remote site.
VCR: Select the picture input from the VCR connected to the system on the
remote site. This item does not appear unless the remote system is equipped
with the video input select function.
For information on the DSB input mode, see “To select a picture from a
computer connected to the Data Solution Box” on page 132.
3
98
Press the ENTER button on the Remote Commander.
Selecting the Input Picture and Sound
Switching the Picture Displayed on the TV Monitor
Each press of the VIDEO CONF button on the Remote Commander switches
the picture on the display as follows:
Picture shot by the local or
remote camera
VIDEO CONF button
VIDEO
CONF
button
VIDEO CONF button
DSB picture or picture received
from a whiteboard
Notes
• A still image is displayed only when it has been transmitted or received.
• A DSB picture is displayed only when the RGB signal is received from a computer
via the optional PCSA-DSB1S Data Solution Box connected to the system.
• A picture on a whiteboard is displayed only when notes written on a whiteboard are
received.
For details, see “Using Audio/Video Signal from the Connected Equipment for
a Conference” on page 132.
Selecting the Input Picture and Sound
99
Chapter 3: Daily Videoconference
Still image transmitted or
received
Monitoring the Local Picture as a
Window Picture – PinP Feature
You can display the picture shot by the local camera on the display as a
window picture (Picture-in-Picture). This function enables you to check how
your own party is monitored on the remote site.
To display the window picture
Press the PinP button on the Remote Commander during communication.
The local picture is displayed as a window picture.
Local picture
Remote picture
To change the location of the window picture
Each press of the PinP button changes the location of the window as follows:
Display
The window picture
disappears.
Notes
• The window picture is displayed in the same location as it was last located. The
window picture is not displayed if it was not displayed last.
• The window picture is not available while not in communication with the remote
party.
100
Monitoring the Local Picture as a Window Picture – PinP Feature
To display the remote picture as a window picture
Press the FAR/NEAR button on the Remote Commander to open the Display
Control menu and select “Near” under “Display” when the local picture is
displayed as a window picture. The remote picture is displayed as a window
picture with the local picture as the main picture.
Chapter 3: Daily Videoconference
Monitoring the Local Picture as a Window Picture – PinP Feature
101
Monitoring the Local and Remote
Pictures Simultaneously – PandP
Feature
You can display both the picture shot by the local camera and the picture shot
by the remote camera on the display of the Video Communication System
(Picture-and-Picture).
To enter the Picture-and-Picture mode
Press the PandP button on the Remote Commander during communication.
The picture displayed on the full screen is displayed on the left, and the
window picture is displayed on the right.
To change the size of the pictures
Press the PandP button on the Remote Commander to change the sizes of the
pictures.
102
Monitoring the Local and Remote Pictures Simultaneously – PandP Feature
To exchange the left and right pictures
Press the FAR/NEAR button on the Remote Commander and change the
“Display” setting (“Far” or “Near”) in the Display Control menu.
Note
The Picture-and-Picture feature is not available while not in communication with the
remote party.
Chapter 3: Daily Videoconference
Monitoring the Local and Remote Pictures Simultaneously – PandP Feature
103
Selecting the Wide Mode
The display mode of the Video Communication System is automatically set to
Zoom mode (16:9 picture) when the power of the system is turned on or the
communication starts or ends. When a menu is displayed, the display mode
automatically changes to Normal mode (4:3 picture).
You can select the desired wide mode manually by using the WIDE MODE
button on the Remote Commander.
Automatic wide mode setting
The display mode changes automatically with the following timings.
Timing
The display mode automatically changes to
When you turn the power on
Zoom mode
When you display a menu
Normal mode
When you exit a menu
Zoom mode
When you start communication
Zoom mode
When you end communication
Zoom mode
To change the display mode manually
Each time you press the WIDE MODE button on the Remote Commander, the
display mode changes as follows:
Detailed Dial
Detailed Dial
Phone Book
IP:012.345.678.912
ISDN:012345678912
1
2
3
4
5
6
1
2
3
Bob
Bob
Phone Book
IP:012.345.678.912
ISDN:012345678912
John
4
5
6
John
ISDN
Dial
Dial
ISDN
Zoom Mode
Wide Mode
Detailed Dial
Detailed Dial
Phone Book
IP:012.345.678.912
ISDN:012345678912
1
2
Bob
3
4
5
6
Phone Book
IP:012.345.678.912
ISDN:012345678912
1
2
3
4
5
Dial
Bob
John
Dial
ISDN
Normal Mode
104
6
John
ISDN
Selecting the Wide Mode
Wide Zoom Mode
Display modes
zoom mode: The 16:9 picture is created by cutting the upper and lower parts
of the 4:3 picture. This mode is recommended for a videoconference.
Wide mode: The 16:9 picture is created by uniformly enlarging the width of
the 4:3 picture.
Wide zoom mode: The 16:9 picture is created by retaining the size of the
center part of the 4:3 picture and gradually enlarging the width of
peripheral parts.
Normal mode: The 4:3 picture is displayed as it is. This mode is
recommended for displaying menus.
Chapter 3: Daily Videoconference
Selecting the Wide Mode
105
Chapter 4:
Videoconference
With Optional
Equipment
This chapter describes the various videoconferences using the optional
equipment in addition to the components contained in the PCS-TL50 Video
Communication System.
To conduct a data conference using the optional PCSA-DSB1S Data Solution
Box, see Chapter 5.
To conduct a multipoint conference, see Chapter 7.
Using Still Images Stored in a “Memory
Stick” for a Videoconference
You can display the still images stored in the optional “Memory Stick” or
transmit them to a remote party.
Displaying a Still Image Stored in a “Memory Stick”
1
Insert the “Memory Stick” containing the still images into the Memory
Stick slot on the Video Communication System.
Insert the “Memory Stick” with the rear facing you and in the direction of the
arrow on it.
106
Using Still Images Stored in a “Memory Stick” for a Videoconference
2
Open the Memory Stick menu.
Press the MENU button on the Remote Commander to display the Setup menu,
and select
(Memory Stick) icon with the V or v button.
Memory Stick
Save
3
Use the V, v, B or b button on the Remote Commander to select the still
image you want to display, then press the ENTER button.
The submenu appears.
Memory Stick
Send
Load
Delete
Slide Show
4
Use the V or v button to select “Load”, then press the ENTER button.
The menu disappears and the selected still image is displayed.
To clear the still image from the display
While the still image is displayed, press the ENTER button on the Remote
Commander. The Memory Stick menu is restored.
Viewing a slide show
You can view still images stored in a “Memory Stick” slide by slide. (Slide
Show)
1
Insert the “Memory Stick” into the Memory Stick slot, and display the
Memory Stick menu.
2
Use the V, v, B or b button on the Remote Commander to select a still
image from which you want to start a slide show, then press the ENTER
button.
Using Still Images Stored in a “Memory Stick” for a Videoconference
107
Chapter 4: Videoconference With Optional Equipment
Save
2
The submenu appears.
Memory Stick
Save
2
Send
Load
Delete
Slide Show
3
Use the V or v button on the Remote Commander to select “Slide Show”,
then press the ENTER button.
The slide show starts. During communication with a remote party, the still
images are transmitted to the remote party.
The
indicator is displayed during the slide show.
4
Press the b button on the Remote Commander to advance a slide. Pressing
the B button goes back to the previous slide.
To select another still image during the slide show
Pressing the ENTER button during the slide show opens the submenu.
2/4
Stop
Press the B or b button to select the desired still image, then press the ENTER
button. The selected image is displayed in full screen. During communication
it will be transmitted to the remote party.
To stop the slide show
While the submenu is open, select “Stop” with the v button and press the
ENTER button.
While the submenu is not open, press the RETURN button on the Remote
Commander. The Memory Stick menu is restored.
108
Using Still Images Stored in a “Memory Stick” for a Videoconference
To delete a still image
Display the Memory Stick menu, select the still image you want to delete, and
press the ENTER button. Select “Delete” from the displayed submenu with the
V or v button, then press the ENTER button. The selected still image is deleted
from the “Memory Stick”.
To remove the “Memory Stick”
Push the “Memory Stick” and release your finger. The “Memory Stick” will
come out a little, and you can then remove it.
Sending a Still Image Stored in a “Memory Stick”
While in communication, you can send still images stored in a “Memory Stick”
to the remote party.
1
Insert a “Memory Stick” into the Memory Stick slot on the Video
Communication System, and display the Memory Stick menu.
2
Use the V, v, B or b button on the Remote Commander to select the still
image you want to send, then press the ENTER button.
The submenu appears.
Memory Stick
Save
2
Send
Load
Delete
Slide Show
3
Use the V or v button to select “Send”, then press the ENTER button.
The selected still image is displayed, and is sent to the remote party. The
message “The still image has been sent.” appears on the display.
When you select “Slide Show” in step 3 above
If you select “Slide Show” from the submenu and press the ENTER button, a
slide show starts from the selected still image, and it will be sent to the remote
party.
Using Still Images Stored in a “Memory Stick” for a Videoconference
109
Chapter 4: Videoconference With Optional Equipment
For how to insert a “Memory Stick” and how to display the Memory Stick
menu, see “Displaying a Still Image Stored in a “Memory Stick”” on page
106.
For details on a slide show, see page 107.
Note
The image file to be sent will be saved to the directory “\DCIM\100MSDCF”.
110
Using Still Images Stored in a “Memory Stick” for a Videoconference
About a “Memory
Stick”
What is “Memory Stick”?
“Memory Stick” is a new compact, portable
and versatile IC (Integrated Circuit)
recording medium with a data capacity that
exceeds a floppy disk. “Memory Stick” is
specially designed for exchanging and
sharing digital data among “Memory Stick”
compatible products. Because it is
removable, “Memory Stick” can also be
used for external data storage.
“Memory Stick” is available in two sizes:
standard size and compact “Memory Stick
Duo” size. Once attached to a Memory Stick
Duo adapter, “Memory Stick Duo” turns to
the same size as standard “Memory Stick”
and thus can be used with products
compliant with standard “Memory Stick.”
There are five types of “Memory Stick”
depending on various uses.
• “Memory Stick PRO”
Equipped with MagicGate copyright
protection technology, designed for use
only with equipment compatible with
“Memory Stick PRO”.
• “Memory Stick-R”
Data stored in this type of “Memory Stick”
is not overwritten. It can be used only with
equipment compatible with “Memory
Stick-R”. Data that requires MagicGate
copyright protection technology cannot be
stored on this type.
• “Memory Stick”
Any type of data except copyrightprotected data that requires MagicGate
copyright protection technology can be
stored.
• “MagicGate Memory Stick”
Equipped with the MagicGate copyright
protection technology.
• “Memory Stick-ROM”
Stores pre-recorded, read-only data.
Recording or erasing data cannot be done
with this type.
Available types of “Memory Stick”
for the unit
You can use “Memory Stick” and
“MagicGate Memory Stick” with the unit.
However, because the unit does not support
the MagicGate standards, data recorded with
the unit is not subject to MagicGate
copyright protection. Also you cannot use
“Memory Stick PRO” with this unit.
Notes on “Memory Stick Duo”
• To use “Memory Stick Duo” with this
unit, attach it to the Memory Stick Duo
adapter before inserting it into the unit.
• Be sure to attach “Memory Stick Duo” to
the adapter with the correct orientation.
• Be sure to insert the Memory Stick Duo
adapter with the correct orientation.
Otherwise, the unit may be damaged.
• Do not insert the Memory Stick Duo
adapter without “Memory Stick Duo”
attached. Doing so may result in
malfunction of the unit.
What is MagicGate ?
MagicGate is copyright protection
technology that uses encryption technology.
Format that can be displayed with
this unit
The unit can display the picture files
recorded on a “Memory Stick” in the
following format:
• Image files (DCF-compatible)
compressed in the JPEG (Joint
Photographic Experts Group) format
(extension: .jpg)
• Image files of up to 2048 × 1536 pixels can
be displayed.
About a “Memory Stick”
111
Chapter 4: Videoconference With Optional Equipment
Types of “Memory Stick”
• “Memory Stick” (with memory select
function)
Equipped with multiple memories (128
MB). You can select the memory to use
with the memory select switch on the back
of the “Memory Stick”. You cannot use
different memories simultaneously or
continuously.
Before using a “Memory Stick”
Terminal
Write-protect tab
Labeling position
• When you set the “Memory Stick” writeprotect tab to “LOCK,” data cannot be
recorded, edited, or erased.
• Use a sharp object, such as a ballpoint pen,
to move the “Memory Stick Duo” erasure
prevention switch.
• Data may be damaged if:
– You remove the “Memory Stick” or turn
off the unit while it is reading or
writing data.
– You use the “Memory Stick” in a
location subject to the effects of static
electricity or electric noise.
Notes
• Do not attach any other material than the
supplied label onto the label space.
• Attach the label so that it does not stick out
beyond the labeling position.
• Do not write forcefully on the “Memory
Stick Duo” memo area.
• Carry and store the “Memory Stick” in its
case.
• Prevent metallic objects or your finger from
coming into contact with the metal parts of
the connecting section.
• Do not strike, bend, or drop the “Memory
Stick.”
• Do not disassemble or modify the “Memory
Stick.”
• Do not allow the “Memory Stick” to get wet.
• Do not use or store the “Memory Stick” in a
location that is:
– extremely hot, such as in a car parked in
the sun.
– under direct sunlight.
– very humid or subject to corrosive
substances.
112
About a “Memory Stick”
• “Memory Stick Duo” and
are trademarks of Sony
Corporation.
• “Memory Stick” and
are trademarks
of Sony Corporation.
• “MagicGate Memory Stick” and
are trademarks of Sony
Corporation.
• “Memory Stick-ROM” and
are trademarks of
Sony Corporation.
• “Memory Stick PRO” and
are trademarks of
Sony Corporation.
• “Memory Stick R” and
are trademarks of Sony Corporation.
Formatting a “Memory Stick”
Notes
• A “Memory Stick” formatted with a
computer cannot be guaranteed on the Video
Communication System. Make sure to use a
“Memory Stick” that has been formatted
with this system.
• If you format a “Memory Stick”, all data,
including the still images and Phone Book,
will be lost.
To format a “Memory Stick”
Select “Memory Stick Format” from the
General Setup menu. The message “Format
a Memory Stick?” appears. When you select
“OK”, the “Memory Stick” will be
formatted.
If a “Memory Stick” that is not
formatted is inserted
The message “Format a Memory Stick?”
appears. To format it, select “OK”. If you do
not want to format it, select “Cancel”.
Sending Motion Pictures as Still Images
You can send motion pictures shot by the Camera or those output from the
connected external equipment as still images.
When you are sending pictures that contain lots of text, it is recommended that
you send them as still images. The images become clearer than motion pictures
and the texts are easy to read.
Sending Still Images Using the Still Image Menu
While in communication with the remote party, you can send motion pictures
shot by the local camera as still images. You can send one still image or still
images continuously.
1
Open the Still Image menu.
Press the MENU button on the Remote Commander to display the Setup menu,
and select the
(still image) icon with the V or v button.
2
Still Image
Send
Continuous Send
Clear
Save
3
Adjust the zoom and camera angle and press the ENTER button, if
necessary.
For details on the adjustments of the zoom and camera angle, see
“Adjusting the Zoom and Camera Angle” on page 90.
The motion picture displayed on the local party freezes, and a still picture will
be sent to the remote party. If you select “Send”, a still image is sent. When
transmission is finished, the message “The still image has been sent.” appears.
When “Continuous Send” is selected, still images are sent continuously. The
sending interval depends on the transmission rate and the image type.
Sending Motion Pictures as Still Images
113
Chapter 4: Videoconference With Optional Equipment
Use the V, v, B or b button on the Remote Commander to select “Send”
or “Continuous Send”, then press the ENTER button.
To stop “Continuous Send”
Press the ENTER button on the Remote Commander. Select “Stop” from the
displayed submenu with the V or v button, then press the ENTER button.
To cancel still image display
Press the ENTER button on the Remote Commander to display the submenu.
Select “Clear” with the V or v button, then press the ENTER button.
Sending a Still Image Using the Communication Submenu
You can easily send only one image displayed as a still image during
communication.
1
Press the ENTER button on the Remote Commander during
communication.
The Communication submenu appears.
Send
Save
Presentation
Icon Display
START
OFF
End
2
Press the V or v button on the Remote Commander to select “Send”, then
press the ENTER button.
The motion picture displayed on the local party freezes, and a still picture is
sent to the remote party. When transmission is finished, the message “The still
image has been sent.” appears.
To cancel still image display
Press the ENTER button on the Remote Commander to display the
communication submenu. Select “Clear” with the V or v button, then press the
ENTER button. When a still image is displayed, the “Send” indication changes
to “Clear”.
To erase the communication submenu
Select “End” from the menu, then press the ENTER button.
When you are receiving a still image
You cannot send a still image to the remote party. Select “Clear”, then send the
still image.
114
Sending Motion Pictures as Still Images
Receiving Still Images from a Remote
Party
During communication you can receive still images of the pictures shot by the
remote camera if “Far End Camera Control” items are set to “On” both in the
Answer Setup menu on the answering site and the Dial Setup menu on the
dialing site.
1
Open the Still Image menu.
Press the MENU button on the Remote Commander to display the Setup menu,
then select the
(still image) icon with the V or v button.
2
Press the FAR/NEAR button on the Remote Commander.
The picture shot by the remote camera and the FAR indicator appear on the
display in the Still Image menu window. “Send” in the menu turns to
“Receive”.
3
Use the V, v, B or b button on the Remote Commander to select
“Receive”, then press the ENTER button.
Continuous Send
Clear
Save
The remote picture on the display is received as a still image.
To cancel still image display
Press the ENTER button on the Remote Commander to display the submenu.
Select “Clear” with the V or v button, then press the ENTER button.
Receiving Still Images from a Remote Party
115
Chapter 4: Videoconference With Optional Equipment
Still Image
Receive
Saving Still Images
You can save the picture shot by the local camera, the input picture from the
connected equipment or the remote picture as a still image during conference
in a “Memory Stick”. To save still images, insert a “Memory Stick” into the
Memory Stick slot of the system before starting the conference.
You can use the saved images for One Touch Dial buttons and Phone Book.
Saving Remote Pictures Automatically – Automatic Image Capture
Feature
The system automatically captures still images of the remote party ten times every
five seconds from the beginning of each communication, and saves them in the
built-in memory. The still images stored in the memory are retained until the
next communication starts or the power of the system is turned off.
This feature is activated when the “Memory Stick” is not inserted.
Notes
• The Automatic Image Capture Feature is disabled during a multipoint
videoconference.
• If it has taken a long time from dialing to establish the connection, the first captured
images may be black. This is not a problem.
Saving Remote Pictures Using the CAPTURE IMAGE Button on
the Remote Commander – Image Capture Feature
Press the CAPTURE IMAGE button on the Remote Commander during
communication, and the current image of the remote party is captured and
saved in a “Memory Stick”.
Note
If you press the CAPTURE IMAGE button on the Remote Commander during a
multipoint videoconference, the split-window image as displayed is saved in the
“Memory Stick”.
Saving Still Images Using the Still Image Menu
1
Open the Still Image menu.
Press the MENU button on the Remote Commander to display the Setup menu,
then select the
(still image) icon with the V or v button.
2
Display the picture you want to save.
To switch the input on the local site, press the PC/VIDEO button on the
Remote Commander to display the desired picture.
To save the remote picture, switch to the picture on the remote site with the
FAR/NEAR button on the Remote Commander, and select the desired picture.
116
Saving Still Images
3
Use the V, v, B or b button on the Remote Commander to select “Save”,
then press the ENTER button.
Still Image
Send
Continuous Send
Clear
Save
The picture on the display will be saved as a still image to the “Memory Stick”.
Notes
• Do not remove the “Memory Stick” until the data is completely loaded. If you do, the
“Memory Stick” may be damaged or the system may cause a malfunction.
• A still image file is saved as a new file. It will not be overwritten.
When the memory of the “Memory Stick” is full
The message “Memory full.” appears and you cannot save the still image file.
Image format that can be stored in a “Memory Stick”
File name
The image file is saved under the directory named “\DCIM\100MSDCF” with
a file name as “DSCXXXXX.JPG”.
Compression format
This system compresses and records the recorded image data in the JPEG
(Joint Photographic Experts Group) format. The file extension is “.jpg”.
Note
This system is not compatible with progressive JPEG format data
Saving Still Images
117
Chapter 4: Videoconference With Optional Equipment
When the write-protect tab on the “Memory Stick” is set to
“LOCK” when you selected “Save” in step 3
The message “Memory Stick write-protected” appears and you cannot save the
still image file.
.
Saving Still Images Using the Memory Stick Menu
You can save still pictures using the “Memory Stick” “Save” thumbnail
displayed on the Memory Stick menu.
1
Display the picture you want to save.
To switch the input on the local site, press the PC/VIDEO button on the Remote
Commander to display the desired picture.
To save the remote picture, switch to the picture on the remote site with the
FAR/NEAR button on the Remote Commander, and select the desired picture.
2
Open the Memory Stick menu.
Press the MENU button on the Remote Commander to display the Setup menu,
then select the
(“Memory Stick”) icon with the V or v button.
3
Use the V, v, B or b button on the Remote Commander to move the cursor
to the last thumbnail, the “Memory Stick” “Save” thumbnail, then press the
ENTER button.
Memory Stick
“Memory Stick” “Save”
thumbnail
2
Save
The selected picture is saved to the “Memory Stick” and a thumbnail is
created.
Saving Still Images Using the Communication Submenu
You can promptly save the picture on the display during communication to the
“Memory Stick” as a still image.
1
During communication with the remote party press the ENTER button.
The communication submenu appears.
Send
Save
Presentation
Icon display
End
118
Saving Still Images
START
OFF
2
Press the V or v button on the Remote Commander to select “Save”, then
press the ENTER button.
The displayed picture is frozen and saved to the “Memory Stick” as a still
image.
After saving, the message “Still image saved to Memory Stick.” appears.
To erase the communication submenu
Select “End” in the submenu, then press the ENTER button.
Chapter 4: Videoconference With Optional Equipment
Saving Still Images
119
Using a Convenient Menu Available
during Communication —
Communication Submenu
During communication with a remote party, pressing the ENTER button on the
Remote Commander opens the communication submenu.
The communication submenu allows you to perform operations often used
during communication only by selecting the item in the menu.
Communication submenu
Send
Save
Presentation
Icon display
START
OFF
End
Selecting each item with the V or v button and pressing the ENTER button
enables the following operations:
Send: Sends the picture on the display as a still image to a remote party.
After it is sent, this item changes to “Clear”. Selecting this item restores the
motion picture shot by the camera.
Save: Saves the picture on the display to a “Memory Stick” as a still image.
Presentation SRART: Sends the RGB picture input from the optional PCSADSB1S Data Solution Box to a remote party. After sending, the item
changes to “Presentation STOP”. Selecting the item ends transmission of
the RGB picture.
Displayed only when the Data Solution Box is connected to the system.
Icon display OFF: Shows the indicators on the display if they are not shown.
While the indicators are shown, the item changes to “Icon display ON”,
and selecting the item hides the indicators.
End: Clears the communication submenu.
120
Using a Convenient Menu Available during Communication — Communication Submenu
Using External Microphone and
Headphones
The microphone built in this system is assumed to be used to conduct a
conference among about three participants. You can connect the optional PCSA1 or PCS-A300 microphone to the system, allowing more persons to
participate in the conference.
You can also connect headphones or headset to this system.
PCS-A1 (not supplied) or PCS-A300
microphone (not supplied)
Right side
to m
m
to m
Headset (not supplied)
i
to i
to i
Notes
• To use the microphone connected to this system, set “Mic Select” to “Internal” in the
Audio Setup menu.
• The built-in microphone is disabled when an external microphone is connected.
• The built-in speakers are disconnected when headphones are connected.
Notes on installation of the microphones
• Install an external microphone more than 1 m (3.3 feet) away from this
system.
• Keep the microphone about 50 cm (19 3/4 inches) away from the
participants.
• Place the microphone in a quiet, echo-free location.
• Install microphones away from equipment that may cause noise.
• Avoid covering a microphone with paper, etc., or moving it. If you do either,
extreme noise and echo may be heard temporarily by the remote party. In this
case, wait until the echo disappears.
Using External Microphone and Headphones
121
Chapter 4: Videoconference With Optional Equipment
Headphones (not supplied)
Conducting a Conference Without the
Picture – Voice Meeting
Using the Video Communication System, you can conduct a conference only
through voices via a normal phone without connecting the videoconferencing
system. (Voice Meeting)
Basic connecting procedures are the same as those for videoconferencing.
Conducting a voice meeting with a remote party not registered for One
Touch Dial or in the phone book
Set “Line I/F” to “ISDN(Telephone)” in the launcher menu or Detailed Dial
menu.
During the Voice Meeting, the “Voice Only” indicator is displayed.
For “Line I/F” setting, see “Calling a Remote Party not Registered in the
Phone Book Using the Detailed Dial Menu” on page 78.
To register a remote party for a Voice Meeting
Set “Line I/F” to “ISDN(Telephone)” in the List Edit menu displayed from the
Phone Book menu.
For registration, see “Registering a Remote Party in the Phone Book” on page
59.
To set the audio compression format
Select the audio compression format by setting “Telephone Mode” in Page 4
of the Dial Setup menu.
When you initiate the voice meeting, set “Telephone Mode” to “Auto”. When
set to “Auto”, the G.711 µ-law format is automatically selected.
You need not set the audio compression format when receiving a call from the
remote party.
For the “Telephone Mode” setting, see page 42.
122
Conducting a Conference Without the Picture – Voice Meeting
Controlling the Remote System With
the Tone Signal – DTMF Transmission
The Video Communication System enables you to control the remote system
connected by transmitting the tone signal (DTMF: Dual Tone Multi
Frequency) assigned to the numbers for dialing (0-9, , ).
1
Press the
button on the Remote Commander during communication.
The DTMF menu appears on the display.
2
Press one of the number buttons (0-9, , ) on the Remote Commander
corresponding to the tone signal you want to transmit to the remote party.
The tone signal will be transmitted when the button is pressed.
3
To stop transmitting the tone signal, press the ENTER button on the
Remote Commander.
The DTMF menu disappears.
Chapter 4: Videoconference With Optional Equipment
Controlling the Remote System With the Tone Signal – DTMF Transmission
123
Conducting a Data Conference Using
NetMeeting – T.120 Data Conference
Connecting the Video Communication System to the computer with
NetMeeting* installed enables conduct of a data conference in compliance
with the T.120 standard of the ITU-T Recommendation via the Video
Communication System only when it is connected over ISDN.
*
NetMeeting is a registered trademark of Microsoft Corporation.
Notes
• When the Video Communication System is used for a multipoint videoconference,
the T.120 data conference is not available.
• When the Video Communication System is connected with a videoconferencing
system at the remote party via LAN, conduct the T.120 data conference between the
computers without using this system.
To connect a computer
To connect a computer to the connector on the Video
Communication System
Use a commercially available UTP cross cable (category 5) to connect the
LAN connector on the computer with the 100BASE-TX/10BASE-T connector
on the Video Communication System.
PCSA-B768S
ISDN Unit
to 100BASE-TX/
10BASE-T
UTP cross cable
(not supplied)
to LAN
connector
Computer
124
to 100BASE-TX/
10BASE-T
UTP cross cable
(not supplied)
to LAN
connector
ISDN
Computer
Conducting a Data Conference Using NetMeeting – T.120 Data Conference
To connect to a computer via a hub
Connect the Video Communication System to a computer using the UTP
straight cable.
Computer
Hub
to 100BASE-TX/
10BASE-T
to LAN connector
UTP straight cable (not supplied)
Open Page 2 of the General Setup menu, and enter the IP address of the
computer in which the NetMeeting application is installed in the “T.120 PC
Address” text box. (See page 45.)
To call a remote party to conduct a T.120 data conference
Set “T.120 Data” to “On” in Page 2 of the Dial Setup menu. (See page 41.)
When you receive a call from a remote party to conduct a T.120
data conference
Set “T.120 Data” to “On” in Page 2 of the Answer Setup menu. (See page 44.)
Note
It is recommended that you set “Audio Mode” to “G.728” in the Dial Setup and Answer
Setup menus.
To connect to a remote party using NetMeeting
Before connecting, install the NetMeeting application in your computer.
1
Double-click the NetMeeting icon, or click “NetMeeting” from the Start
menu on the computer’s window.
NetMeeting starts.
2
Set the Video Communication System to communication mode.
Check that the “T.120” indicator appears on the display.
3
Click “Calling” in the NetMeeting window on the computer of either a
local or remote party.
Conducting a Data Conference Using NetMeeting – T.120 Data Conference
125
Chapter 4: Videoconference With Optional Equipment
To configure the Video Communication System
4
Enter the IP address set for the Video Communication System in the
“Address” text box of the “Call to” dialog box.
5
Click “Call”.
After a while the connection is completed.
For details on how to operate, refer to the Help menu of the NetMeeting
application.
About the transmission rate
The Video Communication System supports the following transmission rates:
MLP: 6.4 Kbps, 24 Kbps, 32 Kbps
HMLP: 62.4 Kbps, 64 Kbps, 128 Kbps.
126
Conducting a Data Conference Using NetMeeting – T.120 Data Conference
Accessing the Video Communication
System
The following controls are available to access the Video Communication
System. For details on each control, consult your Sony dealer.
Using a Web Browser
Accessing the IP address of the Video Communication System from a Web
browser allows you to control or set up the System.
For details on the password to access or Web monitoring feature, see
“Administrator Setup Menu” on page 51.
Using Telnet
For details on the password to access or Web monitoring feature, see
“Administrator Setup Menu” on page 51.
Accessing the Video Communication System
127
Chapter 4: Videoconference With Optional Equipment
Accessing the IP address of the Video Communication System from Telnet
allows you to control or set up the System.
Chapter 5: Data
Conference
This chapter shows you how to use the data from a computer, etc. connected
to the optional PCSA-DSB1S Data Solution Box for a conference.
The optional PCSA-DSB1S Data Solution Box is equipped with various input/
output connectors. For example, connecting the RGB output on a computer
enables you to transmit the pictures or text data displayed on the computer to
a remote party. When you connect a projector, you can display a highresolution image from a computer on the projector at a high transmission rate.
The PCSA-DSB1S is also equipped with connectors for connecting active
speakers and microphones. The PCSA-DSB1S is connected with the Video
Communication System using the interface cable for exclusive use.
The party who receives the data, even if the party has no Data Solution Box or
uses another videoconferencing system such as PCS-1/1P, PCS-11/11P and
PCS-1600, can view the computer images sent from the other party. However,
the quality of the picture received varies with the components of the system. If
the Data Solution Box is used by the party who receives the data, a larger
number of frames per second is obtained than the system without the Data
Solution Box. It allows you to obtain a high-resolution motion picture from a
computer.
For details on picture quality depending on the system components, see
“Picture quality of the data solution box” on page 134.
For details on RGB signal specifications, see “Acceptable RGB Input/Output
Signals” on page 203.
Restrictions on the IP address of the system when using the Data
Solution Box
The IP address available for the PCS-TL50 Video Communication System is
restricted when you use the Data Solution Box. Moreover, a network for
communication between the Data Solution Box and the Video Communication
System should be set up to be a separate segment.
As a result, unusable IP address is the value obtained from the AND operation
with the address of the Data Solution Box for communication and the network
mask.
(Unusable IP address for the PCS-TL50) = (IP address of the PCSADSB1S)&(Network mask)
The IP address of the PCSA-DSB1S is fixed at “192.254.1.2”. If the Network
mask is assumed to be “255.255.0.0”, an unusable IP address is as follows:
192.254.m.n (0
m
255, 0
n
255)
Note on the camera picture when using the Data Solution Box
When transmitting a signal via the Data Solution Box, the camera picture
quality will be lower owing to the decreased number of frames.
128
Connection Example Using the Data
Solution Box
Notes
• Be sure not to turn on the power of each unit until all the connections are completed.
• Do not connect/disconnect the interface cable with the power on. Doing so may
damage the Video Communication System or Data Solution Box.
• Used with the Data Solution Box for the first time, the Video Communication System
may automatically upgrade the software of the Data Solution Box. While the
upgrading message is displayed, be sure not to turn off the Video Communication
System. Doing so may cause malfunction of the system.
PCS-TL50 Video Communication System
to DSB
Interface cable
(supplied with the
PCSA-DSB1S)
to TERMINAL
PCSA-DSB1S Data Solution Box
LINE OUT
to RGB IN A
to RGB
IN B
D-sub 15-pin
cable
(not supplied)
Computer
to LINE
OUT
OUT
AUX
IN
MIC 1
MIC 2
MIC 3
MIC 4
MIC 5
TO PROCESSOR
RGB OUT
to RGB OUT
to MIC 1
– MIC 5
D-sub 15-pin
cable (not
supplied)
D-sub 15pin cable
(not
supplied)
PCS-A1 (not supplied) or
PCS-A300 microphone (not
supplied)
Active speakers
Projector, etc.
Computer
Connection Example Using the Data Solution Box
129
Chapter 5: Data Conference
Rear
Front
Notes on the connection example
• Power to the Data Solution Box is supplied from the Video Communication
System with a connection described above.
• Connect a projector, etc. to the RGB OUT connector on the Data Solution
Box.
This connection enables you:
– To display the received computer picture with optimum picture quality.
– To display the image from the computer connected to the Data Solution
Box on the local site (when “DSB Output” is set to “RGB” and the Data
Solution Box is not used for sending or receiving the data).
– To display the picture of the remote party on a large screen (when “DSB
Output” is set to “Video” and the Data Solution Box is not used for sending
or receiving the data).
• If you connect the RGB IN connector of the Video Communication System
to the RGB OUT connector of the Data Solution Box instead of the projector,
you can display the computer picture being transmitted on the display of the
Video Communication System.
For details, see “Displaying the Picture from the Computer via the Data
Solution Box” on page 174.
Notes on the connection of a microphone
• Up to five microphones can be connected with the Data Solution Box.
• When using external microphones, the sound transmitted to the remote party
may become unclear due to noises in a conferencing room. In this case speak
close to the microphone.
• When using multiple microphones, the Echo Canceler function cannot be
fully utilized depending on the type of conference room. In this case, try to
suppress any echo in the room or decrease the number of microphones.
• You cannot use the microphones connected to the Data Solution Box
together with the built-in microphone.
130
Connection Example Using the Data Solution Box
To connect the CTE-600 Communication Transducer
The CTE Communication Transducer is an integrated system equipped with
uni-directional microphones and omni-directional acoustic speaker. The
Communication Transducer is enabled to pick up clear voice with minimum
background noise from all directions and to emit clear sound equally in all
directions.
to an input/output connector
Connecting cable
(supplied with the
CTE-600)
Interface box
(supplied with the CTE-600)
to DC 6V
CTE-600
to LINE
IN
to LINE
OUT
AC adaptor
(supplied with
the CTE-600)
to a wall
outlet
Connecting cable
(not supplied)
to an input/output
connector
to AUX IN
to AUX OUT
LINE OUT
OUT
AUX
IN
MIC 1
MIC 2
MIC 3
MIC 4
MIC 5
TO PROCESSOR
RGB OUT
PCSA-DSB1S Data Solution Box (Rear)
• Set “CTE” in the Audio Setup menu to “DSB AUX IN” (page 46).
• Set the SYSTEM SELECT switch at the bottom of the Communication
Transducer to “PCS”.
Note
You cannot use two or more Communication Transducers in a room and cannot use it
with other microphones together.
For detailed information on the Communication Transducer, refer to the
Operating Instructions that come with the Communication Transducer.
Connection Example Using the Data Solution Box
131
Chapter 5: Data Conference
To use the Communication Transducer connected to the Data Solution Box
Using Audio/Video Signal from the
Connected Equipment for a Conference
Setting Before Conferencing
To use a microphone connected to the Data Solution Box
Set “Mic Select” to “DSB MIC” in the Audio Setup menu (page 46).
Operating the System During a Conference
To select a picture from a computer connected to the Data Solution Box
When using the buttons on the Data Solution Box
Press the RGB A or RGB B button on the upper panel of the Data Solution
Box.
To select the picture from the computer connected to the RGB IN A connector,
press the RGB IN A button, or the RGB IN B button to select that from the
computer connected to the RGB IN B connector.
The indicator of the selected button lights.
RGB SELECT
RGB A
SEND
RGB B
RGB A button
RGB IN A
RGB B button
RGB IN B
When using the Remote Commander
1
Press the INPUT SELECT button on the Remote Commander.
The Video Input Select menu appears.
2
Use the V, v, B or b button on the Remote Commander to select the “RGB
A” or “RGB B” input from “DSB Input”.
RGB A: Select the picture from the computer connected to the RGB IN A
connector.
132
Using Audio/Video Signal from the Connected Equipment for a Conference
RGB B: Select the picture from the computer connected to the RGB IN B
connector.
Video Input Select
3
Far
DSB Input
Main
RGB A
Press the ENTER button on the Remote Commander.
The indicator of the RGB A or RGB B button on the upper panel of the Data
Solution Box lights according to the selected input.
Note
Even if you select the input with the buttons on the Data Solution Box, the display in
the Video Input Select menu will not change.
To transmit a picture from a computer connected to the Data Solution Box
RGB SELECT
RGB A
SEND
RGB B
SEND button
RGB IN A
RGB IN B
Such computer picture is displayed without any conversion as input to the Data
Solution Box. The detailed portion of the picture transmitted to the remote
party may not be clearly seen and the number of frames may be reduced.
For details on picture quality, see “Picture quality of the data solution box”
on page 134.
For transmission of a computer picture using the Remote Commander, see
page 120.
Using Audio/Video Signal from the Connected Equipment for a Conference
133
Chapter 5: Data Conference
Press the SEND button on the upper panel of the Data Solution Box.
The indicator on the SEND button lights and the picture of the selected
equipment is displayed on the projector or the Video Communication System
connected to the RGB OUT connector on the Data Solution Box. While in
communication, the picture selected on the Data Solution Box is transmitted to
the remote party simultaneously.
Note
While you are transmitting the computer picture, you cannot receive a still image or a
computer picture from any other terminal. Ending your transmission enables you to
receive it. When you are receiving a still image or computer picture from any other
terminal, you cannot transmit a computer picture from equipment connected to the Data
Solution Box.
To transmit the picture from a computer to multiple points
If you install the optional PCS-323M1 H.323 (for LAN) or PCS-320M1 H.320
(for ISDN) MCU software, you can transmit the picture from the computer to
multiple points.
Picture quality of the data solution box
The picture quality received by the remote party varies depending on the type
of the terminal or connecting method, or “Monitor Out (or Sub Monitor Out)”
setting on the remote site. Using the Data Solution Box on the remote site
enables receipt of a high-quality computer picture with larger number of
frames.
When the PCS-TL50 is used as a receiving terminal
Output connector for a
computer picture on
receiving terminal
Display on the PCS-TL50
RGB OUT on the PCSADSB1S (only when the
PCSA-DSB1S is enabled)
Resolution
Video
frame
rate
Picture quality
a
Outputs the signal by converting a
transmitted VGA, SVGA or XGA signal
into an XGA signal. The high-resolution
picture can be obtained. The number of
frames displayed per second depends on
the interface transmission rate. For
example, one frame per second is obtained.
Outputs the signal by converting a
transmitted VGA, SVGA or XGA signal
into an XGA signal. The high-resolution
picture can be obtained. You can view
more vivid picture than the picture output
from the RGB OUT connector on the
Video Communication System. The
number of frames displayed per second
depends on the interface transmission
rates. For example, five frames per second
is obtained at 1 Mbps.
: High, a: Middle, f: Low
134
Using Audio/Video Signal from the Connected Equipment for a Conference
When the PCS-1/1P is used as a receiving terminal
Setting of “Monitor
Out (or Sub Monitor
Out)” on the receiving
terminal
Output
connector for a
computer
picture on
receiving
terminal
Resolution
Video
frame
rate
Picture quality
When
“Dual
Monitor”
is set to
“On”
VIDEO
OUT
–
VIDEO OUT
a
MONITOR
MAIN on the
PCS-P1/P1P
Communication
Terminal
a
Outputs the signal by
converting a transmitted
VGA, SVGA or XGA signal
into a 4CIF signal. The
original high-resolution
picture cannot be obtained
and details cannot be clearly
seen. The number of frames
displayed per second
depends on the interface
transmission rate. For
example, one frame per
second is obtained at 1 Mbps.
–
VIDEO
OUT
a
VIDEO OUT
MONITOR
SUB on the
PCS-P1/P1P
Communication
Terminal
a
Outputs the signal by
converting a transmitted
VGA, SVGA or XGA signal
into a 4CIF signal. The
original high-resolution
picture cannot be obtained
and details cannot be clearly
seen. The number of frames
displayed per second
depends on the interface
transmission rate. For
example, one frame per
second is obtained at 1 Mbps.
RGB
OUT
RGB
OUT
RGB OUT on
the PCS-P1/
P1P
Communication
Terminal
a
Outputs the signal by
converting a transmitted
VGA, SVGA or XGA signal
into an XGA signal. The
high-resolution picture can
be obtained. The number of
frames displayed per second
depends on the interface
transmission rate. For
example, one frame per
second is obtained at 1 Mbps.
: High, a: Middle, f: Low
Using Audio/Video Signal from the Connected Equipment for a Conference
135
Chapter 5: Data Conference
When
“Dual
Monitor”
is set to
“Off”
Setting of “Monitor
Out (or Sub Monitor
Out)” on the receiving
terminal
When
“Dual
Monitor”
is set to
“Off”
When
“Dual
Monitor”
is set to
“On”
RGB
OUT
(DSB)
RGB
OUT
(DSB)
Output
connector for a
computer
picture on
receiving
terminal
RGB OUT on
the PCSADSB1S (only
when the
PCSA-DSB1S
is enabled)
Resolution
Video
frame
rate
Picture quality
Outputs the signal by
converting a transmitted
VGA, SVGA or XGA signal
into an XGA signal. The
high-resolution picture can
be obtained. You can view
more vivid picture than the
picture output from the RGB
OUT connector on the
Communication Terminal.
The number of frames
displayed per second
depends on the interface
transmission rates. For
example, five frames per
second is obtained at 1 Mbps.
: High, a: Middle, f: Low
For the settings for output of the picture from each output connector, see the
Operating Instructions supplied with the PCS-1/1P.
When the PCS-11/11P is used as a receiving terminal
Resolution
Video
frame
rate
Remarks
a
a
Outputs the signal by converting a transmitted VGA, SVGA or XGA
signal into a 4CIF signal. The original high-resolution picture cannot be
obtained and details cannot be clearly seen. The number of frames
displayed per second depends on the interface transmission rate. For
example, one frame per second is obtained at 1 Mbps.
: High, a: Middle, f: Low
136
Using Audio/Video Signal from the Connected Equipment for a Conference
When other videoconferencing system such as the PCS-1600 is used
Resolution
Video
frame
rate
Remarks
a
f
Sends and receives the pictures in 4CIF, and the original high-resolution
picture cannot be obtained and detailed portion cannot be clearly seen.
The number of frames displayed per second depends on the interface
transmission rates. For example, one frame per several seconds is
obtained.
: High, a: Middle, f: Low
Chapter 5: Data Conference
Using Audio/Video Signal from the Connected Equipment for a Conference
137
Chapter 6:
Encrypted
Videoconference
via LAN
When a highly confidential videoconference is required or a videoconference
is held via internet, the Video Communication System enables transmission
and reception of encrypted video, audio and data output from the Data Solution
Box between the systems identified as the same password. Conducting a
videoconference using this feature is known as an encrypted videoconference
via LAN.
This chapter describes how to conduct an encrypted videoconference via LAN.
The encrypted videoconference via LAN is available only between PCS-TL50
or PCS-1/1P Video Communication Systems connected via LAN. You cannot
conduct an encrypted videoconference if the system is connected via an ISDN,
via ISDN & LAN, or with Sony video communication systems other than the
PCS-TL50 or PCS-1/1P or with other manufacturers’ videoconferencing
systems.
The encryption feature can also be used in multipoint conference using LAN
connection (including the cascade connection via LAN).
Note
In an encrypted conference only video signals, audio signals and RGB signals from a
computer connected to the Data Solution Box are encrypted. Camera control signals (for
controlling the other party’s camera) and whiteboard pictures cannot be encrypted.
138
Preparing for an Encrypted
Videoconference via LAN
To start an encrypted videoconference, each terminal has to set the same
password and set “Encryption via LAN” to “On” in the Encryption via LAN
menu.
Encryption via LAN
Page: 1/1
Encryption via LAN
Off
Encryption Password
Save
Cancel
1
Enter a password using 13 to 20 alphabetical characters, numerals or
symbols.
2
Select “On” from “Encryption via LAN” in the Encryption via LAN menu.
For details on setting, see “Encryption via LAN Menu” on page 59.
Notes
Preparing for an Encrypted Videoconference via LAN
139
Chapter 6: Encrypted
Videoconference via LAN
• If you set “Encryption via LAN” to “On”, you cannot connect to a terminal that is not
equipped with the encryption feature, to a terminal with “Encryption via LAN” set to
“Off”, or to a terminal without the same password as that of your system.
• You can conduct a videoconference without an encryption feature with a terminal
connected via an ISDN even if you set “Encryption via LAN” to “On”.
Starting an Encrypted Videoconference
via LAN
You can start an encrypted videoconference via LAN by calling a remote party
in the same manner as a daily videoconference.
During an encrypted videoconference via LAN, the
(encryption) icon is
displayed on the screen.
Notes
• When the
icon is not displayed on the screen, transmission and reception data
will not be encrypted. Be sure to confirm if the
icon is displayed before starting
an encrypted videoconference.
• As the encryption feature is not available for a terminal connected via an ISDN, the
icon does not appear on the screen of such a terminal.
When the encrypted videoconference via LAN is disabled
If the following message appears when you call a remote party, an encrypted
videoconference via LAN is not available.
Error Messages
Causes
The encryption feature on a farend system is disabled.
The encryption feature via LAN on the remote
system is disabled.
The entered password for the
encryption feature is not correct.
The password entered on the remote system is
not the same as that on the local system.
The encrypted videoconference is While the videoconference is held via an ISDN
not available if any terminal is
connection, you cannot connect any terminal via
connected via ISDN.
the LAN connection if your encryption via LAN
feature is activated.
140
Starting an Encrypted Videoconference via LAN
This chapter describes how to conduct a multipoint videoconference.
For conducting a multipoint videoconference, installation of the optional PCS323M1 H.323 MCU software (for LAN connection) or the optional PCS320M1 H.320 MCU software (for ISDN connection) is required.
Multipoint videoconference among up to ten points including the local site is
available when connecting via a LAN.
When connecting via ISDN lines, you can conduct a multipoint
videoconference among up to six points including the local site. You can use
a normal phone at up to five points over ISDN.
A multipoint videoconference using the ISDN and LAN connections mixed is
also available.
Restrictions on the use of the MCU software
• When a multipoint videoconference is held via LAN, the bandwidth is
automatically set so that the total value of all the points is 1920 Mbps at
maximum. The bit rate for each point varies with the points you connect.
• When a multipoint videoconference is held via ISDN, the same number of
channels should be used on all the points and the total channels are up to 12B.
• The supported video modes are H.263 and H.261 only.
• The supported audio modes are G.711, G.722 and G.728 only.
141
Chapter 7: Multipoint Videoconference
Chapter 7:
Multipoint
Videoconference
Connection Examples for a Multipoint
Videoconference
Using the LAN Connection (Up to 6 Points)
Installing the optional PCS-323M1 H.323MCU software in one Video
Communication System allows you to conduct a multipoint videoconference
among up to six points.
to 100BASE-TX/
10BASE-T
PCS-323M1
H.323 MCU
software
UTP cable (category 5, straight)
(not supplied)
to LAN
LAN
Note
For a multipoint videoconference, only the Video Communication System in which the
PCS-323M1 H.323 MCU software is installed can be used as main terminal. If you want
to use multiple Video Communication System as main terminals depending on the type
of conference, the same number of H.323 MCU software as that of the main terminals
is required.
142
Connection Examples for a Multipoint Videoconference
Using the Cascade Connection via LAN (Up to 10 Points)
Installing the optional PCS-323M1 H.323 MCU software in two Video
Communication Systems enables cascade connection, allowing you to conduct
a multipoint videoconference among up to ten points.
Chapter 7: Multipoint Videoconference
PCS323M1
H.323
MCU
software
PCS-323M1
H.323 MCU
software
to
100BASETX/
10BASE-T
UTP cable (category 5,
straight) (not supplied)
to LAN
LAN
LAN
Notes
• Installing the PCS-323M1 H.323 MCU software into three or more Video
Communication Systems does not allow cascade connection. Note that the third or
later terminals should set “Multipoint Mode” to “Off” in the Multipoint Setup menu
or in the Setup menu.
• For cascade connection, the “Split” and “Split (Fixed)” modes are not available. Only
the “Voice Activate” mode is available.
Connection Examples for a Multipoint Videoconference
143
Using the ISDN Connection
Installing the optional PCS-320M1 H.320 MCU software in one Video
Communication System allows you to conduct a multipoint videoconference
among up to six points by using the optional PCSA-B384S or PCSA-B768S
ISDN Unit.
The illustration shows an example using
the PCSA-B768S ISDN Unit.
PCS-320M1
H.320 MCU
software
to ISDN
UNIT
PCSA-B384S or
PCSA-B768S
ISDN Unit
to ISDN 1-6
ISDN
to ISDN lines
ISDN modular cables
(not supplied)
About the number of ISDN lines used and number of remote
parties for a multipoint conference
You can select the number of ISDN channels to be used for connecting the first
remote point using “Number of Lines” in the Multipoint Setup menu.
1B (64K): Connection via a 1B channel
2B (128K): Connection via 2B channels
4B (256K): Connection via 4B channels
6B (384K): Connection via 6B channels
The number of connectable remote point is defined by the number of ISDN
lines used and the “Number of Lines” setting. For example, when you use three
ISDN lines (up to 6B channels are usable) and set the menu to “4B (256K),”
4B channels are used for the first remote point connection, and the remaining
2B channels are used for the second remote point connection.
144
Connection Examples for a Multipoint Videoconference
Note
When you are called from a remote party and the remote party has set a lower number
of ISDN channels than that in this terminal, the setting on the remote party’s terminal
has priority.
Notes
• When using the ISDN connections, installing the PCS-320M1 H.320 MCU software
into two or more Video Communication Systems does not allow cascade connection.
• For a multipoint videoconference only Video Communicatipn System in which the
PCS-320M1 H.320 MCU software is installed can be used as the main terminal. If you
want to use two or more Video Communication Systems as main terminals depending
on the type of conference, the same number of H.320 MCU software as that of the
main terminals is required.
Connection Examples for a Multipoint Videoconference
145
Chapter 7: Multipoint Videoconference
To connect with a normal phone
When you are using an ISDN connection, a normal phone can be connected at
up to five points.
Only the 1B (64K) connection is available for a normal phone.
Using the LAN & ISDN connections
Installing both the PCS-323M1 H.323 and PCS-320M1 H.320 MCU software
in one Video Communication System enables conduct of a multipoint
videoconference with the terminals connected via a LAN and ISDN.
The illustration shows an example using
the PCSA-B768S ISDN Unit.
PCS-323M1
H.323 and
PCS-320M1
H.320 MCU
software
to ISDN
UNIT
PCSA-B384S or
PCSA-B768S
ISDN Unit
UTP cable (category 5,
straight) (not supplied)
to ISDN 1- 6
ISDN modular
cable
(not supplied)
to ISDN line
to LAN
ISDN
Note
The connection example above includes four terminals via the LAN connection and one
terminal via the ISDN connection. There is no limitation on the number of LAN and
ISDN connections.
146
Connection Examples for a Multipoint Videoconference
Using the LAN & ISDN Cascade Connection
LAN*
PCS-323M1
PCS-320M1
PCS-323M1
PCS-320M1
* Be sure to use a LAN connection.
Note
Be sure to make connection between two Video Communication Systems via LAN.
Even if the PCS-320M1 H.320 MCU software is installed in both the terminals, cascade
connection via an ISDN is not available.
Connection Examples for a Multipoint Videoconference
147
Chapter 7: Multipoint Videoconference
Installing both the PCS-323M1 H.323 and PCS-320M1 H.320 MCU software
in two Video Communication Systems enables cascade connection including
two main terminals. Connecting four terminals to one main terminal allows
you to conduct a multipoint videoconference via a LAN and ISDN among up
to ten points.
Preparing for a multipoint
videoconference
Installing the MCU software
Notes on installing the MCU software
• You cannot install the software if the write-protect tab on the “Memory
Stick” in which the MCU software is stored is set to “LOCK”.
• Once the MCU software is installed in Video Communication System, the
software will not be used again.
• You cannot install the MCU software which is copied to another “Memory
Stick” with a computer, etc.
1
Press the 1 (power) switch on the right side of the Video Communication
System to turn off the power.
2
Insert the “Memory Stick” containing the PCS-323M1 or PCS-320M1
MCU software into the Memory Stick slot.
Insert the “Memory Stick” with the rear facing you and in the direction of the
arrow on it.
PCS-323M1 or
PCS-320M1 MCU
software
3
Press the 1 (power) switch on the right side to turn on the power.
The MCU software is installed in the Video Communication System.
148
Preparing for a multipoint videoconference
To check if the installation of the software is completed
Display the launcher menu and press the HELP button on the Remote Commander.
If the multipoint mode icon appears in the Information menu, the MCU software is
installed correctly. The munltipoint mode icon will be highlighted when
“Multipoint Mode” is set to “On”
Information
IP:012.345.678.912
ISDN:0123456789012
Audio:MIC (INT)
OK
The installed software will be shown in “Software Option” of the Machine
Information menu.
For details on the Machine Information menu, see “Machine Information
Menu” on page 56.
Preparing for a multipoint videoconference
149
Chapter 7: Multipoint Videoconference
Multipoint mode icon
Setting for a Multipoint Videoconference
You can set various items regarding a multipoint videoconference using the
Multipoint Setup menu.
Set “Multipoint Mode” to “On”, and set other items in the menu.
Multipoint Setup
Page: 1/2
Multipoint Mode
ISDN
On
Broadcast Mode
Split
Number of Lines
2B (128K)
Total LAN Bandwidth
1024 Kbps
Restrict
Auto
Save
Cancel
Save
Cancel
Multipoint Setup
Page: 2/2
Video Mode
ALL
Audio Mode
ALL
Display Terminal Name
On
Far End Camera Control
On
Reject Answer
Off
For details on the setting of the items, see “Multipoint Setup Menu” on page
55.
Note
The settings in the Multipoint setup menu have priority over those in the Dial Setup or
Answer Setup menu.
150
Preparing for a multipoint videoconference
Registering the Remote Parties in the Multipoint Connection List
To register a multipoint connection list in the Phone Book
The basic procedure for registration is the same as the registration of a remote
party for a point-to-point videoconference.
For details on the procedure, see “Registering a New Remote Party” on page
59.
1
Select “New Entry” in the Phone Book menu to display the List Edit menu,
then enter the name of the multipoint connection list in the Index text box.
For details on entry, see steps 1 to 3 “Registering a New Remote Party”
on page 59.
List Edit
Index MULTILIST
LAN
IP
Line I/F
LAN
LAN Bandwidth
1024 Kbps
Save
2
Cancel
Select the line interface you are using for multipoint connection under
“Line I/F”.
Select “
LAN” to use the LAN connection, “
ISDN” to use the ISDN
connection, and “
LAN & ISDN” to use the LAN and ISDN connections.
List Edit
Index MULTI LIST
LAN
IP
Line I/F
LAN
ISDN
LAN
ISDN (Telephone)
LAN
ISDN
LAN&ISDN
Save
Cancel
Preparing for a multipoint videoconference
151
Chapter 7: Multipoint Videoconference
You can register the multipoint connection list that includes all remote parties
for a multipoint videoconference in the Phone Book. It allows you to dial all
the parties simultaneously.
You can enter new remote parties to register the multipoint connection list, or
add the parties registered in the Phone Book to the multipoint connection list.
3
Select the line interface icon or a still image to be displayed in the Phone
Book.
The icon is shown as “
4
LAN”, “
ISDN” or “
LAN & ISDN”.
Set up the line interface of the remote parties.
When “
LAN” is selected
Enter the IP addresses of all the parties in the A to E text boxes.
When “
ISDN” is selected
Enter the telephone numbers of all the parties in the A to E text boxes.
To register a normal phone, enter the telephone number with “T” at the
beginning. (e.g., T0312345678)
When “
LAN&ISDN” is selected
Select the interface (LAN or ISDN) used from the drop-down list on the right
of the A to E text boxes, then enter the IP addresses for the LAN connection
and the telephone numbers for the ISDN connection for all the parties to be
connected for a multipoint conference.
To register a normal phone, enter the telephone number with “T” at the
beginning. (e.g., T0312345678)
List Edit
Index MULTILIST2
LAN·ISDN
A
LAN
B
LAN
C
LAN
D
LAN
E
LAN
Line I/F
Save
LAN&ISDN
Cancel
For details on the setups, see step 5 in “Registering a New Remote Party”
on page 59.
5
Press the V or v button to select “Save”, then press the ENTER button.
The registration of the multipoint connection list is completed.
To specify a remote party registered in the Phone Book to the multipoint
connection list
1
152
Use the V, v, B or b button on the Remote Commander to select the name
you want to register in the multipoint connection list.
Preparing for a multipoint videoconference
2
Press the
button on the Remote Commander, or press the ENTER
button to open the submenu, press the V or v button to select “
On”,
then press the ENTER button.
Phone Book
RECENT
TOKYO
Bob
0-9
John
A-I
J-S
T-Z
LAN
ISDN
ISDN
On
Dial
OSAKA
NEW YORK
PARIS
Edit
Copy
Delete
One Touch
The
(multipoint) mark is added to the upper right of the selected name in
the list and the remote party is registered in the multipoint connection list.
You can add the
marks for up to five parties using the same procedure as
above. The
marks are displayed at the upper right corner of the Phone
Book, showing how many points you registered for a multipoint connection.
Number of registered points
Phone Book
RECENT
Recent
LAN
TOKYO
Bob
John
0-9
A-I
J-S
T-Z
LAN
ISDN
ISDN
OSAKA
NEW YORK
PARIS
New Entry
Multipoint mark
Note
To delete the
mark from the name list, press the
button again, or press the
ENTER button to open the submenu, press the V or v button to select “
Off”,
then press the ENTER button.
3
Select one of the remote parties with the
button.
4
Press the V or v button to select “
the ENTER button.
mark, then press the ENTER
Edit” from the submenu, then press
The List Edit menu appears. All the IP addresses or telephone numbers of the
parties marked with
are entered in the number text boxes.
Preparing for a multipoint videoconference
153
Chapter 7: Multipoint Videoconference
Recent
LAN
List Edit
Index
LAN
A
123.123.123.123
B
123.123.123.124
C
123.123.123.125
Line I/F
LAN
D
E
Save
Cancel
5
Enter the name of the multipoint connection list in the Index text box.
6
Select “Save”, then press the ENTER button.
The registration of the multipoint connection list is completed.
154
Preparing for a multipoint videoconference
Starting a Multipoint Videoconference
Calling Remote Parties
1
Select the multipoint connection list registered in the Phone Book.
The multipoint connection lists are marked with “
“
LAN & ISDN”.
2
LAN”, “
ISDN” or
Press the CONNECT/DISCONNECT (
/ ) button on the Remote
Commander, or press the ENTER button to display the submenu, press the
V or v button to select “
Dial”, then press the ENTER button.
Phone Book
RECENT
Recent
LAN
TOKYO
Bob
0-9
John
A-I
J-S
T-Z
LAN
ISDN
ISDN
LAN
OSAKA
NEW YORK
PARIS
Dial
Edit
Copy
Delete
The system begins dialing the numbers of the remote parties registered in the
multipoint connection list. “
Dialing (LAN)”, “
Dialing (ISDN)” or
LAN & ISDN)” appears on the display.
“Dialing (
When the system connects to all the remote points, the message “Meeting
starts!” appears on the display.
To call remote parties by selecting from the Phone Book
1
Select a remote party to which you want to connect for a multipoint
videoconference from the Phone Book.
Starting a Multipoint Videoconference
155
Chapter 7: Multipoint Videoconference
To call remote parties registered in the multipoint connection lists
2
Press the
button on the Remote Commander, or press the ENTER
button to open the submenu, press the V or v button to select “
On”,
then press the ENTER button.
Phone Book
RECENT
Recent
LAN
TOKYO
Bob
0-9
John
A-I
J-S
T-Z
LAN
ISDN
ISDN
OSAKA
NEW YORK
PARIS
On
Dial
Edit
Copy
Delete
One Touch
The
(multipoint) mark is added to the upper right of the selected name in
the Phone Book list and the remote party is specified to the party for multipoint
connection.
You can add the
marks for up to five parties using the same procedure as
above. The
marks added are displayed at the upper right corner of the
Phone Book menu.
Number of specified points
Phone Book
RECENT
Recent
LAN
TOKYO
Bob
John
0-9
A-I
J-S
T-Z
LAN
ISDN
ISDN
OSAKA
NEW YORK
PARIS
New Entry
Multipoint mark
Note
To delete the
mark from the name list, press the
button again, or press the
ENTER button to open the submenu, press the V or v button to select “
Off”,
then press the ENTER button.
156
3
Select one of the remote parties with the
4
Press the CONNECT/DISCONNECT (
/ ) button on the Remote
Commander, or press the ENTER button to open the submenu, press the V
or v button to select “
Dial”, then press the ENTER button.
Starting a Multipoint Videoconference
mark.
The system begins dialing the number of the remote party with the
marks.
“
Dialing (LAN)”, “
Dialing (ISDN)” or “
Dialing (LAN &
ISDN)”appears on the display.
When the system connects to all the parties, the message “Meeting starts!”
appears on the display.
Basic operations are the same as those for starting a point-to-point conference.
For details, see “Calling a Remote Party not Registered in the Phone Book
Using the Detailed Dial Menu” on page 78.
1
Select “Detailed Dial” in the launcher menu to open the Detailed Dial
menu.
2
Select the line interface you are using for multipoint connection under
“Line I/F”.
Select “
LAN” to use LAN connection, “
ISDN” to use ISDN line
connection, and “
LAN & ISDN” to use LAN and ISDN connections.
Detailed Dial
Line I/F
IP
LAN
ISDN
ISDN
ISDN (2B)
6B(384k)
ISDN (Telephone)
LAN
ISDN
LAN & ISDN
Dial
3
Save
Set up the line interface of the remote parties.
When “
LAN” is selected
Enter the IP addresses of all the parties in the A to E text boxes.
When “
ISDN” is selected
Enter the telephone numbers of all the parties in the A to E text boxes.
To register a normal phone, enter the telephone number with “T” at the
beginning. (e.g., T0312345678)
When “
LAN&ISDN” is selected
Select the interface (LAN or ISDN) used from the drop-down list on the right
of the A to E text boxes, then enter the IP addresses for the LAN connection
and the telephone numbers for the ISDN connection for all the parties to be
connected for a multipoint conference.
Starting a Multipoint Videoconference
157
Chapter 7: Multipoint Videoconference
To call remote parties not registered in the Phone Book
To register a normal phone, enter the telephone number with “T” at the
beginning. (e.g., T0312345678)
Detailed Dial
A
LAN
B
LAN
C
LAN
D
LAN
E
LAN
Dial
Line I/F
LAN&ISDN
Save
For details on the setups, see step 3 in “Calling a Remote Party not
Registered in the Phone Book Using the Detailed Dial Menu” on page 78.
4
Select “Dial”, and press the ENTER button on the Remote Commander.
You can also press the CONNECT/DISCONNECT (
/ ) button on the
Remote Commander.
The system begins dialing the numbers selected in step 3. “
Dialing
(LAN)”, “
Dialing (ISDN)” or “
Dialing (LAN & ISDN)” appears on
the display.
When the system connects to all the remote parties, the message “Meeting
starts!” appears on the display.
To call the second and other remote parties
After starting communication with the remote party selected first, press the
CONNECT/DISCONNECT (
/ ) button on the Remote Commander to
open the submenu.
Disconnect
Phone Book
Detailed Dial
Cancel
Perform steps 1-4 of the procedure shown in “To call remote parties by
selecting from the Phone Book” on page 155 or steps 1-4 of the procedure in
“To call remote parties not registered in the Phone Book” on page 157
depending on the registration status of each remote party.
158
Starting a Multipoint Videoconference
If some points are not connected
The following dialog appears. Select the desired item.
Some Positions were not connected.
A
B
C
Cause Code
D
E
XX
YY
Start Meeting
Disconnect All
Redial
Start Meeting: Starts a conference with remote parties connected.
Disconnect All: Cancels all the connections and restores the launcher menu.
Redial: Redials the numbers of the points that you failed to connect.
Receiving a Call from a Remote Party
Operations are the same as those for a point-to-point conference.
For details, see “Receiving a Call from a Remote Party” on page 83.
Starting a Multipoint Videoconference
159
Chapter 7: Multipoint Videoconference
Status
Using the Display Control
During a multipoint videoconference with the MCU software installed in the
Video Communication System you can control the following operations.
What is “Broadcast Mode”?
You can use the “Split”, “Split (Fixed)”, “Voice Activate” and “Broadcast”
modes.
Split mode
This mode allows display of the pictures from the connected remote terminals
and the picture of the local terminal by splitting the screen.
According to the connected terminals, four-split windows (1 to 3 terminals
connected) or six-split windows (4 and 5 terminals connected) are displayed.
Pictures A to C (or A to E) appear in order of connecting.
Four-split window
Picture A
Six-split window
Picture B
Picture A
Picture B
Picture C
Picture D
Picture E
Picture on the local Picture C
site
Picture on the local site
Notes
• When the six-split window is displayed, the System detects the terminal including the
loudest sound among all the terminals and displays the picture of that terminal in the
lower right window. The picture on the local site is then displayed in the window
where the picture of the detected terminal was displayed.
• If you switch the broadcast mode from Split mode to Voice Activate mode in which
a picture of a specified terminal is shown in full screen during communication, the
location of Pictures A to E will be changed when the Split mode is restored.
• When your system is in the Split or Split (Fixed) mode, you cannot control the camera
on any connected remote terminals.
160
Using the Display Control
Six-split window
The picture of the specified terminal is
always displayed in this window.
Voice Activate mode
Detects the terminal with the speaker with the loudest voice among the
connected terminals, and displays the picture of that terminal in full screen on
all the sites. The “V.A” indicator appears when the Voice Activate mode is
activated. The indicator with alphabet (ex.
) showing the terminal of the
displayed picture also appears. The
indicator is displayed while the local
picture is broadcast.
Broadcast mode
You can specify the terminal to display the picture of that terminal in full
screen on all the sites. The indicator with alphabet (ex.
) showing the
terminal of the displayed picture also appears. The
indicator is displayed
while the local picture is broadcast.
Using the Display Control
161
Chapter 7: Multipoint Videoconference
Split (Fixed) mode
The pictures from the connected remote terminals and the picture of the local
terminal are displayed by splitting the screen as the same manner as those in
the split mode.
You can specify a picture among the split windows to fix it in the lower right
window for the six-split mode. Pictures other than the specified one will be
displayed in the split windows in order of connecting.
Broadcast Modes and Displayed Windows
The chart described below shows the window displayed when you select one
of the Broadcast Modes. According to the connection status of your system,
some modes cannot be selected. In the connection status with no window
shown in the chart, the corresponding mode is not available
.
Connection status
Connecting points (max.)
Broadcast Mode
Split
162
Split
(Fixed)
Non-cascade connection
Cascade connection
LAN connection (See page
142.)
ISDN connection (See page
144.)
LAN & ISDN connection (See
page 146)
LAN cascade connection (See
page 143.)
LAN&ISDN cascade
connection (See page 147.)
6
10
1-3 terminals
connected
Four-split window
–
4-5 terminals
connected
Six-split window
–
1-3 terminals
connected
–
–
4-5 terminals
connected
Six-split window
–
Voice Activate
Full screen
Broadcast
Full screen
Using the Display Control
Full screen
–
Switching the Broadcast Mode
At the beginning of the conference the mode set with “Broadcast Mode” in the
Multipoint Setup menu is activated. You can switch the mode during
communication.
Chapter 7: Multipoint Videoconference
1
Press the FAR/NEAR button on the Remote Commander.
The Display Control menu appears.
2
Use the V, v, B or b button on the Remote Commander to select
“Broadcast Mode”, then press the ENTER button.
Display Control
Display
Control
Broadcast Mode
Far
Near
Camera
Split
Split: Selects the Split mode.
Split (A Fixed): Specifies the picture of the terminal connected first to fix
in the Split (Fixed) mode.
Split (B Fixed): Specifies the picture of the terminal connected second to
fix in the Split (Fixed) mode.
Split (C Fixed): Specifies the picture of the terminal connected third to fix
in the Split (Fixed) mode.
Split (D Fixed): Specifies the picture of the terminal connected fourth to
fix in the Split (Fixed) mode.
Split (E Fixed): Specifies the picture of the terminal connected fifth to fix
in the Split (Fixed) mode.
Split (Near End Fixed): Fixes the local picture in the Split (Fixed) mode.
Voice Activate: Selects the Voice Activate mode.
Self Broadcast: Broadcasts the near end (local) party in the Broadcast
mode.
A Broadcast: Broadcasts the picture of the terminal connected first in the
Broadcast mode.
B Broadcast: Broadcasts the picture of the terminal connected second in
the Broadcast mode.
C Broadcast: Broadcasts the picture of the terminal connected third in the
Broadcast mode.
D Broadcast: Broadcasts the picture of the terminal connected fourth in
the Broadcast mode.
E Broadcast: Broadcasts the picture of the terminal connected fifth in the
Broadcast mode.
Stop Broadcast: Stops broadcasting in the Broadcast Mode.
Using the Display Control
163
To display the local picture in the Voice Activate mode
You can display the local picture only while the broadcast mode remains in
Voice Activate mode.
1
Press the FAR/NEAR button on the Remote Commander.
The Display Control menu appears.
2
Use the V, v, B or b button to select “Near” under “Display”, then press
the ENTER button.
The local picture appears on the display.
To restore the Voice Activate mode
Press the FAR/NEAR button on the Remote Commander again, and select
“Far” under “Display”.
Receiving the Broadcast Requested From Any Other Terminal
When you receive “Self Broadcast” command from one of the terminals
connected, the picture of that terminal is broadcast in full screen.
When you receive “Stop Broadcat” command from one of the terminals
connected, the system returns to the previous mode.
Notes
• If you have received “Self Broadcast” command from another terminal, the operation
above will not be carried out.
• When you use a cascade connection, the Video Communication System supports the
Voice Activate mode only.
164
Using the Display Control
Ending the Multipoint Videoconference
1
Press the CONNECT/DISCONNECT (
Commander.
/
) button on the Remote
Phone Book
Disconnect
Detailed Dial
Cancel
2
Use the V, v, B or b button to select “Disconnect”, then press the ENTER
button.
The screen changes to the split window screen and the following menu appears.
The location of the pictures in the split windows A to E (or A to C) is restored
to that when the terminals were connected.
You can display the terminal names in this window if you set “Display
Terminal Name” to “On” in the Multipoint Setup menu.
Picture A
Picture B
Disconnect A
Disconnect B
Picture C
Disconnect C
Disconnect D
Picture D
Disconnect E
Disconnect All
Cancel
Picture E
Local picrure
3
Use the V, v, B or b button to select the terminal to be disconnected, then
press the ENTER button.
Disconnect A: Disconnects the terminal connected first.
Disconnect B: Disconnects the terminal connected second.
Disconnect C: Disconnects the terminal connected third.
Disconnect D: Disconnects the terminal connected fourth.
Disconnect E: Disconnects the terminal connected fifth.
Disconnect All: Disconnects all the terminals.
The selected terminal is disconnected.
You can disconnect all the terminals by pressing the CONNECT/
/ ) button again.
DISCONNECT (
To cancel the disconnection
Select “Cancel” in step 3, then press the ENTER button.
Ending the Multipoint Videoconference
165
Chapter 7: Multipoint Videoconference
The following submenu appears.
Notes on Secondary
Terminals
If there is a terminal that is not adequate for
the settings set by this system, that terminal
is called the secondary terminal.
Communication capabilities between the
secondary terminal and this system are
shown below.
• Sending/receiving audio
• Receiving video from the secondary
terminal
• Disables transmission of video to the
secondary terminal
For details on the secondary terminal, see
Glossary on page 211.
When a normal phone is connected
The audio mode of the other terminals is not
affected if a normal phone is connected or
disconnected any time.
When terminals with “Far End
Camera Control” set to “On” and
“Off” are mixed
As the bit rate of video signals differs
depending on the setting of “Far End
Camera Control”, the picture is not
displayed on some terminals.
When a 56K network is mixed among
the terminals if the conference is held
via 64K network
The conference automatically changes to
that via 56 K network. Terminals that cannot
change to that network are regarded as
secondary terminals, and the transmission of
video is not available.
When a terminal with different audio
mode is connected and its video bit
rate is different
The conference is conducted in the video
mode according to the terminal with the
lowest video bit rate. A terminal that cannot
fit this rate is regarded as a secondary
terminal, and the transmission of video is not
available.
166
Notes on Secondary Terminals
When a terminal whose video mode is
QCIF standard only
The system does not send video to the QCIF
terminal.
Connecting the External MCU
LAN or ISDN
MCU
PCS-TL50
Activating the Chair Control
If the MCU for the ISDN connection is equipped with the chair control
function, the chair control can be activated for up to 99 terminals connected.
The chair control mode allows you to specify any terminal to display, to
broadcast the specified picture to all the terminals, or to broadcast the local
picture to all the terminals.
1
Press the FAR/NEAR button on the Remote Commander.
The Display Control menu opens.
2
Use the V, v, B or b button to select “Chair Request” under “Broadcast
Mode”.
Display Control
3
Display
Control
Far
Near
Camera
Broadcast Mode Terminal
Chair
Request
1
Press the ENTER button on the Remote Commander.
Connecting the External MCU
167
Chapter 7: Multipoint Videoconference
Connecting the external MCU (Multipoint Control Unit) enables conduct of a
multipoint videoconference unless the MCU software is installed into the
Video Communication System.
The chair control is activated and you can control up to 99 terminals. The chair
control feature is canceled if you set “Broadcast Mode” to “Chair Release”.
Note
When you operate incorrectly, the message “MCU operation rejected.” will appear
on the display.
Displaying the picture of the selected terminal
1
Open the Display Control menu.
2
Use the V, v, B or b button to select “Receive” under “Broadcast Mode”.
3
Use the V, v, B or b button to select the number of the terminal you want
to view in the box under “Terminal”, then press the ENTER button.
The picture of the selected terminal is displayed on the local display.
Notes
• When no terminal is selected, the picture of the smallest terminal number will be
displayed.
• The terminal number is assigned to a terminal based on the information on each
terminal obtained from the MCU.
To broadcast the selected picture to all terminals
1
Open the Display Control menu.
2
Use the V, v, B or b button to select “Broadcast” under “Broadcast Mode”.
3
Use the V, v, B or b button to select the number of the terminal you want
to broadcast in the box under “Terminal”, then press the ENTER button.
The picture of the selected terminal is displayed on the local display and is
broadcast to all terminals.
To broadcast a local picture to all terminals
1
Open the Display Control menu.
2
Use the V, v, B or b button to select “Broadcast” under “Broadcast Mode”.
3
Use the V, v, B or b button to display “0” in the box under “Terminal”,
then press the ENTER button.
The local picture is broadcast to all terminals. The
the display.
168
Connecting the External MCU
indicator is shown on
Exiting the chair control
Open the Display Control menu.
2
Use the V, v, B or b button to select “Chair Release” under “Broadcast
Mode”.
The chair control is not available for the local party.
Connecting the External MCU
169
Chapter 7: Multipoint Videoconference
1
Multipoint Attribute
Number
Attribute
1
Maximum number of terminals 5 (6 when including the
that can be connected to a single local terminal)
MCU
Value (H.320 MCU)
5 (6 when including the
local terminal)
Value (H.323 MCU)
2
Maximum number of
concurrent (independent)
conferences that can be
supported in a single MCU
1
1
3
Maximum number of ports that 0
can be connected to other
MCUs
1
4.1
Network interfaces at each port
BRI
LAN
4.2
Restricted network capability
Restrict_Required
–
5
Transmission rates available at
each port
1B, 2B, 4B, 6B
Total rate of all points
Max. 1920 Kbps
6
Audio Processor
Equipped
Equipped
6.1
mixed/switched
noise/echo suppression on
“silent” ports
Mixed
No
Mixed
No
6.2
audio algorithm at each port
G.711, G.728, G.722
G.711, G.728, G.722
7
Video Processor (motion
pictures)
Equipped
Equipped
7.1
switched/mixed
Voice activated/fourVoice activated/foursplit/six-split/user control split/six-split/user control
7.2
video algorithm at each port
H.261, H.263
H.261, H.263
8
Data Processor
Equipped
Equipped
8.1
data broadcast facility, LSD
data broadcast facility, HSD
Equipped
No
–
–
8.2
MLP Processor
Equipped
–
9
Encryption
No support
Support
170
Multipoint Attribute
Attribute
Value (H.320 MCU)
Value (H.323 MCU)
10
Method of choosing Selected
Communication Mode - SCM
Custom:
Number of lines (1B/
2B/4B/6B)
Audio algorithm
(G.711, G.728, G.722)
Auto:
Video frame rate (7.5/
10/15/30fps)
Video encoding mode
(CIF/QCIF)
Fixed or switched
automatically:
Video algorithm
(H.261 fixed, H.261 or
H.263 switched
automatically)
Restrict (56K fixed/
Auto)
Custom:
LAN bandwidth (Total
rate of all points, max.
1920 Kbps)
Audio algorithm
(G.711, G.728, G.722)
Auto:
Video frame rate (7.5/
10/15/30fps)
Video encoding mode
(CIF/QCIF)
Fixed or switched
automatically:
Video algorithm
(H.261 fixed, H.261 or
H.263 switched
automatically)
11
Capability of secondary
terminals
Capable of audio
sending/receiving and
video receiving only.
Capable of audio
sending/receiving only
via a normal phone.
Capable of audio
sending/receiving and
video receiving only.
Capable of audio
sending/receiving only
via a normal phone.
12
Call setup provision(s)
No call/receive
reservation
No call/receive
reservation
13
Control capabilities
–
–
13.1
Numbering of terminals
No
Simple chair control using BAS No
Equipped
No
13.2
MLP facilities (T.120)
No
No
13.3
H.224 (simplex data)
Equipped
Equipped
14
Cascading
No
Equipped
14.1
Fixed rates (“simple”)
No
No
14.2
Master/Slave
No
Equipped
15
Terminal identification
No
Equipped
16
MBE capability
No
–
Multipoint Attribute
171
Chapter 7: Multipoint Videoconference
Number
Chapter 8:
Use as Computer
Display or Video
Monitor
When you are not conducting a videoconference, you can use the display of the
Video Communication System as a computer display or video monitor.
This chapter describes the use of the Video Communication System other than
as a videoconference terminal.
Using as Computer Display
By connecting the Video Communication System to a computer, you can view
the picture from a computer on the display of the system.
Connecting to a Computer
Remove the rear cover of the Video Communication System and connect a
computer.
For removing the rear cover, see page 22.
PCS-TL50 Video Communication System
to AUDIO
IN (RGB)
to RGB
IN
172
Using as Computer Display
Audio connecting
cord (not supplied)
D-sub 15-pin cable
(not supplied)
to audio
output
to RGB
output
Computer
Displaying the Picture from the Computer
1
Press the PC/VIDEO button on the Remote Commander to select PC input.
Each time you press the button, the picture from the computer connected to the
RGB IN connector of this system and the picture from the video equipment
connected to the VIDEO IN jack is displayed alternately.
When PC input is selected, the sound from the computer is output from the
speakers of the Video Communication System in stereo (when the audio cable
is connected).
Adjust the volume of the computer sound using the VOLUME +/– buttons
on the Remote Commander.
3
Adjust the picture quality.
For the adjustments, see “Adjusting the Picture Quality on the Display”
on page 177.
Displaying the Picture from the Computer during Videoconference
If you receive a call when you are viewing the picture from the computer on
the display, the system automatically enters the Picture-in-Picture mode and
the picture of the remote party is displayed as a window picture.
Picture on the remote site
Picture from the computer
You can change the display mode manually using the following buttons.
To change the location of the window picture of videoconference
Press the PinP button on the Remote Commander.
To display the picture of videoconference only
Press the VIDEO CONF button on the Remote Commander.
Press the PC/VIDEO button again to display the picture from the computer
only.
Using as Computer Display
173
Chapter 8: Use as Computer Display or Video Monitor
2
To display the picture of videoconference and the picture from the
computer simultaneously
Press the PandP button on the Remote Commander.
The picture from the computer is displayed on the left (main picture) and the
picture of the videoconference is displayed on the right (sub picture).
To change the remote picture of videoconference to the local picture
Press the FAR/NEAR button on the Remote Commander and change the
“Display” setting (“Far” or “Near”) in the Display Control menu.
Notes
• The Picture-in-Picture and Picture-and-Picture features are not available while not in
communication with the remote party.
• When you receive a call, the picture on the local site is normally sent to the remote
party. To prevent it from being sent, you can close the shutter of the camera using the
shutter switch on the top of the Video Communication System.
Displaying the Picture from the Computer via the Data Solution
Box
If you connect the RGB OUT connector of the PCSA-DSB1S Data Solution
Box to the RGB IN connector of the Video Communication System, you can
view the picture from the computer to be sent to the remote party on the display
of the local system.
Computer
PCS-TL50 Video Communication System
Interface cable (supplied
with the PCSA-DSB1S)
to DSB
to TERMINAL
LINE OUT
OUT
AUX
IN
MIC 1
MIC 2
MIC 3
MIC 4
MIC 5
TO PROCESSOR
to RGB
OUT
to RGB
IN
174
Using as Computer Display
D-sub 15-pin cable
(not supplied)
RGB OUT
to RGB IN
A or B
PCSA-DSB1S
Data Solution
Box
Using as Video Monitor
By connecting the Video Communication System to video equipment, you can
view the picture from the video equipment on the display of the system.
Connecting to Video Equipment
For removing the rear cover, see page 22.
PCS-TL50 Video Communication System
to
VIDEO
IN
to
AUDIO
IN L/R
VCR, DVD player, etc.
Video connecting
cord (not supplied)
to video output
Audio connecting
cord (not supplied)
to audio
output
Displaying the Picture from the Video Equipment
1
Press the PC/VIDEO button on the Remote Commander to select VIDEO
input.
Each time you press the button, the picture from the computer connected to the
RGB IN connector of this system and the picture from the video equipment
connected to the VIDEO IN jack is displayed alternately.
When VIDEO input is selected, the sound from the video equipment is output
from the speakers of the Video Communication System in stereo (when the
audio cable is connected).
2
Adjust the volume of the sound from the video equipment using the
VOLUME +/– buttons on the Remote Commander.
3
Adjust the picture quality.
For the adjustments, see “Adjusting the Picture Quality on the Display”
on page 177.
Using as Video Monitor
175
Chapter 8: Use as Computer Display or Video Monitor
Remove the rear cover of the Video Communication System and connect video
equipment.
Note
Some commercially available VCRs and DVD players do not conform to the output
signal standards. The picture of such video equipment may not be displayed correctly
on the Video Communication System.
Displaying the Picture from the Video Equipment during
Videoconference
If you receive a call when you are viewing the picture from the video
equipment on the display, the system automatically enters the Picture-inPicture mode and the picture of the remote party is displayed as a window
picture.
Picture on the remote site
Picture from the video
equipment
You can change the display mode manually using the following buttons.
To change the location of the window picture of videoconference
Press the PinP button on the Remote Commander.
To display the picture of videoconference only
Press the VIDEO CONF button on the Remote Commander.
Press the PC/VIDEO button again to display the picture from the video
equipment only.
To display the picture of videoconference and the picture from the video
equipment simultaneously
Press the PandP button on the Remote Commander and change the “Display”
setting (“Far” or “Near”) in the Display Control menu.
The picture from the video equipment is displayed on the left (main picture)
and the picture of the videoconference is displayed on the right (sub picture).
To change the remote picture of videoconference to the local picture
Press the FAR/NEAR button on the Remote Commander.
Notes
• The Picture-in-Picture and Picture-and-Picture features are not available while not in
communication with the remote party.
• When you receive a call, the picture on the local site is normally sent to the remote
party. To prevent it from being sent, you can close the shutter of the camera using the
shutter switch on the top of the Video Communication System.
176
Using as Video Monitor
Adjusting the Picture Quality on the
Display
Right side
MENU
V
v
OK
1
Press the MENU button on the right side of the system.
The picture quality menu appears.
Example: Picture quality menu for the picture from
video equipment
Quality
Mode
Standard
068
Brightness
050
Color
050
Hue
010
Sharpness
004
BackLight
100
Reset
down:
2
Select:OK
Exit:MENU
Press the V or v button on the right side of the system to select the setting
item, then press the OK button.
The adjustment menu of the selected item appears.
068
Back:OK
Exit:MENU
Adjusting the Picture Quality on the Display
177
Chapter 8: Use as Computer Display or Video Monitor
You can adjust the picture quality on the display using the MENU, V/v and
OK buttons on the right side of the Video Communication System.
The picture quality setting items differ depending on the picture (main picture)
currently on the display: videoconference, picture from video equipment or
picture from a computer. The adjusted values are retained for each of three
picture types, respectively.
3
Press the V or v button on the right side of the system to adjust the picture
quality, then press the OK button.
4
Press the MENU button to exit the menu.
To reset to the default picture quality
Select “Reset”, the lowest setting item, then press the OK button.
Notes
The picture quality menu will disappear when you do not operate it for more than about
10 seconds. The menu will also disappear in the following cases:
– when you press the MENU button
– when you switch the picture on the display using the VIDEO CONF or PC/VIDEO
button on the Remote Commander (The picture quality menu does not disappear
when you switch the videoconference picture.)
– when you adjust the volume
– when you change the wide mode
– when you change the display in PinP or PandP mode
Picture quality menu for videoconference
Quality
PC
Mode
Standard
068
Brightness
050
BackLight
100
Reset
PC Adjust:
178
up:
Select:OK
Exit:MENU
Setting item
Press v to
Mode
select “Vivid”, “Standard” or “Pro”
“Vivid” for bluish tone, or “Pro” for reddish
tone.
–
decrease picture
contrast
increase picture
contrast
0 to 100
Brightness
darken the picture
brighten the picture
0 to 100
BackLight
darken the backlight
brighten the backlight 0 to 100
Adjusting the Picture Quality on the Display
Press V to
Adjustment range
Picture quality menu for the picture from video equipment
Quality
Mode
Standard
068
Brightness
050
Color
050
Hue
010
Sharpness
004
BackLight
100
down:
Select:OK
Exit:MENU
Setting item
Press v to
Press V to
Adjustment range
Mode
select “Vivid”, “Standard” or “Pro”
“Vivid” for bluish tone, or “Pro” for reddish
tone.
decrease picture
contrast
increase picture contrast 0 to 100
Brightness
darken the picture
brighten the picture
0 to 100
Color
decrease color
intensity
increase color intensity
0 to 100
Hue
increase green
picture tones
increase red picture
tones
green 50 to red 50
Sharpness
soften the picture
sharpen the picture
0 to 6
BackLight
darken the backlight brighten the backlight
–
0 to 100
Picture quality menu for the computer picture
The picture quality menu for the computer picture consists of the Quality tab
and the PC Adjust tab. To switch the tab, select the lowest setting item with the
v button and press the v button, or select the highest setting item with the V
button and press the V button.
Quality tab
Quality
PC Adjust tab
Quality
PC Adjust
PC Adjust
PC
PC
Mode
AutoAdjust
Middle
Standard
068
H Shift
050
Brightness
050
V Shift
050
BackLight
100
Phase
050
Pitch
050
Reset
Reset
PC Adjust:
up:
Select:OK
Exit:MENU
Quality:
up:
1280 x 768 / 60Hz
Select:OK Exit:MENU
Adjusting the Picture Quality on the Display
179
Chapter 8: Use as Computer Display or Video Monitor
Reset
Tab
Setting item
Press v to
Quality
Mode
select the color temperature of the display,
“High”, “Middle” or “Low”
–
decrease picture
contrast
increase picture
contrast
0 to 100
Brightness
darken the picture
brighten the picture
0 to 100
BackLight
darken the backlight
brighten the
backlight
0 to 100
AutoAdjust
adjust the phase and pitch automatically
–
H Shift
shift the picture to the
left
shift the picture to
the right
0 to 100*
V Shift
shift the picture
downward
shift the picture
upward
0 to 100*
Phase
reduce blur of horizontal stripes and
characters
0 to 100
Pitch
eliminate vertical thick stripes
0 to 100
PC Adjust
Press V to
Adjustment range
* The adjustment range for H.Shift and V Shift may differ depending on the
specifications of the input RGB signal.
180
Adjusting the Picture Quality on the Display
Rear
Appendix
1
2
Location and
Function of Parts
and Controls
PCS-TL50 Video
Communication System
Appendix
Front
a Handle
1 2
3
b Rear cover
Remove the rear cover to expose the
connector panel.
Right side
4
1
2
3
4
5
5
6
a Lens
7
b Shutter switch
Opens and closes the shutter of the
camera.
c Microphones
d Speaker
e Remote sensor
a 1 (power) switch and indicator
Turnsthe system on/off.
When the power is turned on, the
indicator lights in green.
b MENU button
Displays the picture adjustment menu on
the display.
Location and Function of Parts and Controls
181
c V/v buttons
Use these buttons to select the setting
item of the picture adjustment menu or
adjust the selected item.
d 100BASE-TX/10BASE-T connector
(8-pin modular jack)
Used to conduct a conference via a
LAN. Connect to a hub using the
category 5 cable.
d OK button
Confirms the selected item or the
adjusted value.
e VIDEO IN jack (phono jack)
Connect to the video output of external
video equipment.
e Memory Stick slot
Insert a “Memory Stick” into this slot.
f AUDIO IN L, R jacks (phono jack)
Connect to the audio output of external
video equipment or audio equipment.
f m (microphone) jack (minijack)
Connect to the optional PCS-A1 or PCSA300 microphone.
g AUDIO IN (RGB) jack (minijack)
Connect to the audio output jack of the
computer connected to the RGB IN
connector.
g i (headphones) jack (stereo
minijack)
Connect to the audio input jack of the
active speaker, etc.
h RGB IN connector (MINI D-sub 15pin)
Connect to the RGB output connector of
a computer or the Data Solution Box.
Connector Panel
1
2
3
4
5
6
7
8
a DC 19.5V jack
Connect the supplied PCS-AC19V8 AC
power adaptor.
b ISDN UNIT connector
Connect to the TERMINAL connector
on the optional PCSA-B384S or PCSAB768S ISDN Unit.
c DSB connector (D-sub 15-pin)
Connect to the TERMINAL connector
on the optional PCSA-DSB1S Data
Solution Box.
182
Location and Function of Parts and Controls
PCS-RTL50 Remote Commander
1
2
3
4
ws
CONNECT/
DISCONNECT
1
ABC
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
2
3
4
5
MENU
PinP
6
VIDEO CONF
PandP
WIDE MODE
ZOOM
VOLUME
T
+
BACK LIGHT
CLEAR
ENTER
CAPTURE IMAGE
INPUT SELECT
SYMBOL
W
FAR/NEAR
–
MIC ON/OFF
ALPHA/NUM
6
7 8
9 0
You can set for a beep not to sound by
pressing the button on the Remote
Commander with the Audio Setup menu.
For the setting, see “Audio Setup Menu” on
page 46.
a CONNECT/DISCONNECT (
) button
/
Used to connect or disconnect a remote
party for a conference.
b One Touch Dial buttons (1 to 6)
Select a remote party registered in the
One Touch Dial list in the launcher
menu.
c HELP button
qa
qs qd qf qg qh qj
Appendix
5
qk ql w; wa
f PinP (BACK SPACE) button
Displays a window picture when pressed
during communication.
Each time you press this button, the
location of the window picture changes.
Pressing the button displays the picture
in full screen while the Camera menu
opens.
When used for character input, deletes
the character you entered last.
g PandP (CLEAR) button
Displays two pictures when pressed
during communication.
Deletes a line when used for character
input.
h FAR/NEAR (ALPHA/NUM) button
Used to show the help guide.
d @/1 (power on/off) button
Turns the Video Communication
System on/off.
e Number (0-9,
PC/VIDEO
DISPLAY
SELECT
BACK
SPACE
RETURN
0
HELP
,
) buttons
Used to enter the letters or numerals of a
telephone number, etc.
Also used for brightness adjustment.
Switches the picture on a local or remote
site.
Switches the input mode between
alphabets and numerals for character
input.
i INPUT SELECT (SYMBOL)
button
Selects the video input signal. Each time
you press the button, the input signal
switches.
Location and Function of Parts and Controls
183
Used to enter a symbol for character
input.
s CAPTURE IMAGE button
Used to save the picture of the remove
party as a still image in a “Memory
Stick” during conference.
j Arrow buttons (V/v/B/b)
Used to select the menu or make various
settings in the menu. Also used for
camera angle adjustment.
t BACK LIGHT button
Turns the backlight compensation
feature on/off.
k ENTER button
Executes the selection or setting in the
menu and goes to the next layer.
u WIDE MODE button
Selects the wide mode.
Each time you press this button, the wide
mode changes from Zoom, Wide, Wide
zoom to Normal mode in sequence.
l RETURN button
Used to return to the previous layer in
the menu.
v Battery compartment (rear)
m MENU button
Used to display a menu.
n ZOOM T/W button
Zooms in or out.
T: to enlarge the picture
W: to reduce the picture
o VIDEO CONF (video conference)
DISPLAY SELECT button
Used to switch to the picture of a
videoconference when the picture of
external input signal is displayed.
p VOLUME T/W button
Adjusts the sound volume.
T: to increase the volume
W: to decrease the volume
q PC/VIDEO DISPLAY SELECT
button
Used to switch to the picture of external
input signal when the picture of a
videoconference is displayed.
Each time you press this button, the
picture input to the RGB IN connector
and that input to the VIDEO IN jack is
selected alternately.
r MIC ON/OFF button
Cuts off the local sound to be sent to a
remote party. To restore the sound, press
the button again.
184
Location and Function of Parts and Controls
Insert two size AA (R6) batteries.
PCSA-B384S/PCS-B384 ISDN Unit (Optional)
Front/Top of PCSA-B384S
Front/Top of PCS-B384
1
1
2
1
1
3
2
3
STATUS
STATUS
2
1
2
2
3
4
5
6
3
1
2
3
3
4
Appendix
Rear of of PCSA-B384S
Rear of of PCS-B384
4
a STATUS indicator
Lights in orange when power is supplied
to the ISDN Unit. When initializing is
complete, blinks in green.
b STATUS 1-3 indicators
Lights in orange when link
synchronization of each ISDN connector
is established. Lights in yellow when
each ISDN line is connected.
c ISDN 1-3 terminals (8-pin modular
jack)
Connect to the ISDN lines using the
ISDN modular cable.
d TERMINAL connector
Connect to the ISDN UNIT connector
on the Video Communication System
with the interface cable supplied with
the ISDN Unit.
Location and Function of Parts and Controls
185
PCSA-B768S/PCS-B768 ISDN Unit (Optional)
Front/Top of PCSA-B768S
Front/Top of PCS-B768
1
1
1
1
2
2
3
4
5
1
6
3
4
STATUS
2
2
3
4
5
6
3
Rear of PCSA-B768S
4
a STATUS indicator
Lights in orange when power is supplied
to the ISDN Unit. When initializing is
complete, blinks in green.
b STATUS 1-6 indicators
Lights in orange when link
synchronization of each ISDN connector
is established. Lights in yellow when
each ISDN line is connected.
c ISDN 1-6 terminals (8-pin modular
jack)
Connect to the ISDN lines using the
ISDN modular cable.
d TERMINAL connector
Connect to the ISDN UNIT connector
on the Video Communication System
with the interface cable supplied with
the ISDN Unit.
186
2
STATUS
Location and Function of Parts and Controls
1
2
3
5
4
3
Rear of PCS-B768
4
6
5
6
PCSA-DSB1S/PCS-DSB1 Data Solution Box (Optional)
Front/Top of PCSA-DSB1S
1
2
Front/Top of PCS-DSB1
3
1
2
RGB A
RGB SELECT
3
RGB SELECT
RGB A
SEND
RGB IN A
RGB B
SEND
RGB IN B
4
5
Rear of PCSA-DSB1S
6
OUT
AUX
7
IN
MIC 1
MIC 2
MIC 3
8
MIC 4
MIC 5
RGB IN A
RGB IN B
4
5
Rear of PCS-DSB1
TO PROCESSOR
RGB OUT
9
q;
a RGB A input select button and
indicator
Selects the video input from the video
equipment connected to the RGB IN A
connector.
LINE OUT
6
OUT
AUX
7
IN
MIC 1
MIC 2
MIC 3
8
MIC 4
MIC 5
TERMINAL
RGB OUT
9
q;
Appendix
LINE OUT
RGB B
f LINE OUT jack (stereo minijack)
Connect to the audio input jack on the
active speaker, etc.
Outputs monaural sound.
g AUX IN/OUT jacks (phono jack)
b SEND button and indicator
Sends the selected input picture to the
Video Communication System.
Connects to the optional CTE-600
Communication Transducer.
h MIC 1–MIC 5 jacks (minijack)
c RGB B input select button and
indicator
Selects the video input from the video
equipment connected to the RGB IN B
connector.
d RGB IN A connector (D-sub 15-pin)
Connects to the RGB output connector
on a computer, etc.
e RGB IN B connector (D-sub 15-pin)
Connect to the RGB output connector on
a computer, etc.
Connect to the optional PCS-A1 or PCSA300 microphone.
i TERMINAL connector (D-sub 15pin)
Connect to the DSB connector on the
Video Communication System using the
interface cable supplied with the Data
Solution Box.
j RGB OUT connector (D-sub 15pin)
Outputs the video signal to a projector,
TV monitor, the display of the Video
Communication System, etc.
Location and Function of Parts and Controls
187
Precautions
Operating or storage location
Avoid operating or storing the system in the
following locations:
• Extremely hot or cold places
• Humid or dusty places
• Places exposed to strong vibration
• Close to sources of strong magnetism
• Close to sources of powerful
electromagnetic radiation, such as radios
or TV transmitters
• Noisy places
LCD screen
• Do not expose the LCD screen surface to
the sun. Doing so may damage the screen
surface.
• Do not push or scratch the LCD screen, or
place objects on top of the system. The
image may become uneven or the LCD
panel may be damaged.
• If the system is used in a cold place, a
smear may occur in the picture or the
picture may become dark. This does not
indicate a failure. These phenomena
improve as the temperature rises.
• Ghosting may occur when still pictures are
displayed continuously. It may disappear
after a few moments.
• The screen and cabinet get warm when the
system is in use. This is not a malfunction.
LCD display panel
• Although the LCD display panel is made
with high-precision technology, black dots
may appear or bright points of light (red,
blue, or green) may appear constantly on
the LCD screen. Color stripes and uneven
brightness may also appear when you view
from specific viewing angles. This is a
structural property of the LCD panel and is
not a malfunction.
Built-in speakers
The speakers generate magnetism. To avoid
damaging the data, keep magnetic tapes and
disks away from the speakers.
188
Precautions
Cleaning
• Before cleaning, disconnect the power
cord from the AC outlet.
• The LCD screen surface is finished with a
special coating. To remove dust from the
screen surface, wipe gently with a soft, dry
cloth.
• Do not use volatile solvents such as
alcohol, benzene or thinners as they may
damage the surface finishes.
• When you use chemical cleaning cloth,
observe the instructions that come with it.
• Do not apply volatile solvents such as an
insecticide to the screen, or allow rubber
or plastic objects to touch to the screen for
a long time, as they may damage the
surface finishes.
On Screen Messages
Check the following if a message appears on the display when operating the
Video Communication System.
Message
Meaning
Incorrect dialing setup.
Make sure the selected entry is correctly registered.
Cannot complate connection (The following —
code and message appear.)
Unknown network error:
Try again later.
1
Number does not exist:
Check the number and try again.
2,3,6
Network congestion:
Try again later.
16
Normal disconnection:
(The line has been disconnected normally.)
17
Line is busy:
Try again later.
18,19 System not responding:
Check if the remote system is connected.
20
No such subscriber:
Confirm the site number.
21
Call rejected:
Check if the remote system is connected.
22
Called party number changed:
Check the number and try again.
26
Connection restoration request:
Try again later.
27
Remote system out of order:
Check if the remote system is operational.
28
Invalid number entered:
Check the number and try again.
31, 34, 41 – 44, 47
Network not available:
50
Not a Subscriber:
Appendix
0
Try again later.
Check the remote party’s facility contract.
57,58 Bearer capability not authorized:
Check if “Restrict” is set correctly.
70
Restricted capability:
Set “Restrict” to “56K” and try again.
88
Terminal attribute error:
Check the connection of the remote system.
91, 95 – 102, 111
Protocol error:
Turn off and restart the system and try again.
128
H.221 negotiation timeout:
Turn off and restart the system and try again.
132
Invalid SPID:
Reregister the SPID.
134
Physical link synchronization
error:
Check the connection of the ISDN cable.
144, 145
Bonding negotiation timeout:
Turn off and restart the system and try again.
177
LAN connection timeout:
Try again later.
178
LAN connection rejected:
Try again later.
179
DNS error:
Please check DNS.
On Screen Messages
189
Message
Meaning
180
Dialing your own number is
invalid.
181
GateKeeper error.
Please check the IP address of the remote party.
Please check the IP address of the remote party.
Busy line - Connection not possible.
The telephone line of the remote party is busy and
cannot be connected.
Far end inactive.
The remote party operates the menu, and the still
picture cannot be sent.
System not responding.
Check if the remote system is connected.
Close this menu to connect line.
Close the menu when starting a conference.
Cannot establish all connections.
Check the telephone number of the remote party.
Connection time out.
Wait for a while and then try dialing again.
Communication error
Wait for a while and then try dialing again.
Configuration error.
Wait for a while and then try dialing again.
MCU operation rejected.
The function is not available when external MCU is
connected.
Signal error — Terminating connection
A signal error occurred. The line connections are
compelled to be disconnected.
Corrupted data stream-Terminating
connection.
A signal error occurred. The line connections are
compelled to be disconnected.
Memory full.
The memory capacity of the “Memory Stick” is
full.
Input title.
Input an index title.
Operation disabled.
—
Wrong password
The password is not correct.
Enter the correct password.
01H LAN configuration error.
(IP address)
The IP address is not proper.
02H LAN configuration error.
(Netmask)
The netmask is not proper.
03H LAN configuration error.
(MAC address)
The MAC address is not proper.
04H LAN configuration error.
(DHCP error)
The IP address and netmask cannot be obtained.
05H Gatekeeper registration error.
The setting of the Gatekeeper is not proper.
06H SNMP error
SNMP is not set properly.
LAN configuration error.
(Gatekeeper)
The setting of the Gatekeeper is not proper.
LAN configuration error.
(SNMP error)
The setting of the SNMP is not proper.
LAN configuration error.
The settings in the LAN Setup menu are not proper.
190
On Screen Messages
Meaning
Memory Stick error.
The format of the “Memory Stick” is wrong.
General error.
–
No Memory Stick.
Insert a “Memory Stick”.
Memory Stick write-protected.
Release the lock of the erasure prevention switch
on the “Memory Stick”.
Memory full.
The data has been saved in the “Memory Stick” to
its full capacity.
Memory Stick file error.
The file format of the “Memory Stick” is incorrect
or abnormal.
Memory Stick file decode error.
Decoding the JPEG file has failed.
Memory Stick size error.
The file size of the “Memory Stick” is not
acceptable.
There are no images recorded in the
Memory Stick.
No images are recorded in the “Memory Stick”.
File error.
There is an abnormality in the file.
File size error.
The file size is not acceptable.
File decode error.
Decoding the JPEG file has failed.
Format error.
The “Memory Stick” cannot be formatted.
Settings cannot be changed during
communication.
Change the setting after disconnecting the system.
The still images were not sent.
Transmission of the still images has failed.
The presentation screen can not be sent.
Transmission of the RGB data from the Data
Solution Box has failed.
Appendix
Message
Multipoint connection to this participant was Multipoint connection with this party is not
not made.
available.
The LAN cannot be used.
You cannot use the LAN connection.
The DATA SOLUTION BOX cannot be
used.
You cannot use the Data Solution Box connected.
ISDN UNIT is not available.
Communication with the ISDN unit cannot be
made.
No more cascade connections are enabled.
Installing the MCU software into three or more
Video Communication System does not allow
cascade connection.
Cascade connection via ISDN is not
available.
You cannot use cascade connection when your
system is connected via ISDN.
Cannot send RGB data while receiving.
While you are receiving an RGB picture from
another terminal, you cannot send an RGB picture
from equipment connected to the Data Solution
Box.
On Screen Messages
191
Message
Meaning
A still image is being sent or received. The
Data Solution Box is not usable.
While you are sending or receiving a still image,
you cannot send or receive the RGB picture via the
Data Solution Box.
Connection with the Data Solution Box is
not correct. Please reset the system.
Connection between the Video Communication
System and the Data Solution Box is not correct.
Turn off the Video Communication System, then
turn it on again.
Fan in the Data Solution Box does not work
properly. The Data Solution Box is not
usable.
The fan equipped with the Data Solution Box is
not working properly. You cannot use the Data
Solution Box.
The far-end system is not compatible with
the encryption feature.
When conducting an encrypted videoconference
via LAN, you cannot connect to the system that is
not compatible with the encryption via LAN
feature.
The encryption feature on a far-end system
is disabled.
When conducting an encrypted videoconference
via LAN, you cannot connect to the system if the
encryption via LAN feature is deactivated.
The encryption feature on a far-end system
is enabled.
When conducting a daily conference, you cannot
connect to the system if the encryption via LAN
feature is activated.
The entered password for the encryption
feature is not correct.
Enter the correct password.
The encrypted videoconference is not
available if any terminal is connected via
ISDN.
While the videoconference is held via the ISDN
connection, you cannot connect any terminal via
the LAN connection if your encryption via LAN
feature is activated.
At least thirteen characters are required as a
password for the encryption feature.
You have to enter 13 to 20 characters, numerals or
symbols as the password required for conduct of an
encrypted videoconference via LAN.
PPPoE connection has failed.
LAN connection has failed. Check the PPPoE
setting.
PPPoE server admission has failed.
Access to a network is not admitted by the PPPoE
server.
Connection to the PPPoE server fails.
Check the DNS server setting.
Communication via LAN is not available.
Check the LAN cable.
The connection to a LAN cannot be made. Check
the LAN cable.
An IP address is not obtained via DHCP.
Check the DHCP setting.
Please dial by entering the IP address.
Be sure to enter the IP address of the remote party
when dialing.
Reference to DNS has failed.
The LAN connection has failed as you entered the
user name when using the domain name server.
Enter the IP address.
Your system attempts to connect to other
equipment than a videoconferencing system.
Connect your system to the videoconferencing
system.
192
On Screen Messages
Meaning
Some trouble occurs during connection.
Connection has failed.
Try to connect again.
Check the information registered to the
gatekeeper.
When you use the gatekeeper mode, the registered
information on gatekeeper appears in Page 2/2 of
the LAN Setup menu.
Connection has been rejected as the data
exceeds the bandwidth of a gatekeeper.
Connection has failed as the data exceeds the
bandwidth of a gatekeeper.
Gatekeeper does not respond.
Check the gatekeeper setting.
The ISDN Unit is not connected.
The ISDN Unit is not connected.
The ISDN line is invalid. Check the ISDN
connection.
Check the ISDN connection.
ISDN lines are not connected correctly.
Check the ISDN connection.
Check the ISDN configuration.
Check the settings in the ISDN Setup menu.
A telephone number of a remote party has
not been entered.
Enter the telephone number of the remote party.
The entered telephone number of a remote
party is not correct.
Enter the correct telephone number of the remote
party.
Problems connecting to a router or an ISDN The ISDN connection has not been made. There
connection.
may be some problem in a router or in the ISDN
connection on the remote party.
Line is busy. Try to dial again later.
Line is busy. Wait for a while and try dialing again.
A line has not been completely connected.
The far-end videoconferencing system did
not respond to our calling.
The videoconferencing system does not respond to
the calling, and the connection has failed.
The terminal with the specified IP address
does not exist, or the system is turned off.
The connection to the remote party cannot be
made. You may specify a different IP address from
that of the terminal or the system of the remote
party is turned off.
Connection rejected.
The connection to the remote party has failed.
Call not responded.
The remote party does not respond to your calling.
H.245 Error.
Error occurs while connecting to the multiple
points via LAN.
The remote terminal may not be compatible
with the BONDING function.
The BONDING function may not be used. The
remote terminal may not be equipped with this
function.
The ISDN telephone number of the local
party is not correctly set. Set it correctly.
Set your ISDN telephone number correctly.
The ISDN telephone number of the far-end
party may be configured incorrectly.
The ISDN telephone number of the remote party
may not be set correctly.
6B connection is available.
Connection has been made via 6B. More channel
connection than 6B is not available.
On Screen Messages
193
Appendix
Message
The following messages indicate the state of the system. No action is required.
Message
Meaning
Meeting starts!
Connection with the remote party has been completed, and
you can now start a conference.
Starting connection.
After receiving a call from the remote party the system starts
connecting.
Meeting ends.
Operations for ending the conference have been completed.
Please wait.
The data is being saved.
Installation completed.
Installing the software is completed.
The still image has been sent.
A still picture has been transmitted to the remote party.
Still image transmission
cancelled.
Transmission of a still image has been cancelled.
Preset 1 (–6) selected.
The zoom and camera angle setting has been changed to that
registered in Preset number 1 (–6).
Still image saved to Memory
Stick.
The still image has been saved to the “Memory Stick”.
Registered to Preset number 1 (–
6).
The zoom and camera angle setting has been registered in
Preset number 1 (–6).
Terminal A (or B, C, D, E) has
disconnected.
During a multipoint videoconference the remote party A (or
B, C, D, E) has been disconnected.
Site A (or B, C, D, E) has
disconnected.
During a multipoint videoconference the remote party A (or
B, C, D, E) has ended the conference.
The slide show is over.
The slide show has been ended.
The 1st (–5th) position has been
selected.
The terminal on the 1st (–5th) site for a multipoint
videoconference has been selected from the Phone Book.
The terminal participated in the
conference.
The remote party of the displayed terminal participates in the
multipoint videoconference.
The terminal has dropped out of
the conference.
The displayed terminal ends the multipoint videoconference.
Viewing the terminal. [Terminal
name]
The picture of the displayed terminal can be seen on the
screen.
Now upgrading. Wait for a while. The software is now upgrading. Be sure not to turn off the
Be sure not to turn off your system Video Communication System until the upgrading is
while upgrading.
complete. Doing so may cause malfunction of the system.
Cascade connection is complete.
Cascade connection with the terminals has been completed.
Cascade connection has been
Cascade connection with the terminals has been made. You
made. Split mode is not available. cannot display split windows.
Use of the Private Phone Book is
available.
The “Memory Stick” in which the Private Phone Book is
registered has been inserted into the Video Communication
System. You can use the Private Phone Book.
Use of the Private Phone Book is
not available.
The “Memory Stick” in which the Private Phone Book is
registered has been removed from the Video Communication
System. You cannot use the Private Phone Book.
194
On Screen Messages
Message
Meaning
The system is connecting to a
LAN via PPPoE.
The Video Communication System is connecting to a LAN
using PPPoE.
Appendix
On Screen Messages
195
Troubleshooting
If the Video Communication System does not function correctly, check the following.
Symptom
Cause
Solution
The power is not
turned on.
The power switch is not set to on.
Press the power switch on the right
side.
The batteries in the Remote
Commander are low or dead.
Replace the batteries with new ones
(page 25).
The message “The The cooling fan built in the system
cooling fan is
has stopped.
abnormal. The
power will turn off.”
is displayed and the
power of the system
turns off.
Consult your Sony dealer.
No sound or the
The volume of the System is too
volume is very low. low.
Adjust the sound volume by pressing
the VOLUME +/– buttons on the
Remote Commander (page 29).
No picture.
The microphone on the remote
party is turned off.
Ask the remote party to turn on the
microphone.
“Mic Select” is not set properly.
Set up “Mic Select” properly
according to the microphone to be
used (page 46).
The microphone or external
equipment is not connected
correctly.
Check the connection.
The selected picture source is not
tuned on.
Turn on the selected video equipment.
The selected picture source is not
correctly connected to the system.
Check the connections.
A voice meeting is held.
This is not a malfunction.
Movement of the camera is
prevented.
Turn off the Video Communication
System, then turn it on again.
The shutter of the camera is closed. Slide the shutter switch to the right to
open the shutter (page 28).
No connection.
196
Wrong number was dialed.
Check the entered number.
The setting of “Line I/F” is not
correct.
Set “Line I/F” to correct interface
referring to “Calling a Remote Party”
(pages 74, 78).
The registered items in the Phone
Book are not correct.
Register the party correctly referring
to “Registering a Remote Party in the
Phone Book” (page 59).
Troubleshooting
Symptom
Cause
Solution
No connection.
Some of the system settings are not Set the system settings correctly
correct.
referring to “Registering Local
Information” (page 39).
Ask the system administrator to set
them correctly (page 51).
The LAN or ISDN cable is
disconnected.
Connect correctly (pages 23, 24).
The LAN or ISDN cable is
connected to the incorrect
connector.
Connect correctly (pages 23, 24).
The LAN or ISDN cable is down.
Replace the cable with a new one.
The cable exclusively designed for
the ISDN connection is used for
LAN connection (when using
LAN).
Use the cable for LAN connection.
Incorrect type of cable (cross or
straight cable) is used for the LAN
or ISDN connection.
Use the correct type of cable.
Appendix
The IP address and network mask
are not set correctly (when using
LAN).
The DSU is turned off (when using Turn on the DSU.
ISDN).
If you disconnect the
Turn off the power of the system and
communication with an abnormal
wait for a few minutes before turning
procedure, e.g., unplugging an
it on again.
ISDN cable or turning off the
system during communication, you
may not connect to the ISDN line
for a while (when using ISDN).
If you repeat plugging/unplugging
or turning on/off, you may not
connect to the network for a while
(when using LAN).
Turn off the power of the system and
wait for a few minutes before turning
it on again.
LAN connection timeout (when
using LAN).
Try again later.
Packet for videoconferencing is not Consult with the system administrator
acceptable under the current LAN so that the packet for
environment (when using LAN).
videoconferencing becomes
acceptable under your LAN
environment.
The remote terminal is not turned
on.
Ask the remote party to turn on the
terminal.
It takes a long time for the remote
party to be able to answer from the
standby mode.
Ask the remote party to cancel the
standby mode.
The remote party is in
communication with another party.
Call the remote party after they end
the communication with another
party.
Troubleshooting
197
Symptom
Cause
No connection.
Answering the call is not permitted Ask the remote party to permit
by the remote terminal as it is
answering a call.
operating for setups, etc.
The remote terminal is not set to
auto answer mode.
Ask the remote party to set the
terminal to auto answer mode, or to
answer a call manually.
The ISDN telephone numbers are
not set up in the remote terminal
(when using bonding).
Ask the remote party to set up “Area
Code” and “Local Number” in the
ISDN Setup menu correctly (page
52).
The eighth digit and up of the ISDN
telephone numbers are not the same
when connecting using bonding
(when the remote party uses the
videoconference system of an older
model such as the PCS-1600).
Connect without using bonding, or
use the ISDN telephone numbers that
are the same in the eighth digit and
up.
There is some problem with the
remote terminal.
Try to dial the number of another
terminal.
A message appears on the screen.
See “On Screen Messages” (page
189).
Still pictures or the The write-protect tab on the
Phone Book cannot “Memory Stick” is set to LOCK.
be saved to the
The “Memory Stick” has already
“Memory Stick.”
been recorded to full capacity.
198
Solution
Troubleshooting
Release the lock (page 112).
Use another “Memory Stick.”
24 Kbps, 32 Kbps (G.722.1
compliant with ITU-T
Recommendation) (when using
LAN)
16 Kbps (G.728 compliant with
ITU-T Recommendation)
8 Kbps (G.729 compliant with
ITU-T Recommendation)
(when using LAN)
5.3 Kbps, 6.3 Kbps (G.723.1
compliant with ITU-T
Recommendation) (when using
LAN)
Specifications
PCS-TL50 Video
Communication System
This unit is compliant with ITU-T
Recommendations H.320 and H.323.
Motion picture
Still Picture
Pixels
Encoding
704 pixels × 480 lines
H.261 (ITU-T Recommendation)
Annex. D (4CIF)
H.263 (special format of this
system)
Sound
Bandwidth
14 kHz (MPEG4 Audio)
7 kHz (G.722/G.722.1 compliant
with ITU-T Recommendation)
3.4 kHz (G.711/G.723.1/G.728/
G.729 compliant with ITU-T
Recommendation)
Transmission rate
56 Kbps, 64 Kbps (G.711
compliant with ITU-T
Recommendation)
48 Kbps, 56 Kbps, 64 Kbps (G.722
compliant with ITU-T
Recommendation)
64 Kbps, 96 Kbps (MPEG4
Audio) (when using LAN)
Network
Multiplexing
Video, audio, data
Frame format
H.221 (compliant with ITU-T
Recommendation)
Interface
LAN (standard), 64 Kbps to 1920
Kbps
ISDN (BRI), up to 6 lines (when
installing the PCSA-B768S)
up to 3 lines (when installing the
PCSA-B384S)
Data transmission rate
LSD 1.2 Kbps, 4.8 Kbps, 6.4 Kbps
MLP 6.4 Kbps, 24 Kbps, 32 Kbps
HMLP 62.4 Kbps, 64 Kbps, 128
Kbps
LAN protocol supported
HTTP
FTP
Telnet
RTP/RTCP
TCP/UDP
Remote control
Far end camera control
H.281 (compliant with ITU-T
Recommendation)
Data transfer
T.120 (compliant with ITU-T
Recommendation)
Specifications
199
Appendix
Operating bandwidth
64 Kbps to 1920 Kbps (standard,
LAN connection)
56 Kbps to 768 Kbps (when
installing the PCSA-B768S,
ISDN connection)
56 Kbps to 384 Kbps (when
installing the PCSA-B384S,
ISDN connection)
Coding
H.261/H.263/H.263+/H.263++/
H.264/Interlaced SIF (ITU-T
Recommendation)
MPEG4 Simple Profile (when
using LAN)
Picture elements
CIF: 352 pixels × 288 lines
QCIF: 176 pixels × 144 lines
Color system
NTSC
Camera
Speaker
Video signal
Speaker
3W×2
NTSC color, EIA standards
Image device
1/3 type CCD (Charge Coupled
Device)
Approx. 410 000 pixels (Effective:
approx. 380 000 pixels)
f = 4.0 mm, F 2.0, Horizontal angle
Approx. 70°
Lens
Focal distance
500 mm
Minimum illumination
1 lux at F 2.0/50 IRE
Pan/tilt action
Digital pan/tilt
Auto White Balance function built-in
Electronic iris function built-in
Display
Size
20 inches
Aspect ratio 16 : 9
Resolution
1280 × 768
Luminance
400 Cd/m2 or more
Response time
15 ms or less
Contrast ratio
500 : 1
Angle of view
160 degrees or more
Number of colors
16,700,000 colors
Display controller
PinP
PandP
Input
4 corners
Two windows
Internal: Video Communication
External RGB: Computer display
External Video: External video
input (automatic detection of
NTSC/PAL)
Wide mode Normal, Zoom, Wide, Wide zoom
RGB mode 640 × 480, 800 × 600, 1024 × 768,
1280 × 768, etc.
Display of zoomed picture is
possible.
Volume adjustments
Fixed for Video Communication
System
Adjustable by the amplifier on the
display circuit board
OSD adjustments
Brightness, hue, shift, width,
height, etc.
200
Specifications
Microphone
Frequency range
15 kHz
Directional characteristic
Narrow-angle directional
General
Power requirements
19.5 V
Power consumption
7.7 A
Operating temperature
5°C to 35°C (41°F to 94°F)
Operating humidity
20% to 80%
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Storage humidity
20% to 80% (no condensation)
Dimensions 528 × 445 × 110 mm (w/h/d)
(20 7/8 × 17 5/8 × 4 3/8 inches)
(not including the stand)
528 × 445 × 265 mm (w/h/d)
(20 7/8 × 17 5/8 × 10 1/2 inches)
(including the stand)
Mass
Approx. 10 kg (22 lb 7 oz)
Supplied accessories
Remote Commander PCS-RTL50
(1)
Size AA (R6) batteries for Remote
Commander (2)
AC adaptor PCS-AC19V8 (1)
Power cord (1)
CD-ROM (1)
Operation Guide (1)
Quick Connection Guide/Remote
Control Guide (1)
Warranty booklet (1)
PCS-RTL50 Remote
Commander
Signal format Infrared SIRCS
Control
DC 3V using two size AA (R6)
batteries
Dimensions 168 × 19 × 88 mm (w/h/d) (6 5/8 ×
3
/4 × 3 1/2 inches) (not including
the projected parts)
Mass
Approx. 180 g (64 oz) (including
batteries)
PCS-AC19V8 AC Adaptor
PCS-A1 Microphone
(Optional)
Bandwidth
13 kHz
Directional characteristic
Omnidirectional
Dimensions 74 ×16 × 93 mm (w/h/d)
(3 × 21/32 × 3 3/4 inches)
Mass
Approx. 170 g (6 oz)
Power
Plug in power
Bandwidth
13 kHz
Directional characteristic
Unidirectional
Dimension
68 × 16 × 96 mm (w/h/d) (2 3/4 ×
21
/32 × 3 7/8 inches)
Mass
Approx. 200 g (7 oz)
Power
Plug in power
PCSA-B384S/PCS-B384 ISDN
Unit (Optional)
Power requirements
19.5 V
Power consumption
0.3 A
Operating temperature
5°C to 35°C (41°F to 94°F)
Operating humidity
20% to 80%
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Storage humidity
20% to 80% (no condensation)
Dimensions PCSA-B384S:
165 × 34 × 127 mm (w/h/d)
(6 1/2 × 1 3/8 × 5 inches) (not
including the projected parts)
PCS-B384:
165 × 34 × 127 mm (w/h/d)
(6 1/2 × 1 3/8 × 5 inches) (not
including the projected parts)
Mass
PCSA-B384S: Approx. 400 g
(14 oz)
PCS-B384: Approx. 400 g
(14 oz)
Supplied accessories
Interface cable (5 m, 16.4 ft) (1)
Operating Instructions (1)
Warranty booklet (1)
PCSA-B768S/PCS-B768 ISDN
Unit (Optional)
Power requirements
19.5 V
Power consumption
0.5 A
Operating temperature
5°C to 35°C (41°F to 94°F)
Specifications
201
Appendix
Power requirements
100 to 240V AC, 50/60 Hz, 2.2 A
to 1.0 A
Output
19.5 V, 7.7A
Operating temperature
5°C to 35°C (41°F to 94°F)
Operating humidity
20% to 80%
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Storage humidity
20% to 80% (no condensation)
Dimensions 81 × 49 × 165 mm (w/h/d) (3 1/4 ×
15/16 × 6 1/2 inches)
Mass
Approx. 800 g (1 lb 12 oz)
PCS-A300 Microphone
(Optional)
Operating humidity
20% to 80%
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Storage humidity
20% to 80% (no condensation)
Dimensions PCSA-B768S:
165 × 34 × 127 mm (w/h/d)
(6 1/2 × 1 3/8 × 5 inches) (not
including the projected parts)
PCS-B768:
165 × 34 × 127 mm (w/h/d)
(6 1/2 × 1 3/8 × 5 inches) (not
including the projected parts)
Mass
PCSA-B768S: Approx. 400 g
(14 oz)
PCS-B768: Approx. 400 g
(14 oz)
Supplied accessories
Interface cable (5 m, 16.4 ft) (1)
Operating Instructions (1)
Warranty booklet (1)
PCSA-DSB1S/PCS-DSB1
Data Solution Box (Optional)
Power requirements
19.5 V
Power consumption
1.0 A
Operating temperature
5°C to 35°C (41°F to 94°F)
Operating humidity
20% to 80%
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Storage humidity
20% to 80% (no condensation)
Dimensions PCSA-DSB1S:
240 × 37 × 180 mm (w/h/d)
(9 1/2 × 1 1/2 × 7 1/8 inches) (not
including the projected parts)
PCS-DSB1:
240 × 33 × 160 mm (w/h/d)
(9 1/2 × 1 5/16 × 6 3/8 inches) (not
including the projected parts)
Mass
PCSA-DSB1S: Approx. 1.1 kg (2
lb 7 oz)
PCS-DSB1: Approx. 850 g (1 lb
14 oz)
Supplied accessories
Interface cable (8 m, 26.2 ft) (1)
Operating Instructions (1)
Warranty booklet (1)
202
Specifications
PCS-320M1 H.320 MCU
Software (Optional)
Dimensions
50 × 2.8 × 21.5 mm (w/h/d) (2 ×
1
/8 × 7/8 inches)
Mass
Approx. 4 g (0.1 oz)
Supplied accessories
Serial Number seal (1)
Operating Instructions (1)
PCS-323M1 H.323 MCU
Software (Optional)
Dimensions
50 × 2.8 × 21.5 mm (w/h/d) (2 ×
1
/8 × 7/8 inches)
Mass
Approx. 4 g (0.1 oz)
Supplied accessories
Serial Number seal (1)
Operating Instructions (1)
Design and specifications are subject to change
without notice.
Acceptable RGB Input/Output Signals
PCS-TL50 Video Communication System (RGB IN)
Picture element Signal format
640 × 480
VGA mode
Macintosh 13”
VGA VESA 72 Hz
800 × 600
1280 × 768
fV (Hz)
Dot clock
(MHz)
Sync
31.469
59.94
25.17 H-neg V-neg
35
66.667
30.24 H-neg V-neg
37.861
72.809
31.5 H-neg V-neg
VGA VESA 75 Hz
37.5
75
31.5 H-neg V-neg
VGA VESA 85 Hz
43.269
85.008
36 H-neg V-neg
SVGA VESA 56 Hz
35.156
56.25
36 H-pos V-pos
SVGA VESA 60 Hz
37.879
60.317
40 H-pos V-pos
SVGA VESA 72 Hz
48.077
72.188
50 H-pos V-pos
SVGA VESA 75 Hz
46.875
75
49.5 H-pos V-pos
SVGA VESA 85 Hz
53.674
85.061
56.25 H-pos V-pos
XGA VESA 60 Hz
48.363
60.004
65 H-neg V-neg
XGA VESA 70 Hz
56.476
70.069
75 H-neg V-neg
XGA VESA 75 Hz
60.023
75.029
78.75 H-pos V-pos
WXGA VESA 60 Hz
47.693
59.992
80.12 H-neg V-pos
PCSA-DSB1S/PCS-DSB1 Data Solution Box (RGB IN A/RGB IN B)
Picture element Signal format
640 × 480
VGA mode
Macintosh 13”
VGA VESA 72 Hz
800 × 600
1024 × 768
fH (kHz)
fV (Hz)
Dot clock
(MHz)
Sync
31.469
59.94
25.17 H-neg V-neg
35
66.667
30.24 H-neg V-neg
37.861
72.809
31.5 H-neg V-neg
VGA VESA 75 Hz
37.5
75
31.5 H-neg V-neg
VGA VESA 85 Hz
43.269
85.008
36 H-neg V-neg
SVGA VESA 56 Hz
35.156
56.25
36 H-pos V-pos
SVGA VESA 60 Hz
37.879
60.317
40 H-pos V-pos
SVGA VESA 72 Hz
48.077
72.188
50 H-pos V-pos
SVGA VESA 75 Hz
46.875
75
49.5 H-pos V-pos
SVGA VESA 85 Hz
53.674
85.061
56.25 H-pos V-pos
XGA VESA 60 Hz
48.363
60.004
65 H-neg V-neg
XGA VESA 70 Hz
56.476
70.069
75 H-neg V-neg
XGA VESA 75 Hz
60.023
75.029
78.75 H-pos V-pos
Specifications
203
Appendix
1024 × 768
fH (kHz)
PCSA-DSB1S/PCS-DSB1 Data Solution Box (RGB OUT)
Picture element Signal format
1024 × 768
XGA VESA 60 Hz
fH (kHz)
48.363
fV (Hz)
60.004
Dot clock
(MHz)
Sync
65 H-neg V-neg
• While the picture input from the RGB IN A or RGB IN B connector is transmitted,
the picture of the input signal format (VGA, SVGA or XGA) is output from this
connector.
204
Specifications
Pin Assignment
ISDN UNIT connector
2
1
14
13
14-pin connector
Pin
Signal
Description
8
TD–
Receive–
9
19.5V
19.5V
10
NC
–
11
AGND
Analog ground
12
NC
–
13
RD+
Transmit data+
14
RD–
Transmit data–
15
GND
Ground
Pin
Signal
Description
1
GND
Ground
2
19.5V
19.5V
3
DCLK+
Clock+
4
DCLK–
Clock–
5
DR+
Receive data+
6
DR–
Receive data–
7
FS+
Frame sync+
8
FS–
Frame sync–
Pin
Signal
Description
9
DX+
Transmit data+
1
TPOP
Transmit+
10
DX–
Transmit data–
2
TPON
Transmit–
TPIP
Receive+
—
100BASE-TX/10BASE-T jack
1
8
Appendix
Modular jack
11
RX
Serial receive data
3
12
TX
Serial transmit data
4
NC
13
19.5V
19.5V
5
NC
—
Ground
6
TPIN
Receive–
7
NC
—
8
NC
—
14
GND
DSB connector
1
8
9
15
RGB IN connector
5
D-sub 15-pin (male)
1
10
6
15
11
Pin
Signal
Description
1
Video
Video signal
2
Video.GND
Video signal ground
Pin
Signal
Description
3
LINE A+
Line audio+
1
RED
R (red)
4
LINE A–
Line audio–
2
GREEN
G (green)
5
MIC+
Microphone+
3
BLUE
B (blue)
6
MIC–
Microphone–
4
NC
–
7
TD+
Receive+
Mini D-sub 15-pin (female)
Specifications
205
Pin
Signal
Description
5
GND
Ground
6
RED.GND
R (red) signal ground
7
GREEN.GND G (green) signal
ground
8
BLUE.GND
B (blue) signal
ground
9
NC
–
10
SYNC.GND
Sync signal ground
11
NC
–
12
NC
–
13
HSYNC
Horizontal sync
Pin
Signal
Description
14
VSYNC
Vertical sync
1
NC
–
15
NC
–
2
NC
–
3
TA
Transmit+
4
RA
Receive+
5
RB
Receive–
6
TB
Transmit–
7
NC
–
8
NC
–
Pin Assignment on Optional
Board Connectors
ISDN 1-3 jacks (PCSA-B384S/PCSB384)
ISDN 1-6 jacks (PCSA-B768S/PCSB768)
1
8
Modular jack
TERMINAL connector (PCSAB384S/PCS-B384/PCSA-B768S/PCSB768)
2
14
1
13
USB connector
Pin Signal
206
Specifications
Description
1
GND
Chassis ground
2
19.5V
19.5V
3
DCLK+
Clock+
4
DCLK–
Clock–
5
DR+
Transmit data+
6
DR–
Transmit data–
7
FS+
Frame sync+
8
FS–
Frame sync–
Pin Signal
Description
9
DX+
Receive data+
10
DX–
Receive data–
11
TX
Serial transmit data
12
RX
Serial receive data
13
19.5V
19.5V
14
GND
Ground
TERMINAL connector (PCSADSB1S/PCS-DSB1)
8
9
15
When connecting one-to-one
(Default)
When “Port Number Used” is set to
“Default” in the LAN Setup menu, the PCSTL50 uses the following port numbers.
Signal
Port number
RAS (PCS-TL50)
Any number from 2253
to 2255 (using
GateKeeper)
RAS
(GateKeeper)
1718 or 1719 (using
GateKeeper)
Q.931 (dial)
Any number from 2253
to 2255
D-sub 15-pin connector (male)
Pin
Signal
Description
Q.931 (answer)
1720
1
Video
Video signal
H.245
Any number from 2253
to 2255
2
Video.GND
Video signal ground
Audio RTP
49152
3
LINE A+
Line audio+
Audio RTCP
49153
4
LINE A–
Line audio–
Video RTP
49154
5
MIC+
Microphone+
6
MIC–
Microphone–
7
RD+
Receive+
8
RD–
Receive–
9
19.5V
19.5V
10
NC
–
11
AGND
Analog ground
12
NC
–
13
TD+
Transmit data+
14
TD–
Transmit data–
15
GND
Ground
Video RTCP
49155
FECC RTP
49156
FECC RTCP
49157
Data conference
RTP
49158
Data conference
RTCP
49159
When connecting one-to-one
(Custom: TCP Port Number 3000
and UDP Port Number 3000)
When “Port Number Used” is set to
“Custom” in the LAN Setup menu, the PCSTL50 uses the port numbers defined by the
values entered in “TCP Port Number” and
“UDP Port Number”.
For example, when “TCP Port Number” is
set to “3000” and “UDP Port Number” is set
to “3100”, the PCS-TL50 uses the following
port numbers.
Specifications
207
Appendix
1
List of Port Numbers Used on
the PCS-TL50
Signal
Port number
Signal
RAS (PCS-TL50)
Any number from 3000
to 3002 (using
GateKeeper)
Port number Port number
(First point) (Nth point)
Audio RTP
49152
49152+20 ×
(N-1)
RAS
(GateKeeper)
1718 or 1719 (using
GateKeeper)
Audio RTCP
49153
49153+20 ×
(N-1)
Q.931 (dial)
Any number from 3000
to 3002
Video RTP
49154
49154+20 ×
(N-1)
Q.931 (answer)
1720
Video RTCP
49155
H.245
Any number from 3000
to 3002
49155+20 ×
(N-1)
FECC RTP
49156
Audio RTP
3100
49156+20 ×
(N-1)
Audio RTCP
3101
FECC RTCP
49157
49157+20 ×
(N-1)
Video RTP
3102
Video RTCP
3103
Data conference 49158
RTP
49158+20 ×
(N-1)
FECC RTP
3104
FECC RTCP
3105
Data conference 49159
RTCP
49159+20 ×
(N-1)
Data conference
RTP
3106
Data conference
RTCP
3107
Using as the main terminal of a
multipoint videoconference
(Default)
When “Port Number Used” is set to
“Default” in the LAN Setup menu, the PCSTL50 operated as the main terminal uses the
following port numbers.
Signal
Port number Port number
(First point) (Nth point)
RAS (PCSTL50)
Any number from 2253 to
2263 (using Gate
Keeper)
RAS (Gate
Keeper)
1718 or 1719 (using Gate
Keeper)
Q.931 (dial)
Using as the main terminal of a
multipoint videoconference
(Custom: TCP Port Number 3000
and UDP Port Number 3000)
When “Port Number Used” is set to
“Custom” in the LAN Setup menu, the PCSTL50 uses the port numbers defined by the
values entered in “TCP Port Number” and
“UDP Port Number”.
For example, when “TCP Port Number” is
set to “3000” and “UDP Port Number” is set
to “3100”, the PCS-TL50 operated as the
main terminal uses the following port
numbers.
Signal
Port
Port number
number
(Nth point)
(First point)
RAS (PCSTL50)
Any number from 3000 to
3010 (using Gate
Keeper)
Any number from 2253 to
2263
RAS
(GateKeeper)
1718 or 1719 (using Gate
Keeper)
Q.931 (answer)
1720
Q.931 (dial)
H.245
Any number from 2253 to
2263
Any number from 3000 to
3010
Q.931 (answer)
1720
208
Specifications
H.245
Any number from 3000 to
3010
Audio RTP
3100
3100+20 ×
(N-1)
Audio RTCP
3101
3101+20 ×
(N-1)
Video RTP
3102
3102+20 ×
(N-1)
Video RTCP
3103
3103+20 ×
(N-1)
FECC RTP
3104
3104+20 ×
(N-1)
FECC RTCP
3105
3105+20 ×
(N-1)
Data conference 3106
RTP
3106+20 ×
(N-1)
Data conference 3107
RTCP
3107+20 ×
(N-1)
Videoconferencing
Room Layout
Be sure to position camera and microphone
appropriately in your videoconferencing
room.
Camera Range
represents the shooting area of the
camera when the zoom has been extended
fully. Use the measurements below as a
guide for the layout of your videoconference
room.
Top view (horizontal range at
maximum zoom-out)
1.5 m
(4.92 ft)
Port
Port number
number
(Nth point)
(First point)
4m
(13.12 ft)
5.6 m (18.36 ft)
Videoconferencing Room Layout
209
Appendix
Signal
Side view (vertical range at
maximum zoom-out)
3.9 m
(13.38 ft)
52˚
4 m (13.12 ft)
Layout Considerations
• Avoid having large, moving objects,
especially people, behind the participants,
as the quality of the picture transmitted to
the remote party will deteriorate.
• Do not seat participants in front of a wall
with fine stripe patterns.
• Choose a room where echo will not occur.
• Do not install the system near noise
sources such as air conditioners or copy
machines.
• Avoid placing the system in a room where
there are the speakers used for an in-house
broadcasting system.
Lighting Considerations
Do not point the camera toward a window
where sunlight comes in as back lighting
may decrease the contrast. If it is necessary,
cover the window with a thick curtain.
Adjust room lighting so that it falls on the
participants. Avoid direct light on the
210
display. Light intensity on faces should be
about 300 lux or more.
Videoconferencing Room Layout
If an inverter type or brightness-adjustable
type of fluorescent lamp is used, the
sensitivity of the Remote Commander may
deteriorate.
Glossary
* BONDING (Bandwidth on Demand
Interoperability Group) is a registered
trademark of THE BONDING
CONSORTIUM.
BRI
An abbreviation for Basic Rate Interface.
Basic interface standardized by the ITU-T.
Single ISDN has two B channels and one D
channel.
CIF
An abbreviation for Common Intermediate
Format. This format allows communication
between different color systems (NTSC and
PAL).
352 pixels × 288 lines
Codec
An abbreviation for Coder-Decoder. An
integrated device of a coder that converts an
analog audio/video signal to a digital data
stream and compresses it, and a decoder for
expanding to restore the original analog
signal.
DNS
An abbreviation for Domain Name System.
Defines the domain name system.
Echo Canceler
Device to eliminate echo that occurs when
transmitting audio.
Frame rate
The number of frames which can be
encoded/decoded in one second.
G.711
Audio encoding/decoding format
recommended by the ITU-T. A phone
bandwidth audio signal is converted to a
digital signal with a data rate of 64 Kbps. It
can be transmitted with a data rate of 56
Kbps.
G.722
Audio encoding/decoding format
recommended by the ITU-T. A 7-kHz
bandwidth audio signal is converted to a
digital signal with a data rate of 48 Kbps, 56
Kbps or 64 Kbps.
G.722.1
Audio encoding/decoding format
recommended by the ITU-T. A 7-kHz
bandwidth audio signal is converted to a
digital signal with a data rate of 24Kbps or
32 Kbps.
G.729
Audio encoding/decoding format
recommended by the ITU-T. A phone
bandwidth audio signal is converted to a
digital signal with the data rate of 8 Kbps.
G.723.1
Audio encoding/decoding format
recommended by the ITU-T. A phone
bandwidth audio signal is converted to a
digital signal with a data rate of 5.3 Kbps or
6.3 Kbps.
Glossary
211
Appendix
BONDING*
BONDING is one of the Inverse
Multiplexing methods allowing connection
of the videoconferencing system using
multiple ISDN lines. Dialing the first ISDN
line only enables you to connect all other
lines. Dialing the second and later lines is
automatically done by the communication
between the videoconferencing systems on
both sites. To use BONDING, it is required
that both videoconferencing systems are
equipped with the BONDING function and
that “Area Code” and “Local Number” in the
ISDN Setup menu on the answering site are
set correctly. As the communication
between the systems when using the
BONDING function is made via the ISDN
numbers on the answering site, setting of
“Area Code” and “Local Number” in the
ISDN Setup menu is not essential on the
dialing site.
DHCP
An abbreviation for Dynamic Host
Configuration Protocol. Manages IP
addresses in the network.
G.728
Audio encoding/decoding format
recommended by the ITU-T. A phone
bandwidth audio signal is converted to a
digital signal with a data rate of 16 Kbps.
Gatekeeper
Controls the access of H.323
videoconference devices on a network.
Administers the zone, access limitation,
audio/video bandwidth, and alias etc.
H.221
Frame structure for a 64 to 1920 Kbps
channel in audiovisual teleservices.
H.239
ITU-T standard for sharing data and
presentations with video. This supports the
dual video presentation mode, enabling
endpoints to receive and transmit video and
presentation data simultaneously.
H.261
Video codec for audio/visual services as p ×
64 Kbps. Videoconferencing standard that
defines a video coding algorithm, picture
format and error correcting technology for
communication between different
manufacturers’ video codecs.
H.263
A video coding algorithm based on the
H.261 standard. This format enables
communication via a lower bit rate.
H.263+
Video encoding/decoding format based on
the H.263 standard, added by the Annex I to
T (I, J, K …… T), that allows enhanced
picture quality and error resistance.
Normally, this format is a profile used with
a combination of some of the Annex for
H.263/H.263+.
H.264
A video coding algorithm newly
standardized by the ITU-T in May 2003.
This format realizes high-quality picture via
a lower bit rate. It provides an equal picture
quality via half as low bit rate as the H.263
format. The H.264 format is also called as
MPEG4 Advanced Video Coding (AVC).
212
Glossary
H.320
A videoconferencing standard for
communication between different
videoconferencing system.
H.323
This enables communications on the nonQOS (Quality of Service) LAN.
HMLP
See “MLP”.
I-MUX
An abbreviation for Inverse Multiplexer.
This protocol allows you to transmit the data
at 384 Kbps via 6B-channel.
Interlaced SIF
With TV pictures, 60 fields of pictures per
second are interlaced to provide high
resolution and smooth motion pictures.
The conventional videoconferencing system
uses CIF format pictures (352 pixel × 388
line) transmitted in 30 fields per second. In
CIF format, smooth motion pictures like TV
pictures cannot be obtained. In the Interlaced
SIF format, interlaced SIF size pictures (352
pixel × 240 line) can be transmitted at 60
frames per second. This enables display of
pictures with higher vertical resolution of
352 pixel × 480 lines, providing smooth
motion picture. However, a relatively higher
bit rate is required as the amount of
information is twice as much as that of the
CIF format.
ISDN
An abbreviation for Integrated Services
Digital Network. This is a communication
protocol by CCITT on transmission of
integrated voice, video, and data.
Bandwidths include basic (64 Kbps) and
primary rate (1.544 and 2.048 Mbps).
ITU-T
An abbreviation for International
Telecommunication Union,
Telecommunications.
Lip synchronization
A function that synchronizes sound with
motion. Sound processing is much faster
than motion processing, thus sound and
motion sometimes get out of step with each
other.
MCU
An abbreviation for Multipoint Control
Unit. When connecting a MCU, a multipoint
videoconference can be held.
MPEG4
A video coding algorithm recommended by
the ISO/IEC based on the H.263+ standard.
Adding some tools provides some
improvement of picture quality compared
with the H.263+ standard. The MPEG4
format is commonly used for personal
computers, cellular phones, etc.
P in P
An abbreviation for “Picture in Picture.”
This is a function which allows you to
monitor your own party on a small window
on your TV monitor.
QCIF
An abbreviation for Quater CIF. The number
of pixels is a quarter than one of CIF format.
176 pixels × 144 lines
Secondary terminal
Normally, a multipoint videoconference is
not available unless the video and audio
modes and transmission rate of the
videoconferencing systems of all the sites
are the same.*1 For a multipoint
videoconference the terminal that can be
connected in the same modes is called a
primary terminal, while a secondary
terminal is the terminal in which some of the
functions are restricted since the connection
is not enabled with the same modes. The
*1 Difference between the NTSC and PAL
color systems is permitted.
*2 Receiving the video signals from this
terminal may be available with the system.
SNMP
An abbreviation for Simple Network
Management Protocol. This protocol is for
management information between the
management station and the managed
terminals.
SPID
An abbreviation for Service Profile ID.
Sub-address
An identification number given to devices
sharing a common ISDN line .
TOS
Inputting the information data in the TOS
field of the IP address allows the
communication system to judge the packet
transmission priority, etc. It also enables
change of path according to the types of
service (Delay or Size).
Glossary
213
Appendix
MLP
Data communication is also available during
communication of video/audio signals
between the videoconferencing systems.
The MLP or HMLP is a protocol for data
communication such as NetMeeting. Using
the HMLP protocol allows faster data
transmission.
restriction on the functions depends on the
conditions described in “Notes on
Secondary Terminals” under “Chapter 8
Multipoint Videoconference”.
For example, this system does not transmit
video signals to a terminal that has no
common formats but can communicate via
audio signals. In this case, the terminal in
which picture viewing is not available is
regarded as a secondary terminal.*2 A
terminal communicated via a normal phone
included in the multipoint videoconference
is also called a secondary terminal. For
details on secondary terminals, see “Notes
on Secondary Terminals” on page 166.
Menu Configuration
The menus of the camera are configured as described below.
For detailed information, see pages in parentheses. The initial settings of each
item are bolded.
Launcher
One Touch Dial Operation
Dial, Edit, Delete
(page 65)
(page 70)
Phone Book
List Edit
(page 59)
Index
IP
A
Line I/F
Number of Lines
LAN Bandwidth
Auto Dial
Detailed Dial
Detailed Dial
(page 78)
IP
A
Line I/F
Number of Lines
LAN Bandwidth
MENU button
Still Image
(page 113)
Camera
(page 91)
LAN, ISDN, ISDN (Telephone),
LAN,
ISDN,
LAN&ISDN
1B(64K), 2B(128K), 3B(192K), 4B(256K),
5B(320K), 6B(384K), 8B(512K), 12B(768K)
64Kbps, 128Kbps, 256Kbps,
384Kbps, 512Kbps, 768Kbps,
1024Kbps, 1920Kbps,
Other (1–1920Kbps)
On, Off
LAN, ISDN, ISDN(2B), ISDN (Telephone),
LAN ,
ISDN,
LAN&ISDN
1B(64K), 2B(128K), 3B(192K), 4B(256K),
5B(320K), 6B(384K), 8B(512K), 12B(768K)
64Kbps, 128Kbps, 256Kbps
384Kbps, 512Kbps, 768Kbps,
1024Kbps, 1920Kbps,
Other (1–1920Kbps)
Send, Clear
Receive, Clear
Continuous Send, Stop
Save
Preset Save
1, 2, 3, 4, 5, 6
Preset Load
1, 2, 3, 4, 5, 6
Adjustments
Angle, Zoom, Brightness
Memory Stick (page 106)
Setup
Dial Setup
(page 39)
Answer Setup
General Setup
Audio Setup
LAN Setup
Administrator Setup
ISDN Setup
Multipoint Setup
Machine Information
Status
Encryption via LAN
214
Menu Configuration
A
B
C
D
E
F
G
H
I
J
K
A Dial Setup
Page: 1/4
(page 40)
Line I/F
Bonding
Number of Lines
LAN Bandwidth
Prefix
Restrict
Auto, 56K
Page: 2/4
ALL, Interlaced SIF, H.264, MPEG4, H.263+,
H.261
Video Frame
15fps, 30fps
Audio Mode
ALL, MPEG4 Audio,
G.722.1, G.722, G.729, G.728, G.723.1, G.711
Far End Camera Control On, Off
T.120 Data
On, Off
H.239
On, Off
Page: 3/4
Prefix-A
Prefix-B
Prefix-C
Page: 4/4
Telephone Mode
More Options Enable
User Name Input
Auto, G.711µ-law, G.711A-law
On, Off
On, Off
Page: 1/2
Auto Answer
Number of Lines
Auto Answer, Off
1B(64K), 2B(128K), 3B(192K), 4B(256K),
5B(320K), 6B(384K), 8B(512K), 12B(768K)
Auto, 56K
64Kbps, 128Kbps, 256Kbps, 384Kbps,
512Kbps, 768Kbps, 1024Kbps, 1920Kbps,
Other (1–1920Kbps)
On, Off
On, Off
(page 43)
Video Mode
Restrict
LAN Bandwidth
ISDN MSN
Mic on Answer
Page: 2/2
Video Mode
ALL, Interlaced SIF, H.264, MPEG4,
H.263+, H.261
Video Frame
15fps, 30fps
Audio Mode
ALL, MPEG4 Audio, G.722.1, G.722, G.729,
G.728, G.723.1, G.711
Far End Camera Control On, Off
T.120 Data
On, Off
H.239
On, Off
Menu Configuration
215
Appendix
B Answer Setup
LAN, ISDN, ISDN (Telephone)
Auto, On
1B(64K), 2B(128K), 3B(192K), 4B(256K),
5B(320K), 6B(384K), 8B(512K), 12B(768K)
64Kbps, 128Kbps, 256Kbps, 384Kbps,
512Kbps, 768Kbps, 1024Kbps, 1920Kbps,
Other (1–1920Kbps)
Prefix-None, Prefix-A,
Prefix-B, Prefix-C
C General Setup
Page: 1/3
Terminal Name
Menu Mode
Simple Menu, Detail Menu
Number of One Touch Buttons to Display
6, 30
DSB Output
Video, RGB
Time Display
On, Off
Page: 2/3
Clock Set
Last Number Registration
T.120 PC Address
(page 45)
Page: 3/3
D Audio Setup
Language
English, French, German, Japanese,
Spanish, Italian, Simplified Chinese,
PORT (Portuguese)
Control by Far End
Character Input Help
Memory Stick Format
On, Off
On, Off
Page: 1/2
Mic Select
CTE
Echo Canceler
Lip Sync
Internal, DSB MIC
Off, DSB AUX IN
Internal, External, Off
On, Off
Page: 2/2
Beep Sound
Sound Effect
Dial Tone
Ringer Level
On, Off
On, Off
On, Off
Off, 1, 2, 3
(page 46)
216
On, Off
Menu Configuration
E LAN Setup
DHCP Mode
Host Name
IP Address
Network Mask
Gateway Address
DNS Address
Auto, Off
Page: 2/8
Gatekeeper Mode
Gatekeeper Address
User Alias
User Number
Auto, On, Off
Page: 3/8
SNMP Mode
Trap Destination
Community
Description
Location
Contact
On, Off
Page: 4/8
NAT Mode
NAT Address
Packet Resend Request
Adaptive Rate Control
LAN Mode
On, Off
Appendix
Page: 1/8
(page 47)
On, Off
On, Off
Auto Negotiation,100Mbps Full Duplex,
100Mbps Half Duplex, 10Mbps Full Duplex,
10Mbps Half Duplex
Page: 5/8
Port Number Used
TCP Port Number
UDP Port Number
Custom, Default
Page: 6/8
TOS
IP Precedence
Low Delay
High Throughput
High Reliability
Minimum Cost
Diffserve
Off, IP Precedence, Diffserve
Page: 7/8
PPPoE
PPPoE User Name
PPPoE Password
On, Off
Page: 8/8
Fixed IP for PPPoE
On, Off
Fixed IP Address for PPPoE
PPPoE DNS
Specify, Obtain automatically
Primary DNS
Secondary DNS
On, Off
On, Off
On, Off
On, Off
Menu Configuration
217
F Administrator Setup
Page: 1/2
Administrator Password
Superuser Password
Remote Access Password
Web Monitor
On, Off
Page: 2/2
Save Phone Book
Load Phone Book
Auto Dialing
On, Off
Create Private Phone Book
Delete Private Phone Book
Copy to Private Phone Book
(page 51)
G ISDN Setup
Page: 1/7
Country/Region
(page 52)
Country/Region Code
Protocol
Europe (excluding France),
France, Japan, USA, China, Other
Japan NTT, Euro ISDN, Euro
ISDN (France), National ISDN,
5ESS (P-MP), 5ESS (P-P), DMS-100
Page: 2/7
Area Code–Local Number A1–C2
Page: 3/7
Area Code–Local Number D1–F2
Page: 4/7
Sub Address A1–C2
Page: 5/7
Sub Address D1–F2
Page: 6/7
SPID A1–C2*
Page: 7/7
SPID D1–F2*
* Displayed only when “USA” is selected in “Country/Region”.
H Multipoint
Setup
Page: 1/2
(page 55)
Page: 2/2
218
Menu Configuration
Multipoint Mode
Broadcast Mode
Number of Lines
Total LAN Bandwidth
Restrict
On, Off
Split, Voice Activate
1B(64K), 2B(128K), 4B(256K), 6B(384K)
384Kbps, 512Kbps, 768Kbps, 1024Kbps,
1920Kbps, Other (1–1920Kbps)
Auto, 56K
Video Mode
Audio Mode
Display Terminal Name
Far End Camera Control
Reject Answer
ALL, H.263, H.261
ALL, G.722, G.728, G.711
On, Off
On, Off
On, Off
I Machine Information
(page 56)
Host Version
ISDN UNIT Version
DSB Version
DSP Version
LCD Controller Version
Software Option
Option I/F
Host Name
IP Address
MAC Address
Serial Number
None, Multipoint (H.323),
Multipoint (H.320),
Multipoint (H.320 + H.323)
None, ISDN UNIT, DSB
Appendix
Menu Configuration
219
J Status
Communication Status
Connection A*
(page 57)
(Encode)
(Decode)
ISDN Line Status
LAN Line Status
LAN Connection Status
...
...
Connection E*
Audio Mode
Video Mode
Frame Rate
Rate
MLP Rate
HMLP Rate
LSD Rate
Line I/F
Camera Control
Data Control
DSB
(Encode)
(Decode)
Status**
Cause Code
Status**
Cause Code
Send
/Receive
Audio Mode
Video Mode
Frame Rate
Rate
MLP Rate
HMLP Rate
LSD Rate
Line I/F
Camera Control
Data Control
DSB
Audio Bit Rate
Video Bit Rate
Receive Packet Loss
Audio Data
Video Data
Camera Control Data
Packet Recovery Ratio
* During a multipoint videoconference Connection A to E with the
terminal name appear according to the points connected.
** While not in communication only these items are displayed.
K Encryption via LAN
Encryption via LAN
(page 59)
Encryption Password
220
Menu Configuration
On, Off
Sony Corporation
