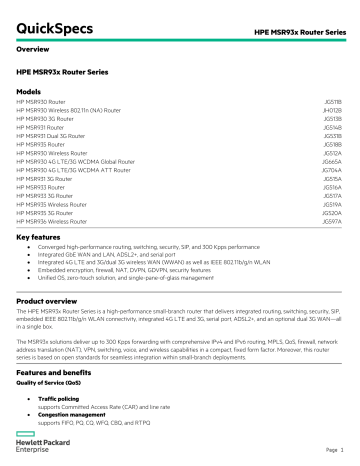

HPE MSR93x Router Series

HPE MSR93x Router Series

QuickSpecs

HPE MSR93x Router Series

Overview

HPE MSR93x Router Series

Models

HP MSR930 Router

HP MSR930 Wireless 802.11n (NA) Router

HP MSR930 3G Router

HP MSR931 Router

HP MSR931 Dual 3G Router

HP MSR935 Router

HP MSR930 Wireless Router

HP MSR930 4G LTE/3G WCDMA Global Router

HP MSR930 4G LTE/3G WCDMA ATT Router

HP MSR931 3G Router

HP MSR933 Router

HP MSR933 3G Router

HP MSR935 Wireless Router

HP MSR935 3G Router

HP MSR936 Wireless Router

Key features

Converged high-performance routing, switching, security, SIP, and 300 Kpps performance

Integrated GbE WAN and LAN, ADSL2+, and serial port

Integrated 4G LTE and 3G/dual 3G wireless WAN (WWAN) as well as IEEE 802.11b/g/n WLAN

Embedded encryption, firewall, NAT, DVPN, GDVPN, security features

Unified OS, zero-touch solution, and single-pane-of-glass management

JG511B

JH012B

JG513B

JG514B

JG531B

JG518B

JG512A

JG665A

JG704A

JG515A

JG516A

JG517A

JG519A

JG520A

JG597A

Product overview

The HPE MSR93x Router Series is a high-performance small-branch router that delivers integrated routing, switching, security, SIP, embedded IEEE 802.11b/g/n WLAN connectivity, integrated 4G LTE and 3G, serial port, ADSL2+, and an optional dual 3G WAN—all in a single box.

The MSR93x solutions deliver up to 300 Kpps forwarding with comprehensive IPv4 and IPv6 routing, MPLS, QoS, firewall, network address translation (NAT), VPN, switching, voice, and wireless capabilities in a compact, fixed form factor. Moreover, this router series is based on open standards for seamless integration within small-branch deployments.

Features and benefits

Quality of Service (QoS)

Traffic policing supports Committed Access Rate (CAR) and line rate

Congestion management supports FIFO, PQ, CQ, WFQ, CBQ, and RTPQ

Page 1

QuickSpecs

Overview

Weighted random early detection (WRED)/random early detection (RED) delivers congestion avoidance capabilities through the use of queue management algorithms

Other QoS technologies support traffic shaping, FR QoS, and MP QoS/LFI

HPE MSR93x Router Series

Management

Industry-standard CLI with a hierarchical structure reduces training time and expenses, and increases productivity in multivendor installations

Management security restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide

Telnet and SNMP access; local and remote syslog capabilities allow logging of all access

SNMPv1, v2, and v3 provide complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption

Remote monitoring (RMON) uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group

FTP, TFTP, and SFTP support offers different mechanisms for configuration updates; FTP allows bidirectional transfers over a TCP/IP network; trivial

FTP (TFTP) is a simpler method using User Datagram Protocol (UDP); Secure File Transfer Protocol (SFTP) runs over an

SSH tunnel to provide additional security

Debug and sampler utility supports ping and traceroute for both IPv4 and IPv6

Network Time Protocol (NTP) synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock dependent devices within the network so that the devices can provide diverse applications based on the consistent time

Information center provides a central repository for system and network information; aggregates all logs, traps, and debugging information generated by the system and maintains them in order of severity; outputs the network information to multiple channels based on user-defined rules

Connectivity

Packet storm protection protects against broadcast, multicast, or unicast storms with user-defined thresholds

Loopback supports internal loopback testing for maintenance purposes and an increase in availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port basis for added flexibility

Integrated 3G Wireless WAN (WWAN) capability o o offers models with built-in 3G and dual 3G WWAN connectivity supports up to 4 antennas in dual 3G models for improved connectivity and throughput o comes with default 3G antenna; additional 3G antennas available

3G and 4G LTE access

Supports popular 3G and 4G LTE USB modems; for a list of supported products, contact your local Hewlett Packard

Enterprise representative

Multiple Gigabit Ethernet connection options provides GbE WAN and GbE LAN ports onboard

4G LTE Verizon and global carrier support delivers embedded 4G LTE wireless WAN backhaul connectivity with two different carrier chipset options

Page 2

QuickSpecs HPE MSR93x Router Series

Overview

Multiple advanced WAN interfaces provides traditional connection options including serial, ADSL2+ (Annex A/M, Annex B/J, over POTS or ISDN), 4-pair

G.SHDSL and WAN Gigabit Ethernet ports; offers wireless access with 4G LTE and 3G connectivity

Performance

Forwarding performance provides up to 300 Kpps; meets current and future bandwidth-intensive application demands for enterprise businesses

Embedded encryption supports up to 100 VPN tunnels and up to 160 Mb/s encryption throughput

Gigabit Ethernet interface provides a connection to the network that eliminates the network as a bottleneck

Resiliency and high availability

Backup Center acts as a part of the management and backup function to provide backup for device interfaces; delivers reliability by switching traffic over to a backup interface when the primary one fails

Virtual Router Redundancy Protocol (VRRP) allows groups of two routers to dynamically back each other up to create highly available routed environments; and supports VRRP load balancing

Wireless WAN (WWAN) with integrated 3G allows small-branch users to maintain remote office data connectivity to data center or headquarters, using the integrated carrier connections

Layer 2 switching

Spanning Tree Protocol (STP) supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE

802.1s Multiple Spanning Tree Protocol (MSTP)

Internet Group Management Protocol (IGMP) and Multicast

Listener Discovery (MLD) protocol snooping controls and manages the flooding of multicast packets in a Layer 2 network

Port mirroring duplicates port traffic (ingress and egress) to a local or remote monitoring port

Port isolation increases security by isolating ports within a VLAN while still allowing them to communicate with other VLANs

VLANs supports IEEE 802.1Q-based VLANs

sFlow allows traffic sampling

Layer 3 services

Address Resolution Protocol (ARP) determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a

Layer 2 network

Dynamic Host Configuration Protocol (DHCP) simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across subnets

Page 3

QuickSpecs HPE MSR93x Router Series

Overview

Built-in applications support o

Device management controller (DMC): acts as the gateway of a virtual "network training room" o o

Wisdom Network (WiNet) technology: helps manage a large number of scattered network devices centrally

Remote terminal connection (RTC) and true type terminal (TTY) access: allows the connection of a terminal to a router through an asynchronous interface for data exchange with a front-end processor (FEP) or another terminal through the router

Layer 3 routing

Static IPv4 routing provides simple manually configured IPv4 routing

Routing Information Protocol (RIP) uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection

Open shortest path first (OSPF) delivers faster convergence; uses this link-state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and

MD5 authentication for increased security and graceful restart for faster failure recovery

Border Gateway Protocol 4 (BGP-4) delivers an implementation of the Exterior Gateway Protocol (EGP) utilizing path vectors; uses TCP for enhanced reliability for the route discovery process; reduces bandwidth consumption by advertising only incremental updates; supports extensive policies for increased flexibility; scales to very large networks

Intermediate system to intermediate system (IS-IS) uses a path vector Interior Gateway Protocol (IGP), which is defined by the ISO organization for IS-IS routing and extended by IETF RFC 1195 to operate in both TCP/IP and the OSI reference model (Integrated IS-IS)

Static IPv6 routing provides simple manually configured IPv6 routing

Dual IP stack maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design

Routing Information Protocol next generation (RIPng) extends RIPv2 to support IPv6 addressing

OSPFv3 provides OSPF support for IPv6

BGP+ extends BGP-4 to support Multiprotocol BGP (MBGP), including support for IPv6 addressing

IS-IS for IPv6 extends IS-IS to support IPv6 addressing

IPv6 tunneling allows IPv6 packets to traverse IPv4-only networks by encapsulating the IPv6 packet into a standard IPv4 packet; supports manually configured, 6to4, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnels; is an important element for the transition from IPv4 to IPv6

Policy routing allows custom filters for increased performance and security; supports ACLs, IP prefix, AS paths, community lists, and aggregate policies

BGP4+ support utilizes the BGP-4 (RFC 4271) exterior routing protocol for routing integrity and reliability between different autonomous systems

Security

Page 4

QuickSpecs HPE MSR93x Router Series

Overview

Access control list (ACL) supports powerful ACLs for both IPv4 and IPv6; ACLs are used for filtering traffic to prevent unauthorized users from accessing the network, or for controlling network traffic to save resources; rules can either deny or permit traffic to be forwarded; rules can be based on a Layer 2 header or a Layer 3 protocol header; rules can be set to operate on specific dates or times

Terminal Access Controller Access-Control System (TACACS+) delivers an authentication tool using TCP with encryption of the full authentication request, providing additional security

Network login allows authentication of multiple users per port using the IEEE 802.1X standard

Remote Authentication Dial-in user Service (RADIUS) login

eases security access administration by using a password authentication server

NAT enablement: facilitates one-to-one NAT, many-to-many NAT, and NAT control—enabling NAT-PT to support multiple connections; supports blacklisting in the NAT/NAT-PT; and enables a limit on the number of connections, session logs, and multiple instances

SSHv2: uses external servers to securely log in to a remote device or MSRs from a remote location; protects against IP spoofing and plain-text password interception, with authentication and encryption; and increases the security of SFTP transfers

Unicast Reverse Path Forwarding (URPF): allows normal packets to be forwarded correctly, but discards the attaching packets due to lack of a reverse path route or an incorrect inbound interface; and helps prevents source spoofing and distributed attacks

IPSec VPN: supports DES, 3DES, and AES 128/192/256 encryption as well as MD5 and SHA-1 authentication

DVPN: collects, maintains, and distributes dynamic public addresses through the VPN Address Management (VAM) protocol, making the VPN establishment available between enterprise branches that use dynamic addresses to access the public network; compared to traditional VPN technologies, the DVPN technology is more flexible and has richer features, such as

NAT traversal of DVPN packets, AAA identity authentication, IPSec protection of data packets, and multiple VPN domains

Convergence

Internet Group Management Protocol (IGMP) utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks; supports

IGMPv1, v2, and v3

Protocol Independent Multicast (PIM) defines modes of Internet IPv4 and IPv6 multicasting to allow one-to-many and many-to-many transmission of information; supports PIM Dense Mode (DM), Sparse Mode (SM), and Source-Specific Mode (SSM)

Multicast Source Discovery Protocol (MSDP) allows multiple PIM-SM domains to interoperate; is used for inter-domain multicast applications

Multicast Border Gateway Protocol (MBGP) allows multicast traffic to be forwarded across BGP networks and kept separate from unicast traffic

Internet Group Management Protocol (IGMP) snooping and proxy o monitors and observes IGMP network traffic, allowing the network device to listen in on the IGMP conversation o between hosts and routers—enabling better IP multicast stream control allows a multicast router to learn multicast group membership information; and enables it to forward multicast packets

Multicast VPN and bidirectional protocol independent-multicasting (PIM) o allows rich multicast services such as video conferencing and data sharing amongst enterprise VPN-based deployments

Page 5

QuickSpecs

Overview

o improves scalability of various applications through the use of bidirectional PIM

Integration

HPE MSR93x Router Series

Embedded NetStream improves traffic distribution using powerful scheduling algorithms, including Layer 4 to 7 services; monitors the health status of servers and firewalls

Embedded VPN firewall o o o provides enhanced stateful packet inspection and filtering delivers advanced VPN services with Triple DES (3DES) and Advanced Encryption Standard (AES) encryption at high performance and low latency offers Web content filtering and application prioritization and enhancement

Additional information

Green initiative support provides support for RoHS and WEEE regulations

OPEX savings simplifies and streamlines deployment, management, and training through the use of a common operating system, thereby cutting costs as well as reducing the risk of human errors associated with having to manage multiple operating systems across different platforms and network layers

Faster time to market allows new and custom features to be brought rapidly to market through engineering efficiencies, delivering better initial and ongoing stability

Warranty and support

1-year Warranty 2.0

See http://www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.

Software releases to find software for your product, refer to

http://www.hpe.com/networking/support ; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary

Page 6

QuickSpecs HPE MSR93x Router Series

Configuration

Build To Order:

BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

HP MSR930 Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

JG511B

See Configuration

NOTE:2

JG511B#B2B PDU Cable NA/MEX/TW/JP

C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

• C15 PDU Jumper Cord (ROW)

HP MSR930 Wireless Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• Wireless - 802.11 b/g/n

• Included antennas: 2

• Maximum antennas: 2

Russian Reduced Encryption

PDU Cable NA/MEX/TW/JP

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

NEMA L6-20P Cord (NA/MEX/JP/TW)

HP MSR930-W (NA) Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• Wireless - 802.11 b/g/n

• Included antennas: 2

Maximum antennas: 2

PDU Cable NA/MEX/TW/JP

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

High Volt Switch to Wall Power Cord

• NEMA L6-20P Cord (NA/MEX/JP/TW)

JG511B#B2C

JG512A

See Configuration

NOTE:2, 3, 5

JG512A#A59

JG512A#B2B

JG512A#B2C

JG512A#B2E

JH012B

See Configuration

NOTE:2, 3

JH012B#B2B

JH012B#B2E

Page 7

QuickSpecs

Configuration

HP MSR930 3G Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• Included 3G antennas: 1

Maximum 3G antennas: 2

PDU Cable NA/MEX/TW/JP

C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

• C15 PDU Jumper Cord (ROW)

HP MSR931 Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 Serial port (min=0 \ max=1 Serial Port Cable)

PDU Cable NA/MEX/TW/JP

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

• C15 PDU Jumper Cord (ROW)

HP MSR931 3G Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 Serial port (min=0 \ max=1 Serial Port Cable)

• Included 3G antennas: 1

Maximum 3G antennas: 2

Russian Reduced Encryption

HP MSR933 Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 8-wire G.SHDSL port

Russian Reduced Encryption

PDU Cable NA/MEX/TW/JP

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

HPE MSR93x Router Series

JG513B

See Configuration

NOTE:2

JG513B#B2B

JG513B#B2C

JG514B

See Configuration

NOTE:2, 4

JG514B#B2B

JG514B#B2C

JG515A

See Configuration

NOTE:5, 4, 9

JG515A#A59

JG516A

See Configuration

NOTE:2, 3, 5

JG516A#A59

JG516A#B2B

JG516A

#B2C

JG516A#B2E

Page 8

QuickSpecs

Configuration

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HP MSR933 3G Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 8-wire G.SHDSL port

• Embedded 3G

• Included 3G antennas: 1

Maximum 3G antennas: 2

Russian Reduced Encryption

PDU Cable NA/MEX/TW/JP

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HP MSR935 Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 ADSL2+ ANNEX A/M port

PDU Cable NA/MEX/TW/JP

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

• C15 PDU Jumper Cord (ROW)

HP MSR935 Wireless Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 ADSL2+ ANNEX A/M port

• Wireless - 802.11 b/g/n

• Included antennas: 2

• Maximum antennas: 2

Russian Reduced Encryption

PDU Cable NA/MEX/TW/JP

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

• C15 PDU Jumper Cord (ROW)

HPE MSR93x Router Series

JG517A

See Configuration

NOTE:2, 3, 5

JG517A#A59

JG517A #B2B

JG517A#B2C

JG517A#B2E

JG518B

See Configuration

NOTE:2

JG518B#B2B

JG518B#B2C

JG519A

See Configuration

NOTE:2, 3, 5

JG519A#A59

JG519A#B2B

JG519A#B2C

Page 9

QuickSpecs

Configuration

High Volt Switch to Wall Power Cord

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HP MSR935-W (NA) Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 ADSL2+ ANNEX A/M port

• Wireless - 802.11 b/g/n

• Included antennas: 2

Maximum antennas: 2

High Volt Switch to Wall Power Cord

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HP MSR935 3G Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 ADSL2+ ANNEX A/M port

• Embedded 3G

• Included 3G antennas: 1

• Maximum 3G antennas: 2

Russian Reduced Encryption

PDU Cable NA/MEX/TW/JP

C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HP MSR931 Dual 3G Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 Serial port (min=0 \ max=1 Serial Port Cable)

• Included 3G antennas: 2

• Maximum 3G antennas: 4

PDU Cable NA/MEX/TW/JP

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

C15 PDU Jumper Cord (ROW)

HP MSR930 4G LTE/3G CDMA Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

HPE MSR93x Router Series

JG519A#B2E

JH013A

See Configuration

NOTE:2, 3

JH013A#B2E

JG520A

See Configuration

NOTE:2, 3, 5

JG520A#A59

JG520A#B2B

JG520A#B2C

JG520A#B2E

JG531B

See Configuration

NOTE:2, 4

JG531B#B2B

JG531B#B2C

JG596A

See Configuration

Page 10

QuickSpecs

Configuration

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 GPS L1/GLONASS Antenna port

• 4G-LTE-V

• Included 4G antennas: 2

Maximum 4G antennas: 2

PDU Cable NA/MEX/TW/JP

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

High Volt Switch to Wall Power Cord

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HP MSR930 4G LTE/3G WCDMA ATT Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 GPS L1/GLONASS Antenna port

• 4G-LTE

• Included 4G antennas: 2

Maximum 4G antennas: 2

HP MSR936 Wireless Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 ADSL2+ ANNEX B/J port

• Wireless - 802.11 b/g/n

• Included antennas: 2

• Maximum antennas: 2

Russian Reduced Encryption

PDU Cable NA/MEX/TW/JP

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HP MSR930 4G LTE/3G WCDMA Global Router

• 1 RJ-45 autosensing 10/100/1000 WAN port

• 4 RJ-45 autosensing 10/100/1000 LAN ports

• 1 GPS L1/GLONASS Antenna port

• 4G-LTE-G

• Included 4G antennas: 2

• Maximum 4G antennas: 2

Russian Reduced Encryption

HPE MSR93x Router Series

NOTE:2, 3

JG596A#B2B

JG596A#B2E

JG704A

See Configuration

NOTE:9

JG597A

See Configuration

NOTE:2, 5

JG597A#A59

JG597A#B2B

JG597A#B2C

JG597A#B2E

JG665A

See Configuration

NOTE:2, 5

JG665A#A59

Page 11

QuickSpecs HPE MSR93x Router Series

Configuration

PDU Cable NA/MEX/TW/JP

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

• NEMA L6-20P Cord (NA/MEX/JP/TW)

Configuration Rules:

Note 2

Note 3

Note 4

Localization required on orders without #B2B, #B2C or #B2E. (See Localization Menu)

#B2E is Offered only in AMS, Taiwan, and Japan.

The following Cables install into this Router:

HP X200 V.24 DTE 3m Serial Port Cable

HP X200 V.24 DCE 3m Serial Port Cable

HP X200 V.35 DTE 3m Serial Port Cable

Note 5

Note 9

HP X200 V.35 DCE 3m Serial Port Cable

HP X260 RS449 3m DTE Serial Port Cable

HP X260 RS449 3m DCE Serial Port Cable

HP X260 RS530 3m DTE Serial Port Cable

HP X260 RS530 3m DCE Serial Port Cable

If this product is ordered for delivery to Russia, it must be ordered with the A59 option (also allowed for other countries desiring Low Encryption), then #A59 is the required option in addition to Localization or #B2x options.

Localization required. (See Localization Menu)

Router Options

Mounting Kit

HP MSR930 Chassis Rack Mount Kit

JG665A#B2B

JG665A#B2C

JD519A

JD521A

JD523A

JD525A

JF825A

JF826A

JF827A

JF828A

JG665A#B2E

HP MSR931/3/5/6 Chassis Rack Mount Kit

Configuration Rules:

Note 1 This Rack Kit is supported on the following Routers:

HP MSR930 Router

JG852A

See Configuration

NOTE:1

JG853A

See Configuration

NOTE:2

JG511B

Page 12

QuickSpecs HPE MSR93x Router Series

Configuration

Note 2

HP MSR930 Wireless Router

HP MSR930 Wireless 802.11n (NA) Router

HP MSR930 3G Router

HP MSR930 4G LTE/3G CDMA Router

HP MSR930 4G LTE/3G WCDMA Global Router

HP MSR930 4G LTE/3G WCDMA ATT Router

This Rack Kit is supported on the following Routers:

HP MSR931 Router

HP MSR931 3G Router

HP MSR931 Dual 3G Router

HP MSR933 Router

HP MSR933 3G Router

HP MSR935 Router

HP MSR935 Wireless Router

HP MSR935 Wireless 802.11n (NA) Router

HP MSR935 3G Router

3G / 4G Antenna's

HP MSR936 Wireless Router

(JG513B, JG515A, JG517A, JG520A) System (std 1 // max 2) User Selection (min 0 // max 1) per Router

JG512A

JH012B

JG513B

JG596A

JG665A

JG704A

JG514B

JG515A

JG531B

JG516A

JG517A

JG518B

JG519A

JH013A

JG520A

JG597A

(JG512A, JH012B, JG519A, JH013A, JG597A, JG596A, JG665A, JG704A) System (std 2 // max 2) User Selection (min 0 // max 0) per

Router

(JG531B) System (std 2 // max 4) User Selection (min 0 // max 2) per Router

HP MSR 3G Antenna JG521A

See Configuration

NOTE:1

HP MSR 4G 5W Antenna

• Spare Parts Only

JG669A

Configuration Rules:

Note 1 This Antenna is supported on the following Routers:

See Configuration

NOTE:3

Note 3

HP MSR930 3G Router

HP MSR931 3G Router

HP MSR933 3G Router

HP MSR935 3G Router

HP MSR931 Dual 3G Router

This Antenna is supported on the following Routers:

HP MSR930 4G LTE/3G CDMA Router

HP MSR930 4G LTE/3G WCDMA Global Router

HP MSR930 4G LTE/3G WCDMA ATT Router

JG513B

JG515A

JG517A

JG520A

JG531B

JG596A

JG665A

JG704A

Page 13

QuickSpecs HPE MSR93x Router Series

Configuration

Antenna Cables

System (std 0 // max 1) User Selection (min 0 // max 1) per Antenna (Supported on JG521A, JG704A and

JG669A)

HP MSR 3G RF 2.8m Antenna Cable

HP MSR 3G RF 6m Antenna Cable

HP MSR 3G RF 15m Antenna Cable

Cables

HP X200 V.24 DTE 3m Serial Port Cable

HP X200 V.24 DCE 3m Serial Port Cable

HP X200 V.35 DTE 3m Serial Port Cable

HP X200 V.35 DCE 3m Serial Port Cable

HP X260 RS449 3m DTE Serial Port Cable

HP X260 RS449 3m DCE Serial Port Cable

HP X260 RS530 3m DTE Serial Port Cable

HP X260 RS530 3m DCE Serial Port Cable

JG522A

JG666A

JG667A

JD519A

JD521A

JD523A

JD525A

JF825A

JF826A

JF827A

JF828A

Page 14

QuickSpecs HPE MSR93x Router Series

Technical Specifications

HP MSR930 Router (JG511B)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

4 RJ-45 autosensing 10/100/1000 LAN ports

Physical characteristics Dimensions

9.06(w) x 6.3(d) x 1.72(h) in (23 x 16 x 4.36 cm)

Weight

Memory and processor Processor

3.97 lb (1.8 kg)

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash

Performance

Environment

Throughput

Routing table size

up to 300 Kpps (64-byte packets)

10000 entries (IPv4), 5000 entries (IPv6)

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

Nonoperating/Storage temperature

5% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

5% to 90%, noncondensing

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms up to 6,561 ft (2 km)

Electrical characteristics Maximum heat dissipation

Voltage

20 BTU/hr (21.1 kJ/hr)

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

Emissions

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

Telecom

Management

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

Services

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet MIB

Refer to the Hewlett Packard Enterprise website at

http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR930 Wireless 802.11n (NA) Router (JH012B)

Page 15

QuickSpecs HPE MSR93x Router Series

Technical Specifications

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

4 RJ-45 autosensing 10/100/1000 LAN ports

802.11b/g/n

AP characteristics

Radios (built-in)

Physical characteristics Dimensions

Weight

9.06(w) x 6.3(d) x 1.72(h) in (23 x 16 x 4.36 cm)

2.65 lb (1.2 kg)

Memory and processor Processor

Performance Throughput

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash up to 300 Kpps (64-byte packets)

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Environment Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

-40°F to 158°F (-40°C to 70°C)

5% to 90%, noncondensing up to 6,561 ft (2 km)

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms

Electrical characteristics Maximum heat dissipation

20 BTU/hr (21.1 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Safety

Emissions

Telecom

Management

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

UL 60950-1; CAN/CSA 22.2 No. 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; AS/NZS 60950-1

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

Notes

Services

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

Supports 802.11b/g/n

Default antennas: 2

Maximum antennas: 2

Refer to the Hewlett Packard Enterprise website at

http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Page 16

QuickSpecs

Technical Specifications

HPE MSR93x Router Series

HP MSR930 3G Router (JG513B)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

AP characteristics

Radios (built-in)

4 RJ-45 autosensing 10/100/1000 LAN ports

3G

Physical characteristics Dimensions

Weight

Memory and processor Processor

Performance Throughput

Routing table size

9.06(w) x 6.3(d) x 1.72(h) in (23 x 16 x 4.36 cm)

3.97 lb (1.8 kg) up to 300 Kpps (64-byte packets)

10000 entries (IPv4), 5000 entries (IPv6)

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash

Environment

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Operating temperature

32°F to 104°F (0°C to 40°C)

5% to 90%, noncondensing

Operating relative humidity

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

5% to 90%, noncondensing up to 6,561 ft (2 km)

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms

Electrical characteristics Maximum heat dissipation

Voltage

Safety

20 BTU/hr (21.1 kJ/hr)

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

Emissions

Telecom

Management

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

Notes

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

Supports HSPA+

SIM card not included

Default antennas: 1

Maximum antennas: 2

Optional antenna cable also available for remote location

Page 17

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Services

3G firmware changes through CLI

For regional carrier certifications please contact your local Hewlett Packard Enterprise sales representative

Refer to the Hewlett Packard Enterprise website at

http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR931 Router (JG514B)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

Physical characteristics

4 RJ-45 autosensing 10/100/1000 LAN ports

1 Serial port

Dimensions

Weight

11.81(w) x 7.87(d) x 1.74(h) in (30 x 20 x 4.42 cm)

5.95 lb (2.7 kg)

Memory and processor Processor

Performance Throughput

Environment

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash up to 300 Kpps (64-byte packets)

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

Nonoperating/Storage temperature

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

5% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C)

5% to 90%, noncondensing up to 6,561 ft (2 km)

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms

Electrical characteristics Maximum heat dissipation

20 BTU/hr (21.1 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Safety

Emissions

Telecom

Management

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

Page 18

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Services

RMON1; FTP; IEEE 802.3 Ethernet mib

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR931 Dual 3G Router (JG531B)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

AP characteristics

Radios (built-in)

4 RJ-45 autosensing 10/100/1000 LAN ports

1 Serial port

3G

Physical characteristics Dimensions

Weight

Memory and processor Processor

11.81(w) x 7.87(d) x 1.74(h) in (30 x 20 x 4.42 cm)

5.95 lb (2.7 kg)

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash

Performance

Environment

Throughput

Routing table size

up to 300 Kpps (64-byte packets)

10000 entries (IPv4), 5000 entries (IPv6)

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

Nonoperating/Storage temperature

5% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

5% to 90%, noncondensing

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms up to 6,561 ft (2 km)

Electrical characteristics Maximum heat dissipation

Voltage

20 BTU/hr (21.1 kJ/hr)

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

Emissions

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

Telecom

Management

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

Page 19

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Notes

Services

RMON1; FTP; IEEE 802.3 Ethernet mib

Supports HSPA+

SIM cards not included

Default antennas: 2

Maximum antennas: 4

Optional antenna cable also available for remote location

3G firmware changes through CLI

For regional carrier certifications please contact your local Hewlett Packard Enterprise sales representative

Refer to the Hewlett Packard Enterprise website at

http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR935 Router (JG518B)HP MSR930 Wireless Router (JG512A)

HP MSR930 Wireless 11n (NA) Router (JH012A)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

4 RJ-45 autosensing 10/100/1000 LAN ports

1 ADSL 2+ ANNEX A/M port

Physical characteristics Dimensions

11.81(w) x 7.87(d) x 1.74(h) in (30 x 20 x 4.42 cm)

Weight

3.97 lb (1.8 kg)

Memory and processor Processor

Performance Throughput

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash up to up to 300 Kpps (64-byte packets)

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Environment Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

Nonoperating/Storage relative humidity

Shock and vibration

-40°F to 158°F (-40°C to 70°C)

5% to 90%, noncondensing

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms

Altitude

Electrical characteristics Maximum heat dissipation

Safety

up to 6,561 ft (2 km)

20 BTU/hr (21.1 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

Page 20

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Emissions

Telecom

Management

Notes

Services

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

Supports ADSL 2+ ANNEX A/M

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR930 Wireless Router (JG512A)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

AP characteristics

Radios (built-in)

4 RJ-45 autosensing 10/100/1000 LAN ports

802.11b/g/n

Physical characteristics Dimensions

Weight

Memory and processor Processor

Performance Throughput

Routing table size

Environment

Forwarding table size

Operating temperature

9.06(w) x 6.3(d) x 1.72(h) in (23 x 16 x 4.36 cm)

2.65 lb (1.2 kg) up to 300 Kpps (64-byte packets)

10000 entries (IPv4), 5000 entries (IPv6)

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash

10000 entries (IPv4), 5000 entries (IPv6)

32°F to 104°F (0°C to 40°C)

Operating relative humidity

Nonoperating/Storage temperature

5% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C)

Emissions

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

5% to 90%, noncondensing

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms up to 6,561 ft (2 km)

Electrical characteristics Maximum heat dissipation

Voltage

20 BTU/hr (21.1 kJ/hr)

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1; CAN/CSA 22.2 No. 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; AS/NZS 60950-1

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

Page 21

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Telecom

Management

Notes

Services

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

Supports 802.11b/g/n

Default antennas: 2

Maximum antennas: 2

Refer to the Hewlett Packard Enterprise website at

http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR930 4G LTE/3G CDMA Router (JG596A)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

AP characteristics

Radios (built-in)

4 RJ-45 autosensing 10/100/1000 LAN ports

3G, 4G LTE

9.06(w) x 6.3(d) x 1.72(h) in (23 x 16 x 4.36 cm)

Physical characteristics Dimensions

Weight

Memory and processor Processor

Performance Throughput

3.97 lb (1.8 kg)

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash up to up to 300 Kpps (64-byte packets)

Environment

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

Nonoperating/Storage temperature

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

5% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C)

5% to 90%, noncondensing up to 6,561 ft (2 km)

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms

Electrical characteristics Maximum heat dissipation

20 BTU/hr (21.1 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Safety

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

Page 22

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Emissions

Telecom

Management

Notes

Services

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

For local 4GLTE/3G carrier certification, please contact your regional sales team. This router has the

Sierra Wireless MC7750 AirPrime Series

• Module embedded with support the following specs:-

Air Interface: LTE/EV-DO LTE Freq. Bands: 700 (B13) MHz CDMA 1xRTT/EV-DO RevA: 800/1900MHz

• This model (JG665A) is certified with Verizon Wireless 4GLTE networks

• Carrier SIM Card Not Included

• Default Antennas: 2

• Maximum Antennas: 2

• Optional antenna cable extensions available HP MSR 3G RF 2.8m Antenna Cable (JG522A) HP MSR

3G RF 6m Antenna Cable (JG666A) HP MSR 3G RF 15m Antenna Cable (JG667A)

• Only 4G Antenna (JG669A HP MSR 4G 5W TNC Antenna) is supported

Refer to the Hewlett Packard Enterprise website at

http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR930 4G LTE/3G WCDMA Global Router (JG665A)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

AP characteristics

Radios (built-in)

4 RJ-45 autosensing 10/100/1000 LAN ports

3G, 4G LTE

Physical characteristics Dimensions

Weight

9.06(w) x 6.3(d) x 1.72(h) in (23 x 16 x 4.36 cm)

3.97 lb (1.8 kg)

Memory and processor Processor

Performance Throughput

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash up to up to 300 Kpps (64-byte packets)

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Environment Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

Nonoperating/Storage temperature

5% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C)

5% to 90%, noncondensing

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

Electrical characteristics Maximum heat

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms up to 6,561 ft (2 km)

20 BTU/hr (21.1 kJ/hr)

Page 23

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Safety

Emissions

Telecom

Management

Notes

Services dissipation

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

For local 4GLTE/3G carrier certification, please contact your regional sales team. This router has the

Sierra Wireless MC7710 AirPrime Series Wireless Module

• Module embedded with support the following specs:- Air Interface: LTE/HSPA+ LTE Freq. Bands:

800/900/1800/2100/2600 MHz WCDMA: 900/2100 MHz GSM/GPRS/EDGE: 900/1800/1900 MHz

• This model (JG665A) is pre-certified with T-Mobile (EU) and conforms to above specifications for local certifications.

• Carrier SIM Card Not Included

• Default Antennas: 2

• Maximum Antennas: 2

• Optional antenna cable extensions available HP MSR 3G RF 2.8m Antenna Cable (JG522A) HP MSR

3G RF 6m Antenna Cable (JG666A) HP MSR 3G RF 15m Antenna Cable (JG667A)

• Only 4G Antenna (JG669A HP MSR 4G 5W TNC Antenna) is supported.

Refer to the Hewlett Packard Enterprise website at

http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Performance

HP MSR930 4G LTE/3G WCDMA ATT Router (JG704A)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

AP characteristics

Radios (built-in)

4 RJ-45 autosensing 10/100/1000 LAN ports

3G, 4G LTE

Physical characteristics Dimensions

Weight

Memory and processor Processor

9.06(w) x 6.3(d) x 1.72(h) in (23 x 16 x 4.36 cm)

3.97 lb (1.8 kg)

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash

Environment

Throughput

Routing table size

up to up to 300 Kpps (64-byte packets)

10000 entries (IPv4), 5000 entries (IPv6)

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Operating temperature

32°F to 104°F (0°C to 40°C)

Page 24

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Operating relative humidity

5% to 90%, noncondensing

Notes

Services

Nonoperating/Storage temperature

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

-40°F to 158°F (-40°C to 70°C)

5% to 90%, noncondensing

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms

Emissions

Telecom

Management

up to 6,561 ft (2 km)

Electrical characteristics Maximum heat dissipation

Voltage

20 BTU/hr (21.1 kJ/hr)

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

For local 4GLTE/3G carrier certification, please contact your regional sales team. This router has the

Sierra Wireless AT&T, NTT Docomo MC7700 AirPrime Series Wireless Module

• Module embedded with support the following specs:- Air Interface: LTE/HSPA+ LTE Freq. Bands:

700(B17)/AWS WCDMA: 850/1900/2100 MHz GSM/GPRS/EDGE: 850/900/1800/1900 MHz

Regulatory: TELEC Carriers: AT&T, NTT Docomo

• This model (JG704A) is pre-certified with AT&T, NTT Docomo and conforms to above specifications for local certifications.

• Carrier SIM Card Not Included

• Default Antennas: 2

• Maximum Antennas: 2

• Optional antenna cable extensions available HP MSR 3G RF 2.8m Antenna Cable (JG522A) HP MSR

3G RF 6m Antenna Cable (JG666A) HP MSR 3G RF 15m Antenna Cable (JG667A)

• Only 4G Antenna (JG669A HP MSR 4G 5W TNC Antenna) is supported.

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR931 3G Router (JG515A)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

4 RJ-45 autosensing 10/100/1000 LAN ports

Page 25

QuickSpecs HPE MSR93x Router Series

Technical Specifications

AP characteristics

Radios (built-in)

1 Serial port

3G

Physical characteristics Dimensions

Weight

Memory and processor Processor

Performance Throughput

Environment

11.81(w) x 7.87(d) x 1.74(h) in (30 x 20 x 4.42 cm)

5.95 lb (2.7 kg) up to 300 Kpps (64-byte packets)

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

-40°F to 158°F (-40°C to 70°C)

5% to 90%, noncondensing up to 6,561 ft (2 km)

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms

Electrical characteristics Maximum heat dissipation

20 BTU/hr (21.1 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Safety

Emissions

Telecom

Notes

Management

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

Supports HSPA+

SIM card not included

Default antennas: 1

Maximum antennas: 2

Optional antenna cable also available for remote location

3G firmware changes through CLI

For regional carrier certifications please contact your local Hewlett Packard Enterprise sales representative

Page 26

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR933 Router (JG516A)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

4 RJ-45 autosensing 10/100/1000 LAN ports

1 G.SHDSL (8-wire) port

Physical characteristics Dimensions

11.81(w) x 7.87(d) x 1.74(h) in (30 x 20 x 4.42 cm)

Weight

Memory and processor Processor

Performance Throughput

Routing table size

Environment

3.97 lb (1.8 kg)

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash up to up to 300 Kpps (64-byte packets)

10000 entries (IPv4), 5000 entries (IPv6)

Forwarding table size

10000 entries (IPv4), 10000 entries (IPv6)

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

Nonoperating/Storage temperature

Nonoperating/Storage relative humidity

5% to 90%, noncondensing

5% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C)

Shock and vibration

Altitude

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms up to 6,561 ft (2 km)

Electrical characteristics Maximum heat dissipation

20 BTU/hr (21.1 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

Emissions

Telecom

Management

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

Services

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

Refer to the Hewlett Packard Enterprise website at

http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response

Page 27

QuickSpecs HPE MSR93x Router Series

Technical Specifications

times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR933 3G Router (JG517A)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

4 RJ-45 autosensing 10/100/1000 LAN ports

1 G.SHDSL (8-wire) port

AP characteristics

Radios (built-in)

3G

Physical characteristics Dimensions

Weight

11.81(w) x 7.87(d) x 1.74(h) in (30 x 20 x 4.42 cm)

3.97 lb (1.8 kg)

Memory and processor Processor

Performance Throughput

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash up to up to 300 Kpps (64-byte packets)

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Environment Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

-40°F to 158°F (-40°C to 70°C)

5% to 90%, noncondensing up to 6,561 ft (2 km)

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms

Electrical characteristics Maximum heat dissipation

Voltage

20 BTU/hr (21.1 kJ/hr)

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

Emissions

Telecom

Management

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

Notes

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

Supports HSPA+

SIM card included

Page 28

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Services

Default antennas: 1

Maximum antennas: 2

Optional antenna cable also available for remote location

3G firmware changes through CLI

For regional carrier certifications please contact your local Hewlett Packard Enterprise sales representative

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR935 Wireless Router (JG519A)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

AP characteristics

Radios (built-in)

4 RJ-45 autosensing 10/100/1000 LAN ports

1 ADSL 2+ ANNEX A/M port

802.11b/g/n

Physical characteristics Dimensions

Weight

Memory and processor Processor

Performance Throughput

Routing table size

11.81(w) x 7.87(d) x 1.74(h) in (30 x 20 x 4.42 cm)

3.97 lb (1.8 kg) up to up to 300 Kpps (64-byte packets)

10000 entries (IPv4), 5000 entries (IPv6)

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash

Environment

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Operating temperature

32°F to 104°F (0°C to 40°C)

5% to 90%, noncondensing

Operating relative humidity

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

5% to 90%, noncondensing

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms up to 6,561 ft (2 km)

Electrical characteristics Maximum heat dissipation

Voltage

20 BTU/hr (21.1 kJ/hr)

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

Emissions

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

Page 29

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Telecom

Management

Notes

Services

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

Supports 802.11b/g/n

Default antennas: 2

Maximum antennas: 2

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR935 3G Router (JG520A)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

4 RJ-45 autosensing 10/100/1000 LAN ports

AP characteristics

Radios (built-in)

1 ADSL 2+ ANNEX A/M port

3G

Physical characteristics Dimensions

Weight

11.81(w) x 7.87(d) x 1.74(h) in (30 x 20 x 4.42 cm)

3.97 lb (1.8 kg)

Memory and processor Processor

Performance Throughput

Routing table size

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash up to up to 300 Kpps (64-byte packets)

10000 entries (IPv4), 5000 entries (IPv6)

Environment

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 90%, noncondensing

Nonoperating/Storage temperature

Nonoperating/Storage relative humidity

Shock and vibration

Altitude

-40°F to 158°F (-40°C to 70°C)

5% to 90%, noncondensing

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms up to 6,561 ft (2 km)

Electrical characteristics Maximum heat dissipation

Voltage

20 BTU/hr (21.1 kJ/hr)

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Page 30

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Safety

Emissions

Telecom

Management

Notes

Services

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

Supports HSPA+

SIM card included

Default antennas: 1

Maximum antennas: 2

Optional antenna cable also available for remote location

3G firmware changes through CLI

For regional carrier certifications please contact your local Hewlett Packard Enterprise sales representative

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP MSR936 Wireless Router (JG597A)

I/O ports and slots

1 RJ-45 autosensing 10/100/1000 WAN port

4 RJ-45 autosensing 10/100/1000 LAN ports

AP characteristics

Radios (built-in)

1 ADSL 2+ ANNEX B/J ISDN backup port

802.11b/g/n

Physical characteristics Dimensions

Weight

11.81(w) x 7.87(d) x 1.74(h) in (30 x 20 x 4.42 cm)

3.97 lb (1.8 kg)

Memory and processor Processor

Performance Throughput

Routing table size

Environment

RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash up to up to 300 Kpps (64-byte packets)

10000 entries (IPv4), 5000 entries (IPv6)

Forwarding table size

10000 entries (IPv4), 5000 entries (IPv6)

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

Nonoperating/Storage temperature

Nonoperating/Storage relative humidity

Shock and vibration

5% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C)

5% to 90%, noncondensing

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms

Altitude

up to 6,561 ft (2 km)

Page 31

QuickSpecs HPE MSR93x Router Series

Technical Specifications

Electrical characteristics Maximum heat dissipation

Safety

Emissions

Telecom

Management

20 BTU/hr (21.1 kJ/hr)

Voltage

100 - 240 VAC, rated

(depending on power supply chosen)

Maximum power rating

24 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1;

EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-

1/A11; FDA 21 CFR Subchapter J

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-

3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995

+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-

11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5

Notes

Services

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager; Telnet;

RMON1; FTP; IEEE 802.3 Ethernet mib

Supports 802.11b/g/n

Default antennas: 2

Maximum antennas: 2

Refer to the Hewlett Packard Enterprise website at

http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Standards and Protocols

(applies to all products in series)

BGP

General protocols

RFC 1163 Border Gateway Protocol (BGP)

RFC 1267 Border Gateway Protocol 3 (BGP-3)

RFC 1657 Definitions of Managed Objects for BGPv4

RFC 1771 BGPv4

RFC 1772 Application of the BGP

RFC 1773 Experience with the BGP-4 Protocol

RFC 1774 BGP-4 Protocol Analysis

RFC 1997 BGP Communities Attribute

RFC 1998 An Application of the BGP Community Attribute in Multi-home

Routing

RFC 2385 BGP Session Protection via TCP MD5

RFC 2439 BGP Route Flap Damping

CPU DoS Protection

Rate Limiting by ACLs

RFC 1305 NTPv3

RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0

RFC 2452 MIB for TCP6

RFC 2454 MIB for UDP6

IIEEE 802.1: LAN/MAN Bridge and Management

IEEE 802.1D MAC Bridges

Page 32

Denial of service protection

Device management

QuickSpecs

Technical Specifications

HPE MSR93x Router Series

IEEE 802.1p Priority

IEEE 802.1Q VLANs

IEEE 802.1s (MSTP)

IEEE 802.1s Multiple Spanning Trees

IEEE 802.1w Rapid Reconfiguration of Spanning Tree

IEEE 802.1X: Authenticated VLAN (multiple MAC, multiple VLANs per port)

IEEE 802.2: Logical Link Control

IEEE 802.3: Carrier Sense Multiple Access with Collision Detection

(CSMA/CD) access method and physical layer specifications

IEEE 802.3ad Link Aggregation (LAG)

RFC 768 UDP

RFC 783 TFTP Protocol (revision 2)

RFC 791 IP

RFC 792 ICMP

RFC 793 TCP

RFC 826 ARP

RFC 854 TELNET

RFC 855 Telnet Option Specification

RFC 856 TELNET

RFC 858 Telnet Suppress Go Ahead Option

RFC 894 IP over Ethernet

RFC 925 Multi-LAN Address Resolution

RFC 950 Internet Standard Subnetting Procedure

RFC 959 File Transfer Protocol (FTP)

RFC 1006 ISO transport services on top of the TCP: Version 3

RFC 1027 Proxy ARP

RFC 1034 Domain Concepts and Facilities

RFC 1035 Domain Implementation and Specification

RFC 1042 IP Datagrams

RFC 1058 RIPv1

RFC 1071 Computing the Internet Checksum

RFC 1091 Telnet Terminal-Type Option

RFC 1122 Host Requirements

RFC 1141 Incremental updating of the Internet checksum

RFC 1142 OSI IS-IS Intra-domain Routing Protocol

RFC 1144 Compressing TCP/IP headers for low-speed serial links

RFC 1195 OSI ISIS for IP and Dual Environments

RFC 1256 ICMP Router Discovery Protocol (IRDP)

RFC 1293 Inverse Address Resolution Protocol

RFC 1315 Management Information Base for Frame Relay DTEs

RFC 1332 The PPP Internet Protocol Control Protocol (IPCP)

RFC 1333 PPP Link Quality Monitoring

RFC 1334 PPP Authentication Protocols (PAP)

RFC 1349 Type of Service

RFC 1350 TFTP Protocol (revision 2)

RFC 1377 The PPP OSI Network Layer Control Protocol (OSINLCP)

RFC 1381 SNMP MIB Extension for X.25 LAPB

RFC 1471 The Definitions of Managed Objects for the Link Control Protocol of the Point-to-Point Protocol

RFC 1472 The Definitions of Managed Objects for the Security Protocols of the Point-to-Point Protocol

Page 33

QuickSpecs

Technical Specifications

HPE MSR93x Router Series

RFC 1490 Multiprotocol Interconnect over Frame Relay

RFC 1519 CIDR

RFC 1534 DHCP/BOOTP Interoperation

RFC 1542 Clarifications and Extensions for the Bootstrap Protocol

RFC 1552 The PPP Internetworking Packet Exchange Control Protocol

(IPXCP)

RFC 1577 Classical IP and ARP over ATM

RFC 1613 Cisco Systems X.25 over TCP (XOT)

RFC 1624 Incremental Internet Checksum

RFC 1631 NAT

RFC 1638 PPP Bridging Control Protocol (BCP)

RFC 1661 The Point-to-Point Protocol (PPP)

RFC 1662 PPP in HDLC-like Framing

RFC 1695 Definitions of Managed Objects for ATM Management Version

8.0 using SMIv2

RFC 1701 Generic Routing Encapsulation

RFC 1702 Generic Routing Encapsulation over IPv4 networks

RFC 1721 RIP-2 Analysis

RFC 1722 RIP-2 Applicability

RFC 1723 RIP v2

RFC 1795 Data Link Switching: Switch-to-Switch Protocol AIW DLSw RIG:

DLSw Closed Pages, DLSw Standard Version 1

RFC 1812 IPv4 Routing

RFC 1829 The ESP DES-CBC Transform

RFC 1877 PPP Internet Protocol Control Protocol Extensions for Name

Server Addresses

RFC 1878 Variable Length Subnet Table for IPv4

RFC 1944 Benchmarking Methodology for Network Interconnect Devices

RFC 1973 PPP in Frame Relay

RFC 1974 PPP Stac LZS Compression Protocol

RFC 1990 The PPP Multilink Protocol (MP)

RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP)

RFC 2091 Trigger RIP

RFC 2131 DHCP

RFC 2132 DHCP Options and BOOTP Vendor Extensions

RFC 2166 APPN Implementer's Workshop Closed Pages Document DLSw v2.0 Enhancements

RFC 2205 Resource ReSerVation Protocol (RSVP) - Version 1 Functional

Specification

RFC 2280 Routing Policy Specification Language (RPSL)

RFC 2284 EAP over LAN

RFC 2338 VRRP

RFC 2364 PPP Over AAL5

RFC 2374 An Aggregatable Global Unicast Address Format

RFC 2451 The ESP CBC-Mode Cipher Algorithms

RFC 2453 RIPv2

RFC 2510 Internet X.509 Public Key Infrastructure Certificate Management

Protocols

RFC 2511 Internet X.509 Certificate Request Message Format

RFC 2516 A Method for Transmitting PPP Over Ethernet (PPPoE)

RFC 2570 Introduction to Version 3 of the Internet-standard Network

Page 34

QuickSpecs

Technical Specifications

HPE MSR93x Router Series

Management Framework

RFC 2644 Directed Broadcast Control

RFC 2661 L2TP

RFC 2663 NAT Terminology and Considerations

RFC 2684 Multiprotocol Encapsulation over ATM Adaptation Layer 5

RFC 2694 DNS extensions to Network Address Translators (DNS_ALG)

RFC 2747 RSVP Cryptographic Authentication

RFC 2763 Dynamic Name-to-System ID mapping support

RFC 2765 Stateless IP/ICMP Translation Algorithm (SIIT)

RFC 2766 Network Address Translation - Protocol Translation (NAT-PT)

RFC 2784 Generic Routing Encapsulation (GRE)

RFC 2787 Definitions of Managed Objects for VRRP

RFC 2961 RSVP Refresh Overhead Reduction Extensions

RFC 2966 Domain-wide Prefix Distribution with Two-Level IS-IS

RFC 2973 IS-IS Mesh Groups

RFC 2985 PKCS #9: Selected Object Classes and Attribute Types Version

2.0

RFC 2993 Architectural Implications of NAT

RFC 3022 Traditional IP Network Address Translator (Traditional NAT)

RFC 3027 Protocol Complications with the IP Network Address Translator

RFC 3031 Multiprotocol Label Switching Architecture

RFC 3036 LDP Specification

RFC 3046 DHCP Relay Agent Information Option

RFC 3065 Support AS confederation

RFC 3137 OSPF Stub Router Advertisement

RFC 3209 RSVP-TE Extensions to RSVP for LSP Tunnels

RFC 3210 Applicability Statement for Extensions to RSVP for LSP-Tunnels

RFC 3212 Constraint-Based LSP setup using LDP (CR-LDP)

RFC 3214 LSP Modification Using CR-LDP

RFC 3215 LDP State Machine

RFC 3268 Advanced Encryption Standard (AES) Ciphersuites for Transport

Layer Security (TLS)

RFC 3277 IS-IS Transient Blackhole Avoidance

RFC 3279 Algorithms and Identifiers for the Internet X.509 Public Key

Infrastructure Certificate and Certificate Revocation List (CRL) Profile

RFC 3280 Internet X.509 Public Key Infrastructure Certificate and

Certificate Revocation List (CRL) Profile

RFC 3392 Support BGP capabilities advertisement

RFC 3410 Introduction and Applicability Statements for Internet Standard

Management Framework

RFC 3526 More Modular Exponential (MODP) Diffie-Hellman groups for

Internet Key Exchange (IKE)

RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPSec

RFC 3706 A Traffic-Based Method of Detecting Dead Internet Key

Exchange (IKE) Peers

RFC 3784 ISIS TE support

RFC 3786 Extending the Number of IS-IS LSP Fragments Beyond the 256

Limit

RFC 3847 Restart signaling for IS-IS

RFC 4301 Security Architecture for the Internet Protocol

RFC 5101 Specification of the IP Flow Information Export (IPFIX) Protocol

Page 35

QuickSpecs

Technical Specifications

IP multicast

IPv6

HPE MSR93x Router Series

for the Exchange of IP Traffic Flow Information

FRF.1.2 PVC User-to-Network Interface (UNI) Implementation Agreement -

July 2000

FRF.10.1: Network-to-Network Frame Relay/ATM SVC Service Interworking

Implementation Agreement

FRF.11.1 Voice over Frame Relay Implementation Agreement - May 1997 -

Annex J added March 1999

FRF.15: End-to-End Multilink Frame Relay Implementation Agreement

FRF.16: Multilink Frame Relay UNI/NNI Implementation Agreement

FRF.17: Frame Relay Privacy Implementation Agreement

FRF.18: Network-to-Network Frame Relay/ATM SVC Service Interworking

Implementation Agreement

FRF.19: Frame Relay Operations, Administration and Maintenance

Implementation

FRF.2.1: Frame Relay Network-to-Network (NNI) Implementation

Agreement Version 2.1

FRF.20 Frame Relay IP Header Compression Implementation Agreement -

June 2001

FRF.3.2 Frame Relay Multiprotocol Encapsulation Implementation

Agreement - April 2000

FRF.4.1: SVC User-to-Network Interface (UNI) Implementation Agreement

FRF.5: Frame Relay/ATM Network Internetworking Implementation

Agreement

FRF.6: Frame Relay Service Customer Network Management

Implementation

FRF.7 Frame Relay PVC Multicast Service and Protocol Description -

October 1994

FRF.8.1: Frame Relay/ATM PVC Service Internetworking Implementation

Agreement

FRF.9 Data Compression Over Frame Relay Implementation Agreement -

January 1996

ITU-T Recommendation X.29: Public Data Networks: Procedures for the

Exchange of Control Information and User Data

Q.921: ISDN user network interface-Data Link Layer specification

Q.922 Annex A: Core aspects of Q.922 for use with frame relaying bearer service

Q.931: ISDN user network interface-Layer 3 specification for basic call control

Q.933 Annex A: Additional procedures for Permanent Virtual Connection

(PVC) status management (using Unnumbered Information frames)

X.25 : Interface between Data Terminal Equipment (DTE) and Data Circuitterminating Equipment (DCE)

RFC 1112 IGMP

RFC 2236 IGMPv2

RFC 2283 Multiprotocol Extensions for BGP-4

RFC 2362 PIM Sparse Mode

RFC 2934 Protocol Independent Multicast MIB for IPv4

RFC 1981 IPv6 Path MTU Discovery

RFC 2080 RIPng for IPv6

RFC 2292 Advanced Sockets API for IPv6

RFC 2373 IPv6 Addressing Architecture

Page 36

QuickSpecs HPE MSR93x Router Series

Technical Specifications

RFC 2460 IPv6 Specification

RFC 2461 IPv6 Neighbor Discovery

RFC 2462 IPv6 Stateless Address Auto-configuration

RFC 2463 ICMPv6

RFC 2464 Transmission of IPv6 over Ethernet Networks

RFC 2472 IP Version 6 over PPP

RFC 2473 Generic Packet Tunneling in IPv6

RFC 2529 Transmission of IPv6 Packets over IPv4

RFC 2545 Use of MP-BGP-4 for IPv6

RFC 2553 Basic Socket Interface Extensions for IPv6

RFC 2740 OSPFv3 for IPv6

RFC 2893 Transition Mechanisms for IPv6 Hosts and Routers

RFC 3056 Connection of IPv6 Domains via IPv4 Clouds

RFC 3513 IPv6 Addressing Architecture

RFC 3596 DNS Extension for IPv6

MIBs

RFC 1213 MIB II

RFC 1229 Interface MIB Extensions

RFC 1286 Bridge MIB

RFC 1493 Bridge MIB

RFC 1573 SNMP MIB II

RFC 1724 RIPv2 MIB

RFC 1757 Remote Network Monitoring MIB

RFC 1850 OSPFv2 MIB

RFC 2011 SNMPv2 MIB for IP

RFC 2012 SNMPv2 MIB for TCP

RFC 2013 SNMPv2 MIB for UDP

RFC 2233 Interfaces MIB

RFC 2454 IPV6-UDP-MIB

RFC 2465 IPv6 MIB

RFC 2466 ICMPv6 MIB

RFC 2618 RADIUS Client MIB

RFC 2620 RADIUS Accounting MIB

RFC 2674 802.1p and IEEE 802.1Q Bridge MIB

RFC 2737 Entity MIB (Version 2)

RFC 2863 The Interfaces Group MIB

Network management

IEEE 802.1D (STP)

RFC 1155 Structure of Management Information

RFC 1157 SNMPv1

RFC 1905 SNMPv2 Protocol Operations

RFC 2272 SNMPv3 Management Protocol

RFC 2273 SNMPv3 Applications

RFC 2274 USM for SNMPv3

RFC 2275 VACM for SNMPv3

RFC 2575 SNMPv3 View-based Access Control Model (VACM)

RFC 3164 BSD syslog Protocol

OSPF

RFC 1245 OSPF protocol analysis

RFC 1246 Experience with OSPF

RFC 1587 OSPF NSSA

RFC 1765 OSPF Database Overflow

RFC 1850 OSPFv2 Management Information Base (MIB), traps

Page 37

QuickSpecs

Technical Specifications

QoS/CoS

Security

VPN

IPSec

IKEv1

HPE MSR93x Router Series

RFC 2328 OSPFv2

RFC 2370 OSPF Opaque LSA Option

IEEE 802.1p (CoS)

RFC 2474 DS Field in the IPv4 and IPv6 Headers

RFC 2475 DiffServ Architecture

RFC 2597 DiffServ Assured Forwarding (AF)

RFC 2598 DiffServ Expedited Forwarding (EF)

RFC 3168 The Addition of Explicit Congestion Notification (ECN) to IP

IEEE 802.1X Port Based Network Access Control

RFC 1321 The MD5 Message-Digest Algorithm

RFC 2082 RIP-2 MD5 Authentication

RFC 2104 Keyed-Hashing for Message Authentication

RFC 2138 RADIUS Authentication

RFC 2209 RSVP-Message Processing

RFC 2246 Transport Layer Security (TLS)

RFC 2716 PPP EAP TLS Authentication Protocol

RFC 2865 RADIUS Authentication

RFC 2866 RADIUS Accounting

RFC 2403 - HMAC-MD5-96

RFC 2404 - HMAC-SHA1-96

RFC 2405 - DES-CBC Cipher algorithm

RFC 2796 BGP Route Reflection - An Alternative to Full Mesh IBGP

RFC 2842 Capabilities Advertisement with BGP-4

RFC 2858 Multiprotocol Extensions for BGP-4

RFC 2918 Route Refresh Capability for BGP-4

RFC 1828 IP Authentication using Keyed MD5

RFC 2401 IP Security Architecture

RFC 2402 IP Authentication Header

RFC 2406 IP Encapsulating Security Payload

RFC 2407 - Domain of interpretation

RFC 2410 - The NULL Encryption Algorithm and its use with IPSec

RFC 2411 IP Security Document Roadmap

RFC 2412 – OAKLEY

RFC 2865 - Remote Authentication Dial In User Service (RADIUS)

RFC 2865 - Remote Authentication Dial In User Service (RADIUS)

RFC 3748 - Extensible Authentication Protocol (EAP)

Page 38

QuickSpecs

Accessories

HPE MSR93x Router Seriesaccessories

HP MSR930 3G Router (JG513B)

HP MSR 3G Antenna

HP MSR 3G RF 2.8m Antenna Cable

HP MSR 3G RF 6m Antenna Cable

HP MSR 3G RF 15m Antenna Cable

HP MSR931 Dual 3G Router (JG531B)

HP MSR 3G Antenna

HP MSR 3G RF 2.8m Antenna Cable

HP MSR 3G RF 6m Antenna Cable

HP MSR 3G RF 15m Antenna Cable

HP MSR930 4G LTE/3G CDMA Router (JG596A)

HP MSR 3G RF 6m Antenna Cable

HP MSR 3G RF 15m Antenna Cable

HP MSR 4G 5W TNC Antenna

HP MSR930 4G LTE/3G WCDMA Global Router (JG665A)

HP MSR 3G RF 6m Antenna Cable

HP MSR 3G RF 15m Antenna Cable

HP MSR 4G 5W TNC Antenna

HP MSR930 4G LTE/3G WCDMA ATT Router (JG704A)

HP MSR 3G RF 6m Antenna Cable

HP MSR 3G RF 15m Antenna Cable

HP MSR 4G 5W TNC Antenna

HP MSR931 3G Router (JG515A)

HP MSR 3G Antenna

HP MSR 3G RF 2.8m Antenna Cable

HP MSR 3G RF 6m Antenna Cable

HP MSR 3G RF 15m Antenna Cable

HP MSR933 3G Router (JG517A)

HP MSR 3G RF 2.8m Antenna Cable

HP MSR 3G RF 6m Antenna Cable

HP MSR 3G RF 15m Antenna Cable

HP MSR935 3G Router (JG520A)

HP MSR 3G RF 2.8m Antenna Cable

HP MSR 3G RF 6m Antenna Cable

HPE MSR93x Router Series

JG521A

JG522A

JG666A

JG667A

JG521A

JG522A

JG666A

JG667A

JG666A

JG667A

JG669A

JG666A

JG667A

JG669A

JG666A

JG667A

JG669A

JG521A

JG522A

JG666A

JG667A

JG522A

JG666A

JG667A

JG522A

JG666A

Page 39

QuickSpecs

Accessories

HP MSR 3G RF 15m Antenna Cable

HPE MSR93x Router Series

JG667A

Page 40

QuickSpecs

Summary of Changes

Date

December 1, 2015

August 17, 2015

February 11, 2015

Version History Action

From Version 9 to 10 Added

From Version 8 to 9 Added

From Version 10 to 11 Changed

Changed

August 18, 2014

Changed

From Version 7 to 8 Added

Changed

June 17, 2014

June 10, 2014

February 18, 2014

February 18, 2014

From Version 6 to 7 Changed

From Version 5 to 6 Changed

From Version 4 to 5

From Version 3 to 4

Removed

Changed

December 9, 2013 From Version 2 to 3 Changed

September 17, 2013 From Version 1 to 2 Added

HPE MSR93x Router Series

Description of Change:

Overview and Technical Specifications updated

Models added:

• JG511B

• JG513B

• JG514B

• JG518B

• JG531B

• JH012B

Updated Technical Specifications and Accessories

Added 2 models:

• JH012A

• JH013A

Configuration Menu updated

2 new models: JH012A, JH013A

Content Edits on Overview Section

Configuration Menu updated

Technical Specifications changed.

Configuration Information was revised.

Removed a model that had been added with the previous update.

Build to Order and Mounting Kit were revised in

Configuration Information.

Build to Order was revised and Mounting Kit was added to

Configuration.

New models were added.

Page 41

QuickSpecs

Summary of Changes

HPE MSR93x Router Series

Sign up for updates

Rate this document

© Copyright 2015 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services.

Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit: http://www.hp.com/networking c04315114 - 14559 - Worldwide - V11 - 1-December-2015

Page 42

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
