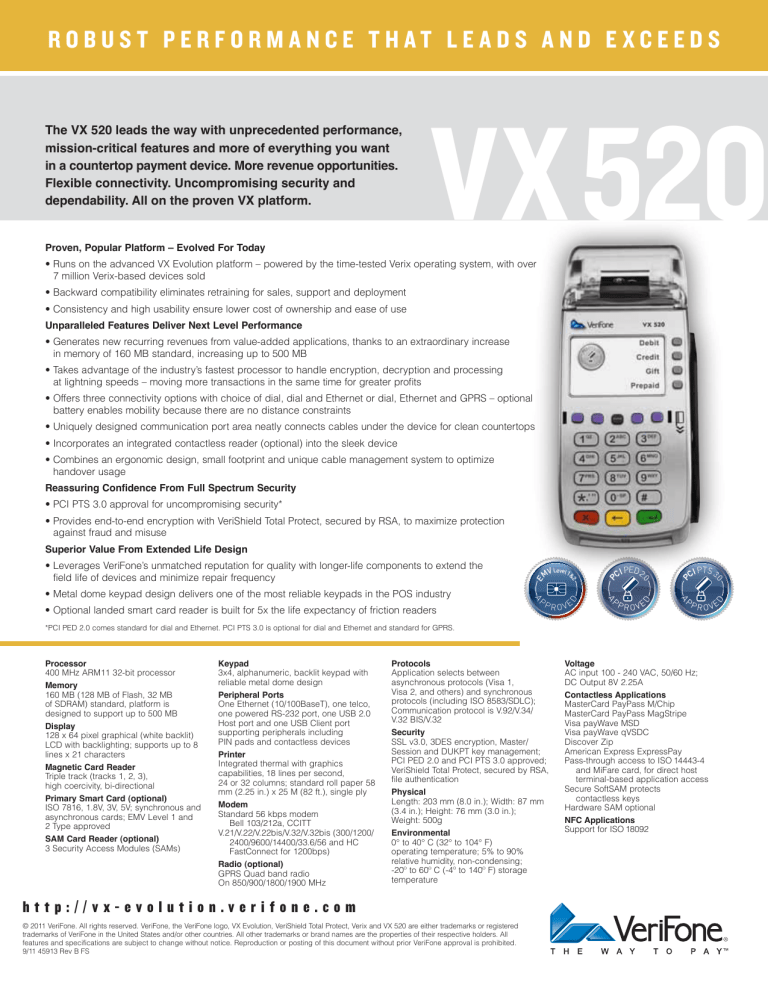

ROBUST PERFORMANCE THAT lEAdS ANd ExCEEdS

R O B U S T P E R F O R M A N C E T H A T l ea d s an d e x cee d s
The VX 520 leads the way with unprecedented performance,
mission-critical features and more of everything you want
in a countertop payment device. More revenue opportunities.
Flexible connectivity. Uncompromising security and
dependability. All on the proven VX platform.
Proven, Popular Platform – Evolved For Today
VX 520
• Runs on the advanced VX Evolution platform – powered by the time-tested Verix operating system, with over
7 million Verix-based devices sold
• Backward compatibility eliminates retraining for sales, support and deployment
• Consistency and high usability ensure lower cost of ownership and ease of use
Unparalleled Features Deliver Next Level Performance
• Generates new recurring revenues from value-added applications, thanks to an extraordinary increase
in memory of 160 MB standard, increasing up to 500 MB
• Takes advantage of the industry’s fastest processor to handle encryption, decryption and processing
at lightning speeds – moving more transactions in the same time for greater profits
• Offers three connectivity options with choice of dial, dial and Ethernet or dial, Ethernet and GPRS – optional
battery enables mobility because there are no distance constraints
• Uniquely designed communication port area neatly connects cables under the device for clean countertops
• Incorporates an integrated contactless reader (optional) into the sleek device
• Combines an ergonomic design, small footprint and unique cable management system to optimize
handover usage
Reassuring Confidence From Full Spectrum Security
• PCI PTS 3.0 approval for uncompromising security*
• Provides end-to-end encryption with VeriShield Total Protect, secured by RSA, to maximize protection
against fraud and misuse
• Optional landed smart card reader is built for 5x the life expectancy of friction readers
D
PP
A
• Metal dome keypad design delivers one of the most reliable keypads in the POS industry
Level 1
&
MV
2
• Leverages VeriFone’s unmatched reputation for quality with longer-life components to extend the
field life of devices and minimize repair frequency
E
Superior Value From Extended Life Design
R O VE
*PCI PED 2.0 comes standard for dial and Ethernet. PCI PTS 3.0 is optional for dial and Ethernet and standard for GPRS.
Processor
400 MHz ARM11 32-bit processor
Memory
160 MB (128 MB of Flash, 32 MB
of SDRAM) standard, platform is
designed to support up to 500 MB
Display
128 x 64 pixel graphical (white backlit)
LCD with backlighting; supports up to 8
lines x 21 characters
Magnetic Card Reader
Triple track (tracks 1, 2, 3),
high coercivity, bi-directional
Primary Smart Card (optional)
ISO 7816, 1.8V, 3V, 5V; synchronous and
asynchronous cards; EMV Level 1 and
2 Type approved
SAM Card Reader (optional)
3 Security Access Modules (SAMs)
Keypad
3x4, alphanumeric, backlit keypad with
reliable metal dome design
Peripheral Ports
One Ethernet (10/100BaseT), one telco,
one powered RS-232 port, one USB 2.0
Host port and one USB Client port
supporting peripherals including
PIN pads and contactless devices
Printer
Integrated thermal with graphics
capabilities, 18 lines per second,
24 or 32 columns; standard roll paper 58
mm (2.25 in.) x 25 M (82 ft.), single ply
Modem
Standard 56 kbps modem
Bell 103/212a, CCITT
V.21/V.22/V.22bis/V.32/V.32bis (300/1200/
2400/9600/14400/33.6/56 and HC
FastConnect for 1200bps)
Radio (optional)
GPRS Quad band radio
On 850/900/1800/1900 MHz
Protocols
Application selects between
asynchronous protocols (Visa 1,
Visa 2, and others) and synchronous
protocols (including ISO 8583/SDLC);
Communication protocol is V.92/V.34/
V.32 BIS/V.32
Security
SSL v3.0, 3DES encryption, Master/
Session and DUKPT key management;
PCI PED 2.0 and PCI PTS 3.0 approved;
VeriShield Total Protect, secured by RSA,
file authentication
Physical
Length: 203 mm (8.0 in.); Width: 87 mm
(3.4 in.); Height: 76 mm (3.0 in.);
Weight: 500g
Environmental
0° to 40° C (32° to 104° F)
operating temperature; 5% to 90%
relative humidity, non-condensing;
-20º to 60º C (-4º to 140º F) storage
temperature
h t t p://v x-evolut ion.verifone.com
© 2011 VeriFone. All rights reserved. VeriFone, the VeriFone logo, VX Evolution, VeriShield Total Protect, Verix and VX 520 are either trademarks or registered
trademarks of VeriFone in the United States and/or other countries. All other trademarks or brand names are the properties of their respective holders. All
features and specifications are subject to change without notice. Reproduction or posting of this document without prior VeriFone approval is prohibited.
9/11 45913 Rev B FS
Voltage
AC input 100 - 240 VAC, 50/60 Hz;
DC Output 8V 2.25A
Contactless Applications
MasterCard PayPass M/Chip
MasterCard PayPass MagStripe
Visa payWave MSD
Visa payWave qVSDC
Discover Zip
American Express ExpressPay
Pass-through access to ISO 14443-4
and MiFare card, for direct host
terminal-based application access
Secure SoftSAM protects
contactless keys
Hardware SAM optional
NFC Applications
Support for ISO 18092
