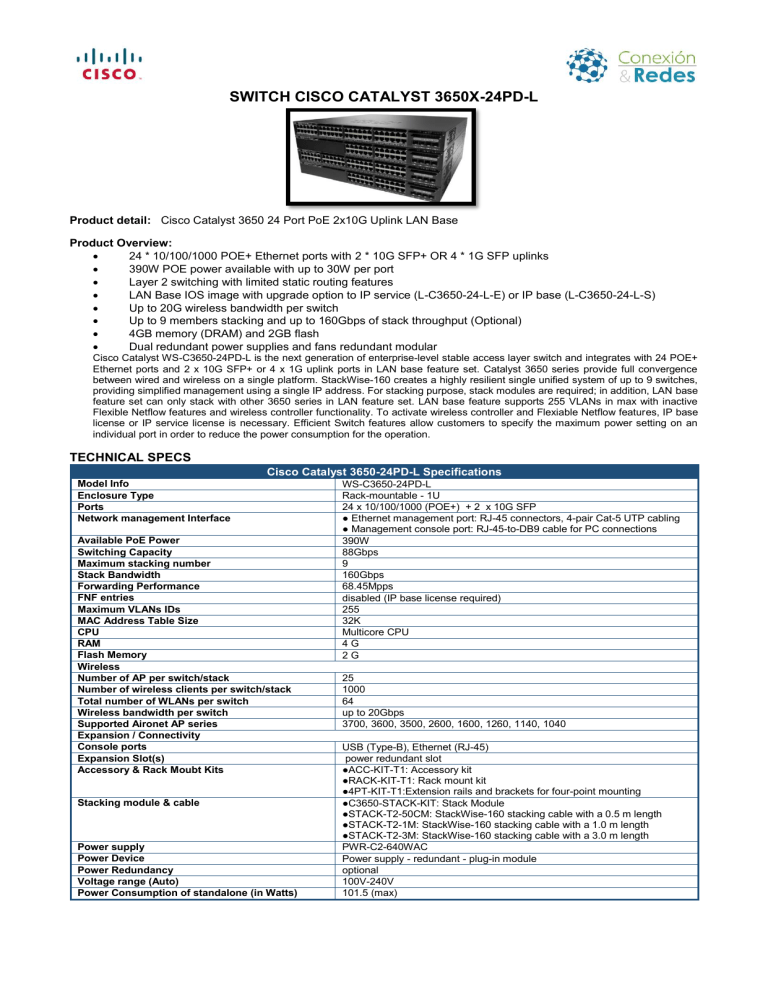

SWITCH CISCO CATALYST 3650X-24PD-L
Product detail: Cisco Catalyst 3650 24 Port PoE 2x10G Uplink LAN Base
Product Overview:

24 * 10/100/1000 POE+ Ethernet ports with 2 * 10G SFP+ OR 4 * 1G SFP uplinks

390W POE power available with up to 30W per port

Layer 2 switching with limited static routing features

LAN Base IOS image with upgrade option to IP service (L-C3650-24-L-E) or IP base (L-C3650-24-L-S)

Up to 20G wireless bandwidth per switch

Up to 9 members stacking and up to 160Gbps of stack throughput (Optional)

4GB memory (DRAM) and 2GB flash

Dual redundant power supplies and fans redundant modular
Cisco Catalyst WS-C3650-24PD-L is the next generation of enterprise-level stable access layer switch and integrates with 24 POE+
Ethernet ports and 2 x 10G SFP+ or 4 x 1G uplink ports in LAN base feature set. Catalyst 3650 series provide full convergence
between wired and wireless on a single platform. StackWise-160 creates a highly resilient single unified system of up to 9 switches,
providing simplified management using a single IP address. For stacking purpose, stack modules are required; in addition, LAN base
feature set can only stack with other 3650 series in LAN feature set. LAN base feature supports 255 VLANs in max with inactive
Flexible Netflow features and wireless controller functionality. To activate wireless controller and Flexiable Netflow features, IP base
license or IP service license is necessary. Efficient Switch features allow customers to specify the maximum power setting on an
individual port in order to reduce the power consumption for the operation.
TECHNICAL SPECS
Cisco Catalyst 3650-24PD-L Specifications
Model Info
Enclosure Type
Ports
Network management Interface
Available PoE Power
Switching Capacity
Maximum stacking number
Stack Bandwidth
Forwarding Performance
FNF entries
Maximum VLANs IDs
MAC Address Table Size
CPU
RAM
Flash Memory
Wireless
Number of AP per switch/stack
Number of wireless clients per switch/stack
Total number of WLANs per switch
Wireless bandwidth per switch
Supported Aironet AP series
Expansion / Connectivity
Console ports
Expansion Slot(s)
Accessory & Rack Moubt Kits
Stacking module & cable
Power supply
Power Device
Power Redundancy
Voltage range (Auto)
Power Consumption of standalone (in Watts)
WS-C3650-24PD-L
Rack-mountable - 1U
24 x 10/100/1000 (POE+) + 2 x 10G SFP
● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections
390W
88Gbps
9
160Gbps
68.45Mpps
disabled (IP base license required)
255
32K
Multicore CPU
4G
2G
25
1000
64
up to 20Gbps
3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
USB (Type-B), Ethernet (RJ-45)
power redundant slot
●ACC-KIT-T1: Accessory kit
●RACK-KIT-T1: Rack mount kit
●4PT-KIT-T1:Extension rails and brackets for four-point mounting
●C3650-STACK-KIT: Stack Module
●STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
●STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
●STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
PWR-C2-640WAC
Power supply - redundant - plug-in module
optional
100V-240V
101.5 (max)
Miscellaneous
Width
Depth
Height
Weight
Rack Mounting Kit
MTBF in hours
Compliant Standards
System software / license
System software
EnergyWise license
Software license
Access Point Licenses
features
Advanced Network security
17.5 Inches (44.5 Cm)
17.625 Inches (44.8 Cm)
1.73 Inches (4.4 Cm)
16 Pounds (7.26Kg)
optional
528,280
● IEEE 802.1D Spanning Tree
Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on
10BASE-T, 100BASE-TX, and
1000BASE-T ports
● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
IOS LAN Base (Upgradable)
ENERGY-MGMT, ENERGY-MGT-100-K9
●C3650-24-L-S : LAN Base to IP Base RTU paper license
●C3650-24-L-E: LAN Base to IP Services RTU paper license
●L-C3650-24-L-S: LAN Base to IP Base RTU electronic license
●L-C3650-24-L-E: LAN Base to IP Services RTU electronic license
●L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless
controller (e-delivery)
●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software
based wireless controller (e-delivery)
●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software
based wireless controller (e-delivery)
●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software
based wireless controller (paper license)
●SVIs ●RPS Support ● Jumbo Frames ●VLANS ●Voice
Vlan ●VTPv2,V3●CDPv2 ●LLDP ● 802.3ad LACP●Ingress policing ●SPAN
& RSPAN●PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ● port
CoS Trust and Override ●IP address DHCP ● Trusted Boundary ● ACL
Classification ●PAGP+ for VSS ● 802.1p queues●Port Cos Trust and
Override ●Per-Vlan policy ●Scheduling ●Ingress policing ● storm
control ● Configure CoS Priority Queues●Configure CoS Priority
Queues●priority Queuing ●AutoQoS ● Configure Queue
Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ●Modify
CoS and DSCP Mapping ●Weighted Tail Drop ● DSCP
transparency ●DSCP trust
● Port security ● DHCP snooping●Dynamic ARP inspection (DAI) ● IP
source guard ●The Unicast Reverse Path Forwarding (uRPF)
● Bidirectional data support on a SPAN● User authentication
● Multidomain authentication ● MAC address notification
● IGMP filtering ● Cisco security VLAN ACL
● Secure Shell (SSH) Protocol, SSL, HTTPS SCP
●Kerberos, and Simple Network Management Protocol Version 3
(SNMPv3)
● Port-based ACLs ●Private Vlans edge
● TACACS+ and RADIUS authentication
● Bridge protocol data unit (BPDU) Guard and Root Guard
● Spanning Tree Root Guard (STRG)
●DHCP server
Management
Technical Support and Services
●BRIDGE-MIB ●CISCO-AUTH●CISCO-PORT-SECURITY-MIB
FRAMEWORK-MIB
●CISCO-PRODUCTS-MIB●CISCO●CISCO-BRIDGE-EXTRTP-METRICS-MIB ●CISCOMIB ●CISCO-IP-URPF-MIB
RTTMON-MIB
●CISCO-BULK-FILE-MIB ●CISCO●CISCO-SNMP-TARGET-EXT-MIB
CABLE-DIAG-MIB
●CISCO-STACKMAKER●CISCO-CALLHOME-MIB
MIB●CISCO-MEMORY-POOL-MIB
●CISCO-CIRCUIT-INTERFACE●CISCO-STP-EXTENSIONSMIB
MIB●CISCO-SYSLOG●CISCO-ENTITY-VENDORTYPEMIB ●CISCO-TCP-MIB ●CISCOOID-MIB
UDLDP-MIB
●CISCO-CONTEXT-MAPPING-MIB
●CISCO-VLAN-IFTABLE●CISCO-DEVICE-LOCATIONRELATIONSHIP-MIB ●CISCOMIB●CISCO-DHCP-SNOOPINGVLAN-MEMBERSHIP-MIB ●CISCOMIB
VTP-MIB●EtherLike-MIB
●CISCO-EMBEDDED-EVENT●HC-RMON-MIB ●IEEE8021-PAEMGR-MIB
MIB ●IEEE8023-LAG-MIB
●CISCO-ENTITY-FRU-CONTROL●IF-MIB ●LLDP-EXT-MED-MIB
MIB●CISCO-ENTITY-SENSOR-MIB
●LLDP-MIB ●NOTIFICATION-LOG●ENTITY-MIB ●CISCO-ERRMIB
DISABLE-MIB
●OLD-CISCO-MEMORY●CISCO-CONFIG-COPY-MIB
MIB●CISCO-CDP-MIB
●CISCO-FTP-CLIENT-MIB
●RMON2-MIB
●CISCO-IF-EXTENSION-MIB
●RMON-MIB ●SNMP●CISCO-CONFIG-MANCOMMUNITY-MIB ●SNMPMIB ●CISCO-PRIVATE-VLAN-MIB
FRAMEWORK-MIB
●CISCO-LAG-MIB ●CISCO●SNMP-MPD-MIB ●SNMPLICENSE-MGMT-MIB
NOTIFICATION-MIB
●CISCO-MAC-AUTH-BYPASS●SNMP-TARGET-MIB ●SNMPMIB●CISCO-MAC-NOTIFICATIONUSM-MIB ●SNMPv2-MIB
MIB
●SNMP-VIEW-BASED-ACM-MIB
●CISCO-MDI-METRICS●CISCO-IMAGE-MIB ●CISCOMIB ●CISCO-FLASH-MIB
STACKWISE-MIB
●CISCO-PAE-MIB ●CISCO-PAGPMIB●CISCO-PING-MIB
● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP
Base Service ● Cisco Focused Technical Support Services
Environmental Ranges
Fahrenheit
With AC power supply Operating environment and altitude
Operating temperature up to 5000 ft (1500 m)
23ºF to 113ºF
Operating temperature up to 10,000 ft (3000 m)
23ºF to 104ºF
Short-term exception at sealevel with single fan
23ºF to 113ºF
failure
Short-term exception up to 5000 feet (1500 m)
23ºF to 122ºF
Short-term exception up to 10,000 feet (3000 m)
23ºF to 113ºF
With DC power supply Operating environment and altitude (NEBS)
Operating temperature up to 6000 ft (1800 m)
23ºF to 113ºF
Operating temperature up to 10,000 ft (3000 m)
23ºF to 104ºF
Operating temperature up to 13,000 ft (4000m)
23ºF to 95ºF
Short-term exception up to 6,000 feet (1800 m)
23ºF to 131ºF
Short-term exception up to 10,000 feet (3000 m)
23ºF to 122ºF
Short-term exception up to 13,000 feet (4000 m)
23ºF to 113ºF
Short-term exception at sealevel with single fan
23ºF to 113ºF
failure
Storage environment
-40ºF to 160ºF
Centigrade
-5ºC to +45ºC
-5ºC to +40ºC
-5ºC to +45ºC
-5ºC to 50ºC
-5ºC to 45ºC
-5ºC to +45ºC
-5ºC to +40ºC
-5ºC to 35ºC
-5ºC to +55ºC
-5ºC to +50ºC
-5ºC to +45ºC
-5ºC to +45º
-40ºC to 70ºC
Feet
Operating altitude
Storage altitude
Operating relative humidity
Storage relative humidity
Short-term exception at sealevel with single fan
failure
Storage environment
Meters
Up to 16,400
Up to 16,400
5% to 96% noncondensing
5% to 96% noncondensing
23ºF to 113ºF
Up to 5000m
Up to 5000m
-40ºF to 160ºF
-40ºC to 70ºC
-5ºC to +45º
Feet
Operating altitude
Storage altitude
Operating relative humidity
Storage relative humidity
Up to 13,000
Up to 15,000
10% to 95% noncondensing
10% to 95% noncondensing
Meters
Up to 4000m
Up to 4573m
