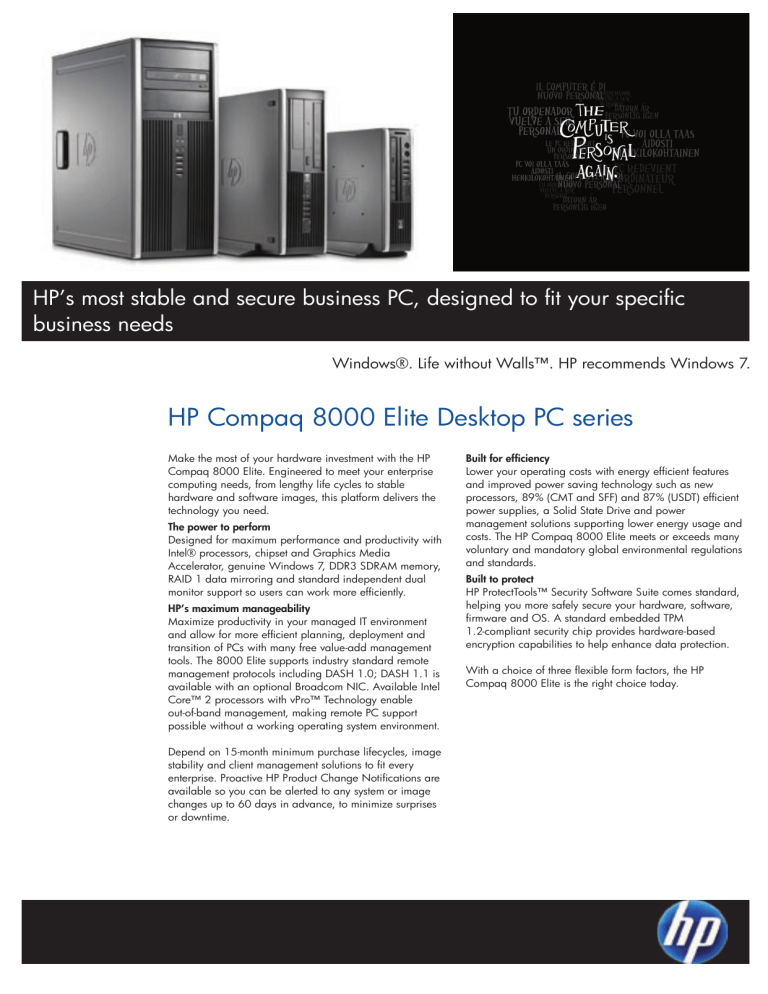

HP’s most stable and secure business PC, designed to fit your specific
business needs
Windows®. Life without Walls™. HP recommends Windows 7.
HP Compaq 8000 Elite Desktop PC series
Make the most of your hardware investment with the HP
Compaq 8000 Elite. Engineered to meet your enterprise
computing needs, from lengthy life cycles to stable
hardware and software images, this platform delivers the
technology you need.
The power to perform
Designed for maximum performance and productivity with
Intel® processors, chipset and Graphics Media
Accelerator, genuine Windows 7, DDR3 SDRAM memory,
RAID 1 data mirroring and standard independent dual
monitor support so users can work more efficiently.
HP’s maximum manageability
Maximize productivity in your managed IT environment
and allow for more efficient planning, deployment and
transition of PCs with many free value-add management
tools. The 8000 Elite supports industry standard remote
management protocols including DASH 1.0; DASH 1.1 is
available with an optional Broadcom NIC. Available Intel
Core™ 2 processors with vPro™ Technology enable
out-of-band management, making remote PC support
possible without a working operating system environment.
Depend on 15-month minimum purchase lifecycles, image
stability and client management solutions to fit every
enterprise. Proactive HP Product Change Notifications are
available so you can be alerted to any system or image
changes up to 60 days in advance, to minimize surprises
or downtime.
Built for efficiency
Lower your operating costs with energy efficient features
and improved power saving technology such as new
processors, 89% (CMT and SFF) and 87% (USDT) efficient
power supplies, a Solid State Drive and power
management solutions supporting lower energy usage and
costs. The HP Compaq 8000 Elite meets or exceeds many
voluntary and mandatory global environmental regulations
and standards.
Built to protect
HP ProtectTools™ Security Software Suite comes standard,
helping you more safely secure your hardware, software,
firmware and OS. A standard embedded TPM
1.2-compliant security chip provides hardware-based
encryption capabilities to help enhance data protection.
With a choice of three flexible form factors, the HP
Compaq 8000 Elite is the right choice today.
HP Compaq 8000 Elite Desktop PC series
Windows®. Life without Walls™. HP recommends Windows 7.
Form factor
Convertible Minitower
Operating system
Genuine Windows® 7 Professional 32-bit
Genuine Windows® 7 Professional 64-bit
Genuine Windows Vista® Business 32-bit
Genuine Windows Vista® Home Basic 32-bit
Windows XP Professional (available through downgrade rights from Genuine Windows® 7 Professional)
Genuine Windows® 7 Professional 32-bit
Genuine Windows Vista® Business 32-bit
Genuine Windows Vista® Home Basic 32-bit
Windows XP Professional (available through
downgrade rights from Genuine Windows® 7
Professional)
Processor
Intel® Celeron® Processors, Intel® Pentium® Processors, Intel® Core™2 Duo Processors and Intel®
Core™2 Quad Processors; Processors offer may vary according to regional offer
Intel® Celeron® Processors, Intel® Pentium®
Processors and Intel® Core™2 Duo Processors;
Processors offer may vary according to regional offer
Chipset
Intel Q45 Express
Memory
From 1 GB to 16 GB DDR3-Synch DRAM PC3-10600 non-ECC (single or dual channel configurations)
From 1 GB to 8 GB DDR3-Synch DRAM PC3-10600
non-ECC (single or dual channel configurations)
Hard drive(s)
250, 320, 500 or 1 TB (3.5”) SATA 3.0GB/s with NCQ and Smart IV
160 or 250 GB (2.5”) SATA 3.0GB/s with NCQ
and Smart IV
Removable media
SATA DVD-ROM Drive, SATA SuperMulti LightScribe DVD Writer Drive
HP Slim 8X SATA DVD-ROM Drive, HP Slim 8X SATA
SuperMulti LightScribe Drive
Expansion bays
3 external 5.25 inch, 3 internal 3.5 inch
1 external 5.25 inch, 1 external 3.5 inch, 1 internal
3.5 inch
1 Slimline Drive Bay, optional SD Card Reader, 1
internal 2.5 inch
Expansion slots
3 full-height PCI, 2 full-height PCI Express x16, 1
full-height PCI Express x1
1 low-profile PCI, 1 low-profile PCI Express x16, 2
low-profile PCI Express x1
1 mini PCIe
Memory slots
4 DIMM
2 SODIMM
Graphics
Intel® Graphics Media Accelerator 4500 integrated graphics
NVIDIA Quadro NVS 290 256MB PCIe Dual Head, ATI Radeon HD 4650 512MB DH PCIe x16 or
NVIDIA GF 310 DP SH x16 Graphic Cards
Intel® Graphics Media Accelerator 4500 integrated
graphics
Audio
Integrated HD audio with Realtek ALC261 codec, internal PC speaker
Communications
Integrated Intel® 82567LM Gigabit Network Connection
I/O ports and connectors
Rear: 6 USB 2.0, 1 serial port, 2 PS/2, 1 RJ-45, 1 VGA, 1 DisplayPort, audio in/out; Front: 4 USB 2.0,
audio ports; Optional: 2nd serial port, 1 parallel port, 1 eSATA port
Software
Optional preloaded software, only for certain configurations: Microsoft® Office Trial Version
On some models only (not included with FreeDOS): HP ProtectTools Security Suite, Computrace for Desktops, HP Software Management Agent, PDF Complete, HP
Power Manager, HP Firefox Virtual Browser, HP Total Care Advisor, Computer Setup Utility, McAfee Anti-virus Trial version, Roxio Creator Business, Corel WinDVD
Input devices
HP Standard Keyboard (PS/2 or USB), HP USB Smartcard Keyboard
HP 2-Button Optical Scroll Mouse (PS/2 or USB), HP USB 2-Button Laser Scroll Mouse
Dimensions (w x d x h)
17.7 x 44.4 x 44.7 cm
33.8 x 37.8 x 10.0 cm
25.1 x 25.4 x 6.6 cm
Power
320 watts maximum
Input voltage 90 – 264 / 100 – 240 VAC, 50/60
Hz, 47 – 63 Hz, active PFC (89% High Efficiency)
240 watts maximum
Input voltage 90 – 264 / 100 – 240 VAC, 50/60
Hz, 47 – 63 Hz, active PFC (89% High Efficiency)
Input voltage 90 – 264 / 100 – 240 VAC, 50/60
Hz, 47 – 63 Hz, active PFC (87% High Efficiency)
Warranty
Protected by HP Services, including a 3-3-3 standard warranty delivering 3 years of parts and 3 year of both labour and on-site repair. Response time is next
business-day and includes free telephone support 24 x 7. Terms and conditions vary by country. Certain restrictions and exclusions apply
Small Form Factor
Ultra-slim Desktop
Rear: 6 USB 2.0, 2 PS/2, 1 RJ-45, 1 VGA, 1
DisplayPort, audio in/out; Front: 4 USB 2.0, audio
ports
© Copyright 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
This system may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.
Windows 7 Professional disk may be included for future upgrade if desired. To qualify for this downgrade an end user must be a business (including governmental or educational institutions) and is expected to order annually at least 25 customer
systems with the same custom image.
Intel, Core and Pentium are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft, Windows and Windows Vista are trademarks of the Microsoft group of companies. Windows Vista® is either a
registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
For more information, please visit www.hp.com/eur/desktops
4AA1-9384EEE. November 2009
HP Compaq 8000 Elite Desktop PC series
Windows®. Life without Walls™. HP recommends Windows 7.
Recommended accessories and services
HP USB PS2 Washable
Keyboard
The HP USB/PS2 Washable Keyboard is well-suited for environments that require
keyboards to be immersed and cleaned with solvents.
Product number: VF097AA
HP 2-GB PC3-10600
(DDR3-1333 MHz) DIMM
Maximize your Business PC performance with HP Memory. Upgrading your memory
is a cost-effective way to boost your system performance without having to upgrade
your processor.
Product number: AT024AA
ATI Radeon HD 4550 DH PCIe
x16 Graphics Card
The ATI Radeon HD 4550 DH PCIe x16 Graphics Card provides a Low Profile, PCI
Express x16 graphics add-in card based on the ATI RV710 Graphics Processor. It
supports Dual Display video output through its DMS-59 and TV-Out connectors.
Product number: AT042AA
HP 1-TB SATA (NCQ/Smart IV)
3.0-Gb/s Hard Drive
HP Serial ATA Hard Drives maximize the performance of HP Business PCs by
providing the technologies to meet your increasing storage demands with
high-capacity drives offering superior reliability and performance.
Product number: VU353AA
HP Business PC Security Lock
This handy device ensures your desktop PC remains exactly where it is by locking the
chassis cover and securing it to an anchor point. The steel loop cable is also
designed to prevent unauthorised removal of keyboard, monitor and all peripherals.
Product number: PV606AA
3 years Next Business Day
Onsite with Defective Media
Retention, excl. External
Monitor, HW Support
Retain your defective media for disposal in a way that meets your security standards,
and receive high quality onsite and remote support from HP.
Product number: UE332E
