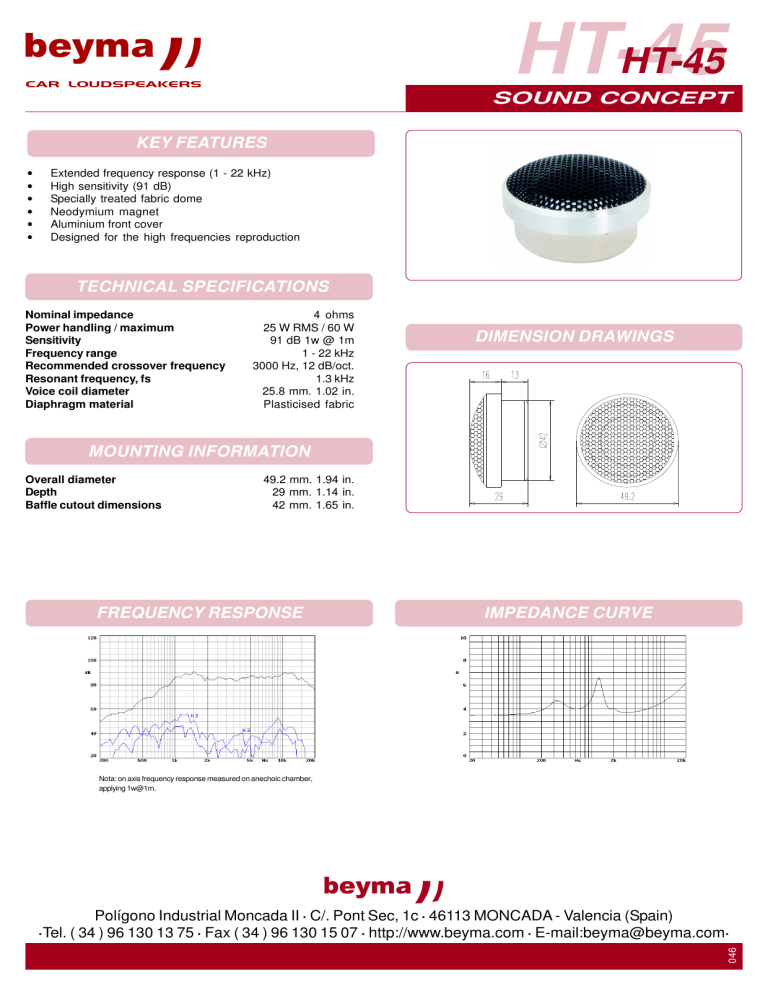

HT-45
HT-45
HT-45
SOUND CONCEPT
KEY FEATURES
•
•
•
•
•
•
Extended frequency response (1 - 22 kHz)
High sensitivity (91 dB)
Specially treated fabric dome
Neodymium magnet
Aluminium front cover
Designed for the high frequencies reproduction
TECHNICAL SPECIFICATIONS
Nominal impedance
Power handling / maximum
Sensitivity
Frequency range
Recommended crossover frequency
Resonant frequency, fs
Voice coil diameter
Diaphragm material
4 ohms
25 W RMS / 60 W
91 dB 1w @ 1m
1 - 22 kHz
3000 Hz, 12 dB/oct.
1.3 kHz
25.8 mm. 1.02 in.
Plasticised fabric
DIMENSION DRAWINGS
MOUNTING INFORMATION
Overall diameter
Depth
Baffle cutout dimensions
49.2 mm. 1.94 in.
29 mm. 1.14 in.
42 mm. 1.65 in.
CAJA CERRADA
FREQUENCY RESPONSE
IMPEDANCE CURVE
Nota: on axis frequency response measured on anechoic chamber,
applying [email protected]
046
Polígono Industrial Moncada II · C/. Pont Sec, 1c · 46113 MONCADA - Valencia (Spain)
·Tel. ( 34 ) 96 130 13 75 · Fax ( 34 ) 96 130 15 07 · http://www.beyma.com · E-mail:[email protected]·
