QuickSpecs

QuickSpecs

HP Compaq dc78\ siness P,

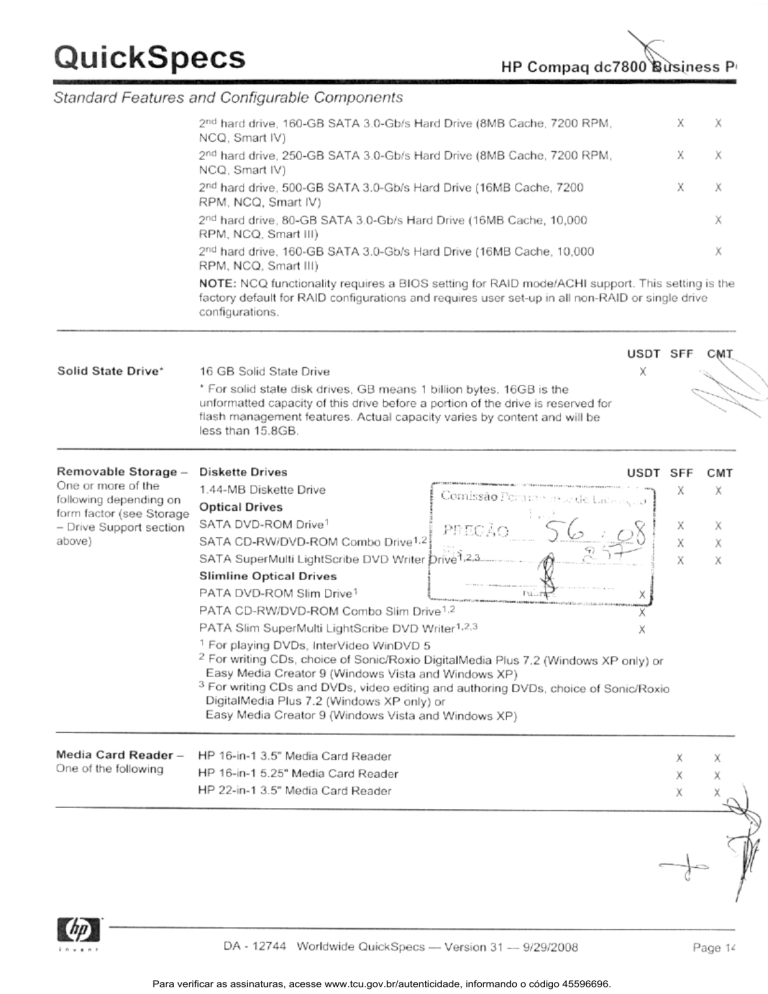

Standard Features arid Configurable Components

2" hard drive. 160-GB SATA 3.0-Gb/s Hard Drive (8MB Cache. 7200 RPM.

NCO. Smart IV)

X X

2' hard drive. 250-GB SATA 3 0-Gb/s Hard Drive (8MB Cache. 7200 RPM,

NCO. Smart IV)

X X

2" hard drive. 500-GB SATA 3.0-Gb/s Hard Drive (16MB Cache, 7200

RPM. NCO, Smart IV)

X x

2" hard drive. 80-GB SATA 3.0-Gb/s Hard Drive (16MB Cache, 10,000

RPM. NCO. Smart Ill)

X

2" hard drive. 160-GB SATA 3.0-Gb/s Hard Drive (16MB Cache, 10.000

RPM. NCQ. Smart III)

X

NOTE: NCQ functionality requires a BIOS setting for RAID mode/ACHI support. This setting is the factory default for RAID configurations and requires user set-up in all non-RAID or single drive configurations.

Solid State Drive' 16 GB Solid State Drive

' For solid state disk drives, GB means 1 billion bytes. 16GB is the unformatted capacity of this drive before a portion of the drive is reserved for flash management features. Actual capacity varies by content and will be less than 15.HGB.

USDT SFF C

X

Removable Storage -

One or more of the following depending on form factor (see Storage

- Drive Support section above)

Diskette Drives

1.44-MB Diskette Drive

Optical Drives

SATA DVD-ROM Drivel

Leaussao:

USDT

SATA CD-RW/DVD•ROM Combo Driv01•2

SATA SuperMulti LightScribe DVD Writer brive1•2•3----•

Slimline Optical Drives

.....

PATA DVD-ROM Slim Drivel cif

PATA CD-RW/DVD-ROM Combo Slim Drivel?

PATA Slim SuperMulti LightScribe DVD VVriter1.2.3

1 For playing DVDs, InterVideo WinDVD 5

2 For writing CDs. choice of Sonic/Roxio DigitalMedia Plus 7.2 (Windows XP only) or

Easy Media Creator 9 (Windows Vista and Windows XP)

3 For writing CDs and DVDs, video editing and authoring DVDs, choice of Sonic/Roxio

DigitalMedia Plus 7.2 (Windows XP only) or

Easy Media Creator 9 (Windows Vista and Windows XP)

SFF CMT

X X

X

X

X

X x x

Media Card Reader -

One of the following

3.5" Media Card Reader

HP 16-in-1 5.25" Media Card Reader

HP 22-in-1 3.5" Media Card Reader x x x x x

[ha]

DA - 12744 Worldwide QuickSpecs — Version 31 -- 9/29/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page 1z

QuickSpecs

Standard Features and Configurable Components

Security

HP Compaq dc780‘

P,

Integrated 1.2 TPM Embedded Security Chip'

Drive Lock

HP ProtectTools Lmbedded Security Software

Serial, Parallel, USB Enable/Disable (via BIOS)

Removable Media Write/Boot Control

Power-On Password (via BIOS)

Setup Password (via BIOS)

TPM module disabled where use is restricted by

law,

for example, Russia

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

NIC

Wireless

Modem

Graphics

Intel 82566DM Gigabit Network Connection (integrated on system board)

Intel PRO/1000 PT PCIe Gigabit NIC (full height bracket)

Intel PRO/1000 PT PCIe Gigabit MC (low profile bracket)

Broadcom NetXtreme Gigabit PCIe NIC (full height bracket)

Broadcom NetXtrerne Gigabit PCIe MC (low profile bracket)

Wireless A+G PCI Card (full height bracket)

Wireless A+0 PCI Card (low profile txacke

Broadcom 4311BG 802 11tvg WiFiAdapte.

Mini PCIe wireless

Requires optional PCI riser card.

Agere 2006 PCI 56K International SoftModen (full heightf

Agere 2006 PCI 56K International SoftModerrittaliintier

Integrated Intel Graphics Media Accelerator 3100

Integrated DVI-D

HP ADD2 SDVO PCIe OVI-D adapter

ATI Radeon X1600XT 256MB dual head graphics adapter (PCIe x16)

ATI Radeon I ID 2400XT (256MB OH) PCIe Graphics Card

ATI Radeon HD 3470 (256 511) PCIe x16 Graphics Card

ATI Radeon HD 3650 (512MB DH) PCIe x16 Graphics Card

NVIDIA GF

8400

GS 256MB single head graphics adapter (PCIe x16)*

NVIDIA

GF 8400

GS 256MB dual head graphics adapter (PCIe xl )-•

NVIDIA

Quadra NVS 290 256MB dual head PCIe x16 Graphics Card

NVIDIA Quadro NVS 290 256MB dual head x 1 PCIe Graphics Card

1GB of system memory required. Graphics cards use part of the total system memory to enhance graphics performance.

2 NVIDIA GF 8400 GS 256MB dual head (PCIe xl) graphics cards can be combined to provide support for multiple combinations of monitors.

X X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

[4)

DA -

12744

Worldwide QuickSpecs — Version 31 —

9/29/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page

1!

QuickSpecs

HP Compaq dc7800 Busklcss P

Standard Features and Configurable

Components

Audio Integrated High Definition audio with ADI1884 codec (all ports are stereo)

Microphone and Headphone front pods

Line-out and Line-In rear ports'

Multistreaming capable'

Internal Speaker

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

HP Thin USB Powered Speakers

X X

' Rear audio input ports are re-taskable as Line-in or Microphone-in. External speakers must be powered externally Multistreaming can be enabled in the ADI control panel to allow independent audio streams to be sent tolfrom the front and rear jacks. This allows for different audio applications to use separate audio ports on the system. For example. the front jacks could be used with a headset for a communications application while the rear jacks are being used with external speakers and a multimedia application

\N

Input Devices Keyboard - One of the following

HP PS/2 Standard Keyboard

HP USB Standard Keyboard

HP USB Smartcard Keyboard

Mouse - One of the following

HP PSI2 2-Button Optical Scroll Mouse

HP USB 2-Button Optical Scroll Mouse r.

I ;

Miscellaneous

HP FireWire I IEEE 1394 PCI Card (full height)

HP FireWire / IEEE 1394 PCI Card (low profile)

PCI riser card - adds 2 full-height PCI slots

NOTE: Low profile slots are unusable with riser card installed.

2nd serial port adapter (full height)

2nd serial port adapter (low profile)

Tower stand

Configure dc/YX/CMT in desktop orientation

Rear Port Control Cover

1-GB Flash Module for ReadyBoost

• Requires optional PCI riser card.

X

X

X

X' x

X

X

X

X

X

A-a

[ha.

DA - 12744 Worldwide QuickSpecs — Version 31 — 912912008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page 1f

QuickSpecs

After-Market Options (availability may vary by region)

Communications

HP Compaq dc7800 13 oess

USDT SFF CMT After-Market

Options Part

Number

Wireless

HP Wireless MG PCI Card (North America only)

HP Wireless MG PCI Card (WW except North America)

HP BT450 USB Bluetooth Wireless Printer and PC Adapter X

NICs

Broadcom NetXtrerne Gigabit Ethernet PCIe NIC Card

Intel/PRO 1000 PT PCIe Gigabit NIC Card

Modem

Agere 2006 PCI 56K International SoftModem

X

X

X

X

X

X

X

X

X

X

X

X

EA118M,

PZ928AA

06398A

EA833M

EI-I352AA

EK69

Graphics

/lard

Drives

Single head solutions

HP ADO? SDVO DVI-C Adapter

NVIDIA GeForce 8400 GS (256MB SH) PCIe x16 Graphics_

Card'

Ico, .. ..•

ATI Radeon HD 3470 (256MB

SH)

PCIe x16 graphics

Card

Multi head solutions

Pr:'r ;.

. .. .

ATI Radeon HD 2400XT (256MB DH) PCIe Griphicsard

„ .

.

X

, • X

X

X

St '

N

DY674A

GJ119M

QQ 1 FS618AV

Q..

YI i ( i K0060AA

ATI Radeon HD 3650 (512MB DH) PCIe x16 Graphics

Card

NVIDIA GeForce 8400 GS 256MB DH PCIe x1

1..

Card

aFaxEs x

X

X —

KS5O5AA

GJ120AA

NVIDIA Quadro NVS 290 256MB DH PCIe x16 Graphics

Card

HP DMS59 DVI Dual•head Connector Cable

X

X

X

X

KG748AA

• 1GB of system memory required. Graphics cards use part of the total system memory to enhance graphics performance.

01139A

Serial ATA Hard Drives

HP 80-GB SATA (NCO/Smart IV) 3.0-Gb/s Hard Drive

HP 160-GB SATA (NCQ/Smart IV) 3.0-Gb/s Hard Drivu

HP 250-GB SATA (NCO/Smart IV) 3.0-Gb/s Hard Drive

HP 500-GB SATA (NCO/Smart IV) 3.0-Gb/s Hard Drive

HP Removable SATA Hard Drive Enclosure (Frame

&

Carrier)

HP Removable SATA Hard Drive Enclosure (Carrier Only)

X

X

X

X

X

X

X

X

X

X

X

X

PY27GAA

PY277AA

PY278AA

PV943A

RY102AA

RY103

,

DA • 12/44 Worldwide QuickSpecs — Version 31 — 9/29/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Pale 1;

QuickSpecs

After-Market Options (availability may vary by region)

Input/Output Devices Keyboards

HP PS/2 Standard Keyboard

HP LAB Standard Keyboard

HP USB Gray Keyboard

Pointing Devices

HP PSI2 2-Button Optical Scroll Mouse

HP USB 2-Button Optical Scroll Mouse

Memory (DIMMs)

Monitors'

Multimedia

HP Compaq dc7800

Isiness

X

X

X

X

X x x x x x x x x x x

DT527A

DT528A

DT529A

EY703AA

DC172B

PC2-5300 (DDR2, 667 MHz) DIMMs Non-ECC

HP 2-GB PC2-5300 (DDR2-667) DIMM

HP 1-GB PC2-5300 (DDR2-667) DIMM

HP 512-MB PC2-5300 (DDR2-667) DIMM

PC2-5300 (DDR2, 667 MHz) SODIMMs Non-ECC

HP 2-GB PC2-5300 (DDR2 .667) SODIMM

HP 1-GB PC2-5300 (DDR2-667) SODIMM r• C':

HP 512-MB PC2-5300 (DDR2-667) S00141

PC2 . 6400 (DDR2, 800 MHz) DIMMs Non-dFC . :

I IP 1•GB PC2-6400 (DDR2 800 Mt in DIMM

HP 512-MB PC2-6400 (DDR2 800 MHz)

PC2-6400 (DDR2, 800 MHz) SODIMMs No -ECC

I iP 1-GB PC2-6400 (DDR2 800 Miii) SODI

HP 512-MB PC2-6400 (DDR2 800 MHz) SODIMM

• x • •

X

X

PX977AA

Px976AA

Px975kA

X,1 i

X X

VJ

Gm252Ak

GK995AA

GK994AA g

AH058AA

1.

AH056AA

GM254AA

GM253AA

TFTs

HP L1506 15 TFT Flat Panel Monitor - Analog only

HP L1706 17 TFT Flat Panel Monitor - Analog only

HP L1740 17 LCD Flat Panel Display - Analog/Digital

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X PX848AA#ABA

X PX849MgABA

X PL766AA#ABA

X GE178AAMBA

I IP LI /45 17 TFT Flat Panel Display - Analog/Digital

I IP L 1906 19 TFT Flat Panel Display - Analog only

HP L1940T 19 TFT Flat Panel Display - Analog/Digital

HP LP1965 19 TFT Flat Panel Display - Analog/Digital

HP L2045w TFT Flat Panel Display - AnaloglDigital

HP L2065 20 TFT Flat Panel Display Analog/Digital

HP LP2465 24 TFT Widescreen Flat Panel Display -

Analog/Digital

X

X

X

X

X

X

X PX850AA/IABA

X EM869AA#ABA

X RA373AA#ABA

X

X

X

RD 125AA#ABA

EF227A4gABA

EF224A4#ABA

HP LP3045 30 TFT Flat Plane! Display - Digital

HP w19 Wide LCD Display - Analog/Digital

X

X

X

X

X EZ320A8#ABA

X EM885AMABA

CRTs

HP s7540 17 (16.0 vis) CRT Monitor X X X PF99/AAgAB

' This is only representative, not an exhaustive list. All HP Monitors are supported except th inch model. The 30-inch model can be added. but it requires a special graphics card.

HP USB Powered Speakers

I IP Thin USB Powered Speakers

X

X

X x x

RD628AA

KK912AA

Page 14

DA - 12/44 Worldwide QuickSpecs Version 31 9/2912008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

QuickSpecs

After-Market Options (availability may vary by region)

PATA Slim Optical

Drives

DVD-ROM Drive

HP PATA DVD-ROM Shin Drive

Combo Drive

HP PATA CD-RW/DVD-ROM Combo Slim Drive

DVD Writer

HP PATA STm SuperMulti LightScribe DVD Writer Drive

HP Compaq dc7800\W:iness

A1104 I M

AH042AA

AH043AA

SATA Half-Height

Optical Drives

DVD-ROM Drive

HI' SA TA DVD-ROM Drive

Combo Drive

HP SATA CD-RWiDVD-ROM Combo Drive

DVD Writer

HP SATA SuperMulti LightScribe DVD Wnter Drive

Removable Storage Diskette and Digital Drives

HP 1.44-MB External USB Diskette Drive

HP 1.44-MB Internal Diskette Drive

Multimedia

, t .i

I IP 16-in-1 Media Card Reader with PCI Car

HP 22-in-1 Media Card Reader with PCI Car

HP 22-in-1 with 1394 Media Card Reader with

Fa t .6Fr

Security

Software

Kensington Lock

HP Business PC Security Lock

HP USB Biometric Fingerprint Reader

I IP (dc7800 SFF) Solenoid Lock/Hood Sensor

HP (CMT) Solenoid Lock/Hood Sensor

HP (dc7800 USDT) Rear Port Controller Cover

HP USB Smartcard Keyboard

HP Client Configuration Manager, Premium Edition

Altiris Client Management Suite Level I

Includes:

Altiris Deployment Solution

Altiris Inventory Solution

Altiris Application Metering Solution

Akins Carbon Copy Solution

Altiris Software Delivery Solution

Altiris Application Management Solution

Altiris Patch Management Solution

X

X

X

X x x

AH0474A

AH04,8AA,,

GF343AA\

X

(44.

X

X

X

X-

• •••••)(..

DC141B

X --

QV AH053AA

. • -

I EM718AA

FSG17AA

KU891AA

X

X

X

X x

X x x

X

X

X

X

X

X

X

PC76GA

PV606AA

EM717AA

GJ 11 GM

DE618A

GJ121AA

ED707AA

X

T3488AA

(use T3489AA for 1000 licenses)

DR605A

(use DR606A for 1000+ licenses)

[4P]

DA - 12744 Worldwide QuickSpecs — Version 31 — 912912008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page 11

QuickSpecs

After-Market Options (availability may vary by region)

Brackets/Stands HP Compaq cic7800 Series Integrated Work Center Stand

HP (dc7800 USDT) Tower Stand

HP 2007 SFF Tower Stand

HP Compaq dc7800 siness P

X

X

GN783AA

GJ117M

GJ118AA

Miscellaneous

Accessories

HP 2nd Serial Port

HP (50 Pk) 5.25" Blank Bezel Kit

HP (dc7800

SFF)

PCI Riser Card

HP FireWire / IEEE 1394 PCI Card

X

X

X

X

X

X

X

PA716A

DC1778

GJ115AA

PA907A

DA - 12744 Worldwide QuickSpecs Version 31 — 9/29/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page a

QuickSpecs

Technical Specifications

HP Compaq dc7800 BTsiness P

Unit Environment and

Operating Conditions

General Unit Operating Guidelines

Ultra-slim Desktop

Small Form Factor Convertible Minitower

Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is operated within the specified operating range.

Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.

Never restrict airflow into the computer by blocking any vents or air intakes.

Do not stack computers on top of each other or place computers so near each other that they are subject to each others re-circulated or preheated air.

Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign matter can block the vents and limit the airflow.

If the computer is to

be

operated

within a separate enclosure, intake and exhaust enclosure. and the same operating guidelines listed above will still apply.

rr ttle -

Temperature Range

Relative Humidity

Operating:

50° to 95'

F (10'

tri

35'

C)'

Non-operating:

-22"

to 140' FI-30" tla 00° C) '

Operating: 10% to 90% (non-c.onde4infy

el ambient)

S

(

r

d

04t--

Non-operatinq: 5% to 95% (non-condensing:at ambient) - -

• ,w

-

-"CY

i

Maximum Altitude

(impressurized) Non-operating: 30.000 ft (9 4 4 ml -

-

/.

'

Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10.000

10 ptions installed.

ft) aboves

-

100J lio

-

diredt

— sustained

sunlight. Maximum rate of change is 10 deg CiHr. The upper limit may be limited by the type and number of

Power

Supply

Power Supply

Operating Voltage Rance

Rated Voltage Range

Rated Line Frequency

Operating Line

Frequency Range

Hated Input Current

Hated Input Current with

Energy Efficient' Power

Supply

.2.1 urrent Leakage

(NFPA 99)

System Heat Dissipation

System Heat Dissipation with Energy Efficient'

Power

Supply

Power Supply Fan

ENERGY STAR

Compliant with Energy Efficient*

Power Supply

[41

Ultra-slim Desktop

135W external power supply.

85% efficient active l'l C

90 - 264 VAC

100 - 240 VAC

50160 Hz

47 - 63 Hz

Small Form Factor Convertible Minitower

240W power supply, active PFC 365W power supply, active

PFC

90 - 264 VAC

100 - 240 VAC

50160 Hz

47 - 63 Hz

90 - 264 VAC

100 - 240 VAC

50/60 Hz

47 -

63 Hz

N/A

1.5A

4A

3.5A

I

GA

5A

<

275 pA

N/A

Typical 133 btu/hr

(33.5 kg-cal/hr)

Maximum 549 btu/hr

(132 kg-calthr)

N/A

X

<

275 pA

Typical

198 btulhr

(50 kg-cal/hr)

Maximum 1260 btu/hr

(318 kg-cal/hr

I ypical 150 btu/hr

(38 kg-caUhr)

Maximum 1024 btulhr

(258

kg

-

catinr)

80mm variable speed

X

<

450 pA

Typical 222 btu/hr

(56 kg-cal/hr)

Maximum 1916 btu/hr

(483 kg-cal/hr)

Typical 171 btu/hr

(43

kg

-

cal/hr)

Maximum 1557 btulhr

(392

kg-cal/hr)

92mm variable speed

X

--

.

DA - 12744 Worldwide QuickSpecs — Version 31 — 9129;2008 Page 21

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

QuickSpecs

HP Compaq dc7800 BZt iness

Pi

Technical Specifications

FEMP Standby Power

Compliant

(<2W in S5 - Power

Off)"

X

X

X

Power Consumption in

ES Mode - Suspend to

RAM (53) (Instantly

Available PC)

< 2.7W

< 2.1W

< 2.7W

' Energy efficient power supply is a requirement for ENERGY STAR compliance in conjunction with a select range of processors and modules.

" Power consumption in the Off/Apparent Off mode is measured and reported with the network interface controller "Wake on LAN" feature disabled in F10 Setup (default is "enabled").

ROM BIOS Information

Key features of the HP BIOS in the dc7800 include:

Deployment and manageability - HP BIOS provides several technologies that help integrate the HP Business desktop computer into the enterprise. such as PXE, remote configuration. remote control. and F 10 Setup support for 12 languages. Select models offer Intel vPro technology including AMT 3.0 (Active Management Technology).

Stability - HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and advanced change notification.

Security - HP BIOS Configuration for Protecticols offers a robust and flexible set of security features to help the system administrator secure their systems from removal of sensitive data. and help prevent access by unauthorized users.

Computrace agent - For tracking and tracing services, available in select countries, separate software and purchase of a subscription is required.

Thermal and power management - The HP BIOS provides and enables thermal and power management technologies so component temperatures are managed for high reliability and to assist in operating the HP Business

Desktop computer in any enterprise environment.

Acoustic performance - Industry leading acoustic emissions across the range of operating conditions.

Serviceability -

HP

BIOS provides diagnostic and detailed service information

Upgrades and recovery - HP BIOS provides numerous ways to upgrade HP Business Desktop computers. including

BIOS updates from within DOS (Flashbin). BIOS updates from within Windows (HPQFIash, SSM), HP Client

Manager, and fail safe recovery. In addition, the HP Business Desktop BIOS Utilities tool enables replicated BIOS setup throughout the Enterprise; it is available from within the BIOS software and from the support website.

Additional HP BIOS Features

Power-On password - Helps prevent an unauthorized user from powering on the system. After a TPM Basic User password is established in windows. the user or admin can require TPM hardware based authentication during the power-on process.

Administrator password - Also known as the setup password, this helps prevent unauthorized changes to the system configuration If the administrator password is not known, the BIOS version cannot be changed and changes cannot be made to BIOS settings using F10 setup or under the OS.

Advanced Configuration and Power Interlace (ACPI) - Represents a significant innovation in power and configuration management, allowing operating systems and applications to manage power based on activity and usage. HP

Compaq dc7800 models use ACPI to provide power conservation features under Windows XP

DA - 12744 Worldwide OuckSpecs — Version 31 — 9/2912008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page

2:

Ptivinzi I de 1

Intel® Core

fm

2 Duo Desktop Processor E6550 - SI .A9X

asoyi erfl p

een

MAT ! COMMA 1.1;

inteI

lea; dread

Inter

1.0

111

1

.

9". '

4411Clat4e roducts Technology & Research ResouRe Centers Support & Downloads Whew to Buy

Intel® Core'M

2

Duo Desktop Processor E6550

/low

Do]

USe this Tool' 0 Printer Friendly Format

el

Processor SdeeiliCatiOnS: sSpec Number: SLA9X

CPU Speed: 2.33 GHz

PCG: 06

Bus Speed: 1333 MHz

Bus/Core Ratio: /

L2 Cache Size: 4 MB

L2 Cache Speed: 2.33 GHz

Package Type: LGA775

Manufacturing Technology: 65 nm

GO

Core Stepping: 0611.311

CPUID

String:

65W

Thermal Design Power: 72°C

Thermal Specification: U.85V - 1.5V

VID Voltage Range:

Product Documentation:

IlLtP://www.intel.cornAlesignicore2duo/d0Curnentation.htm

Pr (Mutt Order Curies

Box Order Code: BX80557E6550

Bx80557E65SOR

OEM Order Code: iiH805571:90534MG rSupported Features:

Dual Core

Enhanced Intel Speedstep® Technology

Intel® EMG'lT 1

Intel® Virtualization Technology

Enhanced Malt State (ClE)

Execute Disable Bit

2

Intel(0 Thermal Monitor 2

5'

Notes:

These parts support Intel(g) Trusted Execution Technology (Intel® TXT)

These parts have PROCHOT enabled.

These parts have THERMTRIP enabled.

These parts have PECI enabled.

These parts have Tdiode enabled.

These parts have. Extended Stop Grant State (C2E) enabled.

These parts have Extended HALT (CIE) power of 8W.

• • - - • ■ • • • •

Legal Disclaimers:

/ !Mere) f •Itrrtt requires a Contrniter system with a processor. CrepSet. DIOS, operating system, device drivers and applications enabled tor Intel eM64T Processor will not tnie rdte (including 32 -bit operate:0n) without an Intel 1.11641-enabled 11105. Pei lormante will yal y

11(Valiata) on your hardware and software cotffigurations see intol/www. Intel.COntrinforeinl ynt fur more unions:diet, iticluthito details nil wludi processors support

!mete E14641 or consult with your system

vendor tor

more information.

2 Enabling Execute

Disable nit functrunality requires a PC mu, a processor with LX2CUte Usable nit capability and a balptaailati CalClailag system

Cheek with your PC manufacturer on whether your System delivers I yorrile thr shk• Bit functionality.

1

• 4405 I Jess at IMO investor Inmations

'Legal information I erwaty Percy I *loci °Yenta. n

_01 S

Ate

n", (I I iliAAO

GIGABYTE - Product - Motherboard - Specification - (iA-031M-S2L

Pagina I de 2

GIGABYTE

0 Motherboard

Main

Pane

Com p anSOn Sncet

Cer15c.altan

Atx.essury

Geeks Column of the Week

Unique Feature:

Simon'

Awards

NewS

..."31POtale

karni.2x2li

0 Frannie Vow

Lit c. Eionit

Awaids

NiN/S 1411Rele /0 1111y

Hume

Pit/duel .1.4olhertiodid.

Stwulication • tiA

.

“311.1 SZI

GA-G31M-S2L inter G31 • It:ii7 Chipct

[email protected]/131: ••:;

Ilblp

I Si.n)poP. lobeCow

10

2 Multi-CON and 45om lacci:sr.ots to FSR 160D (0C I

4

2 &HO capacitors UeSion in CPU VRA4

3 Unal Ctuuncl D01

.

12 1066(0C )1Ci lenuskotne system perlonnance

Integrated Inlet Conti :6 Morita Accelerator

3503 Lintel CMA 31170)

5 Intowated 3Gtos onetlarn

C.

leak/CS 61911 speed CigahA Ethernet

7 Integrated HO Debniliun judo/

0 Related link

0111101.1/W (R551

Spvelliedlion IRSS)

Accessone6

BIOS IRSS)

Insert 111551

Ma AtIal IRSS)

FAQ IRSS)

CPU Support Lisl

Memory

Support Lisp

Comparison Sheet

Where To Buy

0 Product List

Intel Socket 1366

Niel Socket 775

Intel Socket 47131437 knot Socket 478

Intel Socket 1

4 4

4 78 pin)

AMOS./act AM2.

AMU Socket A612

Jther SOCketS

Yi

,

■•

Optimized

Perfonnanee

0 Specifications

CPU

LExpenences

yonciow$1

!Vista-Premium

Front Side MN

Chipset

Memory

Hash ,•• Wallpaper

Frrri rrrni

Onbenuel Grephas

Aud,u

Expansion Skits

Storage Interlace

1 Summit 10/ 011 lute& Gorr

2

F Nemo proros5o0lotee eine m

2

0w1 proCeSle gg inel l

Cure''

2

Duo pluum.suit Inter

011jI.CO/U piocessuritine1

(Go to

4

Celcion l

'plocessn: in the L CA 775 package rachntrn

%stink

let the latest CPU support kat )

2 L2 Lithe We1e5 with CPU

Gro)(0 C 71 131 i0560300 rat 550

3

2

1.

I N.M. Midge Imo& C 3I flows. Cnip..el

2. South U1 edge Intel'

.

ICH/

2 x I UV

()DIU DIM sockets SuPpOrkng up to 4 of syStom nionmy

Dual channel memory architecture

Slbe111111

WI DDH 2 1066(0C )031.111

.

66

I

/Aril inentolp motkiles

(Go to GICAtlYW's viebsile lee the latest memory support 1st

I. Inlepate.14‘ the lOorth Bonito

I Rea p er Al 0662 cadre

2 Null

°Brawn

Auden

3 2;445 1 01,mnol

4 Suppod Lit 5/ DIE v. So putt tot CU In

2

I

3

I x PCI [amen •I6 Out

1 x PCI F +mess xl slut

2 x PC1 slot.

South NOW

4 i

Z:

U5I3

InlornalICO

Connectors

1 X in( connect°, so0Oonin4 A

TA WO:6A33 J1111110 10 ?B/L cliivh.es

2

4 x SALA 3C6Ps connerier

,

. Suppuilin) up to 4 SATA l(Aas acvices

BE 118718 ono

1. 1 a

lloppy

disk dove g amin:elm somporteiu up lo I Iloppy desk ono

1 hilt:waled m Ulu; South Mar

2 Up to 8

USII 2 01 1 I

PORE

14 on the back panel.

4 111aUle USH toaCkels Conneilnd to the tolcinal USB hoadris)

2

4

1.

1 F 24 um AI

X1110111110 11WIOCIOI

1 s

MX I 7V

para21 (.1101101111/I

1

X llo

PP y disk dove cu p

omelet

1 .10t- toinun.lw

4 x SA1A 3GD.

1

5 Connectors

7

1 s CPU Ion hoods..

1 x system tan teaser ii u 1

x Rout

pamtl tioadm

1A

11001

WIWI audio !geode'

ID I

it

Co

In connector

I A

SVI

/11.

Out

louder

12.

2 a USU 2.0/1.1 headels

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Vernon' Module Specification

KVR667D2N5/1G

1GB 128M x 64-Bit DDR2-667

CL5 240-Pin DIMM

DESCRIPTION:

This document describes ValueRAM's I 28M x 64-bit 1GB (1024MI3) DDR2-667 CL5

SDRAM (Synchronous DRAM) memory module. The components on this module include sixteen 64M x 8-bit (16M x 8-bit x 4 Bank) 1)1)1(2-667 SDRAM in 1 : 116 A packages. This

240-pin DIMM uses gold contact lingers and requires I I .8V. The electrical and mechanical specifications are as follows:

FEATURES:

Clock Cycle Time 000 CL=5

A Row Cycle Time OR(')

IA Refresh to Active/Refresh Command 'time (tRF(')

A Row Active Time (tRAS)

A Single Power

Supply

of

A Power (IDD0)

(II. Rating ins (mill.) / 8ns (max.)

54ns (min.)

105ns

39ns (mill.) / 70,000ns (max.)

+1.8V ( • V)

1.872 W (operating)

94 -

0

Note: The module defined in this data sheet is one of several configurations availabio under this part number. While all configurations are compatible, the °RAM combination and/or the module height may

VdI

y burn wont is dr:sunbelt bore. However, in no oontiguoilion will the module height exceed 1.25W (31.ibintit).

1 270. 0 10

020

Down II

Figure 1: K

I R66 7

1)2.V.5/1G 2.10-Pin DI

I/

Document No VALUERAM0408 001.ACI0

Cf

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

04121105

- NVIDIA GeForce 8600GT GPU

- 512MB, 128-bit DDR2 Memory

- Innovation PCI Express with DVI/ TV-out /VGA ports

- Supports DirectX 10

- Supports SLI technology & PureVideo Technology & Full nView Multi-Display

- NVIDIA unified architecture

- GigaThread Technology

- NVIDIA Lumenex Engine 16x Anti-alias ng 128-bit floating point High Dynamic-Range

(HDR)

- NVIDIA Quantum Effects Technology

- NVIDIA ForceWare Unified Driver Architecture (UDA)

- OpenGL 2.0 Optimizations and Support

- NVIDIA nView Multi-Display Technology

- Built for Microsoft Windows Vista

Cc

_sic"

C

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

11D16111J desktop - 111)1) SAMSUNG

42=9

HD161HJ

***** .1.t•5Oss

• atuadiat 0e t•rneteder onsuaer

.1131611.1) de patio produtos B28 'upon. •portence

POUCIAS sober a sannung

Jul

Nona

10 reg.' • 10,killit •

011,01Stk• • MA'

especificacOos

• .0...14.1

nmirclIscmio labt

IL

1.04■1•

Du

ta•0 Cl ur,t1.0e

haw- •

.411,..4.. 0 •.•

D

U

D

SOCS

LTA )COI.

MIS

511

7760

Fif.1

tspotoseaaees

de

nesempanno laintwoo...14

4 lien.

7, il4

14.4.14 I woost,..... its 13•A.

9...PAESI:Kee

14.1;“

Ima 'Iowa oaaa

000^MAI.

SOCUEteat

141)41.4.4. n . Y4Jr %vs

&Melo A TO ••••-11

..1•1•1••••41.6 S. Way.

anat.°

aW0a

.‘11.6004•41s Csaletwbas•e

de

tea t'

:oxa

A0.40.4•

I •

•ndl tun., I. !Nom

4 .1In,

tflou.sliC4K

Go

A mammal,

Lny

01,••

".4.1.

01.0

lAseclaa Ire tostma.s...

0-00

•.

VI.

yo.,,

Saute s.

nvo.

Rep•dus S. Lostspu ifr■fmotm l'Is0.1 01.0 4. tin '

4st...re

MO,

10)..

-300

1•10Xn tile ...in, 1. •

2A

SW

"

• food*

00AMOMI Wool olutars,

• tre.,/•4e..h....0...0...44A...

a•Olmanr•Id.

.w sarv...••fraa••

10.1.•

••

C Mob,

3s1

4 1

(

/1 tit!

Ier.rr 114'oat I.a...ors own ___Ley cry

414Id kW • Indies.

e•

MJa

COrYtilal4V• V••••0 Ie

I .111V•ee

eta s•• sJia. /us. ewe. w• love

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

-

- • •

• ...... • •••• .....

• sin •

SH-S202J DV D-W - ODD SAMSUNG

pe 04.401i BB •s•One ens site nabiCsa, 'Awn 11•011Sung

lia ril lt511. 141 .1•‘4% I ,.

It.

Pzigina I dc 2

SH.S202J

inallso••• 0...44.411.4

••

1.4011.440144/1044/a.

(MI It hadJ esp“.,rw—ii6c%

NOCull.411.614•116

/4.4.• .....

4.4....444.1•••••4.4

..44

Vdr le • ON lama diellanbOntil(e• a 4.60

L

Parana a Dewasetts

54.1.■

14.

woe...Su

...........

1.44 4.14 110.441. 5.1

4.4.44.4 A

2.1.1

•44.4.141111./10

.• 44.4 IA

14 • ov•V•40.........

1,•• ••••

V

.

r • m g, mei.*

...•

44

Pobo• anerees do sr••••■

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Coletek - GAB 4T SK l'370

SIC1'370

Il

6443 aT

SK P 370 BSI-40 SKP3 70

Especificapies

C•59r

7. escucau

',vi t. c

Caincoor Sala

Rulerancra tRY.A;91.00

tabriCante

Paarao

AIX

Palencia da 1 cute

ryon

Sin I

Coavmtzu mattLmIntente

3

C

O r leLtOr y b

Ala IDE

?Cancan/cc cc I Icpplr

I Concace Pa 12 .. 1":9

I Contact paxao ATX t2.3•4 pna•1

I C

OINJ•L,'

Posits. alialenta(ao pars

Not o Monitor

Snn

uSn 10 c nit° dc

As •

Calm

W

Bala%

4 oa 9 19 exte ,PaStl Rom" cle 3 5 'ectina*

S i as Ut)expallpStg

Venlilaco lateral

119 IC)..thU (Aortic

pcao

para venaladol

I ikalatIt rasc;f0 ic1.94 uu 9/..921m19

Panel frontal lima" L qatfiesiaga

Hcr.lo Rcsul

: (9-4)1/

LeJIIUU

My Ca t15IIItur131

:mann para

Ma y a de see/rano

Maleroa prima

;sc

.111,41.

LIptt5swa

J

J 4

1

4.4/J - 0 tr0 min

Cur l'i•MO. pr.?,

Cunteutlo da molfialasout

Cebo de lurie ,elt.to-aZultcM1

:

K

J.)

' Kooc cconto9c.

2

1 0, talboS Cog04 taltrai

4 Caral,,9os paa ddlo

Erraniacjem inUntickaal inups.Ses 490 (Al X

4:a (CI X 33004

ma

Peso CUO kj

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

l'itgina I de I

\c

IfitAVIEW Inkliistria de Produtos Eletrenicos do Brasil

BraView

set %JAI" :AI.

M...ratteol.“t,

r 1•44.•

Intettlat

Worn,

Cts

Ctintan

W•ilwaris

...tag Aitott,10,41r

Ilteriet 1.11“.1401.01,1 titht filtatlePo.potata

(lesintcoth

•••••te•to Itcn.:• lant.lettcht.•

Widow.

Conde

1000•1114/11016:001011

Ilt.plitt Online

Utah ett USUAMIO

A100•411.1•1

•••..

IC"^"114•••1

U

1.1.1.141/4

n nut

19.1.

V.- 1

Teclado TCO liGM

as—aria,.

1.1

I ...tint.

111. MI

a

IAA

•••••

Teo

CiEM taPtClf ICACeLS

1

1 torn,

IA

4 •111/

• 10.6 4. 0 "l • 7 2C • 1St

C," 4.• o tr est 4•Cot.. %PIC% u;.1)) • Wm.

0... VS •

C.•••••••••••■• ••■••

14.sUrma.14741••t•

CANAC 11.111151101.5

• n1 1.1 1 T61. 0 1461111111...

IP •••••••01.,..11• tilataltal

.•

J'alW PAW an.. ri•d•a• ifilethfle nol lii. Itt

..nfC• reclach, TC0-2026M8 leciado re0-2u27M5

Teclado ICO.3

14M

4...••••9••••sw•nr,ula

•••1••••••••

.• • • •

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

11.0

mod 9fi 'MS

41 ,•11/0 •JTX

['agora I de I

Bright.Com Comercial

Pagina I de I

Busca Rapida de Produtos

Seiecione o Produto

ECCUGHT

1111101 PROMOS DRIVERS CNIASTHO CHUM BMA ASSISTENCIA TECNICA FILE

Mouse

Optico -

Cor. Preto

COdigo 0012

Tecnologia

Optica

Resolucao

800 DPI

Botao Scroll

Conexao PS2

Desgin ErgonOrnico e Ambidestro

Peso Liquido: 0.100Kg

Peso Bruto: 0,118Kg

Caixa Master:

20

COdigo de Barras

789798220088-6

Voltar

1/4

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

WINDOWS XP PROFISSIONAL O&M

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

..

• . •

Nobreak Inteligente

1,6 - 212 e 310kVA

Caracteristicas Gerais

Corupativel

corn:

Soluc.io 514S

para

Gerenciamento de

Missiles Critic

as

Perfil

(break Power Vision lot desenvolvido corn a has avanQada tecnologia garantindo protecao e meihor desempenho aos equiparnentos conectados a ele.

Disponiveis nos modeles de 1.6 - 2,2 e 3,01tVA, a linha Power

Vision oferece praticidade e simplicidade, pors o nobrcak autoexecuta as funches sem intervenCao do usuano.

Entre as funcees podemos destacar o conector do tipo engate rapid° para expansao de autonornia do nobreak e a recarga automatica das baterias realizada na presenca de rede eh:erica, mesmo corn o nobreak desligado

A laths Power Vision disponibiliza a solucao Gerenciamenlo de

%sates Ciihcas da SMS oterecendo servicos como gerenciamento de energia. monloramento reftiOtO de anitnentee comunicaca° on-line, alarme antiintrusao e videoconterencia.

Proteceies

IntmettN0 - regulacäo ON LINE.

- Lstabilvndor inter no: corn 4 eLlaijitiS de regula nitro de iiima interne

- Microprocessado. microprocessador RISC de alta velocidade corn memona flash, integrando diversas luncOes periferic,as, aumentando a conftabilidade e o desempenho do circuit° eletrOnico

- Funcao TRUE RMS permute uma melhor regulacao de tensao de sada

- Auto Taste: ao ser Irgado, 0 equipamento auloiexeCuta uma

*Una de testes em sous circuutos 'Memos, inclusive loaferlas

- Recarregador 'Strong Charger' : permite a recarga this baterias mcsrnc corn ntveis rilu.t0 baron de carga

- Recarga automatica das baterias meant° corn o nobreak deskiado

- Consclor do tipo engate rapido para expansao de autonotnia

- Inversor sincronizado corn a rode (materna PLL).

- Forma de onda senordal por aproximacAo: retangulur PVio•t controle de law a e amplitude

- DC Start: permite ser hoed° na ausencia de rede elf:erica

-

Leda

que indicam as condicees do nobreak: modo redo,

MO(70 inversoobatena final de autonomia, subtensao sobretensao baterias em carga, etc

• Saida para comunicaello inteligonte: true serial RS-232

(acompanha cabo)

Para Internet, linha telelenicarfax (acompanha cabo).

- No inversor contra sobrecarga e curto-curcurto

- Contra surtos de tenS00 entre rase e mitre

- Contra sub/sobretensáo de

cede

corn retorno automatic:L.

- Contra sobreaqueumento no inversot. corn Warne e

Posterior desligamento automatic°

- Contra doscarga total das baterias co

Cr

- Software para gerenciamento de energia (SMS Power

View). fungees Como relater* de eventos, temperature tensa0 do entrada e saida, patellae tensaci de baler*. frequencia de rede, shutdown e restore prograrnavers (luri(ao night off e wakeup)

- Net Adapter (opcionai) permite ao usuano controlar e monitorar o nobreak via retie local (TCP/IP)

°

__,,.Chave MUTE: inibidor de alarme serum

- Mode* monovolt. entrada 220V e saida 220V.

1

Medal° bivolt automatic° entrada 115-127V ou 220V e ada

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Si!

XS?

Resumo dos Modelos

Modelo oPV1600134-X oPV2200131- X pPV2200SFX pPV3000BIFX

(VA)

160)

2200

2200

3000

Entrada (V)

Divan out

115 12/020 enroll cut

115.127/220

220

BooIt

Out

115-1211220

Saida (V)

115

115

220

115

Comet pita kit Intelligent*

Coned° pars bated, edema

Pro** pare iinha telefanice

(a0empanklu

0 caboi

S^Ir sun

(aoompanha

O cabo)

-■•■•••••••7N

Configuracäo de consumo e autonomic

'

CONFIGURACAO T(PICA (CARGA DE INFORMATICA) linctesa late de t1,16,1

C

Iropressom mairictal 300 cps

PC (On Board) • Moolor de 14' ou 15-

PC (On Board) • Marino, de IT

QV

19'

PC (Off Board) • Monitor de le ou 15'

Ci

PC (Off Board) • Mond°, de IT ou 19•

Secindc4 co pleb ore uma Sante

Senrcior complete can duos tomes

Jo

200

250

300

350

400

500

700 m'

bra‘mkg

L* "as

tC;

Contlg.

TIpIca

(vide

BATERIA

INTERNA

.

3TEMPO

DE AUDONOMIA (mInutos)

-

BATERIA EXTERNA +

UWE") pPV i600 pPVIttuu p1iv2200 pP1.0000

pPV1600 priV1600 pPV2200 pPV31.100

8C

C r

2C

2F

2C

2D

6C

A

+

12C

2A

I 2V/18Ali

65

45

25

12

10

-

8

-

.

123036All

140

105

65

35

30

20

-

-

:14LNIEINI

140

105

65

35

30

20

16

24WIRAII

140

105

65

35

30

20

16

8

121.058Ali

300

180

130

60

45

35

I 2V1 I I 6AI)

630

380

270

130

100

80

-

BATERIA INTERNA

241B5BA11

630

380

270

130

100

80

50

-

24V/58811

630

380

270

130

100

80

50

35

Consume maxim° e a potencta que os equipamentos ligados ao noborak poclem abncor n5c• continuo de operscolo.

cons•deta•dose

regime

2 0 tempo de autonomic. pa*

VAMP tie acottle aim as C0•K1Kr15eS de uso da bateria. de tempetaluta ambient°.

been como da catga media ligada ao notneak

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Apresentack dos paineis - frontal e traseiro

1 Grove ligaidesIrga

2

Lcd verde para inchcacao de operaceo rede

3

Led ver meth° para indicacao de operagao batena

4

Chave funcao mute

5

Conector teletenico (padräo

6

Conector DB9 para comunrcayaointeltrzente

7 tomadas de saida (Dadra° NEMA 5/15)

8

Conector de engale rapid° para batena extern

9

Cabo de rorca (entrada de redo)

10 Calotas proteloras

11 Rodinhas deslizantes

12 Micro exaustor (para relnoeracao intorna)

Es ecifica Oes Tecnicas

.

__

Caracteristim

(*lulu tnitnonal

1,1

A I

Is

vapacau

ITIaXIIIIi1

Models pPV

160013iFX

f.,

4%

oll J kdomatv.t)

115.1277220

i

pPV

2200BiFX

bv011 .1.7091.)1.00

115-127/220 j

90/142 entrada 115V

171/264 entrada

220V

pPV

2200S FX

220

165 a 268

1

1

VI

3

8

iIimitibncia cle reds' aa

(Hz) 60 ± 4 l'otencia

(1111,01110

r

moo

do oolência

Thot.So

nominal'

Kt/1;14600

, r r eCIVADO3

,011/1.1

05 0(103 00 eveDSOC

Romero de tOmadaS flundenCflt0

Hate, pa inleina

Kriteria °Marna

Anionamenlo do iliver$0(

POSO

I g uido

1

'510

tam°

corn oaten,' p cso ig l us*,

Peso veto

sem

batena

Dimensees

Altura

Larguia

Profundtdade

(Mil

Comenmento do cabo de forya do nobteak

Compnmenlo do cabo ielefônica

Ipachao amencano

RJ11)

' MOO imm)

Compliment° do cabo de comunicareão serial

RS232 own

NA)

(Hz)

1600

I

2200

I

0.62

2200

I

3000

115

A

I

115

5%

( para 0

P

6,3560 balsas?

1

220

I

115

1

.6% -10% (para operacao rode)

60 Hz 1 1% (para

operactio

batena)

SCDOldal por aproximac-le

Octangular

RVVA l l - conk* de largura e ampinudel

10

(k9)

(kg)

I

95% (para operacao rode) e

85% (para operacao batons) lba1

12VDC 18Ah

10)

1

4

ITIOd

Sib)

7VI mix ROM loptauno t

24VDC

IRAIs

(excelo mod sib)

24VDC max

40Ah

(optional)

......

23.9

25.2

... C' ' -..t

i r:7 -- . •

3.0.

.

..% •

34.3

1::00

17,9

19,2

—Pi+

1 t

21,0

22.3

43

.

0

-

-

370

38.3

25,0

26.3

307

J

1 l

4 1 b

1450 t

50 NI-MA 5/15P1450 I SO

1500 s 50

1500 , 50

P r utcior untie Case

Mamma

Mamma contrite de tenvto

de

oneracio c neutro energy de solo ptco

8/20pS

I Welt

2 (Mete

y

g

» tot v somenIe sob consulta en 1”0/urro

.

() TRUE 121.18

In

(A) no

276'

4500

175

426'

4500

275

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

pPV

300061

FX

115-127r220

901142

171/264 enkada II SV enhada 220V

_

276'

4500

175

c.x

'V.

1

.• Pectaet.

0.0:97

Gerenciamento de missOes criticas

0 Gerenciamento de Mtssdes Criticas é a SOluCáo SMS que permute admintstrar. local ou temotamente, sua infra-estrutura de aplicacdeS entices. 24 hares por dia. 7 dos por semana (24X7).

A interface de gerenmamento remoto é viabilizada pelo portal de services Alerta 24h (www.alerta24h.com.br), que possui a Seguranca da criptografia 128 bits

Servicos oferecidos:

- Gerenciamento de energia

Corn o use de equipamentos e softwares conectados a rede de dados ou a internet. SAO enviadas, constantemente. inlarmacOes sabre as condicdes da redo eletruca e sabre o status de maltiplos nobreaks, pen-rondo uma visào unuficada e uma administracáo tanto local, quanta remota dessa infra-estrutura.

Este servico oferece a possibilidade de agendar tarefas coma desligarnento automattco do nobreak (em case de quedas de e prolongadas), desligamento remoto dos computadores e servidores conectados ao equipamento de protecão de energia. entre outras funcees

• -,

\ 'N\ is \..,,,

-..,

- Monitoramento remoto de ambientes

Monutoramento em tempo real, por mein de imagem e som. dos locals onde estao instalados os equipamento de missão entice.

- Comunicacão on-line

Permute acesso imethato ao local monitorado e interaceo. ponto-a-ponto. entre os profissionais cam o auxilio de webcams e microfonos

-Alarme aneintrusdo

Ourante a periodo em que o ambiente monitored° pelas webearns estiver vazio. e pass/

^actonar um service antiintrusao que dispam alerlas pare os celulares eiou e-mails cadastrados no exato moment° de uma It movanento du de uma anonnalidade de

0

- Videoconfenencia

Outro recurs() disponivel na soluccio 6 a vudeoconferencua corn recursos de chat, que permute a unteraCao situados em diferentes localidades.

de ate cum rotussionaus

\

•••■••■•••

MOdulo externo de baterias*

MOdulos Caracteristicas

MOdclu I • 12VOCe40Ali Compost° por uma oatena de 40 AI. Llatmictv metalico e woo cum coneclor de enonte rapda Api g•-•Wei ao modulo de 1600vA

MOdul0 IV • 12VDC/80Ah Compost° por duos batenas

de

40 Ah. gabinete metalico e cabo corn conector de engate tapido Aphcavel ao modulo de 1000VA.

Modulo II - 24VOC/40Ah

Cover fro per Geri batenls de 40 Al., yclAcete clettthco c calla cool cOnectuf de ertycle

(.1n40 A0loCavet aos models de 220DVAe 3000VA.

'Optional

.6

SAC

QuickSpecs

Overview

HP Compaq 6710b Notebook Pi

HP recommends n Ows Vista"'

Business

1_ Volume mute button with LED indicator

Volume scroll zone with up/down LED indicators

Integrated microphone

12-1-11/modem pod

Optical drive

Media Card Reader

2 USB 2.0 ports

HP Fingerprint Sensor

Integrated stereo speakers

Touchpad with scroll zone

Touchpad buttons

[hp]

Hard drive activity/ 1113 3D DriveGuard LED

Battery charging LED

Power/standby LED

Wireless on/off LED

Power button with LED

HP Into 11P OuickLook button with LED indicator

Wireless on/off button with LED indicator

HP Presentation button with LED indicator

WLAN antennas (with WLAN option)

WWAN antennas (with WWAN option)

DA - 12685 Worldwide QuickSpecs — Version 12 — 3/18/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page 1

QuickSpecs

Ov

erv

ie

w

Leh

HP Compaq 6710b Notebook Pi

gear

View

Power connector

2 USB 2.0 ports

3. Stereo headphone/line out

Stereo microphone in

5. 1394a port

6 Type MI PC Card slot

PC Card eject button

S-Video TV out

VGA/extern

RJ-451Ether tClort:

11.

Kensington k slot

At A Glance

Genuine Windows Vista Business', Genuine Windows Vista Home Basic,I

Genuine Windows XP Professional, or FreeDOS

.

Widescreen 15.4-inch diagonal display with wide-viewing angle, BrightView and HP Privacy Filter support

Flexible wireless connectivity options

Integrated HP ev2200 1xEV-DO. HP ev2210 1xEVDO-A or HP hs2300 HSDPA Broadband Wireless module

Integrated 802.11 a/b/g/draft-n, a/b/g, or b/g wireless LAN module

Bluetoothte0

Intel Core TM2 Duo processor or Intel Celeron® processor

Thin. lightweight design starting at 5.7 lb/2.50 kg and 1.4-inch/34.9 min thin at front

Security features including Drive Encryption for HP ProtectTools, HP Fingerprint Sensor, I PM 1.r'

HP

OuickLook on Windows Vista models for instant access to email, calendar, and contact information

Up to 250-GB 5400 rpm or 120-GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection

Media Card Reader

Touch-sensitive controls for HP Into Center, HP OuickLook, wireless on/ott, HP Presentation button, external volume up, volume down, and mute

Integrated optical drive, including optional DVD+/-HW SuperMulti DL lightScribe Drive up to 4 GB of 667-MHz DDR2 SDRAM. dual channel memory support

Mobile Intel Graphics Media Accelerator X3100, with up to 384-MB shared system memory (select models)

Broadcom NetLink Gigabit Ethernet Controller

Touchpad with scroll zone

At initial boot. either 32- or 64•bit can be selected. This is a one time selection and the other versson will be deleted.

TPM module disabled where not permitted by law (for example, Russia and China).

4

DA - 12685 Worldwide OuickSpecs —

Version 12 — 3/18/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page

QuickSpecs

Standard Features

Processors

Operating System

HP Compaq 6710b Notebook P

Intel Core 2 Duo Processor T9500 (2.60 GI iz, 6 MB L2 cache, 800 MHz FSB)* \C„.,

Intel Core 2 Duo Processor T9300 (2.50 GHz, 6 MB L2 cache. 800 MHz F513)'

Intel Core 2 Duo Processor T8300 (2.40 GI lz, 3 MB L2 cache, 800 MHz FSB)'

Intel Core 2 Duo Processor T8100 (2.10 GHz. 3 MB L2 cache, 800 MI lz FSB)'

Intel Core 2 Duo Processor T7800 (2.60 GHz, 4 MB L2 cache, 800 MHz FSB

Intel Core 2 Duo Processor T7700 (2.40 GHz, 4 MB L2 cache, 800 MHz FSB)-

Intel Core 2 Duo Processor T7500 (2.20 GHz. 4 MB L2 cache, 800 MHz FSB)*

Intel Core 2 Duo Processor 17300 (2.00 GHz, 4 MB L2 cache, 800 MHz FSB)'

Intel Core 2 Duo Processor T7250 (2.00 GHz, 2 MB L2 cache, 800 MHz FSB)'

Intel Core 2 Duo Processor T7100 (1.80 GHz, 2 MB L2 cache. 800 MHz FSB)'

Intel Core 2 Duo Processor T5470 (1.60 GHz, 2 MB L2 cache. 800 MHz FSB)' (select count only)

Intel Celeron Processor 550 (2.00 GHz. 1 MB L2 cache. 533 MHz FSB)'

Intel Celeron Processor 540 (1 86 GHz. 1 MB L2 cache 533 MHz FSB)'

Intel Celeron Processor 530 (1.73 GHz, 1 MB L2 cache. 533 MHz FSB)*

Inters numbering is not a measurement of higher performance:.

NOTE: Processor speed denotes maximum performance lip& jfia-CeSS15will ?tiff artower---1 speeds in battery optimization mode.

...

I

Preinstalled

Supported

Genuine Windows Vista Busin ssl'

Genuine Windows Vista Home Basic'

Genuine Windows XP Professional

FreeDOS

Genuine Windows Vista Enterprise

Certified SuSE Linux Enterprise Desktop 10

At initial boot, either 32- or 64-bit can be selected. This is a one time selection and the other version will be deleted.

Certain Windows Vista product features require advanced or additional hardware. See titip://wwwinicrosoft.com/windowsvista1getready/hardwarereqs.mspx and http://www.microsoft.corniwirxfowswistalgetreadyircapable.mspx for details. Windows Vista

Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit http:fiwww.windowsvista.comtupgradeathisor.

Chipset

Mobile Intel GM965

[hp]

DA - 12685 Worldwide OuickSpecs — Version 12 — 3118/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page

QuickSpecs

HP

Compaq 6710b Notebook PI

Standard Features

Graphics

Mobile Intel Graphics Media Accelerator X3100

Total System Memory

Reserved Graphics Memory

Windows

XP

v

Maximum Graphics Memory '•

256 MB

512 or 768 MB

8 MB

8 MB

128 Mb

256 MB

1024 MB or more

8 MB

384 MB

Windows Vista

512 MB

32 MB

64 MB

768 MB

128 MB

123 MB

1024 MB

128 MB

251 MR

1536 MB or more

128 MB

' System memory exclusive to graphicsr''' ---_

..

.....—,.... — ..

358 MB rota! available graphics memory (Hyperkemdry),•which includes,13eserve-g. rt hies and Shared System Memory.

I

Microsoft DirectX 9 capable

I t m

)isplay

Internal

External

15.4-inch chagpnal WXGA anti-glar

15.4-inch diagpnal WXGA Bright Vi

15.4-inch diag&latW5XGA4-WVA

HP Privacy Filter support

80 x 8001resolution)

(1280 x 800 resolution) i-glare (1680 x

lb%

resolution)

Up to 32-bit per pixel color depth

VGA port supports resolutions up to 2048 x 1536 at 75 Hi, and lower resolutions at up to 100

NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.

Memory

Communications

Standard

Maximum

512-MB. 1024-MB, 2048-MB. or 4096-MB 667-MHz DDR2 SDHAM: two

SODIMM slots supporting dual channel memory

Upyradeable to 4096-MB maximum (2048-MB SODIMM in slots

1

and

2)

Dual-channel Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB of memory requires Windows

Vista Business 64-bit or Linux With Windows 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements

Integrated Broadcom NetLink Gigabit Ethernet Controller (10/100/1000 MC)'

56K V.92 modem"

The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.

for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

" Designed for downloads from 56K modem compliant sources. Maximum achievable download transmission rates currently do not reach 56

KB/s,

and will vary with line conditions Modem availability is subject to country regulatory approval.

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring

Wireless Devices

[ha

DA - 12685 Worldwide QuickSpecs — Version 12 — 3/18/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page z

QuickSpecs

Standard Features

HP Compaq 6710b Notebook P

support for thV lilleSt Industry standaras. Wireless .AN is factory configurable or dvailable as an option to be added later. Broadband Wireless (WWAN) requires Windows Vista Business or

Windows XP Professional and is available in select countries as a standard, factory configurable feature only Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.

HP ev2200

1 xEV-DO

Broadband Wireless

Module

Integrated WWAN module connects to the Verizon Wireless

BroadbandAccess and NationalAccess networks (U.S. only)

Supports CDMA 1xlV-DO, 1xRTT connections at 850 and 1900 MHz.

NOTE:

Separately purchased Verizon Wireless service is required. For details. go to httpliwww.hp.com/go/broadbandwireless .

Two 850/900/1800/1900/2100-MHz antennas integrated in the top of the display panel support current and future WWAN technologies

HP ev2210

1xEVDO-A Broadband

Wireless Module

HP hs2300 HSDPA

Broadband Wireless

Module

All 802.11a/blg integrated wireless

LAN options

Intel Wireless WiFi

Link 4965AGN'

Intel Wireless WiFi

Link 4965AG'

Intel PRO/Wireless

3945ABG Network

Connection'

Integrated WWAN module connects to the Verizon Wireless

BroadbandAccess and NationalAccess networks (US only)

Supports CDMA 1xEVDO-A, 1xRTT connections at 800 and 1

NOTE:

Separately purchased Verizon Wireless service is requ

M details. go to http://w.vw.hp.comfgo'broadbandwireless.

Upgradeable design and two 850/900/1800/1900/2100-MHz antennas integrated in the top of the display panel support current and future

WWAN technologies

Integrated WWAN module that provides connection to GSM. GPRS,

EDGE, UMTS, and HSDPA mobile networks in many countries.

Currently available for the AT&T Broadbandconnoct network in the U.S.

(supports international roaming)

NOTE:

Separately purchased mobile network operator service is required.

Two 850/900/1800/1900/2100-MHz antennas integrated in the top of the display panel support current and future WWAN technologies.

Wi-Fi certified

Cisco Compatible Extensions support (Version 4.0) with Microsoft

Windows XP

Wired Equivalent Privacy (WEP) support up to 128-bit keys

Wi-Fi Protected Access (WPA) and WPA2 support

802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-

GTC. PEAP-MSCHAPv2, and LEAP

Advanced Encryption Standard (AES) support

WiFi certified for WPA2, WMM

Dual antennas integrated in the display enclosure

Integrated support for 802 11a, b. g. and draft-n

Up to 300-mbps data rate

Integrated support for 802.11 a, b and g

Up to 54-mbps data rate

Integrated support for 802.11 a, b and g

Up to 54-mbps data rate

Intel PRO/Wireless

394580 Network

Connection'

Broadcom 4321AGN

802.11a1b/g/draft-n Wi-

Fi Adapter

Broadcom 4311AG

802.11a1b/g

WiFi

Adapter

.

Integrated support for 89zm and g

Up to M-mbps data rats_

,

r-

\i)

Integrated support for 842.11a. b. g. and draft-n •

Up to 300-rnbps data rate

Integrated support for 802.11

Up to 54-mbps data rate

Page f.

DA - 12685 Worldwide OuickSpecs — Version 12 — 3/1812008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

QuickSpecs

Standard Features

HP

Compaq 6710b Notebook

P

Broadcom 4311BG

802.11b/g

Win Adapter

Integrated support for 802.11 b and g

Up to 54-mbps data rate

HP Integrated Module Bluetooth Specification v2.0 compliant with Bluetooth

Works with a wide range of Bluetooth devices

Wireless Technology

' Requires Intel Core 2 Duo processor

Keyboard

Touch-sensitive controls

The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and 12 function keys U.S.and International key layouts are available. Other features include an integrated numeric keypad, hotkeys for instant access tO power conservation. brightness, and other features, 19-mm x 19-mm key pitch (center-to spacing), 2.5-mm stroke, and comfort-dished keycaps.

Touch-sensitive controls provide easy access to the following features. HP Info Center, HP

CluickLook. wireless on/off. t IP Presentation button, external volume up. volume down, and mute

Pointing device

Expansion card slots

Teuchoad wt scroll zone, two pick buttons

1 Type 1111 PC Card

slot

Supports 32-bit CardBus and 16-bit PC Cards

Of

Optional Integrated

Smart Card Reader

(replaces PC Card slot)

Media Card Reader

Compatible with ISO 7816 compliant Smart Cards

PC/SC interface support

Supports SD (Secure Digital). MMC (MultiMedia Card), Memory Stick,

Memory Stick Pro, Memory Stick Duo', xD-Picture card

'NOTE: Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick

Duo Card directly into your notebook could damage the memory card and/or notebook.

Storage Hard drives 80112011601250-GB 5400 rpm SMART SATA

80/120-GB 7200 rpm SMART SATA

NOTE: These hard drives are customer removable and will withstand multiple insertion/removal cycles. Up to 10 GB is reserved for the system recovery software.

HP 30 DriveGuard

The hard drive is mounted directly to the notebook frame. reducing the transmission of shock to the hard drive. Uses three-axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt motion is detected.

Fixed optical drives DVD-ROM Drive

DVD/CD-RW Combo Drive

DVD+/-RW SuperMulti DL Dnve

DVD+/-RW Supe L-bghtSChtfe Drive

. • _ .....--

1 j.Oc‘

4 -4C

Page f

DA - 12685 Worldwide OuickSpecs — 3/1812008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

QuickSpecs

Standard Features

Interfaces

HP Compaq 6710b Notebook P

PC Card slot

External monitor

1394a

One Type 1111 PC Card slot or optional Smart Card Reader

One - VGA

One

Stereo microphone in One

Stereo headphone/line One out

Power connector One

RJ-11 /modem One

RJ-45lEthernet

S-video TV out

One

One (Support for N I SC/PAL)

USB 2.0

Docking connector

Four

One

Secondary battery connector

One

LED status indicators

Fifteen

Audio

Software

High Definition Audio support w124-bit DAC

Integrated stereo speakers

Integrated microphone

Touch-sensitive controls for volume up, volume down, and mute

Stereo headphone/line out

Stereo microphone in

Preinstalled software

PDF Complete with Windows Vista

Windows XP

or

HP Backup and Recovery Manager

HP Help and Support Center

HP OuickLook (Windows Vista only)

HP OpenView Radio Management Agent

HP Universal Print Driver

HP ProtectTools Security Manager:

BIOS Configuration for HP ProtectTools

Credential Manager for HP ProtectTools

Device Access Manager for HP ProtectTools'

Drive Encryption for HP ProtecITools

Embedded Security for HP ProtectTools

HP Quick Launch Buttons

HP Wireless Assistant

Microsoft Office Ready with 60-day Office Professional 2007 Trial

Edition (select models)

Roxio Creator 9 (for optional DVD+t-RW and DVD/CDRW drives)

Synaptics Touchpad Driver

Symantec Norton Internet Security with complimentary 60-day live update

Intervideo WinDVD - DVD Player

Additional software available from the

HP Client Manager

web

Java Card Security for HP ProtectTools

\J-

• Download available from hp.com for Windows Vista: preinstalled with Windows XP.

[41

Page

QuickSpecs

HP Compaq 6710b Notebook P

Standard Features

HP Backup and

Recovery Manager

Each unit is shipped with HP Backup and Recovery Manager. HP Backup and ReckvZry Manager can provide data and system file protection for HP business PCs to enable fast recovery if the system becomes corrupted or if important information is accidentally deleted. HP Backup and

Recovery Manager can perform scheduled or manual backups of the entire drive or individual files and folders. Up to 10 GB of the hard drive is reserved for the system recovery software. HP

Backup and Recovery Manager can also create software recovery CDs or DVDs (requires optional hardware).

SMBIOS Version 2.4

System Management BIOS. previously known as DMI BIOS, is used to store system managemen information

HP ProtectTools

Security Manager

Security

HP ProtectTools Security Manager is the security platform for business notebooks and desktops.

The HP ProtectTools Security Manager is an extensible client security console that delivers ' enhanced secunty capabilities through add-on software modules. Modules currently iwailab are

14105 Configuration for HP ProtectTools

Credential Manager for HP ProtectTools

Device Access Manager for HP ProtectTools

Drive Encryption for IIP ProtectTools

Embedded Security for HP ProtectTools

Java Card Security for I IP ProtectTools

Standard Features HP ProtectTools Security Mariager

HP Fingerprint Sensor

Configuration Control Hardware

Memory Change Alert

Ownership Tag

Setup Password

Power-On Password

TPM 1.2 Embedded Security Chip'

TPM Enhanced DriveLock'

HP Disk Sanitizer

••- •

HP 3D DriveGuard

Kensington Lock Slot

Support for Computrace 1 LoJack for Laptops (must be purchased separately)

Optional Features Smart Card Reader

(replaces Type I ntl PC

Card slot)

HP Privacy Filter

Compatible with ISO 7816 compliant Smart

Cards

PCiSC interface support

Narrows viewing area so that screen data is visible only to persons directly in front of the monitor

'NOTE: TPM modulo disabled where use is restricted by law: for example. Russia and China.

For more information on HP security solutions refer to http://www.hp.comfgorsecurity .

[ha

DA • 12685 Worldwide QuickSpecs — Version 12 — 3/19/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Paget

QuickSpecs

HP Compaq 6710b Notebook P

Standard

Features

Power Supply

External 90-watt Smart AC adapter, 6-loot (1.8-meter) power cord included.

Total length including external AC adapter is 12 feet (3.66 meter).

HP Fast Charge'

'HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12-cell Ultra-Capacity batteries.

Battery

Primary battery

Optional HP Extended

Life Battery

Optional HP Ultra-

Capacity Battery

5

:

6-cell

(55

WHr) Lithium-Ion battery FR

6-cell (47 WHr) Lithium-Ion battery

8-cell (52 WHr) high capacity Lithiuni-lentaltery

12-cell (95 WHr) high capacity Liffnum-lOrtbattery •

Battery Life

6-cell (55 WHr) Primary

Primary battery

Up to

5

hours and 15 minutes

Primary battery and

Up to 10 hours and 45 minutes optional HP Extended

Life Battery

Primary battery and

Up to 14 hours and 30 minutes optional HP Ultra-

Capacity Battery

6-cell (47 WHr) Primary

Up to 4 hours and 15 minutes

Up to 9 hours and 45 minutes

Up to 13 hours and 30 minutes

NOTE: The listed battery life measurements were taken on models running Microsoft Windows

XP Professional. Battery life will vary depending on the product configuration, product model, applications loaded on the product, power management settings of the product, and the product features used

by

the customer. As with all batteries, the maximum capacity of this battery will decrease with time and usage.

System Standby Time Up to

1 week

Power Conservation

Supports enhanced Intel SpeedStep technology with Intel Core 2 Duo processors (allows Battery

Optimized Mode. Maximum Performance Mode. or Automatic mode)

Intel Display Power Saving technology

Hibernation

Standby

ACPI compliance

Docking and Stands HP Advanced Docking Station

HP Basic Docking Station

HP Standard Monitor Stand

HP Adjustable Notebook Stand

HP External MultiBay

II

HP's shared docking solutions provide simple and convenient port replication and cable management. Features include Gigabit NIC pass through, modem pass through, legacy parallel and serial ports, S-video TV out, USB 2.0 port, integrated security mechanism s , integrated

MultiBay II and ExpressCard" slots. These docking solutions are compatible across multiple

Business Notebook platforms enabling a lower total cost of ownership.

• HP/Kensington Cable Lock required (purchased separately)

••

HP 3-in-1 NAS

Docking Station and HP Advanced Docking Station only

Paget:

DA - 12685 Worldwide QuickSpecs — Version 12 — 3118/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Qu ickS pecs

HP

Compaq 6710b Notebook Pi

,5taticiaci

Features

Service and Support HP Services offers limited

a.

year. 1-year and 90-day warranty options dependin country,

1-year limited warranty on primary battery. On-site service and warranty upgrade re Is° available. For HP Care Pack services see Intp://www.hp.corn/gortookuptool.

NOTE:

Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.

futp:/M20000.www1hp.com/bizsupportirechSupport1ProductRootjsp.

c

on.,

.. •

••

A

i

DA - 12685

Worldwide OuickSpecs — Version

12

— 3/18/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Paw 1(

QuickSpecs

Options

Memory

HP 512-MB (DDR2 667 MHz) SODIMM

HP 1-GB (DDR2 667

MHz) SODIMM

HP 2-GB (DDR2 667 MHz) SODIMM

MultiBay II Storage

(9.5-mm)

NOTE:

Requires HP 3in-1 NAS Docking

Station, HP Advanced

Docking Station, or HP

External MultiBay II

HP MultiBay II DVD-ROM Drive

HP MultiBay II DVD

I

CD-RW Combo Drive

HP MultiBay II DVD+I-RW SuperMulti DL Drive

HP 80-GB 540Orpm MultiBay II I Lard Drive

Other Storage

Communications

HP 80-GB 5400rpm Primary SATA Hard Drive

HP DVD+/-RW SuperMulti DL LightScribe Drive

I-IP Notebooks USB Diskette Drive

Intel Wireless 4965AGN option kit'

' Requires Intel Core 2 Duo processor

Expansion Solutions HP Docking Station with Smart Adapter

HP Advanced Docking Station with Smart Adapter

HP Standard Monitor Stand

HP Adjustable Notebook Stand

HP External MultiBay II

Power HP 2-Bay Battery Charging Station (North America only)

HP 2-Bay Battery Charging Station (rest of world)

HP 10-Bay Battery Charging Station (North America only)

HP Battery Adapter Kit

HP 90W Smart AC Adapter

HP 90W Smart Auto Adapter

HP 65W AC/Auto/Air Combo Smart Adapter

HP 6-Cell Li-Ion Primary Battery

HP 8-cell Extended Life Battery

HP 12-cell Ultra-Capacity Battery

Carrying Cases HP Value Nylon Case

HP Universal Nylon Case

HP Executive Leather Case

HP Deluxe Nylon Backpack

HP Universal Messenger Rag

HP Deluxe Roller Case

HP Compaq 6710b Notebook P

EM993AA

EM994AA ki995AA,

SC,

4

1

!PA849A

PA850A

PA8.51A

357,,A

ET

ET353

DC3618

ILT081M.#xxx

EN488AArtxx)

EN489ANtxxi

PA507A

PA508A

PA509Attm

DT533A#xxx

EW424AARxx:

DT534A#ABA

PK402A

ED495AAthx)

ED493AA

ED993AA#xx)

138994A

PB993A

EJ092AA

RI2314AA

RR315AA

RR316

RR317AA

G0404

GD4USA

DA - 12685 Worldwide QuickSpecs — Version 12 — 3/18/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page 11

QuickSpecs

Options

Security

HP PC Card Smart Cara Reader with Java Card

HP ProtectTools Java Card - 10 units

HP/Kensington MicroSaver Security Lock

Input/Output Devices HP PS/2 Keyboard & Mouse Bundle

HP USB Keyboard & Mouse Bundle

HP USBIPS2 Optical 2•Button Scroll Mouse

HP USB Optical Travel Mouse

HP Bluetooth PC Card Mouse

HP Compaq 6710b Notebook Pt

EL347AA

EL348AA

PC766A

RC464AAttxx)

RC465AA#xx>

DC369A

RH304AA

RJ316AA

5G

(-2

Ck(

tha

DA - 12685 Worldwide QuickSpecs — Version 12 — 3118/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page 1;

QuickSpecs

Memory

Support for up to 4096 MB of 667-K1Hz DDR2 SDRAM

Two DIMM slots

DIMM sites supported: 512 MB, 1024 MB. and 2048 MB

Standard Memory

• 512 MB (512 MI3 x 1)

1024 MB (1024 MB x 1 or 512 MB x 2)

2048 MB (2048 MB x 1 or 1024 MB x 2)

4096 MB (2048 MB x 2)

HP Compaq 6710b Notebook P

Optional Memory

Upgrades

Support for up to 4096 MB of memory is available (with the installation of optional DDR2 SDRAM memory kits). Both memory slots are user accessible Please refer to the Hardware and Software

Guide for installation procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

Up to

1024 MB

1024 MB

1536 MB

2048 MB

4096 MB

Slot 1

1024 MB

512 AB

1024 MB

1024 MB

2048 MB

Slot 2

Litipty

512 MB

512 MB

1024 MB

2048 MB

\

NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed Full availability of 4 GB of memory requires Windows Vista

Business 64-bit or Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.

Memory Upgrades HP 512-MB (DDR2 667 MHz) SODIMM

HP 1024-MB (DDR2 067 MHz) SODIMM

HP 2048-MB (DDR2 667 MHz) SODIMM

I

Cornrr;

EM993AA

EM994AA

EM995AA

DA - 12685 Worldwide OuickSpecs — Version 12 — 3/18/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page 1::

QuickSpecs

Storage

Removable Media Drive Support

Quantity Supported

DVD-ROM Drive

DVDICD-RW Combo Drive

One

One

DVD+/-RW SuperMulti DL Drive

One

DVD+1-RW SuperMulti DL

LightScribe Drive

One

Drive Bay

Fixed optical drive bay

Fixed optical drive bay

Fixed optical drive bay

Fixed optical drive bay

HP Compaq 6710b Notebook pi

Hard Drive Support

Quantity Supported

'rimary Hard Drives

250-GB 5400 rpm SMART SATA One

Hard Drive

160-GB 5400 rpm SMART SATA One

Hard Drive

120-GB 5400 rpm SMART SATA One

Hard Drive

80-GB 5400 rpm SMART SATA One

Hard Drive

120-GB 7200 rpm SMART SATA One

Hard Drive

80-GB 7200 rpm SMART SATA One

Hard Drive

Drive Bay

Dedicated hard drive bay

Dedicated hard drive bay

Dedicated hard drive bay

Dedicated hard drive bay

Dedicated hard drive bay

Dedicated hard drive bay

OS

[hp]

DA - 12685 Worldwide QuickSpecs — Version 12 — 3/18/2008

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Page 1'

Hitachi CP-X505

Sistema

de Display do Projetor

3 LCDs TFT em Polissilicio de 0,8 polegada

Resolucao Nativa

XGA (1024 x 768)

NOmero de Pixels

3 x 786.432 7 2.359 296

Luminosidade em Lumens

3500 ANSI lumens

Relacao de Contraste

1000 1

Formate

4:3 Nativo

Sistema

NTSC. NTSC 4 43, PAL. PAL-M. PAL-N e SECAM

Compatibilidade corn HDTV

Exibe 480i, 480p, 525i. 525p, 720p e 10801

Lente

F = 1.7 - 2 1, f = 24 - 29mm

Ajuste de Foco/Zoom

Foco e zoom manual 1.2x

I

Deslocamento de Lente

Horizontal

e

vertical

Tamanho Recomendado de Projectio

De 60 ate 300 polegadas (152,5 ate 762cm) na diagonal a uma distancia de projecão de 7.2 a 30,3 nes (2.19 a 9,23m)

Correcao de Keystone

Digital vertical e horizontal

Montavel no Teto

Sim

Retroprojecao

Sim

Opoão de Inclinacão da Projeoão

Sim

falante Integrado

4 de 4,0W

Terminals de Entrada

Computador

HO-15 RGB - 1 VGA (15 pinos)

1 M1-D

Video

S-Video: 1

de 4 pinos

Composto: 1 RCA

3 RCAs Componente

Audio

2 Mini jacks estereo

2 RCAs L/R

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Terminals de Saida

HD-15 RGB - 1 VGA (15 pinos)

1 mini jack estereo

Protocolo de Controle

D-sub de 9 pinos para 1 RS232C

1 USB para Control° do Mouse (via M1-D)

1 RJ-45 para LAN corn ho

Lämpada

UHB 285W expectativa de Vida da LAmpada de 2000 bores

(Dependendo das condicOes)

Ruido do Cooler

36 dB

Control° Remoto

Sim

Requisitos de Alimentacao

460W, Entrada AC 100 - 240V, 50 - 60Hz

Dimensees (LxAxP)

16.4 x 5,4 x 12,5 polegadas (41.66 x 13,72 x 31,75cm)

Peso

15.6 libras (7, 1kg)

5G cA!

9:-.1=7;

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

o21

RD TELECOM

Catálogo de Produt

OS

Informacbes detalhes tecnicos

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

II

Rack de Piso

I .trotut a de mcnobloco protean

pail

econdsrsonat tossp etnentos e avers Ono

Pe driu 19" • 23' due ner•ssotem de proteao, facektando a instaleclo dos inesmos. recharnentos 1E84,401 • fundo 4010Vivest. [Aults corn visor de avalco, plano de fooss:iu mood • regulevel n a ptotuotbdade.

Caracteristicas Tecnicas

Vista frontal

\\s

Pnof. Eat 475

AIL

ID

20 1006

2 5

BY

RP 20O475

S

24

21I

1184 14,44 75

1362

42 1540

RP28475

BO

RP72475 b

10 1 ft

44

2074

48 2:52

FG6G 25

RP44475

S O

Poet Eat 575

35,24

2160

4%94

49,14

5158

57,92

62,28

66

RP20575

SO

02.0,75 bG

RP211575

BO

RP2

25

7 5 bu

RP36575

60

GP4057t.

b6

RP44575

BO

,

PeN

33

is

38,25

42,89

47,49

53,17

57,89

62.49

67,13

INA Eat 675

{aka w P I t t 75

36.40

RP20675

BO

RP 24675

150

RP28675

60

RP J2675

B Y

RP36675

60

P4V67!

bG

RP44675

BO

41,32

4e,24

31.20

57.26

62,24

67.14

72,04

PM. tat m

Pnf. Eat 975

ads

IR

RP1627!

RP20775

BO

PP24776 by

RP28775

BO

RP32775 bG

RP36775

80

R1440775 bG

RP44711

BO

RP48775

66

06:19

44,51

49,73

54,91

61,57

66.87

72.05

77,27

89.17

RP40,75 b•-•

RP44975

DO

RP44975 b1.29

87,05

92.89

langur.'

5$_1

t•

CAN1.1!

rt

1

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Front View:

Five removable media bays

Front display panel; includes power button. UID, two USB

2.0 ports, and system status LLD's

CD-ROM Drive (Dual-Core models), DVD-ROM Drive

(Quad-Core models)

Eight SFF (2.5") (shown) or six LFF (3.5") SAS or SATA

Hot Plug drive bays

Six expansion slots (three PCI Express, three PCI-X)

Two system fans standard with support for optional redundant system tans

Support for two Inter& Dual-Core or Quad-Core Xeortg

5000 sequence processors

Eight PC2-5300 FB-DIMM (DDR2 667) memory sockets

9. Single Hot-Plug power supply standard, optional second redundant supply for availability

Rear View:

1_ Monitor port

Serial port

USB ports

Integrated Lights-Out 2 (iLO2) port

Network port

PCI Express x4

PCI-X 64/100

PCI-X 64(133

Access to add 2nd redundant power supply

Mouse port

Keyboard port

12. Power

What's New

• Intel's latest Dual-Core Xeon 5200 series processors with 6 MU ( I x6fv1B) L2 cache

C.crnisstio

• •,:. '

SG osb I

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

At A Glance

Building on a tradition of excellence, the HP ProLiant family introduces the fifth generation HP ProLiant ML350 server. The

HP Proliant ML3S0 CS server provides Multi -Core portormance, enterprise level management. and highly available redundant options in a modular server form factor. New for this generation is a smaller and quieter chassis, embedded

Smart Array F200 Controller and 5 media bays.

Processors:

() Quad-Core and Dual-Core Intel® Xeon® processors for blazing performance; systems support up to 2 processors

1333/1066/667 MHz front side bus (FSB)

C Intel® 5000Z chipset

Memory:

Fight PC2-5300 Fully Buffered DIMMs (DDR2 667) sockets with online-spare support for cost-effective memory configuration and expansion and 2:1 interleaving

Up to 16 GB of memory supported on Dual-Core Models (5000 and 5100 series)

Up to 32 GB of memory supponed on Ouad-Core Models (5300 and 5400 series)

Storage Controllers:

Entry Models: HP Smart Array E2001164MB Controller (integrated SAS/SATA Hot-Plug Controller with RAID

0/1/1+0 support)

128MB BBWC optional upgrade kit for RAID 5 support also available

o

Base Models: HP Smart Array E2001/128 BBWC Controller (RAID 0/1/1+0/5)

Internal Drive Support:

Up to eight SFF (2.5") or six LFF (3 5") Hot Plug Serial Attached SCSI (SAS) or Serial-ATA (SATA) hanrtkir

Maximum of 4 50TB of internal storage capacity (using Hot-Plug SATA dnves)

Network Controller:

Embedded NC373i Multifunction Gigabit Network Adapter with TCP/IP Offload Engine, including support for

Accelerated [SCSI through an optional Licensing Kit

Expansion Slots:

Six total expansion slots

One 64-bit/133-MHz PCI-X: two 64-bit/100-MHz PCI-X: three x8 PCI Express (x4 speed)

Optional PCI-X Expander provides additional two 64-bit.1100-MHz PCI-X slots by converting a single PCI

Express slot

A single x8 PCI Express slot with x8 bus speed can achieved by attaching the x4/x8 PCIE Bus Expander option kit. (Please see the chart and notes in the E tgnsion Slots under- Standard Featurelelow for twee details)

USB Ports:

Six

USB 2.0 ports: (2) front, (2) rear, (2) intemal

Redundancy:

:

Optional Hot plug redundant power supplies

Support for optional redundant system fans

Management:

HP Insight Control Environment server managemen oftvrare- .....

Integrated Lights-Out 2 featuring Integrated Remote Console with KVM over IP performance over shared network access

Support for ROM-Based Setup Utility (RBSU) and redundant ROM

Systems Insight Manager. SinartStart, and Automatic Server Recovery 2 (ASR-2)

HP Power Meter and Power Regulator for ProLiant, delivering integrated power consumption monitoring and server level. policy based power management for industry leading energy efficiency and savings on system power and cooling costs

Deployment/Serviceability:

Optional parallel and second serial port available without using a PCI slot

Tool-free chassis entry and component access

Tool-free motherboard removal

Universal rail solution supporting both square and round hole rack environments

Warranty:

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of

HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from dale of purchase. Support for software and initial setup is available for 90 days from dale of purchase.

Enhancements to warranty services are available through HP Care Pack services or customized service agreements. SATA hard drives have a one-year warranty.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Additional information regarding worldwide limited warranty arid technical support is available at: http://h18004.wwwl.hp.com/productsfservers/plattormsrvvarrantyendex litml

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications. please visit: http://h71028.www7.hp ,com./ERC/downloadsi4AA0-6362ENW.pdf.

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the 'Configuration Information -

Factory Integrated Models" section.

Processor

One of the Wowing depending on Model

Quad-Core Inter) Xeon® Processor E5440 (2.83 GHz. 80 Watts, 1333 FSB)'

Quad-Core Intel® Xcione Processor E5405 (2.00 GHz. 80 Watts, 1333 FSB)'

Quad-Core Intel® Xeon® Processor X5355 (2.66 GHz, 120 Watts, 1333 FSB)'

Quad-Core Intel® Xeon® Processor [5345 (2.33 GHz, 80 Watts, 1333 FSB)'

Quad-Core Intel Xeon Processor 15335 (2.00 GHz, 80 Watts. 1333 FSB)'

Quad-Core Intel® Xeon® Processor 5160 (3.00 GHz. 80 Watts, 1333 Se)*

Dual-Core Intel) Xeon® Processor E5205 (1.86 GHz, 65 Watts, 1066 FSB)*

Dual-Core Intel® Xeon® Processor 5150 (2.66 GHz. 65 Watts, 1333 FSB)'

Dual-Core Intel() Xeon

,

Processor 5110 (1.60 GHz, 65 Watts. 1066 FSB)'

Quad-Core Intel® Xeon® Processor E5430 (2.66 GHz. 80 Watts, 1333 FSB)

Quad-Core Intel®

Xeon®

Processor E5420 (2.50 GHz. 80 Watts. 1333 FSB)

Quad-Core Intel® XeonCO

.

Processor E5410 (2.33 01-1z. 80 Watts, 1333 FSB)

Quad-Core Intel® Xeon® Processor E5320 (1.86 GHz, 80 Watts, 1066 FSB)

Quad-Core Intel® Xeon® Processor E5310 (1.60 GHz, 80 Watts. 1066 FSB)

Dual-Core Intel® Xeon® Processor 5140 (2.33 GHz, 65 Watts. 1333 FSB)

Dual-Core Intel® Xeon® Processor 5130 (2.00 GHz. 65 Watts. 1333 FSB)

Dual-Core Intel® Xeon® Processor 5120 (1.86 GHz, 65 Watts, 1066 FSB)

Dual-Core Intel® Xeon® Processor 5080 (3.73 GHz, 130 Watts. 1066 FSB)

Dual-Core Intel® Xeon® Processor 5060 (3.2 GHz, 130 Watts, 1066 FSB)

Dual-Core Intel® Xeon® Processor 5050 (3.0

GHz,

95 Watts, 667 FSB)

'Available via Contigure-To-Order only. Soo Factory Integrated Models section for more information.

Cache Memory

One of the following depending on Model

Upgradeability

12MB (2 x 6MB) Level 2 cache (5400 series) i ( '

. !

8M0 (2 x 4MB) Level 2 cache (5300 series) I; ..:

6MB (1 x 6MB) Level 2 cache (5200 series) r 1.5.-5 .

—6

,

4MB ( I x 4MB) Level

2

cache (5100 series)

-) l

;

• '

I

4MB (2 x 2MB) Level 2 cache (5000 series) I

I

; i

------...--._•_i

Upgradeable to 2 processors (4 or 8 cores)

Future upgradeahle. to Xeon® Series 540015300 Quad-Core processors (Please contact your regional sales support to determine quad core upgradeability. Some of the earlier shipping models may not support this upgrade). 5100 Dual-Core models are not upgradeable to the 5200

Dual-Core processors.

Chipset

Intern 5000L Chipset

NOTE: For more information regarding Intel® chipsets. please see the following URL.

http:fiwww.intel.com/produCtSfserverichipsetsf.

Memory Protection

Online spare

Advanced ECC

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

Memory

One of the following depending on model

Type

Standard (Entry Models)

Standard (Base Models)

PC2-5300 Fully Buffered DIMM5 (DDR2-667)

1 GB (2 x 512 MB) on Quad-Core 5400 series

1 GB (2 x 512 MB) on Quad-Core 5300 series

512 MB (1 x 512 MB) on Dual-Core Models

2 GB (2 x 1 GB) on Quad-Core 5400 series

1 GB (2 x 512 MB) on Quad-Core 5300 series

1 GB (2 x 512 MB) on Dual-Core Models

16 GB (8 x2 GB)

Maximum (Dual-Core

Models)

Maximum (Quad-Core

Models)

32 GB (8 x 4 GB)

Network Controller

Embedded NC373i Multifunction Gigabit Network Adapter with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit

Expansion Slots

Slot

Number

Bus Speed/Connector Maximum

Card

Length

Bus Device

Number' Number"

Hot Plug

PCI

Voltage

5

PCI Express x4/x8

PCI Express x41x8

PCI Express x41x8

12.28"

12.2W

12.28

15

6

9 0 no no no

3

1

2

64-bit/100MHz PCI-X

64-biU100MHz PCI-X

64-bit/133MHz PCI-X

12.28"

12.28"

12 2W

12

12

20

2

1 no no no

33 Volt

3.3 Volt'

3.3 Volt

'NOTE: Bus number listed reflects the default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.

"NOTE: Slots are enumerated differently based on operating system. Microsoft's operating systems enumerate from lowest to highest Device ID by bus (starting with the lowest bus).

"'NOTE: A single PCI Express slot with x8 Bus Speed can be achieved by attaching the x4/x8

PCIE Bus Expander option kit (403724-B21) to slot number 4. The installation of this kit uses both slots 4 and 5 to create the single x8 speed PCI Express slot.

""NOTE: The optional PCI-X expander can utilize slot 6 to provide an additional two (2) 64-Bit

PCI-X full length, full height slots. Please see "Server Specific Options" below for more information. (435670-B21)

NOTE: Slots 1-3 can accept 3.3V or universal keyed PCI cards.

Storage Controller

Storage

Entry Models

I iP Smart Array E200i/64MB Controller

Base Models

HP Smart Array E2001/128 BBWC Controller

NOTE: Supports RAID 0/111 4 0 with 64tvlB of Cache, upgradeable to 128MB with BBWC for RAID

5 support.

Diskette Drives

Optical Drive

One of the following depending on model

Hard Drives

None included standard

Quad-Core 5400 series: 16x SAIA DVD-ROM drive

Quad-Core 5300 series: 16x PATA DVD-ROM drive

Dual-Core: 48x IDE CD-ROM drive

NOTE: Quad-Core 5400 series BTO Models are configured with SATA optical drive.

None included standard

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

NOTE: For the Standard Features shipped in the "Factory Integrated Models'. please see the 'Configuration Information -

Factory Integrated Models" section.

NOTE: Please note that SFF tower or rack models can only be configured with SFF 2.5" SAS or SATA hard drives

and

LFF tower or rack models can be only configured with LFF 3.5" SAS Or SATA hard drives.

HP ML350 G5 Entry

Processor(s)

(1) Quad-Core Intel® Xeon€ E5420 Processor (2.50 GHz,

80

WM

Models

One of the following depending on Model

1333 FSB)

(1) Quad-Core Intel® Xeon® E5410 Processor (2.33 GHz, 80 Walls.

1333 FSB)

(1) Quad-Core Intel® Xeon® [5310 Processor (1.6 GHz, 80 Watts.

Tower

Quad-Core Models

HP ML350T05 E5420

LFF

458239-xxl

HP ML350T05 E5410

LFF

458244-xx 1

HP ML350T05 E5310

LFF

440188-xx 1

Dual-Core Models

HP ML350T05 5130 LFF

416893-xxl

HP ML350T05 5120 LFF

416892-xxl

Cache Memory

Memory

One of the following depending on Model

Network Controller

Storage Controller

Hard Drive

1066 FSB)

(1) Dual-Core Intel® Xeon® 5130 Processor (2.0GHL, 65 Watts, 1333

FSB)

(1) Dual-Core Intek Xeon® 5120 Processor (1.86 GHz. 65 Watts. 1066

FSB)

12MB (2x6MB) Level 2 cache - 5400 Series

8MB

(2

x 4MB) Level 2 cache - 5300 Series

4MB (1 x 4MB) Level 2 cache - 5100 Series

Quad-Core 5400 Series: 1GB (2 x 512MB)

Quad-Core 5300 Series: 1GB (2x512MB)

Dual-Core. 512 MB (1 x 512 MB)

Embedded NC373i Multifunction Gigabit Server Adapter

Smart Array E2001/64 Controller (RAID 011/1+0)

None Ship Standard; (0/6 LEE)

Internal Storage

1.80TB LFF SAS; 4.50TB LEE SATA tack

Quad-Core Models HP

ML350R05 E5420 LFF

458240-xx I

Optical Drive

One of the following depending on Mode

Quad-Core: 16x DVD-ROM standard

Dual-Core: 48x CD-ROM standard

PCI-Express Slots

Six expansion slots (three PCI Express, three PCI-X)

Dual-Core Models

HP ML350R05 5130

LFF

416894-xx 1

Power Supplies

Fans

800-Watt CE-mark compliant I sot-Plug power supply

Optional second power supply provirreduadant operation

2 fans ship standard. 4 fans total su4pOneil (does notanclude power supply or processor heatsink fans)

Form Factor

One of the following depending on Model

Tower

Rack (50), (8.75 in/22.25 cm)

1 •

HP ML350 05 Base

Models

Tower

)uad-Core Models

HP ML350T05 E5430

SFF

458238-xxl

HP ML350T05 E5420

SFF

458242-xx I

HP ML350T05 [5410

SEE

458246 . x x

HP ML350T05 E5320

SFF

438730-xxl

HP ML350T05 E5310

SFF

434 /17-xx1

Dual-Core Models

HP ML350T05 5140

SFF

417605-xxl

Processor(s)

One of the following depending on Model

Cacho Memory

One of the following depending on Model

Memory

Network Controller

.

(1) Quad-Core Intel® Xerar® E543 roresser-(aziabezSo Wads.,.

1333 FSB)

(1) Quad-Core Intel® Xeont9 E5420 Processor (2.50 GHz, 80 Watts.

1333 FSB)

(1) Quad-Core Intel® Xeory& [5410 Processor (2.33 GHz, 80 Watts.

1333 FSB)

(1) Quad-Core Inter) Xeon® E5320 Processor (1.86 GHz. 80 Watts,

1066 FSB)

(1) Quad-Core Intel® Xeort® E5310 Processor (1.6 GHz. 80 Watts.

1066 FSB)

(1) Dual-Core Intel® Xeorm 5140 Processor (2.33 GHz. 65 Watts, 1333

FSB)

(1) Dual-Core Intel® Xeon® 5130 Processor (2.0 GHz. 65 Watts. 1333`\

ISO)

J

:

..-

12MB (2 x 6MB) Level 2 cache - 5400 Series

8MB (2 x 4MB) Level 2 cache - 5300 Series

4MB (1 x 4MB) Level 2 cache - 5100 Series

Quad-Core 5400 Series: 2 GB (2 x 1GB) standard

Quad-Core 5300 Series: 1 GB (2 x 512MB) standard

Dual-Core. 1 GB (2 x 512MB) standard

Embedded NC373i Multifunction Gigabit Server Adapter

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

HP ML350T05 5130

SFF

117536-xx1

Rack

Quad-Core Models

HP ML350R05 E5430

SFF

•158237-xx1

HP ML350R05 E5420

SFF

458243-xxt

HP ML350R05 E5320

SFF

440189-xxi

Dual-Core Models

HP ML350R05 5140

SFF

417538-xx 1

HP ML350R05 5130

SFF

417537-x A 1

Storage Controller

Hard Drive

Internal Storage

Optical Drive

One of the following depending on Mode

PCI-Express Slots

Power Supplies

Fans

Form Factor

One of the following depending on Model

Smart Array E200i1128 BBWC Controller (RAID 011/1+015)

None Ship Standard; (0/8 SIT)

1.168TB SFF SAS: 480GB SFF SATA

Quad-Core: 16x DVD-ROM standard

Dual-Core: 49x CD-ROM standard

Six expansion slots (three PCI Express, three PCI-X)

800-Watt CF-mark compliant Hot-Plug power supply

Optional second power supply provides redundant operation

2 fans ship standard. 4 fans total supported (does not include power supply or processor heatsink fans)

Tower

Rack (5U), (8.75 in/22.25 cm)

Country Code Key

XXrOO

XX=01

XX=03

XX=04

XX=05

XX=20

XX=29

XX=37

XX=.42

XX=AA

Tower Code Key

U.S English

Australia

UK

Germany

France

Brazil

Japan

APD

Europe

PRC

Rack Code Key

U.S.

English

N/A

N/A

N/A

N/A

N/A

Japan

APD

Europe

PRC

st

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered. HP recommends the use of an HP approved configurator Contact your local sales representative for information on CTO product offerings and requirements_

NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start with a CTO Chassis.

NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.

NOTE: 110 indicates that this option only available as a Factory Installable Option.

Step 1: Base Configuration (choose one of the following configurable models)

Models

ML350 G5 Tower Models

LFF - 3.5" Drives

HP ProLiant ML350G5 LEP SAS/SA

I

A lower CTO Chassis

4126454321

Includes:

Embedded NC373i Multifunction Gigabit Server Adapter

Integrated Smart Array E200i Controller

Six Hot-Plug (LFF) SAS/SATA Drive Bays

Six expansion slots . one 64-biU133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express (with x8 connectors)

Six USB ports

800W Hot-Plug Power Supply

Tower Form Factor

Keyboard

2-button Mouse

5-

6

0

SFF 2.5" Drives

I iP Probarit ML350G5 SFF SAS/SATA Tower CTO Chassis

Includes:

Embedded NC373i Multifunction Gigabit Server Adapter

Integrated Smart Array E200i Controller

Eight Hot-Plug (SFr) SAS/SATA Drive Bays

Six expansion slots: one 64-bit/133-MHz PCI-X, two 84-bit/100-MHz PCI-X, and three x4 PCI Express (with x8 connectors)

Six USB ports

800W Hot-Plug Power Supply

Tower Form Factor

Keyboard

2-button Mouse

ML350 G5 Rack Models

LFF - 3.5" Drives

HP ProLiant ML350G5 LFF SAS/SATA Rack CTO Chassis

Includes:

Arb

Embedded NC373i Multifunction Gigabit Server Adapter

Integrated Smart Array E200i Controller

Six Hot-Plug (LFF) SAS/SATA Drive Bays

Six expansion slots: one 64-hit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express (with x8 connectors)

Six USB ports

800W Hot-Plug Power Supply

Rack (5U) Form Factor

SFF - 2.5" Drives

I if' ProLiant ML350G5 SFF SAS/SATA Rack CTO Chassis

Includes:

Embedded NC373i Multifunction Gigabit Server Adapter

Para verificar as assinaturas, acesse www.tcu.gov.br/autenticidade, informando o código 45596696.

3969704321

412644-B21

395569-B21

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
