Sunphor Technology Group Limited
Email:[email protected]
Website: www.sunphor.com
Skype: ivonne_sunphor
Tel: +86-157 1206 0287

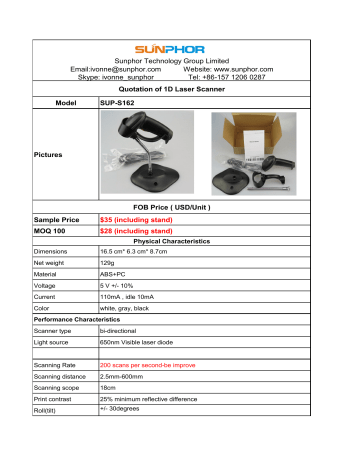

Quotation of 1D Laser Scanner
Model
SUP-S162
Pictures
FOB Price ( USD/Unit )
Sample Price
$35 (including stand)
MOQ 100
$28 (including stand)
Physical Characteristics
Dimensions
16.5 cm* 6.3 cm* 8.7cm
Net weight
129g
Material
ABS+PC
Voltage
5 V +/- 10%
Current
110mA , idle 10mA
Color
white, gray, black
Performance Characteristics
Scanner type
bi-directional
Light source
650nm Visible laser diode
Scanning Rate
200 scans per second-be improve
Scanning distance
2.5mm-600mm
Scanning scope
18cm
Print contrast
25% minimum reflective difference
Roll(tilt)
+/- 30degrees
Pitch
+/- 45 degrees
Skew(yaw)
+/- 60 degrees
UPC/EAN,UPC/EANwithsupplementals
Code128,UCC/EAN128,Code39Code39FullASCII,
DecodeCapability
Code128,UCC/EAN128,Code39Code39FullASCII,
Code128FullASCII,Codabar,Interleaved2of5,Code93,
MSI,Code11,ISBN,ISSN,china post code, etc
Bit error rate
1/20million-be improve
Resolution
3.3mil(32 bit)
Tip
buzzer and led
Scanning mode
Press button, Automatic continuous scan Auto-induction
Working times of
button
one million times
Working hours of laser 10000hours
Interfaces supported
RS232,keyboard wedge, USB
Cable length
2M
User Environment
Working temperature
0°C-45°C/32°F-104°F
Storage temperature
-400°C-60°C/-40°F-140°F
Relative humidity
5%-95%(Non-condensing)
Anti-shock design
withstand 1.5M drops
Ambient light immunity
immune to direct exposure of normal office and factory lighting conditions,
As well as direct exposure to sunlight.
Regulatory
Electrostatic discharge certified to ±15KV air discharge and ±8KV of contact discharge
EMI/RFI
FCC Part 15 Class B,European Union EMC Directive,Taiwan EMC,CE
Laser safety
CDRH Class II,IEC Class 2
Environmental
protection
certified toRoHS directive 2002/95/EEC
Standard Configuration:Manual,Product Certification,Stand(optional),USB Cable
