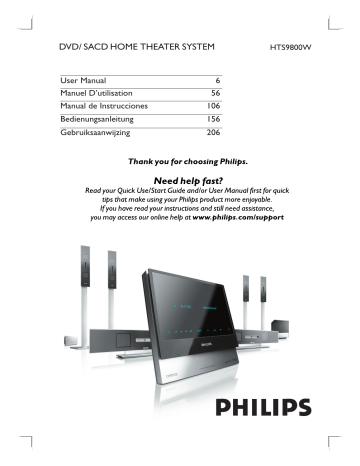

DVD/ SACD HOME THEATER SYSTEM
Manuel D’utilisation
6
56
Manual de Instrucciones
106
Bedienungsanleitung
156
Gebruiksaanwijzing
206
English
User Manual
HTS9800W
Important notes for users in the
U.K.
Mains plug
This apparatus is fitted with an approved 13
Amp plug. To change a fuse in this type of
plug proceed as follows:
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio HTS9800W,
Philips risponde alle prescrizioni dell’art. 2
comma 1 del D.M. 28 Agosto 1995 n. 548.
Fatto a Eindhoven
1 Remove fuse cover and fuse.
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
2 Fix new fuse which should be a BS1362
5 Amp, A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place.
If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a fuse
is used, the fuse at the distribution board
should not be greater than 5 Amp.
Note: The severed plug must be disposed of to
avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N),
brown = live (L).
As these colours may not correspond with the
colour markings identifying the terminals in
your plug, proceed as follows:
– Connect the blue wire to the terminal
marked N or coloured black.
– Connect the brown wire to the terminal
marked L or coloured red.
– Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath
of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may
require consent. See Copyright Act 1956 and
The Performer’s Protection Acts 1958 to
1972.
2
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er
sekundert innkoplet. Den innebygde
netdelen er derfor ikke frakoplet
nettet så lenge apparatet er
tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
This product complies with the radio
interference requirements of the
European Community.
This product complies with
the requirements of the
following directives and
guidelines: 73/23/EEC +
89/336/EEC + 93/68/EEC
ATTENTION!
For Customer Use:
Read carefully the information located at the
bottom or rear of your DVD system and
enter below the Serial No. Retain this
information for future reference.
Model No. HTS9800W
Serial No. _______________
DK
Advarsel: Usynlig laserstråling ved
åbning når sikkerhedsafbrydere er ude
af funktion. Undgå utsættelse for
stråling.
Bemærk: Netafbryderen er sekundært
indkoblet og ofbryder ikke strømmen
fra nettet. Den indbyggede netdel er
derfor tilsluttet til lysnettet så længe
netstikket sidder i stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på
annat sätt än i denna bruksanvisning
specificerats, kan användaren utsättas
för osynlig laserstrålning, som
överskrider gränsen för laserklass 1.
Observera! Stömbrytaren är sekundärt
kopplad och bryter inte strömmen från
nätet. Den inbyggda nätdelen är därför
ansluten till elnätet så länge
stickproppen sitter i vägguttaget.
CAUTION
VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN AVOID EXPOSURE TO BEAM
ADVARSEL
SYNLIG OG USYNLIG LASERSTRÅLING VED
ÅBNING UNDGÅ UDSÆTTELSE FOR
STRÅLING
VARNING
SYNLIG OCH OSYNLIG LASERSTRÅLNING
NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ
STRÅLEN
VARO!
AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA
NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ
KATSO SÄTEESEEN
VORSICHT
SICHTBARE UND UNSICHTBARE
LASERSTRAHLUNG WENN ABDECKUNG
GEÖFFNET NICHT DEM STRAHL AUSSETZEN
ATTENTION
RAYONNEMENT LASER VISIBLE ET INVISIBLE
EN CAS D’OUVERTURE EXPOSITION
DANGEREUSE AU FAISCEAU
SF
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen muulla
kuin tässä käyttöohjeessa mainitulla
tavalla saattaa altistaa käyttäjän
turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei
saa olla alttiina tippu-ja roiskevedelle.
Huom. Toiminnanvalitsin on kytketty
toisiopuolelle, eikä se kytke laitetta irti
sähköverkosta. Sisäänrakennettu
verkko-osa on kytkettynä
sähköverkkoon aina silloin, kun pistoke
on pistorasiassa.
LASER
Type
Semiconductor laser
GaAIAs
Wave length 650 - 660 nm (DVD)
784 - 796 nm (CD)
Output Power
7 mW (DVD)
10 mW (VCD/CD)
Beam divergence
60 degrees
3
Disposal of your old product
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for
electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with
your normal household waste. The correct disposal of your old product will help
prevent potential negative consequences for the environment and human health.
Manufactured under license from
Dolby Laboratories, “Dolby”,
“Pro Logic” and the double-D symbol
are trademarks of Dolby Laboratories.
Se débarrasser de votre produit usagé (Français)
Votre produit est conçu et fabriqué avec des matériaux et des
composants de haute qualité, qui peuvent être recyclés et utilisés de
nouveau.
Lorsque ce symbole d'une poubelle à roue barrée est attaché à un
produit, cela signifie que le produit est couvert par la Directive
Européenne 2002/96/EC.
Veuillez vous informer du système local de séparation des déchets
électriques et électroniques.
Veuillez agir selon les règles locales et ne pas jeter vos produits usagés avec les déchets
domestiques usuels. Jeter correctement votre produit usagé aidera à prévenir les
conséquences négatives potentielles contre l'environnement et la santé humaine.
Cómo deshacerse del producto usado (Español)
Su producto ha sido diseñado y fabricado con materiales y componentes de
alta calidad, que pueden ser reciclados y reutilizados.
Cuando vea este símbolo de una papelera con ruedas tachada junto a un
producto, esto significa que el producto está bajo la Directiva Europea
2002/96/EC
Deberá informarse sobre el sistema de reciclaje local separado para
productos eléctricos y electrónicos.
Siga las normas locales y no se deshaga de los productos usados tirándolos en la basura
normal de su hogar. El reciclaje correcto de su producto usado ayudará a evitar
consecuencias negativas para el medio ambiente y la saludde las persona.
Entsorgung Ihres Altgerätes (Deutsch)
Manufactured under license from
Digital Theater Systems, Inc. U.S. Pat.
Nois. 5,451,942; 5,956,674; 5,971,380;
5,978,762; 6,226,616; 6,487,535 and
other U.S. and world-wide patents
issued and pending.
“DTS” and “DTS Digital Surround”
are registered trademarks of Digital
Theater Systems, Inc. Copyright 1996,
2003 Digital Inc. All Rights Reserved.
Ihr Produkt ist aus hochqualitativen Materialien und Bestandteilen hergestellt,
die dem Recycling zugeführt und wiederverwertet werden können.
Falls dieses Symbol eines durchgestrichenen Müllcontainers auf Rollen auf
diesem Produkt angebracht ist, bedeutet dies, dass es von der Europäischen
Richtlinie 2002/96/EG erfasst wird.
Bitte informieren Sie sich über die örtlichen Sammelstellen für Elektroprodukte
und elektronische Geräte.
Bitte beachten Sie die lokalen Vorschriften und entsorgen Sie Ihre Altgeräte nicht mit dem
normalen Haushaltsmüll. Die korrekte Entsorgung Ihres Altgerätes ist ein Beitrag zur
Vermeidung möglicher negativer Folgen für die Umwelt und die menschliche Gesundhei.
Wegwerpen van uw afgedankt apparaat (Nederlands)
Uw apparaat werd ontworpen met en vervaardigd uit onderdelen en
materialen van superieure kwaliteit, die gerecycleerd en opnieuw gebruikt
kunnen worden.
Wanneer het symbool van een doorstreepte vuilnisemmer op wielen op
een product is bevestigd, betekent dit dat het product conform is de
Europese Richtlijn 2002/96/EC
Gelieve u te informeren in verband met het plaatselijke inzamelingsysteem
voor elektrische en elektronische apparaten.
Gelieve u te houden aan de plaatselijke reglementering en apparaten niet met het gewone
huisvuil mee te geven. Door afgedankte apparaten op een correcte manier weg te werpen
helpt u mogelijke negatieve gevolgen voor het milieu en de gezondheid te voorkomen.
DivX®, DivX Certified, and associated
logos are trademarks of DivXNetworks,
Inc and are used under license.
Windows Media and the Windows logo
are trademarks, or registered
trademarks of Microsoft Corporation in
the United States and/or other countries.
4
Deutsch --------------------------------------156
Deutsch
Nederlands ----------------------------------206
Nederlands
Español --------------------------------------106
Français
Français --------------------------------------- 56
Español
English ------------------------------------------6
English
Index
5
Table of contents
English
General
General Information ........................................................................................................ 8
Setup precautions.................................................................................................................................................8
Accessories supplied ...........................................................................................................................................8
Cleaning discs ........................................................................................................................................................8
About recycling .....................................................................................................................................................8
Product Overview
Main Unit ........................................................................................................................... 9
Remote control ..........................................................................................................10-12
Using the remote control ................................................................................................................................12
Basic Connections .....................................................................................................13-16
Step 1: Assemble the speakers .......................................................................................................................13
Step 2: Positioning for best effect .................................................................................................................13
Placing the speakers ...................................................................................................................................13
Placing the subwoofer ................................................................................................................................14
Placing the DVD system ............................................................................................................................14
Placing the Junction Box............................................................................................................................14
Placing the AV wireless receiver box ...................................................................................................14
Step 3: Connecting the DVD system, AV subwoofer and front speakers .........................................15
Step 4 : Connecting the wireless rear speakers ........................................................................................16
Optional Connections ............................................................................................... 17-21
Mounting the DVD system on the wall ......................................................................................................17
Mounting the speakers on the wall ..............................................................................................................18
Connecting to a Progressive Scan TV ..........................................................................................................19
Connecting to a HDMI compatible device ..................................................................................................19
Connecting to an analogue audio/ video device ....................................................................................... 20
Connecting to a digital audio device ............................................................................................................ 20
Connecting to an outdoor FM antenna terminal ......................................................................................21
Getting Started
Step 1: Switching on the DVD system ......................................................................................................... 22
Switching to standby mode ..................................................................................................................... 22
Step 2: Finding the correct viewing channel .............................................................................................. 22
Step 3 Setting language preferences ............................................................................................................ 23
On-screen display (OSD) language ....................................................................................................... 23
Audio, Subtitle and Menu language for DVD playback .................................................................... 23
Step 4: Setting the TV .......................................................................................................................................24
Selecting the matching colour system .................................................................................................24
Setting the TV Display .............................................................................................................................. 25
Setting up Progressive Scan feature (for Progressive Scan TV only) .......................................... 25
Step 5: Setting the speakers’ channels .........................................................................................................27
6
Disc Playback
Disc operations ......................................................................................................... 28-36
Playable discs ...................................................................................................................................................... 28
Playing a disc ........................................................................................................................................................29
Basic playback controls.....................................................................................................................................29
Selecting various repeat/shuffle functions ................................................................................................. 30
Other playback features for video discs (DVD/VCD/SVCD) ............................................................. 30
Using the Disc Menu ................................................................................................................................. 30
Viewing playback information ..................................................................................................................31
Resuming playback from the last stopped point ................................................................................31
Zooming in ....................................................................................................................................................31
Changing subtitle language (DVD only) ................................................................................................32
Changing sound track language ...............................................................................................................32
Switching camera angles ............................................................................................................................32
Playback Control (VCD only)..................................................................................................................32
Playing an MP3/ JPEG/MPEG-4/Windows Media™ Audio disc ..........................................................33
Playing a JPEG image file (slide show) ......................................................................................................... 34
Preview function ....................................................................................................................................... 34
Zoom picture ............................................................................................................................................. 34
Rotating/flipping the picture ................................................................................................................... 34
Playing MP3 music and JPEG picture simultaneously .............................................................................. 35
Playing a Super Audio CD (SACD) ............................................................................................................. 35
Playing a DivX disc ............................................................................................................................................ 36
DVD System Menu Options
Accessing the DVD setup menu.....................................................................................................................37
General Setup Page........................................................................................................................................... 38
Audio Setup Page................................................................................................................................................39
Video Setup Page ............................................................................................................................................... 40
Preference Setup Page ..................................................................................................................................... 43
Radio Tuning
Tuner Operations ..................................................................................................... 45-46
Tuning to radio stations................................................................................................................................... 45
Presetting radio stations ................................................................................................................................. 45
Using auto install ........................................................................................................................................ 45
Using automatic preset............................................................................................................................. 46
Using manual preset .................................................................................................................................. 46
Selecting a preset radio station ..................................................................................................................... 46
Deleting a preset radio station...................................................................................................................... 46
Other Information
Sound and Volume Controls ................................................................................... 47-48
Selecting surround sound.................................................................................................................................47
Adjusting the Bass/Treble level ......................................................................................................................47
Selecting digital sound effects .........................................................................................................................47
Volume control ...................................................................................................................................................47
Setting the Sleep timer .................................................................................................................................... 48
Dimming system’s display screen .................................................................................................................. 48
Using the remote to operate your ‘Philips’ television ............................................................................ 48
Specifications .................................................................................................................. 49
Troubleshooting ........................................................................................................ 50-52
Glossary ..................................................................................................................... 53-54
Language Code..............................................................................................................256
7
English
Table of contents
General Information
English
CAUTION!
The machine does not contain any
user-serviceable parts. Please leave
all maintenance work to qualified
personnel.
Setup precautions
Finding a suitable location
– Place the set on a flat, hard and
stable surface. Do not place the set
on a carpet.
– Do not position the set on top of
other equipment that might heat it
up (e.g., receiver or amplifier).
– Do not put anything under the set
(e.g., CDs, magazines).
– Install this unit near the AC outlet
and where the AC power plug can be
reached easily.
Space for ventilation
– Place the apparatus in a location with
adequate ventilation to prevent internal
heat build up. Allow at least 10 cm (4”)
clearance from the rear and the top of
the set and 5 cm (2”) from the left and
right to prevent overheating.
Avoid high temperatures, moisture,
water and dust
– Apparatus shall not be exposed to
dripping or splashing.
– Do not place any sources of danger
on the apparatus (e.g., liquid filled
objects, lighted candles).
8
Accessories supplied
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
1 DVD system
1 AV subwoofer
1 AV wireless receiver box
1 Junction box
2 centre speakers
2 front speakers + stands
2 rear speakers + stands
3 x 1 pair of screws for wall mount
3 x 1 pair of brackets for wall mount
1 remote control with batteries
1 VGA cable (for connecting between
the AV subwoofer and Junction box).
4 x speaker cables
2 x power cable
1 x micro fibre cleaning cloth (for DVD
system)
Quick Start Guide
Cleaning discs
To clean a disc, use a micro fibre cleaning
cloth and wipe the disc from the centre
to the edge in a straight line.
CAUTION!
Do not use solvents such as benzene,
thinner, commercially available cleaners,
or anti-static sprays intended for discs.
Since the optical unit (laser) of the DVD
system operates at a higher power than
regular DVD or CD players, cleaning CDs
intended for DVD or CD players may
damage the optical unit (laser). Therefore,
refrain from using a cleaning CD.
About recycling
These operating instructions have been
printed on non-polluting paper. The
electronic equipment contains a large
number of materials that can be recycled.
If you are disposing of an old machine,
please take it to a recycling centre.
Please observe the local regulations
regarding disposal of packaging materials,
exhausted batteries and an old
equipment.
Front View
English
Main Unit
Side View
i
j
Touch screen controls
a
b
c
d
a 2 STANDBY ON
– Switches to standby mode, or switches
on the system.
b u PLAY PAUSE
– DISC: starts/pauses playback.
– TUNER: starts preset radio station
installation in Plug & Play mode.
c
–
–
–
Ç STOP
Exits an operation.
DISC: stops playback.
TUNER: press and hold this button to
erase the current preset radio station.
e
f
g
h
e SOURCE
– Selects the relevant active source mode:
DISC, TUNER FM, TV or AUX/DI.
f +- VOLUME
– Adjusts the volume level.
g Volume Indicator A
h ç EJECT
– Opens/ closes the disc tray.
i System display panel
j Disc Slot
d ./ >
– DISC: select a track or press and hold
this button to search backwards/
forwards.
– TUNER: tunes the radio frequency
up/down.
9
Remote control
English
a SOURCE
– Selects the relevant active source mode:
DISC, FM TUNER, TV or AUX/DI.
STANDBY
b DISPLAY
– Displays the current status or disc
information.
ON
c PROGRAM
– TUNER: press and hold to start
automatic/manual preset programming.
d SYSTEM MENU
– Enters or exits the system menu.
eWXST
– Selects movement direction in the menu.
– TUNER: press W or X to select a preset
radio station.
– TUNER: press S or T to select auto
tuning.
f OK
– Confirms a selection.
g./>
– DISC: press and hold to search
backwards/forwards or to select a track.
– TV: selects previous/next channel (Philips
TV only).
– TUNER: tunes the radio frequency
up/down.
hÇ
– Exits an operation.
– DISC: stops playback or press and hold
to eject a disc.
– TUNER: press and hold to erase a preset
radio station.
i MUTE H
– Mutes or restores the volume.
j VOL +– Adjusts the volume level.
10
k ANGLE
v TV VOL +-
– Select a DVD disc camera angle (if
available).
– Adjusts TV volume (Philips TV only).
w PLAYÉ
l SUBTITLE
– DISC: starts playback.
– Selects a subtitle language.
xÅ
m REPEAT
– Selects various repeat modes.
English
Remote control (continued)
– DISC: pauses playback.
y DISC MENU
– DISC: selects multichannel surround or
stereo mode.
– TUNER: selects stereo or mono signal.
– Enters or exits disc contents menu.
– For VCD version 2.0 only;
In stop mode, turns on/off playback
control (PBC) mode.
During playback, returns to main menu.
o REPEAT A-B
z RETURN/ TITLE
n SURR.
– Repeats a specific section on a disc.
p SOUND
– Selects a sound effect.
– Press and hold to select another
transmission channel for the rear
wireless speakers.
q NIGHT (in DVD mode only)
– Optimises the dynamics of the sound
output.
r CD UP SAMP.
– Converts music CD to a higher sampling
rate for better sound quality.
– To go back to previous menu.
– Displays the disc’s Title menu (if available).
Numeric Keypad (0-9)
– Enters a track/title number of the disc.
– Enters a number of a preset radio station.
DIM
– Selects different levels of brightness for
display panel.
– Press and hold to set the sleep timer
function.
STANDBY 2
– Switches to standby mode.
s BASS/TREBLE
– Select BASS (low tone) or TREBLE (high
tone) sound mode and use the VOLUME
control to change the tone level.
t AUDIO
– Selects an audio language (DVD) or an
audio channel (CD).
u ZOOM
– Enlarges a picture on the TV screen.
11
Remote control (continued)
English
Using the remote control
CAUTION!
– Remove batteries if they are
exhausted or if the remote control
is not to be used for a long time.
– Do not mix batteries (old and new
or carbon and alkaline, etc.).
– Batteries contain chemical
substances, so they should be
disposed of properly.
A Open the battery compartment.
B Insert two batteries type R06 or AA,
following the indications (+-) inside
the compartment.
C Close the cover.
D Aim the remote control directly at the
remote sensor (IR) on the front panel of
the DVD system.
E Select the source you want to control by
pressing the SOURCE button on the
remote control.
F Select the desired function (for example
., >).
12
Using the remote control to operate
the system
Step 1: Assemble the
speakers
B
English
Basic Connections
Step 2: Positioning for best
effect
The Philips HTS9800W Home Theatre
System is simple to install. Proper system
placement is critical to ensure an
optimum sound experience.
Both the
coloured
stickers must
match
C
The placement diagrams shown here are
only guidelines that provide great system
performance, you may find other
placement choices that are more suitable
for your room layout and provide the
sound experience you enjoy.
Placing the speakers
When placing the speakers, ensure that:
A
Base view of the speaker stand
A Connect the speaker stand with the
supplied speaker wire. Match the colour
of the speaker wire to the colour of the
socket on the base of the speaker stand.
Hold down the socket tab while
inserting the stripped portion of the
speaker wire into the tab. Then, release
the socket tab to lock the wire into
position.
B Match the coloured stickers on the rear
of the speaker and the inside of the
speaker stand. Position the speakers as
shown and ensure the connectors fit. See
the above illustration.
– The centre speakers (FRONT CENTER,
REAR CENTER) should be placed at the
same height and at the normal listening ear
level for the best sound performance.
– The front speakers should be placed at an
equal distance from the TV, the FRONT
RIGHT on the right hand side and FRONT
LEFT on the left hand side (as shown
below).
– The rear speakers should be placed at
equal distances from the REAR CENTER
speaker; the REAR RIGHT on the right
hand side and REAR LEFT on the left hand
side. (as shown below).
FRONT LEFT
FRONT CENTER
FRONT RIGHT
TV
C Secure the speaker stand with the
supplied screws.
Helpful Hint:
– When you insert the speaker wire, make
sure none of the rubber-coated wire is
clamped by the socket tab.
REAR
LEFT
REAR
RIGHT
REAR CENTER
13
Basic Connections (continued)
English
Placing the subwoofer
Placing the Junction Box
For optimum performance, place the AV
subwoofer in the corner of the room.
Keep it at least one metre away from the
TV. Adjust its position until a harmonious
sound is achieved between the subwoofer
and speakers.
You may place the Junction Box behind
the TV/ shelf/ table to hide away the
cable connections.
FRONT
LEFT
SUB
FRONT
RIGHT WOOFER
TV
For fixing purposes, attach one side of
the supplied velcro strip on the Junction
Box and another at the place you wish to
fix the Junction Box.
FRONT CENTER
REAR
LEFT
REAR
RIGHT
AV WIRELESS
RECEIVER BOX
REAR CENTER
Placing the DVD system
Ensure ample space is available on the
right hand side for ease of disc handling.
Front View
Side View
Placing the AV wireless receiver
box
You may place the AV wireless receiver
box at the back of the room and at a
convenient distance so that you can
connect the REAR CENTER, REAR LEFT
and REAR RIGHT speakers to the box.
– Ensure the AV wirelesss receiver box
is placed near the AC outlet where the
AC power plug can be reached easily.
– Ensure that the front side of the AV
wireless receiver box (with Philips logo)
faces towards the DVD system.
– For optimal wireless performance,
ensure that the AV wireless receiver box
is not placed in an enclosed area.
To rear
speakers
To AC
power
To rear
speakers
14
English
Basic Connections (continued)
Step 3: Connecting the DVD
system, AV subwoofer and
front speakers
Before you start...
If you wish to mount the DVD system on
the wall, see the section “Optional
Connections” before making any
connections.
DVD system
To change the
power cable,
remove the DVD
system cover.
To AC
power
outlet
Extend the FM pigtail
antenna and place its
end where the reception
is best received.
AV subwoofer
Junction Box
To AC
power
outlet
SPEAKERS
CENTER RIGHT
To TV
FRONT
CENTER
LEFT
Example of TV’s
back panel
OUT
IN
VIDEO
AUDIO
Front speakers
Connect your speaker to
the supplied speaker stand,
see “Step 1: Assemble the
speakers”
FRONT
RIGHT
FRONT
LEFT
TV
15
Basic Connections (continued)
English
REAR CENTER
AV wireless
receiver box
Base view of AV
wireless receiver box
B
SPEAKERS
RIGHT CENTER LEFT
REAR
RIGHT
Step 4 : Connecting the
wireless rear speakers
The rear speakers ( REAR LEFT/ REAR
RIGHT/ REAR CENTER ) are to be
connected to the AV wireless receiver
box which receives signals from the DVD
system.
Before you start...
If you wish to mount the speakers on the
wall, see the section “Optional
Connections” before making any
connections.
A Connect the stripped wire portion of the
supplied speaker wire to the tab on the
base of each speaker stand. See “Step 1:
Assemble the speakers”.
16
REAR
LEFT
B Connect the coloured speaker plug from
each speaker to the matching speaker
socket on the base of the AV wireless
receiver box. For convenience, each
speaker socket has been colour-coded:
REAR RIGHT (grey), REAR CENTER
(brown) and REAR LEFT (blue).
Helpful Hints:
– To prevent unwanted noise, do not place
the rear speakers too close to the DVD
system, AC power adapter, TV or any other
radiation sources.
B
A
D
Mounting the DVD system on
the wall
You can choose to wall mount the DVD
system on the wall. Select a position
where nothing obstructs the disc slot on
its right hand side.
English
Optional Connections
C
E
A Position the DVD system face down on a
non-scratch surface. Ensure the base of
the system is facing you. Press the catch
located on each side to release the back
cover of the system.
B Lift the back cover upwards and remove
it from the DVD system.
C Press the catch located on each inner
CAUTION!
You should get a qualified person to
drill and insert the mounting screws
(not supplied) on the wall. DO NOT
do it yourself in order to avoid any
unexpected damage to the
equipment or injury to personnel.
Helpful Hint:
– Philips accepts absolutely no liability for
any accidents or damage resulting from
inadequate assembly or mounting, misuse or
abuse, or natural disasters.
side of the stand to remove the base of
the DVD system.
D Drill holes, then insert the rubber wall
plugs and screws (not supplied) into the
wall.
E Hook the DVD system firmly onto the
screws, by ensuring that they fit into the
hanging brackets on the back of the DVD
system to lock it into position.
17
Optional Connections (continued)
English
Preparing the centre
speakers
B
A
Preparing the front and
rear speakers
B
Mounting the speakers on
the wall
You can choose to wall mount the
speakers on the wall.
CAUTION!
You should get a qualified person to
drill and insert the mounting screws
(not supplied) on the wall. DO NOT
do it yourself in order to avoid any
unexpected damage to the
equipment or injury to personnel.
C
D
C
D
A This step is only required for the centre
speaker. To remove the centre speaker
stand, loosen and remove the scews at
the rear of the speakers. See the above
illustrations.
B Use the supplied screws to attach the
supplied bracket firmly to the rear of the
speakers.
C Drill holes on the wall where the speaker
is to be hung. Mount the rubber wall
plugs and screws (not supplied) into the
wall.
D Hook the speaker firmly onto the screws,
Helpful Hint:
– Philips accepts absolutely no liability for
any accidents or damage resulting from
inadequate assembly or mounting, misuse or
abuse, or natural disasters.
18
by ensuring that they fit into the brackets
at the rear of the speaker.
Optional Connections (continued)
OUT
IN
English
Example of
HDMI TV’s
back panel
Example of TV’s back panel
VIDEO
TV
AUDIO
OUT
HDMI IN
A
IN
TV
VIDEO
AUDIO
B
Pr
Pb
Y
TO SUBWOOFER
DIGITAL IN
L AUX IN R
HDMI OUT
socket located
beneath
the cover of the
DVD system
COMPONENT VIDEO
B
Connecting to a Progressive
Scan TV
Connecting to a HDMI
compatible device
IMPORTANT!
– The progressive scan video quality
is only possible when a progressive
scan TV is connected to the Y Pb Pr
sockets.
– DO NOT connect both the
SCART and Y Pb Pr to a TV, it may
affect the picture quality.
HDMI connects uncompressed and
unprocessed digital transmission for the
highest and best defined sound/image
quality. Its plug and play capability
requires only one cable for both audio/
video output.
A Use the component video cables (red/
blue/green - not supplied) to connect the
Junction Box’s Y Pb Pr sockets to the
corresponding component video input
sockets (or labelled as Y Pb/Cb Pr/Cr or
YUV) on the TV.
Do not connect the SCART socket from
the Junction Box to your TV.
B To listen to the TV channels through this
DVD system, use an audio cable (white/
red - not supplied) to connect the AUX
IN sockets to the corresponding AUDIO
OUT sockets on the TV.
C Proceed to pages 25~26 for detailed
Progressive Scan set up.
A Open the DVD system’s back cover by
releasing the two catches located at the
base of the system.
B Use a HDMI cable (not supplied) to
connect the HDMI OUT socket (on the
back of the DVD system) to the HDMI
IN socket on a HDMI compatible device
(eg. HDMI TV, HDCP compliant TV).
C Once you have completed the necessary
connections, installation and set-up, see
pages 39 and 42 for optimum HDMI
audio and video settings
Helpful Hints:
– HDMI is backward compatible with some
DVI devices using an appropriate adaptor
plug.
– Most older DVI-enabled devices are not
HDCP compliant and playback is not
possible.
19
Optional Connections (continued)
English
Connecting to an analogue
audio/ video device
Connecting to a digital audio
device
You can connect an analogue audio/video
device (e.g. VCR, Cable/Satellite Box, TV
or cassette recorder) to the Junction Box
in order to enjoy the Home Theatre
Audio System’s surround sound
capabilities.
You can connect a digital audio device
(e.g. CD recorder) to the Junction Box in
order to enjoy the Home Theatre Audio
System’s surround sound capabilities.
Use an audio cable (red/white - not
supplied) to connect the AUX IN (R/L)
sockets on the Junction Box to the
AUDIO OUT sockets on an analogue
audio/video device.
To listen to the sound, press SOURCE
repeatedly to select “AUX” as the source
to play.
Helpful Hints:
– Recording from this DVD system to your
VCR is not possible.
– To see the picture of the connected video
device (e.g. VCR), connect the VIDEO OUT
socket of the device to the VIDEO IN socket
of the TV, and select the correct input
channel on the TV.
20
Use a coaxial cable (not supplied).
Connect the DIGITAL IN socket on
the Junction Box to the DIGITAL OUT
socket on a digital audio device.
To listen to the sound, press SOURCE
repeatedly to select “DI” as the source
to play.
Helpful Hints:
– You cannot hear or record the SACD or
MP3-CD playback if you use the digital
connection.
– For your playback through DIGITAL IN
connection, set the digital output of that
player to PCM format.
– Always refer to the user manual of the
other equipment for complete connection
and usage details.
English
Optional Connections (continued)
A
C
B
FM Antenna
Connecting to an outdoor
FM antenna terminal
If the FM reception is poor, you can use a
FM coaxial cable (not supplied) to connect
the FM 75 coaxial cable (hidden inside
the back cover) directly to the outdoor
FM antenna terminal.
A Open the DVD system’s back cover by
releasing the two catches located at the
base of the system.
B Unplug the FM pigtail antenna from the
FM 75 coaxial cable.
C Connect the FM 75 coaxial cable to
one end of the FM coaxial cable which is
connected to the outdoor FM antenna
terminal.
Helpful Hint:
– Position the antennas as far away as
possible from your TV, VCR or other
radiation source to prevent any unwanted
interference.
21
Getting Started
English
Step 1: Switching on the
DVD system
Press the SOURCE button on the DVD
system repeatedly to select :
DISC ¤ TUNER FM ¤ TV ¤ AUX
¤ DI ¤ DISC ....
Step 2: Finding the correct
viewing channel
Before you start...
Make sure you have completed all
the necessary connections before
proceeding.
A Press the SOURCE button on the
Switching to standby mode
Press STANDBY 2 on the remote
control.
The message “Standby” will be shown
on the display screen, and slowly fade
away.
TIPS:
22
PressÑto return to the previous menu item.
Press SYSTEM MENU to exit the menu.
remote control repeatedly until “DISC”
appears on the display panel.
B Switch on the TV and set it to the
correct video-in channel. You should see
the blue DVD background screen on the
TV.
Or, you may go to Channel 1 on your
TV, then press the Channel down button
repeatedly until you see the Video In
channel.
Usually this channel is between the
lowest and highest channels and may be
called FRONT, A/V IN, VIDEO. See your
TV manual for more details.
Or, the TV remote control may have
a button or switch that chooses between
different video modes.
Step 3: Setting language
preferences
The language options are different
depending on your country or region. It
may not correspond to the illustrations
shown on the user manual.
On-screen display (OSD) language
The OSD (On-Screen Display) language
for this DVD system will remain as you
have set it, regardless of the changes
made to the DVD disc language.
Audio, Subtitle and Menu language
for DVD playback
You can select your preferred language
settings for DVD playback. If the
selected language is recorded on the
DVD disc, the DVD system will
automatically play the disc in that
language. Otherwise, the disc’s default
language will be used instead.
A Press Ç twice to stop playback (if any),
then press SYSTEM MENU.
B Press X repeatedly to select
{ Preference Page }.
A In ‘DISC’ mode, press SYSTEM MENU.
B Press X to select { General Setup
C Use ST keys to highlight one of the
options below, then press X.
Page }.
C Use ST keys to highlight { OSD
Language }, then press X.
General Setup Page
Disc Lock
OSD Language
Screen Saver
DivX(R) VOD Code
English
Espanõl
Français
Português
Preference Page
Audio
Subtitle
Disc Menu
Parental
PBC
MP3/JPEG Nav
Password
DivX Subtitle
Default
{ Audio }
D Use ST keys to select a language and
press OK to confirm.
Select the preferred audio language for DVD
playback.
{ Subtitle }
Select the preferred subtitle language for DVD
playback.
{ Disc Menu }
Select the preferred disc menu language for
DVD playback.
TIPS:
PressÑto return to the previous menu item.
Press SYSTEM MENU to exit the menu.
23
English
Getting Started (continued)
Getting Started (continued)
English
D Use ST keys to select a language and
press OK to confirm.
If the language you want is not in
the list, then select { Others }.
Use the numeric keypad (0-9) on the
remote to enter the 4-digit language code
‘XXXX’ (see page 256) and press OK to
confirm.
E Repeat steps C ~ D for other settings.
Helpful Hints:
– During DVD playback, you can switch the
audio and subtitle languages by pressing the
AUDIO and SUBTITLE buttons on the
remote control. However, this does not
change the default settings you have made
here.
– For some DVDs, the subtitle/audio/menu
language can only be changed via the DVD
disc menu.
Step 4: Setting the TV
Selecting the matching colour
system
The colour system of the DVD system,
DVD and TV should match. Only then
will it be possible to play a DVD on this
system. Before changing the TV system,
determine the colour system of your TV.
A In ‘DISC’ mode, press SYSTEM MENU
on the remote control.
B Press X repeatedly to select { Video
Setup Page }.
C Press T to highlight { TV Type }, then
press X.
Video Setup Page
TV Type
TV Display
Progressive
Picture Setting
Component
HDMI Setup
PAL
NTSC
Multi
{ PAL }
Select this if the connected TV has the PAL
colour system. It will change the video signal of
an NTSC disc and output it to PAL format.
{ NTSC }
Select this if the connected TV has the NTSC
colour system. It will change the video signal of
a PAL disc and output it to NTSC format.
{ Multi }
Select this if the connected TV is compatible
with both NTSC and PAL (multi-system). The
output format will be in accordance with the
video signal of the disc.
D Select one of the options and press OK
to confirm.
Follow the instructions shown on the
TV to confirm the selection (if any).
If a blank/distorted TV screen appears,
wait for 15 seconds for the auto recovery.
TIPS:
24
PressÑto return to the previous menu item.
Press SYSTEM MENU to exit the menu.
Setting the TV Display
Set the aspect ratio of the DVD system
according to the TV type you have
connected. The format you select must
be available on the disc. If it is not, the
setting for TV display will not affect the
picture during playback.
Setting up Progressive Scan feature
(for Progressive Scan TV only)
The progressive scan feature displays
twice the number of frames per second
than interlaced scanning (ordinary normal
TV system). With nearly twice the
number of lines, progressive scan offers a
higher picture quality and resolution.
A In ‘DISC’ mode, press SYSTEM MENU
on the remote control.
B Press X repeatedly to select { Video
Setup Page }.
C Press T to highlight { TV Display },
then press X.
IMPORTANT!
Before enabling the progressive
scan feature, you must ensure:
1) Your TV can accept progressive signals,
a progressive scan TV is required.
2) You have connected the Junction Box
to your TV using Y Pb Pr (see page
19).
Video Setup Page
TV Type
TV Display
Progressive
Picture Setting
Component
HDMI Setup
A Switch off your TV progressive scan
4:3 Pan Scan
4:3 Letter Box
16:9 Wide Screen
mode or switch on to the interlaced
mode (refer to your TV user manual).
B Press the SOURCE button until “DISC”
appears on the display panel.
{ 4:3 Pan Scan }
Select this if you have a
conventional TV and want
both sides of the picture
to be trimmed or formatted to fit your TV
screen.
{ 4:3 Letter Box }
Select this if you have a
conventional TV. In this case, a
wide picture with black bands
on the upper and lower portions of the TV
screen will be displayed.
{ 16:9 Wide Screen }
Select this if you have a
wide-screen TV.
D Select one of the options and press OK
to confirm.
TIPS:
C Switch on your TV and select the correct
Video Input channel.
The blue DVD background screen will
appear on the TV.
D Press SYSTEM MENU on the remote.
E PressÉto select { Video Setup Page }.
F Select { Component } > { YUV }, then
press OK to confirm.
Video Setup Page
TV Type
TV Display
Progressive
Picture Setting
Component
HDMI Setup
YUV
RGB
PressÑto return to the previous menu item.
Press SYSTEM MENU to exit the menu.
25
English
Getting Started (continued)
Getting Started (continued)
English
G Select { Progressive } > { On }, then
press OK to confirm.
A Deactivate the Progressive Scan feature
Video Setup Page
TV Type
TV Display
Progressive
Picture Setting
Component
HDMI Setup
If no picture is displayed :
Wait for 15 seconds for the auto recovery.
OR
by pressing the ç(EJECT) on the front
panel.
On
Off
B PressÉon the remote control.
C Press SUBTITLE on the remote
H The menu below will appear on the TV.
HINTS:(refer to the owner's manual)
control.
The blue DVD background screen will
appear on the TV.
ACTIVATING PROGRESSIVE:
1. Ensure your TV has progressive scan.
2. Connect with YPbPr(GBR) video cable.
3. If there is a blank screen on normal TV,
wait 15 seconds for auto recover.
Cancel
OK
I PressÑto highlight
OK
in the menu
and press OK to confirm.
There will be no picture on your TV
at this state until you switch on the
progressive scan mode on your TV.
J Switch on your TV’s progressive scan
mode (refer to your TV user manual).
The below menu will appear on the
TV.
Confirm again to use progressive scan
If picture is good press OK on remote
OK
Cancel
K PressÑto highlight
OK
in the menu
and press OK to confirm.
The setup is complete now and you
can start to enjoy the high quality picture.
TIPS:
26
PressÑto return to the previous menu item.
Press SYSTEM MENU to exit the menu.
Helpful Hint:
– There are some progressive scan TV and
High-Definition TV sets that are not fully
compatible with this DVD system, resulting in
the unnatural picture when playing back a
DVD VIDEO disc under the progressive scan
mode. In such a case, switch off the
progressive scan feature on both the DVD
system and your TV set.
Getting Started (continued)
You can adjust the delay times (centre
and surround only) and volume level for
individual speakers. These adjustments
allow you to optimise the sound
according to your surroundings and
setup.
Before you start...
– Press the SURR. button on the
remote to select multichannel
surround mode before adjusting the
speaker settings.
– In case of sound distortion, press
and hold the SOUND button to
select another transmission channel
for the wireless rear speakers.
A PressÇto stop playback, then press
SYSTEM MENU.
B Press X repeatedly to select { Audio
Setup Page }.
C Press ST to highlight { Speaker
Setup Page }, then press X.
Audio Setup Page
Analog Output
HDMI Audio
Speaker Setup
CD Upsampling
Night Mode
Lip Sync
Speaker Setup Page
Speakers Volume
Speakers Delay
{ Speakers Volume }
– Volume level setting for individual
speakers (-6dB – +6dB).
English
Step 5: Setting the speakers’
channels
Speakers Volume Setup
Front Left
Front Right
Center
Subwoofer
Rear Left
Rear Right
Rear Center
0dB
0dB
0dB
0dB
0dB
0dB
0dB
{ Speakers Delay }
– Delay times setting in relation to the
listening position/ distance for centre and
surround speakers.
Speakers Delay Setup
Center
Rear Left
Rear Right
Rear Center
0ms
0ms
0ms
0ms
Note: 1 ms increase/decrease of delay
time is equivalent to 30 cm change in
distance. Use the longer delay time
settings when the rear speakers are
closer to the listener than the front
speakers.
F Press WX to adjust to the setting that
best suit your surround sound needs.
G Press OK to confirm.
Helpful Hints:
– Use the longer delay time settings when
the rear speakers are closer to the
listener than the front speakers.
– The test tone will automatically be
generated to help you judge the sound level
of each speaker.
D Enter its submenu by pressing X.
E Press ST to highlight one of the options
below at a time, then press X.
TIPS:
PressÑto return to the previous menu item.
Press SYSTEM MENU to exit the menu.
27
Disc operations
English
Playable discs
SUPER VIDEO
Your DVD home theatre system will
play:
– Digital Versatile Discs (DVDs)
– Video CDs (VCDs)
– Super Video CDs (SVCDs)
– Super Audio CDs (SACDs)
– Finalised DVD Recordable (DVD±R),
DVD Rewritable (DVD±RW)
– Audio Compact Discs (CDs)
on CD-R(W).
– MP3/ Windows Media™ Audio discs,
picture (Kodak, JPEG) files on
CD-R(W).
– JPEG/ISO 9660/UDF format
– JPEG resolution support up to
3072 x 2048
– Supported sampling frequencies :
32 kHz, 44.1 kHz, 48 kHz
– Supported Bit-rates : 32~256 (kbps),
variable bit rates
Region Codes for DVD discs
DVD discs and players are designed with
regional restrictions. Before playing a disc,
make sure the disc is for the same region
as your player. The regional code for this
DVD system is indicated at the rear panel.
IMPORTANT!
– If the inhibit icon (ø or X) appears
on the TV screen when a button is
pressed, it means the function is not
available on the current disc or at
the current time.
– Do not put any objects other than
discs on the disc tray. Doing so may
cause the disc player to
malfunction.
Helpful Hints:
– It may not be possible to play a CD-R/RW
or DVD-R/-RW disc in all cases due to the
type of disc or condition of the recording.
– If you are having trouble playing a certain
disc, remove the disc and try a different one.
Improperly formatted discs will not play on
this DVD system.
– MPEG-4 files on CD-R(W):
– Simple profile
– Advanced simple profile (640-480)
– DivX files on CD-R(W)/DVD+R(W):
– DivX 3.11, 4.x, 5.x and 6.x
– Supports QPEL (Quarter Pixel).
– XviD files on CD-R(W)/DVD+R(W)
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
28
Playing a disc
A Press the SOURCE button until “DISC”
appears on the display panel.
B Switch on the TV and set to the correct
Video In channel. (See the section
“Finding the correct viewing channel”).
You should see the blue DVD
background screen on the TV.
C Insert a disc into the disc slot.
Make sure the disc label is facing out.
For double-sided discs, load the side you
want to play facing out.
When loading an 8cm disc, slot into
the middle of the disc loader.
(EJECT)
D Playback will start automatically.
Basic playback controls
Pausing playback
During playback, press u (PLAY
PAUSE ) or Å on the remote control.
To resume playback, press u again
(or PLAY X on the remote control).
Selecting another track/chapter
Press ./ > (PREV / NEXT) or use
the numeric keypad (0-9) to key in a
track/chapter number.
If the repeat track mode is active, press
. again to replay the same track/
chapter.
Searching backwards/forwards
Press and hold ./ > (PREV / NEXT).
While searching, press ./ >
repeatedly to decrease/increase the
search speed.
To resume normal playback, press
u (or PLAY X on the remote
control).
Stopping playback
Press Ç(STOP).
If a disc menu appears on the TV, see
page 30 “Using the Disc Menu”.
If the disc is locked by parental
control, you must enter your six-digit
password. (See page 44).
E To remove the disc, press ç(EJECT) or
press and hold the Ç button on the
remote control.
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
29
English
Disc operations (continued)
Disc operations (continued)
English
Selecting various repeat/
shuffle functions
Other playback features
for video discs (DVD/VCD/
SVCD)
While playing a disc, press REPEAT on
the remote control repeatedly to choose
a repeat play mode.
DVD
RPT ONE (repeat chapter)
RPT TT (repeat title)
SHUFFLE (random play)
RPT SHF (repeat random play)
RPT OFF (exit repeat mode)
VCD/SVCD/CD
RPT ONE (repeat track)
RPT ALL (repeat disc)
SHUFFLE (random play)
RPT SHF (repeat random play)
RPT OFF (exit repeat mode)
MP3/SACD/DivX/Windows Media™
Audio
RPT ONE (repeat track)
RPT ALL/FLD (repeat folder)
SHUFFLE (random play)
RPT OFF (exit repeat mode)
Helpful Hint:
– Repeat playback is not possible on VCDs
when the PBC mode is switched on.
STANDBY
ON
DISPLAY
SYSTEM
MENU
WXST
OK
É
Ç
SUBTITLE
Å
ZOOM
AUDIO
Using the Disc Menu
Depending on the disc format, a menu
may appear on the TV screen once you
load in the disc.
To select a playback feature or item
Use WXST keys or numeric keypad
(0-9) on the remote, then press OK to
start playback.
To access or remove the menu
Press DISC MENU on the remote
control.
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
30
Viewing playback information
The DVD system can display the disc
playback information (for example, title
or chapter number, elapsed playing time,
audio/subtitle language) and a number of
operations can be done without
interrupting disc playback.
A During playback, press DISPLAY.
A list of available disc information
appears on the TV screen.
DVD
Resuming playback from the last
stopped point
This DVD system is able to resume disc
playback from its last stopped point (only
possible for the last 10 discs that were
recorded without a menu).
A Load one of the last 10 discs played.
B While “LOADING” appears on the
display panel, press PLAYÉ(or u on
the display panel) to start playback from
the last stop point.
To cancel the resume mode
C In stop mode, press Ç(STOP) again.
Zooming in
VCD/SVCD
This function allows you to enlarge the
picture on the TV screen and to pan
through the enlarged picture.
A During playback, press ZOOM on the
B Use ST keys to view the information
and press OK to access.
C Use the numeric keypad (0-9) to input
remote control repeatedly to select a
different zoom factor.
Use WXST keys to move through
the zoomed image.
Playback will continue.
B Press ZOOM repeatedly to return to
the original size.
the number/time or use ST keys to
make the selection, then press OK to
confirm.
Playback will change according to the
chosen time or to the selected title/
chapter/track.
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
31
English
Disc operations (continued)
Disc operations (continued)
English
Changing subtitle language (DVD
only)
This operation works only on DVDs with
multiple subtitle languages, you can
change the language you want while
playing a DVD.
Press SUBTITLE repeatedly to select
different subtitle languages.
Changing sound track language
This operation works only on DVDs with
multiple soundtrack languages, you can
change the language you want while
playing a DVD.
Press AUDIO repeatedly to select the
available audio languages.
For VCD – changing the audio
channel
Press AUDIO repeatedly to select the
available audio channels provided by the
disc (STEREO, MONO LEFT, MONO
RIGHT or MIX MONO).
Playback Control (VCD only)
PBC playback allows you to play Video
CDs interactively, following the menu on
the display. This function can also be
accessed via the ‘Preference Page’ menu
(see page 44).
For VCDs with Playback Control
(PBC) feature (version 2.0 only)
When playback is stopped, press DISC
MENU to toggle between ‘PBC ON’ and
‘PBC OFF’.
If you select ‘PBC ON’, the disc menu
(if available) will appear on the TV.
Use ST keys or numeric keypad
(0-9) to select a play option and press
OK to confirm.
If you select ‘PBC OFF’, the VCD will
skip the index menu and playback directly
from the beginning.
Switching camera angles
This option is only available with DVDs
that contain sequences recorded from
different camera angles. This allows you
to view the picture from different angles.
Press ANGLE repeatedly to select the
available camera angles.
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
32
Playing an MP3/ JPEG/
MPEG-4/Windows Media™
Audio disc
This DVD system can playback most of
the MP3, JPEG, MPEG-4 and Windows
Media™ Audio files recorded on a
CD-R/RW disc or commercial CD.
Before you start...
You have to switch on your TV and set
to the correct Video In channel. (See the
section “Finding the correct viewing
channel”).
A Insert a disc.
The disc reading time may exceed 30
seconds due to the complexity of the
directory/file configuration.
The disc menu appears on the TV
screen.
00:19 04:39
001/003
\MP3_files_128kbs
Previous
B If the disc main menu contains various
folders, use ST keys to select a desired
folder and press OK to open the folder.
C Use ST keys to select a track/file and
press OK to start playback.
Playback will start from the selected
file and continue till the end of the folder.
During playback, you can;
Press ./ > to select another track/
file in the current folder.
Press and hold ./ > to fast
reverse/forward search for a music track.
To select another folder from the
current disc, press S to return to the
root menu, then use ST keys to make
your selection and press OK to confirm.
Press REPEAT repeatedly to access
various play modes.
D To pause playback, pressÅon the
remote control. To resume playback,
press the PLAYÉ button.
E To stop playback, press Ç.
Picture 1
Picture 2
MP3 Music 1
MP3 Music 2
050
003
000
TIPS: The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
33
English
Disc operations (continued)
Disc operations (continued)
English
Playing a JPEG image file
(slide show)
Before you start...
You have to switch on your TV to the
correct Video In channel. See the section
on “Finding the correct viewing channel”.
Insert a Picture disc (Kodak Picture CD,
JPEG).
For a Kodak disc, the slide show will
begin automatically.
For a JPEG disc, the picture menu will
appear on the TV. Press PLAY X (or
u) to start the slide-show playback.
Preview function
A During playback, press Ç.
12 thumbnail pictures will be displayed
on the TV.
Zoom picture
A During playback, press ZOOM
repeatedly to select a different zoom
factor.
B Use WXST keys to pan through the
zoomed image.
Rotating/flipping the picture
During playback, use WXST keys to
rotate/flip the picture on the TV.
S : flip the picture vertically
T : flip the picture horizontally
W : rotate the picture anti-clockwise
X : rotate the picture clockwise
Supported file format:
– The file extension has to be ‘*.JPG’
and not ‘*.JPEG’.
– It can only display DCF-standard still
pictures or JPEG pictures e.g. TIFF. It
cannot playback moving pictures, Motion
JPEG, progressive JPEG and other
formats, or pictures in formats other
than JPEG, or pictures associated with
sound.
– It may require longer time for the
DVD system to display the disc content
on the TV due to the large number of
songs/pictures compiled into one disc.
B Press ./ > to display the other
pictures on the previous/next page.
C Use WXST keys to highlight one of the
picture and press OK to start playback.
D Press DISC MENU to return to the
Picture CD menu.
TIPS: Some discs cannot be played on this player due to the configuration and characteristics of the
disc, or due to the condition of recording and authoring software that was used.
34
Playing MP3 music and JPEG
picture simultaneously
A Insert an MP3 disc that contains music
and pictures.
B Select an MP3 track in the menu and
press PLAY X (or u) to start playback.
C During MP3 music playback, use WXST
keys to select a picture folder from the
disc menu and press PLAY X (or u).
The picture files will be played back
until the end of the folder.
D To quit simultaneous playback, press
DISC MENU and followed by Ç.
Helpful Hints:
– It is normal to experience an occasional
“skip” while listening to your MP3 disc.
– It is normal to experience an occasional
pixelation during MPEG-4/DivX playback
due to poor clarity of digital contents during
internet downloading.
– Only the first session of a multi-session CD
will be played back.
English
Disc operations (continued)
Playing a Super Audio CD
(SACD)
There are three types of SACD discs :
single layer, double layer or hybrid discs.
The hybrid disc contains both Super
Audio CD and standard audio CD layers,
only the SACD layer can be played back
on this DVD system.
A Insert a SACD.
The disc menu appears on the TV
screen.
B Playback will start automatically.
If the SACD consists of multi-channel
and stereo tracks, multi-channel tracks
will have the priority for playback.
To playback stereo tracks, use ST
keys to make your selection from the
disc menu, then press PLAY X.
Helpful Hint
– It is not possible to programme SACD
tracks.
TIPS: Some discs cannot be played on this player due to the configuration and characteristics of the
disc, or due to the condition of recording and authoring software that was used.
35
Disc operations (continued)
English
Playing a DivX disc
This DVD system supports the playback
of DivX movies which you can copy from
your computer onto a CD-R/RW,
DVD±R/±RW disc.
A Insert a DivX disc.
B If the DivX movie contains external
subtitles, the subtitle menu will appear on
the TV for your selection.
In this case, pressing SUBTITLE on the
remote will switch on or off the subtitle
display.
C To start playback, press PLAYÉon the
remote control.
If multilingual subtitles are embedded on
the DivX disc, you can press SUBTITLE
to change the subtitle language during
playback.
Helpful Hints:
– Subtitle files with the following filename
extensions (.srt, .smi, .sub, .ssa, .ass) are
supported but do not appear on the file
navigation menu.
– The subtitle filename has to be the same
as the filename of the movie.
– The subtitle can only be displayed up to a
maximum of 35 characters.
TIPS: Some discs cannot be played on this player due to the configuration and characteristics of the
disc, or due to the condition of recording and authoring software that was used.
36
Accessing the DVD setup
menu
This DVD system setup is carried out via
the TV, enabling you to customise the
DVD system to suit your particular
requirements.
English
DVD System Menu Options
General Setup Page
Disc Lock
OSD Language
Screen Saver
DIVX(R) VOD Code
see page 38
A In ‘DISC’ mode, press SYSTEM MENU.
The system setup menu appears.
B Press WX to select one of the setup
menu pages and press OK.
If you are not able to access the
{ Preference Page }, press SYSTEM
MENU to exit the menu. PressÇ
(STOP) twice before you press the
SYSTEM MENU button again.
Audio Setup Page
Analog Output
HDMI Audio
Speaker Setup
CD Upsampling
Night Mode
Lip Sync
see page 39
C Use ST keys to select a setup option
and press X to access
D Select the setting you wish to change and
press OK to confirm and go back to the
previous selected item.
Instructions and explanations of the
options are provided in the following
pages.
If the option in the menu is greyed
out, that means the setting is not
available or cannot be changed in the
current state.
Video Setup Page
TV Type
TV Display
Progressive
Picture Setting
Component
HDMI Setup
see page 40
Preference Page
E To exit, press SYSTEM MENU.
Audio
Subtitle
Disc Menu
Parental
PBC
MP3/JPEG Nav
Password
DivX Subtitle
Default
see page 43
37
DVD System Menu Options (continued)
English
General Setup Page (underlined options are the factory default settings)
Disc Lock
Not all discs are rated or coded by the disc maker. You can
prevent a specific disc from playing back by locking the disc. Up
to 40 discs can be locked.
{ Lock }
– Select this to block the playback of the
current disc. Subsequent access to a locked
disc requires six-digit password. The default
password is ‘136900’ (see “Preference Setup
Page Settings – Password’).
{ Unlock }
– All discs can be played back.
OSD language
Select the preferred language for the DVD system on-screen
display menu.
Screen Saver
The screen saver will help prevent damage to your TV display
device.
DIVX(R) VOD code
{ On }
– Turns off the TV screen when playback has
been stopped or paused for more than 15
minutes.
{ Off }
– Disables the screen saver function.
Philips provides you with the DivX® VOD (Video On Demand)
registration code that allows you to rent and purchase videos
using the DivX® VOD service. Press X to see the registration
code and press OK to exit.
Use the registration code to purchase or rent the videos from
DivX® VOD service at www.divx.com/vod. Follow the
instructions and copy the video from your computer onto a
CD-R/RW disc for playback on this DVD system.
Note: All the downloaded videos from DivX® VOD can only be played
back on this DVD system. For more information, visit us at
www.divx.com/vod.
38
English
DVD System Menu Options (continued)
Audio Setup Page (underlined options are the factory default settings)
Analog Output
This feature enables you to set the analogue output to match
your DVD system’s playback capability.
{ Stereo }
– Select this to change the channel output to
stereo that delivers sound from only the
front speakers and subwoofer.
{ Multi-channel }– Select this to enable surround sound output
from all speakers (except REAR CENTER) and the subwoofer.
{ 6.1 Multi-channel }–Select this to enable surround sound
output from all speakers and the subwoofer.
HDMI Audio
For HDMI connections, you are able to select the HDMI audio
output selections. The available options will be displayed once
you have connected the HDMI device. (see page 19).
It may take a while for the DVD system and the input
device to communicate and initialise.
Speaker Setup
{ Off }
– Select this to switch off HDMI audio output.
{ All }
– Select this if you have connected the DVD
system to a multichannel decoder/receiver.
{ PCM Only }
– Select this only if your HDMI TV or receiver
is not capable of decoding multichannel audio.
This feature allows you to to optimise the sound according to
your surroundings and setup.
{ Speakers Volume } – Access the speakers level setup menu.
See “Step 5: Setting the speakers’ channels”
{ Speakers Delay } – Access the speakers distance setup menu.
See “Step 5: Setting the speakers’ channels”
CD Upsampling
This feature enables you to convert your music CD to a higher
sampling rate using sophisticated digital signal processing for
better sound quality. If you have activated the CD upsampling
feature, the system will automatically switch to stereo mode.
Note: If you press SURR. button on the remote control to
select multichannel mode, it will disable the CD upsampling
feature.
39
DVD System Menu Options (continued)
English
Audio Setup Page (underlined options are the factory default settings)
Night Mode
Lip Sync
This mode optimises playback of sound at low volume. High
volume outputs will be softened and low volume outputs are
brought upward to an audible level. This feature is only applicable
for DVD video discs with Dolby Digital mode.
{ On }
– Turns on night mode.
{ Off }
– Turns off night mode feature. Select this to
enjoy the surround sound with its full dynamic
range.
This feature allows you to adjust the audio delay times if video
playback is slower than the audio output streams, hence resulting
in lip-sync.
Access the lip sync setup menu. Use W X keys to set the delay
times for the audio output.
Video Setup Page (underlined options are the factory default settings)
TV Type
TV Display
Select the colour system that matches the connected TV. It will
enable playback of different type of disc (PAL or NTSC disc) on
this DVD system. This option is not available if a HDMI TV is
connected.
{ PAL }
– For PAL-system TV.
{ NTSC }
– For NTSC-system TV.
{ Multi }
– For TV that is compatible with both PAL and
NTSC.
The picture shape can be adjusted to fit your TV.
{ 4:3 Pan Scan }– For a full-height picture with
the sides trimmed.
{ 4:3 Letter Box } – For a ‘wide-screen’ display
with black bars on the top and
bottom.
{ 16:9 Wide Screen } – For wide-screen TV
(frame ratio 16:9).
40
Video Setup Page (underlined options are the factory default settings)
Progressive
In the progressive scan mode, you can enjoy high quality picture
with less flickers. It only works when you have connected the
Y Pb Pr sockets on the Junction Box to your TV that supports
progressive video input. Otherwise, the image may not appear or
will be distorted.
This option is only available if you have selected { YUV } in the
{ Component } option. See next page “Video Setup Page –
Component” for details.
{ Off }
– Disable the progressive scan function.
{ On }
– Enable the progressive scan function.
Note: If no picture appears, wait for 15 seconds for auto
recovery. Otherwise, turn off the progressive scan as below:
1) Press çEJECT on the DVD system.
2) Press X on the remote control.
3) Press SUBTITLE on the remote control.
Picture Setting
This DVD system provides three predefined sets of picture
colour settings and one personal setting which you can define
yourself.
{ Standard }
– Original colour setting.
{ Bright }
– Vibrant colour setting.
{ Soft }
– Warm colour setting.
{ Personal }
– Select this to personalise your picture colour
by adjusting the brightness, contrast, tint and
colour (saturation).
Use W X keys to adjust to the setting that
best suit your personal preference and press
OK to confirm. For an average setting,
select { 0 }.
Personal Picture Setup
Brightness
Contrast
Tint
Color
{ Brightness }
Increase this value to brighten the picture colour
or vice versa.
{ Contrast }
Increase this value to sharpen the picture colour or
vice versa.
{ Tint }
Increase or decrease this value to change the
colour phase of the picture.
{ Color }
Increase this value to enhance the picture colour
or vice versa.
41
English
DVD System Menu Options (continued)
DVD System Menu Options (continued)
English
Video Setup Page (underlined options are the factory default settings)
Component
HDMI Setup
Select the type of video output that matches the video
connection between the DVD system and your TV.
{ YUV }
– Select this if you have connected the Junction
Box to your TV using the component video
sockets (Y Pb Pr).
{ RGB }
– Select this if you have connected the Junction
Box to your TV using the SCART socket.
It provides the picture settings to enhance the appearance and
picture quality for disc playback.
{ Wide Screen Format } – Select a suitable screen display.
This feature is only available if you have selected
{ TV Display – 16:9 Wide Screen }.
{ Superwide }
Select this to display the 4:3 picture disc on the
wide-screen TV with non-linear stretching (centre
position of the screen is stretched less than the
side).
{ 4:3 Pillar Box }
Select this to display the 4:3 picture disc on the
wide-screen TV without stretching. Black bars will
be shown on both sides of the TV screen.
{ Off }
No aspect ratio adjustment is made when this
option is selected.
Note: The { Wide Screen Format } feature will be disabled if your HDMI
TV has been preset to { 480p } or { 576p } settings .
{ HDMI Video }– Select this to further enhance your HDMI
video output.
{ 480p }
Progressive output in 480 lines for NTSC TV.
Selecting this will disable the { Wide Screen
Format } feature.
{ 576p }
Progressive output in 576 lines for PAL TV.
Selecting this will disable the { Wide Screen
Format } feature.
{ 720p } - (if a HDMI TV is connected)
Progressive output upscale to 720 lines.
{ 1080i } - (if a HDMI TV is connected)
Interlaced output upscale to 1080 lines.
42
English
DVD System Menu Options (continued)
Video Setup Page (underlined options are the factory default settings)
HDMI Setup
(continued)
{ HDMI Video }– Select this to further enhance your HDMI
video output. (continued).
{ Auto }
The video output will automatically follow the
display’s supported resolution.
Preference Setup Page (underlined options are the factory default settings)
Audio
Select the preferred audio language for DVD playback.
Subtitle
Select the preferred subtitle language for DVD playback.
Disc Menu
Select the preferred disc menu language for DVD playback.
Note: If the selected audio/subtitle/disc menu language is not available
on the DVD, the disc’s default language will be used instead.
Parental
1
2
3
4
5
6
7
8
Kid Safe
G
PG
PG 13
PGR
R
NC 17
Adult
This is to prohibit viewing of discs that had exceeded the limits
you set. It works only on the DVDs with parental level assigned
to the complete disc or to certain scenes on the disc.
1) Use S T keys to select a rating level from 1 to 8 and press
OK.
The ratings are country-dependent (‘1’ is considered material that is
least offensive and ‘8’ is most offensive). To disable parental controls
and allow all discs to play, select ‘8’.
2) Use the numeric keypad 0-9 on the remote control to
enter your six-digit password.
DVDs that are rated higher than the level you selected will not be
played unless you enter the same six-digit password.
Note: Some DVDs are not encoded with a rating though the movie
rating may be printed on the disc cover. The rating level feature does not
prohibit playback of such discs. VCD, SVCD and CD have no level
indication, so parental control has no effect on these type of discs.
43
DVD System Menu Options (continued)
English
Preference Setup Page (underlined options are the factory default settings)
PBC
Play Back Control feature is only applicable for VCD/SVCD only.
It allows you to play Video CDs (2.0) interactively, following the
menu on the display.
MP3/JPEG Nav
{ Off }
– The VCD/SVCD will skip the index menu and
playback directly from the beginning.
{ On }
– The index menu (if available) will appear on
the TV once you load a VCD/SVCD.
MP3/JPEG Navigator can only be set if the disc is recorded with a
menu. It allows you to select different display menus for easy
navigation.
{ Without Menu} – Displays all the files contained in the MP3/
Picture disc.
{ With Menu } – Displays the folder menu of the MP3/Picture
disc.
Password
The same password is used for both Parental Control and Disc
Lock. Enter your six-digit password to play a prohibited disc or
when prompted for a password. The default password is
‘136900’. To change the password:
1) Press OK to access the change password menu.
2) Use the numeric keypad 0-9 on the remote control to
enter your existing six-digit password at { Old Password }.
Change Password
Old Password
New Password
Confirm PWD
OK
When doing this for the first time or if you forget your existing
password, key in ‘136900’.
3) Enter the new six-digit password at { New Password }.
4) Enter the new six-digit password again at { Confirm PWD }.
5) Press OK to confirm and exit the menu.
DIVX Subtitle
Default
44
Select the font type that supports the recorded DivX subtitle.
{ Standard }
– Displays a standard list of Roman subtitle
fonts provided by this DVD system.
{ Others }
– Displays other subtitle fonts.
This feature enables you to reset all the setup menu options and
your personal settings to the factory defaults, except your
password for Parental Control and Disc Lock. Press OK to
confirm the default reset.
Tuning to radio stations
A Press SOURCE button until “TUNER
FM” appears on the display panel.
B Press S / T briefly on the remote.
The display panel will show
“SEARCH” until a radio station with
sufficient signal strength is found.
Using auto install
This feature is only applicable for the first
time radio station programming. You will
be prompted for installing the radio
stations once you access the tuner mode.
With one touch of the button, all the
available radio stations will be stored
automatically.
DVD System’s
display panel
C Repeat step B if necessary until you find
the desired radio station.
A
AUTO INSTALL ....
B
INSTALL TUNER
D To fine-tune the reception of a weak
station, press . / > briefly and
repeatedly until an optimal reception is
found.
Helpful Hint:
– If the FM radio station is transmitting RDS
(Radio Data System) data, the RDS name
will be displayed and stored.
Presetting radio stations
You can store up to 40 FM preset radio
stations in the system’s memory. There
are three different ways to programme
the radio stations:
– Using auto install (for first time setup
only)
– Using automatic preset
– Using manual preset
2
1
A Press SOURCE on the system panel to
select TUNER mode.
“AUTO INSTALL PRESS PLAY”
appears.
B Press and hold u (PLAY PAUSE) on
the system panel until “INSTALL
TUNER” appears on the display panel.
All the available radio stations with
strong signal strength will be stored
automatically.
Once complete, the last tuned radio
station will be played back.
Helpful Hints:
– The system will exit presetting mode if no
button is pressed within 20 seconds.
– If no valid frequency is detected during
tuner installation, “PLEASE CHECK FM
ANTENNA” appears.
45
English
Tuner Operations
Tuner Operations (continued)
English
Using automatic preset
Using manual preset
Use automatic presetting to store or
reinstall all the preset radio stations.
Use manual presetting to store only your
favourite radio stations.
System’s
display panel
STANDBY
ON
1
TUNER FM
3
AUTO
2
02
A Tune to your desired radio station (see
“Tuner Operations – Tuning to radio
stations”).
B Press PROGRAM.
C Use WX keys to select a preset number
that you want to store the current radio
station under.
D Press PROGRAM again to store.
(for example only)
A Press SOURCE button until “TUNER
FM” appears on the display panel.
B Press WX or use the numeric keypad
Selecting a preset radio
station
(0-9) to select a preset number to begin.
C Press and hold PROGRAM until
“AUTO” appears.
If a radio station is stored in one of
the earlier presets, the same radio station
will not store under another preset
number.
If no preset number is selected,
automatic preset will begin from preset
(1) and all your former presets will be
overridden.
Use WX keys to select a preset number
(or use the numeric keypad on the
remote).
The preset number followed by the
radio frequency will appear.
Deleting a preset radio
station
A In tuner mode, use WX keys on the
remote to select a preset radio station.
B Press and holdÇuntil “PRESET
DELETED” appears.
The radio station continues to play
but has been deleted from the preset list.
46
Selecting surround sound
Press SURR. (SURROUND) to select :
MULTI-CHANNEL or STEREO.
The availability of the various
surround sound modes depends on the
sound available on the disc.
The available output modes for
Multichannel include: Dolby Digital,
Dolby Digital EX, DTS (Digital Theatre
Systems) Surround and Dolby Pro
Logic II.
Stereo broadcasts or recordings will
produce some surround channel effects
when played in a surround mode.
However, mono (single channel sound)
sources will not produce any sound from
the surround speakers.
Helpful Hint:
– You are not able to select the surround
sound mode if the system setup menu is
turned on.
Selecting digital sound effects
Select a preset digital sound effect that
matches your disc’s content or that
optimises the sound of the musical style
you are playing.
Press SOUND to select the available
sound effect.
When playing movie discs or in TV mode,
you can select :
CONCERT, DRAMA, ACTION or
SCI-FI.
When playing music discs or while in
TUNER or AUX/DI mode, you can select :
ROCK, DIGITAL, CLASSIC or JAZZ.
Helpful Hint:
– For flat sound output, select CONCERT or
CLASSIC.
Volume control
Adjusting the Bass/ Treble
level
The BASS (low tone) and TREBLE (high
tone) features enable you to define the
sound processor settings.
A Press BASS or TREBLE on the remote.
B Within five seconds, use the VOL +to adjust the Bass or Treble level ( MIN,
-2, -1, 0, +1, +2 or MAX).
If the volume control is not used
within five seconds, it will resume its
normal volume control function.
Press VOL +/- on the remote to
increase or decrease the volume level.
“VOL MIN” is the minimum volume
level and “VOL MAX” is the maximum
volume level.
To turn off the volume temporarily
Press MUTE Hon the remote.
Playback will continue without sound
and “MUTE” appears.
To restore the volume, press
MUTEH again, or increase the volume
level.
47
English
Sound and Volume Controls
Sound and Volume Controls (continued)
English
Setting the Sleep timer
Using the remote to operate
your ‘Philips’ television
The sleep timer enables the system to
switch to standby mode automatically at
a preset time.
STANDBY
4
A Press and hold DIM on the remote until
“SLEEP XX” appear on the display panel
ON
1
(XX = 15, 30, 45, 60 or OFF).
B To select the next sleep timer value,
2
press DIM button again while in sleep
timer mode until it reaches the desired
preset switch-off time.
‘SLEEP’ will be showed on the display
panel, except if “OFF” is selected.
Before the system switches to standby
mode, a countdown of 10 seconds is
displayed.
“SLEEP10” “SLEEP 9”.... “SLEEP1” “SLEEP”
To cancel the sleep timer
Press and hold DIM until “OFF” appears
or press the STANDBY2 button.
3
A Press SOURCE button until “TV”
appears on the display panel.
B Press . / > or use the numeric
keypad (0-9) to select the TV’s channel.
Dimming system’s display
screen
C Press TV VOL +/- to adjust the TV’s
volume level.
D Press and hold STANDBY2 to switch
In any active mode, press DIM on the
remote to select the desired brightness :
DIM 1 : 70% brightness
DIM 2 : 50% brightness
DIM 3 : 25% brightness
DIM OFF : normal brightness
48
off your TV.
Specifications
TUNER SECTION
Tuning Range
FM 87.5 – 108 MHz
(50 kHz)
26 dB Quieting Sensitivity
FM 20 dB
Image Rejection Radio
FM 25 dB
IF Rejection Ratio
FM 60 dB
Signal-to-Noise Ratio
FM 60 dB
AM Suppression Ratio
FM 30 dB
Harmonic Distortion
FM Stereo 3%
Frequency Response FM 180 Hz – 10 kHz / ±6 dB
Stereo Separation
FM 26 dB (1 kHz)
Stereo Threshold
FM 23.5 dB
DISC SECTION
Laser Type
Disc Diametre
Video Decoding
Semiconductor
12cm / 8cm
MPEG-1 / MPEG-2 / MPEG-4
/ DivX 3.11, 4.x, 5.x and 6.0
/ XviD
Video DAC
12 Bits / 108 MHz
Signal System
PAL / NTSC
Video Format
4:3 / 16:9
Video S/N
56 dB (minimum)
Composite Video Output
1.0 Vp-p, 75 W
Audio DAC
24 Bits / 96 kHz
Frequency Response 4 Hz – 20 kHz (44.1 kHz)
4 Hz – 22 kHz (48 kHz)
4 Hz – 44 kHz (96 kHz)
PCM
IEC 60958
Dolby Digital
IEC 60958, IEC 61937
DTS
IEC 60958, IEC 61937
SACD D/A converter
PCM
SACD cut-off frequency
50 kHz
CENTRE UNIT
Power Supply Rating 220 – 230 V; 50 Hz
Power Consumption 15W
Standby Power Consumption < 0.5 W
Dimensions
273 x 284 x 144 mm
(w x h x d)
Weight
2.8 kg
English
AMPLIFIER SECTION
Output power
800 W
Front Left/Right 125 W / channel
Front Centre
125 W / channel
Rear Left/Right 85 W / channel
Rear Centre
105 W / channel
Subwoofer
150 W / channel
Frequency Response 20 Hz – 6 kHz / –3 dB
Signal-to-Noise Ratio > 65 dB (CCIR)
Input Sensitivity
– AUX In
1000 mV
– TV In
500 mV
AV SUBWOOFER
Power Supply Rating 220 – 230 V; 50 Hz
Power Consumption 150 W
Standby Power Consumption < 0.5 W
System
Bass Reflex System
Impedance
4
Speaker drivers
165mm (6.5”) woofer
Frequency response 30 Hz – 120 Hz
Dimensions
300 x 399 x 300 mm
(w x h x d)
Weight
12 kg
LEFT/ RIGHT SPEAKERS
System
2-way, closed box system
Impedance
6
Speaker drivers
2 x (3”x3”) flat cone woofer
+ 1 x (1”x 4”) ribbon
tweeter
Frequency response 120 Hz + 20 kHz
Dimensions
106 x 1220 x 32 mm
(w x h x d)
(height including stand)
Weight
4.75 kg/each (including
stand)
CENTRE FRONT/ REAR SPEAKERS
System
2-way, closed box system
Impedance
6
Speaker drivers
2 x (3”x3”) flat cone woofer
+ 1 x (1”x 4”) ribbon
tweeter
Frequency response 120 Hz + 20 kHz
Dimensions
497 x 139 x 32 mm
(w x h x d)
(height including stand)
Weight
1.5 kg/each (including base)
AV WIRELESS RECEIVER BOX
Power Supply Rating 110 – 240 V; 50 - 60Hz
Power Consumption 60 W
Standby Power Consumption < 0.5 W
Dimensions
242.5 x 157 x 117.5 mm
(w x h x d)
Weight
1.56 kg
JUNCTION BOX
Dimensions
182 x 35 x 62 mm
(w x h x d)
Weight
0.27 kg
Specifications subject to change without prior notice.
49
Troubleshooting
English
WARNING
Under no circumstances should you try to repair the system yourself, as this will
invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If
you are unable to remedy a problem by following these hints, consult your dealer or
Philips for help.
Problem
50
Solution
No power.
– Check if the AC power cord is properly connected.
– Press the 2(STANDBY ON) on the front of the DVD
system to switch on the power.
No picture.
– Refer to your TV’s manual for correct Video In channel
selection. Change the TV channel until you see the DVD
screen.
– Press the SOURCE button to select disc mode.
– If the progressive scan feature is activated, but the
connected TV does not support progressive signals or the
cables are not connected accordingly, see pages 25~26 for
proper progressive scan set up or deactivate the
progressive scan feature as below:
1) Switch off your TV progressive scan mode or switch on
to interlaced mode.
2) Press çEJECT on the DVD system.
3) Press X on the remote control.
4) Press SUBTITLE on the remote control.
Completely distorted
picture or black/ white
picture is displayed.
– If this happens when you are changing the setting of the
‘TV TYPE’, wait for 15 seconds for the auto recovery.
– If this happens when you are switching on the progressive
scan feature, wait for 15 seconds for the auto recovery.
– Check the video connection.
– Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
– Clean the disc.
The aspect ratio of the
screen cannot be changed
even though you have set
the TV display.
– The aspect ratio is fixed on the DVD disc.
– Depending on the TV, it may not be possible to change the
aspect ratio.
No sound or distorted
sound.
– Adjust the volume.
– Check the speaker connections and settings.
– Make sure that the audio cables are connected and press
the SOURCE button to select the correct input source
(TV or AUX/DI, for example) to choose the equipment
that you want to hear through the DVD system.
Cannot activate some
features such as Angles,
Subtitles, or
multi-language Audio.
– The features may not be available on the DVD.
– Changing the language for the sound or subtitle is
prohibited on this DVD.
Problem
Solution
Unable to select some
items in the setup/system
menu.
– Press ÇSTOP button twice before selecting the system
setup menu.
– Depending on the disc availability, some menu items cannot
be selected.
The DVD system does not
start playback.
– Insert a readable disc with the playback side facing down.
The DVD+R/CD-R must be finalised.
– Check the disc type, colour system (PAL or NTSC) and
region code.
– Check for any scratches or smudges on the disc.
– Press SYSTEM MENU to switch off the system setup menu
screen.
– You may need to enter the password in order to change the
parental control rating level or to unlock the disc for
playback.
– Moisture may have condensed inside the system. Remove
the disc and leave the system switched on for about an hour.
No surround sound effect
from the speakers.
– Press the SURR. button to select a correct surround sound
setting.
– Make sure the source you are playing is recorded or
broadcast in surround sound (DTS, Dolby Digital, etc.).
Radio reception is poor.
– If the signal is too weak, adjust the antenna or connect an
external antenna for better reception.
– Increase the distance between the system and your TV or
VCR.
– Tune in to the correct frequency.
– Place the antenna further away from any equipment that
may be causing the interference.
The remote control does
not function properly.
– Select the source (for example, SOURCE) before you
press the function button (É, . , >).
– Reduce the distance between the remote control and the
DVD system.
– Replace the batteries with new ones.
– Point the remote control directly toward the IR sensor.
– Check that the batteries are loaded correctly.
Unable to play DivX
movies.
– Check that the DivX file is encoded in ‘Home Theatre’
mode with DivX 5.x/6.x encoder.
The DVD system does not
work.
– Disconnect the power cord from the power outlet for a
few minutes. Reconnect the power cord and try to operate
again as usual.
The disc in the disc slot
cannot be ejected.
– Press and hold the ÇSTOP button on the remote control,
followed by pressing number button “2”, “5” and “9”.
51
English
Troubleshooting (continued)
Troubleshooting (continued)
English
Problem
Solution
No HDMI audio output.
– You will not hear any sound from the HDMI output if the
source device is only DVI/HDCP (High-bandwidth Digital
Content Protection)-compatible.
– It is not possible to output SACD or copy-controlled DVDAudio sources from the HDMI connection.
No HDMI video output.
– HDMI connection can only be made to HDMI-equipped
devices with HDCP (High Bandwidth Digital Content
Protection.) If you wish to connect to a DVI connector
(equipped with HDCP,) you will need a separate adaptor
(DVI to HDMI.)
– Make sure the resolution of this DVD system matches the
device you have connected using the HDMI. See “DVD
System Menu Options - Video Setup Page”.
There is interference on your
HTS9800W rear speakers or
existing wireless network in your
home.
– You need to switch to another frequency channel to avoid
bandwidth interference by other wireless devices.
– To switch the frequency channel, press and hold the
SOUND key on the remote control for 5 secs.
– You will see the channel numbers (1- 4) flashing on the
display panel of your DVD system.
52
Analogue: Sound that has not been switched into
numbers. Analogue sound varies, while digital
sound has specific numerical values. These sockets
send audio through two channels, the left and
right.
Aspect ratio: The ratio of vertical and horizontal
sizes of a displayed image. The horizontal vs.
vertical ratio of conventional TVs is 4:3, and that
of wide-screens is 16:9.
AUDIO OUT Sockets: Red and white sockets
on the back of the DVD system that send audio to
another system (TV, Stereo, etc.).
Bit rate: The amount of data used to hold a
given length of music; measured in kilobits per
second, or kbps. Or, the speed at which you
record. Generally, the higher the bit rate, or the
higher the recording speed, the better the sound
quality. However, higher bit rates use more space
on a disc.
Chapter: Sections of a picture or a music piece
on a DVD that are smaller than titles. A title is
composed of several chapters. Each chapter is
assigned a chapter number enabling you to locate
the chapter you want.
Component Video Out sockets: Sockets on
the back of the DVD system that send high-quality
video to a TV that has Component Video In
sockets (R/G/B, Y/Pb/Pr, etc.).
Disc menu: A screen display prepared for
allowing a selection of images, sounds, subtitles,
multi-angles, etc. to be recorded on a DVD.
DivX 3.11/4.x/5.x/6.x: The DivX code is a
patent-pending, MPEG-4 based video compression
technology, developed by DivX Networks, Inc.,
that can shrink digital video to sizes small enough
to be transported over the internet, while
maintaining high visual quality.
Dolby Digital: A surround sound system
developed by Dolby Laboratories containing up to
six channels of digital audio (front left and right,
surround left and right, centre and subwoofer).
Dolby Digital EX: A surround sound system
developed by Dolby Laboratories containing up to
seven channels of digital audio (front left and right,
surround left and right, centre front and rear
subwoofer).
Dolby Surround Pro Logic II: It is an improved
matrix decoding technology that provides better
spatiality and directionality on Dolby Surround
programme material, provides a convincing three
dimensional sound field on conventional stereo
music recordings and is ideally suited to bring the
surround experience to automotive sound. While
conventional surround programming is fully
compatible with Dolby Surround Pro Logic II
decoders, soundtracks will be able to be encoded
specifically to take full advantage of Pro Logic II
playback, including separate left and right surround
channels. (Such material also compatible with
conventional Pro Logic decoders).
DTS: Digital Theatre Systems. This is a surround
sound system, but it is different from Dolby
Digital. The formats are developed by different
companies.
HDMI: High-Definition Multimedia
Interface (HDMI) is a high-speed digital
interface that can transmit uncompressed
high definition video and digital multichannel
audio. It delivers perfect picture and sound
quality, completely free from noise. HDMI is
fully backward-compatible with DVI.
As required by the HDMI standard,
connecting to HDMI or DVI products
without HDCP (High-bandwidth Digital
Content Protection) will result in no Video
or Audio output.
HDCP (High-bandwidth Digital Content
Protection) is a specification that provides a
secure transmission of digital contents
between different devices (to prevent
unauthorised copyright).
JPEG: A very common digital still picture format.
A still picture data compression system proposed
by the Joint Photographic Expert Group, which
features small decrease in image quality in spite of
its high compression ratio.
MP3: A file format with a sound data compression
system. “MP3” is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer3. By using the MP3 format, one CD-R or
CD-RW can contain about 10 times more data
then a regular CD.
53
English
Glossary
Glossary
English
Multichannel: DVDs are formatted to have each
sound track constitute one sound field.
Multichannel refers to a structure of sound tracks
having three or more channels.
Parental control: Limits disc play according to
the age of the users or the limitation level in each
country. The limitation varies from disc to disc;
when it is activated, playback will be prohibited if
the software’s level is higher than the user-set
level.
Playback control (PBC): Refers to the signal
recorded on video CDs or SVCDs for controlling
playback. By using menu screens recorded on a
Video CD or SVCD that supports PBC, you can
enjoy interactive playback and searching.
Progressive Scan: It displays all the horizontal
lines of a picture at one time, as a signal frame.
This system can convert the interlaced video from
DVD into progressive format for connection to a
progressive display. It dramatically increases the
vertical resolution.
Region code: A system allowing discs to be
played only in the region designated. This unit will
only play discs that have compatible region codes.
You can find the region code of your unit by
looking on the product label. Some discs are
compatible with more than one region (or ALL
regions).
Super Audio CD (SACD): This audio format is
based upon the current CD standards but includes
a greater amount of information that provides
higher quality sound. There are three types of
discs: single layer, double layer and hybrid discs.
The hybrid disc contains both standard audio CD
and Super Audio CD information.
Surround: A system for creating realistic three
dimensional sound fields full of realism by
arranging multiple speakers around the listener.
Title: The longest section of a movie or music
feature on DVD. Each title is assigned a title
number, enabling you to locate the title you want.
VIDEO OUT socket: Yellow socket on the back
of the DVD system that sends the DVD picture
video to a TV.
54
WMA : WMA is short for Windows Media Audio
and refers to an audio compression technology
developed by Microsoft Corporation. WMA data
can be encoded by using Windows Media Player
version 9 or Windows Media Player for Windows
XP. Files are recognised by their file extension”.
wma” or “.WMA”.
55
