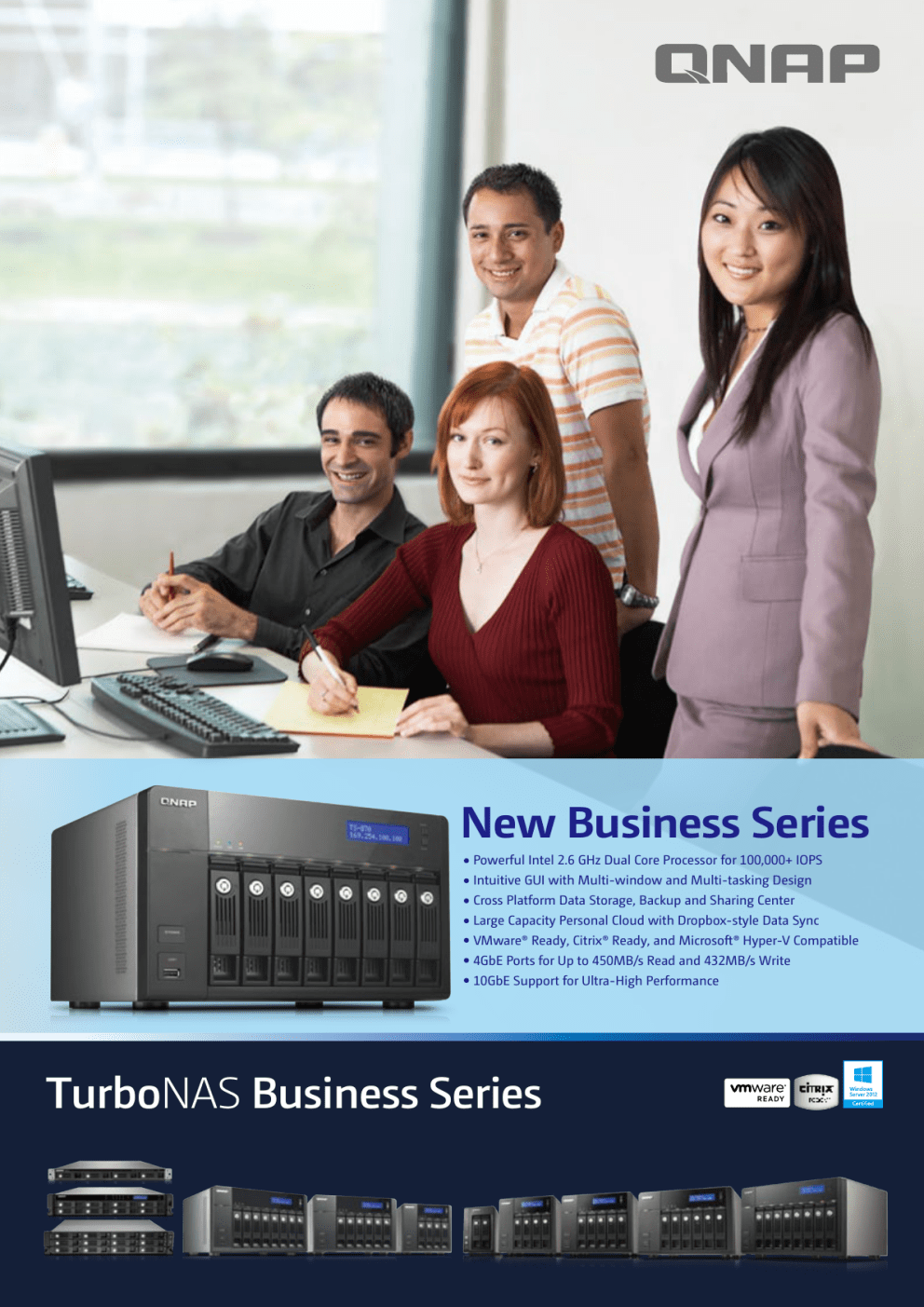

QNAP TS-869U-RP Datasheet

New Business Series
Powerful Intel 2.6 GHz Dual Core Processor for 100,000+ IOPS
Intuitive GUI with Multi-window and Multi-tasking Design
Cross Platform Data Storage, Backup and Sharing Center
Large Capacity Personal Cloud with Dropbox-style Data Sync
VMware® Ready, Citrix® Ready, and Microsoft® Hyper-V Compatible
4GbE Ports for Up to 450MB/s Read and 432MB/s Write
10GbE Support for Ultra-High Performance
TurboNAS Business Series
Overview
Modern businesses face the challenge of dramatic digital data growth.
Deploying a reliable, affordable, and expandable storage center to securely
store, share, and back up digital assets has become an important task
for IT administrators. QNAP Turbo NAS provides an efficient and flexible
network attached storage solution with the multi-window and multitasking QTS 4.0 Turbo NAS operating system. The TS-x70 series delivers a
high-performing storage storage solution with 4 GbE ports and optional
10GbE network expansion for superior performance. QNAP provides
QNAP QTS 4.0
Intuitive, innovative operating system
featuring synchronization capabilities, multiwindow and easy management.
powerful utilities and mobile apps which help business users to easily
build up private cloud storage for data access, sharing, synchronization,
and backup anywhere, anytime via the Internet. With VMware® Ready™
and Citrix® Ready™ certifications, and proven compatibility with
Microsoft® Hyper-V™ environments, the Turbo NAS is an ideal shared
storage solution in a virtualized and clustered environment. Furthermore,
the smart NAS offers built-in App Center with over 90 apps for even more
applications in various industries.
Innovative Desktop
The QTS 4.0’s intelligent desktop offers an intuitive, sleek, and
easy-to-follow graphical user interface, simplifying the whole
Turbo NAS experience. It allows you to open multiple application
windows and run multiple tasks simultaneously. Application
windows can be minimized to the toolbar which allows you to
see an overview of the opened applications and switch among
the running applications.
Intelligent Desktop
Smart toolbar
Background tasks
Displays all the active tasks
and scheduled jobs performed
in the background.
External device
Access the connected storage
devices and eject the devices
safely with only one click.
Event notifications
Displays constant updates of
system information such as
system warnings and other
logs.
Quick search
Quickly search the system
settings and QTS Help content
using relevant keywords.
Main menu
Multiple desktops
Smart dashboard
All your applications, system preferences, and
additional apps installed from the App Center
are neatly presented for you to find your
desired app quickly. Drag and drop frequently
used icons to the desktop as shortcuts for
quick access.
This extended desktop workspace is designed
specifically to improve your productivity. You
can separate the apps onto different desktops
according to their nature or genre and switch
between the desktops freely.
In one click the smart dashboard presents
all important system information in
a single panel. Drag any status to the
desktop for constant monitoring.
Centralized Storage and File Sharing
Cross-platform Sharing
Windows Active Directory (AD) and LDAP Directory Service
The Turbo NAS supports SMB/CIFS, AFP, and NFS protocols for file sharing
across Windows, Mac, or Linux/UNIX networks. User accounts and shared
folders can be created via the user-friendly web-based interface without IT
expertise.
Retrieve multiple user accounts from a Windows AD server or an LDAP
directory server by the Turbo NAS for efficient account setup.
File Station
Windows PC
Router
Upload, download and manage files anywhere with a web browser. File
extraction, folder creation, smart search files or folders are accessed over the
Internet. Preview your photos and videos through any web browser too!
Internet
Upload/
download by FTP
SMB
QNAP NAS
Switch
Windows ACL
Basic permissions and 13 advanced permissions can be set up from the
Windows Explorer and synchronized with the permission settings of the
Turbo NAS. In addition, the same permissions can be applied to AFP, FTP,
Web File Manager, and Microsoft Networking when Advanced Folder
Permissions are enabled at the same time.
Access files
through Web
File Manager
Mac
AFP
Advanced Folder Permissions
Advanced folder permissions allow users to configure folder and subfolder
access to the Turbo NAS. Users can manage the folder permissions from
the web-based management interface of the Turbo NAS easily.
AD server (Centralized
authentication control)
Well-rounded Backup Solution
Client Backup
The QNAP Turbo NAS supports NetBak Replicator, Time Machine and
more third party backup software.
ElephantDrive
External Backup
QNAP Turbo NAS comes with a “one touch data copy button” for direct
data backup between the Turbo NAS and external USB/eSATA storage
devices.
Dropbox
Google Drive
Remote Backup
STATUS
˙Back up the Turbo NAS data to another remote Turbo NAS or an FTP
server on a real-time basis via QNAP’s Real-time Remote Replication
(RTRR) service.
˙Back up the Turbo NAS data to a standard rsync server on scheduled
basis via the rsync protocol.
STATUS
LAN
USB
eSATA
LAN
USB
eSATA
POWER
COPY
RTRR / rsync
POWER
COPY
NetBak
Replicator
Time
Machine
Cloud Backup
˙Real-time data backup from the Turbo NAS to online cloud storage
services: Amazon S3, ElephantDrive, Symform, Dropbox, or Google
Drive.
Video Editing
Digital film and video production produces volumes of data that require
high performance RAID storage with sustainable throughput to
balance with the demanding output of video editing. The QNAP TSx70 Series Turbo NAS fulfills storage and video editing needs with
optional high-speed 10 GbE network interface. Digital videos can be
quickly stored and edited on the Turbo NAS directly over the network.
The Turbo NAS supports various network file sharing protocols such
as NFS, AFP, and SMB/CIFS, so sharing files among PCs with different
operating systems is easy.
Inge
Video Editing Station
eo
e Vid
st th
Shared Folder or
iSCSI Connection
s
QNAP Turbo NAS
10 GbE
Switch
Work Groups
●
Gigabit
Switch
●
g
rin
ha
oS
e
Vid
Large Capacity
High Throughput
Superior Performance
200
10GbE Storage Solution
400
500
100
Windows Networking
Write Read
Read
B/s
1702M
10 GbE Ports x 2
600
Windows Networking
Write
Testing Environment:
Competitor
/s
450MB
QNAP Turbo NAS
Competitor
/s
432MB
QNAP Turbo NAS
QNAP Turbo NAS
B/s
1669M
QNAP Turbo NAS
The QNAP TS-x70 Series Turbo NAS includes 4 GbE
ports for industry-leading performance in business
environments. The optional dual-port 10GbE adaptor
support makes it ready for the high-speed data transfer
craved by data centers.
300
GbE Ports x 4
2 Client PC configurations:
Intel®Core™ i7-2600 CPU, 16GB DDR3 RAM,
Windows 7 professional 64-bit, Dual-port QNAP
LAN-10G2T 10GBASE-T network expansion
module, IOMeter sequential read and write.
NAS Configurations:
QNAP LAN-10G2D 10G2T 10GBASE-T network
expansion module, 802.3ad trunking mode, full
load Samsung HD103SJ 1TB SATA HDD, RAID 5.
Network Configurations:
Connect TS-870 and two client PCs to Cisco
4900M 10GbE switch.
Private Cloud Storage
myQNAPcloud service
Create your own private cloud with the free myQNAPcloud service. The
Turbo NAS creates your own unique URL and in a few easy steps, you will
be able to access your files from any web browser.
VPN Server
The VPN server allows you to access the Turbo NAS on the same local
network from the Internet and easily manage the files with drag-anddrop through the file browser.
CloudLink
CloudLink helps you pass through the complicated network environment
and connect to the Turbo NAS from a remote PC and easily access the data
from anywhere without complicated settings.
myQNAPcloud Connect
myQNAPcloud Connect is a Windows VPN connection utility. It can
establish a secure VPN connection with the remote NAS over the Internet
and enable you to access the NAS as if it were in your local network.
Dropbox-style Data Sync
Qsync
Quickly share files with download links
Your Turbo NAS becomes a safe data center for file synchronization with huge
storage. Qsync provides multiple ways of file synchronization and group file
sharing, greatly enhancing the flexibility of collaboration. Whenever you add,
edit, delete or rename a file on one computer, the change applies to all others
linked with the Turbo NAS, so you have identical data on all your devices.
You can create download links to share files with others. This greatly
reduces the time in creating user account and password for users just to
share less-important documents.
Use space effectively
Remove the files on one computer without affecting the files stored on
other devices linked with the Turbo NAS. Even when someone updates
the same files from another computer, Qsync will ensure that you will
always have the latest files. When synchronizing files, you can choose to
only sync specific subfolders within the Qsync folder.
Share team folders with different groups of people
Create subfolders within the Qsync folder, and share each with different
groups of Turbo NAS users as a file exchange center. Everyone in the same
subfolder is always kept up-to-date with the latest version of the files.
Storage for Virtualization
The QNAP Business Series Turbo
NAS is a virtualization-aware storage
solution which supports VMware
vSphere, Microsoft Hyper-V, and
Citrix XenServer. QNAP vSphere
plug-in and QNAP SMI-S provider
highly increase the productivity and
efficiency.
Storage for Microsoft Hyper-V
Datastore for VMware
• VAAI for iSCSI, VAAI for NAS
VMware vStorage APIs Integration (VAAI) is a set of APIs that allow ESXi hosts to offload processing for certain storage-related services to
storage systems. The integration of QNAP NAS with VMware VAAI
offers optimal performance for customers to deploy a virtualization
environment.
The QNAP NAS, VAAI iSCSI and VAAI NAS are VMware certified.
Businesses can either select iSCSI or NFS as a centralized storage to
boost performance. VAAI for iSCSI supports Full Copy (hardware-assisted
copy), Block Zeroing (hardware-assisted zeroing), Hardware-assisted
Locking, and Thin Provisioning with space reclaim. VAAI for NAS
supports Full File Clone, Extended Statistics, and Reserve Space.
• ODX (Offloaded Data Transfer)
With ODX support, the QNAP Turbo NAS becomes a high performance
iSCSI storage solution under Windows Server 2012, including Hyper-V
virtualized environment. QNAP storage enables full copies of virtual
machines within the NAS without requiring the Windows hosts to
read and write the data. This highly reduces the loading of Windows
hosts and improves the performance of copy and move operations for
Windows 2012 hosts using the QNAP iSCSI storage. When providing
QNAP storage to a Windows 2012 file server, the end user using
Windows 8 client workstation will also benefit from the Offloaded copy
process for large file transfers.
QNAP Turbo NAS:
Boosted Performance by ODX
With ODX
3 Token
1
2
4
6
Offload
Read
Token
Offload
Write with
Token
Results
5 Data
Virtual disk 1
Virtual disk 2
The QNAP NAS uniquely supports VAAI iSCSI and VAAI NAS to enhance
storage performance in a virtualized environment.
QNAP Turbo NAS
• Enhanced Performance by VAAI
Deployment time for a 50 GB Thick Provision
Eager Zeroed virtual disk (lower is better)
Relative time (seconds)
500
93
times faster!!
400
300
200
100
5
0
VAAI: full copy
452
600
Relative time (seconds)
600
465
Relative time for cloning
a 30 GB VM (lower is better)
VAAI OFF
VAAI ON
Other NAS
Without ODX
3.3
3 Data
times faster!!
500
137
400
300
Windows Host 1
200
1
100
Read
Windows Host 2
2
4
5
Data
Write
Data
Results
0
VAAI: block zeroing
Virtual disk 1
Virtual disk 2
Other NAS
• NAS Management via SCVMM
The QNAP SMI-S provider enables management of the QNAP Turbo
NAS directly through Microsoft System Center Virtual Machine Manager
2012 (SCVMM).
VAAI: Hardware-assisted Locking
• vSphere Plug-in
The vSphere plug-in allows users to manage the QNAP Turbo NAS
directly on the vSphere client, making datastore management more
effective.
10 Gigabit Ethernet Storage Solution for the Virtualized
Data Center
The QNAP TS-x70 Series Turbo NAS supports an optional 10GbE adaptor,
including SFP+ and 10G Base-T interface. The 10Gb speed increases the
agility of data transmission in a virtualized environment, intensifying NFS
and iSCSI connection performance, and enables more VMs with multiple
transactions running concurrently without performance penalty.
VM
VM
VM
VM
VM
VM
VM
VM
VM
VM
VM
VM
VM
Hypervisor
Gigabit
Network
Hypervisor
10 GbE
Network
Proactive Data Protection
HIPAA Compliant Storage Solution
QNAP SMART Data Migration
While medical data (e.g ePHI) constantly increases, IT administrators are
required to develop a strategy of strong storage platforms within their
medical organizations. QNAP meets the electronic requirements of HIPAA
for storing PHI data by providing a base to protect the confidentiality and
security of “individually identifiable health information”. QNAP provides
a full range and variety of storage models that can easily fit into different
scales of deployment. Choose based upon capacity, performance, and
price range to meet the need of any type of medical environment.
The data stored on the Turbo NAS is constantly monitored to reduce
potential data loss and rebuilding time. If the Turbo NAS detects a possible
drive failure or abnormal health status, the data will be proactively
migrated to a new spare drive. This ensures valuable business assets are
well stored and protected.
1 Abnormal disk is detected
Secure Measures for Data Storage
and Access
RAID Group
2 Migrate data to a spare disk
Policy-based Unauthorized IP Blocking
RAID Group
Spare Drive
3 Replace the abnormal disk
Users can allow, deny or auto block specified IP addresses or network
domains which attempt to connect to the Turbo NAS via SSH, Telnet,
HTTP(S), FTP, Samba, or AFP.
Remote Login
The Turbo NAS supports remote login by SSH (secure shell) or Telnet connection.
RAID Group
Supports TLER and ERC
TLER (Time-Limited Error Recovery) and ERC (Error Recovery Control)
are now supported with compatible hard drives, improving drive error
handling in RAID applications. This latter prevents the hard drives from
prematurely failing out of RAID arrays, forcing rebuilds, and RAID volume
loss. The data will be retrieved more quickly when a hard drive takes too
long to respond from bad blocks.
RAID Read Error Recovery
When read errors are detected in the hard drive blocks, they are
automatically corrected with healthy ones. The bad block recovery will
run in the background and ensure data is well stored in the hard drives.
RAID Hot-spare and Global Hot-spare Drives
A hot spare drive can be configured so that if a hard drive in a specific RAID
group fails, the hot spare drive will operate automatically. Moreover, the QNAP
storage also supports global hot spare drives which allow the administrator to
share the spare drives efficiently among multiple RAID Groups.
SSL Security (HTTPS)
The Turbo NAS supports HTTPS. Users can upload a secure certificate and
RSA private key in X.509PEM format issued by a trusted provider to allow
access the Turbo NAS by secure SSL login.
Secure FTP
The Turbo NAS offers secure data transfer with SSL/TLS (explicit)
encryption. Passive FTP port range setup is also supported.
Encrypted Remote Replication by Rsync
The data on the Turbo NAS can be backed up to or from another Turbo
NAS or rsync server over the network securely.
FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption
The disk volume with FIPS 140-2 validated AES 256-bit encryption can
only be accessed by an authorized encryption password or key. This
prevents sensitive data on the Turbo NAS from unauthorized access, even
if the hard disk drives or the entire system were stolen.
Volume 1
Unlock by encryption password
or importing encryption key file
Encryption
Key #1
AES 256-bit encryption
Abundant Business Features
Volume 2
Unlock by encryption password
or importing encryption key file
AES 256-bit encryption
The Turbo NAS supports abundant server applications.
Non-encrypted volume
Web Server
Multiple websites can be hosted on the Turbo NAS with the
built-in web server and virtual host feature.
LO G
Syslog Server
By collecting and storing the logs of other network devices
on the Turbo NAS with the Syslog server support, the IT
administrator can monitor the status of these devices and
collect the information necessary for further troubleshooting.
RADIUS Server
The RADIUS server centralizes and consolidates user
authentication by maintaining a list of user accounts that
are authorized for remote network access through dial-up
equipment, Wi-Fi access point, or VPN connections.
Encryption
Key #2
Volume 3
* The data encryption functions may not be available in accordance to the legislative restrictions
of some countries. Please contact QNAP sales representatives for further information.
Advanced Folder Permissions
Advanced folder permissions allow users to configure folder/subfolder
access to the Turbo NAS. With this feature enabled, users can manage
the folder permissions from Microsoft Windows or the web-based
management interface of the Turbo NAS without complicated procedures.
Antivirus
The integrated antivirus solution for the Turbo NAS ensures business
continuity by offering detection against the latest viruses, malware,
worms, and Trojan horses with continuous free virus database updates.
Report
element 1
element 2
element 3
element 4
10101010101
010101010 101 0 1 0
10
101010
101
10101
010
1010
010
10101
10
0101 0 1 0
101
010
101
0101
01 0 1 0
Proxy Server
With the help of the Squid App add-on, the QNAP Turbo NAS
can be used as a Proxy Server.
Virus Detection
Report
Quarantine
Delete
QNAP Flexible Volume
Mobility and Remote Access
QNAP Flexible Volume provides a more secure and flexible way to store
and manage the NAS data. This next generation volume offers powerful
features such as storage pooling with multiple RAID, thin-provisioned
volume with space reclaim, and online capacity expansion.
Qfile
You can manage as many Turbo NAS units as you want with Qfile
and conveniently connect to any of them on the login page. Enabling
the auto-upload function will let your pictures and photo albums
automatically sync to your Turbo NAS and works as a real-time backup of
your precious photos. Qfile displays a thumbnail list view for you to easily
identify the file type at a glance. You can move, copy, rename or delete
files on the Turbo NAS, all with your mobile device.
Qmanager
Online Volume Expansion
Qmanager lets you monitor the CPU usage, memory usage, system event
info, and active users. You can also remotely check the connection status
or logged in users to prevent unauthorized access. Remotely restart or
shut down your Turbo NAS, and use Qmanager to turn the application
services on and off. You can use Wake on LAN to power on your NAS. It
only takes a single click and you are done!
Online Storage Pool Expansion
Block-based iSCSI LUN
In addition to storing data, the QNAP Flexible Volume can be utilized as
an iSCSI LUN at the same time. The block-based iSCSI LUN provides less
overhead which improves the overall read/write performance. The blockbased iSCSI LUN takes advantage of Flexible Volume features such as thin
provisioning LUN with Space Reclaim and online capacity expansion.
Online Capacity Expansion
Increase the capacity size of the LUNs, volumes, and storage pools on the
fly. The Turbo NAS allows you to add more hard drives to increase the
storage capacity of the storage pool on demand. The LUN and volumes can
also be expanded online without interrupting the services.
Available on the
App Store
QNAP mobile apps are available at Google
Play Store and the Apple App Store.
Thin-provisioned Volume
Pre-allocate storage to give the appearance of having more capacity than
actually available. This allows you to consume storage on demand as data
is written to disk, instead of having capacity ahead of time.
Space Reclaim
Space reclaim complements thin provisioning so storage can be recovered
and used for other NAS applications. Normally when data is deleted in
a volume the storage capacity cannot be transferred back to the overall
storage pool. But with space reclaim, space can be recovered and allocated
back to the overall storage pool. This provides a much more efficient space
usage.
Alert for Volume/LUN Threshold
Surveillance
Surveillance Station Pro
The Surveillance Station Pro allows users to easily set up a home security
system and flexibly choose the IP cameras for live view monitoring,
recording, and playback. The live view provides instant video images from
the monitored areas. Event notifications and fast video retrieval are also
offered. iOS® or Android™ users can install the VMobile app to monitor
the surveillance channels anytime and anywhere.
An alert can be created once a LUN or volume reaches a particular
threshold size with email and SMS notifications. This prevents the storage
or volume from running out of space, and the administrator can add more
storage space or expand an existing volume if necessary.
App Center
Powerful, organized, rich-in-content
The new App Center makes it easy to find and install all sorts of apps and
also acts as a central platform to manage and update your installed apps.
TS-869U-RP
Turbo NAS Business Series - Tower
Model
CPU
Memory
Maximum RAM Support
Internal HDD/SSD(1)
Maximum RAW Capacity(1)
Hard Drive Tray
USB 3.0
USB 2.0
eSATA
Gigabit LAN Port
10GbE Ready(3)
HDMI Port
VGA Port
LCD
Dimensions (HxWxD)
Weight
Supported RAID Types
Power
Smart Fan
Power Consumption(2)
Max User Accounts
TS-870
TS-869 Pro
TS-670
TS-669 Pro
Intel®
2.6 GHz Dual Core
2GB DDR3
16GB
8 x 2.5"/3.5"
SATA 6Gb/s
32TB
Hot Swappable
with Key Lock
Back: 2
Front: 1, Back: 2
2
4
(optional)
Intel®
2.13 GHz Dual Core
1GB DDR3
3GB
8 x 2.5"/3.5"
SATA 6Gb/s
32TB
Hot Swappable
with Key Lock
Back: 2
Front: 1, Back: 4
2
2
--
Intel®
2.6 GHz Dual Core
2GB DDR3
16GB
6 x 2.5"/3.5"
SATA 6Gb/s
24TB
Hot Swappable
with Key Lock
Back: 2
Front: 1, Back: 2
2
4
(optional)
Intel®
2.13 GHz Dual Core
1GB DDR3
3GB
6 x 2.5"/3.5"
SATA 6Gb/s
24TB
Hot Swappable
with Key Lock
Back: 2
Front: 1, Back: 4
2
2
--
--
--
185.2 x 298.2 x 235.4 mm
7.29 x 11.74 x 9.27 inch
Net: 7.4 kg (16.31 lbs)
Gross: 8.7 kg (19.18 lbs)
185.2 x 298.2 x 235.4 mm
175 x 257 x 235 mm
175 x 257 x 235 mm
7.29 x 11.74 x 9.27 inch
6.89 x 10.12 x 9.25 inch
6.89 x 10.12 x 9.25 inch
Net: 7.3 kg (16.08 lbs)
Net: 5.3 kg (11.68 lbs)
Net: 5.2 kg (11.46 lbs)
Gross: 8.6 kg (18.94 lbs)
Gross: 6.6 kg (14.55 lbs)
Gross: 6.5 kg (14.33 lbs)
Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 5 + Hot Spare, 6 + Hot Spare, 10 + Hot Spare
350W
350W
250W
250W
2 x 12 cm
2 x 9 cm
HDD Standby: 38W; Access: 93W
HDD Standby: 30W; Access: 59W
HDD Standby: 32.6W; Access: 84.9W HDD Standby: 31.5W; Access: 63.6W
4096
4096
4096
4096
Max Groups
512
512
512
512
Max Shared Folders
Max Concurrent
Connections
Max IP Cam Recording
Channels (1 free channel
included)
512
512
512
512
800
600
800
600
16
16
16
16
TS-569 Pro
TS-470
TS-469 Pro
TS-269 Pro
Intel®
2.13 GHz Dual Core
1GB DDR3
3GB
5 x 2.5"/3.5" SATA 6Gb/s
20TB
Hot Swappable with Key Lock
Back: 2
Front: 1, Back: 4
2
2
--
Intel®
2.6 GHz Dual Core
2GB DDR3
16GB
4 x 2.5"/3.5" SATA 6Gb/s
16TB
Hot Swappable with Key Lock
Back: 2
Front: 1, Back: 2
2
4
(optional)
Intel®
2.13 GHz Dual Core
1GB DDR3
3GB
4 x 2.5"/3.5" SATA 6Gb/s
16TB
Hot Swappable with Key Lock
Back: 2
Front: 1, Back: 4
2
2
--
Intel®
2.13 GHz Dual Core
1GB DDR3
3GB
2 x 2.5"/3.5" SATA 6Gb/s
8TB
Hot Swappable with Key Lock
Back: 2
Front: 1, Back: 4
1
2
--
177 x 180 x 235 mm
6.97 x 7.09 x 9.25 inch
Net: 3.65 kg (8.04 lbs)
Gross: 4.65 kg (10.24 lbs)
--150 x 102 x 216 mm
5.91 x 4.02 x 8.5 inch
Net: 1.74 kg (3.84 lbs)
Gross: 2.92 kg (6.44 lbs)
Model
CPU
Memory
Maximum RAM Support
Internal HDD/SSD(1)
Maximum RAW Capacity(1)
Hard Drive Tray
USB 3.0
USB 2.0
eSATA
Gigabit LAN Port
10GbE Ready(3)
HDMI Port
VGA Port
LCD
Dimensions
(HxWxD)
Weight
Supported RAID Types
Power
Smart Fan
Power Consumption(2)
Max User Accounts
-185 x 210.6 x 235.4 mm
7.28 x 8.29 x 9.27 inch
Net: 5.1 kg (11.24 lbs)
Gross: 6.5 kg (14.33 lbs)
Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 5 +
Hot Spare, 6 + Hot Spare, 10 + Hot Spare
250W
1 x 12 cm
HDD Standby: 29.1W;
Access: 48.5W
4096
177 x 180 x 235 mm
6.97 x 7.09 x 9.25 inch
Net: 3.75 kg (8.27 lbs)
Gross: 4.75 kg (10.47 lbs)
Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 5 + Hot Spare
250W
250W
1 x 9 cm
HDD Standby: 33W;
Access: 61.8W
4096
HDD Standby: 25W;
Access: 43W
4096
Single Disk, JBOD, RAID 0, 1
90W External Adapter
1 x 7 cm
HDD Standby: 16W;
Access: 25W
4096
Max Groups
512
512
512
512
Max Shared Folders
512
512
512
512
600
800
600
600
16
16
16
16
Max Concurrent
Connections
Max IP Cam Recording
Channels (1 free channel
included)
(1) The standard system is shipped without hard drives. Please visit www.qnap.com for the official hard drive compatibility list.
(2) Actual results may vary due to environment factors and other variables.
(3) Additional network expansion cards are required (optional).
ALL specifications are subject to change without notice.
For more QNAP product information, please visit www.qnap.com
Turbo NAS Business Series - Rack Mount
Model
TS-1269U-RP
TS-869U-RP
TS-469U-RP/TS-469U-SP
TS-421U
TS-420U
Intel®
2.13 GHz Dual Core
Intel®
2.13 GHz Dual Core
Intel®
2.13 GHz Dual Core
Marvell®
6282 2.0 GHz
Marvell®
6282 1.6 GHz
2GB DDR3
2GB DDR3
1GB DDR3
1GB DDR3
1GB DDR3
3GB
3GB
3GB
--
--
12 x 2.5"/3.5"
SATA 6Gb/s
8 x 2.5"/3.5"
SATA 6Gb/s
4 x 2.5"/3.5"
SATA 6Gb/s
4 x 2.5"/3.5"
SATA 3Gb/s
4 x 2.5"/3.5"
SATA 3Gb/s
Maximum RAW
Capacity(1)
48TB
32TB
16TB
16TB
16TB
Hard Drive Tray
Hot Swappable
with Key Lock
Hot Swappable
with Key Lock
Hot Swappable
with Key Lock
Hot Swappable
with Key Lock
Hot Swappable
with Key Lock
CPU
Memory
Maximum RAM Support
Internal HDD/SSD
(1)
USB 3.0
Back: 2
Back: 2
Back: 2
Back: 2
Back: 2
USB 2.0
Back: 4
Back: 4
Front: 1, Back: 4
Front: 1, Back: 1
Front: 1, Back: 1
eSATA
2
2
2
2
2
Gigabit LAN Port
2
2
2
2
2
10GbE Ready(3)
--
--
--
--
--
1 (reserved)
1 (reserved)
1 (reserved)
--
--
VGA Port
1
1
--
LCD
--
HDMI Port
Dimensions (HxWxD)
89 x 482 x 534 mm
3.50 x 18.98 x 21.02 inch
Net: 11.54 kg (25.44 lbs)
Grosst: 19.58 kg ( 43.17 lbs)
Weight
Supported RAID Types
Power
1
--
--
--
--
89 x 482 x 534 mm
3.50 x 18.98 x 21.02 inch
44 x 439 x 499 mm
1.73 x 17.28 x 19.65 inch
44 x 439 x 483 mm
1.73 x 16.97 x 19.02 inch
44 x 439 x 483 mm
1.73 x 16.97 x 19.02 inch
Net: 11.02 kg (24.29 lbs)
Grosst: 19.26 kg (42.46 lbs)
TS-469U-RP:
Net: 7.63 kg (16.82 lbs)
Gross: 9.55 kg (21.05 lbs)
--------------------------------------------------------TS-469U-SP:
Net: 7.43 kg (16.38 lbs)
Gross: 9.35 kg (20.61 lbs)
Net: 6.7 Kg (14.77 lb)
Gross: 9.5 Kg (20.94 lb)
Net: 6.7 Kg (14.77 lb)
Gross: 9.5 Kg (20.94 lb)
Single Disk, JBOD, RAID 0, 1, 5, 6, 10,
5 + Hot Spare, 6 + Hot Spare, 10 + Hot Spare
380W Redundant PSU
Smart Fan
300W Redundant PSU
Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 5 + Hot Spare
TS-469U-RP:
250W Redundant PSU
--------------------------------------------------------TS-469U-SP:
250W Single PSU
250W Single PSU
2 x 7 cm
Power Consumption(2)
250W Single PSU
2 x 4 cm
HDD Standby: 66.8W;
Access: 81.2W
HDD Standby: 56.6W;
Access: 74.7W
HDD Standby: 37W;
Access: 52W
HDD Standby: 12W;
Access: 33W
HDD Standby: 15W;
Access: 29W
4096
Max User Accounts
4096
4096
4096
4096
Max Groups
512
512
512
512
512
Max Shared Folders
512
512
512
512
512
600
600
600
300
300
16
16
16
8
8
Max Concurrent
Connections
Max IP Cam Recording
Channels (1 free channel
included)
(1) The standard system is shipped without hard drives. Please visit www.qnap.com for the official hard drive compatibility list.
(2) Actual results may vary due to environment factors and other variables.
(3) Additional network expansion cards are required (optional).
ALL specifications are subject to change without notice.
For more QNAP product information, please visit www.qnap.com
Accessories
Category
Order P/N
Product Description
Applied Models
LAN-1G2T-D
Dual-port 1GbE network expansion card for tower
model, desktop bracket
TS-470, TS-670, TS-870
LAN-10G2T-D
Dual-port 10GBASE-T network expansion card for tower
model, desktop bracket
TS-470, TS-670, TS-870
LAN Card
Rail Kit
RAIL-B01
Rail kit for 2U rackmount models
TS-869U-RP, TS-1269U-RP
RAIL-C01
Rail kit for 1U rackmount models
TS-420U, TS-421U, TS-469U-SP/RP
RAM-1GDR3-SO-1333
1GB DDR3-1333 204Pin SO-DIMM RAM module
TS-269 Pro, TS-469 Pro, TS-569 Pro, TS-669 Pro,
TS-869 Pro, TS-469U-SP/RP, TS-869U-RP, TS1269U-RP, TS-470, TS-670, TS-870
RAM-2GDR3-SO-1333
2GB DDR3-1333 204Pin SO-DIMM RAM module
TS-269 Pro, TS-469 Pro, TS-569 Pro, TS-669 Pro,
TS-869 Pro, TS-469U-SP/RP, TS-869U-RP, TS1269U-RP, TS-470, TS-670, TS-870
RAM
All specifications are subject to change without notice.
Software Specifications
Operating System
• Embedded Linux
Supported Clients
• Windows XP, Vista, Windows 7
(32/64-bit), Windows 8 (32/64-bit),
Windows Server 2003/2008 R2/2012
• Apple Mac OS X
• Linux & UNIX
Supported Browsers
• Microsoft Internet Explorer 10
• Mozilla Firefox 8+
• Apple Safari 4+
• Google Chrome
Multilingual Support
• Chinese (Traditional & Simplified), Czech,
Danish, Dutch, English, Finnish, French,
German, Greek, Hungarian, Italian, Japanese,
Korean, Norwegian, Polish, Portuguese
(Brazil), Romanian, Russian, Spanish,
Swedish, Thai, Turkish
File System
• Internal Hard Drive: EXT3, EXT4
• External Hard Drive: EXT3, EXT4, NTFS,
FAT32, HFS+
Networking
• TCP/IP (IPv4 & IPv6: Dual Stack)
• Dual Gigabit NICs with Jumbo Frame
- Failover
- Multi-IP Settings
- Port Trunking/NIC Teaming
• Service Binding Based on Network Interfaces
• Proxy Client, Proxy Server
• DHCP Client, DHCP Server
• Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP,
FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI,
SNMP, SMTP, and SMSC
• UPnP & Bonjour Discovery
• USB Wi-Fi Adapter Support
Security
• Network Access Protection with Autoblocking:
SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
• CIFS Host Access Control for Shared Folders
• FIPS 140-2 Validated AES 256-bit Volumebased Data Encryption**
• AES 256-bit External Drive Encryption**
• Importable SSL Certificate
• Instant Alert via E-mail, SMS, Beep, and LCD
Panel*
Disk Management
• QNAP Flexible Volume with Thin
Provisioning and space reclaim
• Supports Storage Pool
• Online Volume Expansion
• Online Storage Pool Expansion
• Online RAID Capacity Expansion and Online
RAID Level Migration
• SMART Data Migration
• Bad Block Scan and Hard Drive S.M.A.R.T.
• Bad Block Recovery
• RAID Recovery
• Bitmap Support
• SSD Caching Acceleration*
Power Management
• Wake on LAN
• Internal Hard Drive Standby Mode
• Scheduled Power on/off
• Automatic Power on after Power Recovery
• USB and Network UPS Support with SNMP
Management
Access Right Management
• Batch Users Creation
• Import/Export Users
• User Quota Management
• Local User Access Control for CIFS, AFP, FTP,
and WebDAV,
• Application Access Control for Photo
Station, Music Station, Video Station, and
Multimedia Station
• Subfolder Permissions Support for CIFS/
SMB, AFP, FTP, and File Station
Domain Authentication
Integration
• Microsoft Active Directory (AD)
• LDAP Server, LDAP Client
• Domain Users Login via CIFS/SMB, AFP, FTP,
and File Station
myQNAPcloud Service
• Private Cloud Storage and Sharing
• Free Host Name Registration (DDNS)
• Auto Router Configuration (via UPnP)
• CloudLink for Remote Access without
Complicated Router Setup
• myQNAPcloud Connect for Easy VPN
Connection (Windows VPN Utility)
Qsync
• Syncs Files among Multiple Devices through
the NAS
• Option for Not Removing Files on the NAS
during Synchronization
• Selective Synchronization
• Shares Securely with SSL
• Team Folder
• Shares Files by Links via E-mail
• Uploads Photos or Videos to Qsync Folder
Automatically via Qfile
• Restores Files from Network Recycle Bin
• File Name Conflict Policy
• Option for Filter Settings
• Privilege Control for Qsync Users
• Supports Windows & Mac OS
Web Administration
• Multi-window, Multi-tasking based System
Management
• Movable Icons and Personalized Desktop
• Smart Toolbar and Dashboard for Neat
Display on System Status
• Smart Fan Control
• Dynamic DNS (DDNS)
• SNMP (v2 & v3)
• Resource Monitor
• Network Recycle Bin for File Deletion via
CIFS/SMB and AFP
- Automatic Cleanup
- File Type Filter
• Comprehensive Logs (Events & Connection)
• Syslog Client/Server
• Firmware Live Update
• System Settings Backup and Restore
• Restore to Factory Default
• Mobile App Qmanager for Remote
Monitoring
File Server
• File Sharing across Windows, Mac, and
Linux/UNIX
• Windows ACL
• Advanced Folder Permission for CIFS/SMB,
AFP, FTP
• Shared Folder Aggregation (CIFS/SMB)
FTP Server
• FTP over SSL/TLS (Explicit)
• FXP Supported
• Passive FTP Port Range Control
File Station
• Supports ISO Mounting (Up to 256 ISO Files)
• Creates and Sends Download Links for
Sharing Public Files with Expiration Time
and Password Protection
• Drag-n-drop Files via Chrome and Firefox
Browsers
• Photo, Music, and Video Preview and
Playback Empowered by Built-in Transcoding
Technology
• File Compression (ZIP or 7z)
• Mobile App: Qfile for File Browsing and
Management
Backup Station
• Remote Replication Server (over Rsync)
• Real-time Remote Replication (RTRR) to
another QNAP NAS or FTP Server
• Works as Both RTRR Server & Client with
Bandwidth Control
• Real-time & Scheduled Backup
• Encryption, Compression, File Filter, and
Transfer Rate Limitation
• Encrypted Replication between QNAP NAS
Servers
• Desktop Backup by QNAP NetBak Replicator
for Windows
• Apple Time Machine Support with Backup
Management
• Data Backup to Multiple External Storage
Devices
• Synchronizes with Cloud Storage: Amazon
S3, ElephantDrive, Symform, Dropbox, and
Google Drive
• Third Party Backup Software Support: Veeam
Backup & Replication, Acronis True Image,
ARCserve Backup, EMC Retrospect, Symantec
Backup Exec, etc.
Print Server
• Max No. of Printers: 3
• Supports Internet Printing Protocol
• Print Job Display and Management
• IP-based and Domain Name-based Privilege
Control
Storage Plug & Connect
• Creates and Maps Shared Folders by QNAP
Windows Qfinder
• Creates and Connects to iSCSI Target/LUN
iSCSI (IP SAN)
• iSCSI Target with Multi-LUNs per Target (Up
to 256 Targets/LUNs Combined)
• Supports LUN Mapping & Masking
• Block-based LUN
• Thin-provisioned LUN with Space
Reclamation
• Online LUN Capacity Expansion
• Supports SPC-3 Persistent Reservation
• Supports MPIO & MC/S
• iSCSI LUN Backup, One-time Snapshot, and
Restore
• iSCSI Connection and Management by QNAP
Finder (Windows)
• Virtual Disk Drive (via iSCSI Initiator)
• Stack Chaining Master
• Max No. of Virtual Disk Drives: 8
Server Virtualization &
Clustering*
• VMware vSphere (ESX/ESXi 4.x, 5.x)
• VMware VAAI for iSCSI and VAAI for NAS
• vSphere Plug-in
• Citrix XenServer (6.0)
• Windows Server 2012 Hyper-V
• Supports Microsoft ODX
• QNAP SMI-S Provider for Microsoft SCVMM
• Windows Server 2012 Failover Clustering
Surveillance Station Pro
• Supports over 1,400 IP Cameras
• Includes 1 Free Camera License
• Up to 16 Camera Channels via Additional
License Purchase
• Intelligent Video Analytics (IVA) for Advanced
Video Search
• Visual Aid by E-map
• Surveillance Client for Mac
• Mobile App: VMobile (iOS and Android)
VPN Server
• Secure Remote Access: PPTP & OpenVPN
VPN services
• Max No. of Clients: 30
Photo Station
• Organizes Photos in Timeline Automatically
• Tags Photos by Text, Color, and Rating for
Quick Search
• Slideshows with Background Music and
Different Transition Effects
• Animated Thumbnails for Videos
• Geotags Photos with Google Maps
• Shares Slideshows and Photo through Email,
URL, or Social Websites
Music Station
• Plays or Shares Music Collections with Web
Browser
• Automatic Classification via Media Library
• Local Playback with USB Speakers/Sound Cad*
• Internet Radio (MP3)
• Up to 8 Music Alarms
iTunes Server
• Audio and Video Sharing for Windows &
Mac iTunes
Video Station
• Web Video Sharing
• Video Categorization and Transcoding
• Publish Videos to Facebook, Twitter, and
Google+
DLNA Server
• Supports DLNA/UPnP TVs and Players such
as PlayStation 3 and Xbox 360
AirPlay
• Streams Videos, Photos and Music from
NAS to Apple TV via Qfile or QAirplay's Webbased Controller
Digital TV Station
• DVB-T Digital TV Live View, Recording, and
Playback
• Supports up to 4 USB TV Tuners*
• Electronic Programming Guide (EPG) with
Scheduled Recording
Note: The availability of DVB-T broadcasting
and EPG may vary depending on geographic
locations.
Download Station
• PC-less BT, FTP, and HTTP Download (up to
500 Tasks)
• BT Download with Magnet Link and PT
Support
• Scheduled Download and Bandwidth
Control
• RSS Subscription and Download
(Broadcatching)
• Bulk Download with Wildcard Settings
• RapidShare Download Support
• Website Subscription Service: YouTube,
Vemeo, niconico
• QNAP Download Management Software: QGet
- For Both Windows & Mac OS
- Manage the Download Tasks of Multiple
QNAP NAS Remotely over LAN or WAN
HD Station*
• Playbacks Videos, Music, Photos on TV with
XBMC via HDMI Output
• Watch Various Online Contents Such as
YouTube, Flickr, Picasa, Shoutcast, etc.
• Web Browser
• Supports USB U.S. Keyboards and Mice
• Supports iOS Qremote App and the Official
XBMC Remote App
Note:
1. For the best HD Station experience, QNAP
recommends upgrading your Turbo NAS
memory to 2GB or more.
2. The playback and quality of some video
files may be affected due to the current
CPU and GPU's decoding capability.
3. Currently the HDMI audio passthrough is
not supported.
APP Center
• Adds New Features by Online Installation
of over 90 Official and Community Software
Add-ons
* This feature may vary according to different
models.
** The data encryption functions may not available
in accordance with the legislative restrictions of
some countries.
Design and specifications are subject to change
without notice.
QNAP Systems, Inc.
TEL: +886-2-2641 2000 FAX: +886-2-2641 0555 Address: 2F, No. 22, Zhongxing Rd, Xizhi Dist, New Taipei City 221, Taiwan
Copyright © 2013 QNAP Systems, Inc. All rights reserved.
P/N: 51000-023447-RS
201307(ENG)A

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
